Architects:Lab D+H
Area :250 m²
Year :2017
Photographs :Xi Tang, Conggang Yu
Lead Architects :Huicheng Zhong
Client : Kunyu Mountain National Park Management Committee
Design Team : Huicheng Zhong, YoungJoon Choi, Zongjie Liang, Jin Huang, Hao Lan, Feimin Song
City : Yantai
Country : China

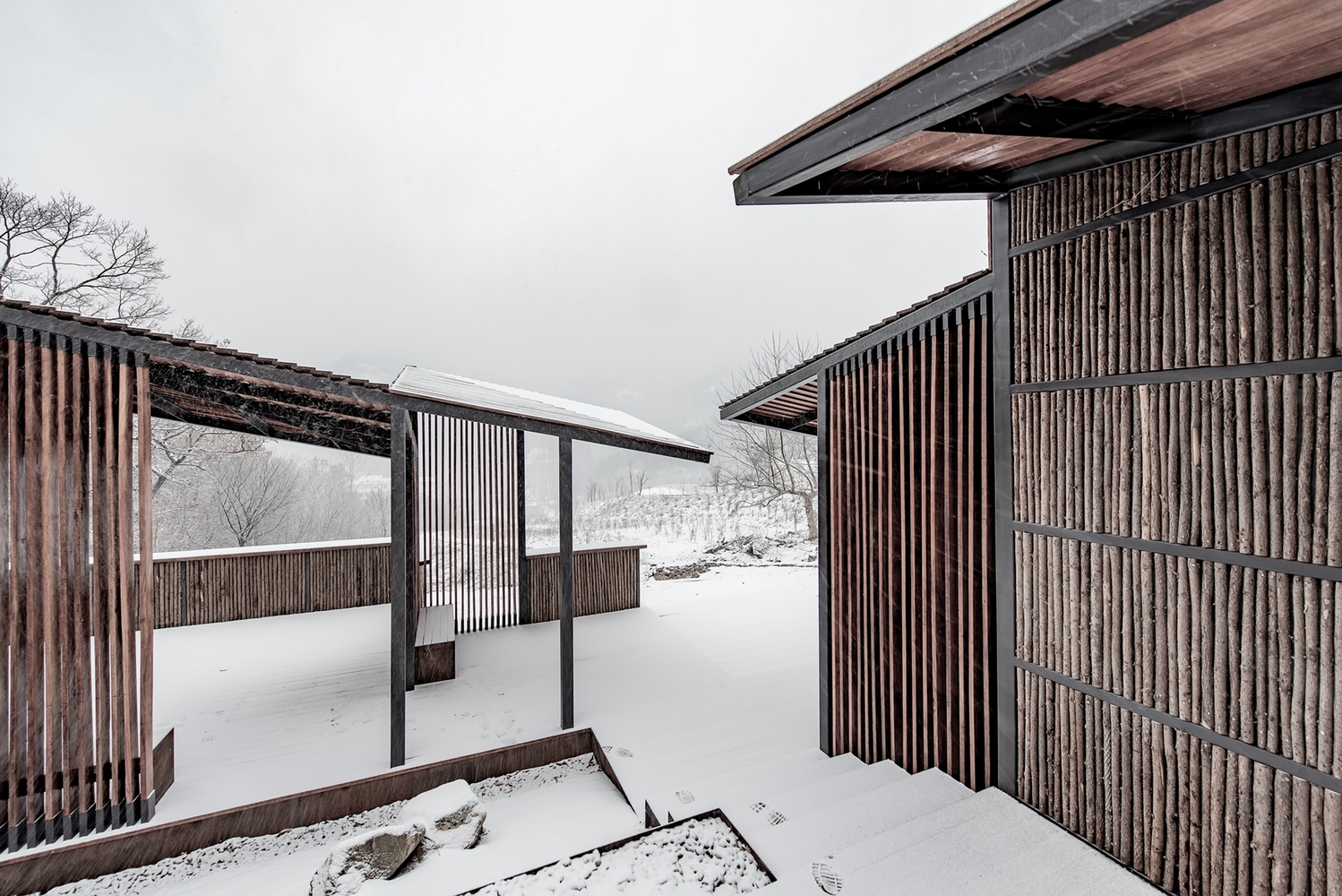

Lab D+H 打造的山地生态公共卫生间-9

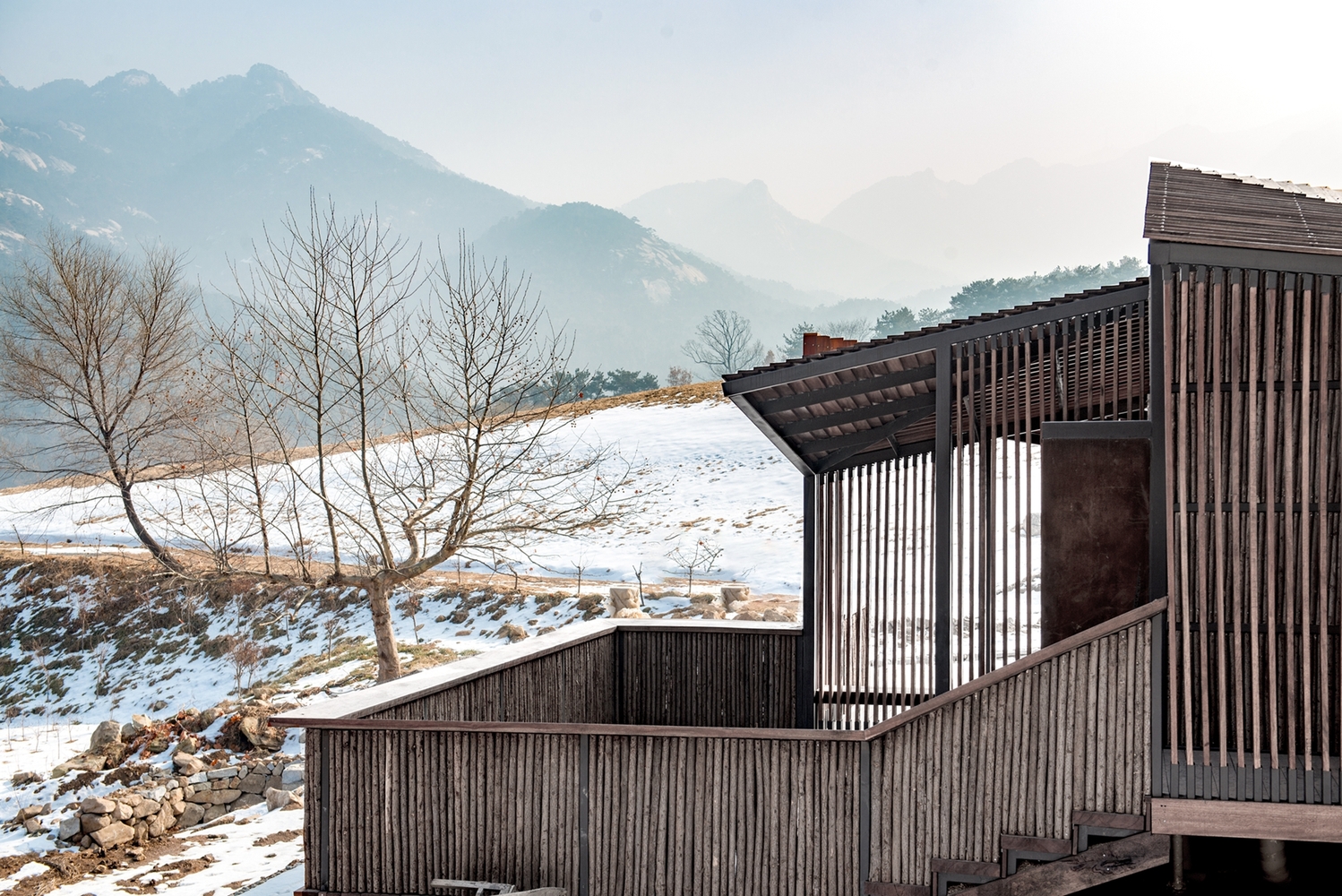

Lab D+H 打造的山地生态公共卫生间-10

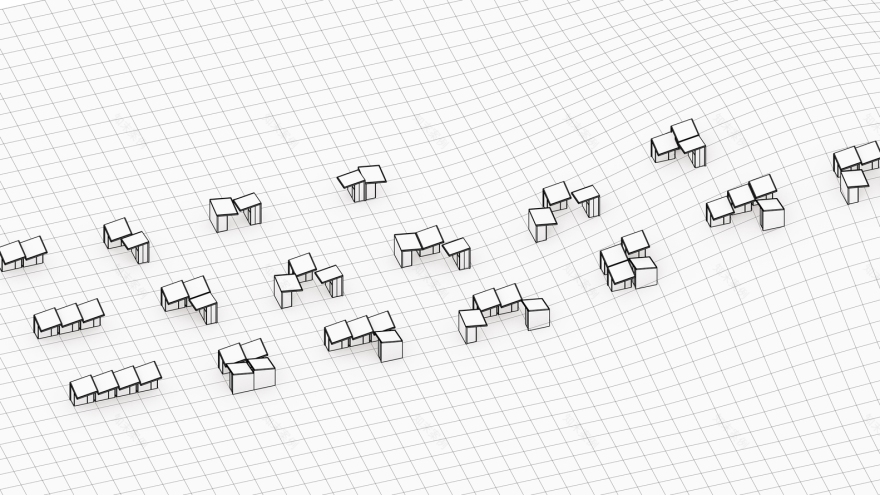

China's Kunyu Mountain National Park is promoting a series of facility upgrades within its 50 km2 national natural preserve, and the management committee invited Lab D+H to design a pilot public toilet which would serve as the new model of public facility in the KM National Park. At the very beginning, client had not decided where the toilet would be located. Therefore, instead of proposing a restroom design, we put forward a modular system which can be adapted based on different topographic conditions. This site-specific strategy was greatly appreciated by the client and together, we chose a site: a terrace within the current alpine botanical garden at the edge of the forest.
Lab D+H 打造的山地生态公共卫生间-12

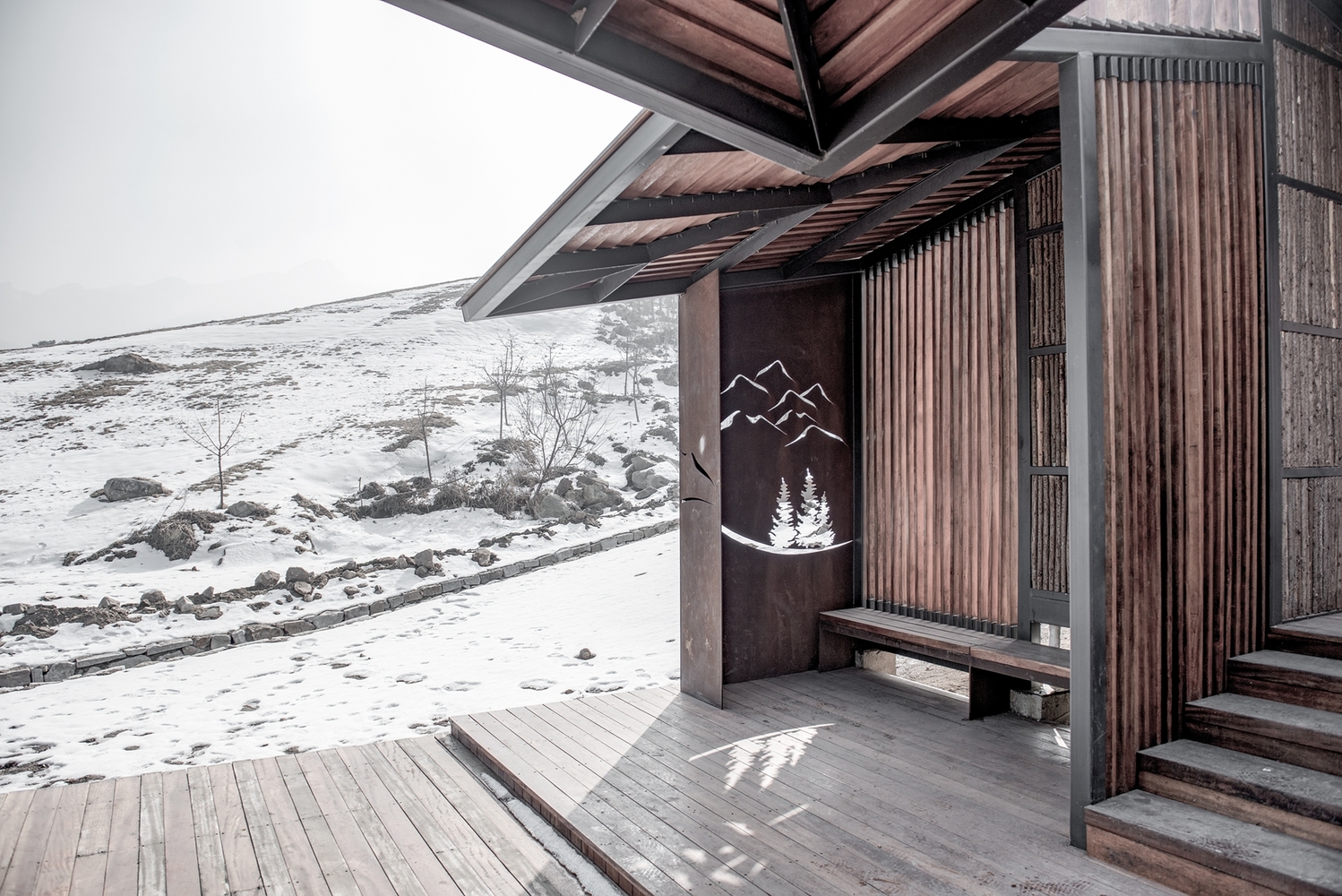

In English-speaking society, a toilet is often referred to as a "restroom", insinuating that it is a place for rest. Therefore, instead of designing the toilet building, we decided to create a graceful and restful place in dialogue with nature, specifically within this environmental sensitive place.
Lab D+H 打造的山地生态公共卫生间-14
Lab D+H 打造的山地生态公共卫生间-15
Lab D+H 打造的山地生态公共卫生间-16

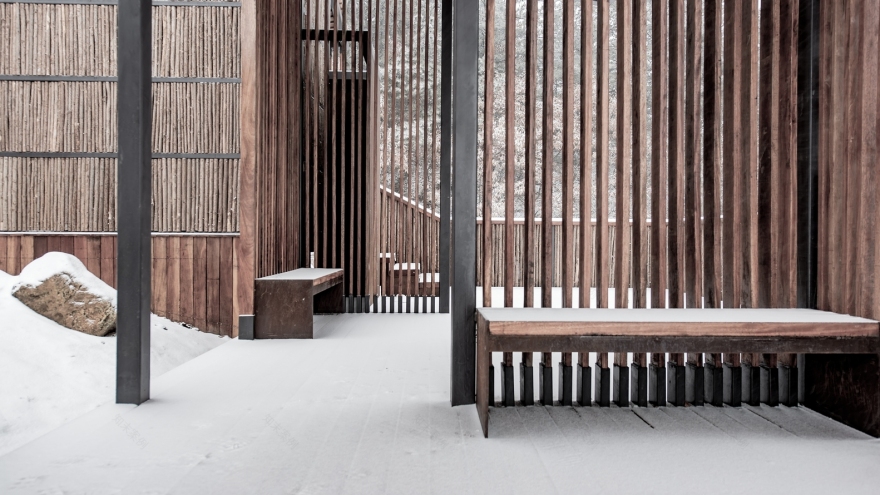

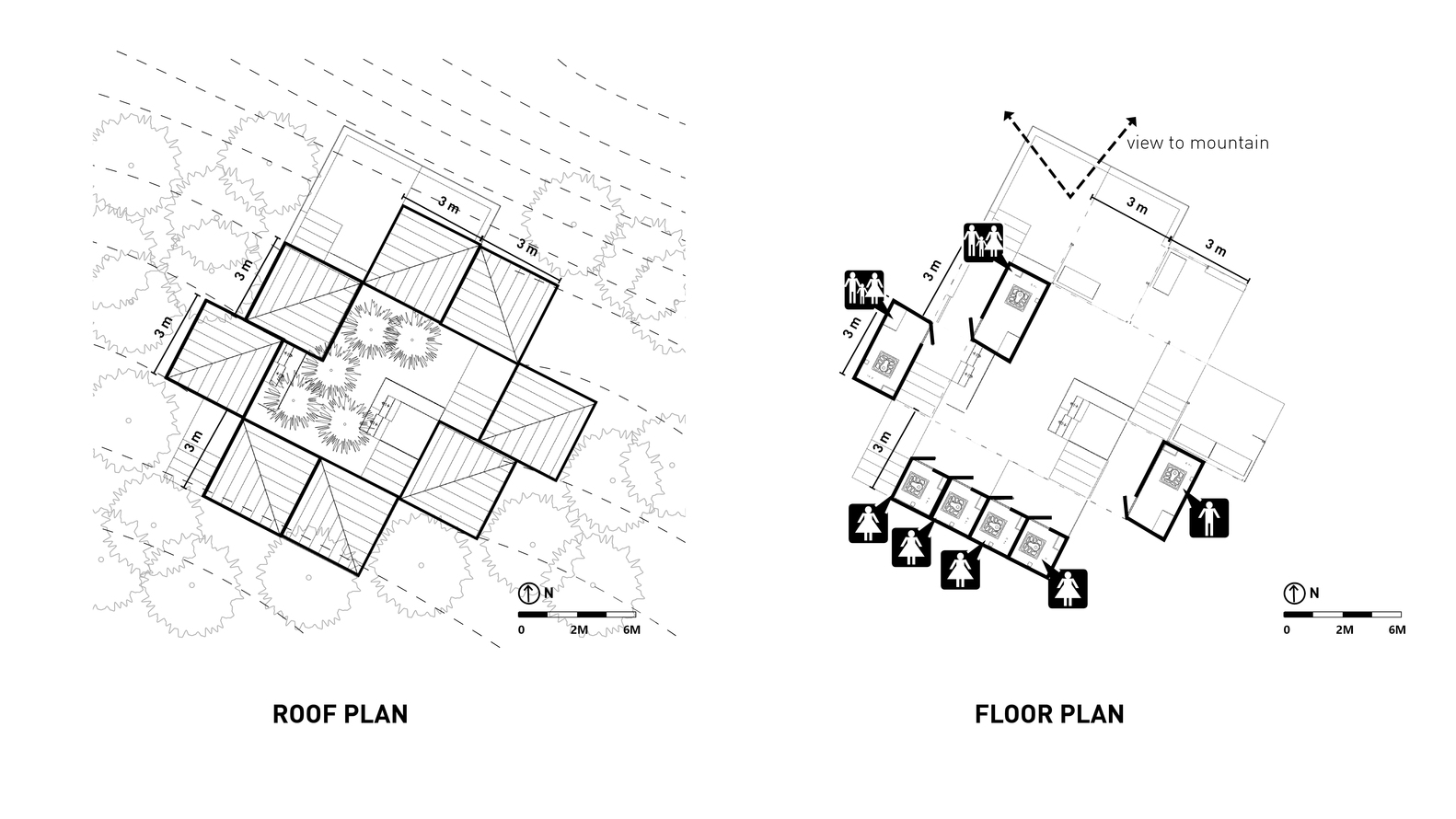

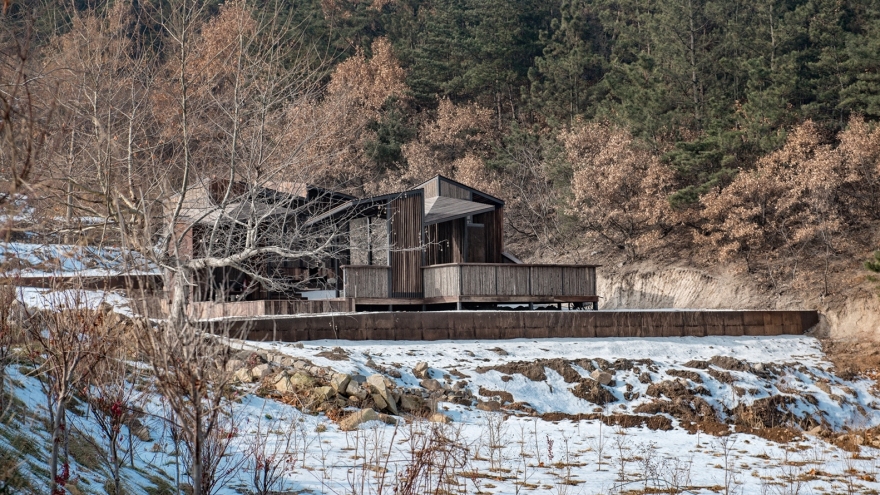

Through adaptation and organization of the modules, a courtyard was created based on existing terrace contour. The courtyard garden was wrapped by a canopied corridor running both up and down. The setting of the viewing deck provided a waiting place and the best viewing spot towards the mountain.
Lab D+H 打造的山地生态公共卫生间-18

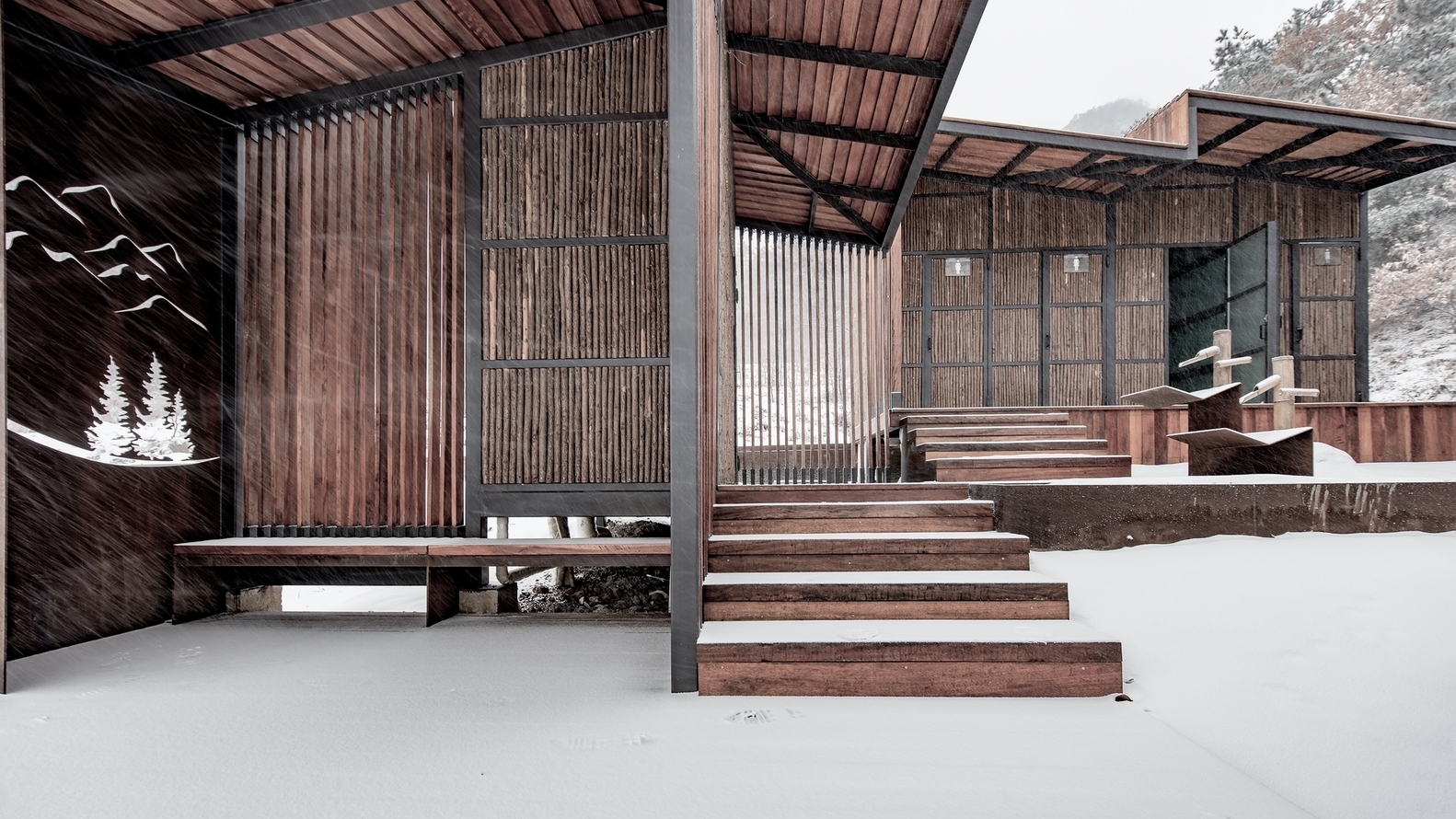

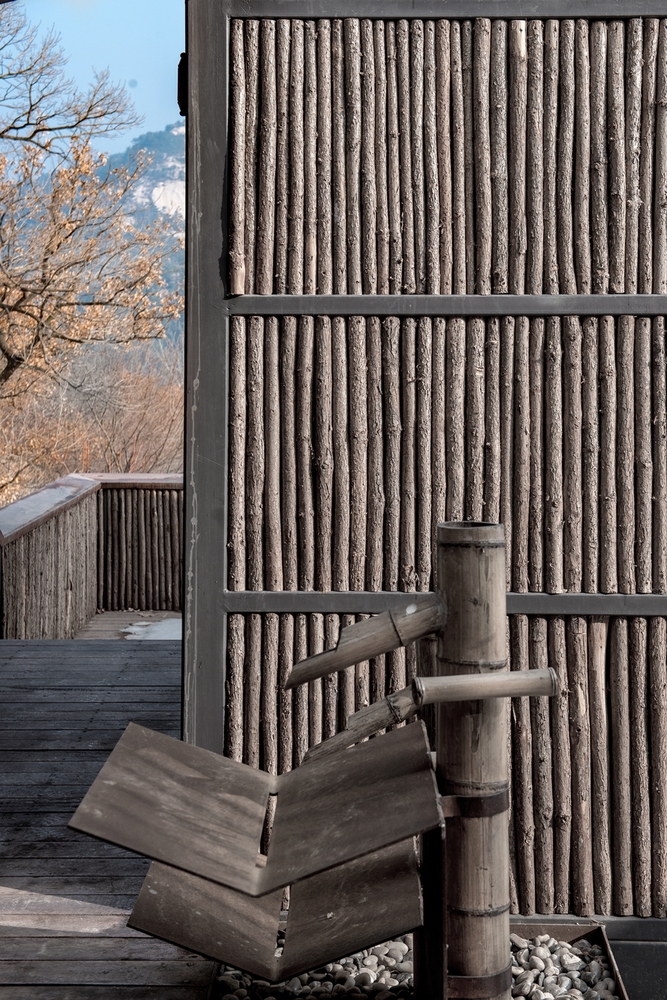

The canopied corridor threaded the courtyard's two parts: the rest area and restroom area. The rest area was formed by continuous transition of modular pavilions, for waiting and view-seeing. The restroom area was divided into men's room, lady's room and family's room. There were two hand-washing points at the edge of courtyard where water was charged directly to the ground after being filtered from the gravel basin.
Lab D+H 打造的山地生态公共卫生间-20
Lab D+H 打造的山地生态公共卫生间-21
Lab D+H 打造的山地生态公共卫生间-22

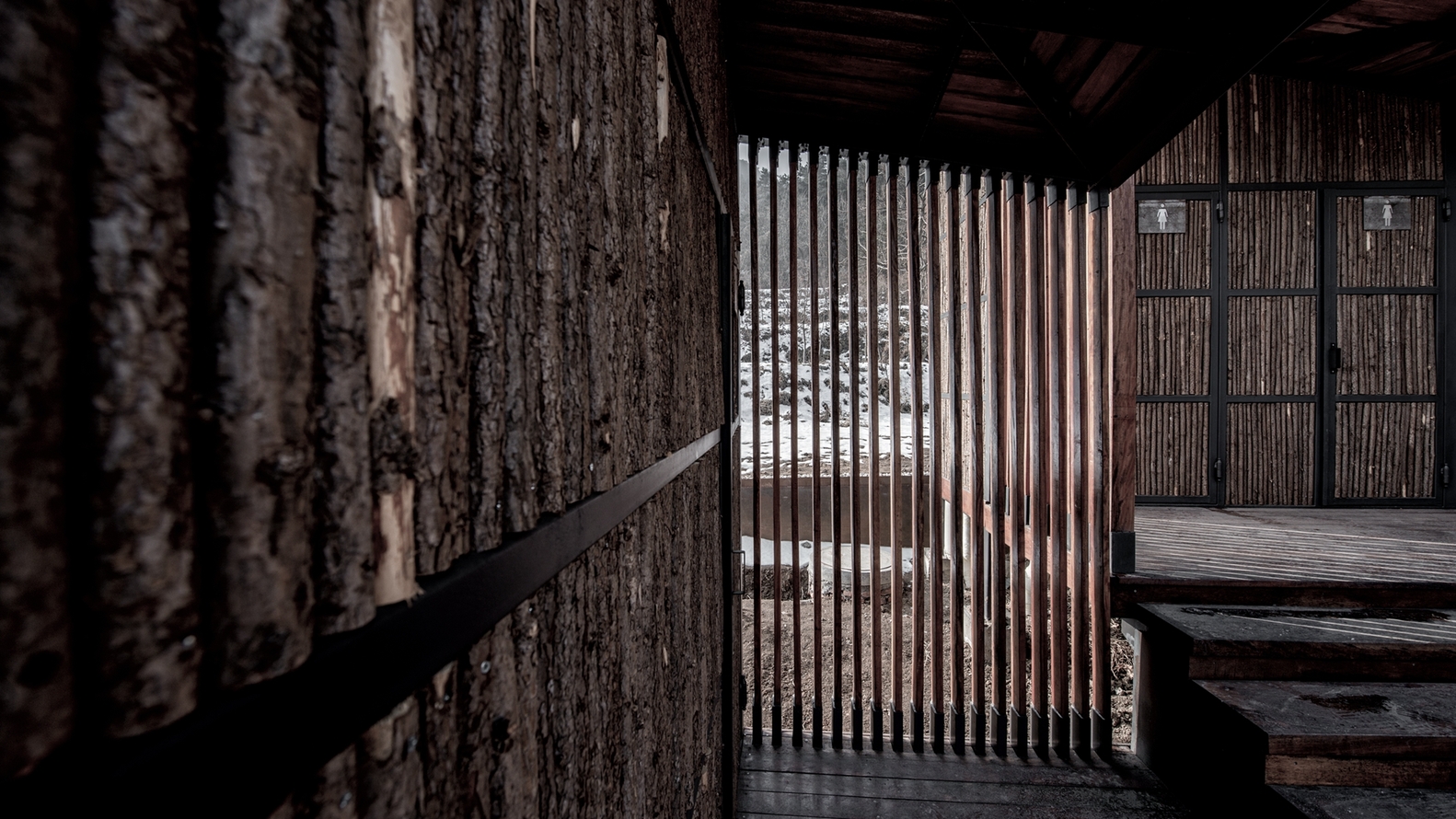

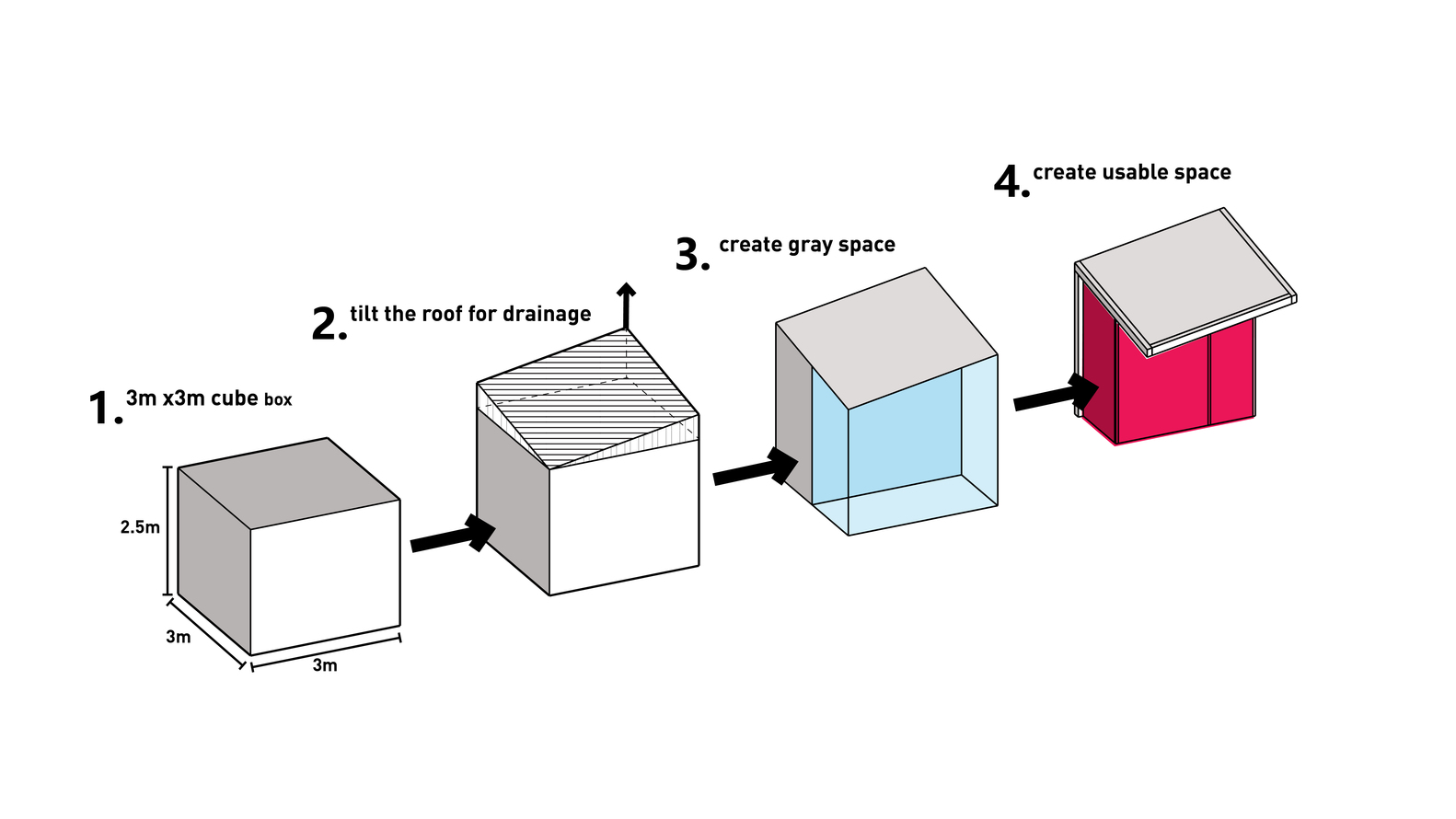

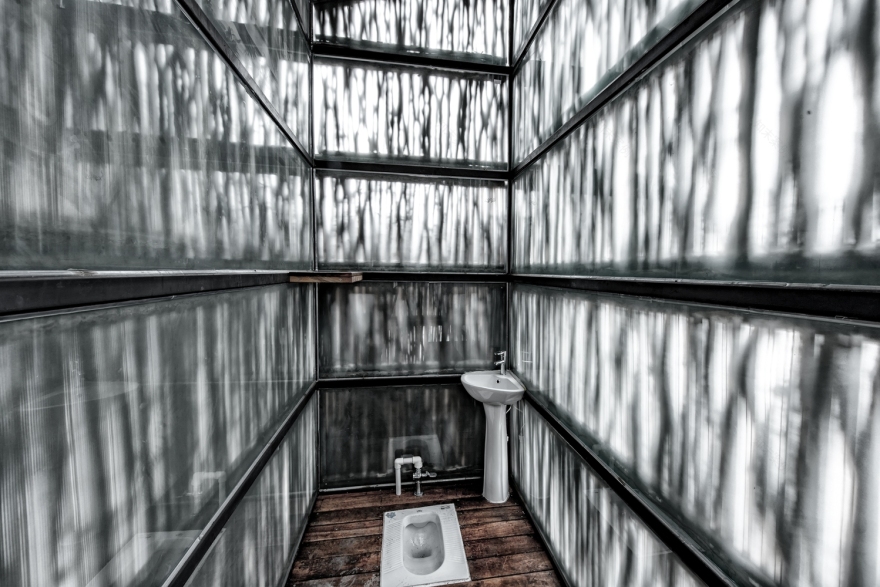

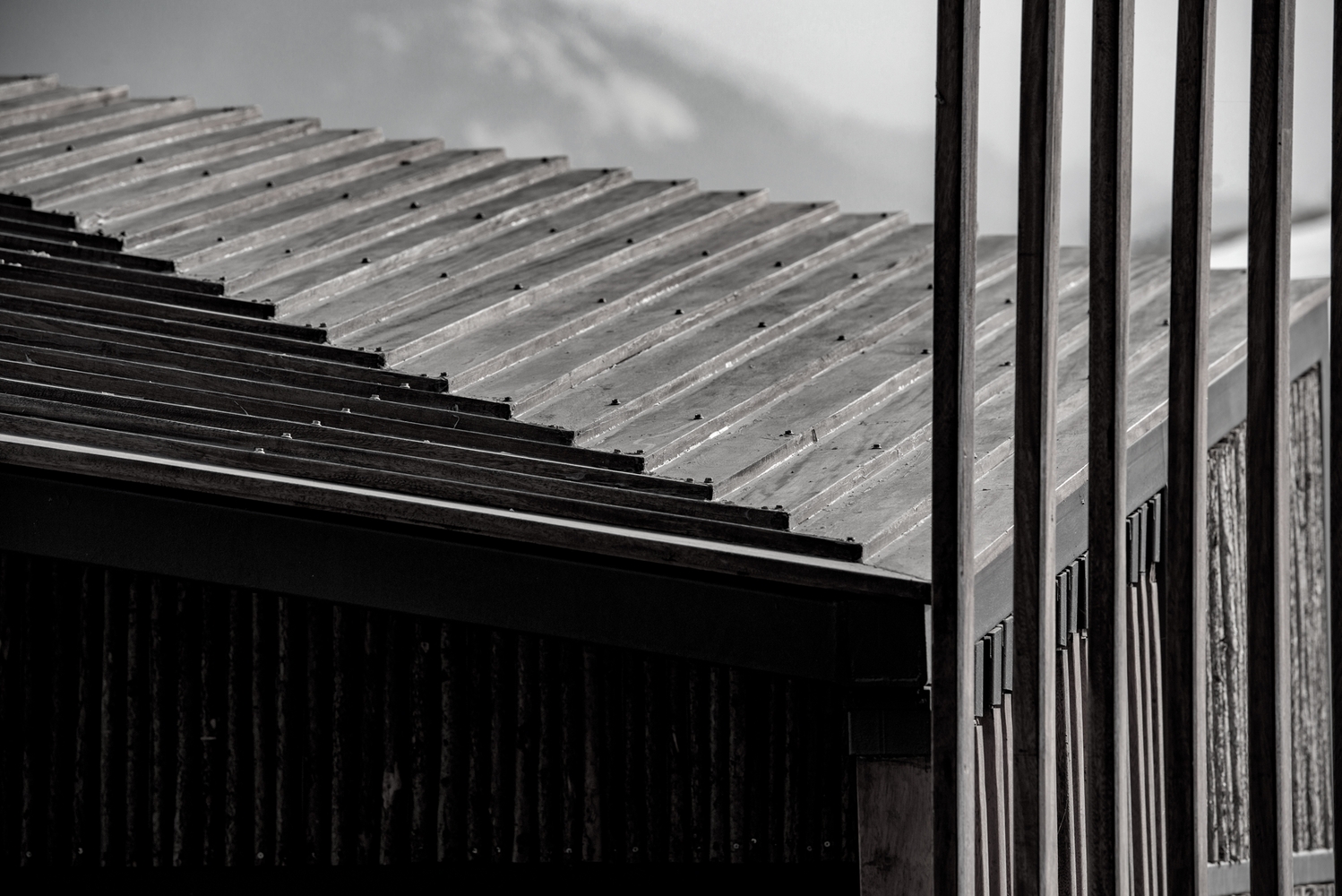

After assembling the module, the diagonally pitched roof units formed a geometric silhouette, generating a dialogue with the rolling mountain ridge. The restroom skin was juxtaposed with twig and sanded glass, protecting privacy while creating interesting light & shadow effect.
Lab D+H 打造的山地生态公共卫生间-24
Lab D+H 打造的山地生态公共卫生间-25
Lab D+H 打造的山地生态公共卫生间-26

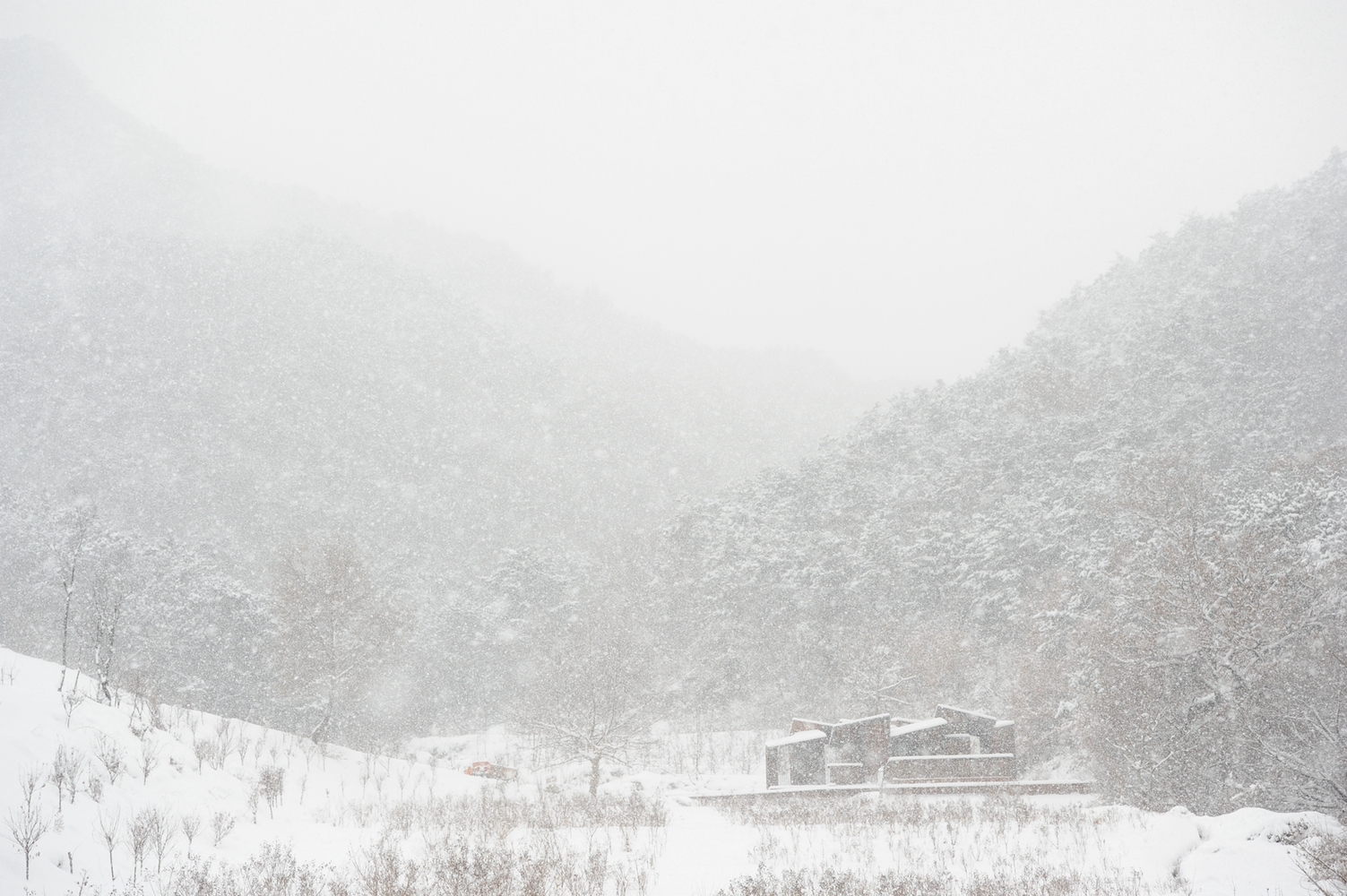

From site selection, design strategy and materiality all the way to construction method, an innovative low impact design approach was adopted. This modular system was proved to be easily applied to the facility upgrade endeavors throughout the national park. We are currently working on two more restrooms with client in two other locations based on this modular approach with different topographic conditions.
Lab D+H 打造的山地生态公共卫生间-28
▼项目更多图片
Lab D+H 打造的山地生态公共卫生间-30
Lab D+H 打造的山地生态公共卫生间-31
Lab D+H 打造的山地生态公共卫生间-32
Lab D+H 打造的山地生态公共卫生间-33
Lab D+H 打造的山地生态公共卫生间-34
Lab D+H 打造的山地生态公共卫生间-35
Lab D+H 打造的山地生态公共卫生间-36
Lab D+H 打造的山地生态公共卫生间-37
Lab D+H 打造的山地生态公共卫生间-38
Lab D+H 打造的山地生态公共卫生间-39
Lab D+H 打造的山地生态公共卫生间-40
Lab D+H 打造的山地生态公共卫生间-41
