徐州城墙博物馆

城墙博物馆于古城徐州南门（奎光门）东延的古城墙遗脉之上设计建造。古城墙深埋600余年，考证为明代遗存。古城徐州，始于大禹治水，2600余年建城史。明代天启，黄河改道，水患频发，古城屡遭淹没。新城于旧城之上原址重建，成就“城下城、府下府、街下街、井下井”的古城遗脉。

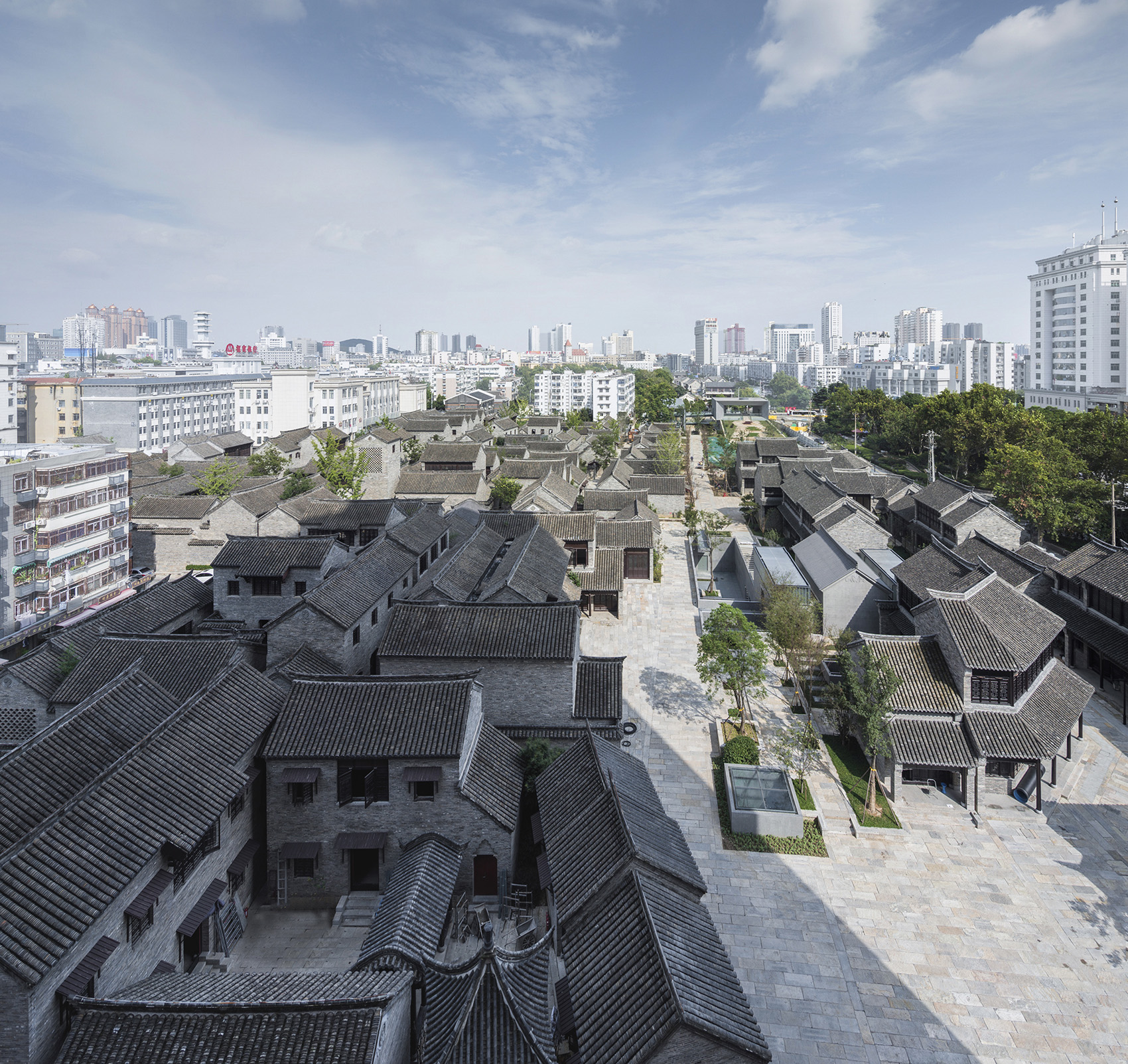

▼历史街区中的城墙博物馆，the museum is located in a historical city area

The City Wall Museum is designed and built on the remains of the ancient city wall which locates on the east side of ancient city’s south gate (QuiGuang Gate). The ancient city wall was the remnant of Ming Dynasty and was buried for more than 600 years. Ancient Xuzhou, back to the dynasty of YU, has over 2600 years of city-construction history. The city is warrior fortress with thousands of years of prosperity. In the year of TianQi in Ming Dynasty, the Yellow River was rerouted, floods frequently occurred, and the ancient city was repeatedly submerged. The new city was rebuilt on the site above the old city, which made relics of ancient Xuzhou as “City under City, Building under Building, Street under Street, and Well and Well.”

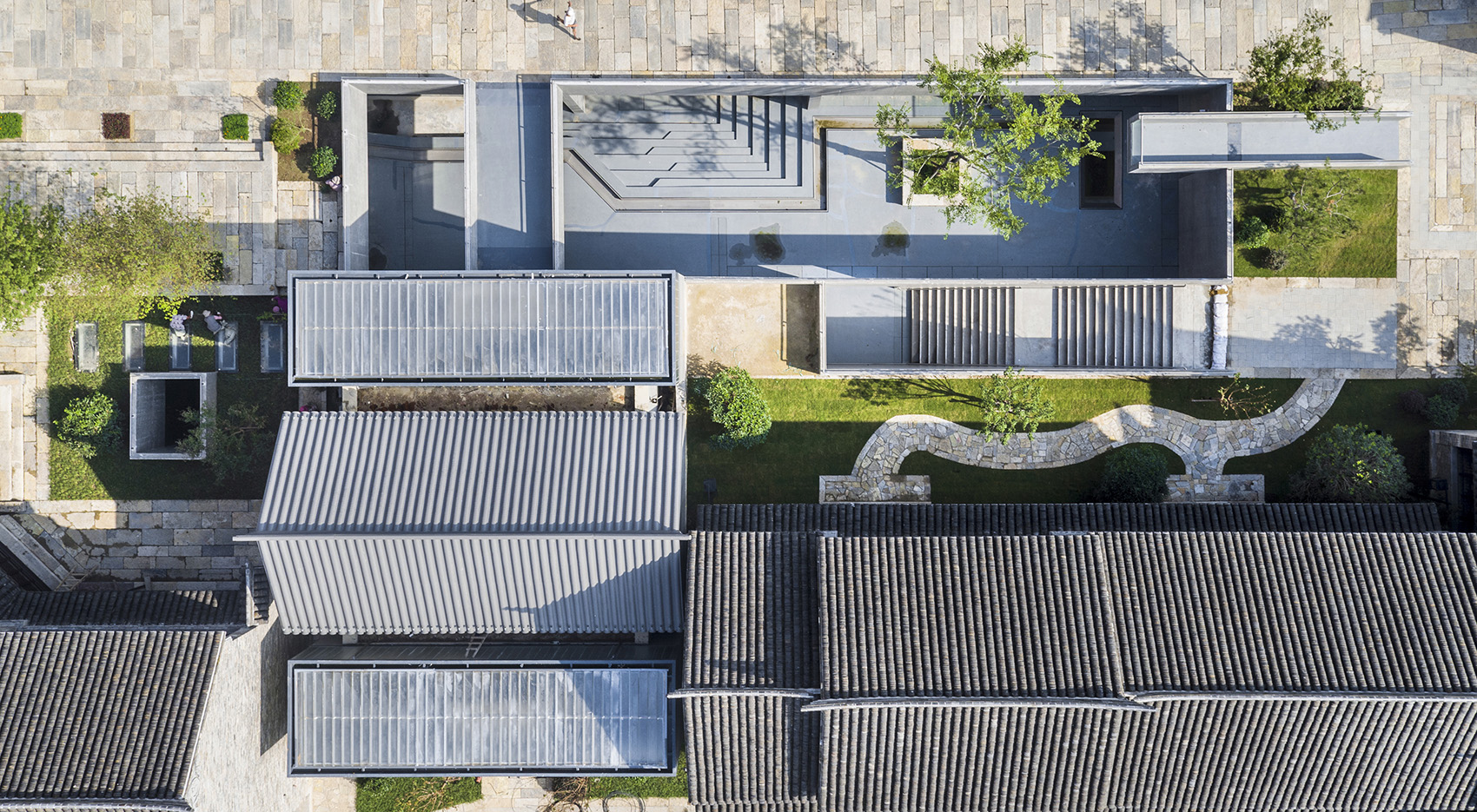

▼城墙博物馆正鸟瞰，aerial view

城墙博物馆以现代语境表达传统建筑，隐喻时间交错与链接。博物馆在地面层和地下层两重标高展开。地面层为门厅及序厅，建筑形式、体量与比例均遵循传统形制，以因应其所在回龙窝历史街区的传统建筑与街巷。地下层为城墙文脉展示，隔墙交错而置，构建空间层次与起伏：或狭长、或明阔、或连续、或停留，因时间的切片式场景而呈现节奏分明的状态。博物馆终以室外庭园收尾。庭园北侧见古城墙，古城墙同时作为展品与空间构建，重新定义空间气质：朴素、沧桑而真实。庭园东侧上空悬挑一桥，向西可凭栏观景，形成东西景观轴线。庭园地面以多重折线跌落石阶弥合黄河古道，与东侧桥下飞瀑水流相连，沿古城墙外侧而行，隐喻护城河水流。方寸之间，已成磅礴之势。

▼北向入口，north entrance

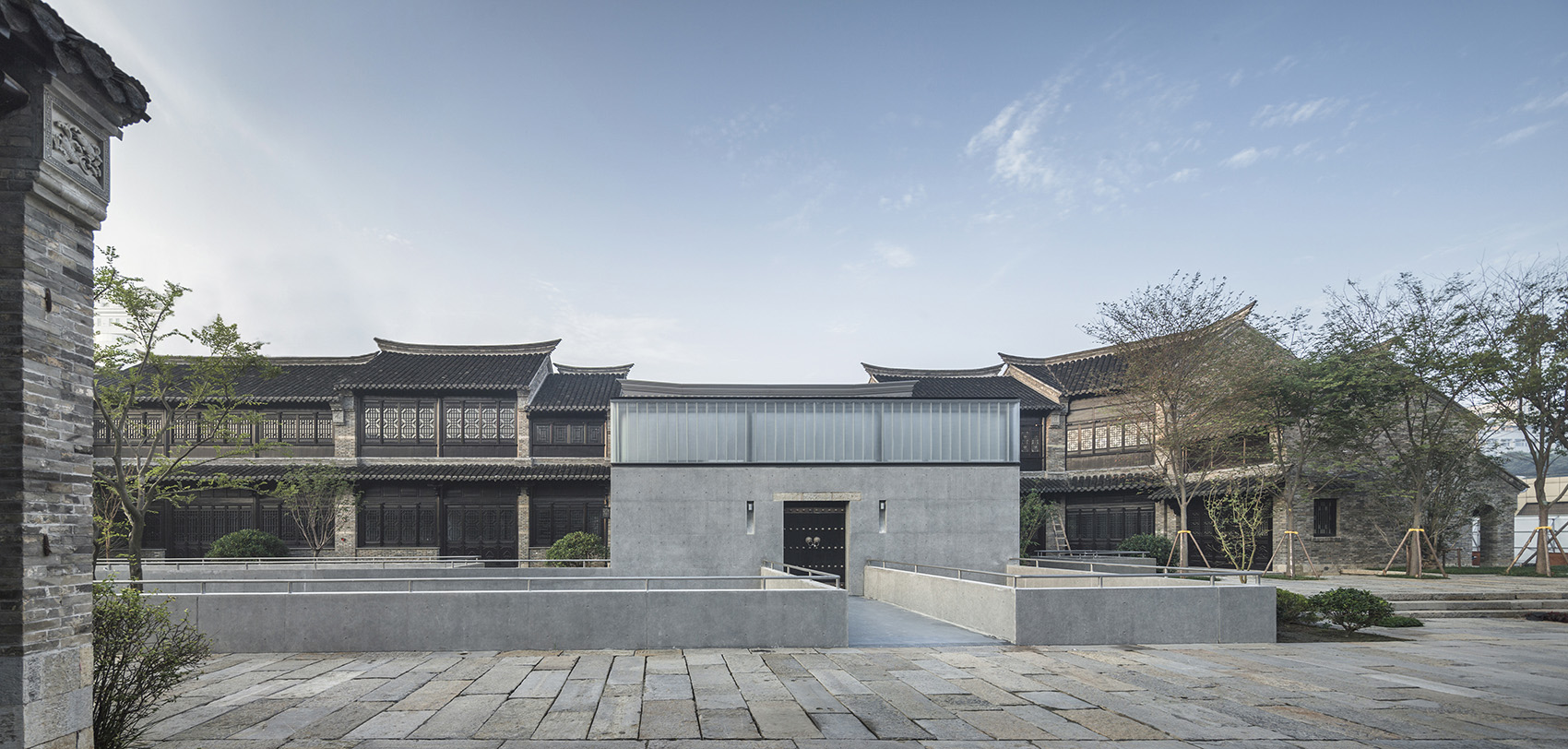

▼主立面，facade

The City Wall expresses traditional architecture in modern context, to metaphor time staggering and linking. The museum is launched on the ground level and the underground level at two elevations. The ground floor is the entrance hall and the preface hall. The forms, masses and proportions of the building follow the shape of the ancient city architecture, in response to traditional buildings and streets in the site of Huilongwo history district. The underground floor is the exhibition space of city wall context. Partition walls are arranged in a staggered manner to construct spatial levels and fluctuations: The space is narrow-long, or bright, or continuous, or pauses and the state of rhythm is clearly displayed due to the sliced scene of historical time. The exhibition hall is finally ended in an outdoor garden, where the ancient city wall can be seen in the north. As exhibits and space construction at the same time, the city wall redefines the temperament of the exhibition hall as simplicity, vicissitudes, and truth. A bridge is cantilevered on the east side over the garden and leads a landscape view to the west. On the ground of the garden, dropped stone steps in multiple folding lines is used to bridge the course of Yellow River, connecting to the waterfalls on the east side of the bridge, which flows along the outer side of the ancient city wall, in order to metaphor the moat flows. Between the inches, it has become a majestic trend.

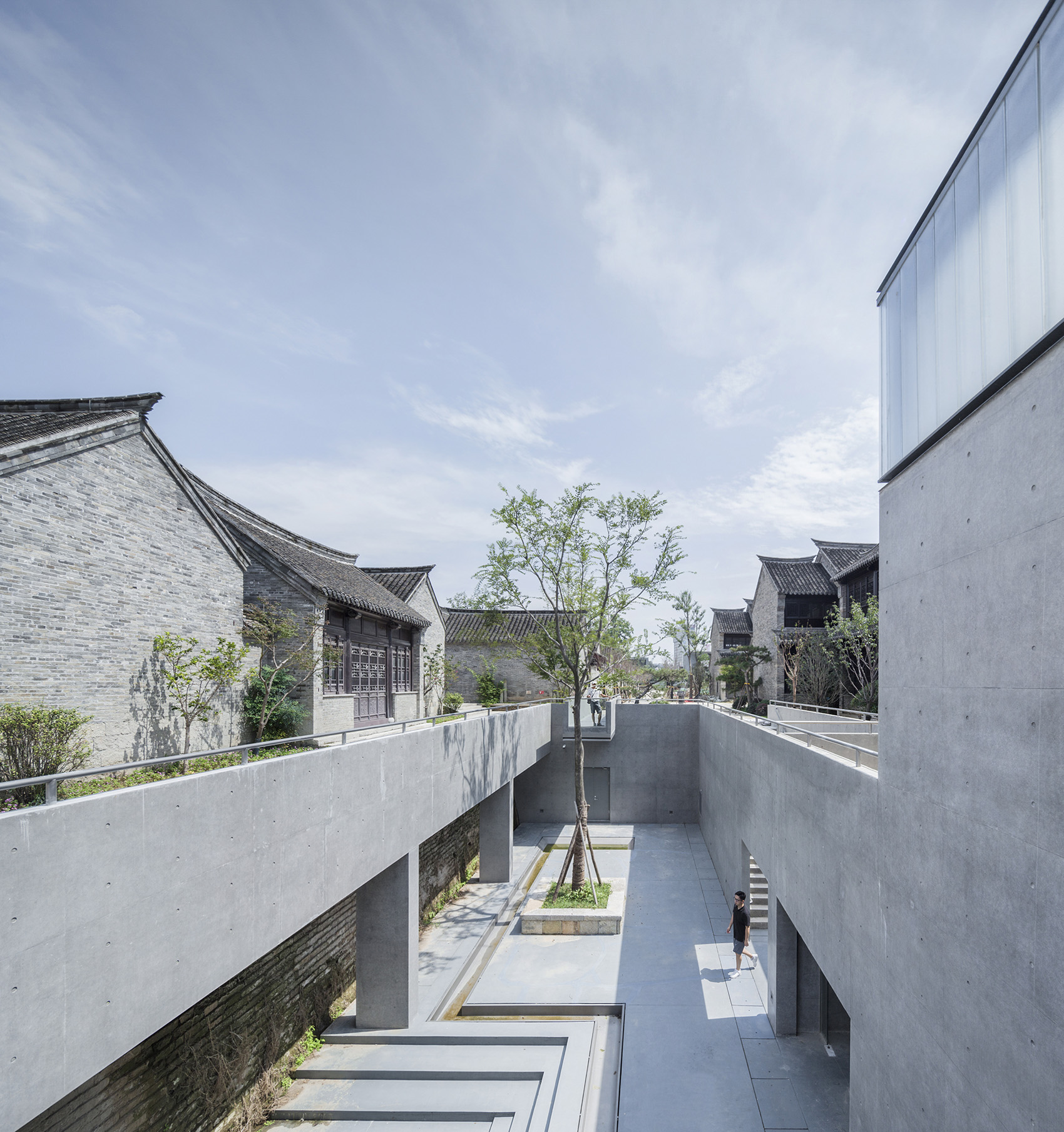

▼东西景观轴（西侧视角），east-west landscape axis (view from west)

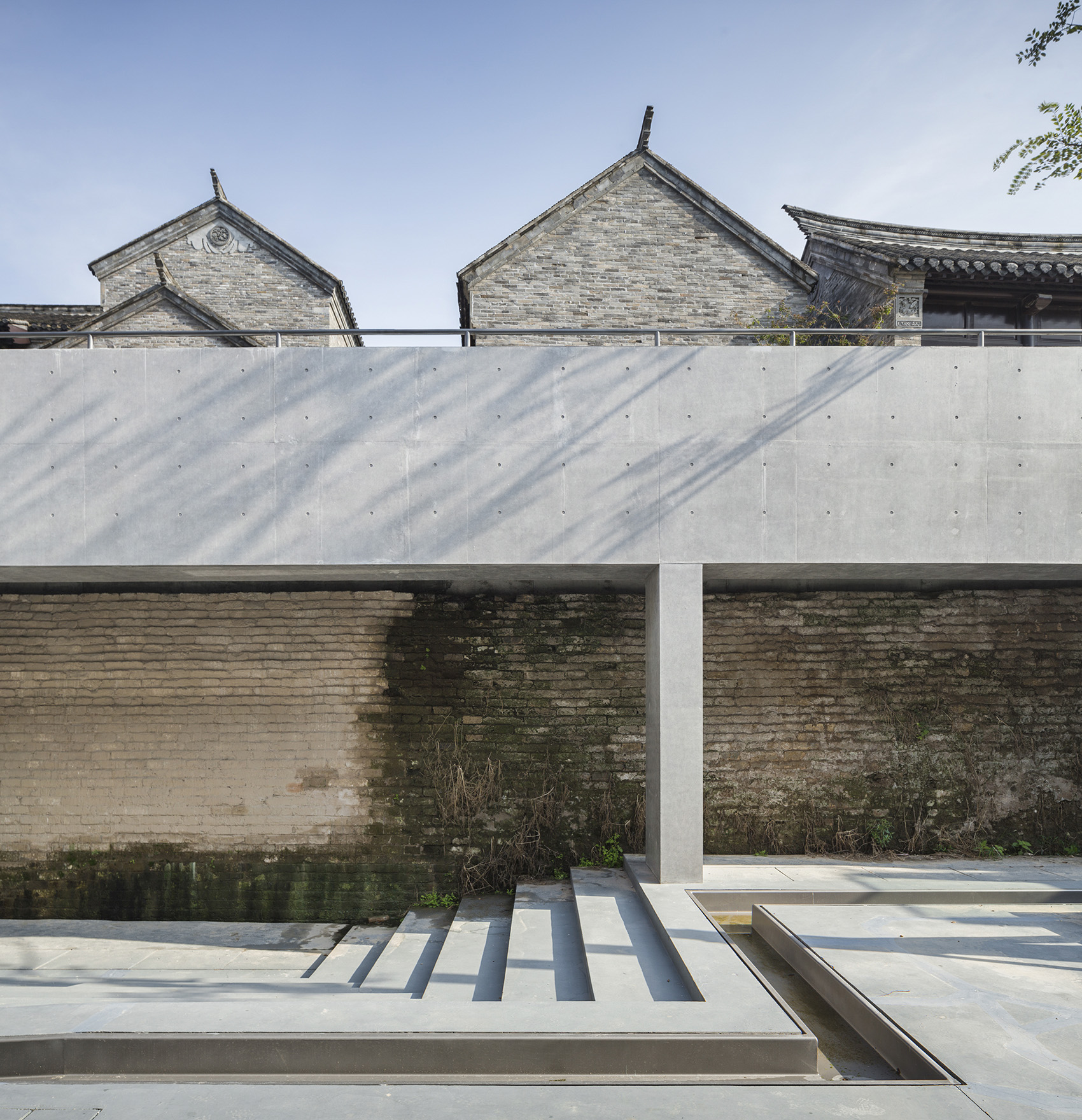

▼古城墙与清水混凝土，the ancient city wall contrast with the fair-faced concrete volume

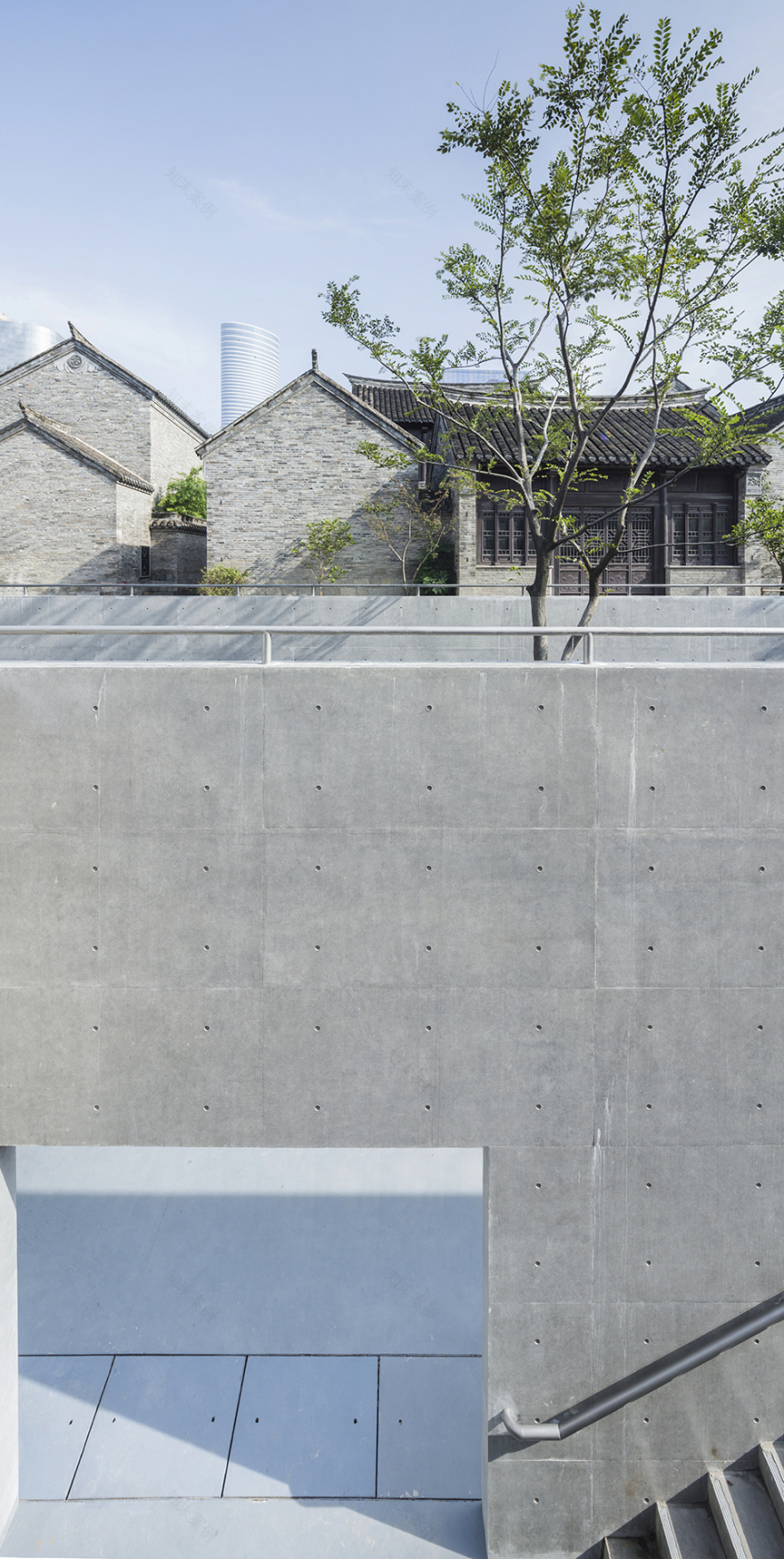

▼材料中的时间层次，layers of time proved by the material

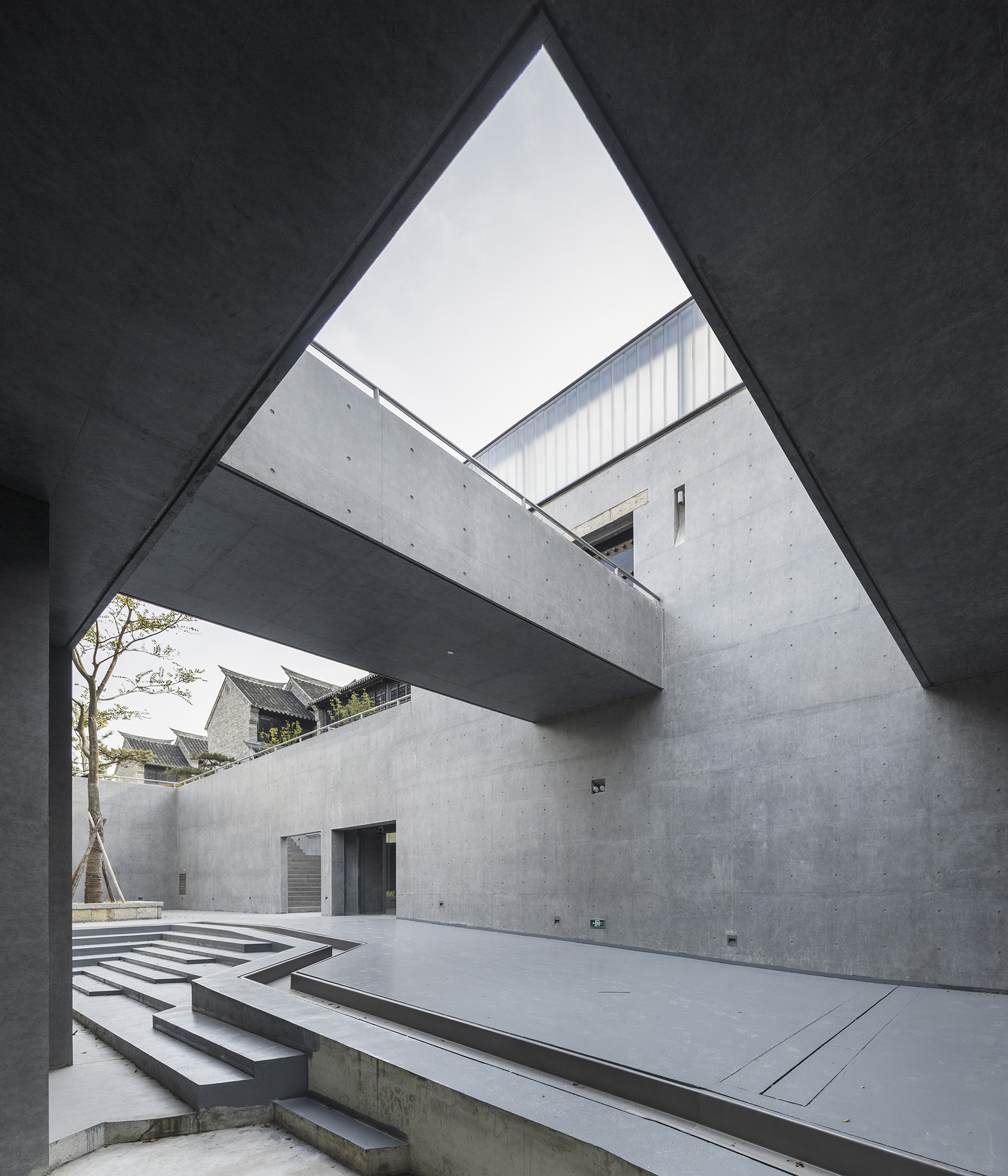

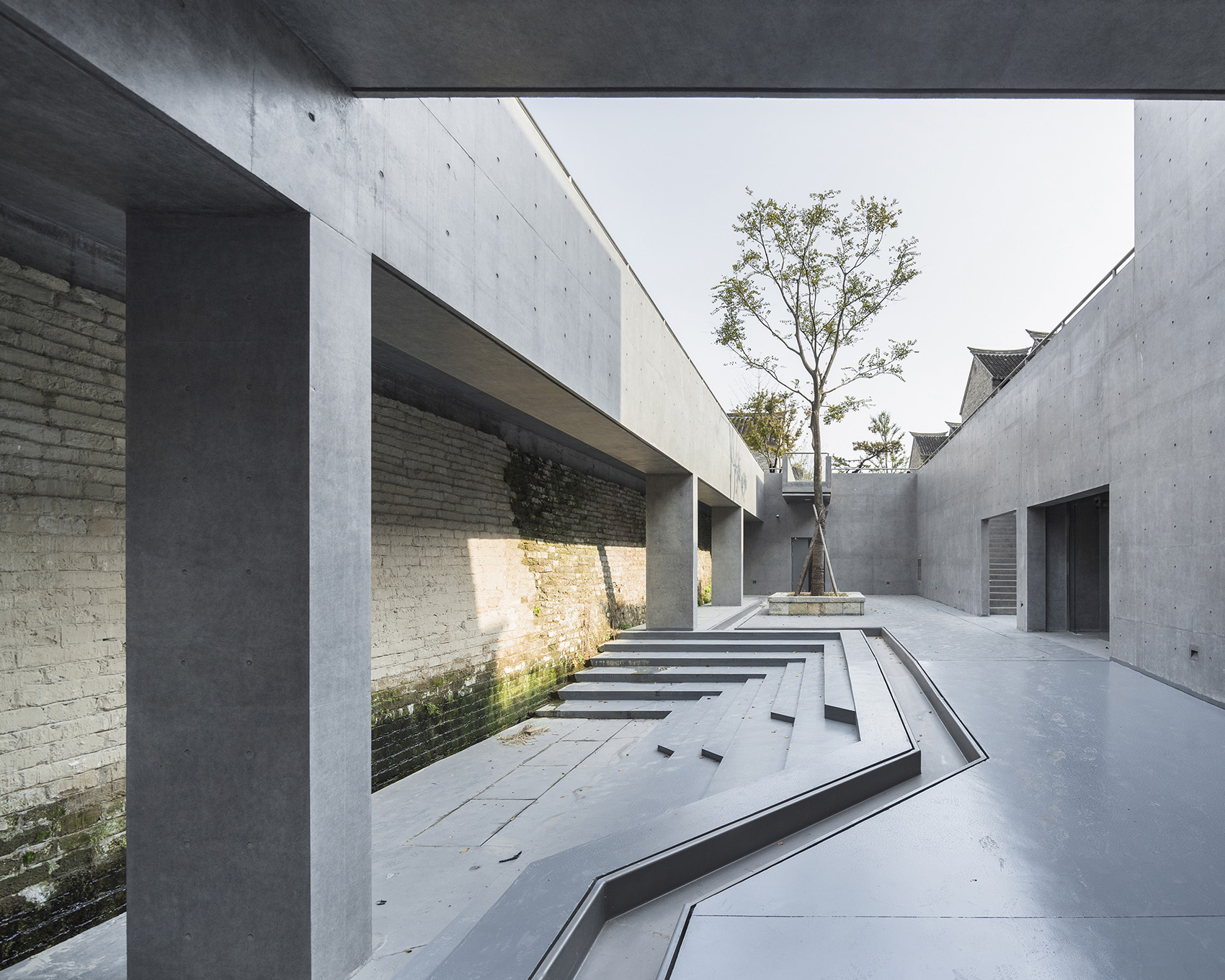

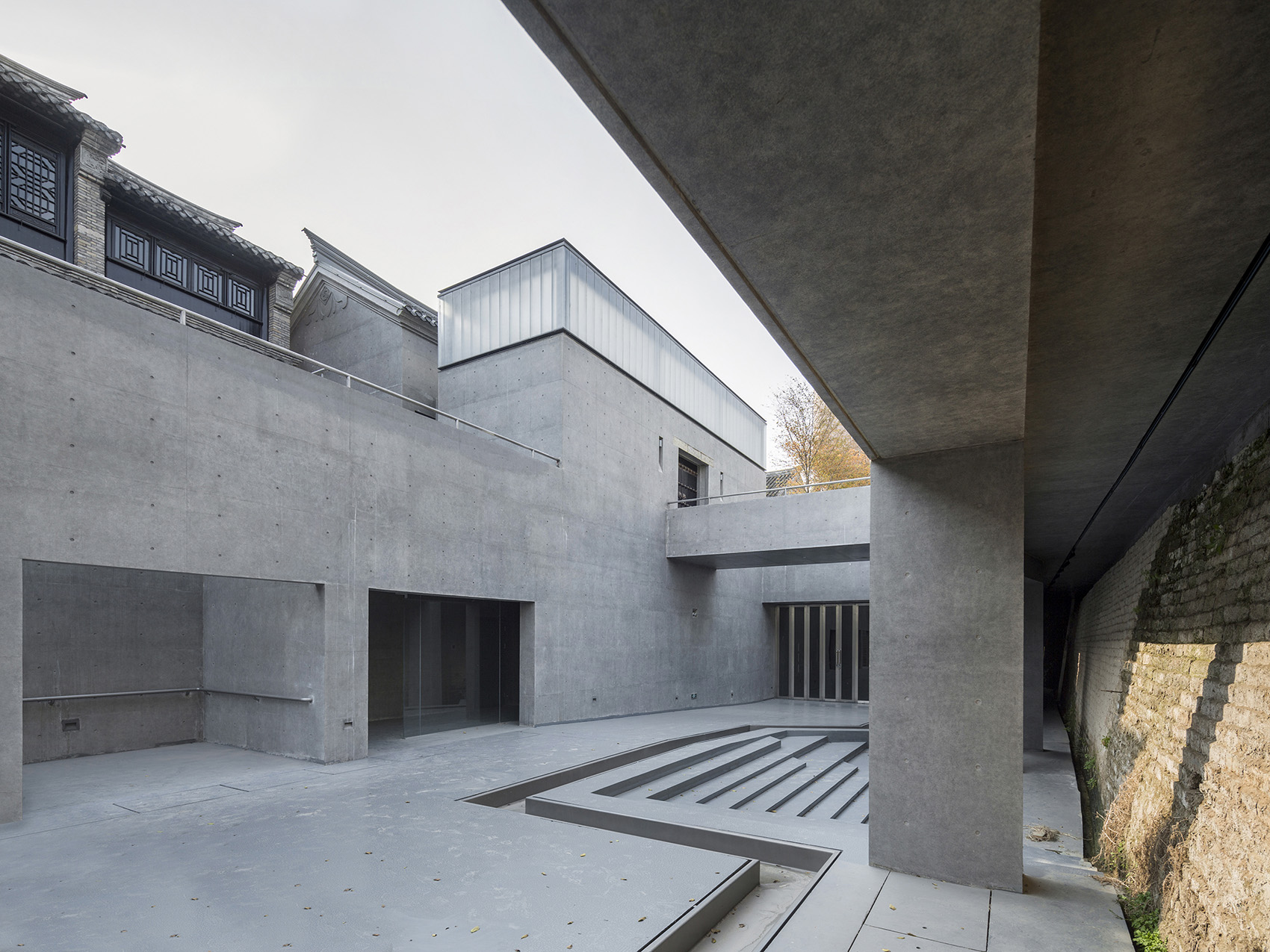

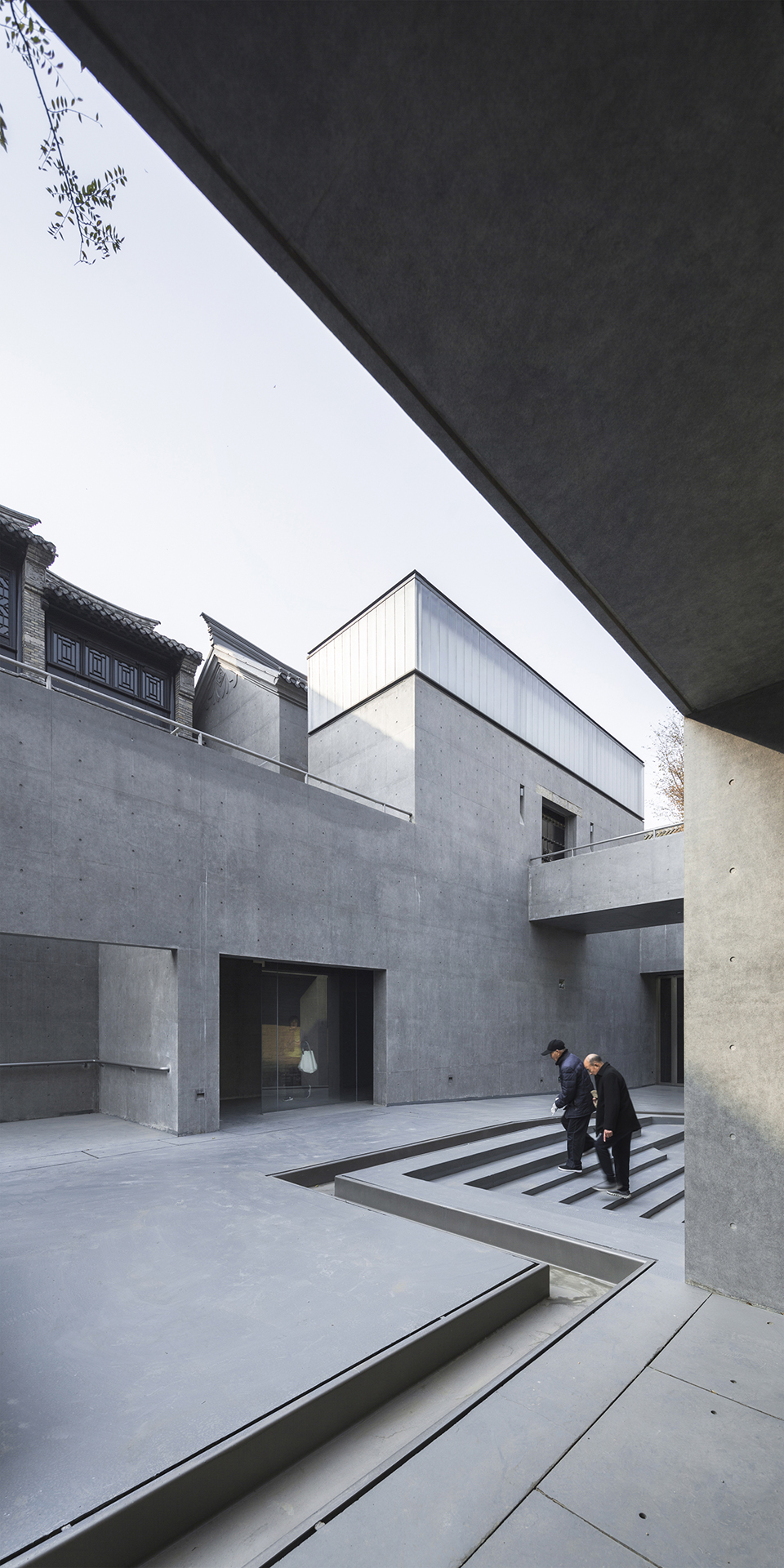

▼庭院视角，courtyard view

城墙博物馆以清水混凝土及U型玻璃构筑，并创造性尝试将U型玻璃用于屋面。其意以拟合传统民居成像：清水混凝土与传统民居的清水砖照应，立面U型玻璃拼接与传统民居的木板拼接照应，屋面U型玻璃则与传统民居的屋面瓦的排布相照应。清水混凝土独特的光泽和质感渲染着整体建筑的深邃气质。U型玻璃多重漫反射和温润如玉的特性和性格重构建筑空间的光环境。庭园之中，引桥之上，清水混凝土又与古城墙、与传统民居清水砖墙成为对比。三者同画，所呈现的时间层次，其平衡与张力，直至深远。

The museum is constructed with fair-faced concrete and U-shaped glass. The design intents to fit traditional residential imaging: The fair-faced concrete corresponds to the clean water bricks of traditional houses. Facade U-shaped glass splicing corresponds to the traditional wooden splicing of residential houses. U-shaped glass in the roof is in line with the arrangement of roof tiles in traditional houses. Fair-faced concrete’s unique luster and texture renders the deep architectural qualities of the entire building. U-shaped glass reconstructs the light environment of the building space due to its multiple diffuse reflections and moist jade like character. In the garden, on the approach bridge, the fair-faced concrete is contrasted with the ancient city wall and the traditional residential clear-water brick wall. With three items in one picture, the balance of time and the tension they present are far-reaching.

▼从展厅望向庭院，courtyard seen from the exhibition hall

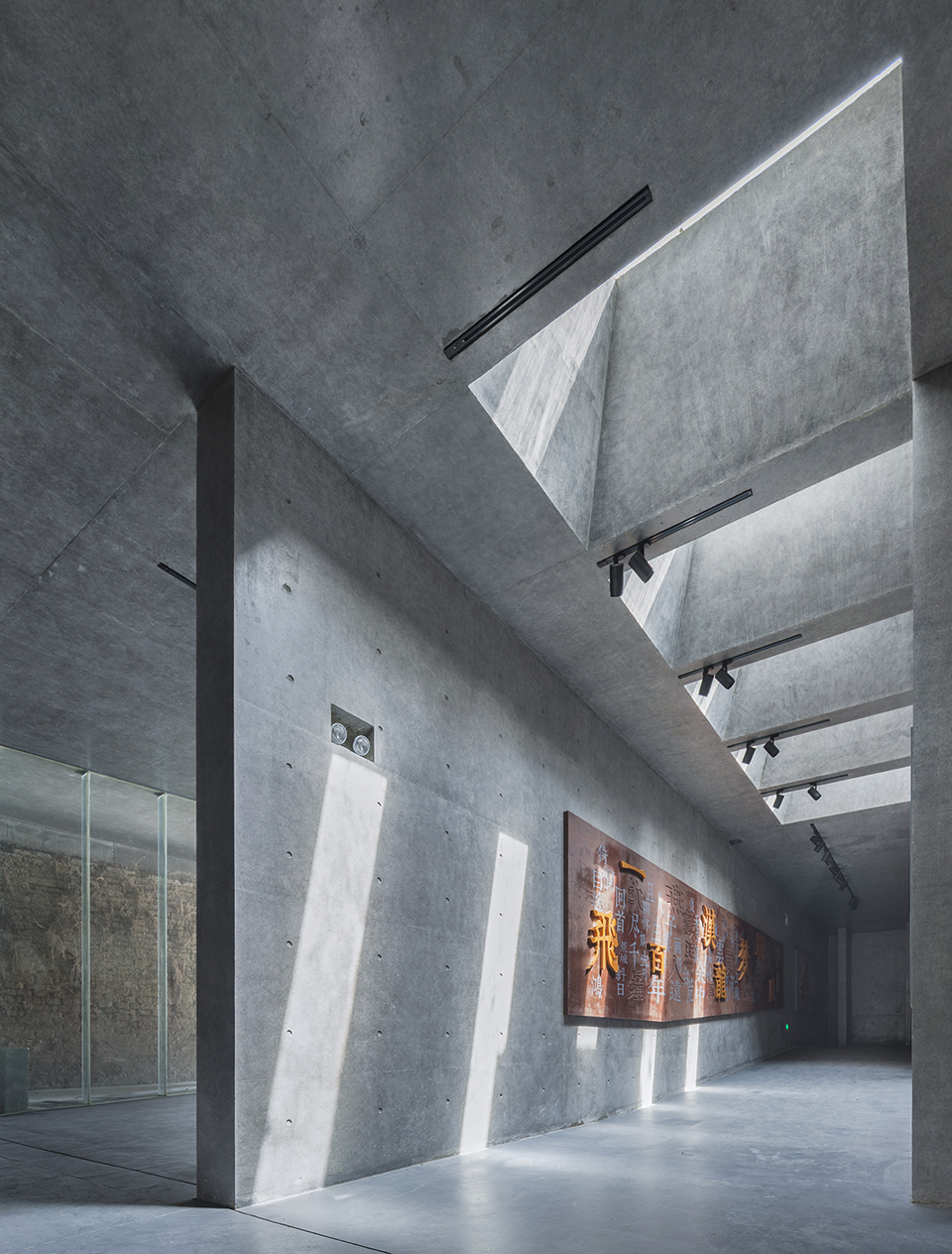

▼展厅空间，exhibition hall

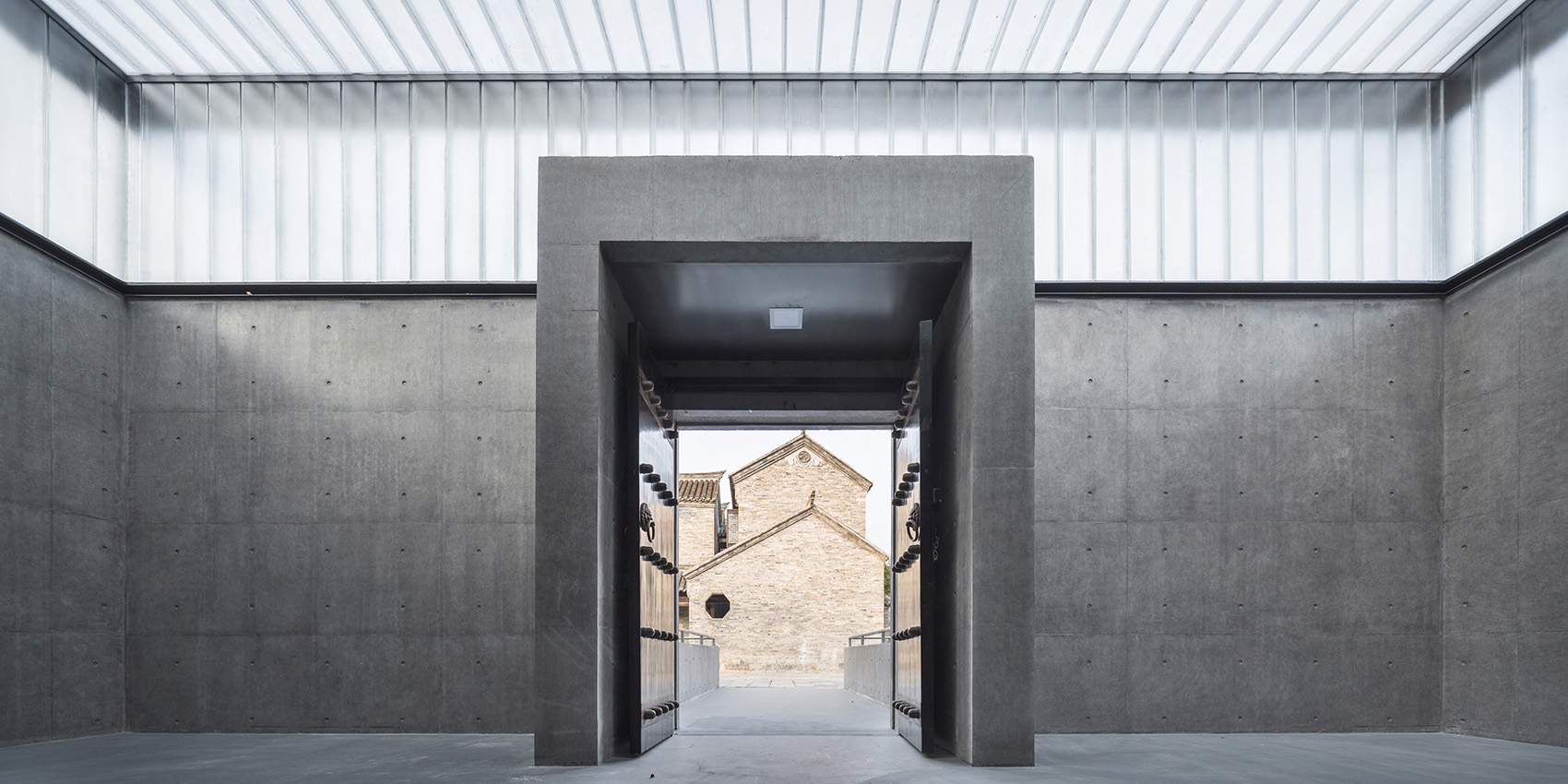

▼U型玻璃与清水混凝土，U-shaped glass and fair-faced concrete

▼清水混凝土与天窗，skylight

城墙博物馆以遗落的文脉为缘，思考空间与时间的关联与秩序，非连续时间在连续空间体验之中被链接。城市文脉的延续，是地域性历经时间的再表达，也是时间在场所之中的再诠释。城墙博物馆以微小场所和微小建筑为触媒重新思考城市文脉的延续性表达，守护文脉，守护城市与建筑风貌。

The City Wall Museum is based on the lost context and considers the relevance and order of space and time. Non-continuous times are linked among successive spatial experiences. The continuation of urban context is a re-expression of the region’s time, and it is also a reinterpretation of time in the place. The City Wall Museum rethinks the continuation of urban contexts with tiny space and tiny building as catalysts, to guard contexts, and to protect the city and architecture.

▼南北对景，

opposite scenery

▼历史回望，a

look back at history

▼新旧关系，a link between old and new

▼细部，detailed view

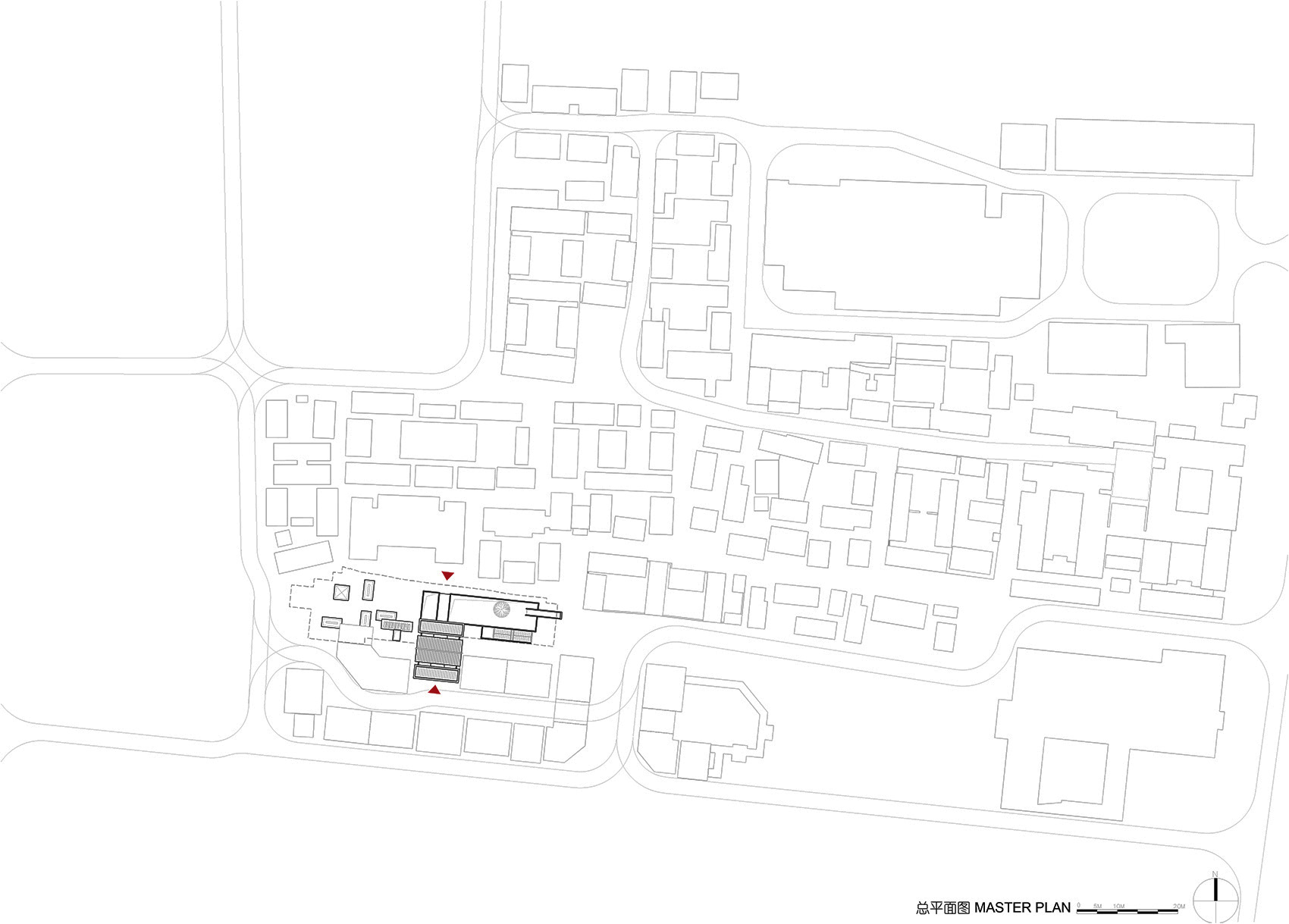

▼总平面图，master plan

▼地下一层平面图，underground floor plan

▼一层平面图，ground floor plan

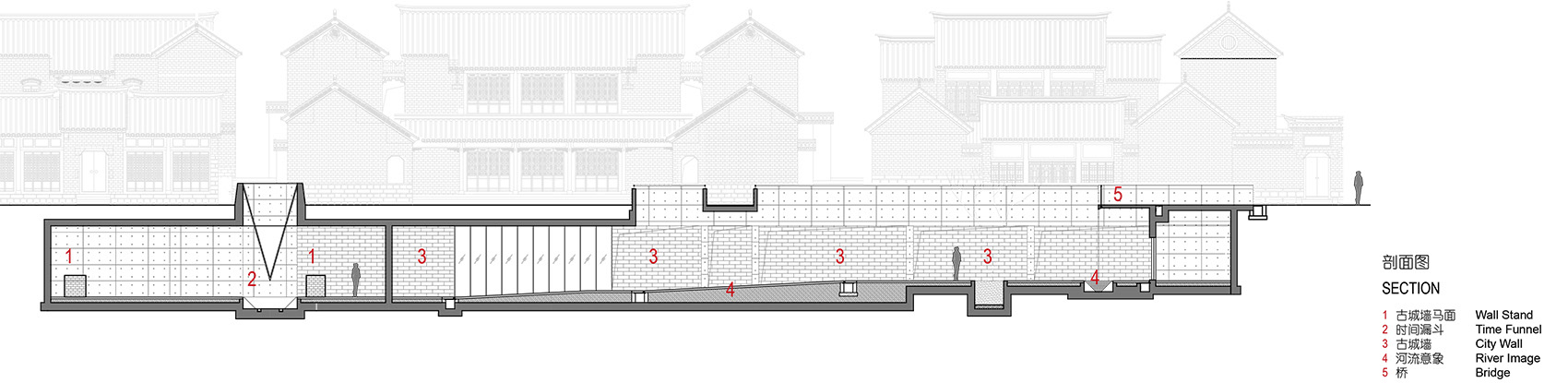

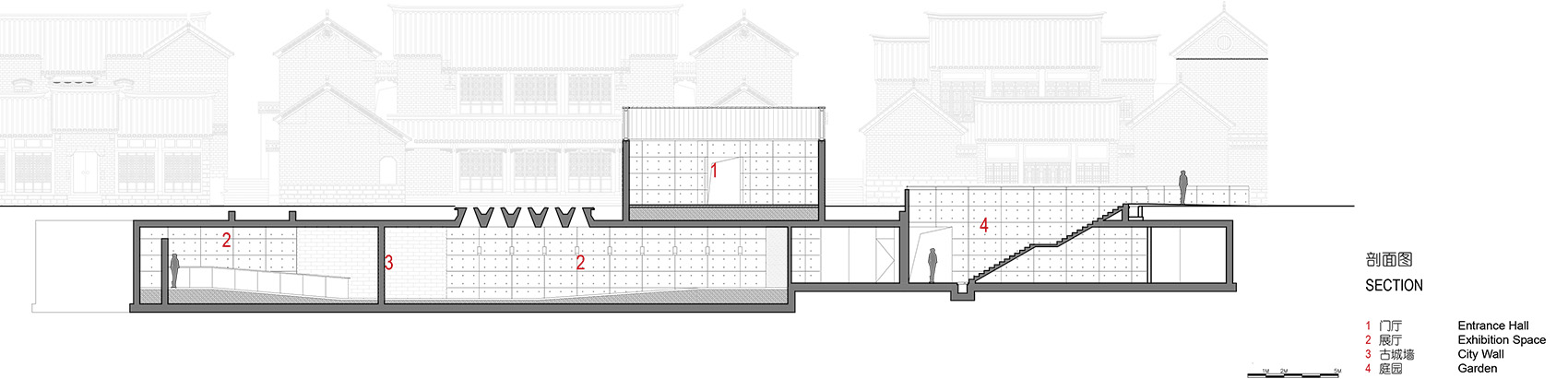

▼剖面图1，section1

▼剖面图2，section2

项目名称: 徐州城墙博物馆

建筑事务所: 中衡设计集团股份有限公司 延续建筑工作室

主创建筑师: 冯正功、蓝峰

设计团队：崔兔发、宋纪青、陈露、李铮、刘亚原、潘霄峰等

项目详细地址: 江苏省徐州市云龙区回龙窝改造街区南侧

项目完成年份: 2016.12

建筑面积（平方米）: 950 m2

摄影师:秦伟

业主：徐州回龙窝项目建设指挥部

徐州新盛建设发展投资有限公司

Project name: Xuzhou City Wall Museum

Architect’ Firm: Continual Architecture, ARTS Group Co., Ltd

Lead Architects: Zhenggong Feng, Feng Lan

Design Team: TuFa Cui, JiQing Song, Lu Chen, Zheng Li, Yayuan Liu, Xiaofeng Pan

Project location: South Huilongwo History District, Yunlong District, Xuzhou, Jiangsu Province

Completion Year: 2016.12

Gross Built Area (square meters): 950 m2

Photo credits: Wei Qin

Clients: Xuzhou Huilongwo Project Construction Headquarters

Xuzhou Xinsheng Construction Development Investment Co., Ltd.
