白色办公楼

这个项目位于德黑兰shahrak-e-gharb最繁忙的一条街道上面，总面积1500平米。这间办公楼由五层开放式办公空间和一个两层高的临街店铺组成。

The project is located at one of the busiest street in shahrak-e-gharb, Tehran. Its total area is 1500 sqm. The office complex comprises five levels of open office floors and one double height retail store at street level.

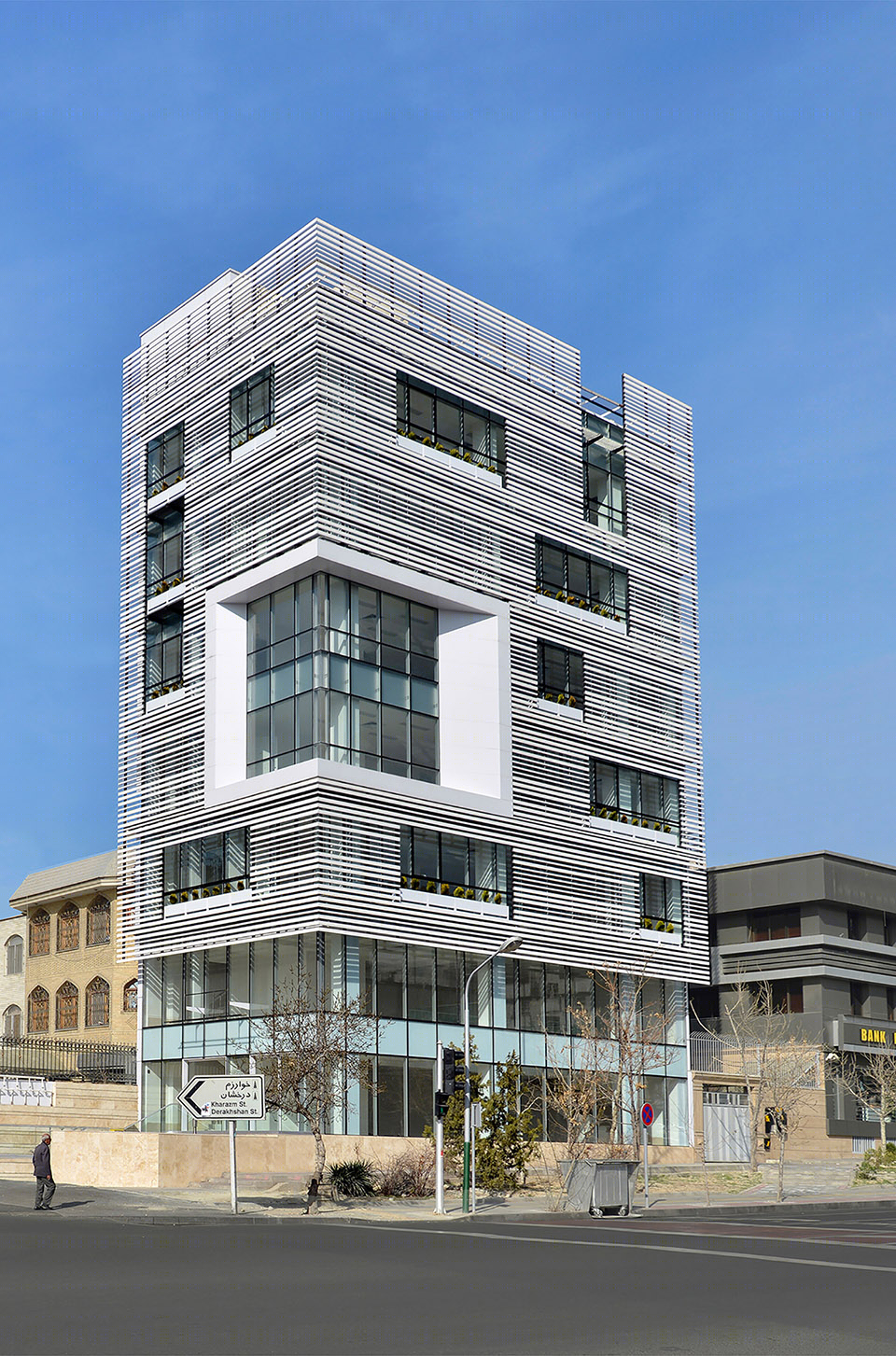

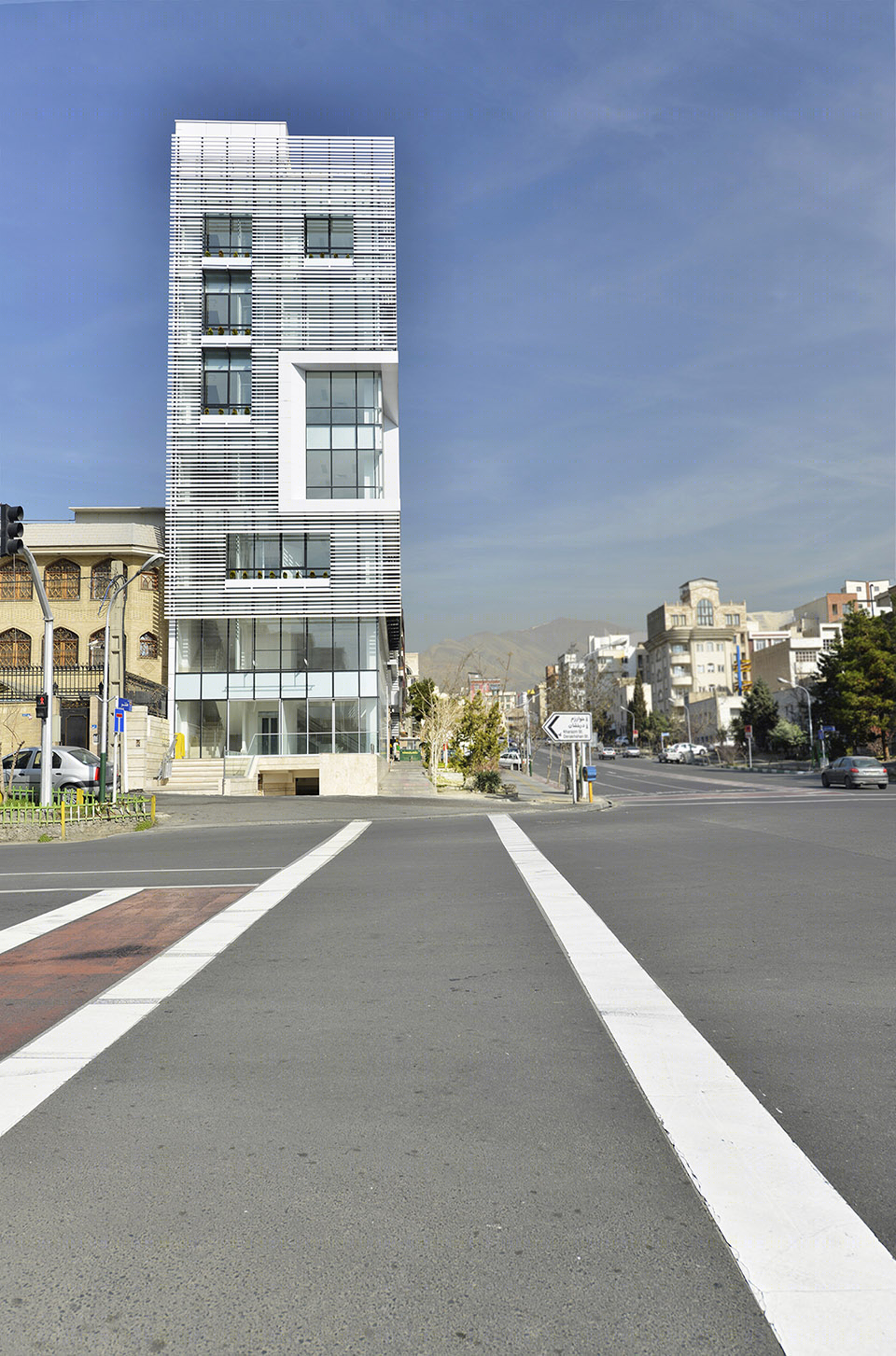

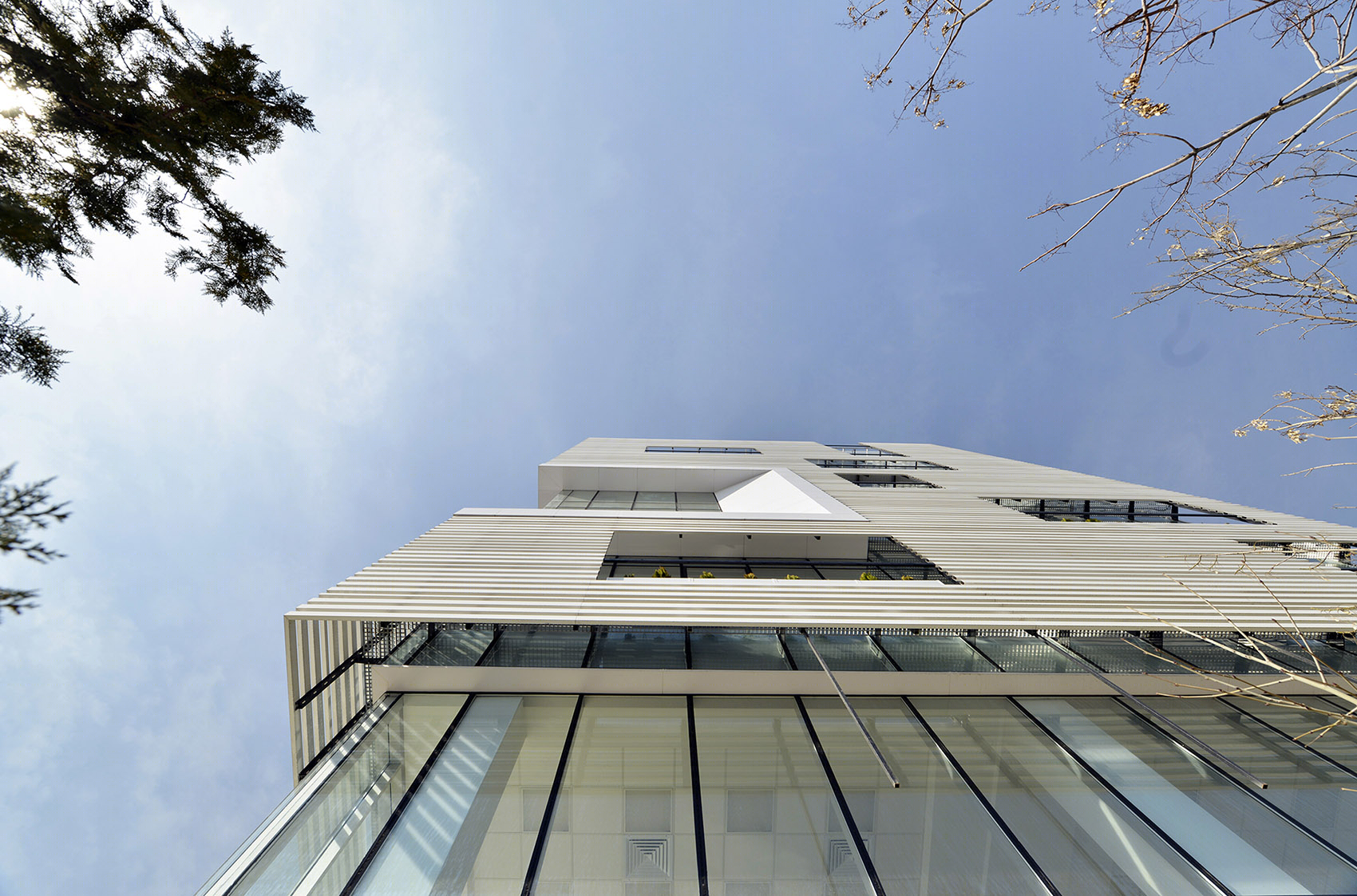

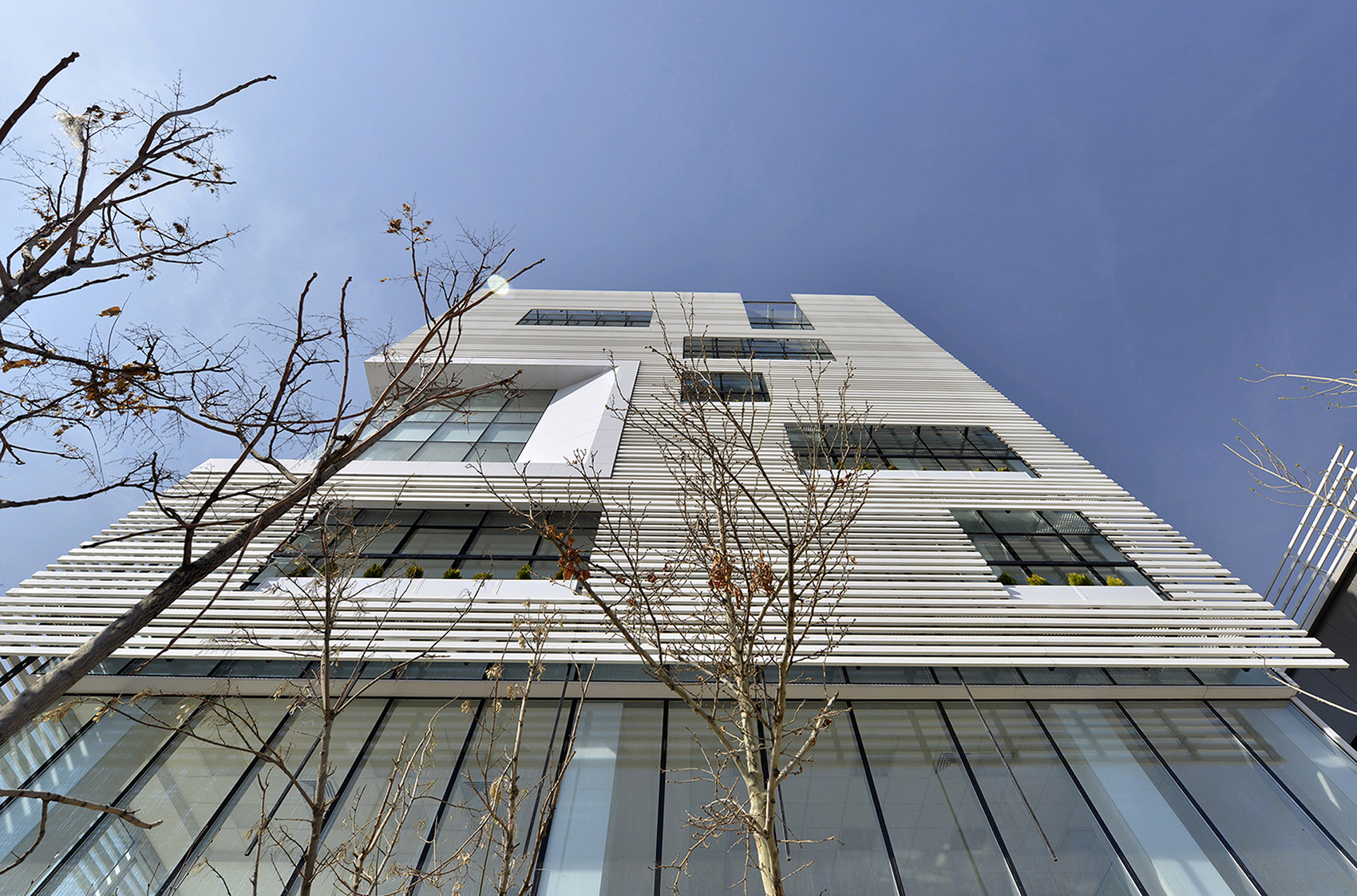

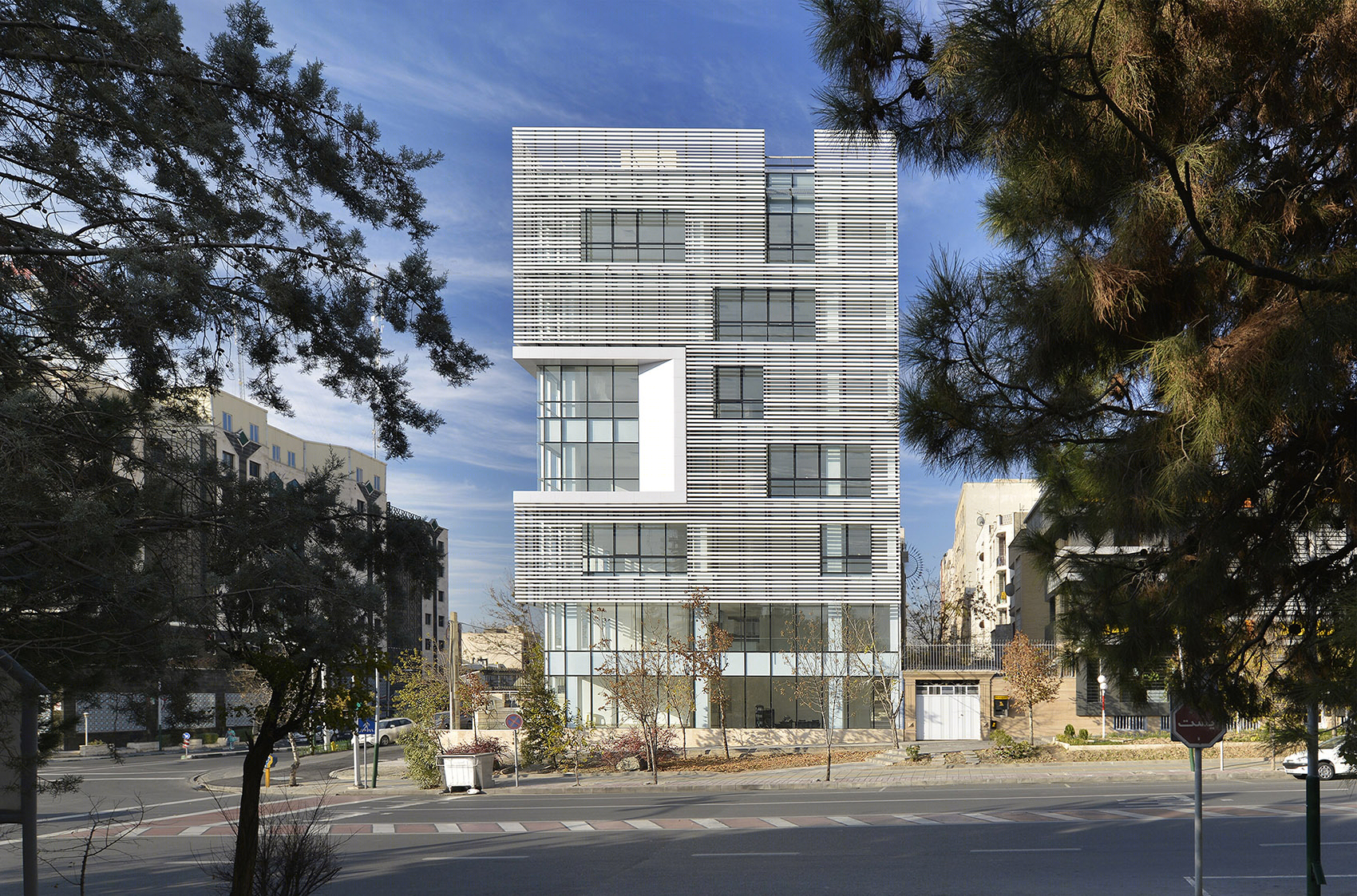

▽建筑外观，external view

这个设计的主要目标是创造与周边建筑不同的脱引而出的立面。建筑外表是双层立面，第一层是双层玻璃幕墙。建筑的东南立面是一系列白色的横向铝制百叶窗，既可以用来遮光也可以阻挡内部的玻璃幕墙吸收过多的日光。

The main aim of design was to create an iconic façade to be in contrast with its surrounding buildings. The building façade is designed as a double skin façade. The first layer is a double glazed curtail wall. The building south and east facades are treated with series of white color horizontal aluminum louver that is being used as sunscreens which protects the internal glass façade from solar gain.

铝条百叶窗之间距离分别是5 x 5 cm和10 x 10 cm，无论是坐着或是站着人都可以从室内看到室外的景观并获得最适宜的光照。两层立面之间的距离是70厘米，通过镀锌的小桥连接。每层的百叶窗都有一个开窗通风换气的开口，这些开口也让建筑立面看起来更加生动。

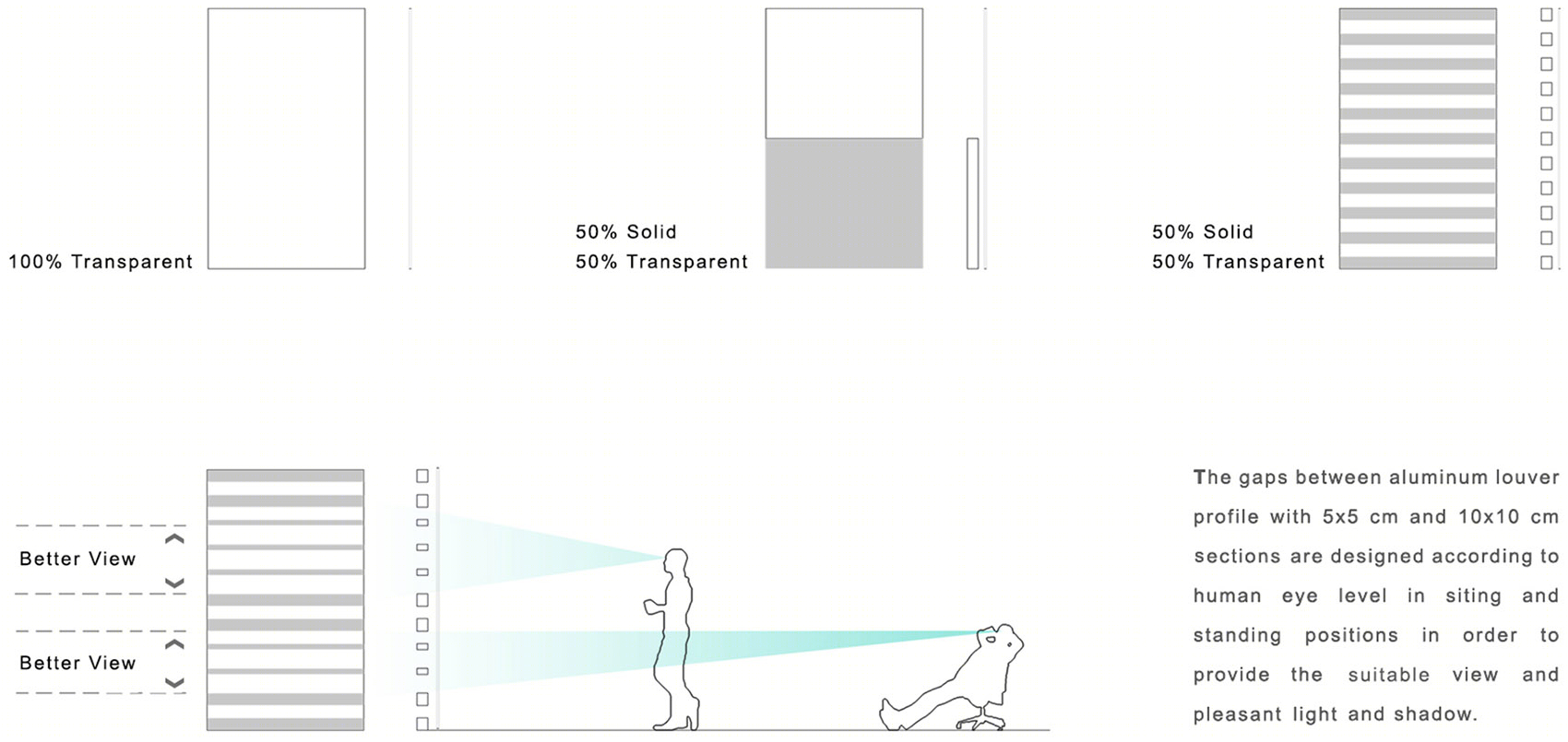

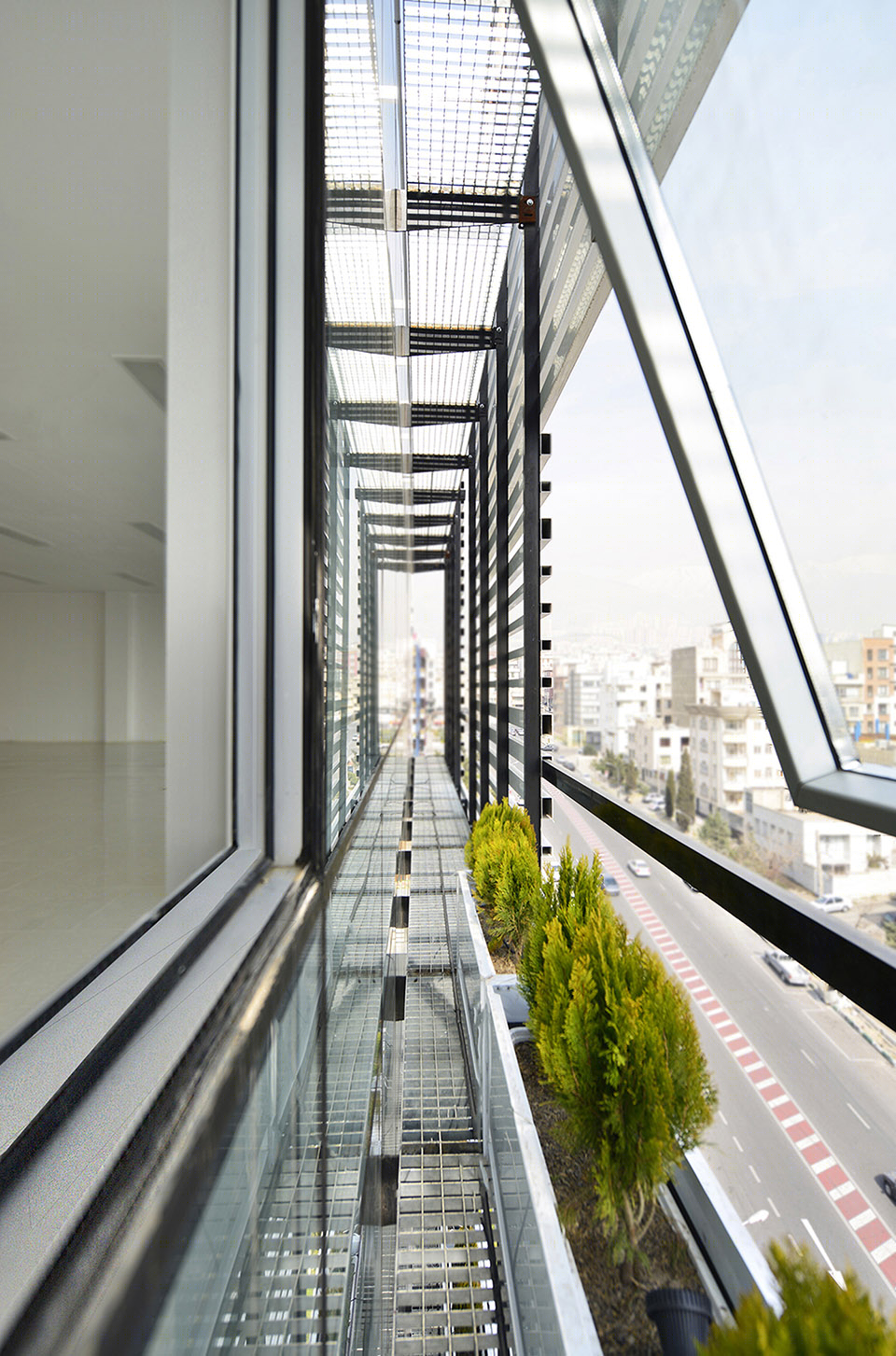

The distance between aluminum louver profile with 5×5 cm and 10×10 cm sections are designed according to human eye level in siting and standing positions in order to provide the suitable view and pleasant light and shadow. There is about 70 cm space between the two skins that connect to each other with galvanized catwalk. There is an opening in façade louver at each floor level for both letting the windows to open for natural ventilation and for making the building façade more dynamic.

在每个开窗前装饰着一个花篮，配有自动灌溉的装置，为建筑立面带来了点点绿意。

In front of each opening there is a flower box with automatic irrigation which brings natural greens into the building façade.

沿街的通高店铺不使用百叶窗取而代之的是大片的窗户，创造了一种轻盈的感觉。

The double height retail store which is located at street level is not covered by louver skin façade to create sense of lightness and make it suitable for having wide retail windows.

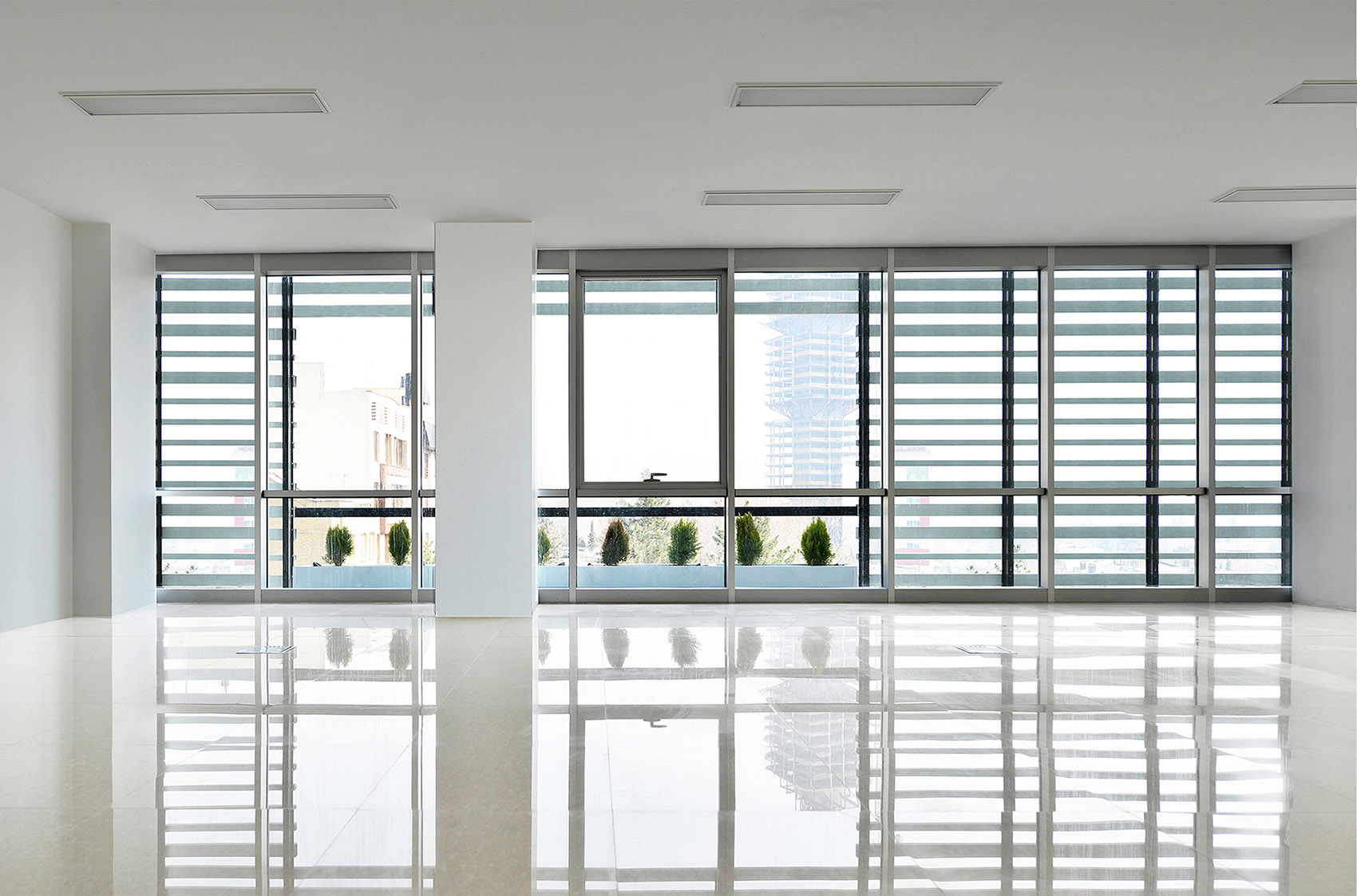

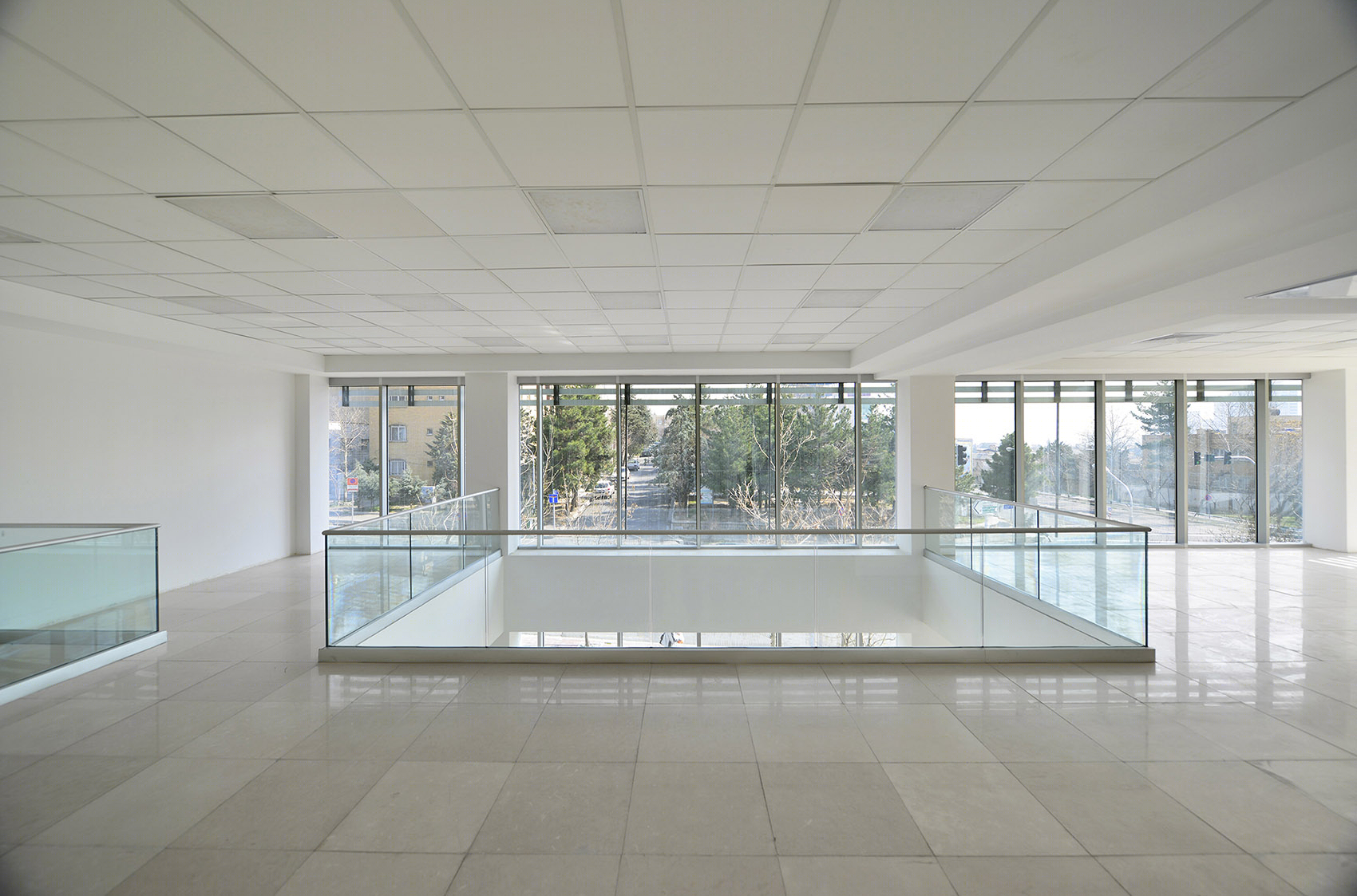

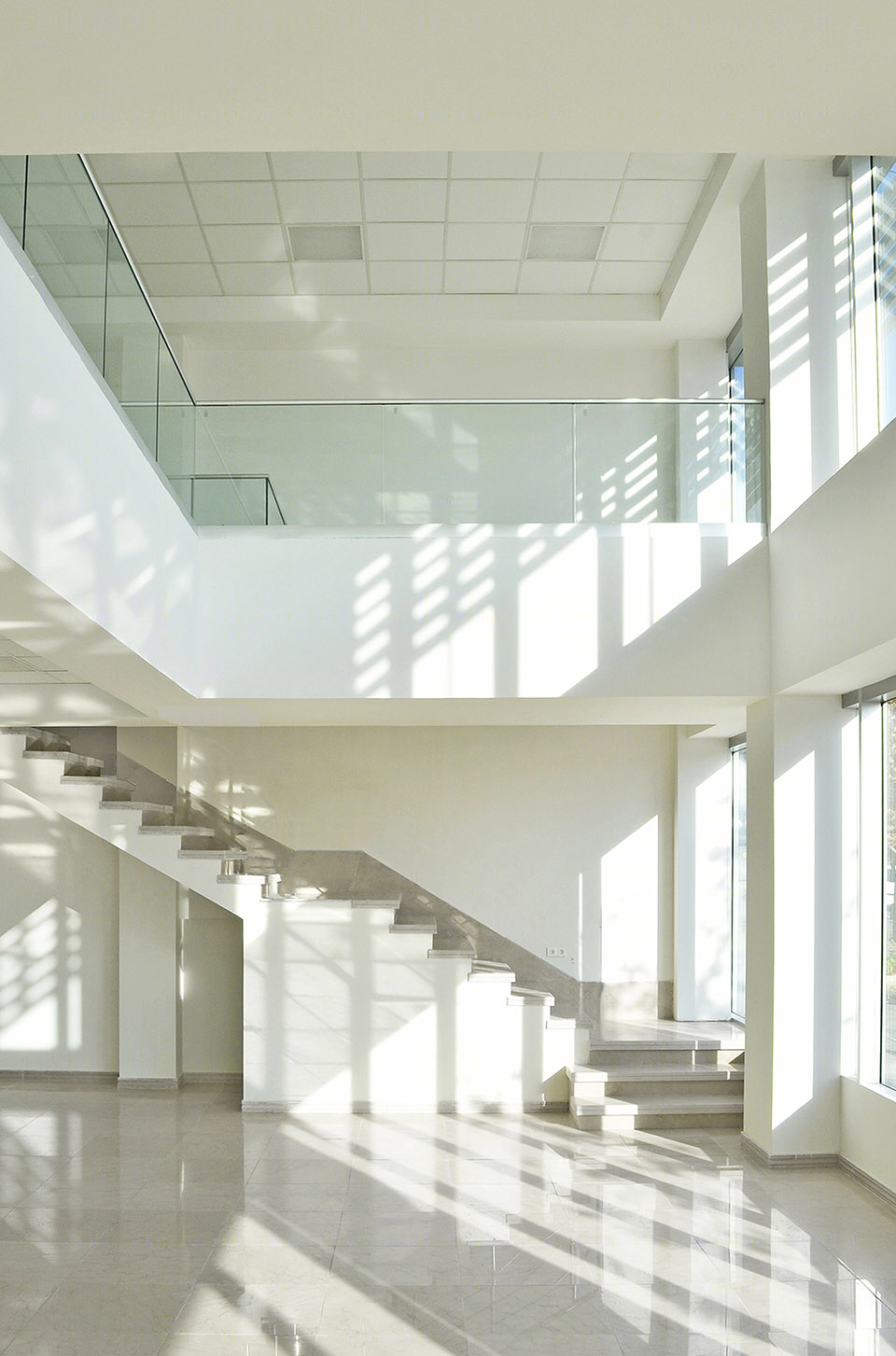

▽ 沿街店铺内外景观，Inside and Outside Retail Store

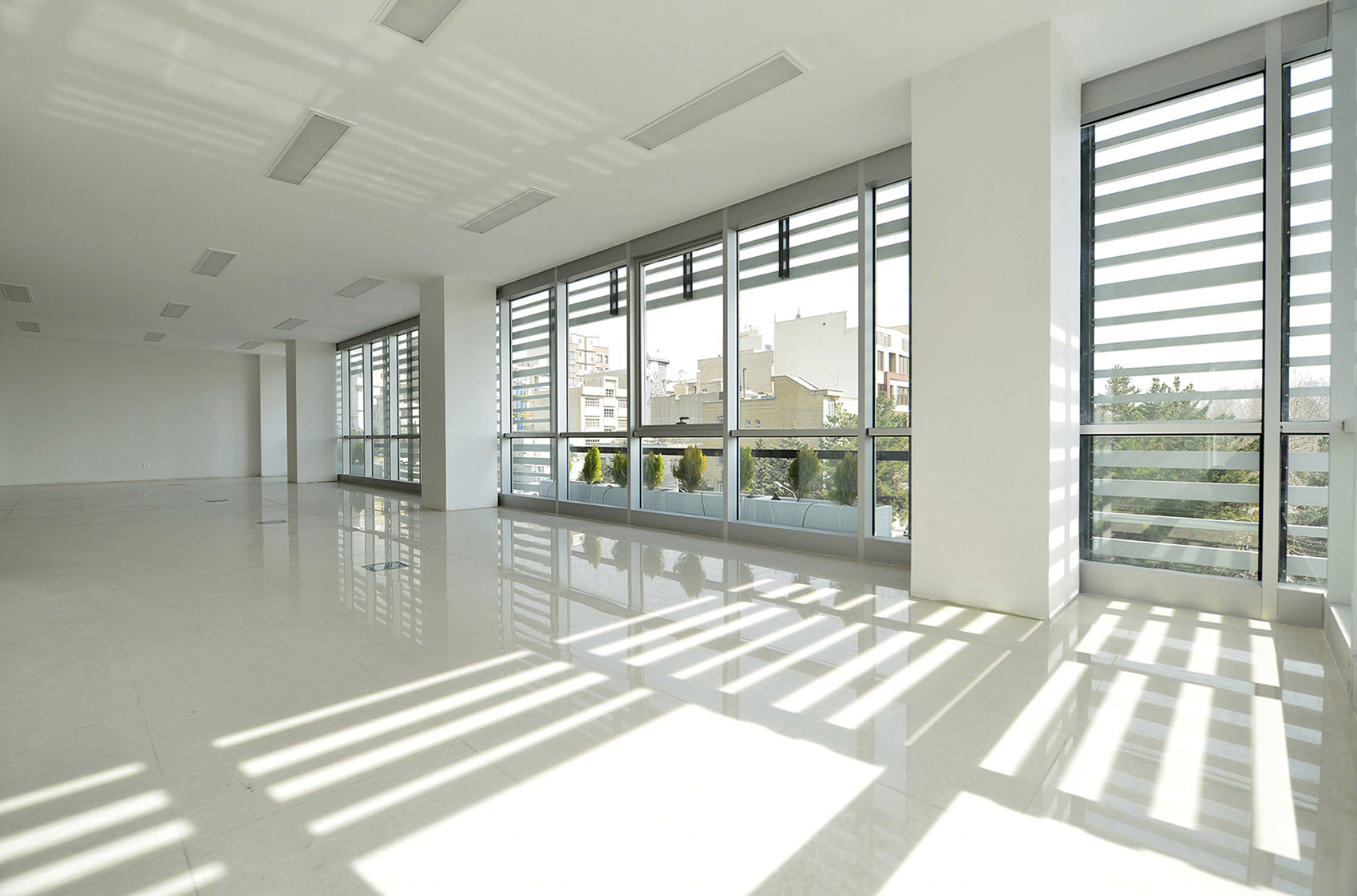

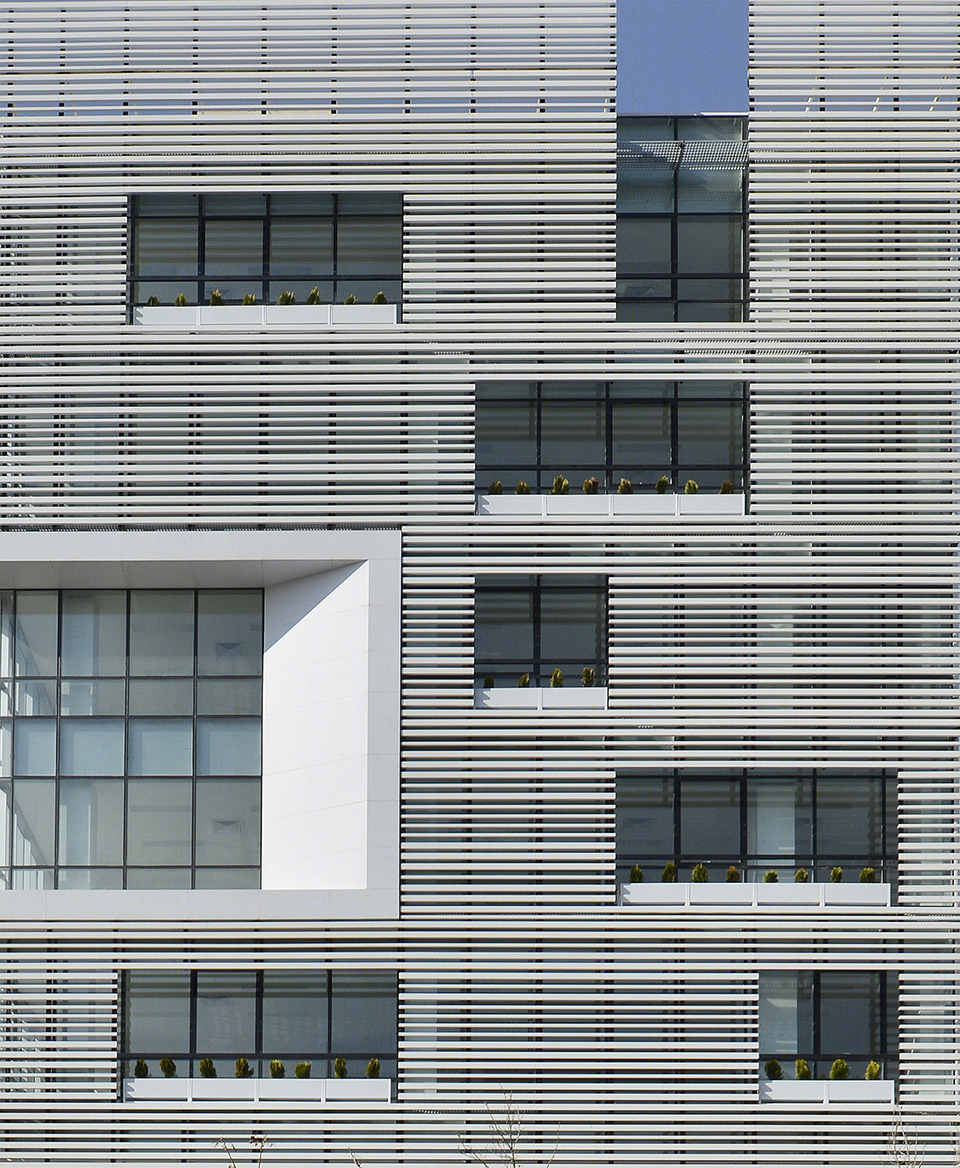

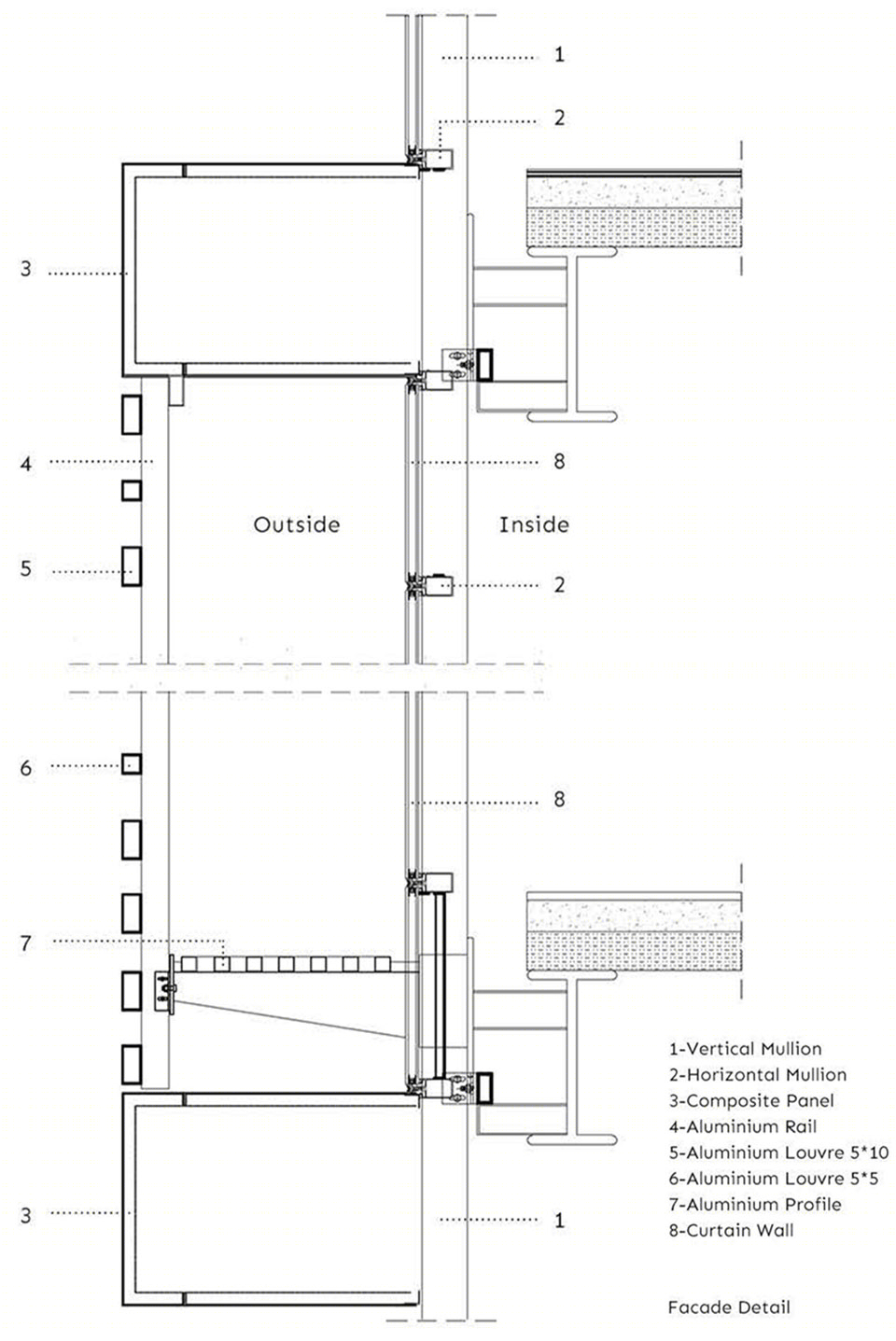

▽ 建筑细节，Details

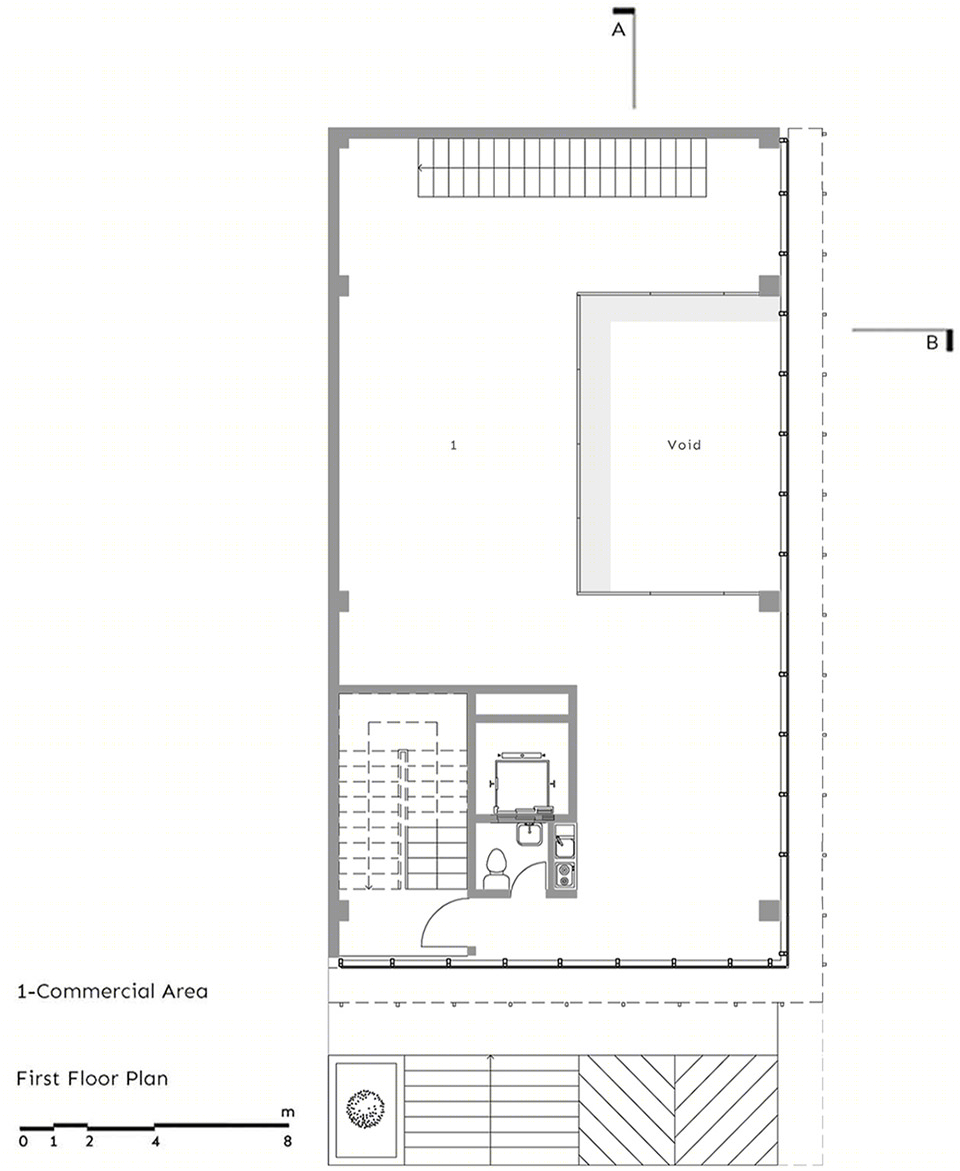

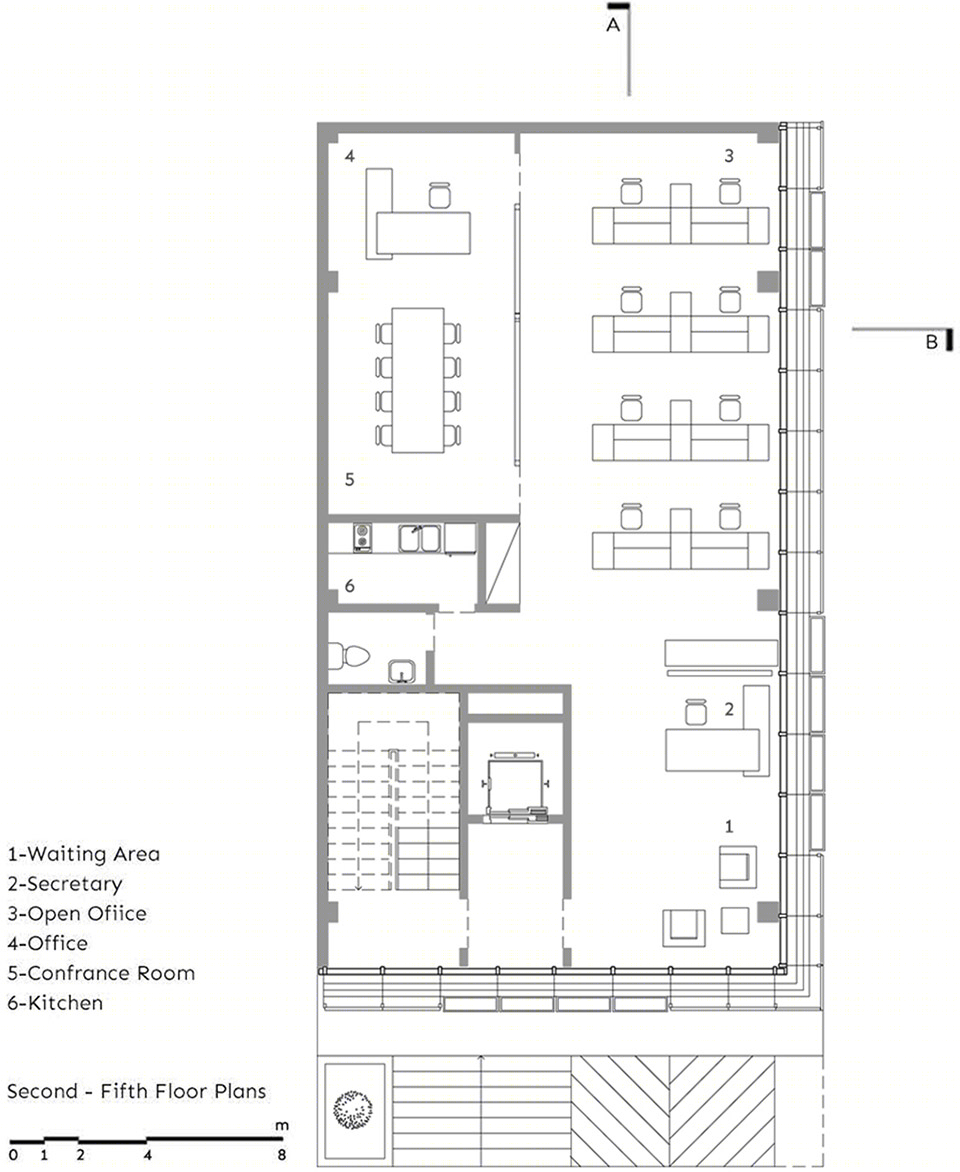

▽平面图，Floor Plans

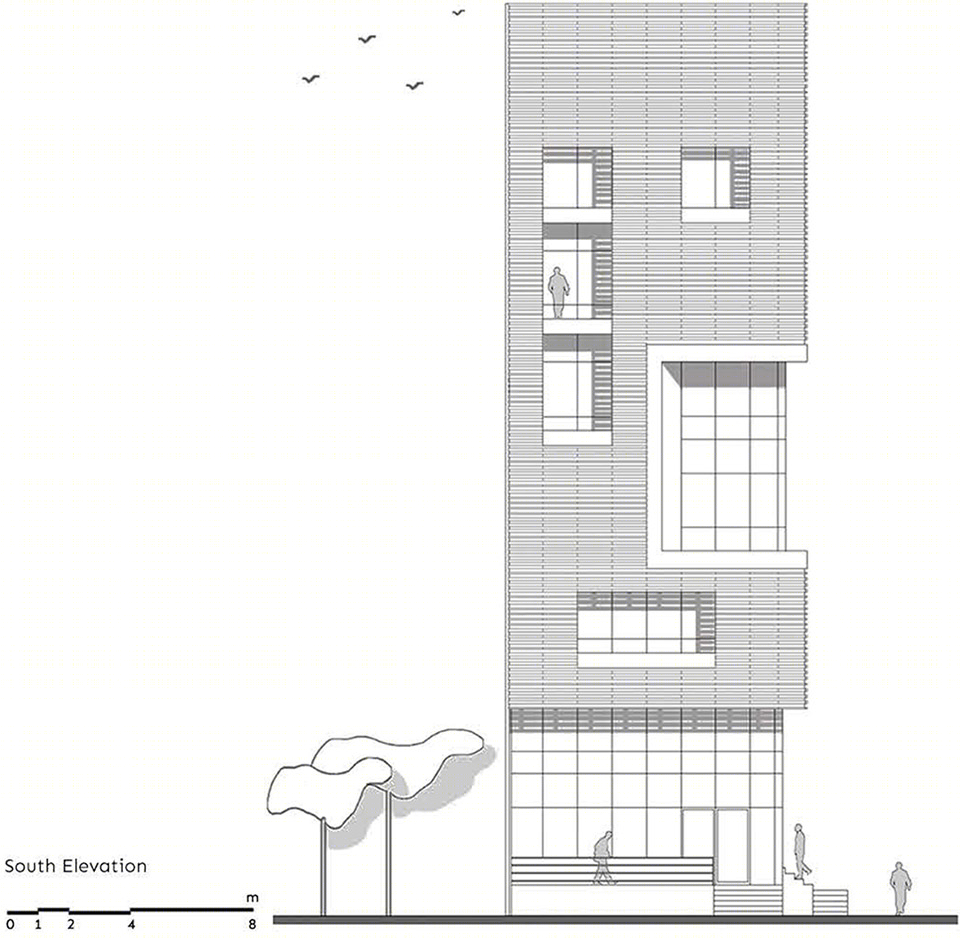

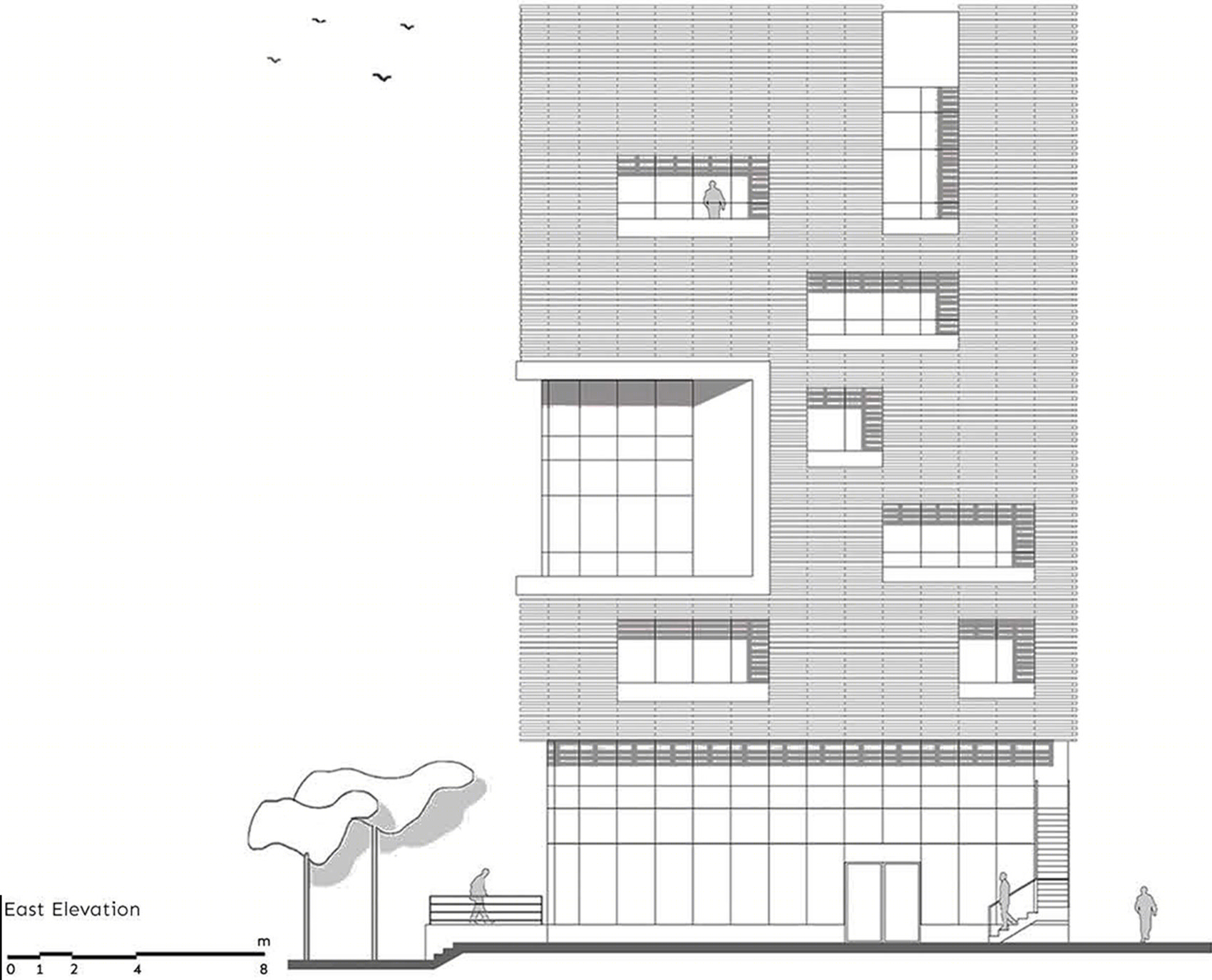

▽立面图，Elevation

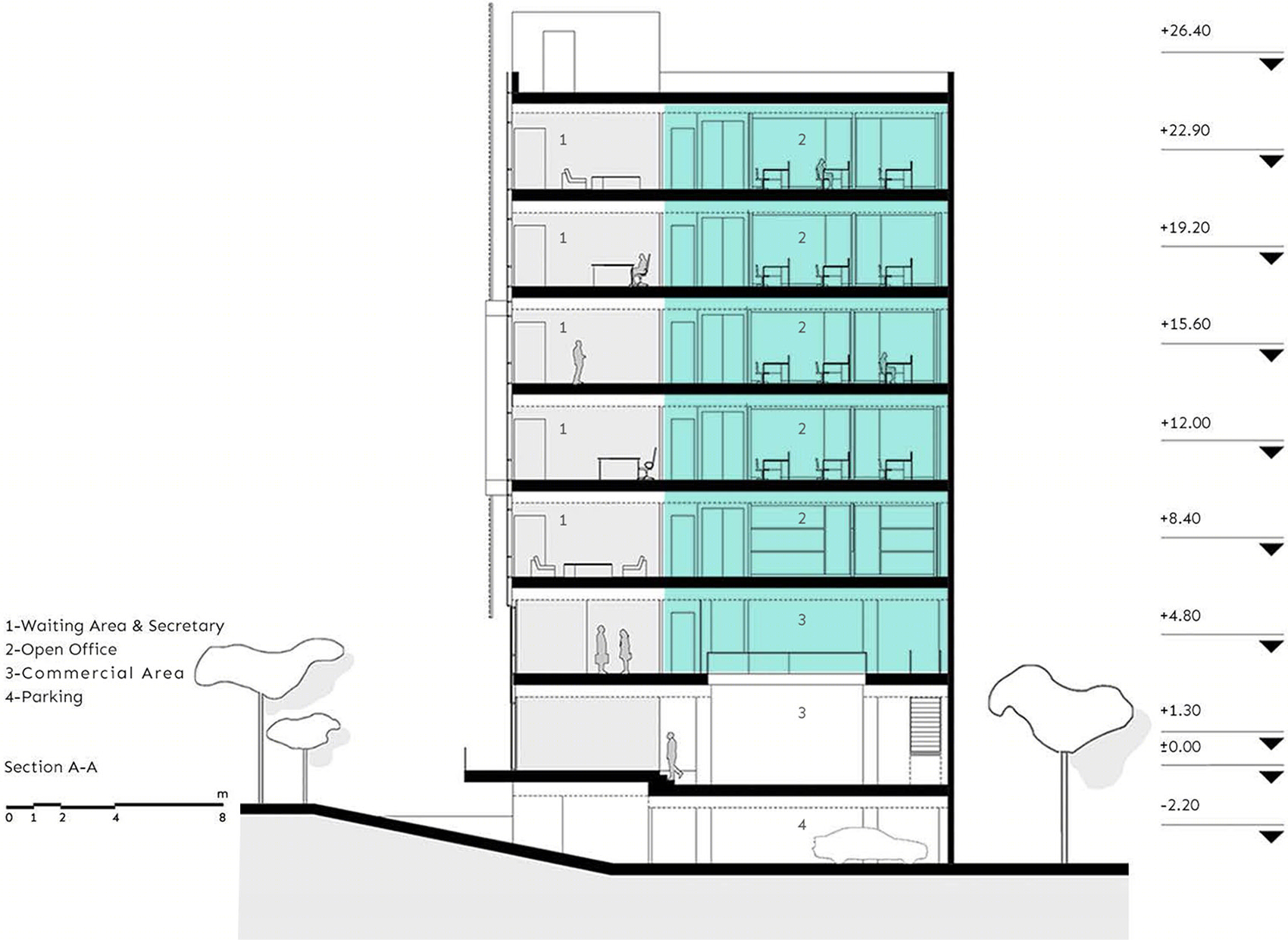

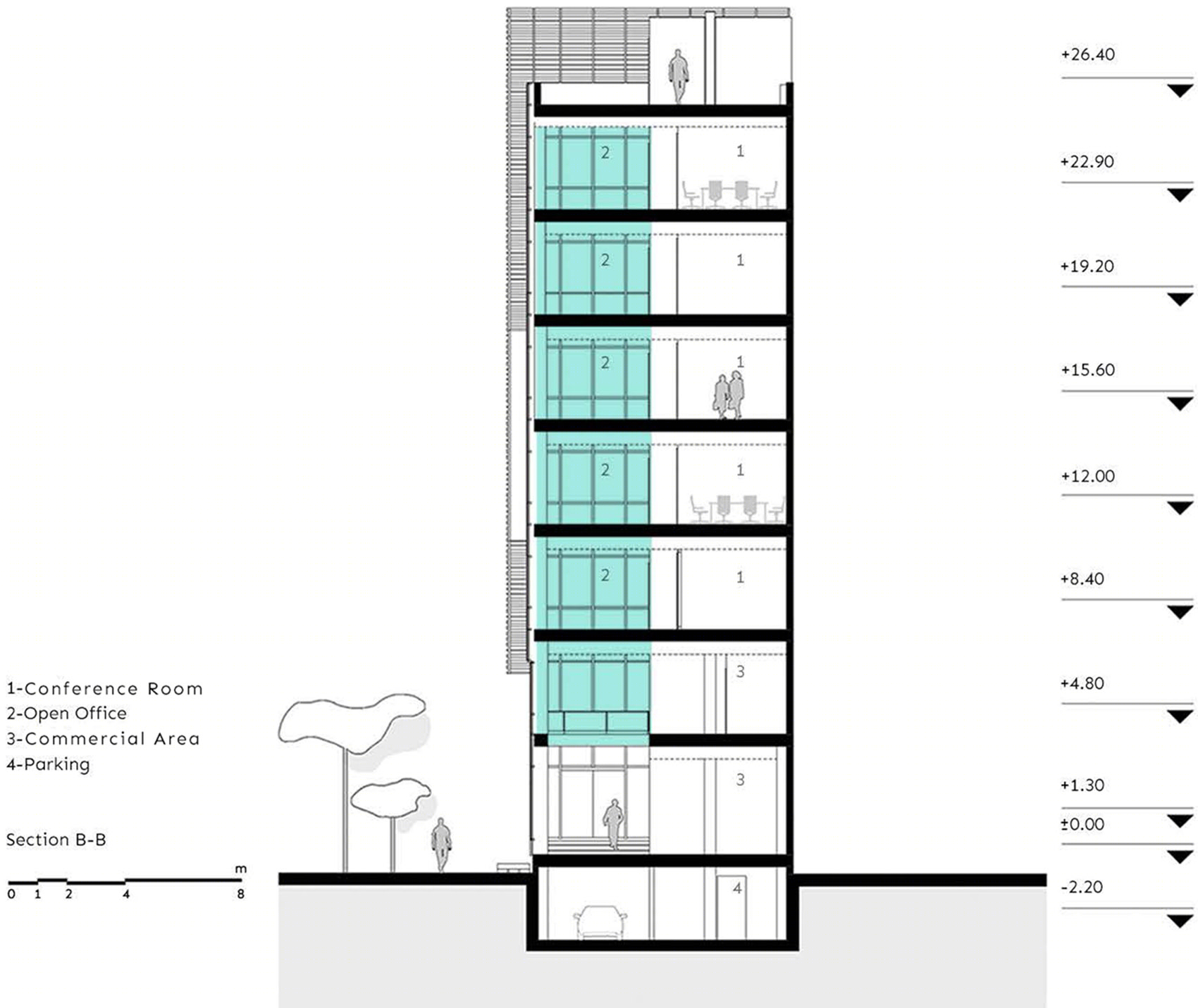

▽剖面图，Section

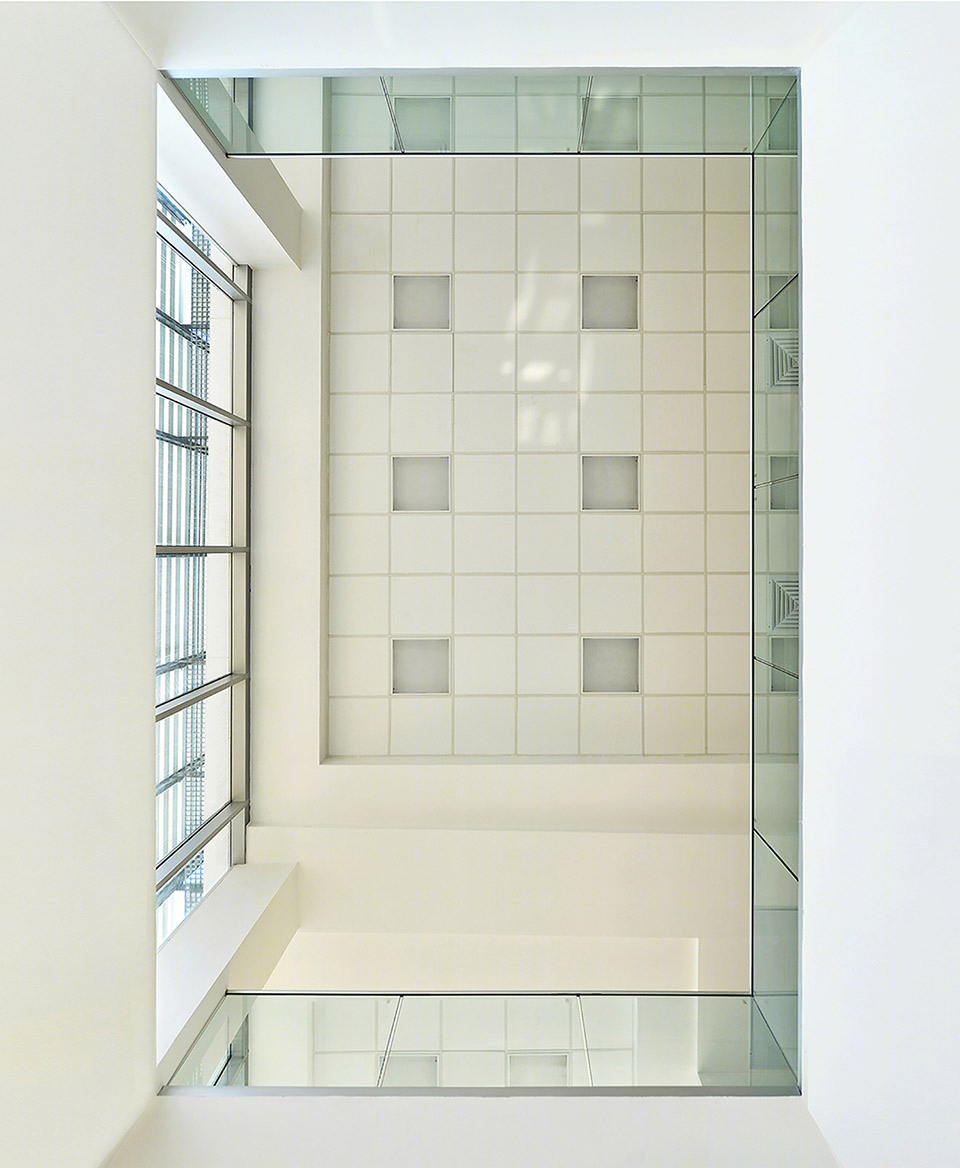

▽ 建筑细节，Details

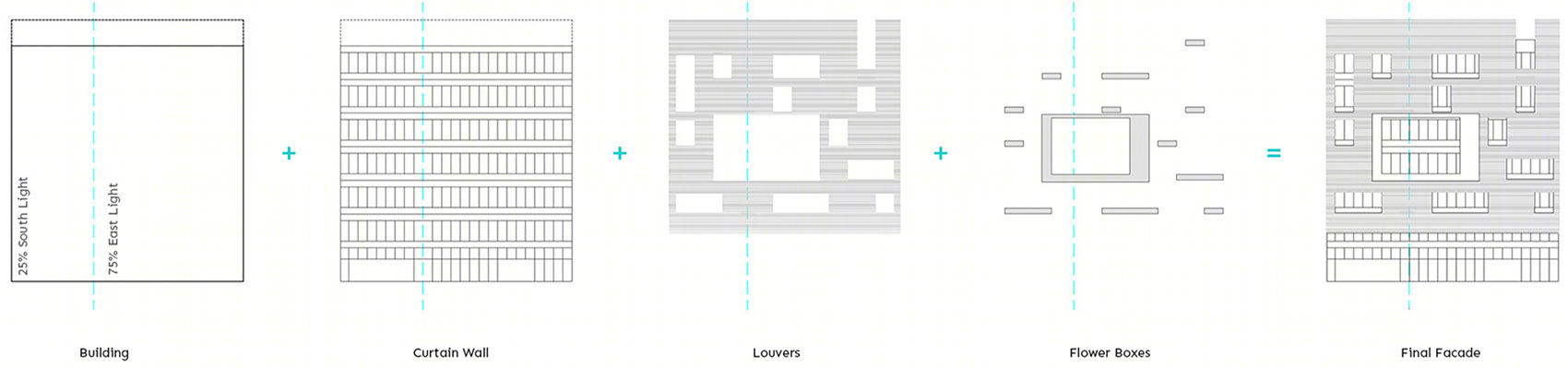

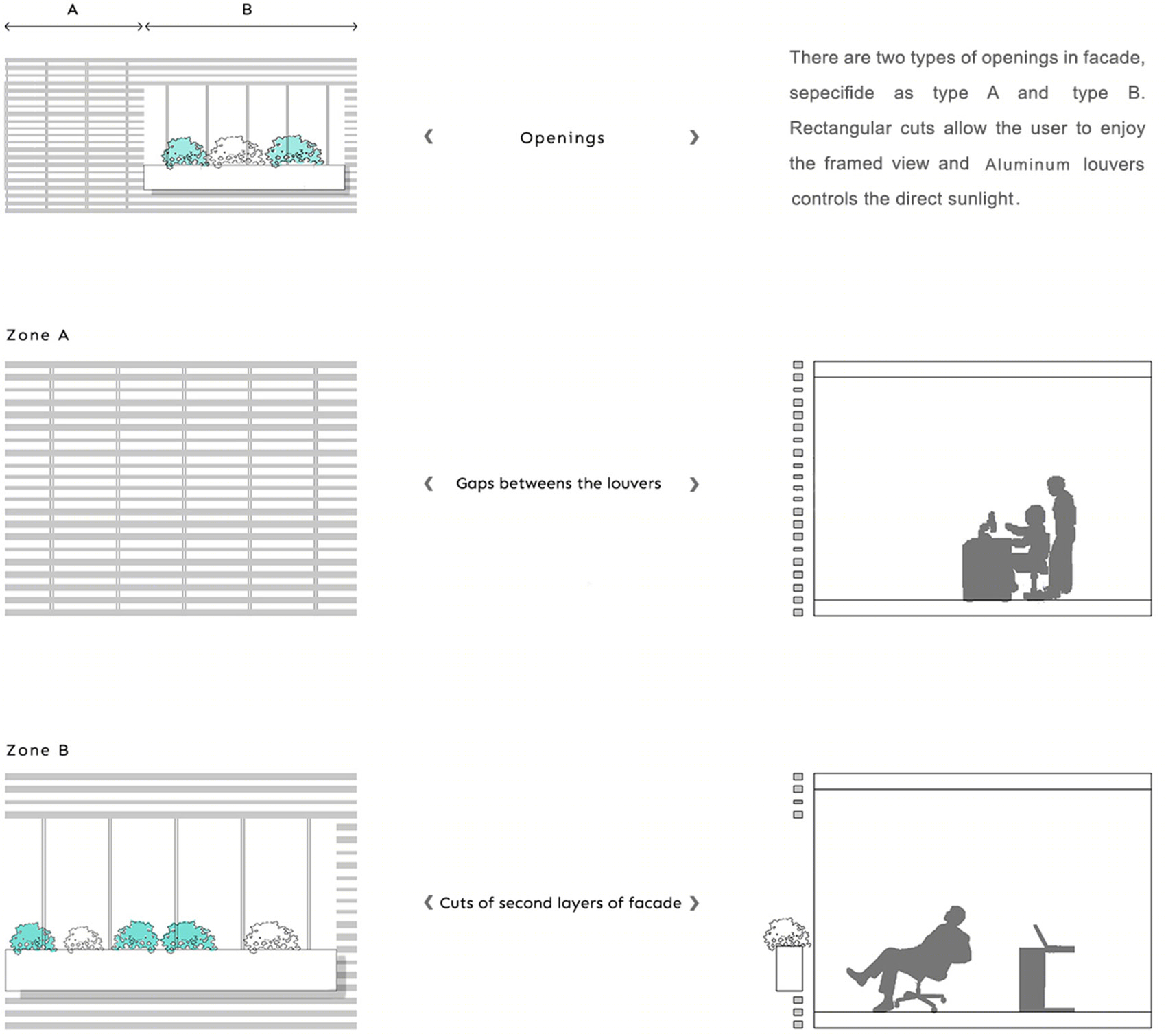

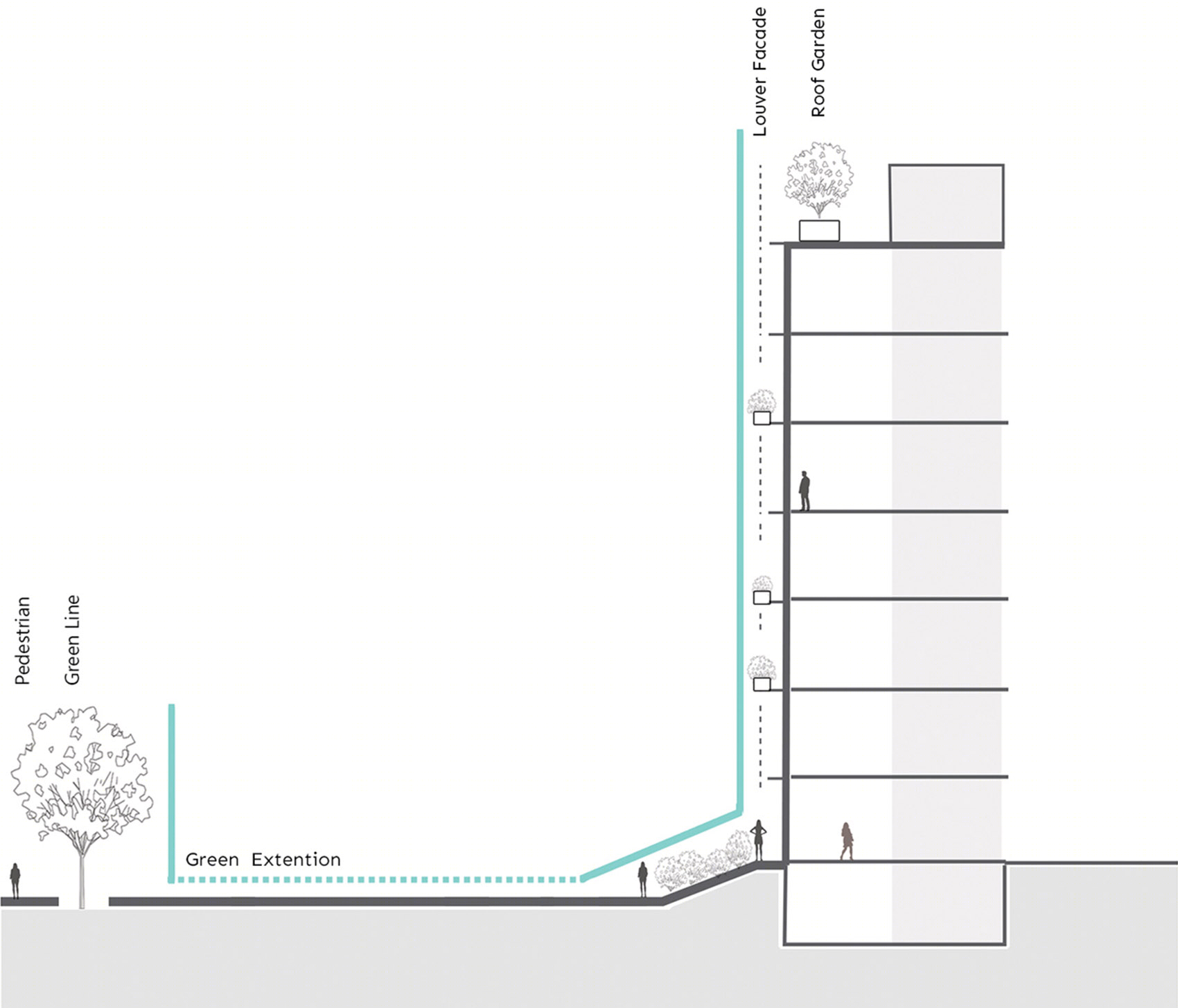

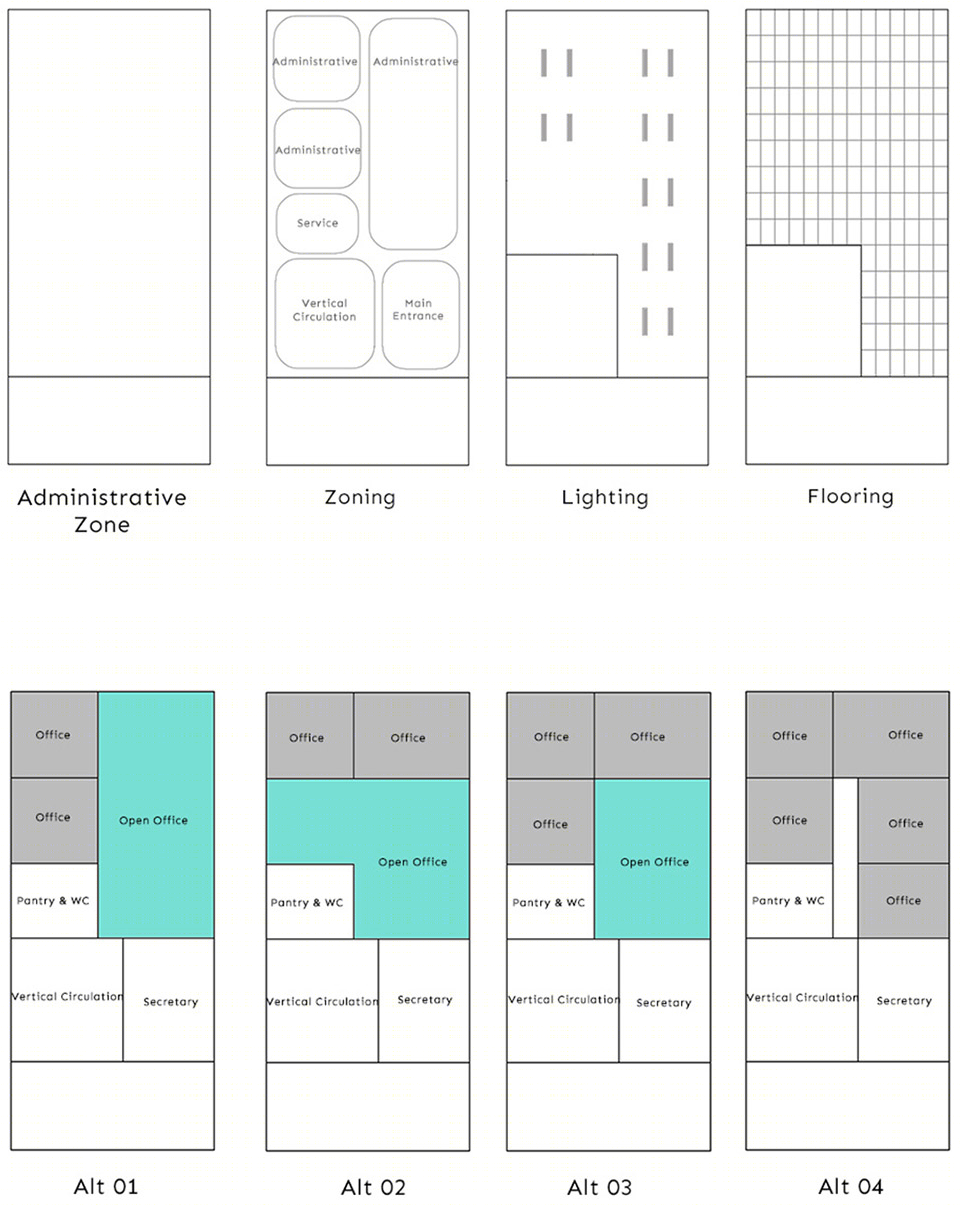

▽分析图，Diagram

Project Information

Project Name: White Office Building

Architects: BNS Studio

Project Location: Tehran- Iran

Completion Year: 2015

Area: 1500 sqm

Author Architects: Farshad Kazerooni, Farnaz Bakhshi, Azin Soltani

Design Associates: Mahta Heydari, Ali Kashtiara, Hadi Sharifzadeh, Nioosha Rashidi,

Zoha Nekouian, Shabnam Abtahi

Detailed design consultant: Naser Naghdi, Mansour Naghdi

Façade Contractor: Alma aluminum industry

Photo Credits: Farshad Kazerooni, Azin Soltani

Drawings: BNS-Studio

English Texts：BNS-Studio
