凯滨国际大厦

凯滨国际大厦位于徐汇滨江商务功能区北部，是一处面向中大型机构的商务办公楼。基地呈相对方整的梯形,北面窄南面宽，北临区域主干道龙华东路，基地东、南、西三面与三组大体量的商办综合体或办公楼相邻，北面是住宅小区和东安公园。

Champion Center, located at the north of Xuhui Riverside Business Area, is a business building for medium and large organizations. Its site which presents to be a relatively square trapezium is narrow in the north and wide in the south. The center faces the main road East Longhua Road at north and borders on three large-scale commercial complexes and office buildings at east, south and west. On its north locate a residential community and Dong’an Park.

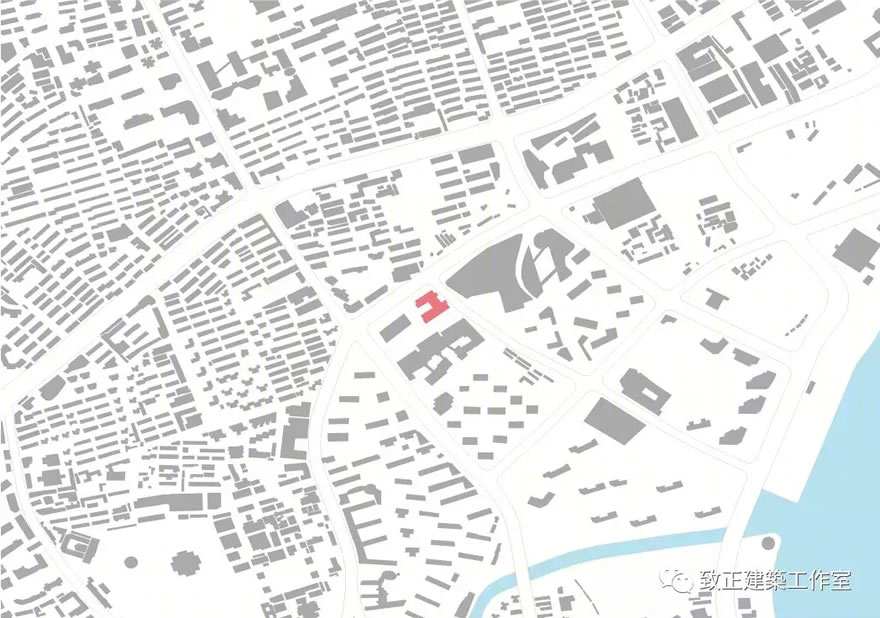

区位图

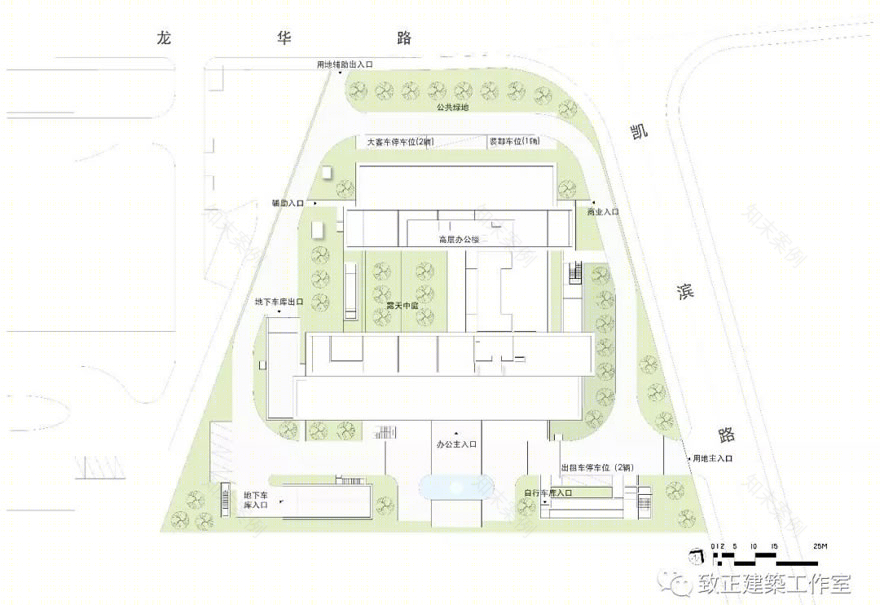

总平面图

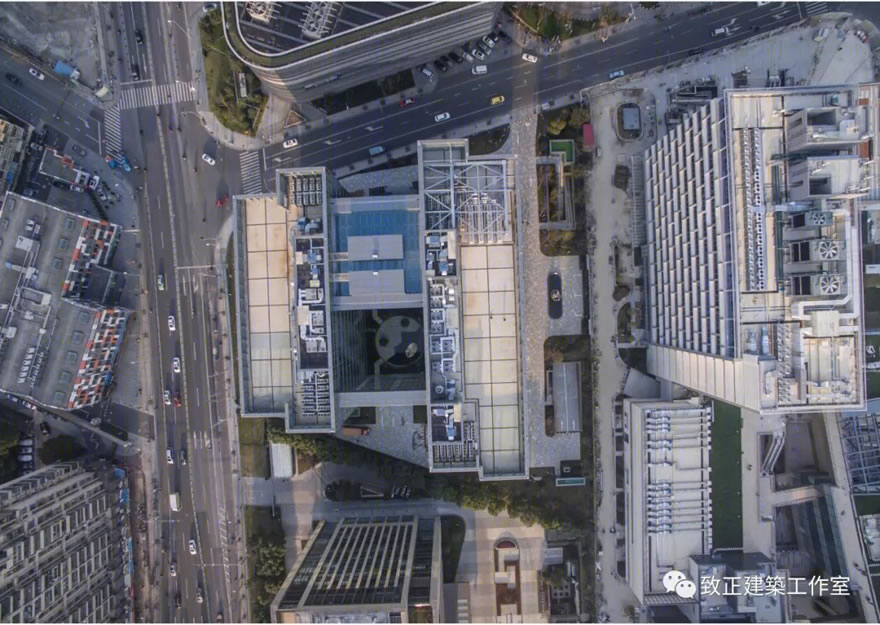

凯滨国际大厦顶视图

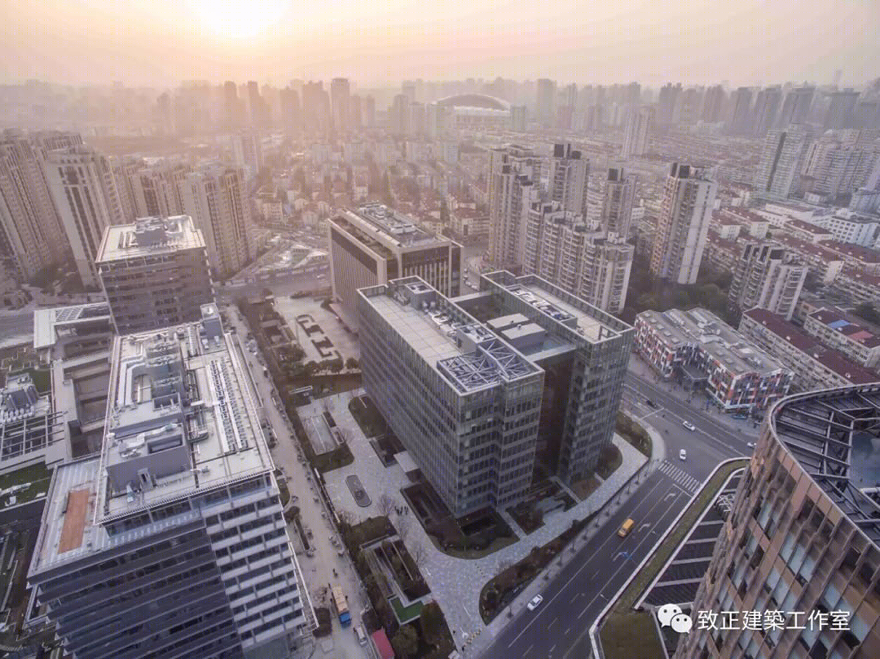

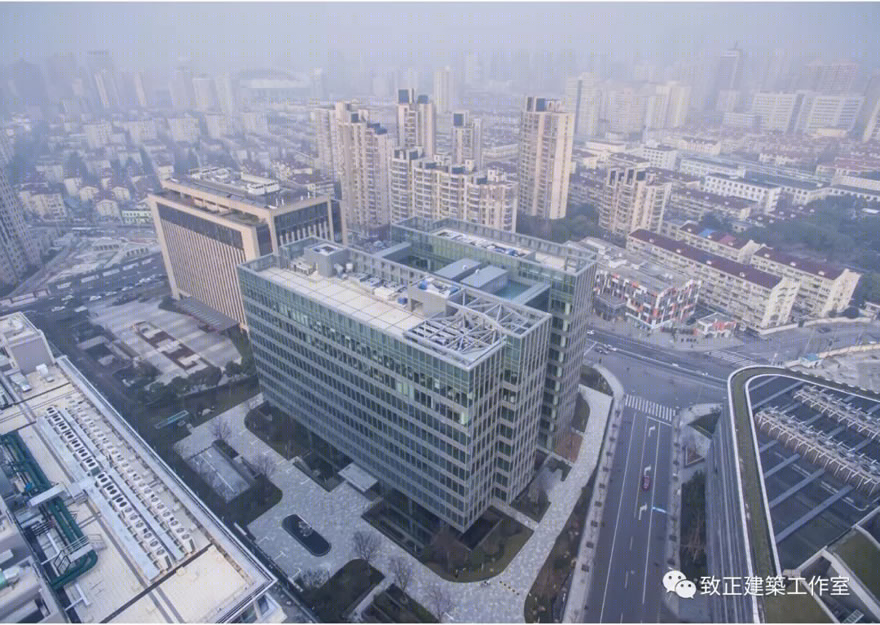

凯滨国际大厦鸟瞰图

本项目的设计出发点有以下两方面: 一是在城市层面上,如何为本区域增添积极、开放的空间和界面因子；二是在建筑层面上，如何创造一个有利于社会互动的、健康而又可持续的办公空间环境。以上两个方面的突破口其实都在于对于办公空间模式的研究，以及新的办公空间模式能够为建筑和城市提供的良性互动的可能。在设计之初，我们通过多方案比较，说服了业主放弃了原来对于中央核心筒标准塔楼模式的强烈述求。作为一个标准层面积2500平米的办公楼，中央核心筒模式当然是一个效率至上的合理选择，但是与周边已建或在建的大型开发机构的标准办公塔楼相比，本项目延续这一福特主义以来的传统办公模式并不能创造更大的空间价值与更好的使用条件；同时45米高度的单一实体化的大尺度体量既缺乏较佳的外部视觉比例，又无法为大尺度的均质商务街区带来积极的内外空间关系。

The purpose of this project includes two aspects. One is how to add space and interface which is positive and open to this area on the city scale. The other is how to create a business environment that is benefit for social communication and ecological sustainability on the architectural scale. The pivot for the two above aspects lies on the research of the office space model as well as the possibility of the new office space environment to provide better interaction between architectures and city. At the beginning of the design, we compared many plans and persuaded the owners to abandon their strong advocates for the central core tower mode. As an office building covering a standard floor area of 2,500m2, the central core-tube model is ought to be an efficient and reasonable option. However, compared to other standard office buildings that are already built or yet being built around for large property developers, this project will not be superior in space and other conditions if it continues such traditional office building mode since Fordism. Furthermore, if doing so, the 45-meter high single large-scale volume will not only lack a good external visual proportions but also cannot bring a positive relationship between the internal and external space of the large-scale homogeneous business area.

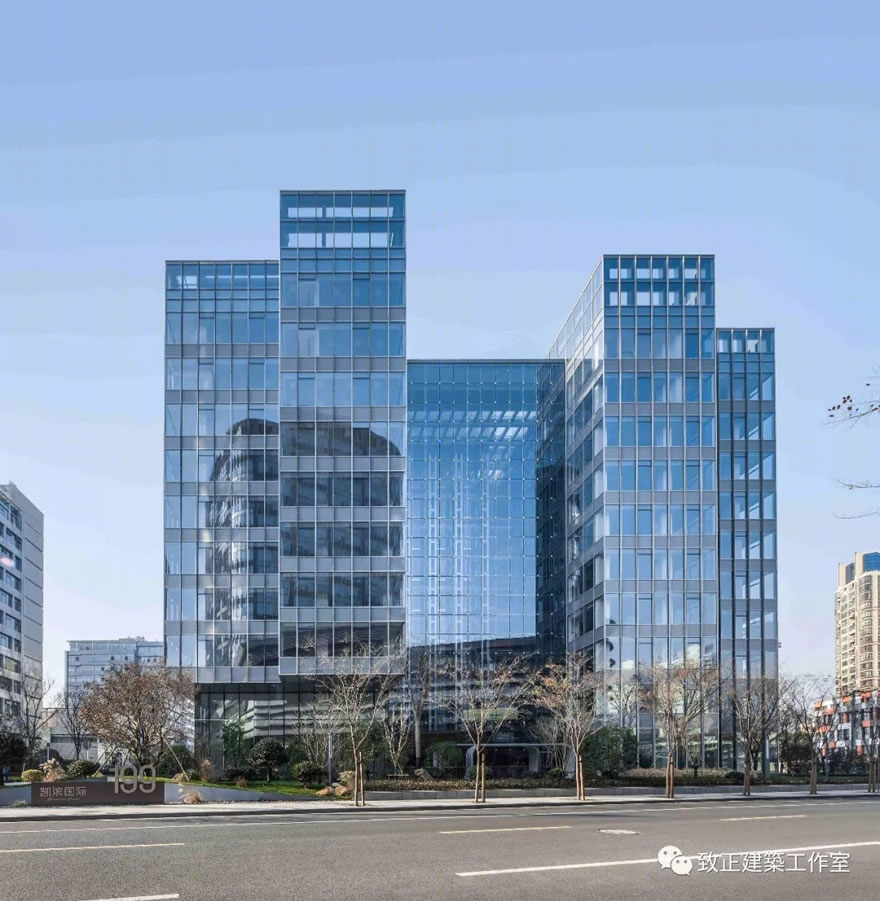

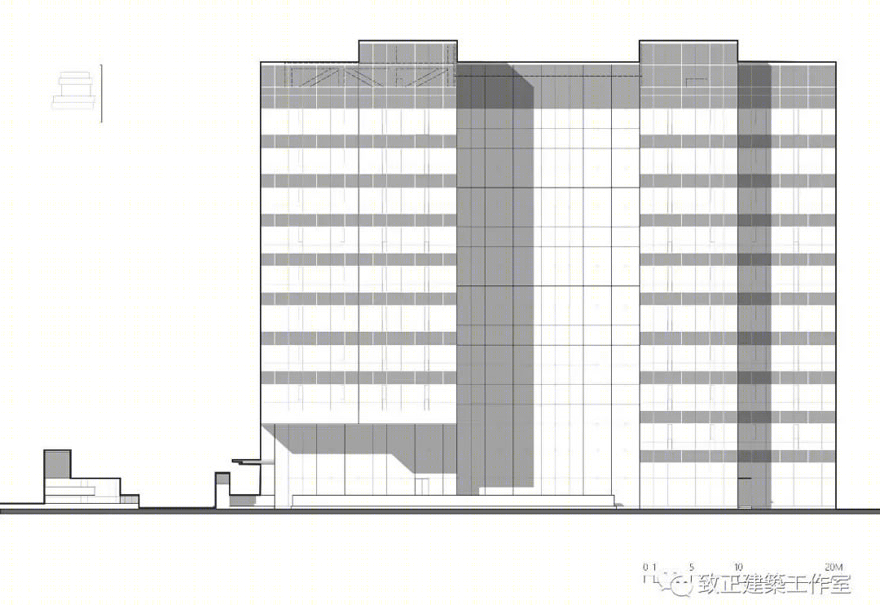

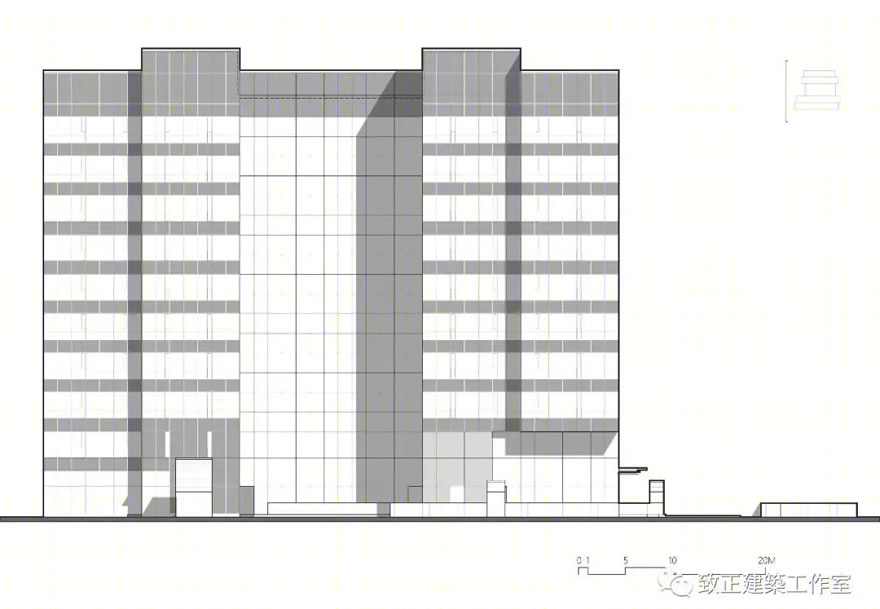

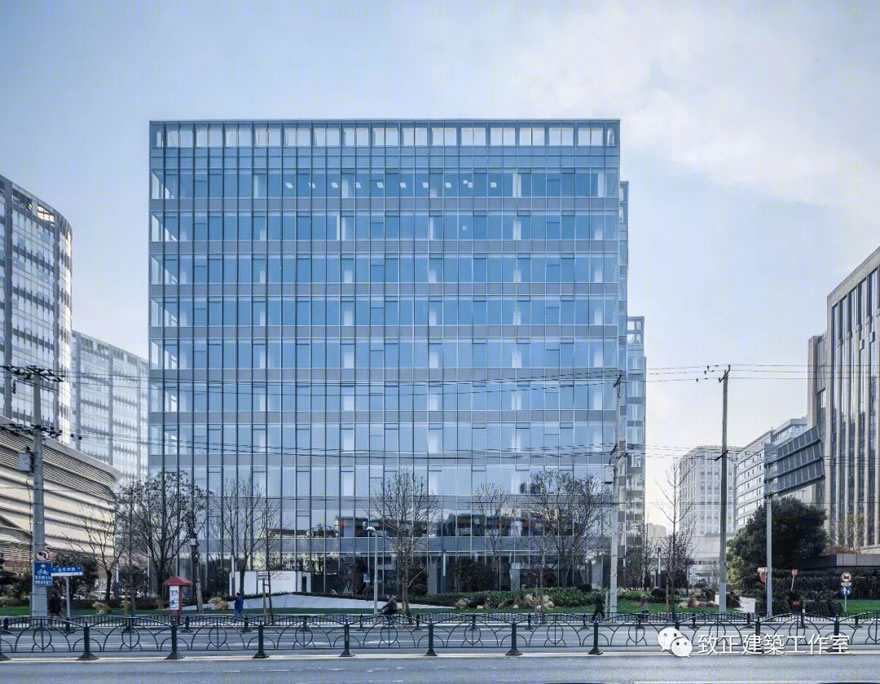

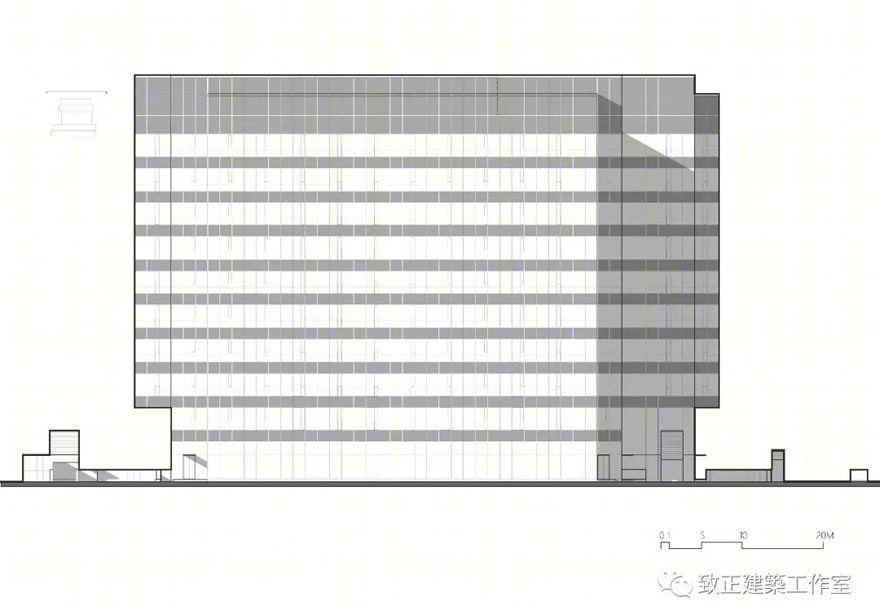

北立面

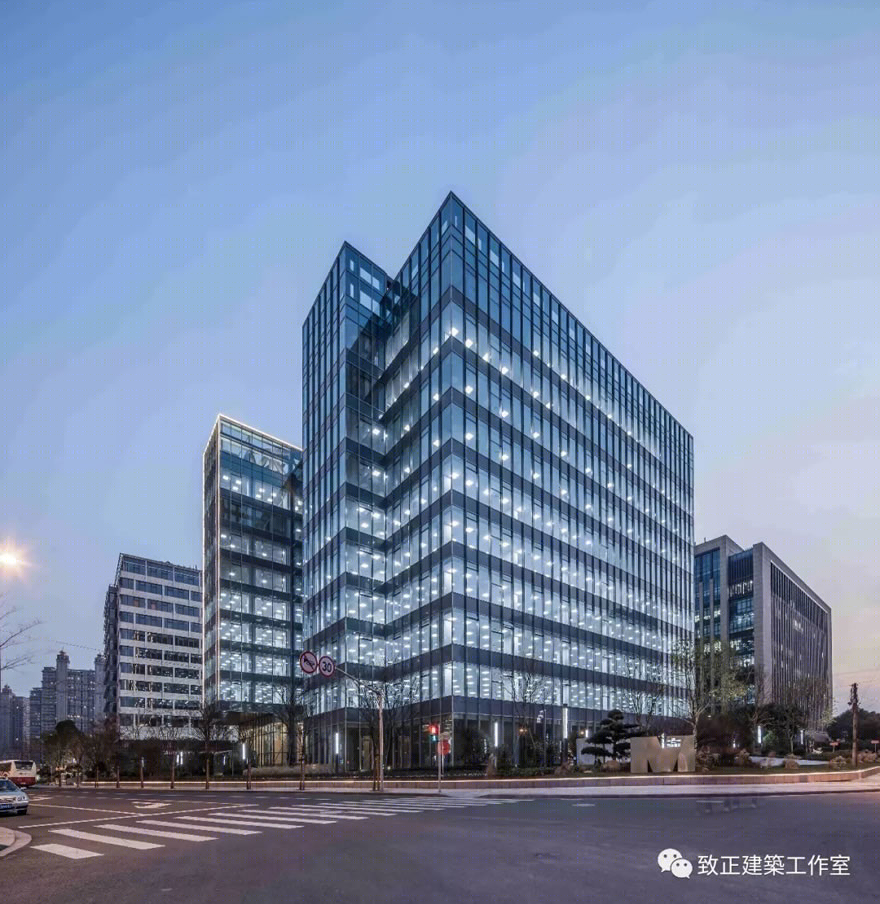

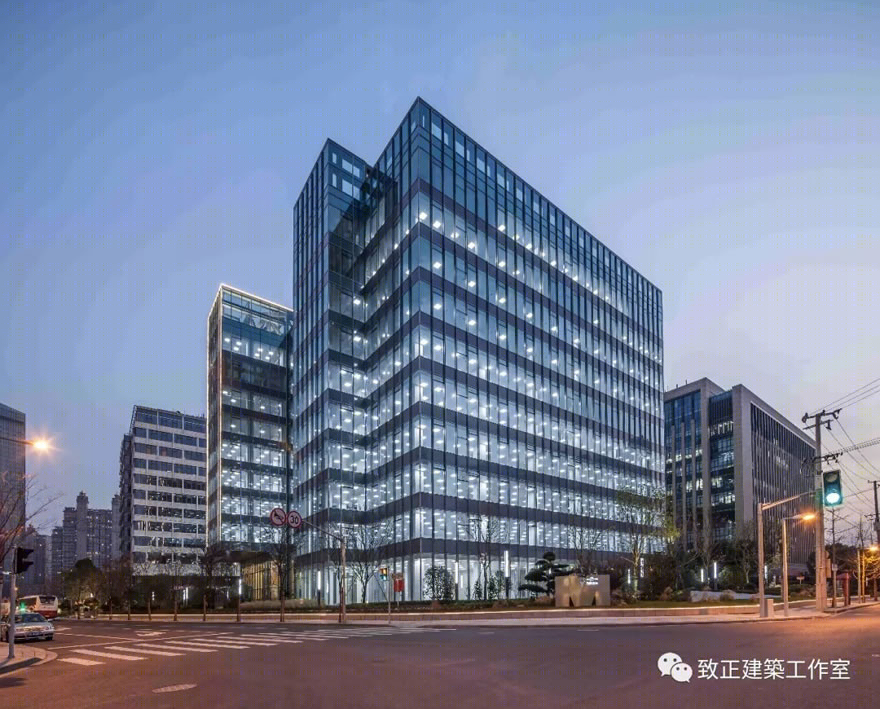

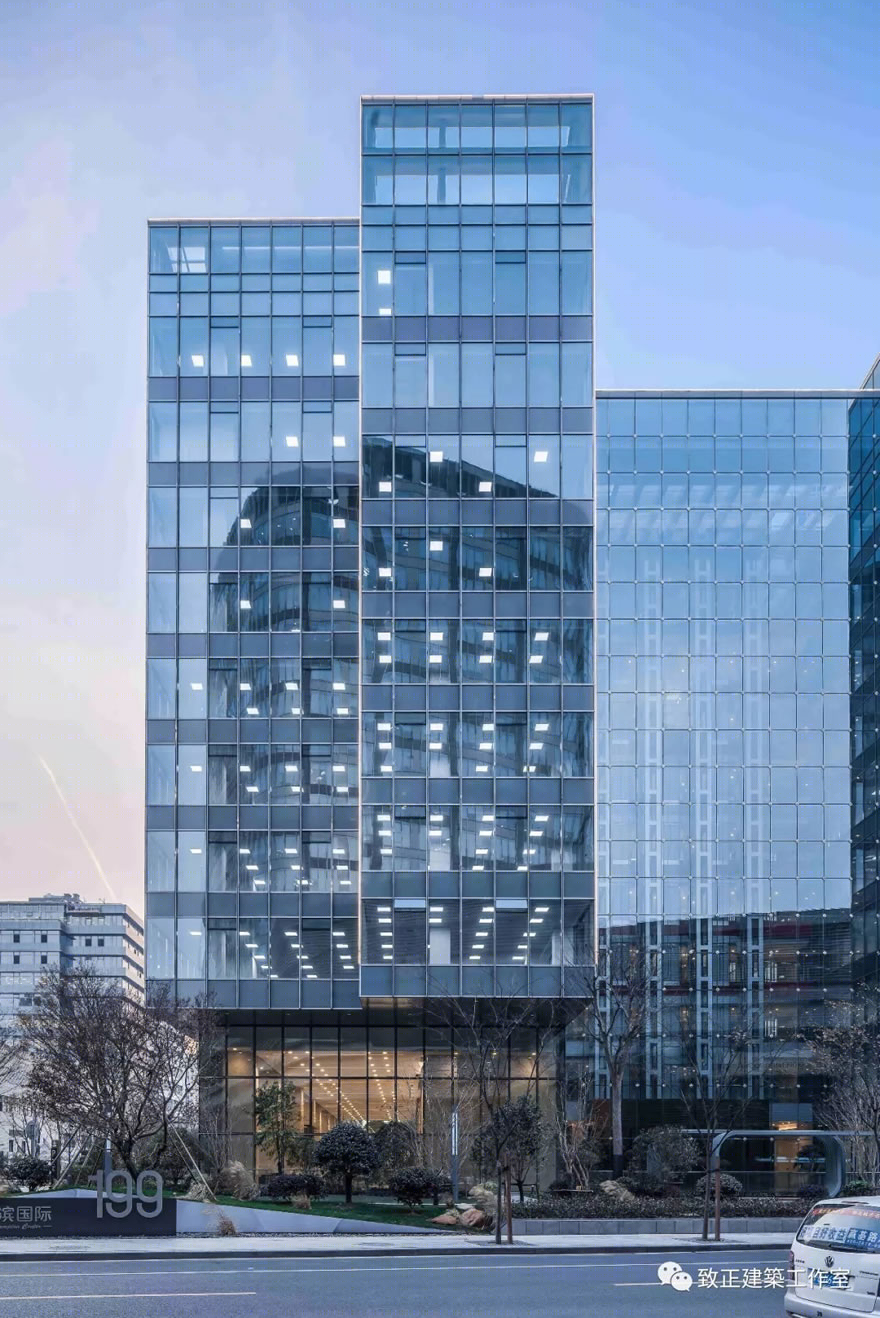

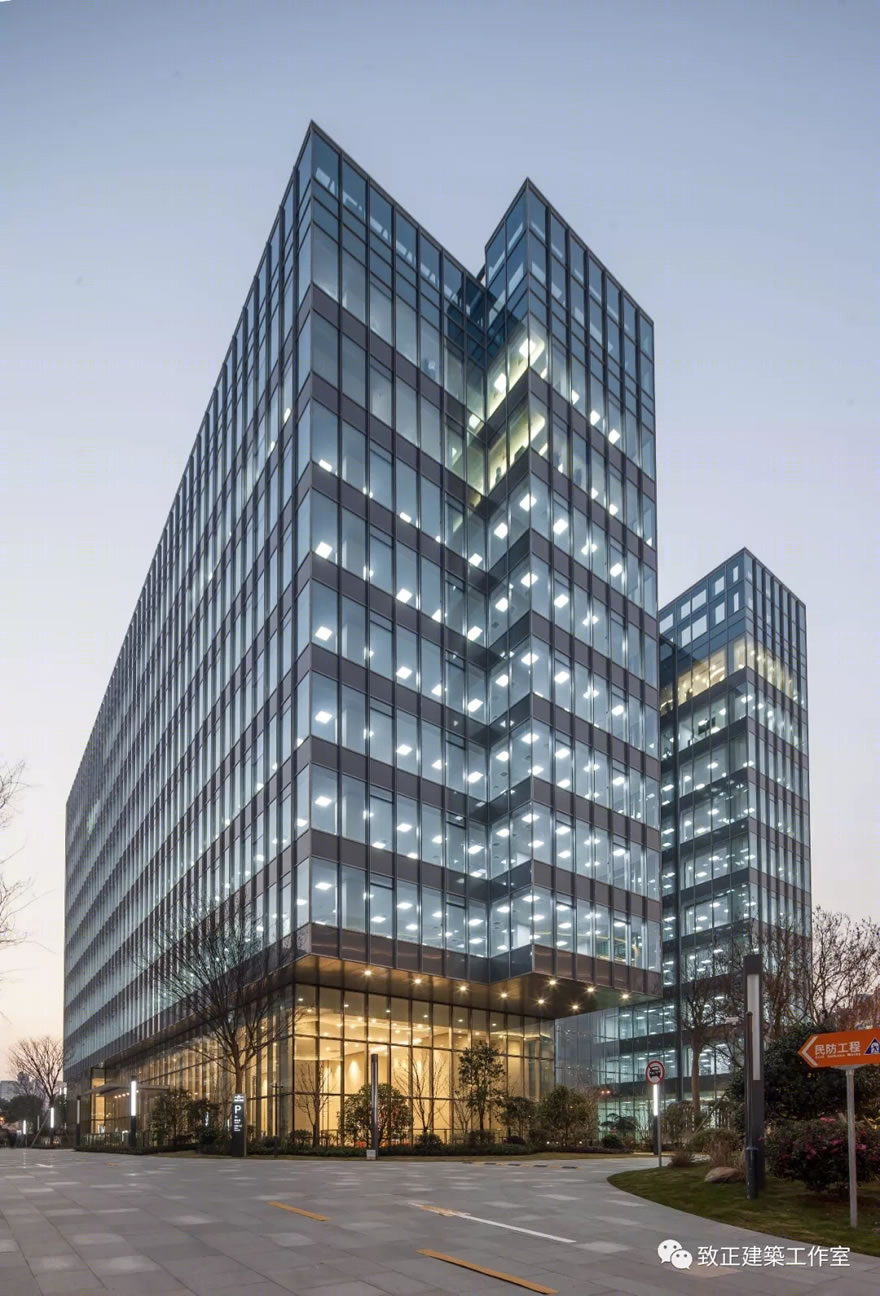

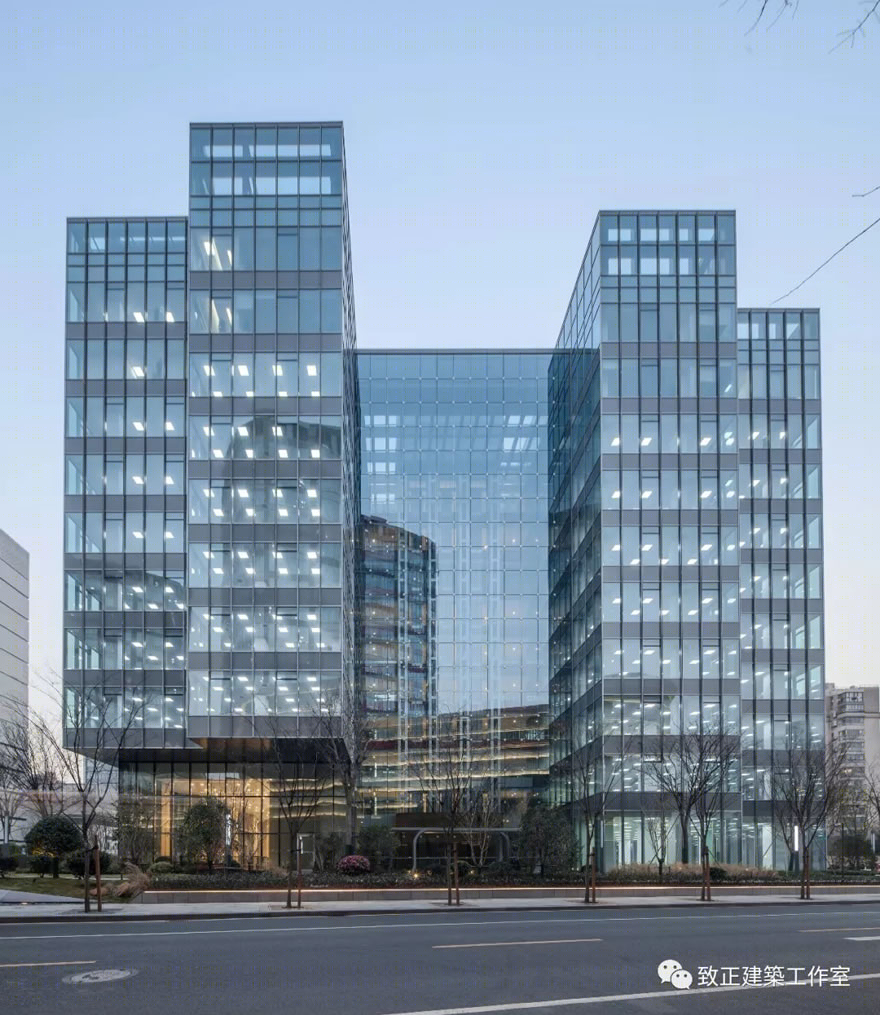

东北面外观

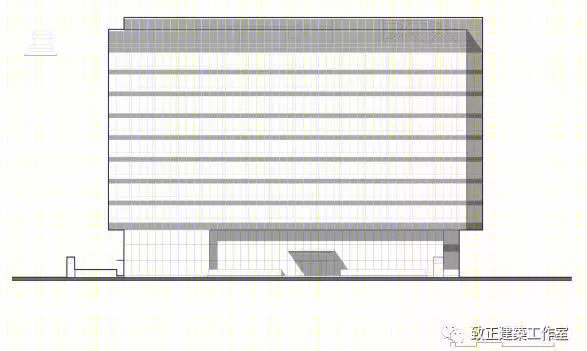

东立面

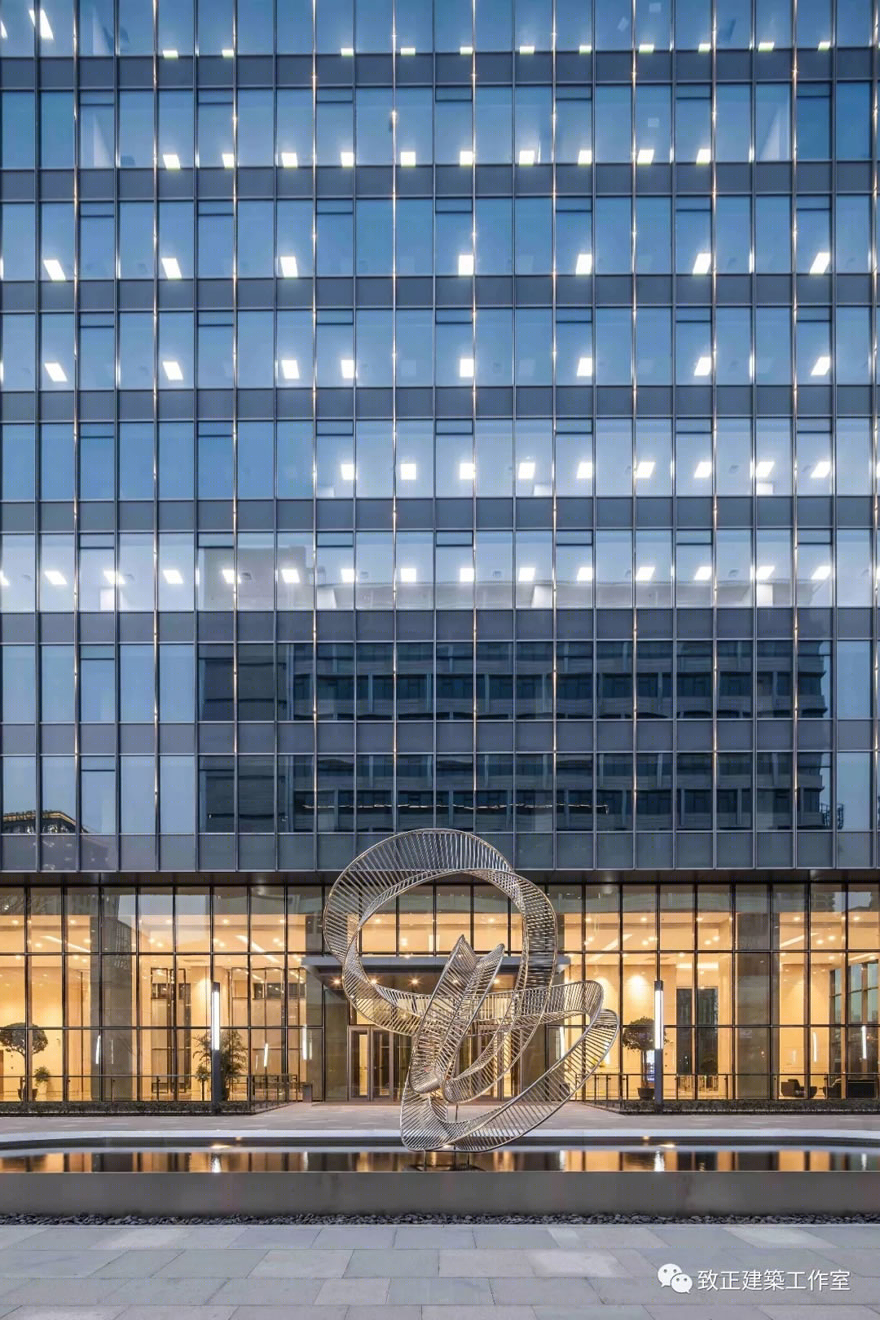

南立面局部

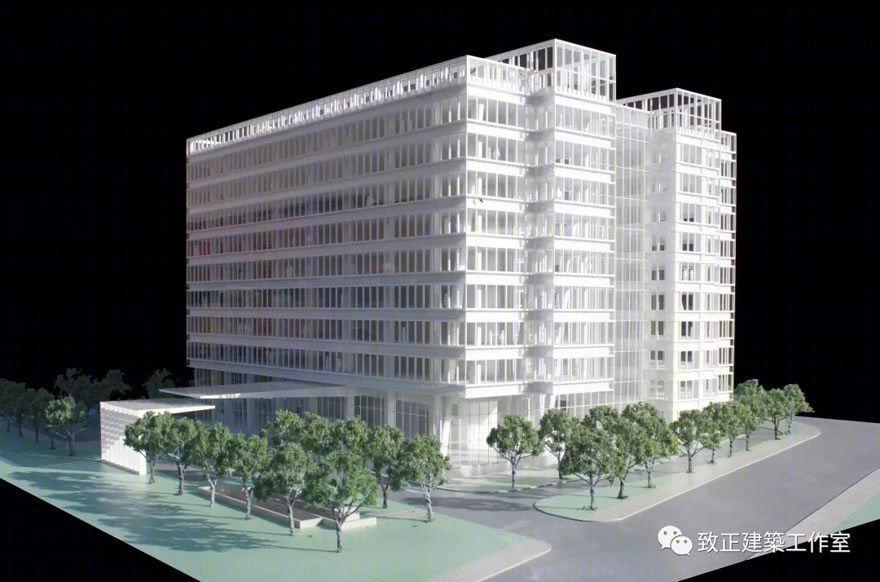

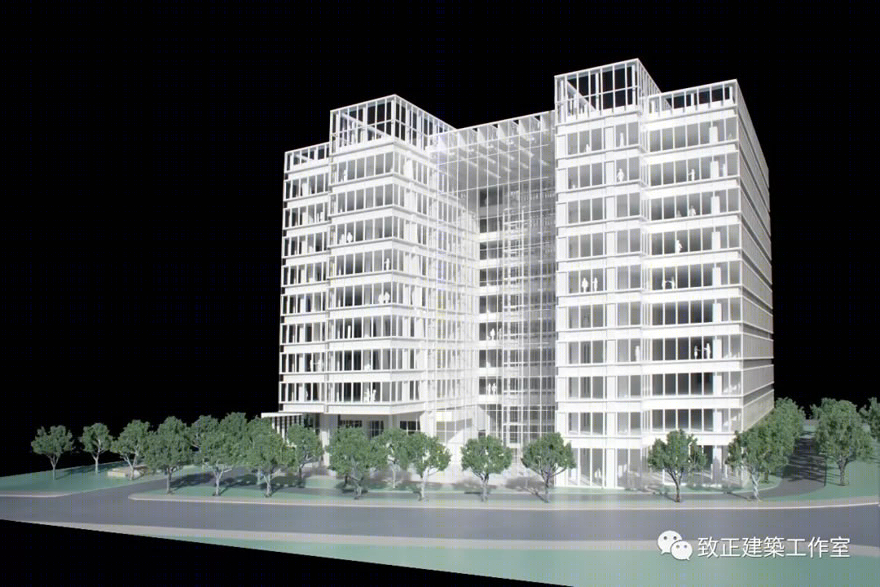

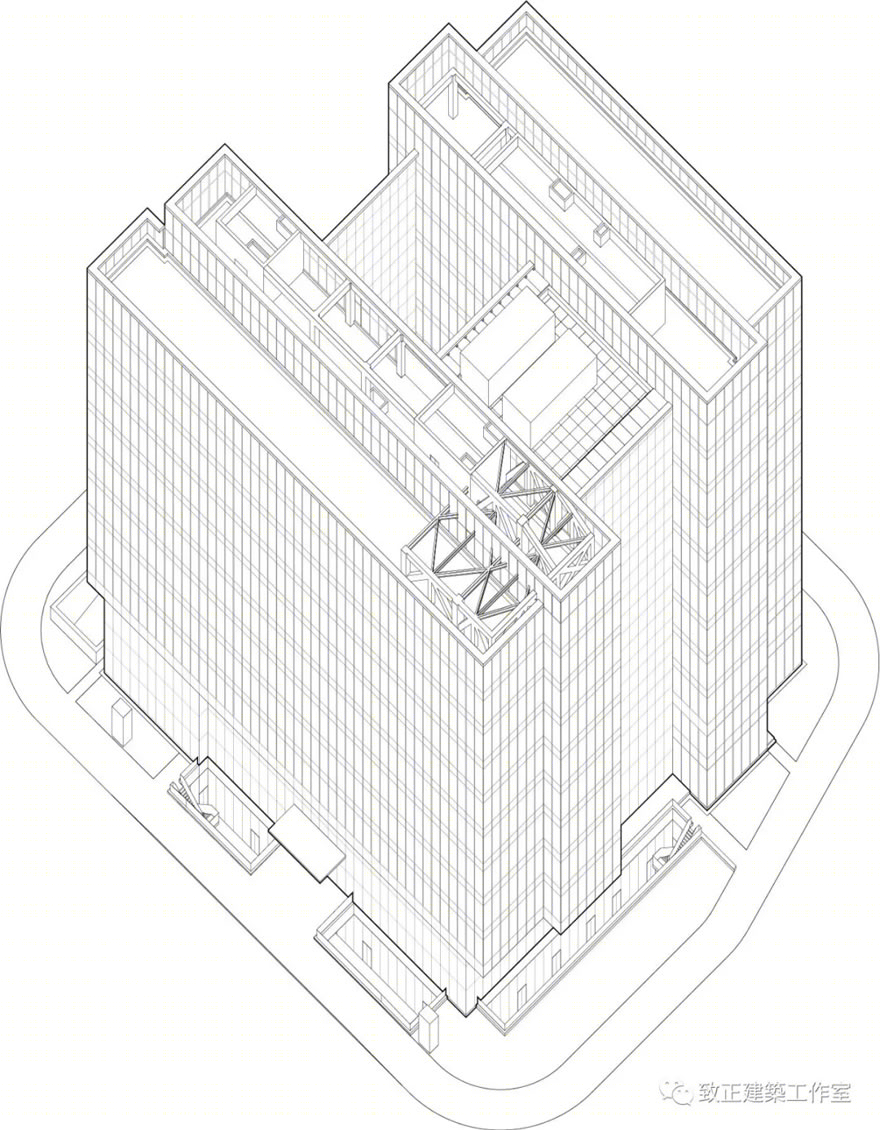

凯滨国际大厦轴测

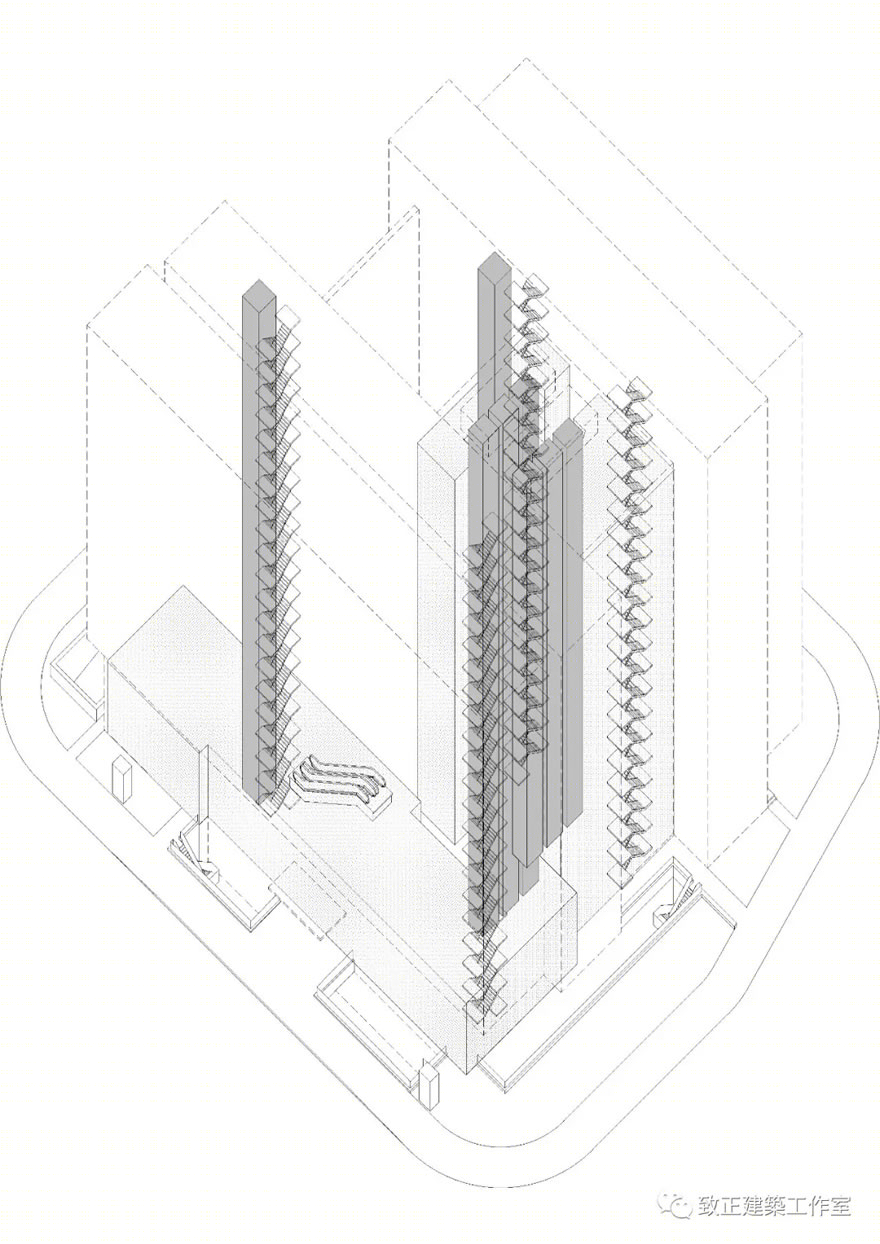

垂直交通空间轴测

我们根据业主提出的每层最多分割为两个单元这一明确的招租定位，提出了一个“工”字型的标准层格局：南北两个偏心筒的板式办公单元通过一个坐落于通高交通中庭里的天桥式电梯厅连成一体。办公单元的使用空间进深不小于12米，同时东、西端部提供了视野更开阔、进深更大的办公空间。这样的格局使办公空间的组合将有更多的可能性和灵活性，并且创造了更好的采光通风和景观条件。南北两单元之间除了东侧的透明电梯中庭，还在西侧围合了一个户外景观中庭。这两个中庭把户内和户外联成一个整体，将传统中央核心筒办公楼的不透明实体中心转换成为一个透明的虚体中心，从而将大楼内的公共景象展现给城市，并与城市的公共生活发生关联。

In light of the owner's clear requirement on dividing each layer into two units at most for lease, we propose an ‘I’-shaped pattern for each standard layer. The two slab-type office buildings with decentered cores at north and south respectively will be connected by an overpassing elevator hall starting from the elevator atrium. The usable space of the office unit is not less than 12 meters indepth and it stretches out both to the eastern end and western end providing amuch wider and deeper office space. Such pattern makes the office space much more flexible and available in various combinations and creates better conditions for lighting, ventilation and view. In addition to the transparent elevator atrium in the middle of the northern and southern units, there's also an outdoor landscape atrium at the west. The two atriums integrate the indoor and outdoor space as a whole and turn the traditional nontransparent core-tubecenter into a transparent one, showing and extending its public space inside to the city.

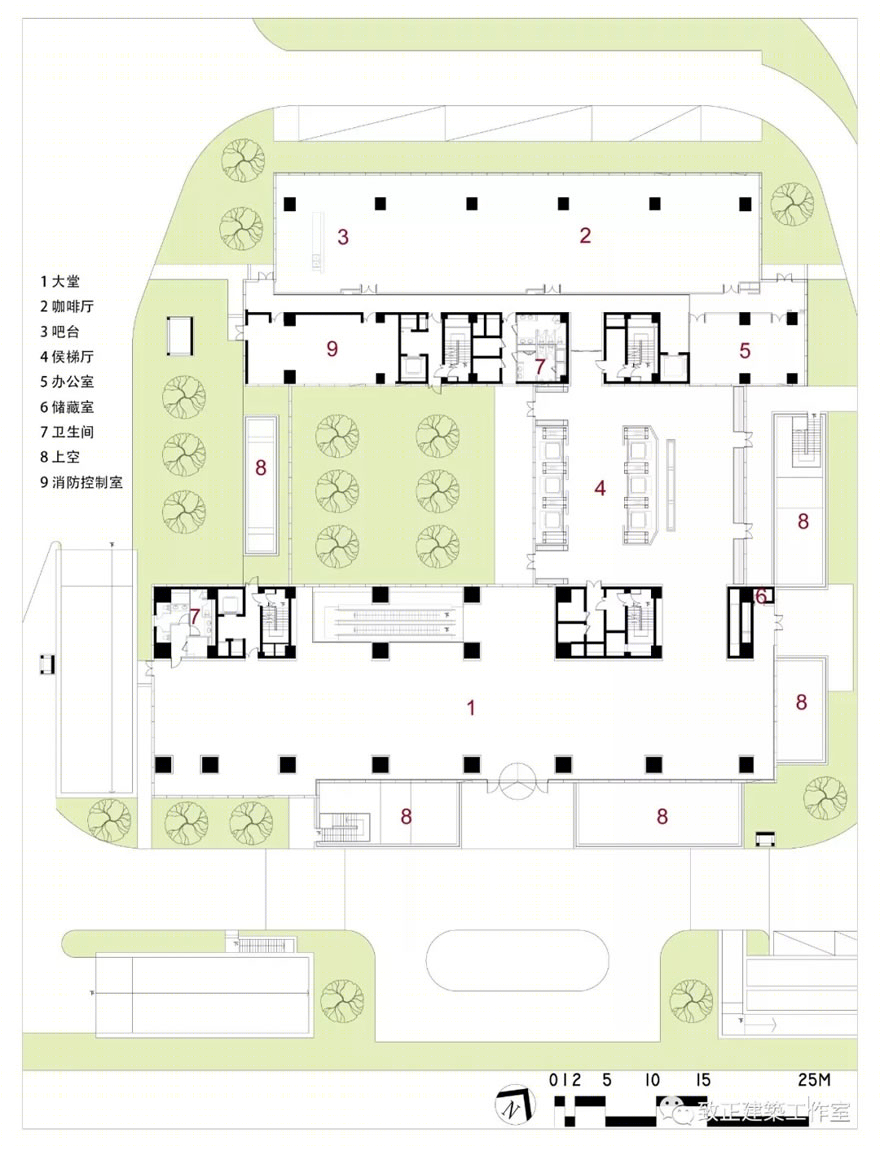

“工”字型首层平面图

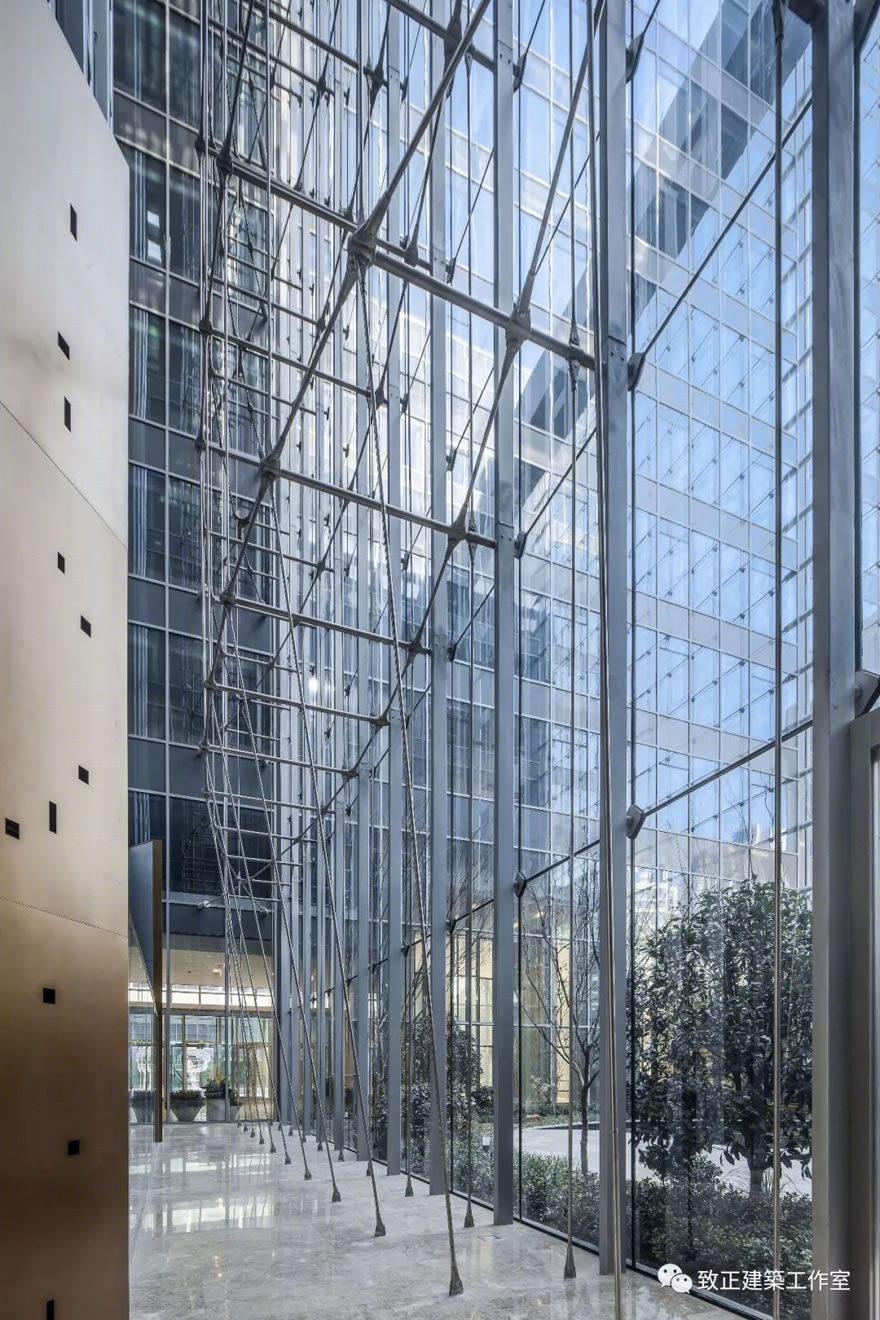

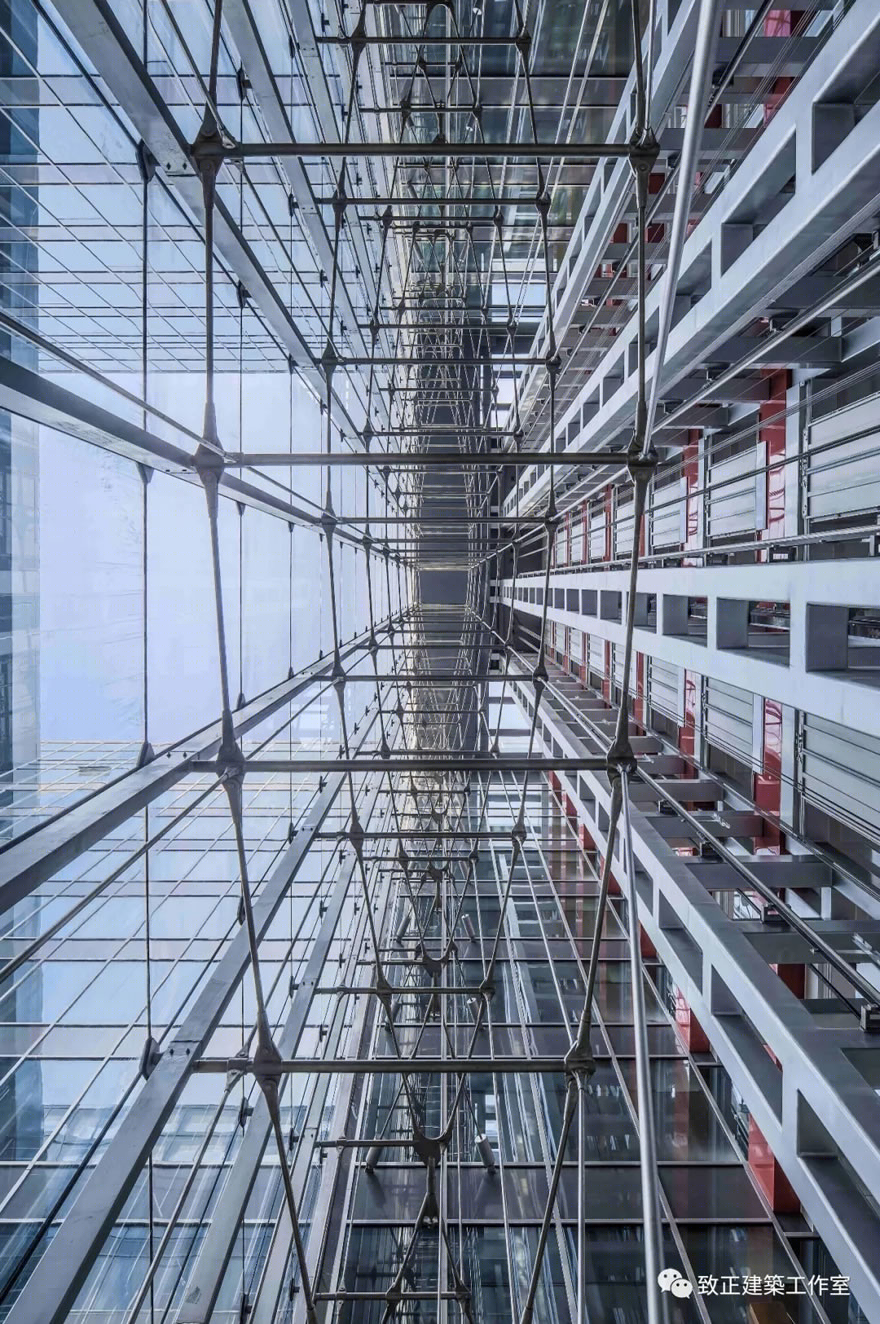

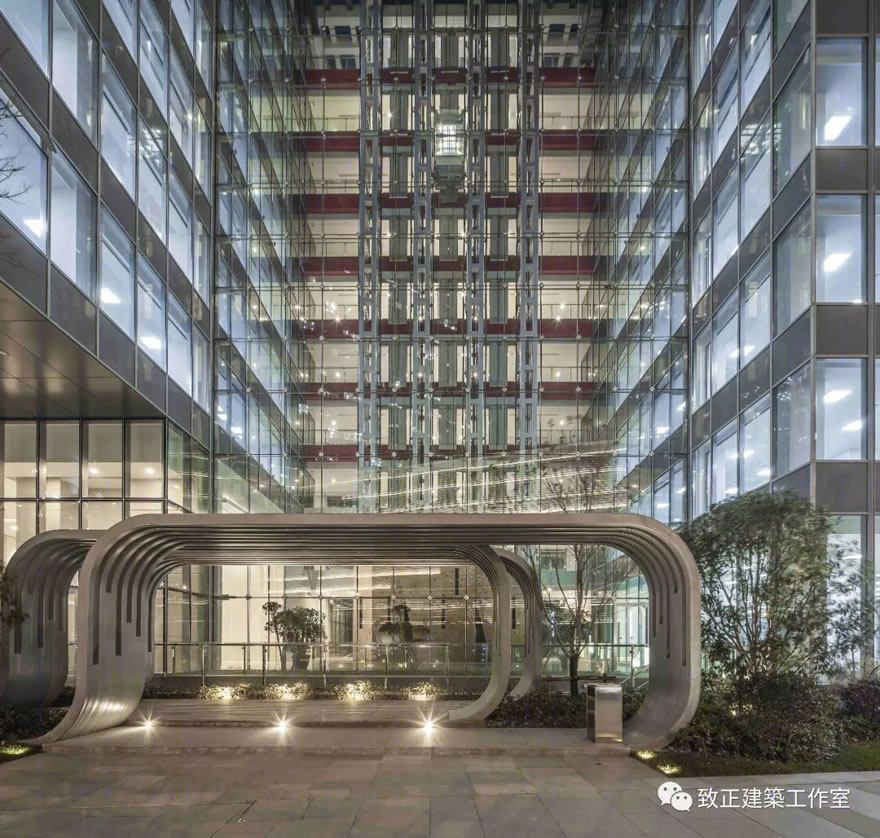

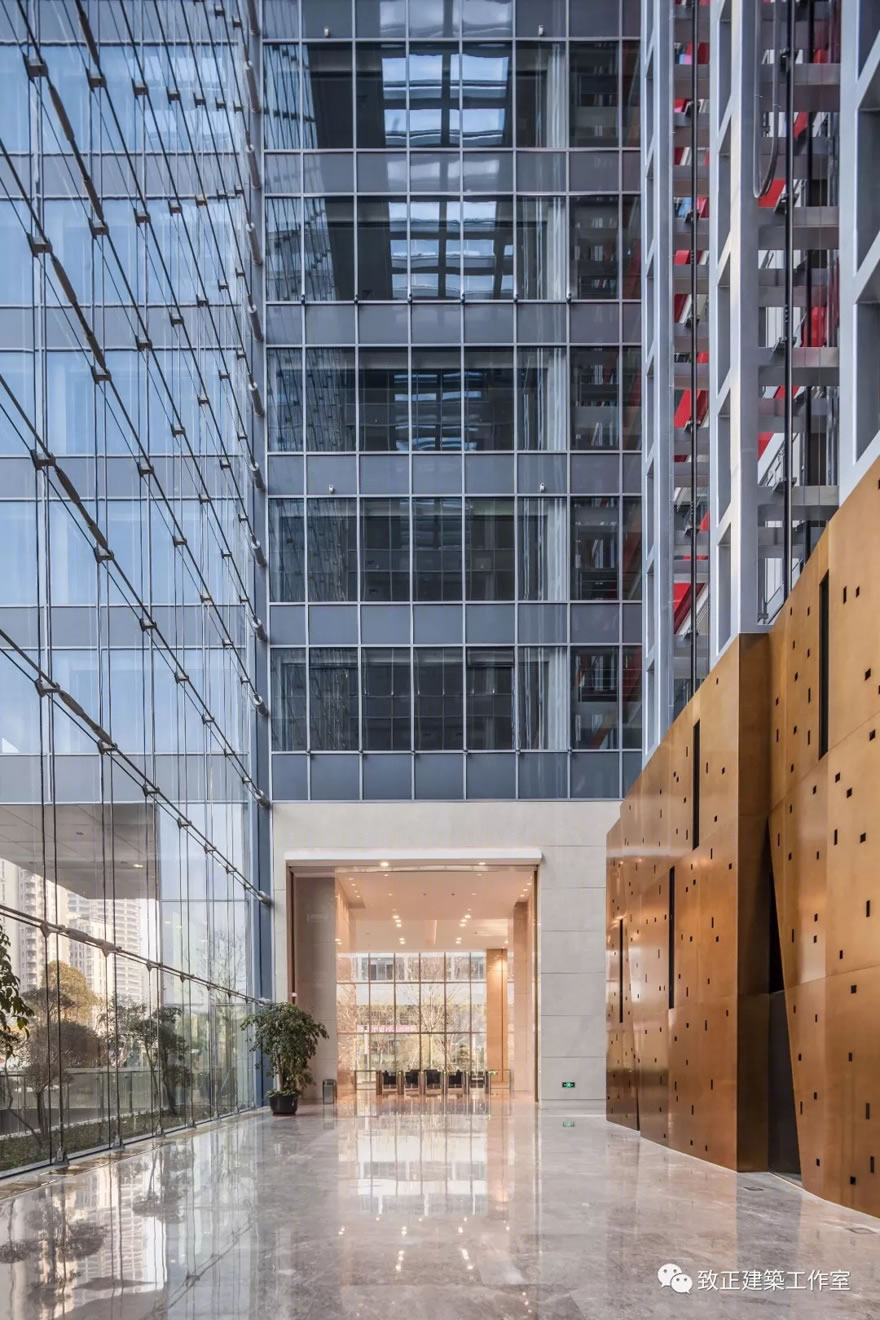

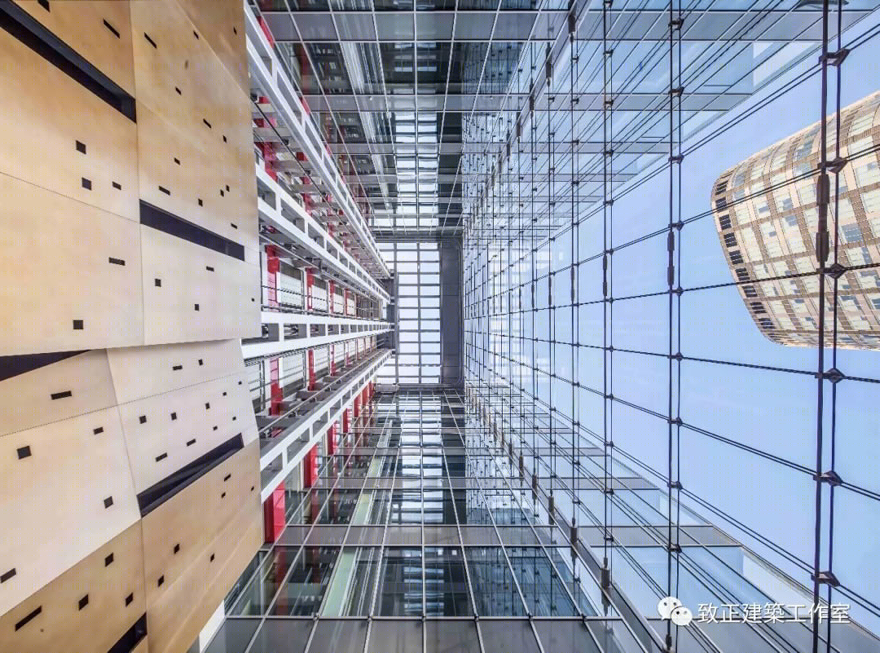

透明天梯中庭

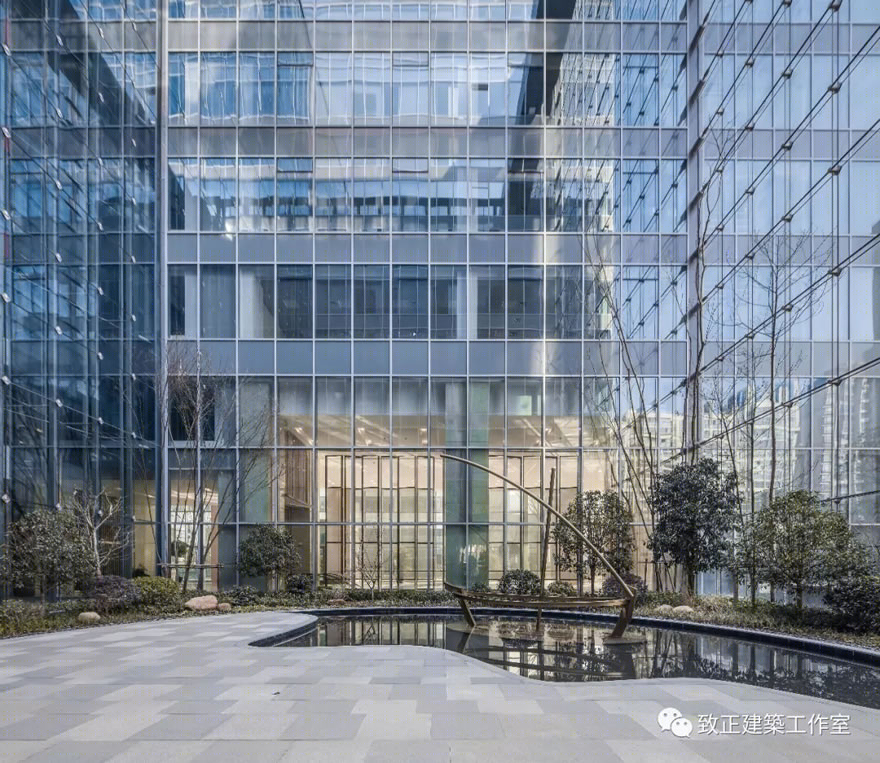

户外景观中庭

大楼南北两侧的平整界面和东西两侧的锯齿形界面回应了建筑与场地的不同关系。我们在大楼东南角将门厅界面与中庭取平，从而形成了南侧办公单元上部体量深达7.5米的悬挂式出挑，这样面向城市树立了独特的公共姿态，并更好地引导视线与人流进入南侧的主入口。南侧办公单元底部是两层通高的门厅大堂，折向北与45米通高的电梯中庭联成一体。此外，通过在建筑外围沿东、南两侧设置通长的L型下沉庭院，以及在景观中庭内与水池结合的玻璃顶采光顶，为地下一层的多功能空间带来了充足的自然采光与通风。

The flat interface at both north and south side and the serrated interface at both east and west side reflect a different relationship between building and site. We make the entrance hall interface at southeast in alignment with the atrium so as to form a 7.5-meter deep suspending volume of the upper office unit, which does not just show its distinctiveness to the city but also works as a beacon to guide people better to its southern entrance. At the base of the south-side office building there is a two-floor high entrance hall which stretches to the north until reaching a 45-meter high elevator atrium. Besides, with the ‘L’-shaped sunken garden going along with the east and south around the building and the pool-combined glass roof in landscape atrium, more natural light and air will be brought to the multi-purpose space on basement one.

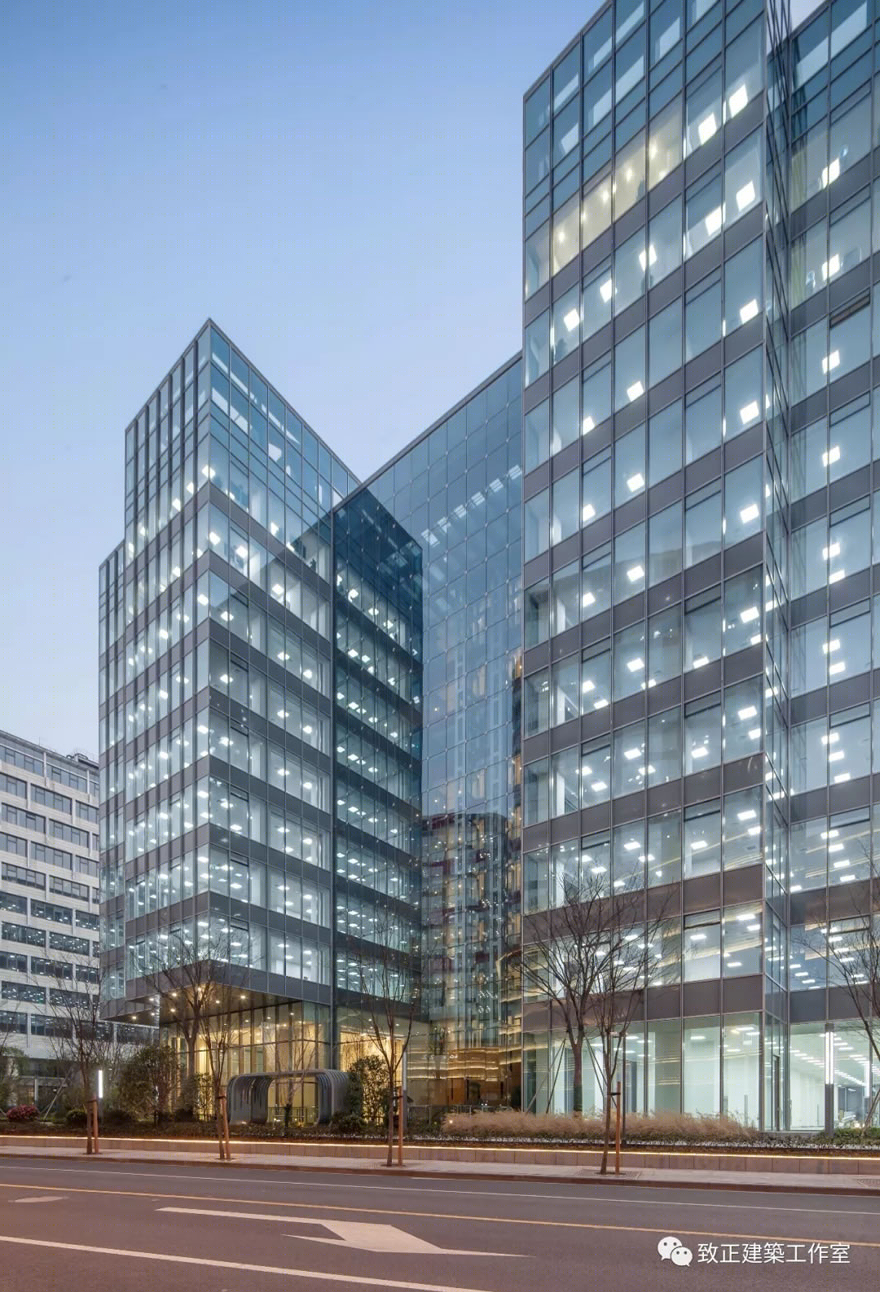

悬挂式出挑

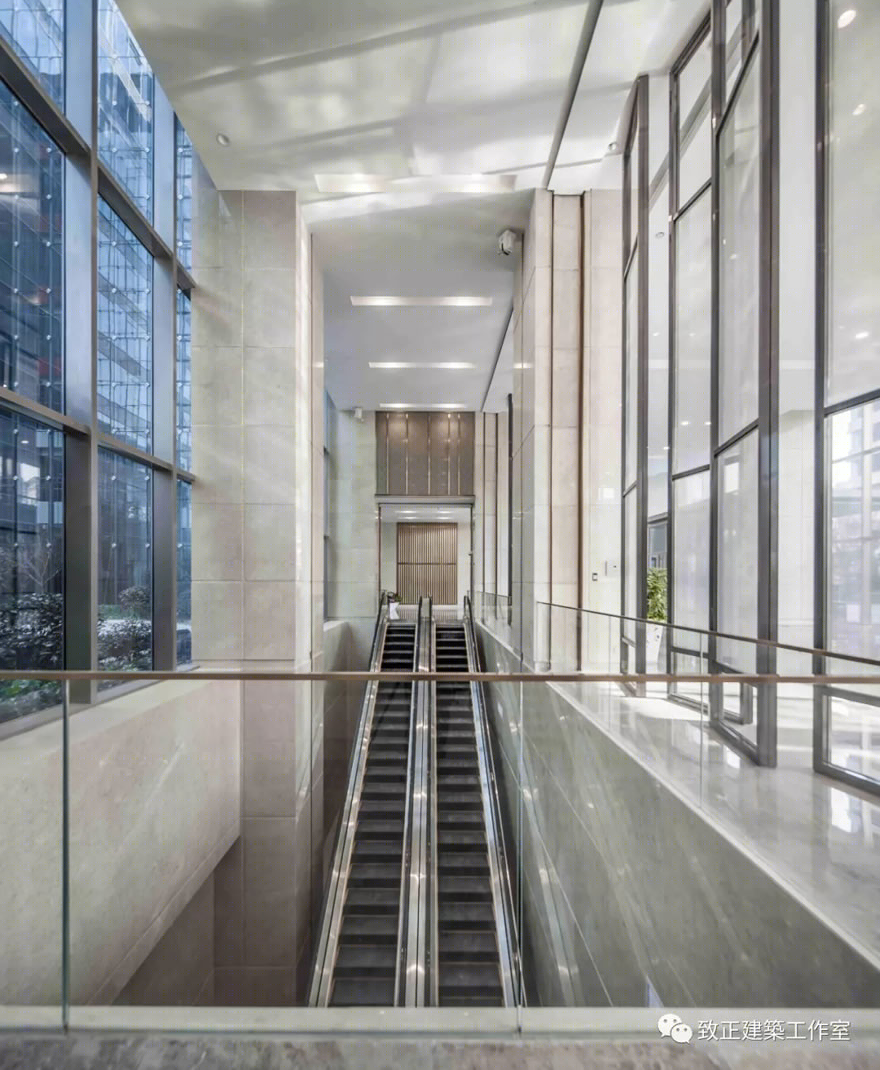

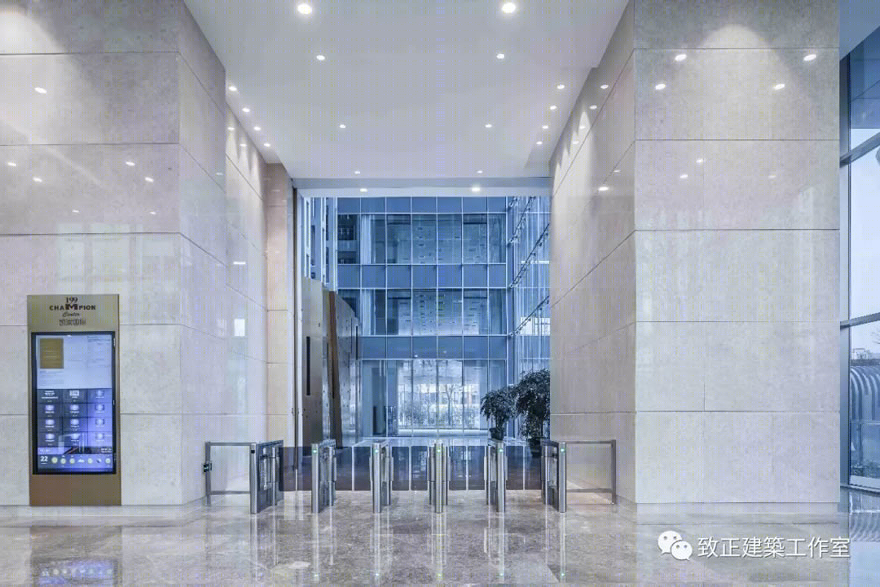

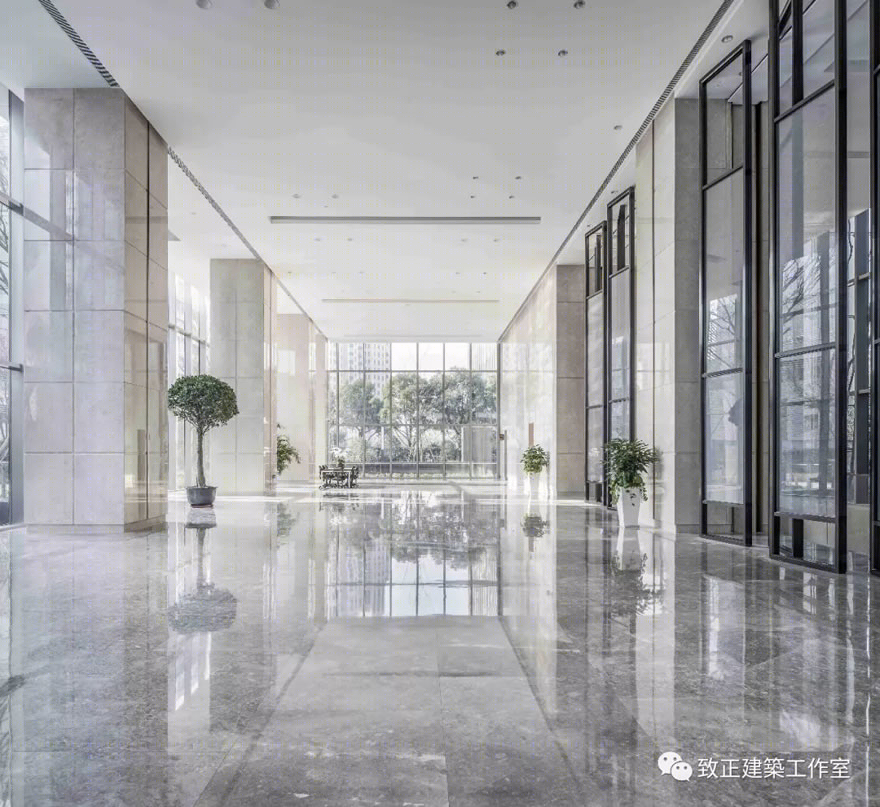

门厅

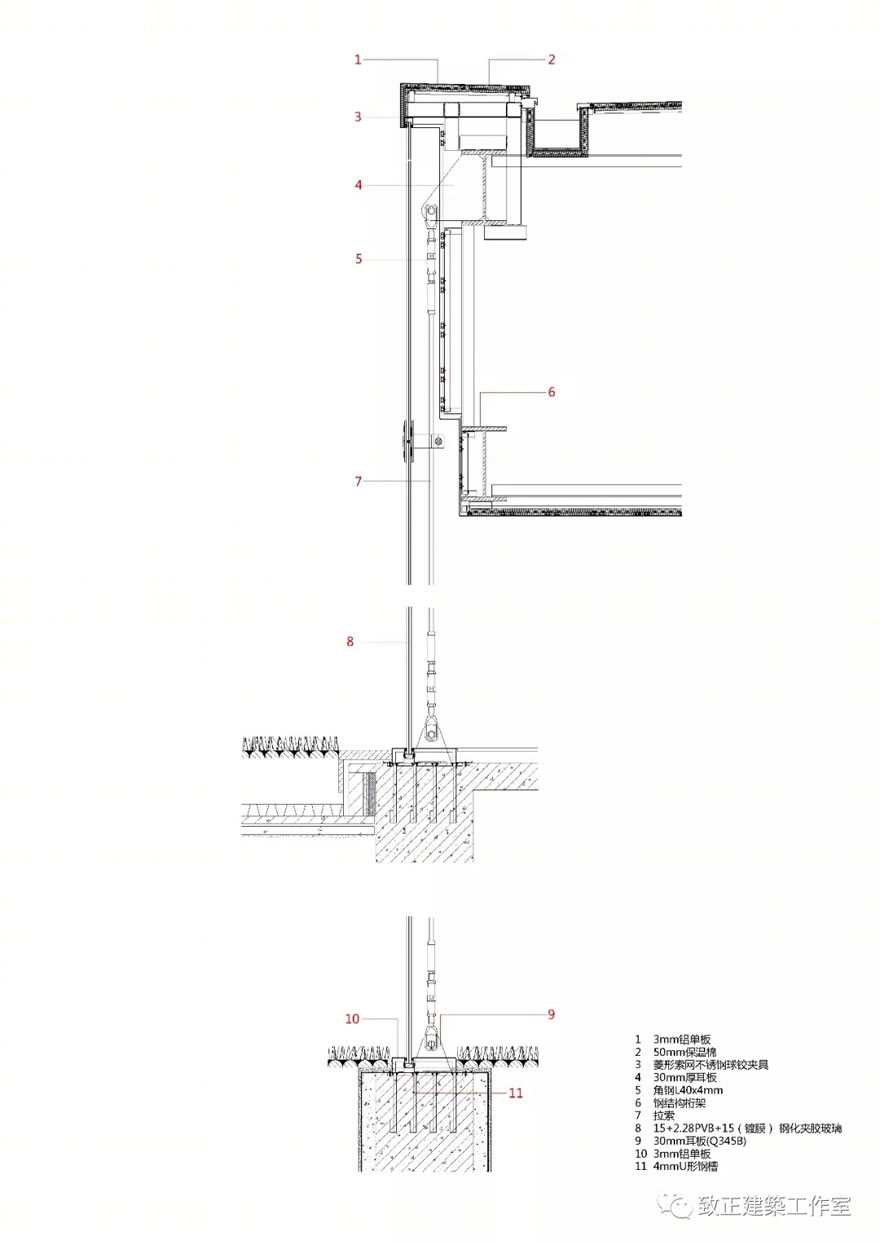

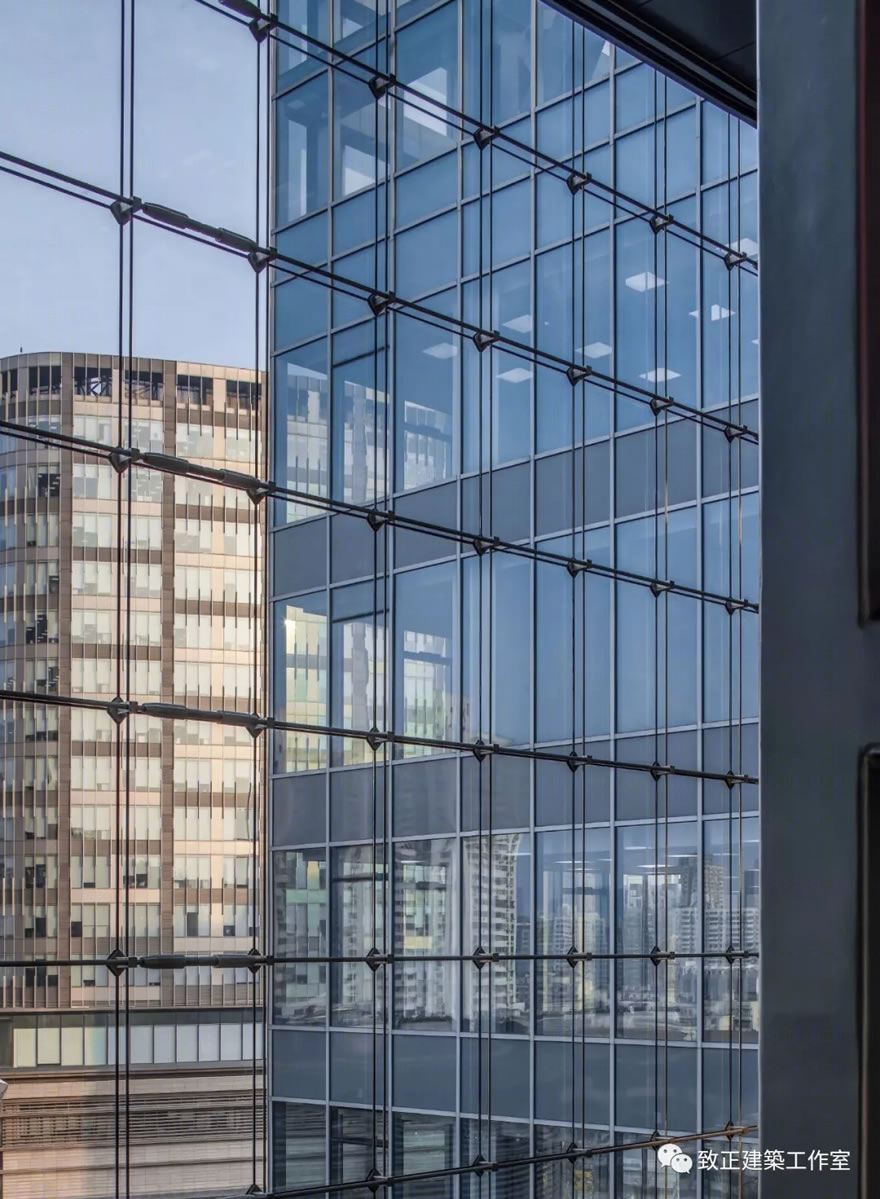

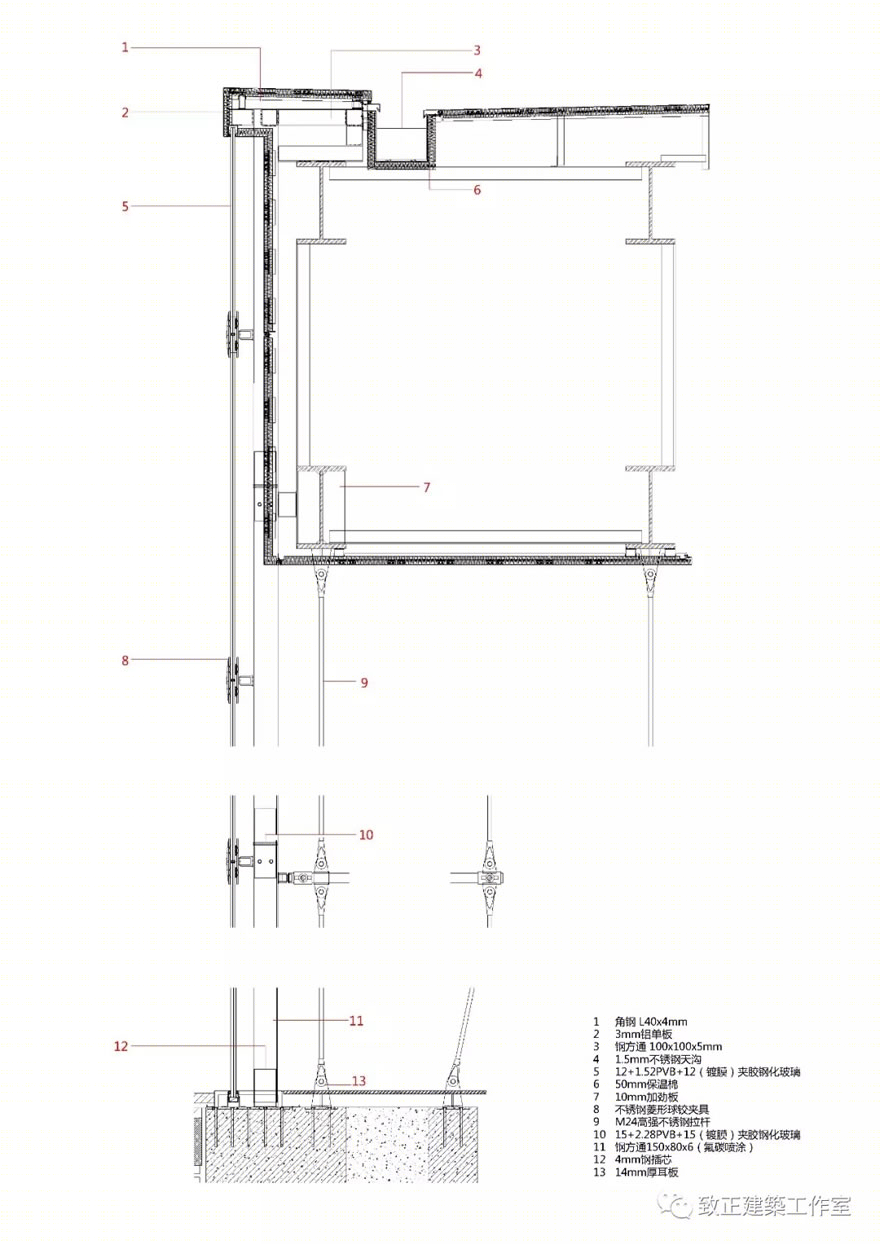

立面材料与构造的处理延续了建筑整体简洁通透的特征。办公单元外立面均为带竖向遮阳板的玻璃幕墙，层间为色彩相近的滚涂铝板。底层大堂立面采用玻璃肋支撑的全玻幕墙；而交通中庭与景观中庭的东、西两个外围护界面为通高的全玻无框悬索幕墙，突显了公共部分的最大通透性。该项目通过简洁而又克制的设计，既为高效、活跃且绿色生态的办公环境提供了可能，又为这一地区创造了一个有特征的、积极的空间节点。

The facade material and tectonic treatment inherit the feature of the concise and transparent building. The office unit facadeareall glass curtain walls equipped with vertical sun-shading boards while the interlayers are installed with roller coated aluminum plate in similar color. The hall facade on ground floor is enclosed by glass curtain walls supported by glass ribs. Frameless glass suspension curtain walls are erected as the two enclosure interfaces atthe eastern and western ends of both elevator atrium and landscape atrium insame height which maximizes the penetrability of the public area. Adopting such concise and restrained design, this project is able to provide an efficient, vigorous and ecological environment for business performance as well as play aspecial and positive role in this region.
