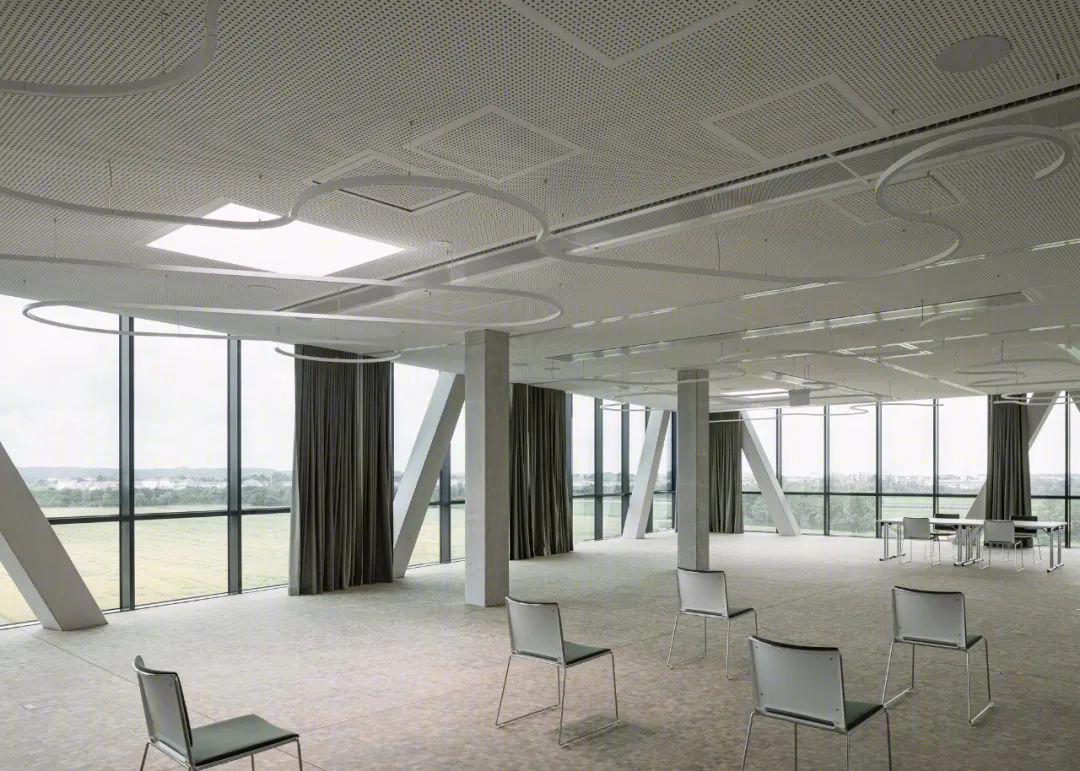

这座提供现代工作环境的建筑是奥格斯堡新兴创新园区的第一个组成部分，该园区汇集了工作和研究领域。因此，其概念针对的是研究和技术领域的初创企业和公司。除了底层的开放式工作空间设计、餐饮和当地商店外，屋顶上的共享会议中心、日托中心和许多数字智能功能可确保该建筑提供用户所需的一切。

The building providing modern working environments is the first component of the emerging innovation park in Augsburg, a place bringing together the worlds of work and research. Consequently, its concept is aimed at start-ups and companies from the research and tech sectors. In addition to the open-plan workspace design, catering, and local shops on the ground floor, a shared conference centre on the rooftop, a day-care centre, and many digital smart features ensure that the building offers everything its users need.

该建筑的独特之处源于其整体创新方法。这种方法实现了一种将用户动态传达给外部世界的充满活力的形式的综合，通过社会文化混合使用和建筑物的 LEED 白金认证以及工作环境的高感觉良好因素来实现高水平的可持续性具有不同特征的租户应用程序可以访问建筑物的所有智能功能，空气概念由于微妙的气味而具有令人振奋的效果，同时过滤细菌和病毒，从而促进员工的健康。

The building’s unique characteristic stems from its holistic approach to innovation. This approach achieves a synthesis of a vigorous form that conveys the user dynamics to the outside world, a high level of sustainability through a socio-cultural mix of uses and the building’s LEED Platinum certification along with a high feel-good factor of the working environments with varying characteristics, a tenant app providing access to all of the building’s smart features, and an air concept that has an invigorating effect thanks to subtle scenting, while at the same time filtering germs and viruses and therefore promoting the health of the employees.

工作是多功能的，需要可变的框架条件，不仅在办公桌上进行，还可能很有趣！建筑中的各种用途汇集在一起，形成一个单元，或者更确切地说是一个充满活力的共存。任何事情都可以：单元可以从最小的空间租用，但也可以水平或垂直组合以创建高达 3,000 平方米的区域。

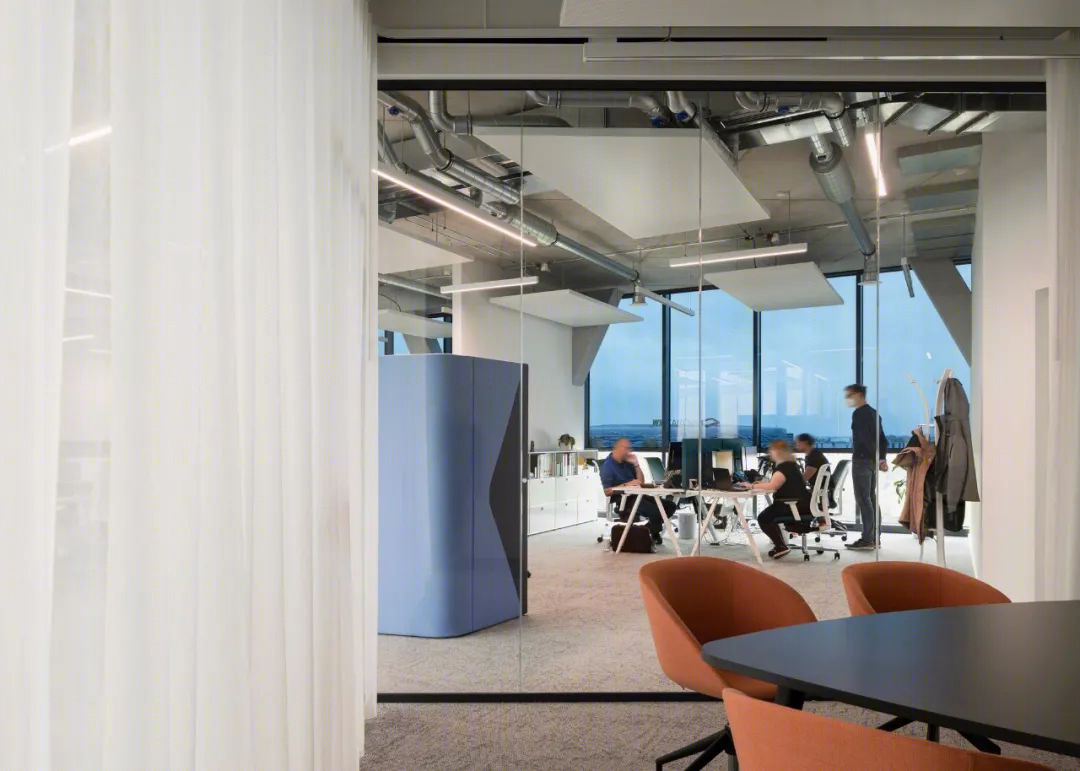

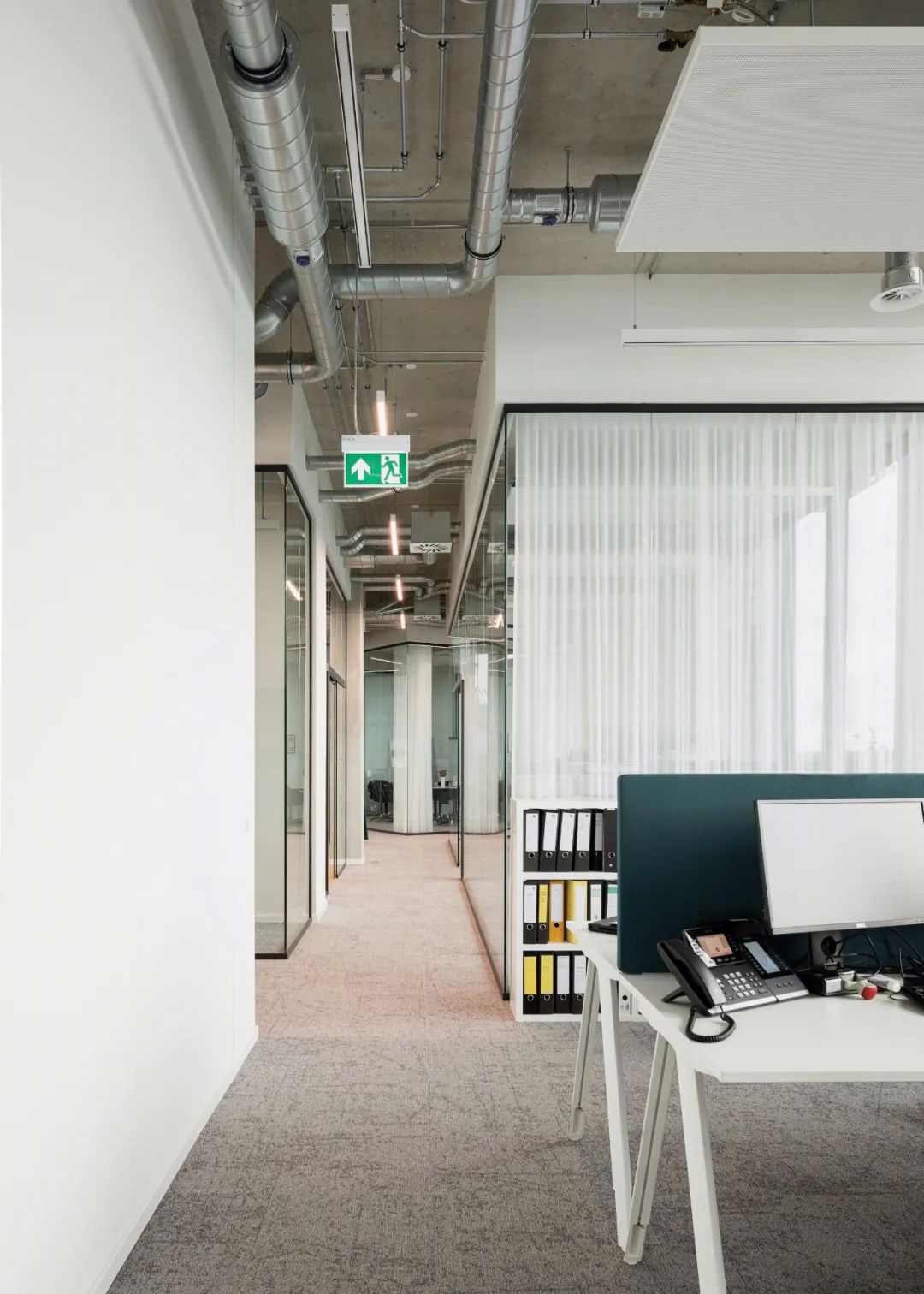

每个单元都有最大的灵活性：空间没有承重的横墙，附属房间位于楼梯处。可能的布局范围从单独的办公室到带有中央区域的组合办公室，再到开放式办公室或具有截然不同工作氛围的先进的办公室景观。

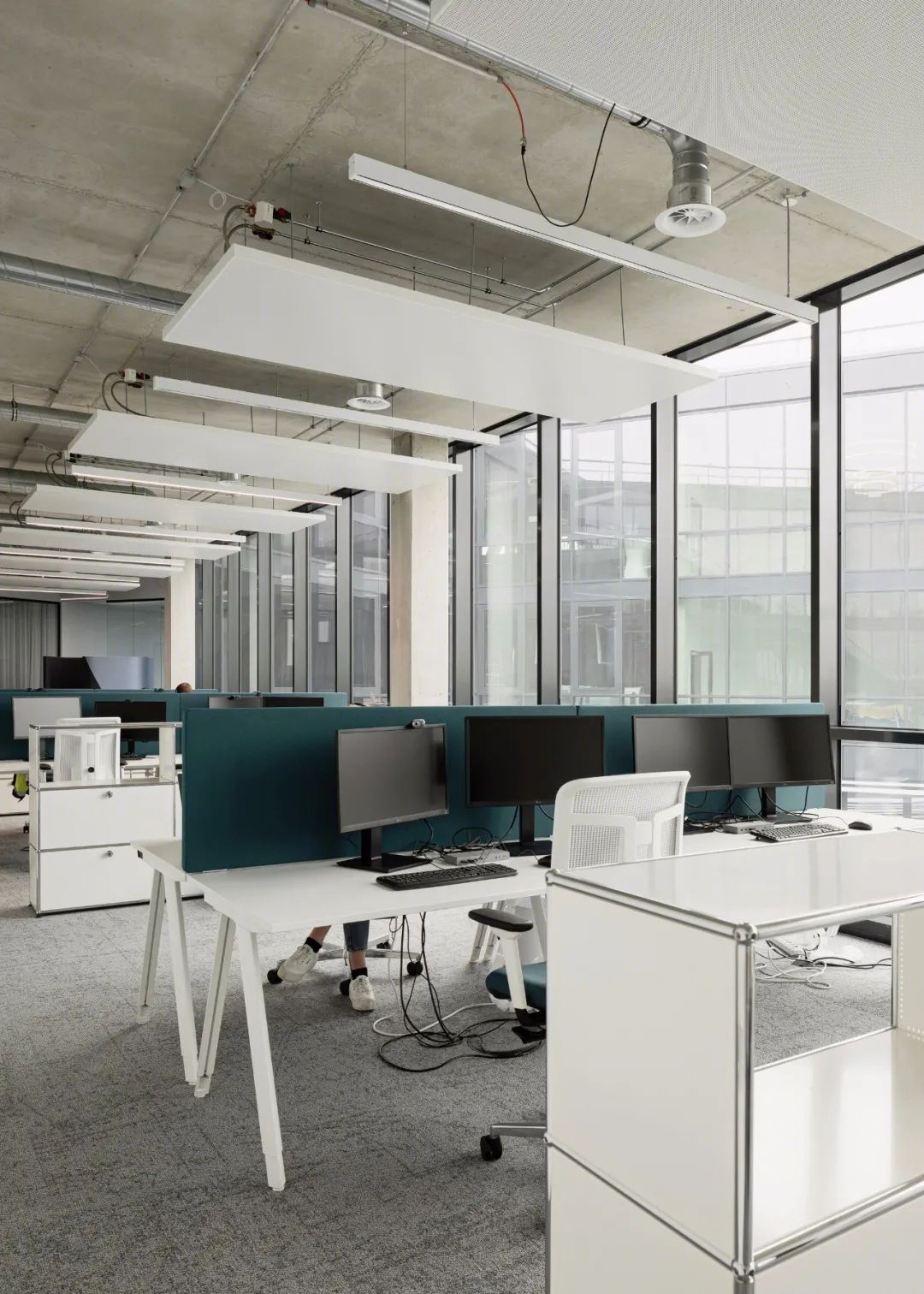

Work is versatile, requires variable framework conditions, does not only take place at a desk, and may also be fun! A variety of uses come together in the building, forming a unit or rather a vibrant coexistence. Anything goes: units can be rented from the smallest of spaces, but can also be combined horizontally or vertically to create areas of up to 3,000 m2. There is maximum flexibility within each unit: the space is free of load-bearing transverse walls, and ancillary rooms are positioned at the staircases. Possible layouts range from individual offices to combi-offices with a central zone, to open-plan offices or state-of-the-art office landscapes with very different working atmospheres.

作为钢筋混凝土骨架结构的设计，带有支撑网格和实心楼梯，以及作为支撑的辅助房间核心是经济的，并允许最大可能的灵活性和长期使用的可变性。内墙采用轻型结构建造或由租户自己安装。选择的表面材料既能散发价值，又能营造出吸引人的氛围，同时又经久耐用且维护成本低。可持续材料被用于最大限度地减少二氧化碳足迹和体现的能量平衡。

The design as a reinforced concrete skeleton structure with a support grid and solid staircase and ancillary room cores as bracing is economical and allows for the greatest possible flexibility and long-term changeability regarding use. Interior walls were built in lightweight construction or installed by the tenants themselves. Surface materials were chosen so that they radiate value and create an appealing ambiance, but are also durable and low-maintenance. Sustainable materials were used to minimise the CO2 footprint and the embodied energy balance.

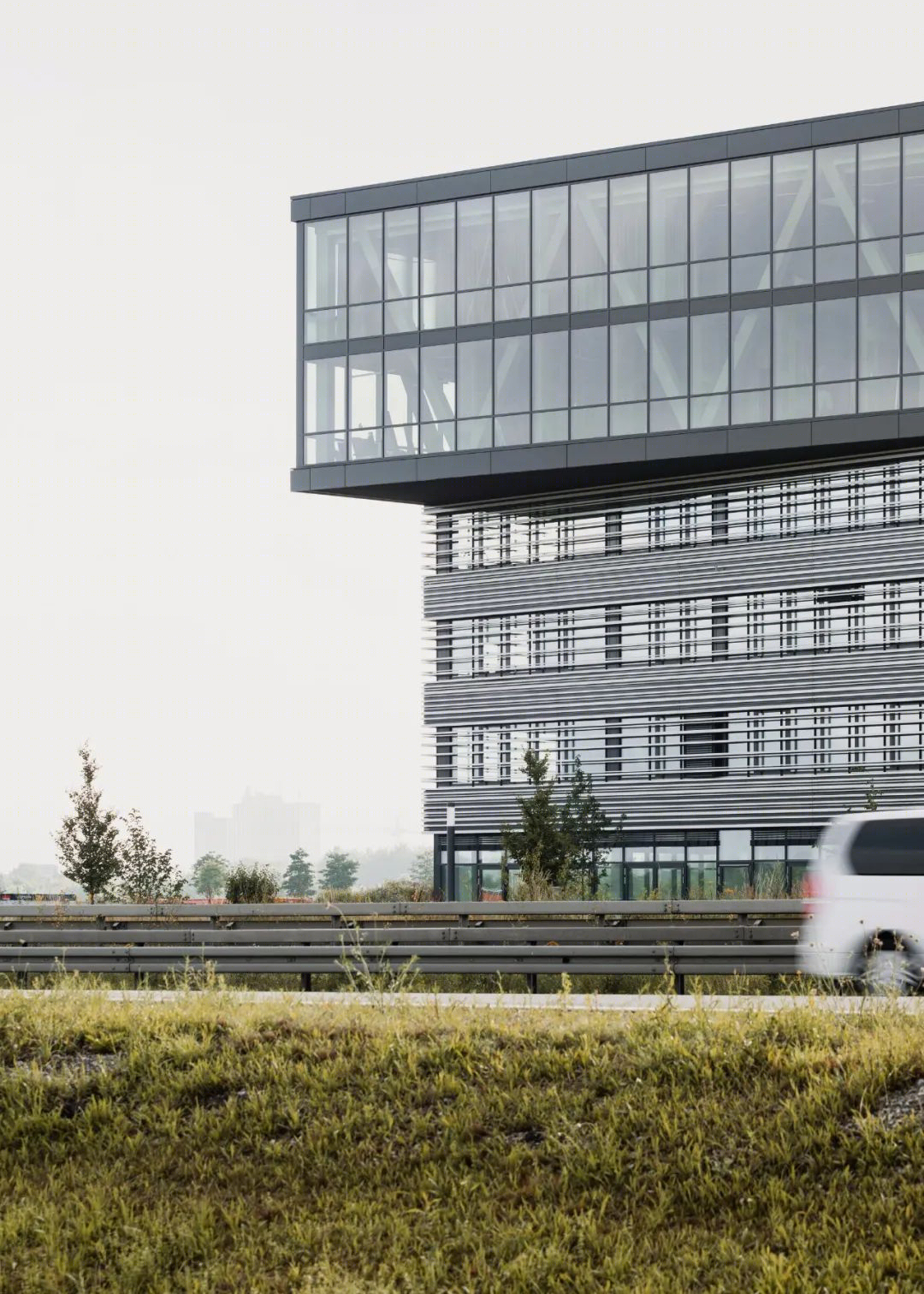

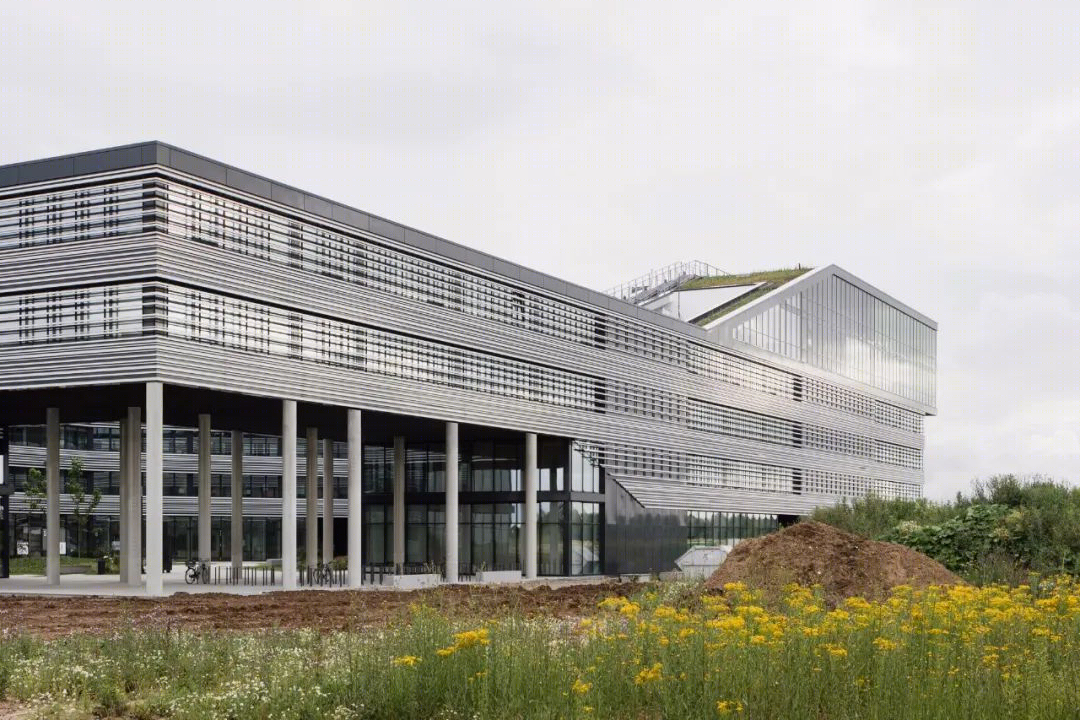

雨水收集和在屋顶上使用光伏发电的创新太阳能存储概念的实施使这一概念更加完美。坚固的护墙隐藏在引人注目的水平防晒板条后面，减少了外墙的玻璃比例，以实现更好的隔热值，并获得建筑认证的学分。建筑服务占全球温室气体排放的很大一部分，这就是为什么计划中的建筑被设计为近乎零碳的概念。LEED 白金认证设定了高标准。

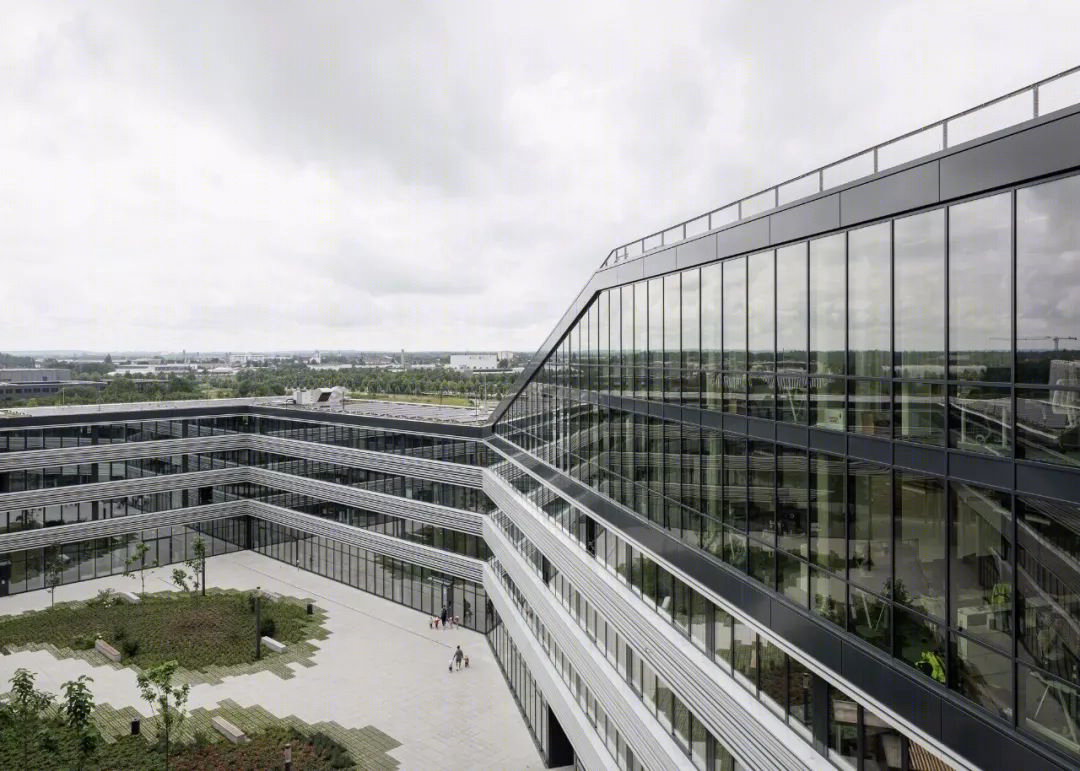

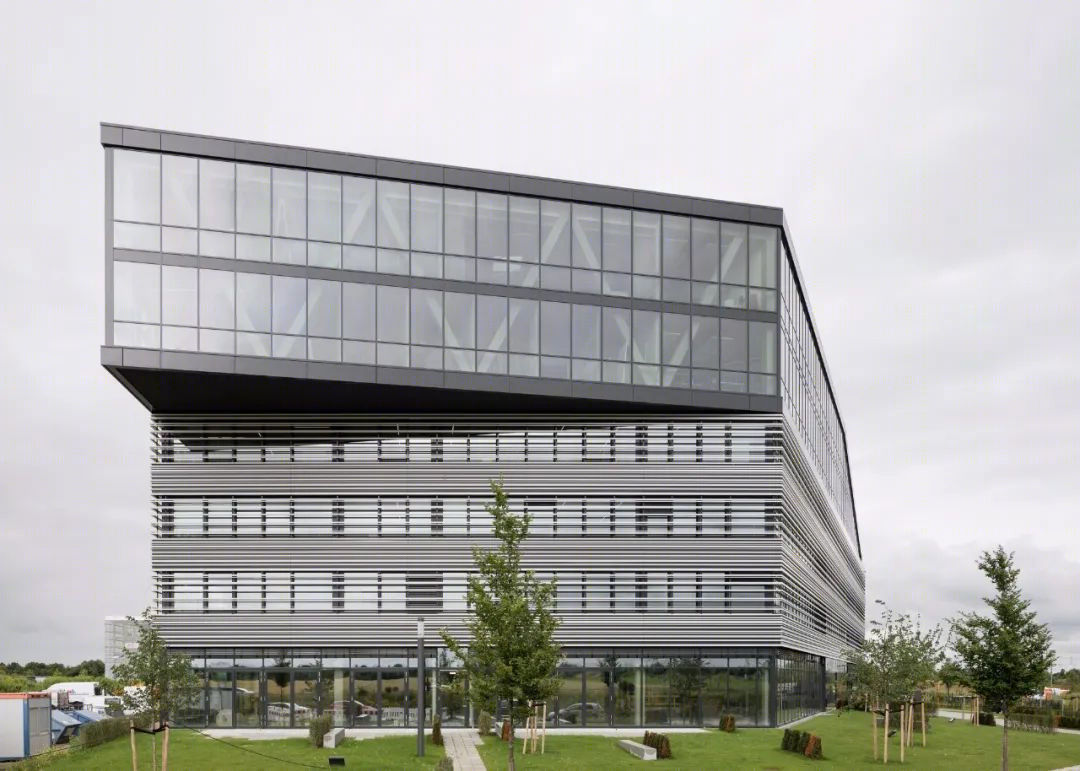

The concept is rounded off by rainwater harvesting and the implementation of an innovative solar power storage concept using photovoltaics on the rooftop. Solid parapets are hidden behind the striking horizontal sun protection slats, which reduce the glass proportion of the façade to achieve a better insulation value and earn credits towards the certification of the building. Building services are responsible for a large proportion of global greenhouse gas emissions, which is why the planned building is being designed as a nearly-zero carbon concept. LEED Platinum certification sets a high standard.

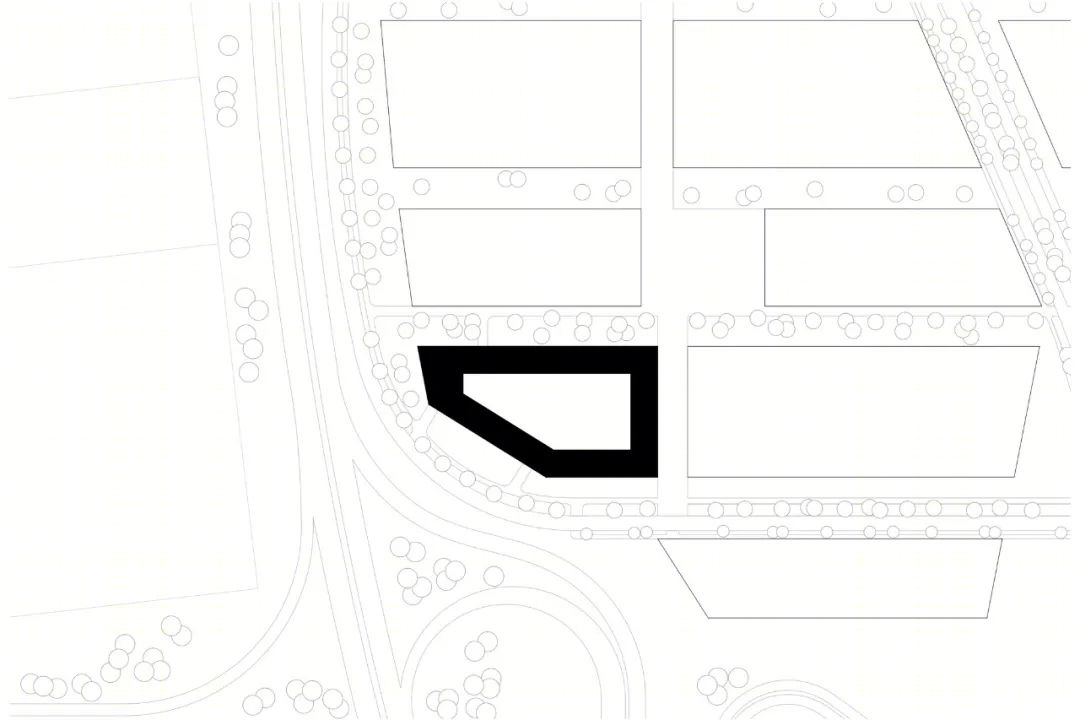

区位图

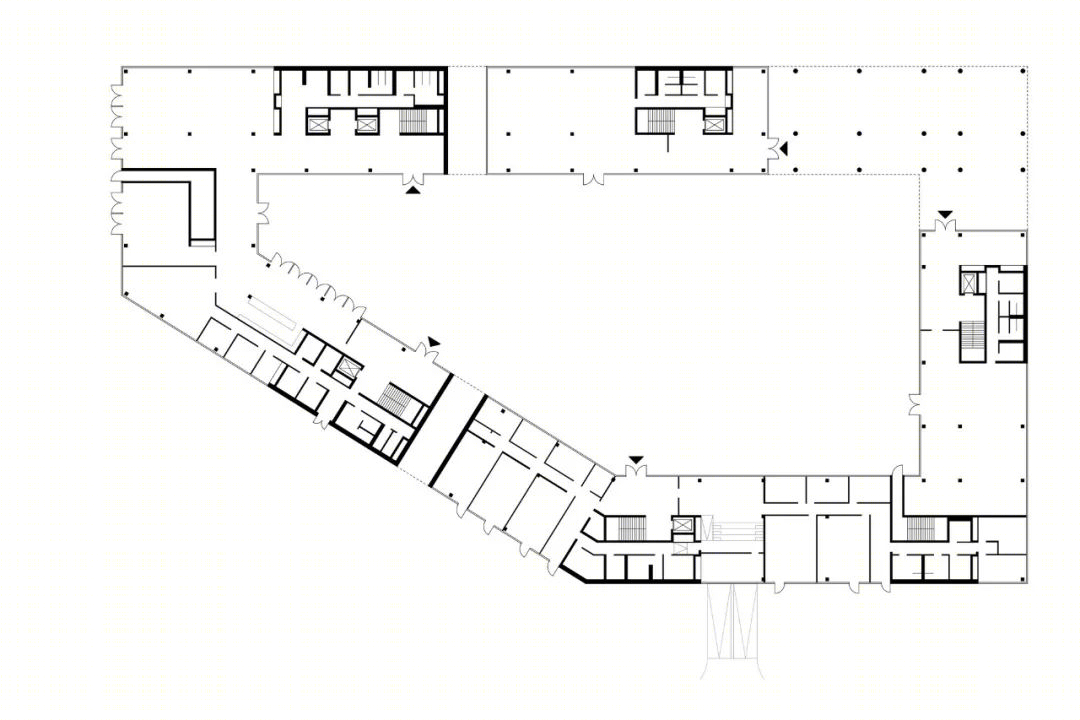

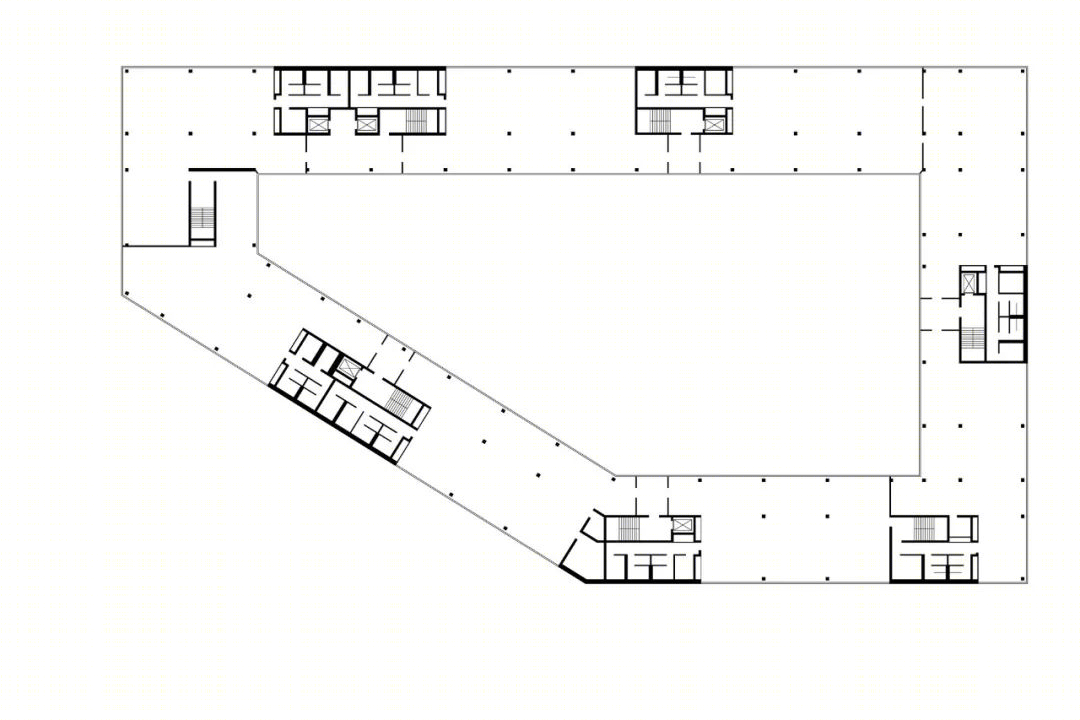

平面图

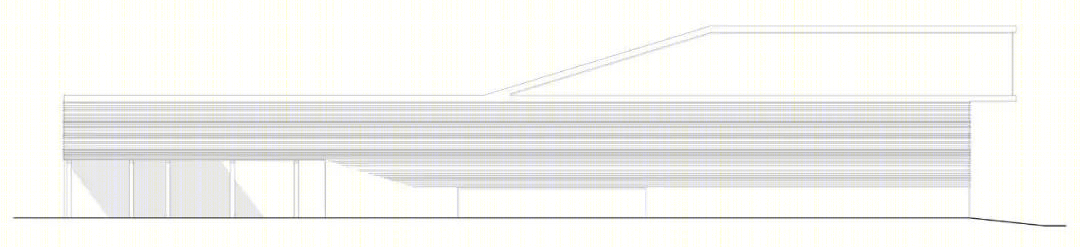

北立面

建筑师：Sehw Architektur

地点：德国

面积：29826平方米

年份：2021
