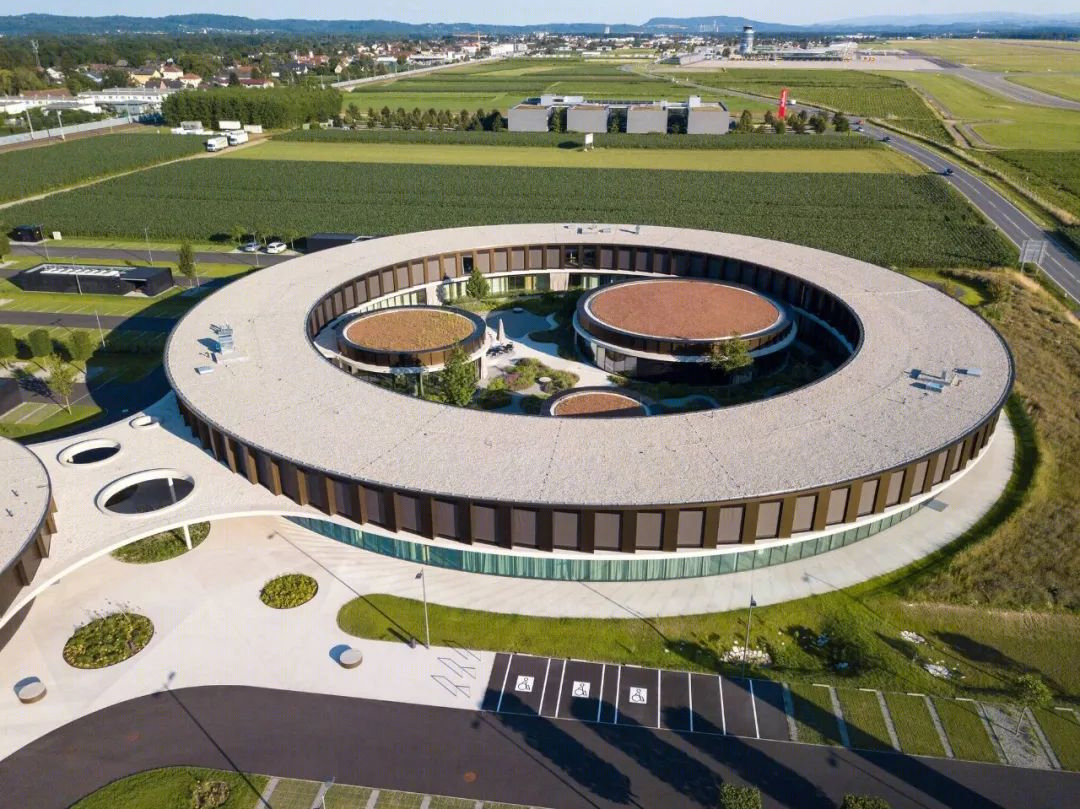

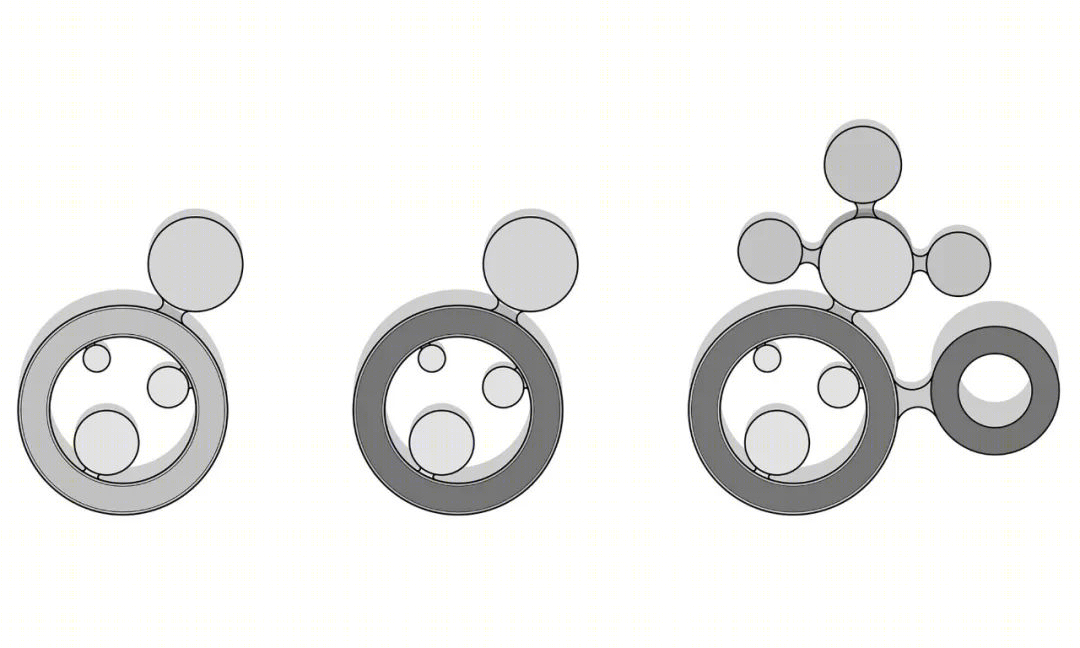

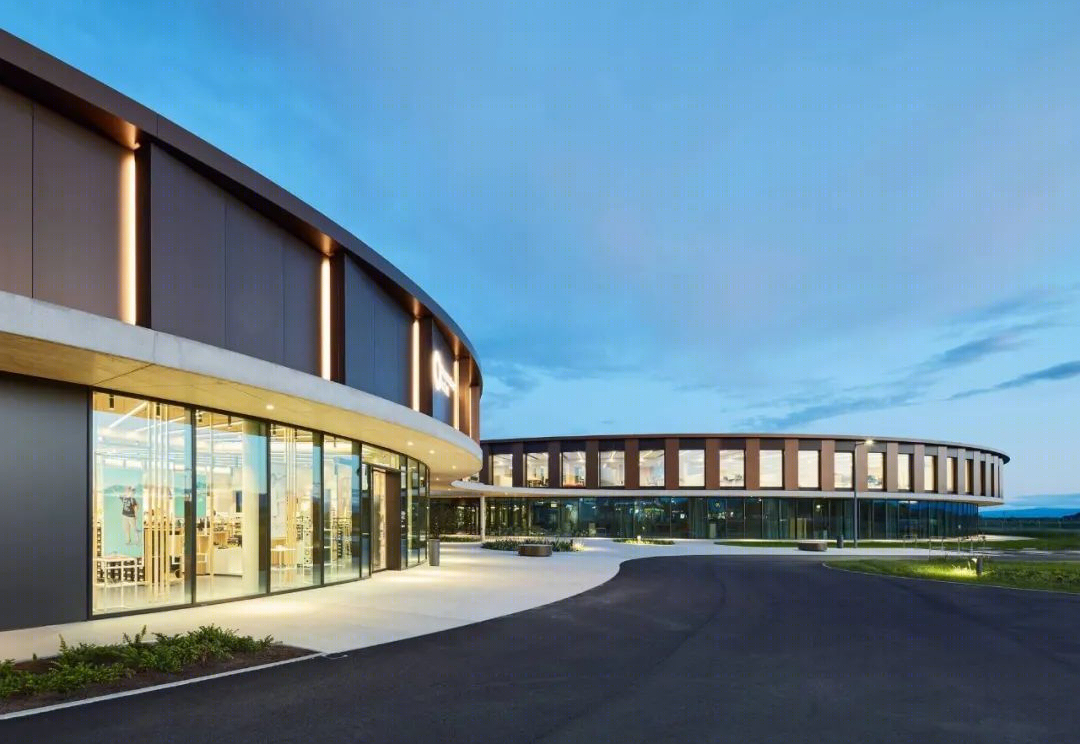

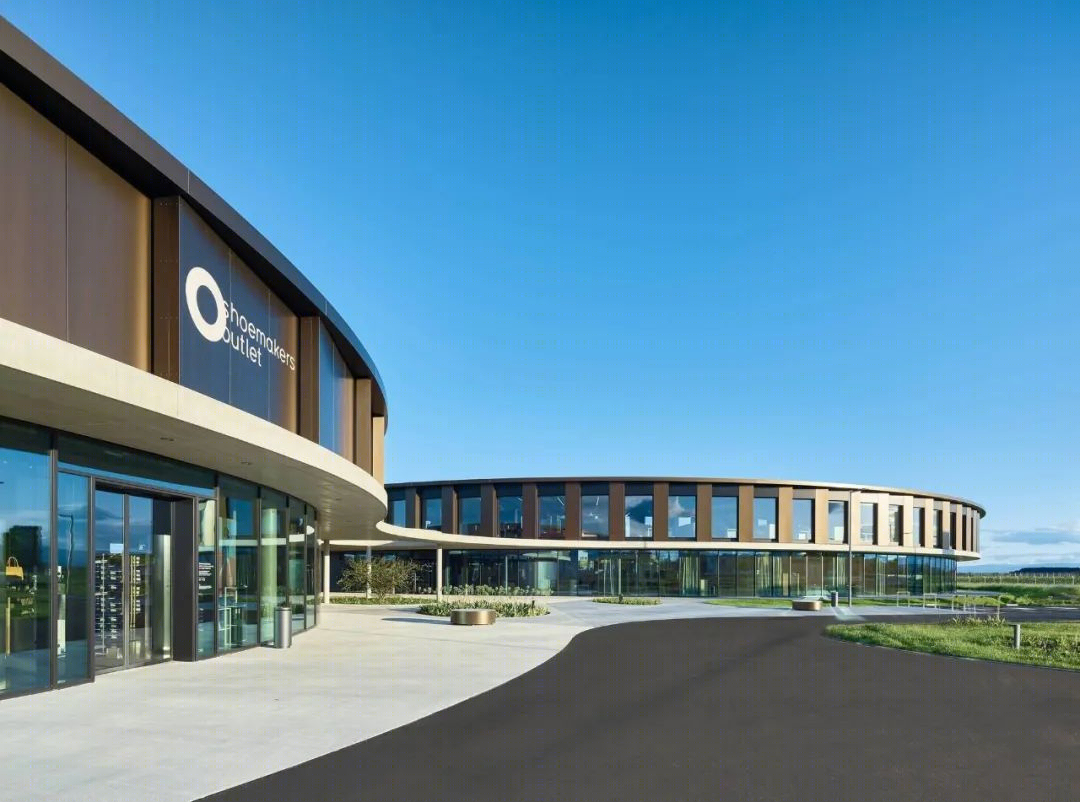

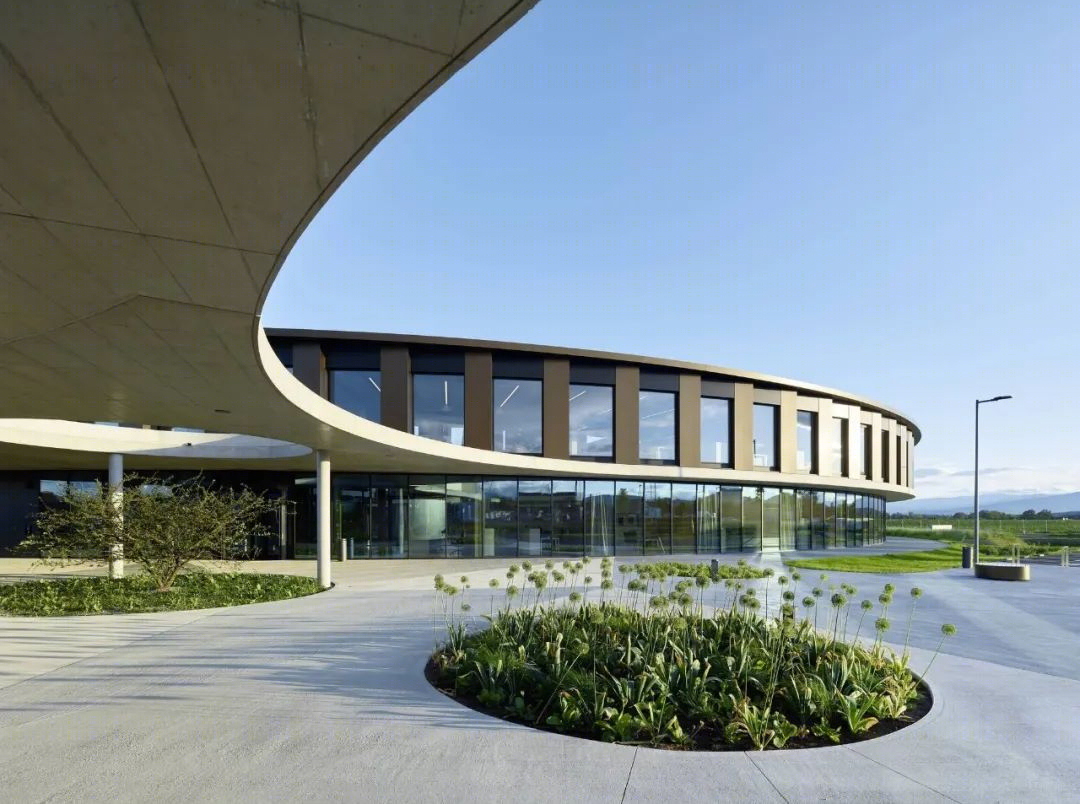

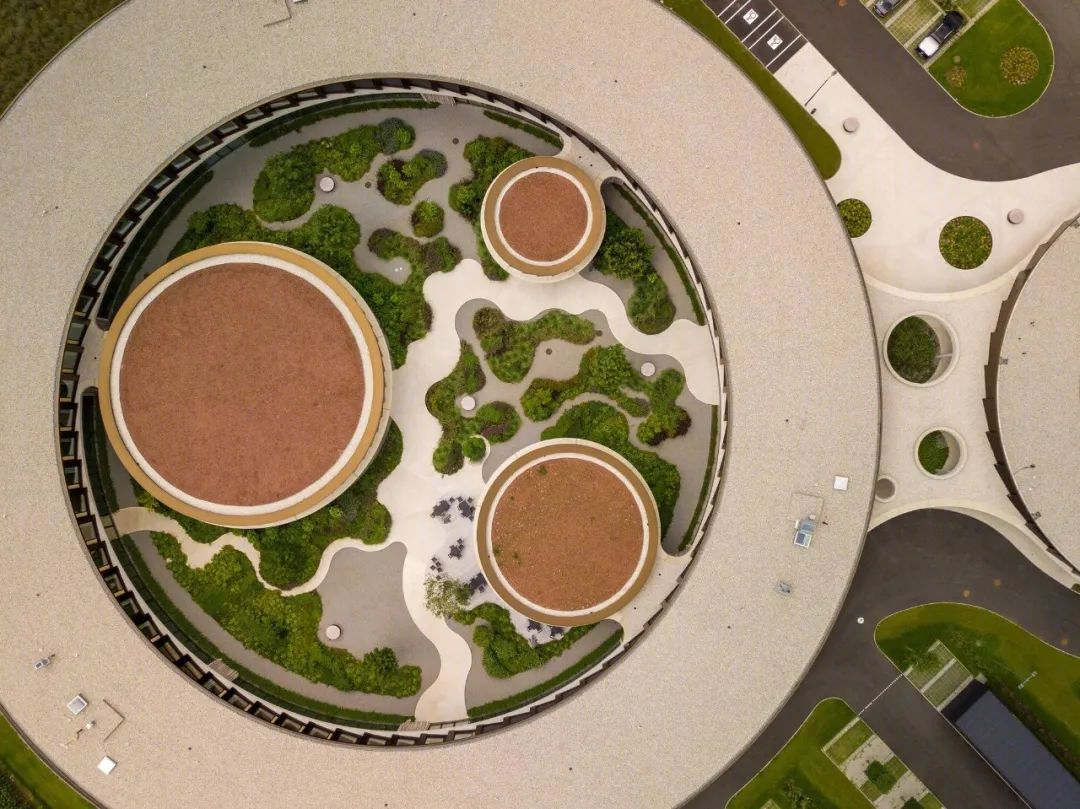

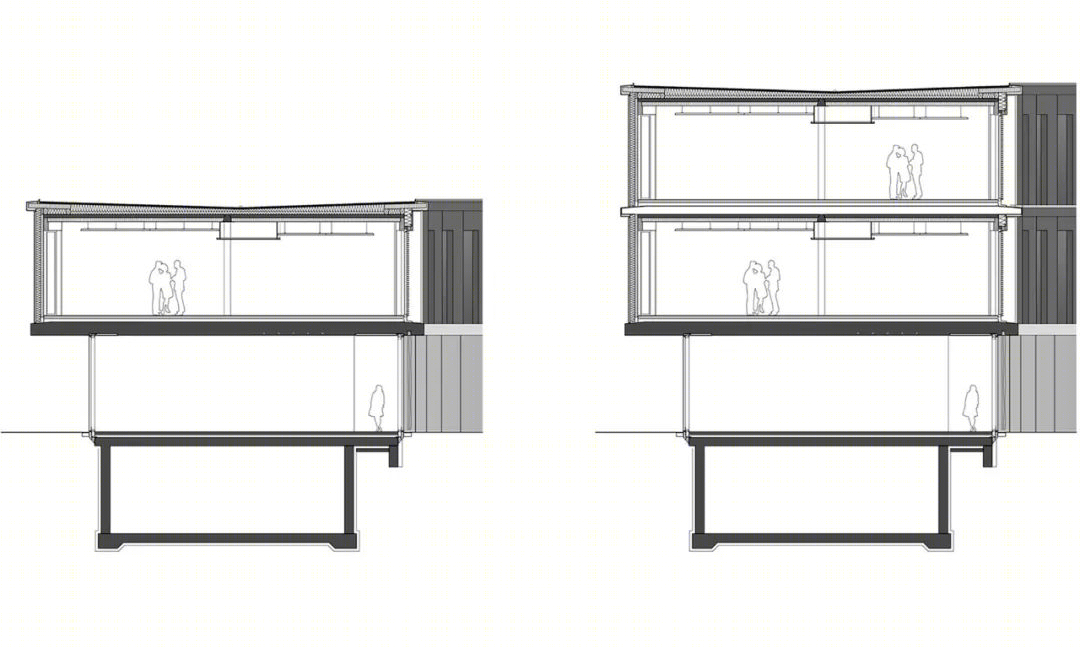

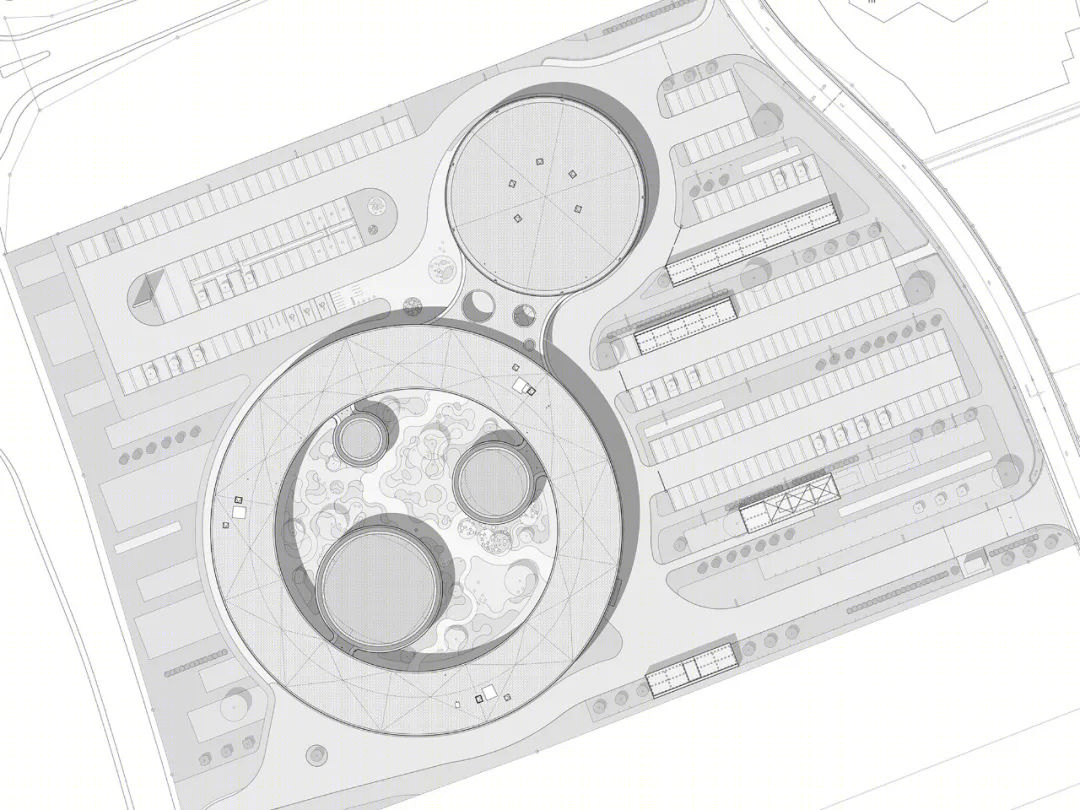

格拉茨附近的Legero联合园区由两个不同大小的环形组成。宽大的玻璃、青铜色阳极氧化铝的外立面在阳光下不断变化，再加上植被茂盛的内院，模糊了室内外的界限。较大的办公圈设计成可以随时加盖一层，满足了客户对 "成长型 "总部的渴望，可以在不产生临时措施的情况下进行扩展。

The Legero United Campus near Graz consists of two differently sized rings. Generous glazing, the facade of bronze-colored anodized aluminum changing in sunlight, and the lushly planted inner courtyards blur the boundaries between inside and outside. The larger office ring is designed to be topped up by an additional floor at any time, meeting the customer’s desire for a ‘growing’ headquarter that can be extended without producing temporary measures.

这些建筑展示了复杂的建筑服务、可持续材料和灵活使用空间的成功共生关系。建筑师Much untertrialler解释说:“我们的目标是设计一个园区，反映Legero United的内部流程和企业身份。圆圈缺乏方向强调了建筑内每个区域的等效性。我们想要创造令人兴奋的、流动的房间序列与各种各样的内部和外部特征，从而保证一个独特的性格。”

The buildings show a successful symbiosis of sophisticated building services, sustainable materials, and flexible use of space. “Our goal was to design a campus that reflects the internal processes and the corporate identity of Legero United,” explains architect Much Untertrifaller. “The circle’s lack of direction underlines the equivalence of each area inside the building. We wanted to create exciting, flowing sequences of rooms with a wide variety of interior and exterior features, thus guaranteeing a unique character.

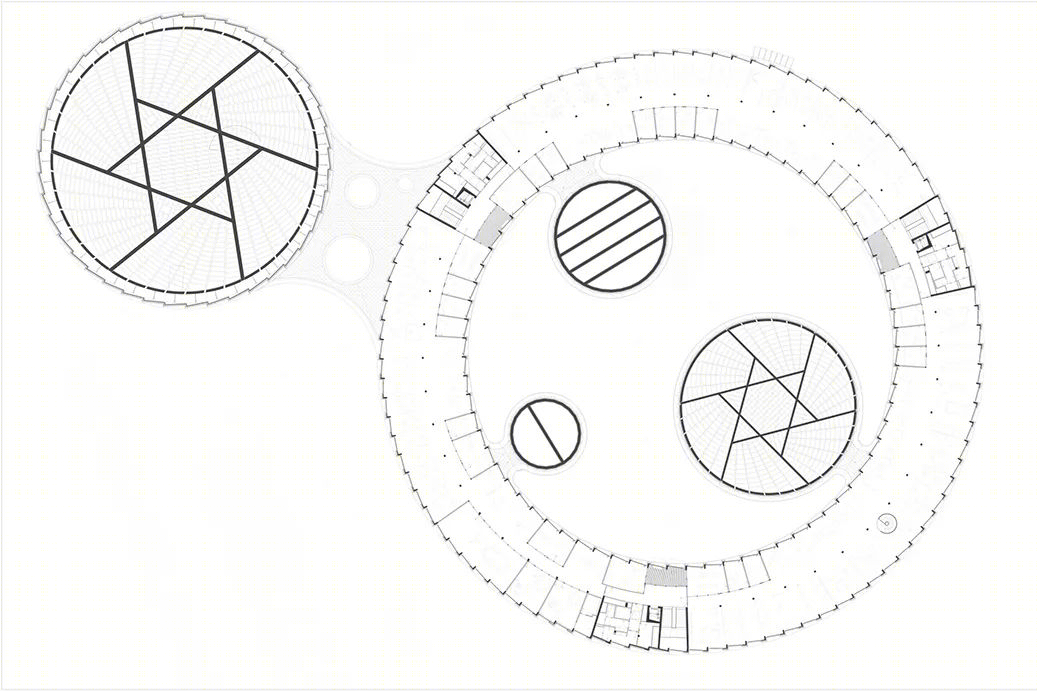

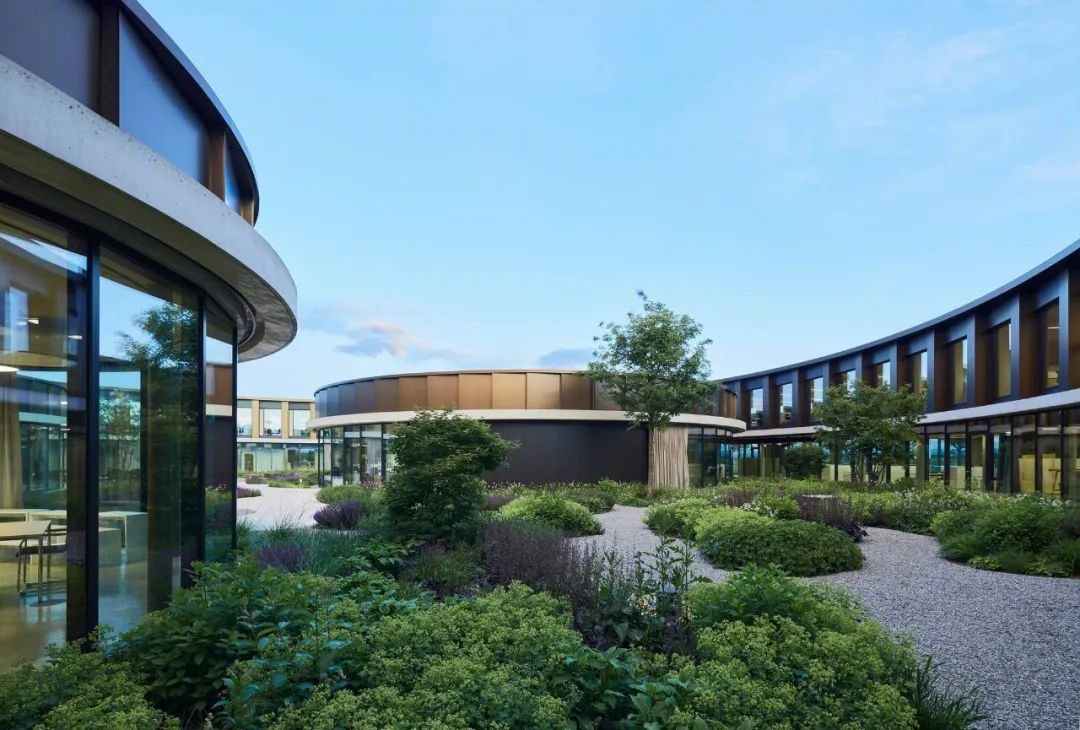

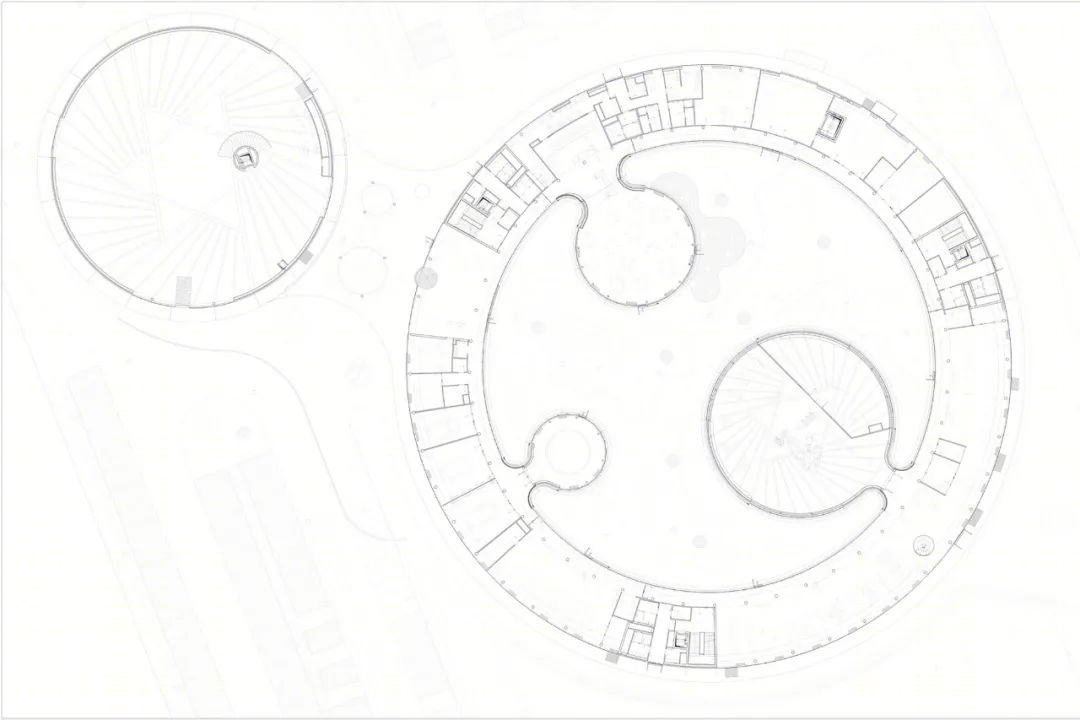

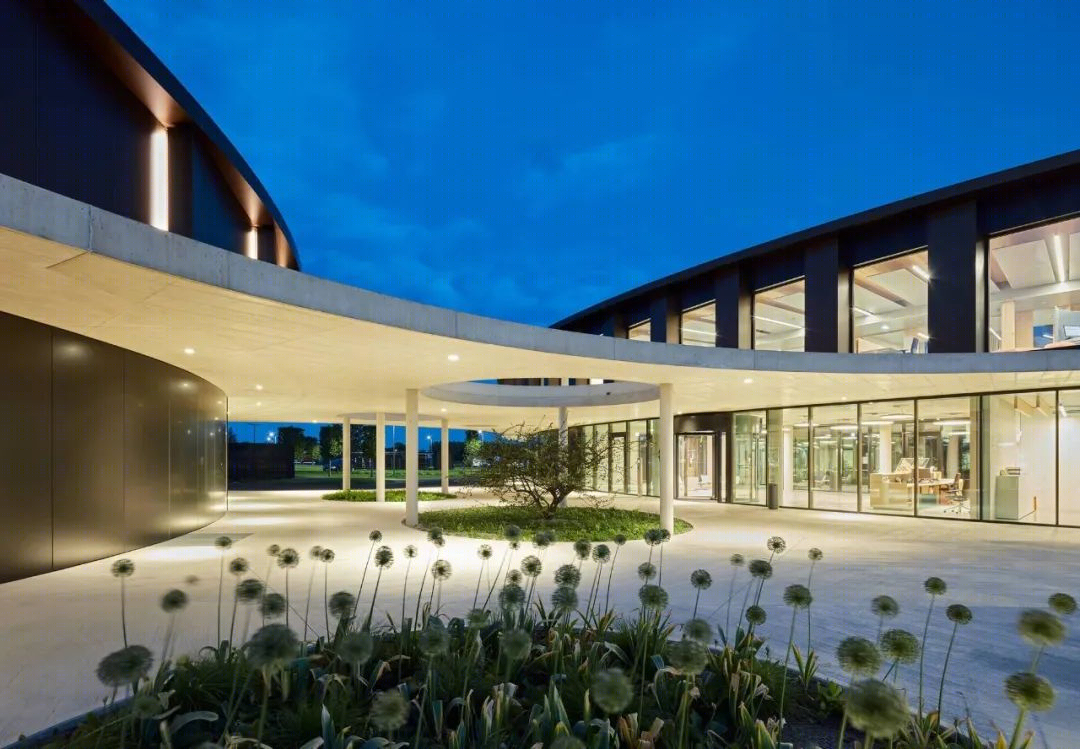

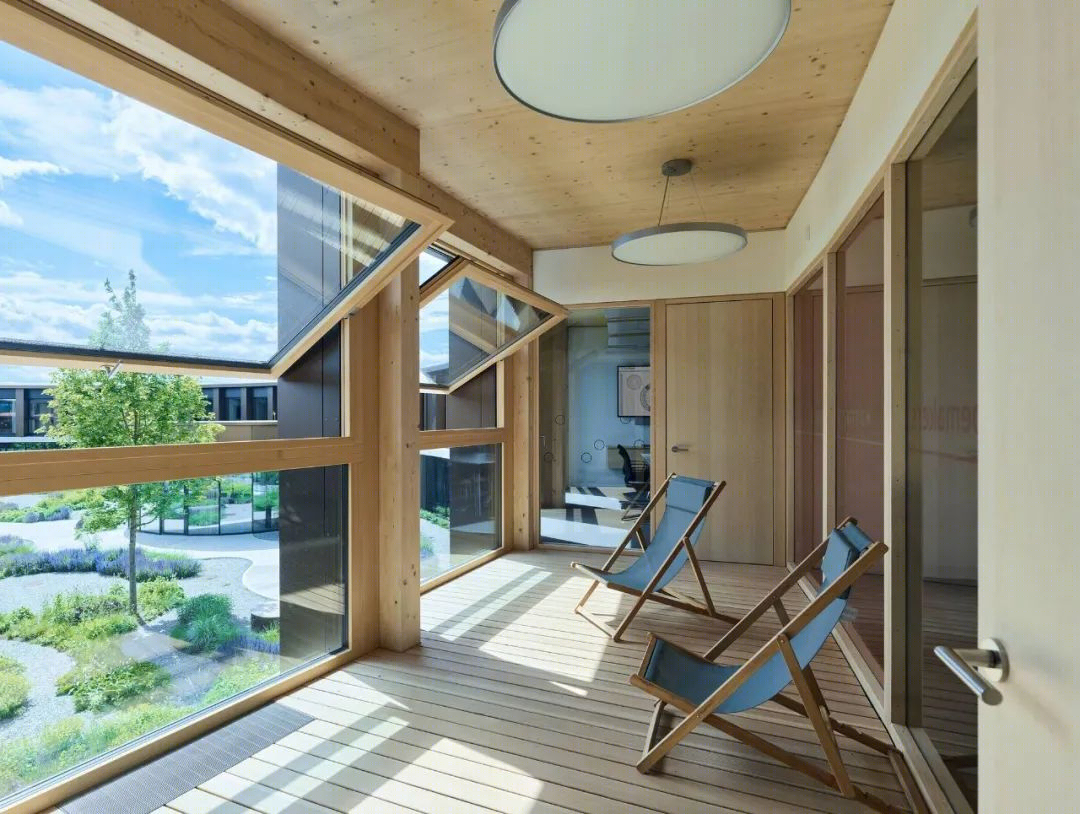

功能、美观、经济的结构。办公环的圆形平面图创造了多种空间体验，并为各个部门提供灵活的设计解决方案。封闭的形式防止了噪音的排放，并创造了一个独立的、自给自足的内部世界，玻璃亭子、木甲板和郁郁葱葱的植被用于交流和放松。所有楼层都可以通过三个核心进入，这三个核心容纳了完整的基础设施，以及通往内部庭院的凉廊。因此，其余的区域提供了组织工作空间的最大灵活性。

Functional, Aesthetic, and Economical Structure. The circular floor plans of the office ring create a variety of spatial experiences and allow flexible design solutions for the individual departments. The closed-form protects against noise emissions and creates an independent, self-contained inner world with glass pavilions, wooden decks, and lush vegetation for communication and relaxation. All floors are accessed via three cores accommodating the complete infrastructure as well as a loggia opening to the inner courtyard. The remaining areas thus offer maximum flexibility to organize the workspace.

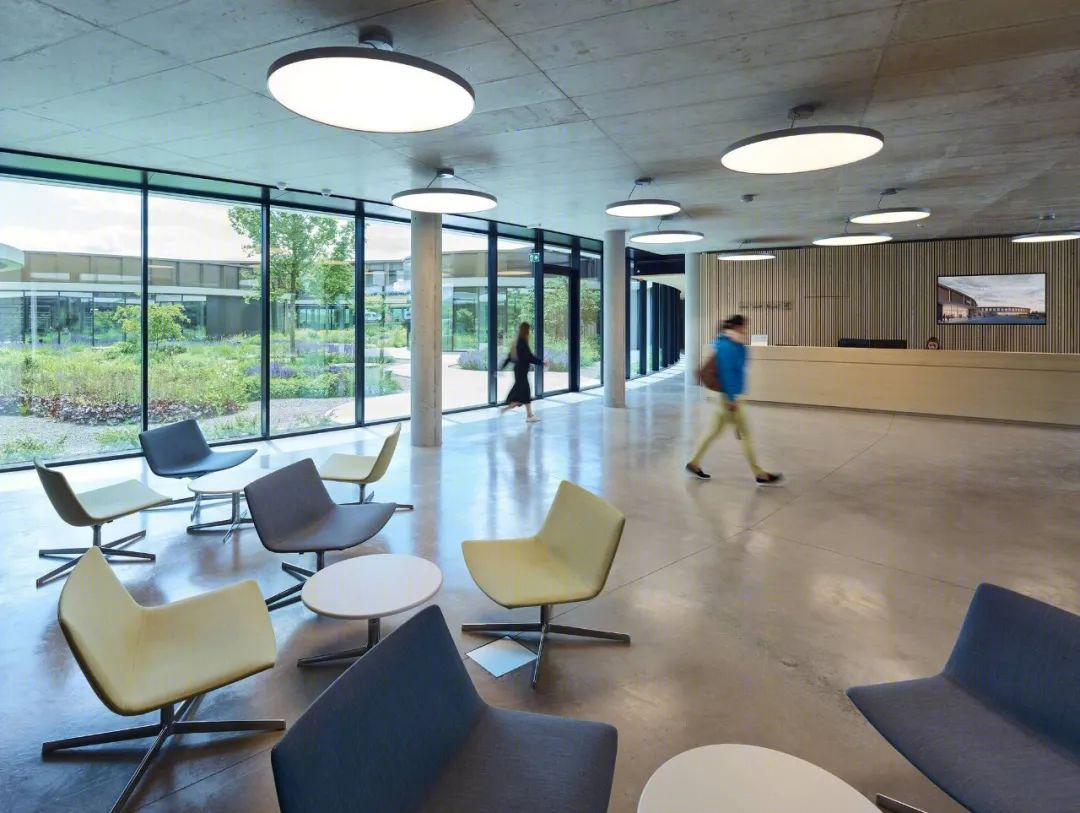

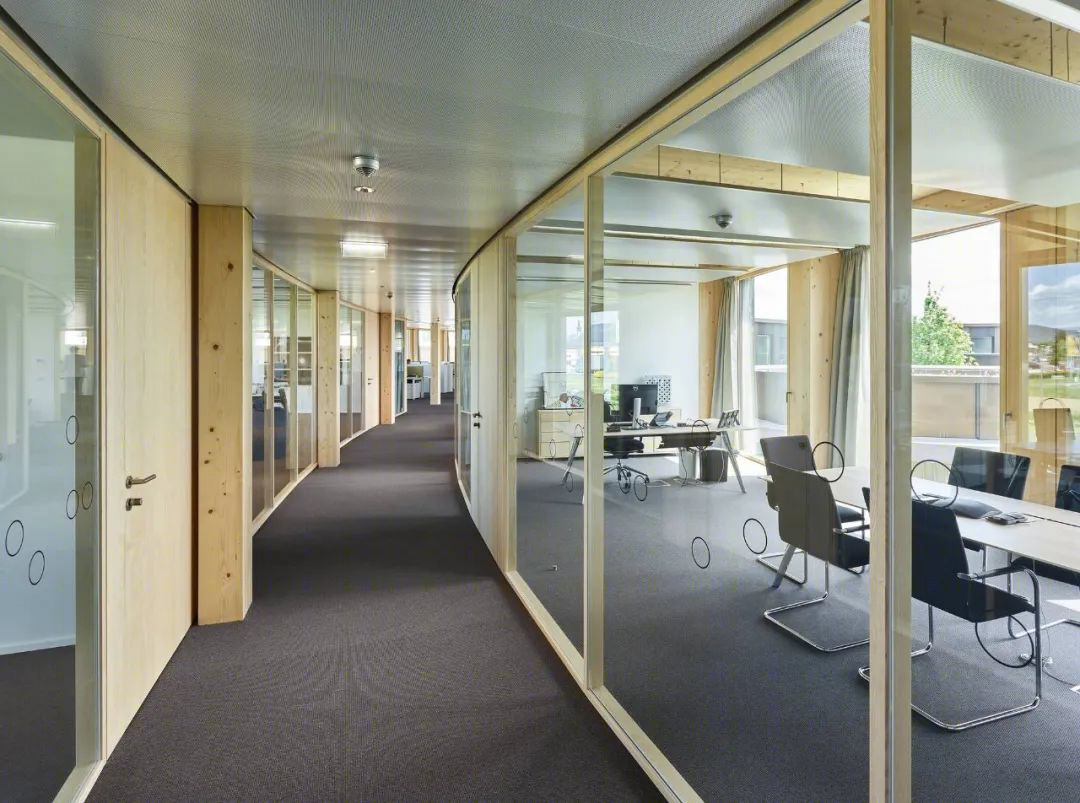

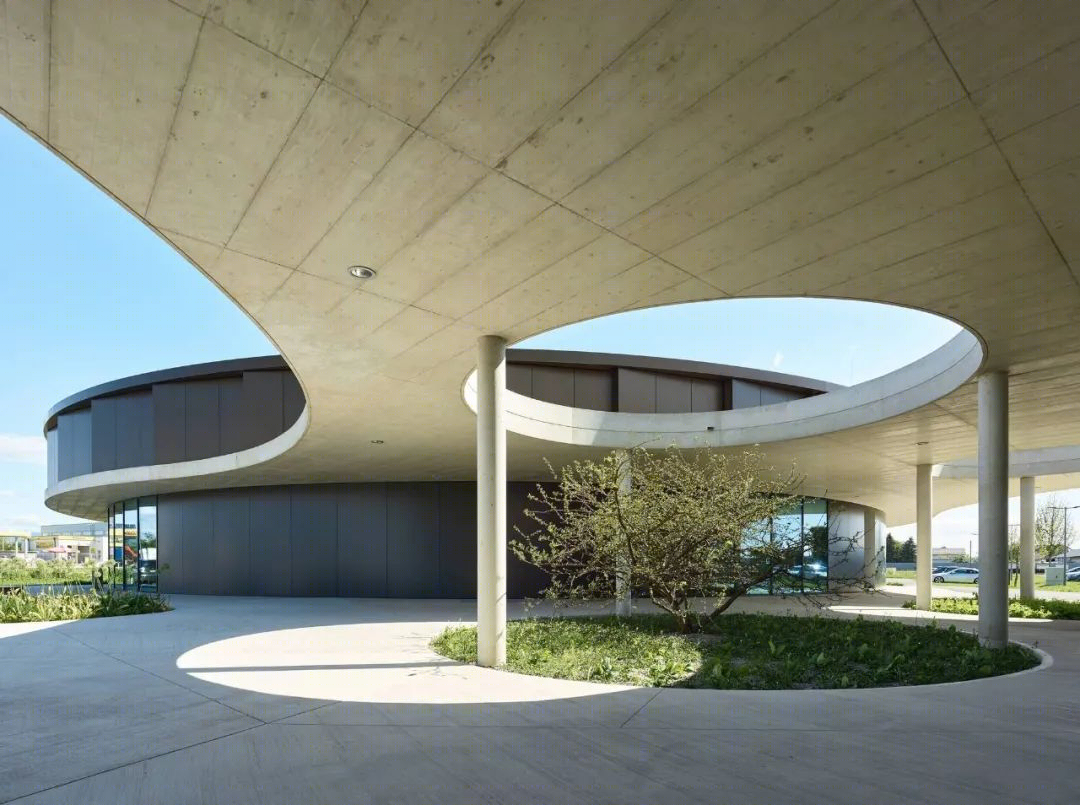

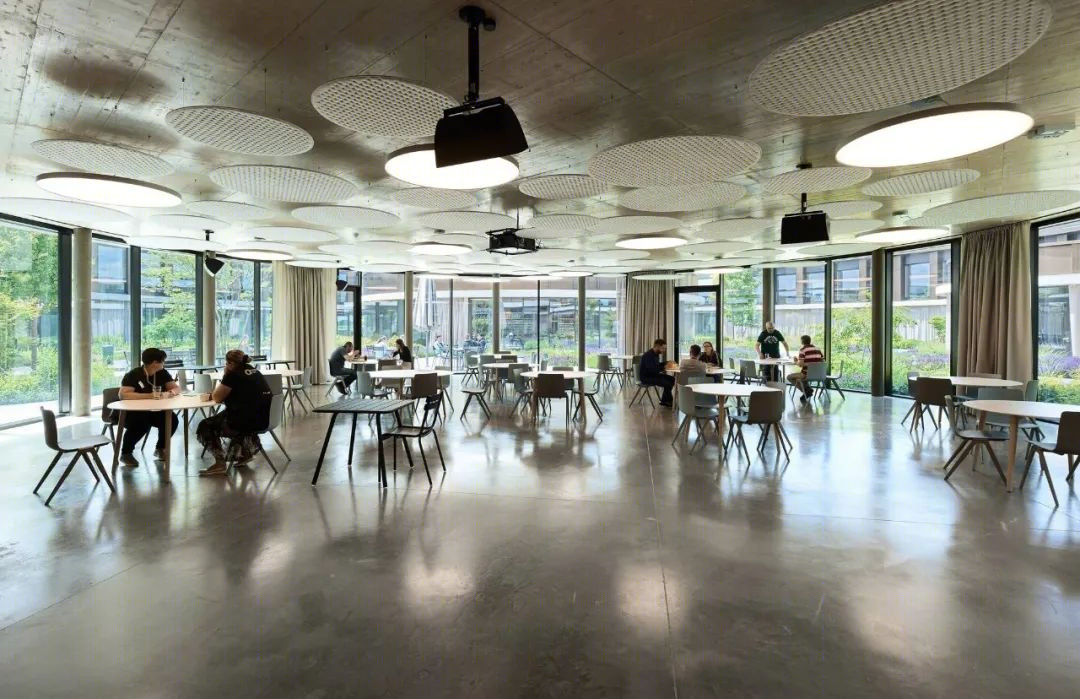

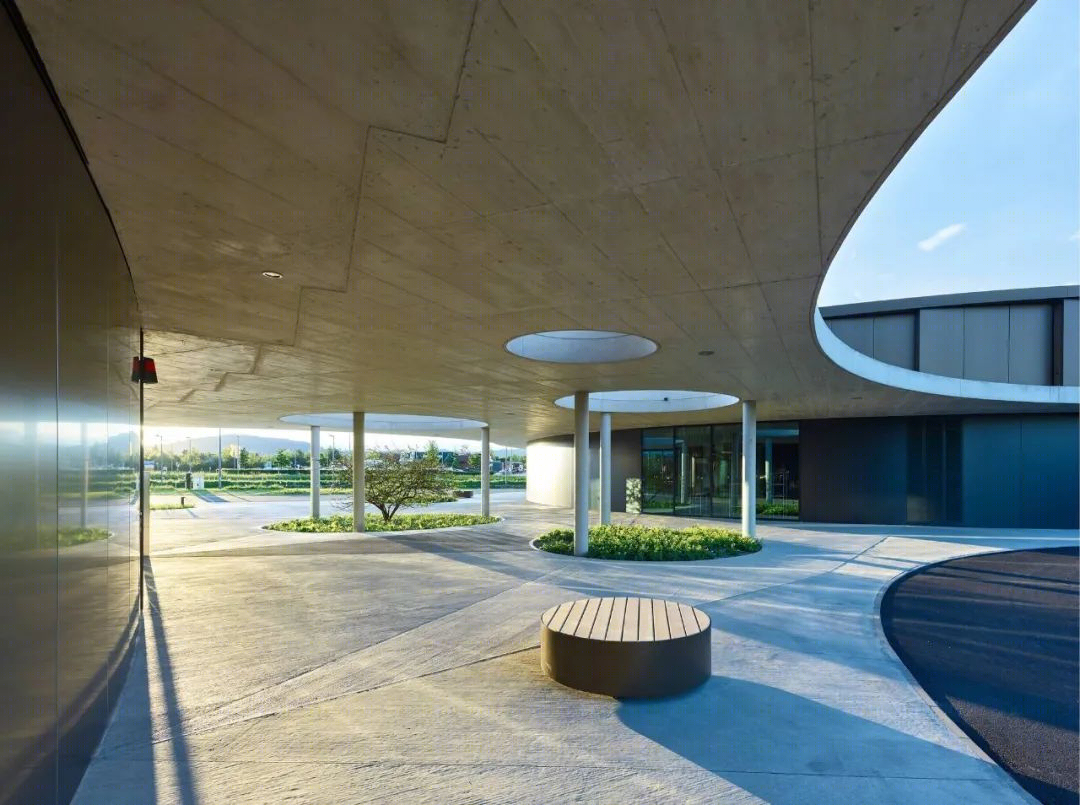

办公环的一层包含所有的半公共区域，如门厅、公司餐厅和会议室，由钢筋混凝土制成。暴露在柱子、墙壁和天花板上，反映了生产的坚固性和车间特性。此外，上层的木质结构仍然可见，创造了一个愉快的工作环境。

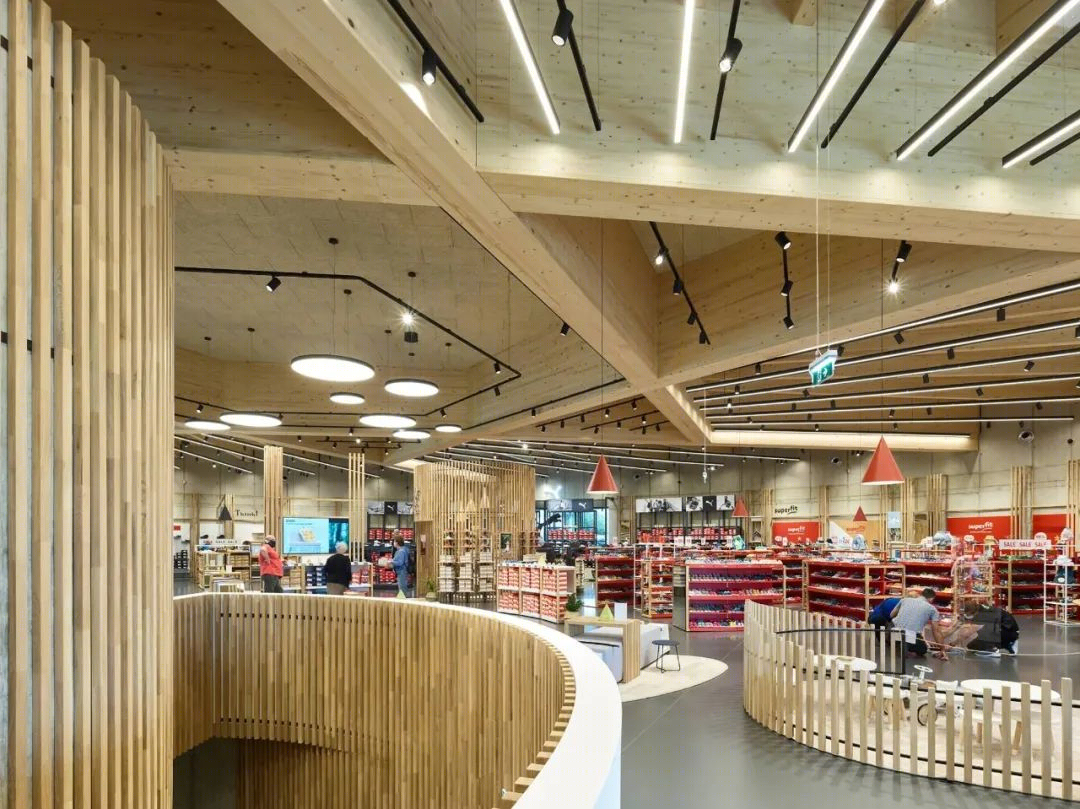

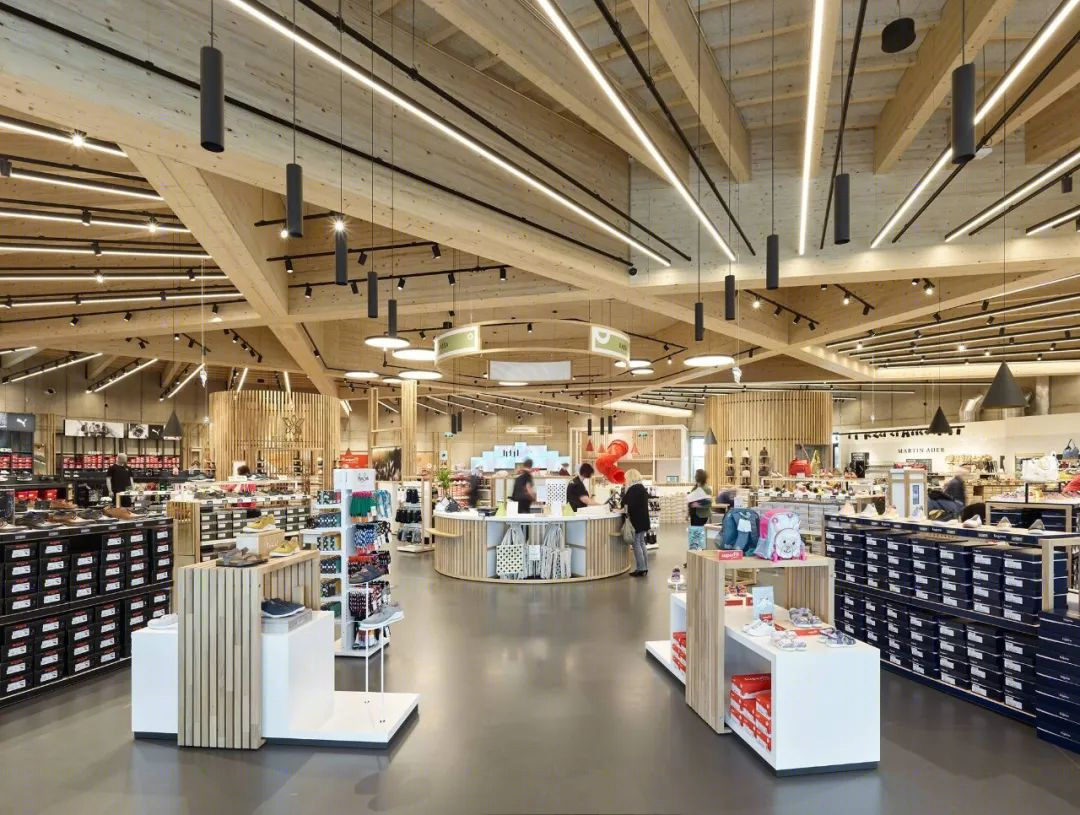

圆柱形出口的形状、设计和氛围创造了与客户的品牌高度关联的特殊购物体验。无柱空间由星形木制支撑结构跨越。它可以被灵活地重新设计和补充额外的气缸，以创建一个专门的零售中心。

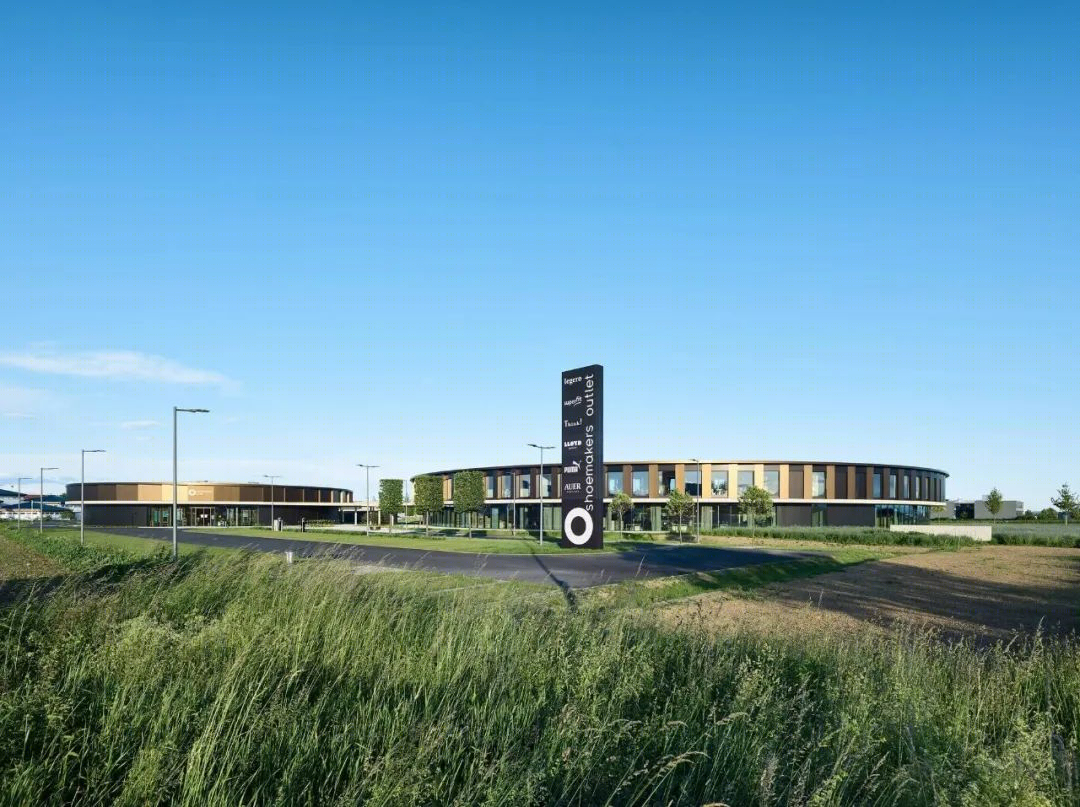

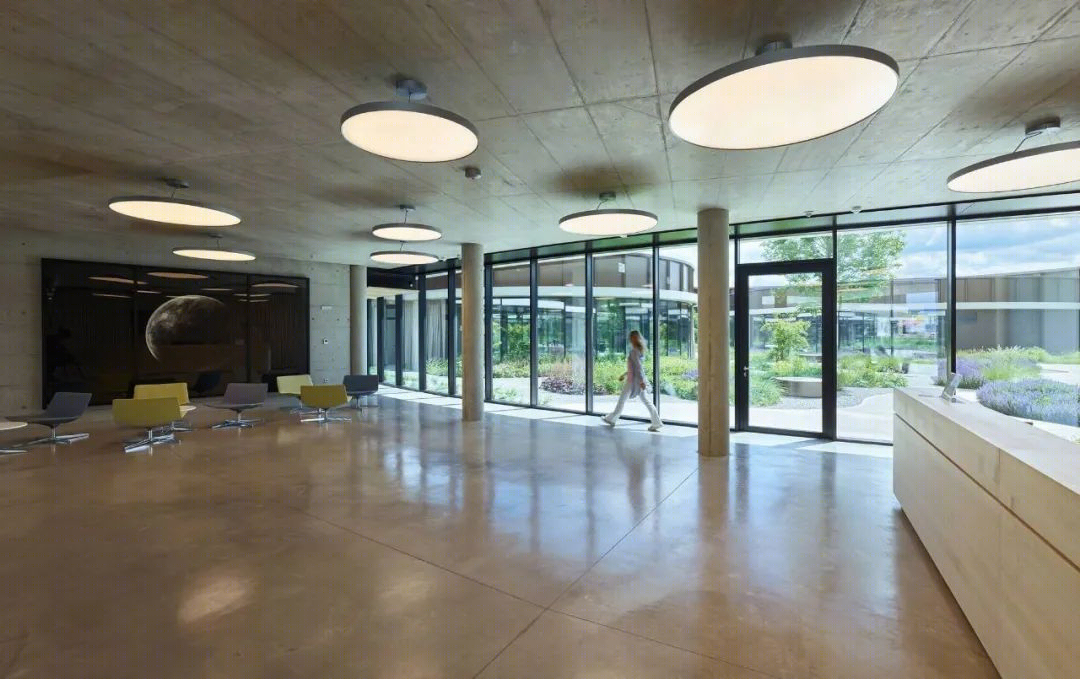

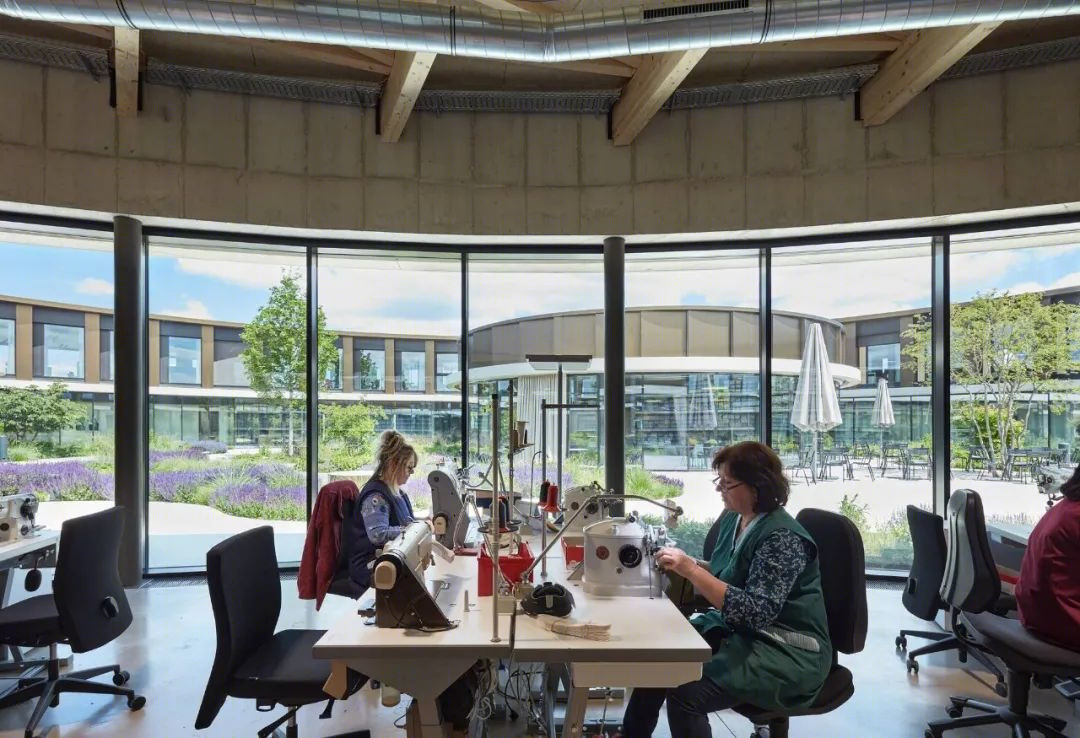

The office ring’s ground floor containing all semi-public areas such as the foyer, company restaurant, and meeting rooms, is made of reinforced concrete. Exposed on columns, walls and ceilings it reflects the robustness and workshop character of the production. Also, the wood construction of the upper floor remains visible creating a pleasant workspace atmosphere. The shape, design, and ambiance of the cylindrical outlet create a special shopping experience highly associable with the client’s brands. The column-free space is spanned by a star-shaped wooden supporting structure. It can be flexibly redesigned and supplemented by additional cylinders to create a specialized retail center.

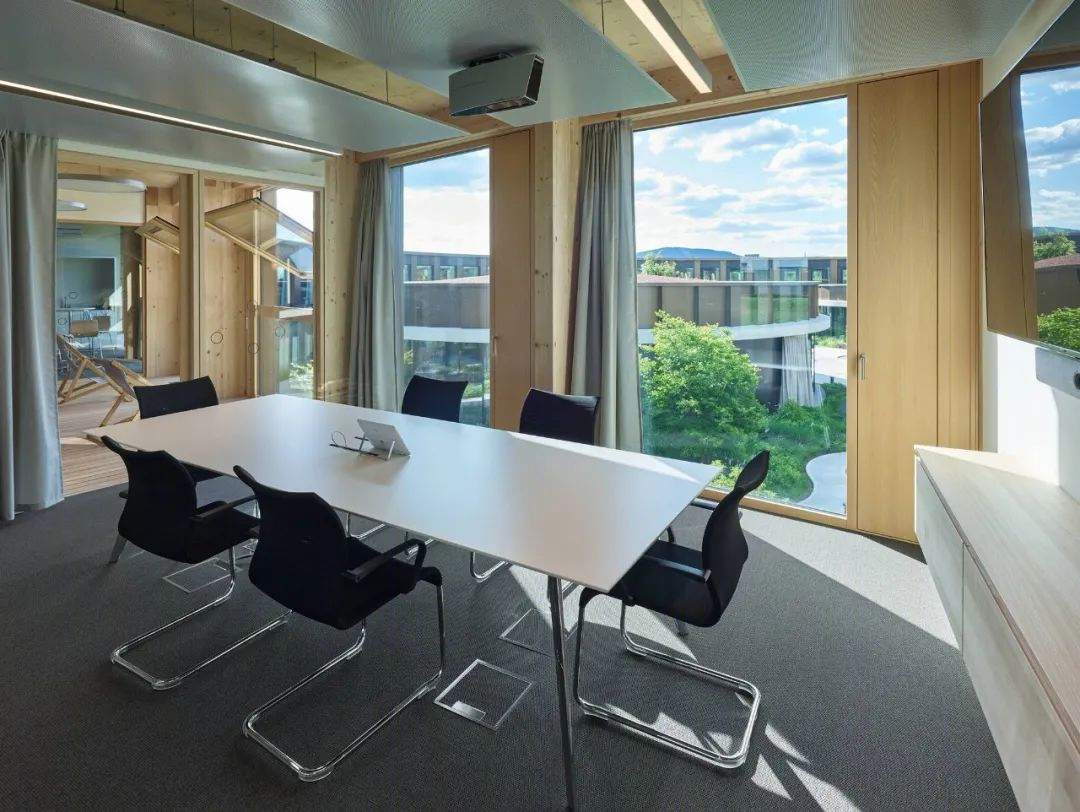

创新建筑。木质材料和复合材料的支撑，钢筋混凝土的落地梁。木-混凝土复合天花板是在现场预制和组装的。使用三角梁系统不仅可以大幅降低建筑高度，而且设计更加灵活，简单的。服务电缆路由。一体化防火，无需包覆。关注人类。特别注意规划方便工作的办公区、休闲区和社区区。

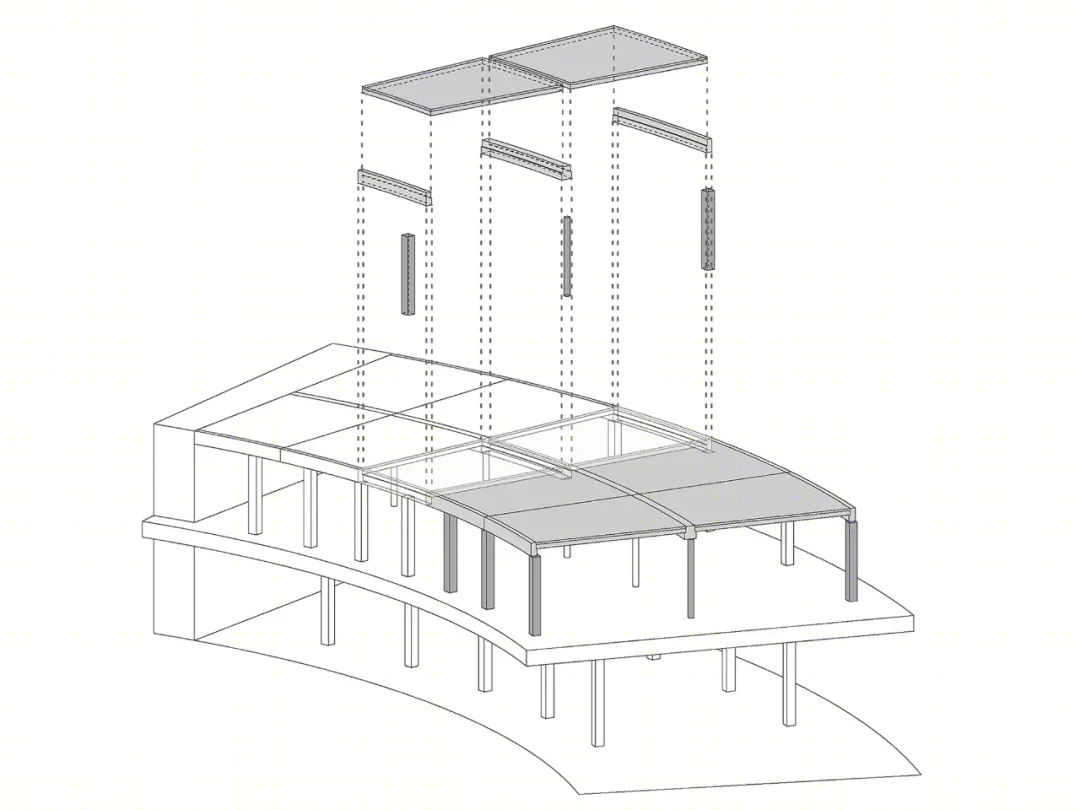

Innovative Construction. Supports in wood and composite material, floor-to-ceiling beams in reinforced concrete, and wood-concrete composite ceilings are prefabricated and assembled on site. The use of the delta beam system not only allows for a significant reduction of construction height but also for more design flexibility and simple service cable routing. The integrated fire protection eliminates the need for cladding. Focus on Humans. Special attention was paid to planning work-friendly offices, relaxation, and community zones.

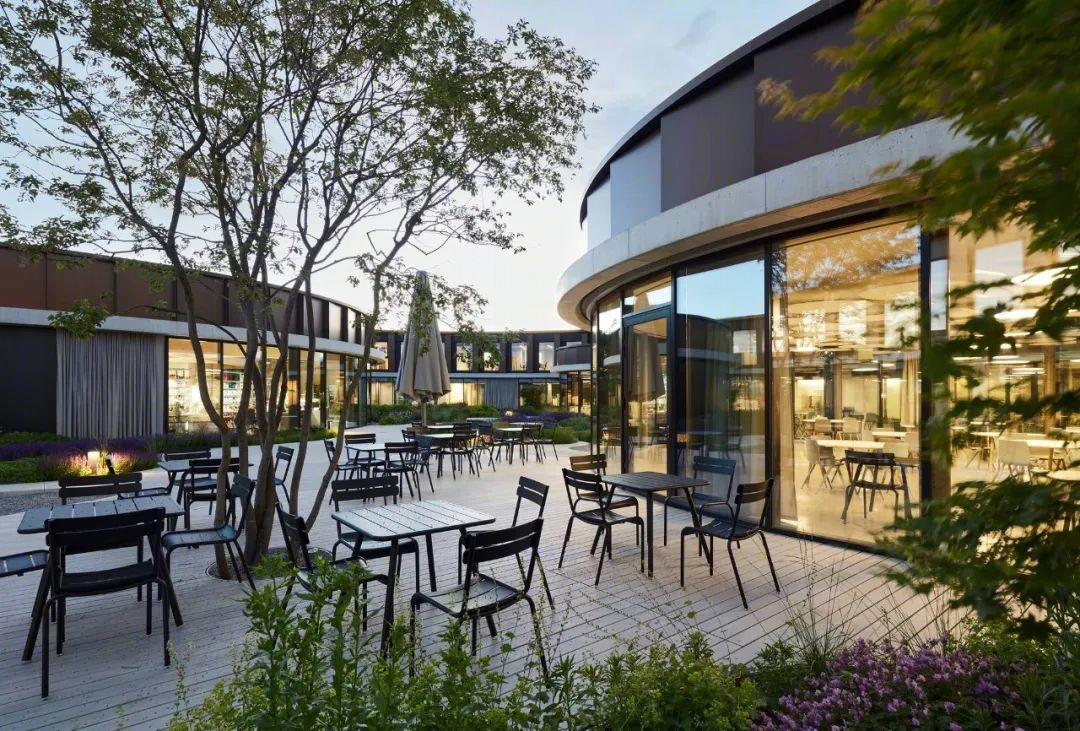

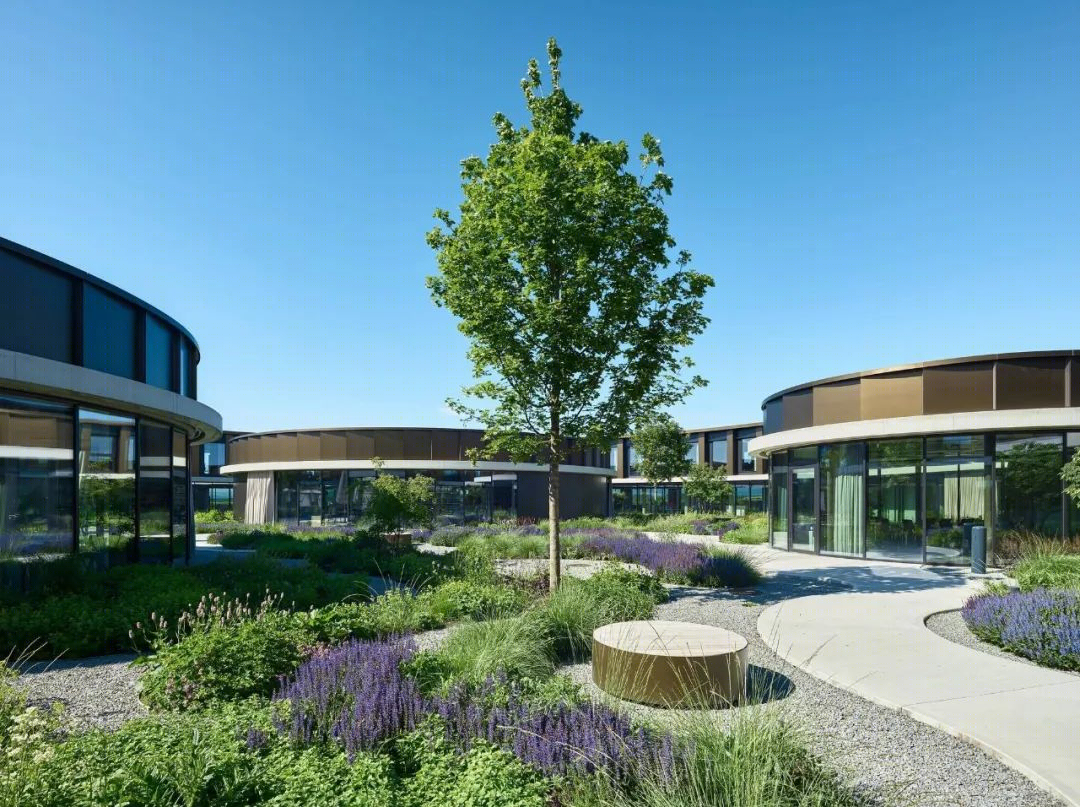

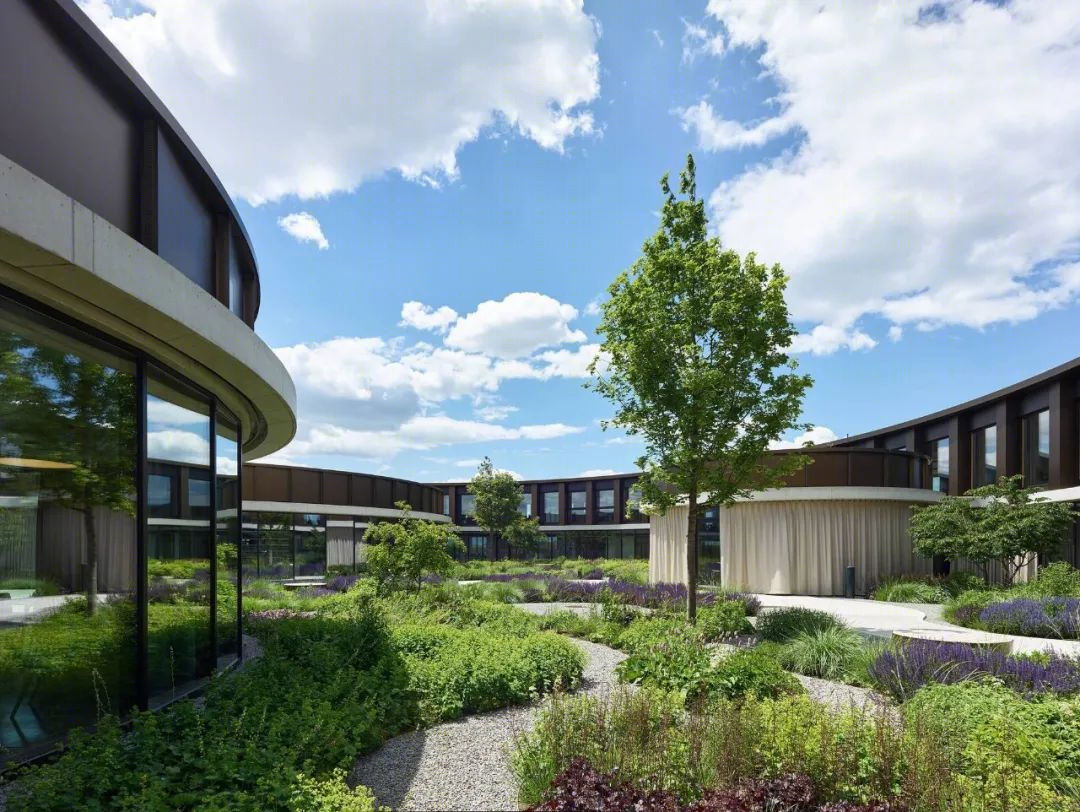

一个绿色的内庭院是一个静修的地方。所有的家具和声学元素都由木材制成。木结构的基本元素——美学、经济和可持续发展——可以在整个建筑中看到和体验。可持续能源的概念。先进的建筑技术、供暖和制冷的地热系统以及井水的使用，使校园的可持续能源供应成为绿色卫星，为员工和客户带来良好的感觉。

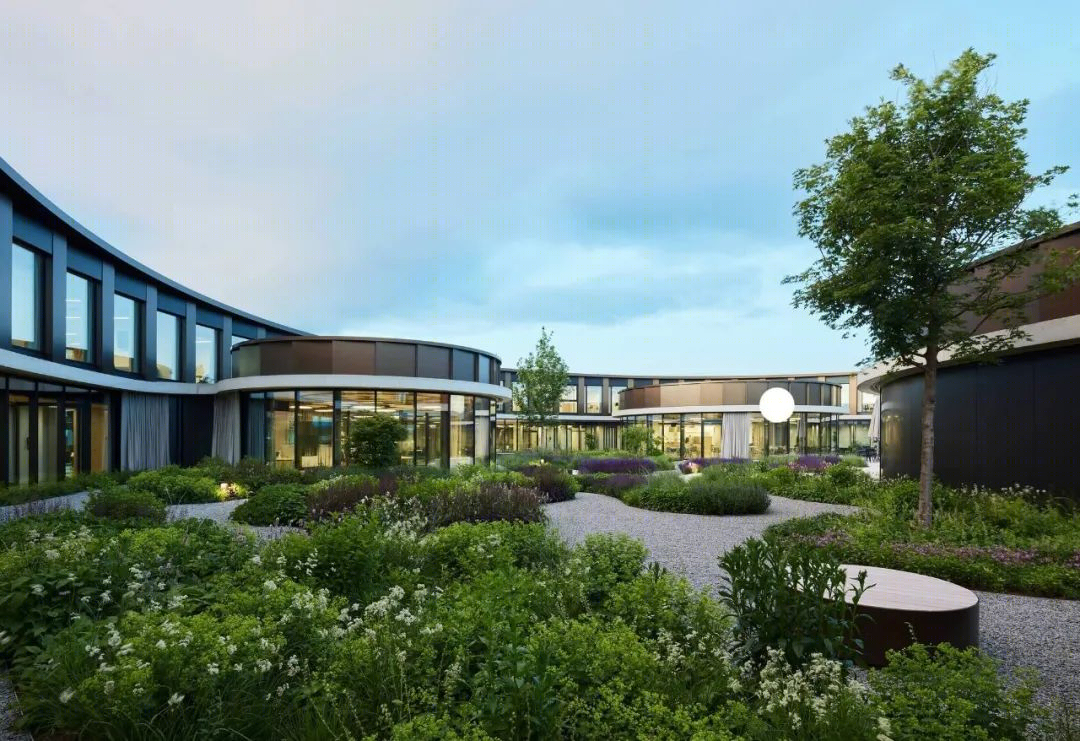

A green inner courtyard is a place of retreat. All furniture and acoustic elements are made of wood. The essential elements of the wooden structure – aesthetic, economic, and sustainable – can be seen and experienced throughout the building. Sustainable Energy Concept. Sophisticated building technology, the use of a geothermal system for heating and cooling as well as the use of well water characterize the sustainable energy supply of the campus, turning it into green satellites with a high feel-good factor for employees and customers.
