Architect：DE MATTIO/RAFFIN ARCHITETTI

Location：Gemona del Friuli, Italy

Project Year：2008

Category：Offices

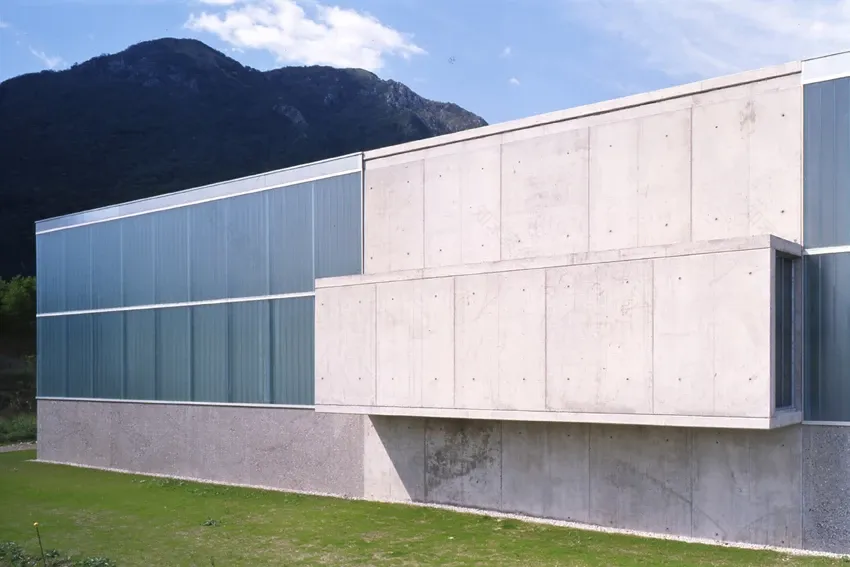

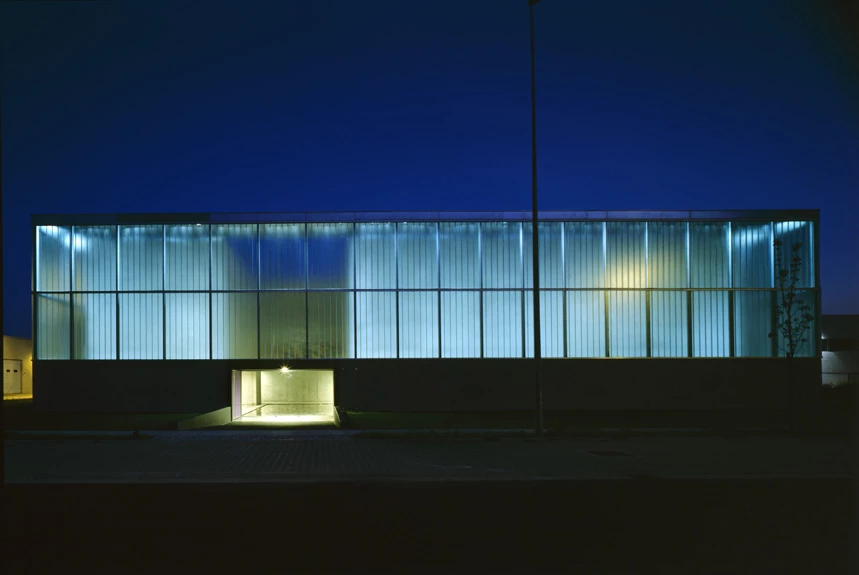

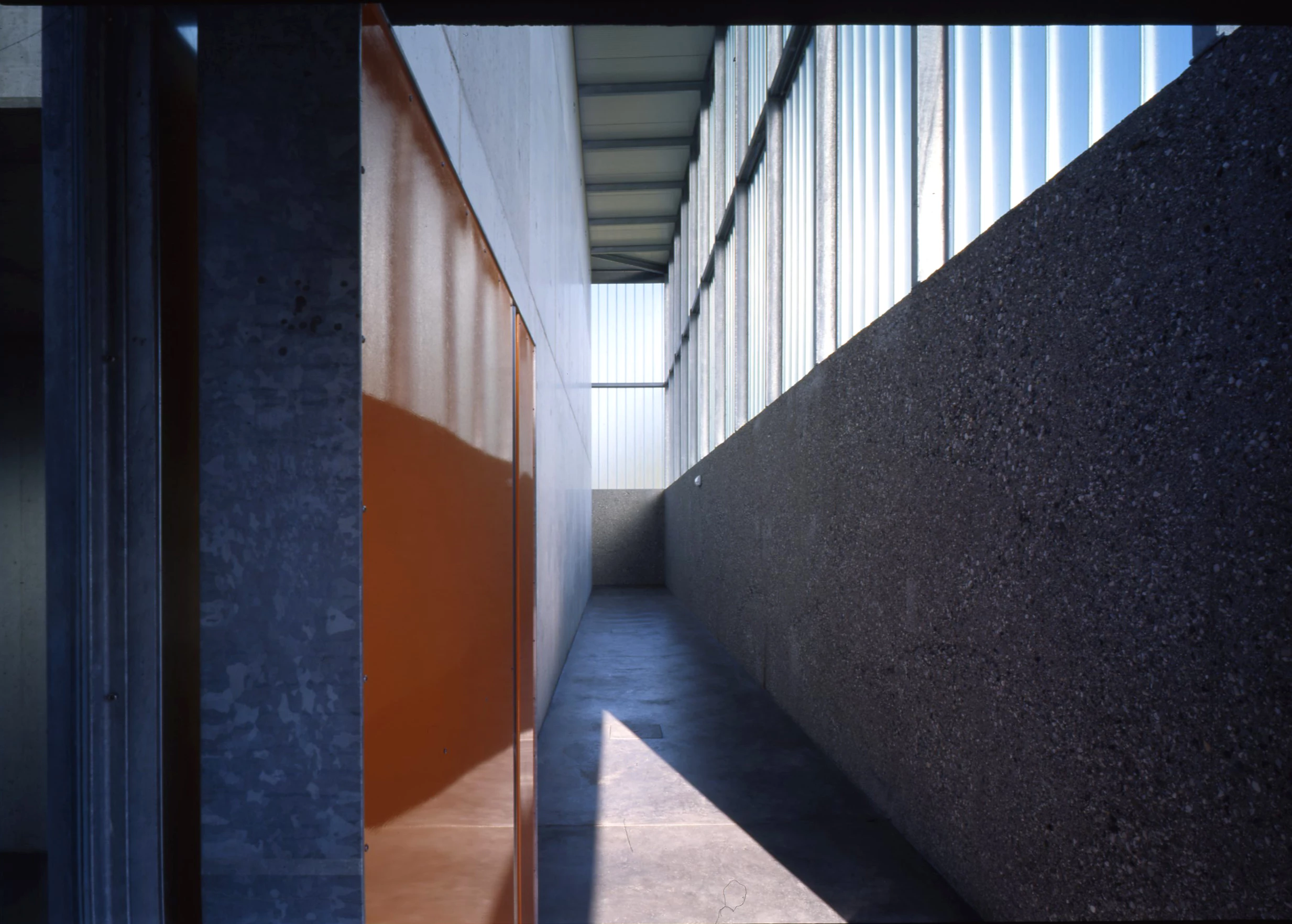

The vault is a building with a surface area of 650 square metres, consisting of a compound bounded by a perimeter almost 9 metres high, within which stand two buildings separated by a hall open to the sky. One of the buildings contains three floors of offices and technical laboratories, while the other houses the climatecontrolled vaults on two floors, two on the ground floor and one on the first floor, covering a total of 450 square metres. The first novelty is the introduction of the compound, as if two boxes were contained within a larger one. The outer wall comprises a cement base supporting glass panels, surrounding and totally covering the two structures within. A corridor runs right around the perimeter in order to provide a space between the air-conditioned areas and the outer wall, thus ensuring improved insulation and energy conservation.

The Cineteca del Friuli was also concerned to safeguard the environment, and to this end the architects have devised a series of systems exploiting renewable energy sources to reduce energy consumption. The three climate-controlled ground-floor rooms are 3 metres high, while the room on the first floor is 4 metres high, and are equipped Underlying structure of the building with an antechamber so that doors do not lead straight into the air-conditioned area, thus maintaining a constant temperature of 6°C and 30% relative humidity. Temperature and humidity levels in the building are kept constant through the combined use of a directexpansion refrigeration plant and independent dehumidifiers specially designed to operate at low temperatures.

This ensures a highly precise control of humidity levels room by room, regardless of variations in weather conditions and the type of material stored. Volatile pollutants released by materials in store are treated by an active-carbon filtration plant, which automatically pumps fresh air into the premises. The offices are equipped with a heating/cooling plant based on the use of a heating pump combined with geothermal gauges connected to a system of radiation panels set in the floor.

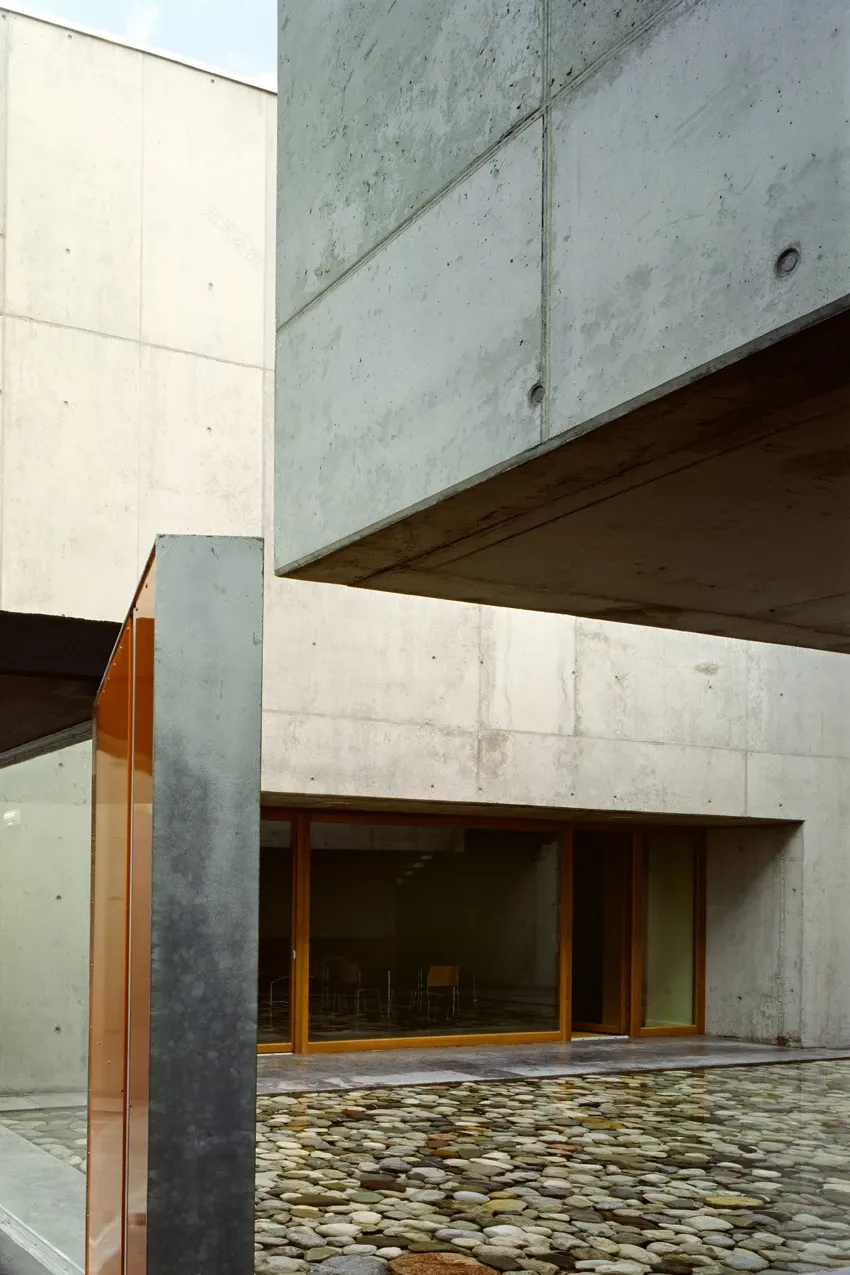

The Cineteca is a structure with the “introverted” characteristics interior spaces that immediately catch the eye in a film vault, usually inward-looking, without windows or openings facing outside, and isolated. The materials used are standard and straightforward, the distribution of space and the arrangement of passages are eminently rational, and the wasting of energy is avoided. Form and content are inextricably linked. The hall becomes a reception room, and offers a view of the area’s natural beauty. The basin set in the centre is not functional, but establishes an immediate link with the surrounding environment, calling to mind the river Tagliamento, which flows nearby and from whose bed the foundation stones were taken.

This reference to the outside, including the use of an open roof, is a way of turning the building towards the outside, rejecting a tendency towards introversion, making it visible, something other than a large fridge. A sarcophagus is the model for ideas for the vault. Preserving means not only protecting, but expressing and revealing, too. Thus the other model becomes a “box within a box”, like the famous Yale University Beinecke Rare Book Library, designed by Gordon Bunshaft in 1963. Opening towards the outside, displaying what is being preserved and safeguarded, can be done while still covering and protecting.
