深圳湾中 Resource Bo Ning 花园俱乐部

Firm： Studio Link-Arc, LLC

Type： Cultural › Gallery

STATUS： Under Construction

：

SIZE： 10,000 sqft - 25,000 sqft

Photos： Studio Link-Arc, LLC (4)

PROJECT DESCRIPTION

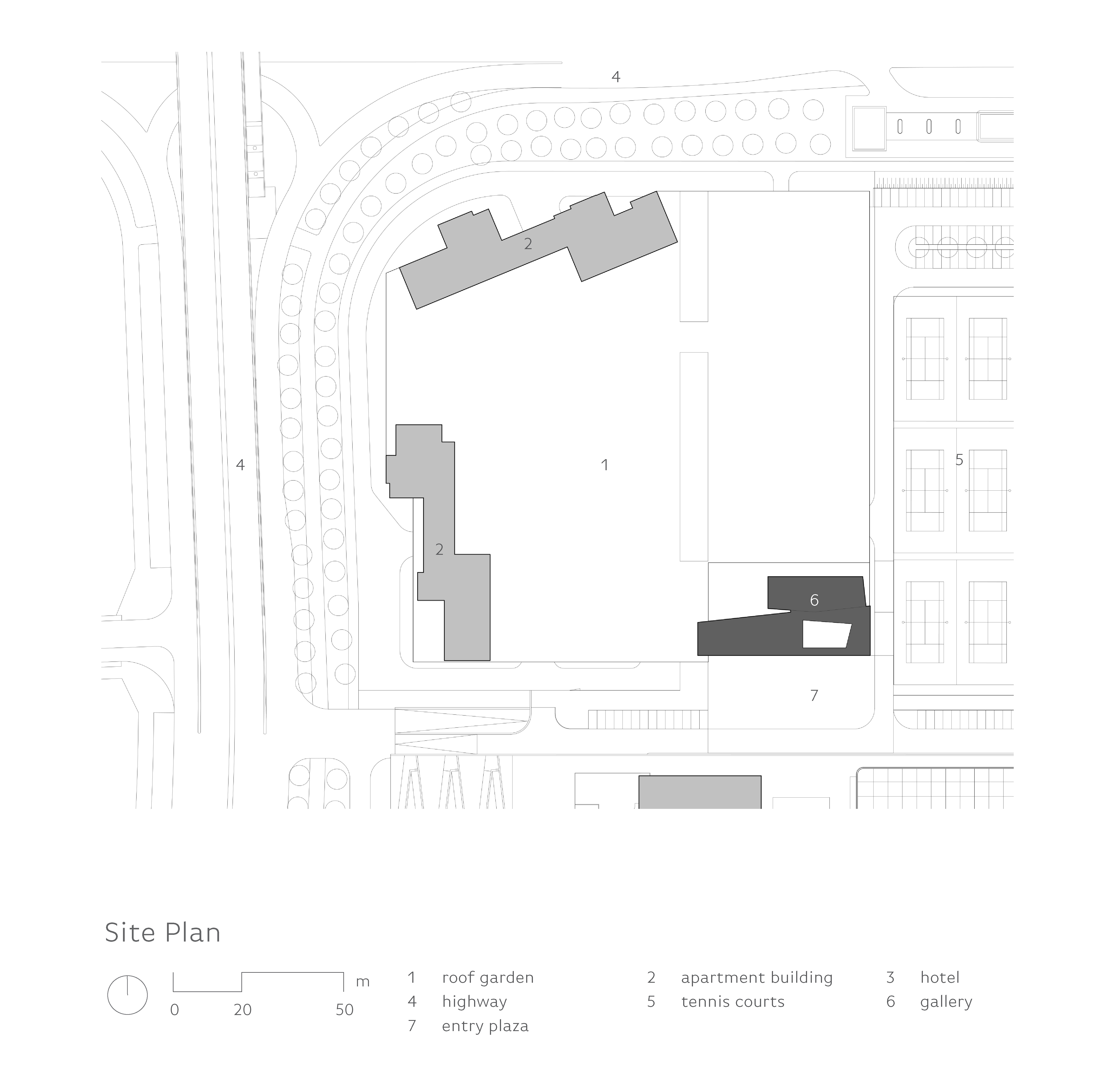

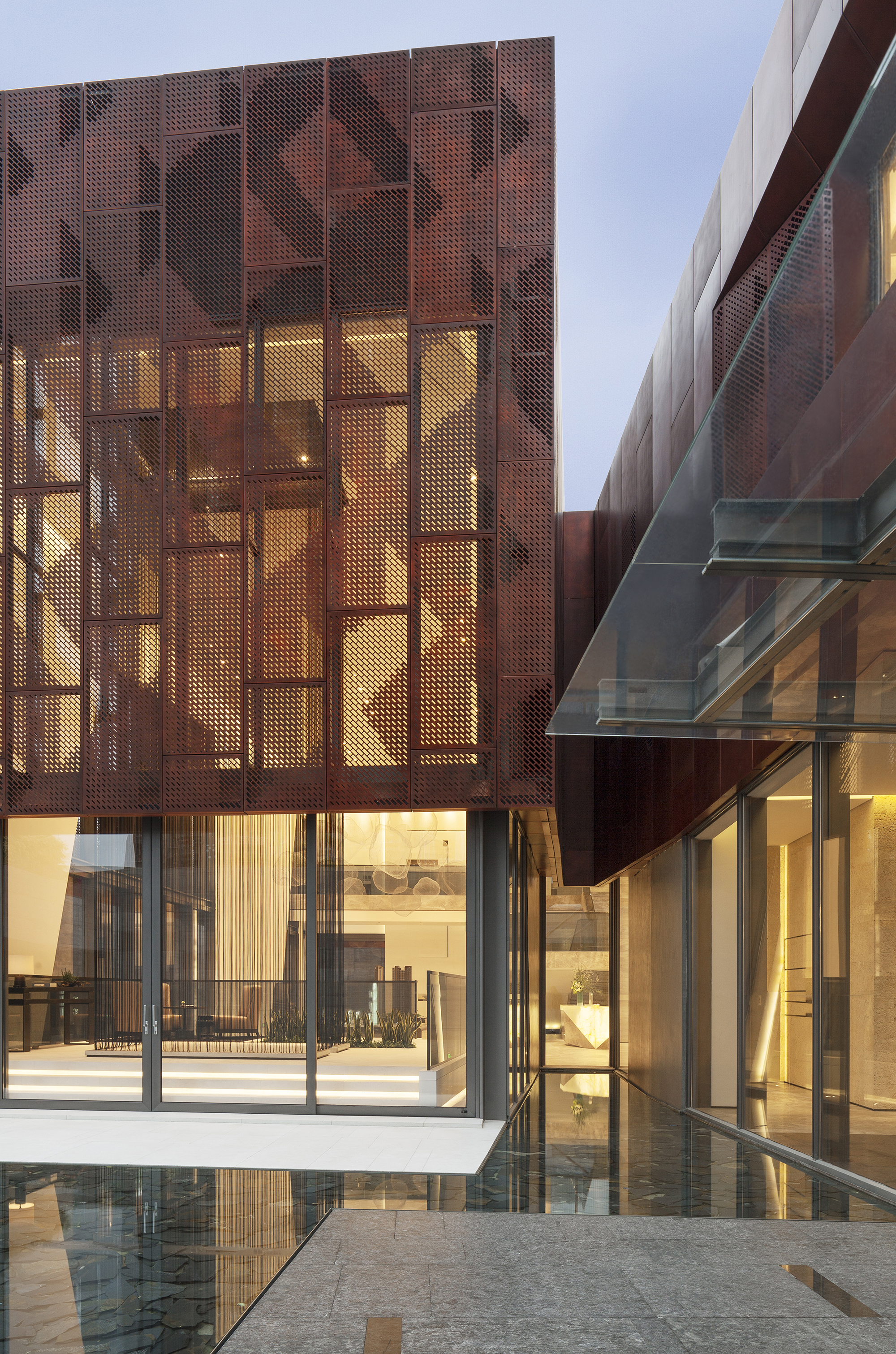

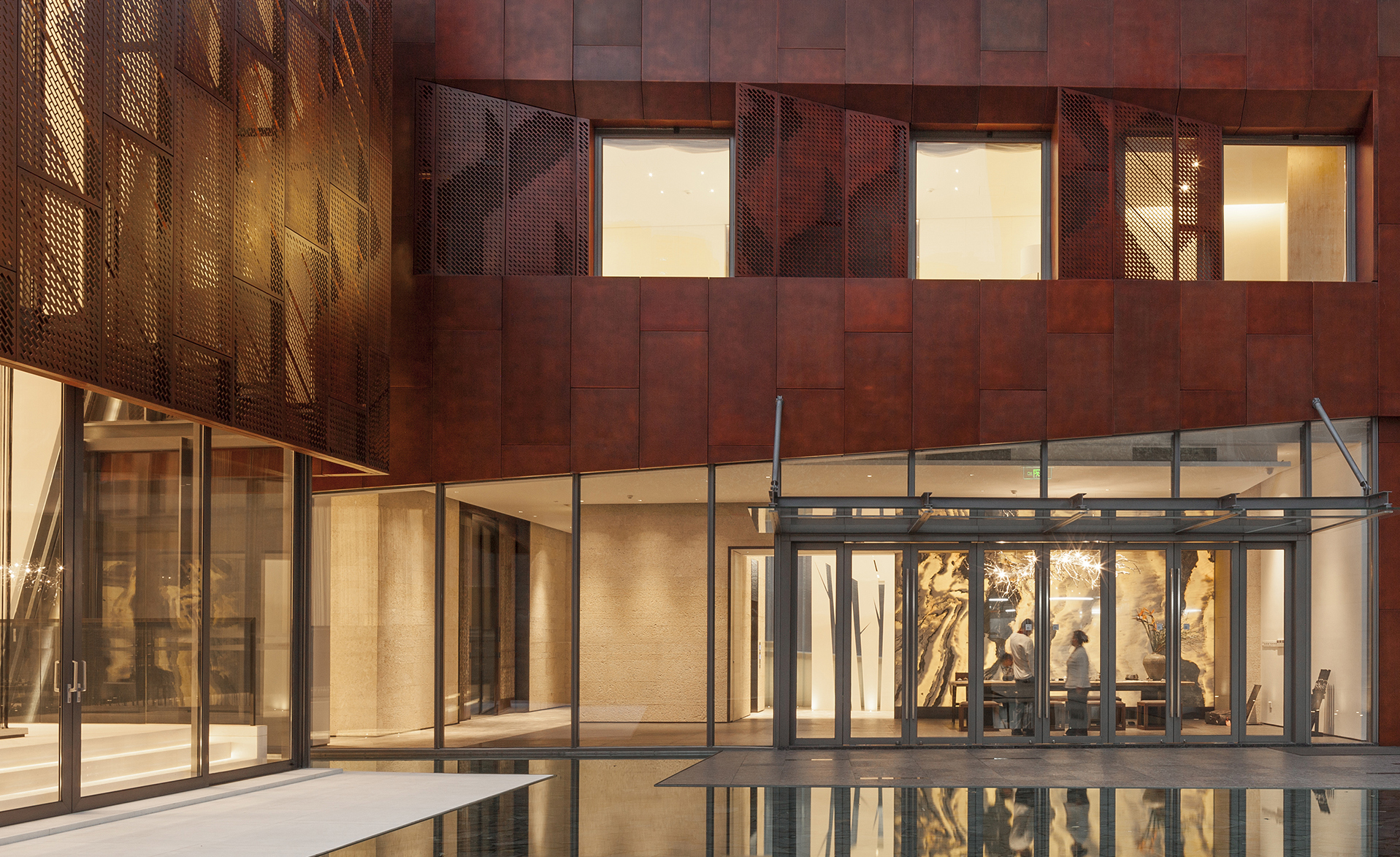

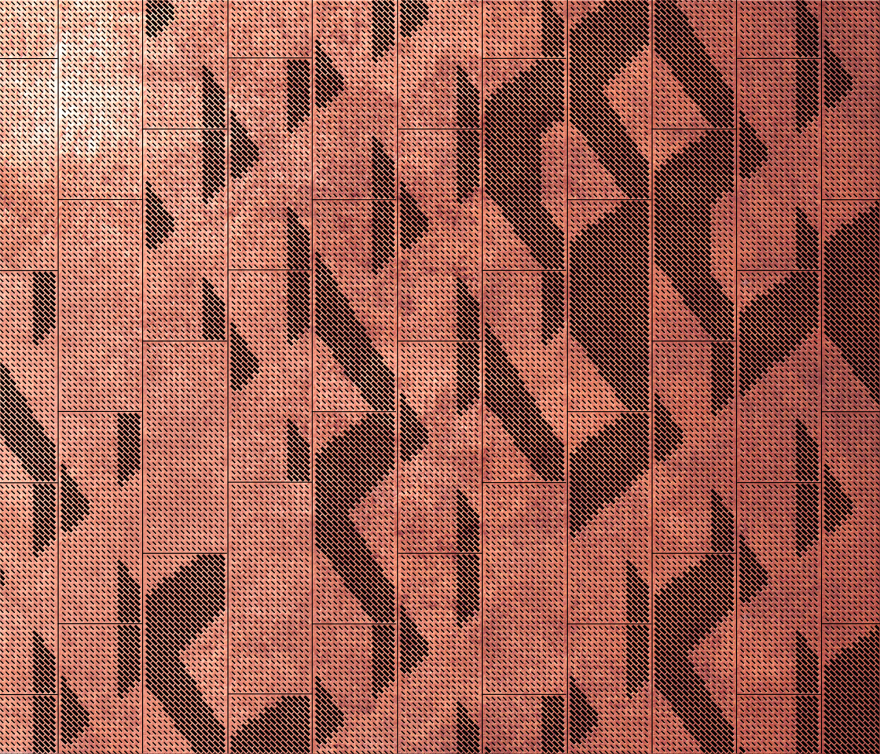

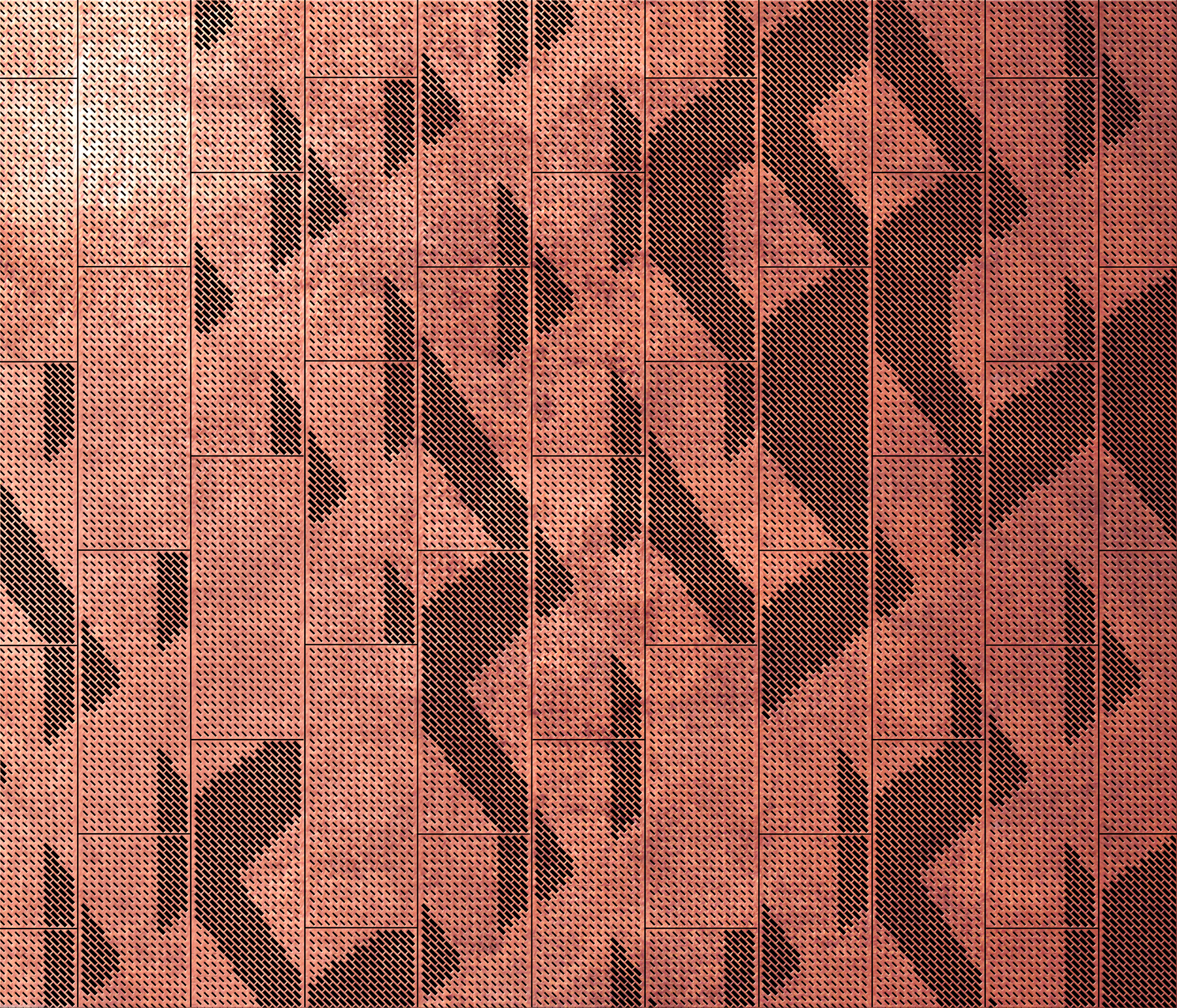

This building, a private clubhouse and gallery for a high-end residential development in the Shenzhen Bay area, is conceived as a composition of two intersecting masses. The first volume, located to the north, is an open, double height gallery space with generous light and views. The second volume, a longer and lower mass to the south, incorporates most of the building program and is defined by a more solid façade that promotes a sense of privacy and dignified calm. The two masses are unified by a perforated copper façade that lends warmth to the building, controls views and light via perforations, and adds visual texture to the project’s refined massing.

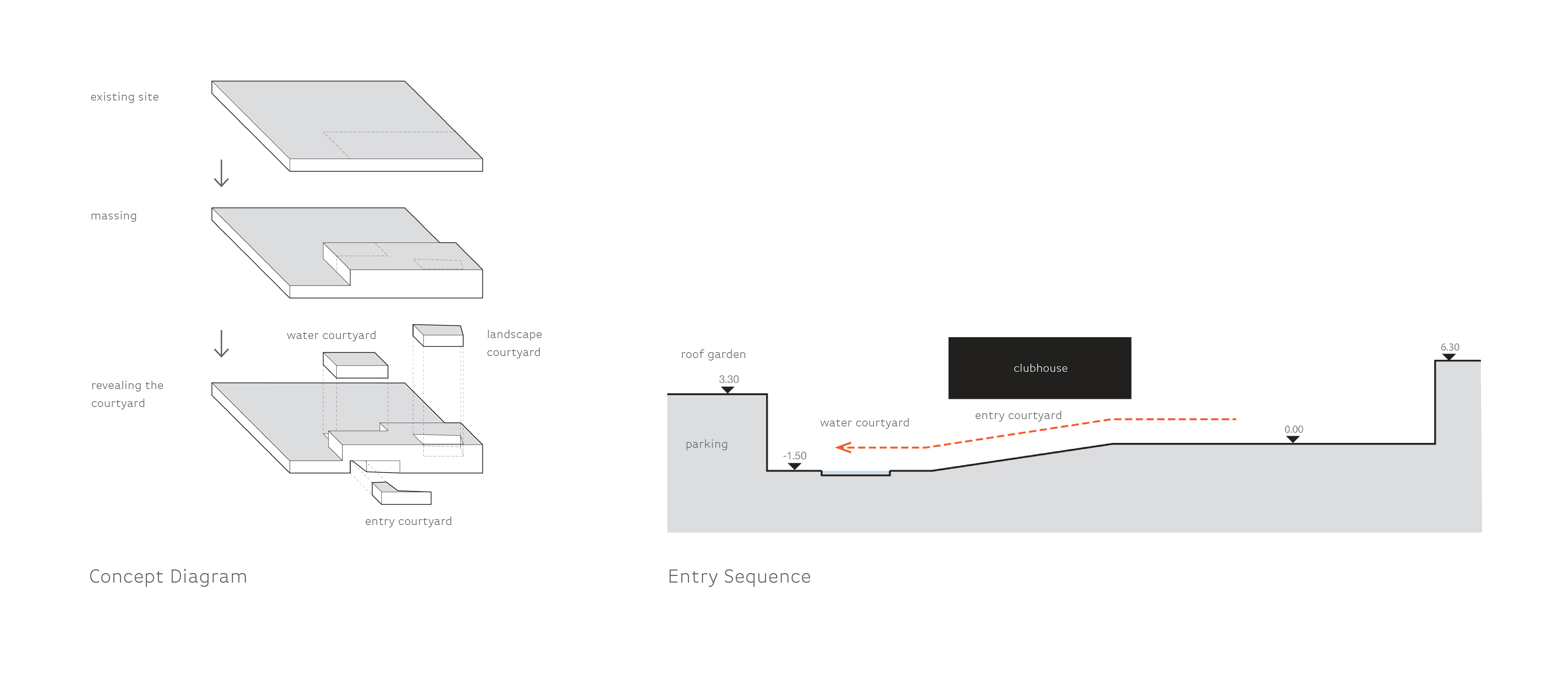

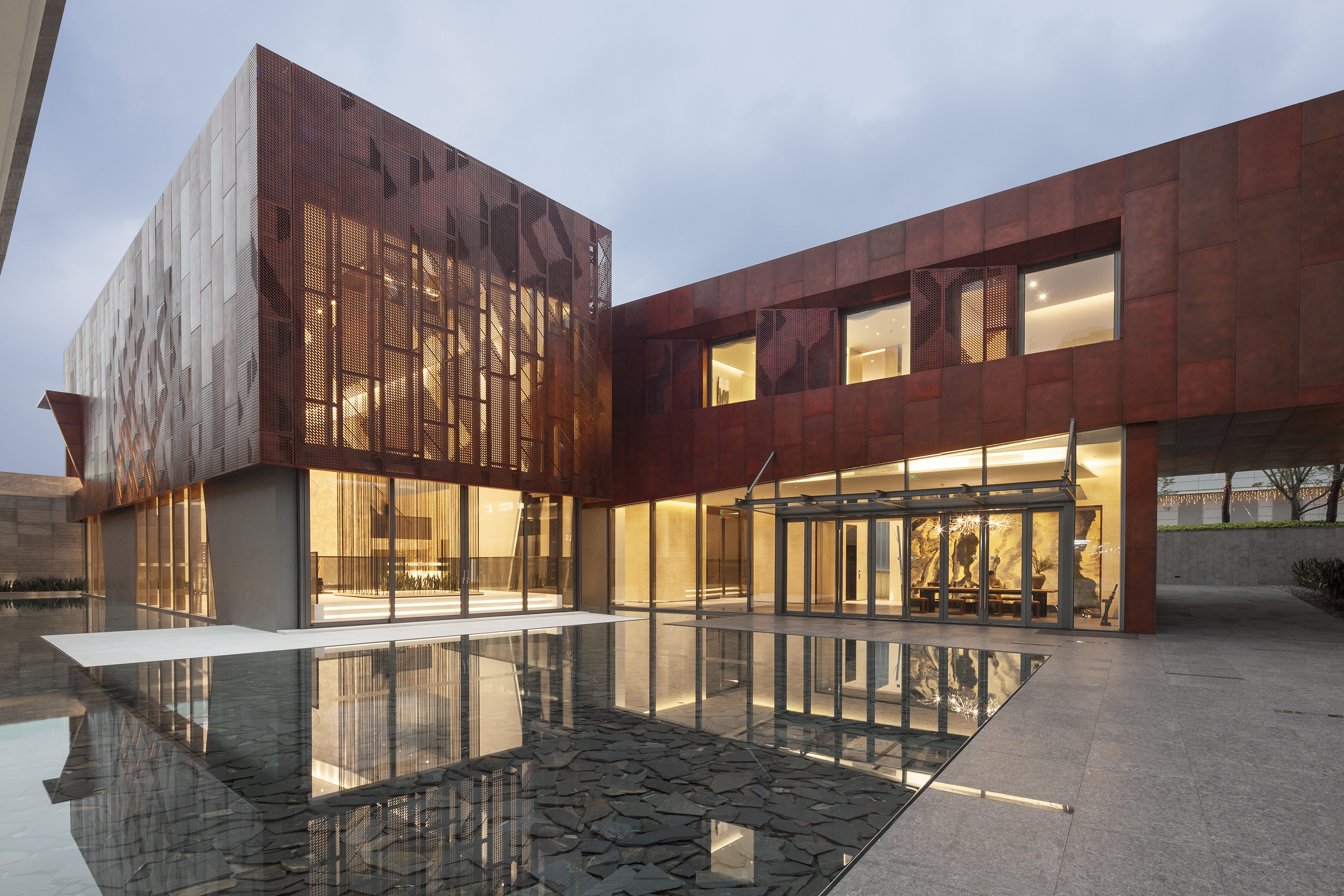

The project is designed as a contemplative sequence of spaces, beginning with a planted landscape area to the south of the building which leads to a stone courtyard and reflecting pool, from which the building’s main entrance is accessed. This sequence continues into the interior of the building, starting with a reception area and multimedia space, after which visitors enter the gallery volume, which features a sculptural concrete shell and a perforated copper façade that allows light to penetrate the space.

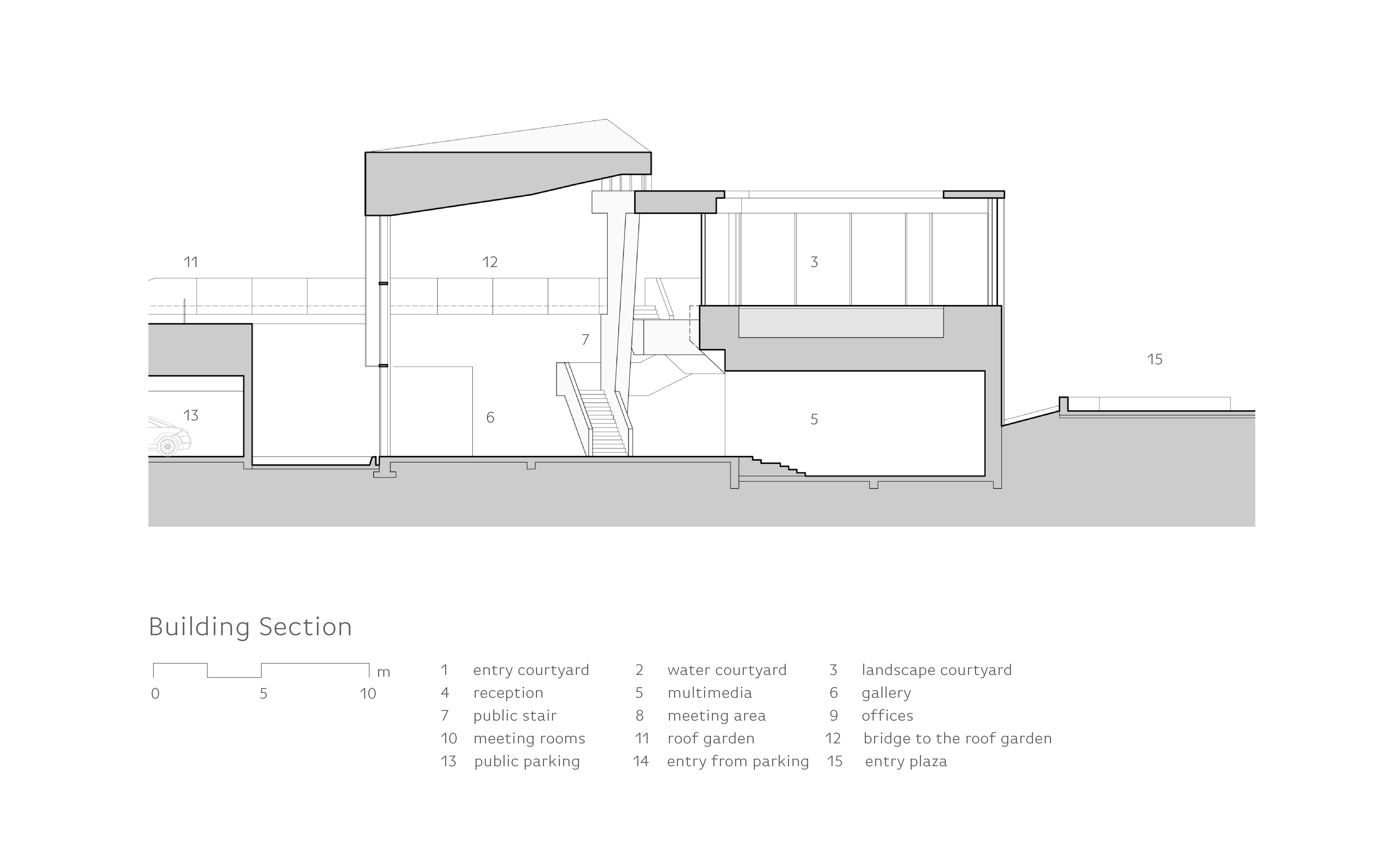

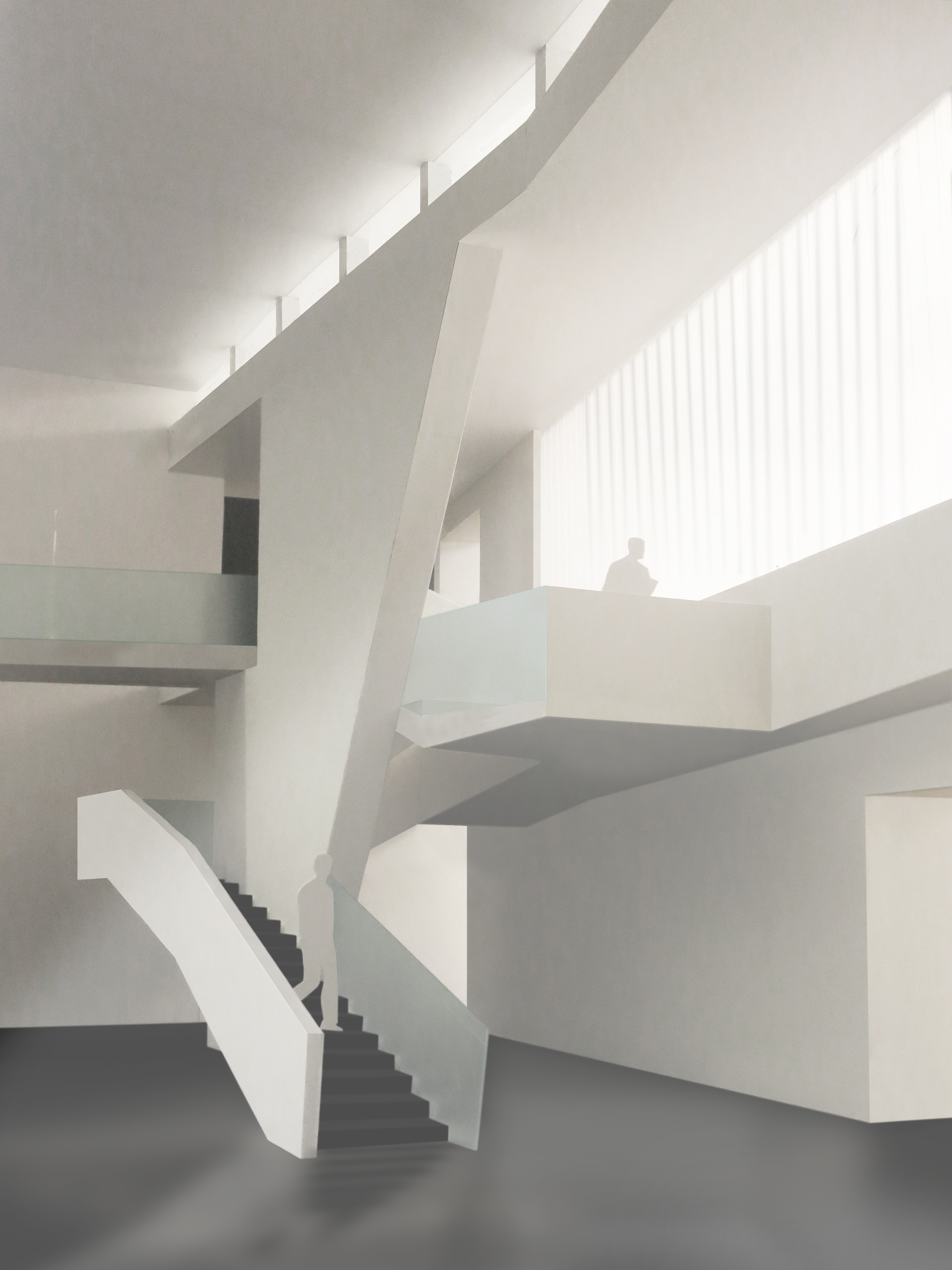

A sculptural staircase and viewing platform, located between the two main volumes, allows visitors to either exit the building via a bridge into a park to the north or to continue south to a private courtyard located on the building’s second floor. This courtyard, defined by translucent glass walls and quiet plantings, extends the interaction between the building and the site by drawing the landscape further into the building. After the courtyard, visitors are led to a suite of contract signing rooms which enjoy views of the residential towers to the north of the site. From this point, visitors can exit the building into a landscaped park, concluding the experience of the project.

PROJECT INFORMATION

Project Name: Shenzhen Bay China Resources Bo Ning Garden Clubhouse

Project Location: Shenzhen, China

Project Area: 1,700 sqm

Project Status: Under Construction

Client: China Resources Land Limited

PROJECT CREDITS

Design Architect: Yichen Lu

Associate In Charge: Qinwen Cai, Ching-Tsung Huang

Project Architect: Dongyul Kim

Project Team: Alban Denic, Jose Silva, Zifan Liu, Chen Hu

Architect of Record: CCDI

Structural Engineer: Yoshinori Nito Engineering & Design PC

MEP Engineer: CCDI

Landscape Architect: AECOM

Credits:

- Studio Link-Arc, LLC - Principal - Yichen Lu
