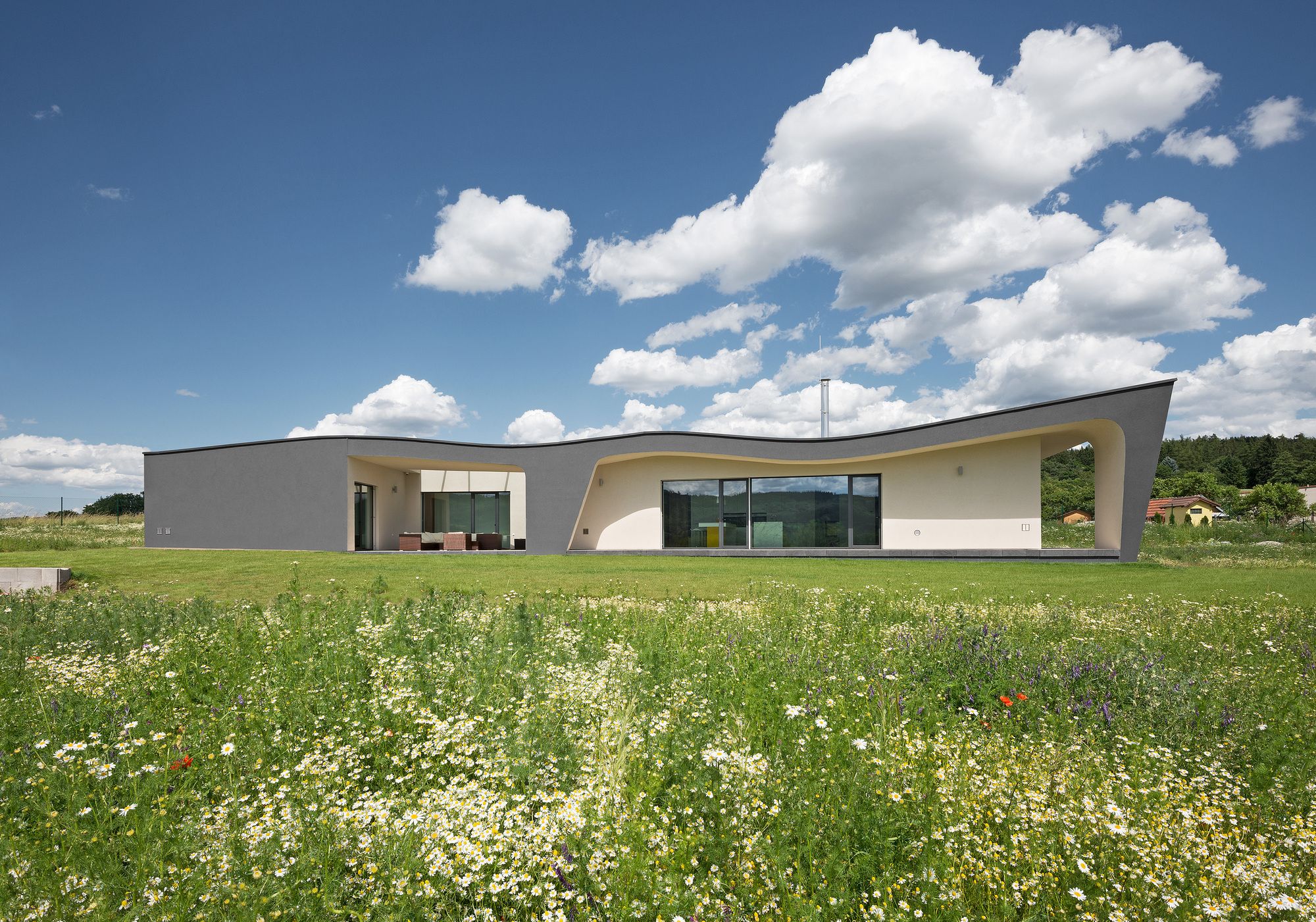

Designed by ATX Architekti, Assignment and clients’ wish was to create a building that has a “roof”, is contemporary and unique and is not just another modern functionalist box. Instead of transforming the traditional morphology of the house with a traditional roof, which can be seen in different variants on adjacent estates, we deliberately chose an opposite approach, which allowed us to get rid of stereotypes in anticipation of what the house should look like. We decided to design it as an organically shaped object, which contains mass with a functional interior layout, while the softly undulating roof plane is a loose copy of the line of hill Hořický located on the other side of the valley.

photography by © Ester Havlová

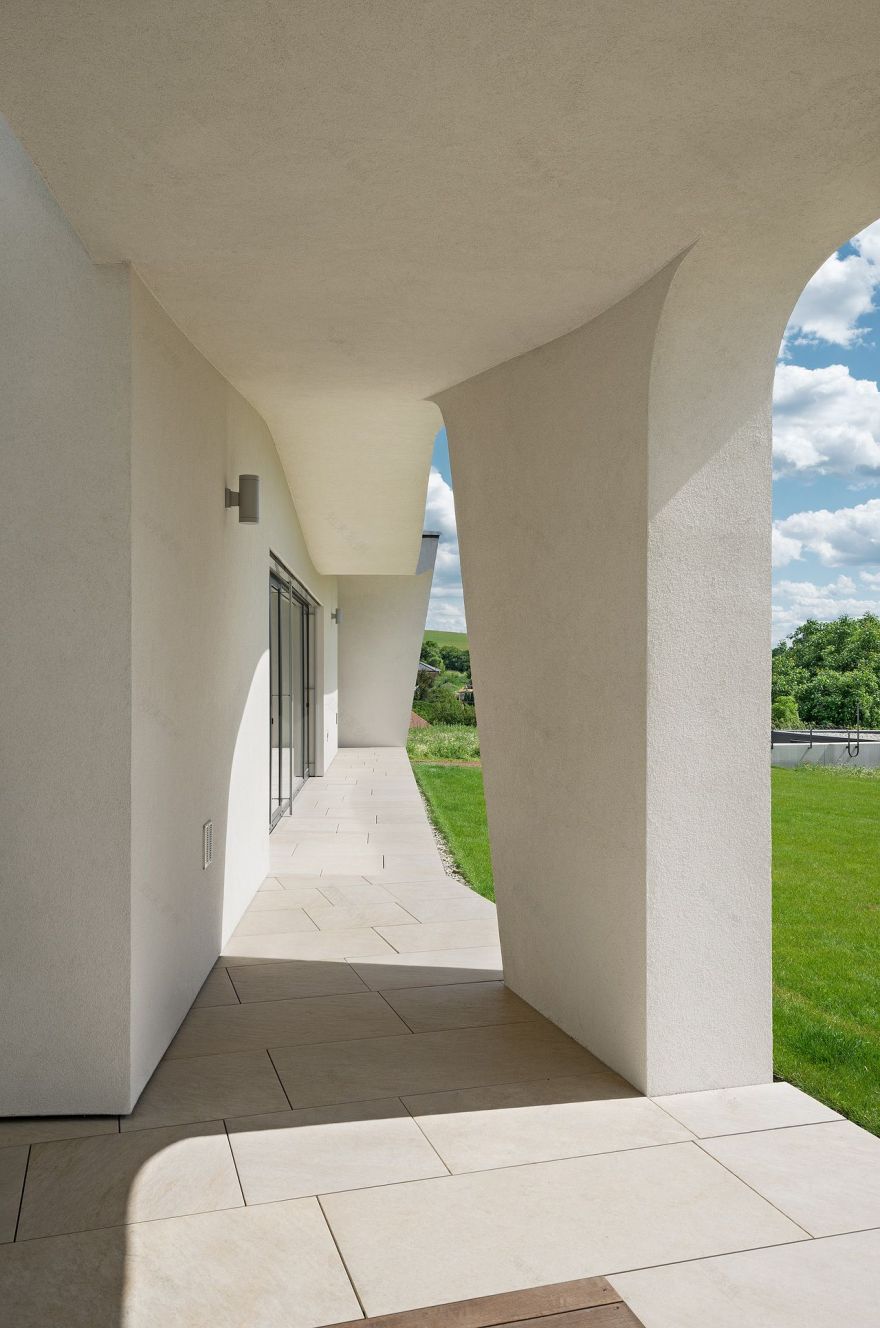

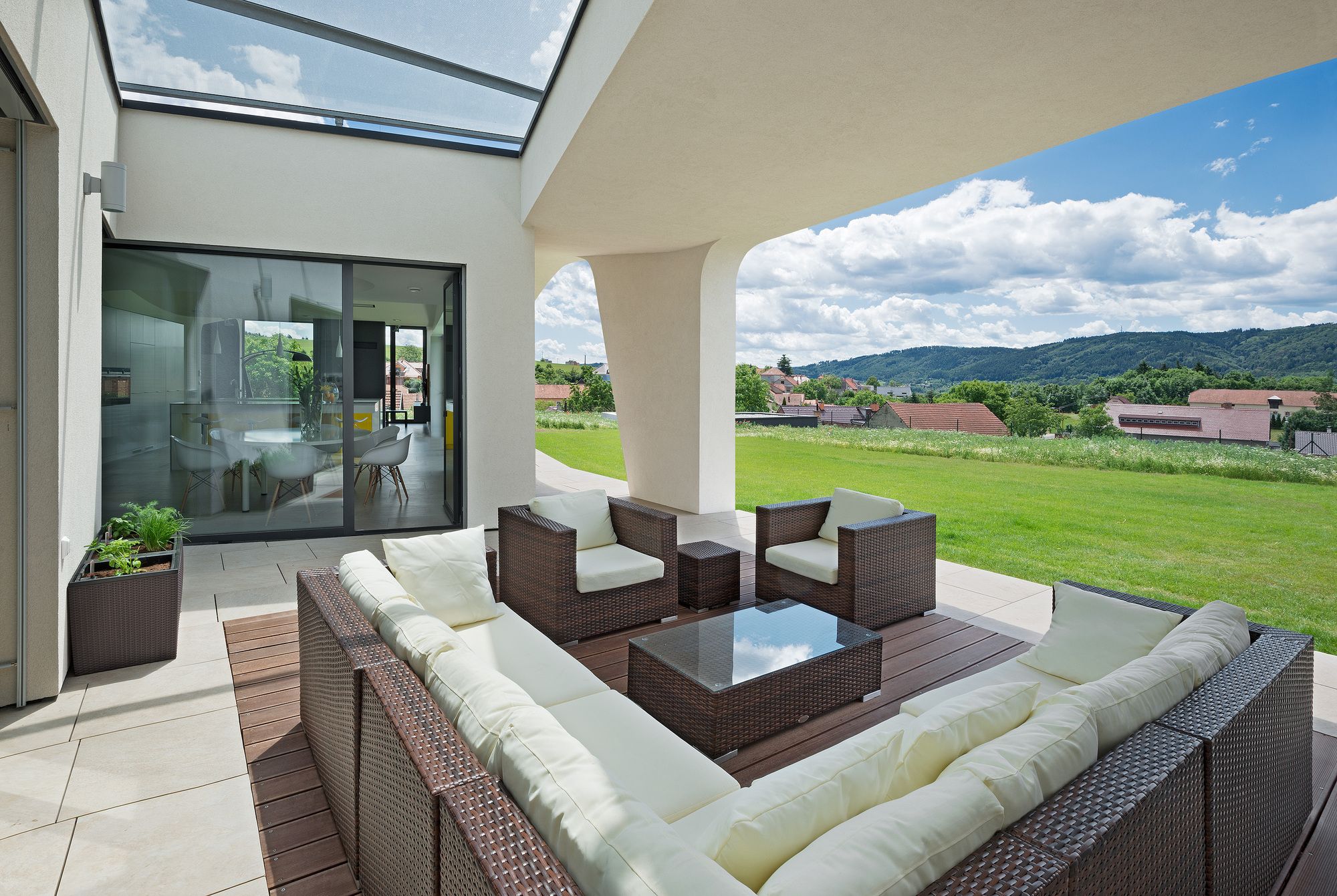

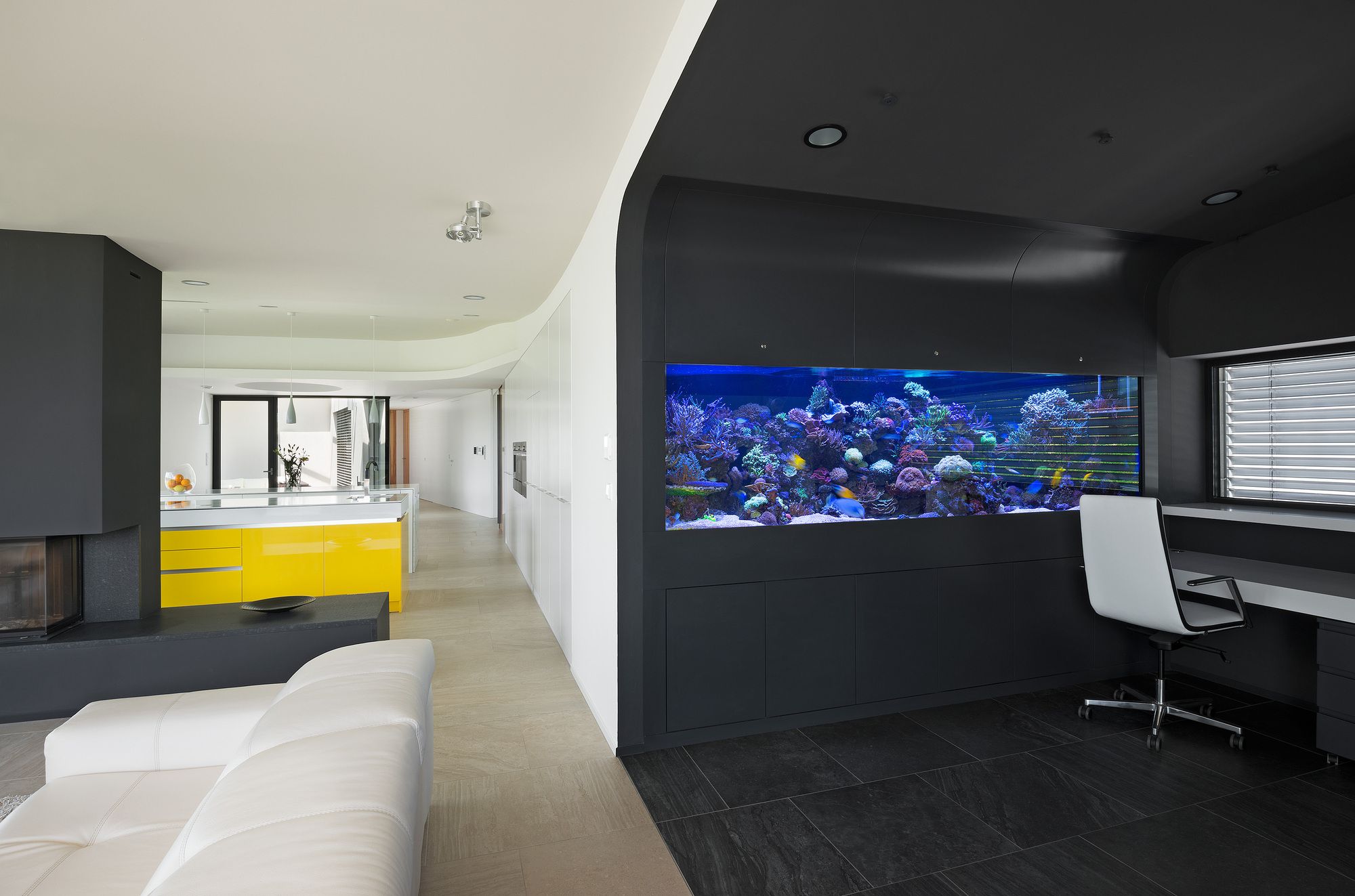

The simple interior layout is arranged around the transparent entrance area, situated in the approximate center of mass of the object. One of the most important requirements for the design of the house was a large aquarium. During the search of final design, it occurred in different parts of the main living space. The last option, in which the aquarium is a part of the office and is directly connected to the living room, has proven the best and was subsequently implemented. Indoor living space is extended to the exterior by sheltered terrace protected on three sides. This comfortable outdoor space immediately adjacent to the dining room and inserted into space with an unobstructed view of the landscape significantly extends the possibilities of the house and is often used by its inhabitants. The terrace is also ending the covered walkway that allows walking around the house with “dry feet” even in less favorable weather conditions.

photography by © Ester Havlová

photography by © Ester Havlová

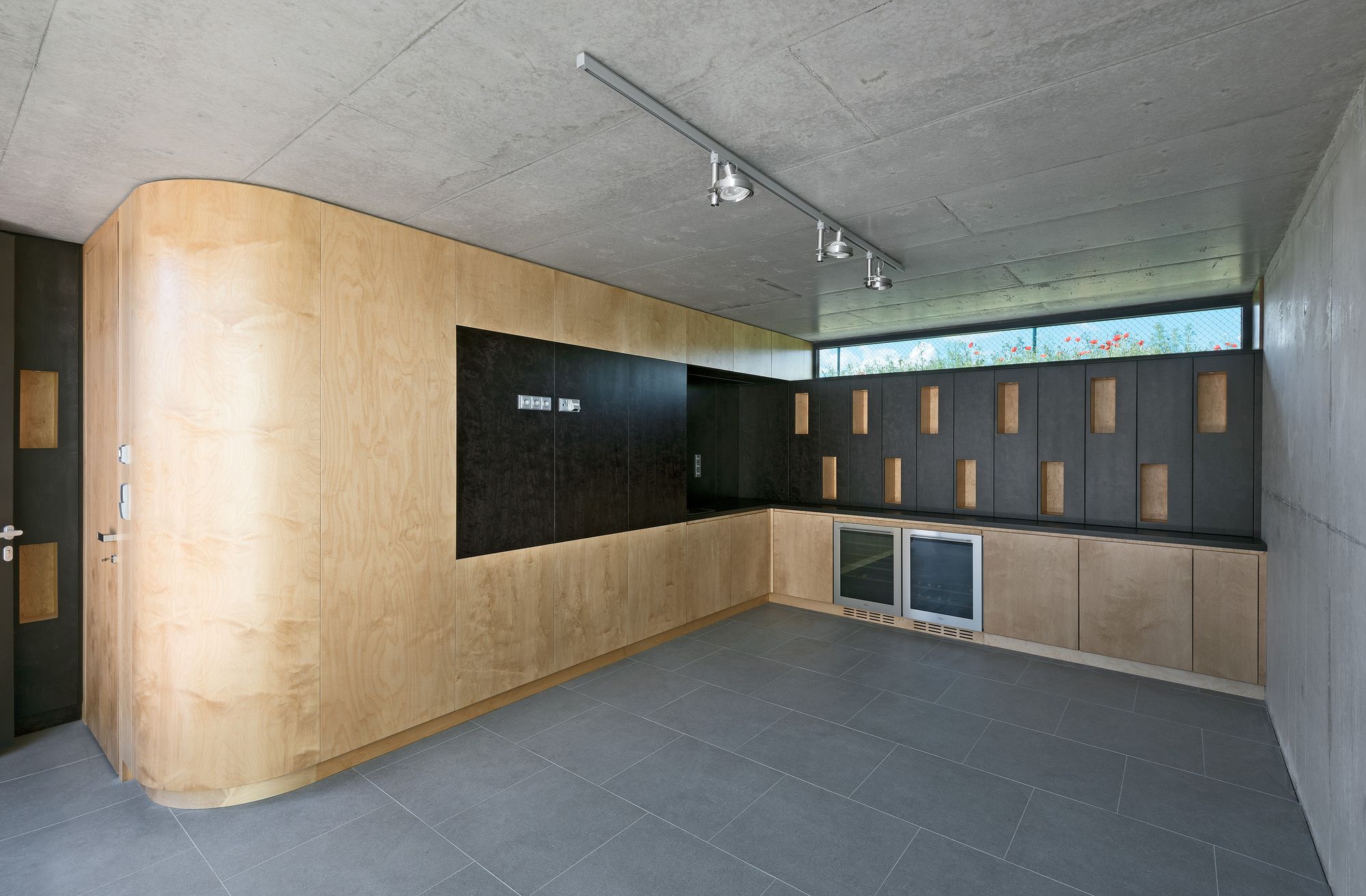

The vertical structure of the house is made from ceramic walls. Thermal insulation of facades is from thermal insulation composite system. Roof structure above the internal space of the house is made from prefabricated panels. Protruding parts of the roof are from wooden beams covered with Knauf AQUAPANEL® system. Garden winery is made from waterproof concrete, which is left exposed without surface treatment. Openings are solved with aluminum Schüco system and triple-glazed insulating windows. The building has very low energy consumption; it is evaluated as level B – very efficient.

photography by © Ester Havlová

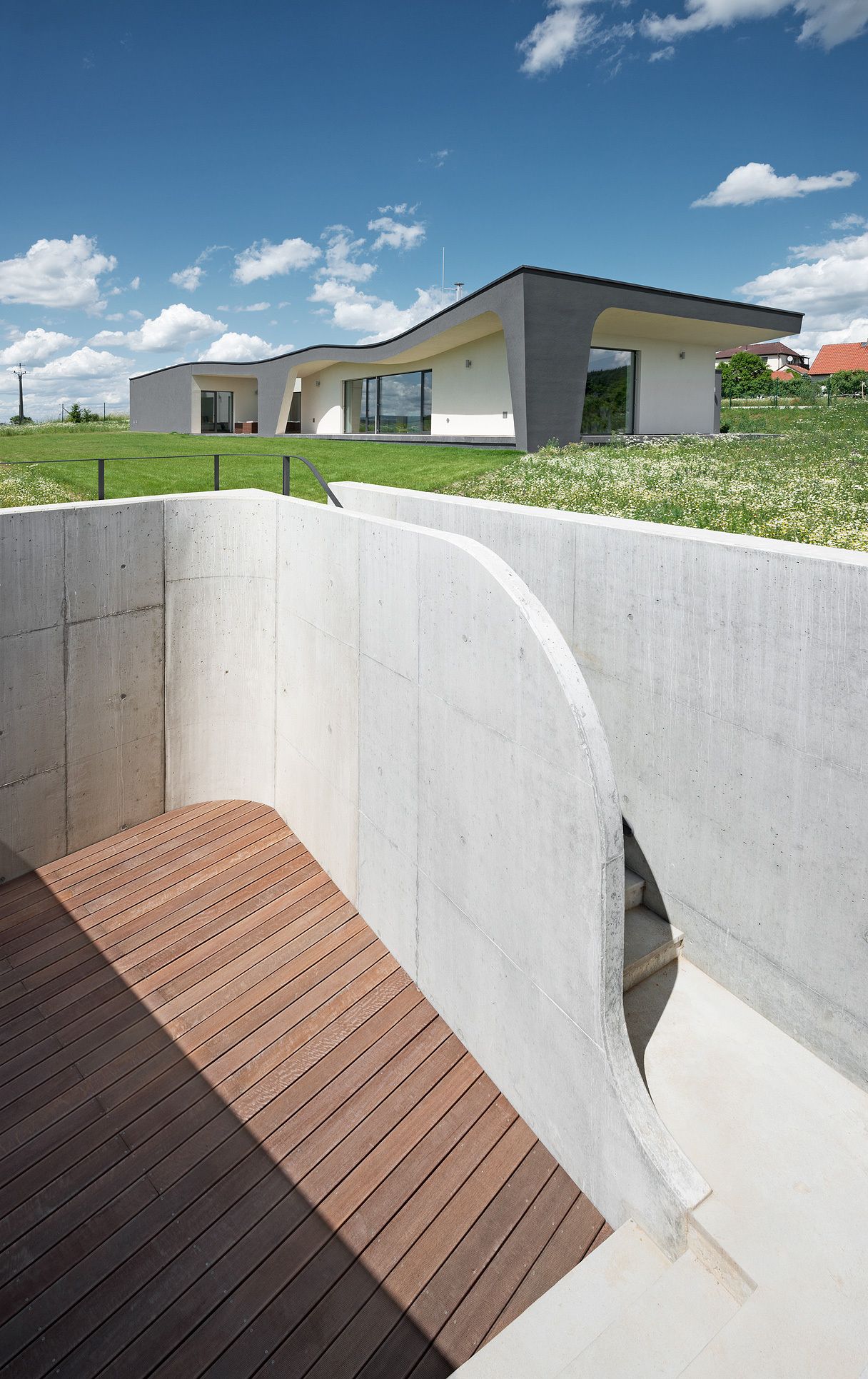

Product Description:AQUAPANEL® Cement Board technology – delivers a complete revolutionized the design and construction of buildings across Europe. It is a building material with an extremely long life, which creates a massive and dry surface that can withstand extreme moisture and climatic influences. Cement sheets are easy to install and offer decisive advantages while minimizing installation costs. We used AQUAPANEL® Cement Board in this project to create the facade and ceiling in the shaped part of the terrace. In this way, we acquired a solid base for the application of facade screed. Due to this technology, the final surface of the facade is uniform around the whole perimeter of the house, in spite of combining various structural systems.

photography by © Ester Havlová

Project Info: Architects: ATX Architekti Location: Blansko, Czech Republic Architect in Charge: Rostislav Jakubec, Štěpán Tomas Area: 300.0 m2 Project Year: 2016 Photographs: Ester Havlová Manufacturers: MIRAGE, Knauf, Schüco Project Name: House with Winery

photography by © Ester Havlová

photography by © Ester Havlová

photography by © Ester Havlová

photography by © Ester Havlová

photography by © Ester Havlová

photography by © Ester Havlová

photography by © Ester Havlová

photography by © Ester Havlová

photography by © Ester Havlová

photography by © Ester Havlová

photography by © Ester Havlová

photography by © Ester Havlová

photography by © Ester Havlová

photography by © Ester Havlová

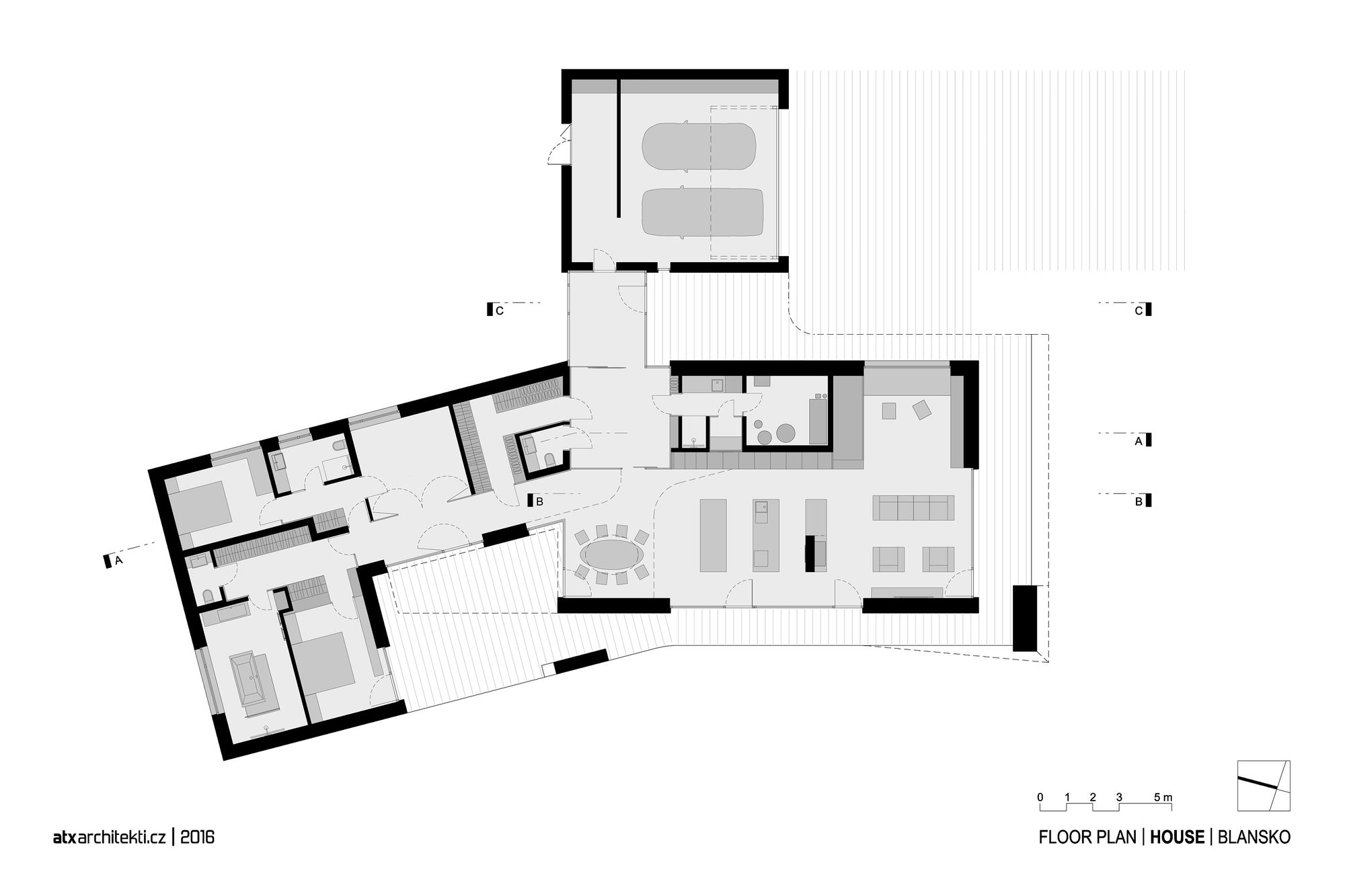

Floor Plan

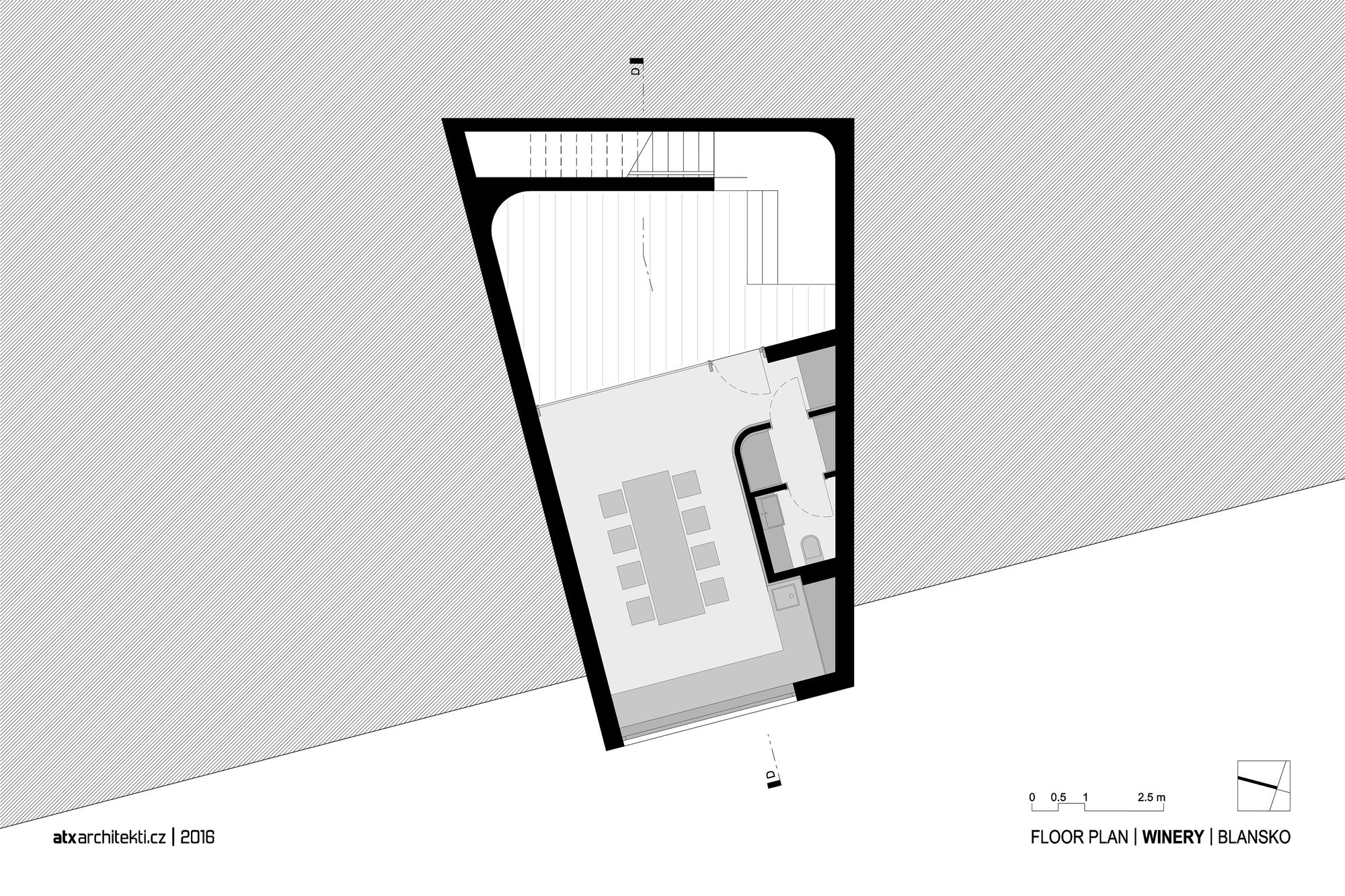

Wine Cellar Floor Plan

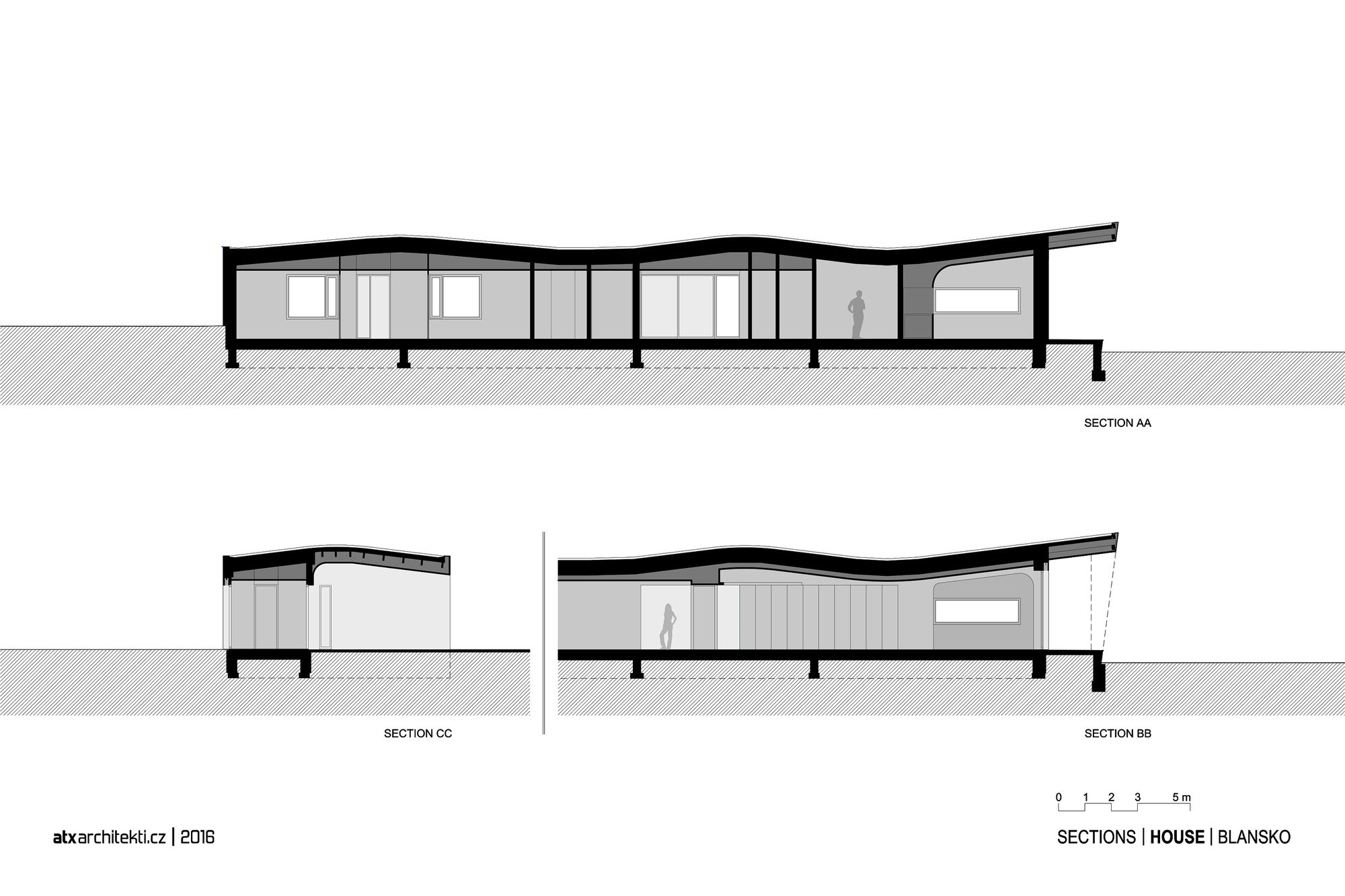

Section
