捷克酒庄住宅

英文名称：Czech Republic Housing and drinking

位置：捷克

设计公司：ATX Architekti

摄影师：Ester Havlová

这是由ATX Architekti设计的住宅兼酒庄。客户想要一座有“屋顶”的建筑，一个当代、独特而不仅仅是现代功能主义的盒子空间。建筑师没有将这座带有传统屋定的的住宅传统形态进行改造，而是摆脱了对该住宅刻板的印象。建筑师将其设计成一个有机形态的物体，内布置了功能性的室内布局，同时轻缓起伏的屋顶面板遥遥呼应了位于山谷另一边的Hořický山的山体轮廓线。简单的室内布局是围绕着通透的入口区组织的，正好是建筑体量的中央。该项目最重要的需求之一是设计一个大型中庭。

From the architect. Assignment and clients' wish was to create a building that has a "roof", is contemporary and unique and is not just another modern functionalist box ...Instead of transforming the traditional morphology of the house with traditional roof, which can be seen in different variants on adjacent estates, we deliberately chose an opposite approach, which allowed us to get rid of stereotypes in anticipation of what the house should look like. We decided to design it as an organically shaped object, which contains mass with functional interior layout, while the softly undulating roof plane is a loose copy of the line of hill Hořický located on the other side of the valley.

The simple interior layout is arranged around the transparent entrance area, situated in the approximate center of mass of the object. One of the most important requirements for design of the house was a large aquarium. During the search of final design, it occurred in different parts of the main living space. The last option, in which the aquarium is a part of the office and is directly connected to the living room, has proven the best and was subsequently implemented.

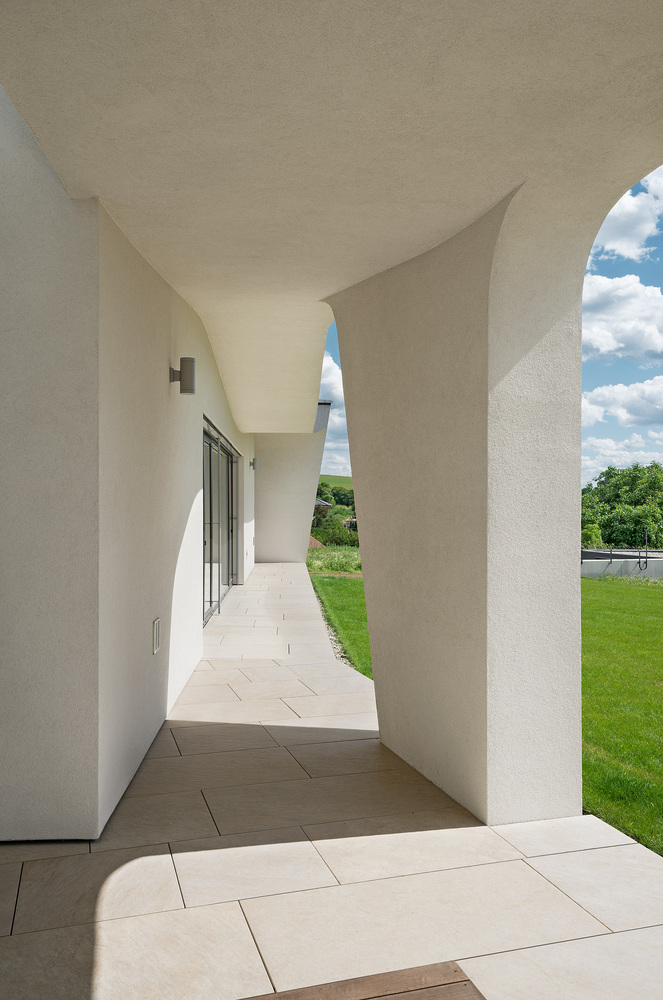

Indoor living space is extended to the exterior by sheltered terrace protected on three sides. This comfortable outdoor space immediately adjacent to the dining room and inserted into a space with unobstructed view of the landscape significantly extends the possibilities of the house and is often used by its inhabitants. The terrace is also ending the covered walkway that allows walking around the house with "dry feet" even in less favorable weather conditions.

The vertical structure of the house is made from ceramic walls. Thermal insulation of facades is from thermal insulation composite system. Roof structure above the internal space of the house is made from prefabricated panels. Protruding parts of the roof are from wooden beams covered with Knauf AQUAPANEL® system. Garden winery is made from waterproof concrete, which is left exposed without surface treatment. Openings are solved with aluminum Schüco system and triple-glazed insulating windows. The building has very low energy consumption; it is evaluated as level B - very efficient.

Product Description: AQUAPANEL® Cement Board technology - delivers a complete revolutionized the design and construction of buildings across Europe. It is a building material with an extremely long life, which creates a massive and dry surface that can withstand extreme moisture and climatic influences. Cement sheets are easy to install and offer decisive advantages while minimizing installation costs.We used AQUAPANEL® Cement Board in this project to create the facade and ceiling in the shaped part of the terrace. In this way, we acquired solid base for application of facade screed. Due to this technology, the final surface of the facade is uniform around the whole perimeter of the house, in spite of combining various structural systems.

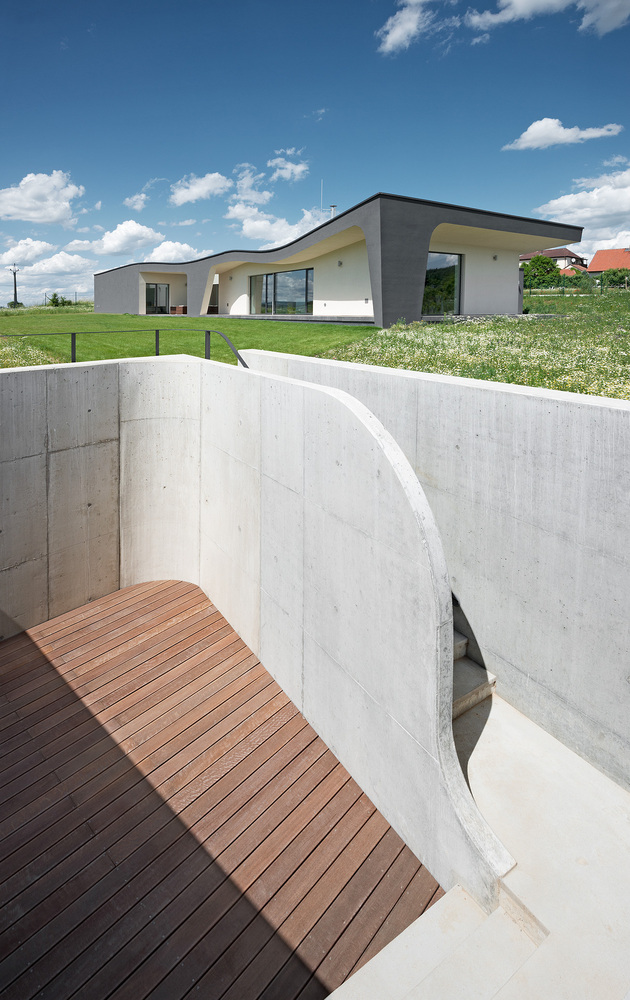

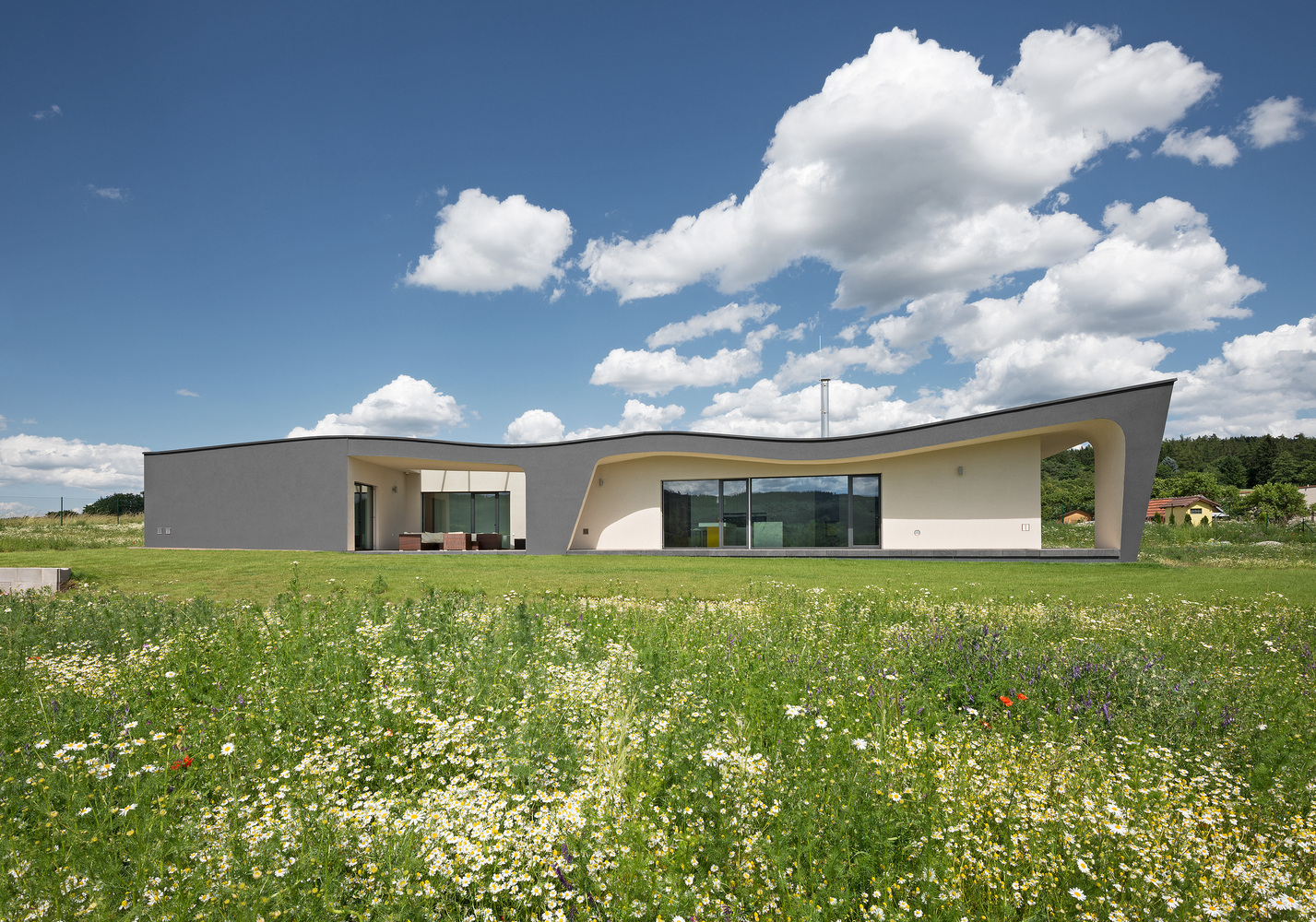

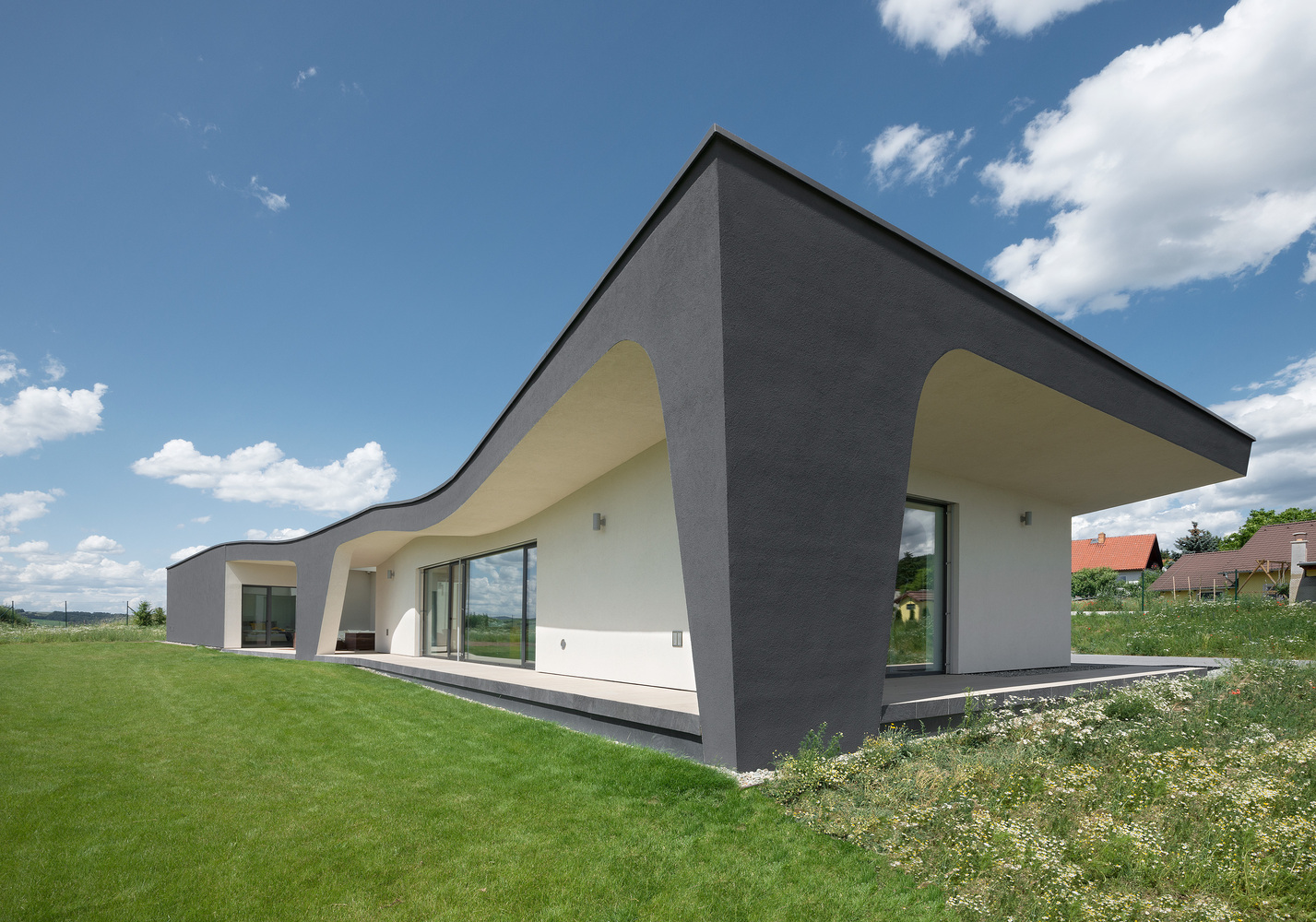

捷克住宅兼酒庄外部实景图

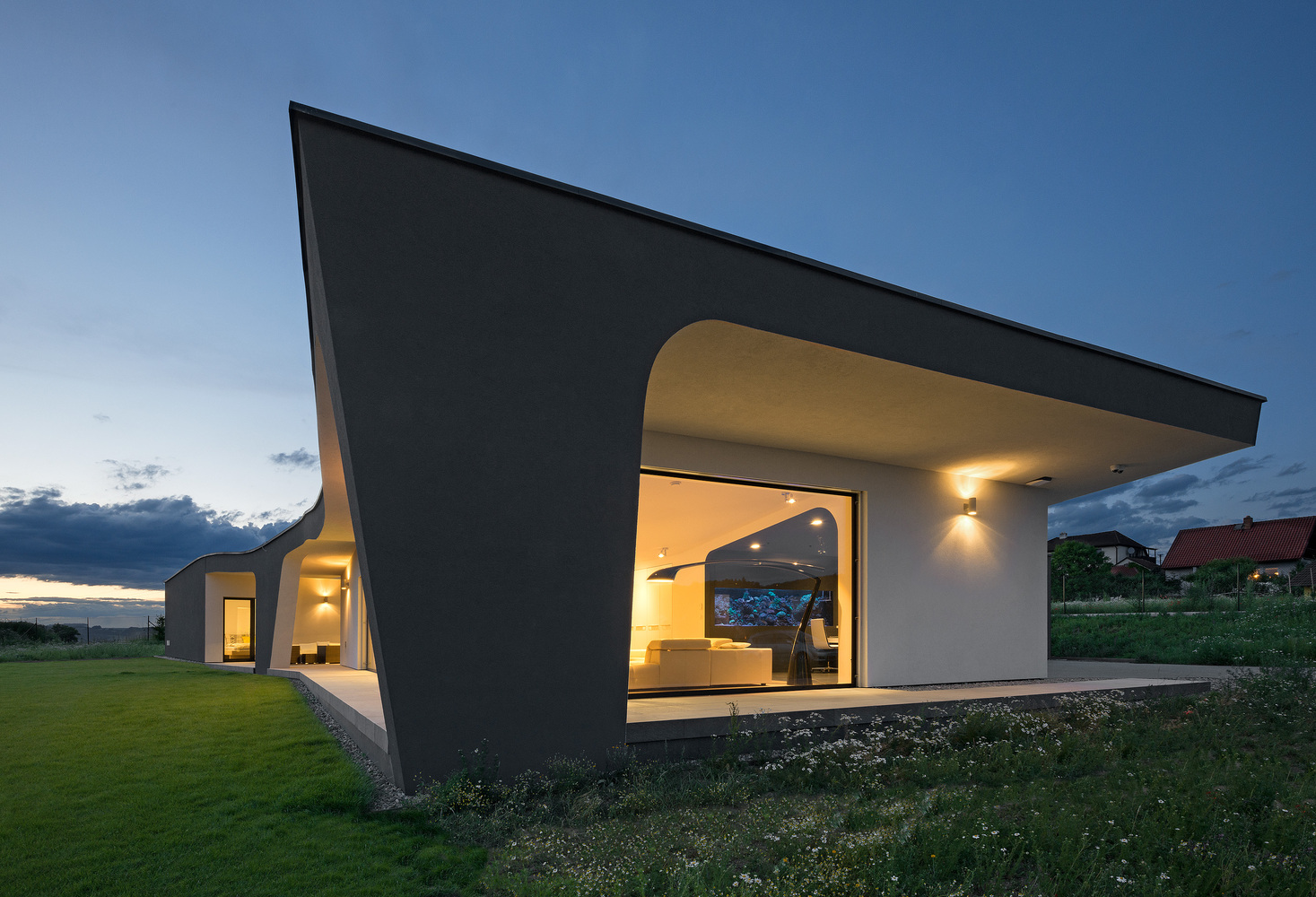

捷克住宅兼酒庄外部夜景实景图

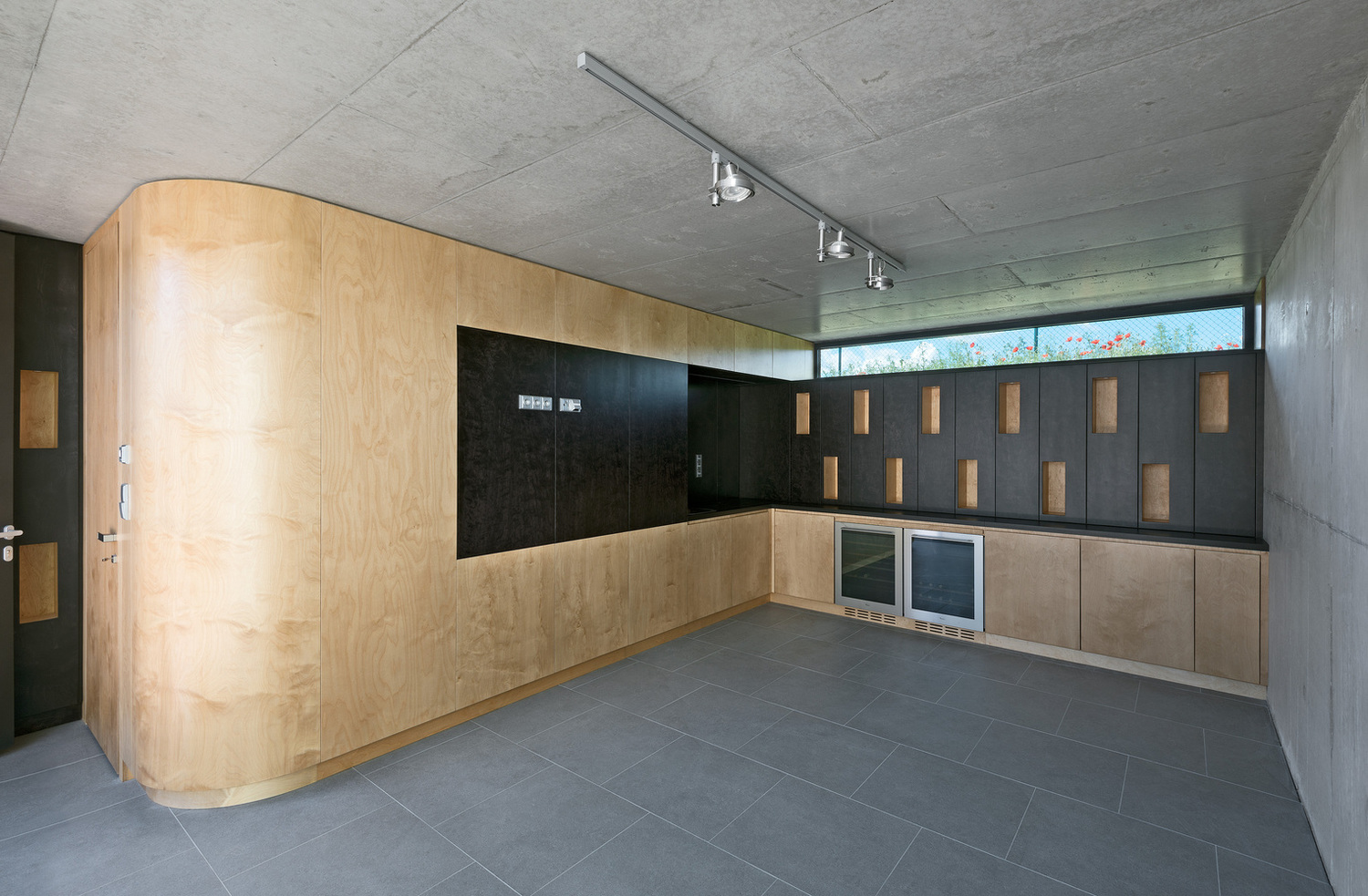

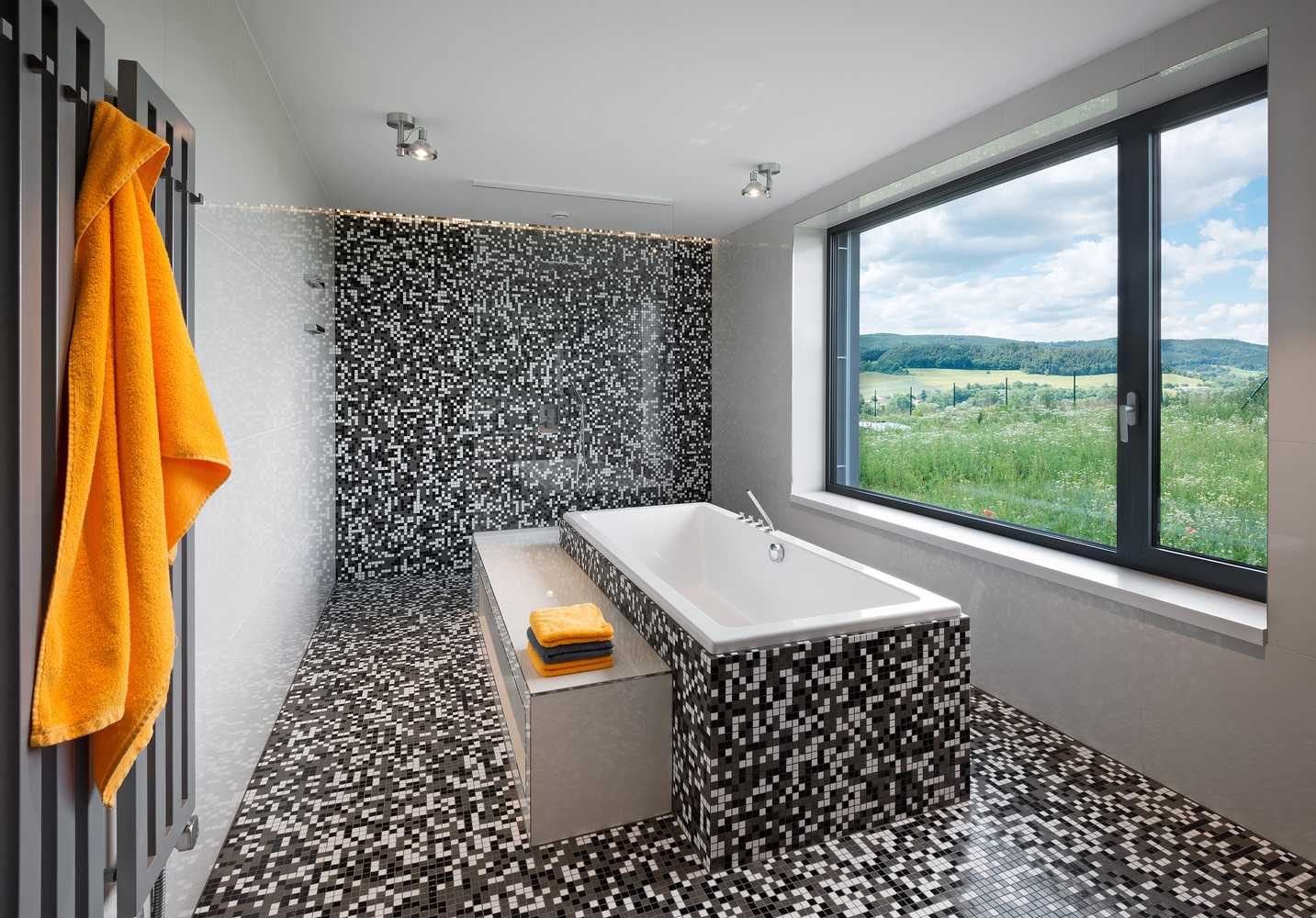

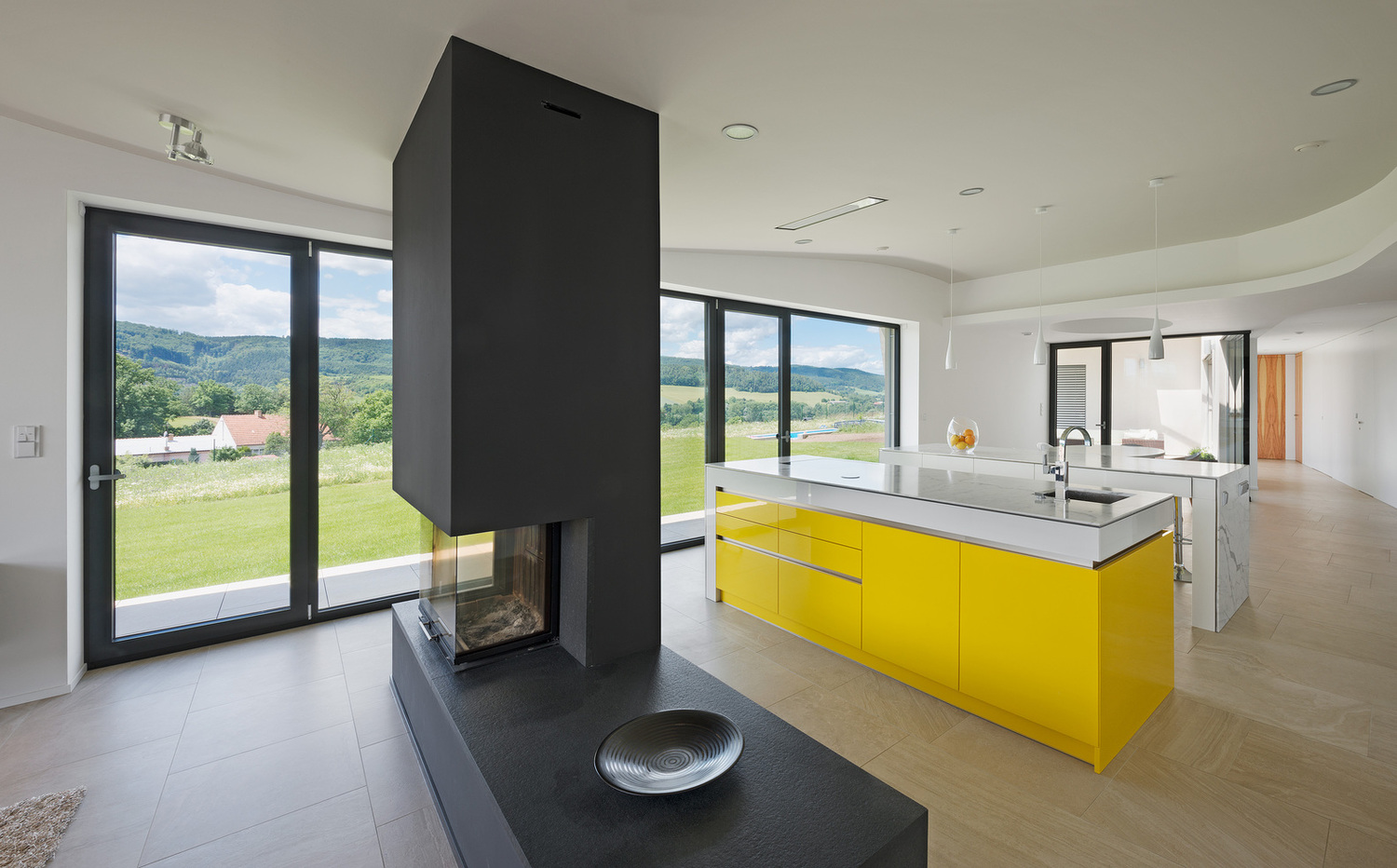

捷克住宅兼酒庄内部实景图

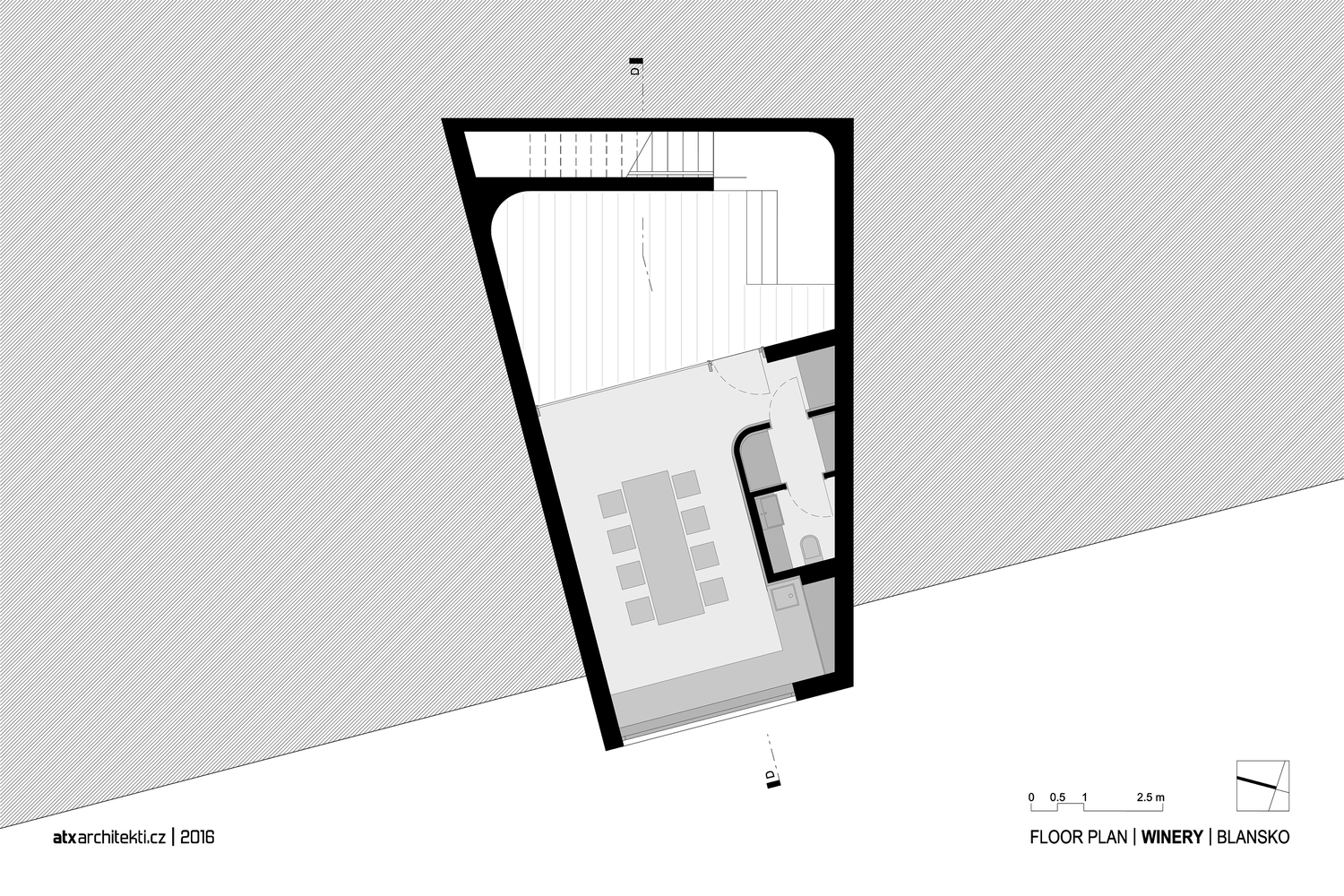

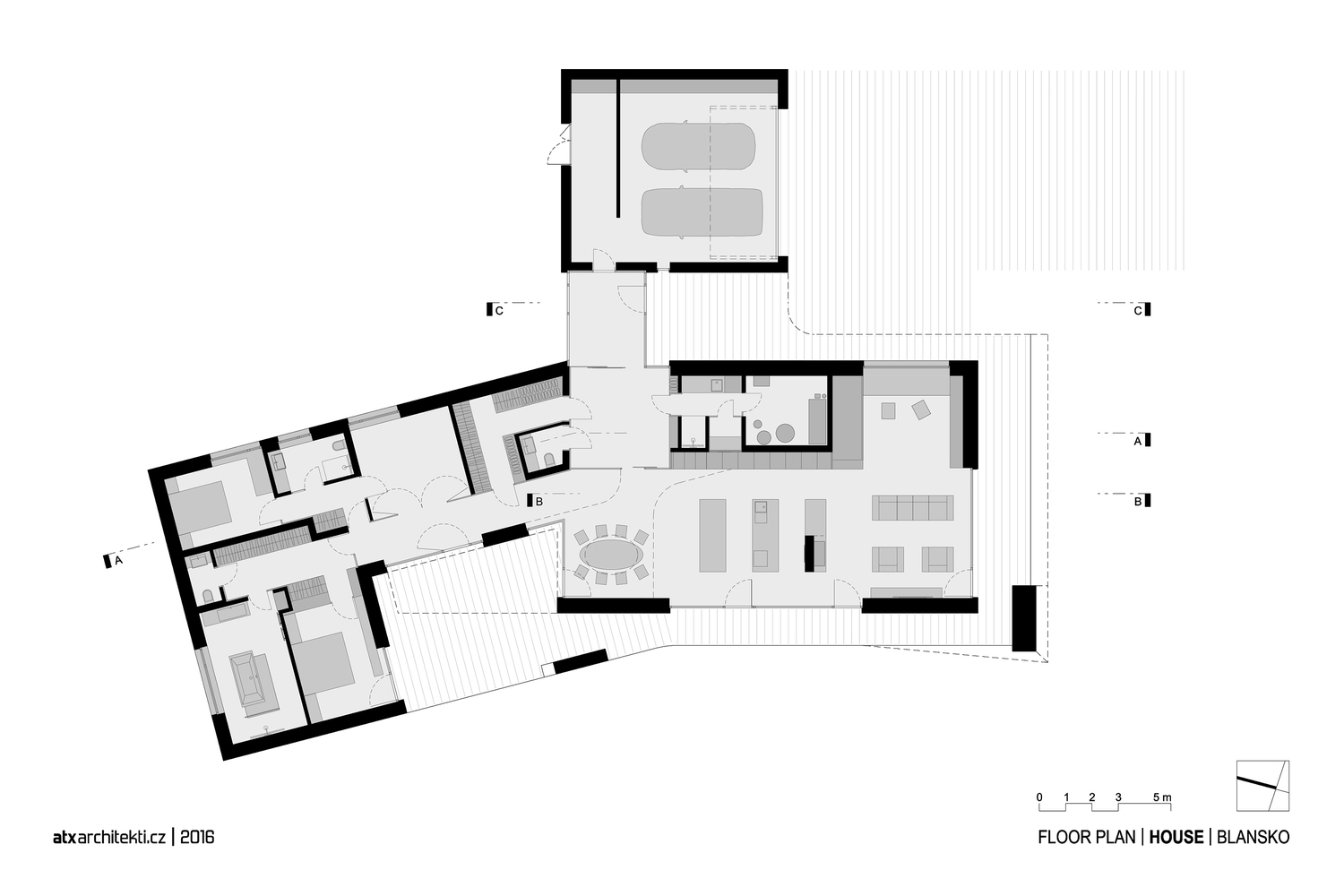

捷克住宅兼酒庄平面图

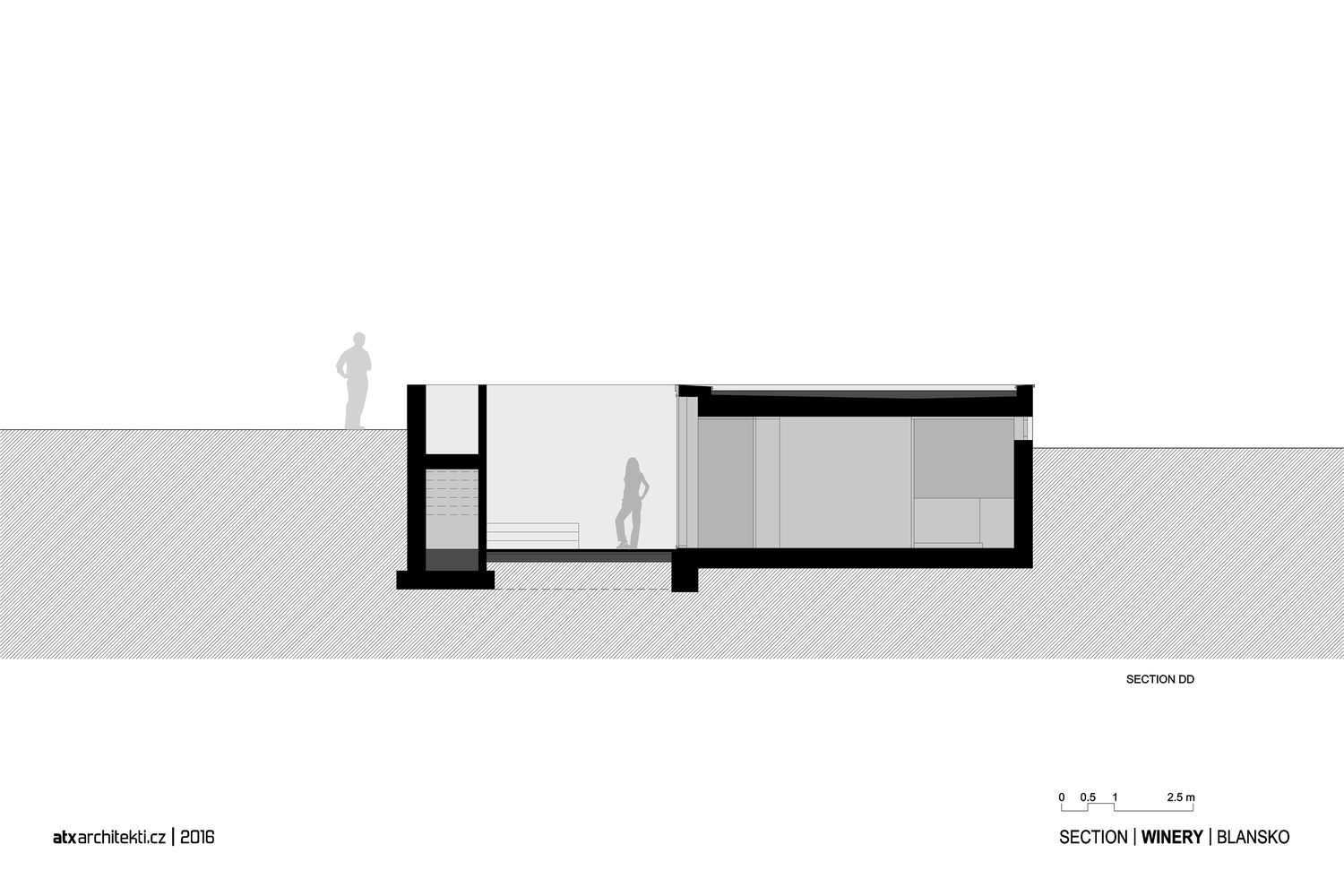

捷克住宅兼酒庄剖面图
