A rigorous modern language and urban sensibility are used to create a unique sense of place and civic destination for this sport and recreation facility in the rapidly developing community of north Brampton, Ontario, Canada. The design of the Brampton Soccer Center reflects the changing demographics of many Canadian metropolitan areas. The facility meets the needs of its emerging South Asian community by delivering both a citywide soccer center and a community gathering space through a modern vocabulary focused on urbanity and civic placemaking.

Photography By Tom Arban

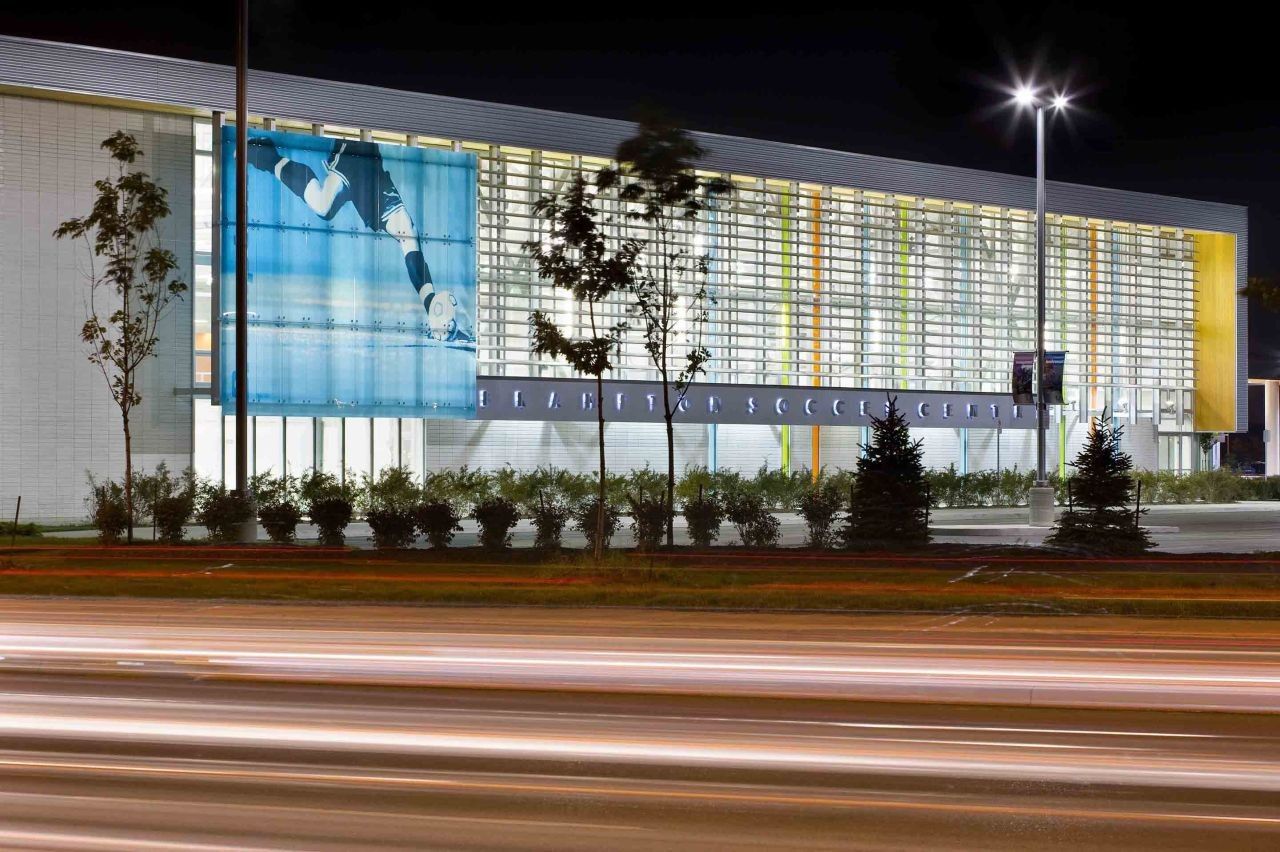

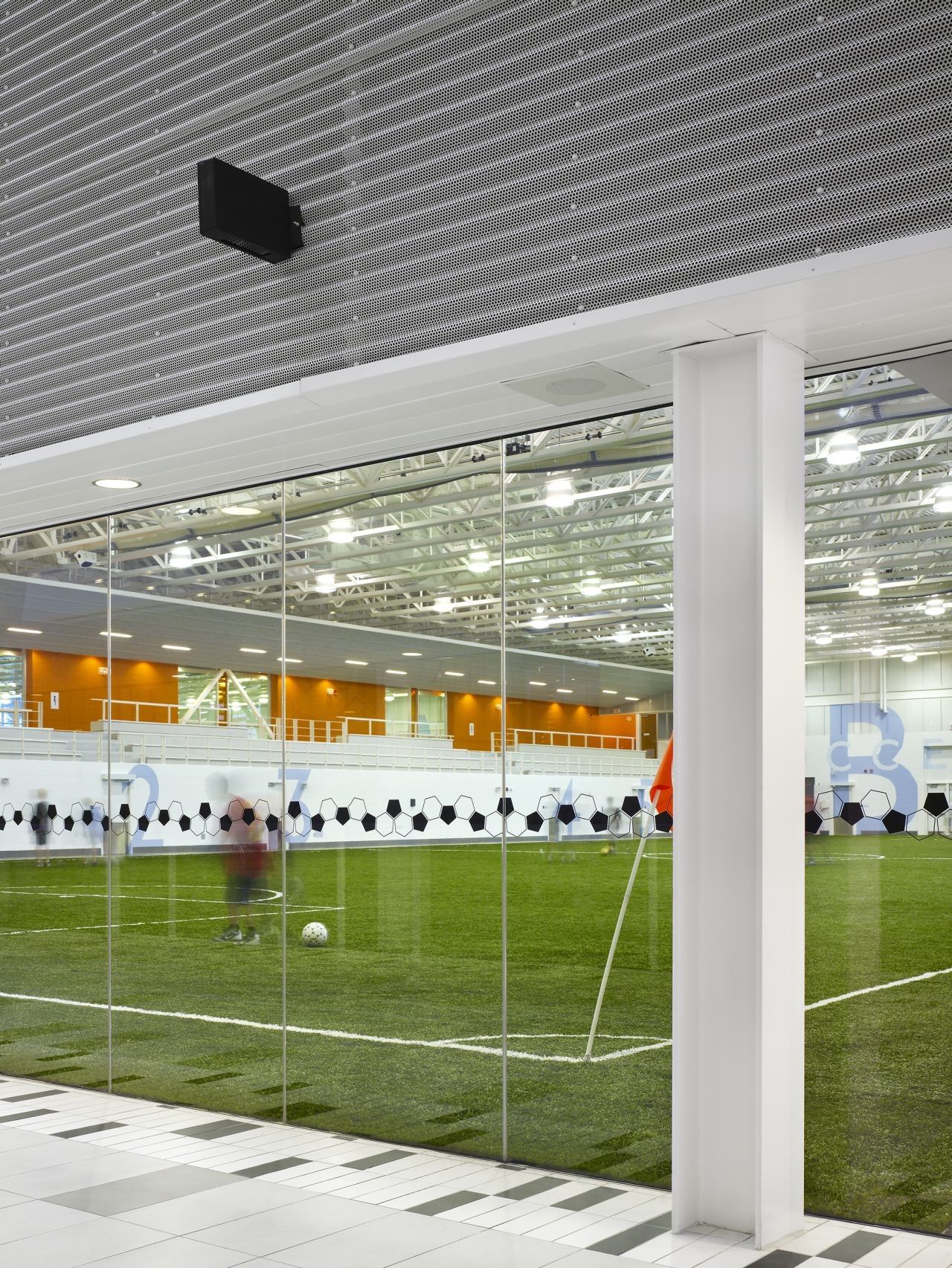

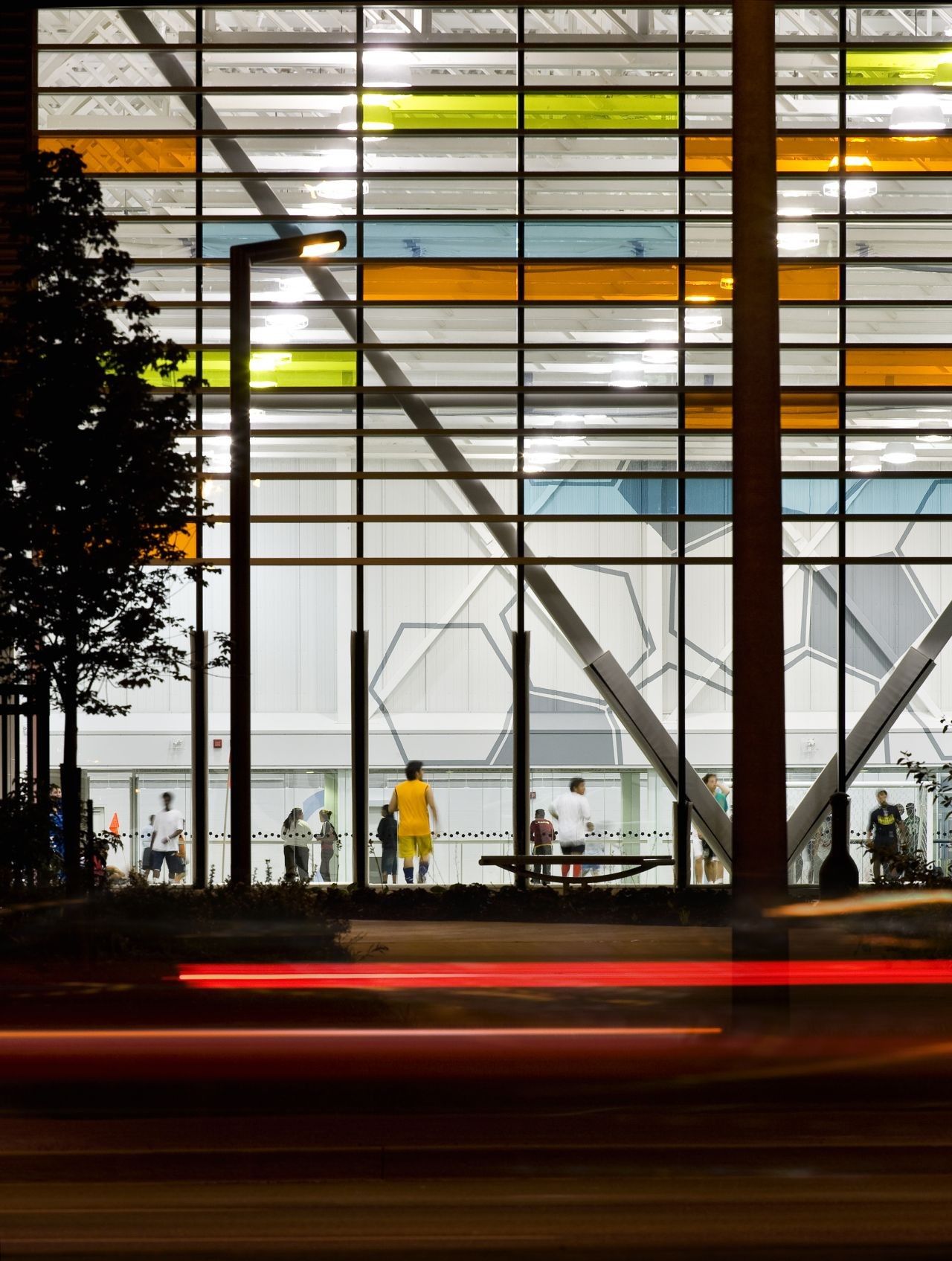

Bright, open, and colorful spaces reflect the community identity and the aspirations of ‘Sport’; and establish a landmark presence which endorses ‘Community’ and the ‘City Brand’. Full facade glazing and laminated glass graphics create ‘Suburban Billboards’ for sport. Glazed bays to the streets allow views into the fields and animate the streetscape. Strips of colored glass are used dynamically throughout the building curtain wall to create motion and activity. Saturated colors, familiar to both the South Asian community and the vibrancy of soccer attire, are selected to offset the austere silver and white base palette.

Photography By Tom Arban

Urban Approach to Suburban Site – The design applies an urban approach to a prototypical suburban site by engaging the street and planning framework with meaningful spatial relationships. Shifting pairs of arena boxes help to break down the scale and define a corner ‘Civic Space’ and an internal ‘Arrival Courtyard’. These spaces identify movement on site and create a sustainable pedestrian realm.

Photography By Tom Arban

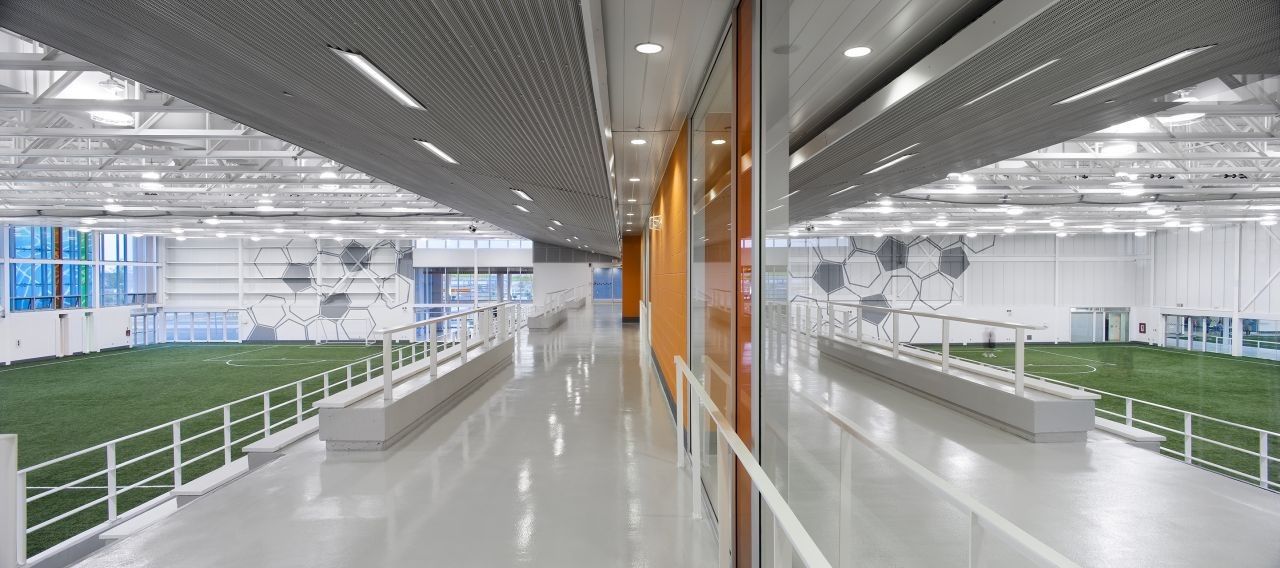

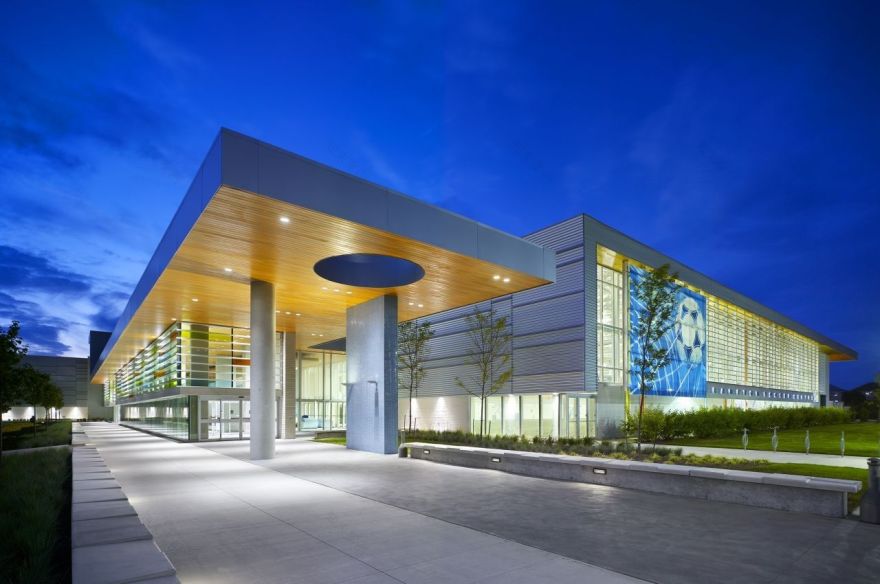

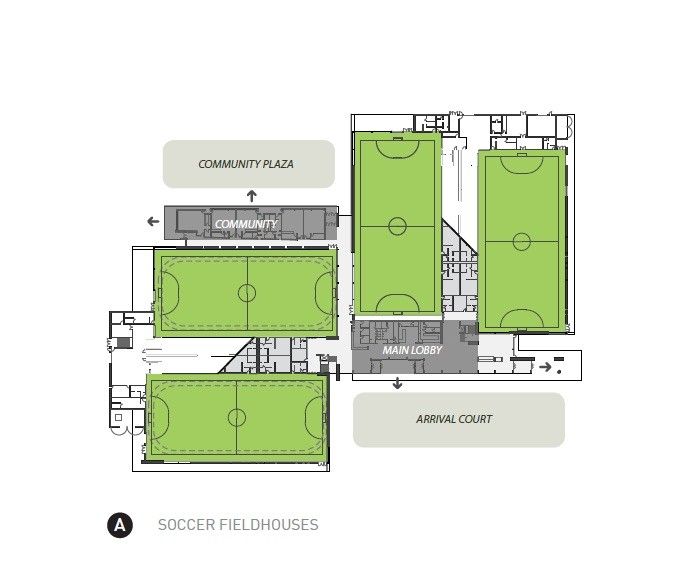

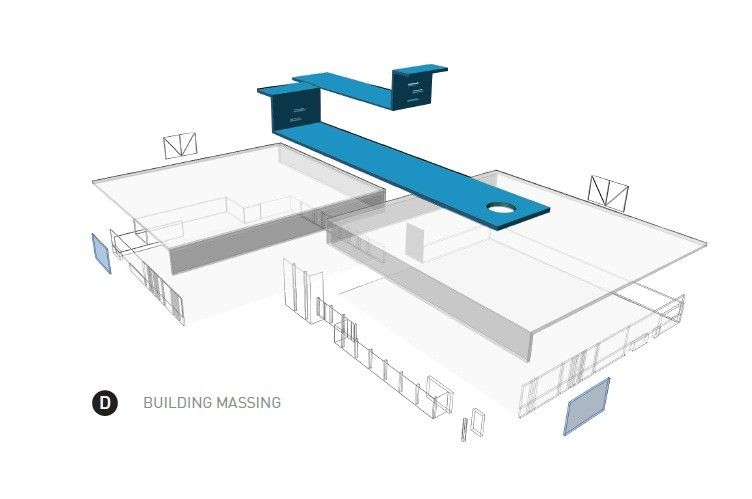

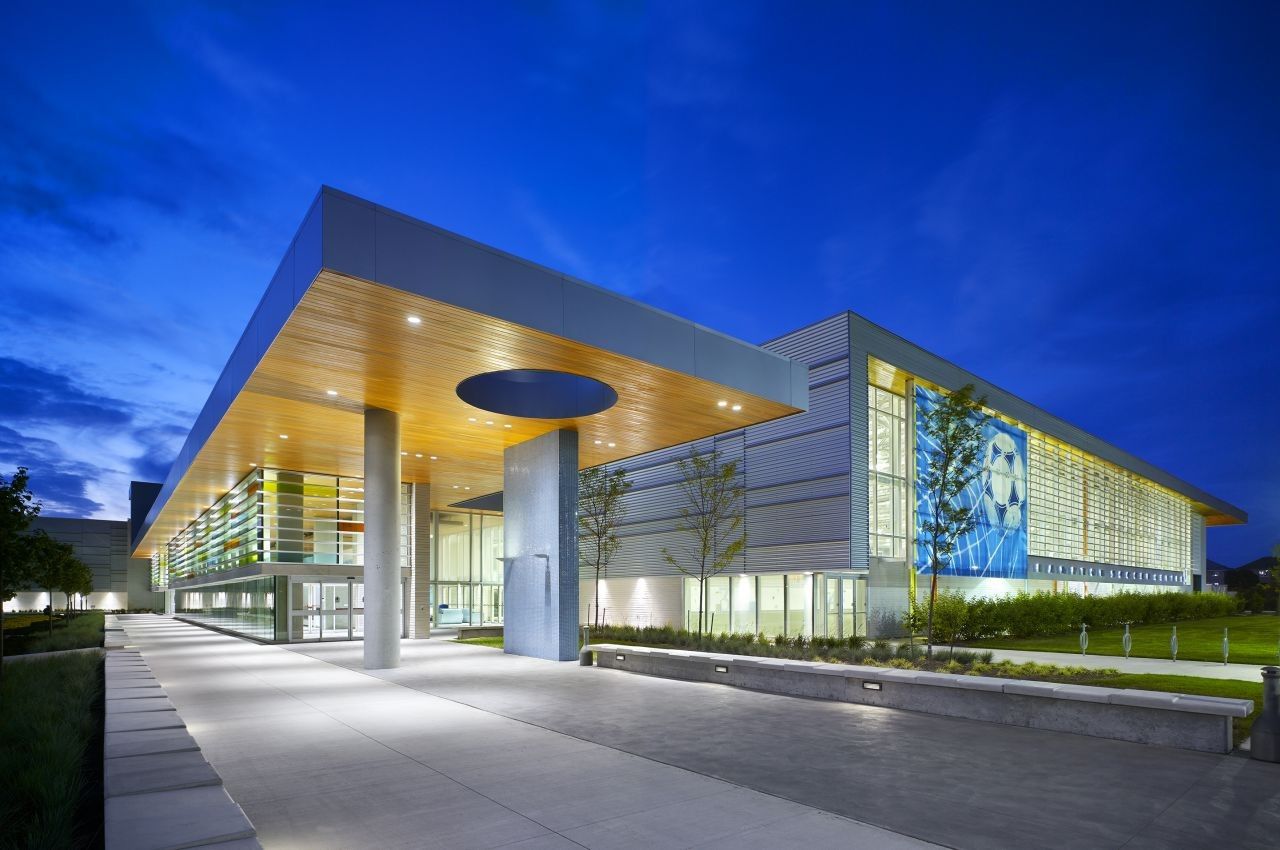

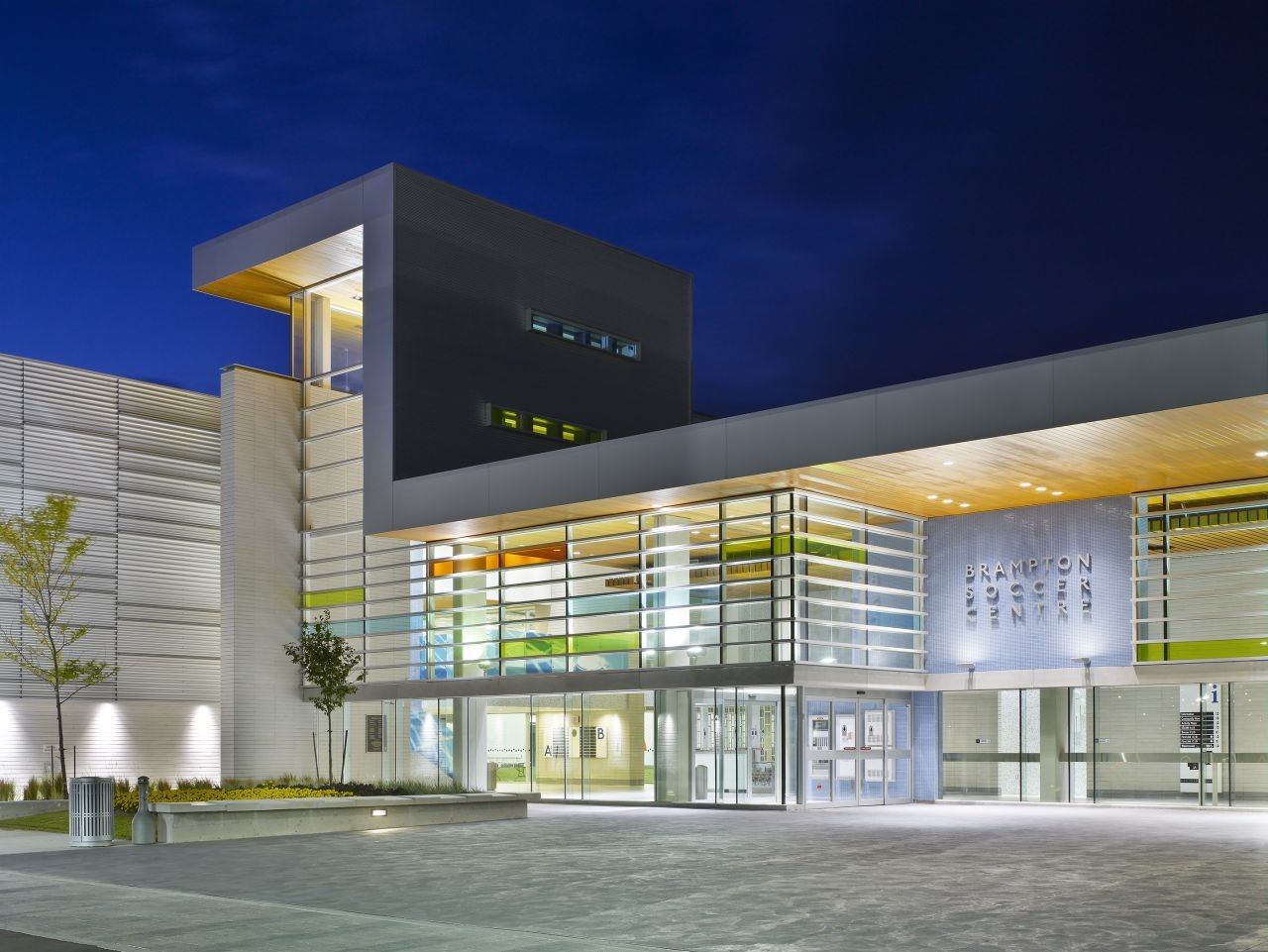

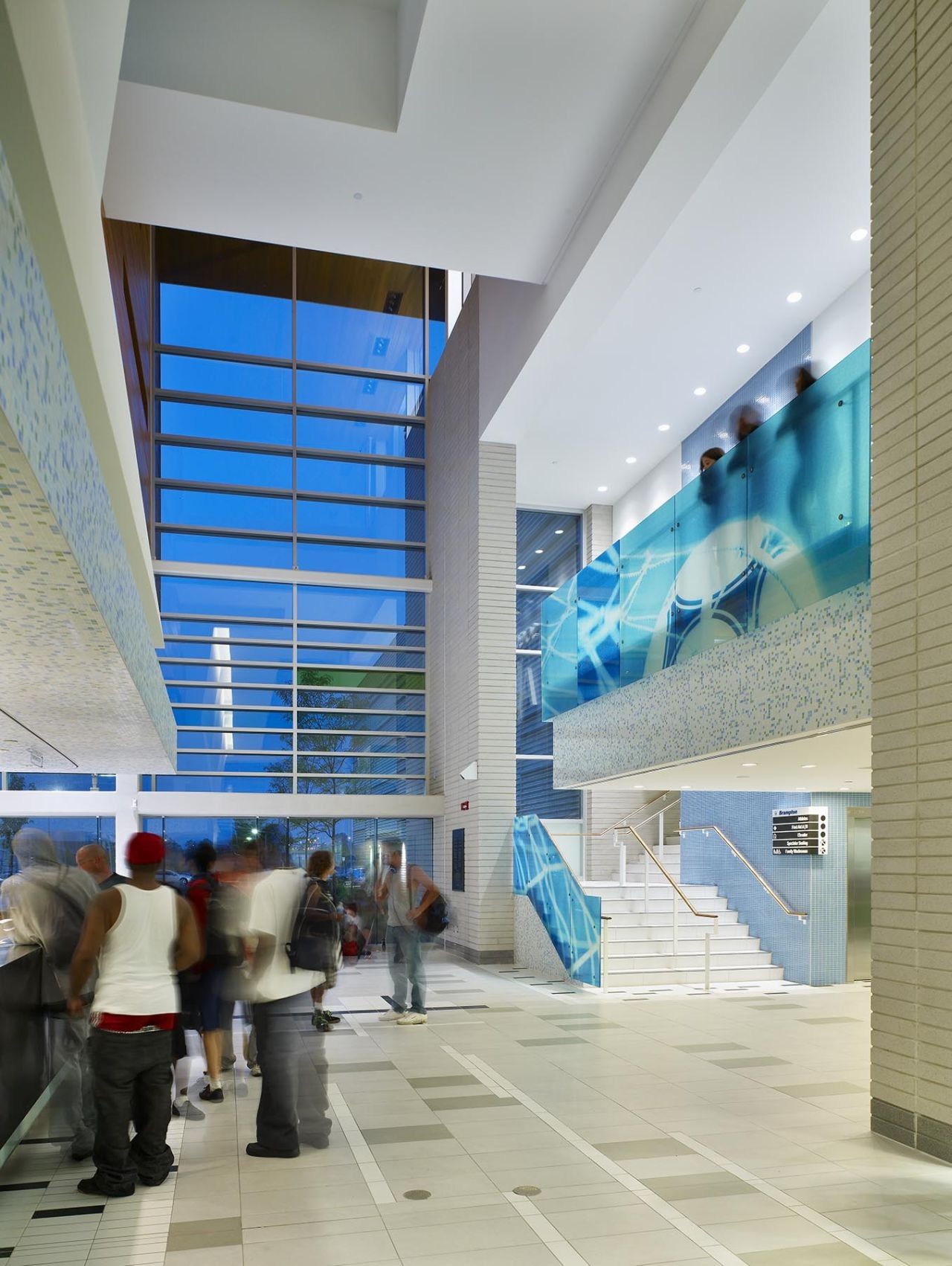

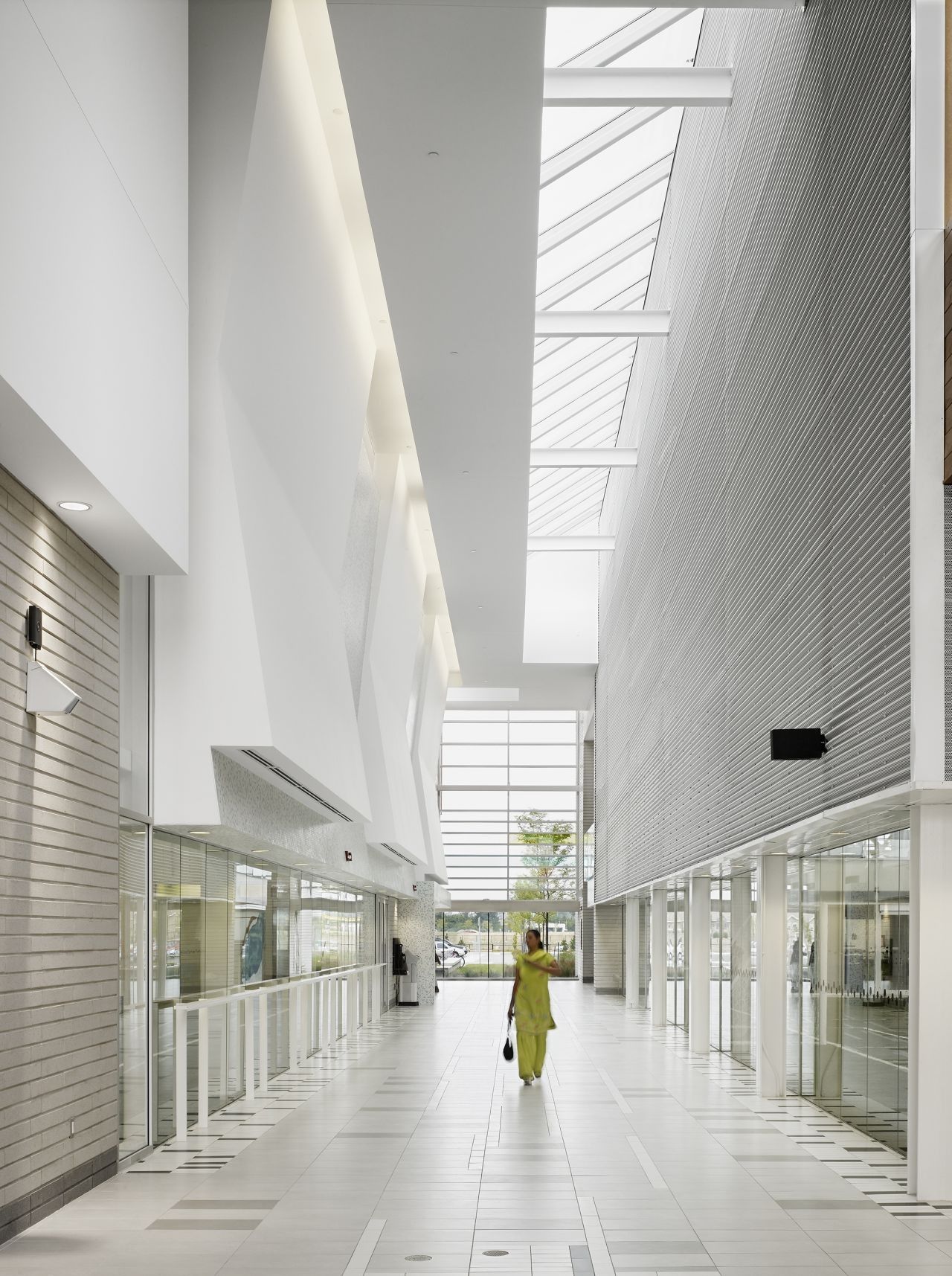

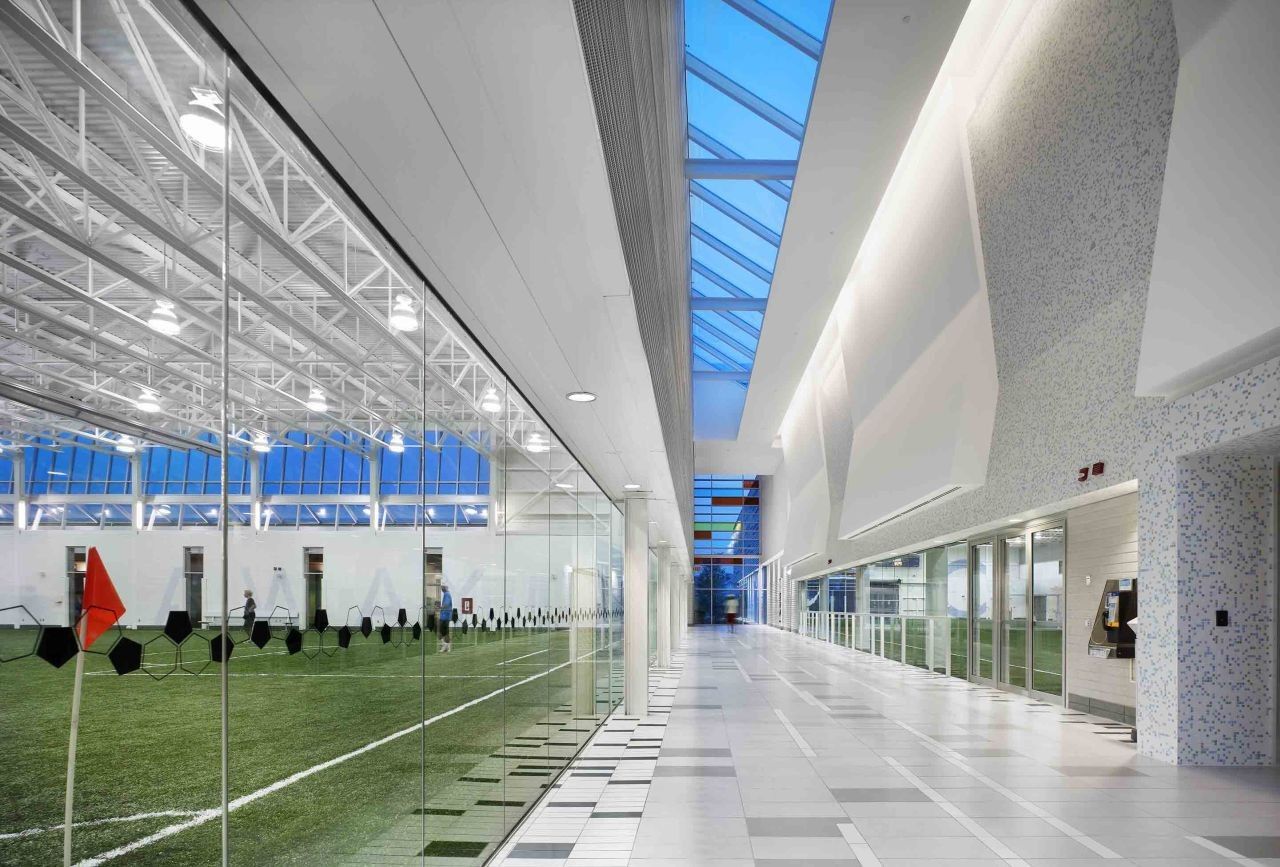

Sliding Boxes + Floating Planes – The four indoor soccer fields are paired in two masses and shifted to create two outdoor spaces; ‘Arrival Court’ and ‘Civic Corner’, connected by a ‘skylit’ circulation. The Civic Corner houses a vibrant community playground and splash park, while the Arrival Court defines the drop-off and interior working of the site. The Main Lobby and Community Wing, defined by floating wooden planes, flank these exterior spaces and filter people in. A language of interlocking metallic shells and cedar linings dispatch the site through clerestory towers and hooded overhangs, framing views, filtering light and creating visually interpenetrating program areas.

Photography By Tom Arban

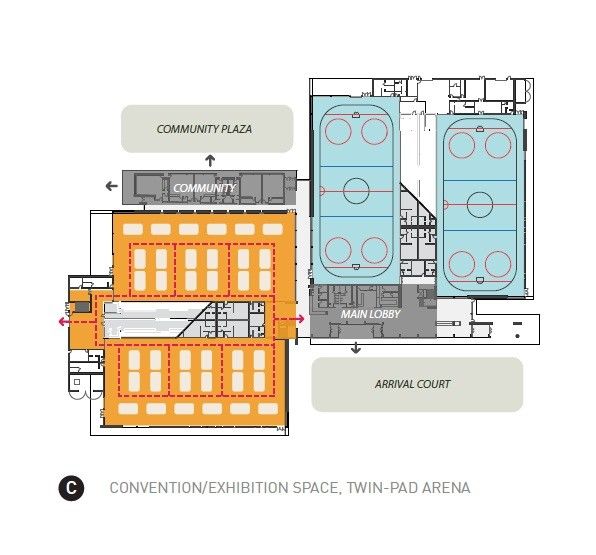

Convertibility + Flexibility – Originally planned as an ice hockey venue, but with the growth and shifting demographics in Brampton, the client requested sporting arenas that were instead purpose-built for indoor soccer – a favored sport of the South Asian community. Despite this change in program mandate, the design objective was to conceive a building that could, however, still be 1) flexible for other activities, 2) operated independently and 3) adapted to other sports in the future. The building is designed to be convertible to hockey and other indoor sports and is sized and scaled to operate with 4 independent programs running concurrently, including trade show events with a host of ongoing community functions.

Photography By Tom Arban

Project Info Architects: MacLennan Jaunkalns Miller Architects Location:  Ontario, Canada Area: 165000.0 ft2 Year: 2007 Type: Sports Center Photographs: Tom Arban

Photography By Tom Arban

Photography By Tom Arban

Photography By Tom Arban

Photography By Tom Arban

Photography By Tom Arban

Photography By Tom Arban

Photography By Tom Arban

Photography By Tom Arban

Photography By Tom Arban

Photography By Tom Arban

Photography By Tom Arban

Photography By Tom Arban

Photography By Tom Arban

Photography By Tom Arban

Photography By Tom Arban

Photography By Tom Arban

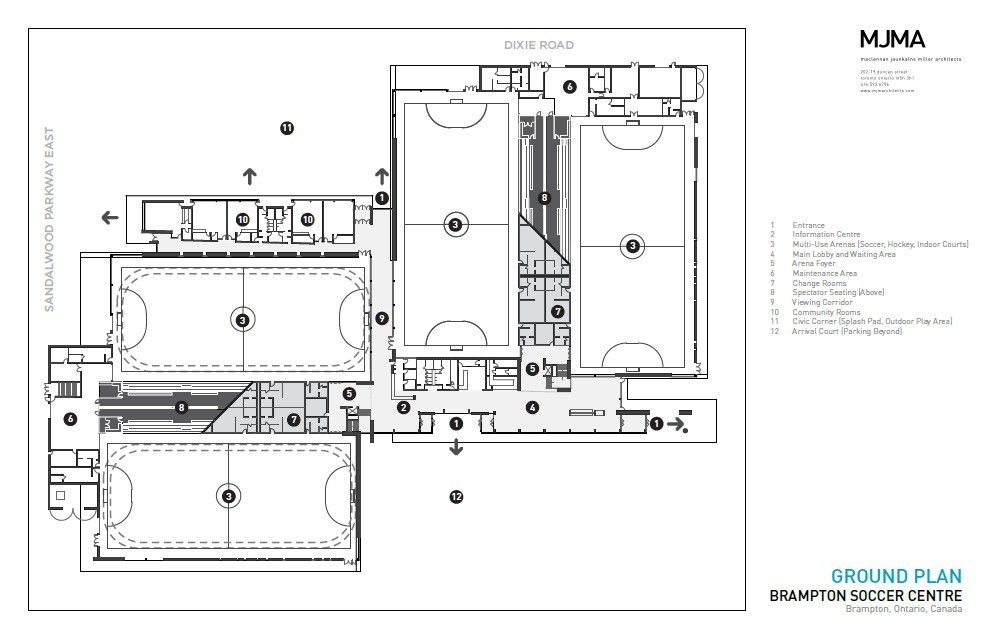

Plan

Plan

Plan

Plan

Plan

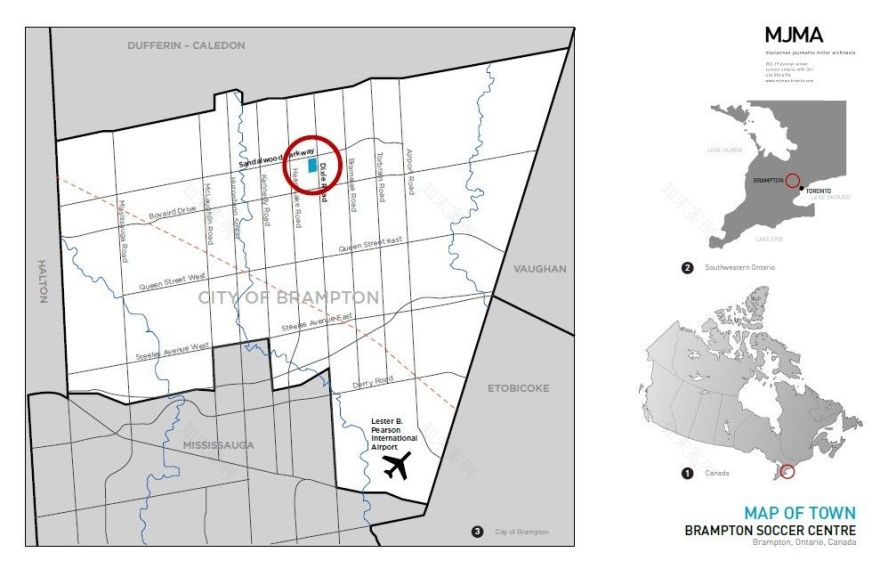

Site Plan

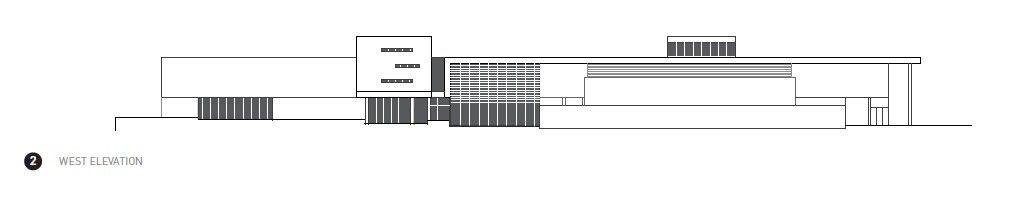

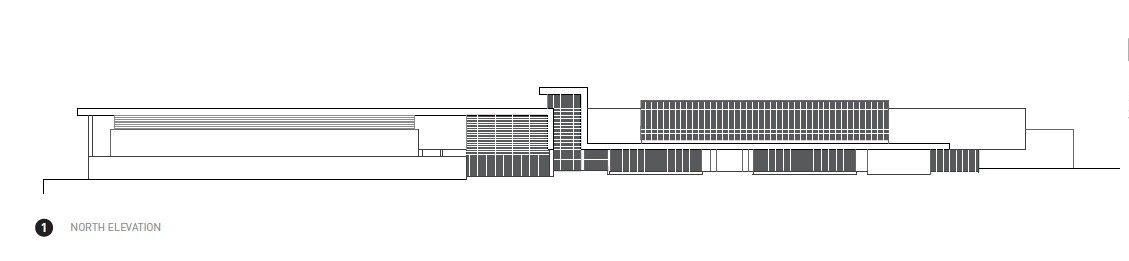

Elevation

Elevation

Elevation

Elevation

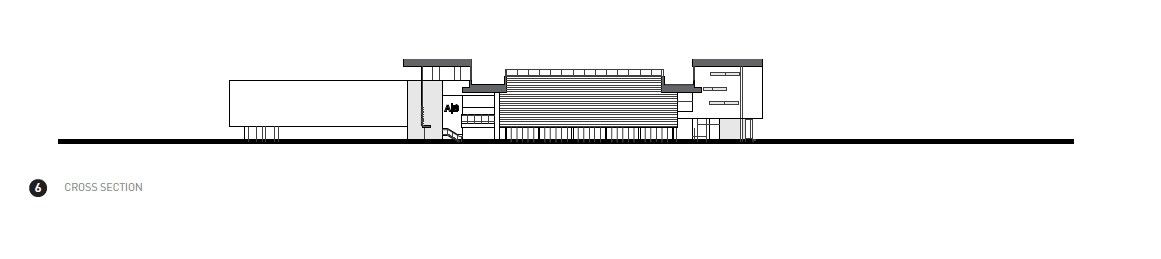

Section

Section

Diagram
