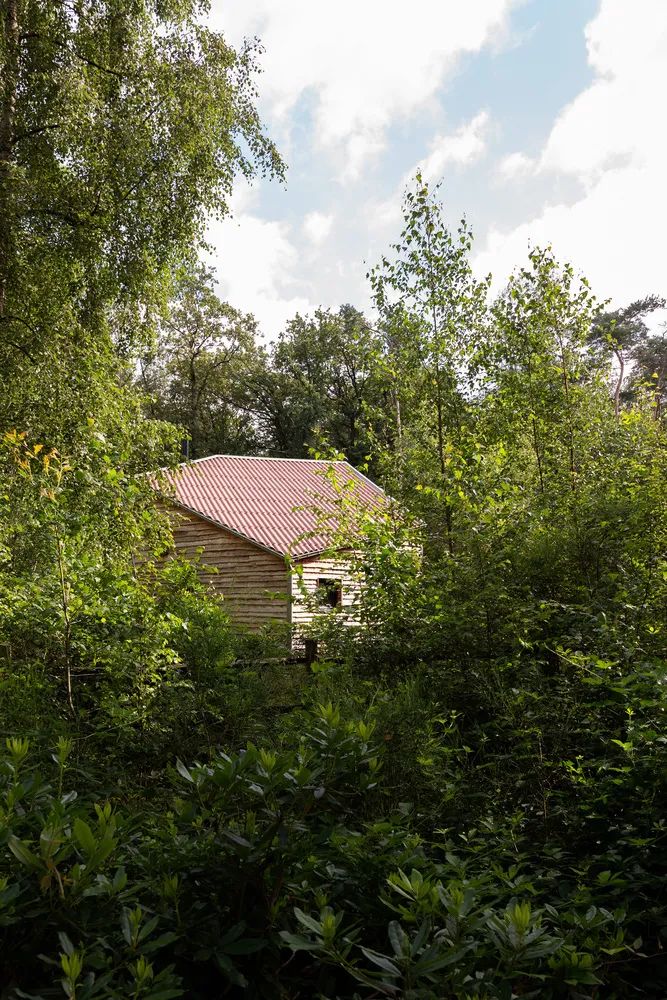

“勾勾手设计网”！刘老师说 Liu said 这个著名的住宅位于一个周末住宅区。目标是建造一个假日住宅，尽可能融入森林环境。为了减少对自然环境的影响，建筑依赖于 11 个狭窄的极点。因此，建筑物漂浮在离地面约半米的地方，可以完全移动。随着时间的推移，另一个阳台可以建在两根额外的柱子上。

This noteworthy home lies in an area designated for weekend residences. The goal was to build a holiday house that would blend into the forest surroundings as much as possible. To limit the impact on the natural environment, the construction rests on 11 narrow poles. The building thus floats about half a meter from the ground and can be moved in its entirety. In time, another terrace can be created on two extra poles.

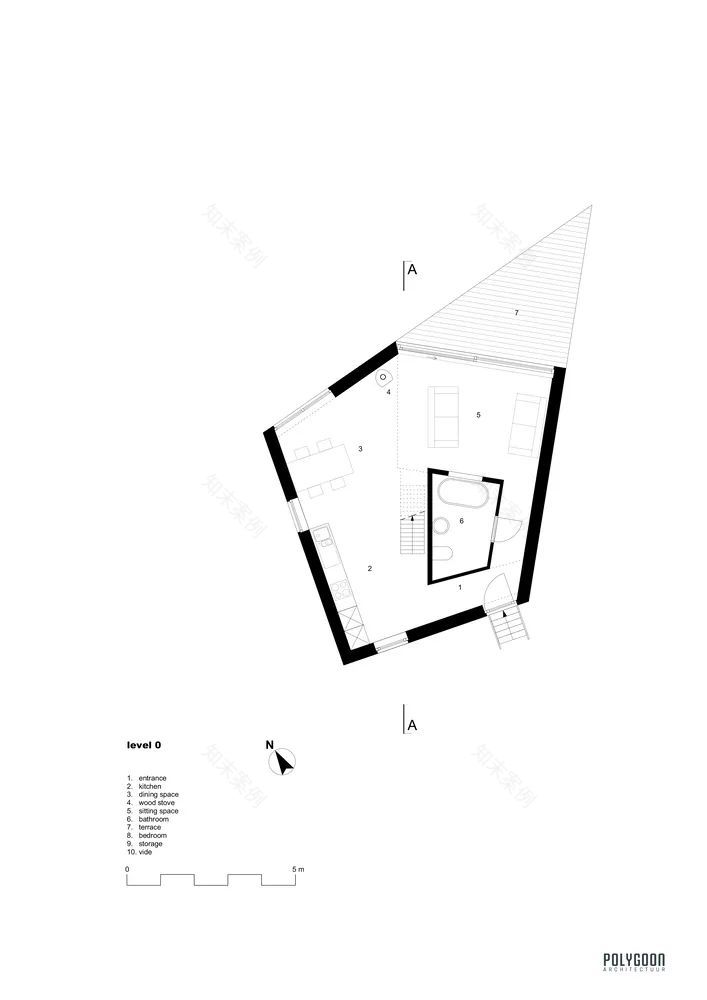

首层平面图

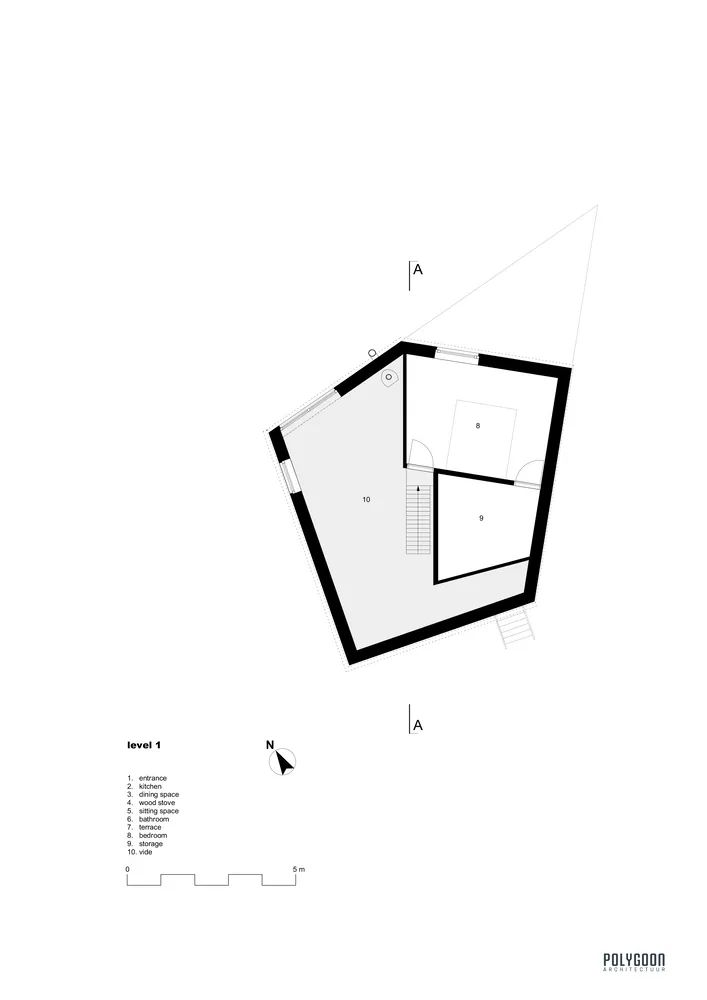

夹层平面布置图

占地面积限制在 65 平方米，上层必须比底层小得多。但是委托人不想在宽敞的感觉上妥协。多亏了三个令人惊讶的干预措施，这个愿望才得以实现。

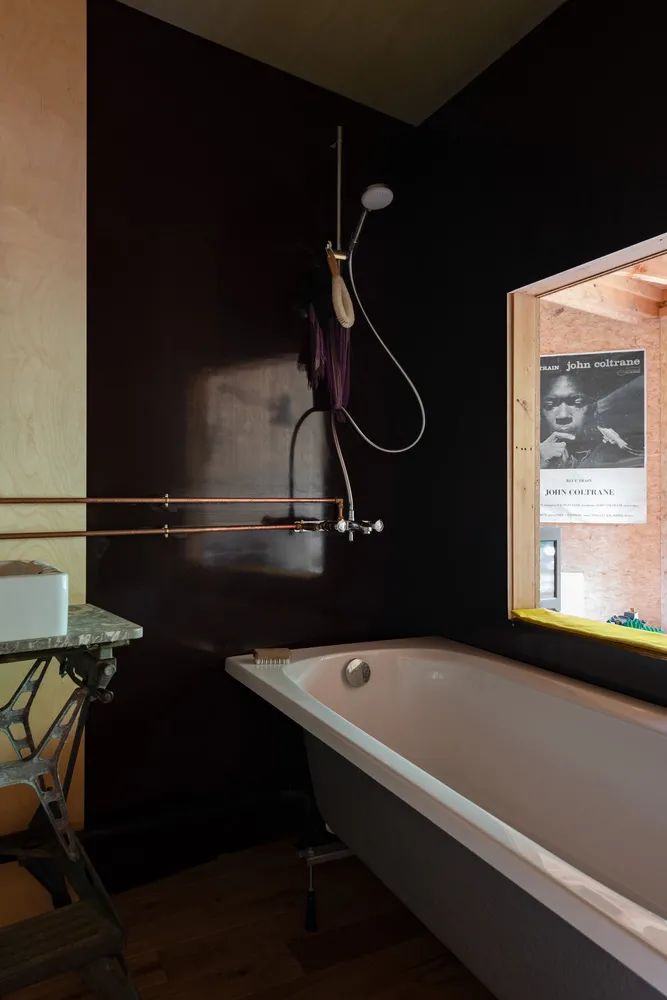

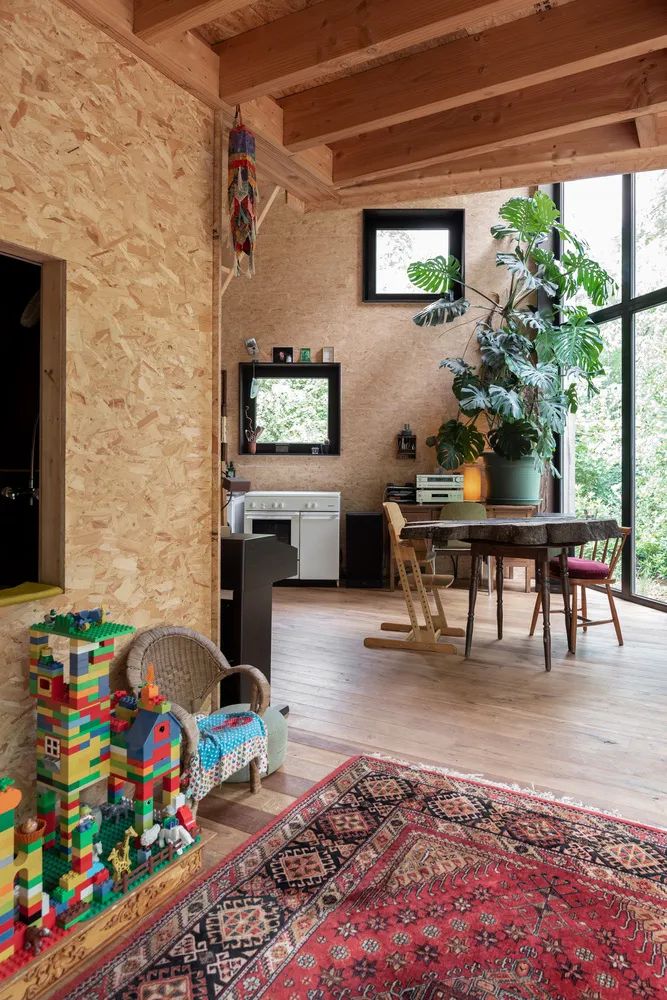

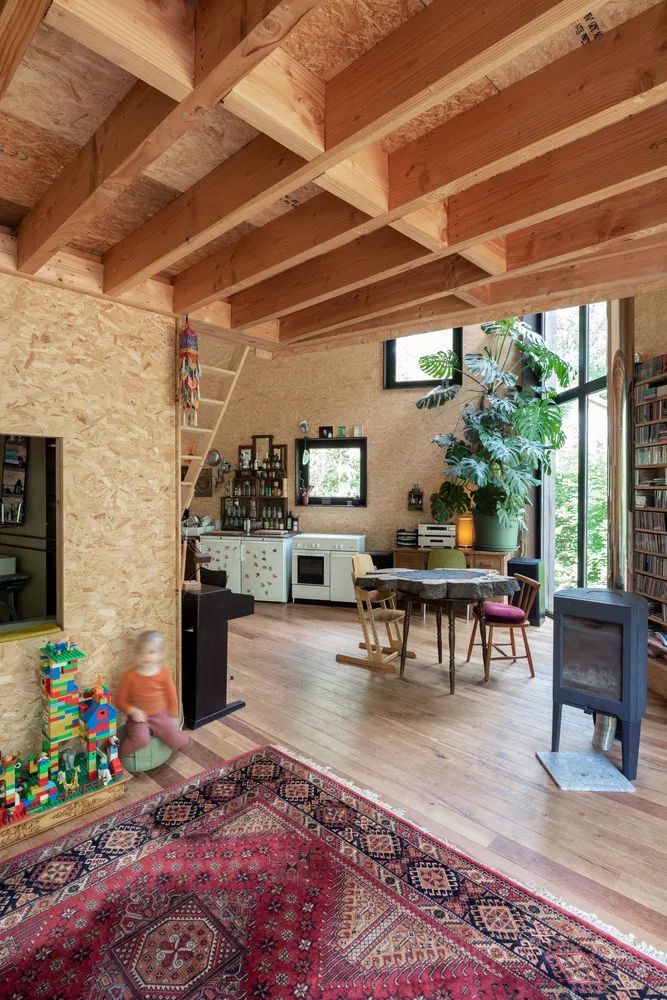

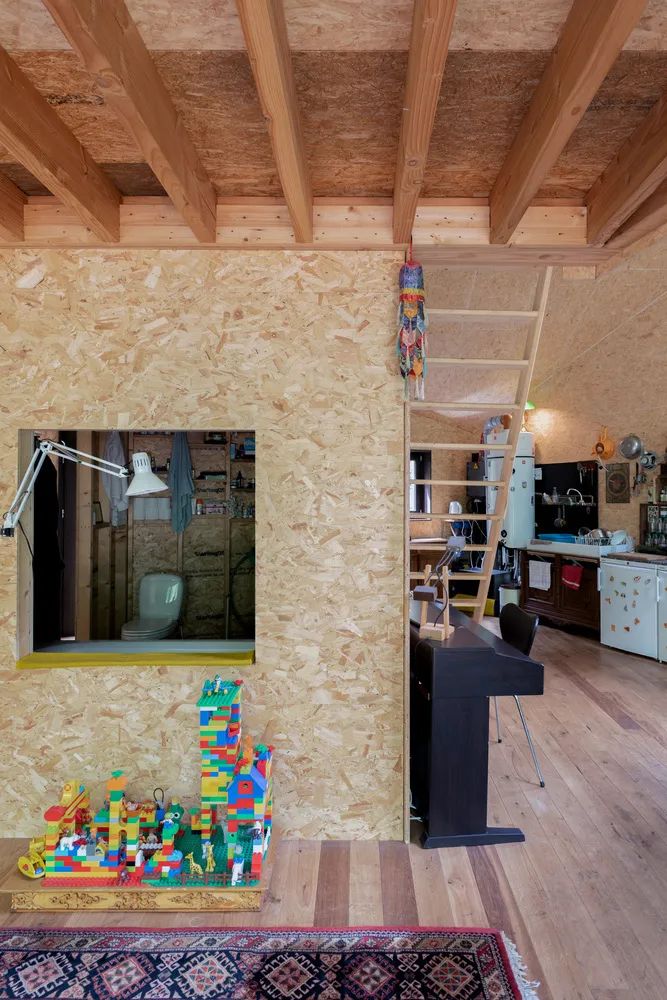

首先，五角形的平面图（有三个钝角）给人一种有机的、柔和的空间感觉。这种感觉被中央浴室周围的循环环流和许多景观所强调。

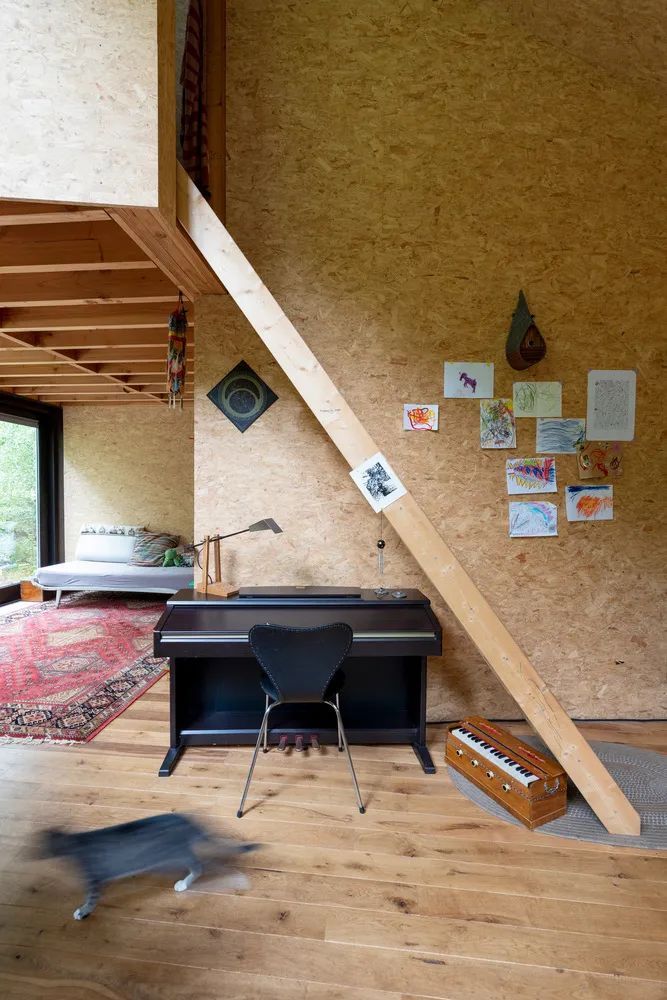

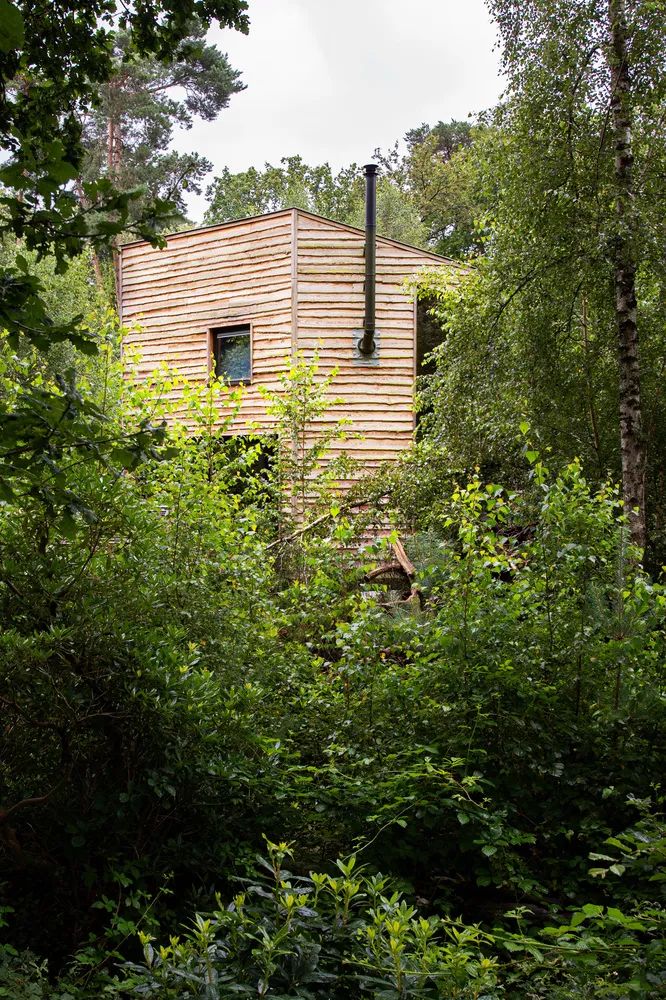

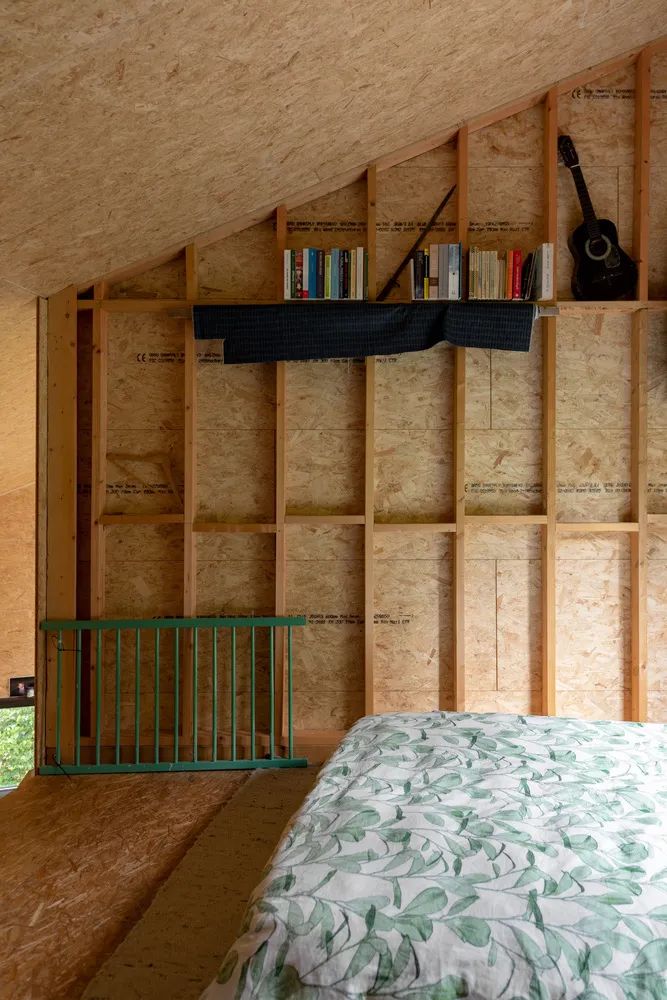

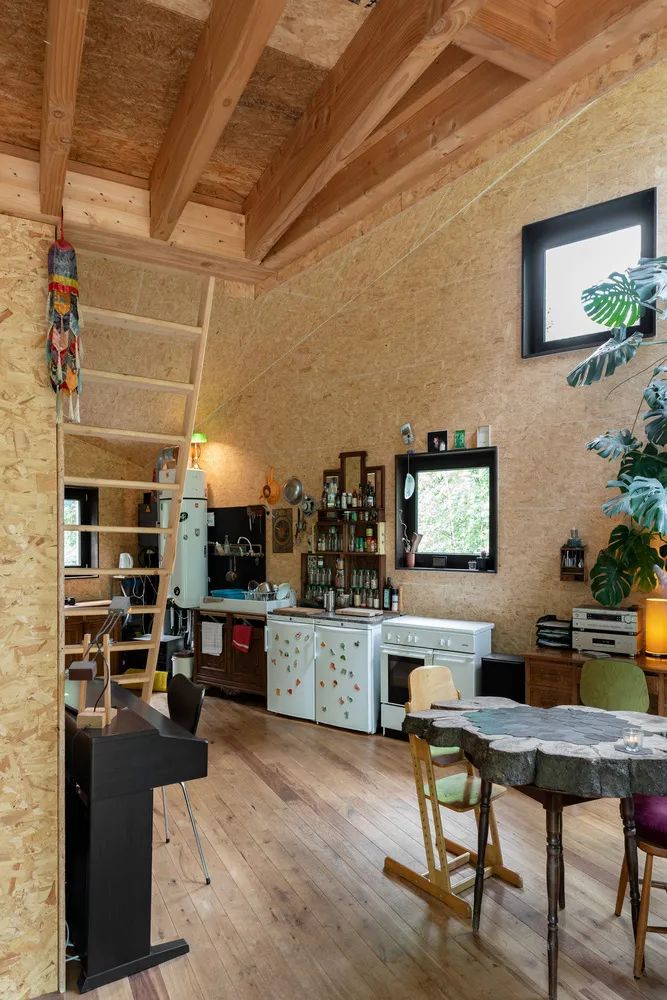

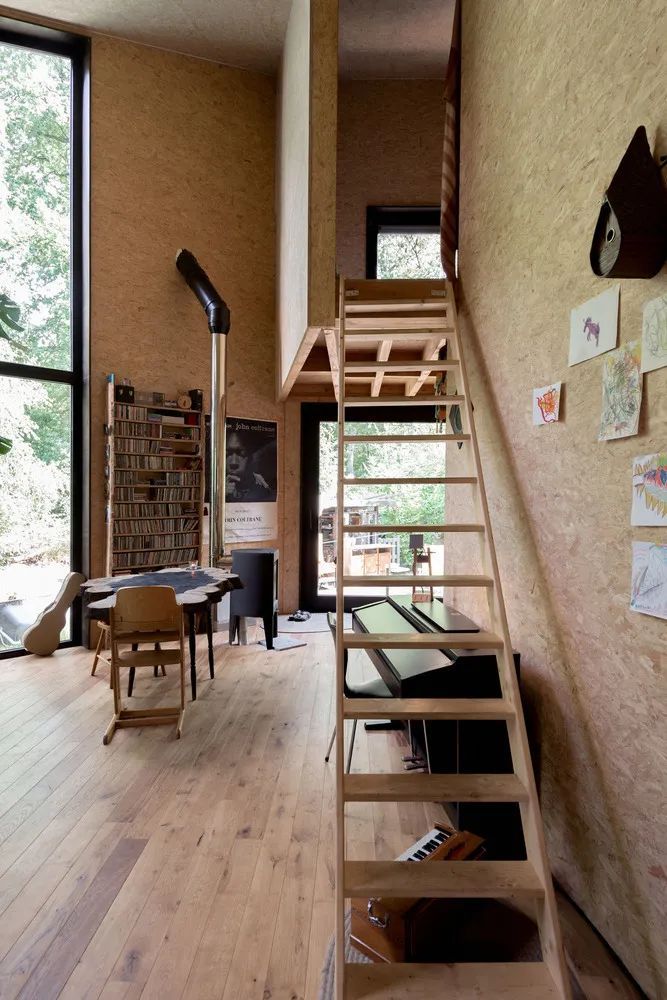

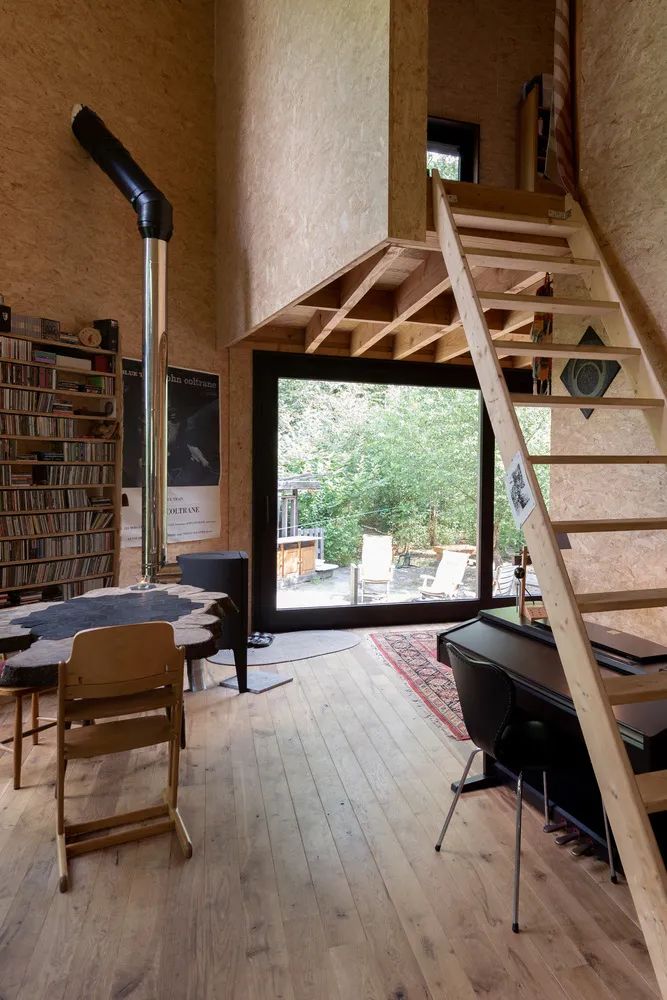

此外，单坡屋顶在体量的后部提供了 7 米的高度，也在夹层提供了更多的可用空间。

最后，通过在屋脊上绘制视频，日光流入室内。

The footprint was limited to only 65 m² and the upper floor must be considerably smaller than the ground floor. Yet the client did not want to compromise on the feeling of spaciousness. That wish could be granted thanks to three surprising interventions. Firstly, the pentagonal floor plan (with three obtuse corners) gives an organic and gentle feel to the space. That feeling is emphasized by the looping circulation around the central bathroom and the many views. In addition, the mono-pitch roof provides a height of 7 meters at the rear of the volume, and also more useable space on the mezzanine. Lastly, by drawing a video up through to the roof ridge, daylight streams into the interior.

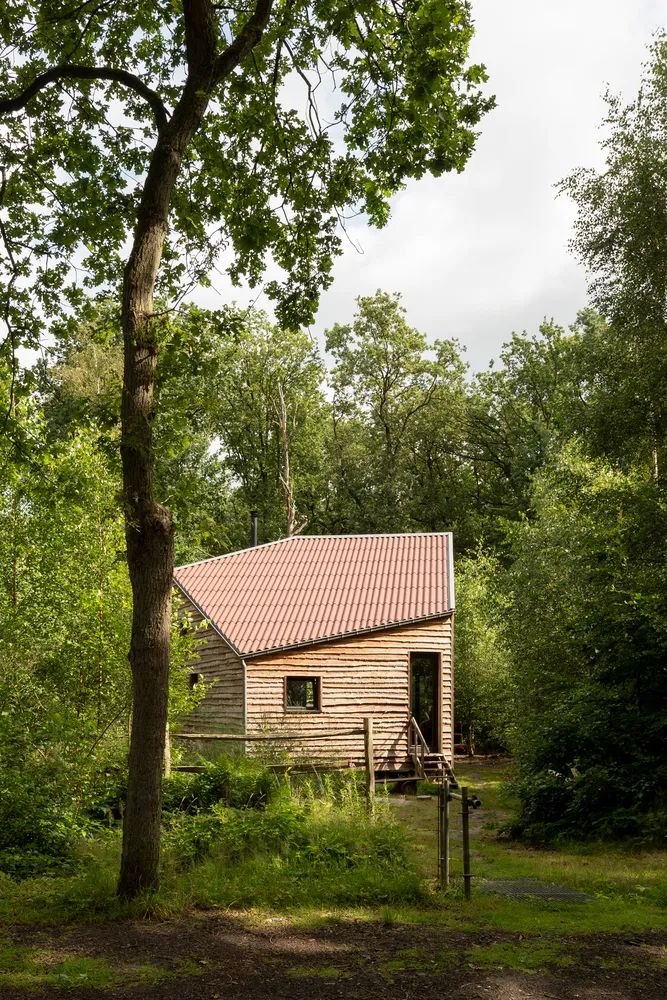

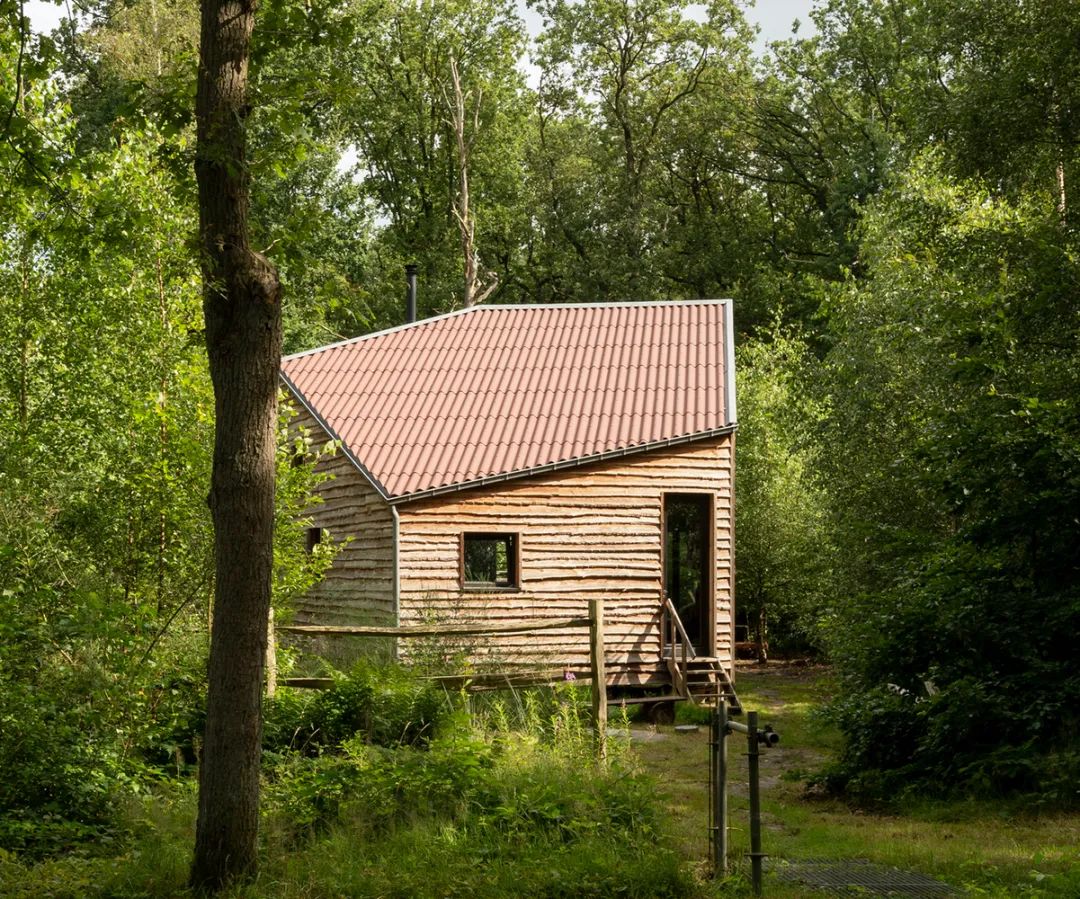

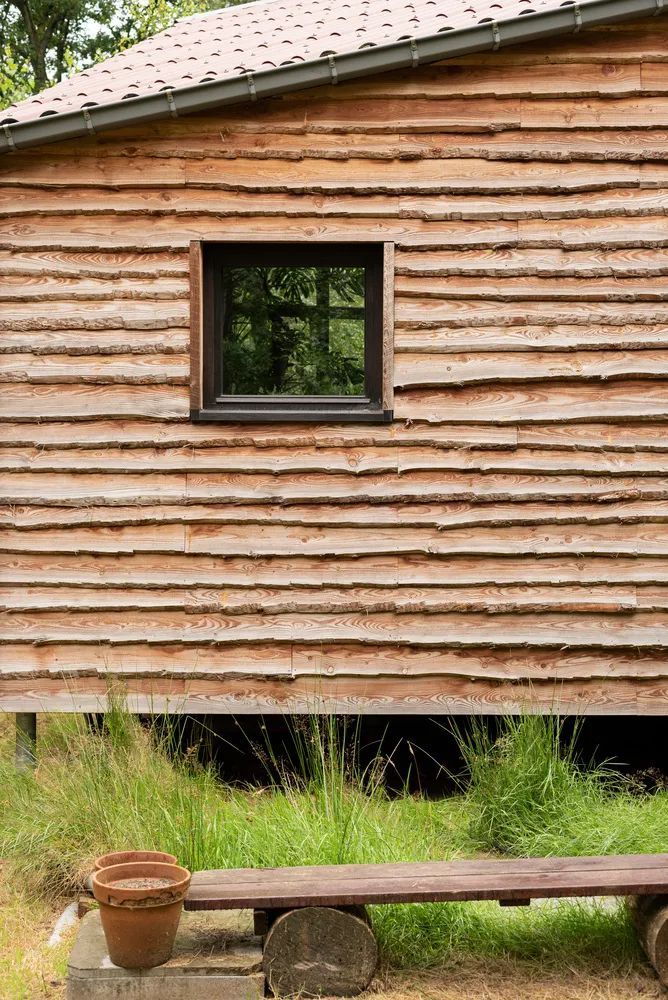

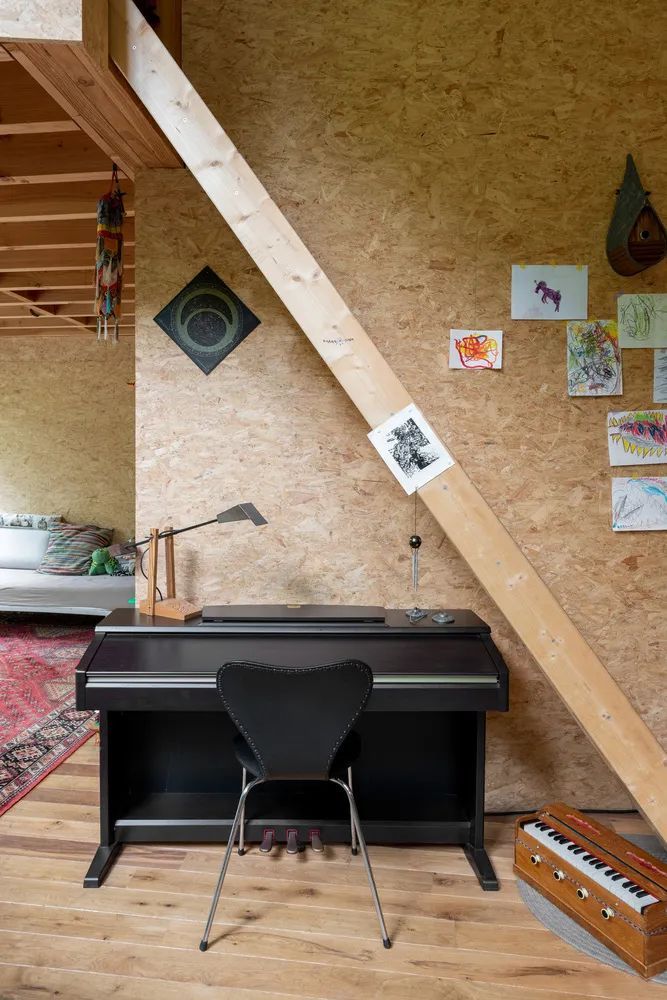

房子本身是 100%按照生态建筑原则建造的，使用可再生材料。木头骨架是木匠准备的，模块在 5 天内组装完成。客户自己也做了很多工作，比如隔热，外部包层和内部饰面。木质框架的外部覆盖着树皮（落叶松树干）覆盖在纤维板上，提供了一个潮湿开放的外部系统。在里面，定向刨花板是密封的。

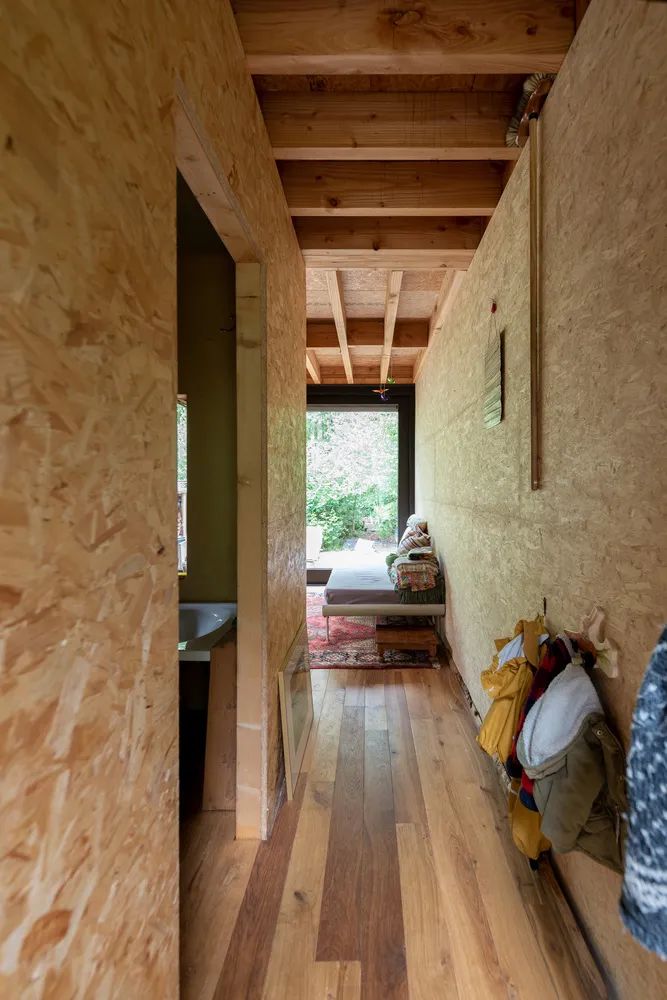

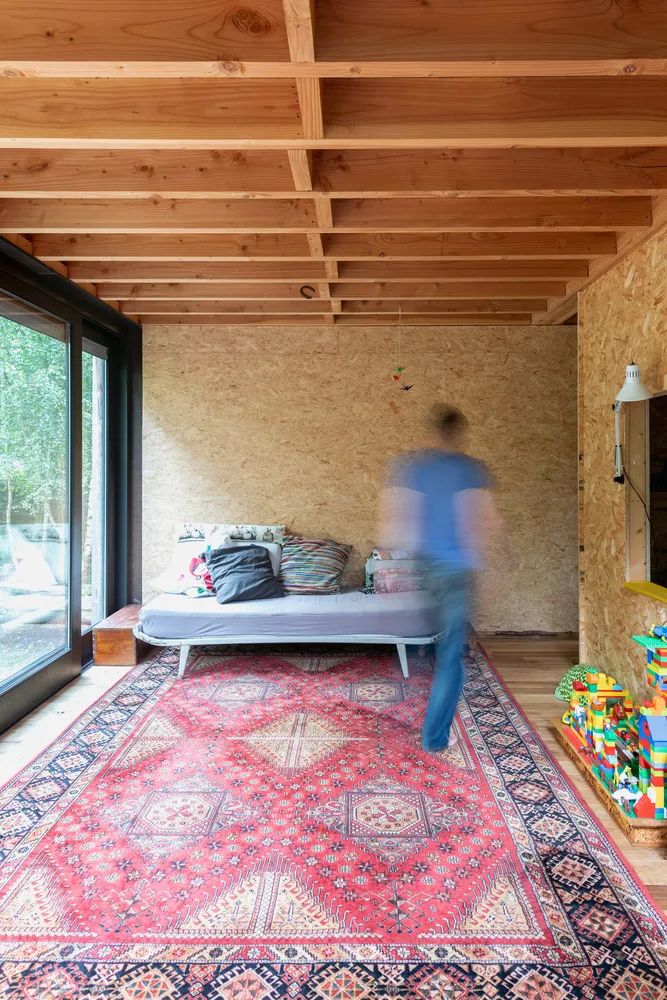

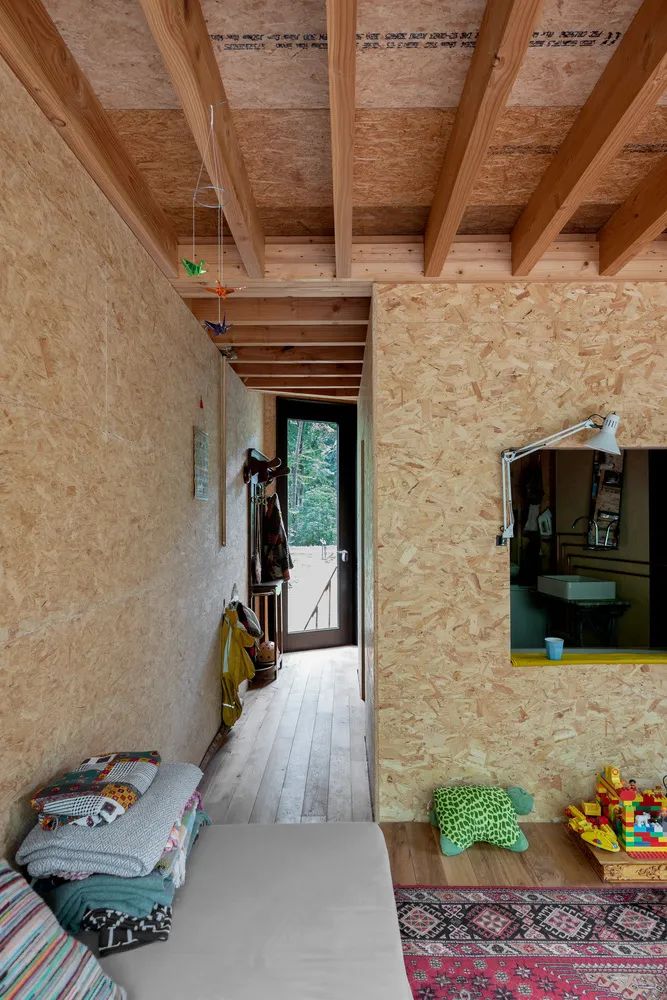

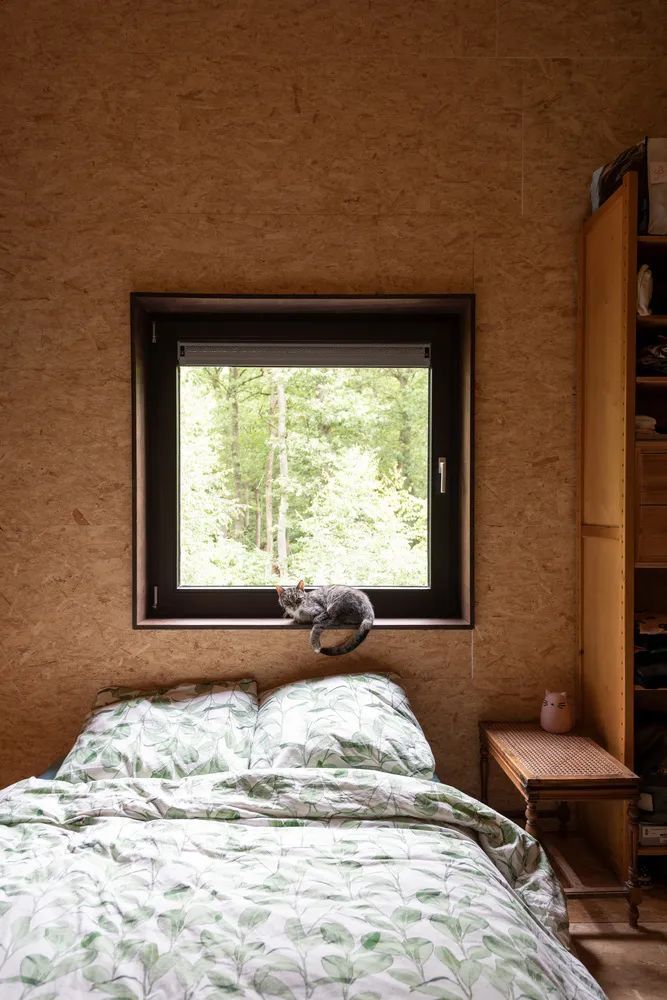

The house itself is constructed 100% according to ecological building principles, with renewable materials. The wooden skeleton was prepared by the carpenter and the modules were put together in 5 days’ time. The client also did quite a bit of the work himself, such as the insulation, exterior cladding, and internal finishes. The outside of the wooden frame was clad with barked planks (larch tree trunks) over fibreboard, which provides a damp-open exterior system. On the inside, OSB panels were fitted to be airtight.
