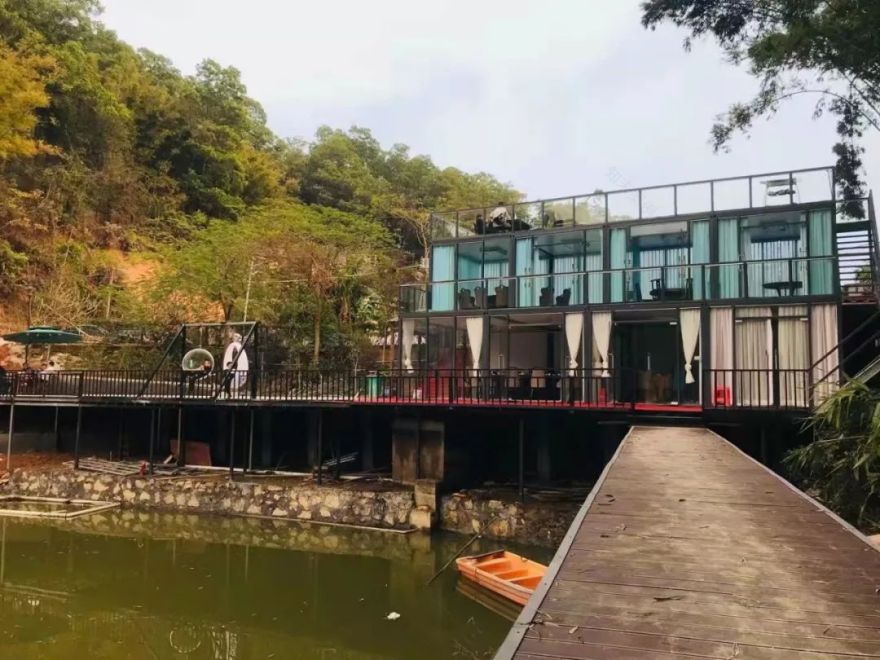

餐饮接待中心

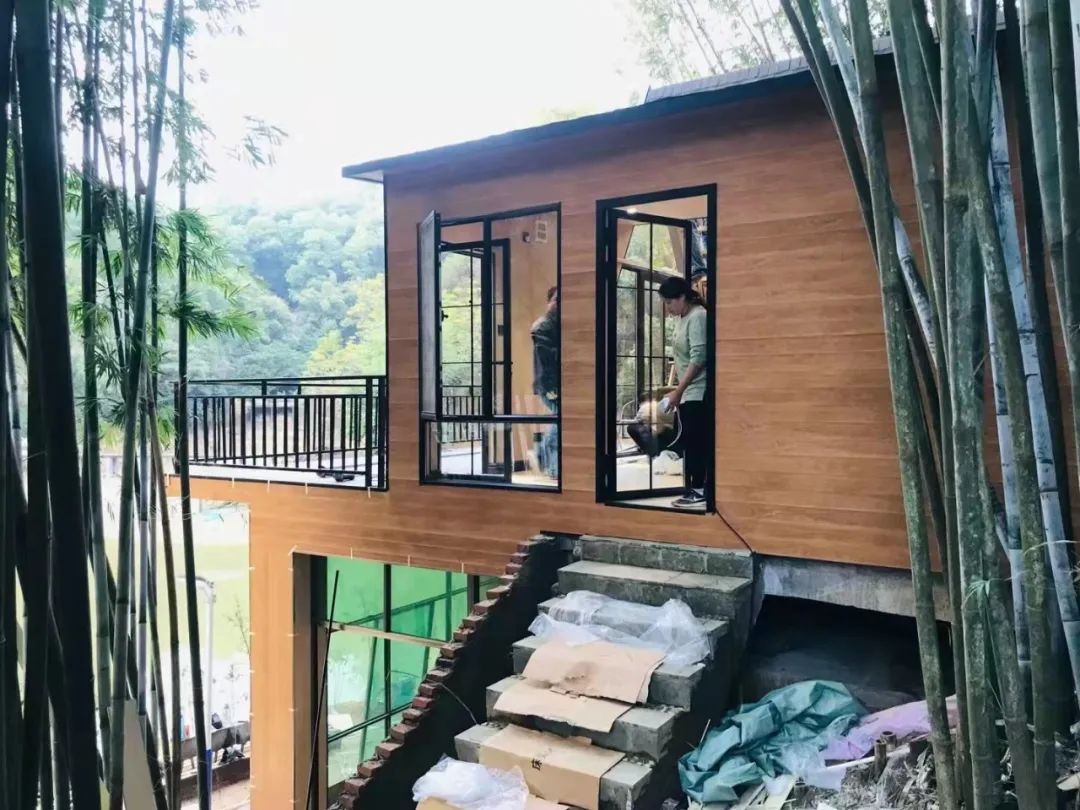

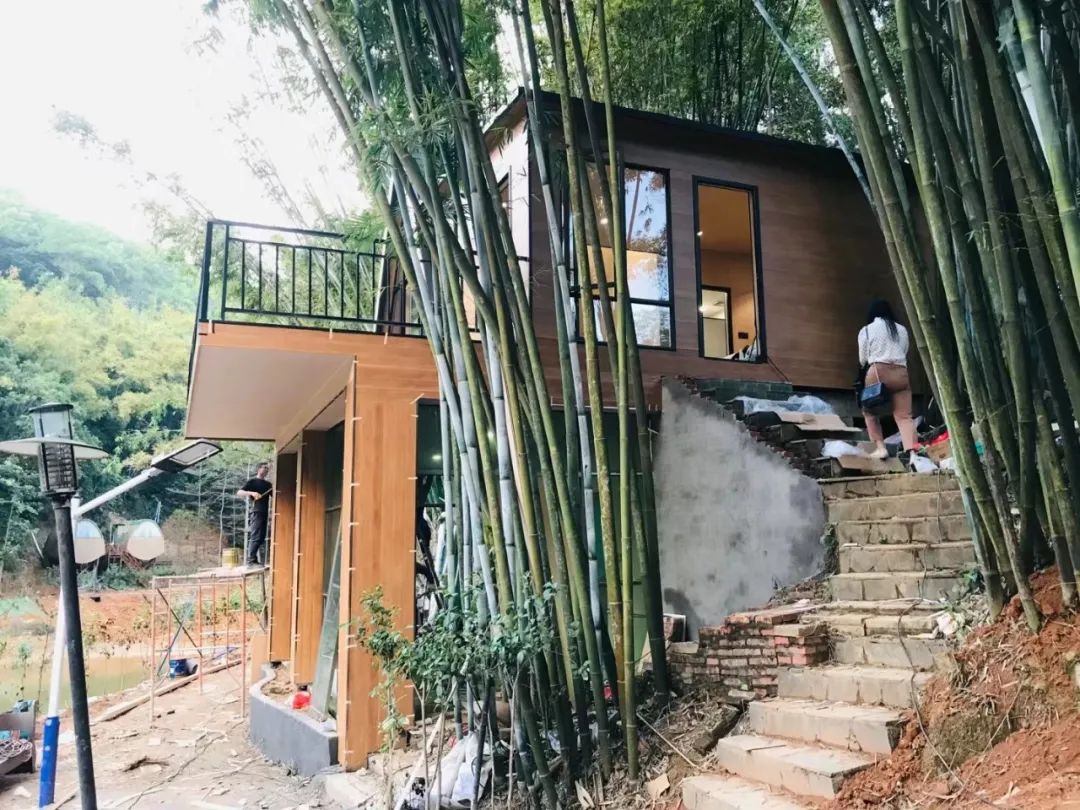

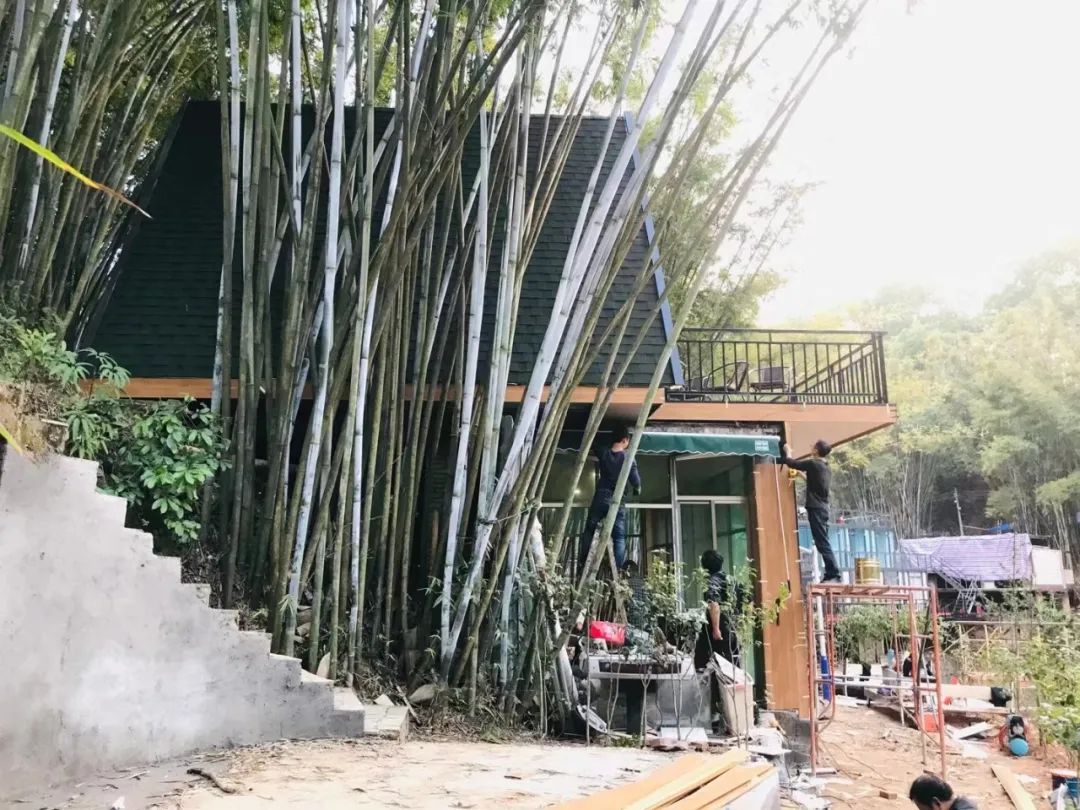

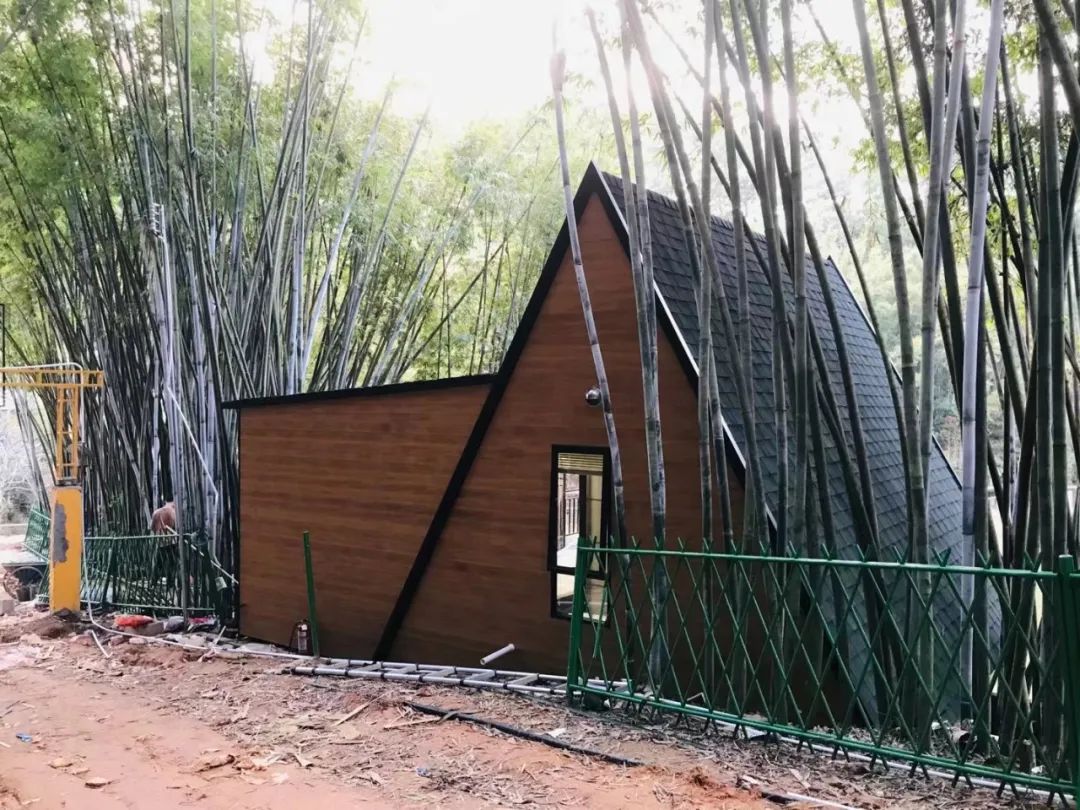

施工中的三角木屋 01

施工中的三角木屋 02

施工中的三角木屋 03

施工中的三角木屋 04

施工中的三角木屋 05

施工中的三角木屋 06

More beautiful than photos, welcome to the Spring Festival sales fee, booking prices have not come out, late will be in the “GOGOhandS to see the world”public number to do promotion!

02-竹子树屋

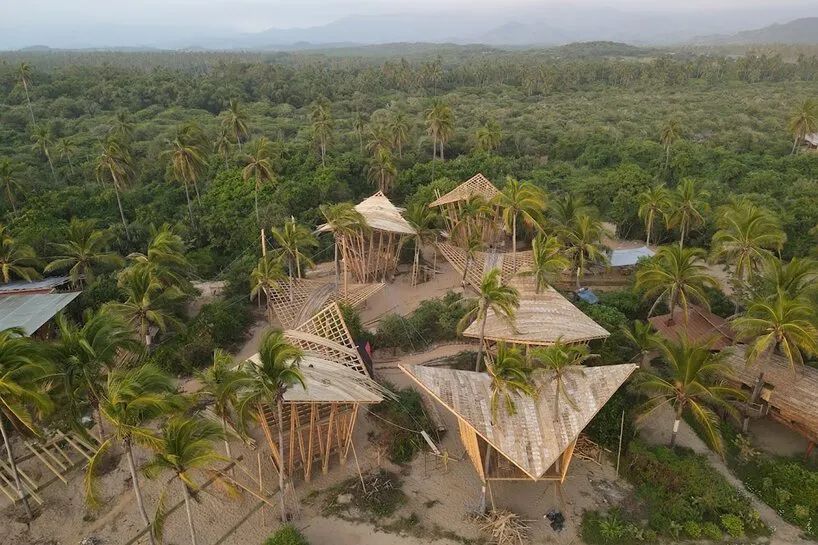

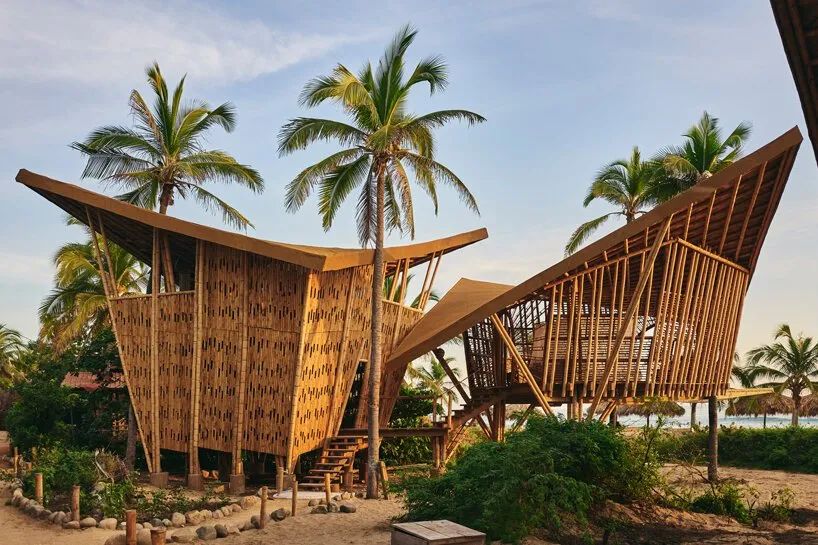

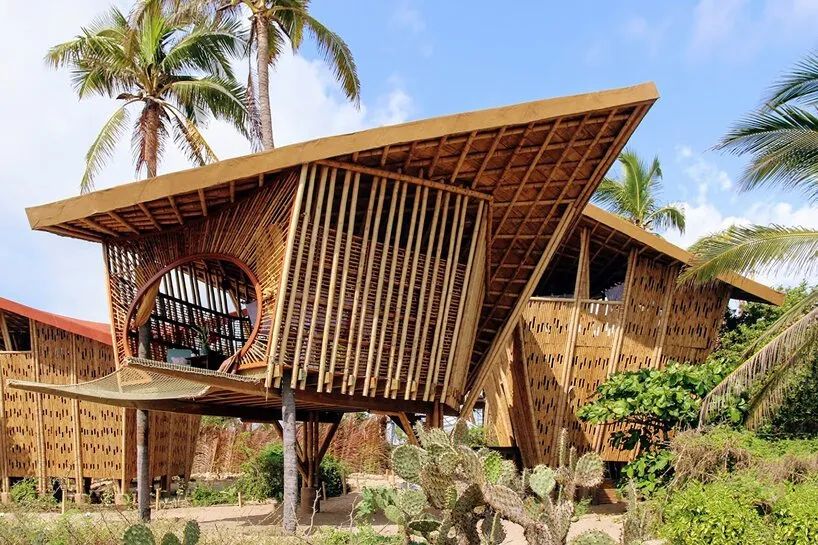

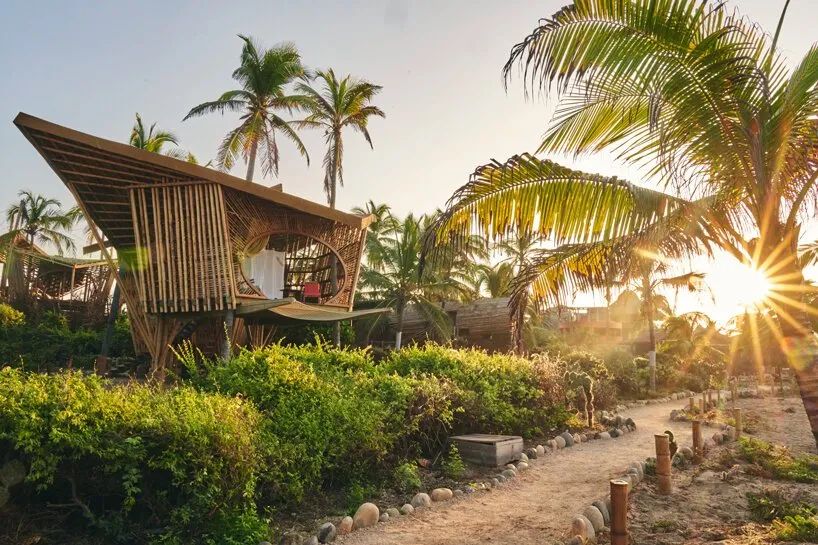

坐落在椰子树上俯瞰着海浪，这六座竹制树屋是一个豪华生态度假村 playa viva 最新推出的住宿设施。茅屋棱角分明的屋顶轮廓受到 mobula ray 翅状鳍的启发。除了从大自然中汲取灵感，树屋也是按照生物气候学的设计原则进行设计的。大屋檐提供了充足的遮阳和避雨的场所，而正面的百叶窗允许自然交叉通风。

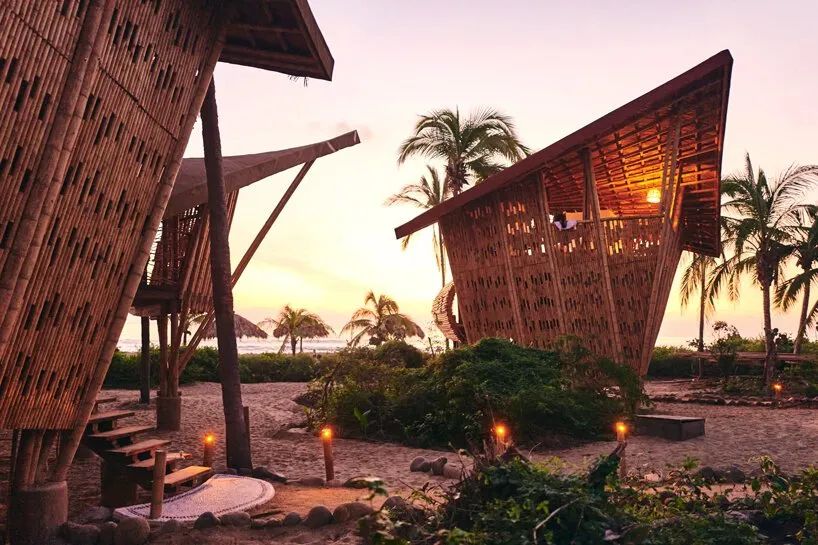

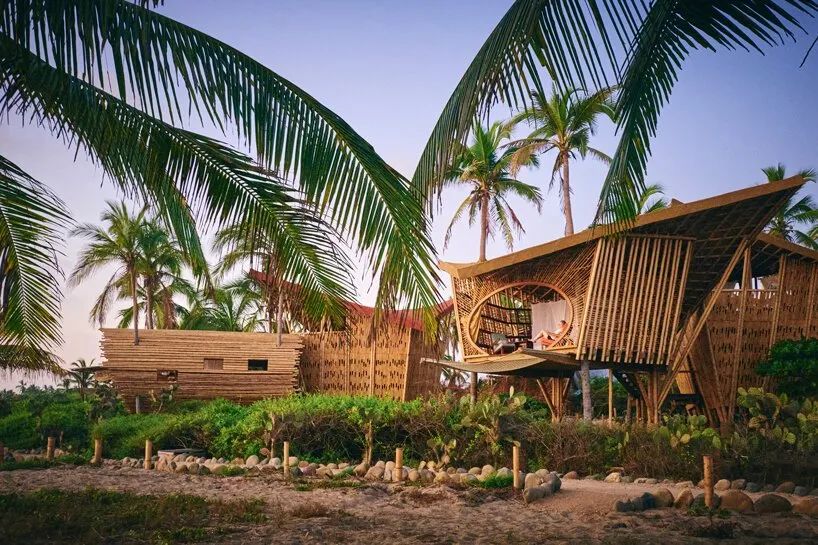

perched on coconut palms overlooking the surf, these six bamboo treehouses are the latest accommodation offerings from playa viva, a luxury eco-resort in juluchuca, mexico. designed by rotterdam based atelier nomadic, the angular roof profile of the huts takes inspiration from the wing-like fins of mobula rays. as well as taking inspiration from nature, the treehouses are also shaped by bioclimatic design principles. the large eaves provide ample shade from the hot sun and shelter from heavy rains while the façade louvers allow for natural cross ventilation.

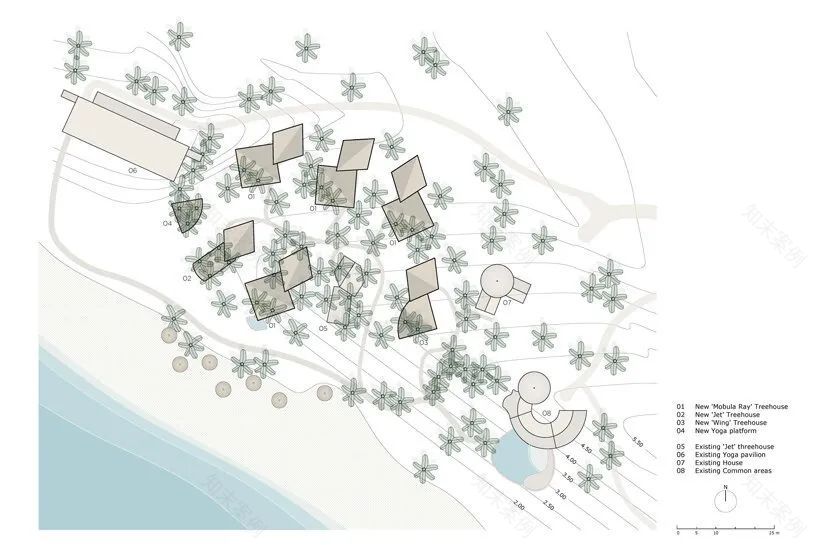

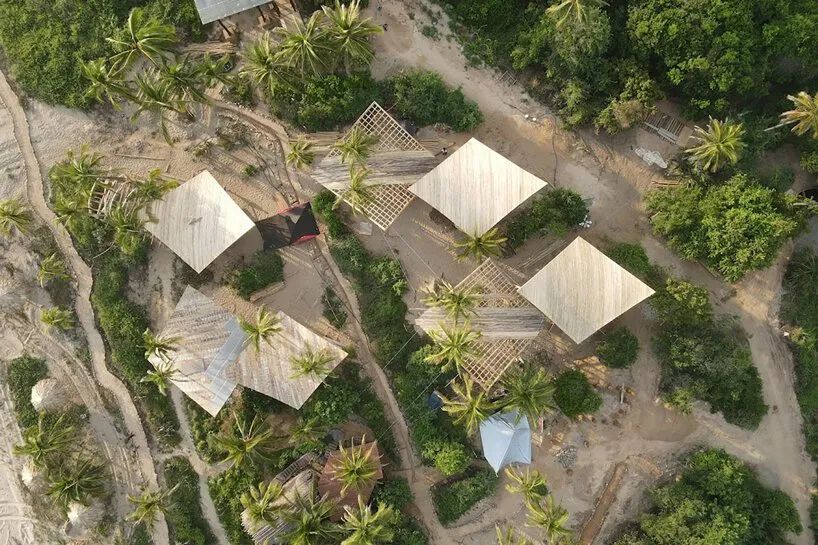

建筑规划布置图

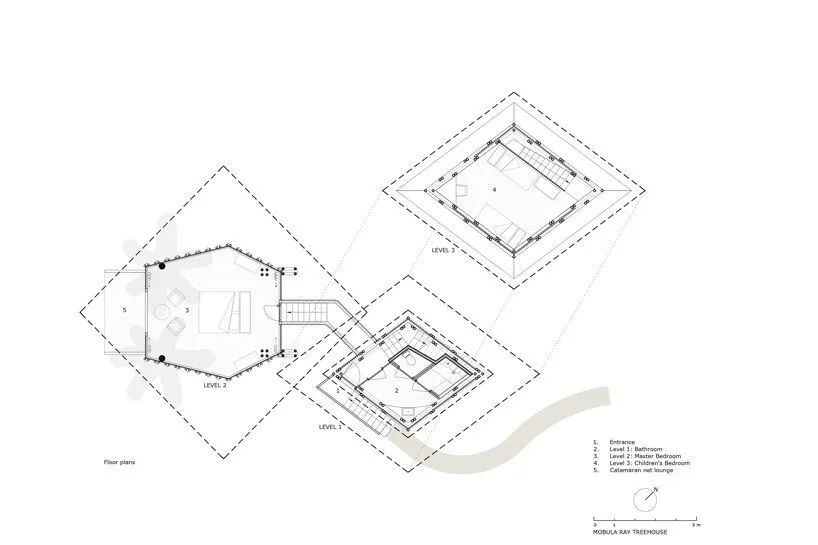

平面布置图

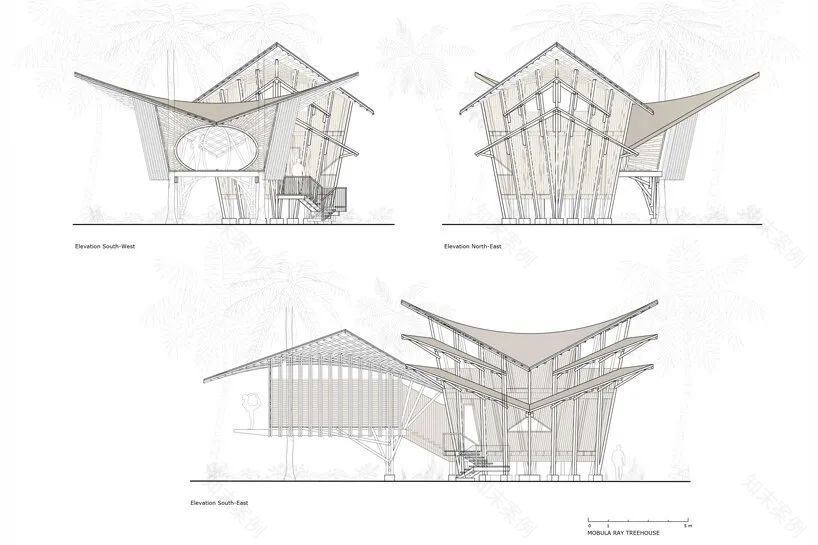

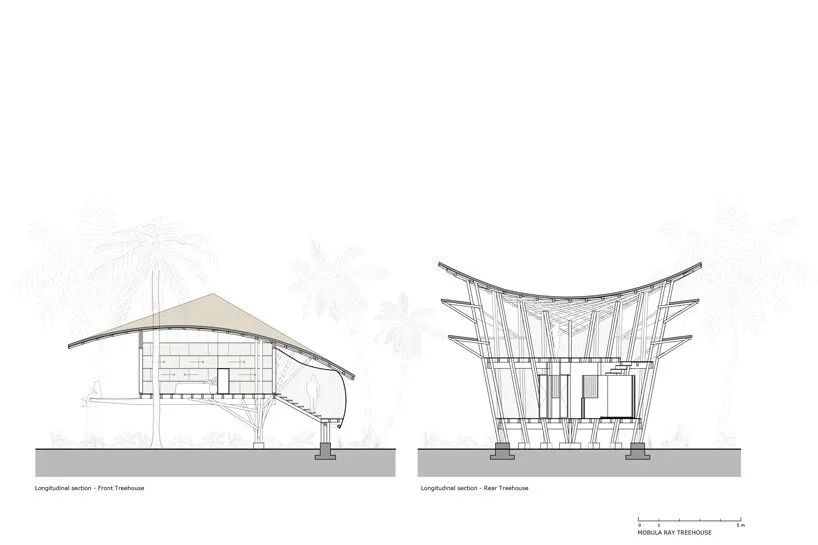

建筑立面图

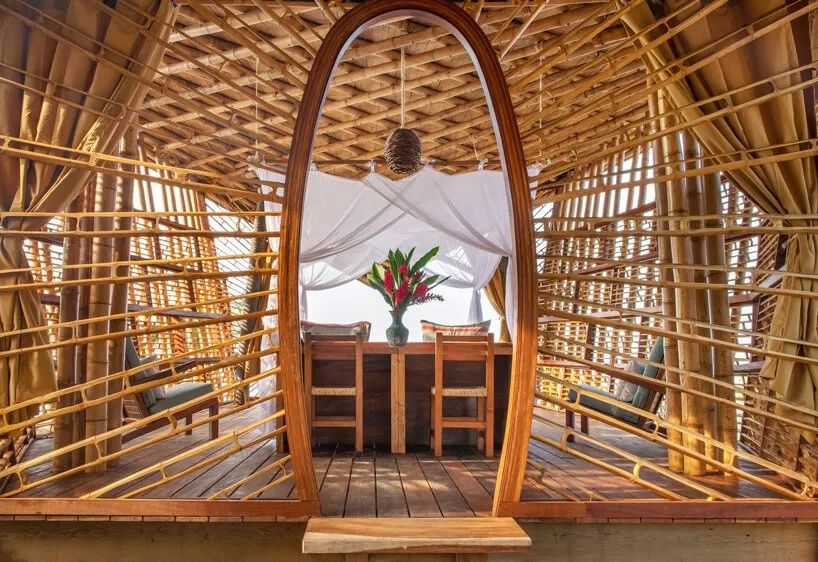

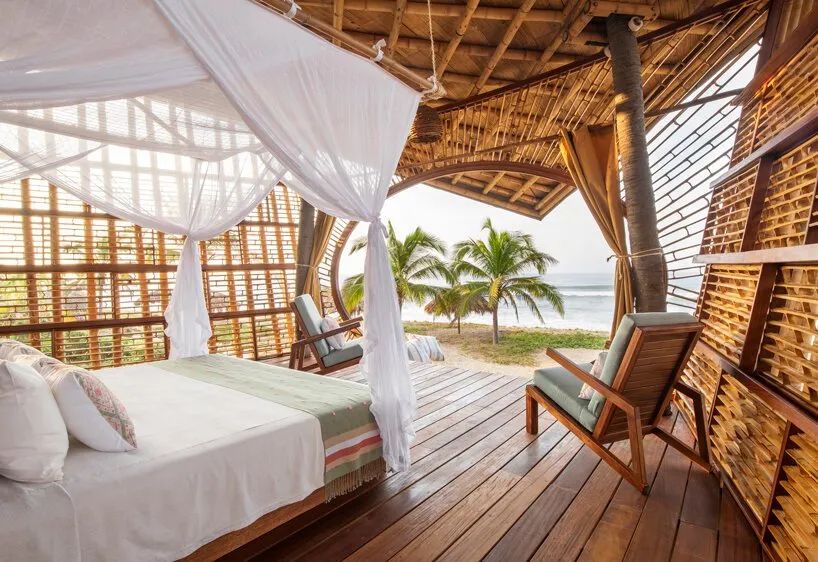

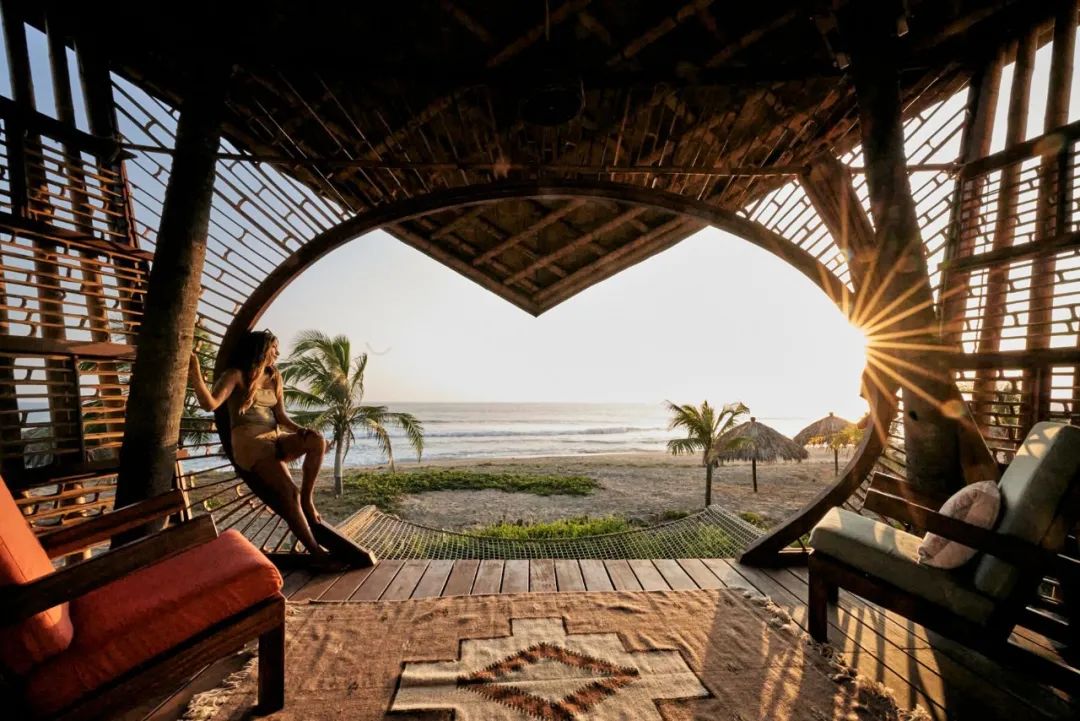

每个树屋由两个交错的结构组成，分布在三个楼层上。后面的附属结构包括一楼的浴室和二楼的卧室或休息室。主卧室包含在前面的树屋内，并拥有一个大开口，从床上可以看到海滩的景色。

each treehouse is composed of two staggered structures over three levels. the annexed structure at the rear contains a bathroom on level one and a second bedroom or lounge upstairs. the master bedroom is contained within the front treehouse and boasts a large opening that frames beach views from bed.

作为 playa viva 环保意识和再生精神的一部分，这些树屋完全没有电网，100%由太阳能供电。Playa viva 也致力于支持当地社区的健康和教育，恢复和振兴周围的土地。度假村是再生旅游组织的创始成员，建立并支持龟龟保护区。

as part of playa viva’s environmentally conscious and regenerative ethos, the treehouses are all completely off-grid, powered 100% by the sun. playa viva is also working to support the health and education of the local community, and restore and revitalize the surrounding land. the resort is the founding member of the regenerative travel organization and founded and supports the la tortuga viva turtle sanctuary.

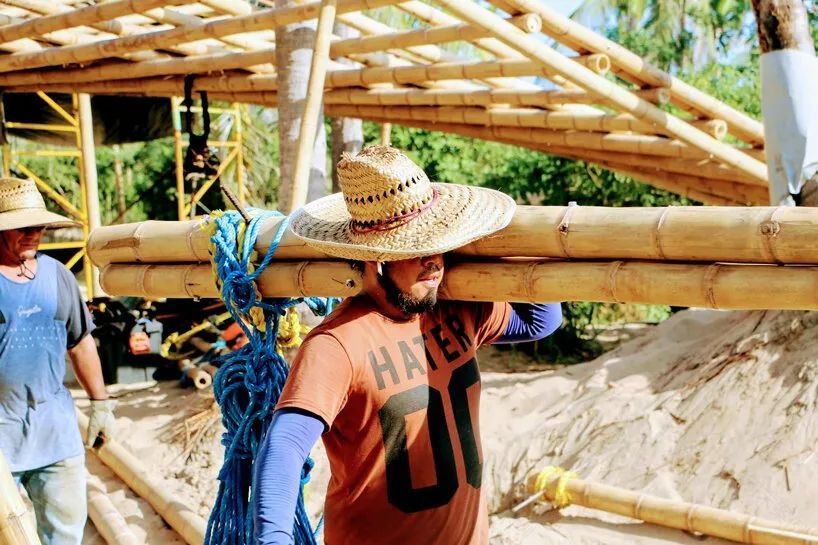

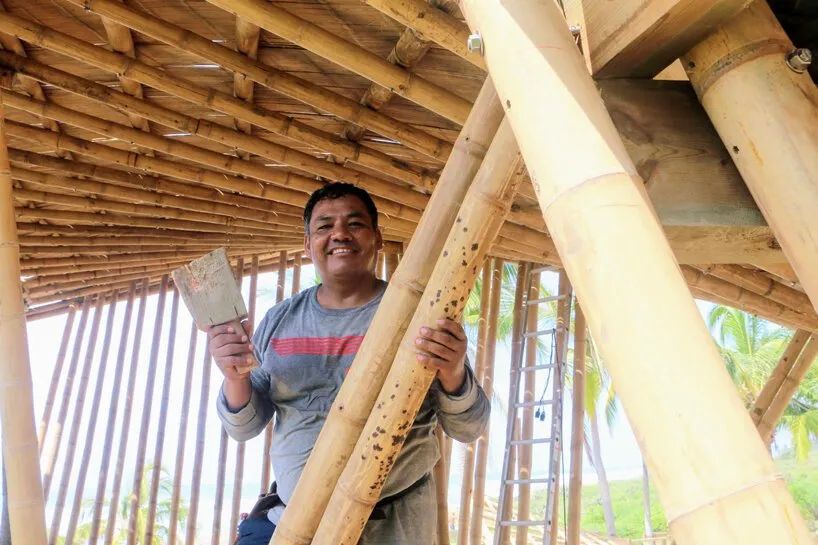

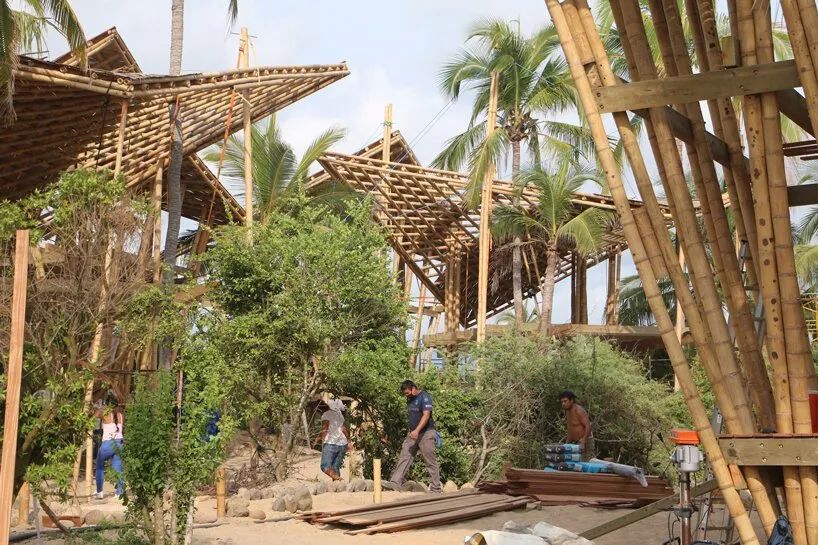

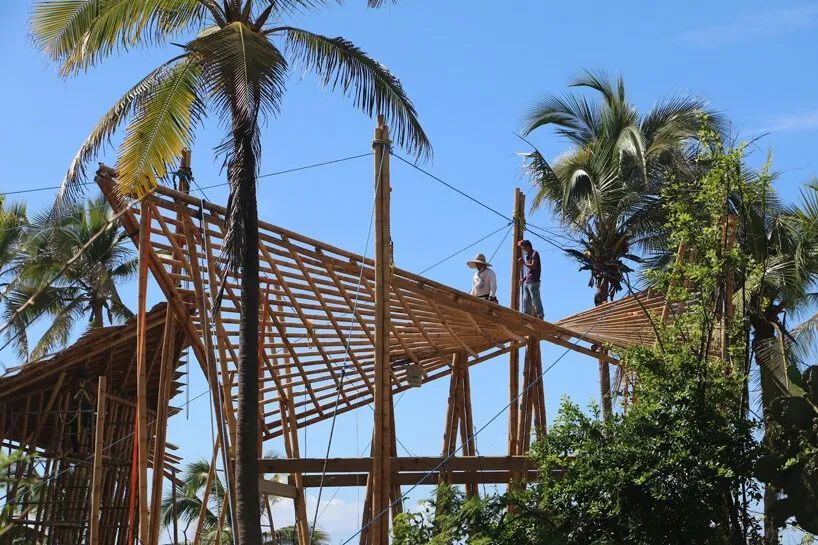

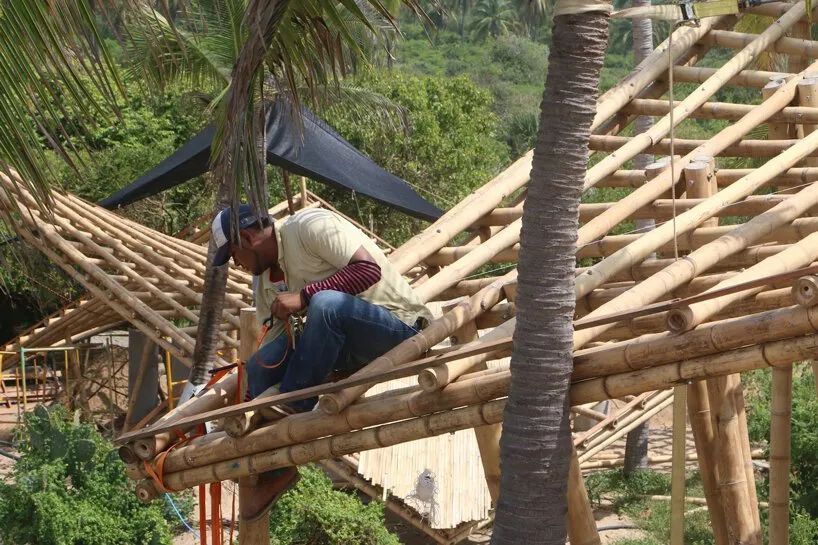

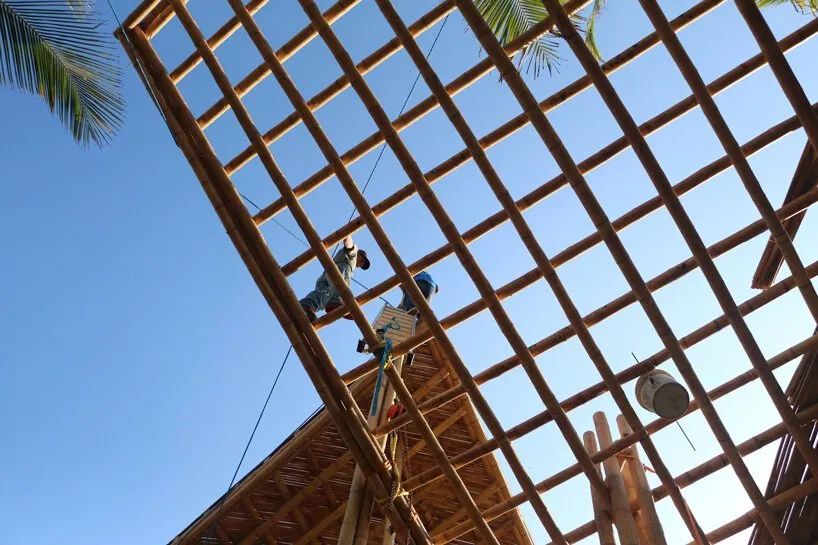

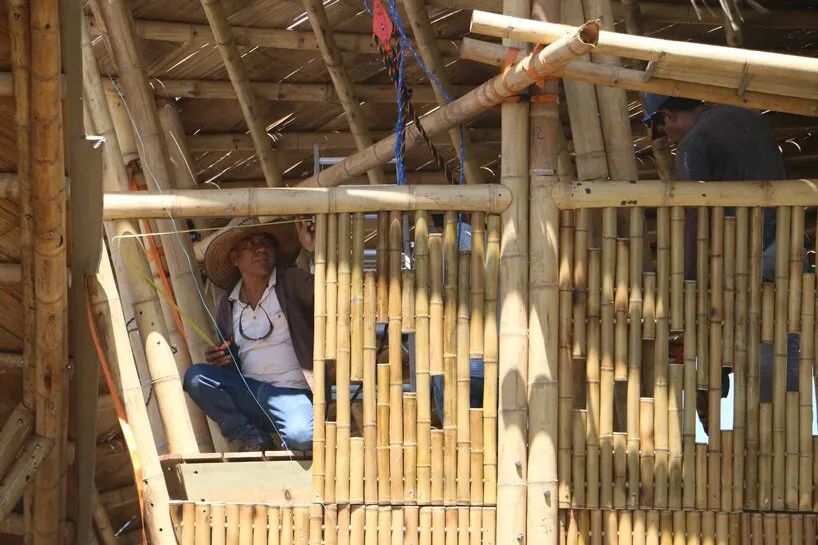

这些建筑主要是用当地的竹子建造的，竹子是世界上增长最快的可再生建筑材料之一。主体结构和屋顶结构使用了坚固的瓜杜瓦竹竿，立面的百叶窗使用了剖面条，天花板采用了扁平的竹板。附属建筑的墙面和立面板使用了叶状金黄色竹竿和木榫，地板是用当地可持续种植的木材制成的。

the structures are built mostly from local bamboo, one of the fastest-growing renewable building materials in the world. strong guadua bamboo poles were used for the main structure and roof structure, section strips were used in the façade louvers, and flattened bamboo panels form the ceiling. phyllostachis aurea bamboo poles and dowels were utilized for the wall and façade panels in the annex building. the flooring is made from sustainably grown local cumaru timber.
