一个医生家庭渴望在他们祖传的位于 terni 村的农田里度周末。想法是享受室外空间围绕游泳池坐落在甘蔗田和芒果树果园之间。这个简介是为了设计一个地方,让使用者感觉他们就住在农田之间,更少地与他们自己,更多地与植物和动物的网站。
A family of doctors craved for a weekend getaway to be designed at their ancestral farmlands located at Terni village. The idea was to enjoy outdoor spaces around a swimming pool nestled between sugarcane fields and mango tree orchards. The profile was to design a place that made the users feel that they are dwelling right in between the farmlands, less with themselves and more with the flora and fauna of the site.

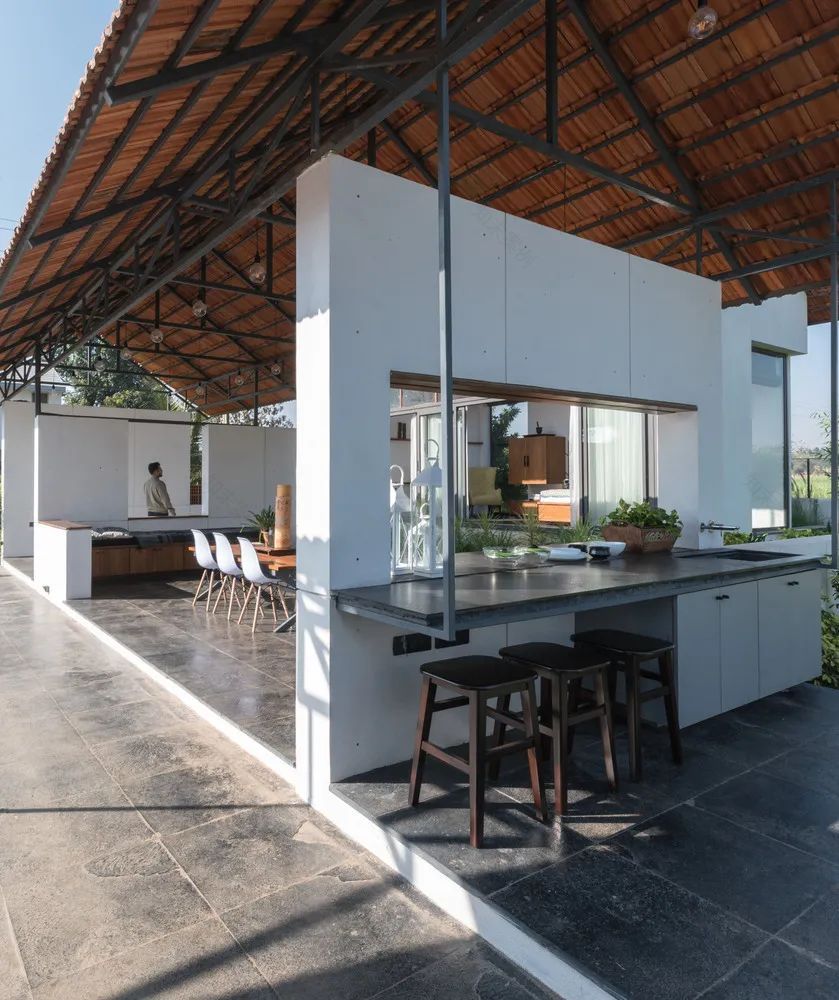

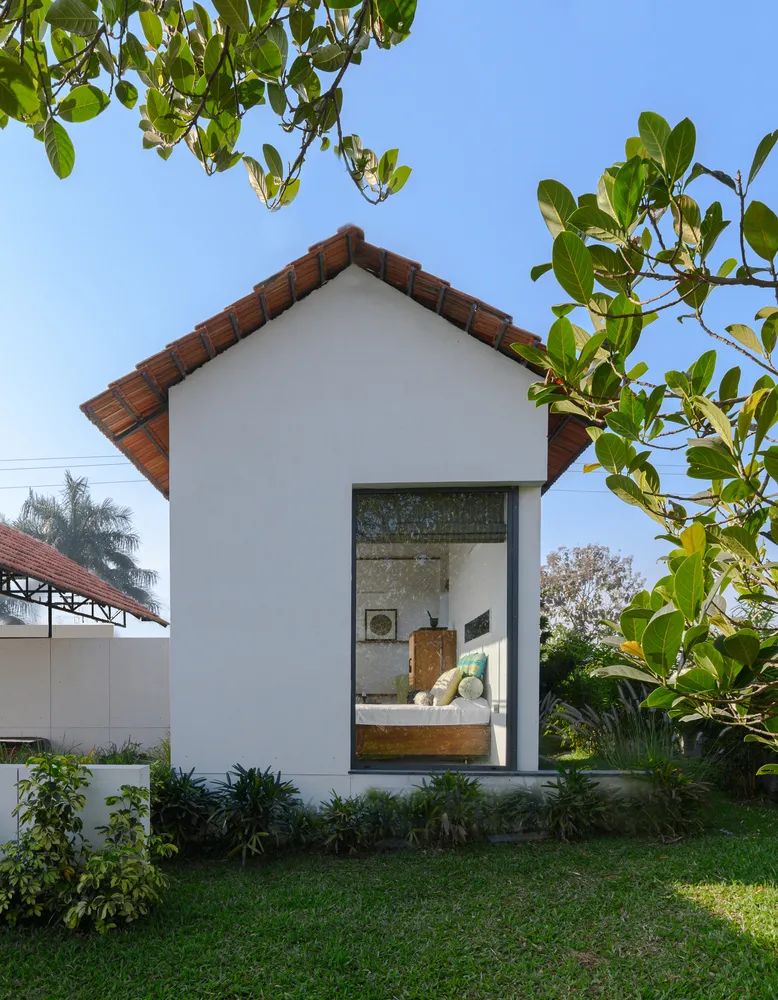

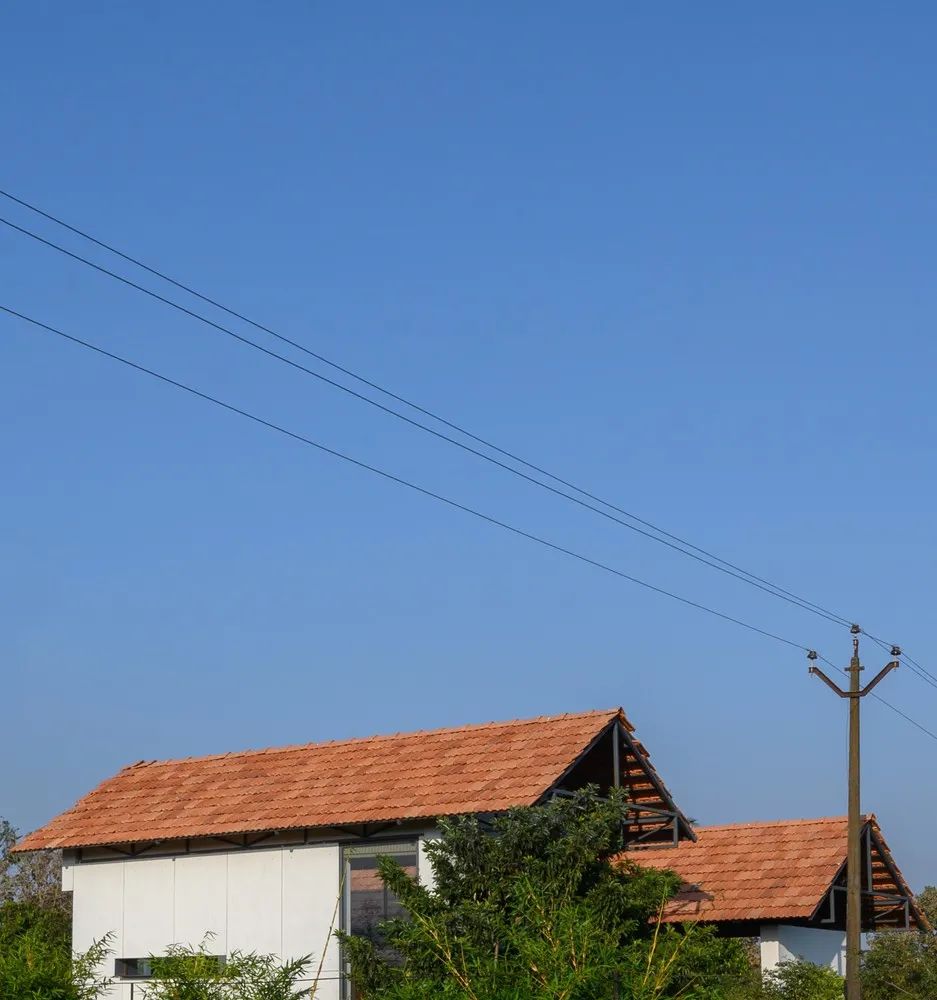

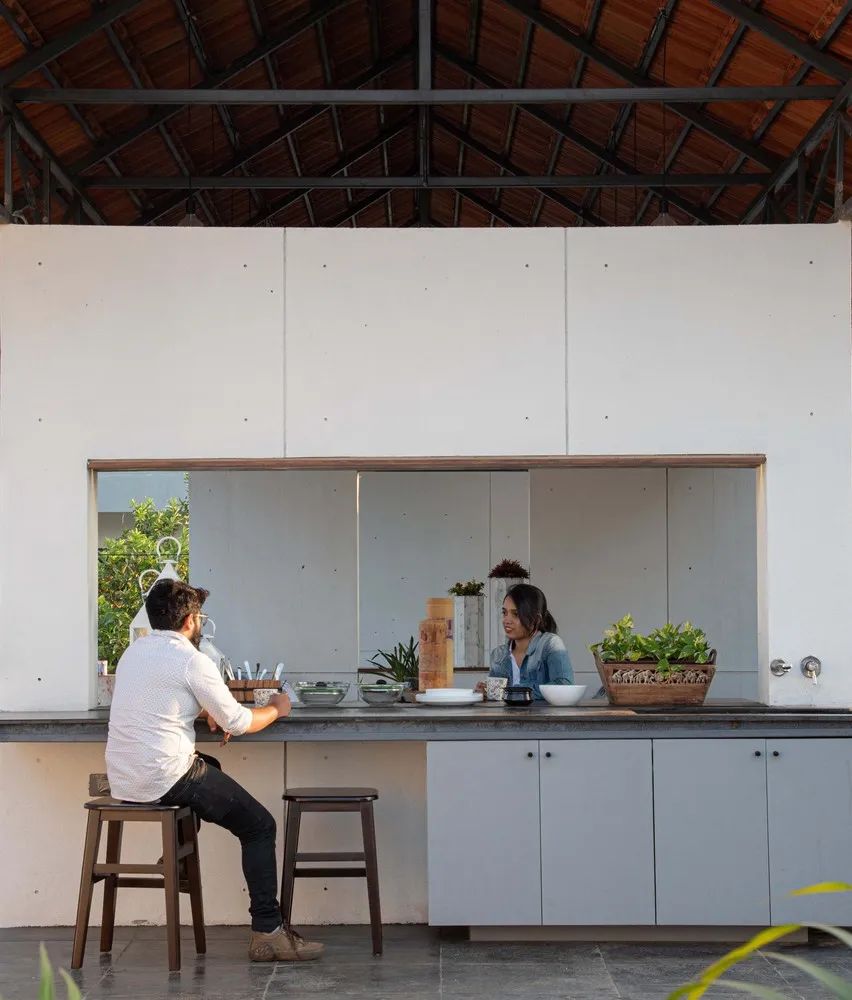

像这个地区所有的村屋一样,这块建筑形式基本上被划分为三个主要空间。第一,专注于白天的活动,如休闲、吃饭、烹饪和娱乐。游泳池和甲板旁边的第二个空间用来放浴室和卫生间。最后,一个高架空间就位于这些空间的正对面,以便晚上睡个好觉。不像一个典型的乡村住宅,只有一个山墙屋顶,每个空间都有独立的山墙屋顶。因此,实现的形象的屋顶轮廓提醒一,邻近的村落。

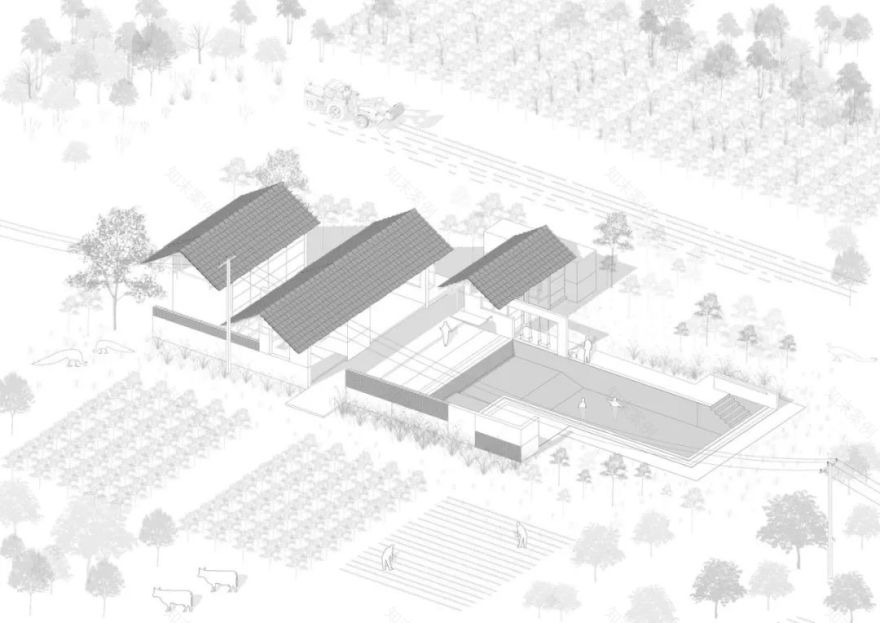

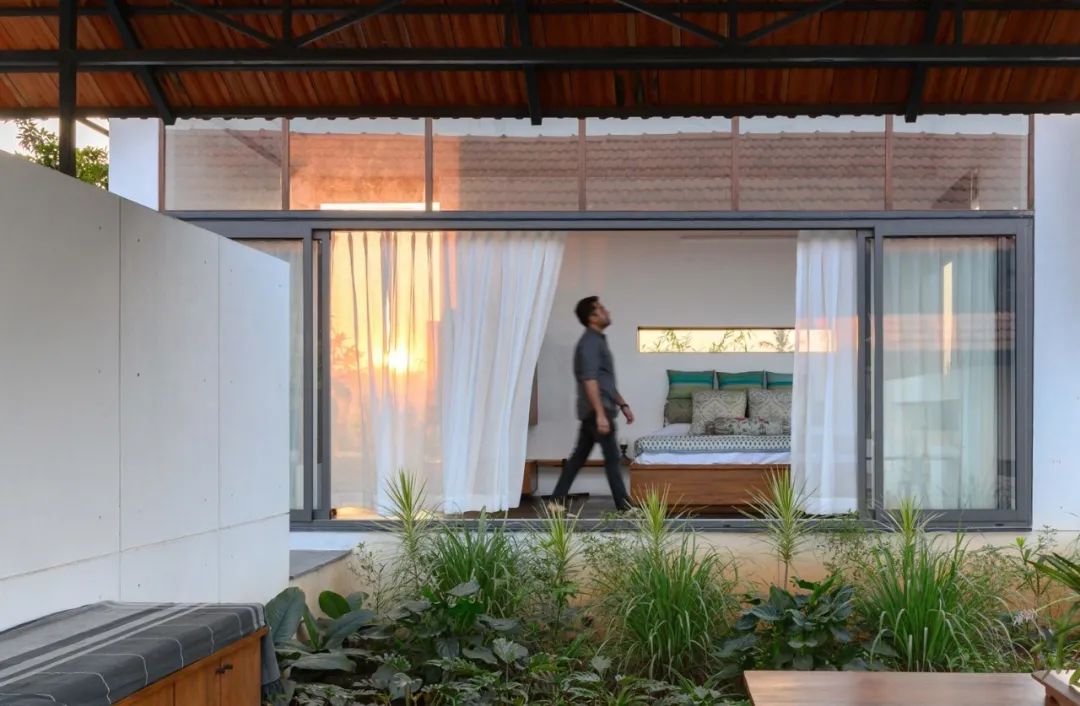

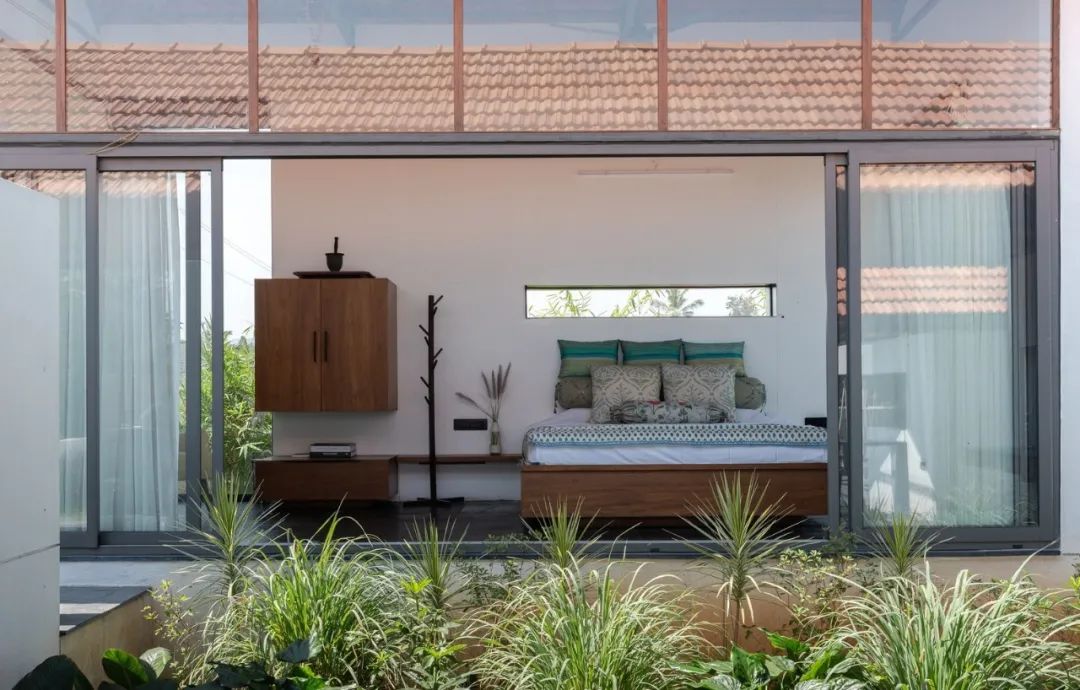

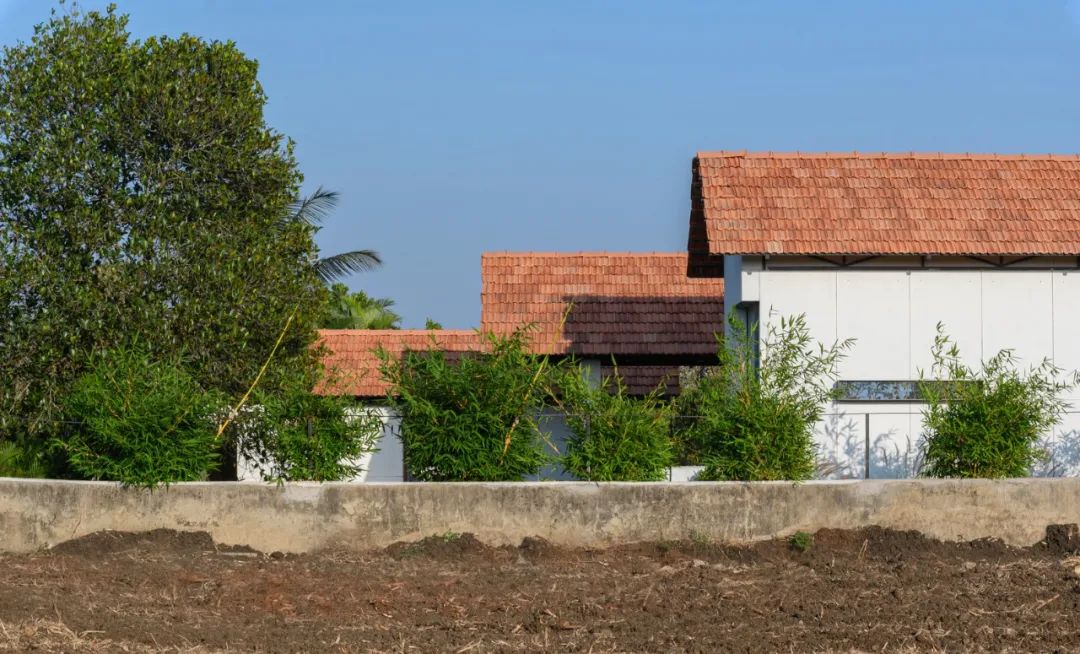

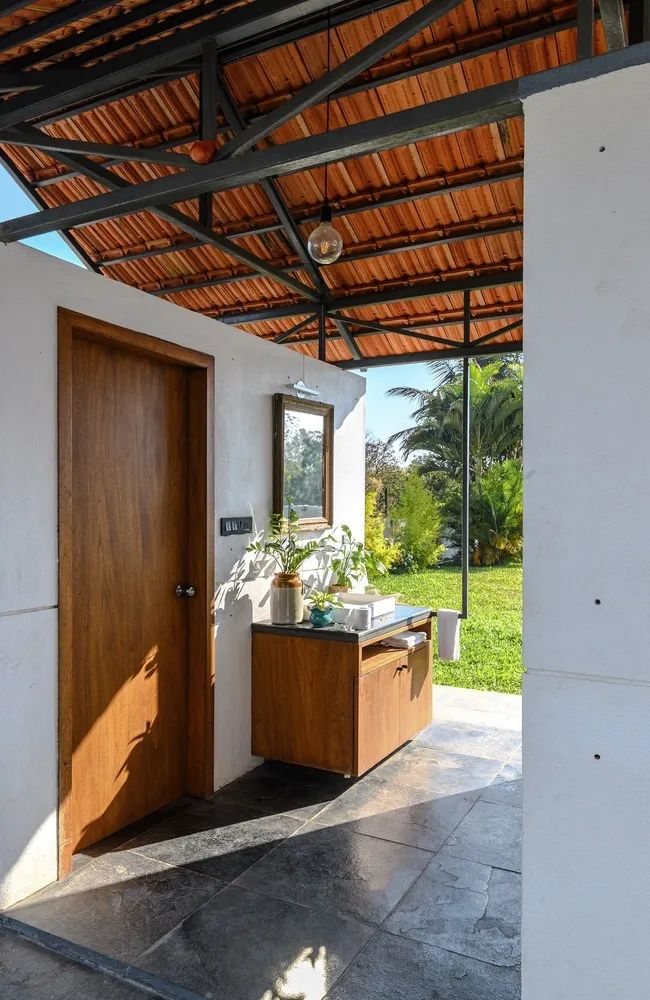

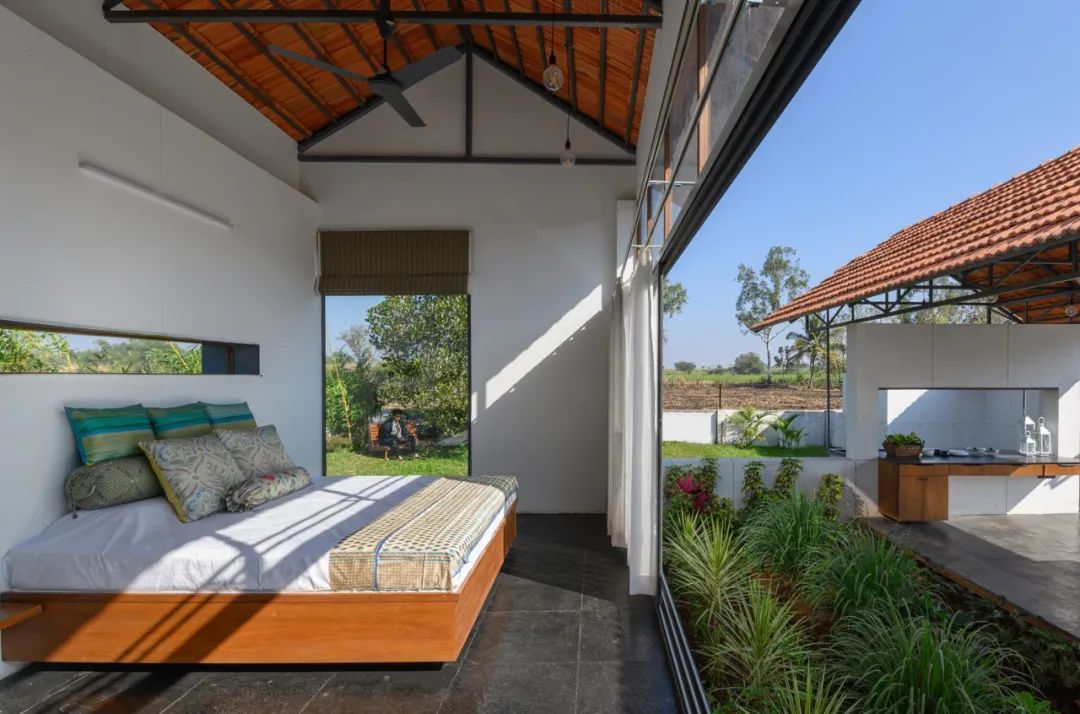

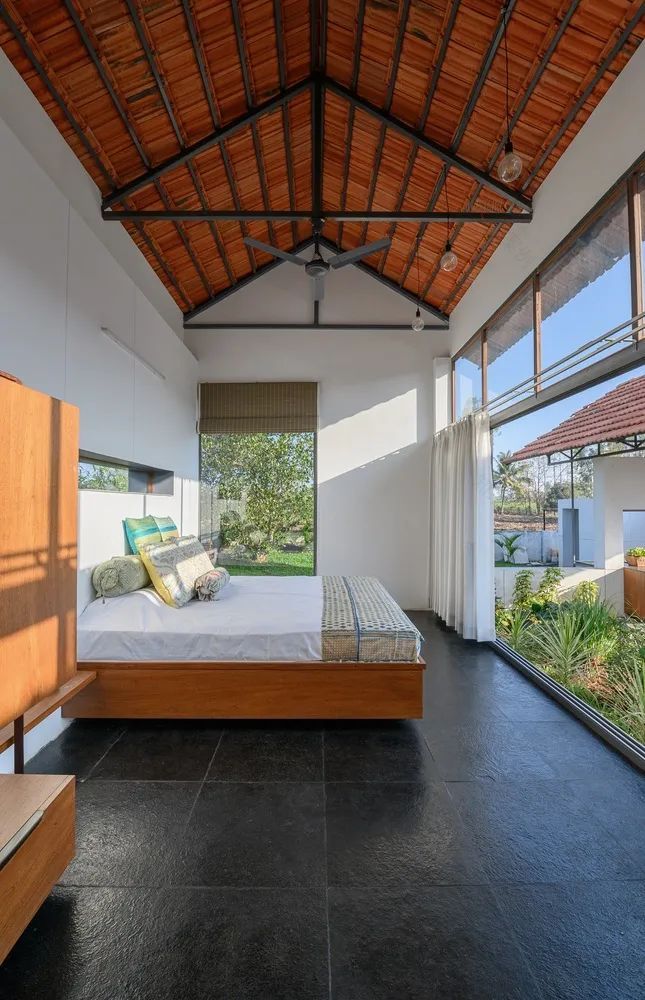

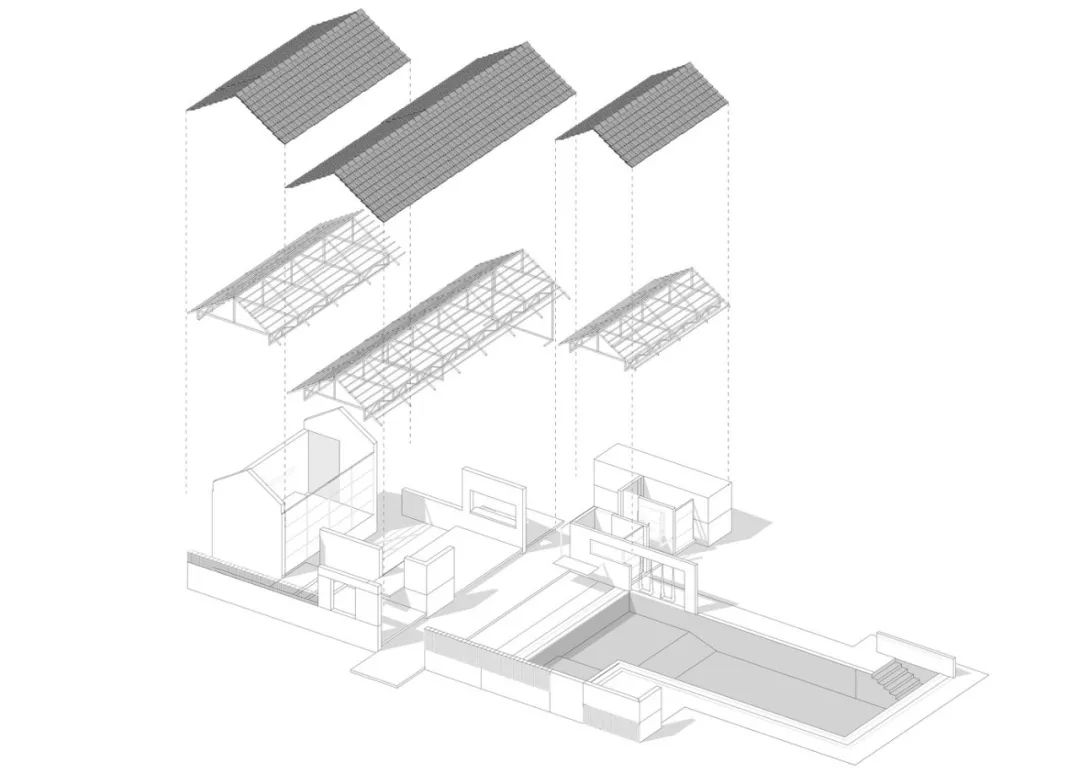

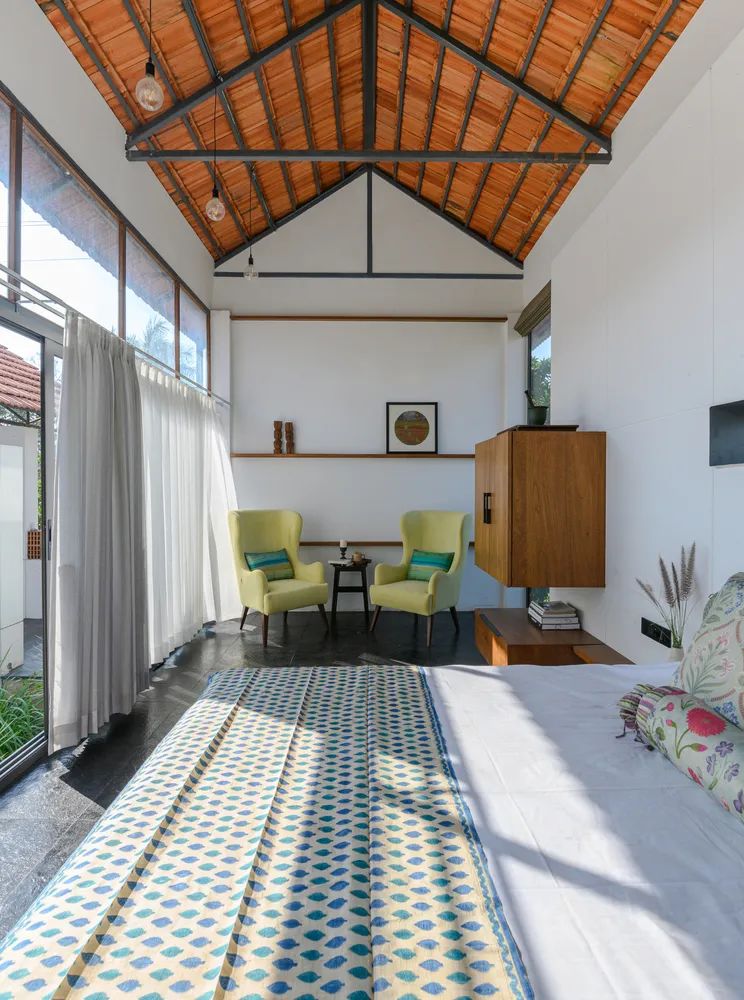

Like all village homes of this region, this piece of built form is basically divided into three main spaces. One, dedicated to the daytime activities such as lounging, eating, cooking and entertaining. A second space flanking along the swimming pool and the deck holds the bath and restrooms. Lastly, an elevated space is positioned right across these spaces for a good night’s sleep. Unlike a typical village home sheltered under a single gable roof, each of these spaces is sheltered by its own independent gable roof. Thus, the achieved image of the roof silhouette reminds one, the neighbouring village settlements.

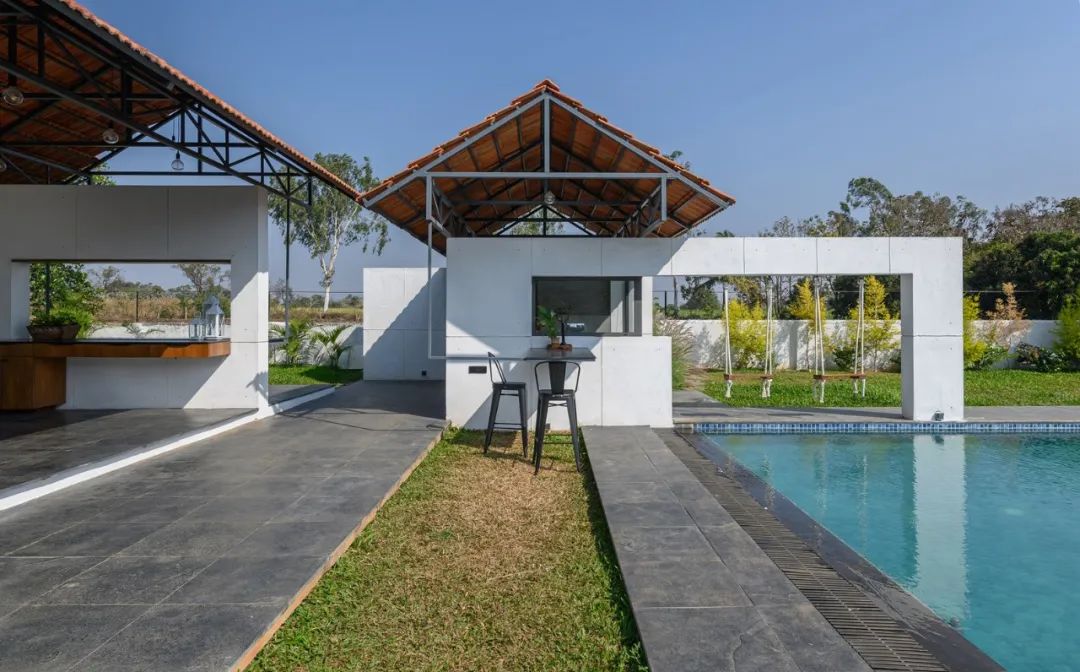

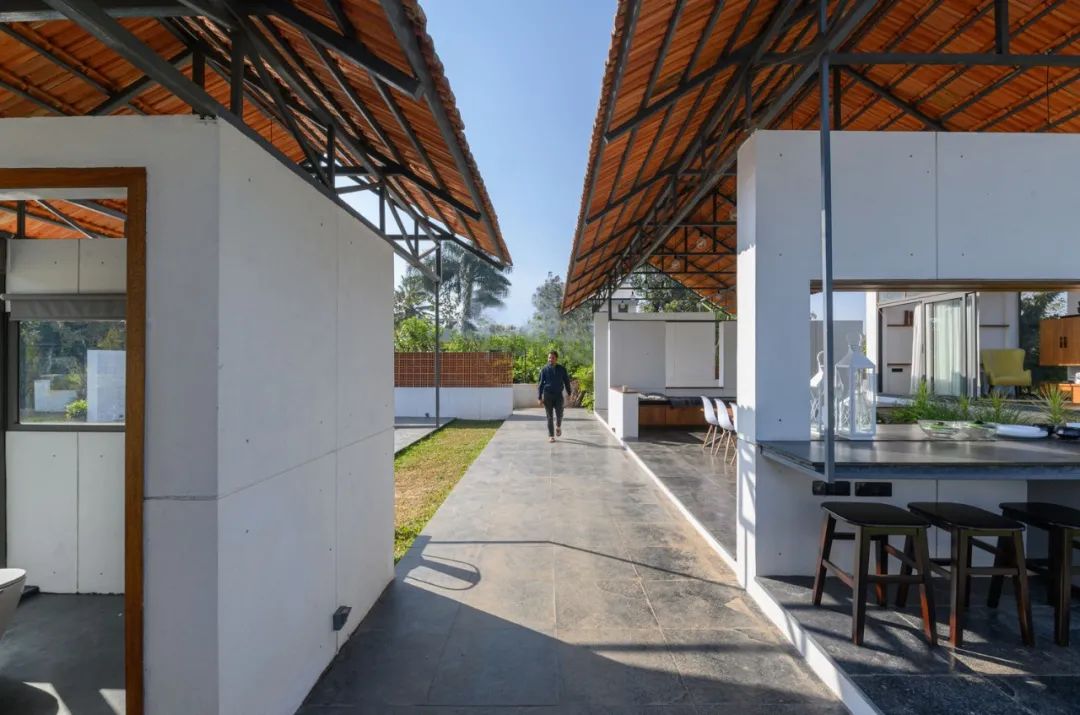

这三个单元之间相互隔开,因此每个屋顶的悬臂山墙端部向下倾斜,进入缓冲区,形成软景观和硬景观庭院。这三个建筑空间的底座和屋顶一步一步向东倾斜,允许所有空间观看和享受游泳池,同时增加了阻挡南部和西部眩光和交叉雨水的优势,同时引导使用者朝向东部和北部柔和的光线。

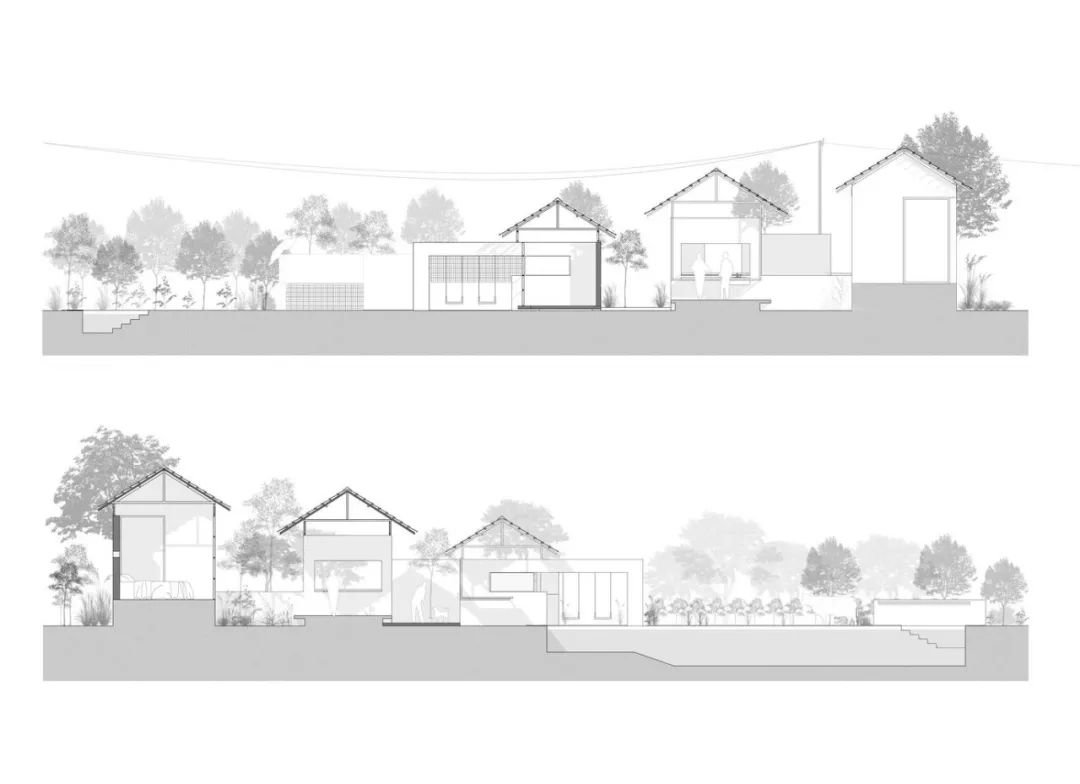

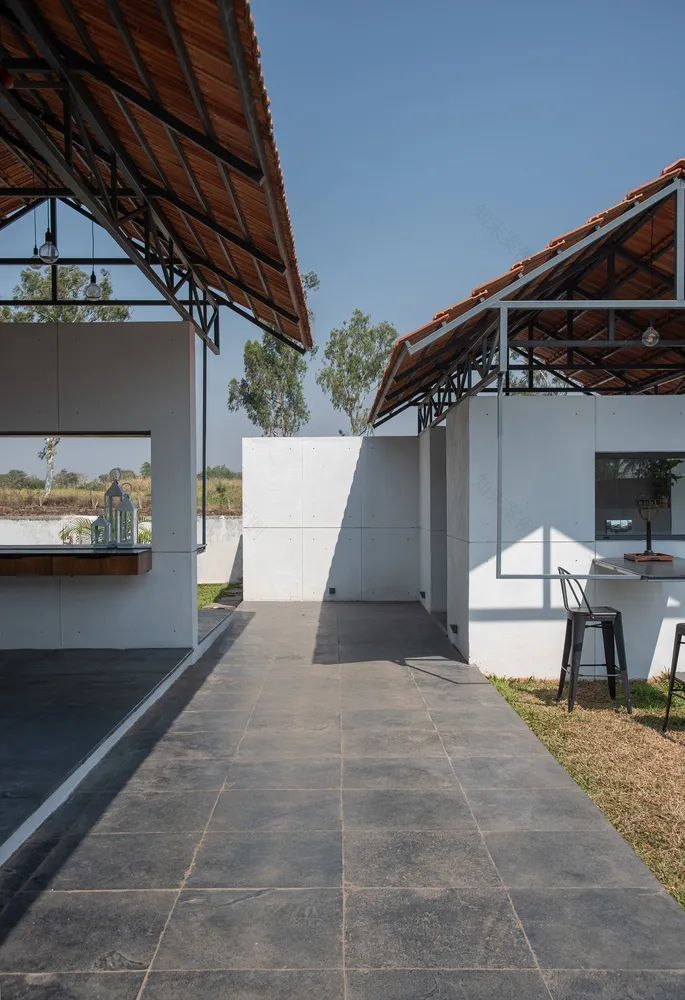

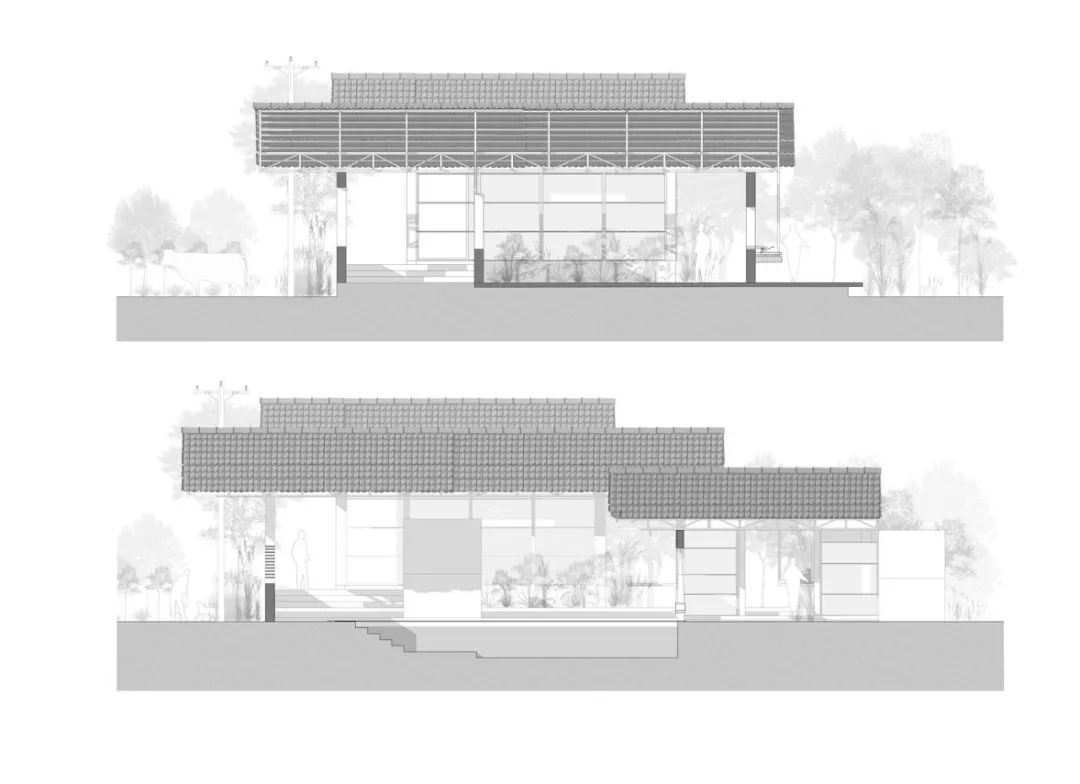

These three units are spaced apart from each other such that the cantilevered gable ends of each roof slope down into the buffer areas that form soft-scape and hardscape courtyards. The plinths and roofs of these three built spaces cascade down step by step towards east allowing all spaces to view and enjoy the swimming pool, also, adding advantages of blocking the south and west glare and cross rains while directing the users towards softer light on the east and north.

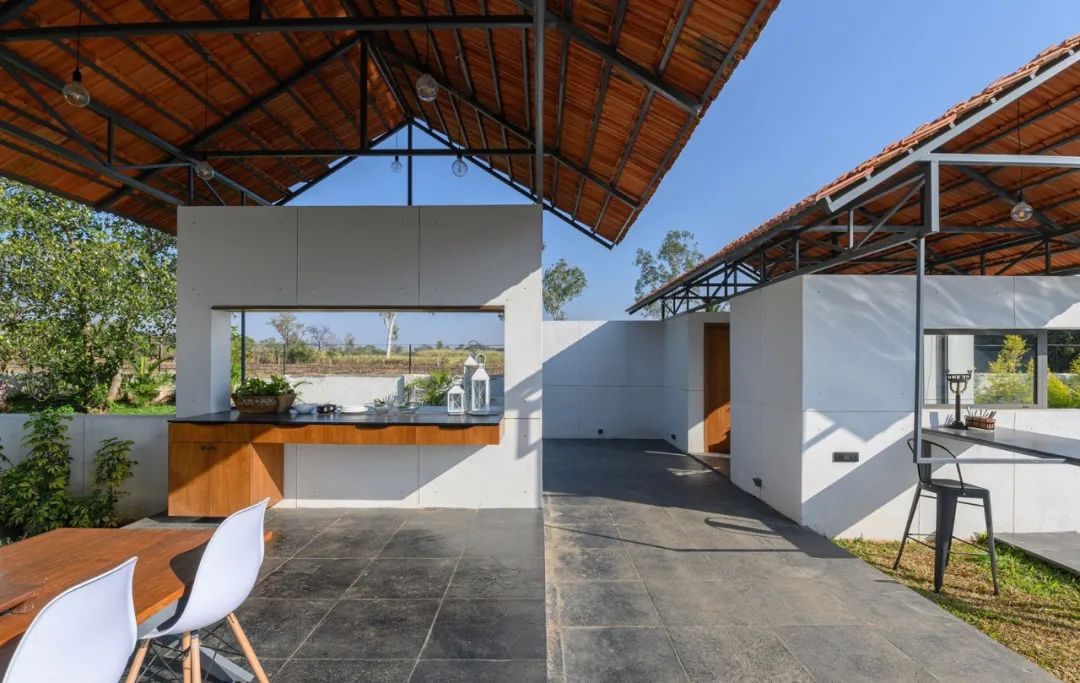

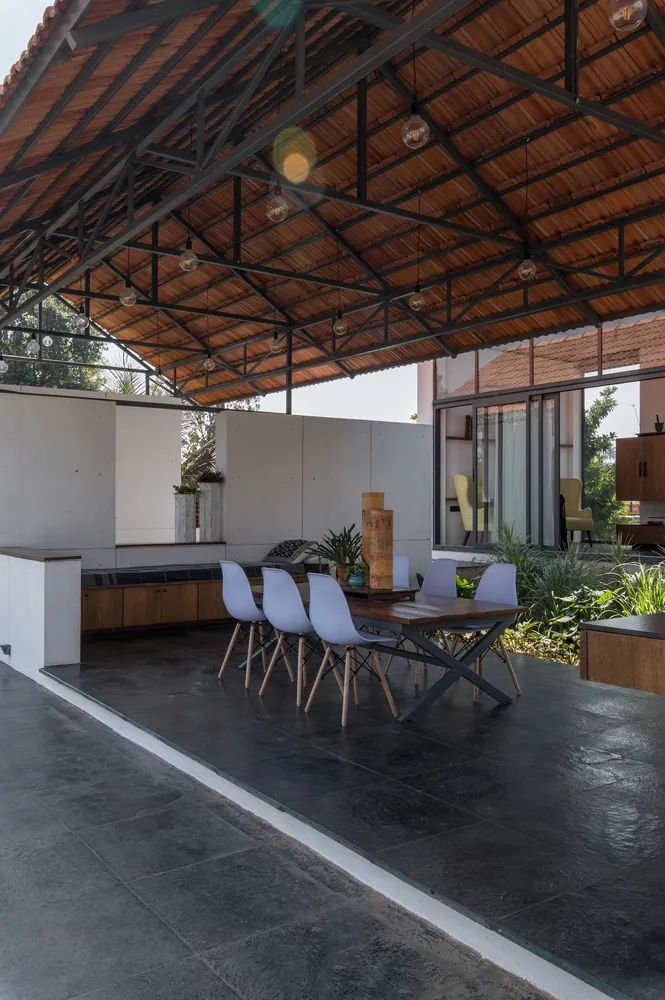

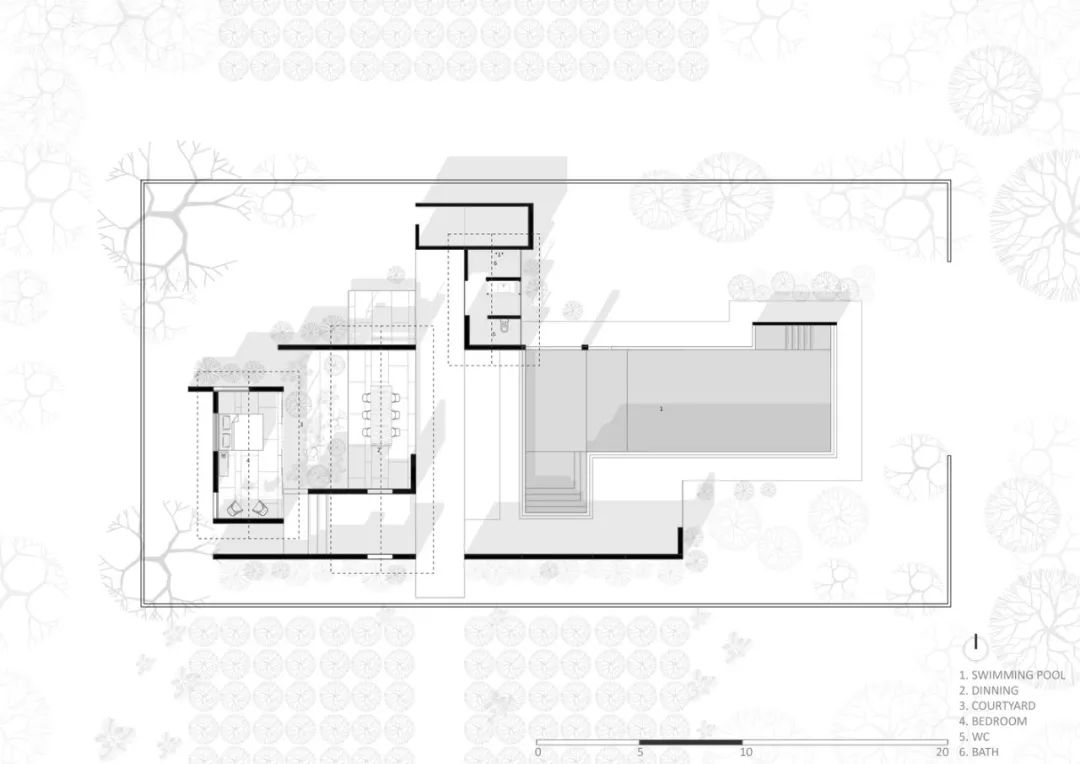

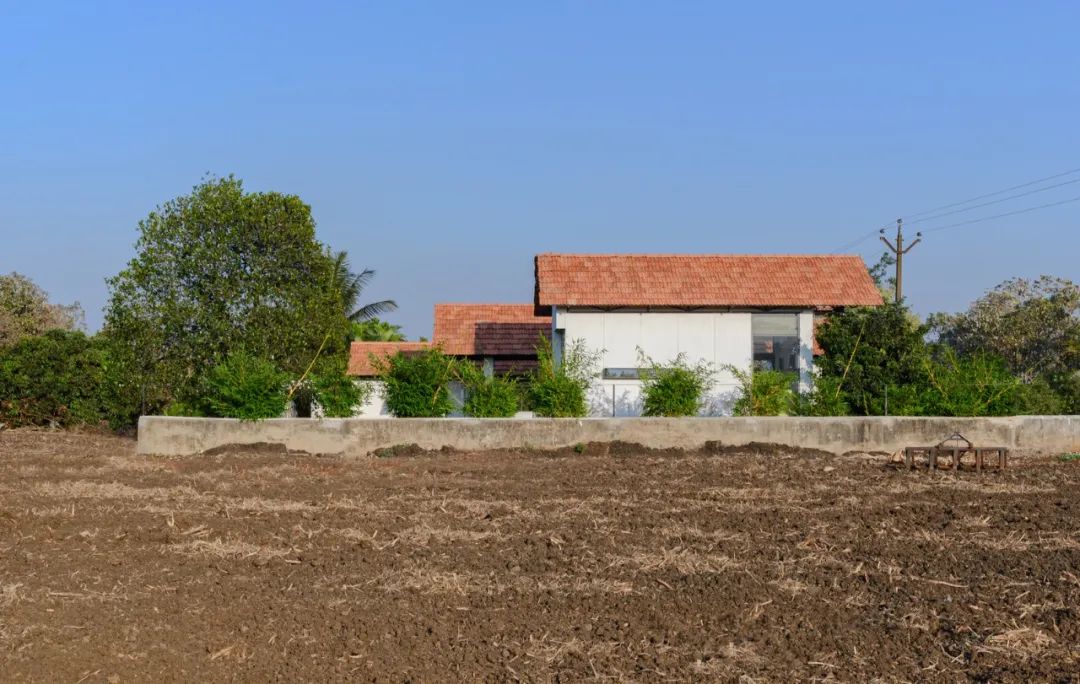

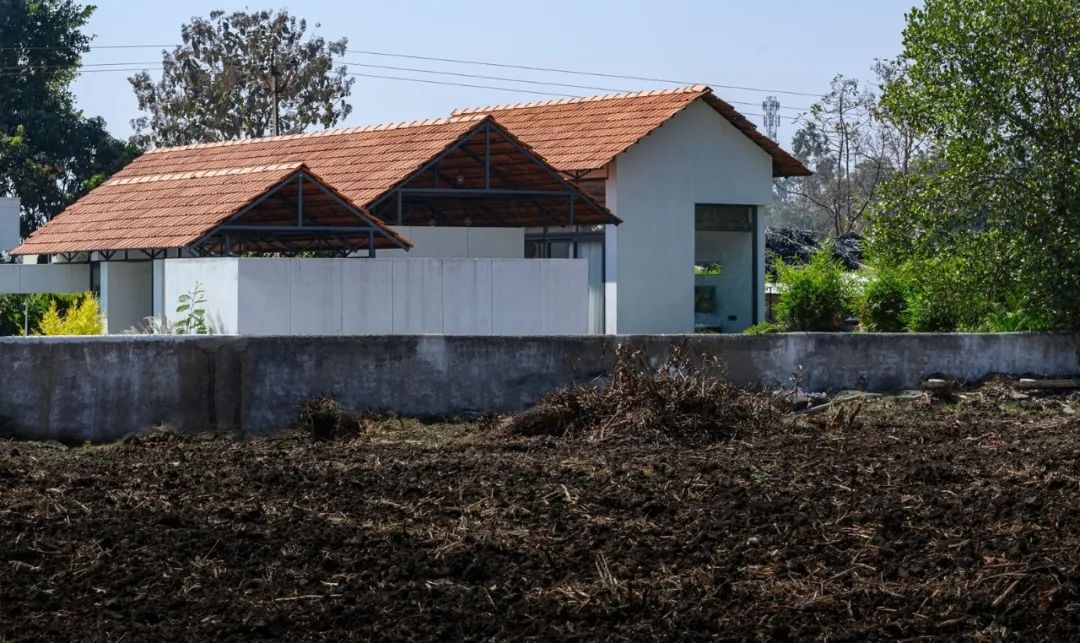

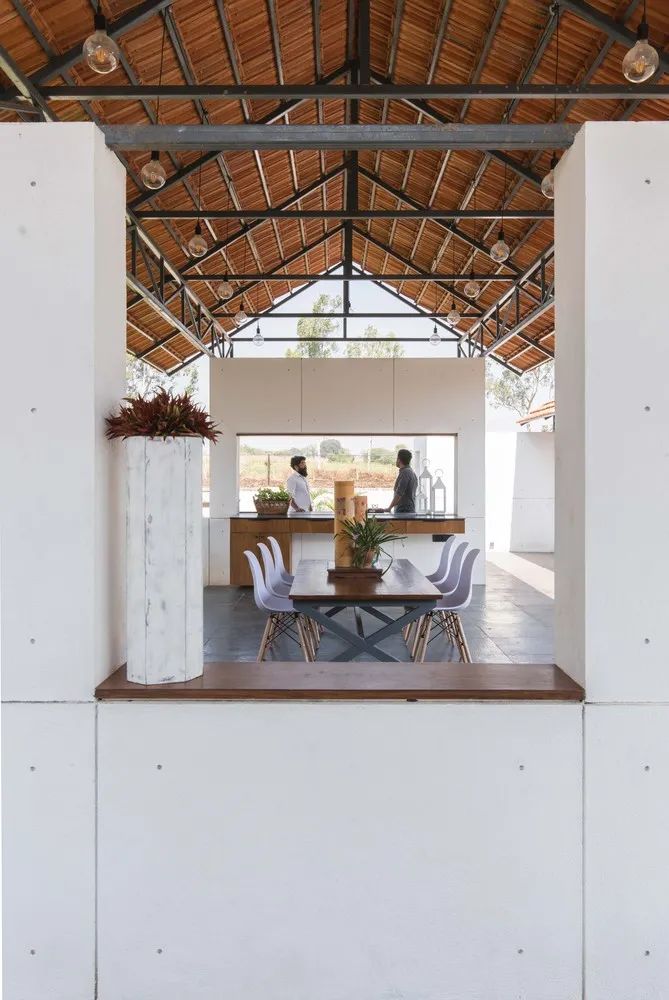

房子在田野中间的复合边界内分散开来,只是为了保护它的使用者不受未知野生动物的伤害。当其中一个靠近东边时,游泳池周围有一大片草坪。游泳池连接着西区的房子。人们可以赤脚走到房子,沿着石头甲板上的游泳池,或者沿着赤陶的贾里墙走过风景。建筑空间围绕中央起居亭建造。主起居室作为卧室和游泳池的平台,创造了多种功能空间。

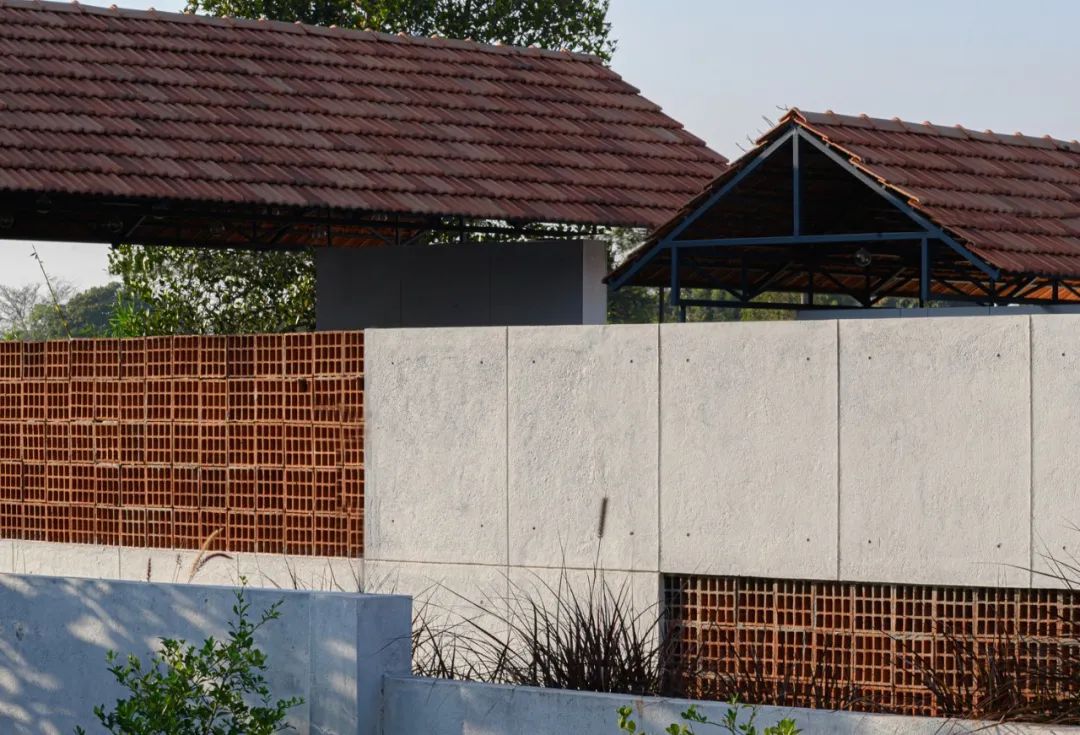

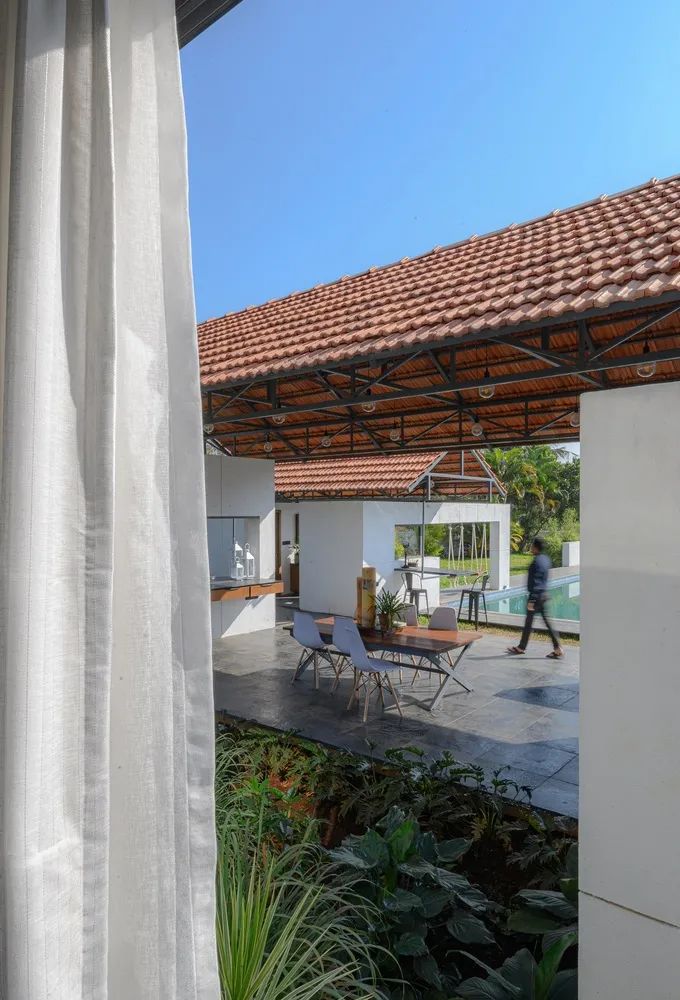

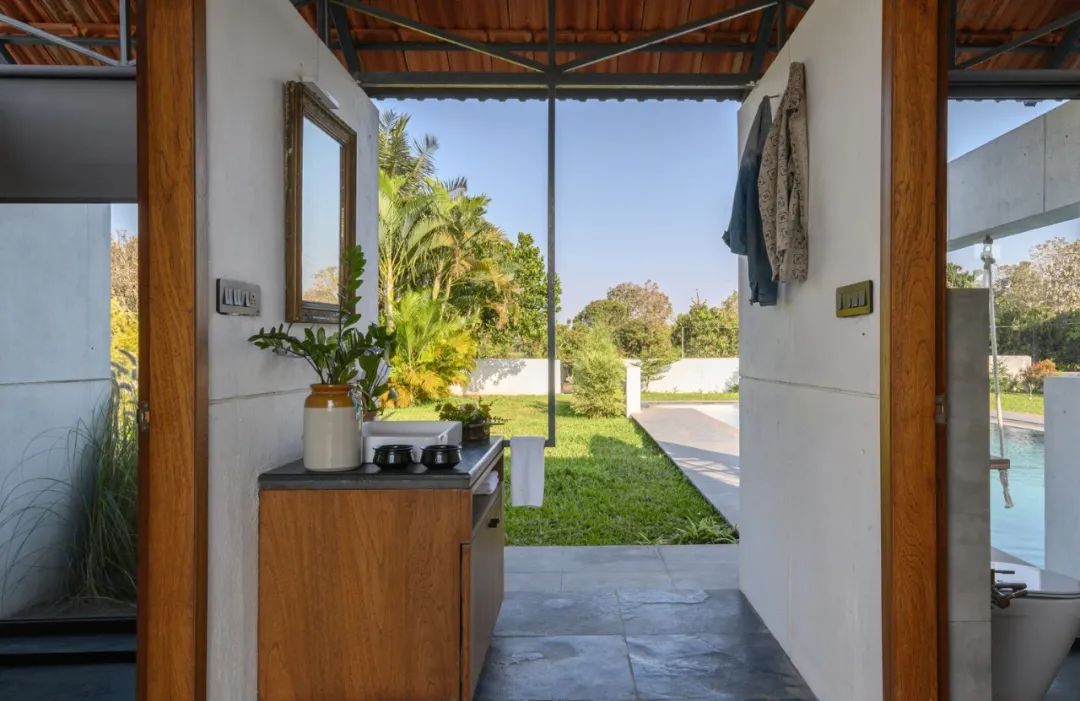

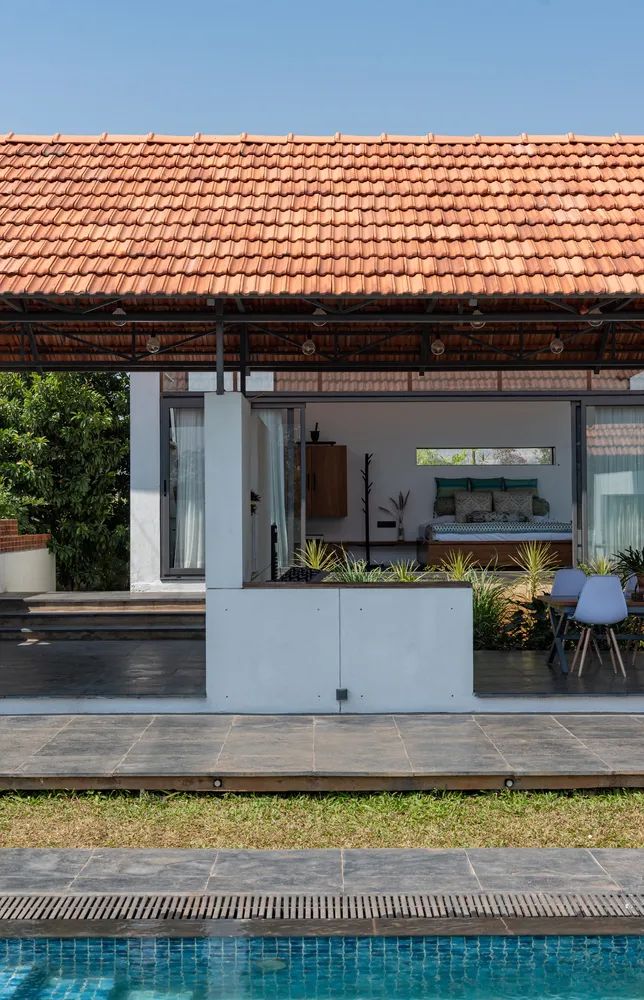

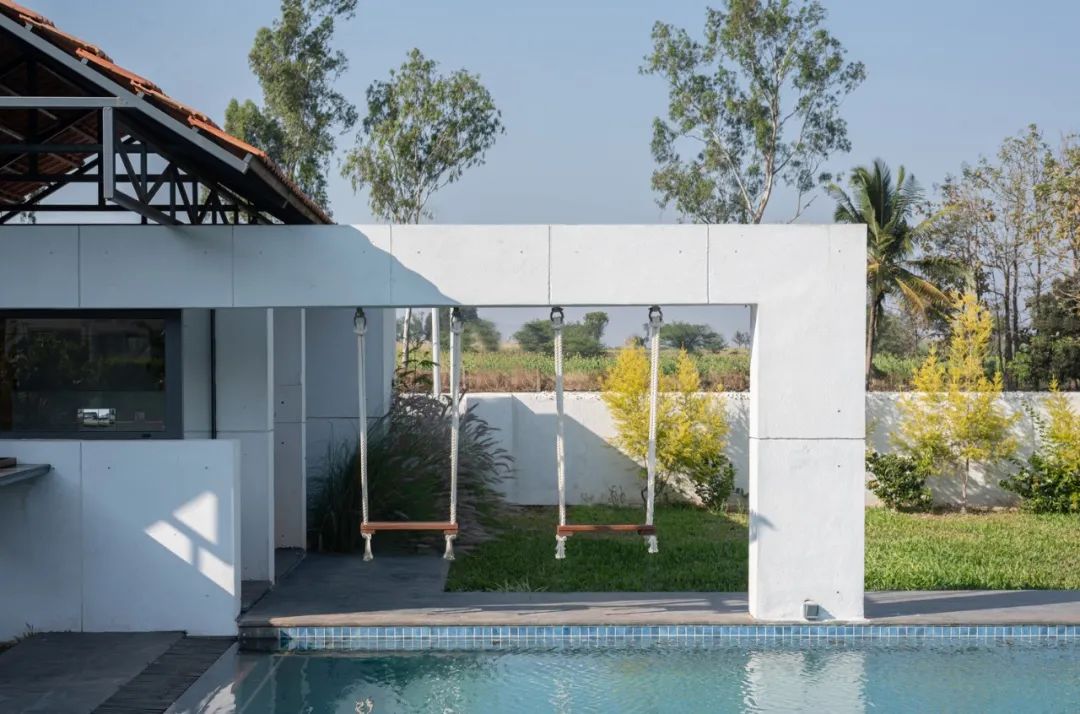

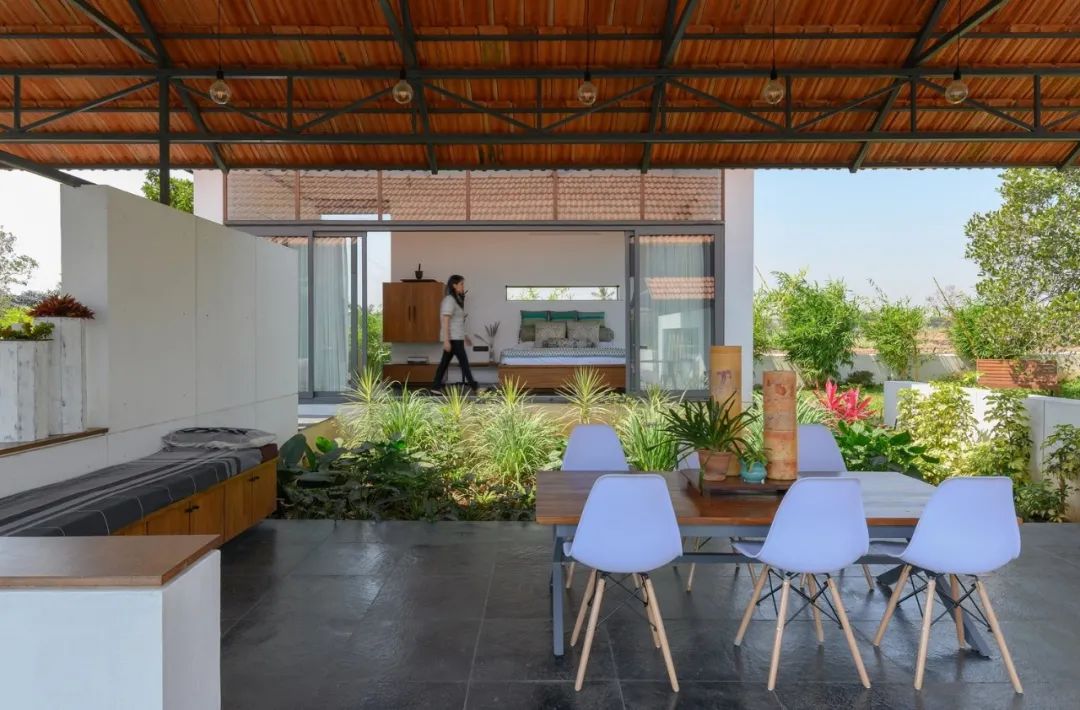

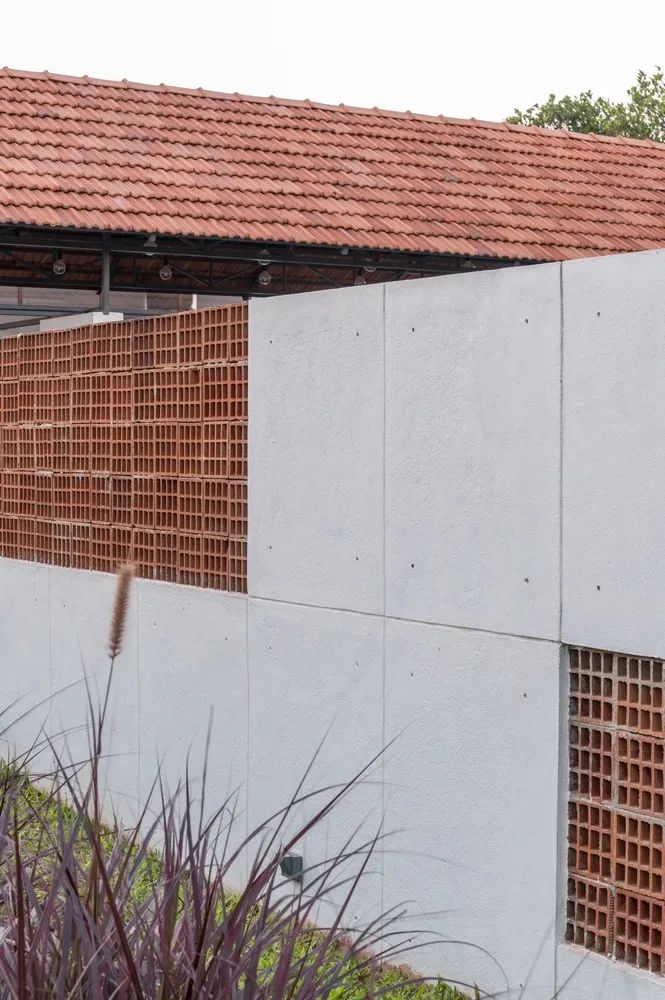

The house disperses within a compounded boundary right in the middle of the fields only to secure its users from the unknown wildlife. As one approaches the east, a large lawn is set around the swimming pool. The pool connects the house at the west end. One can walk barefoot to the house along with the pool over the stone decks or walk along the terracotta jali walls over the landscape. The architectural spaces are built around the central living pavilion. The main living pavilion acts as the deck to the bedroom and the swimming pool on either side, creating a variety of functional spaces.
