最初，度假村是 chalaluck bunnag 先生家人的聚集地。它包括2-3间平房和一间用于家庭聚会的小屋。由于那里的良好气氛，美食和大多数业主的游客喜欢访问那里; 该网站已被重新发展成一个度假胜地。

Originally, the resort was a gathering place for Mr.Chalaluck Bunnag’s family. It consists of 2-3 bungalows and a hut as it is being used for a house party. Due to its good atmosphere, good food and most of the owner’s visitors like to visit there; the site had been redeveloped into a resort.

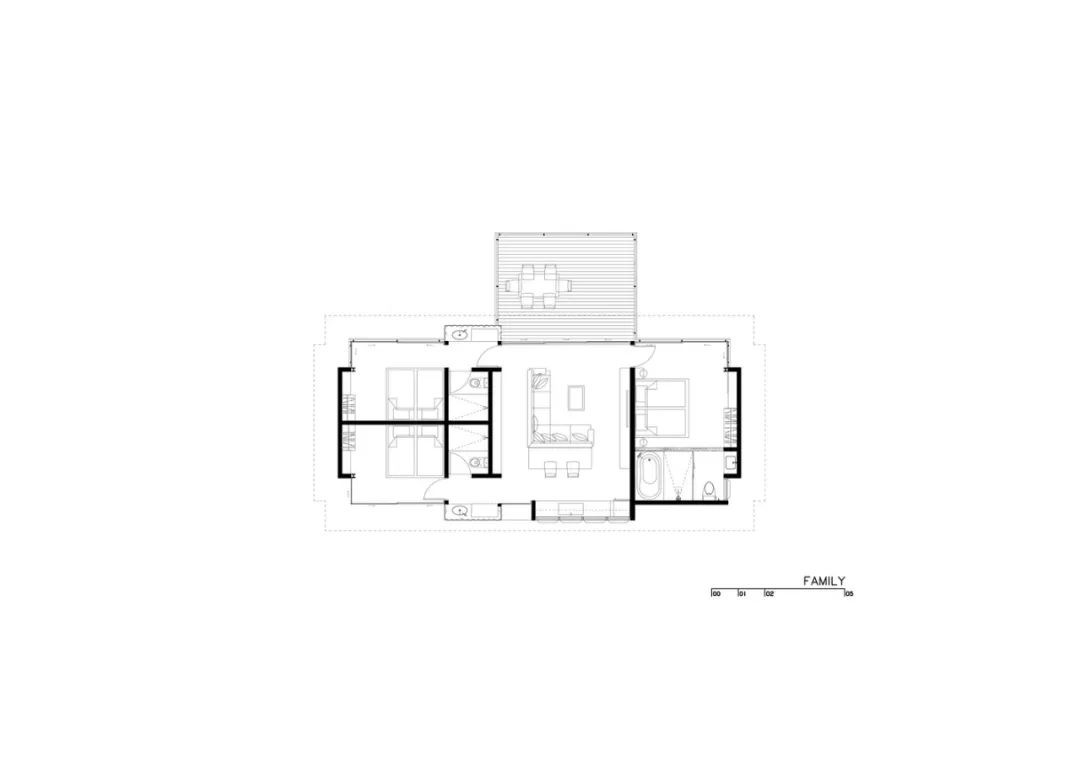

在第一阶段，该公司已被分配设计一个主要(餐厅-大堂-办公室) ，4个平房套房，一个三卧室的家庭平房和2-3个房子的员工和他们的家庭。

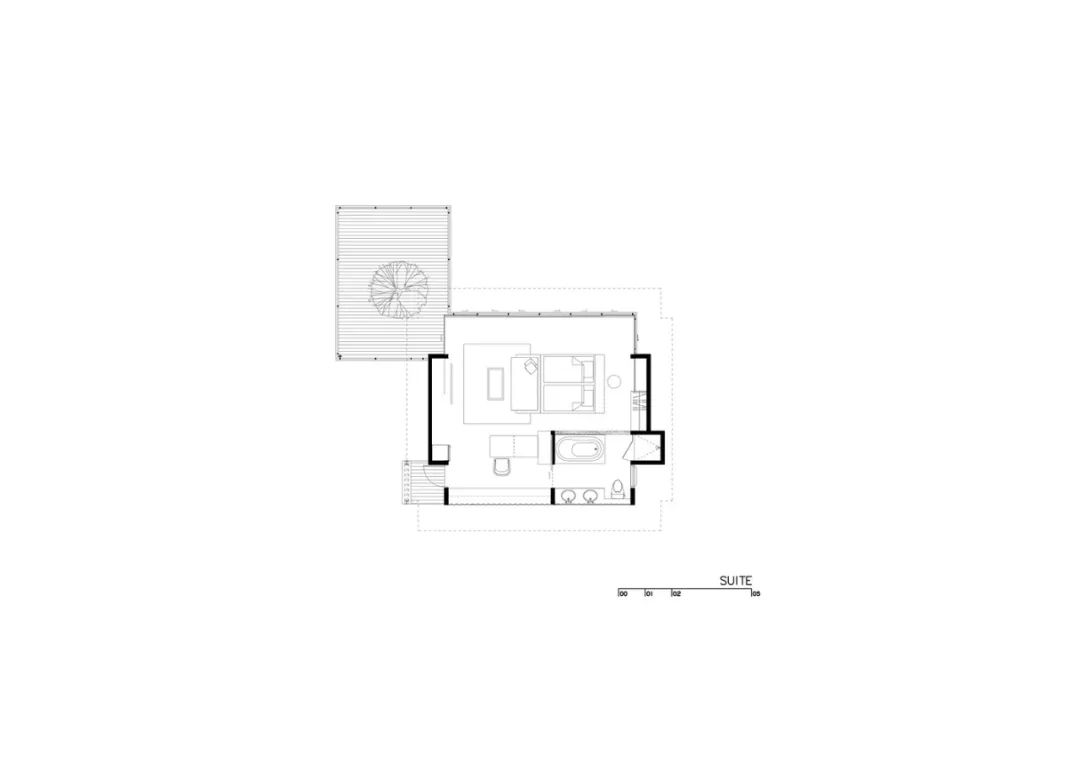

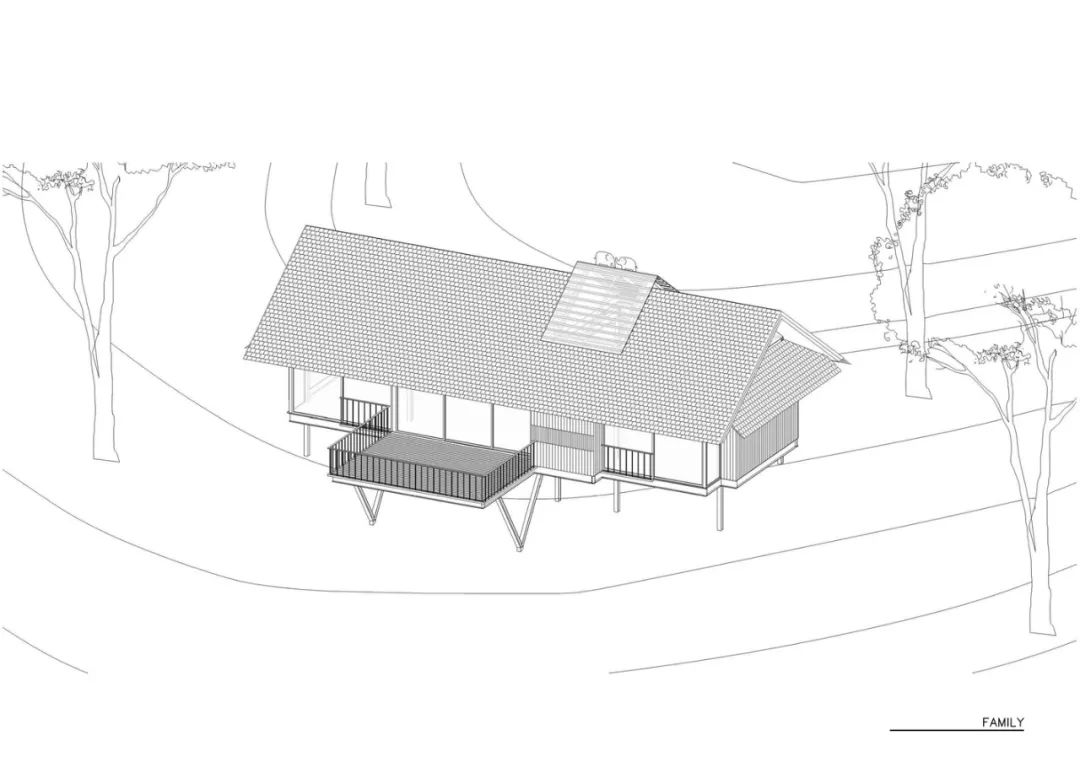

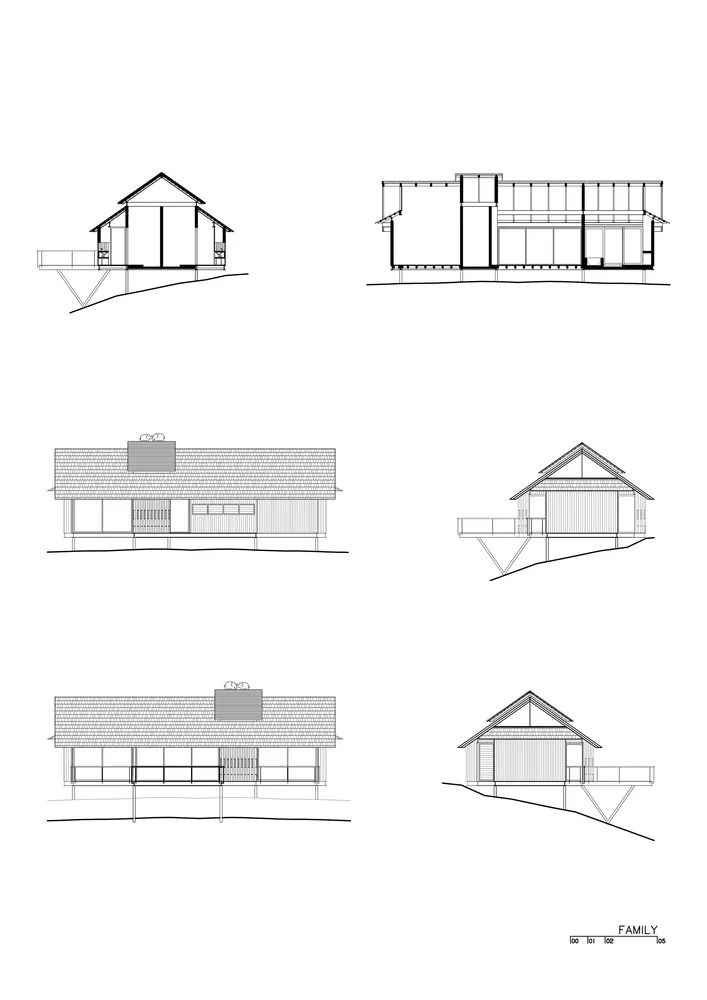

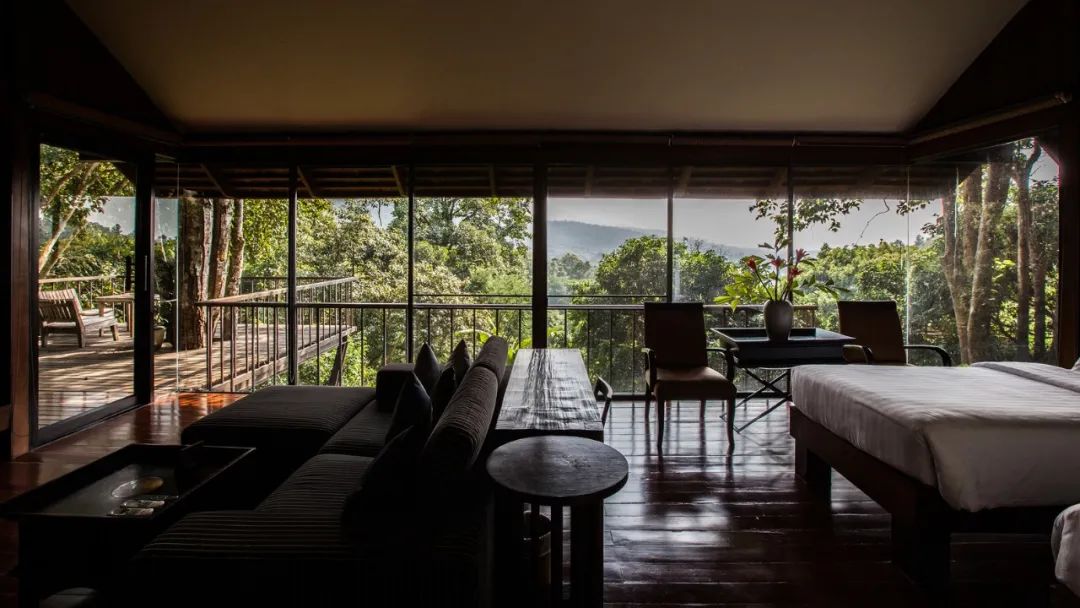

In Phase 1, the firm had been assigned to design a main (restaurant-lobby-office), 4 bungalow suites, a three-bedroom family bungalow and 2-3 houses for employees and their families.

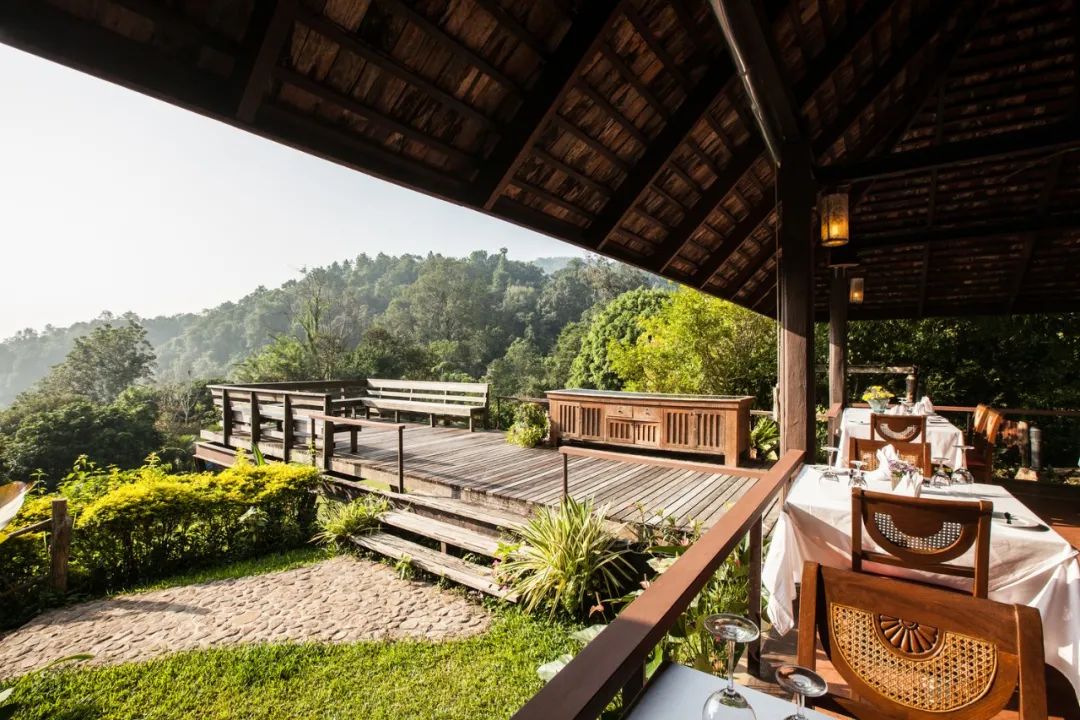

这个项目开始的时候，把那个腐朽的小屋拆了，改建成了一个餐馆。它坐落在同一个地点，这是一个很好的地方迎接游客，并捕捉更广泛的视角。新建筑保留了原来小屋的设计，反映了北部暹罗山地部落的乡土建筑，但空间更大。

The project started by pulling down the decayed hut and rebuilt it as a restaurant. It was located on the same spot which was a good place to greet visitors and to capture a wider angle of view. The new building kept the original design of the old hut which reflected northern Siamese vernacular architecture of hill tribes looks but with a larger space.

建筑的布局是通过精心规划的测量网格和精确定位来完成的，目的是为了设计和定位建筑物，以容纳现有的树木，如龙眼树和喜马拉雅野樱桃: prunus，并创造多视点建筑设计。

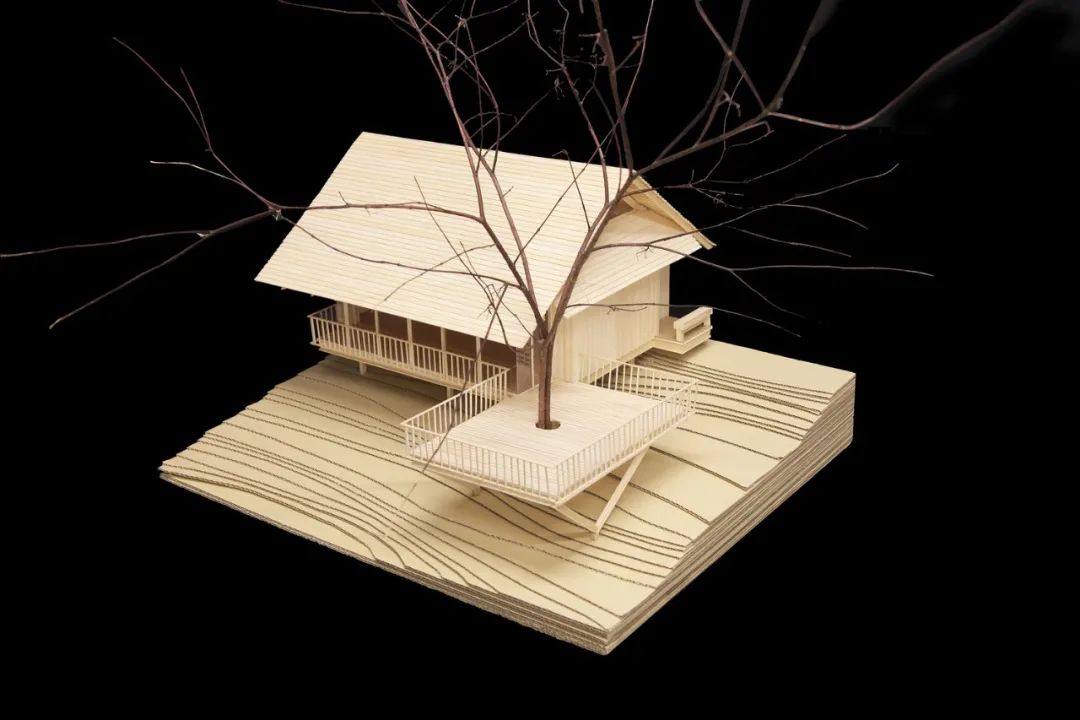

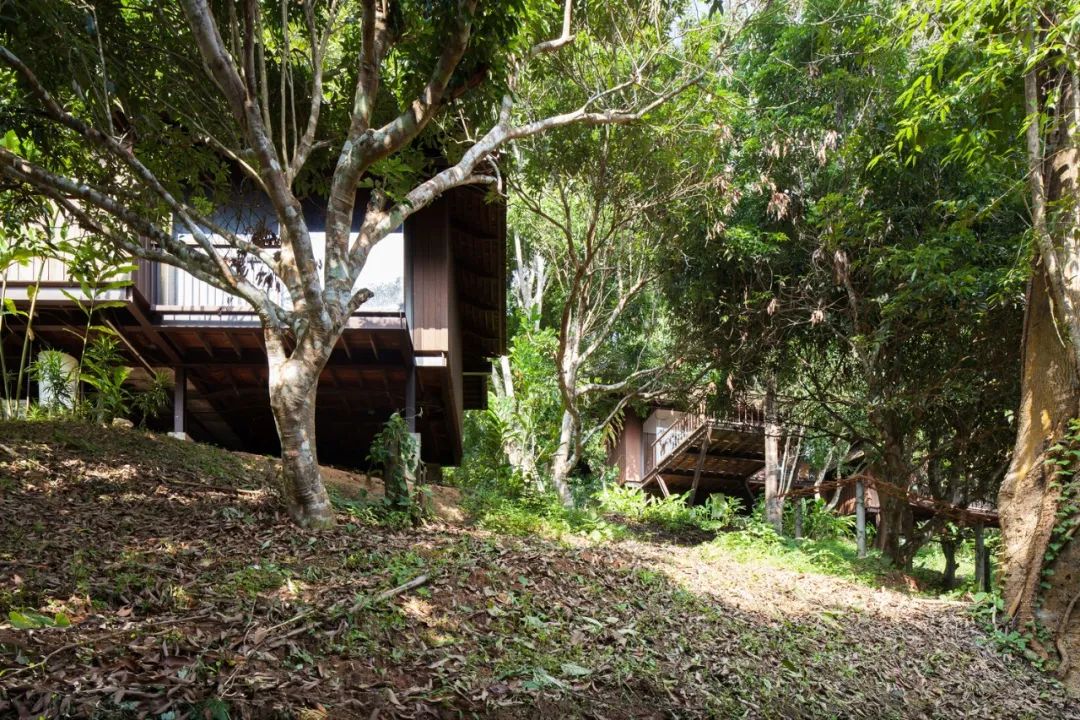

The layout of the buildings was done by a carefully planned survey grid and precision positioning in order to design and locate the buildings to accommodate existing trees such as Longan tree and Wild Himalayan Cherry:Prunus, and to create multi- viewpoint architectural design.

喜欢 glenn murcutt 在偏远地区的工作技巧。建筑师和主要承包商不得不与当地的木匠一起进行木工作坊，他们将在完成最终的建筑施工图之前完成该项目，这非常有助于在没有互联网信号的情况下进行远距离通信(场地位于远离城镇的山上)和不同语言的建筑师，说当地部落语言的建筑师和木匠。由于工地位于陡峭的山坡上，很难将建筑材料运往工地。因此，建筑施工过程涉及使用干法材料，如结构框架，屋顶和墙壁。建筑的主体结构、柱子和梁由小型钢构件构成，允许大跨度结构和悬臂，并与其他原材料混合，如木墙和木瓦。餐厅阳台的承重柱和平房套房设计成 v 字形，使建筑物感觉更轻盈、更有活力。在山坡上使用钢结构的好处是，建筑工人可以很方便地携带一两件建筑物到工地，使建筑物在短时间内完成得更快。墙壁，地板和屋顶是由木材发展与当地的工匠船舶技能。

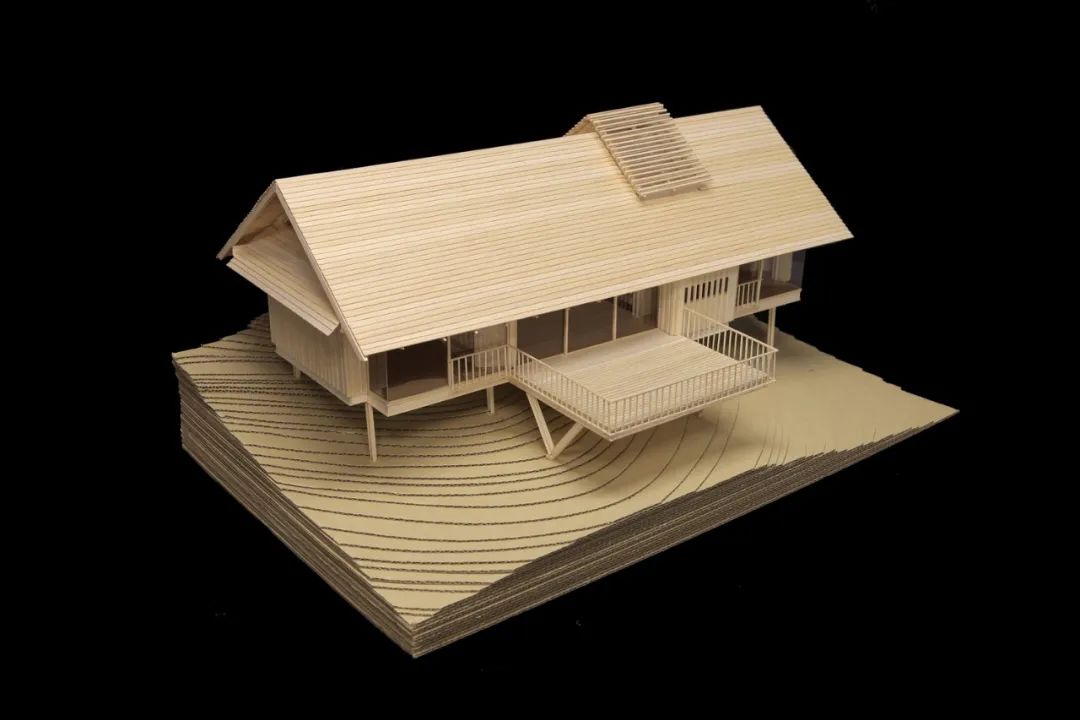

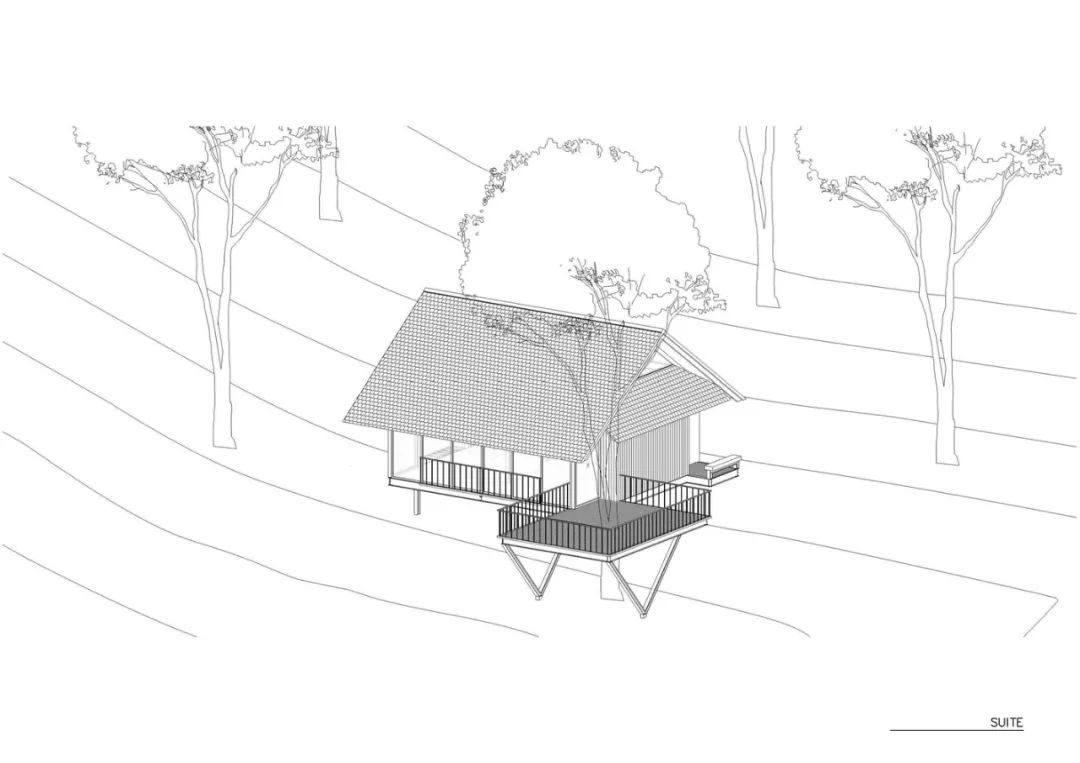

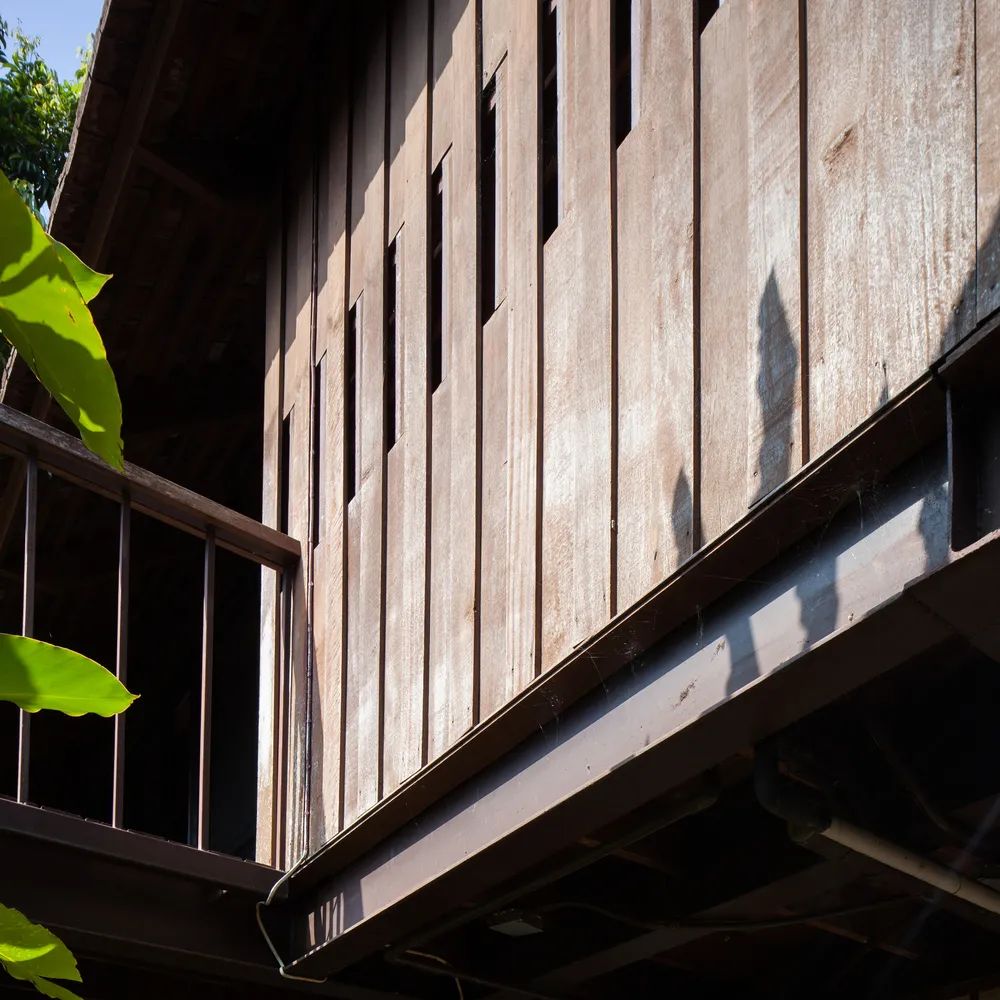

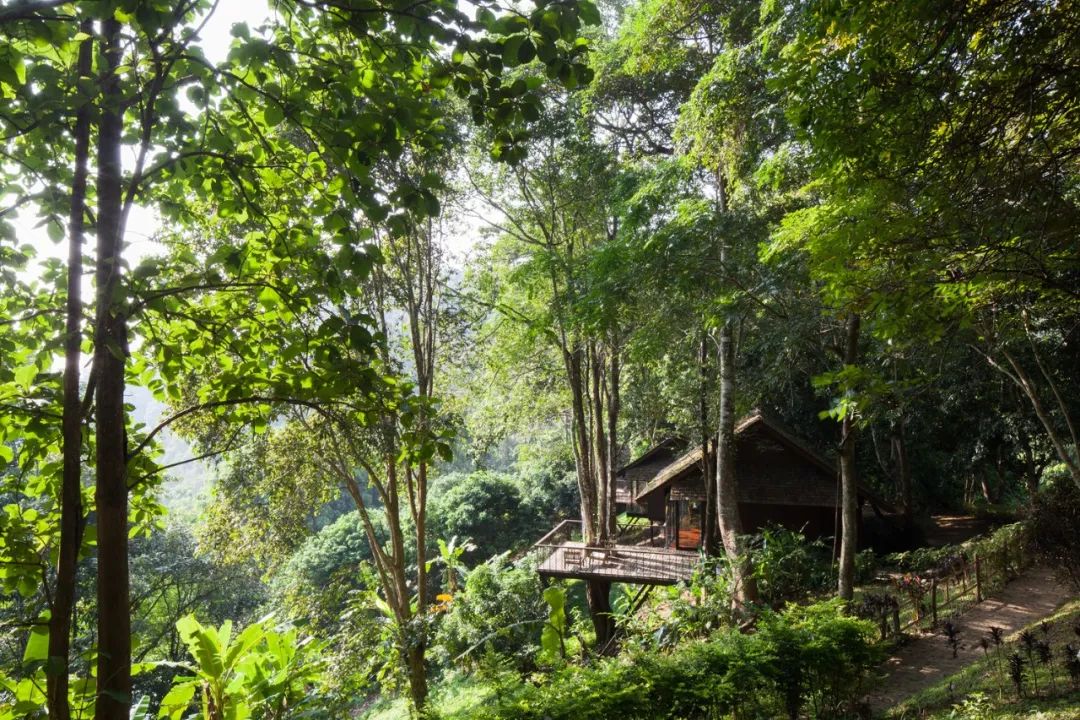

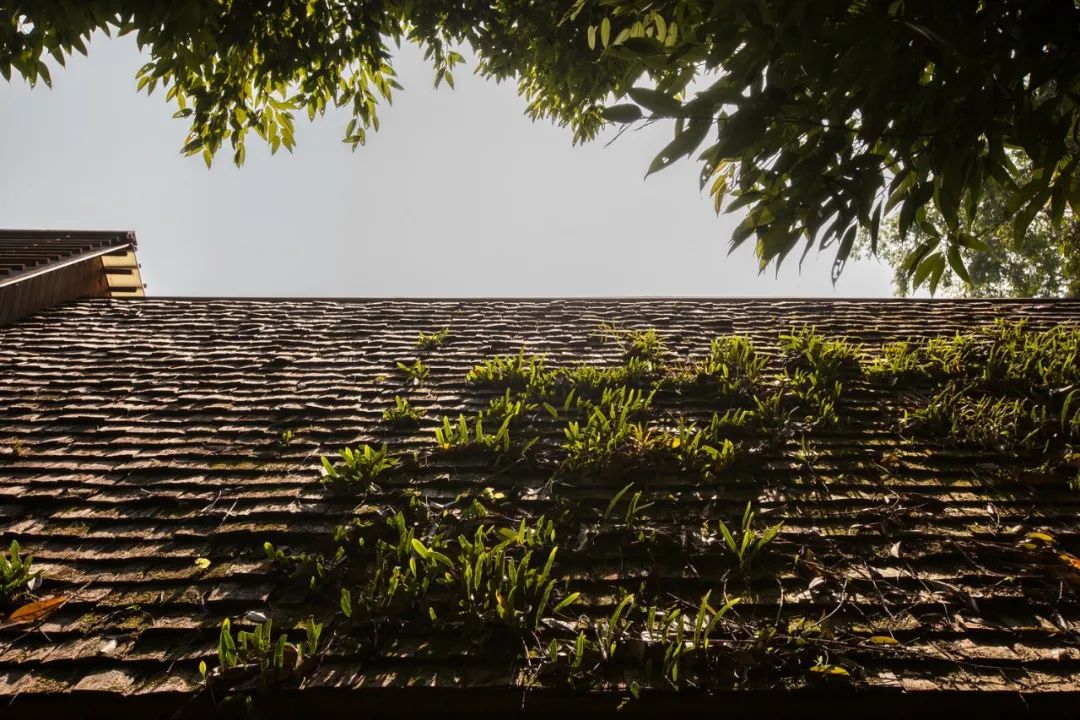

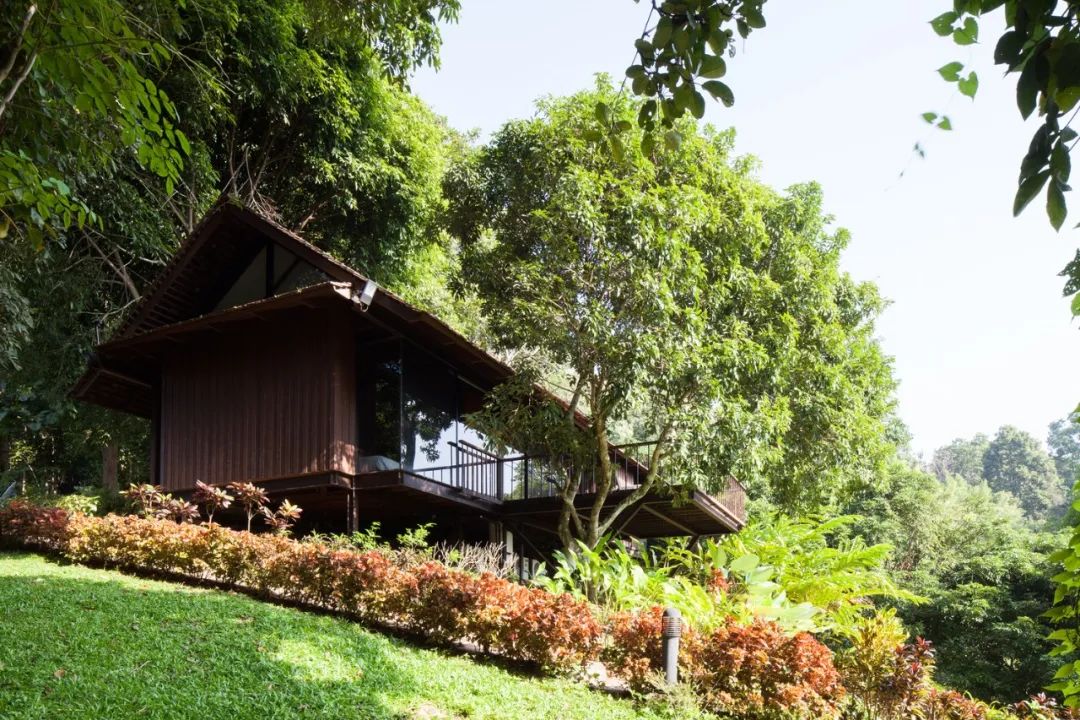

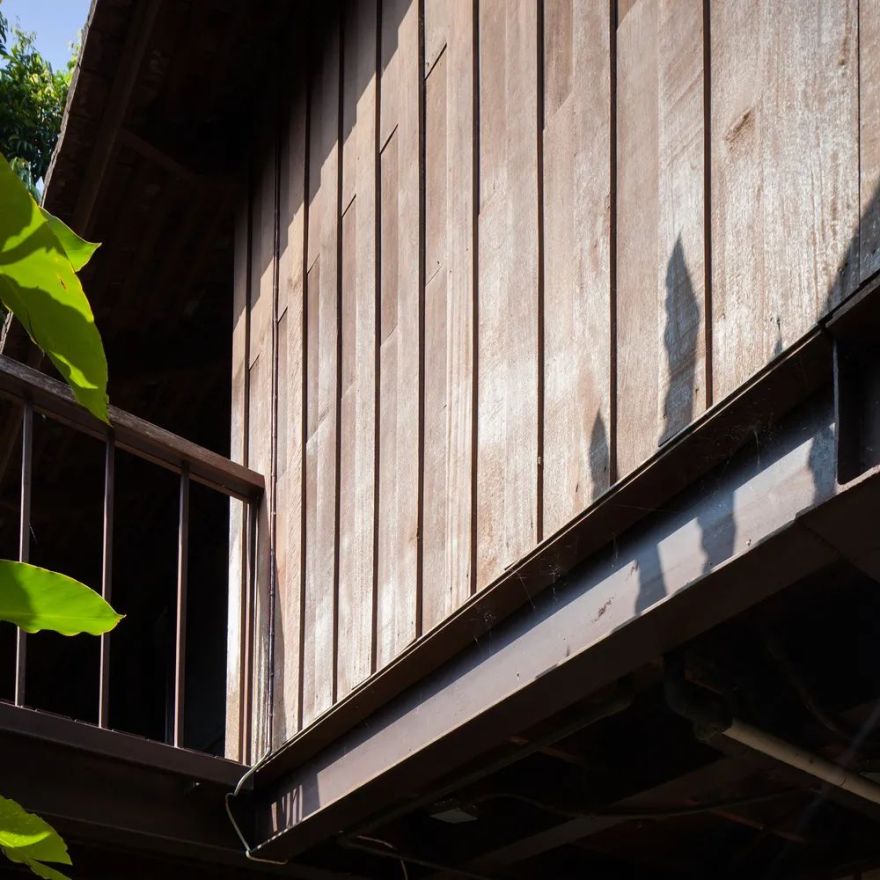

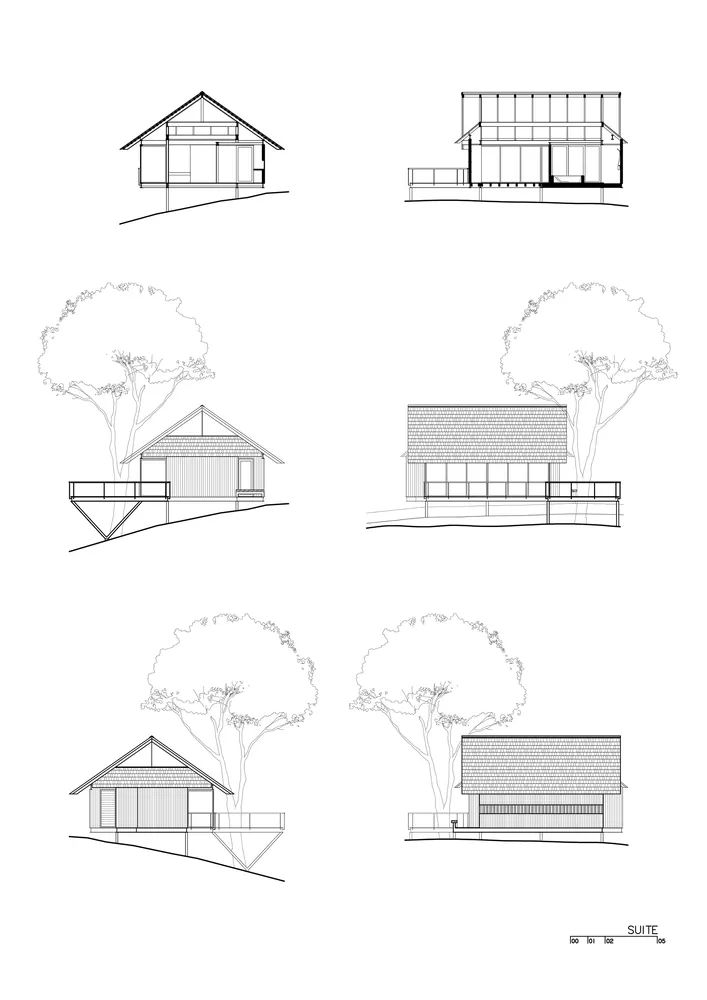

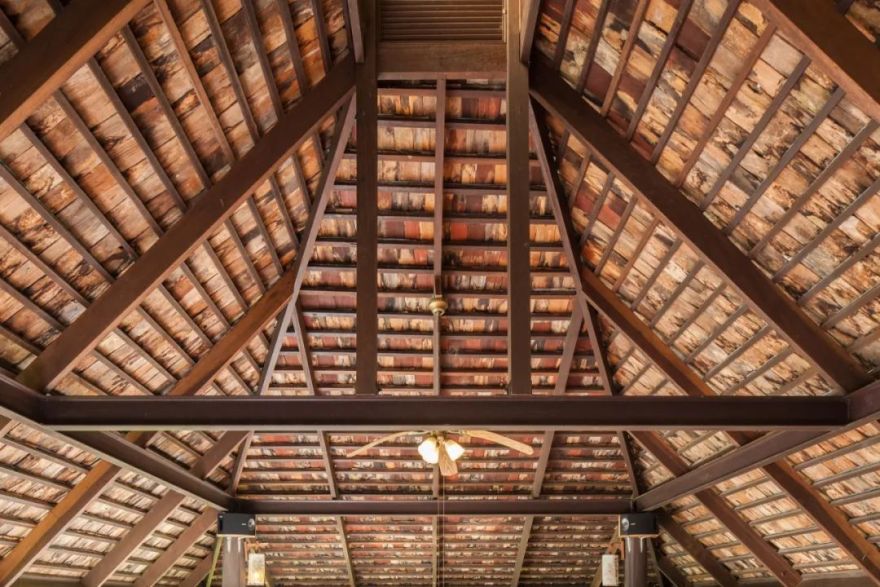

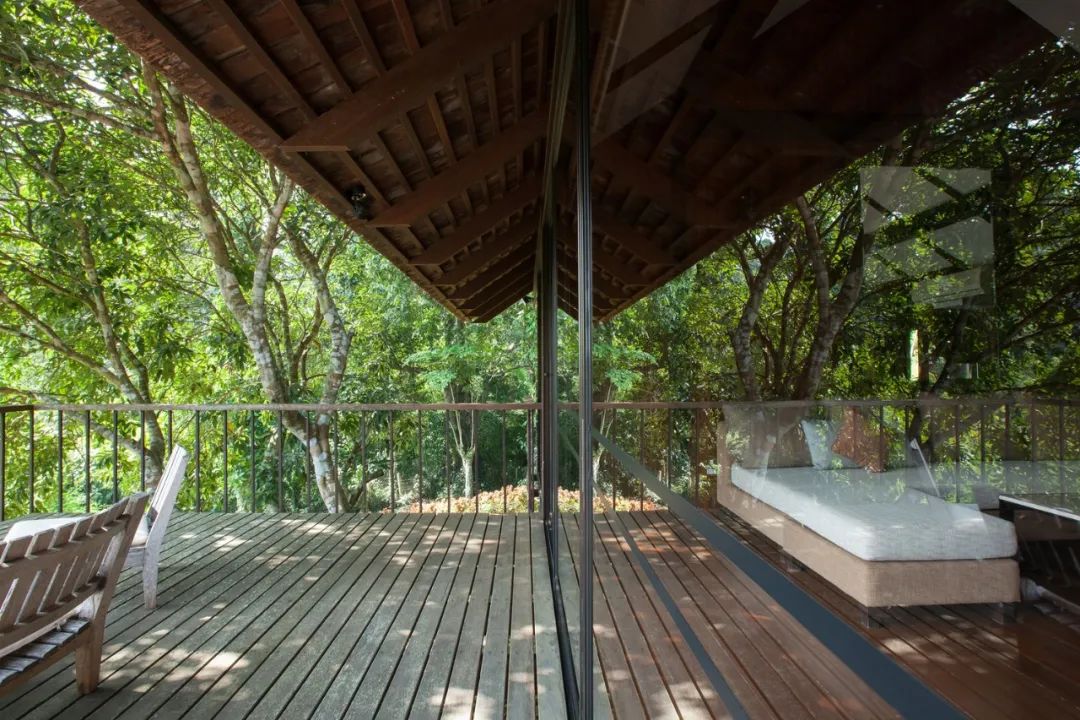

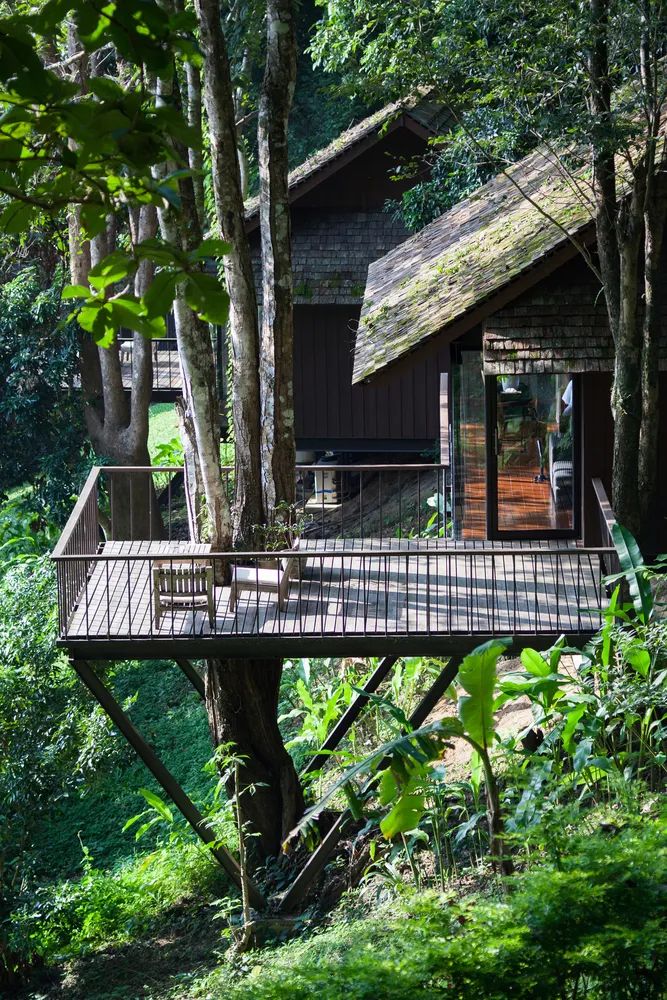

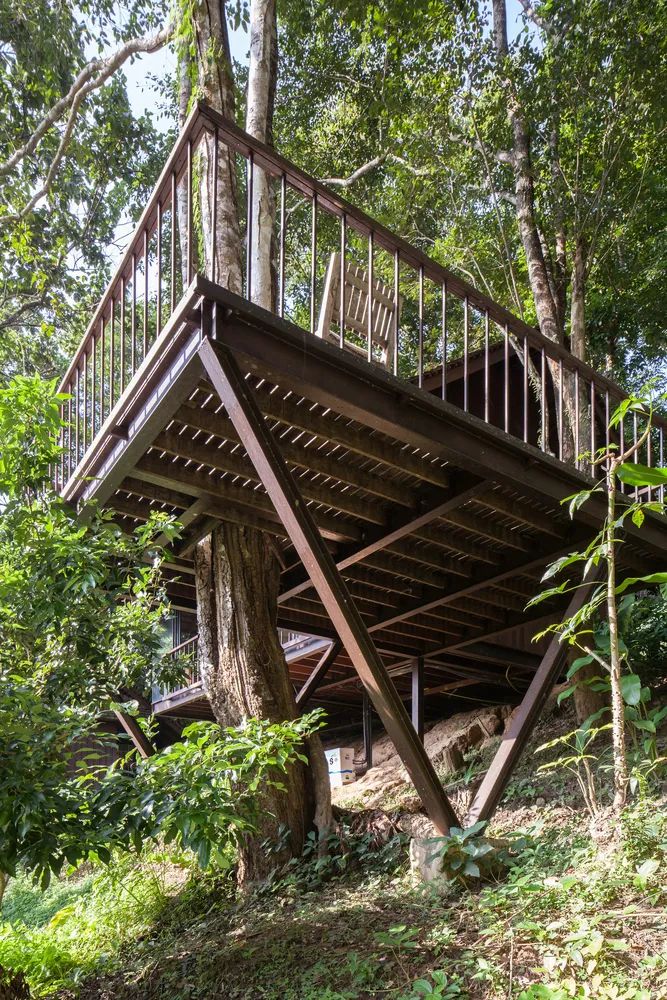

Liked Glenn Murcutt’s working technique on remote sites. Architects and the main contractor had to do wood work workshop with local carpenters who were going to carry on the project before to finish the final architectural construction drawing which very help long distance communication with no internet signal (The site is located on the hill which far from town) and different language architect, the builders and carpenter who speak local tribes language). Because the site was located on a hill steep slope, it was difficult to transport building materials to site. Therefore, the building construction process involved the use of dry process materials, such as structural frames, roof and wall. The main structure of the building, columns and beams were made of small steel members, which allowed a long span structure and cantilever and blended in with other raw materials, such as wooden wall and wood shingle. Load-bearing columns of the balcony of the restaurant and the bungalow suite were designed to have a v-shaped in order to make buildings feel lighter and more dynamic. The advantage of using steel structure on a hill slope was that it was very convenience for the construction workers to carry a piece or two to the site which made the building finished faster and in a short time period. Wall, Flooring and Roofing were made from wood which developed with local craftsman ship skill.
