在湖边露营地，帐篷和小屋露营地，已经被证明是吸引人的地方，女童子军开始着手增加一种不同的庇护所。他们想要树屋，唤起冒险的感觉，幻想，在高耸的后院和森林度假中找到的快乐。格雷厄姆营地新的36人营地由一系列沿着木材边缘的杆状结构组成，由一条蜿蜒在原生树木树干之间的高架路连接。建造树屋的挑战是在不损害树木的情况下建造，并且扩大到所有露营者。

At a lakeside camp, where tented and cabin campsites are proven attractions, the Girl Scouts set out to add a different sort of shelter. They wanted treehouses, something to evoke the sense of adventure, fantasy, delight found in the lofty constructs of backyards and forest getaways. The new 36-person site at Camp Graham consists of a series of pole structures along the wood’s edge, linked by an elevated path that winds among the trunks of the native trees. The challenge in treehouse making is to build without doing harm to the trees, and to extend access to all campers.

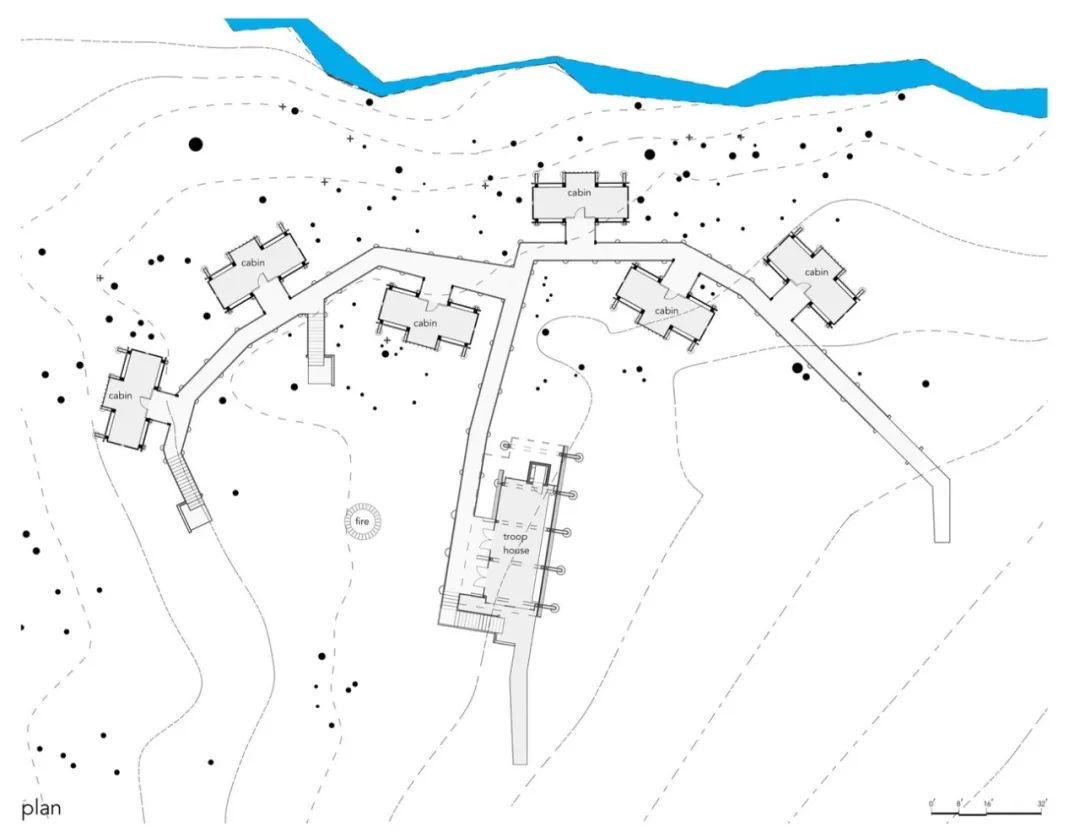

营地规划图Camp Plan

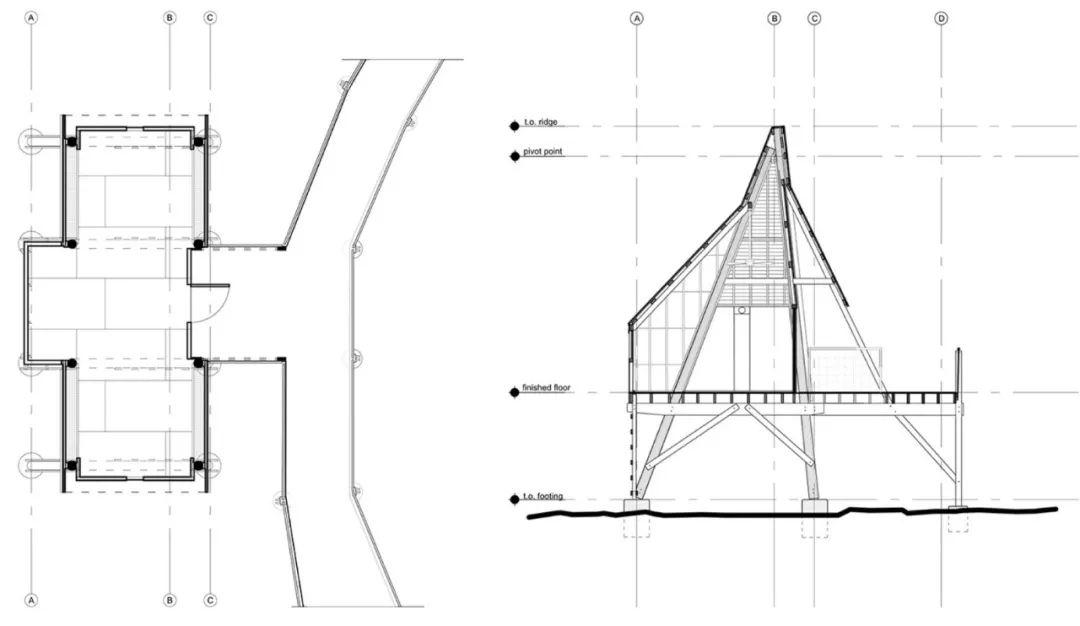

三角木屋尺寸图Floor plan of a log cabin

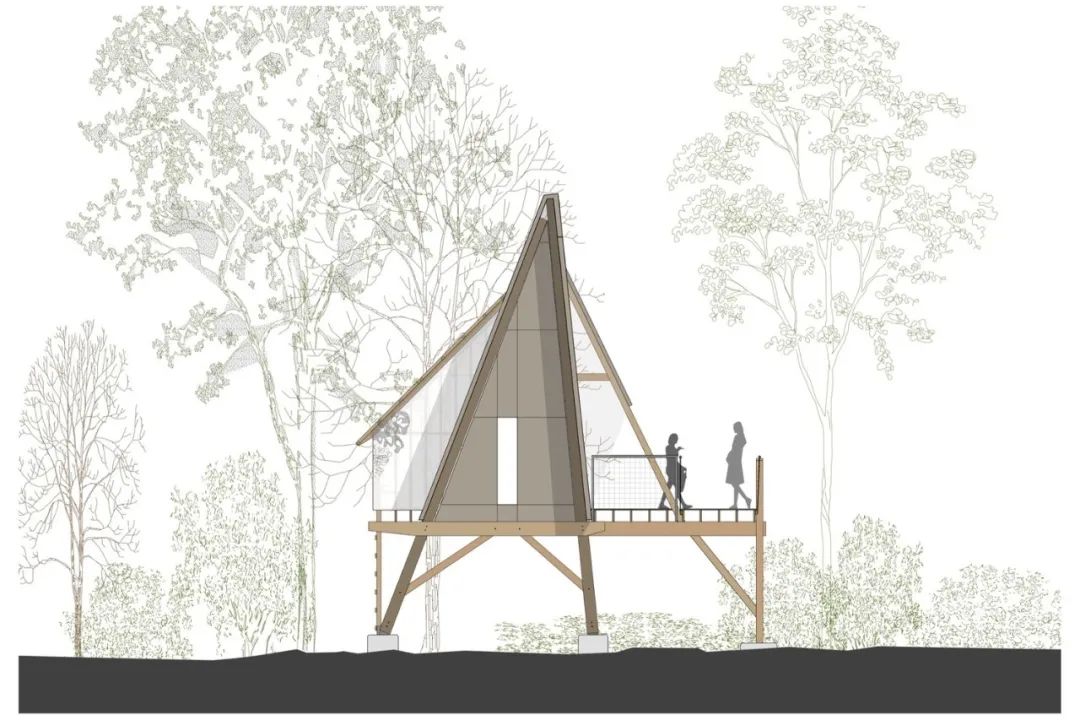

立面效果图Façade rendering

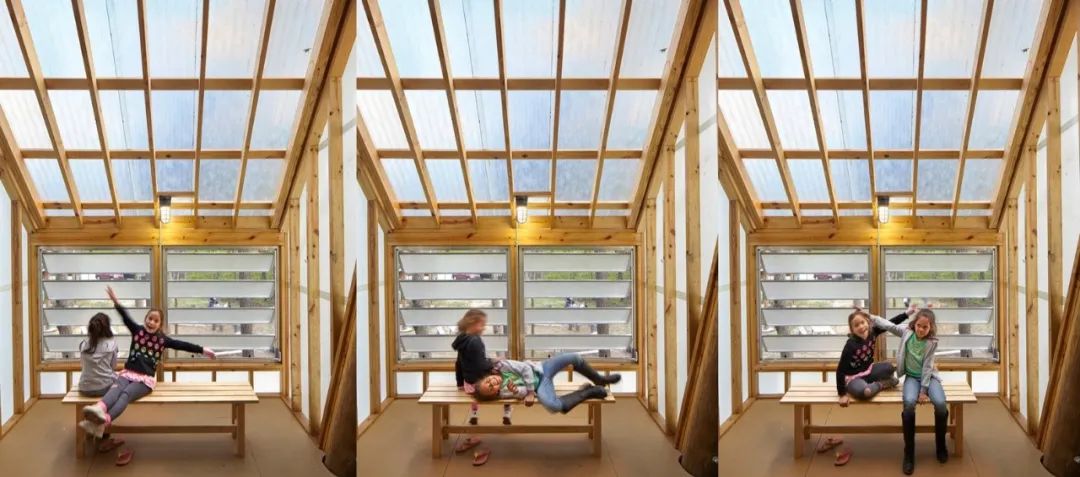

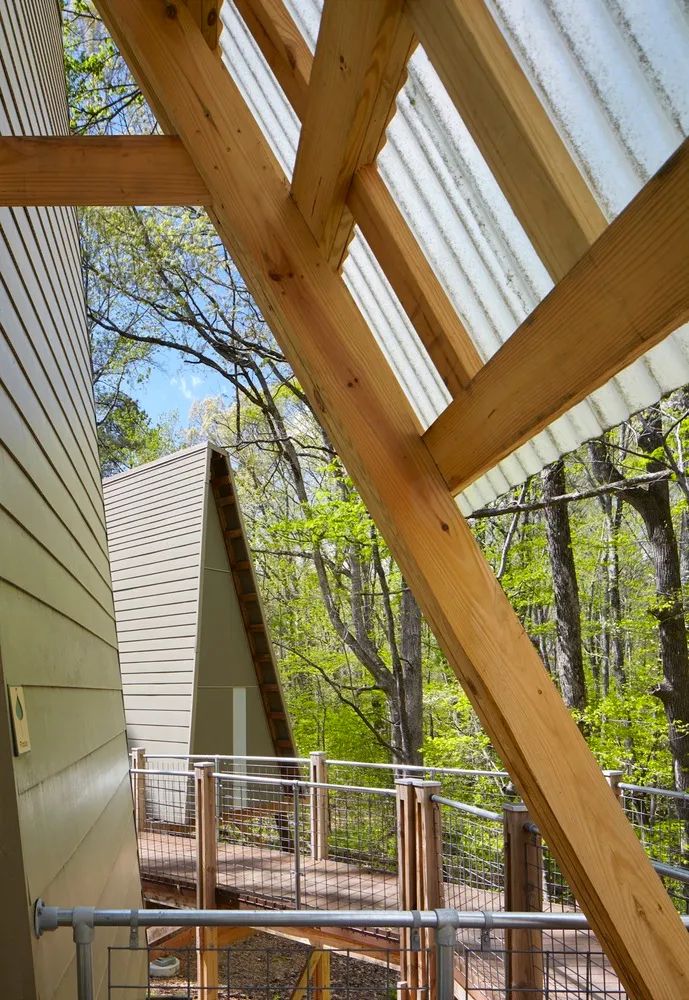

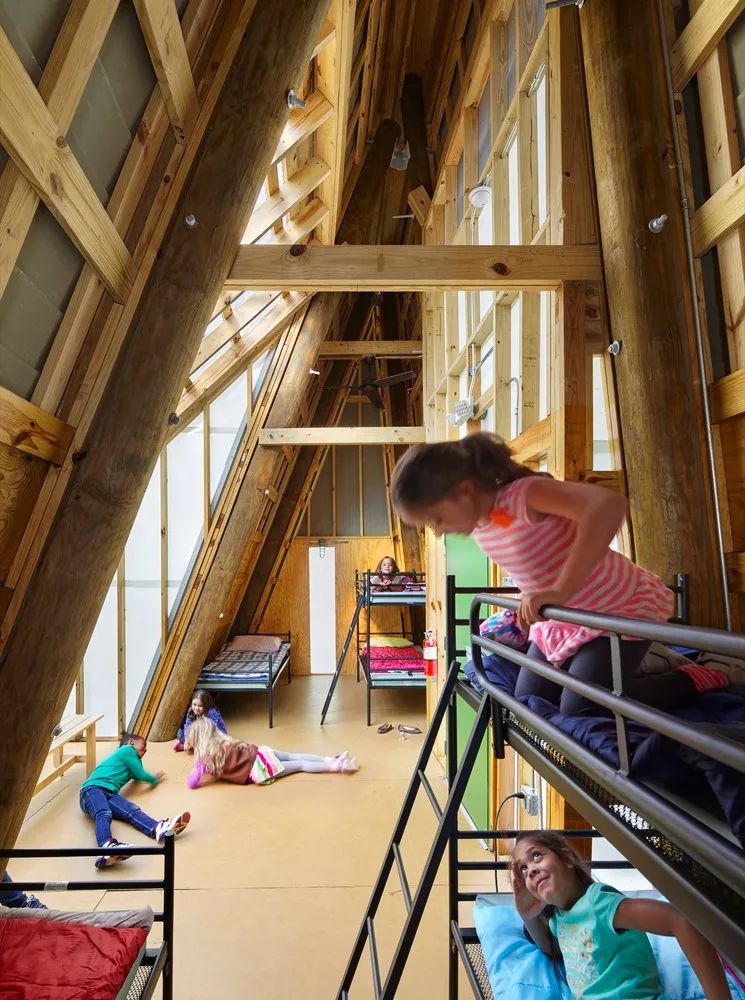

格雷厄姆营地的结构由高高的木杆支撑，木杆轻轻地接触地面。它们在周围不规则的树干间互相倾斜，成为森林的一部分。这些框架被结合了固体和半透明材料的檐篷所覆盖，这些檐篷开玩笑地捕捉或传输穿过自然树冠的斑驳阳光。每个全天候庇护所可以容纳6个露营者，包括床和床，每个都有一个中央空间，一个可以嬉戏的地方。木架的形状在头顶上空翱翔，伸向周围的树枝。端板和地板的边缘停止短，使筛选槽自然通风的空间。

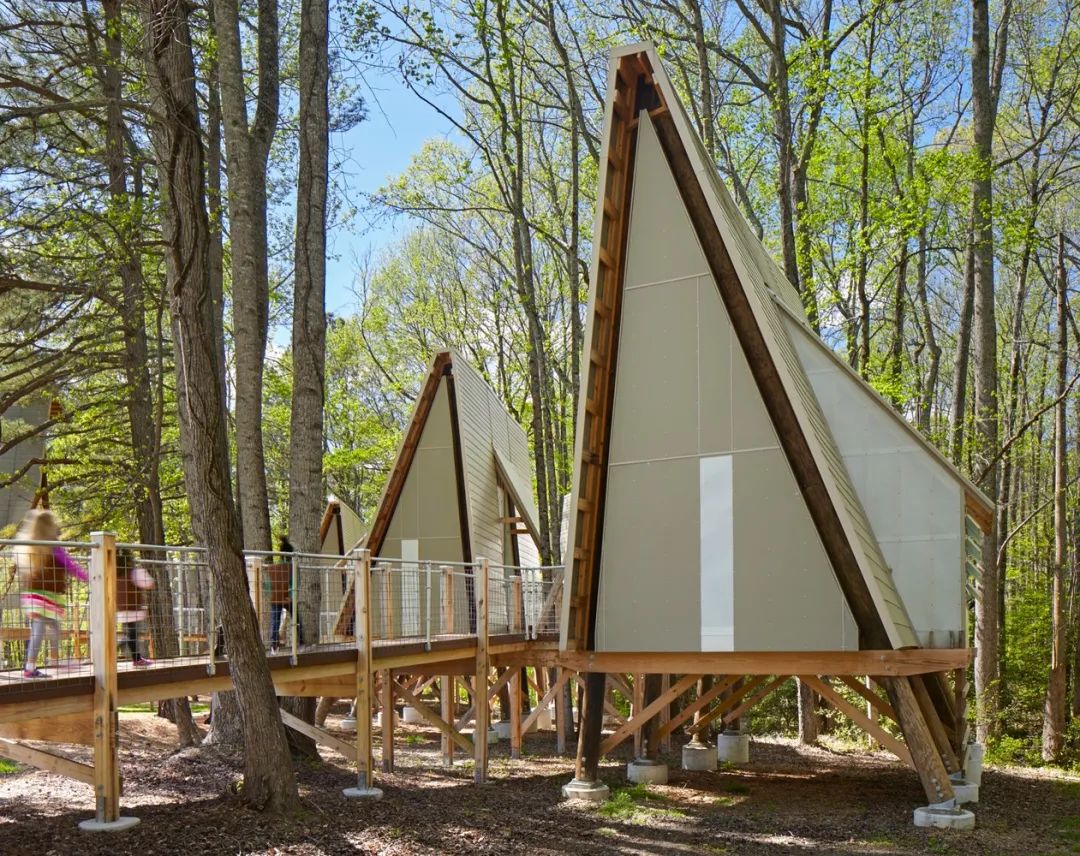

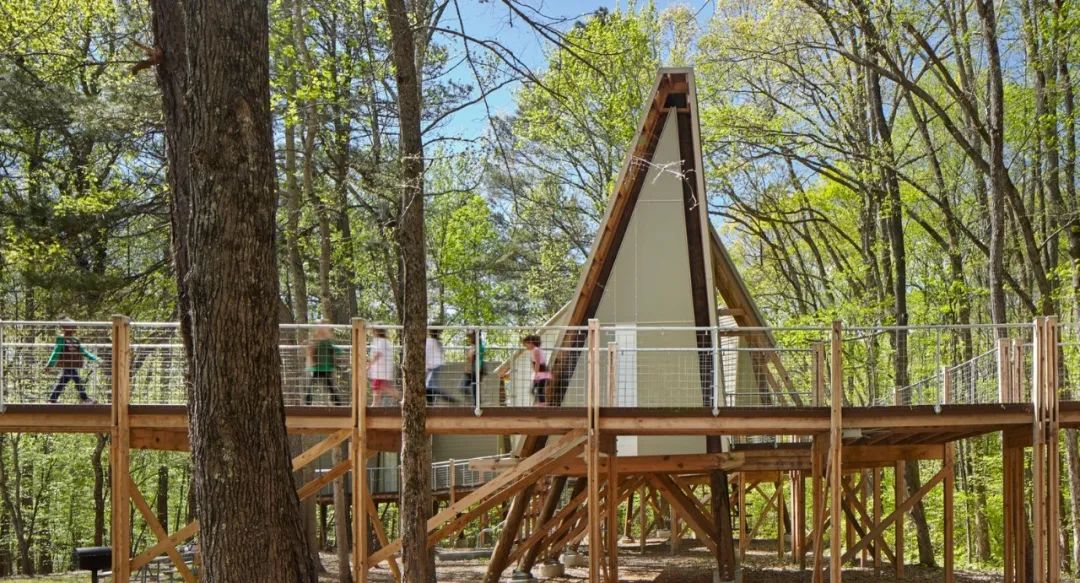

The Camp Graham structures are supported on tall wood poles that lightly touch the ground. They lean toward one another amid the surrounding, irregular tree trunks, becoming part of the forest. These frames are draped in canopies that combine both solid and translucent materials, which playfully catch or transmit the dappled sunlight that makes its way through the natural tree canopy. Each of the all-weather shelters accommodates six campers in bunks and cots, and each one includes a daylit central core, a place for playful mingling. The stick-framed forms soar overhead, reaching up to the branches of the trees that surround. The edges of end panels and floor boards stop short, allowing screened slots to naturally ventilate the space.

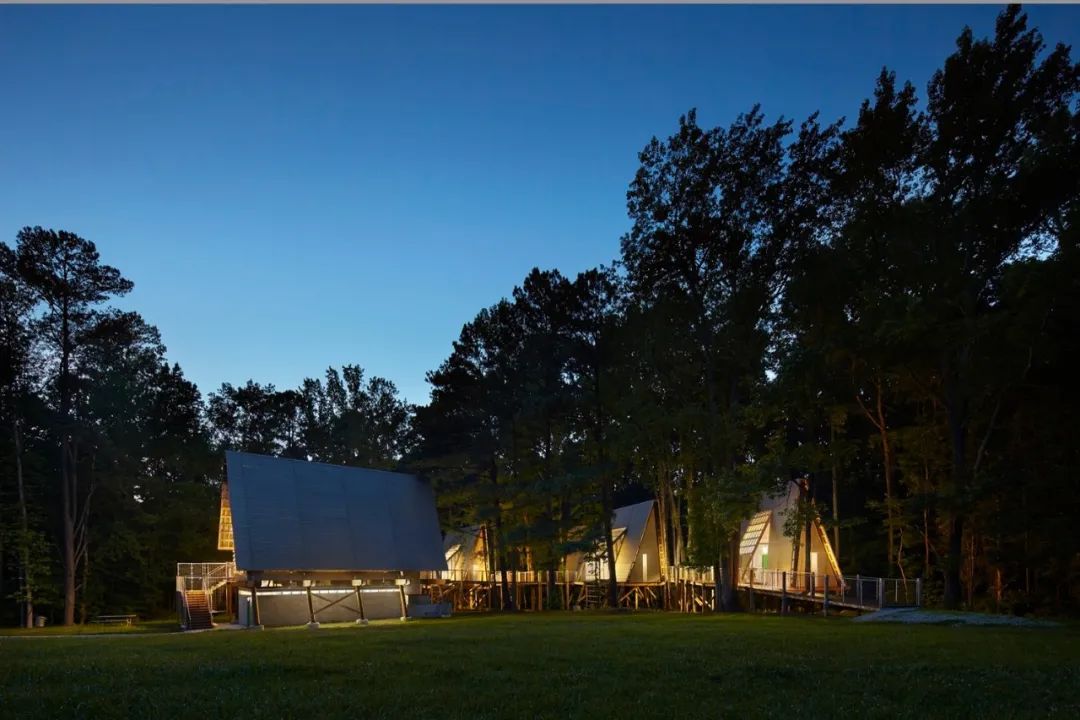

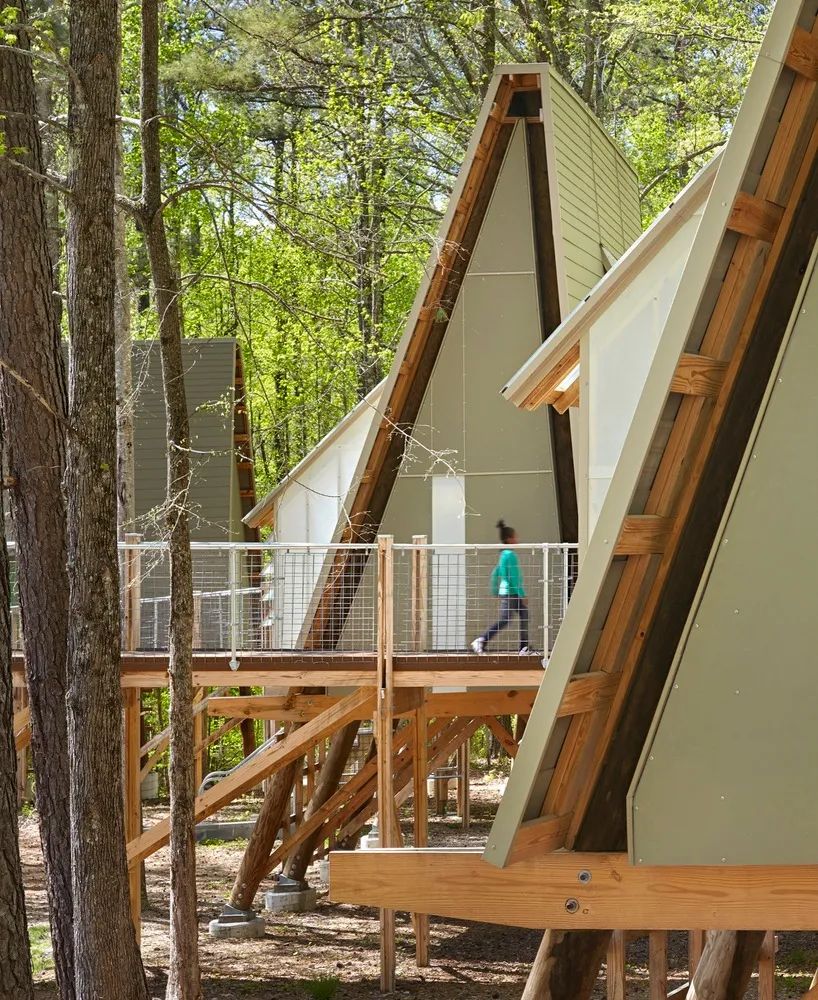

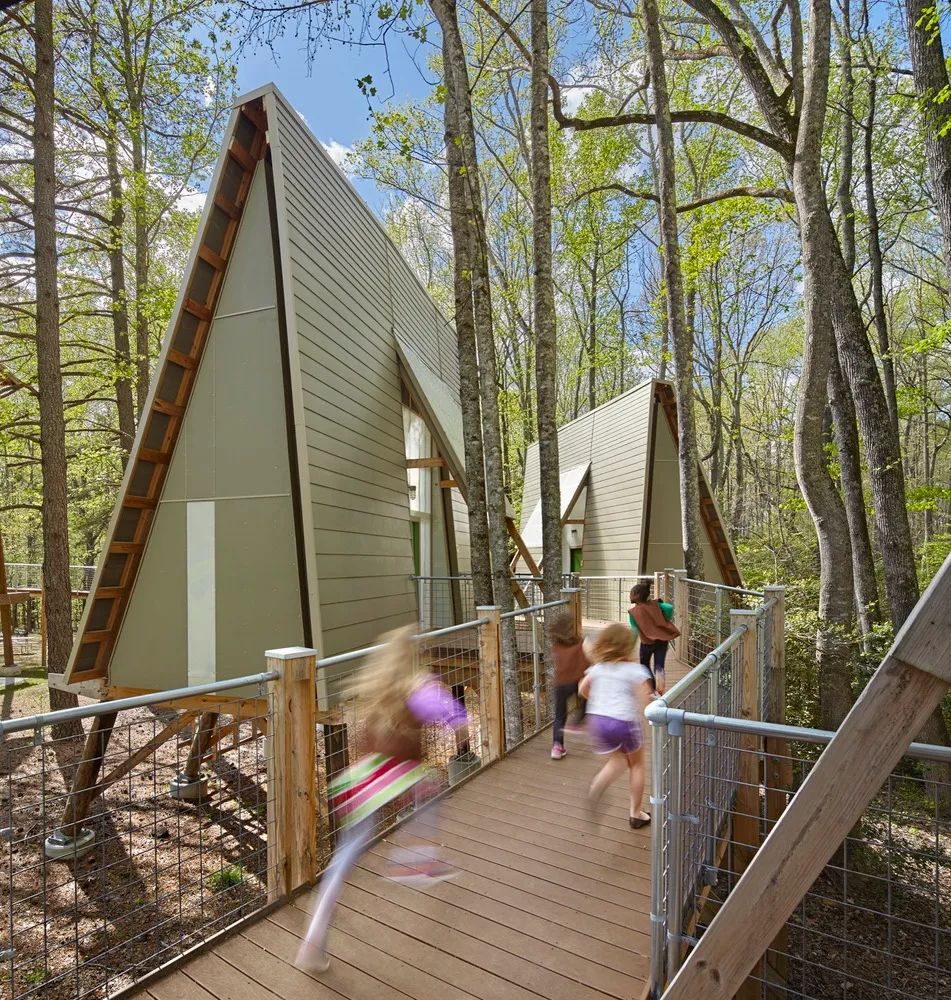

连接路径从地面开始，缓缓上升，蜿蜒穿过树林。镀锌钢丝农场围栏最大限度地减少了围墙的感觉，并促进了高度感，是在地面上，在树上。高架人行道连接了所有六个睡觉的掩体，并通向共同的军营，位于地势低的地方，可以用来淋浴和储藏。楼梯和升降椅提供了直接通道，连接部队和森林地面，同时也为中央火堆提供了位置，这是湖边所有营地的一个特色。

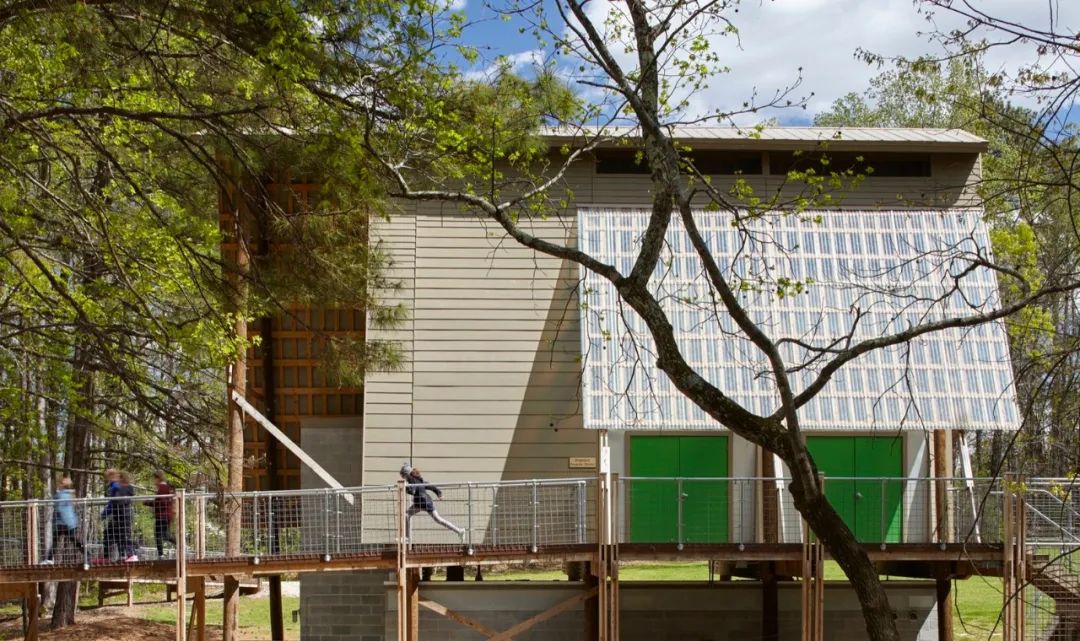

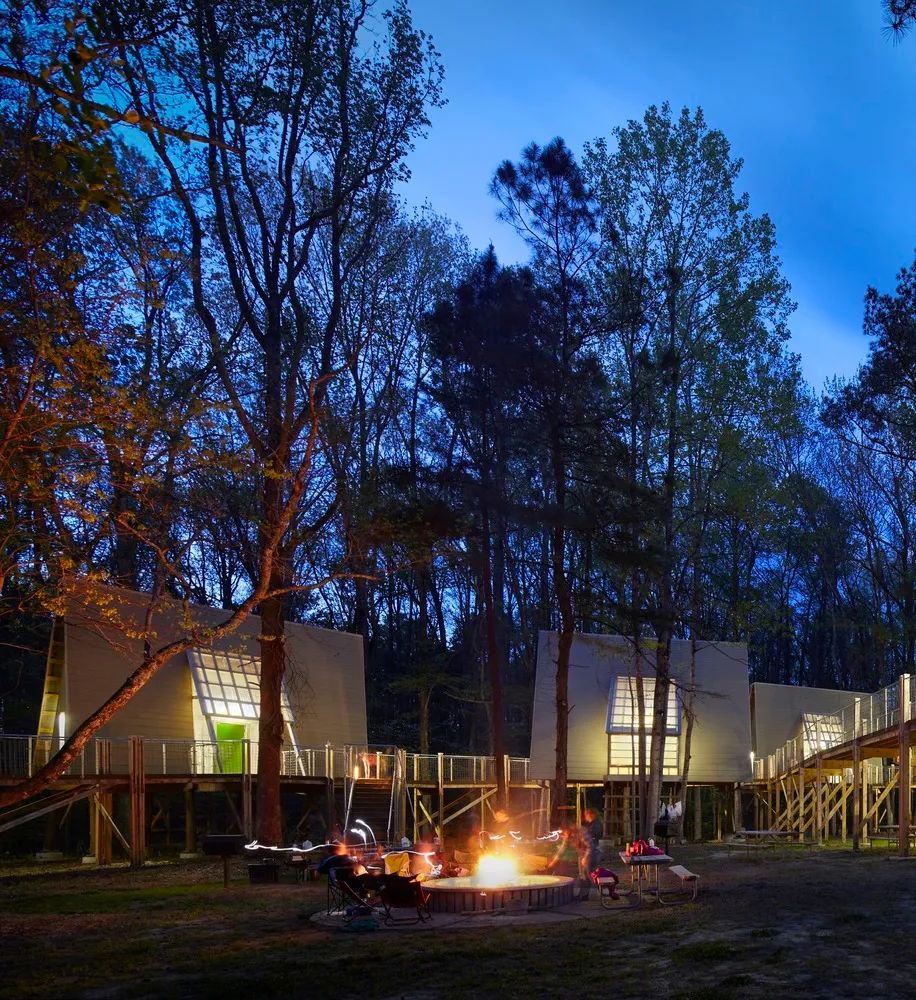

The connecting path begins at grade, rises gently and meanders a near-level course through the trees. Galvanized wire farm fencing minimizes the feeling of enclosure and promotes a sense of height, of being above the ground, in the trees. The elevated walk connects all six sleeping shelters and leads to the common troop house, located where the falling terrain allows a lower level for showers and storage. Stairs and a chair lift provide direct access between the troop level and the forest floor, which also provides location for the central firepit that is a feature of all the encampments at the lake.

产品说明。倾斜的框架是建立在相同的简单电线杆最常用的基础设施。这些杆子和它们站立的树木很相配。作为一种产品，电线杆既经济又容易获得，长度达到所需的45英尺。为了将柱子和地基连接起来，工人们在现场锯开钢板的缝隙，将结构固定在一起。

Product Description. The lean-to frame is built with the same simple utility poles used most commonly as infrastructure. These poles fit comfortably among the trees with which they stand. As a product, the poles were economical and readily available up to the 45’ length required. To join the poles to the foundation, workmen on site saw kerfs for the steel plates which pin the structure together.
