波斯波利斯入口亭是一个200平方米的开放空间，多功能亭位于伊朗著名的波斯波利斯世界遗产入口处。找形过程是由一个间接建模算法指导，处理空间的轴线在其核心，由我们的团队开发，间接指导找形和几何。通过这种策略，“中间表面”是通过控制轴线得到的，这消除了对表面的几何形状的直接控制。

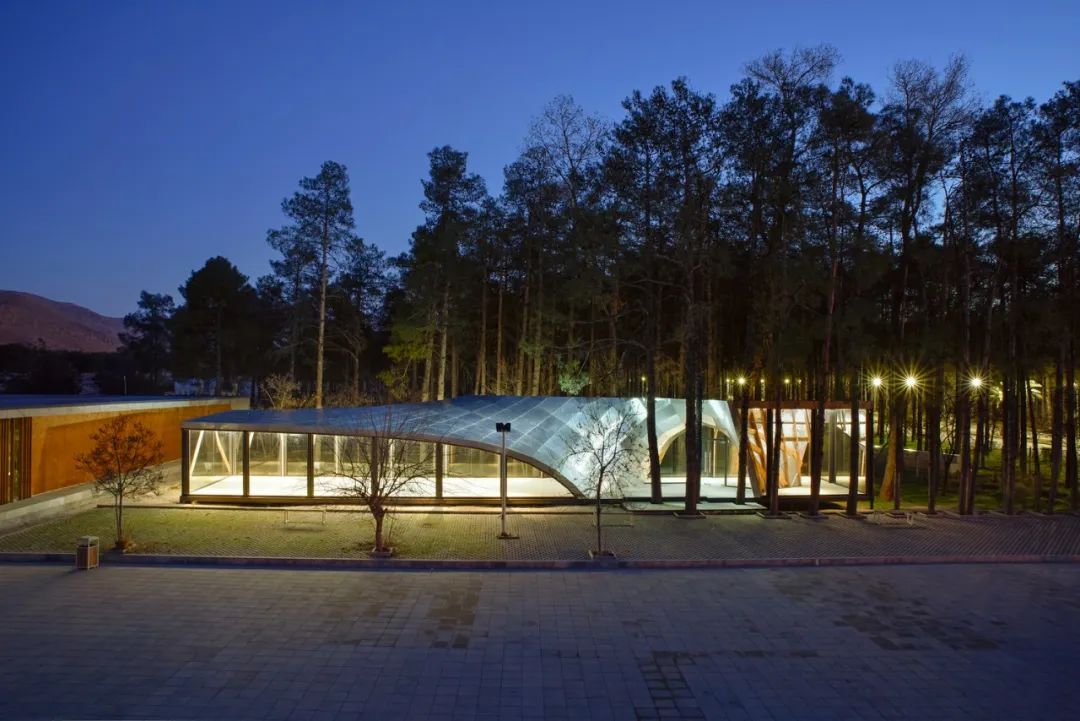

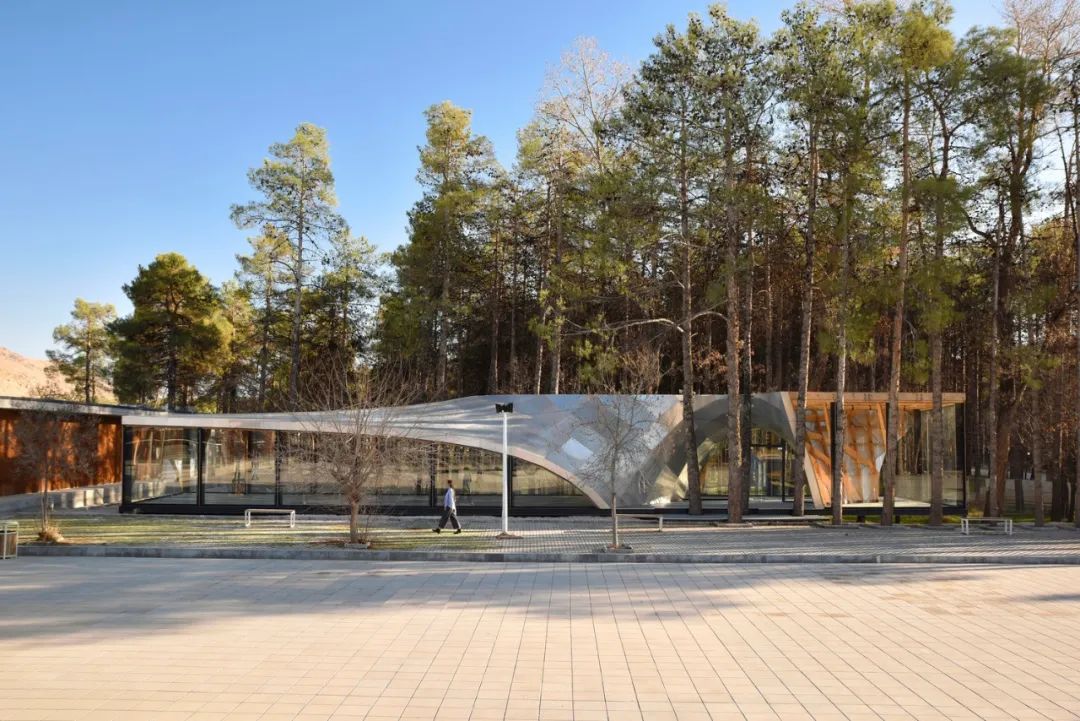

Persepolis Entrance Pavilion is a 200 sqm open-space, multi-functional pavilion located at the entrance of Iran’s renown UNESCO World Heritage Site, The Persepolis. The form finding process is guided by an indirect modelling algorithm dealing with axial lines of the space at its core, developed by our team which indirectly guides form finding and geometry. Through this strategy, "Medial Surfaces" are derived by controlling axial lines which eliminates direct control over the surface's geometry.

该方法产生的双曲面将空间划分为3个主要区域: 入口、贵宾室和主厅，这是该项目的核心部分，为各种文化活动，如展览、讲座、图书出版活动等提供了一个聚集区。

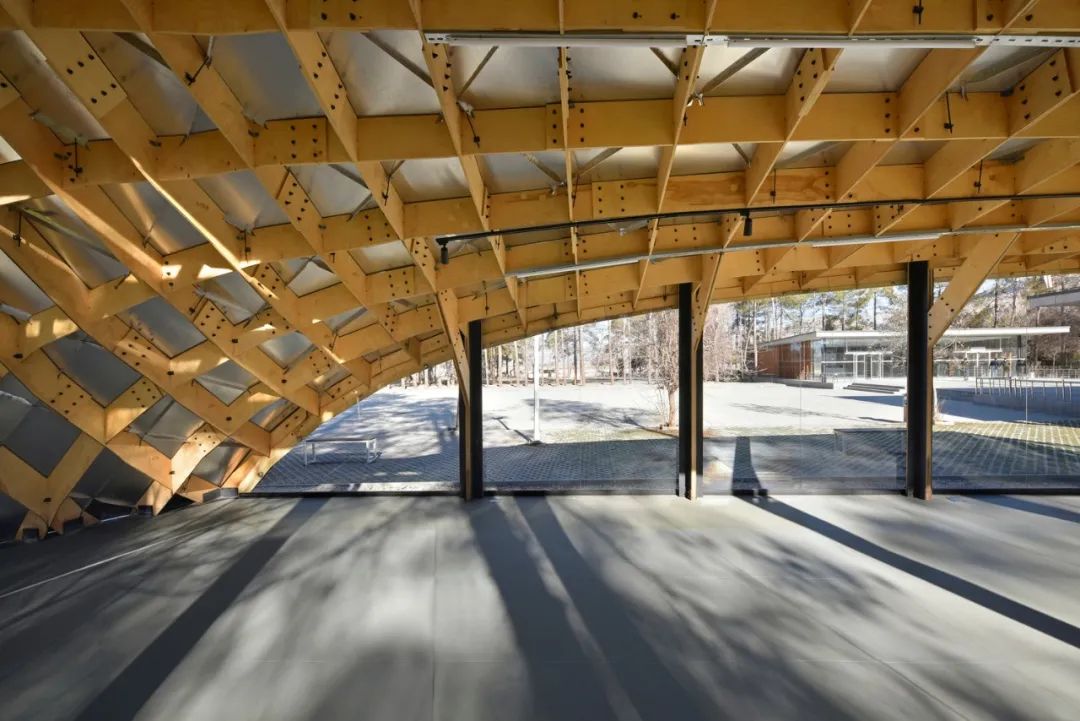

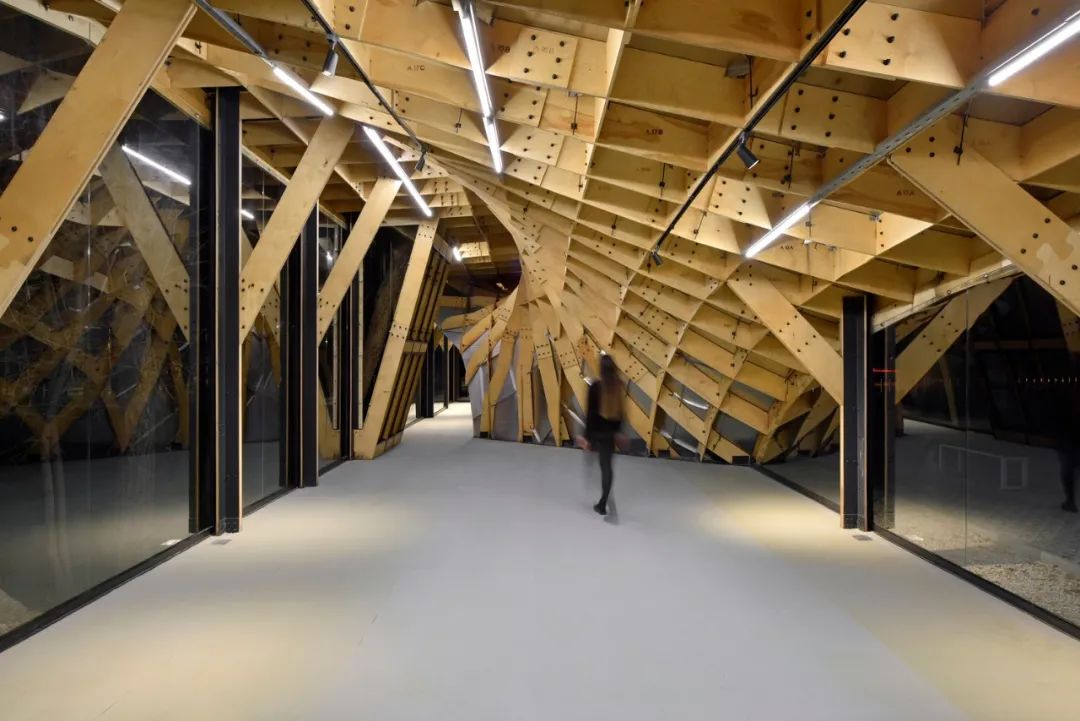

The doubly curved surface produced by this method divides the space into 3 main zones: the entrance, a VIP room for guests and the main hall, which is the core part of the project and provides a gathering area for a variety of cultural events, such as exhibitions, lectures, book publishing events, etc.

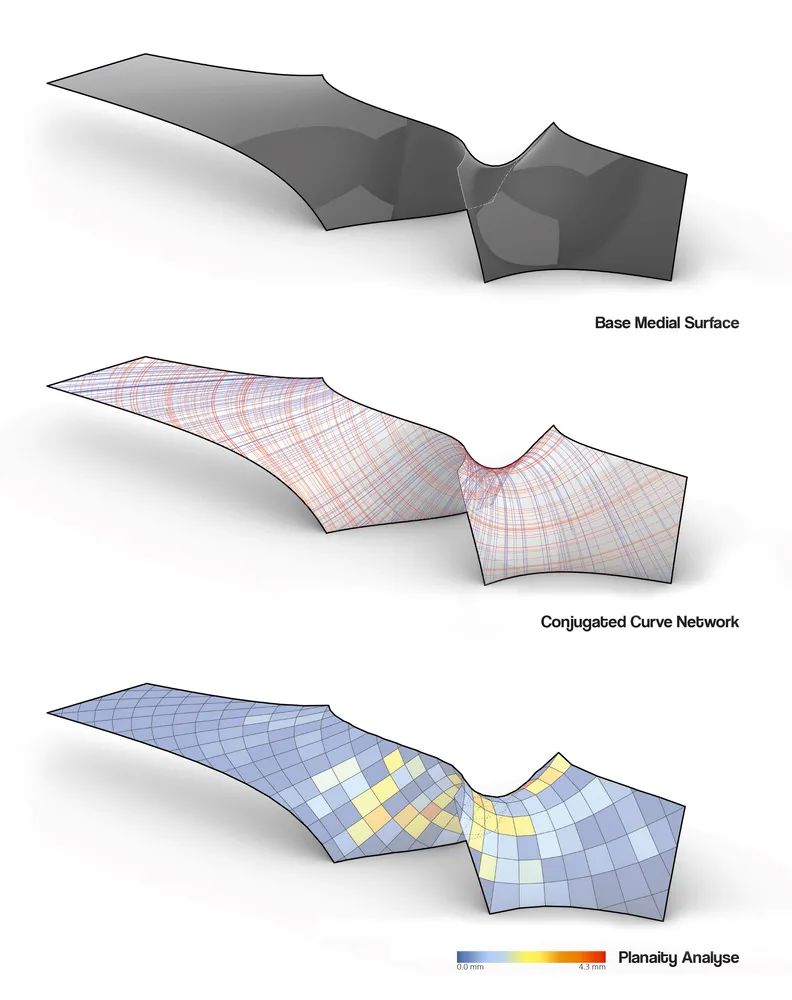

从一个合理化的方法，双曲面被转换成平面四面板简单的可施工性，以响应有限的执行预算。通过提取拟极小曲面的共轭线网络并连接相交节点，定义了一组平面四胞体。这些平面四边形是用铝板材料制成的，用激光切割板材，然后用数控折弯机折边。

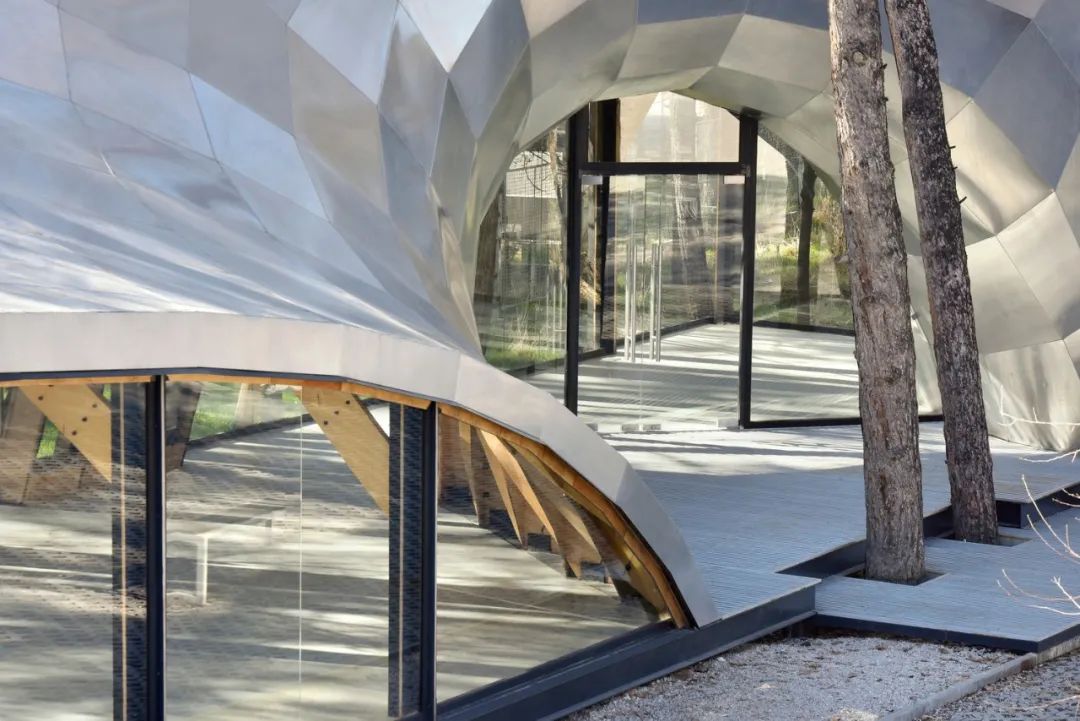

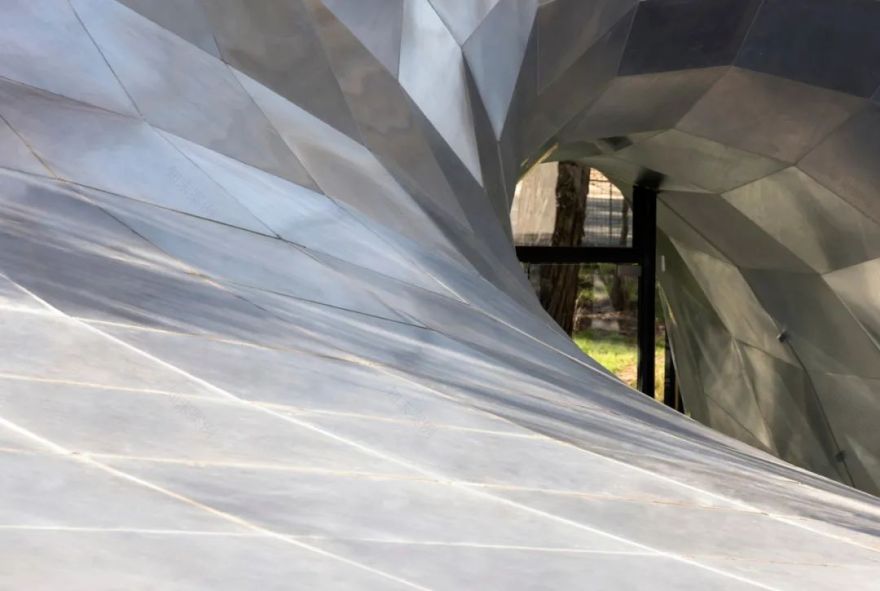

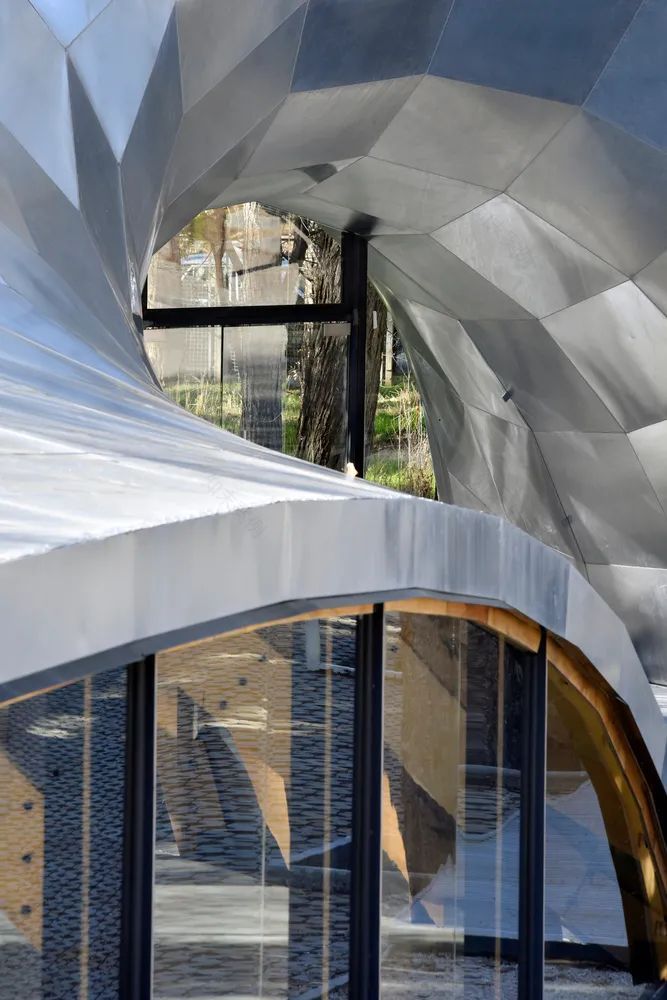

From a rationalization approach, the doubly curved surface is translated into planar quad panels for simple constructability in response to a limited execution budget. By extracting the conjugated line network of the quasi-minimal surface and connecting the intersection nodes, a set of planar quad cells were defined. These planar quads were then produced from aluminum sheet material, by laser cutting the sheet and then bending the edges using a CNC bending machine.

通过对双曲面平面四边形面板的智能几何合理化，大大降低了制造和建筑成本。这种通过数学驱动算法对复几何的简化降低了成本，而与几何的核心复杂性无关。这种合理化战略将建筑成本降低到200克/平方米。

Fabrication and construction costs are drastically reduced through the intelligent geometric rationalization to planar quad panels of the doubly curved surface. This simplification of the complex geometry through mathematically driven algorithms reduces costs regardless of the core complexity of the geometry. This rationalization strategy reduced the construction cost to 200 GBP/sqm.

由于联合国教科文组织有关世界遗产建设的独特规定，展馆是一个半临时结构，没有砖石材料或永久性建筑技术。因此，展馆在任何时候都可以从场地上拆卸。展馆的每一块木质结构，在几何特性方面都是独一无二的，都是预制的，部署在建筑工地上，包括铝板。

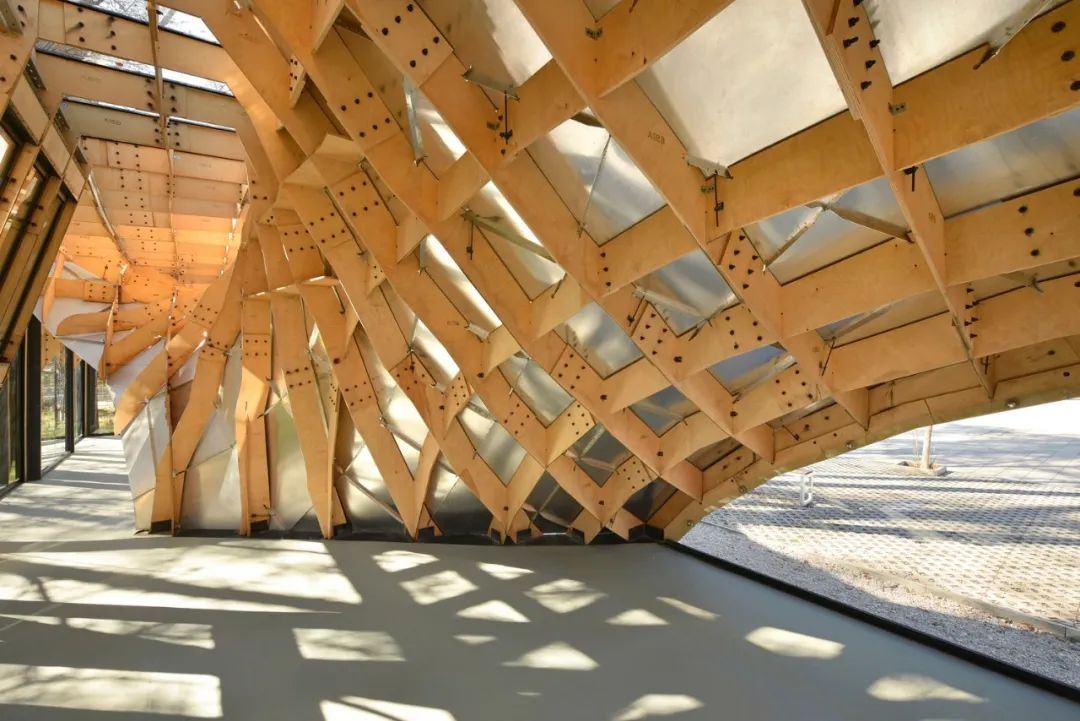

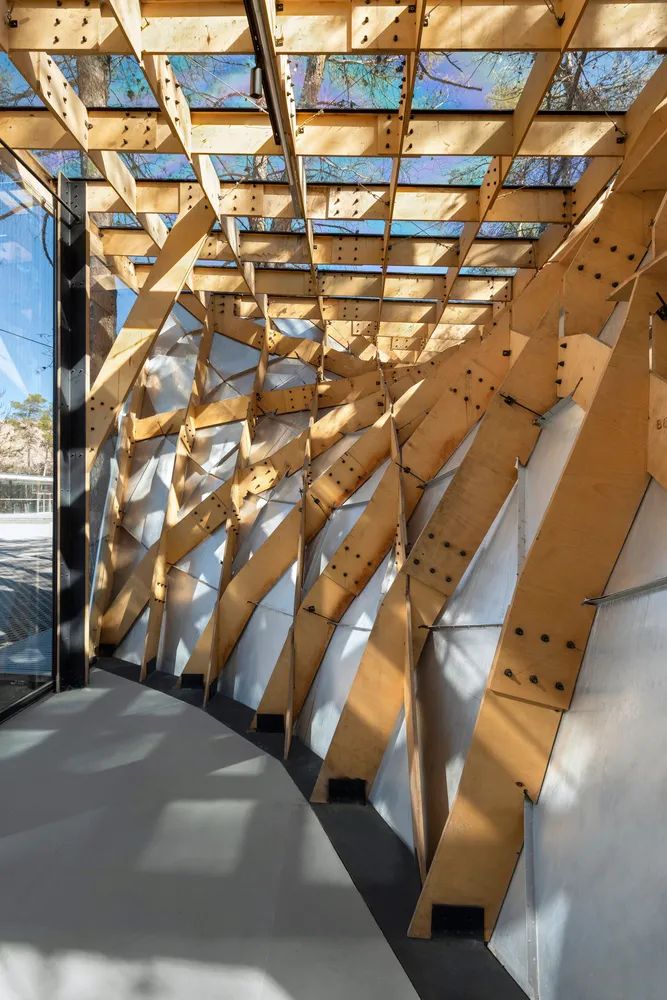

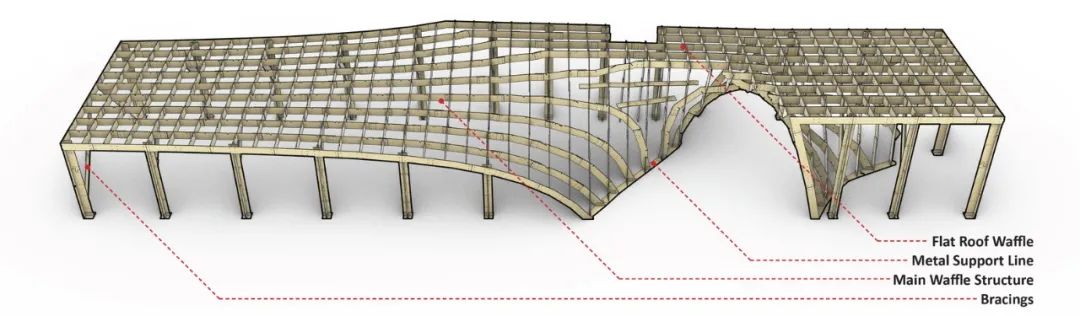

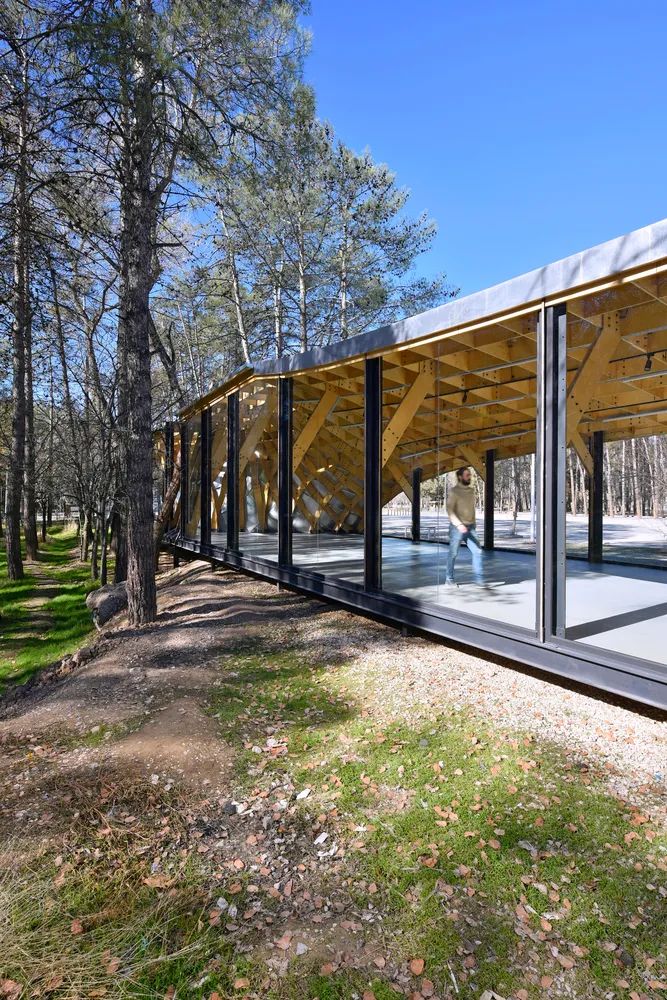

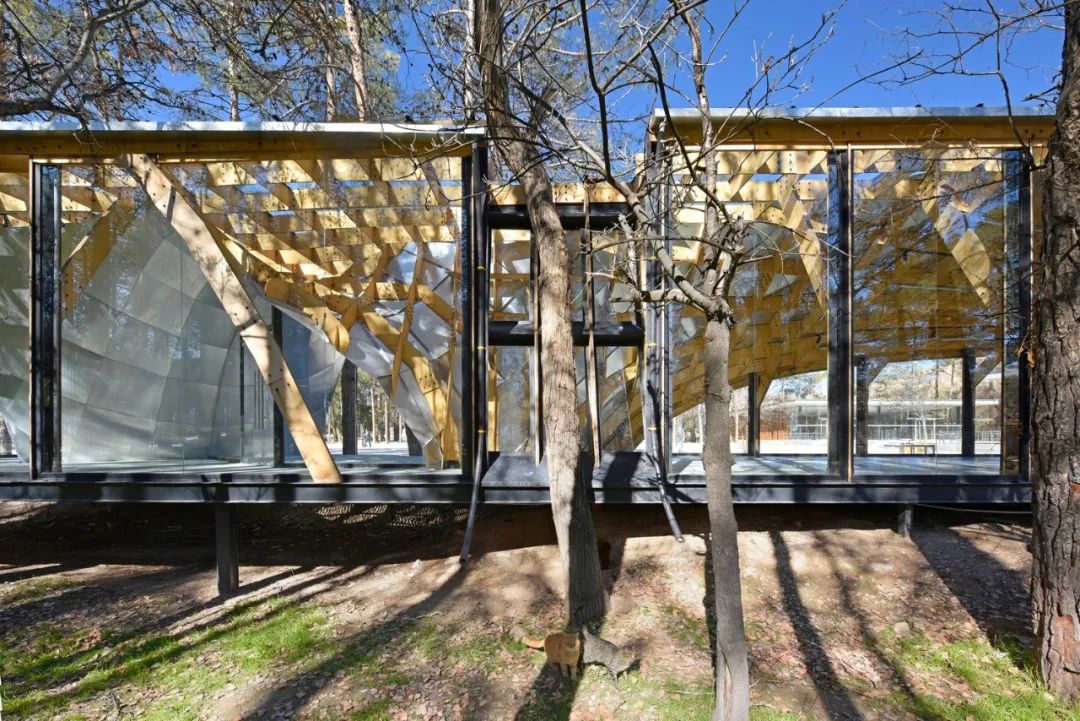

Due to UNESCO's unique regulations related to construction on World Heritage Sites, the pavilion is a semi-temporary structure, constructed without masonry materials or permanent construction techniques. Hence, the pavilion is dismountable from the site at any given time. Each piece of the wooden structure of the pavilion, which is unique in terms of geometrical properties, is pre-fabricated and deployed to the construction site, including the aluminum panels.
