虽然附近有名古屋市，但是有一片宁静的农田，是世代相传的。在这个大场地的北端坐落着业主父母的家，在南侧建造了一个独立的结构。这是一个重建南边建筑的计划，作为业主，他的妻子，和他年幼的女儿的家。

 Even though there is Nagoya city near by, there is tranquil area of farm land of that has been in the family for generations. On the northern end of the large site sits the home of the owner's parents, and a separated structure was built on the south side. This is a plan to rebuild the south side structure as a home for the owner, his wife, and his young daughter.

新的住宅建成离开了南北花园，以及南方的家曾经是。透水的木质屋顶和墙体轻轻地覆盖了主体量。主体量和渗透性木材之间的空隙使得“ tori-michi”可以穿过父母的房子到外面，并创造出连接整个房子内部的山墙开口。

The new home built leaving the north and south garden as well as the southern home used to be. It is a composition that permeable wooden roof and wall gently cover the main volume. The gaps between the main volume and permeable wood make "Tori-michi" that can pass through the parents house to outside , and create triangular gable openings that connect the whole house inside.

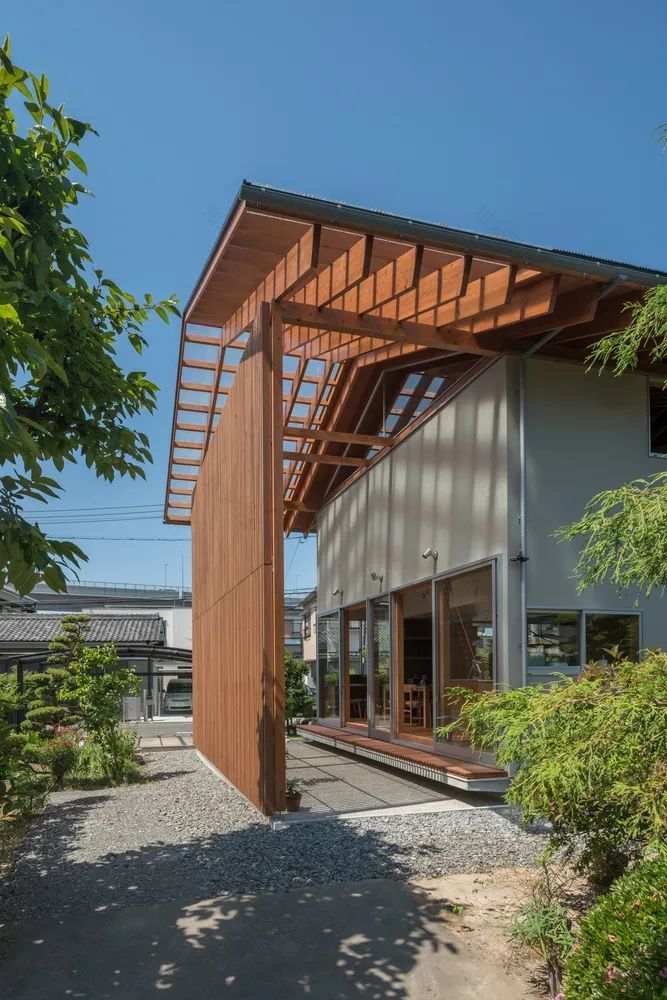

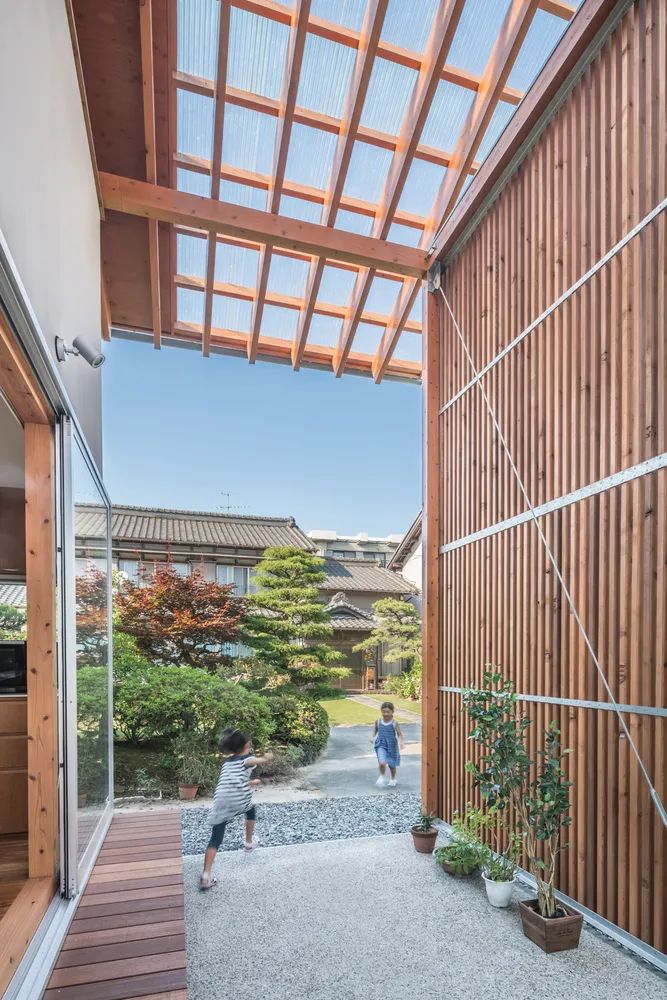

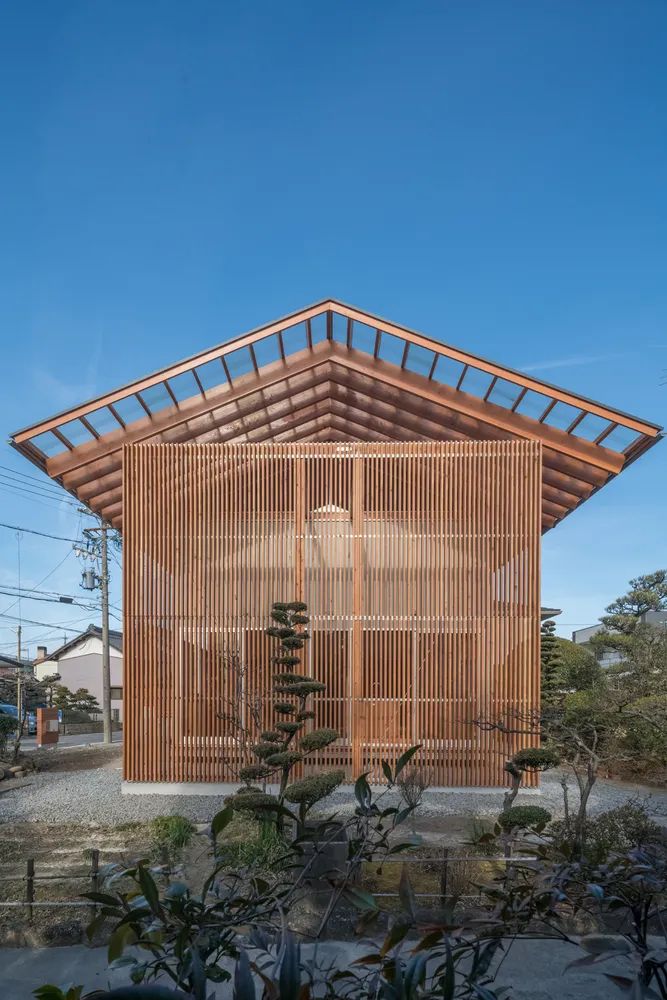

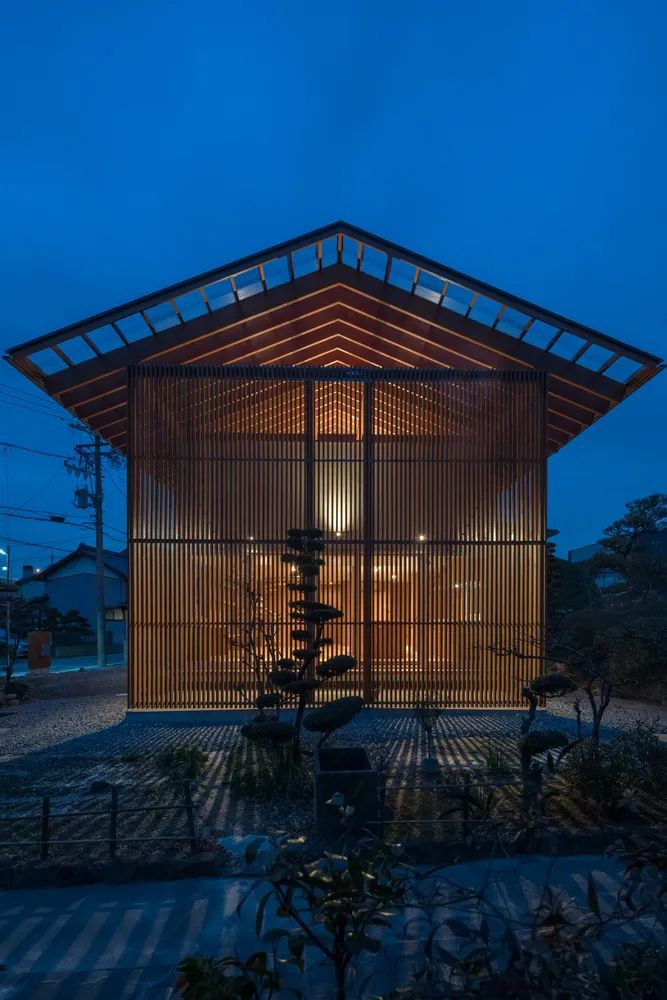

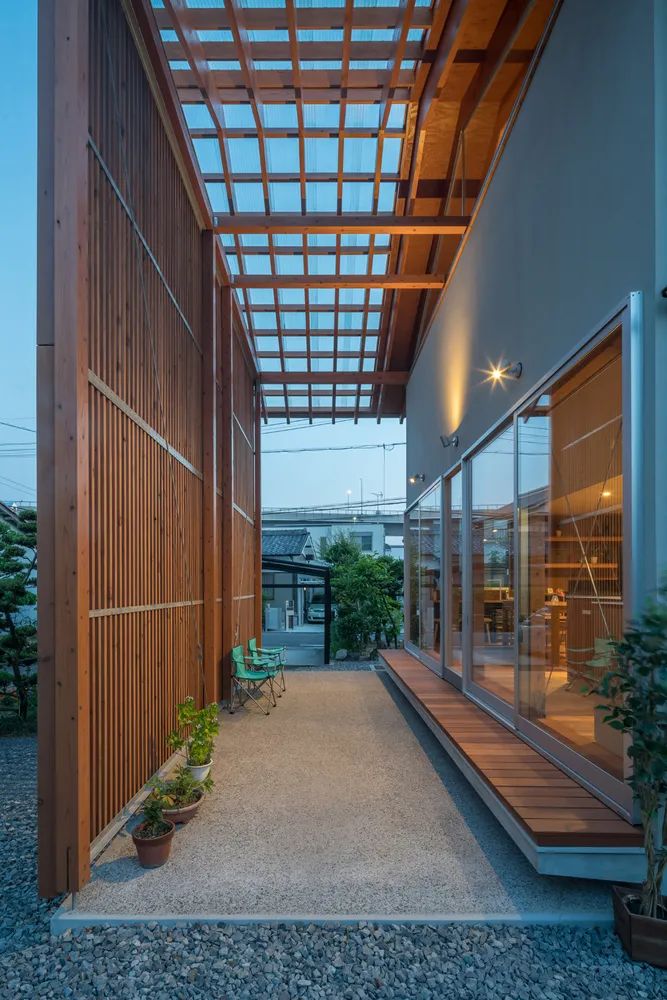

“ tori-michi”连接是网站东侧的一个通道，父母可以选择在那里参观南边的房子。它是一个两层开放的天花板空间，主体量的山墙屋顶连续悬挂在那里。屋檐延伸到南北花园，与西侧相连。因为屋顶是由透明材料制成的，支撑它的墙壁是由木制百叶窗制成的，这是一个在受到保护的情况下，可以吸收阳光和风的地方。

The "Tori-michi" connection is a passage on the east side of the site where the parents can visit the southern house when they so choose. It is a two-layer open ceiling space, and the gable roof of the main volume overhang continuously there. The eaves are extended to the north and south garden and are connected to the west side. Because the roof is made of clear material, and the wall that supports it is made of wooden louver, it is a place that take in light and wind while being protected.

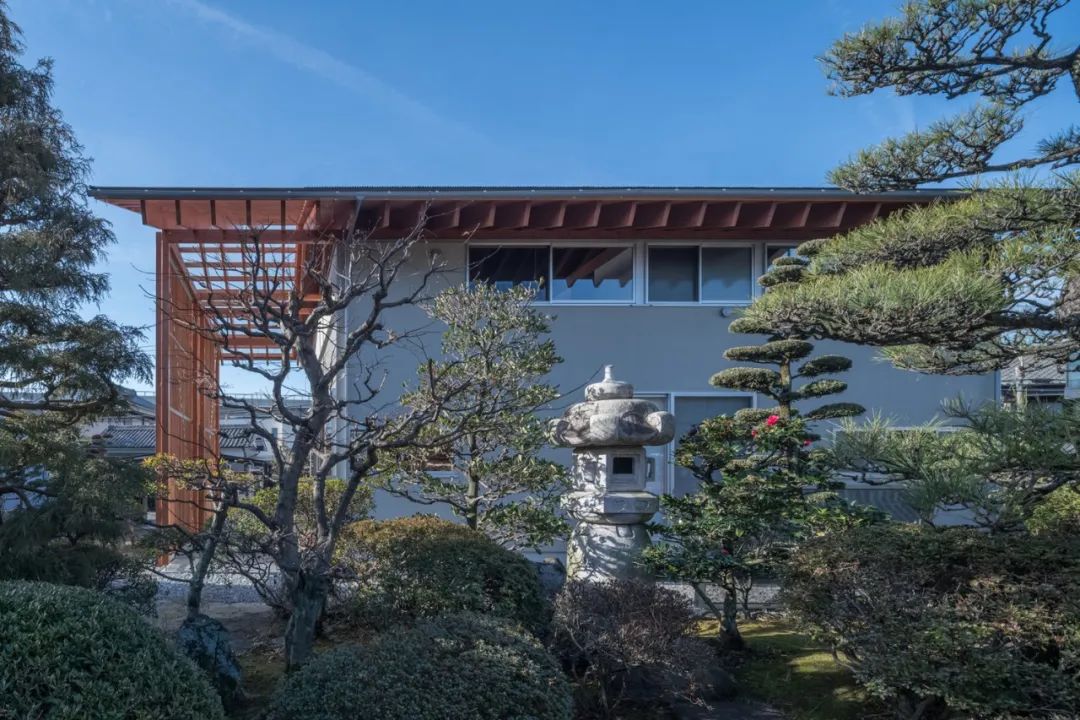

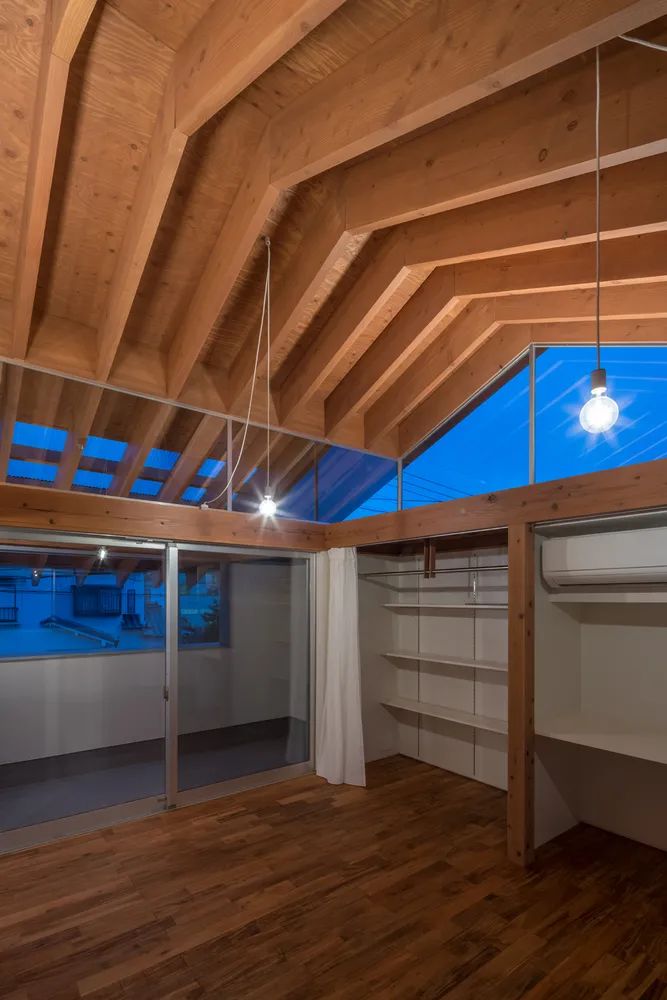

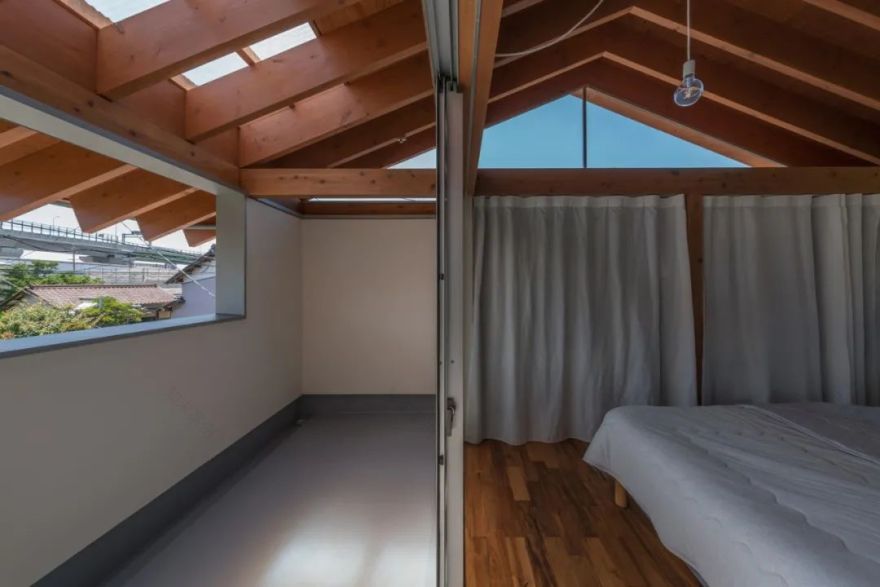

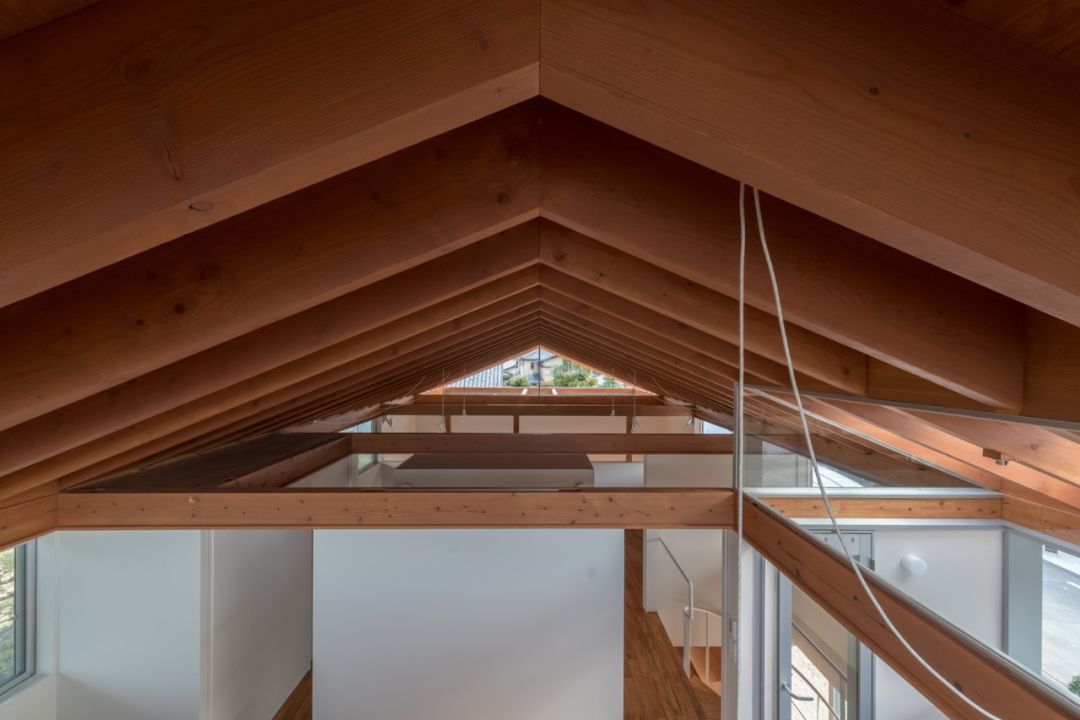

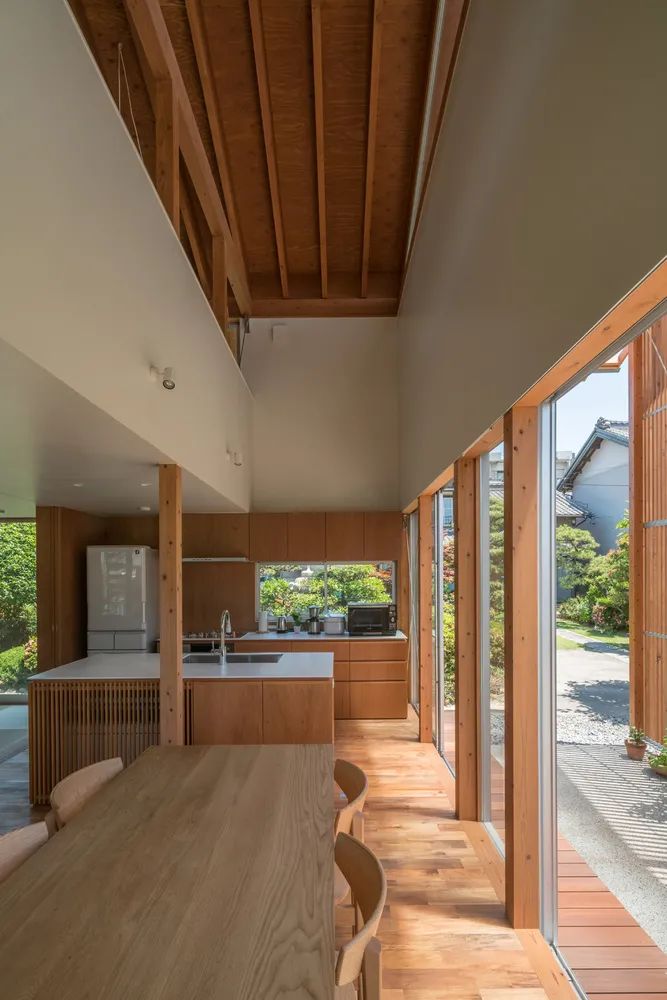

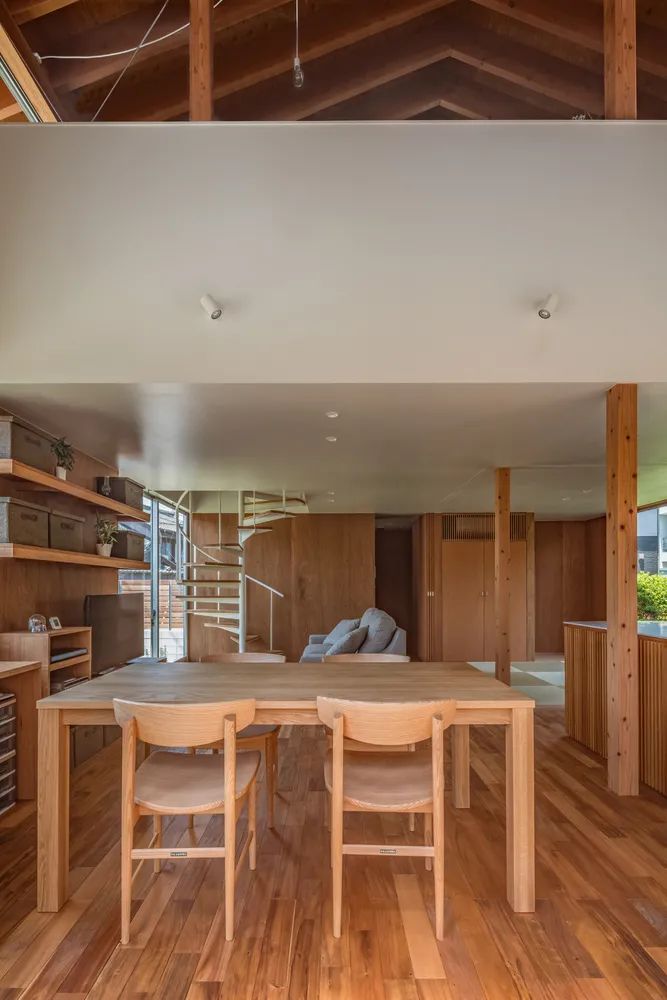

内部的山墙开口显示了斜坡天花板的椽，并打开了梁的顶部，使得每个房间从上面联合起来。挑出屋檐的椽子通过去除屋脊和支撑它的支柱变得更加令人印象深刻，并通过延伸到“ tori-michi”内外相连。

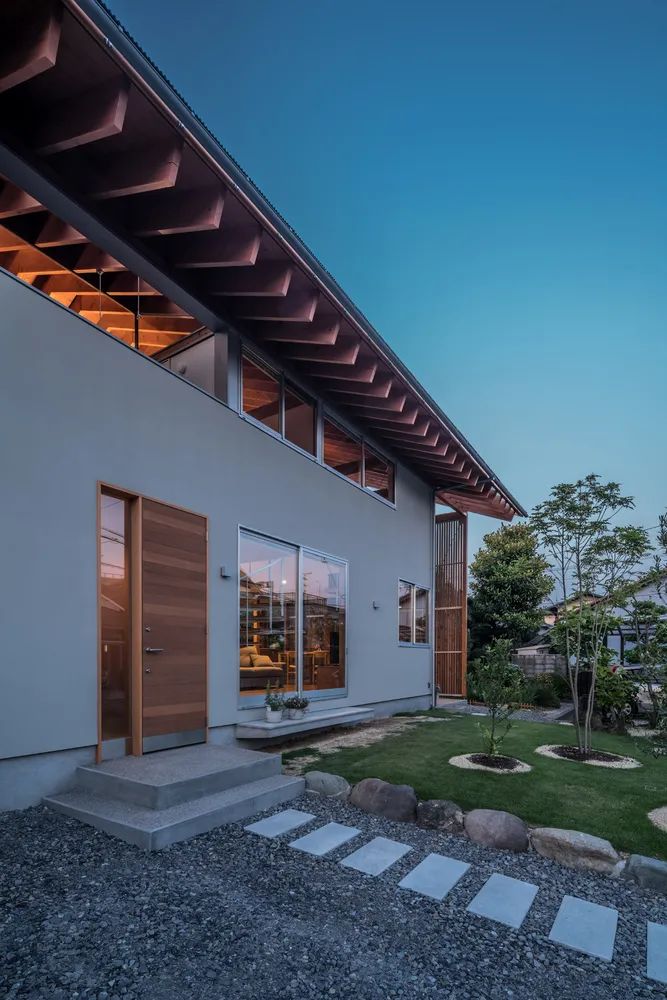

The inner triangular gable openings show the rafters of the slope ceiling and opening the top of the beam, so that each room is united from above. The rafters that overhang the eaves become more impressive by eliminating the ridge and the strut supporting it, and connect inside and outside by extending to the "Tori-michi".

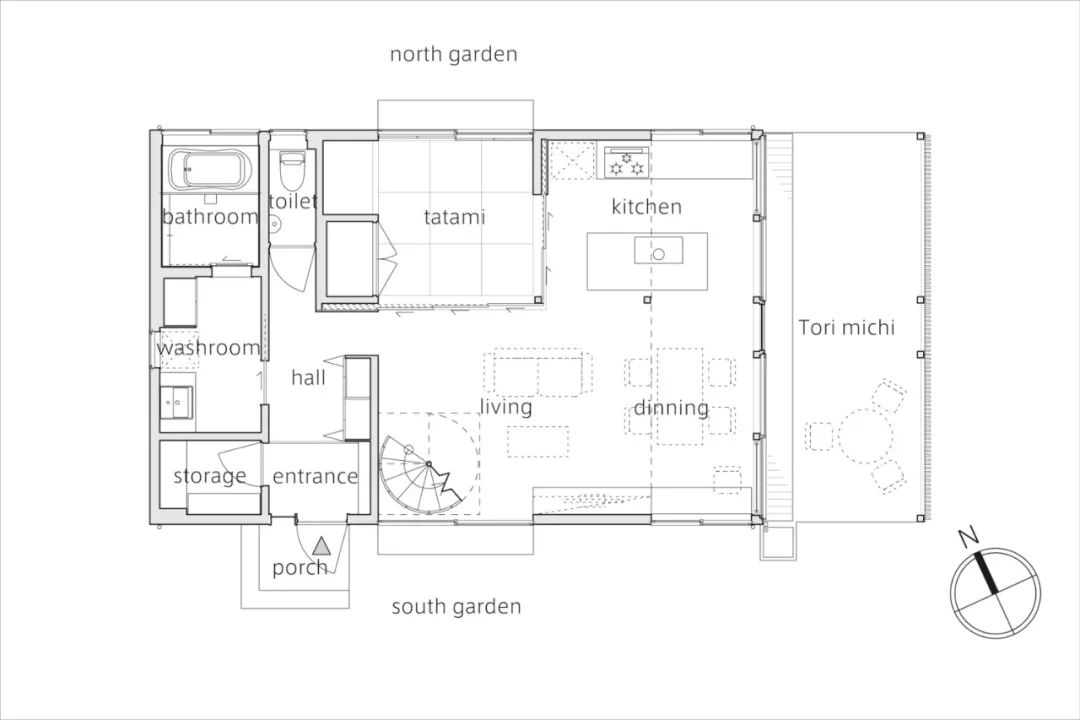

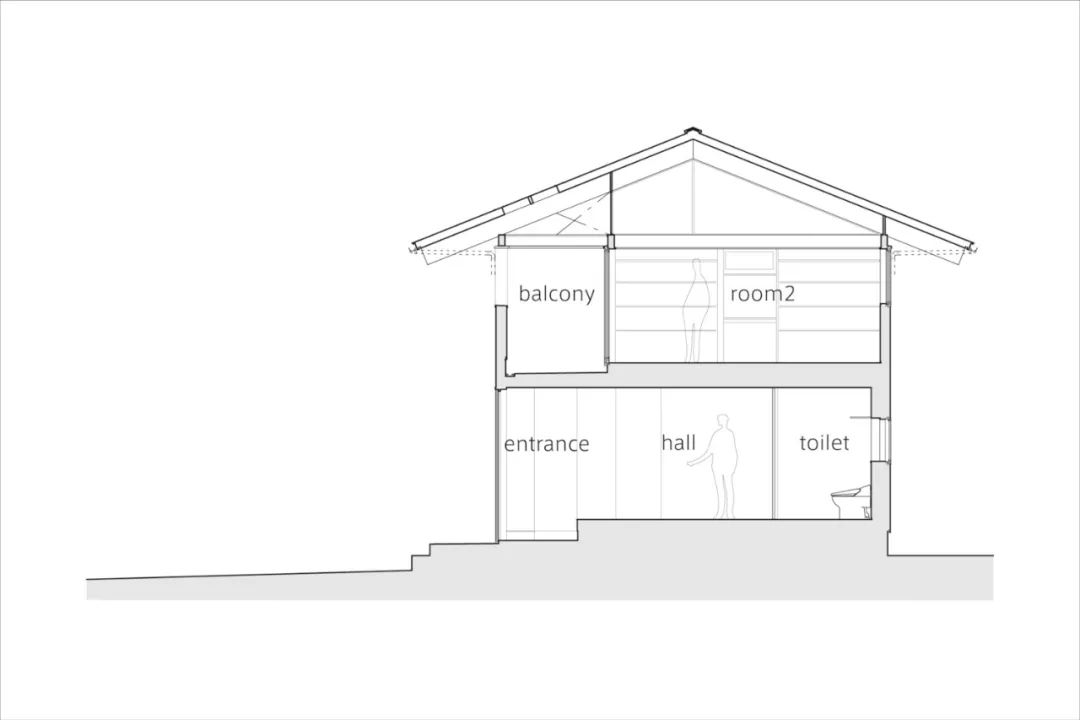

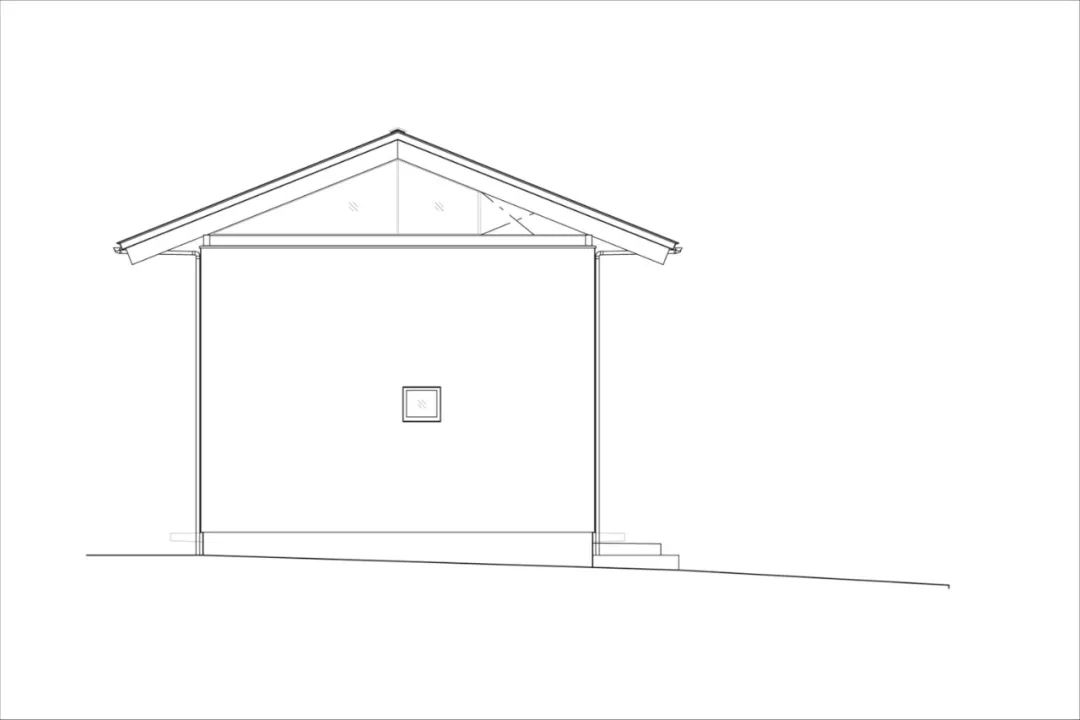

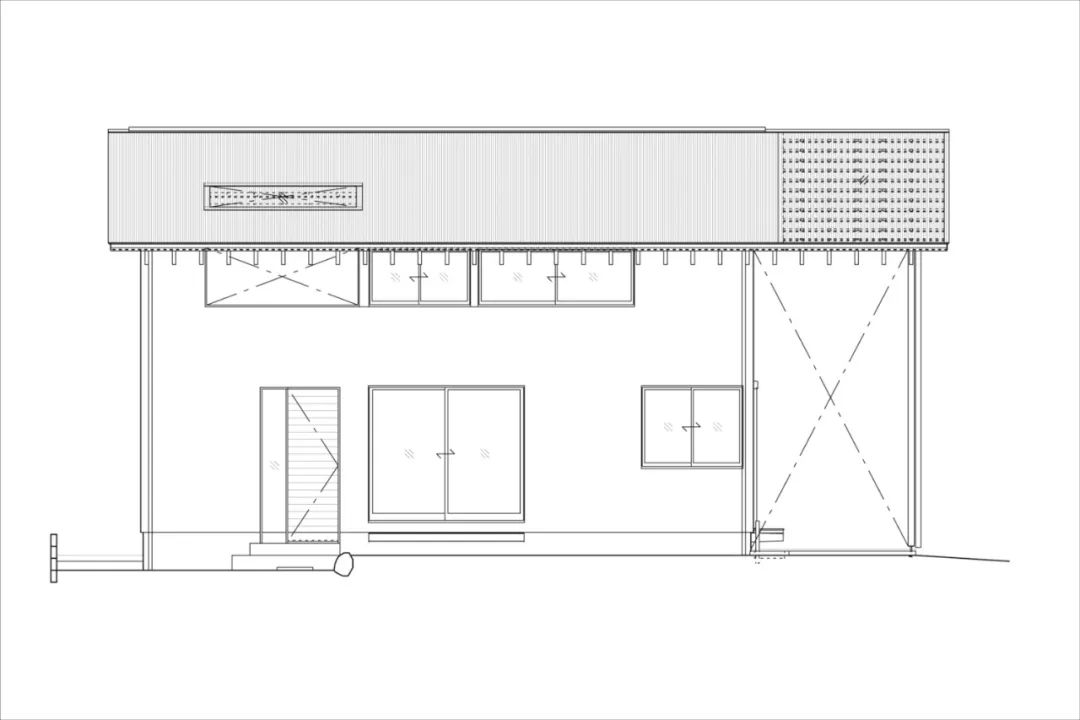

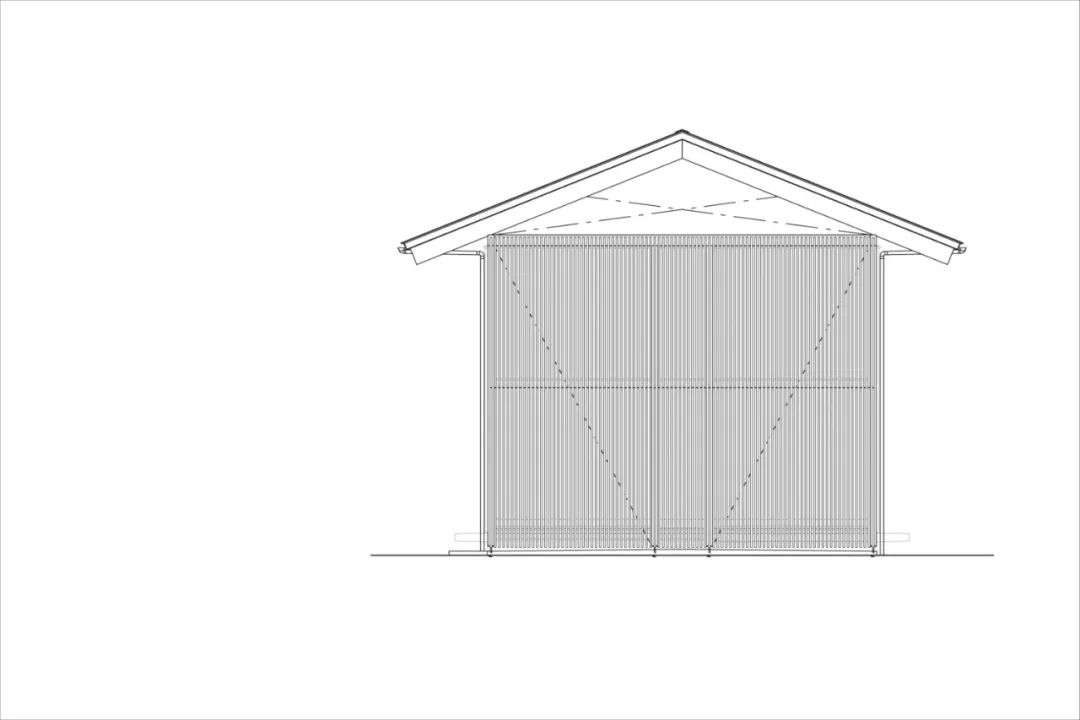

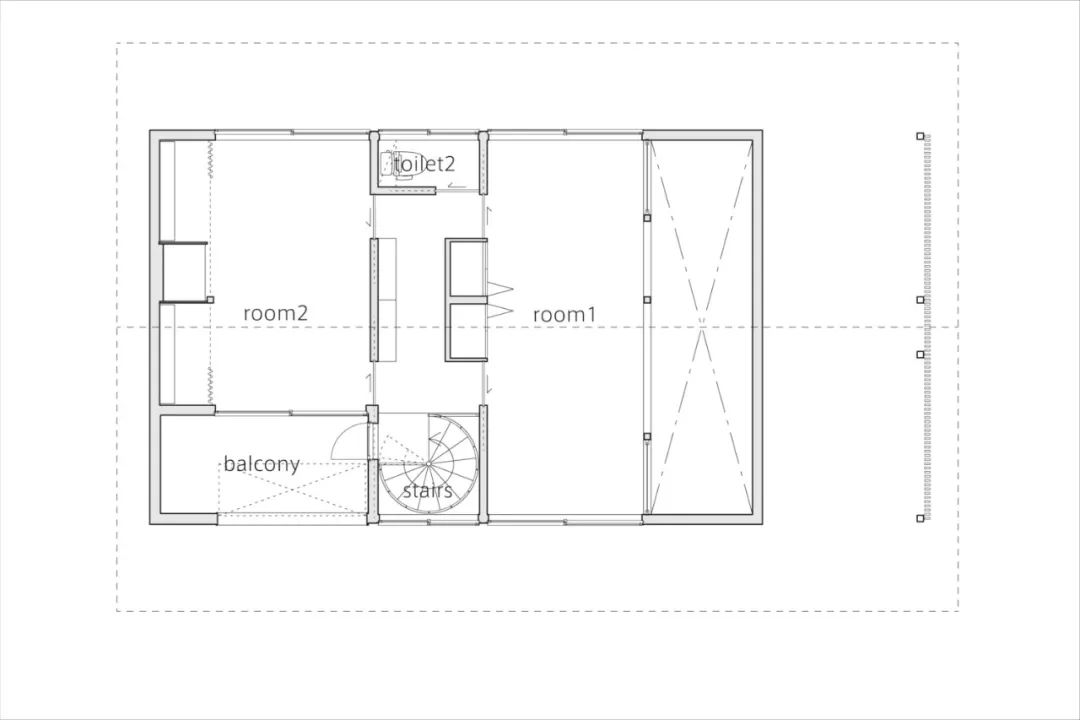

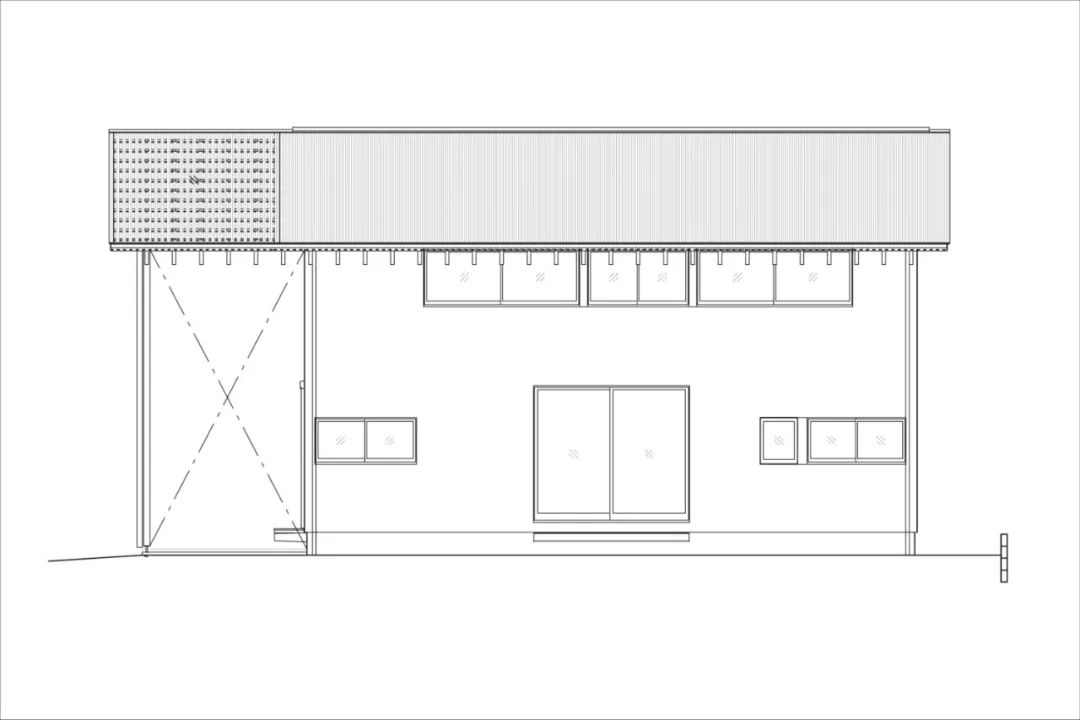

施 工 图 纸

Construction drawings

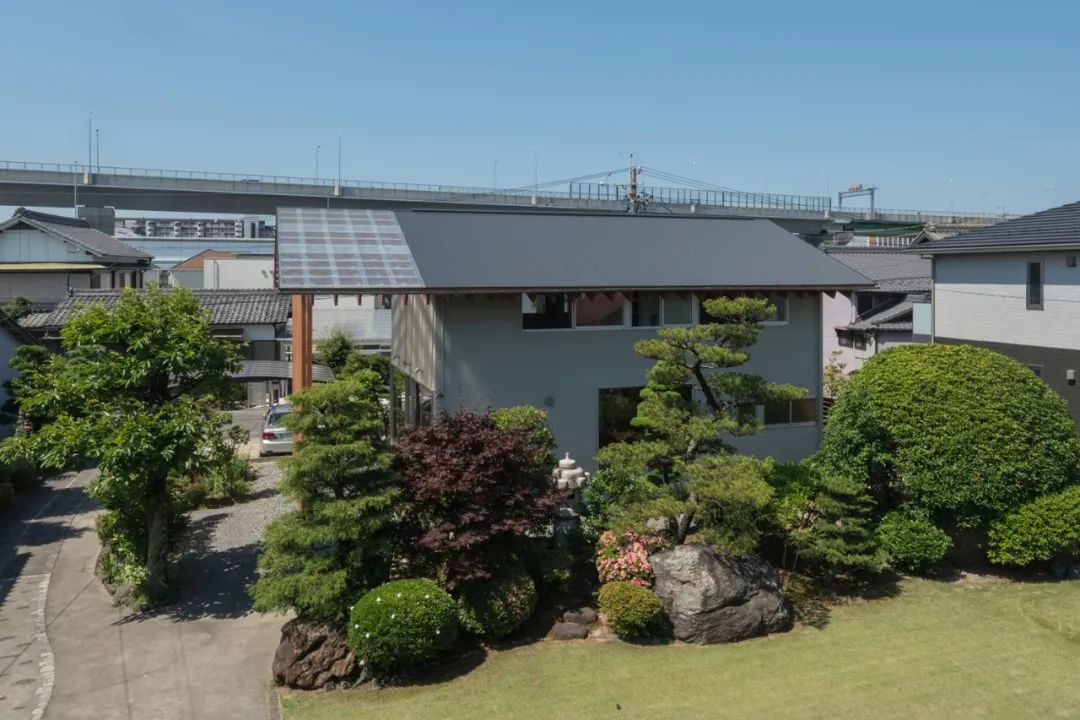

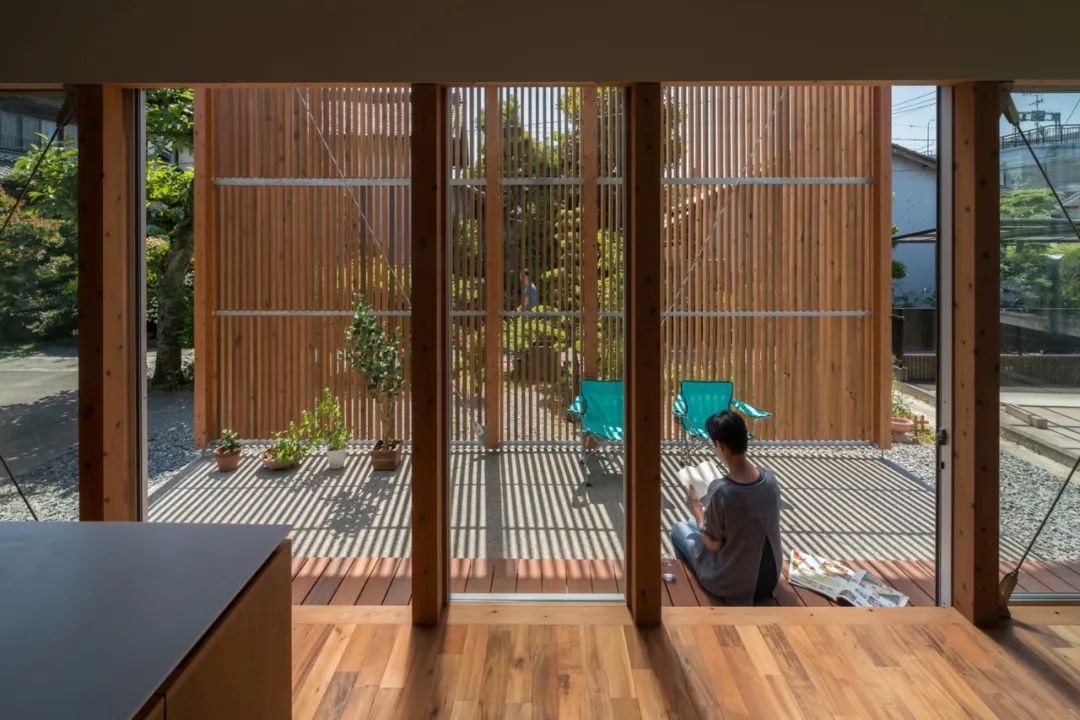

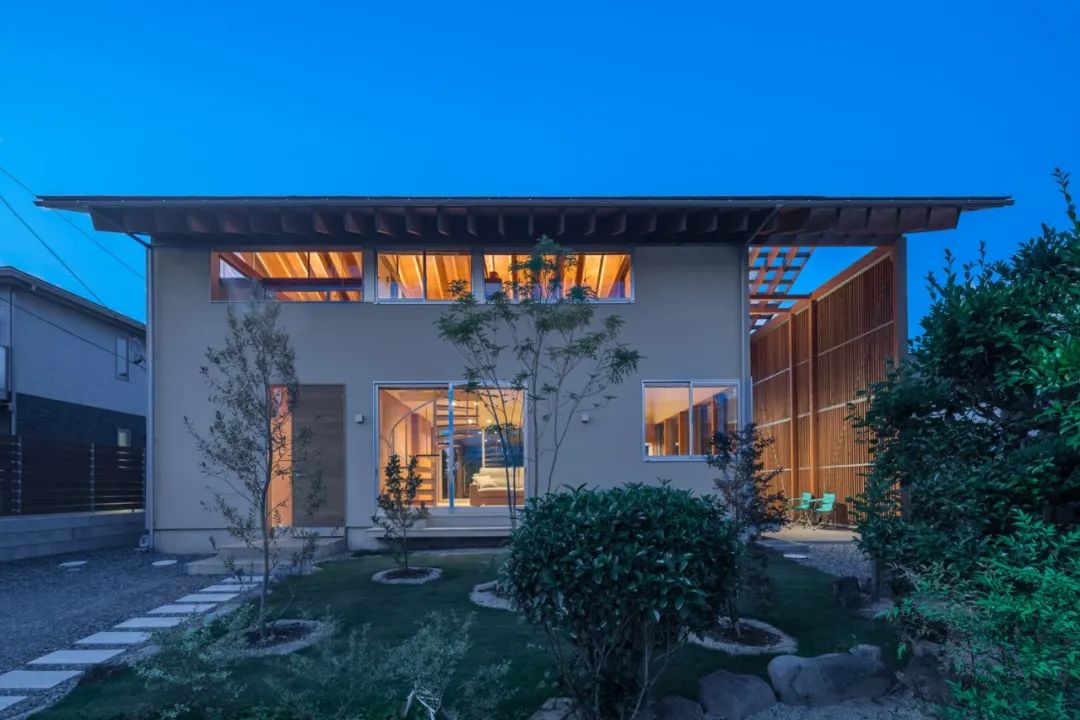

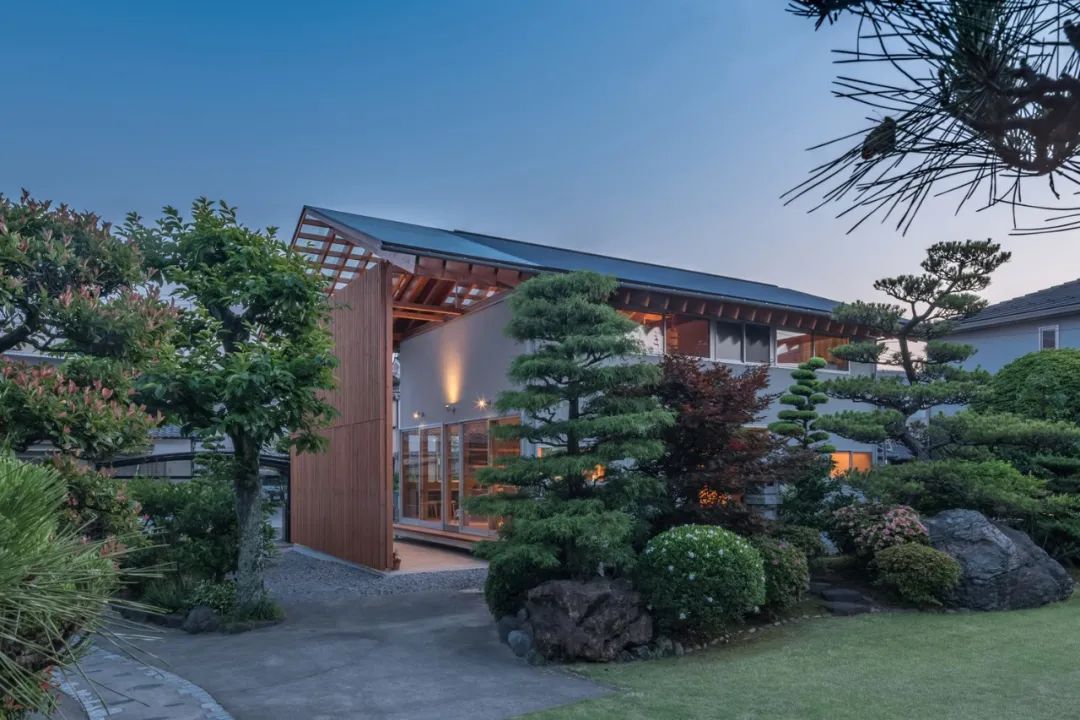

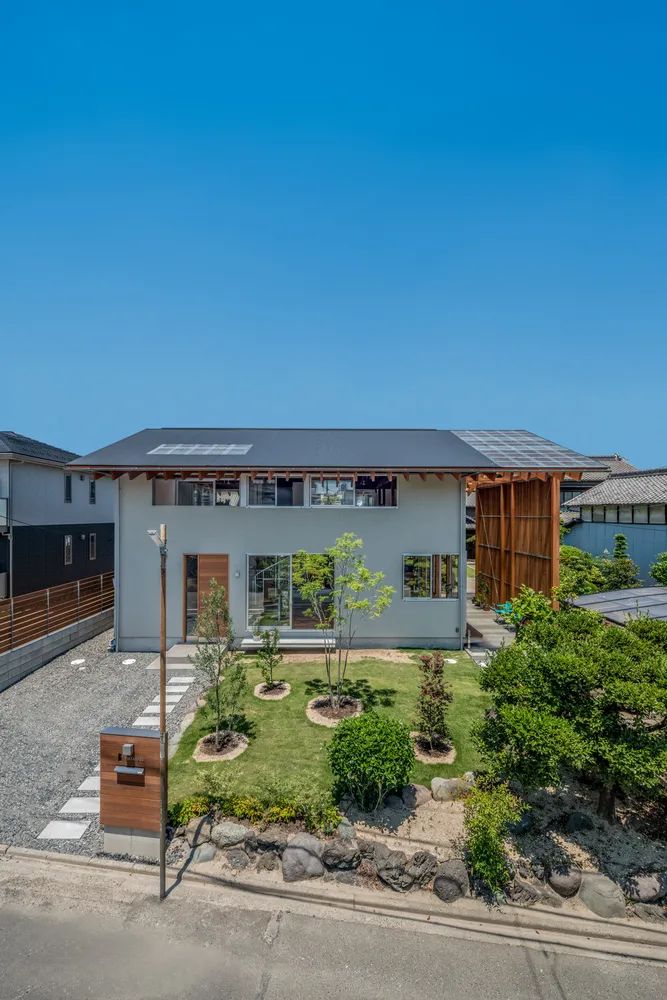

在这个地区，很多情况下，家庭成员居住的大片土地上建有多个房屋。这是一个重要的主题，以保护城市景观免受零星重建的影响，并建立新旧住户之间的关系。在这个房子里，北面花园的树木与父母的房子保持一定距离，主入口在南面，然而花园景观是房屋之间的连接。这个自然空间为家庭提供了保持联系的方式，同时也保护了他们自己的隐私。东边的“ tori-michi”是将两个家庭联系在一起的纽带。

In this area, many situations where multiple homes are built on a large land where family members live. It is an important theme to protect the cityscape from piecemeal redevelopment and to create relationships between old and new households. In this house, the trees in the northern garden take the distance to the parents house and the main entrance is on the south side, however the garden view is connection between the homes. This natural space provides a way for the families to stay connected but also to maintain their own privacy. "Tori-michi"on the east side is the tie that binds the families together.
