农村 810 平方英尺红砖住宅丨巴西丨GGH 设计机构

GGH设计机构

预计占用你30秒便可看完文章。。。。。

The GGH design agency estimates it will take you 60 seconds to read the article. . . . .

刘 老 师 说

Teacher Liu said

顾客来到我们这里是为了实现一个古老的梦想: 从首都阿雷格里港回到农村后，在农村建造自己的房子，住在乡村的宁静之中。生活的节奏和质量是不同的: 能够坐在阳台上聆听鸟儿的歌唱，能够呼吸新鲜空气，能够在一天中的任何时间坐在阳光下，能够移动土地，甚至能够自己采摘食物。由于资源有限，所以我们决定由 minha casa minha vida 项目进行建设，这个项目是由巴西政府为低收入家庭制定的01轨道项目，这个项目从一开始就指导了这个项目: 我们不能做一个冒着客户无法完成的风险的项目。我们开始吧。客户有三个愿望: 他想从他的房间看到日落，他想用裸露的砖头，他想要隐私。

 Customers came to us to fulfill an old dream: to build their own house in the countryside and live in the tranquility of the rural area, after returning from the capital Porto Alegre to the countryside. The pace and quality of life are different: being able to sit on the balcony and listen to the birds singing, being able to breathe the fresh air and sitting in the sun at any time of the day, moving the earth and even picking your own food. Resources were limited and so it was decided to make the construction by the Minha Casa Minha Vida program - track 01, program developed by the Brazilian government for low-income families, and this directed the project from the beginning: we could not do a project that would run the risk of the client not being able to complete it. And so we begin. The client had three wishes: he wanted the sunset view from his room, he wanted to use exposed brick and he wanted privacy.

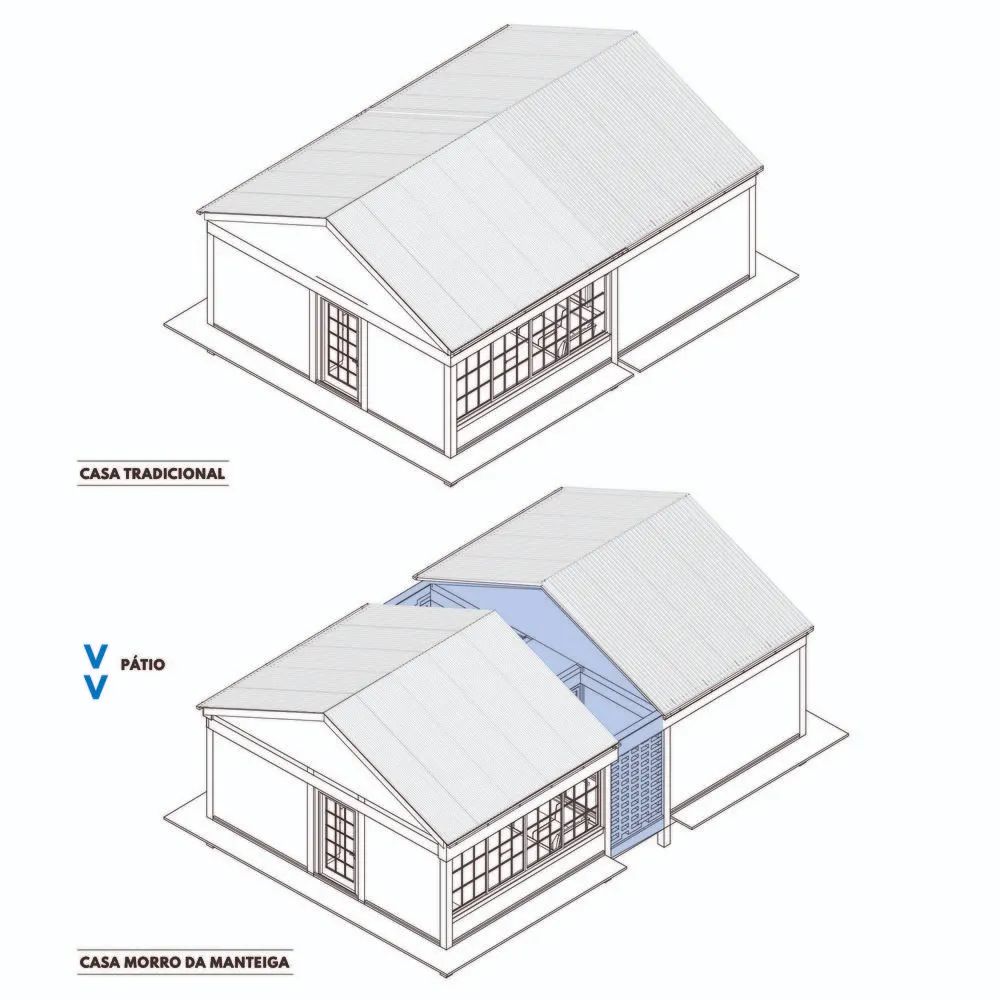

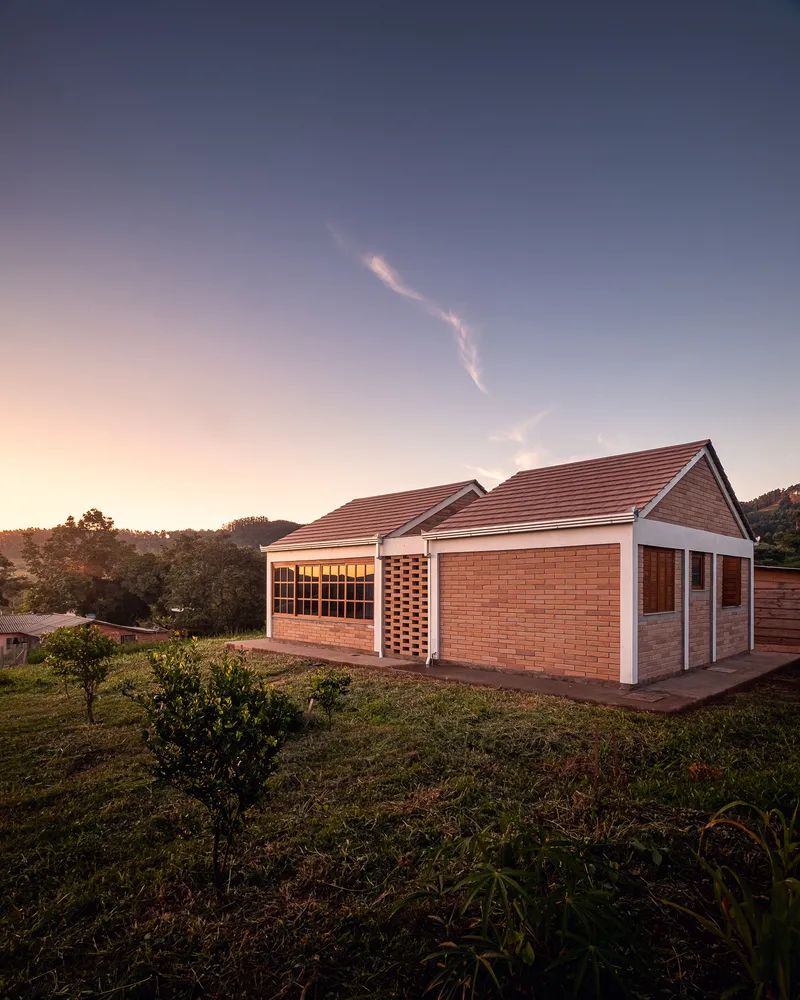

在测试了几个布局选项后，我们得出结论: 在这个最大面积为810平方英尺的房子里，从私密区域去掉社交区域，在两侧放置内部庭院，集中流通。通过这种方式，我们保证了社交区域充足的自然采光，房子的交叉通风，尽管建筑面积很小，但仍然给人一种宽敞的感觉，房子里还有一个私密的休息空间。而且是一见钟情。在项目的第一次展示中，客户就抓住了露台的理念和优势！通过裸露的砖块的想法，我们遵循整个房子的语言: 我们使用实心的灰色砖块，增加房子的热舒适性，我们继续使用明显的电力装置和混凝土结构。确保材料的独特语言和固定成本，这也将减少。传统的山墙屋顶，以及格子木框架，与使用的“最冷的”材料形成对比，并带来家的感觉。一个四米大的窗户被放置在整个房间的长度，保证了日落和周围的山丘的视野-这给房子的名字！

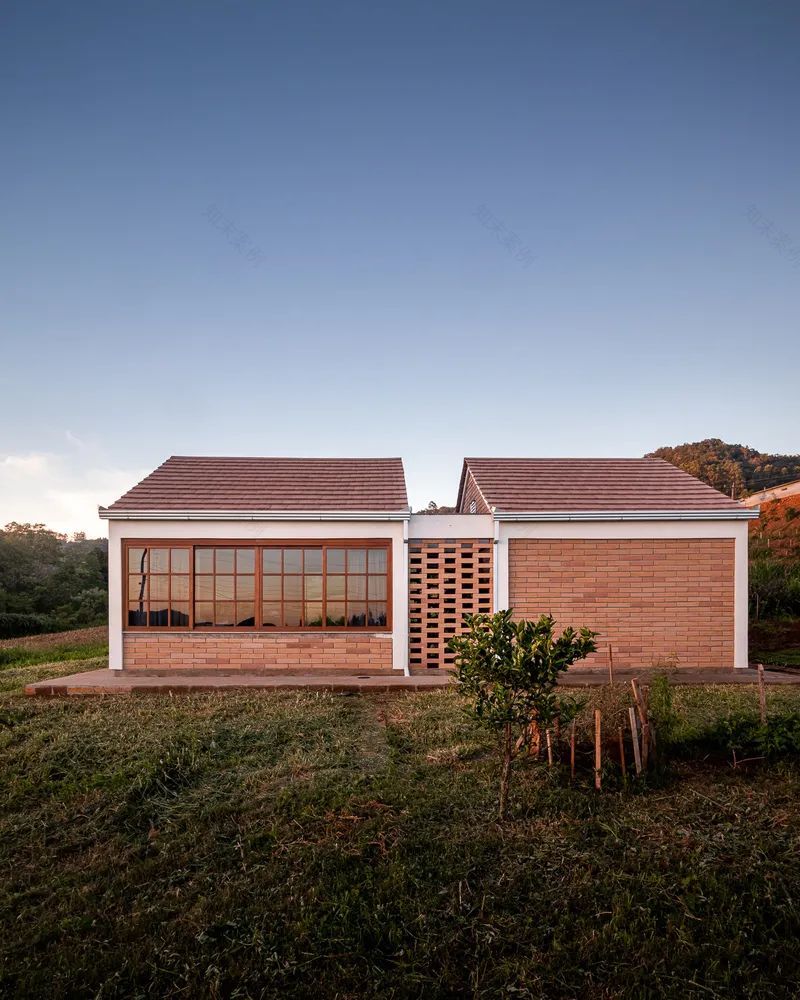

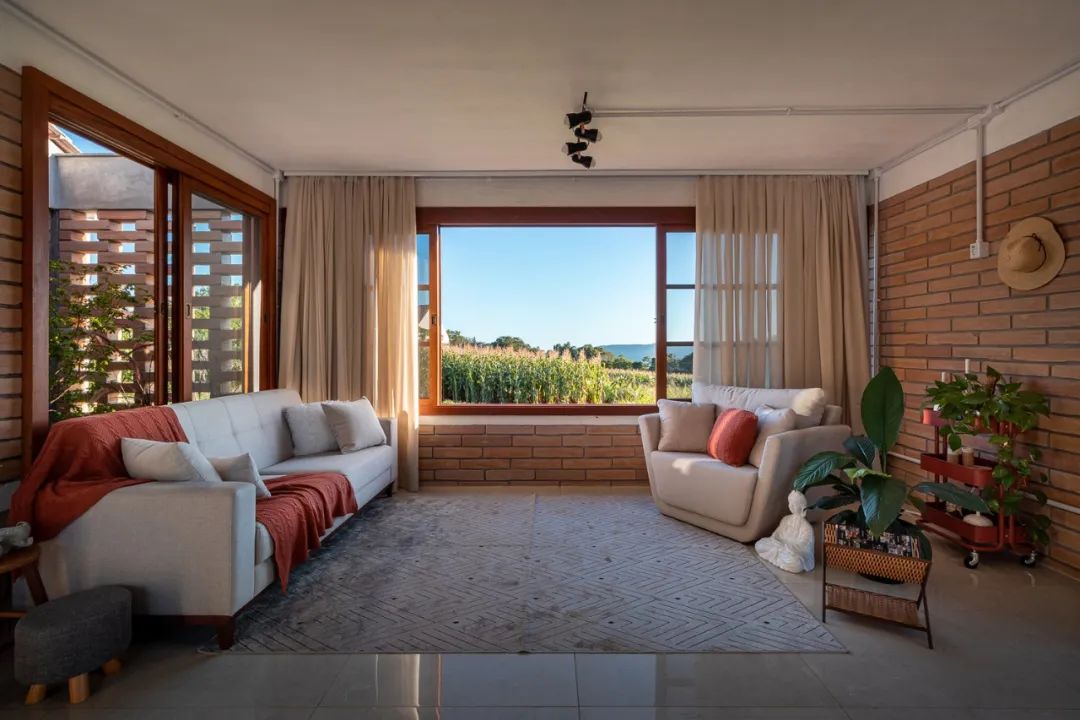

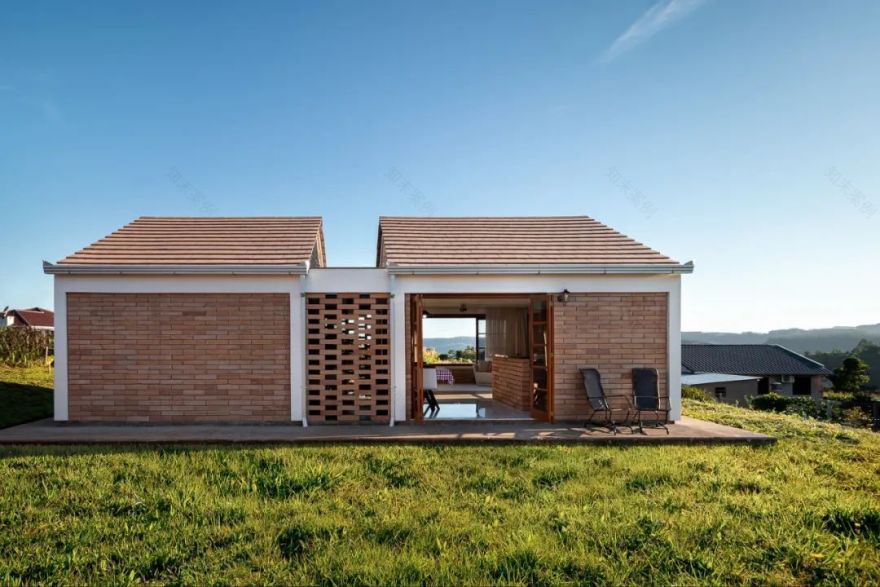

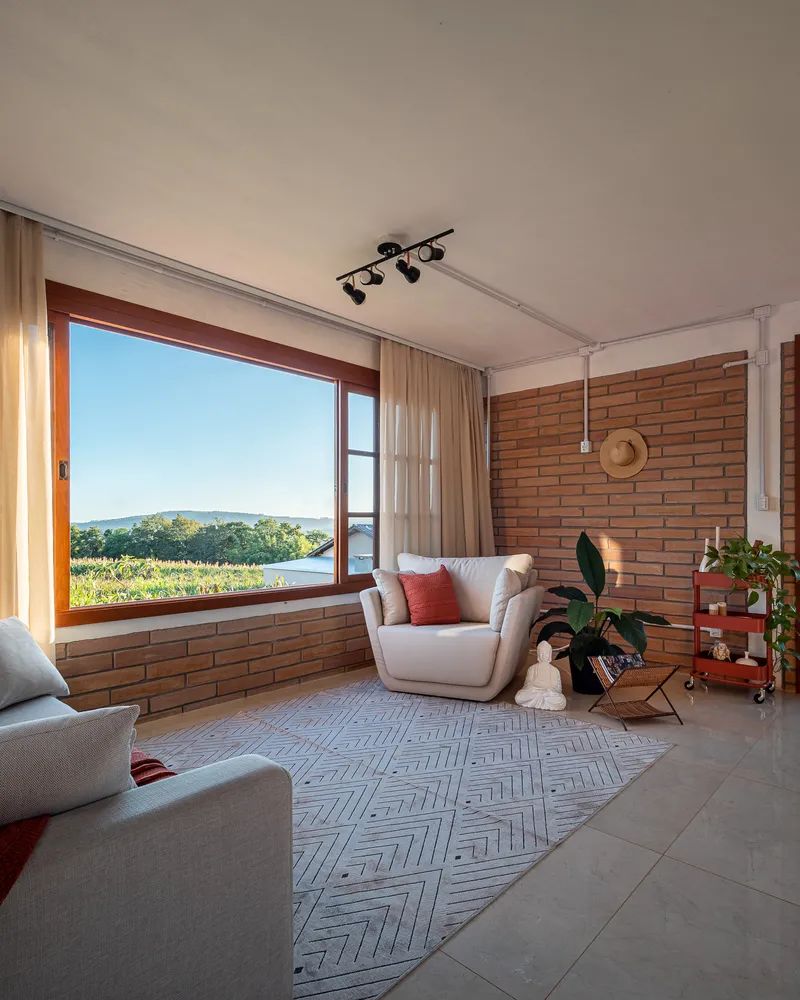

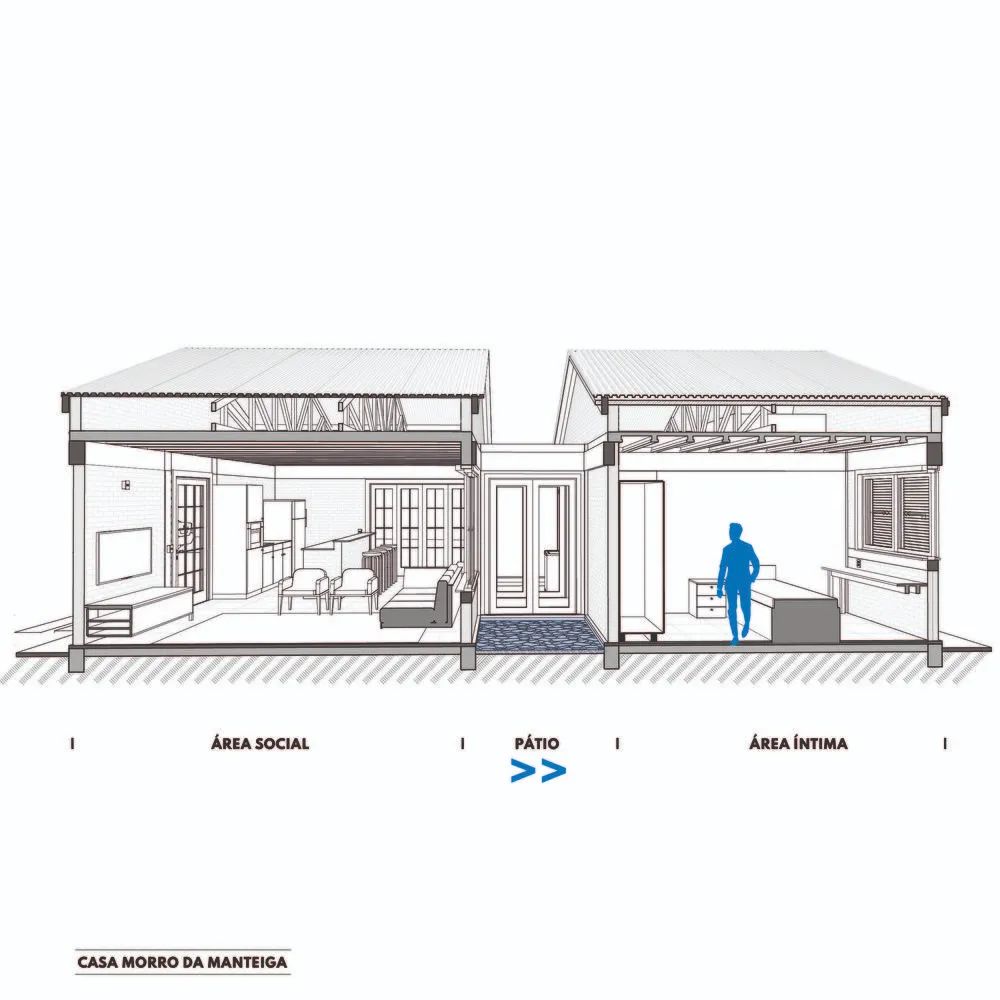

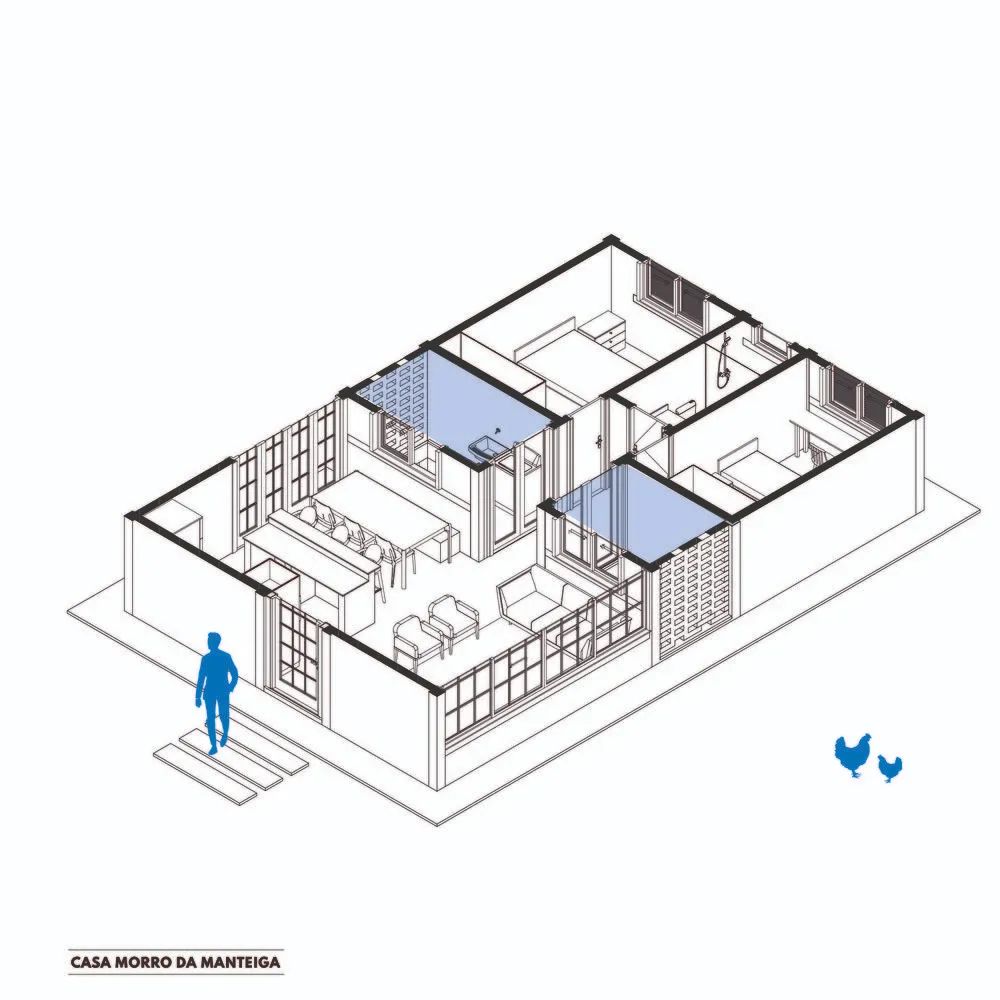

After testing several layout options, in the house that should have a maximum of 810 SqFt, we came to the conclusion: take off the social area from the intimate area, and place internal patios on the sides, centralizing circulation. This way, we guarantee abundant natural lighting in the social area, cross ventilation in the house, the feeling of amplitude despite the small built area and still a private resting space inside the house. And it was love at first sight. Customers captured the idea and the advantages of the patios in the first presentation of the project! With the idea of exposed brick, we follow the language of the whole house: we use solid gray brick, increasing the thermal comfort of the house, we continue with the apparent electrical installations and also the concrete structure. Ensuring the unique language of the materials and pegging the cost, which would also be reduced. The traditional gabled roof, as well as the checkered wooden frames, contrasts with the 'coldest' materials used and brings that feeling of home. A four-meter large window was placed over the entire length of the room, guaranteeing the view of the sunset and the surrounding hills - that give name to the house!

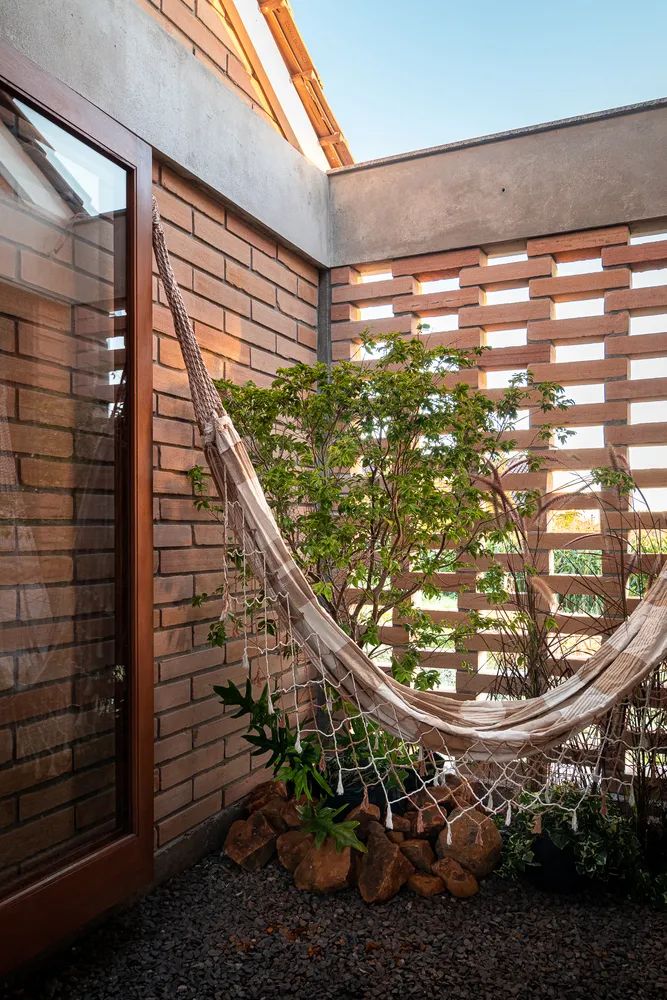

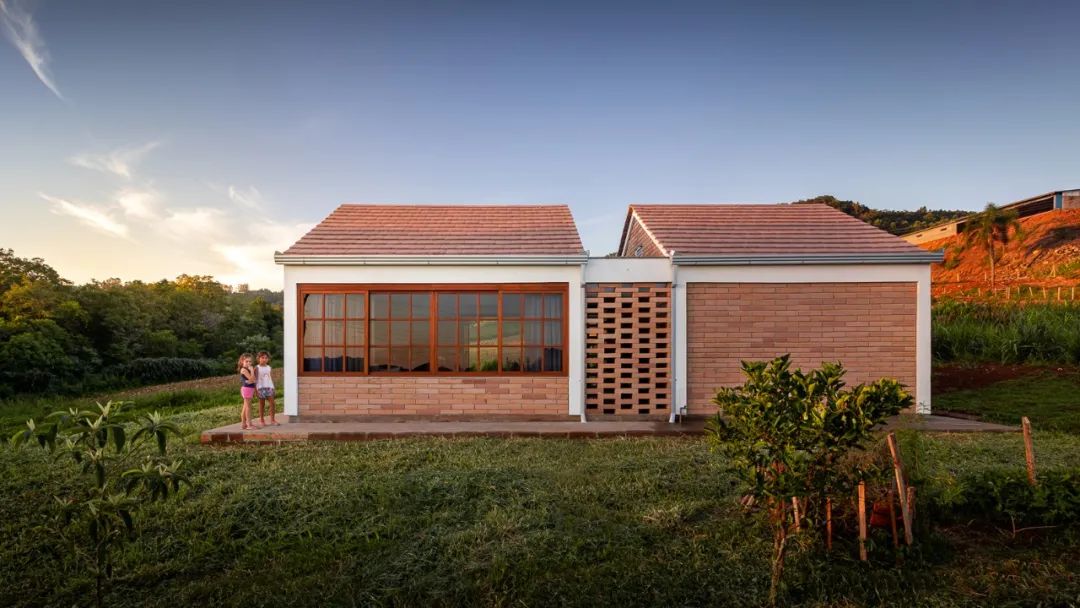

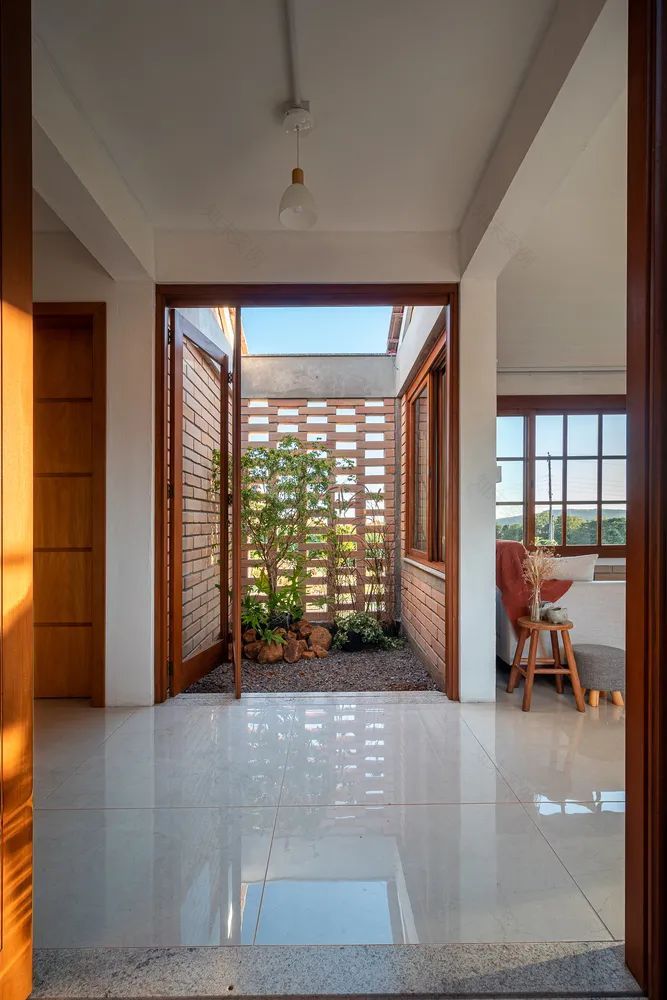

为了关闭天井，保证隐私，但也通风，我们创建了 cobogó-巴西建筑的传统元素-与 gres 砖本身，取消了两个体量: 社交区和私密区。该住宅将在未来扩建，其扩建部分已经设计完毕，防止建筑被破坏，并确保扩建部分的热舒适性。为此，厨房/餐厅区域已经安装了虾门，未来将与车库和洗衣房整合，目前，将在一个露台上安装。对我们来说，这是一个非常重要的项目，因为它表明，由 minha casa minha vida 建造的，资源有限的房子，不需要是一个“标准”的房子，没有研究热舒适性或材料。

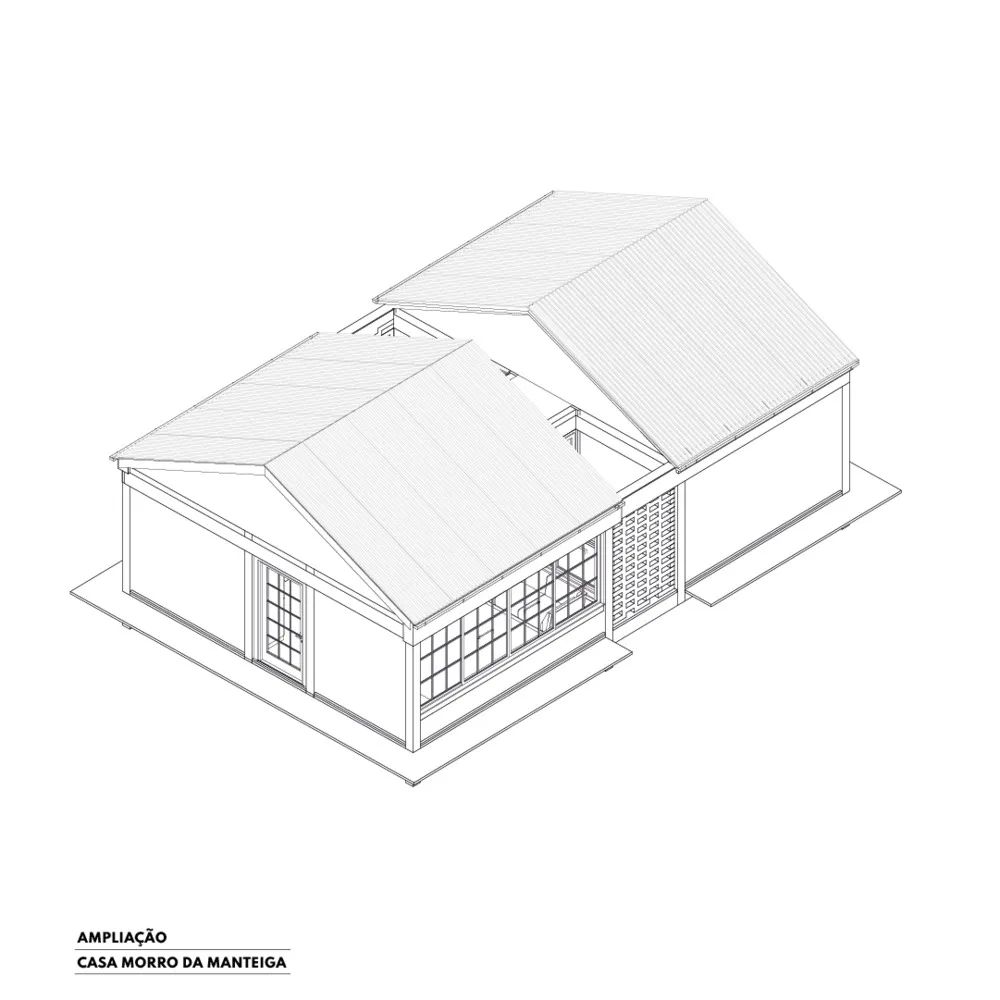

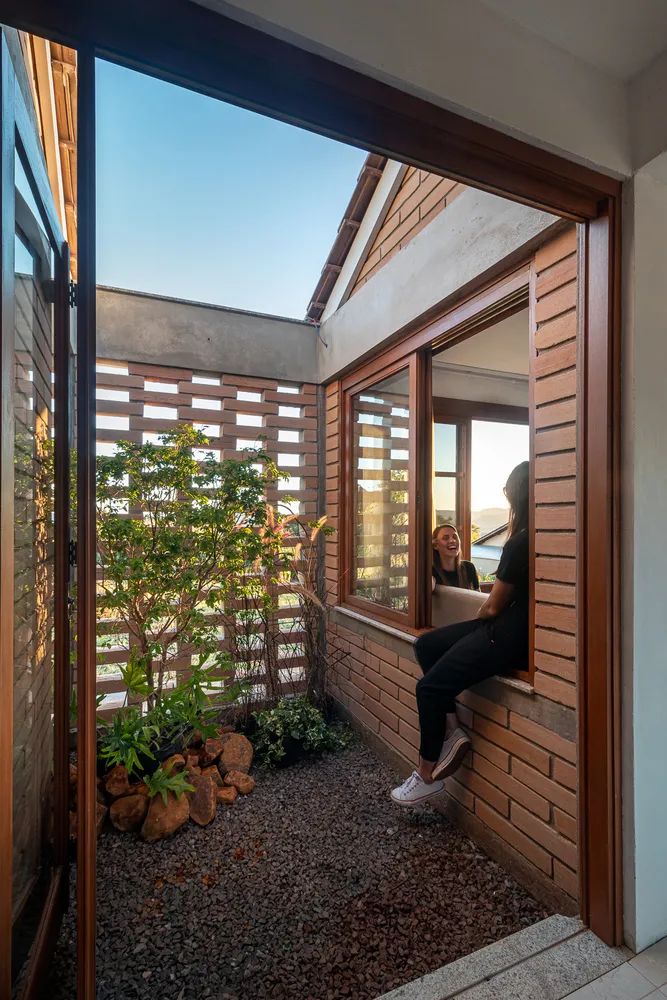

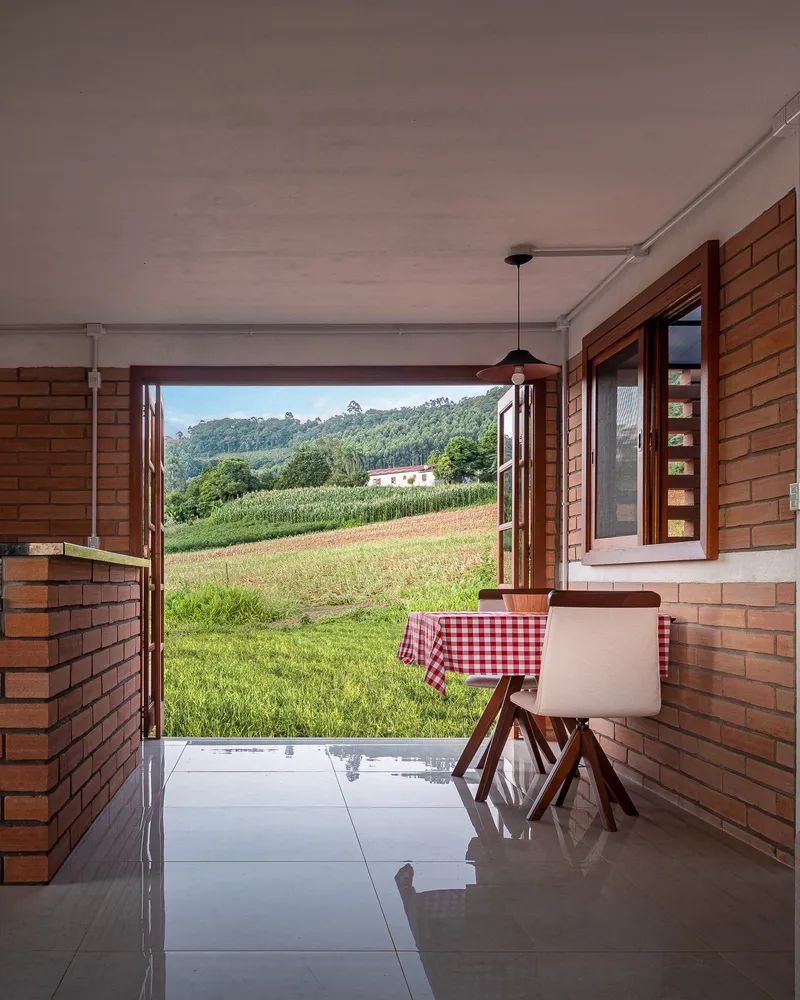

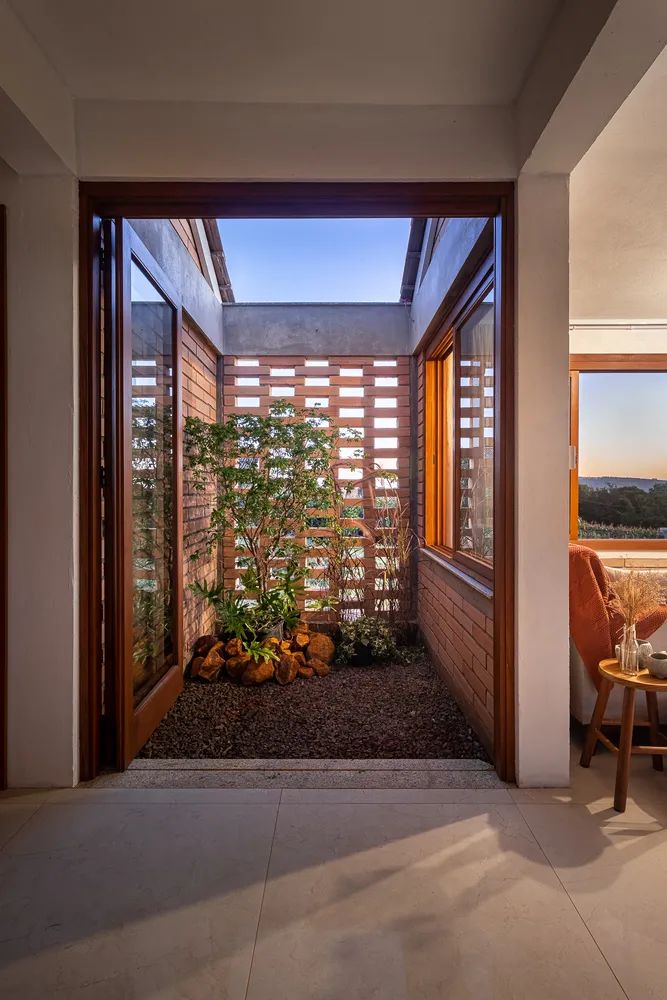

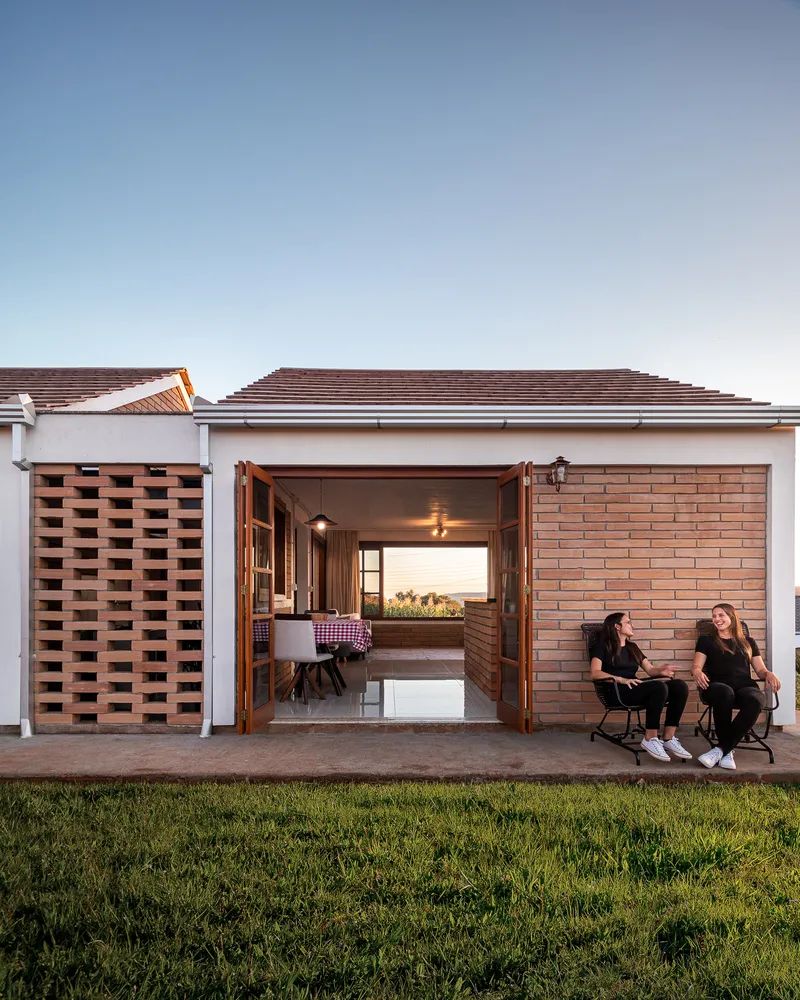

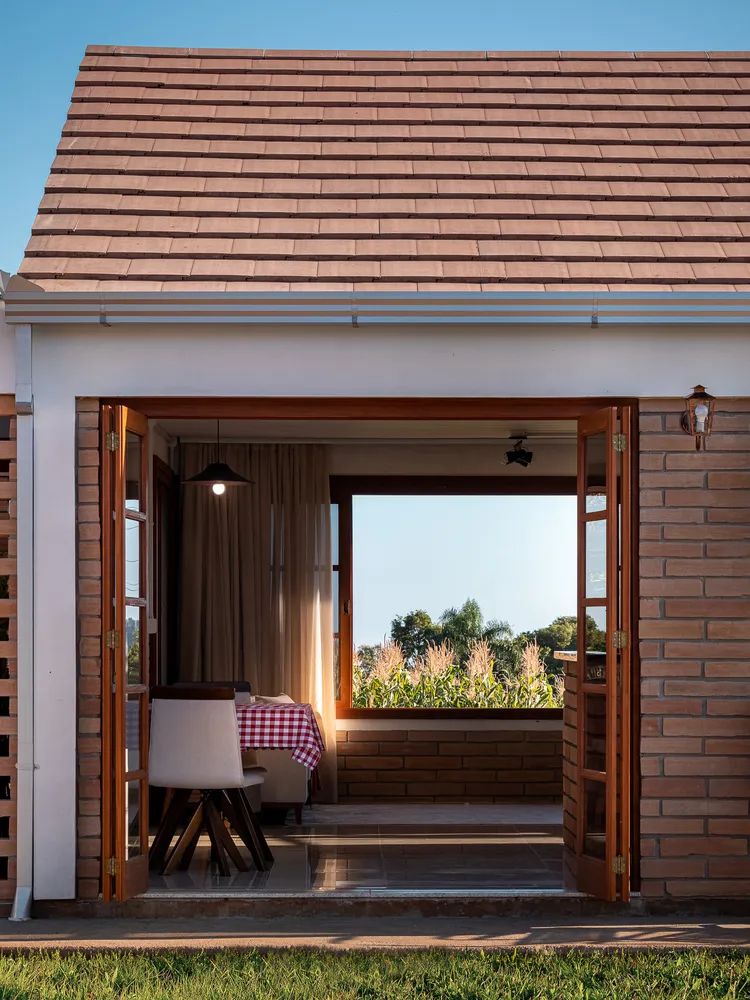

To close the patios, guaranteeing privacy, but also ventilation, we created a cobogó - traditional element of Brazilian architecture - with the gres brick itself, taking off the two volumes: social area and intimate area. The house will be expanded in the future and its extensions have already been designed, preventing what was built from being broken and ensuring the thermal comfort of the extensions. For this, a shrimp door has already been used in the kitchen / dining area, which in the future will integrate with the garage and laundry, which will be, for now, in one of the patios. It is a very significant project for us, as it shows that a house built with limited resources, by Minha Casa Minha Vida, does not need to be a 'standard' house, without studying thermal comfort or materiality.
