绿意环绕的比利时城市生活空间

GGH设计机构

预计占用你30秒便可看完文章。。。。。

The GGH design agency estimates it will take you 60 seconds to read the article. . . . .

刘 老 师 说

Teacher Liu said

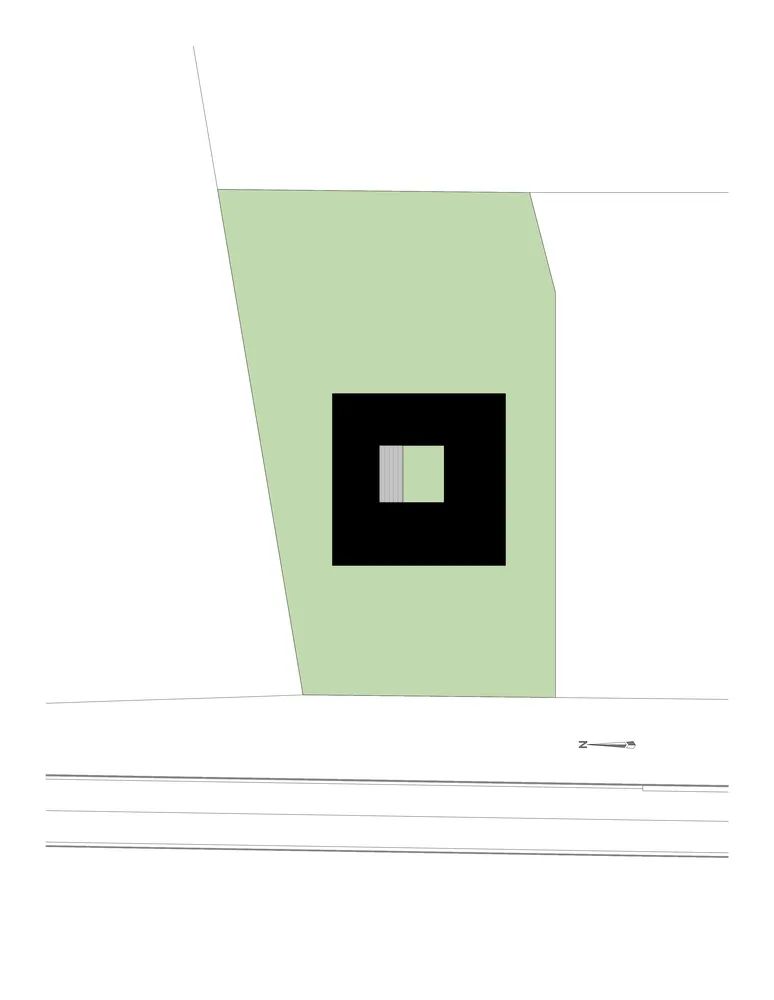

该遗址位于林堡省的根克市中心。当地居民，来自比利时和日本的一对夫妇，想要一个靠近城市的生活和工作空间，但是要在一个平静的绿洲里。

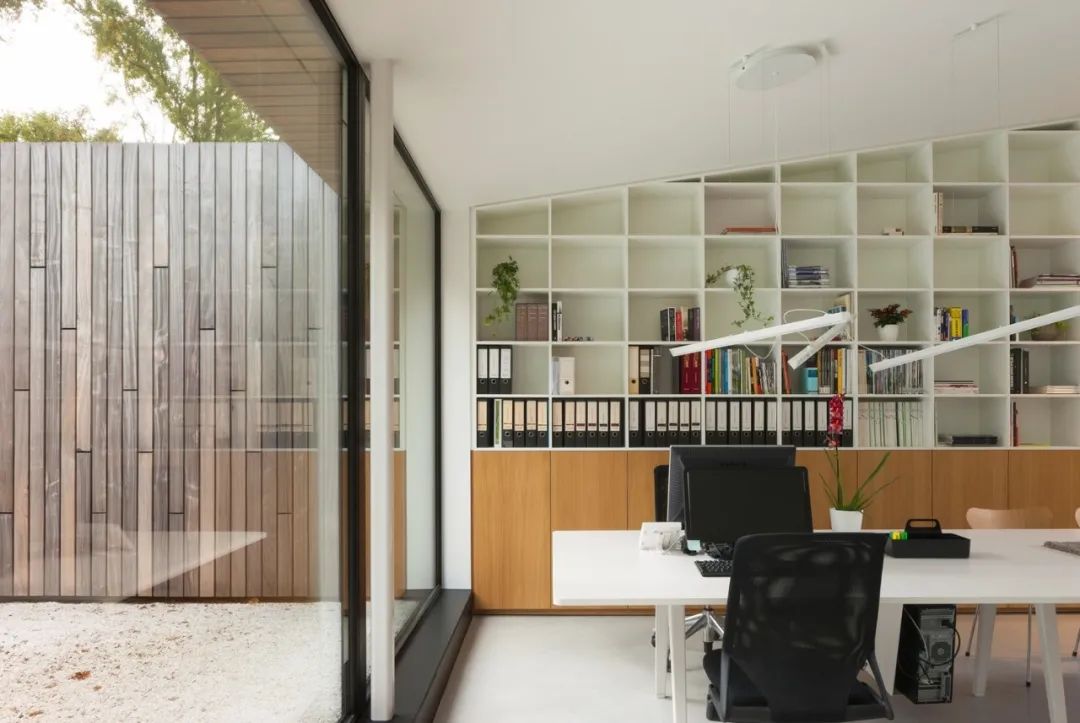

The site is located just inside the center of the city of Genk in the province of Limburg. The residents, a couple from Belgium and Japan, wanted a combination of living and working space close to the city, but in a peaceful oasis.

因此，我们寻找一个有两个重要特质的家: 一个提供透明度，光线和开放感的空间，同时又有足够的隐私，这样居民之间的亲密关系可以得到培养。

So, we looked for a home that had two important qualities: a space that provided transparency, light and a sense of openness and at the same time enough privacy, so that intimate relationships between the residents could be fostered.

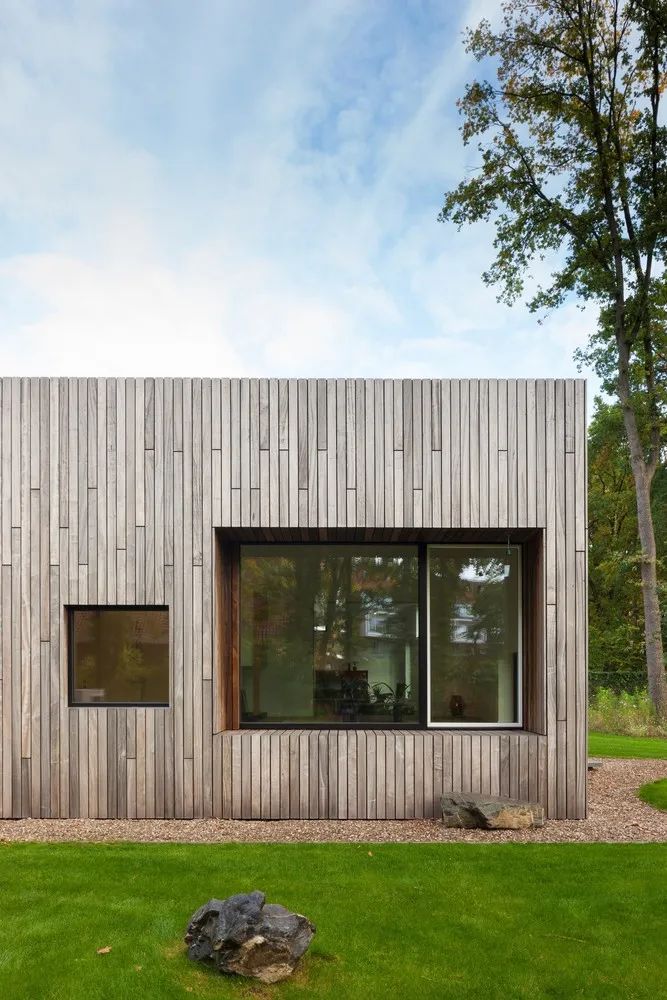

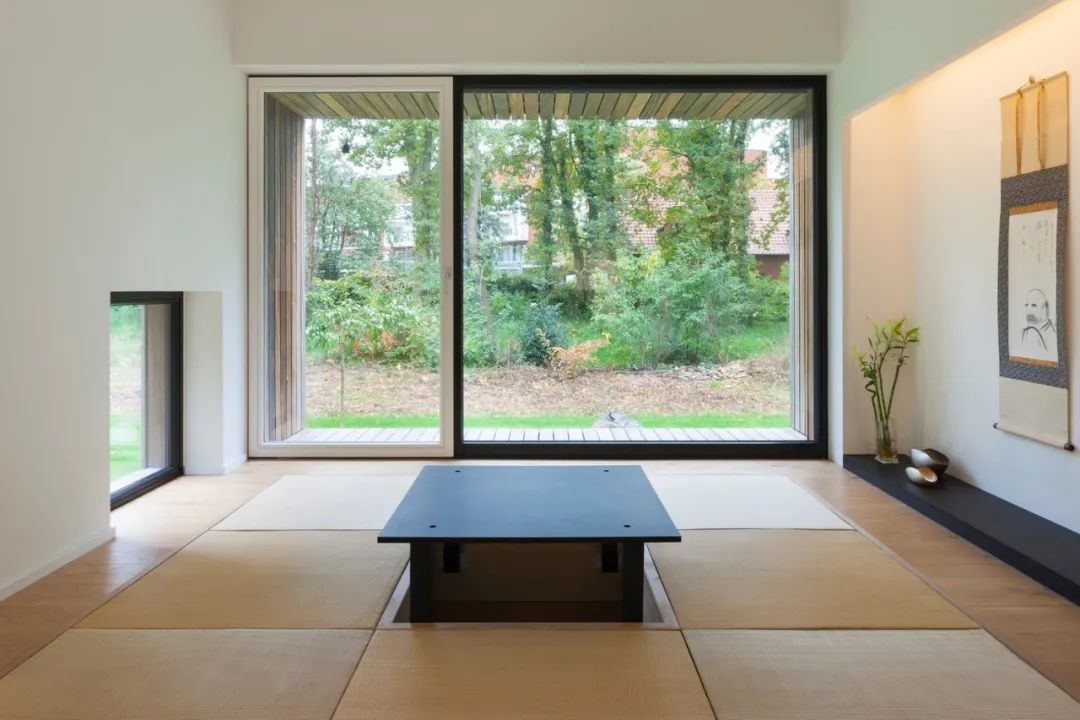

我们实现这个目标的方法是，将住宅看作一个围绕中央内院的体量。庭院让光线穿透到房间的深处，同时也提供了一个自然的隐私屏障。这个体量的特点是在外面有几个正方形的孔。木质立面上的开口看起来是任意放置的，但是它们为后面的空间提供了一个框架式的外部视角，位于战略选择的地方。

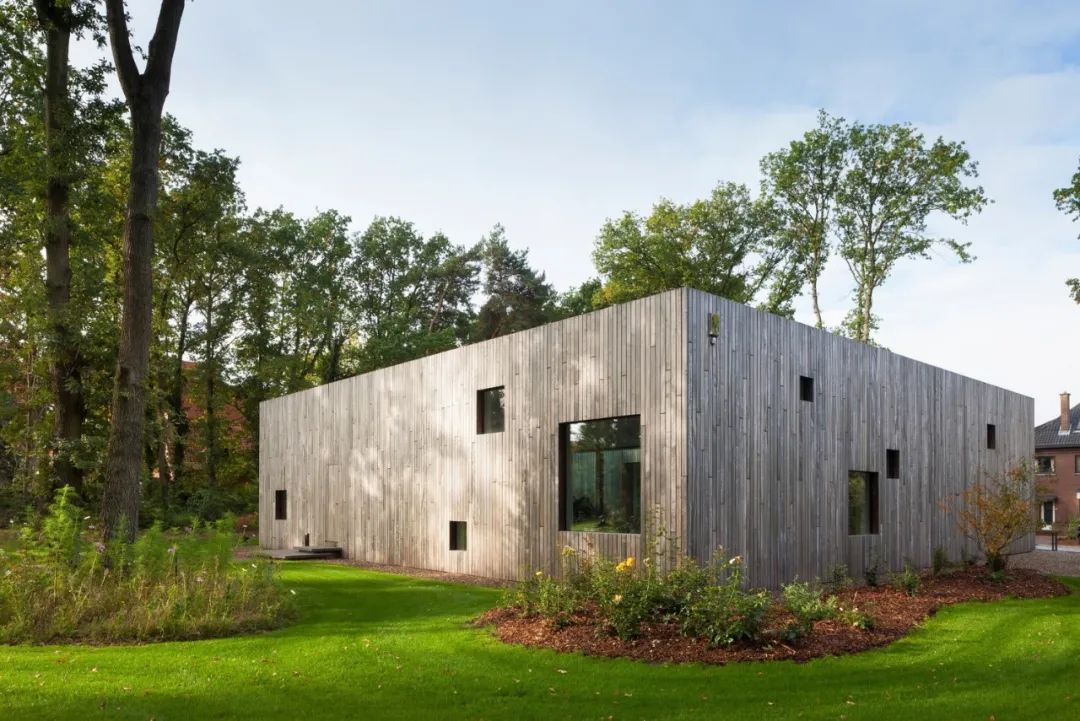

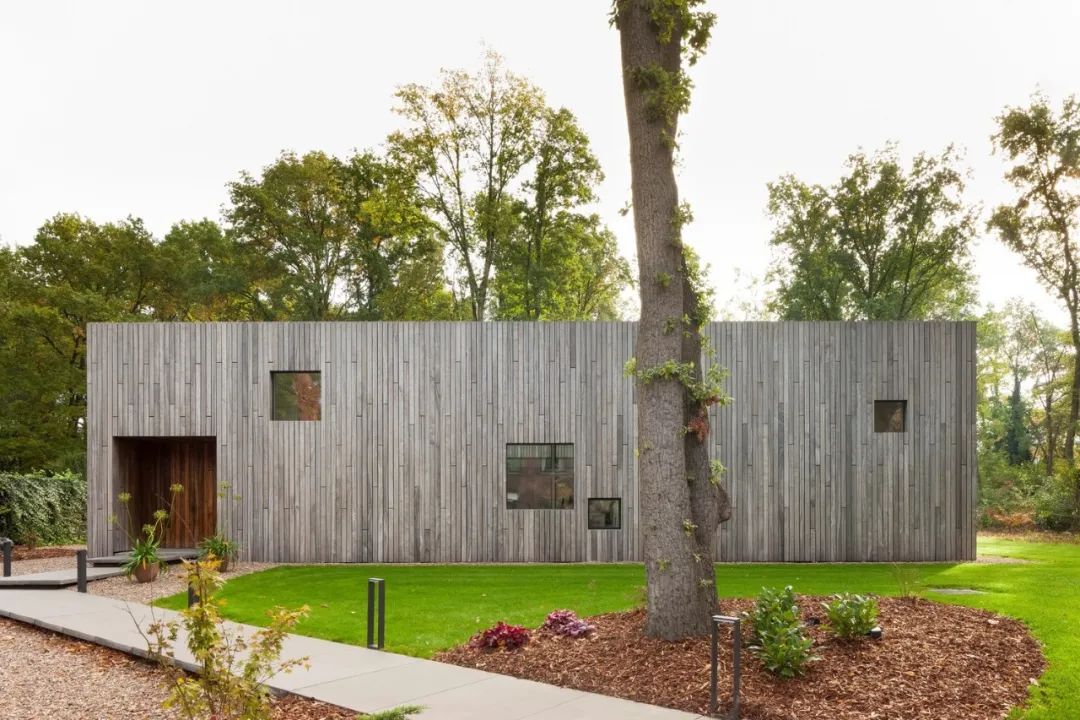

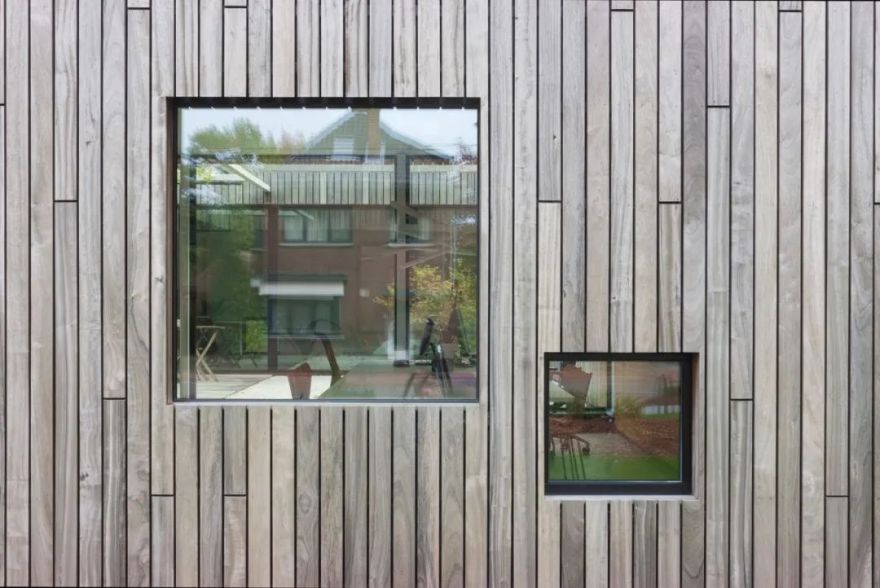

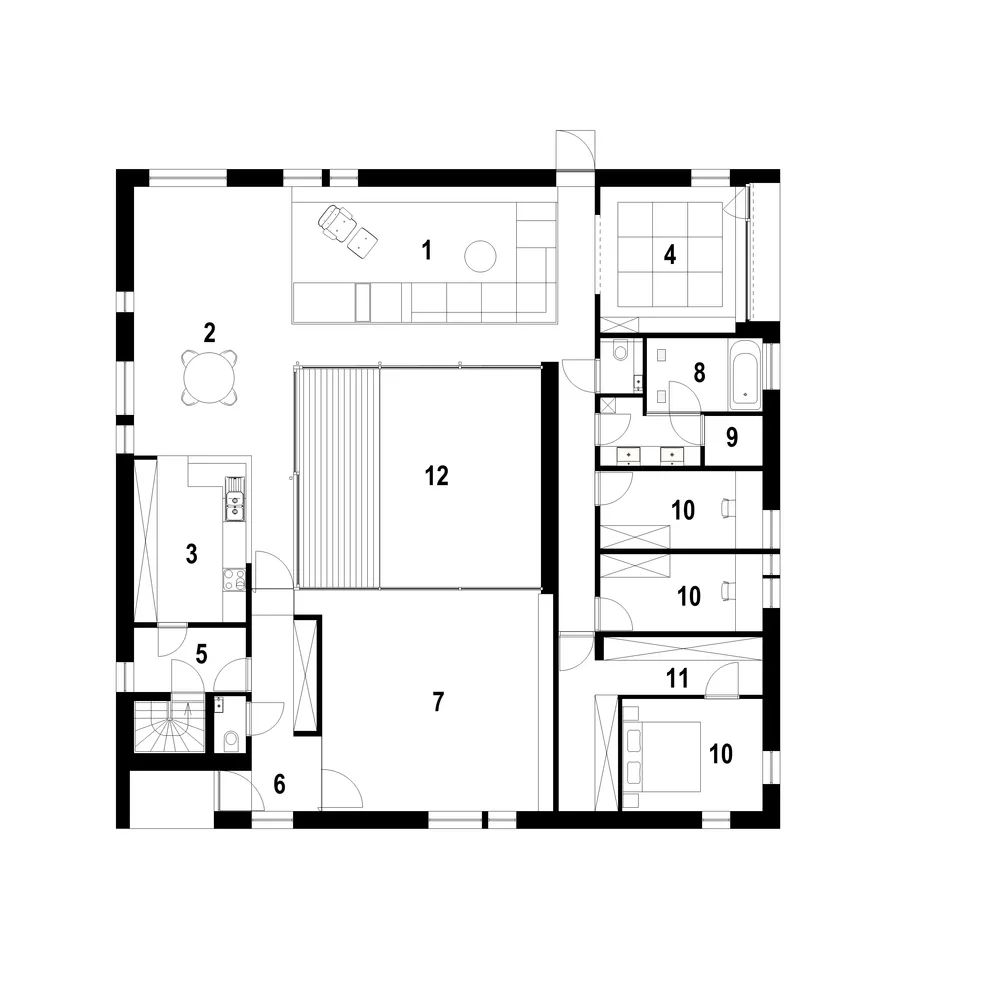

The way we accomplished this was by seeing the home as a volume around a central inner courtyard. The courtyard allows light to penetrate deep into the room and also provides a natural privacy screen.  The volume is characterized on the outside by several square perforations. The openings in the wooden façade appear to be placed arbitrarily, but they provide the spaces behind them with a framed external view in strategically chosen places.

这个体量给外部一个封闭的印象，但是一旦进入，完全玻璃的内部庭院确保住宅充满阳光。这个庭院被用作私人庭院，对邻近高层建筑的邻居隐蔽。

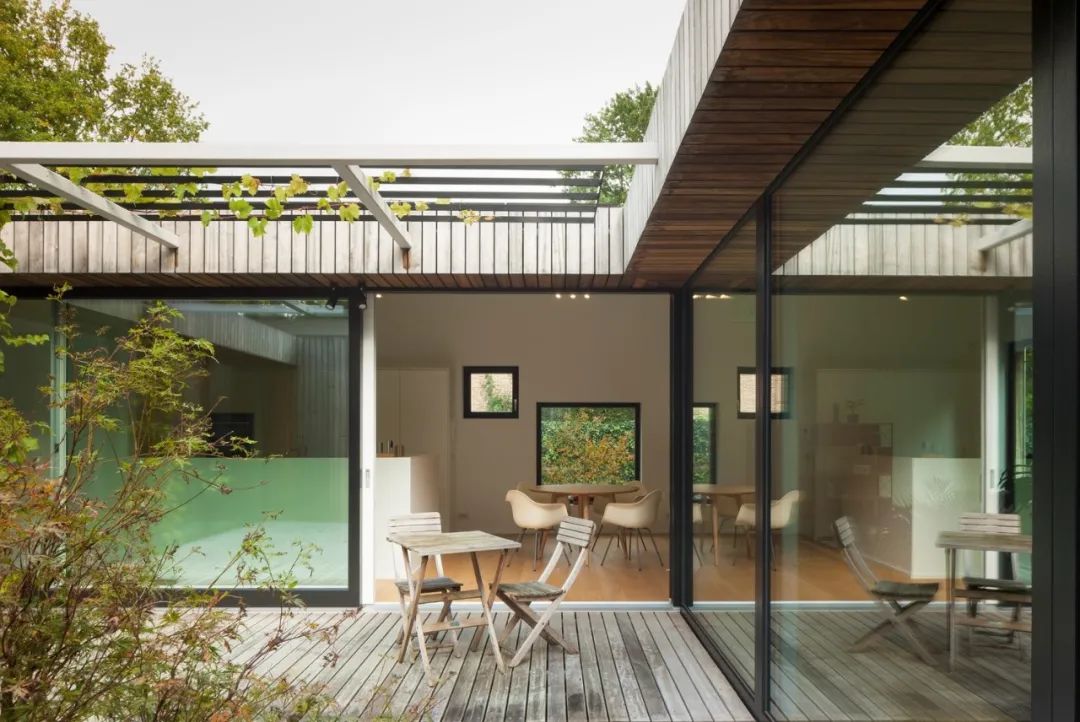

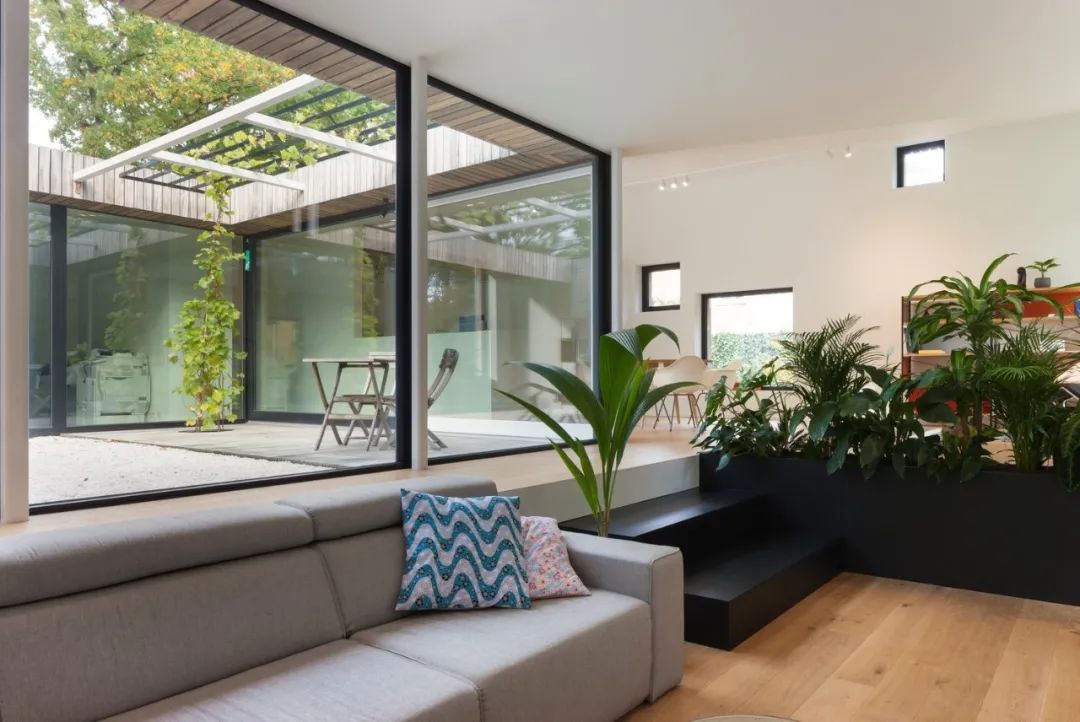

The volume gives a closed impression on the outside, but once inside, the completely glazed inner courtyard ensures that the home is flooded with light. This courtyard is used as a private patio that is concealed from the neighbors in the adjacent high-rise building.

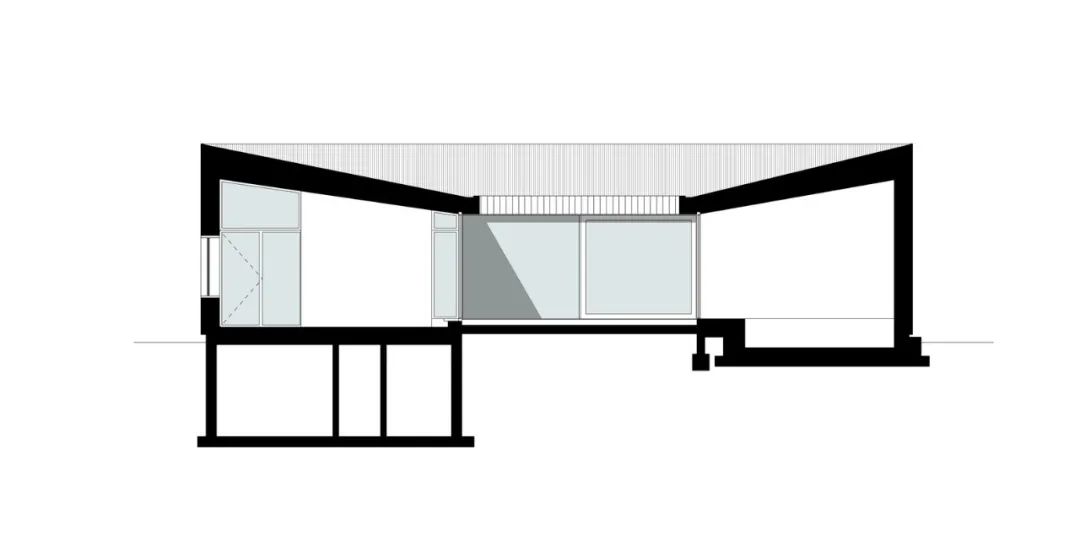

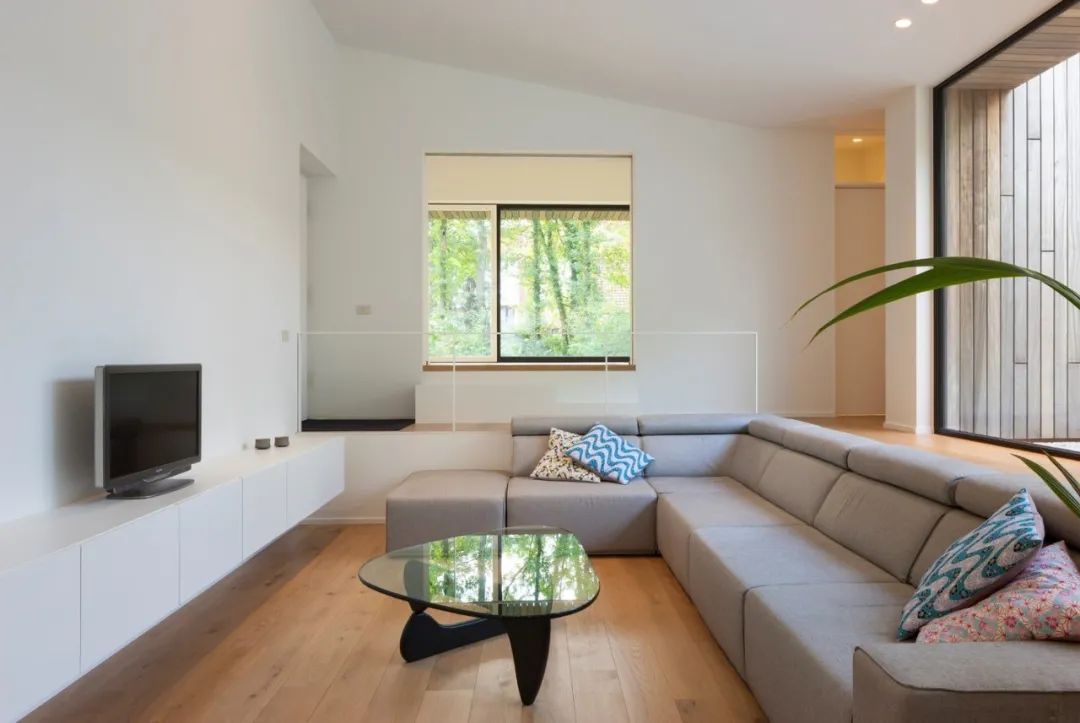

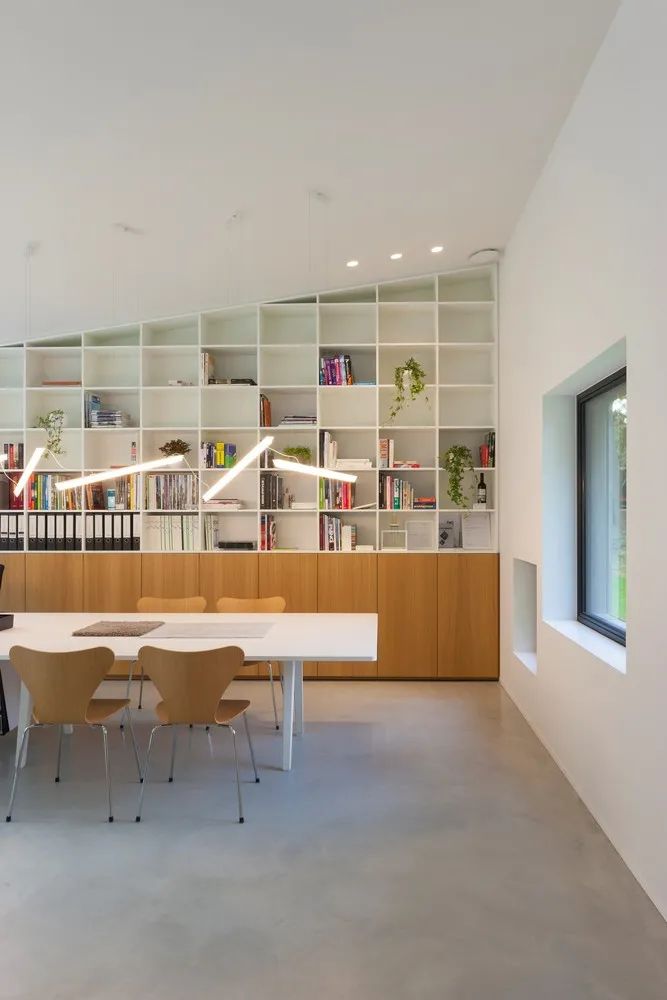

虽然从外面看，房子似乎有一个平屋顶，整个屋顶朝向庭院倾斜。高而宽敞的天花板斜向庭院，使房间充满活力，你的注意力被吸引到朝向对面房间的天井里。

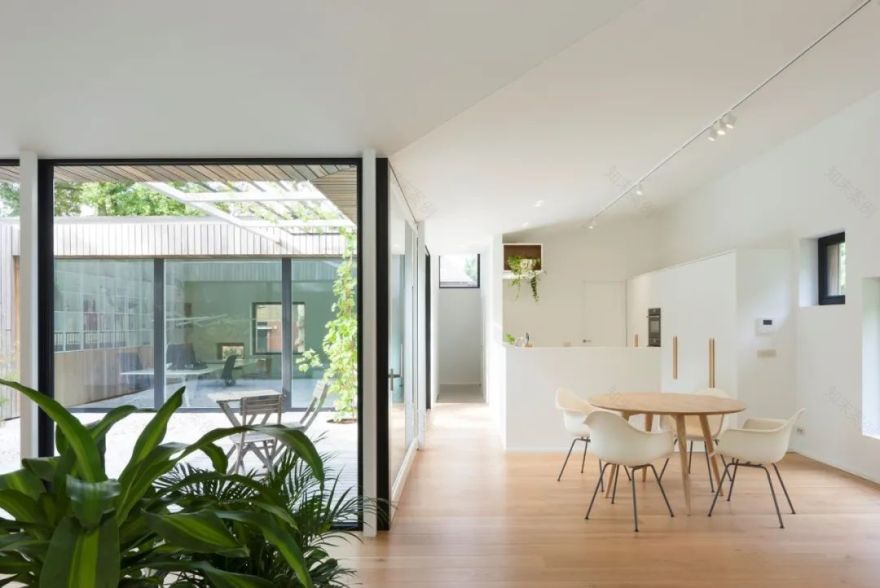

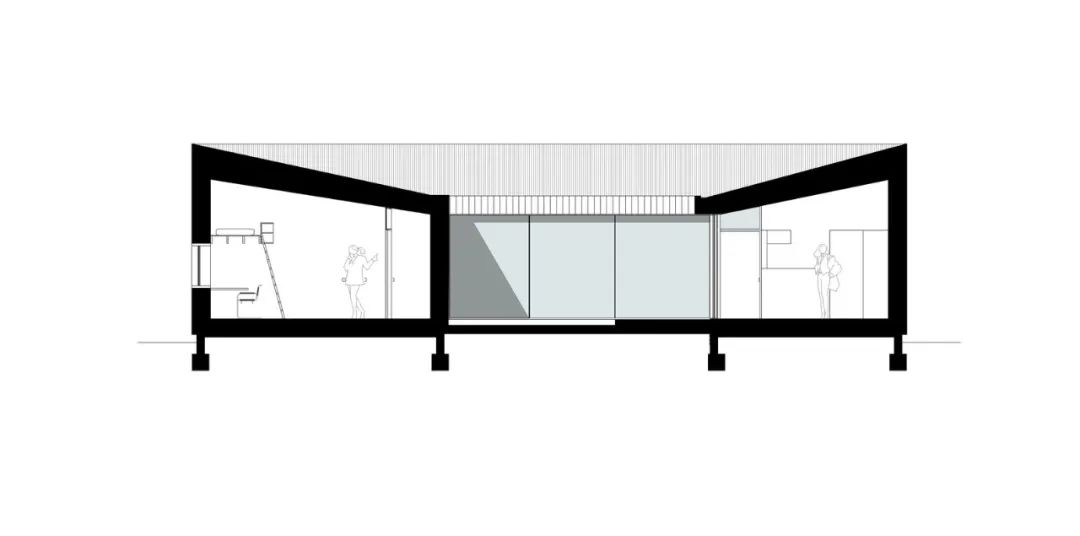

Although from the outside the home appears to have a flat roof, the entire roof slopes towards the courtyard. The high, spacious ceilings that slope towards the courtyard make the rooms dynamic and your attention is drawn to far into the patio towards the opposite rooms.

家庭的环境足迹非常小。结构由木框架和纤维素绝缘材料制成，这样可以最大限度地减少建筑过程中的二氧化碳排放。使用的材料大部分是天然的。特殊的屋顶可以隐形安装太阳能电池板，家里也可以用热泵加热。窗户都是木质框架，三层玻璃，通风均衡。院子里的葡萄藤在夏天可以提供很多遮阳处，这样可以防止过热。

The environmental footprint of the home is very small. The structure is made of a wooden frame and cellulose insulation, which minimizes the CO2 emission of the construction. The materials used are largely natural. The specific roof enables invisible installation of solar panels and the home is heated with a heat pump. The windows are all wood-framed and triple-glazed and have balanced ventilation. A grapevine in the courtyard provides a lot of shade in the summer, which prevents overheating.
