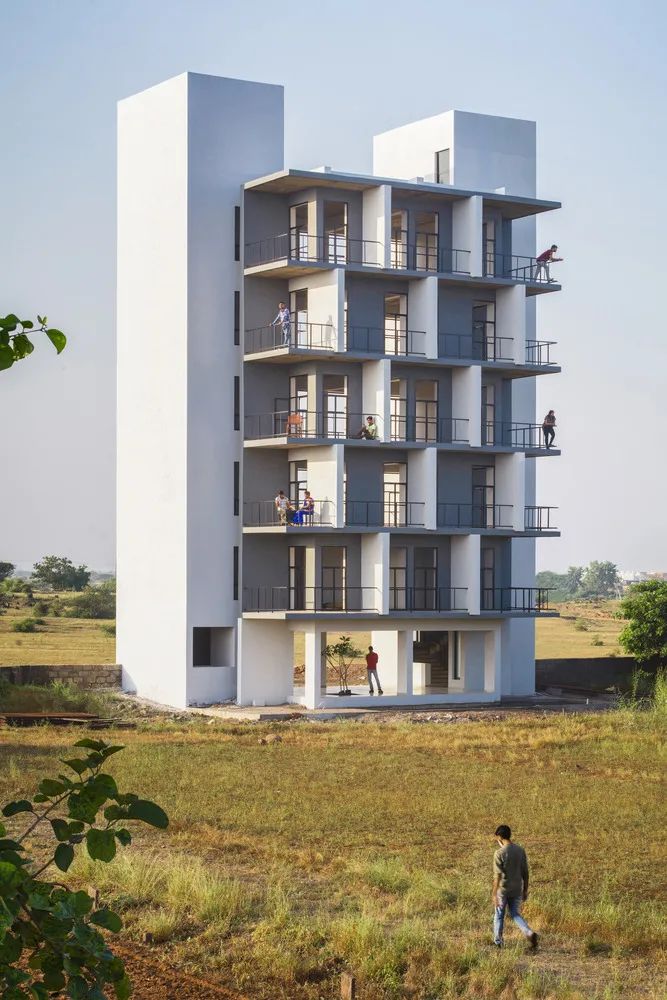

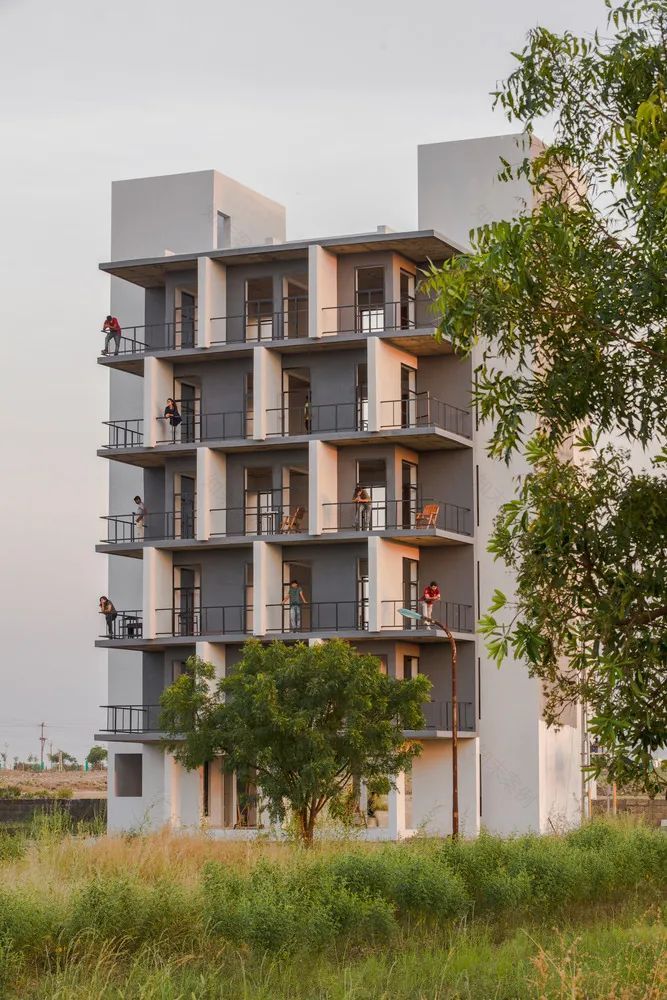

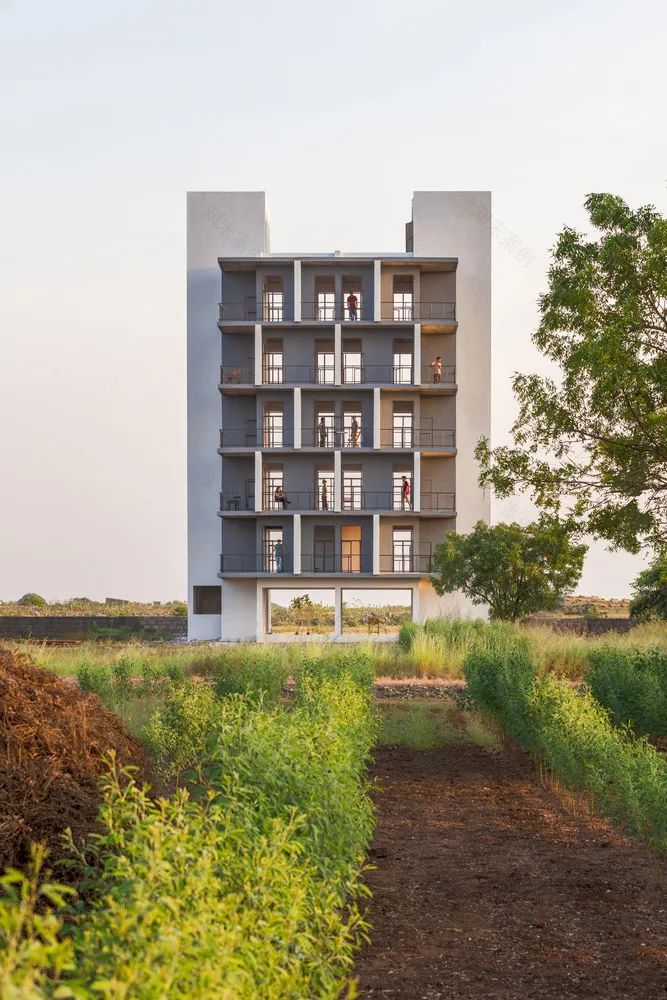

飞墙客栈项目是一家公司委托我们进行的，旨在为员工提供一个促进社区生活和福利的生活空间。该网站位于拉杰科特市郊区的一个发展中地区的教育，工业和酒店建筑的未来。尽管进行了开发，但该地块的位置提供了农业、牧场和地平线的无尽视野。

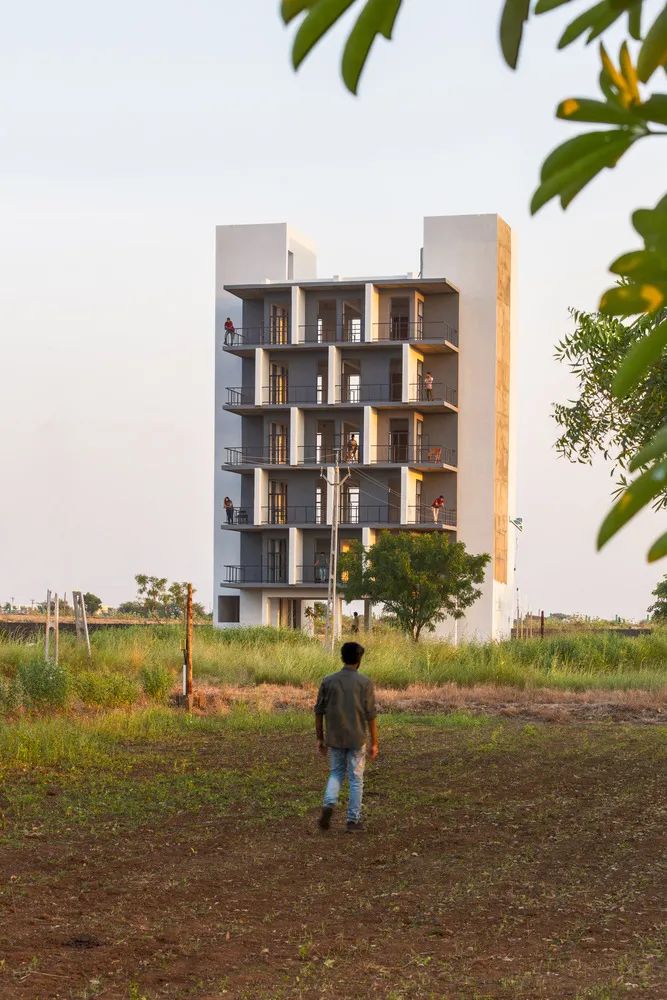

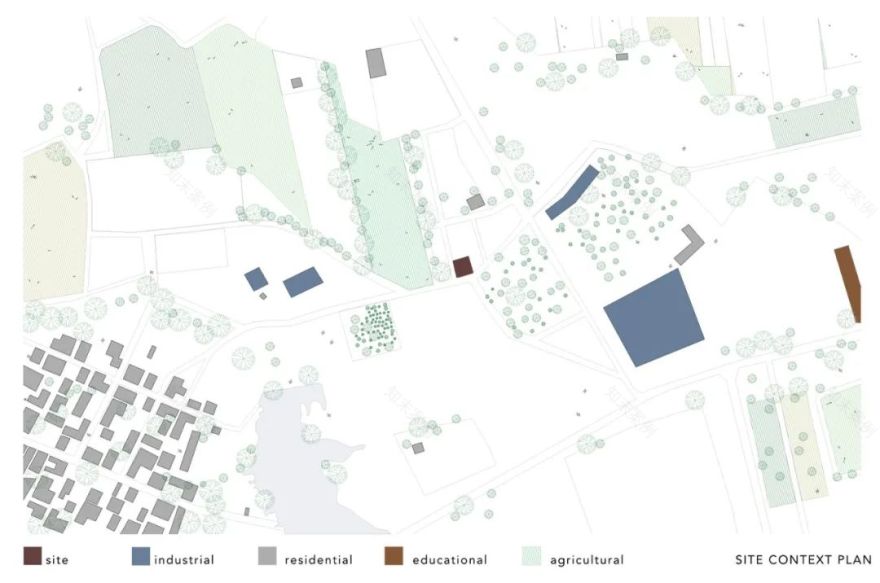

Text description provided by the architects. The flying walls hostel project was commissioned to us by a company intending to provide their workers with a living space that promotes community living and wellbeing. The site is located on the outskirts of the city of Rajkot in a developing area with educational, industrial and hospitality buildings coming up. Despite the development, the site's location provides unending views of the agricultural, grazing lands and the horizon.

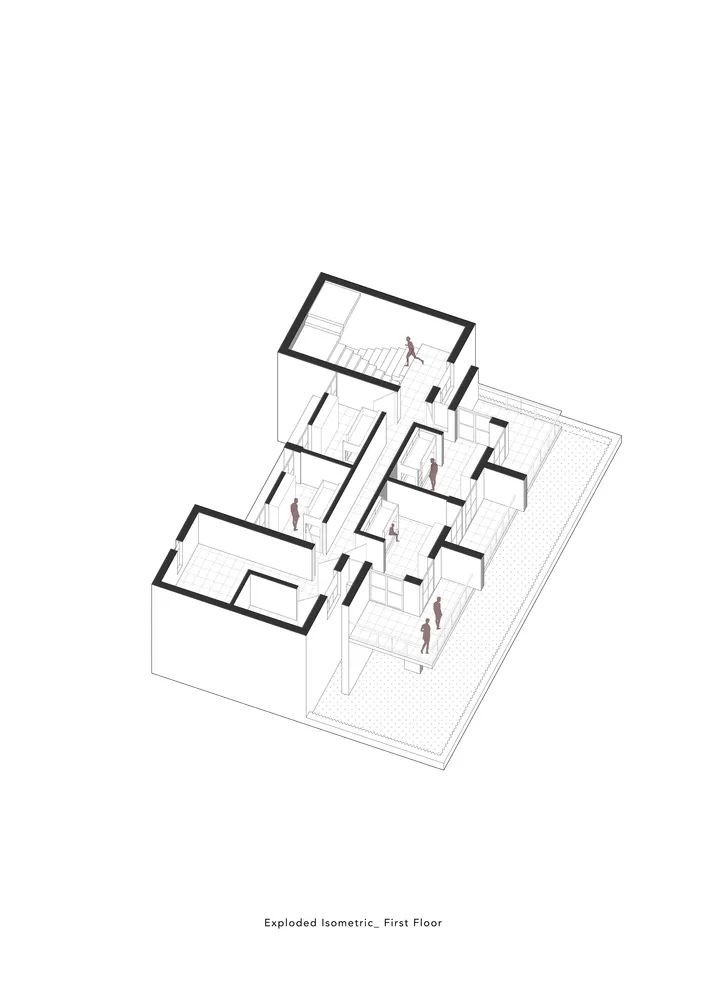

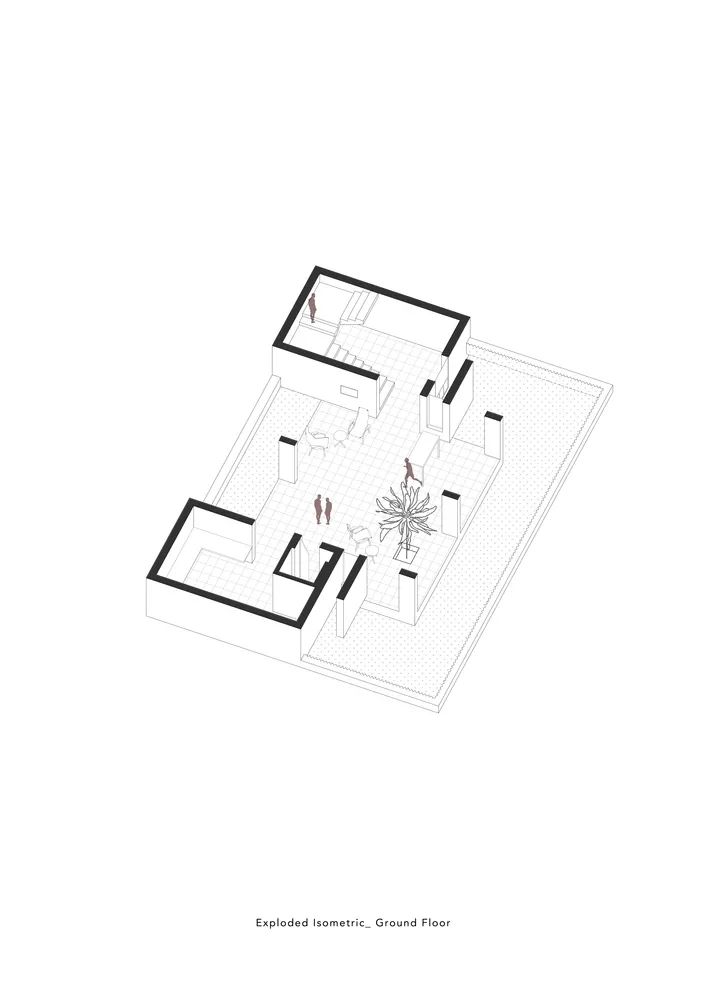

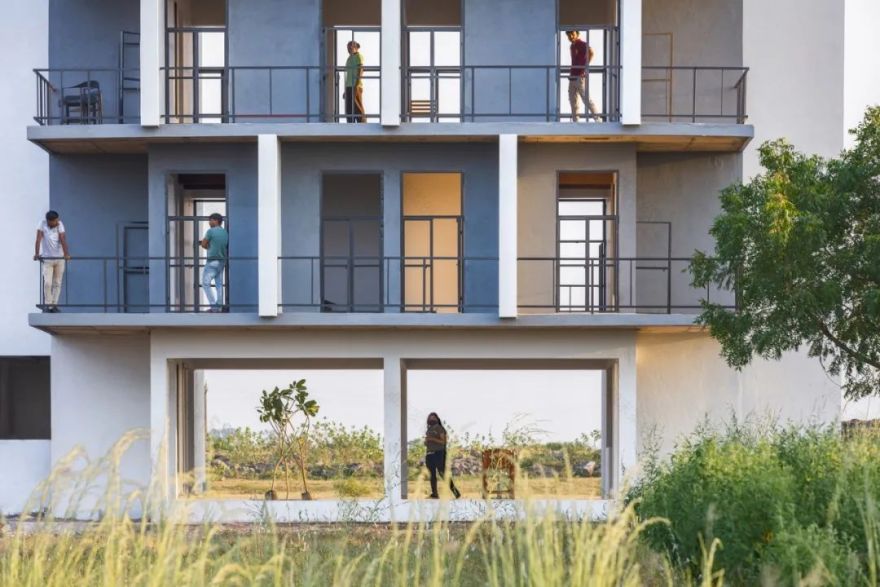

功能要求简单明了，建筑物较低的一层专门供总经理和官员使用，较高的一层专门供不同级别的工人使用。公司有5名 gms 和50-75名员工。该要求用一个简单的平面图和一种场地和服务的方法将建筑质量分为五个相等的层次。由于居民来自国家的不同地区，建筑形式上的友好和开放的环境对于促进每个人之间健康的社会联系是必要的。

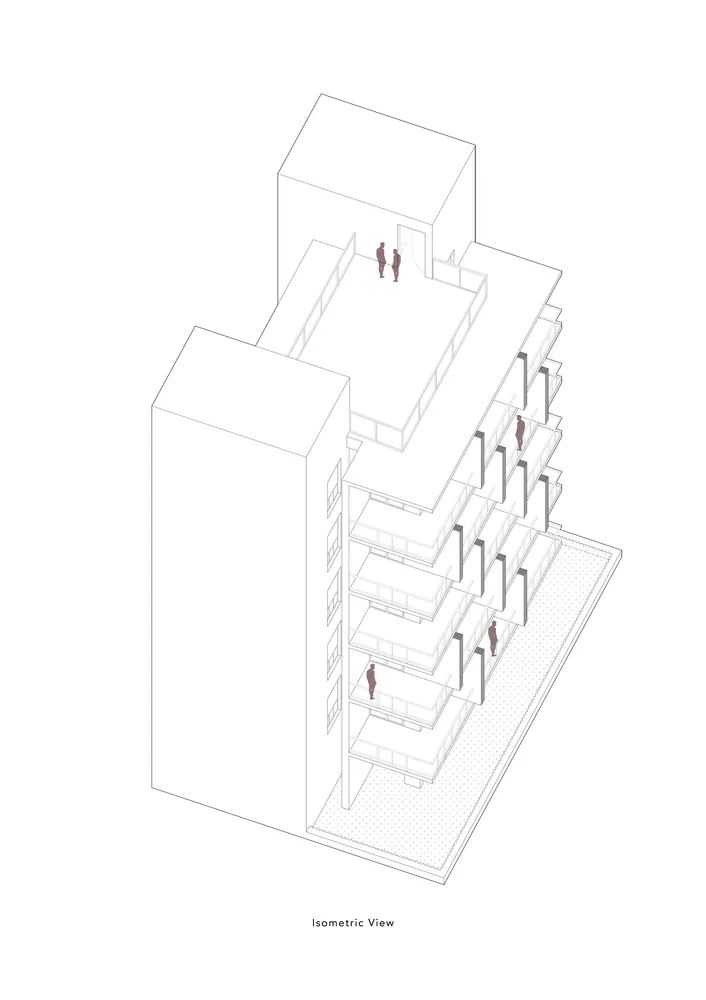

The functional requirement was straightforward, the lower level of the building dedicated to the general managers and officials while the higher levels dedicated to other workers of different ranks. The company had 5 GMs and 50 - 75 other employees. The requirement divided the built mass into five equal levels with a simple floor plan and a site and services kind of approach. As the inhabitants hail from different parts of the country, a friendly and open environment in terms of built form was necessary to promote a healthy social bond amongst everyone.

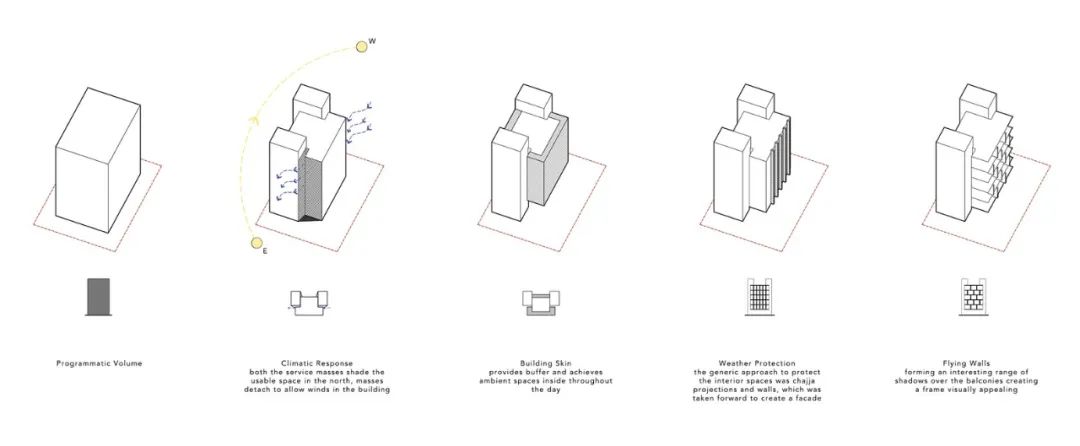

天气保护元素主要是为了提供全天环境的空间。中午后来自太阳的热量加热了暴露在西方的建筑物表面。为了解决这个问题，我们在悬臂板之上摇摇晃晃地堆放墙壁，以创造必要的屏障。

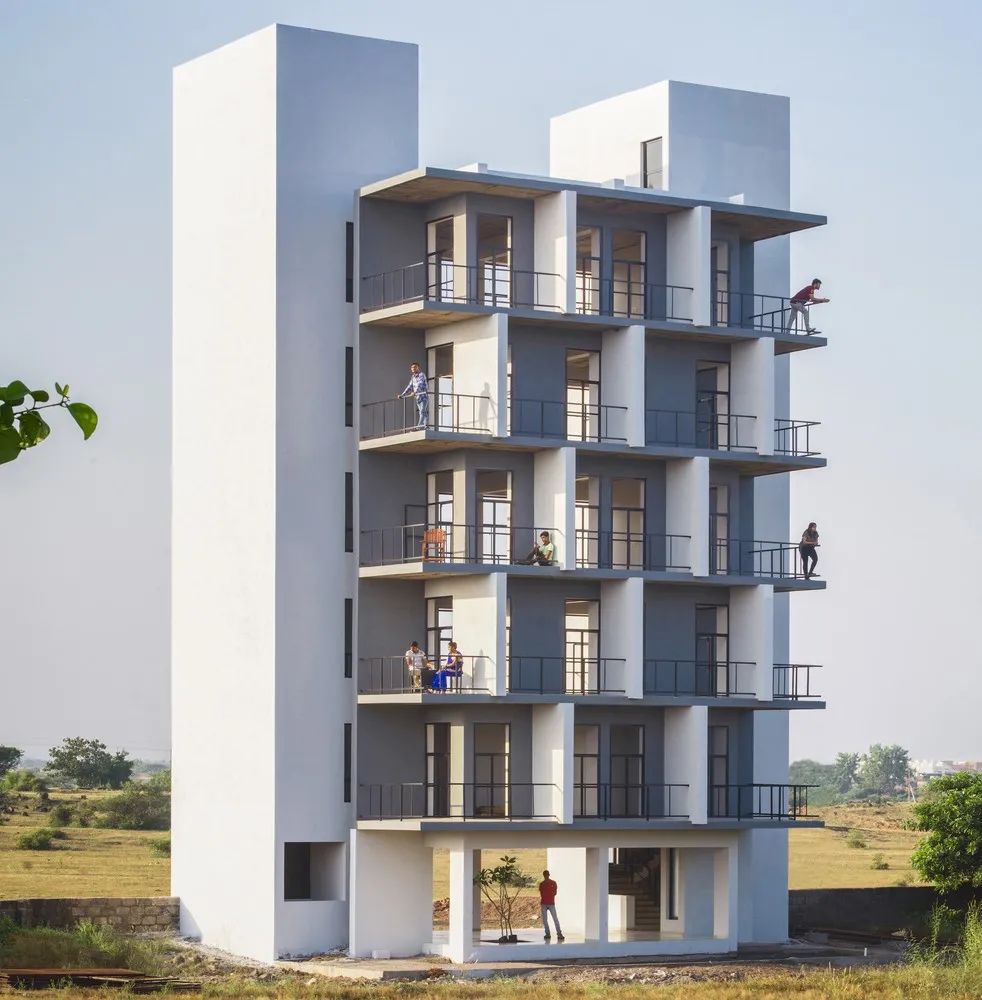

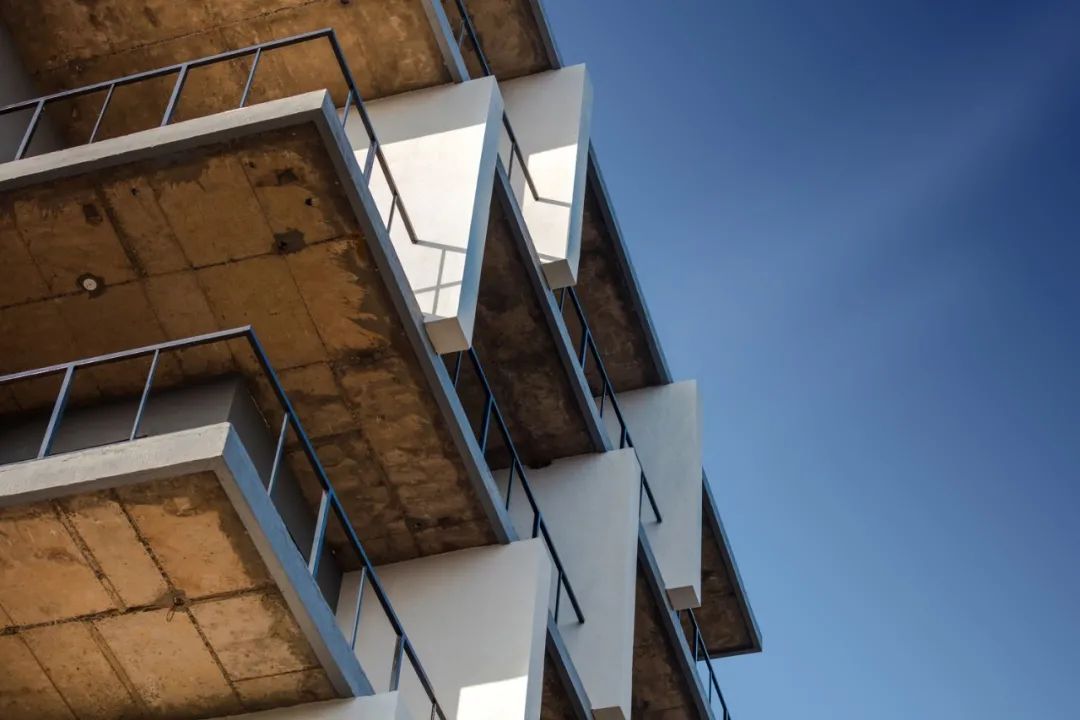

The weather protection elements were primarily worked on to provide spaces that are ambient throughout the day. The heat from the sun after midday heats the building surfaces exposed to the west the most. To tackle this we staggeringly stacked the walls above cantilevered slabs to create the necessary barrier.

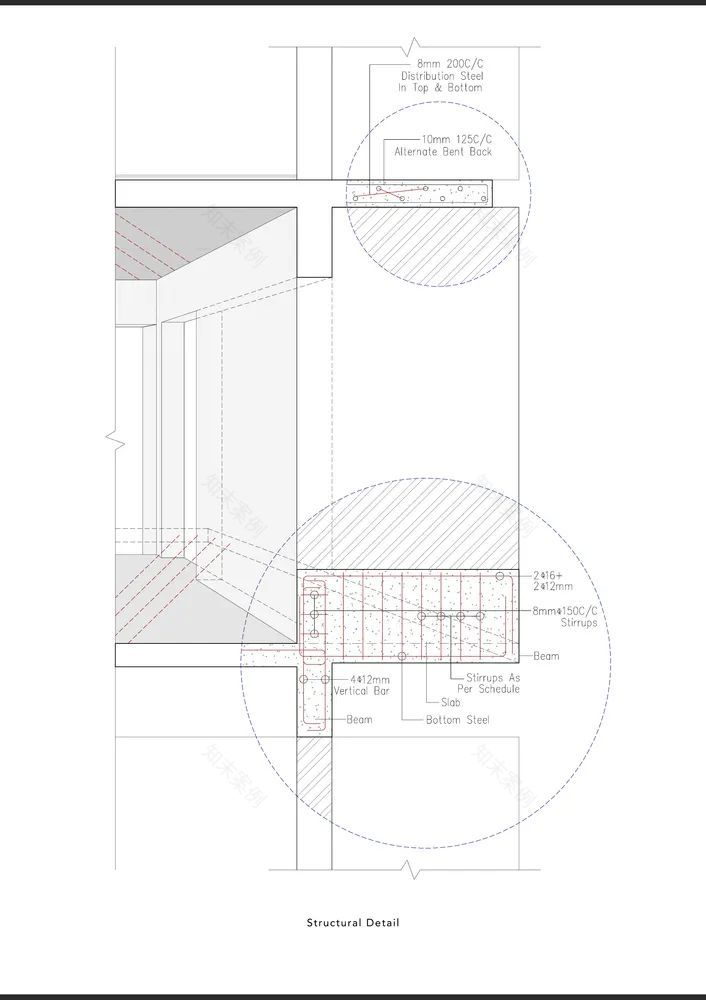

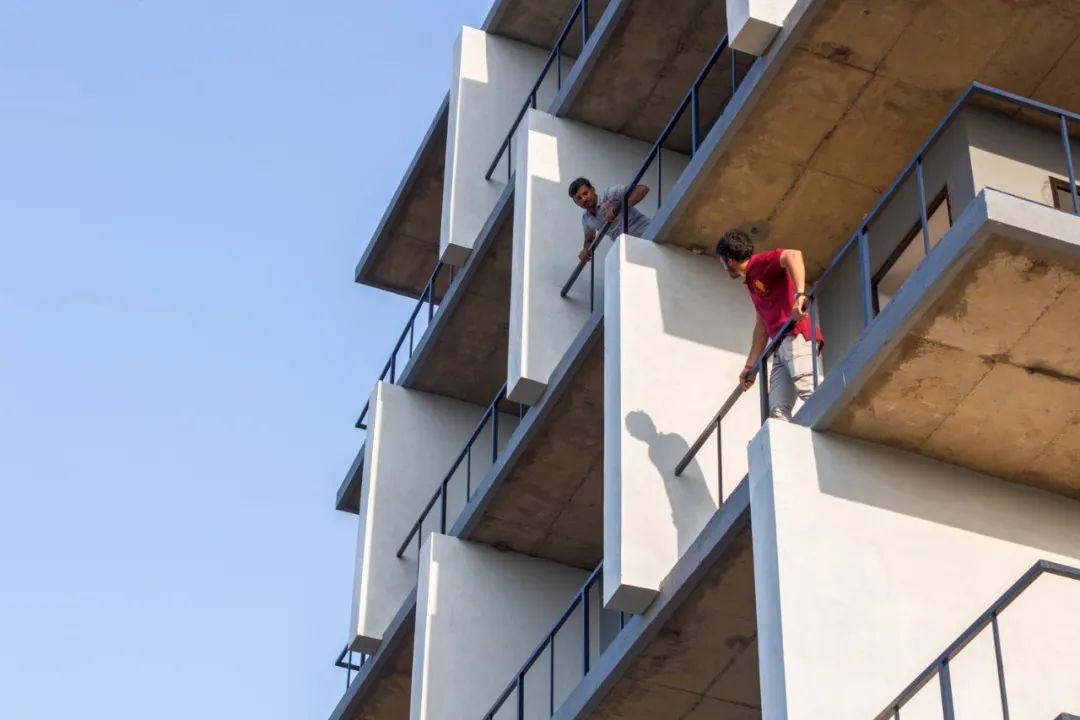

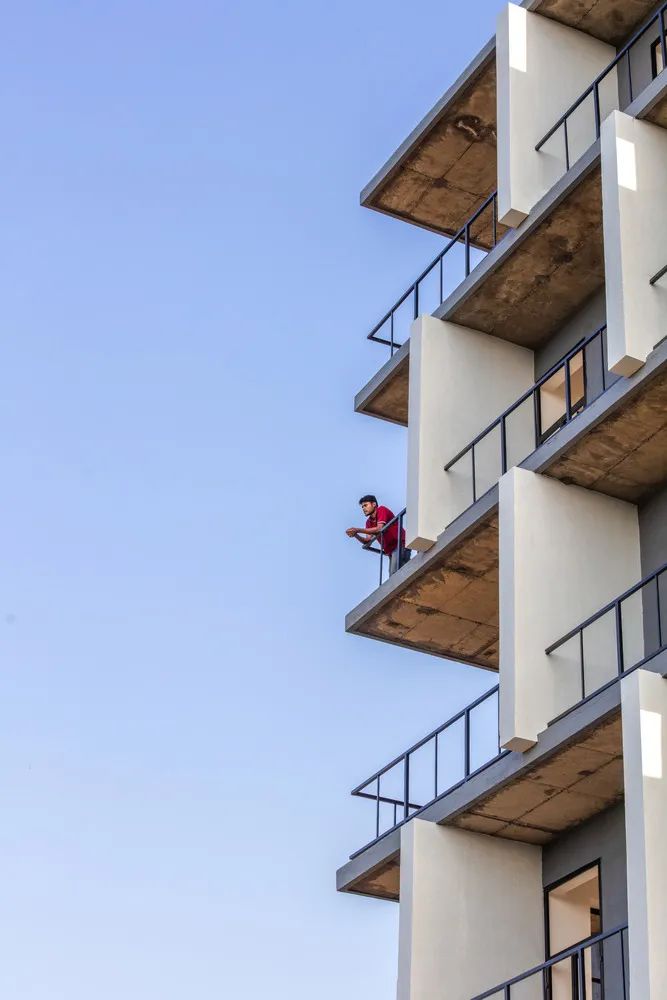

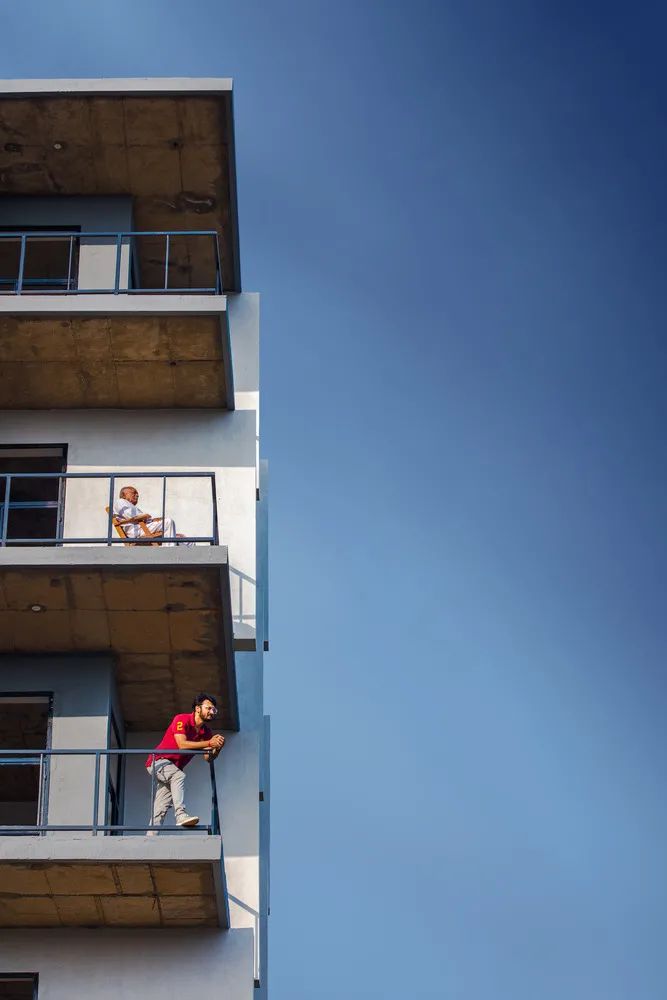

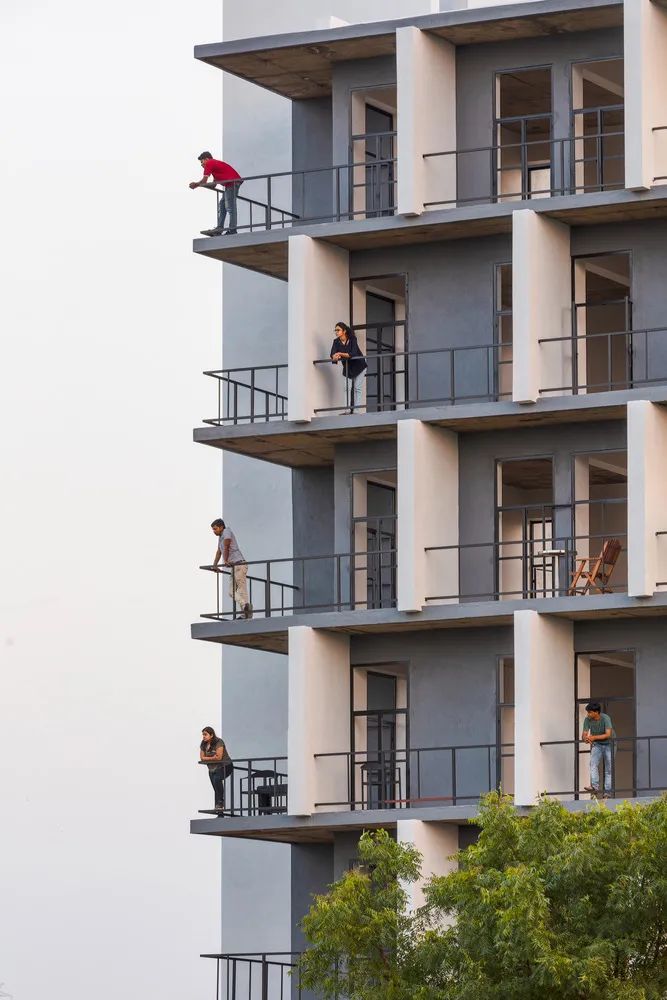

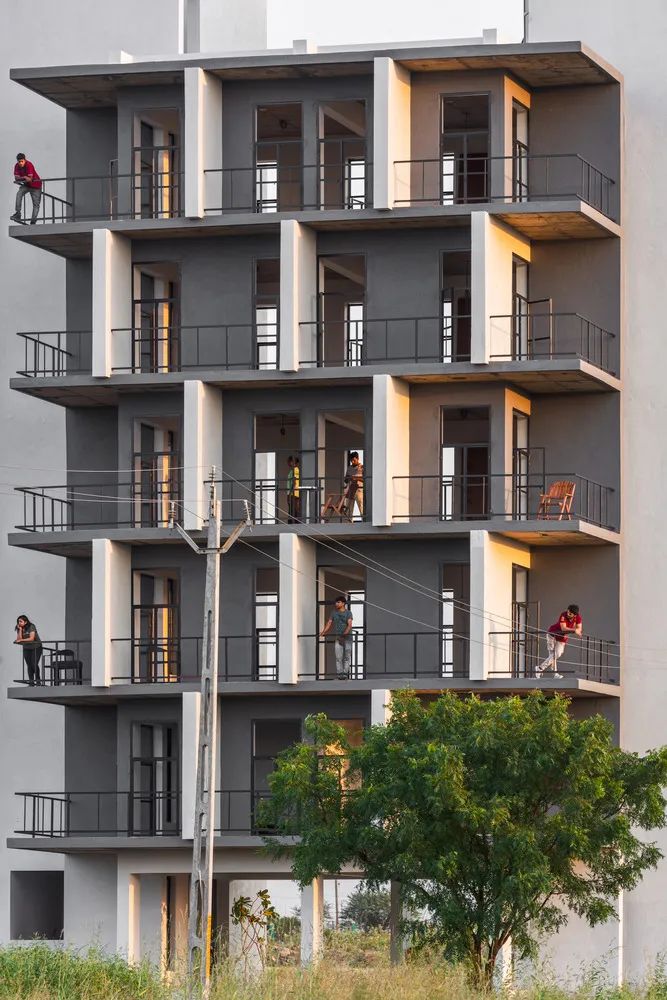

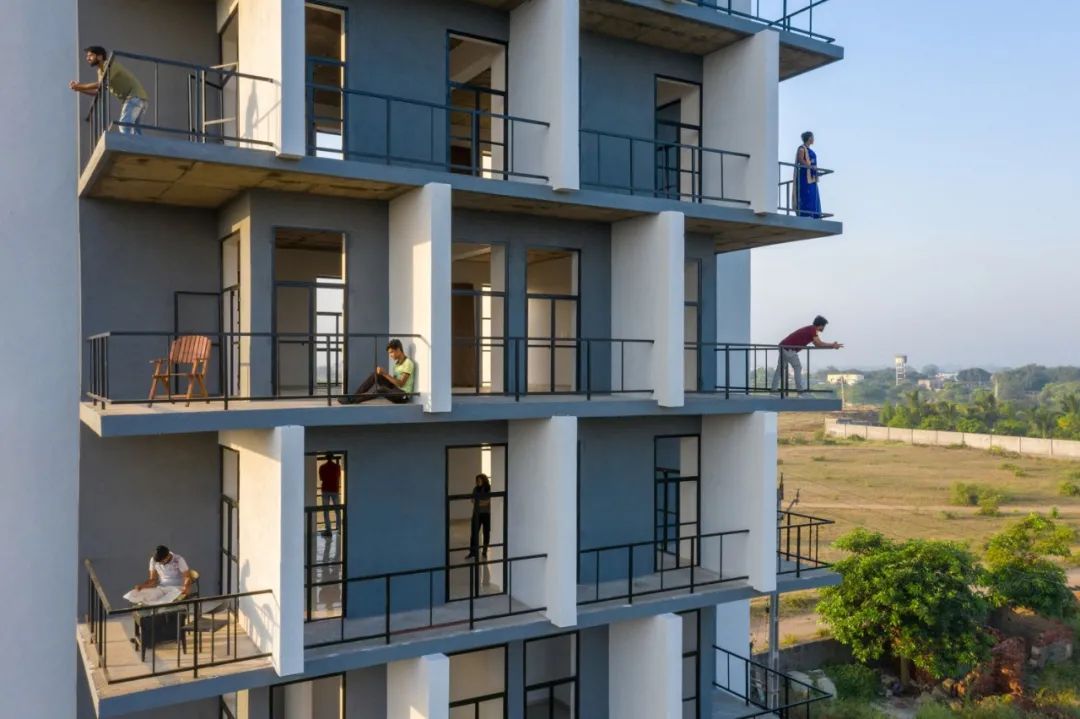

这个过程产生了一个想法，将其融入到建筑语言中。如果我们可以把墙从它的石板上挑出来呢？仿佛墙壁从立面上飞出来，在中央框架结构上保持平衡。这些飞墙在阳台上形成了一系列有趣的阴影，创造了一个视觉上吸引人的框架。当与背景拍摄时，总是保持一种轻微的对比，既不压倒性，也不融合，以创造身份，并在居住者中激发自豪感和归属感。

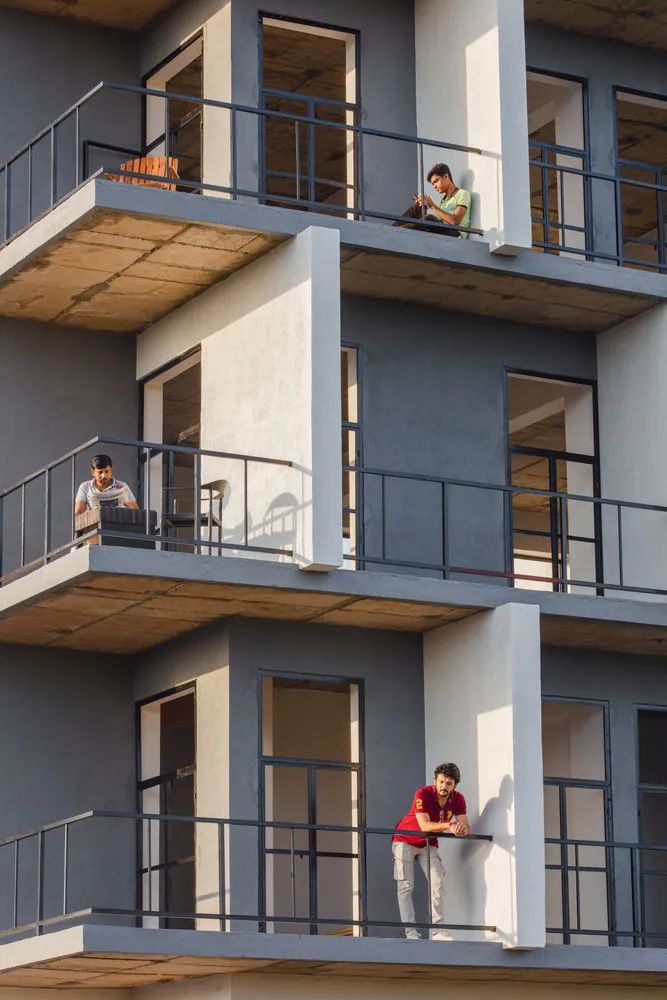

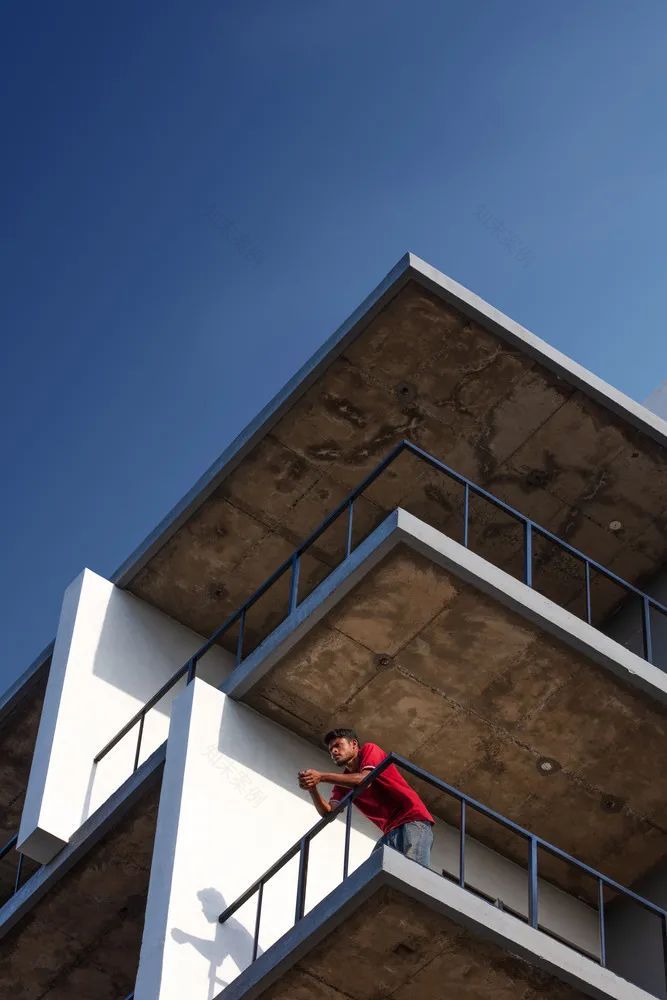

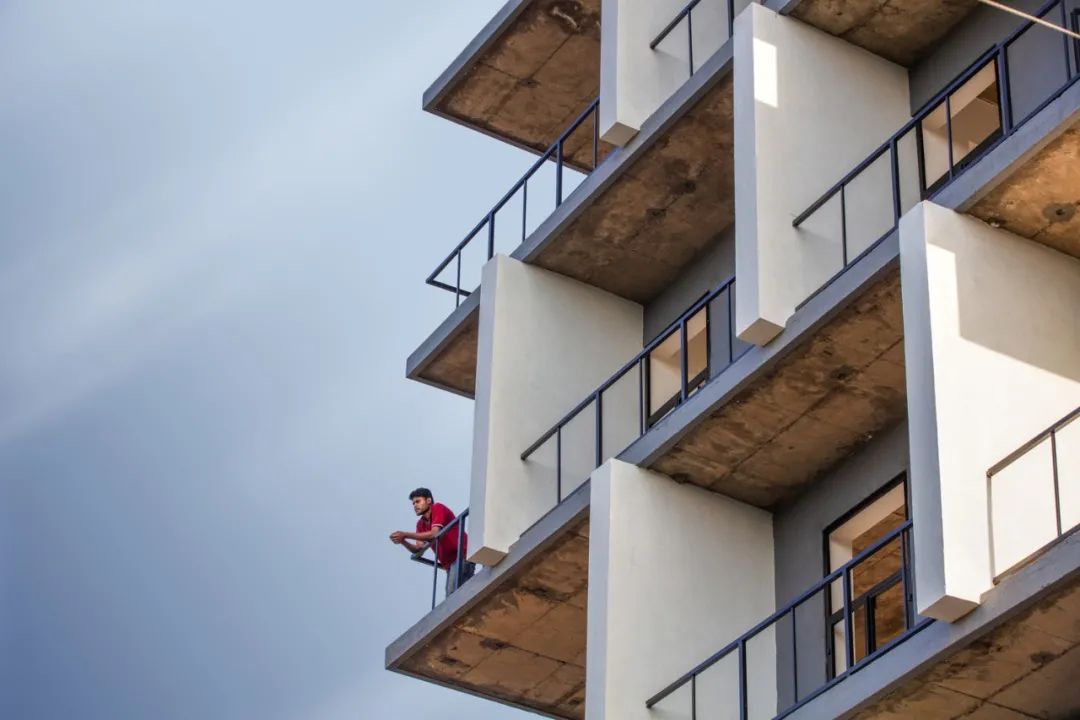

This process generated an idea to incorporate this in a way to form the building's language. What if we could cantilever the walls out of its resting slabs? As if the walls were flying out from the façade and balancing over the central frame structure. These flying walls form an interesting range of shadows over the balconies creating a frame visually appealing. When pictured with the context a slight contrast is always maintained, neither overpowering nor merging to create the identity and incite a sense of pride and belonging in the occupants.
