废弃亚麻厂变乡村住宅的 90 秒故事

2020/12/04 15:02:56

查看完整案例

微信扫一扫

下载

⇧

点击上方

勾勾手设计站

GGH设计机构

预计占用你90秒便可看完文章。。。。。

The GGH design agency estimates it will take you 90 seconds to read the article. . . . .

项目故事

Project Story

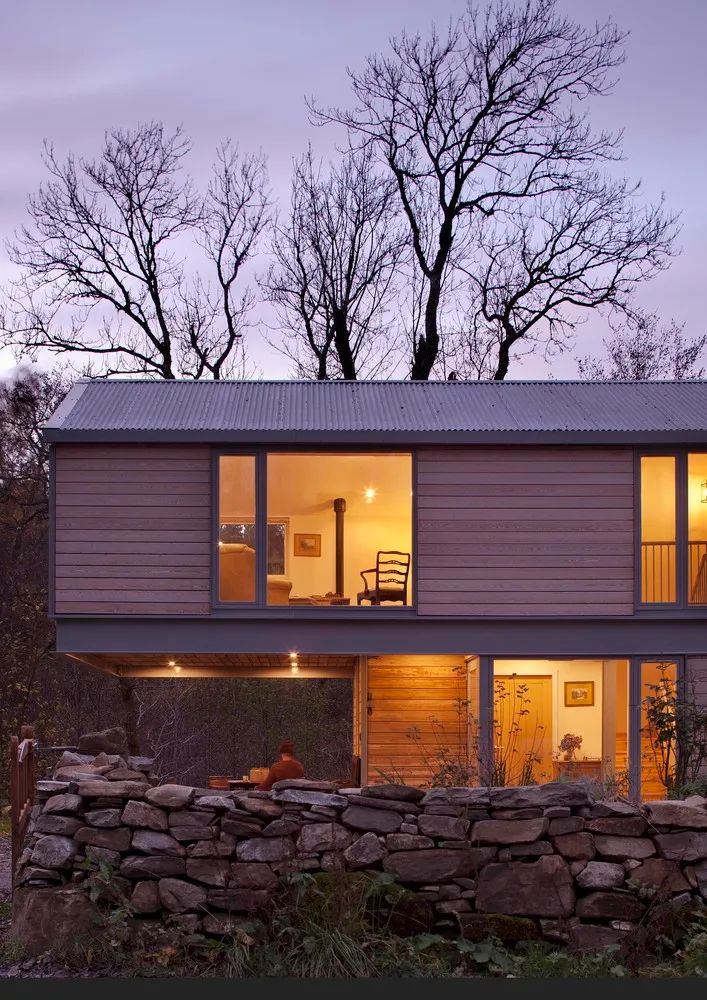

1. What were the inspirations and key concepts for the development of the project? This is a house for a couple who have farmed on the banks of Loch Tummel for many years. They purchased a narrow plot closely bounded by river and road and occupied by a ruined building, previously a flax mill. Both ourselves and the client wanted to avoid the demolition of the mill walls as far as possible and to build in and around them.

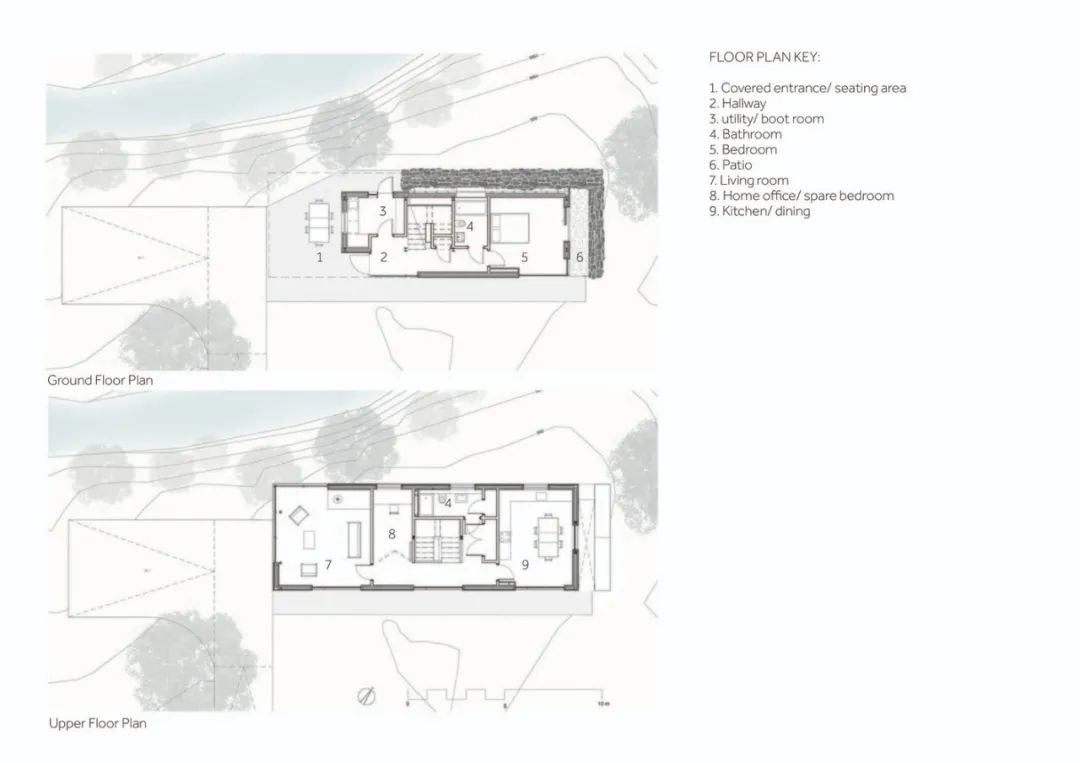

第一次遇到的困难或挫折是什么？一个相对较小的足迹可以定位在原来的废墟定义的空间内。上层被设置在现有石墙的高度之上，悬臂超过下层4米的距离，戏剧性地突出在河岸上。对于承包商来说，在正确的承受范围内安装钢结构并不容易，但通过使用这一策略，它避免了在河堤不稳定的地面上安装混凝土结构的必要！

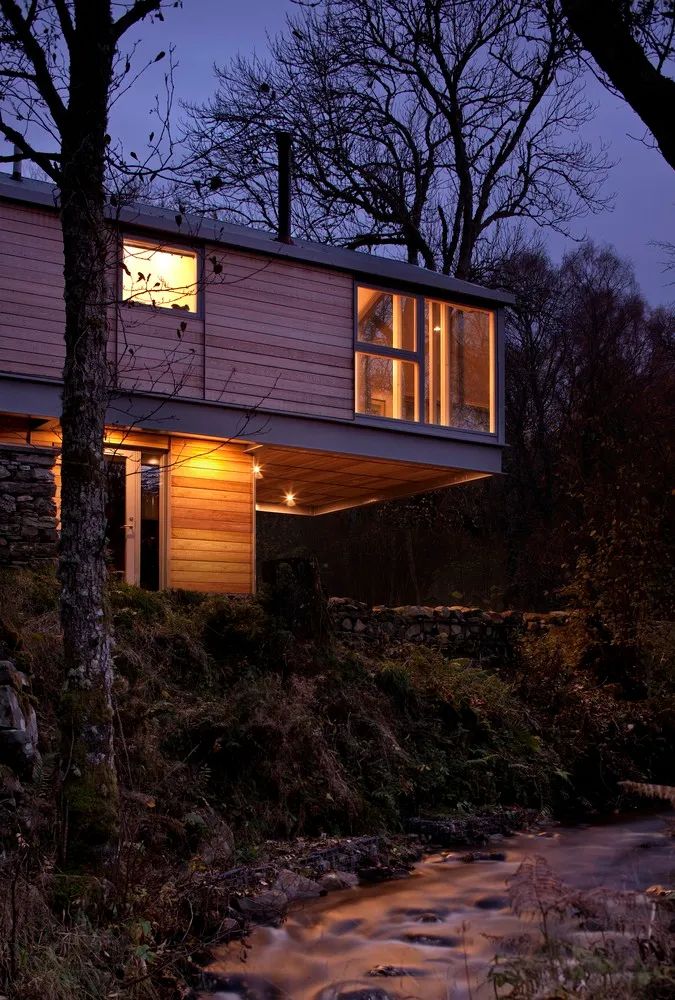

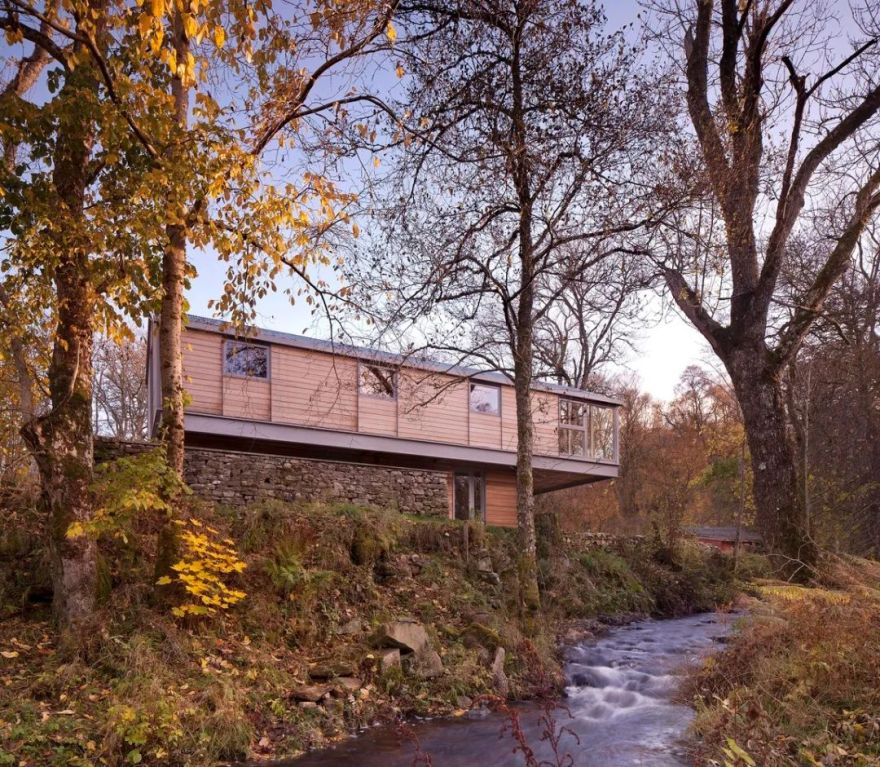

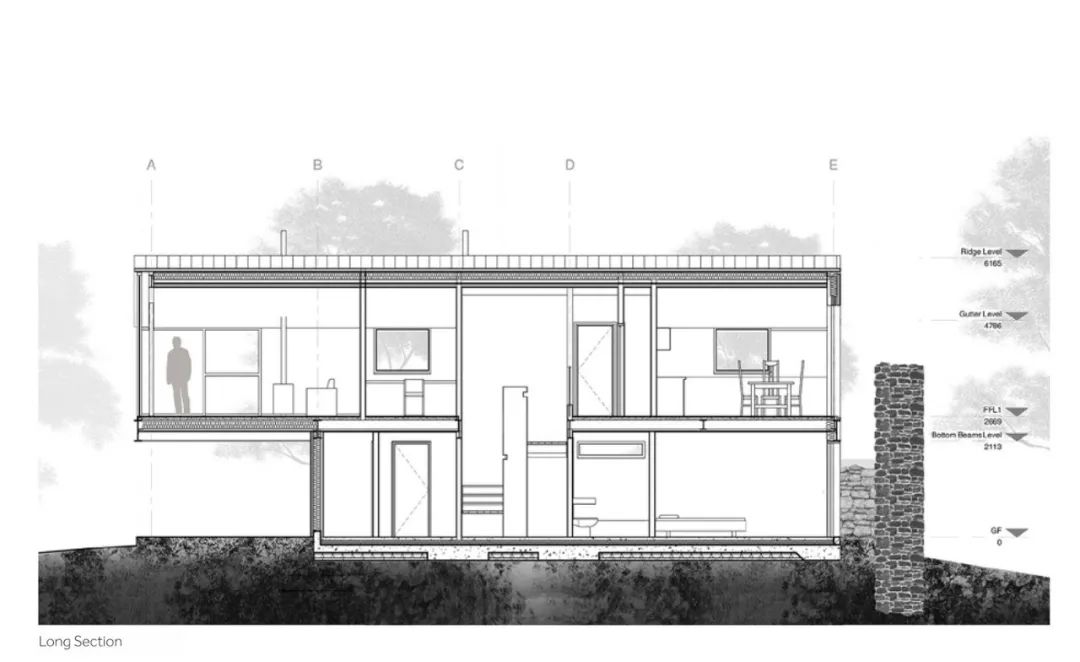

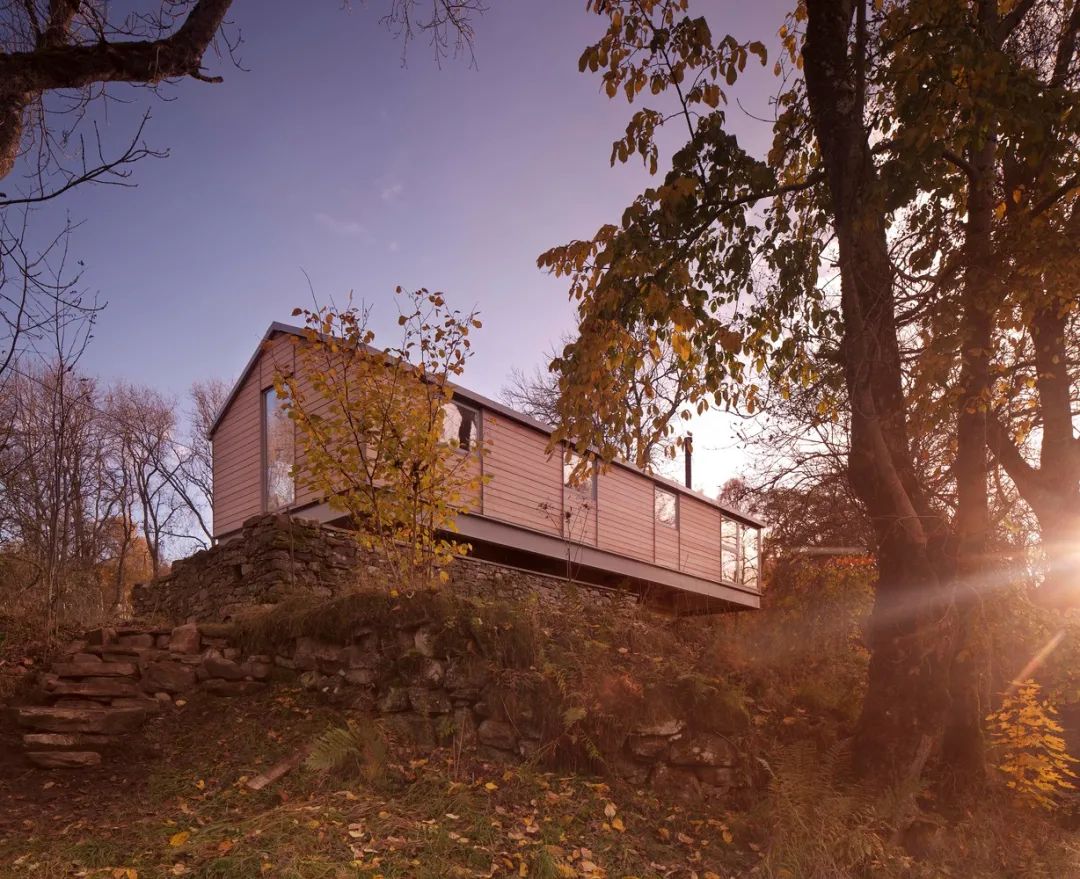

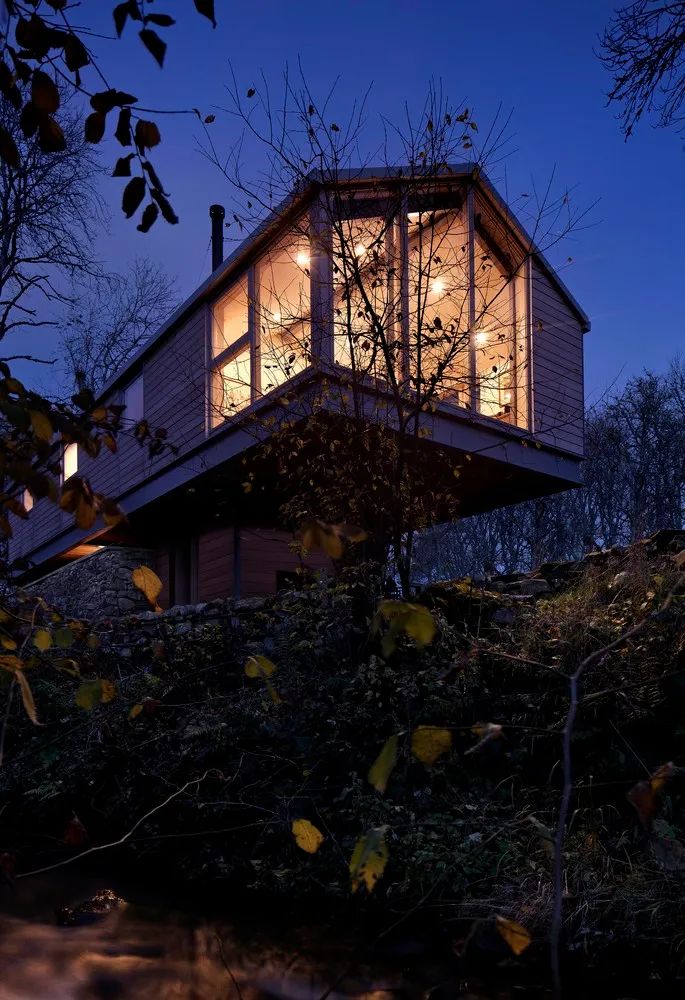

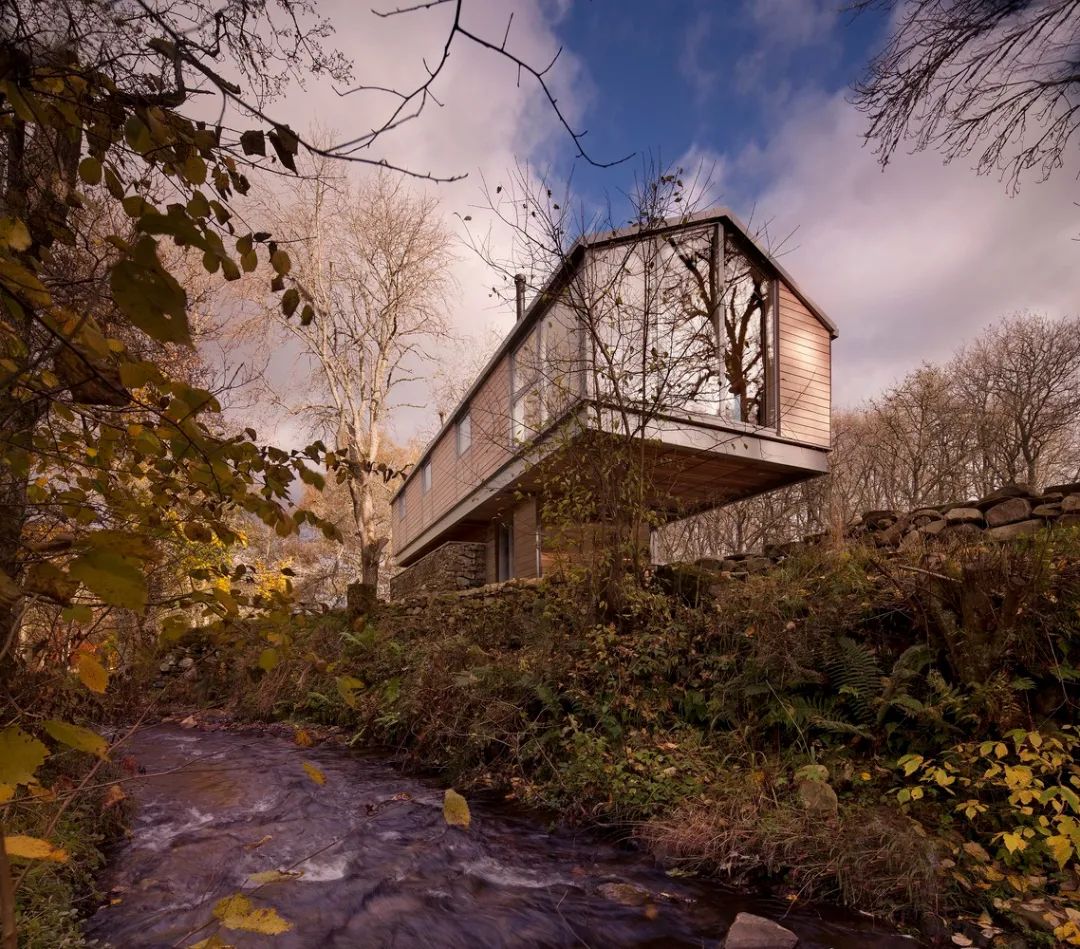

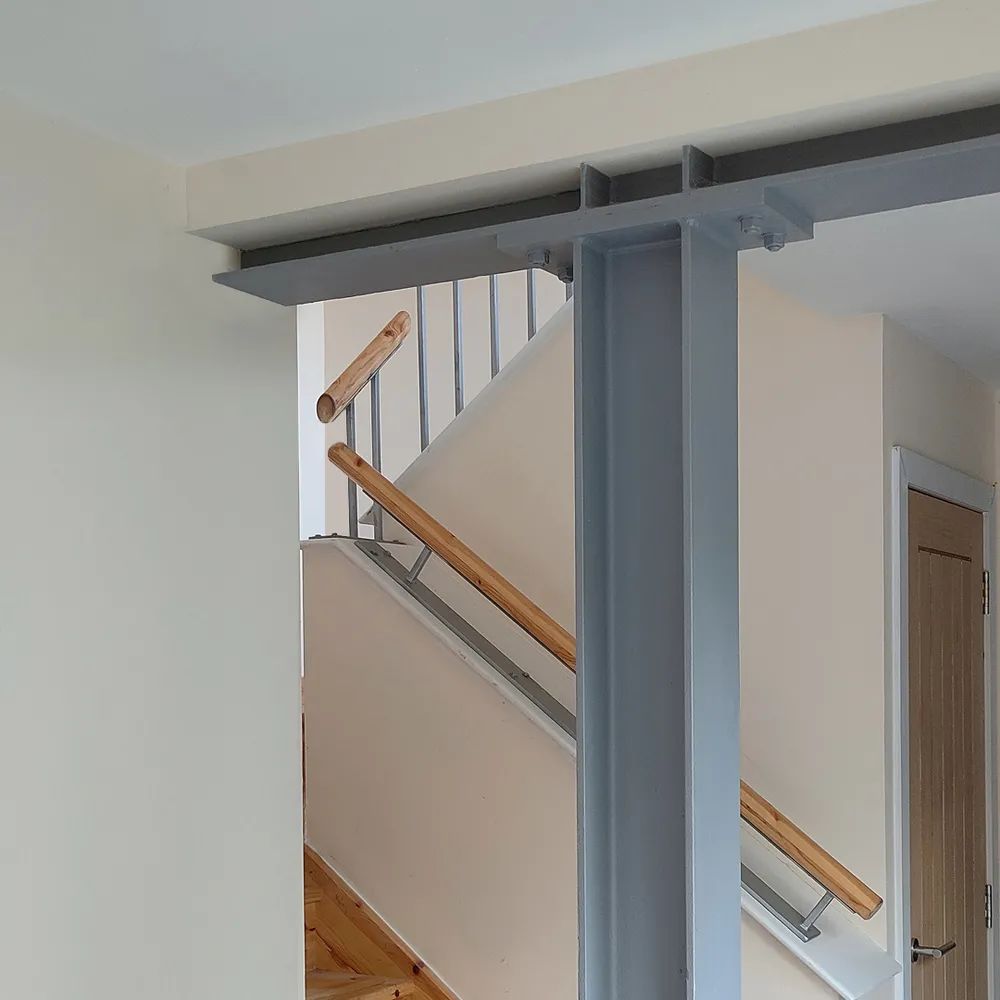

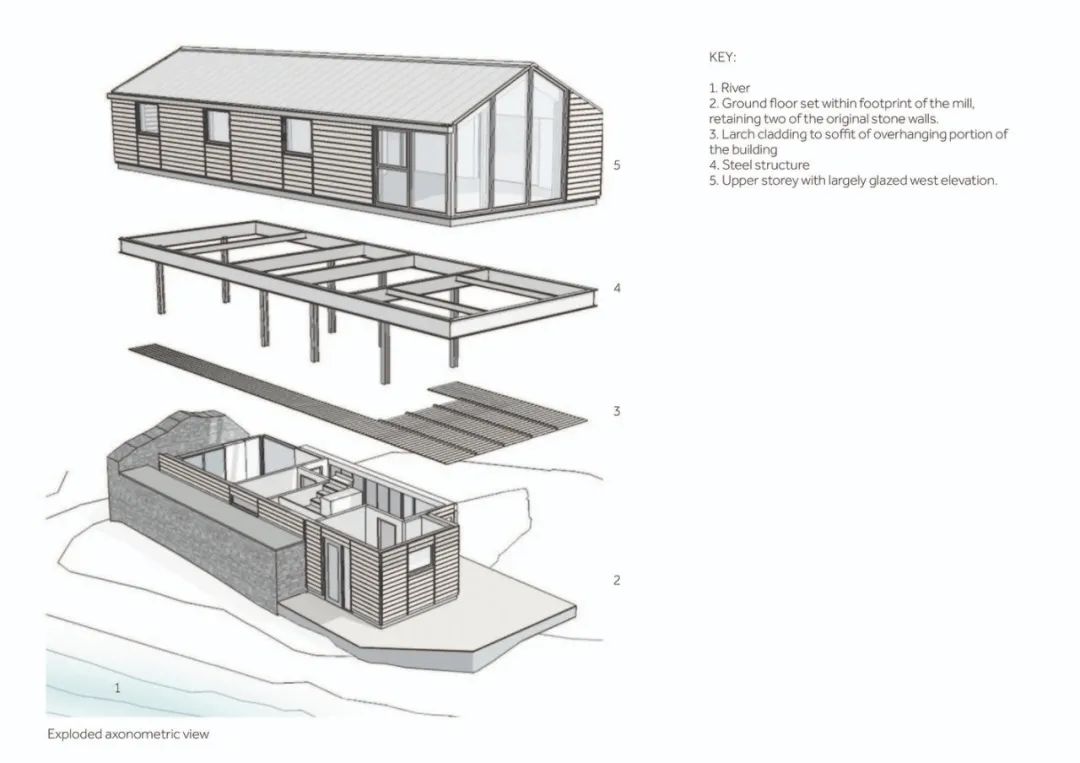

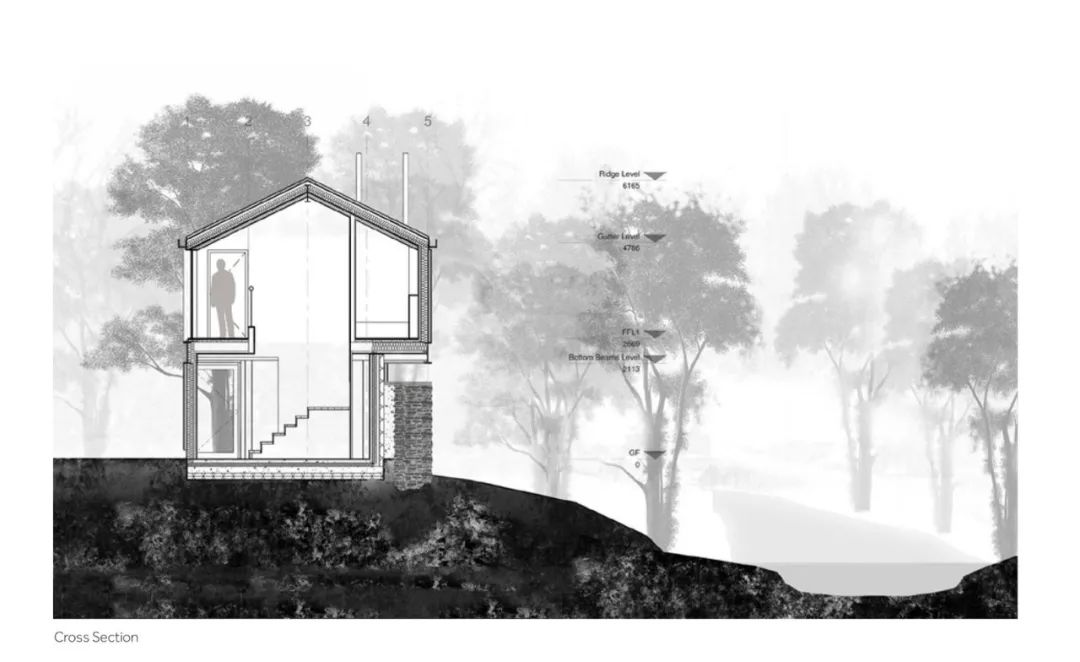

2. What were the difficulties, or first setbacks encountered? A relatively small footprint could be located within the space defined by the original ruin. The upper level was then set above the height of the existing stone walls, and cantilevers beyond the lower storey by a distance of 4m, dramatically projecting out over the river bank. The steel structure was not easy for the contractor to install within the correct tolerances, but by using this strategy it avoids the need to install a concrete structure into the unstable ground of the river embankment.

工程所采用的建造技术及主要材料为何？整体的美感是实用的: 悬臂钢圈梁表现为立面上的水平元素，梁的上下是玻璃和水平落叶松板面板。覆盖层边缘的铝修边，打破了立面成海湾和坡屋顶覆盖镀锌，压型金属板。

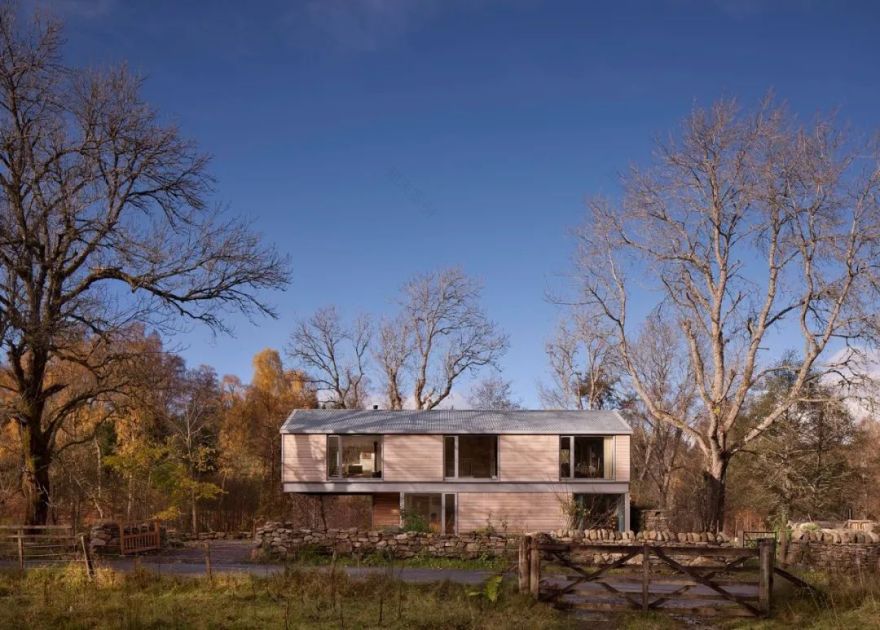

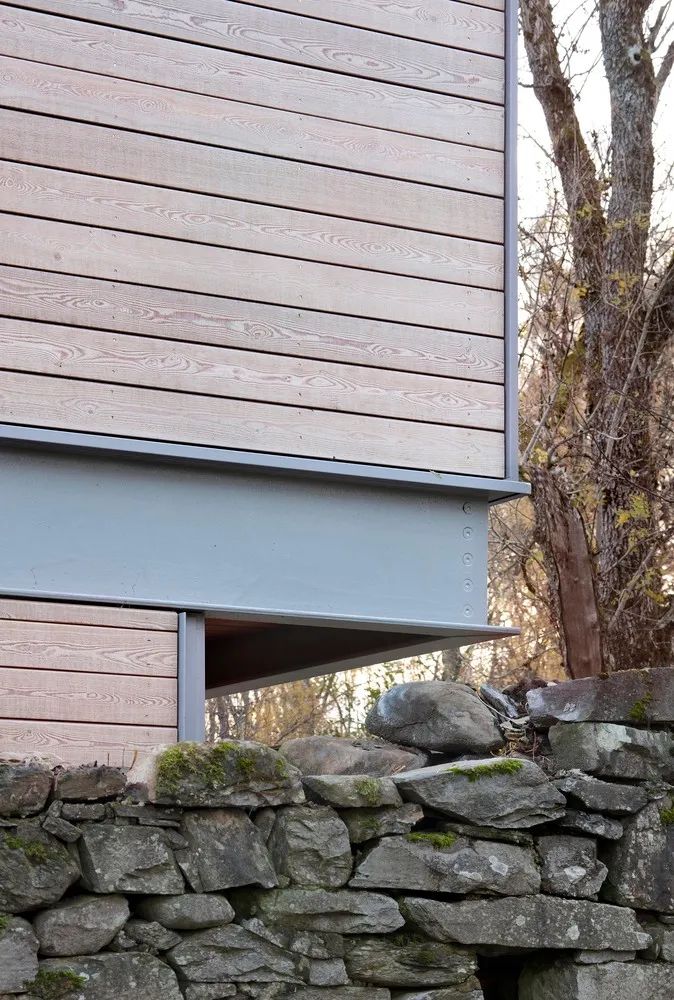

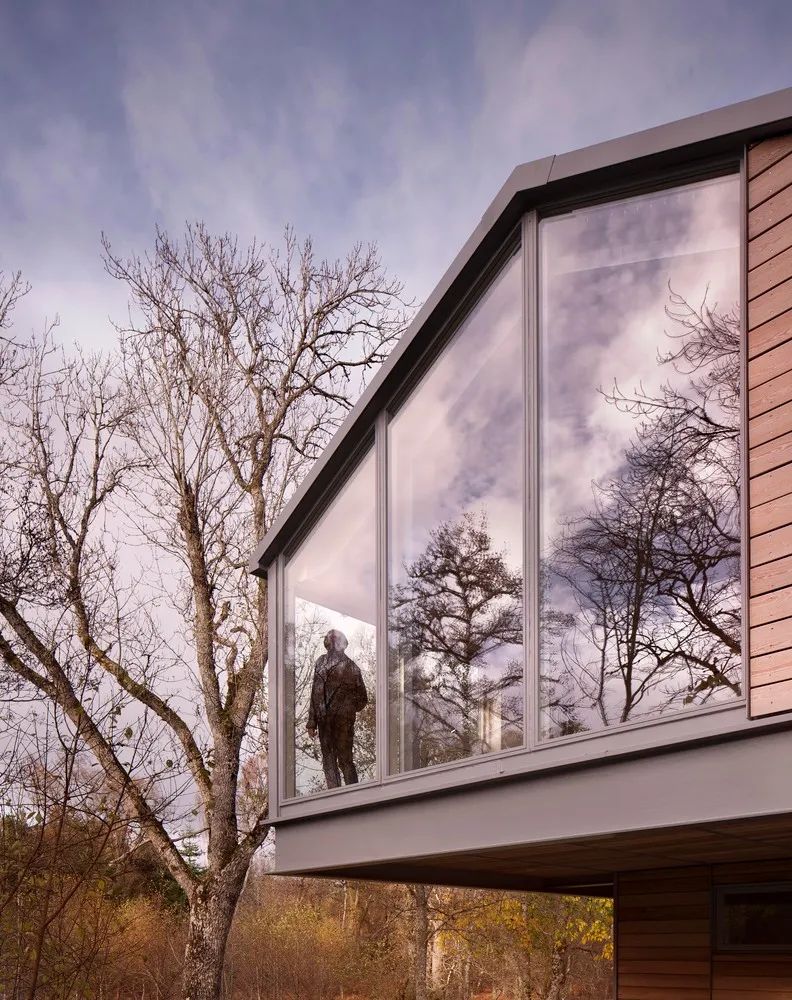

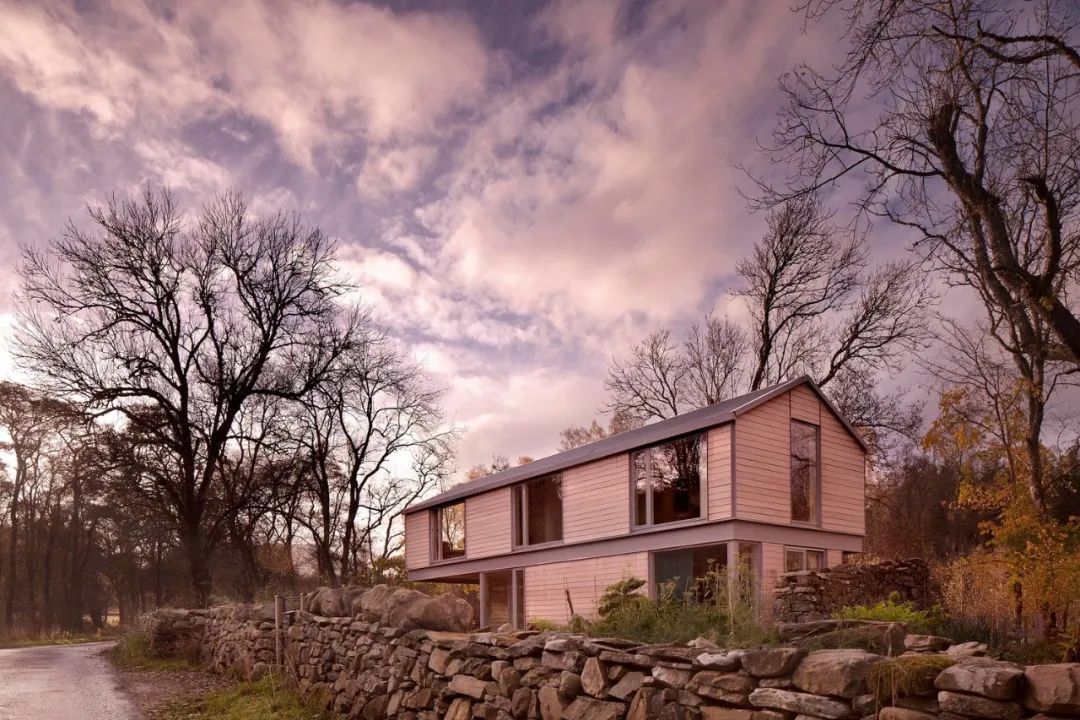

What were the construction techniques and the principal materials used in the project? The overall aesthetic is utilitarian: the cantilevered steel ring beam is expressed as a horizontal element on the facade and above and below this beam are panels of glazing and horizontal larch boards. The cladding is edged with aluminium trims that break up the façades into bays and a pitched roof is covered in galvanised, profiled metal sheet.
