广州中国联通华南信息产业运营中心丨中国广州丨gmp·冯·格康,玛格及合伙人建筑师事务所

鸟瞰夜景 © CreatAR Images

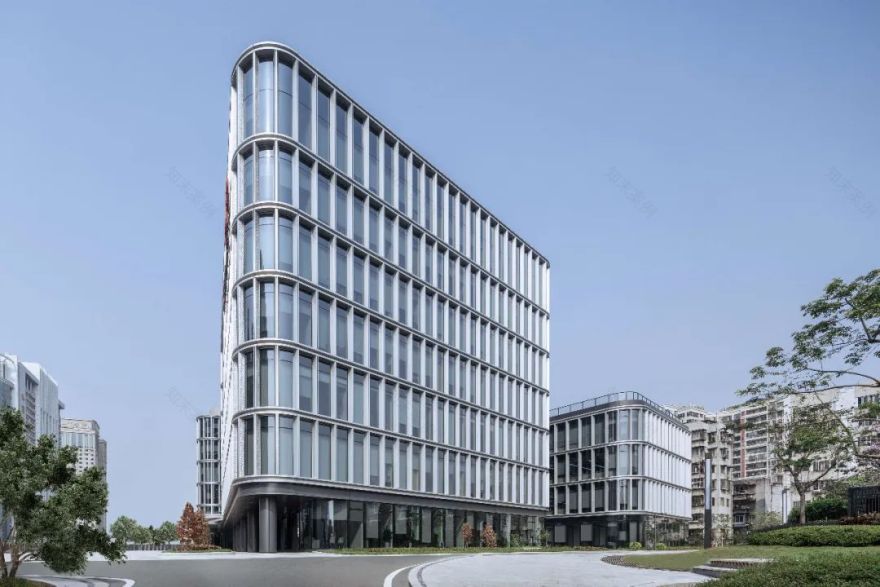

建筑外景 © CreatAR Images

近日，由 gmp·冯·格康，玛格及合伙人建筑师事务所设计的中国联通华南信息产业运营中心在广州落成并投入使用。这座花园式的企业园区由三部分组成：西地块的四栋塔楼围合成内院，东地块由两个方形体量交错形成的塔楼提供了大跨度无柱的多功能厅及其他公共功能，西南角则规划了一座结构形式新颖的临时展馆作为联通旗舰店。所有建筑物的布局及标高都基于不遮挡周边居民楼的采光的前提而确定，建筑立面在中山西大道一侧创造了生动的街景。

Recently, the China Unicom South China IT Industrial Operation Center, designed by gmp von Gerkan, Marg and Partner Architects, was completed and put into use in Guangzhou. The corporate campus with garden landscape consists of three parts - 4 Pavilions forming an internal courtyard on the west plot, while there are two square pavilions merged to one building offering space for a big span column free multifunctional hall and other public functions on the east plot. On the southeast corner, we established a temporary showroom for China Unicom flagship store with an impressive steel structure. The building positions and heights of all volumes are defined by the shading regulation protecting the surrounding residential buildings and to create a vivid street view facade from the adjacent Zhongshan West Avenue.

中央庭院 © CreatAR Images

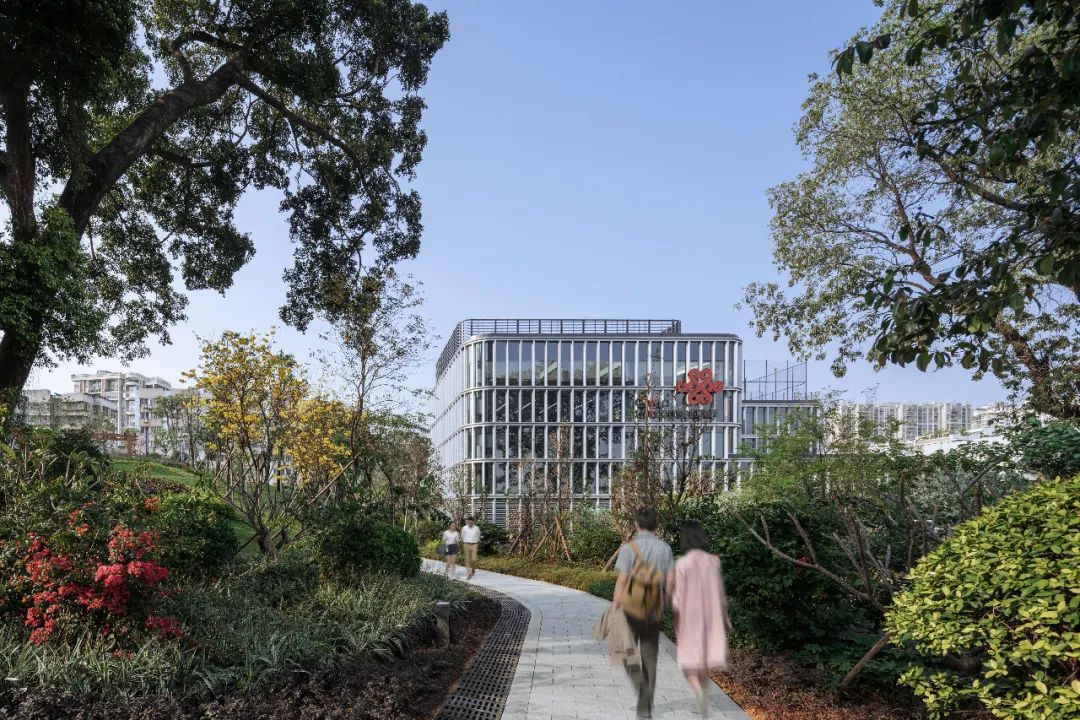

庭院景观设计 © CreatAR Images

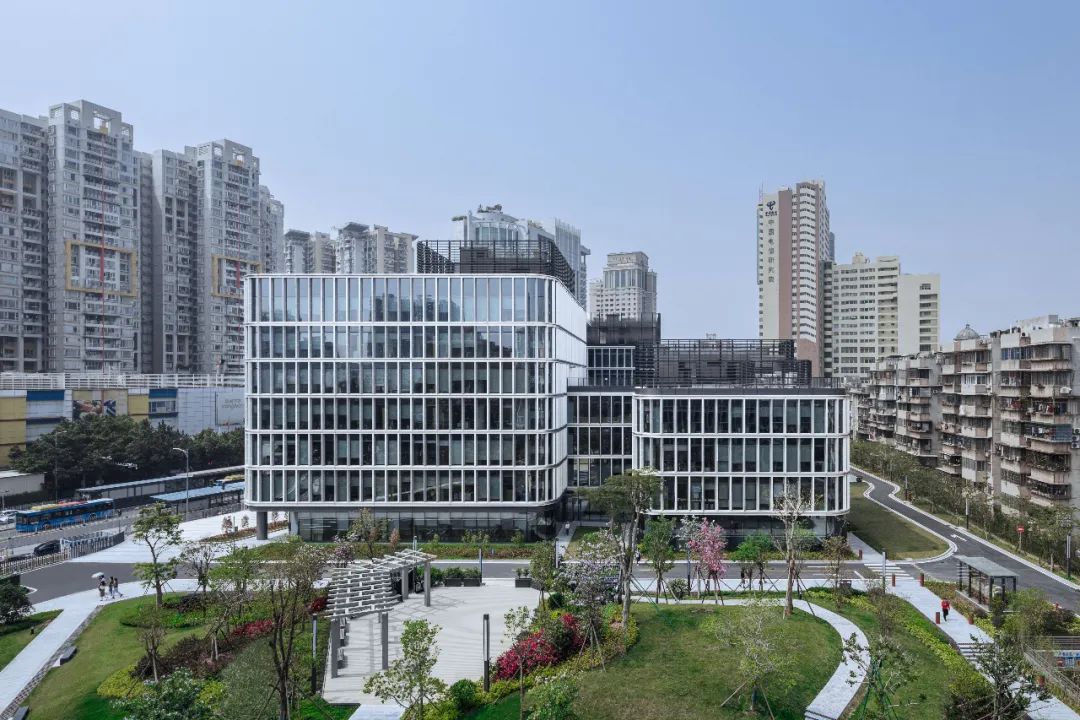

中央庭院鸟瞰 © CreatAR Images

绿色景观是基地最主要的优势。基地东南角正对美丽而宽阔的天河公园，两个地块中央现存的公园植被郁郁葱葱，地形连绵起伏，员工可以通过步道穿过风景优美的公园，往来于东西地块。宽敞的办公空间与场地内繁茂的绿色花园连为一体，让员工享有赏心悦目的独特工作体验。建筑单体通过布局构建为一个整体，并强化了建筑群内各个体量间的交流和联系，突出了基地既地处市中心同时又享有花园景观的优越品质。

The green landscape is the main character of the site. The prominent south-east corner of the site is directly opposite the large and generous Tianhe Park. The existing landscape park in the middle of the two plots is lush with green and gentle hills. Employees can go freely between the eastern and western plot via a connecting path across the scenic park. The spacious office spaces are integrated into this lush green garden, giving employees a unique and pleasant work experience. The arrangement of building volumes creates an ensemble that enhances the communication and connection between all units and strengthens the exceptional quality of this city-centered landscape-garden site.

西塔楼作为中国联通的生产管理办公楼，受益于优美的中央花园，并享有朝向城市景观和公共绿地的无障碍视野。连廊将所有单体串联在一起，同时提供了更多的会议空间。

The western pavilions will be used as the Production and Management Offices for China Unicom, fully benefiting from the internal courtyard garden and the unobstructed view towards the nearby city spaces and landscape parks. The connecting bridge volumes link all pavilions together and offer additional spaces for meeting rooms.

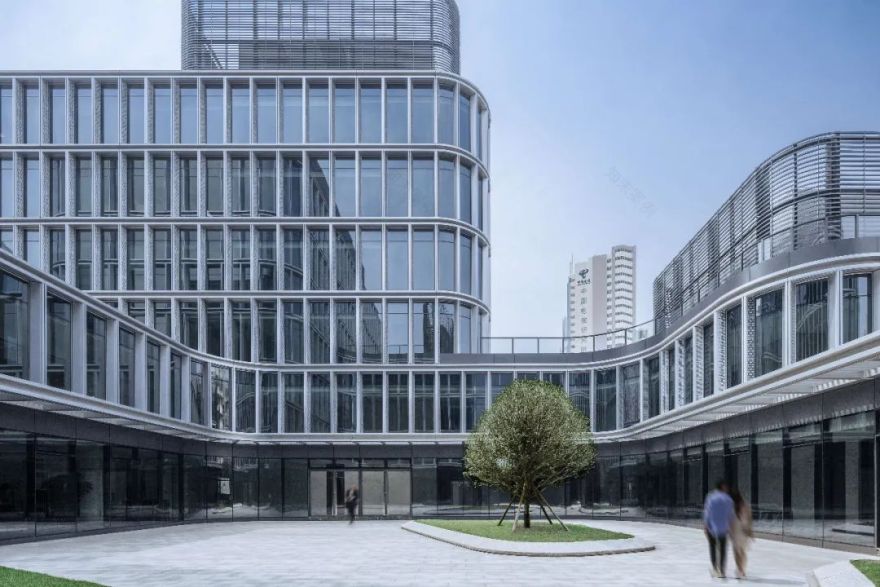

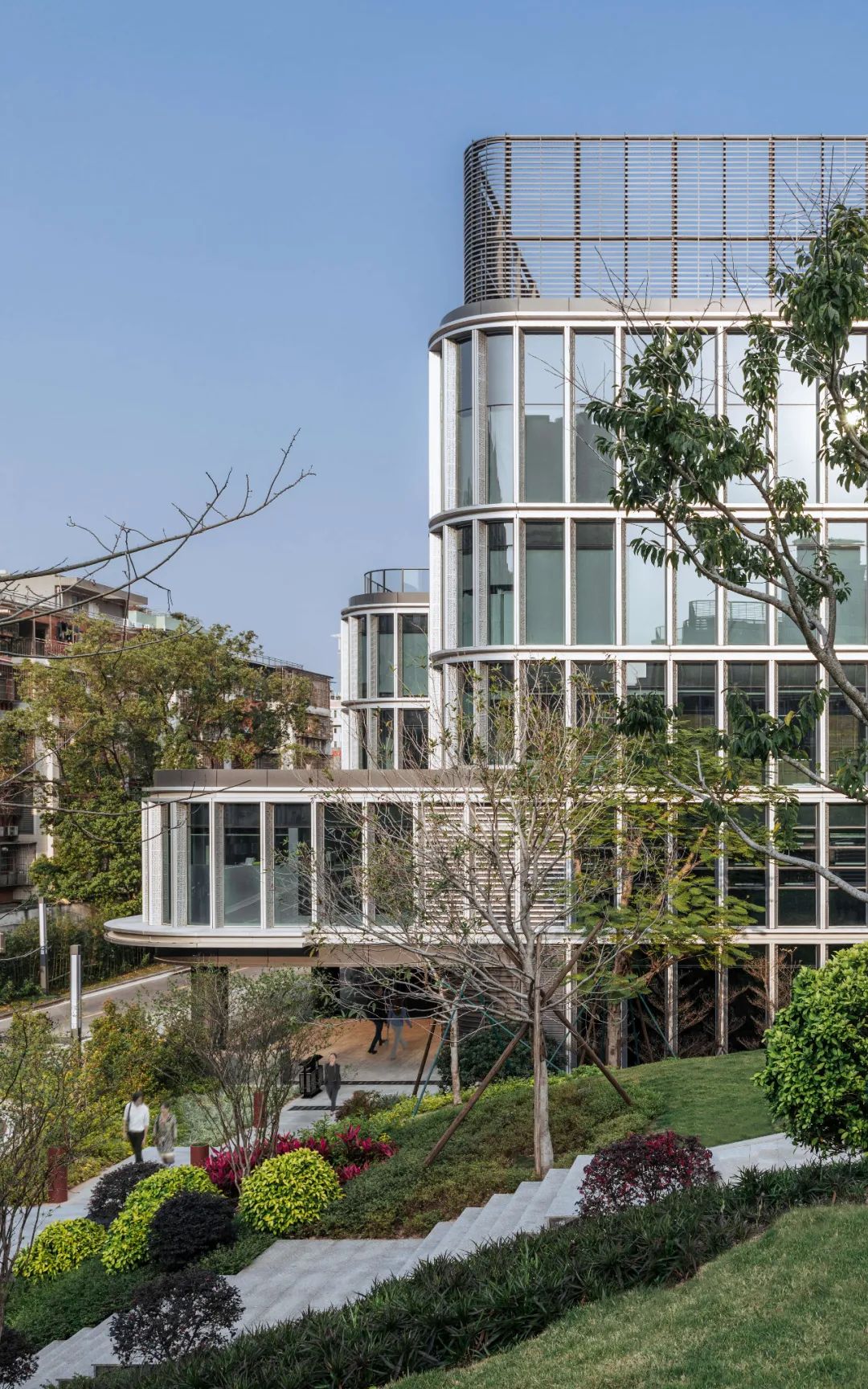

西塔楼内院 © CreatAR Images

西塔楼内院 © CreatAR Images

办公空间统一进深小于 12 米，易于灵活分隔且使用效率高于 70％。每座塔楼都布置了会议和共享空间，不同的办公室类型都基于同样的模块网格，各办公室的布局可轻易地在较小、标准和较大的尺寸之间进行调整。这种灵活的平面布局延续到建筑的内部，水平和竖向连接形成了多种交通系统，可应对大小不同的功能变更和新的使用需求。

The offices depth is equivalent and less than 12m, all around thus flexible since easy to split and efficient above 70 %. There are different meeting and public areas in each building part. The different office types in the pavilions are based on the same modular grid so the layout can be easily shifted between small, standard, and large-scale units. This flexibility is continued within the building where horizontal and vertical connections build a various traffic system that could react on small or big function changes and new requirements.

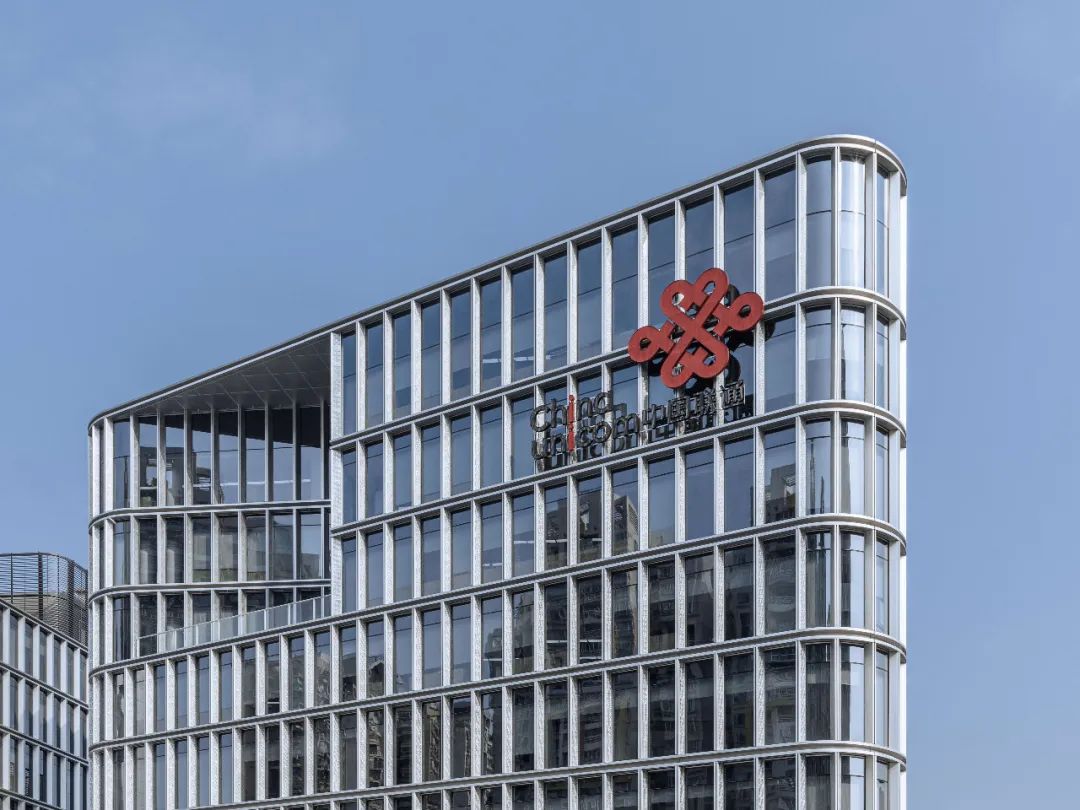

建筑外景 © CreatAR Images

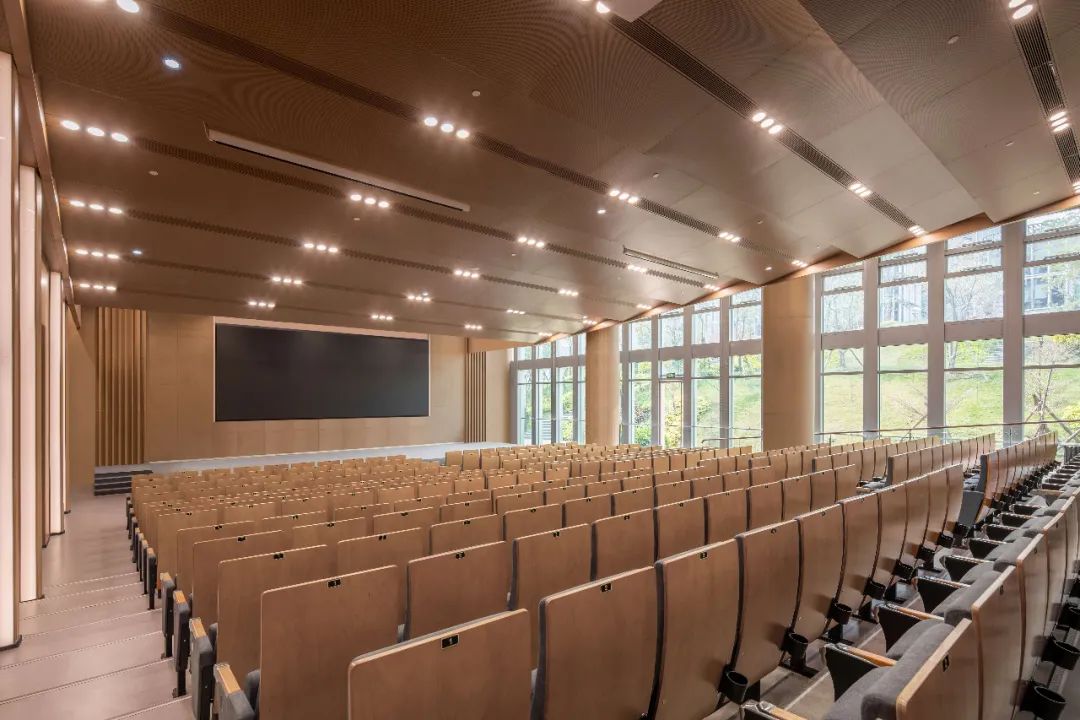

多功能厅 © CreatAR Images

员工餐厅和多功能厅被布置于东塔楼的首层和二层，位于西侧的多功能厅面向内庭院，可以为所有租户和员工提供各种户外运动设施。东塔楼上层则为高效办公提供了空间。

In the eastern building, a canteen and a multifunctional hall are arranged on F1 and F2. The multifunctional hall is oriented on the west side facing towards the internal garden, which offers all kinds of outdoor sports facilities for all tenants and employees. The upper levels of the eastern Building give space for highly efficient offices.

幕墙局部© CreatAR Images

建筑外立面采用极具韵律感的银色竖向穿孔铝百叶，保证所有办公空间都可实现自然通风。穿孔铝板遮阳百叶受到了中国传统花窗的启发。

The façade connects all volumes with a stringently rhythmic vertical layer of silver perforated aluminum panels that guarantees a natural ventilation for all office spaces. The perforated aluminum screens are inspired by the image of the traditional Chinese window.

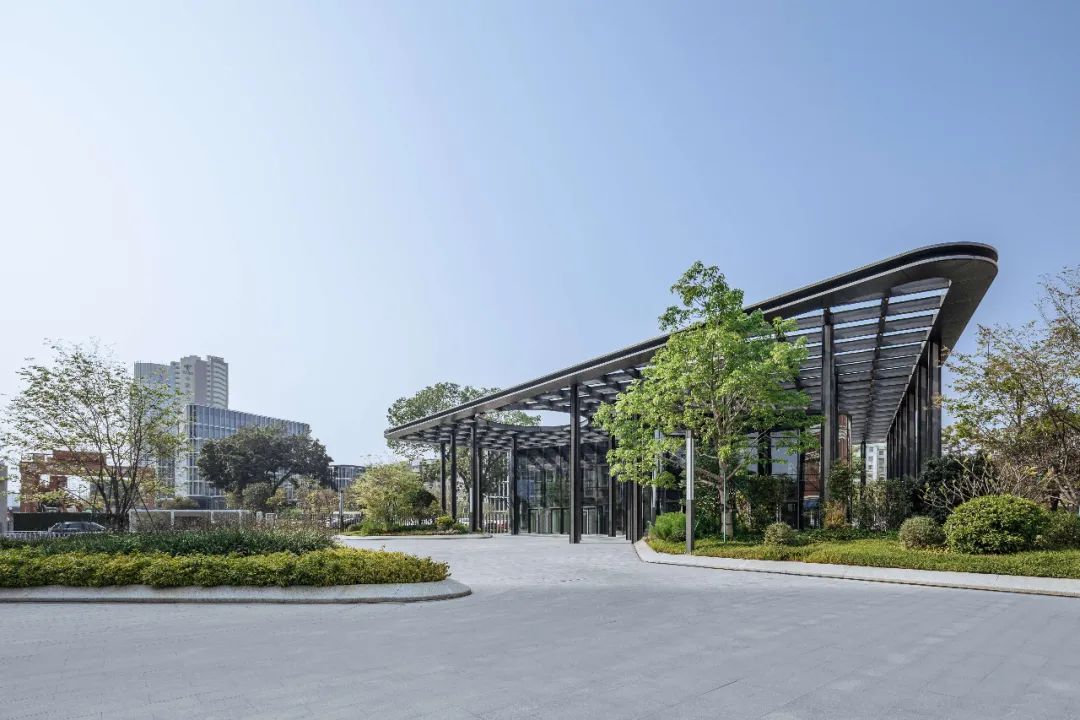

旗舰店外景 © CreatAR Images

大面积的钢结构屋顶在基地东南角构成了引人注目的旗舰店，并覆盖了部分入口广场。退后的曲面玻璃幕墙设计在屋顶下创造了一个公共拱廊，旗舰店的公共功能从而得以与城市空间以及邻近地铁站进行衔接。

The big roof steel structure marks the flagship pavilion on the southeast corner and covers parts of the entrance plazas. By installing a set backed curved glass façade a public arcade was created under the roof. This way the main public function of the showroom links best with the urban city spaces and the adjacent metro station.

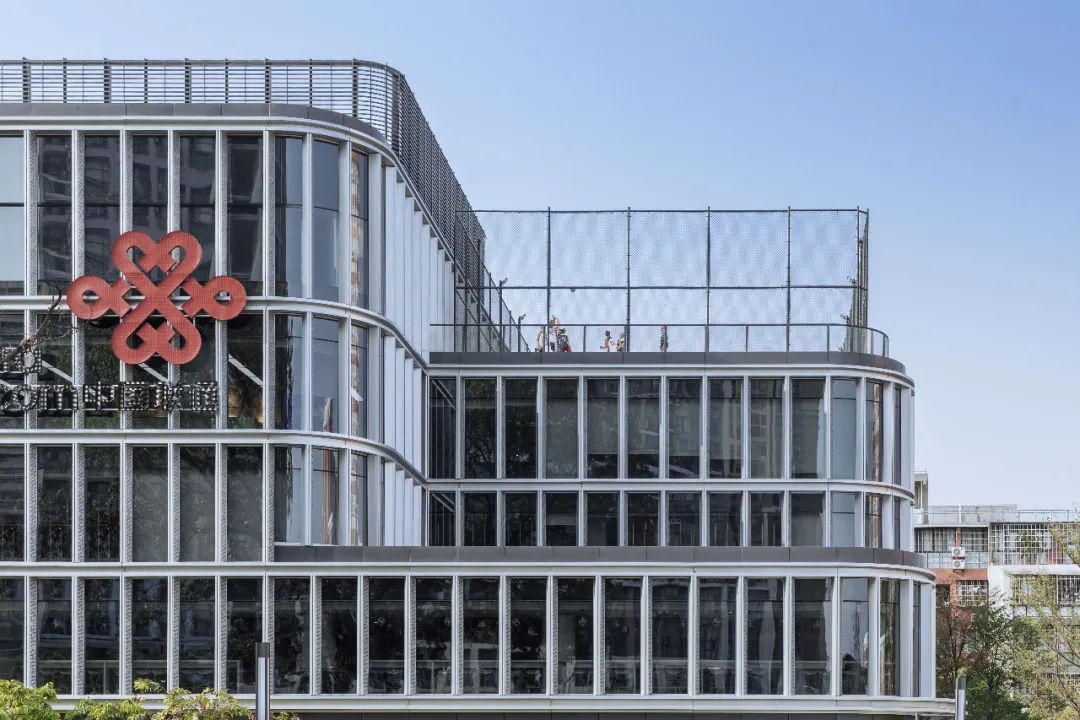

立面局部 © CreatAR Images

立面局部 © CreatAR Images

设计竞赛：2015 年一等奖

设计：曼哈德·冯·格康与施特凡·胥茨以及尼古拉斯·博兰克

项目负责人：Stefan Hornscheidt，Patrick Pfleiderer

竞赛阶段设计团队：Jan Peter Deml，曹日丽，Graciano Macarron，解力，张驰，Thilo Zehme，Joanna Zielinska

实施阶段设计团队：曹日丽，潘昕，汤子泓，张驰，张洋，Joanna Zielinska

中国项目管理：徐吉，秦炜

中方合作设计：广东省建筑设计研究院，广州珠江外资建筑设计院有限公司

业主：中国联合网络通信有限公司广东省分公司

总建筑面积：3.9 万平方米

建设周期：2018 年 8 月-2023 年 2 月

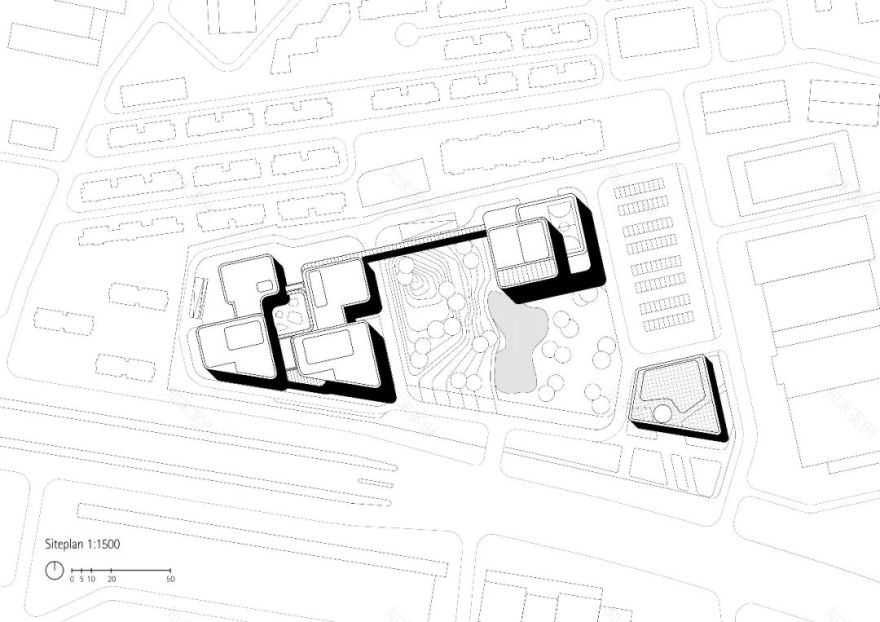

总平面图 © gmp Architekten

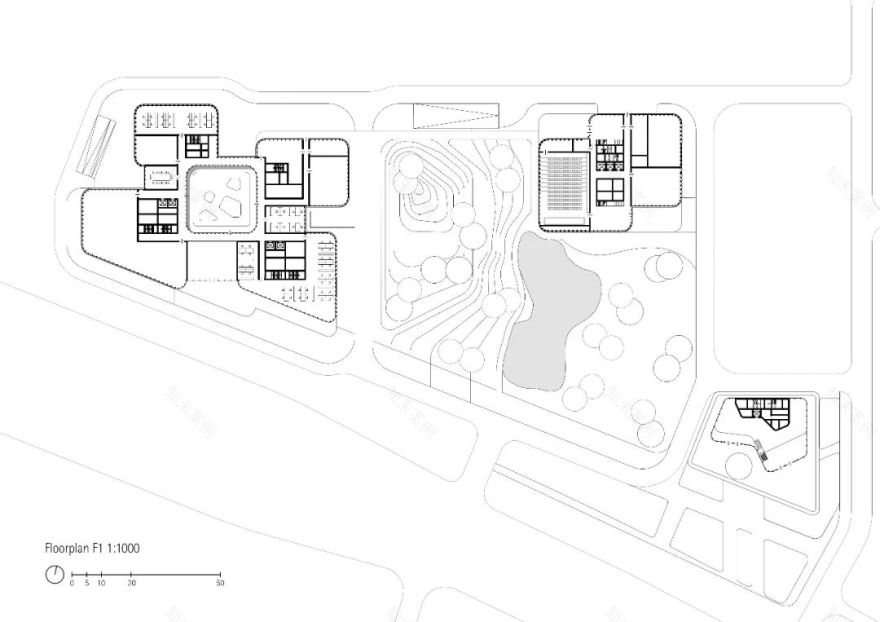

首层平面图 © gmp Architekten

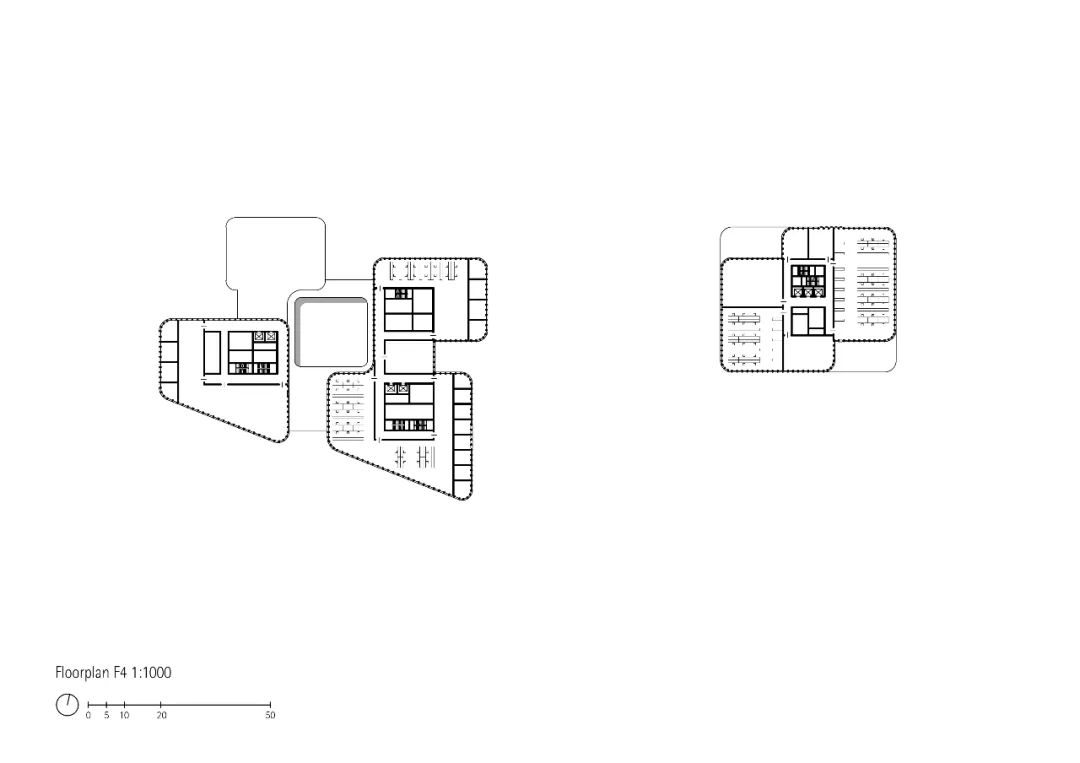

四层平面图 © gmp Architekten

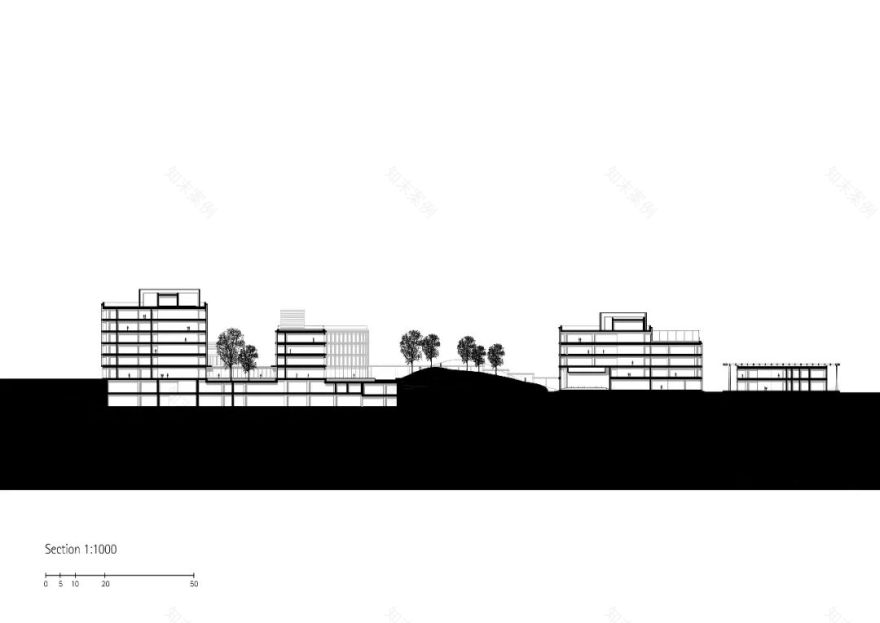

剖面图 © gmp Architekten

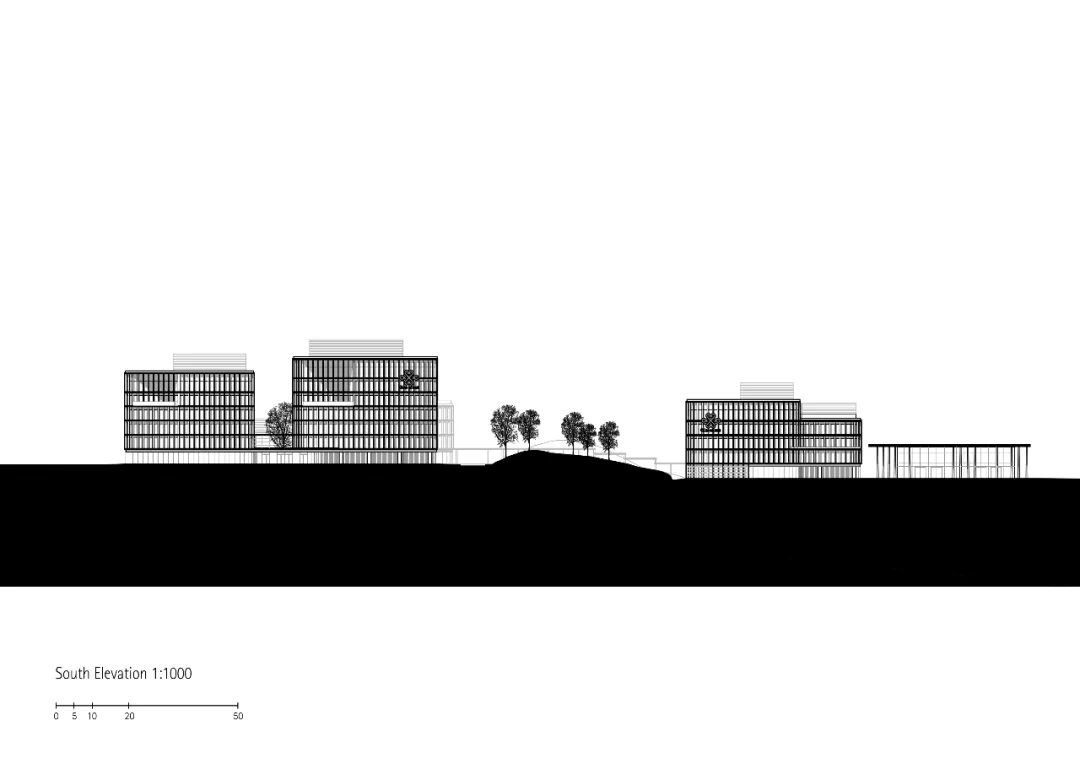

南立面图 © gmp Architekten
