深圳海浪创物办公空间丨中国深圳

海浪空间位于深圳南山一座办公大厦内，由海浪创物设计团队亲自操刀设计。设计灵感来自于为了不让办公空间受限于传统氛围里，设计团队想尝试重新定义办公空间的“里”与“外”，为办公环境增加自然活力，让办公似在半开放的室外一样轻松自在。

The wavespace is located in an office building in Nanshan, Shenzhen, and designed by the wavespace design team. The design inspiration comes from the design team’s attempt to redefine the “inside” and “outside” of the office space in order to prevent the office space from being limited by the traditional atmosphere, so as to increase the natural vitality of the office environment and make the office as relaxed and comfortable as in the semi-open outdoor space.

▼项目概览，overall of the project ©红旗

最初拿到这个空间最吸引我们的是四米多的层高，以及窗外的风景。原先的租户并没有很好地利用整个空间，多余的装饰及不合理的隔断遮挡了整个空间的光线。在找到这处场地的时候，旧办公室租期仅剩下一个月留给我们设计及施工的时间非常紧张。

What initially attracted us to this space was the height of more than four meters and the view from the window. The original tenant did not make good use of the whole space, and the superfluous decoration and unreasonable partition blocked the light of the whole space. When we found the site, we had only one month left in the old office lease, which left us a lot of time for design and construction.

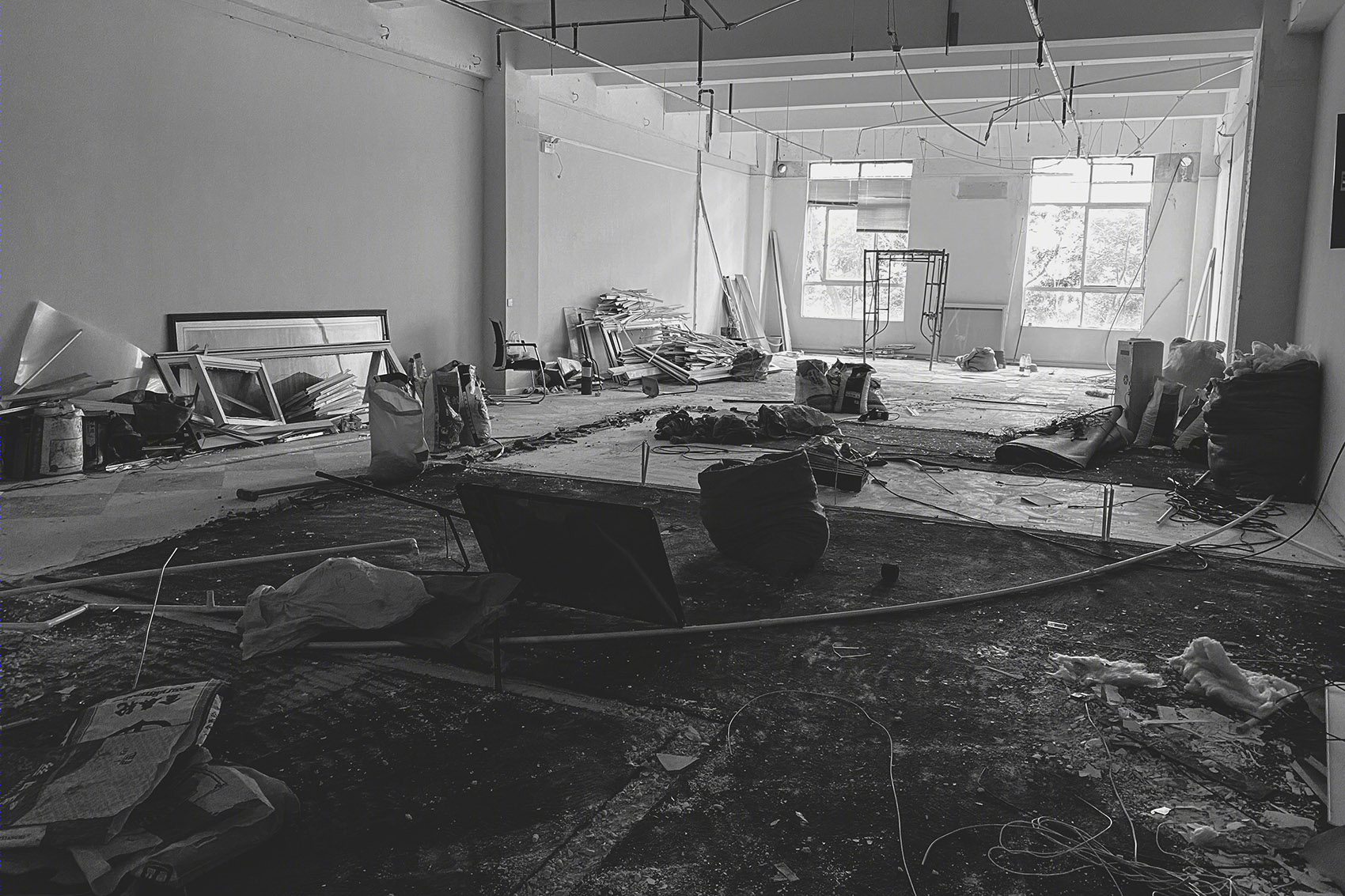

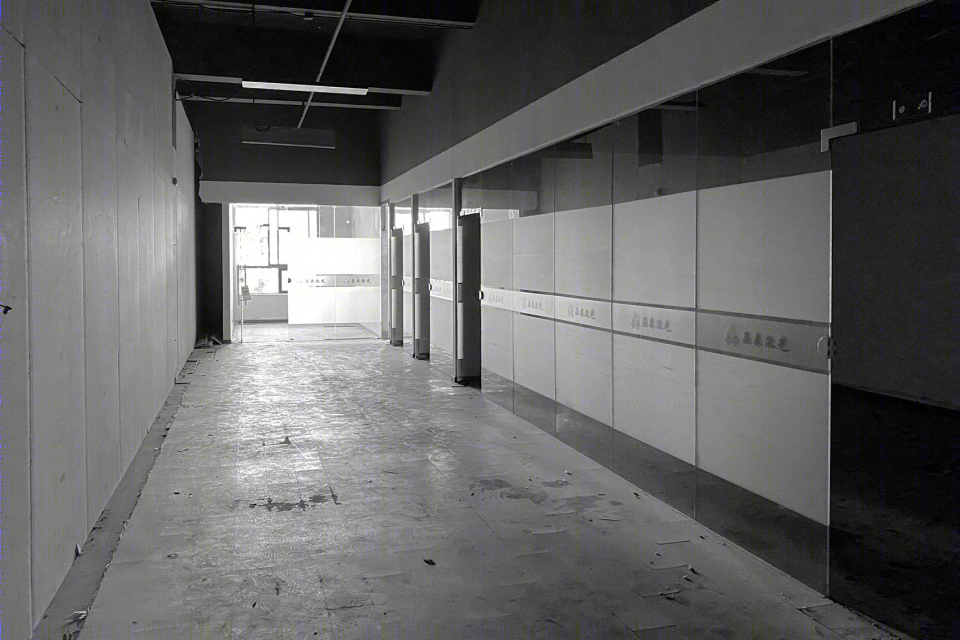

▼旧空间模样&旧装拆除，Pattern of old space & old outfit to dismantle ©海浪创物

作为一家设计公司工期再赶我们也想尝试去做出些不一样的东西。我们想重新定义办公空间的“里”与“外”。关于“外”，首先是作为空间第一印象的“导航式”存在。办公室处在一栋工厂改造的办公楼中。我们期望在这样一个死气沉沉的环境里营造出一点户外的自然感受。

As a design company, we also want to try to make something different. We want to redefine the “inside” and the “outside” of an office space. About “outside”, it is the existence of “navigation type” as the first impression of space first. The office is in a converted factory building. We wanted to create a natural feeling of being outdoors in such a dead environment.

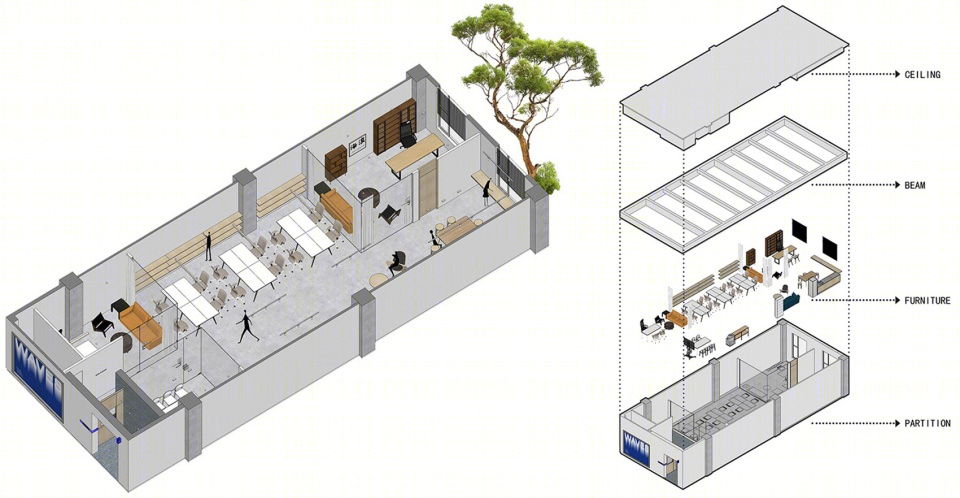

▼轴测图&空间拆解图，axonometric drawing & spatial disassembly diagram ©海浪创物

区别于常见办公楼内呆板的入口背景墙设计，我们用了洗水石装饰入口墙面，以及桦木板原材质的大门。入口侧面挂着精巧的镜面不锈钢招牌，映射出墙面被灯光洗礼的强烈质感。我们在亚克力招牌内部预留了光源，使之更加通透。我们拆除了旧的楼层导视也统一采用了更加透明的亚克力材质让门口视觉上更加统一。

Different from the dull entrance background wall design in common office buildings, we used the washing-stone to decorate the entrance wall and the birch wood door. The side of the entrance is hung with exquisite mirrored stainless steel signboard, which reflects the strong texture of the wall baptized by the light. We reserved a light source inside the acrylic signboard to make it more transparent. We removed the old floor guide and adopted a more transparent acrylic material to make the doorway more unified visually.

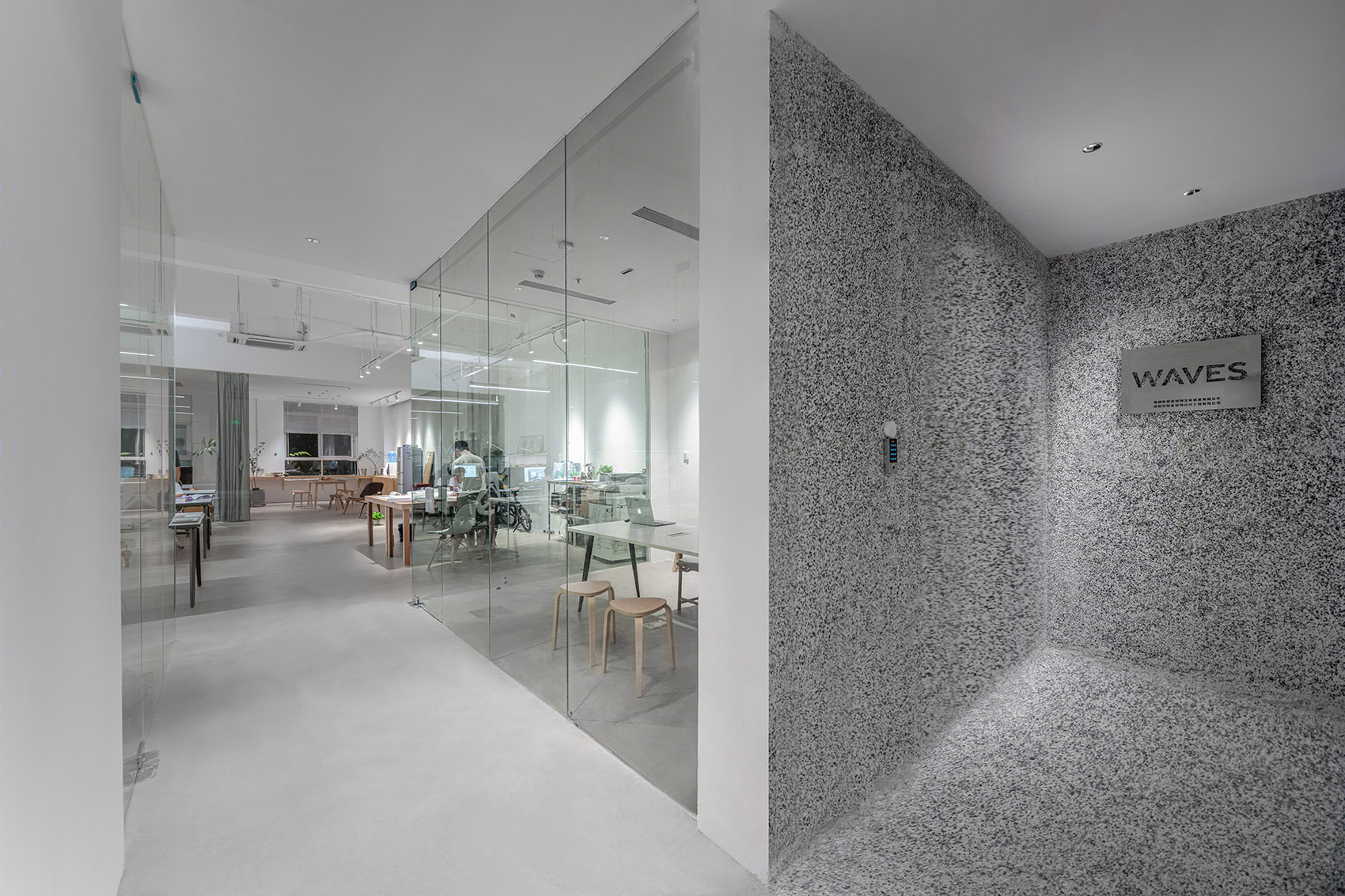

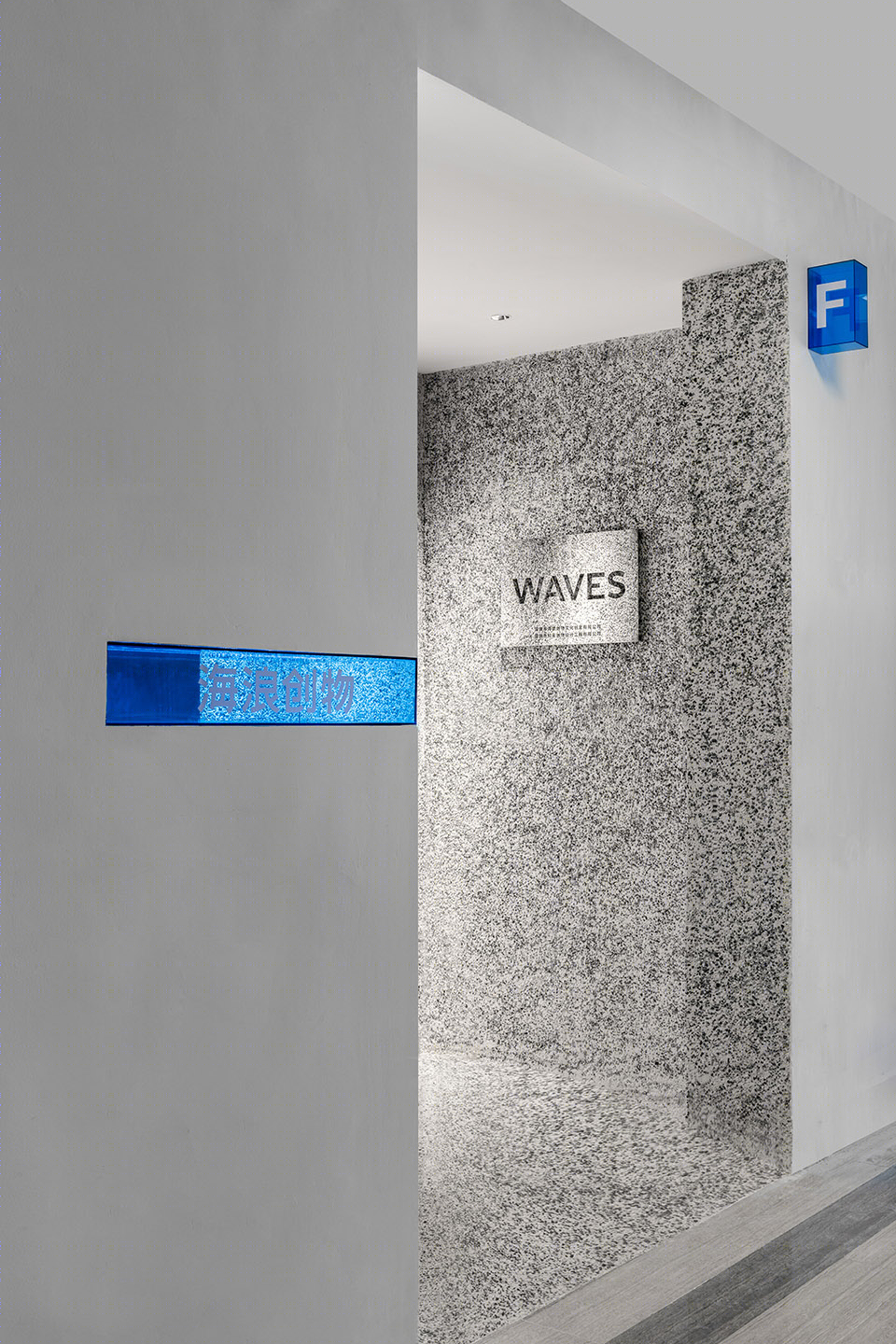

▼空间入口，space entrance  ©红旗

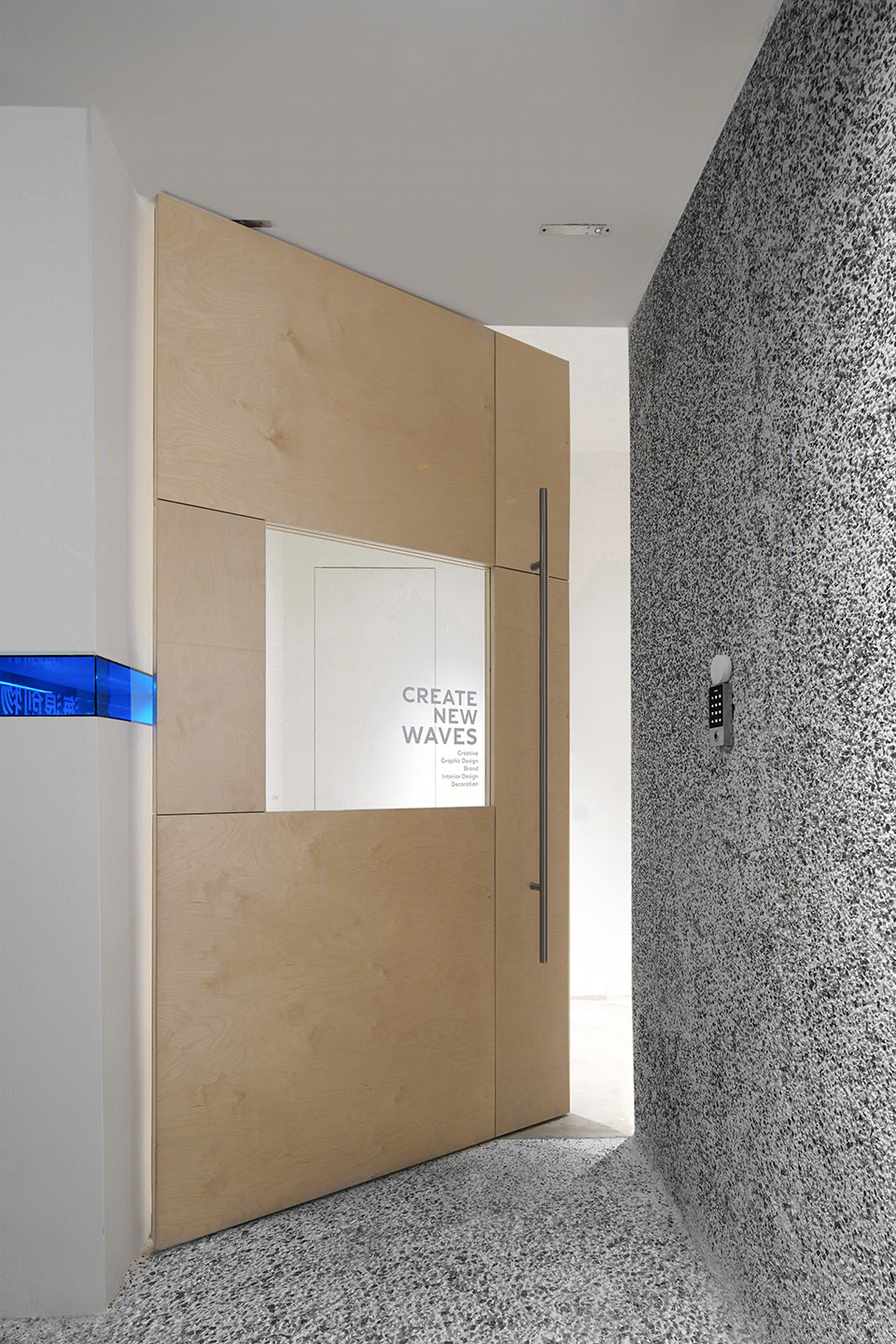

▼空间大门，the entrance door  ©红旗

我们在整个空间运用大量桦木板来做一些趣味性实验。比如在改变了原来的入门方向之后，我们在现场用桦木板拼接制作了一扇大门。门中间选用为 800mm*800mm 的超白玻璃，寻求达到里外一些通透感、互动感。

We used a lot of birch planks throughout the space to do some interesting experiments. For example, after changing the orientation of the entrance, we made a gate on site with birch planks. The super white glass of 800mm*800mm is selected in the middle of the door, seeking to achieve a sense of transparency and interaction inside and outside.

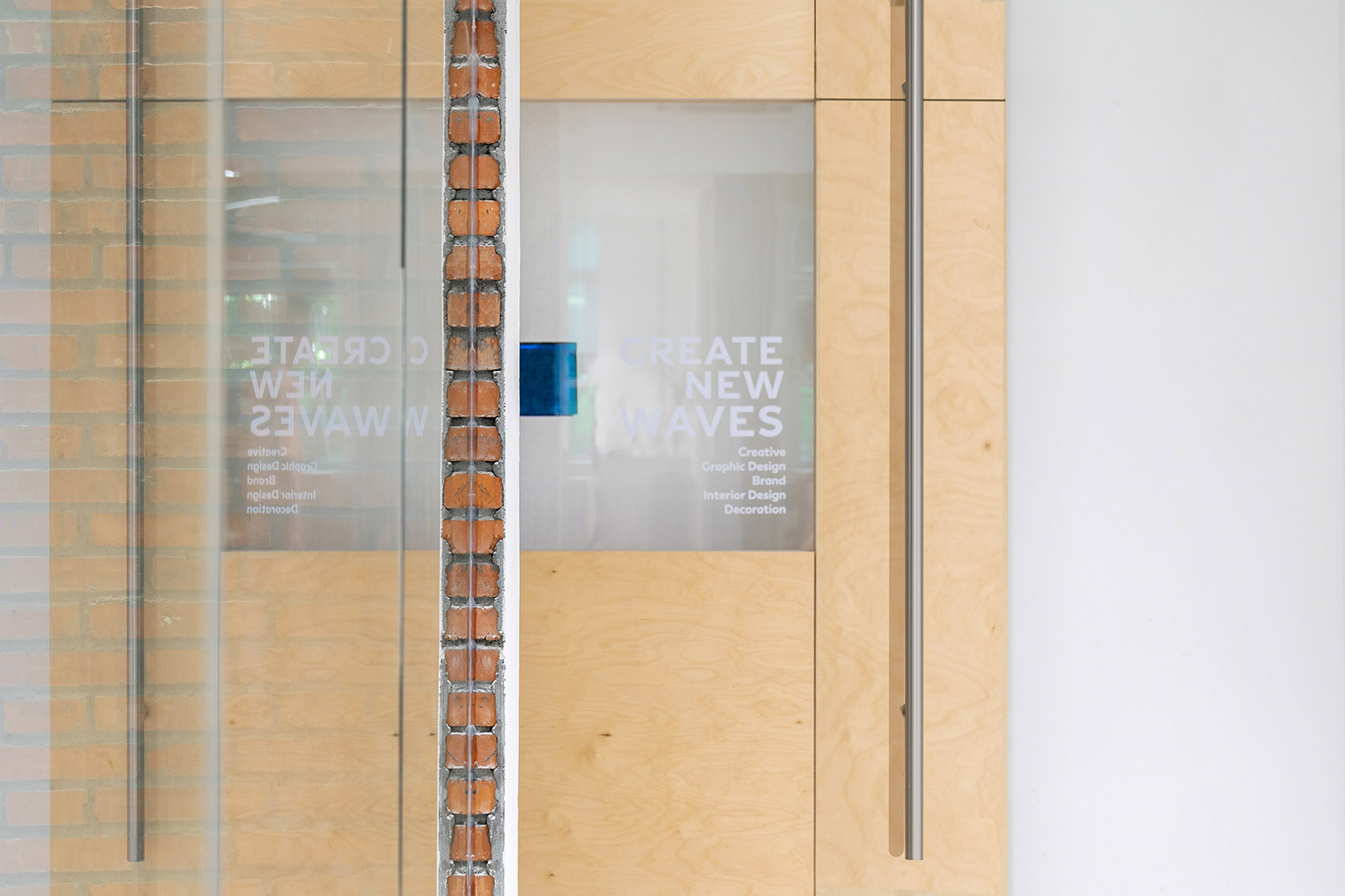

▼出口大门细部，details of the exit door ©红旗

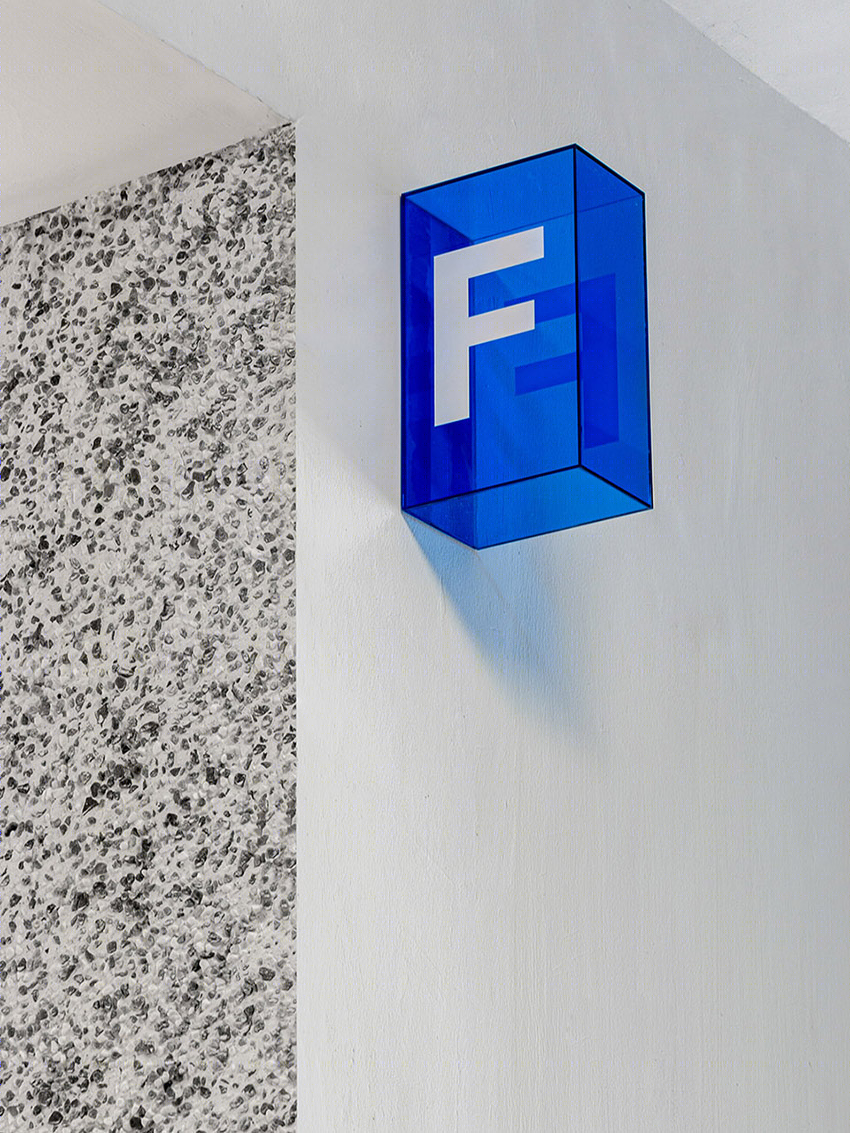

▼楼层导视细部，details of the acrylic signboard ©红旗

在工期及预算受限的条件下，我们谨慎梳理并罗列出团队的需求，用最简单的材质：木、砖、混凝土、玻璃，从最根本的功能出发进行设计。

Under the constraints of time limit and budget, we carefully sorted out and listed the needs of the team, using the simplest materials: wood, brick, concrete, glass, and designed from the most fundamental function.

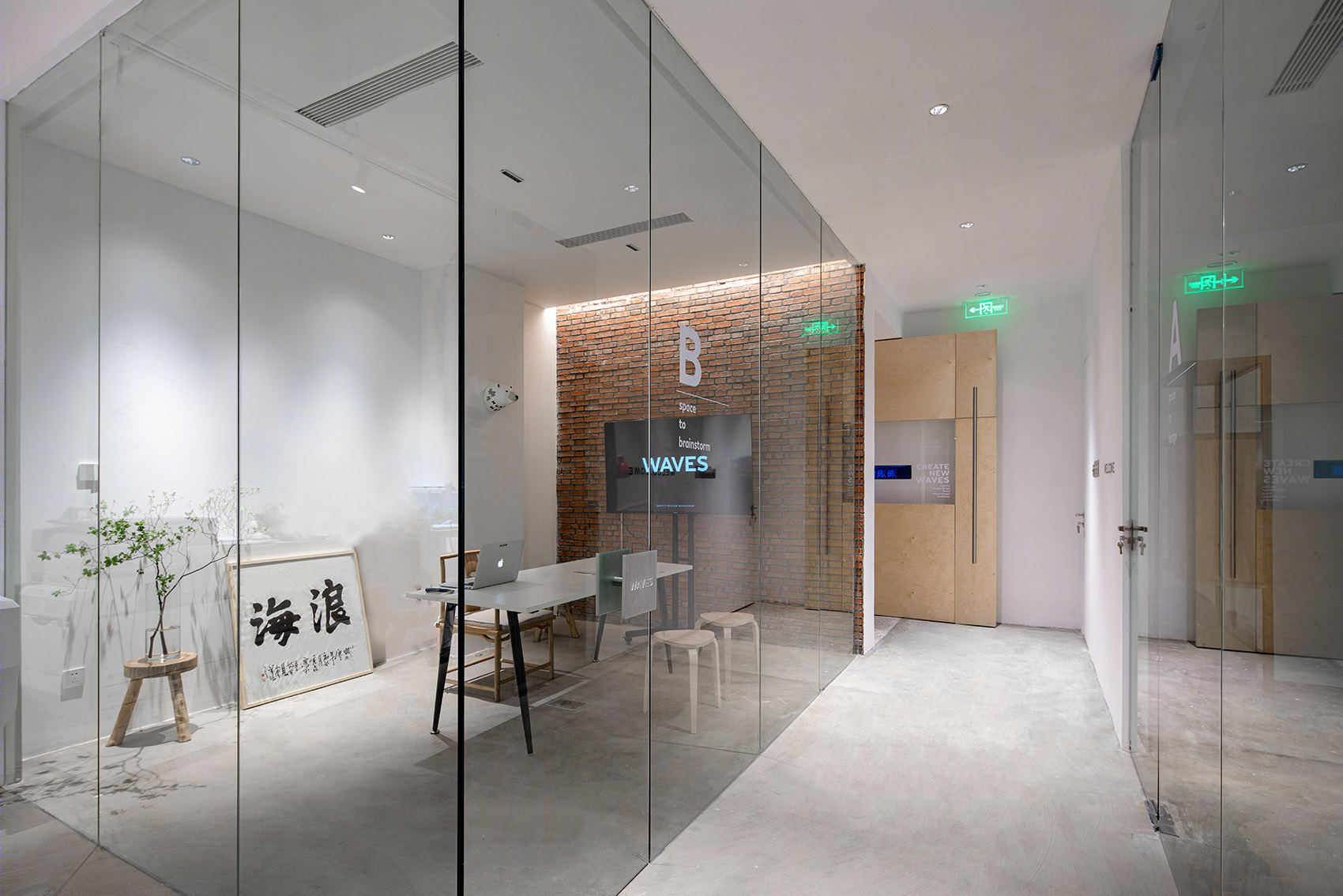

▼会议室，The meeting room © 红旗

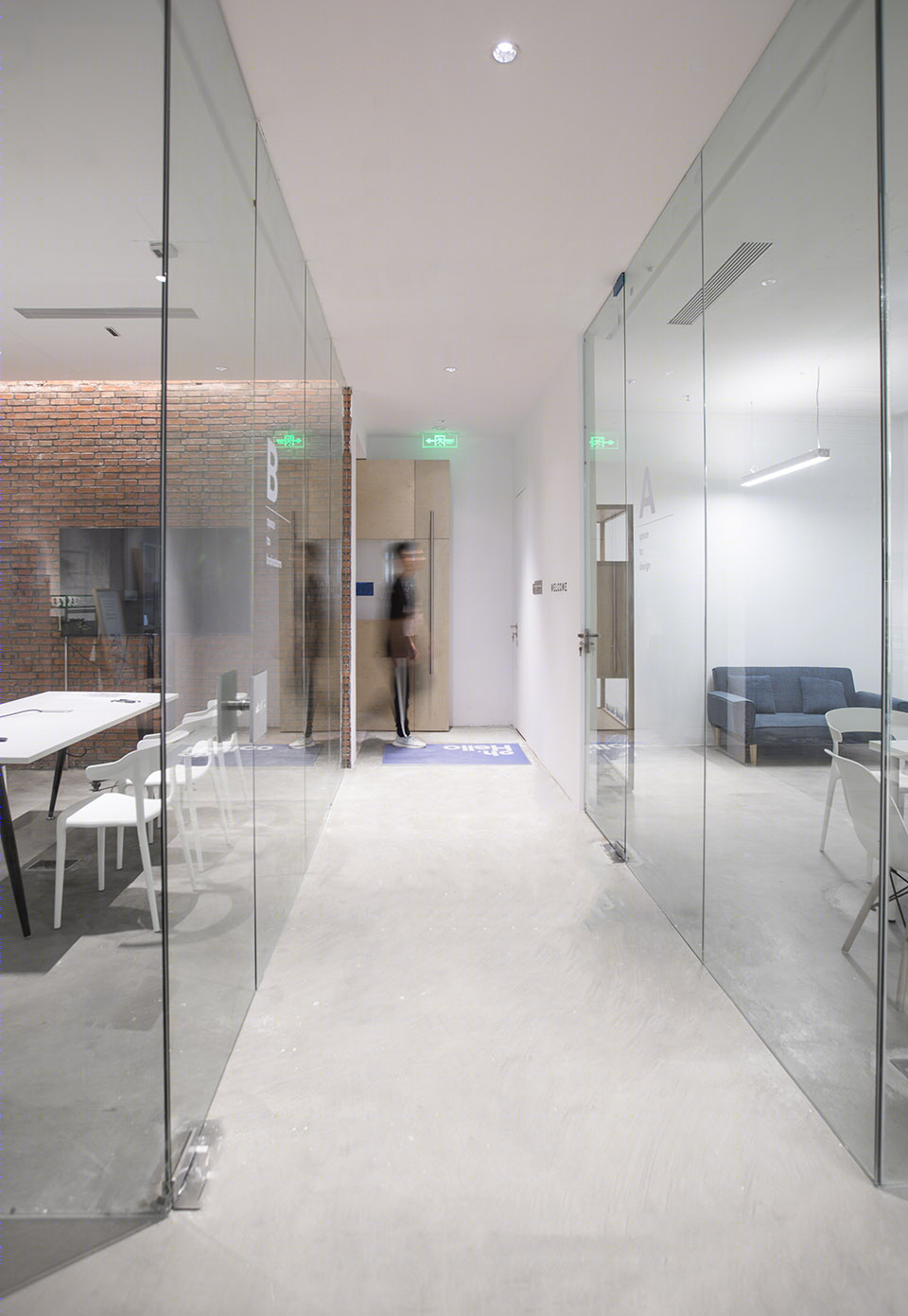

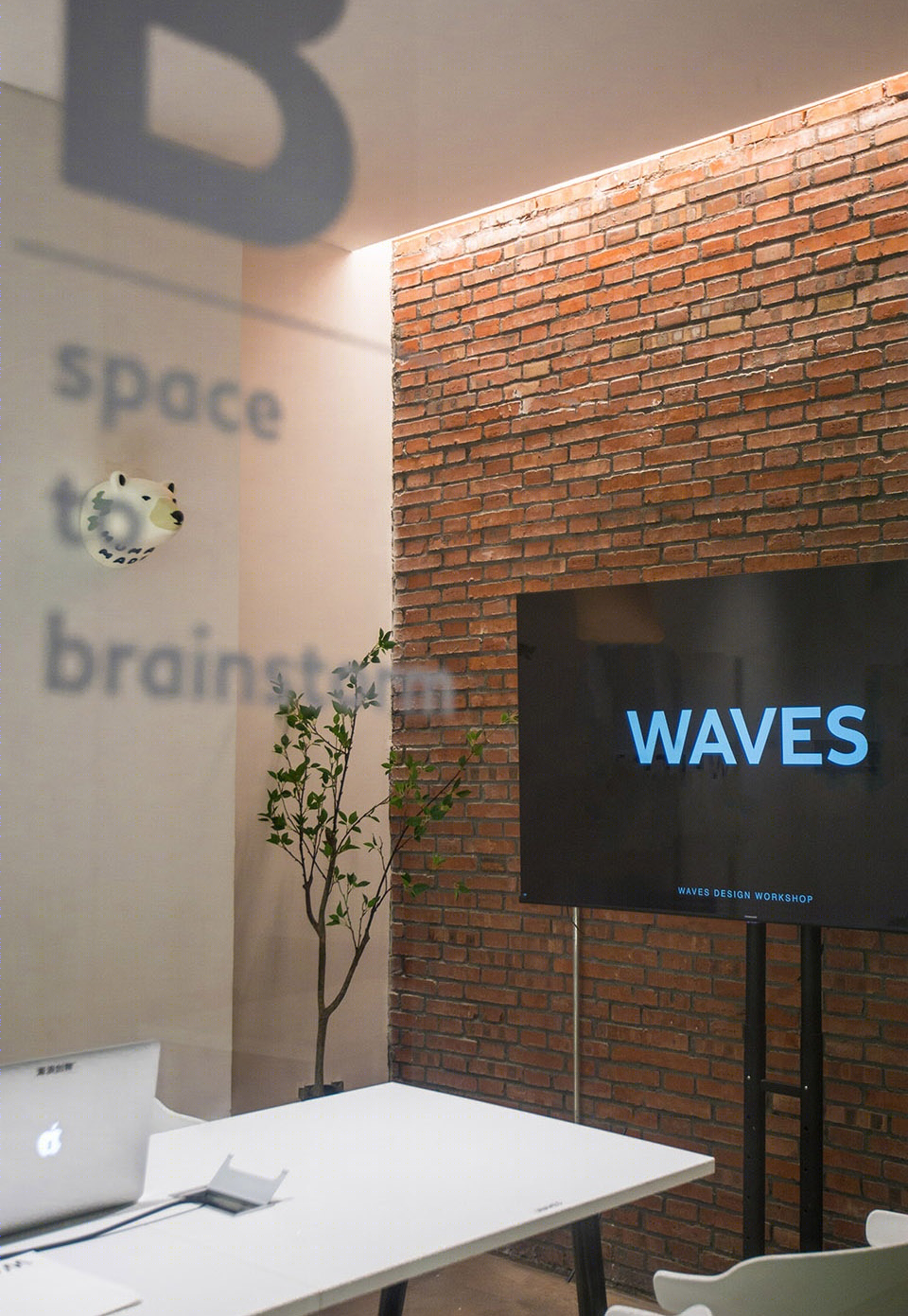

▼由走廊看会议室与办公区&会议室细部，viewing the meeting room and the office area from the hallway & detail of the meeting room ©海浪创物

空间设计了一个半独立的办公室，沿用桦木制作了一扇门。让它与窗外纯朴的自然气息相呼应。关于陈列区，我们用超过十二米长的桦木板做了三层悬挑固定的材料展示层板。

The space is designed as a semi-detached office with a door made of birch wood. Let it echo with the simple natural atmosphere outside the window. As for the display area, we made three layers of cantilevered and fixed material display panels with birch boards over 12 meters long.

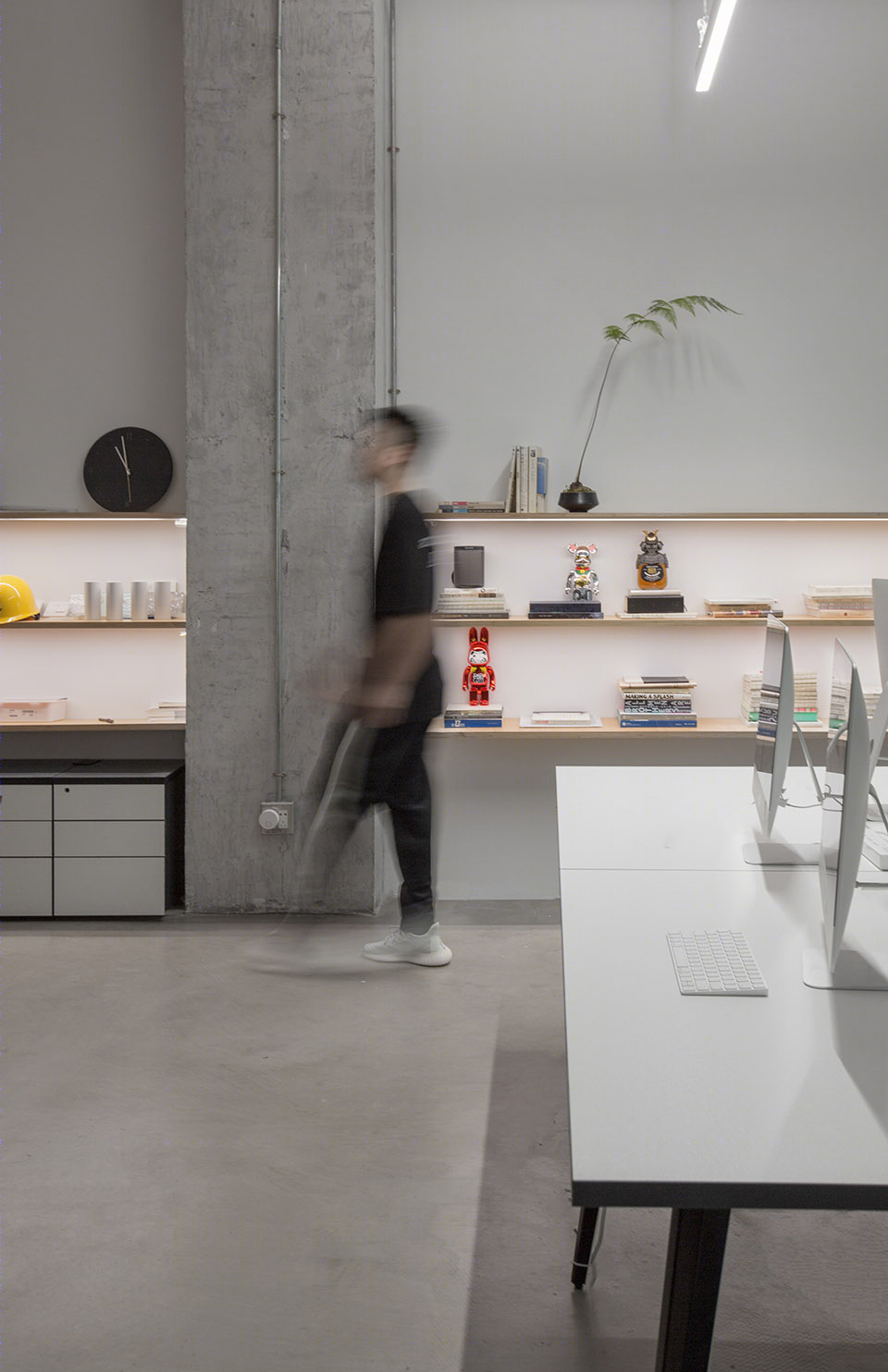

▼办公区，Office area  ©海浪创物

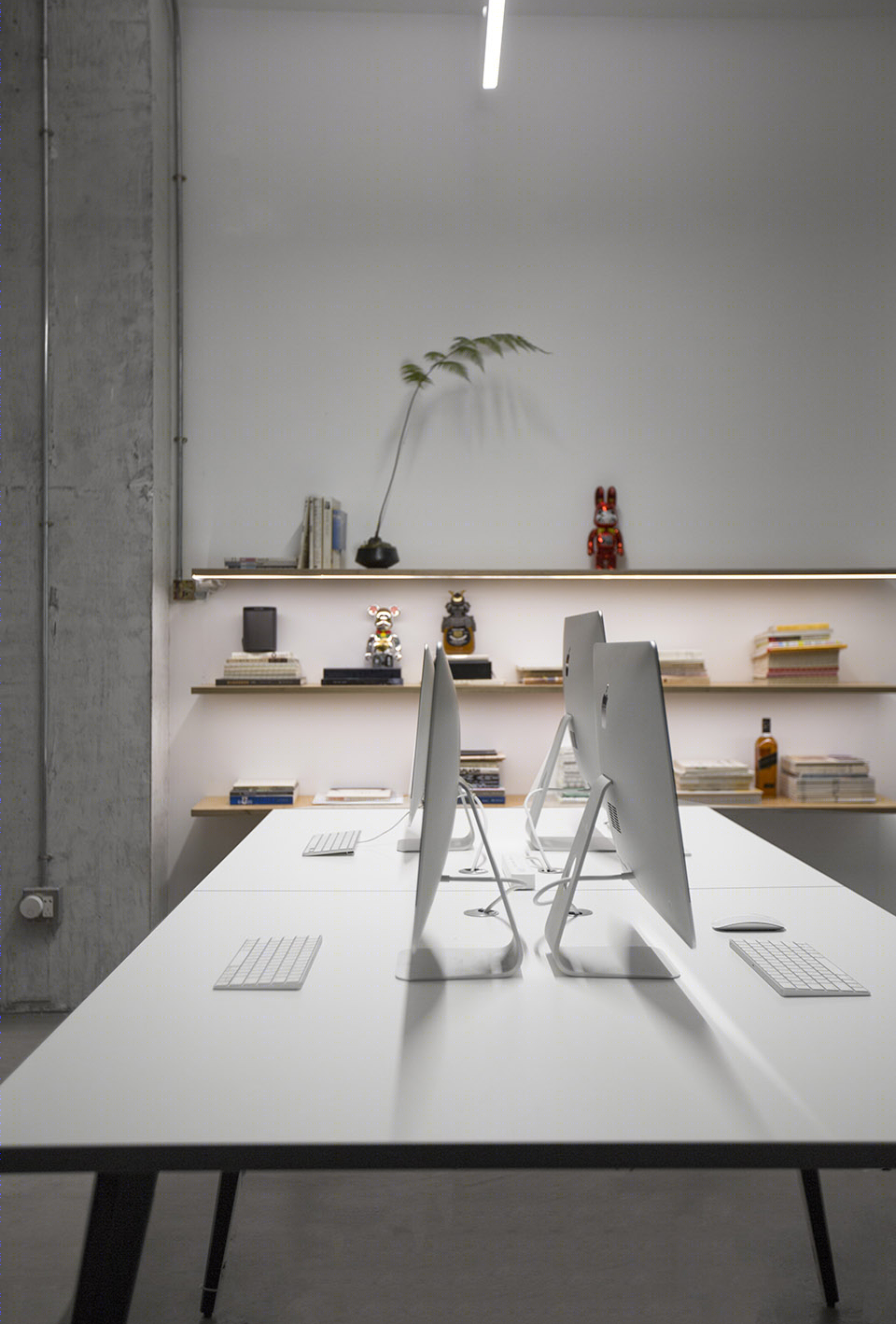

▼办公区设置了三层悬挑固定的材料展示层板，three layers of cantilevered and fixed material display panels in the office area  ©海浪创物

“工作再忙，也要记得按时吃饭。” 关于“里”，空间里最深处有两扇窗。外部的植物很大程度隔离了冰冷的城市建筑群和急躁的车流，让空间内部多了一份闲适和自然。

“No matter how busy you are at work, remember to eat on time.” About “inside”, there are two Windows in the deepest part of the space. The plants on the outside are largely separated from the cold urban buildings and the impatient traffic, making the space more leisurely and natural.

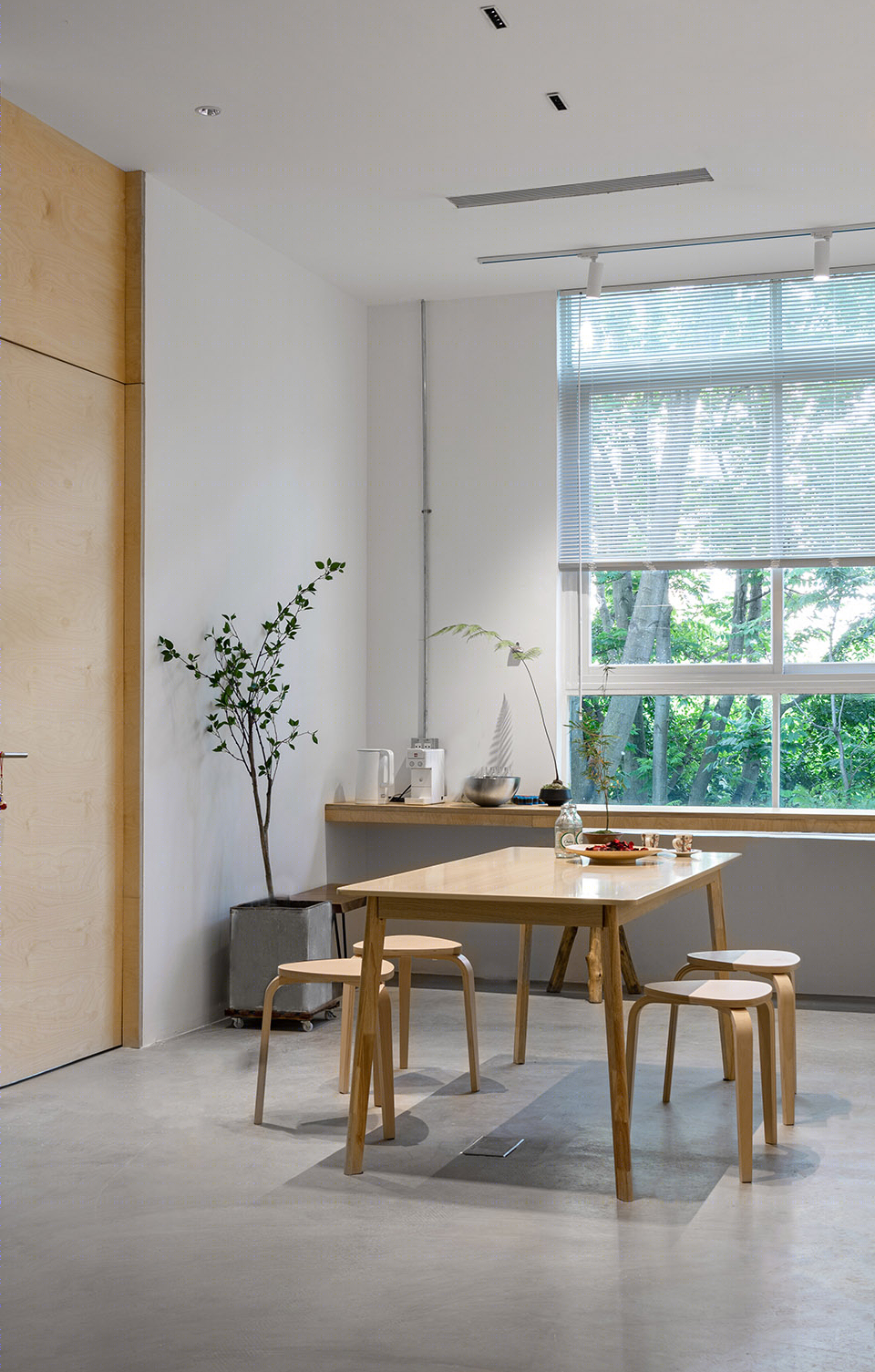

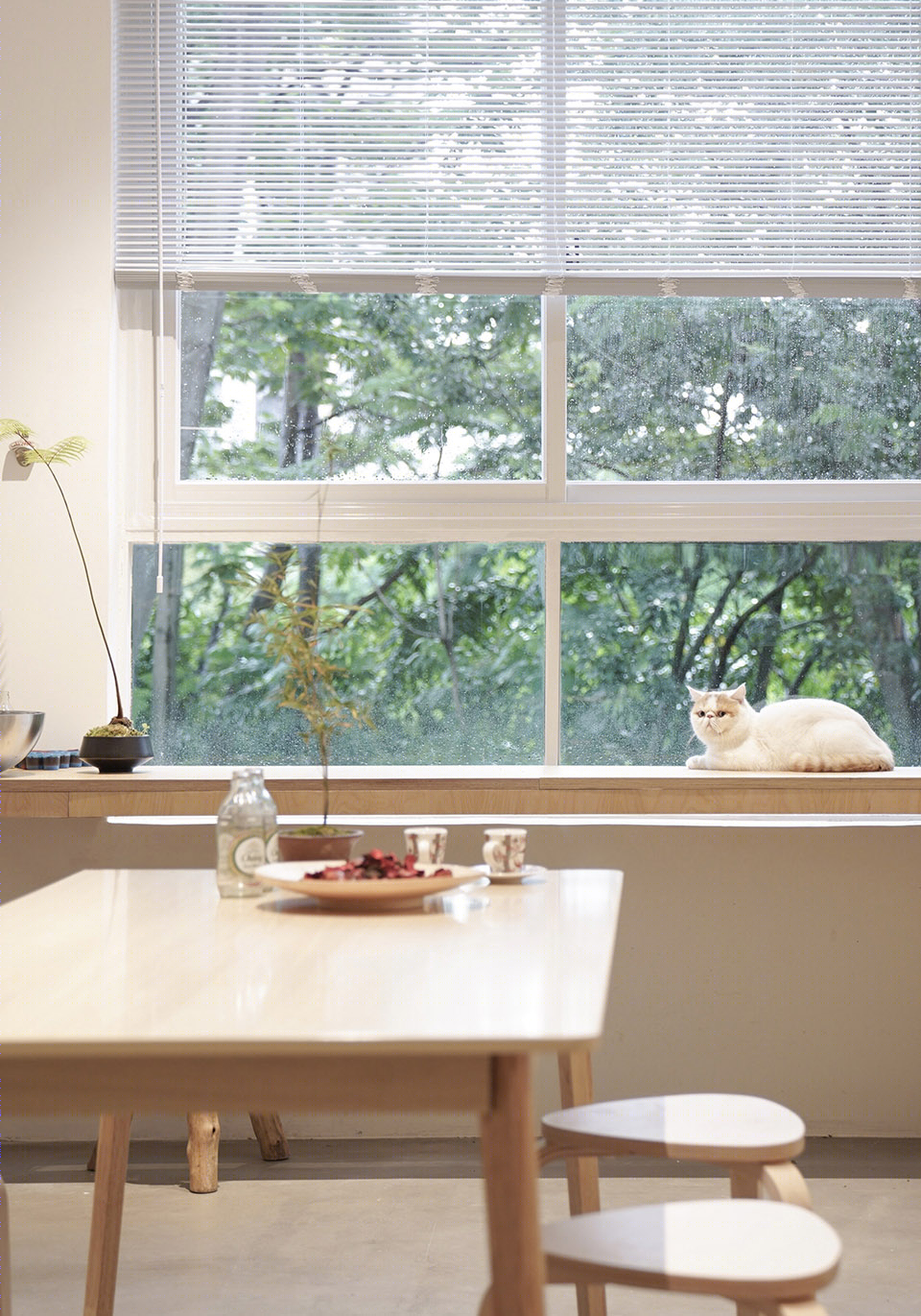

▼休息区的一角，A corner of the sitting area ©红旗

▼休息区与新成员“包子”， new member “Baozi” in corner of the sitting area ©红旗

在构建出大的框架结构及功能分区后，我们也尝试在有限的工期及预算内增加些不太一样的“内容”，一些有新鲜感和趣味性的内容。我们在空间的局部增加了许多亚克力材质。这种有机玻璃的材质拥有很强的可塑性、亮丽的色彩以及非常高的性价比。这非常符合我们这个年轻团队的性格和气质。

After building a large frame structure and functional zoning, we also tried to add something different, something fresh and interesting, within a limited period of time and budget. We added a lot of acrylic materials to the space. This plexiglass material has strong plasticity, bright color and very high cost performance. This fits well with the character and temperament of our young team.

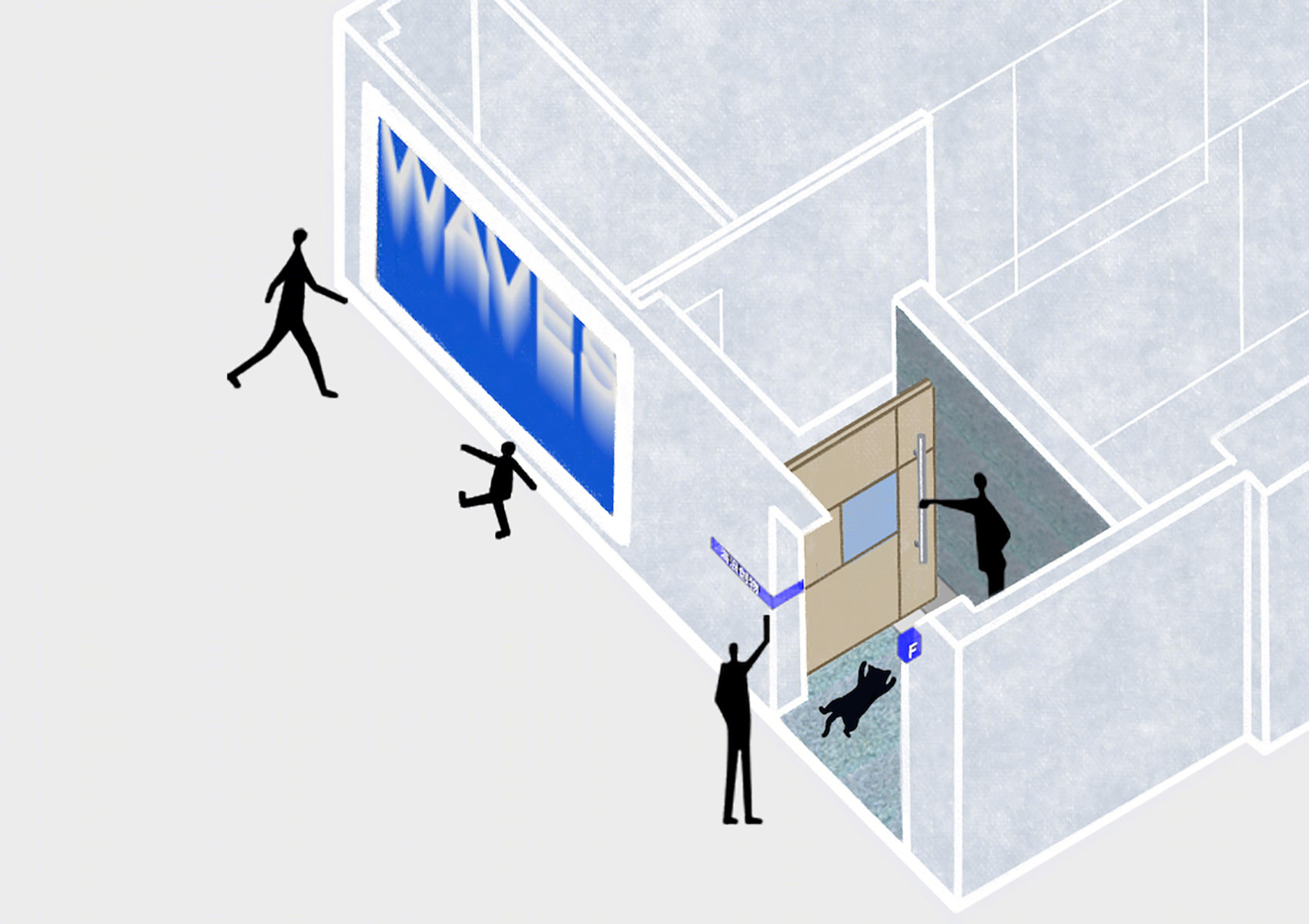

▼空间休息区场景&空间大门场景，The scene of the rest area of the space and the space gate  ©海浪创物

好的设计是具有普遍性的，它与人有所共鸣并且让他们感到舒适。

Good design is universal, it resonates with people and makes them feel comfortable.

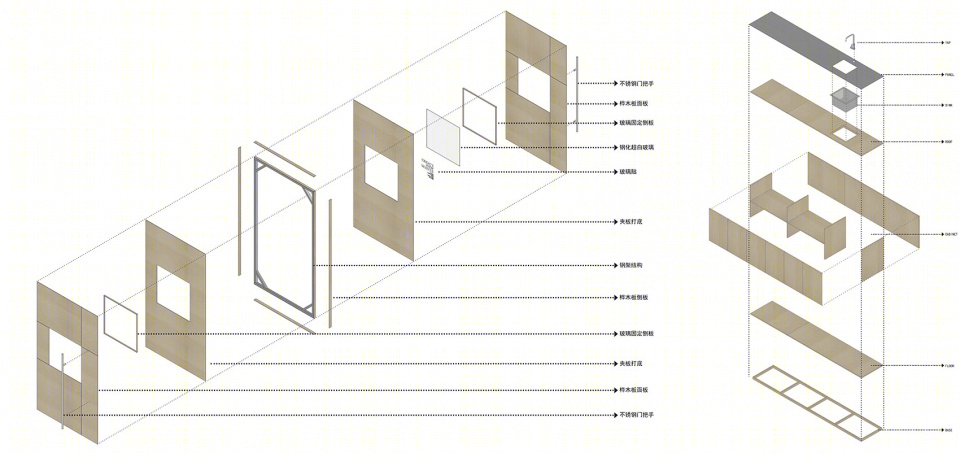

▼大门&水吧柜结构分解，Decomposition of gate structure and the bar counter ©海浪创物

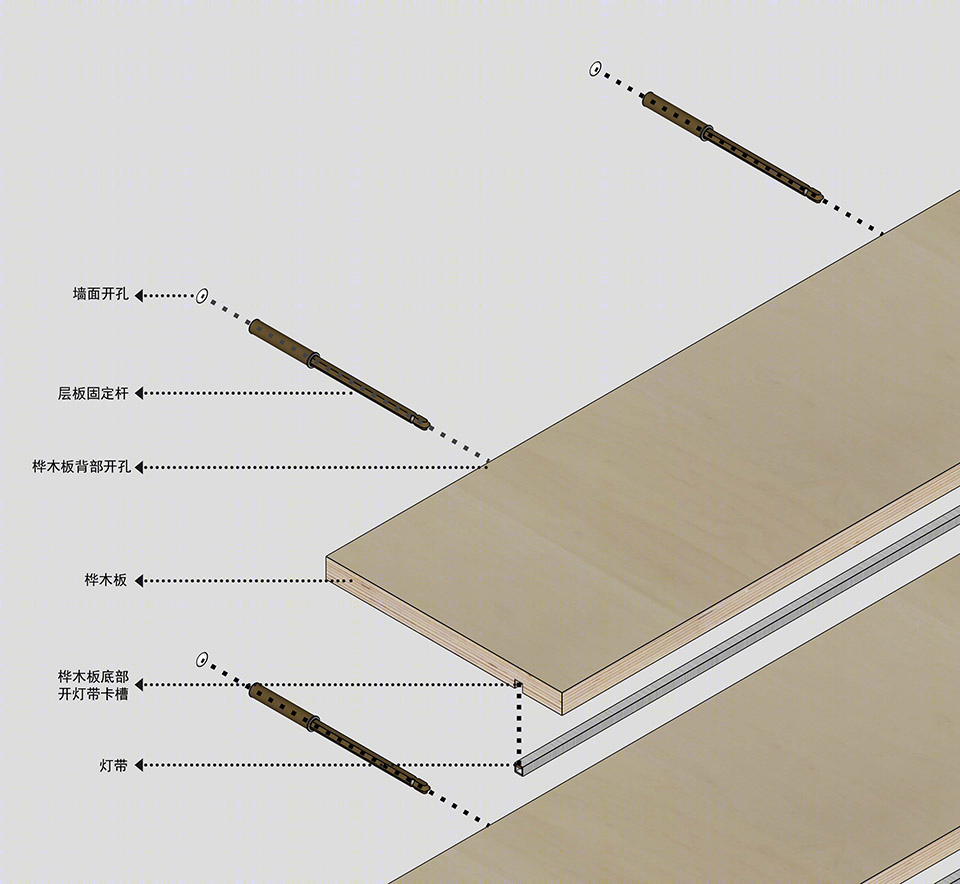

▼展示板的结构分解，Structural decomposition of display board ©海浪创物

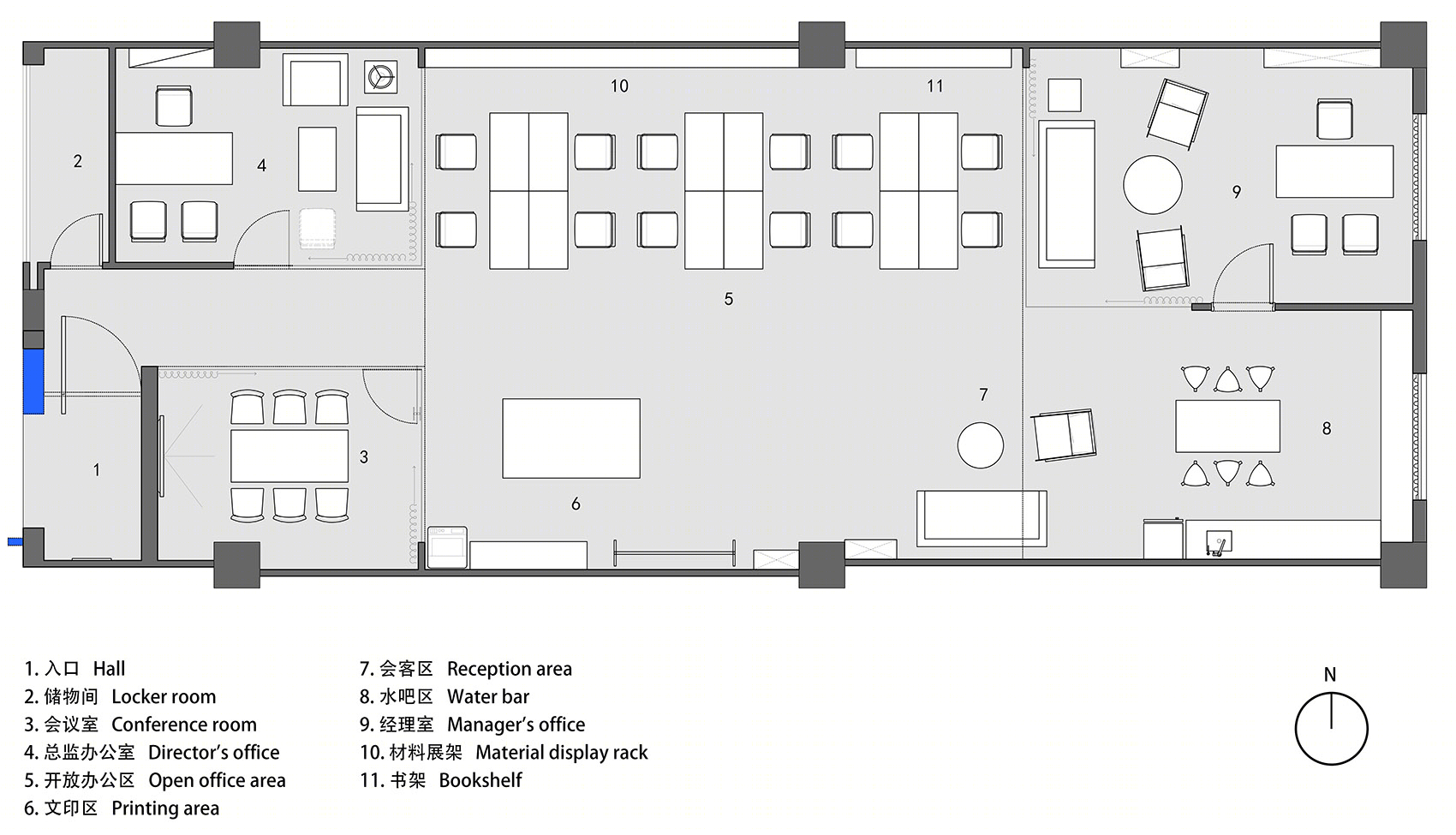

▼平面图，plan ©海浪创物

项目名称：海浪创物办公空间 项目地点： 广东 · 深圳南山
 项目面积： 252 ㎡ 设计公司： 海浪创物 设计团队： 吴建锋、赵一川、谭向政、何嘉权、范家铨 灯光设备： 库奥照明、西顿照明
空间摄影： 红旗

Project Name： Waves Space Project Location： Shenzhen Nanshan Project Area： 252 ㎡ Design Team： Waves Design
Lighting equipment： KA Lighting、CDN LIGHT Space photography： RED FLAG
