ColiRoma OneHundredTwentyEight 公共私人空间住宅设计

© Rafael Gamo

拉斐尔·贾莫

架构师提供的文本描述。ColiRomOneHunred2st是墨西哥城北科隆尼亚罗姆人城市结构的一部分。该地区的公共空间的特点和使用提供了一个独特的视角，进步的社区生活在城市内，因此，反映了当代社会，生活和生活不仅发生在我们的私人空间，也在我们附近的公共空间。

Text description provided by the architects. ColiRoma OneHundredTwentyEight is part of the urban fabric of the Colonia Roma Norte in Mexico City. The district’s features and use of public space offers a unique perspective on progressive neighborhood living within the city, and as such, reflects contemporary society, where life and living happens not only in our private spaces but also in our nearby public spaces.

© Rafael Gamo

拉斐尔·贾莫

诸如Condesa-罗姆文化走廊的活动，产生了与邻居之间充满活力的个人关系，使他们能够在公共空间中生活在一起。这就是宜居空间和生活方式的概念如何对这一住宅项目产生直接影响。

Activities, like those of the Condesa-Roma Cultural Corridor, generate vibrant personal relationships with neighbors that allow for living together in the public space. This is how the concept of livable space and lifestyle has a direct impact on this residential project.

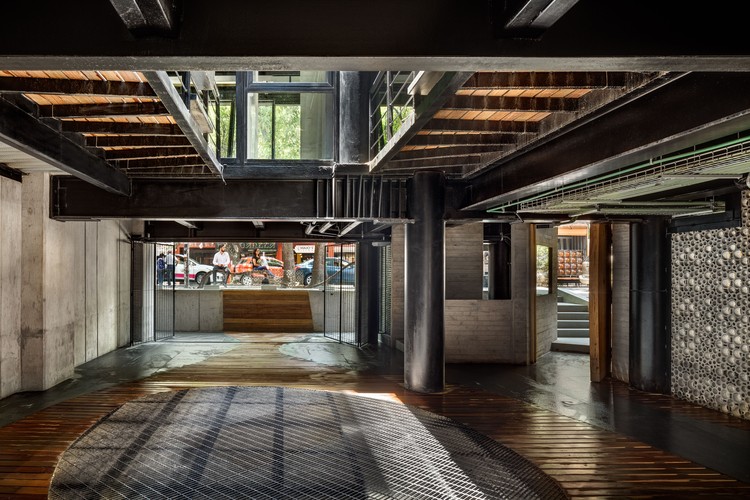

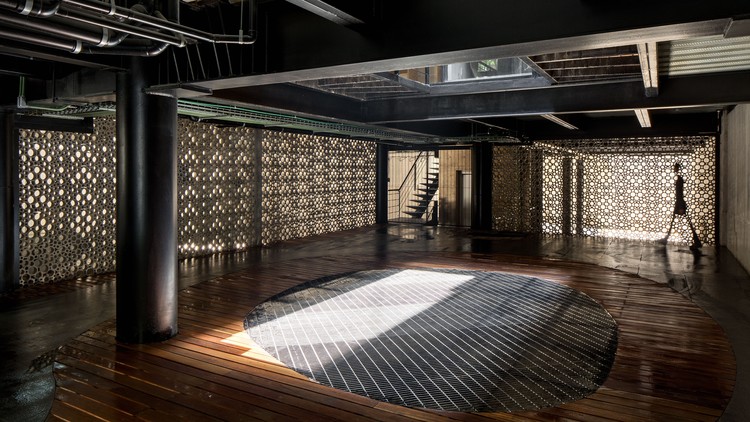

该建筑使用公共-私人空间的概念元素进行配置。首先，建筑及其城市环境通过“城市车站”在两者之间形成空间渗透性。这是一个灵活的公私关系空间，位于人行道下面半层，可以成为在文化走廊期间进行互动的画廊、论坛或场所。它也可以是建筑居民的公共区域，必要时可以成为聚会的专用空间，允许使用上的灵活性，并重申社区居民对该地区的影响。

The building is configured using conceptual elements of public-private space. First of all, the building and its urban setting lead to spatial permeability between the two through an “urban pit stop”. This is a flexible space of public-private interrelationships, located a half-level below the sidewalk, that can become a gallery, forum or place for interacting during the Cultural Corridor, etc. It can also be a common area for building residents, turning into an exclusive space for gatherings if required, allowing for flexibility in use and reaffirming the impact of neighborhood living on the area.

© Rafael Gamo

拉斐尔·贾莫

此外，在主立面外的一棵现有的树周围还建造了一条公共长凳，自行车可以停在那里，宠物和人们可以自由地坐着和交往。

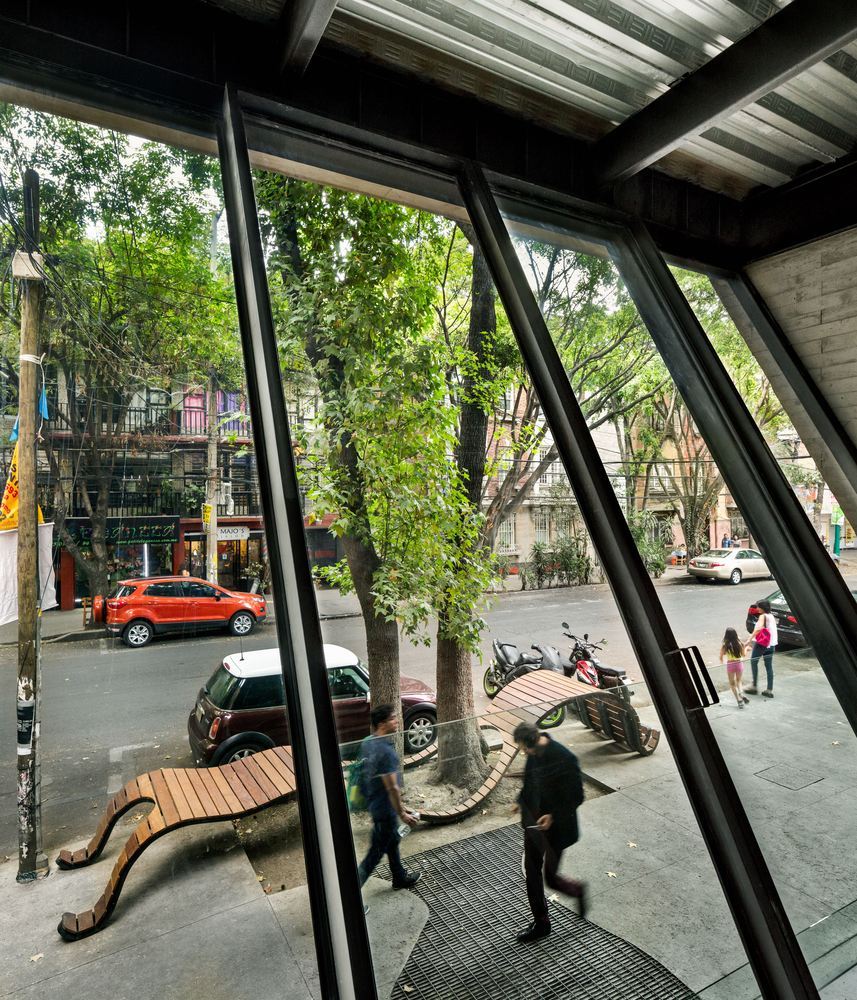

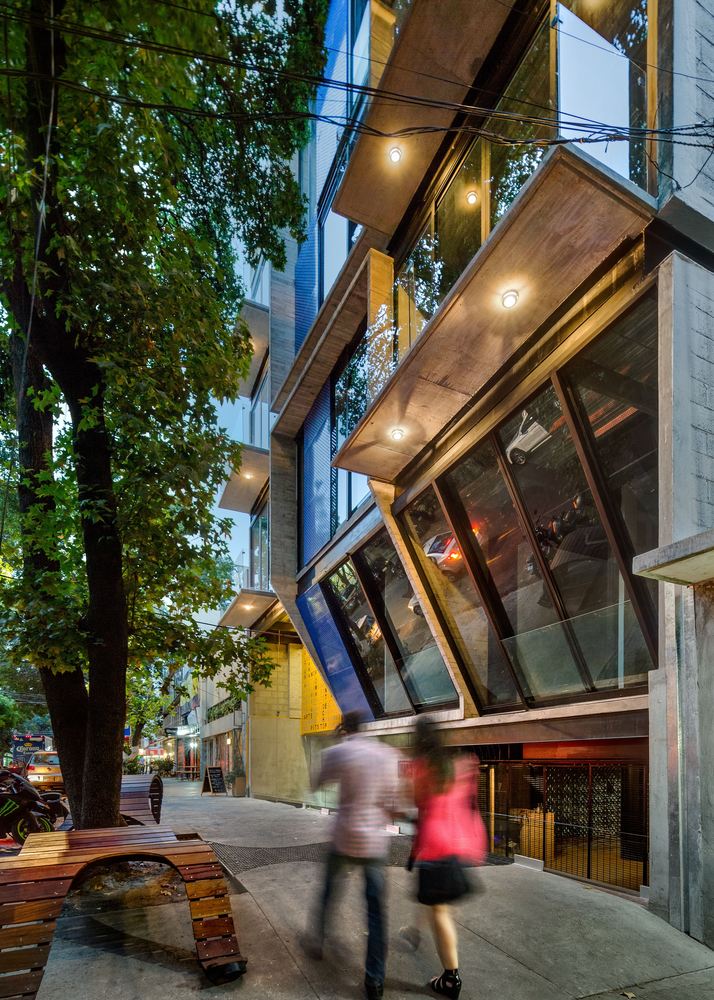

Additionally, a public bench is built around an existing tree outside the main façade, where bicycles can be parked or where pets and people can sit and mingle freely.

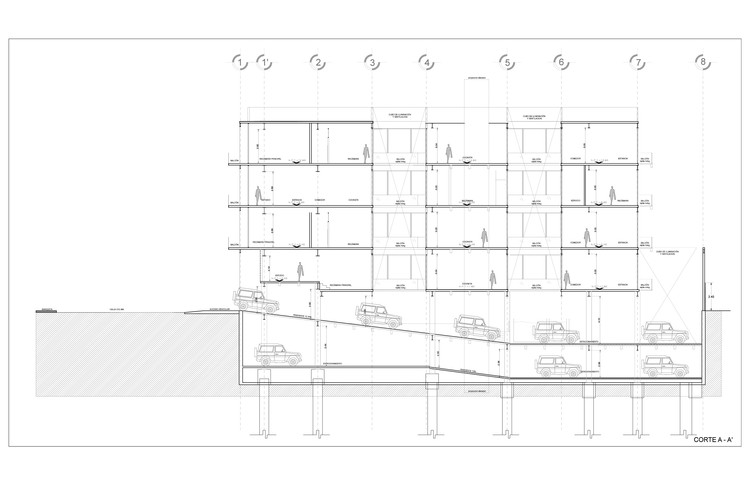

Section AA

AA节

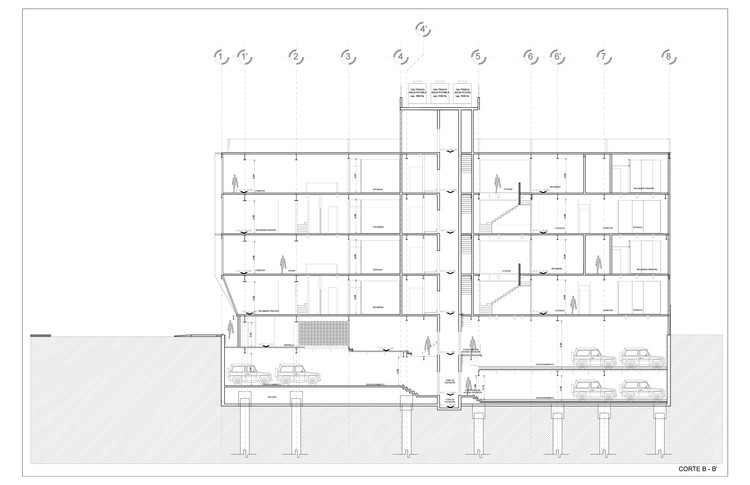

Section BB

BB节

另一方面，从住宅的角度来看，这座建筑由8套公寓、2栋城镇住宅、2套顶层公寓、1个屋顶花园和2个地下停车场组成。这些公寓有一个线性的空间配置，产生一系列的室内立方体光和自然通风在他们的内墙。这提供了街景和向内和向后立方体的看法，这会产生沿公寓直线路径的空间转换，暴露光线、阴影和室内外环境。

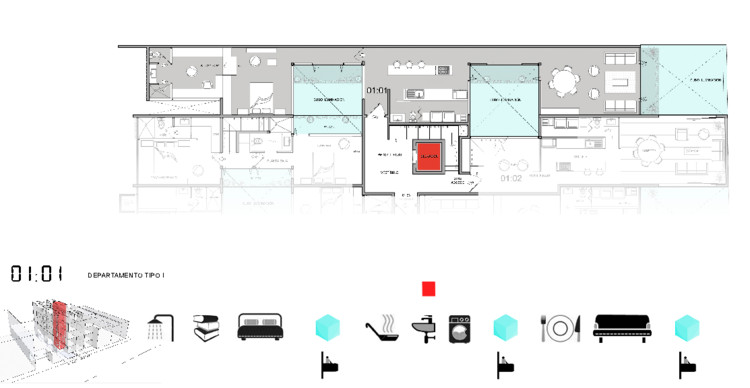

On the other hand, from a residential perspective, the building consists of 8 apartments, 2 town houses, 2 penthouses, a roof garden and 2 subterranean parking levels. The apartments have a linear spatial configuration, generating a sequence of interior cubes of light and natural ventilation across their inner walls. This affords street views and views toward the inside and back cubes, which produce spatial transitions along the linear path of the apartment, exposing light, shade and indoor and outdoor environments.

© Rafael Gamo

拉斐尔·贾莫

在第一层有一套公寓被配置为工作室阁楼。第四层的另一套公寓通过保留客厅-餐厅作为一个开放的双高露台，在空间上与空旷的空间联系在一起，作为一种自然元素。联排住宅和顶层有两个层次，两个俯瞰街道，两个俯瞰尾灯和通风立方体，保持空间过渡，揭示室内外环境。屋顶花园有6个私人区域和一个水疗中心在公共区域，鼓励和促进邻居之间的互动。

There is an apartment on the first level configured as a studio-loft. Another of the apartments on the fourth level plays with the open space by preserving the living room-dining room as an open terrace of double height, and the top of an existing tree relates spatially as an element of nature. The townhouses and penthouses have two levels, two overlook the street and two overlook the rear light and ventilation cubes, maintaining the spatial transition and revealing the indoor and outdoor environments. The roof garden has 6 private areas and a spa in the common area, encouraging and facilitating interaction among neighbors.

© Rafael Gamo

拉斐尔·贾莫

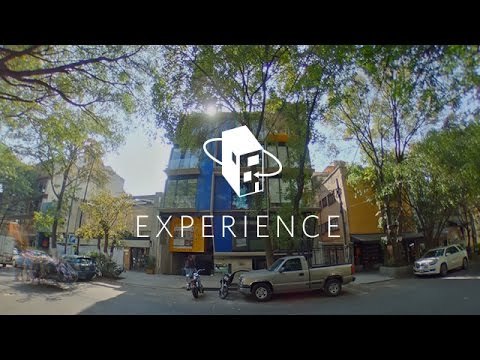

从主立面上可以看到阳台和公寓的空间布局。中间是两层楼高的大楼.工作室阁楼看起来像一个有着城市词组的鹅卵石立方体，这引起了人们对车辆和行人通道的注意。在顶部，一个两层高的立方体，上面有鹅卵石的细节，突出了公寓与开阔的露台。现有的树和公共长椅也有很好的相互联系。一切都是组件和元素的交流，空间的渗透性，公共和私人用途的相互作用。

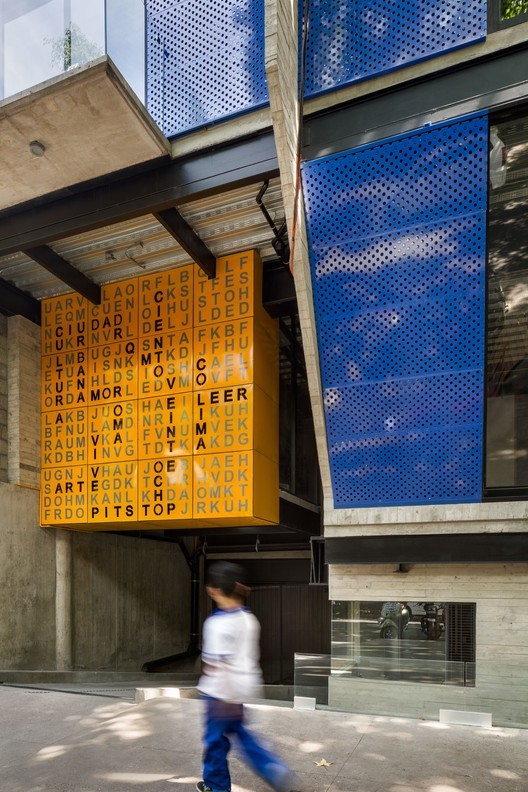

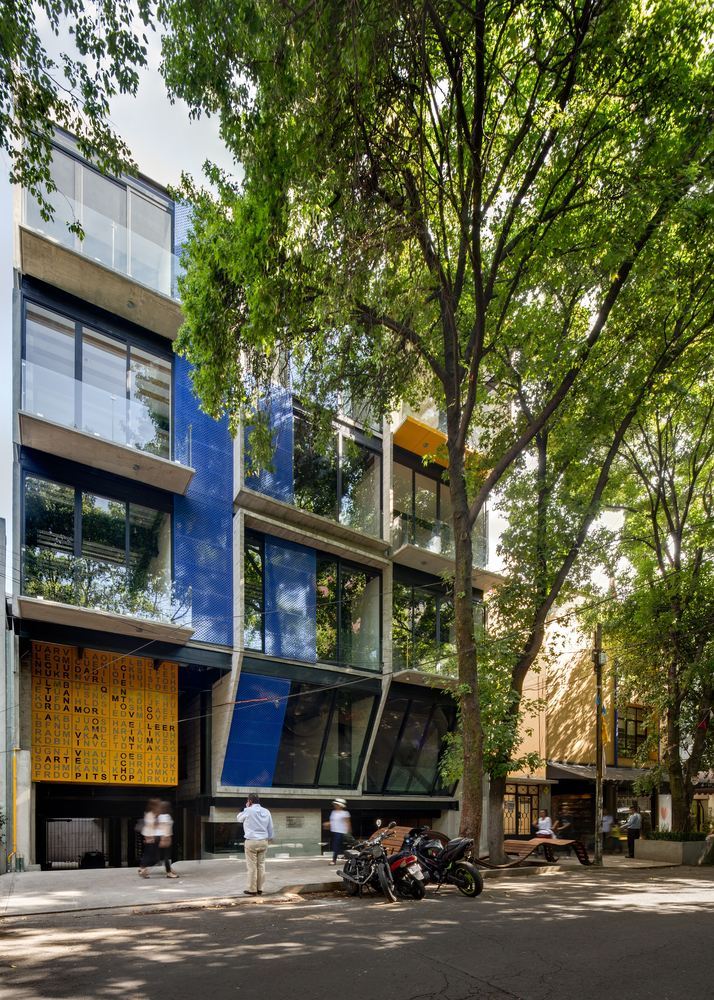

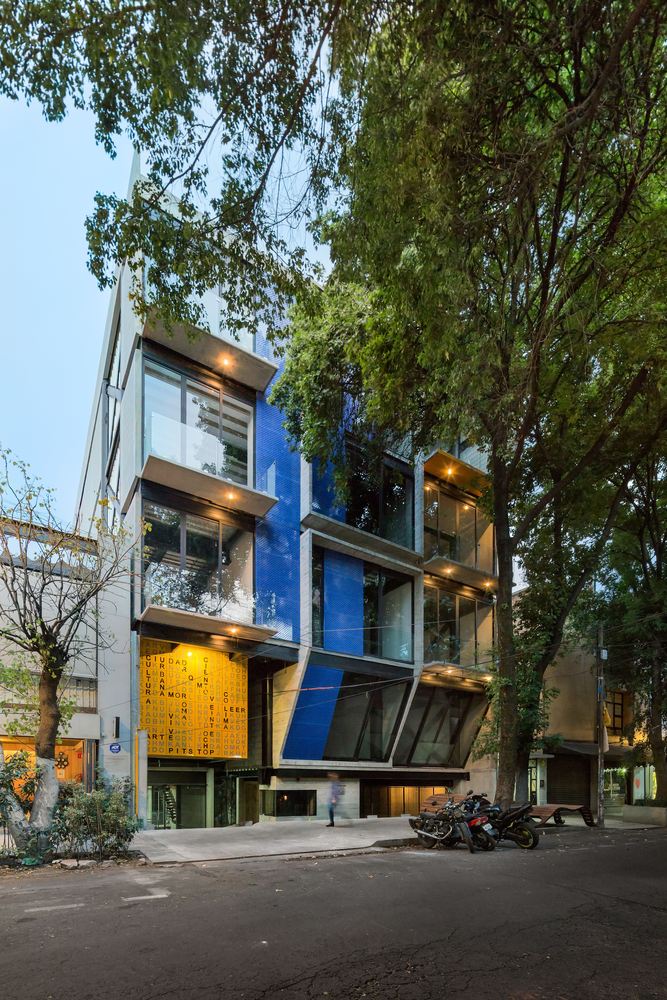

The balconies and the spatial configuration of the apartments are visible from the main façade. In the center are the 2-storey blocks. The studio-loft appears as a pewter cube with urban phrases, which calls attention to the vehicle and pedestrian access. At the top, a 2-storey cube with pewter details highlights the apartment with the open terrace. The existing tree and the public bench also interrelate well. Everything is a communication of components and elements, permeability of spaces, interaction of public and private use.

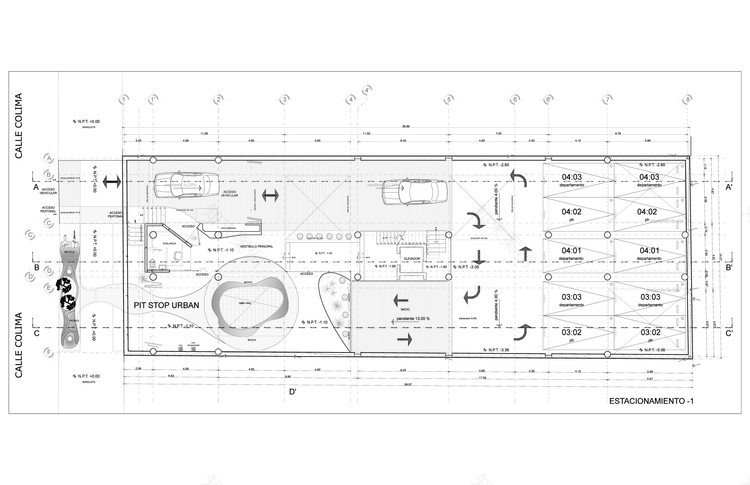

Parking Plan

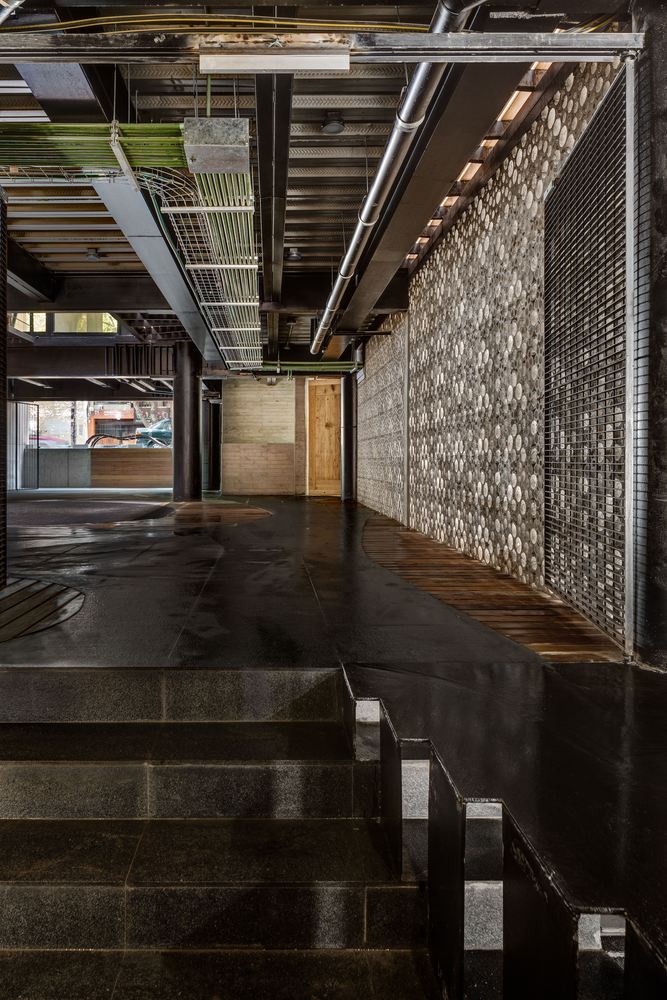

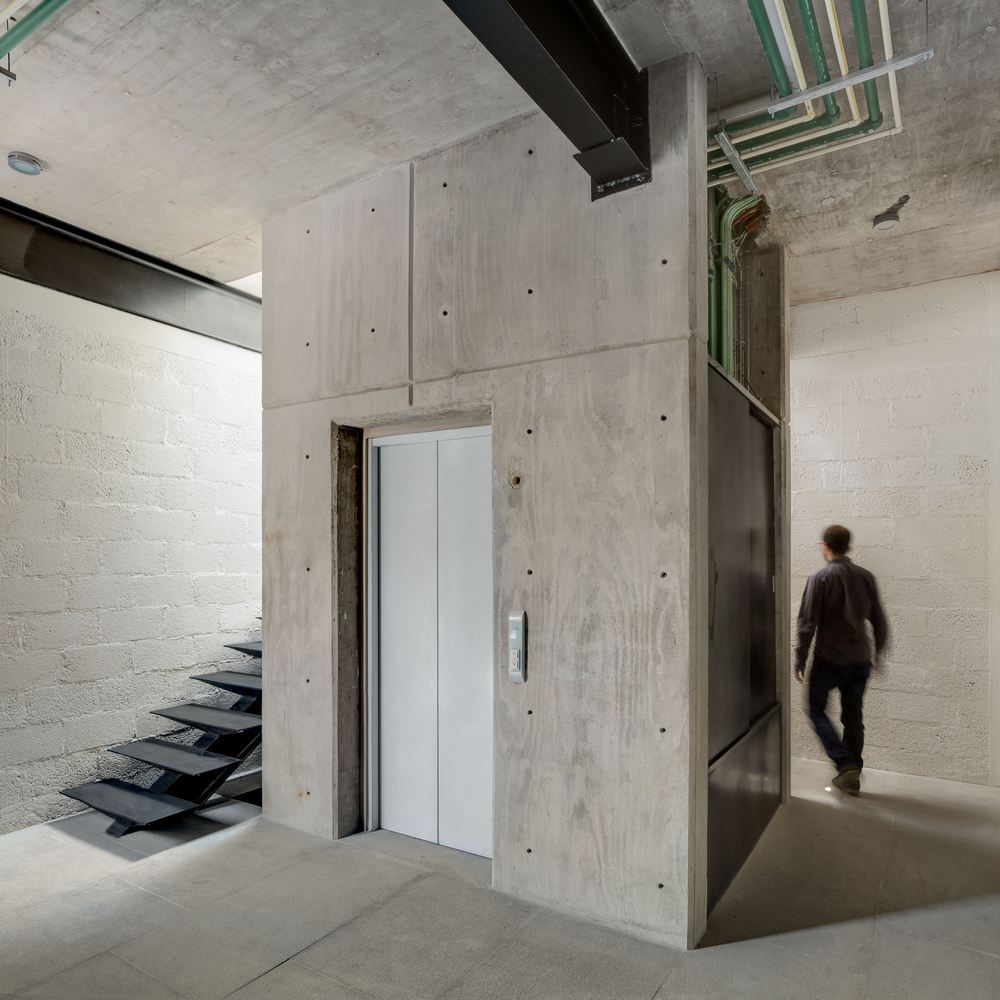

整体饰面：结构以涂成黑色的金属柱为基础，中间地板由波纹金属制成；平板支撑系统采用钢筋混凝土支撑系统，可容纳暴露的混凝土天花板；一般的内部安装都暴露在外面，除服务区外，窗框为黑色铝，有透明玻璃。主要的外观有鹅卵石的细节和穿孔层压板的滑动板。

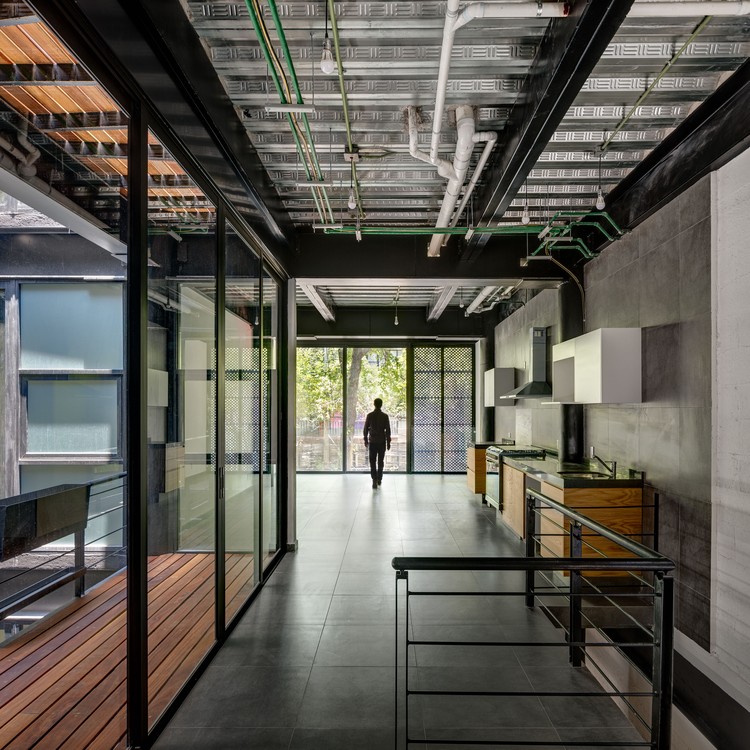

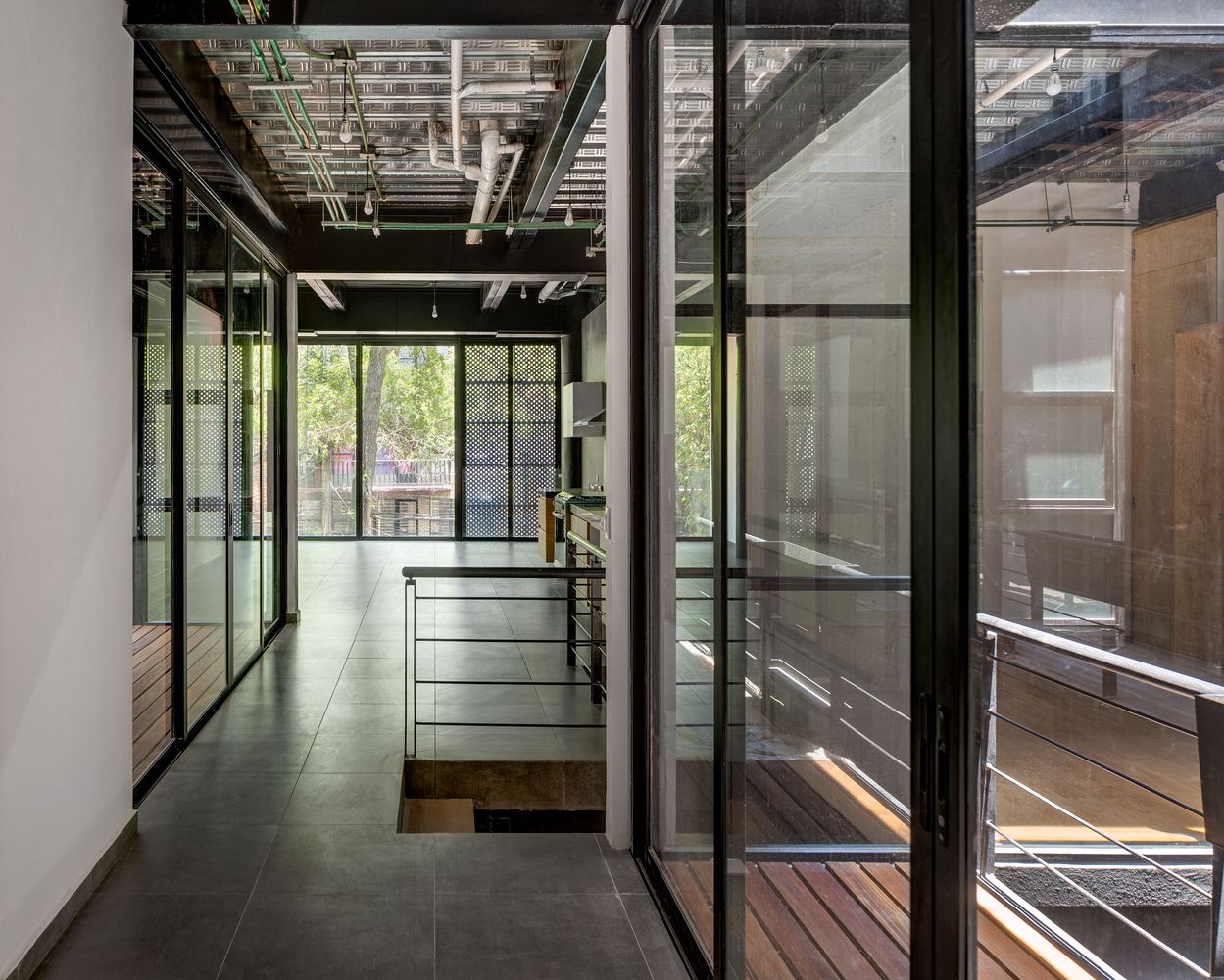

The overall finishes are exposed: the structure is based on metal columns that are painted black, with exposed intermediate floors made of corrugated metal; the flat slab support system uses reinforced concrete which holds an exposed concrete ceiling; the general interior installations are exposed, except for the service areas, the window frames are black aluminum with clear glass. The main façade has pewter details and sliding panels of perforated laminate.

© Rafael Gamo

拉斐尔·贾莫

Architects ARQMOV WORKSHOP

Location México, Colima 128, Roma Nte., 06700 Ciudad de México, D.F., Mexico

Category Residential

Architects in Charge ARQMOV WORKSHOP

Area 2300.0 m2

Project Year 2016

Photographs Rafael Gamo
