伊朗雅兹德老宅翻新

© Hossein Farahani

(Hossein Farahani)

架构师提供的文本描述。该项目是一个10年前的居住建筑，在新的背景下，亚兹德市，被提交建筑师在重建的最后阶段，由另一个团队，由于客户对结果的不满。我们从评价不适当的功能并置入手，着手解决建筑立面不和谐、不同一性、不统一等问题(就像雅兹德新城纹理中的其他建筑一样)，通过适当的方法，改造路口拐角处的建筑位置，有两个西面和北面，这是优化内外部振兴的一种具体思路，它可以满足客户和架构师的需求。

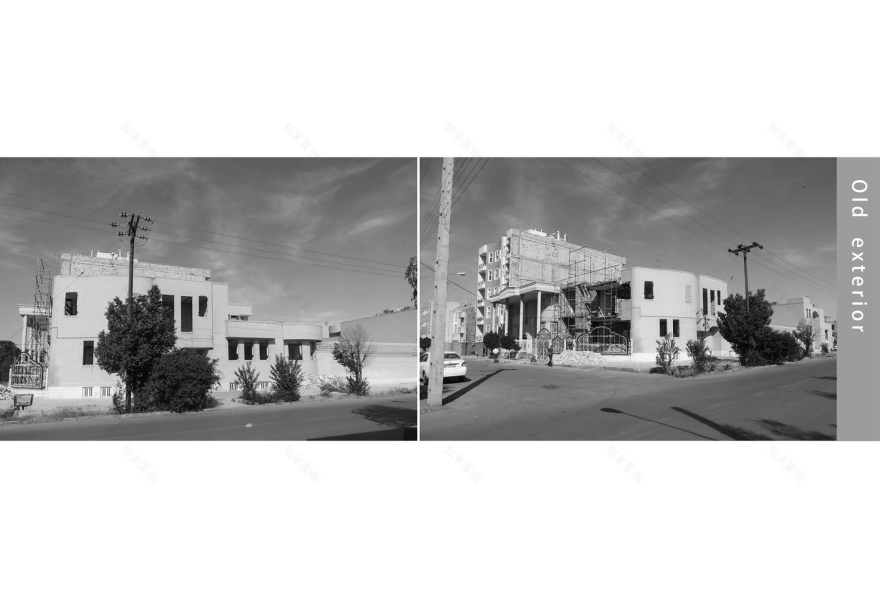

Text description provided by the architects. The project is a ten-year old residential building in new context of city of Yazd that was referred to the architect during the final stages of reconstruction by another team, due to client’s dissatisfaction with the outcome. We started the process with evaluation of the improper functions Juxtaposition and proceed to problems like lack of harmony, identity and unity in building facade (just like other buildings in Yazd new city textures).Regarding the building location on the corner of a junction and having two western and northern facades, an accrete idea for optimum revitalization of the interior and exterior, by means of a proper method, which can fulfill the client and the architect requirements has been quested.

© Hossein Farahani

(Hossein Farahani)

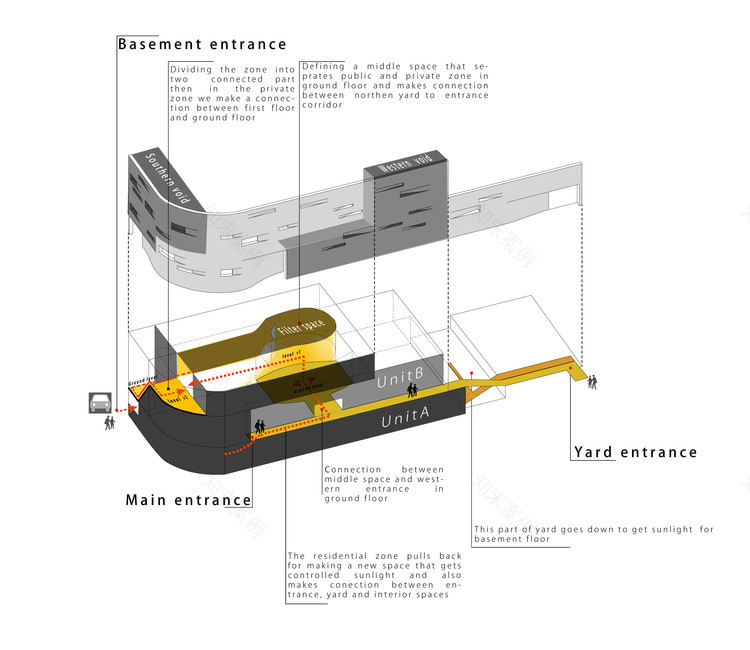

Site Plan Isometric

场地平面图等距

© Hossein Farahani

(Hossein Farahani)

当事人最初的要求是拥有一个生动的法庭时的隐私。通过几次会面，探讨他们对雅兹德老民居的看法，突出了今天居住在雅兹德的现代人的生活方式和“家”的形像与过去一样。这一点使我们今天在雅兹德设计一个家庭的需要，比如隐私，公共和私人的法庭和空间，开放和半开放的空间形式的今天的家庭的需要。关于西面和北面的地块和气候分析，以及西面较长的情况，我们得出结论，大部分空间都会从西侧得到阳光，面向街道。最后，通过操纵皮肤，我们到达了皮肤和建筑之间的空间，作为半开放的，但覆盖的空间，提供隐私，同时增加面积的房子。例如，我们把窗户俯瞰街道的问题转化为可以俯瞰庭院的窗户。

The client’s initial demand was privacy while having a vivid court. Through several meetings with them and exploring their viewpoints toward old ethnic houses in Yazd, this notable point stands out that contemporary people who are living in Yazd today, still have the same life style and image of “home” as past. This point make us design nowadays needs of a family in Yazd like privacy, public and private courts and spaces, open and semi- open spaces in the form of today needs of a family. With respect to the two west and north faces of the lot and climatic analysis, and the western face being longer, we concluded that most of the spaces will receive sunlight from west side, facing the street. Finally with manipulation a skin, we reached to spaces between the skin and the building as semi- open yet covered spaces that supply privacy while adding area to the house. For example, we transformed the issue of windows overlooking the street into windows overlooking the courtyard.

© Hossein Farahani

(Hossein Farahani)

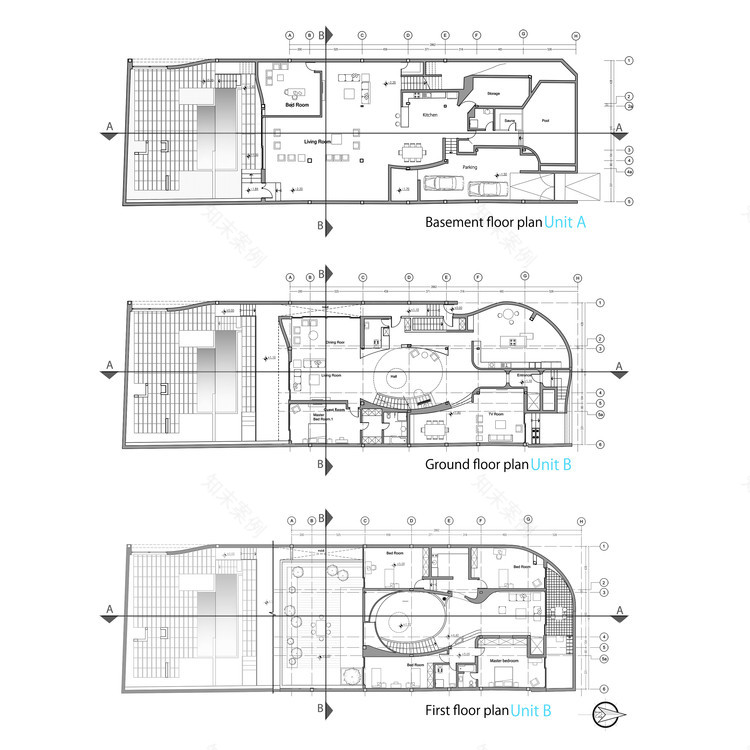

Floor Plans

平面图

© Hossein Farahani

(Hossein Farahani)

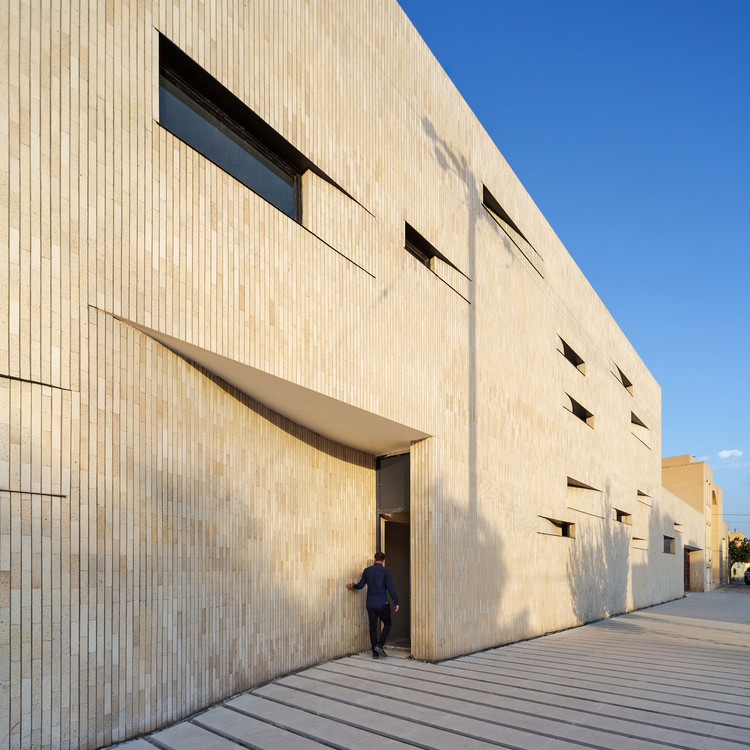

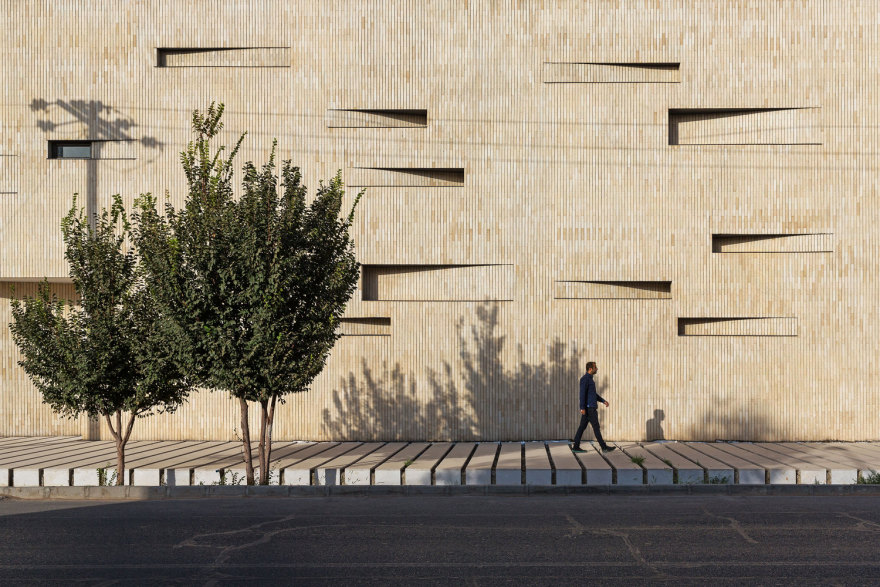

西面的皮肤被延长，与西侧提供阴影的建筑物的高度相同。此外，我们还将西部住宅空间定位在表皮后面，创造了一条走廊，不仅提供了日光，而且还加强了与庭院的物理联系，并扩大了住宅入口。房子里面有一个高的中庭，我们用它作为过滤器，把房子分成南北两部分，北部有私人空间，如厨房、客厅和卧室，而南部房屋的公共空间，如客房和大厅，可以俯瞰庭院。

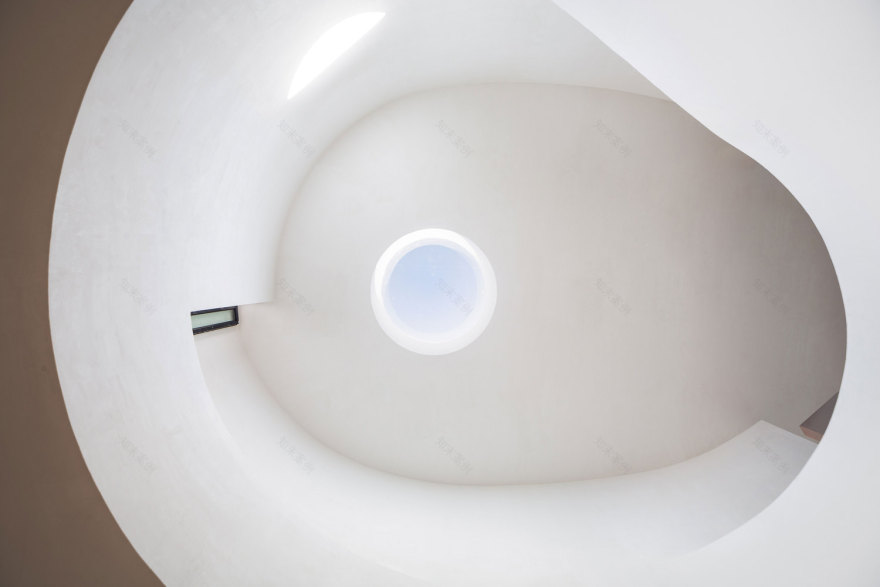

The skin is prolonged on the western face with same height to the building that provides shadow on the west side. In addition, we located the residential western spaces behind the skin and by creating a corridor, not only providing daylight but also heightening the physical connection to the courtyard and amplifying the house entrance. Inside of the house there was a high atrium which we applied as a filter to divide the house into northern and southern areas that the northern part contains private spaces like kitchen, living room, and bedrooms while the southern houses public spaces like guest room and hall overlooking the courtyard.

© Hossein Farahani

(Hossein Farahani)

© Hossein Farahani

(Hossein Farahani)

Architects Mohammad Khavarian, Amir Shahrad

Location Yazd, Yazd Province, Iran

Category Refurbishment

Design Associate Sadaf Ghanavizbaf

Area 1350.0 m2

Project Year 2015

Photographs Hossein Farahani

Manufacturers Loading...
