Vue53

© Steve Hall

史蒂夫·霍尔

架构师提供的文本描述。Vue 53是芝加哥海德公园社区快速发展的天际线的最新补充。一个混合用途的发展与267单位，现代设施，28，000 SF的零售空间，Vue 53提供了一个历史地区的当代居住空间。

Text description provided by the architects. Vue53 is the newest addition to the rapidly evolving skyline of Chicago’s Hyde Park neighborhood. A mixed-use development with 267 units, modern amenities, and 28,000 sf of retail space, Vue53 offers contemporary living space in an historic area.

© Steve Hall

史蒂夫·霍尔

尽管是芝加哥大学的所在地，海德公园却一直缺乏市中心。为了加强与社区的联系，促进经济，大学与城市和当地社区领导人合作，重建了第53街的餐饮/购物/零售走廊。作为这些努力的一部分，该大学选择了Avison Young Development、山顶校园开发和财务合作伙伴Blue Vista Capital Management的团队开发、融资和管理一个位于尼科尔斯公园对面的第53街的混合用途住宅社区。

Although home to the University of Chicago, Hyde Park has long lacked a town center. To strengthen connections to the neighborhood and boost the economy, the university partnered with the city and local community leaders to redevelop the 53rd Street dining/shopping/retail corridor. As part of these efforts, the university selected the team of Avison Young Development, Peak Campus Development, and financial partner Blue Vista Capital Management to develop, finance and manage a mixed-use residential community on 53rd Street across the street from Nichols Park.

© Tom Harris

(汤姆·哈里斯)

在海德公园(HydePark)的零售中心(HydePark)的零售中心(HydePark)，第53街(第53号大街)衬有3至4层建筑的折中混合，其中有8至10层楼的建筑，例如20世纪20年代海德公园银行大厦(HydeParkBankBuilding)，该大楼的高度与VuE53的高度相同。在13层故事中，Vue53的蓝色玻璃包裹的外部和直线的混凝土框架象征着53街的重生，作为零售和娱乐的目的地。

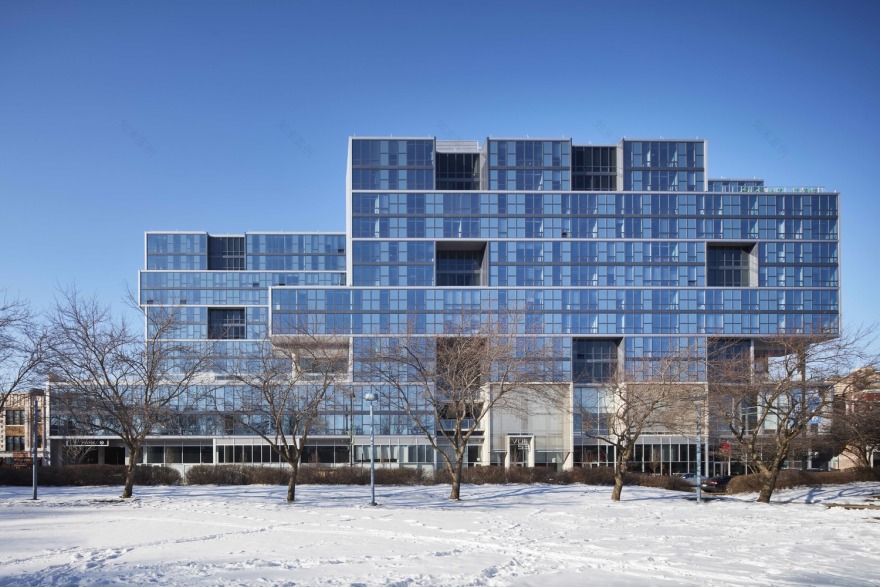

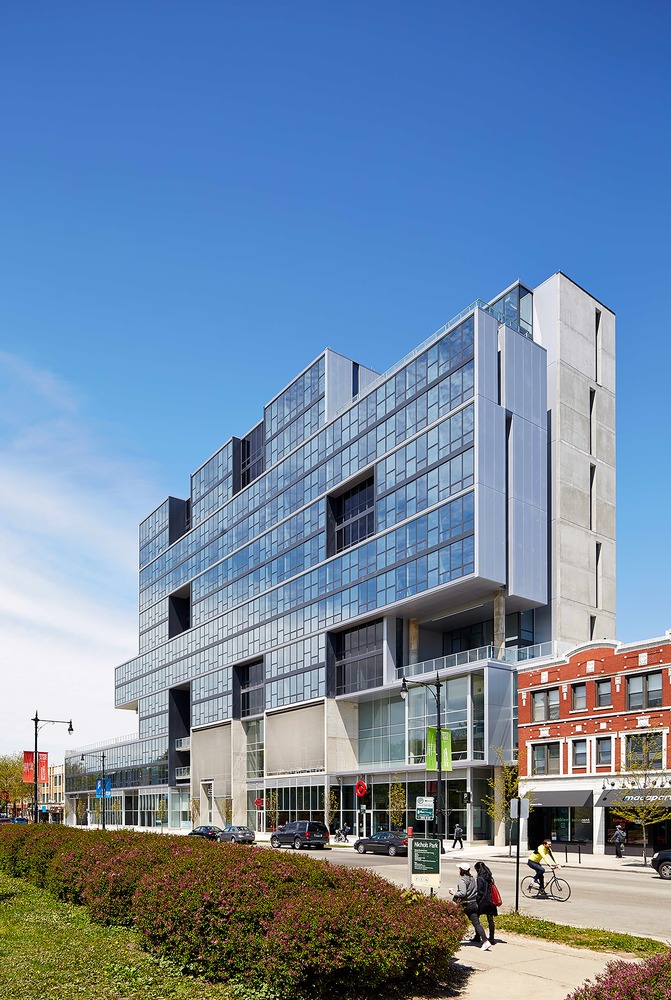

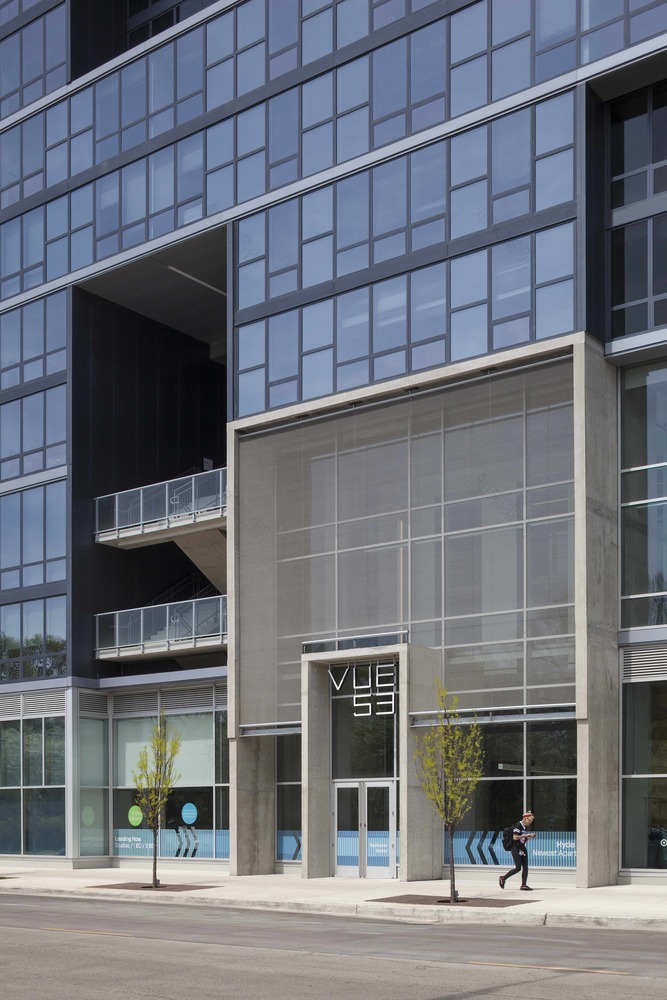

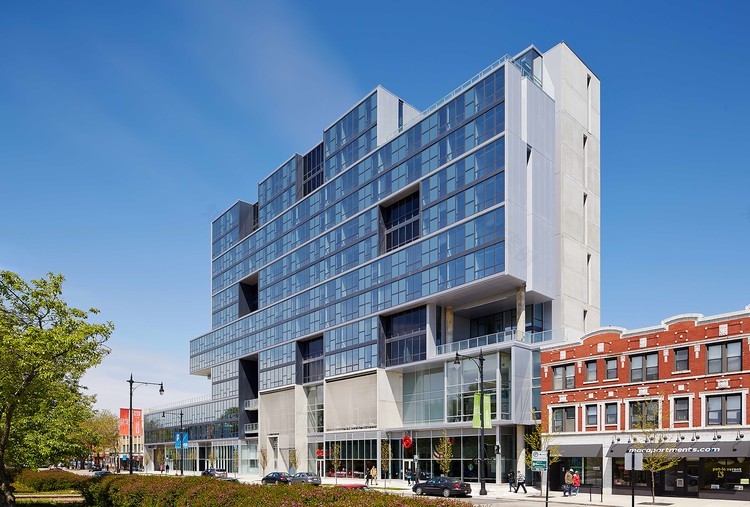

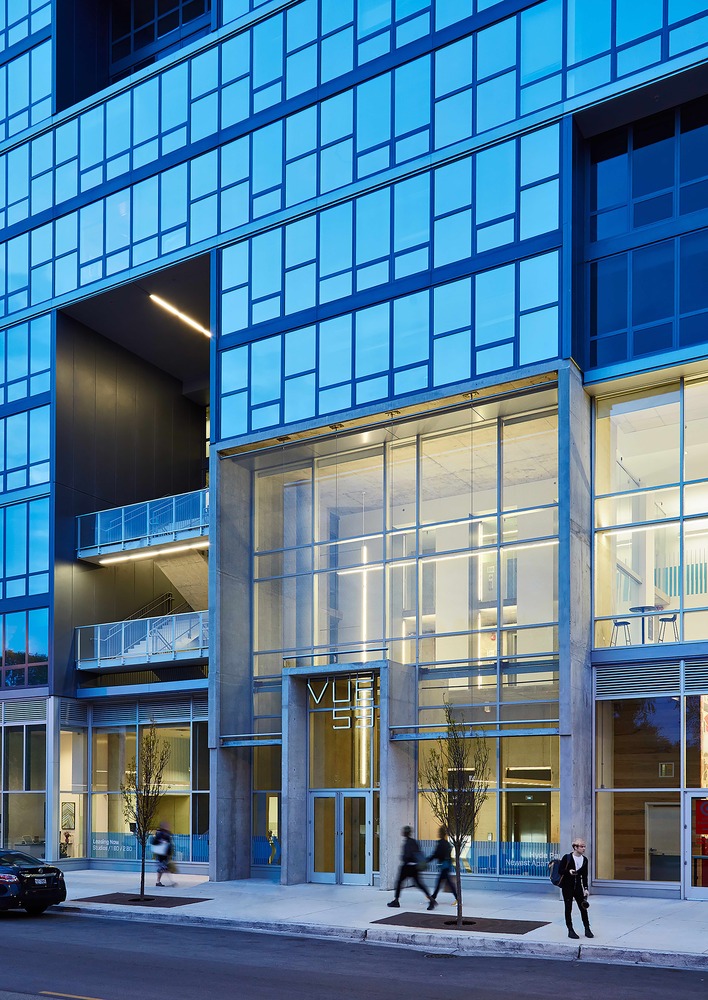

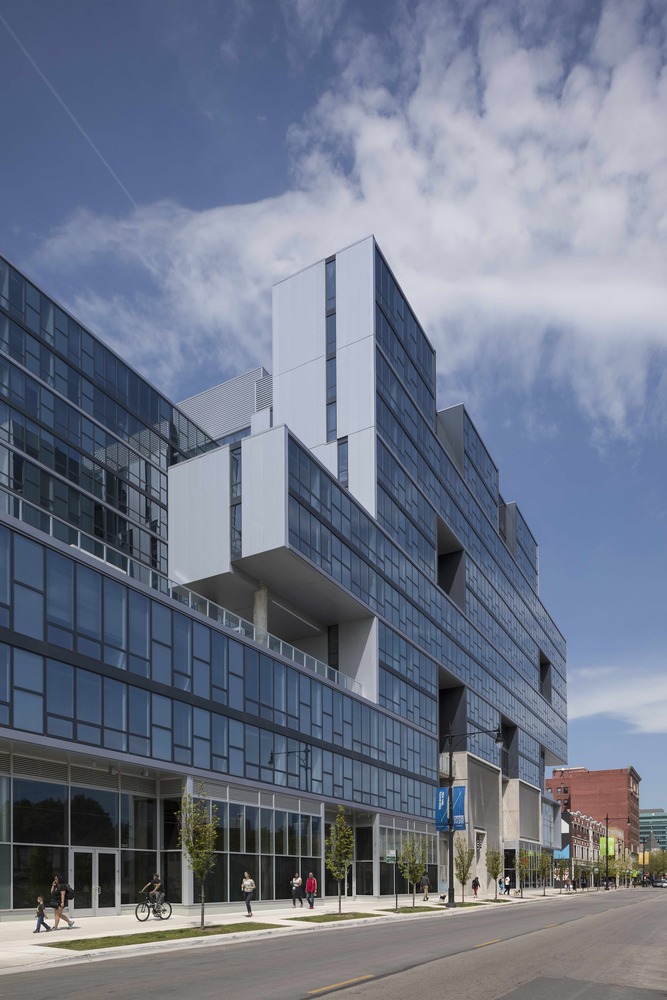

Once the retail center of Hyde Park, 53rd Street is lined with an eclectic mix of three- to four-story buildings punctuated with eight- to 10-story buildings, such as the 1920s-era Hyde Park Bank Building, which reaches the same height as Vue53. At 13 stories tall, Vue53’s blue glass-clad exterior and rectilinear concrete frame symbolizes the rebirth of 53rd street as a retail and entertainment destination.

该架构仔细地响应其上下文。占地10英亩的尼科尔斯公园从55街的大学校园一直延伸到53街，Vue 53在那里充当公园的书局。建筑物的质量被分成两座塔。南塔位于第53街，高地上的空隙使结构的质量最小化，同时在街对面的公园形成框架。北塔位于离街道100英尺远的地方，以尽量减少它的质量。停车场占据了零售层以上的两层，从第53街起，由位于南立面的公寓和休闲空间隔开。

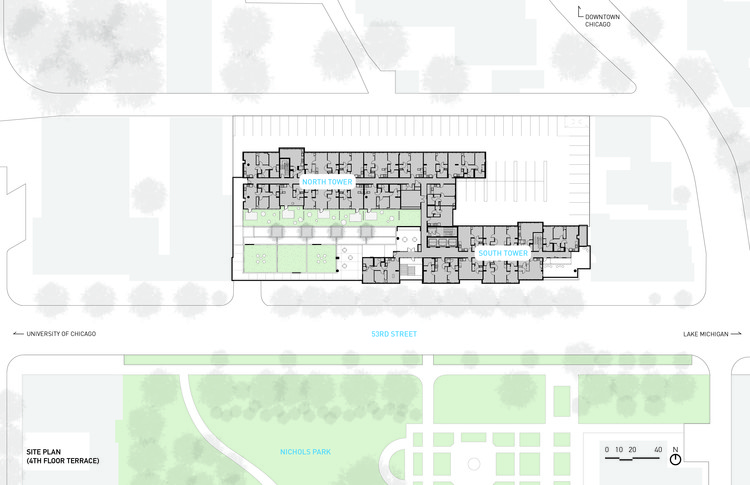

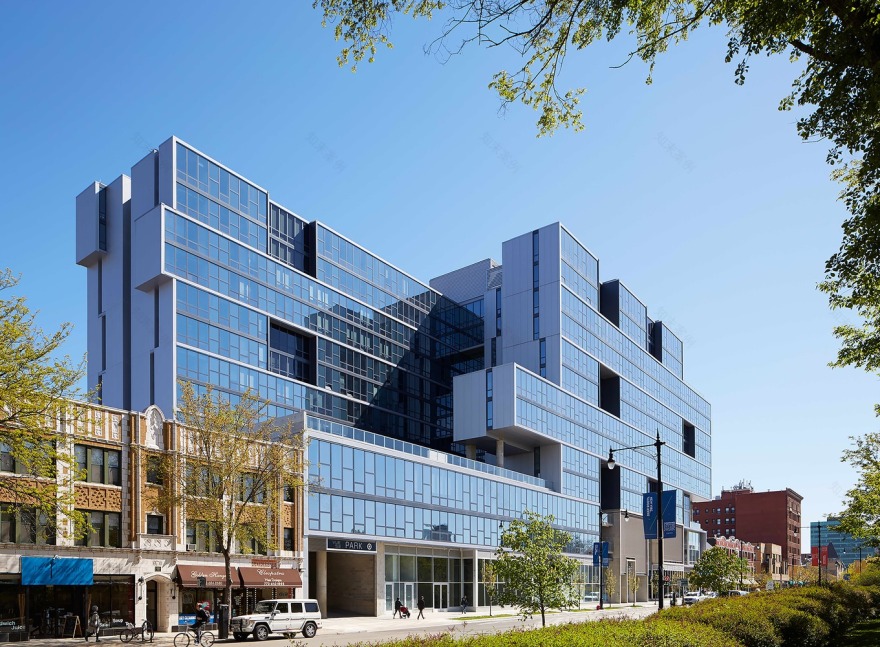

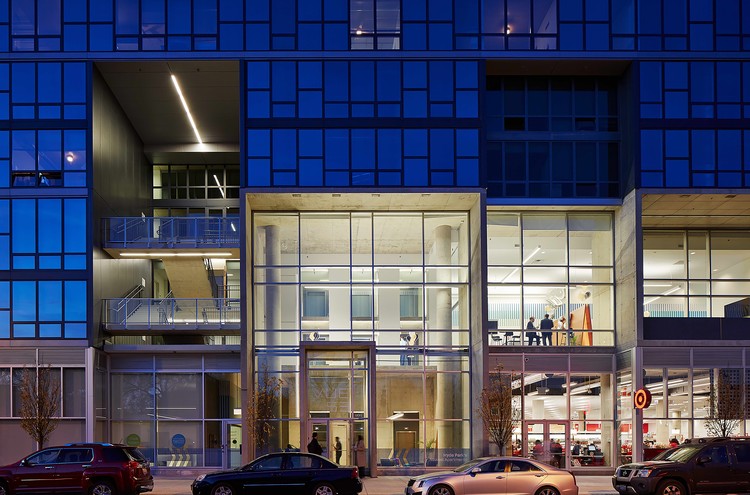

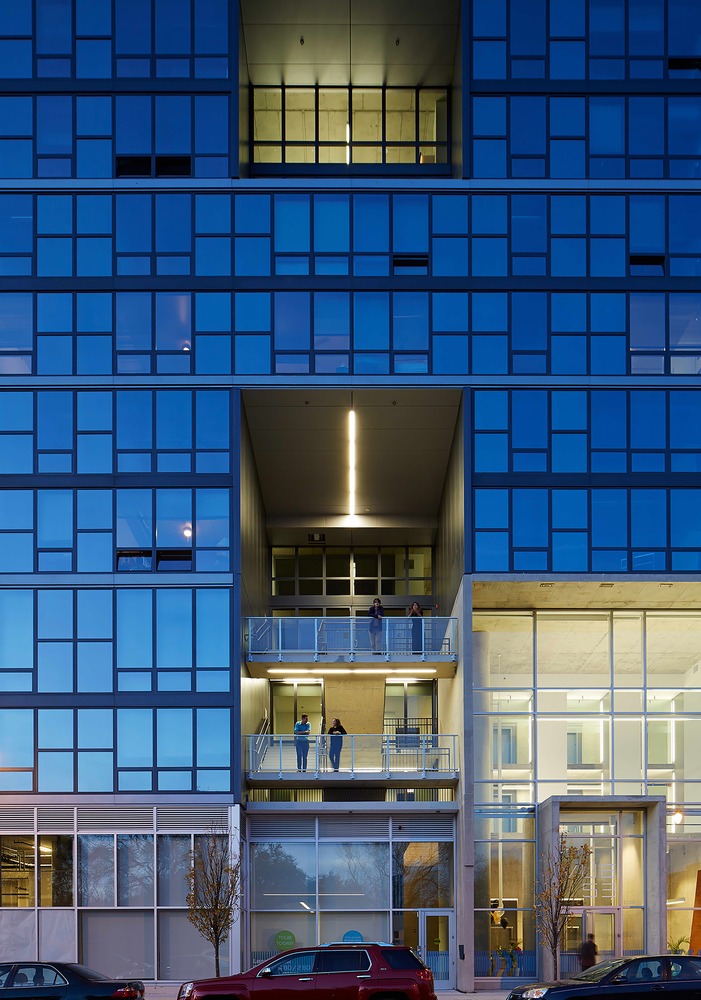

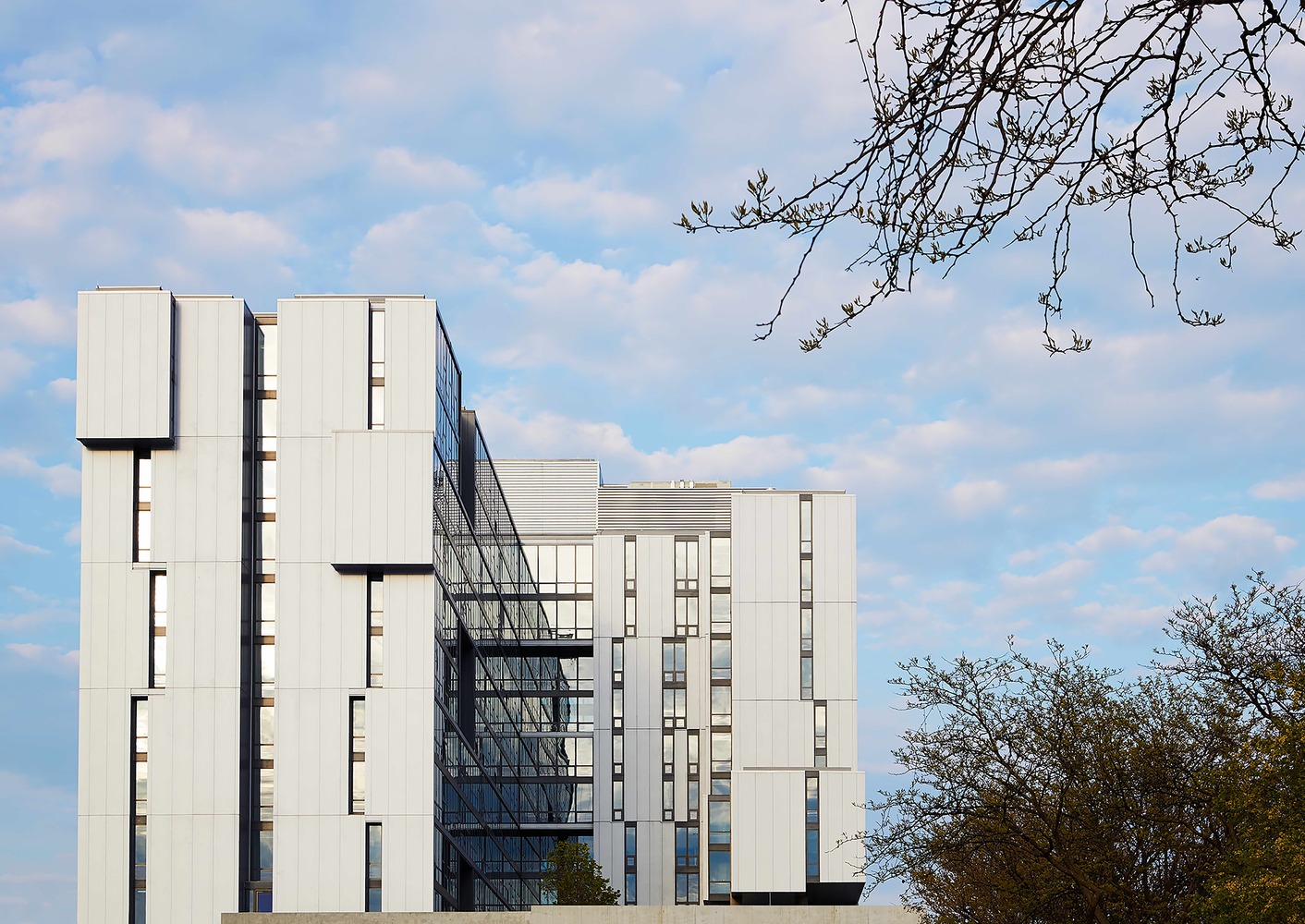

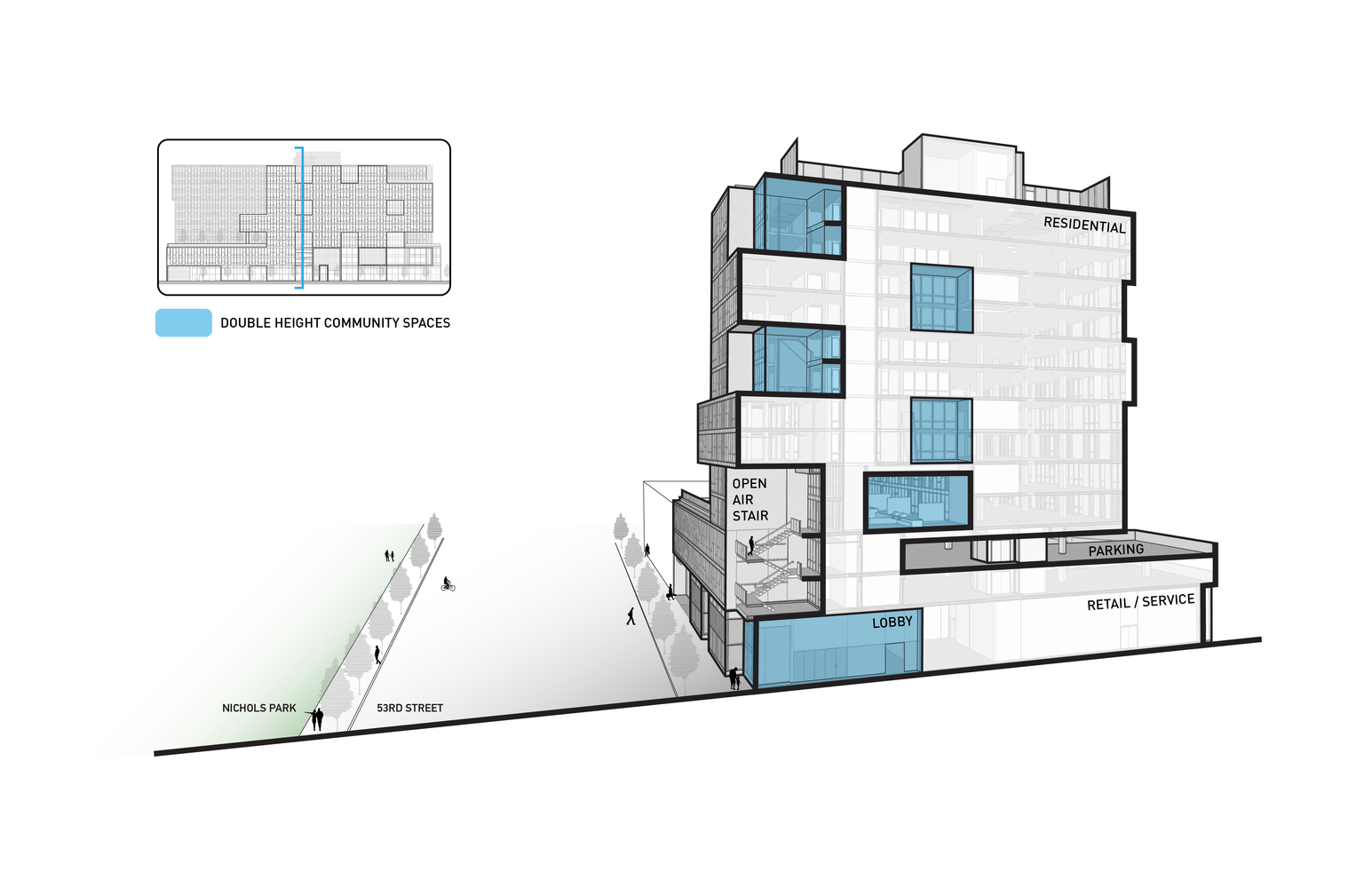

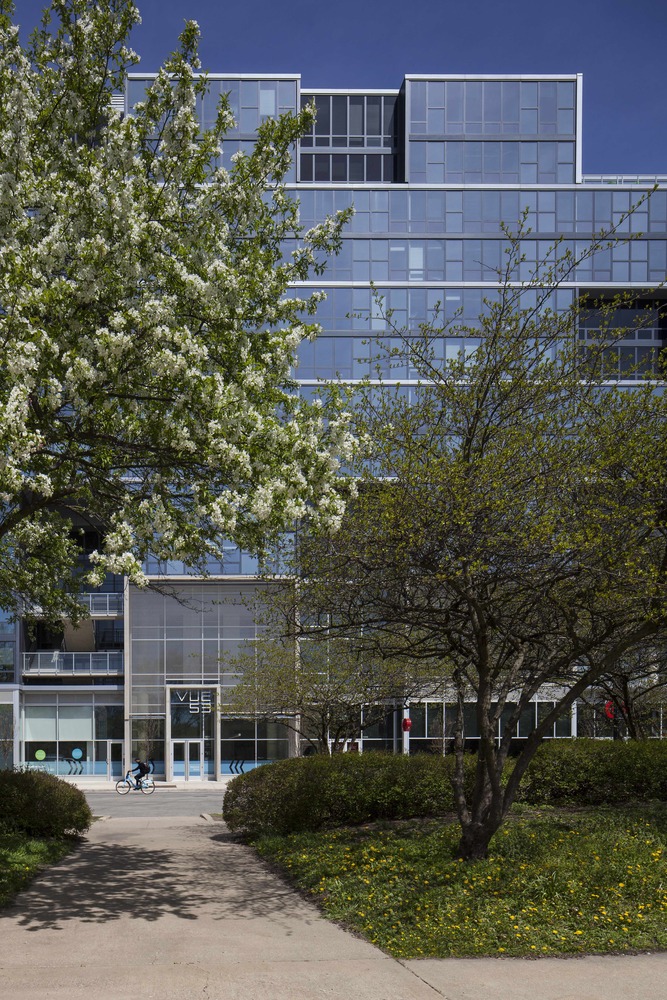

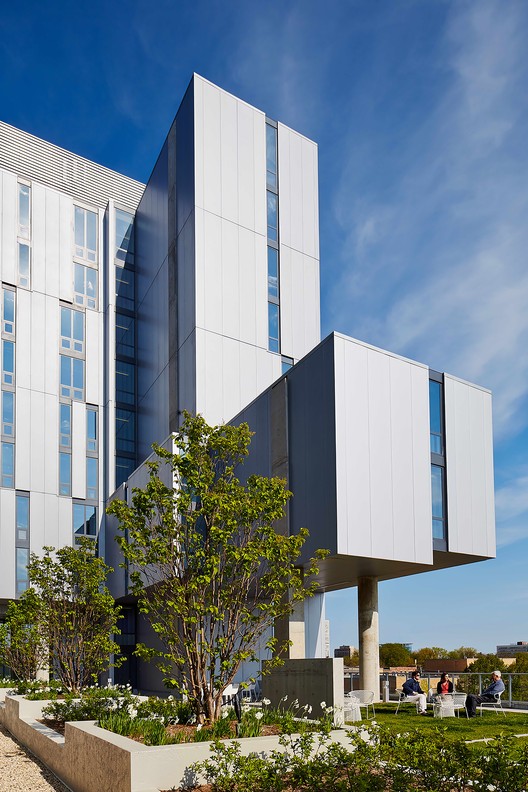

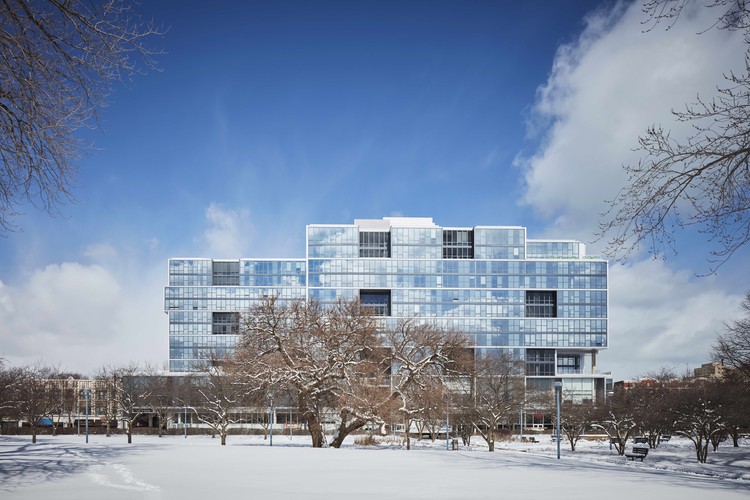

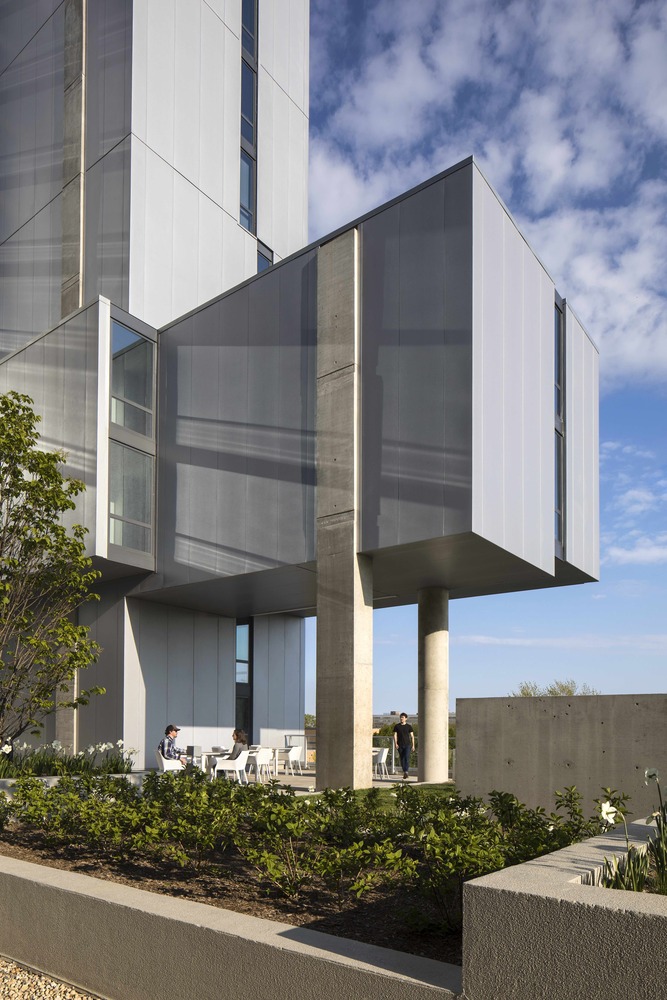

The architecture carefully responds to its context. The 10-acre Nichols Park extends from the university campus on 55th street all the way to 53rd street, where Vue53 acts as a bookend to the park. The mass of the building is divided into two towers. The south tower is on 53rd street; voids in the elevation minimize the structure’s perceived mass while framing views of the park across the street. The north tower is set 100 feet back from the street to minimize its mass. Parking occupies the two floors above the retail level, screened from 53rd Street by apartments and amenity spaces lining the south facade.

© Steve Hall

史蒂夫·霍尔

除了工作室和一间和两间卧室的公寓外，Vue 53还提供游戏室、运动室和室外日光浴甲板等便利设施，包括一个大型公共屋顶甲板，可以俯瞰城市的南边和西侧。尽管对所有人开放，Vue 53是为吸引精通设计的研究生和大学教职员工而量身定做的，它暴露出具体的内部结构和两层的合作学习空间。为了维持负担能力，单位是800 SF或更少。15%的单元专门用于负担得起的住房，加强了这个社区已经很多样化的社区。负担得起的单位分散在整个建筑，并与市价单位相同。

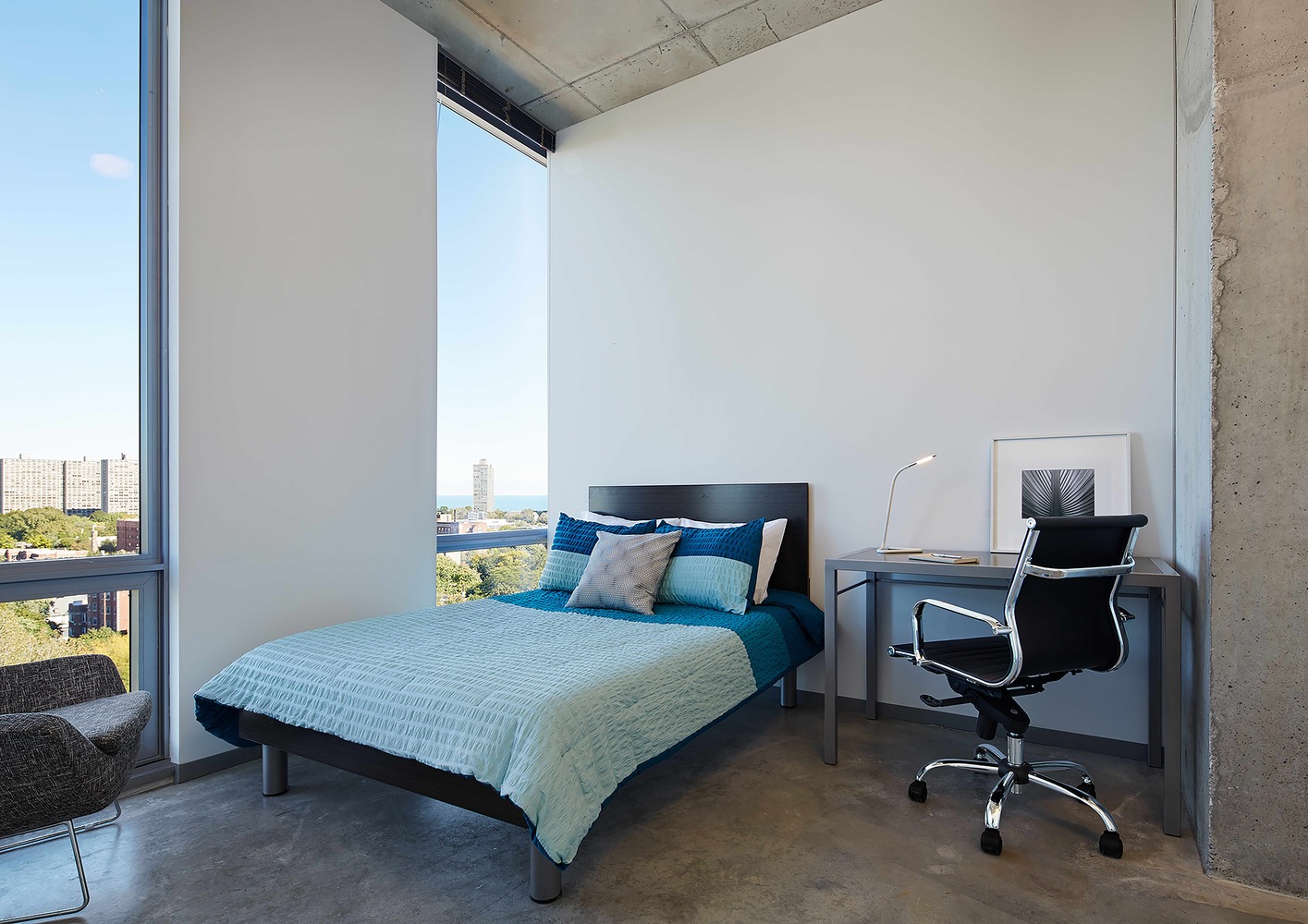

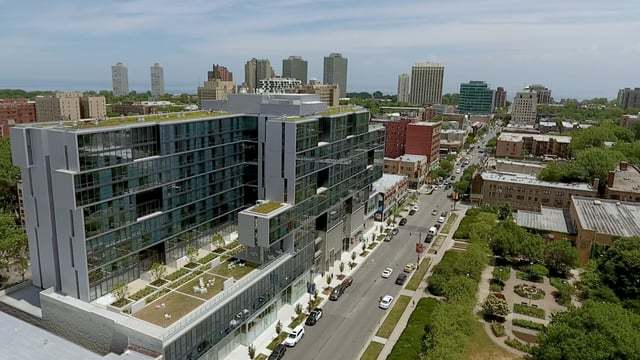

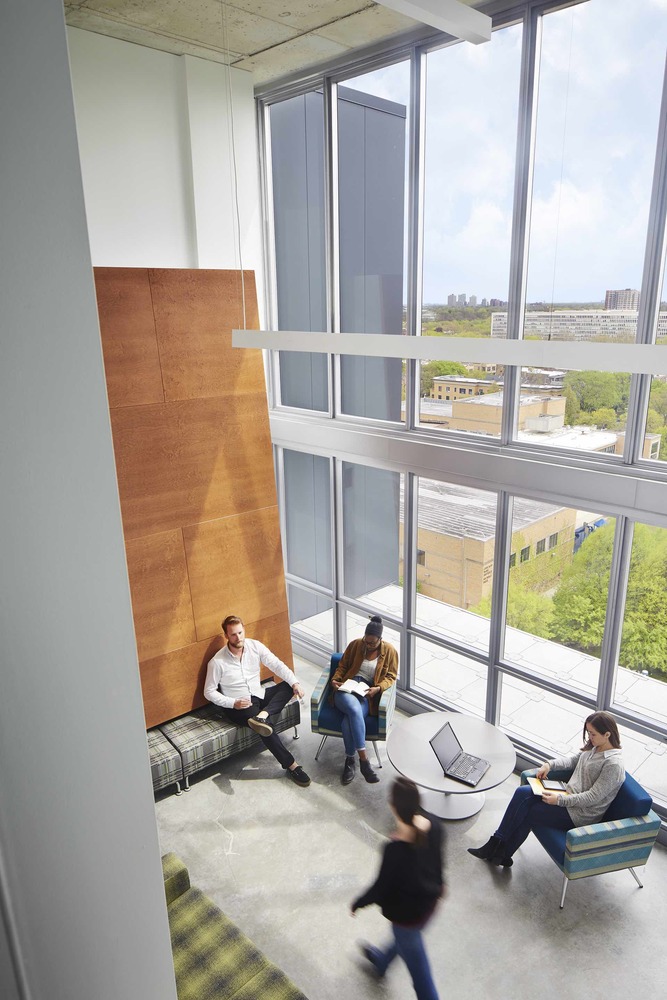

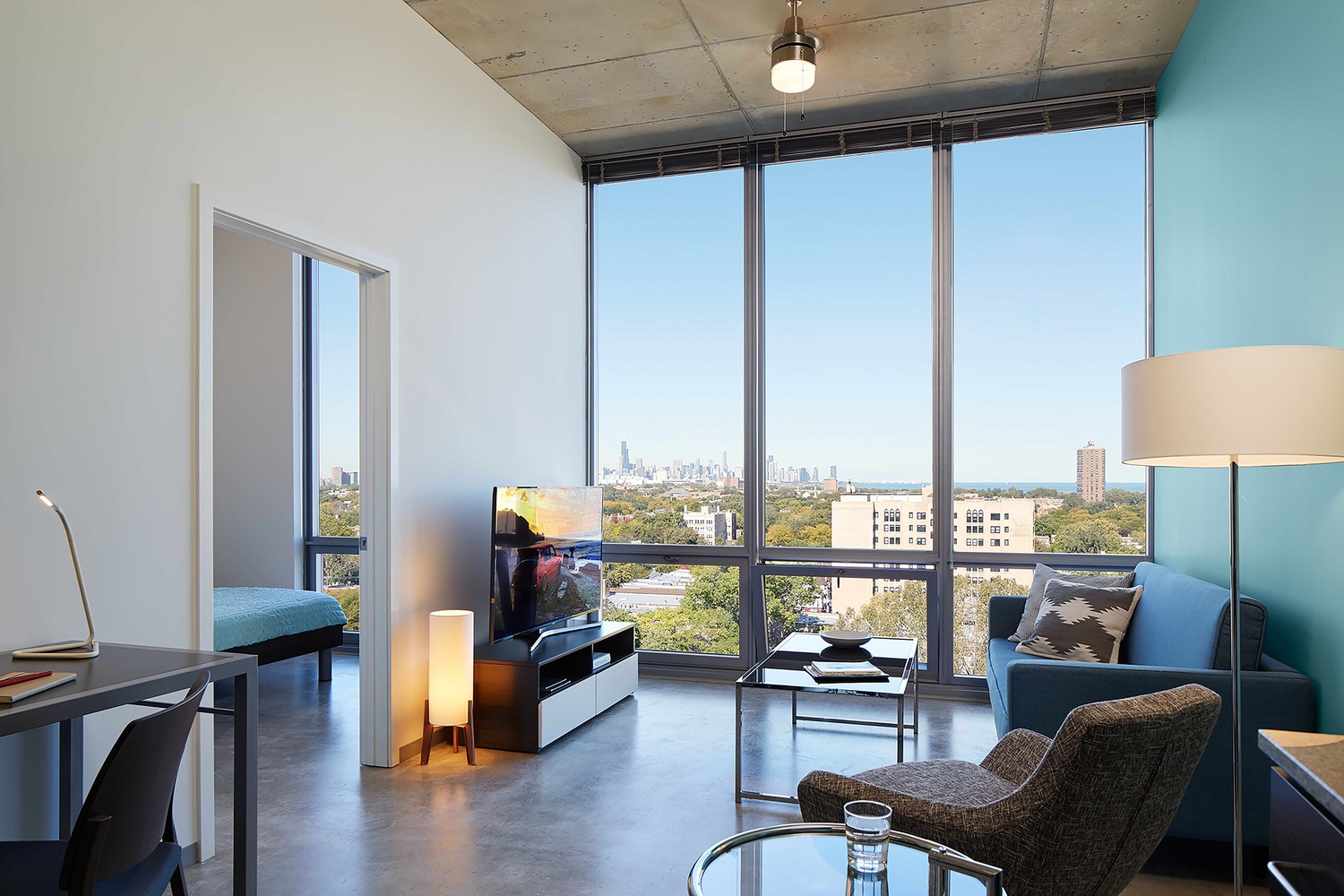

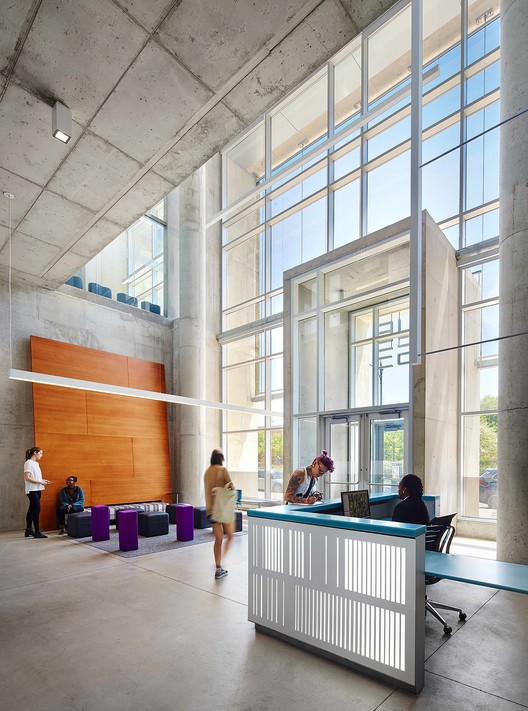

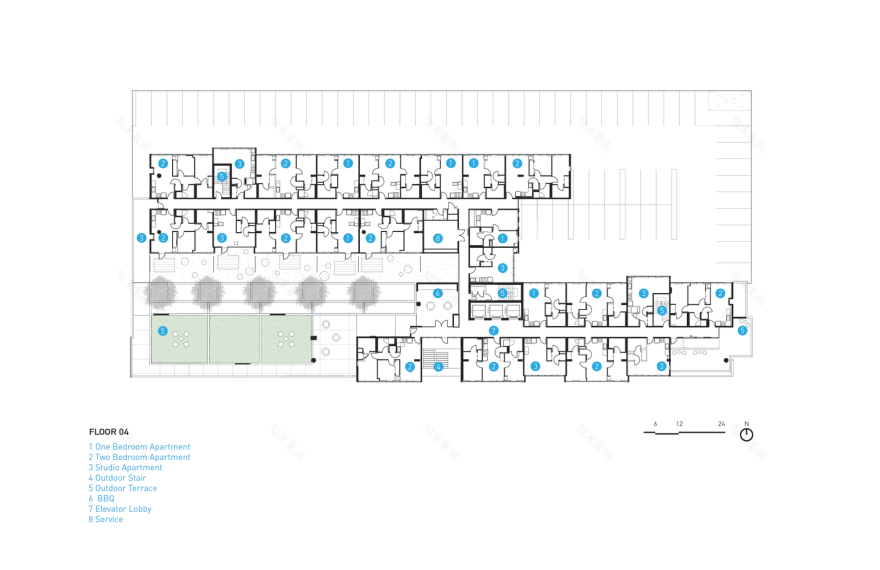

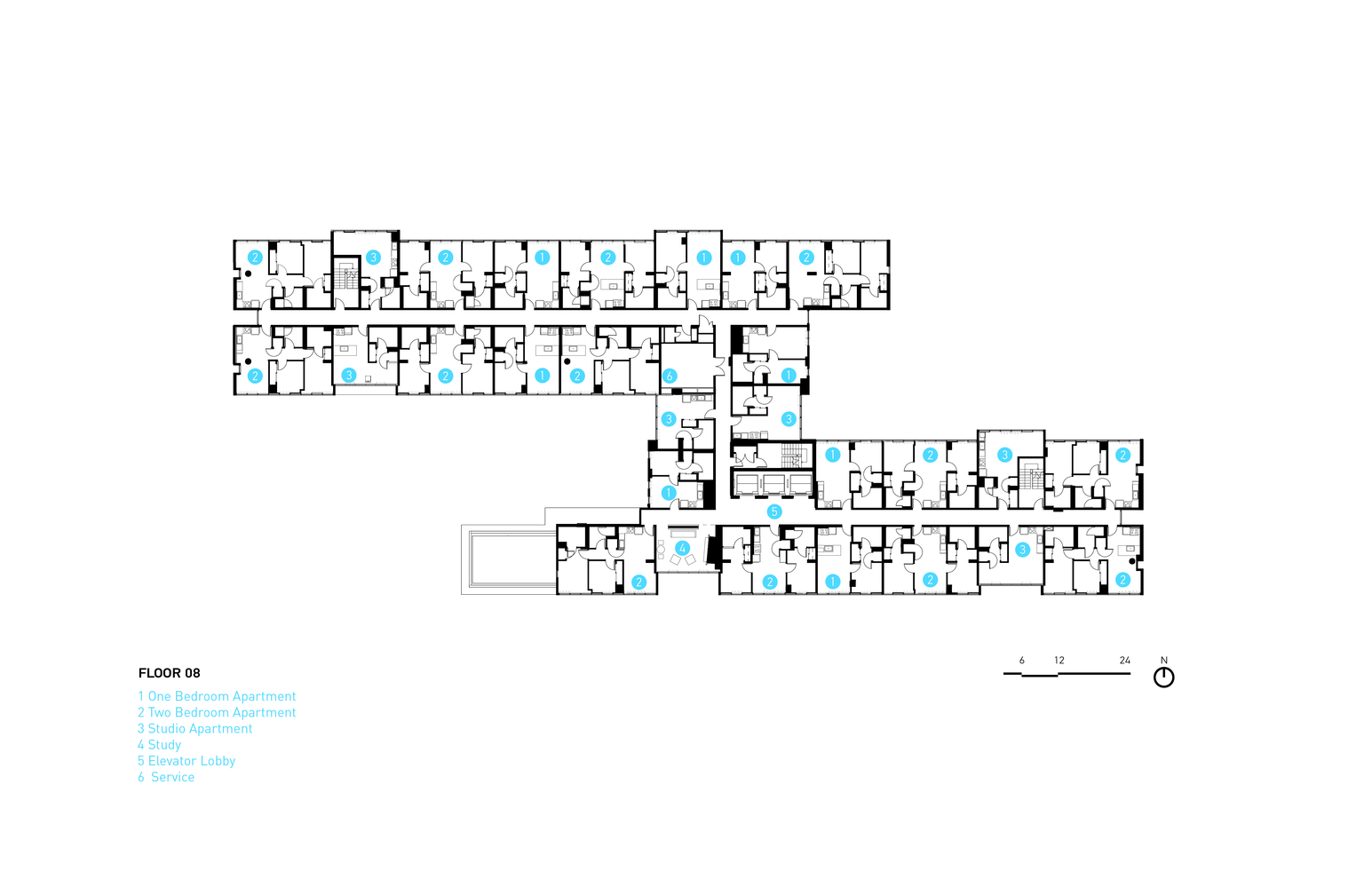

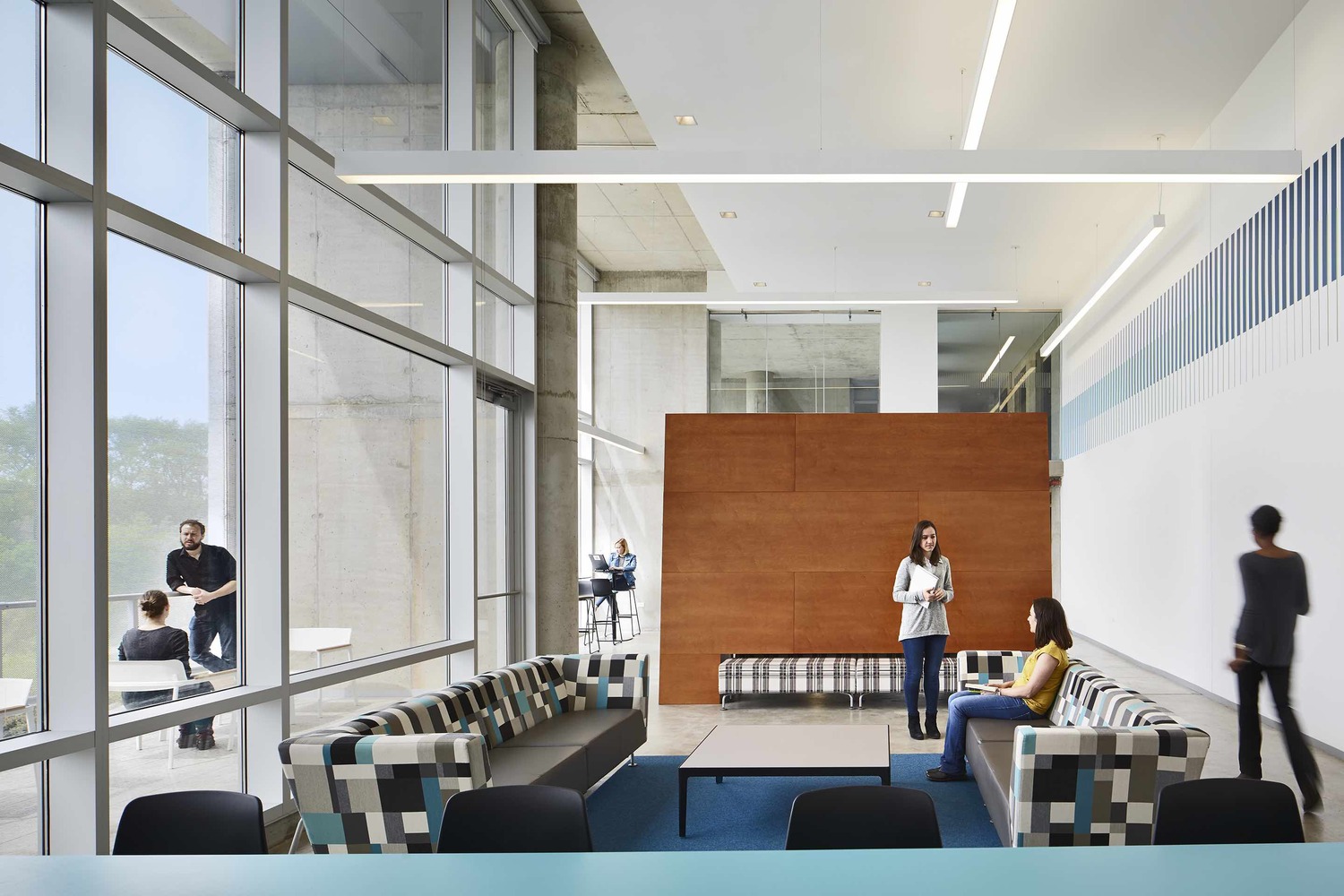

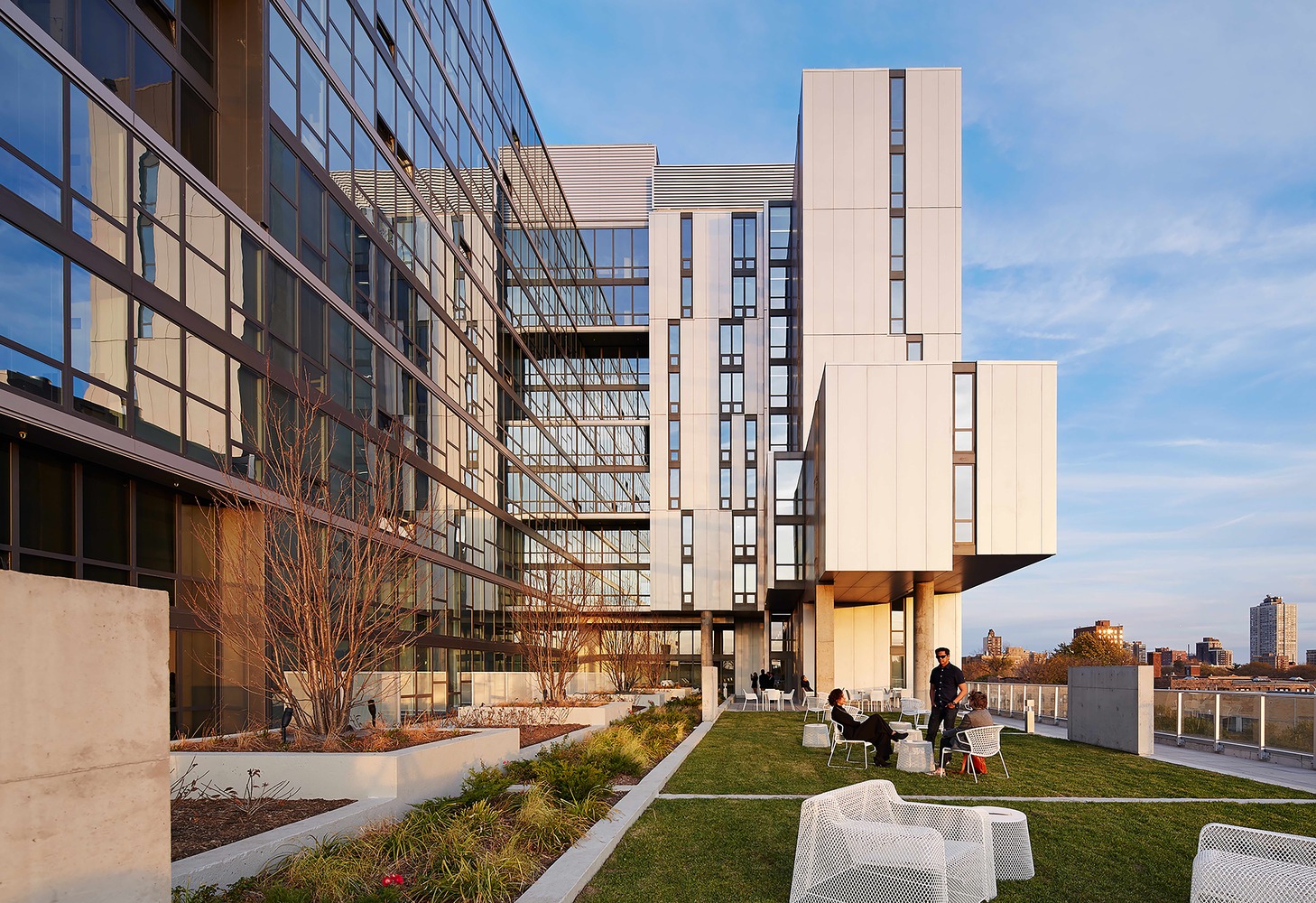

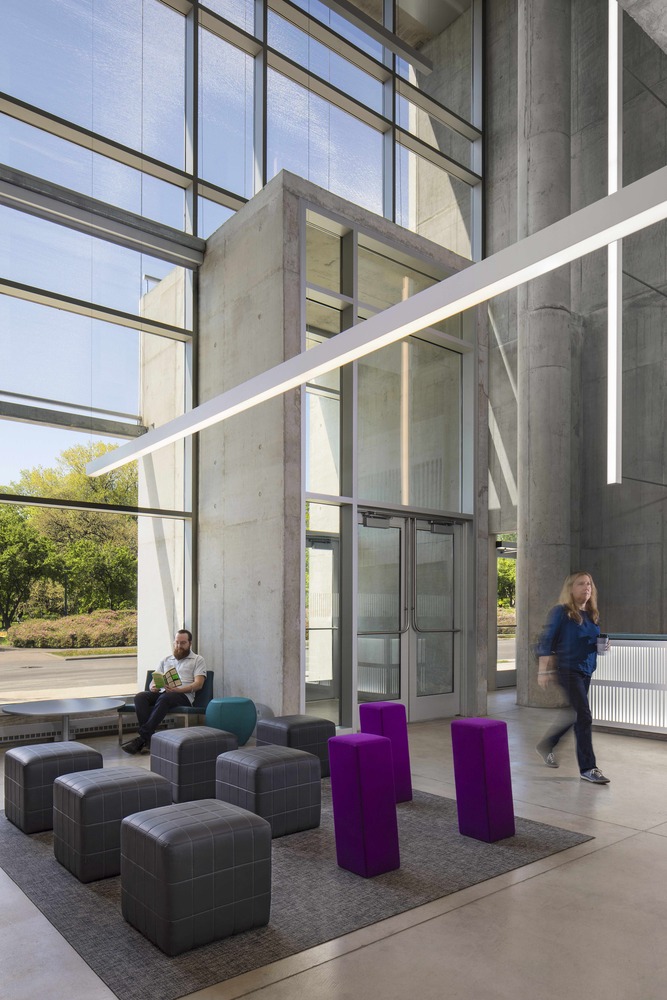

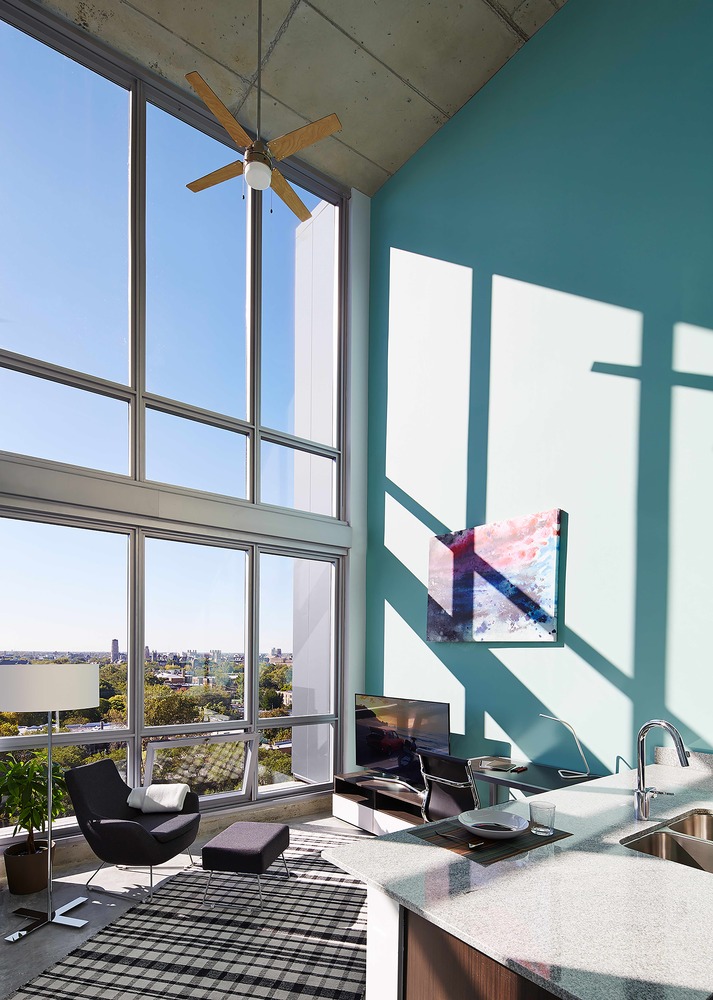

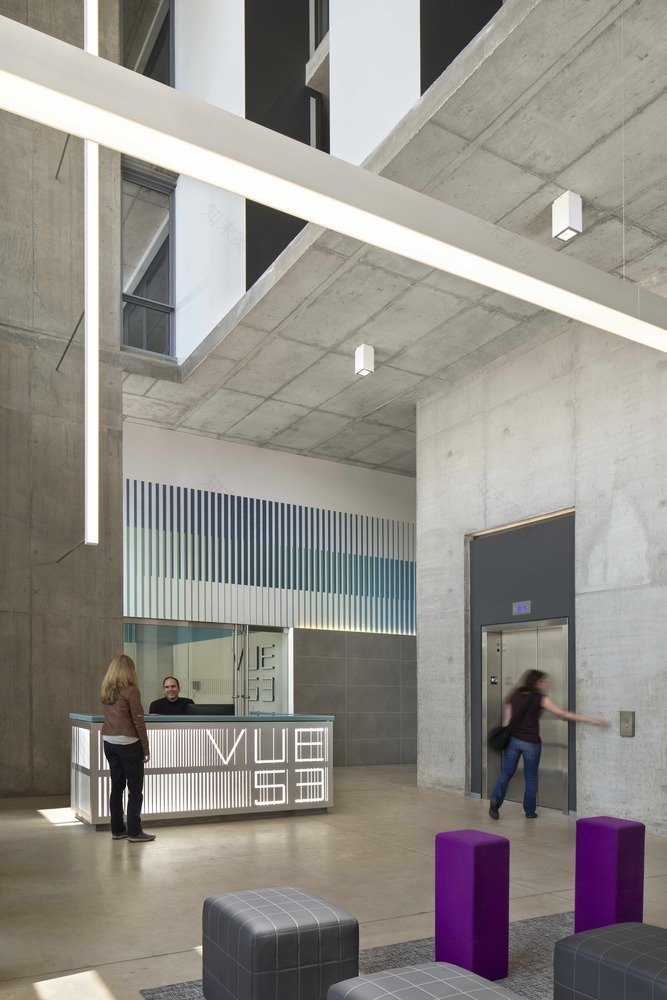

In addition to studios and one- and two-bedroom apartments, Vue53 offers amenities such as a game room, an exercise room, and outdoor sun decks, including a large communal roof deck that provides sweeping views of the city’s South and West Sides. Although open to all, Vue53 is tailored to appeal to design-savvy graduate students and university faculty and staff, with its exposed concrete interiors and two-story collaborative study spaces. To maintain affordability, units are 800 sf or less. Fifteen percent of the units are dedicated to affordable housing, reinforcing the neighborhood’s already diverse community. Affordable units are scattered throughout the building and are identical to the market-rate units.

© Steve Hall

史蒂夫·霍尔

a Target占据了底层商业空间的三分之二，为该地区提供了急需的社区服务零售。瓦莱里奥德沃特列车协会与其内部设计工作室、媒体目标(M-O)和Searl LaMaster Howe建筑师密切合作，分别设计经验图形和室内空间。

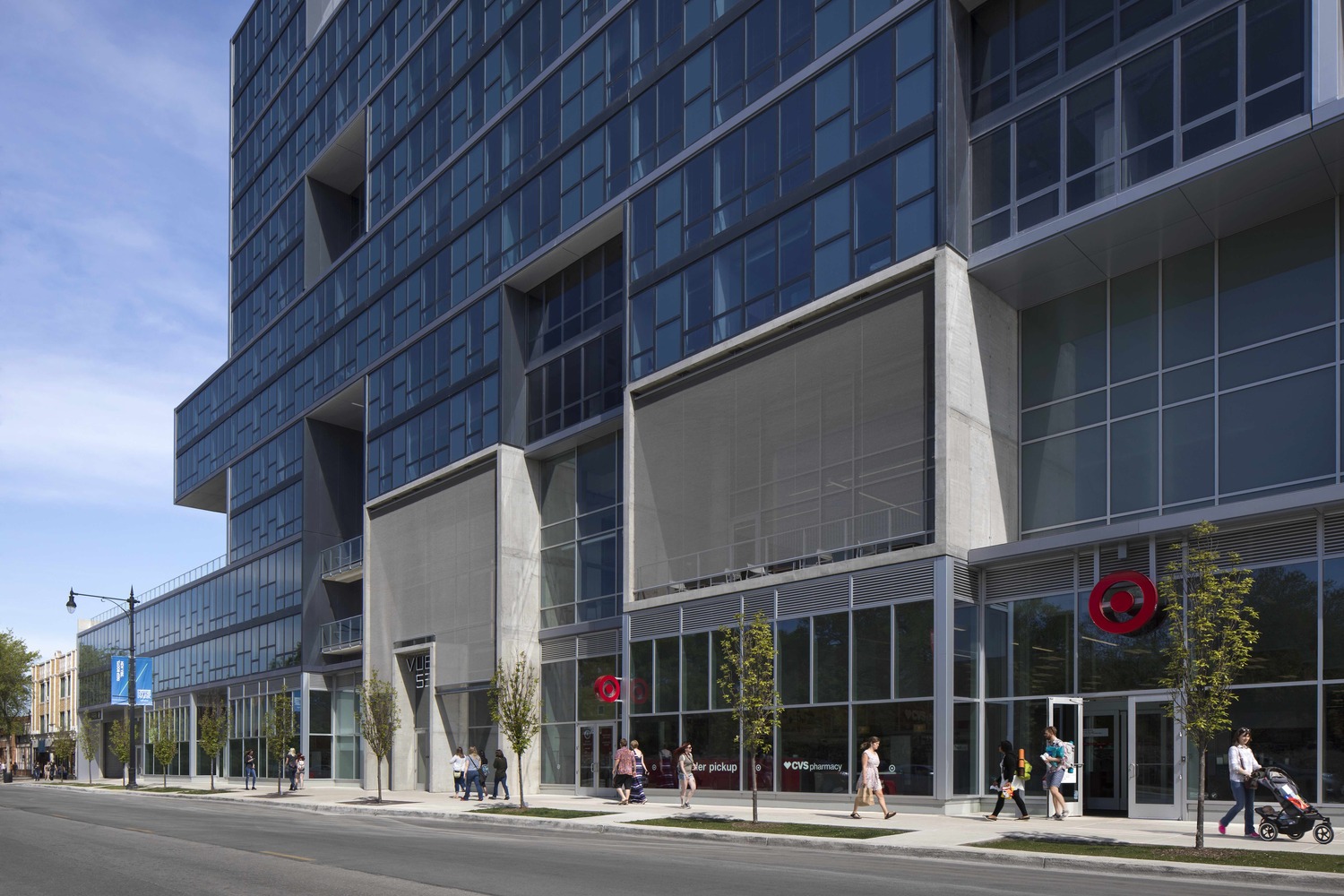

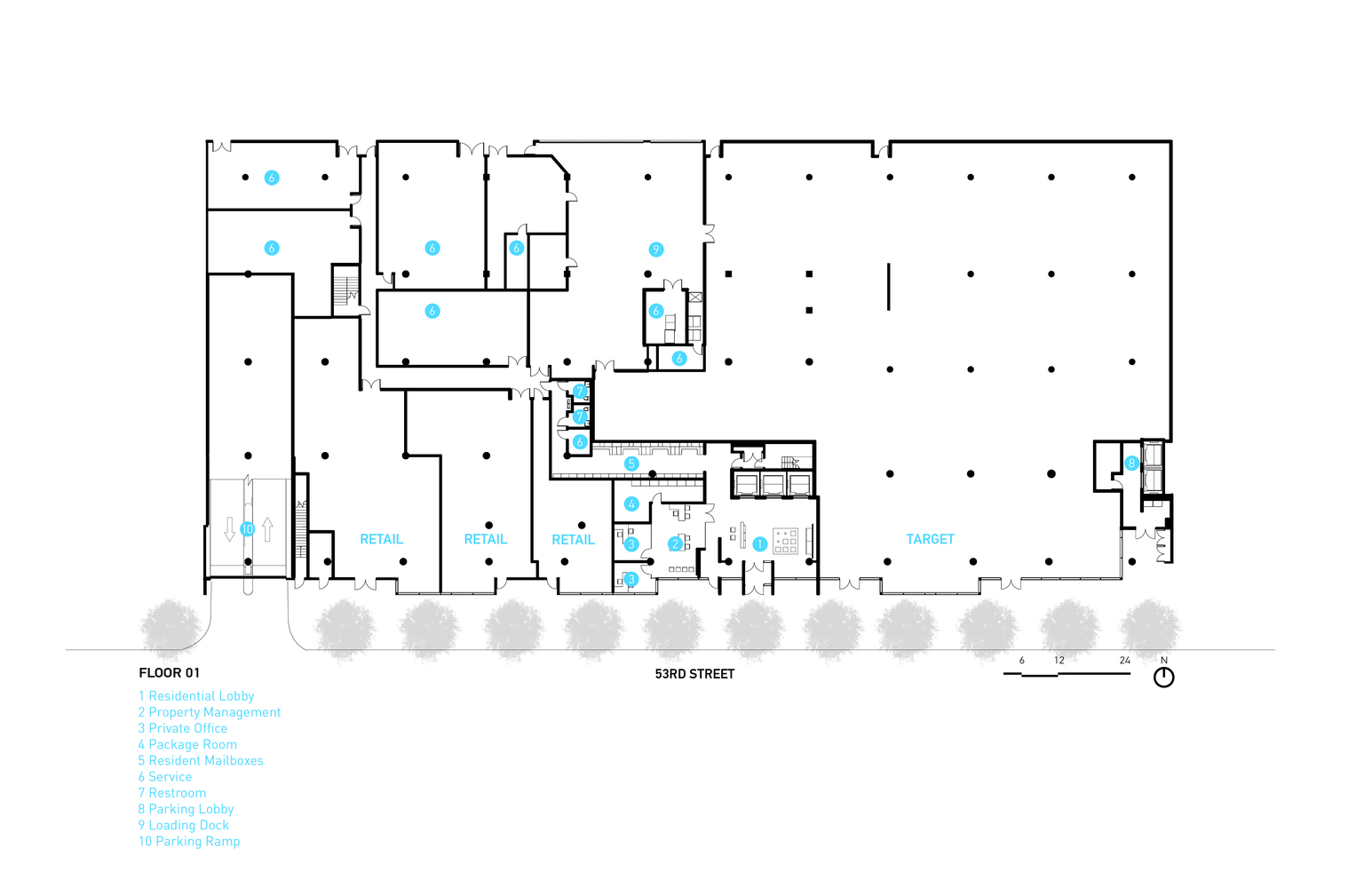

A Target occupies two-thirds of the ground-floor commercial space, providing the area with much-needed neighborhood-serving retail. Working beyond the architecture, Valerio Dewalt Train Associates collaborated closely with its in-house design studio, Media Objectives (M-O), and Searl Lamaster Howe Architects to design experiential graphics and interior spaces, respectively.

Architects Valerio Dewalt Train

Location 1330 E 53rd St, Chicago, IL 60615, United States

Architects in Charge Joe Valerio, Steve Droll, Sheri Andrews, Spencer Olsufka, Lauren Shelton

Area 330253.0 ft2

Project Year 2016

Photographs Steve Hall, Barbara Karant, Tom Harris

Category Mixed Use Architecture
