Saladaeng One 公寓

2018/08/14 21:00:00
查看完整案例
微信扫一扫
收藏
下载
© SC Assets Public Company, Thailand
泰国SC资产上市公司

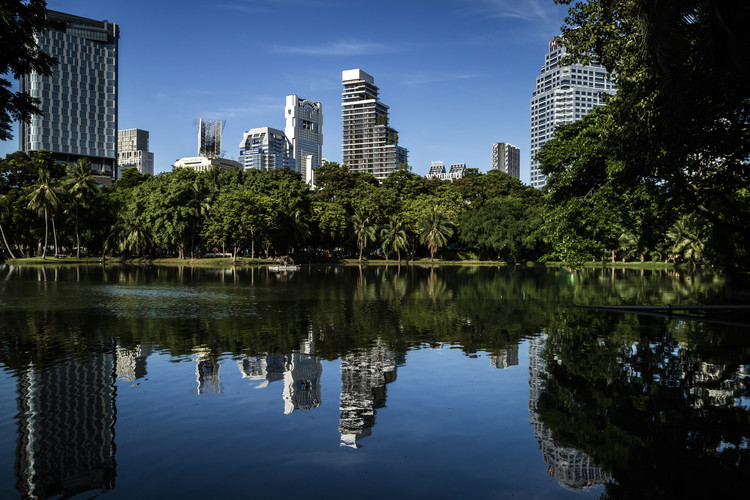

Saladaeng One 公寓-2
© SC Assets Public Company, Thailand
泰国SC资产上市公司

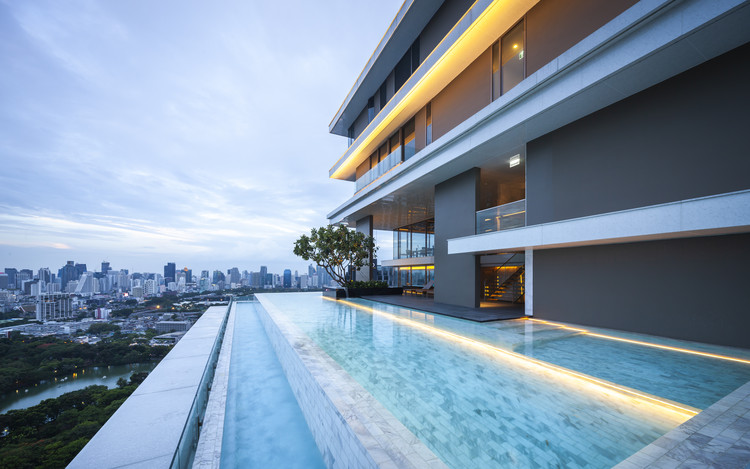

Saladaeng One 公寓-5
“每一块石头都有一尊雕像,这是雕刻家的任务,发现它。我看见了大理石上的天使,雕刻了他,直到我把他放了。“-米开朗基罗-
“Every block of stone has a statue inside it and it is the task of the sculptor to discover it. I saw the angel in the marble and carved until I set him free.”    -Michelangelo-
著名雕塑家的名言似乎最好地描述了激励OPENBOX建筑师创造这样一个奇迹的灵感水平。这一切都是从客户端的一个简单的设计方向开始的,由架构师创建一些基于简单、优雅和永恒的东西。
The famous quote of master sculptor seems to best describe the level of inspiration that drove OPENBOX Architects to create such a marvel. It all began with a simple design direction from the client for the architect to create something based on Simplicity, Elegance, and Timelessness.
© SC Assets Public Company, Thailand
泰国SC资产上市公司
Saladaeng One 公寓-12
关键词优雅和永恒激励建筑师使用白色大理石的印象,这是一种经典的石头,在世界各地都被认为是建筑和设计中永恒奢华的象征。在这个现代建筑中应用这样的概念,简单就不可避免了。总体的集团化理念是从地方建设的指导思想出发的。其结果是一个简单,踏步,大理石块,与多个地形,俯瞰不同层次的天际线景观。之后,大理石雕刻,雕刻过程开始。

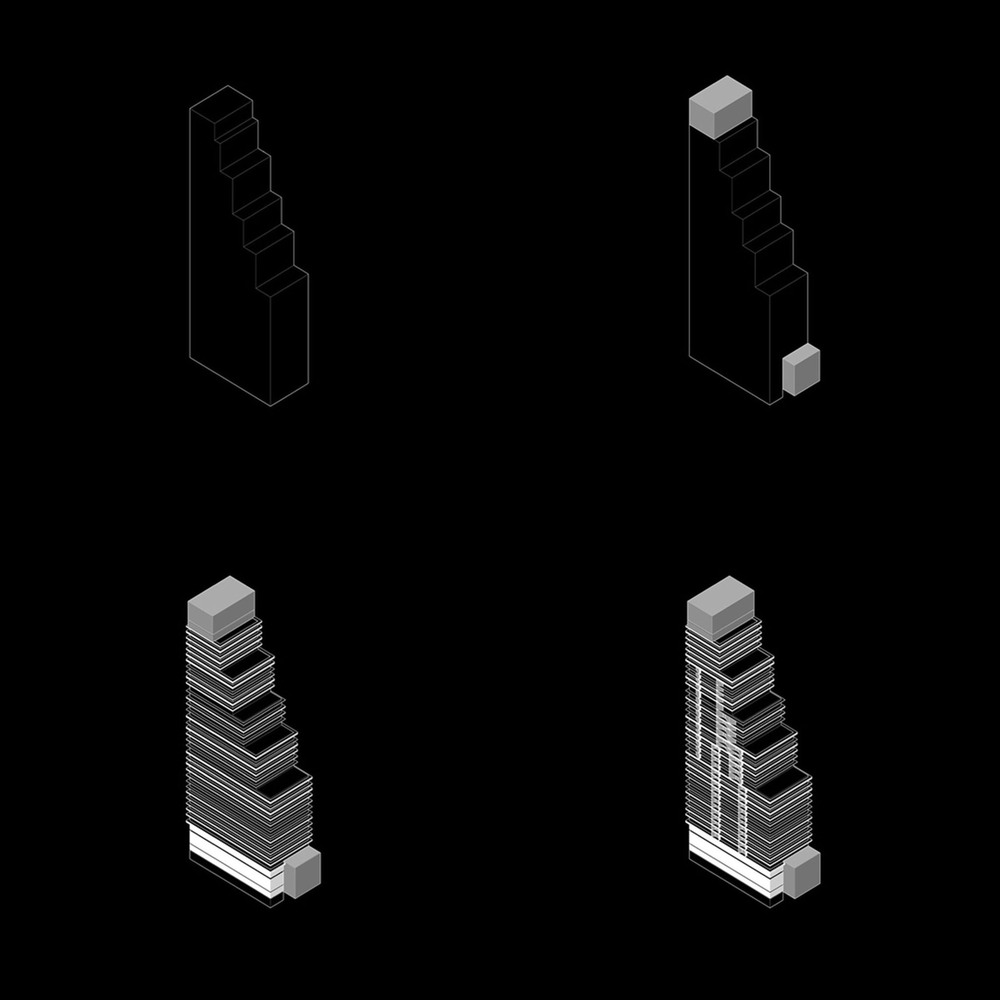

The key words Elegance and Timelessness inspire the architect to use the impression of white Marble, the classic stone that has been well known around the World as a timeless symbol of luxury in architecture and design. To apply such concept for the architecture of this modern time, Simplicity becomes inevitable. The overall massing concept starts from local building guideline. The result is a simple, stepping, block of marble, with multiple terrains, overlooking skyline sceneries at different levels. After that, marble carving, sculpting process begins.
© SC Assets Public Company, Thailand
泰国SC资产上市公司

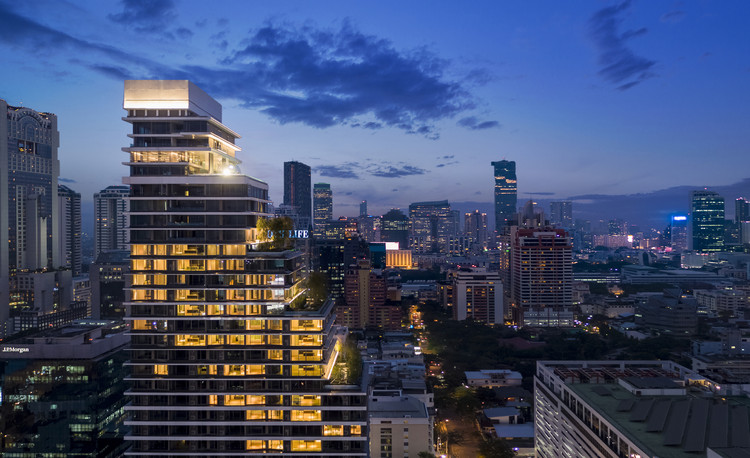

Saladaeng One 公寓-17
然后将热带高耸的概念应用到设计中。第一个热带特征是独特的水平遮阳鳍。它们有助于减少眩光,保护大窗户不下雨。翅片厚度的梯度创造了一个动态触摸的整体组成和一个清新的触摸天际线。

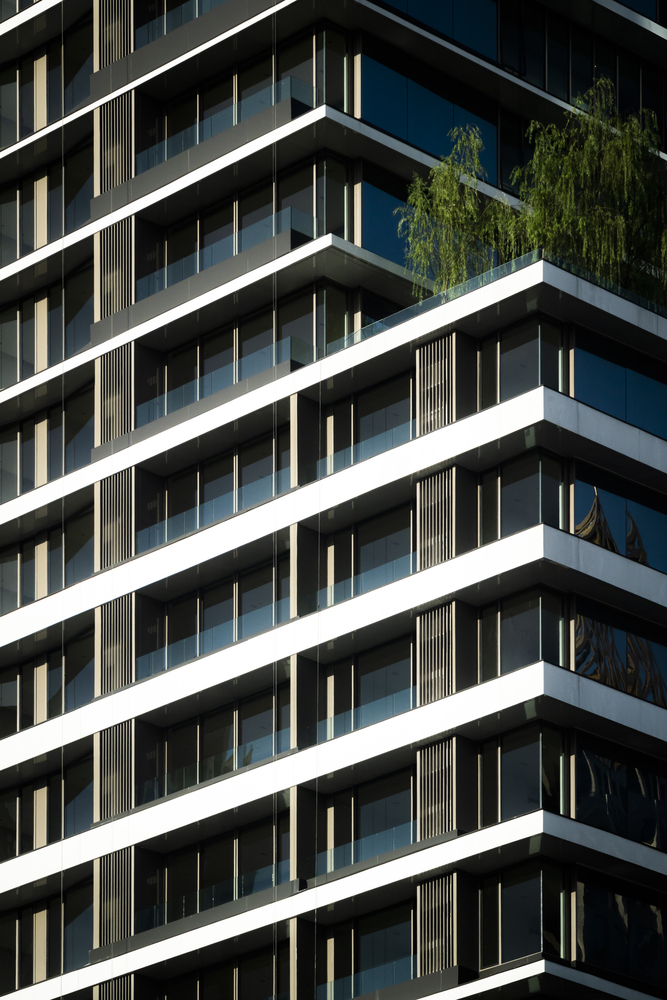

The concept of Tropical High Rise is then applied to the design. The first tropical feature is unique horizontal shading fins. They help to reduce glare and shield large windows from rain. Gradient of fins thickness create a dynamic touch to the overall composition and a refreshing touch to the skyline.
© SC Assets Public Company, Thailand
泰国SC资产上市公司

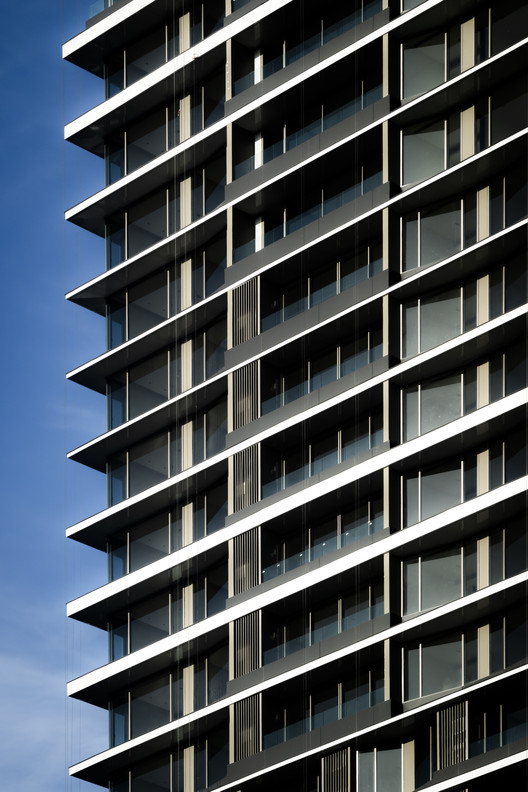

Saladaeng One 公寓-22
有角度的海湾窗是另一个直接响应城市环境的复杂性、居住偏好和热带方向的特征。简单地说,所有的窗户都倾斜,转向最好的视野,远离阻碍邻居和过度的阳光。其结果是一个复杂的纹理在正面,反映天空的颜色从不同的角度插入水平鳍。这也创造了盎格尔斯湾的窗口空间,这是令人惊讶的功能和非常独特的内部住宅单位。
Angled bay window is another feature that responds directly to complexity of urban surroundings, residential preference and tropical orientation. In simple words, all windows tilt and turn individually towards the best view, away from obstructing neighbors and excessive Sunlight. The result is a complex texture on the façade, reflecting sky colors from different angles inserted between horizontal fins. This also creates Angles Bay Window space which is surprisingly functional and very unique from inside residential units.
© SC Assets Public Company, Thailand
泰国SC资产上市公司

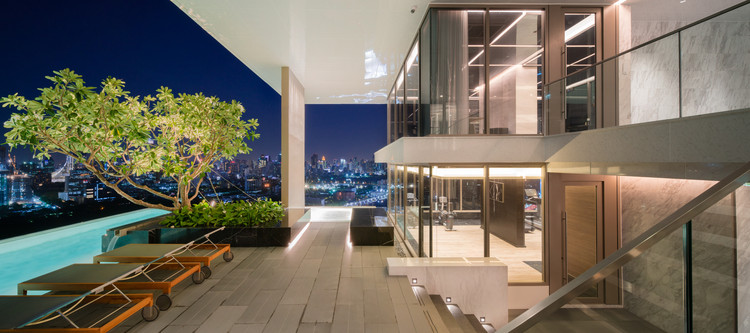

Saladaeng One 公寓-27
复杂的组合水平遮阳鳍,和角度湾窗户之间插入创造了一个良好的对比整体建筑组成。这也反映了住宅高层建筑精神的复杂性。最重要的是,这些要素使这座建筑成为节能建筑。由于窗户和露台被保护不受眩光、过多的阳光和雨水的影响,这也有助于减少空调的能量。大窗户可以保持打开没有百叶窗或窗帘,允许阳光融合到空间在白天,减少能源的内部照明。
Complex combinations of Horizontal shading fins, and Angled Bay Windows inserted in between create a fine contrast to the overall architectural composition. This also reflects complexity in spirits of residential high-rise. Above all, these elements make this building an Energy Efficient Architecture. As windows and terraces are protected from glare, excessive Sunlight and rain, it also helps to reduce the energy for air conditioning. Large windows can remain open without blinds or curtain, allowing Sunlight to fuse into the space during the day, reducing the energy for internal lighting.
© SC Assets Public Company, Thailand
泰国SC资产上市公司

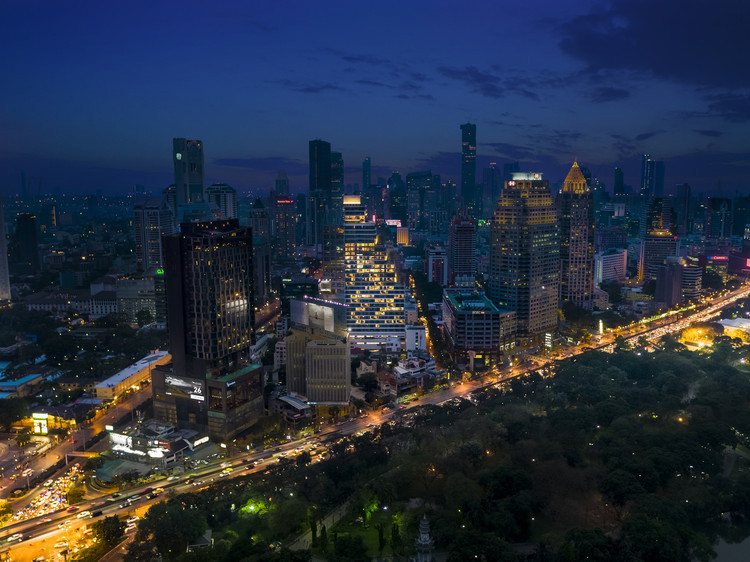

Saladaeng One 公寓-32

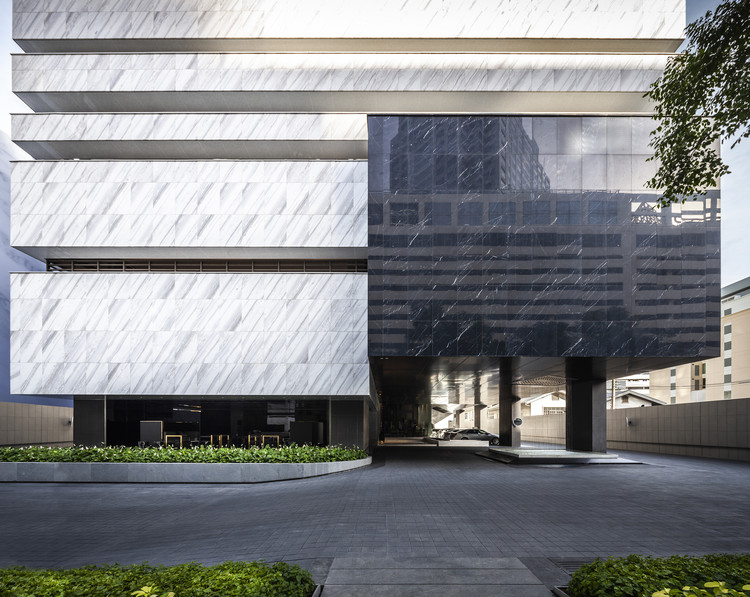

大理石口音:整个建筑主要由白色大理石的印象组成,而一些重音空间,如入口天篷,则通过插入黑色大理石的对比块来浮在空间上方。另一方面,这座建筑的皇冠成了漂浮在最顶端的一块发光的石块,象征着该项目独特的建筑特色,以及曼谷高楼大厦的天际线。

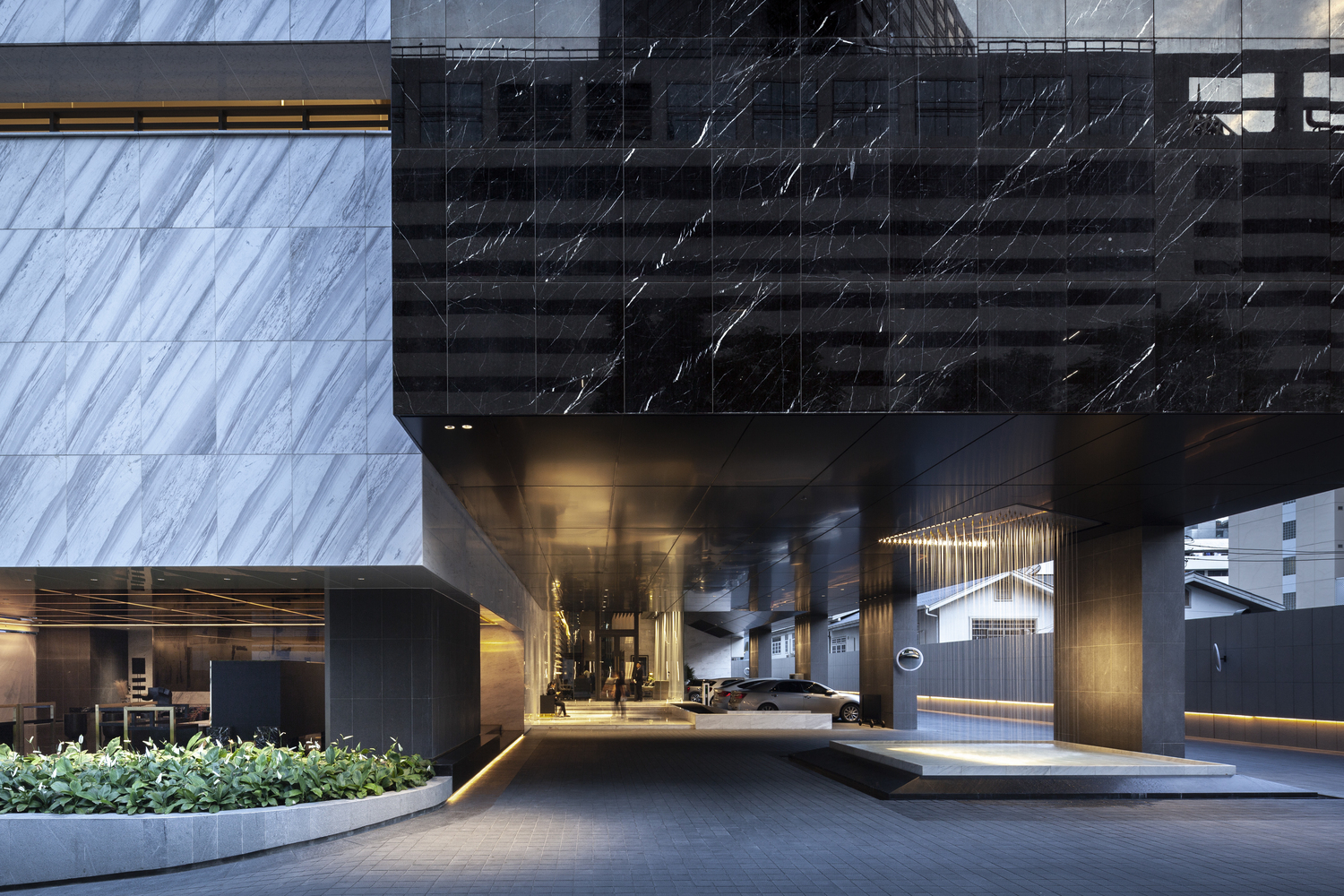

Marble Accents: While the overall building is composed mainly with the impression of white marble,  a few accent spaces, such as the entrance canopy is highlighted by inserting a contrasting block of black marble to float above the space. The building crown, on the other hand, become a glowing block floating at the very top to signify the project’s unique architectural identity among other great high rises of Bangkok skyline.
© SC Assets Public Company, Thailand
泰国SC资产上市公司
Saladaeng One 公寓-37
该项目表达了厚重的热带生活方式和现代的现代形式和表现形式。这座建筑反映了目标群体的独特特征,他们主要是泰国和外国的年轻企业家。该设计代表了目标用户的特征和他们独特的生活方式:欣赏传统的奢侈品,但以现代、当代的形象,充分的隐私生活,但我的行动的核心,对良好的设计非常欣赏,但对环境友好。
The project expresses Thainess, and the tropical lifestyle in a modern contemporary form and expression. ‘The architecture reflects unique characters of the target group who are mainly young entrepreneurs, both Thai and foreign. The design represents characters of the targeted users and their unique life style, as someone who: Appreciates traditional luxuries, yet in a modern, contemporary image, A full privacy living, yet I the heart of the action, A great appreciation for good design, yet friendly to the environment.’
© SC Assets Public Company, Thailand
泰国SC资产上市公司

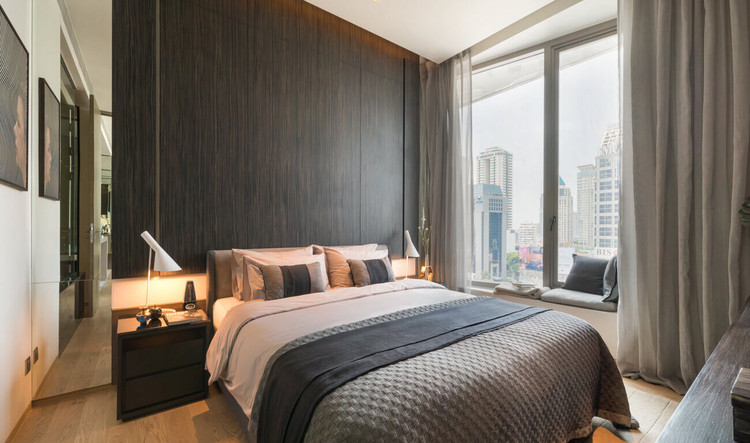

Saladaeng One 公寓-42
“最重要的是,这些要素使这座建筑成为节能建筑。由于窗户和露台被保护不受眩光、过多的阳光和雨水的影响,这也有助于减少空调的能量。大窗户可以在没有百叶窗或窗帘的情况下保持打开,让阳光在白天融入空间,减少内部照明的能量。“
“Above all, these elements make this building an Energy Efficient Architecture. As windows and terraces are protected from glare, excessive Sunlight and rain, it also helps to reduce the energy for air conditioning. Large windows can remain open without blinds or curtain, allowing Sunlight to fuse into the space during the day, reducing the energy for internal lighting.”
© SC Assets Public Company, Thailand
泰国SC资产上市公司
Saladaeng One 公寓-47

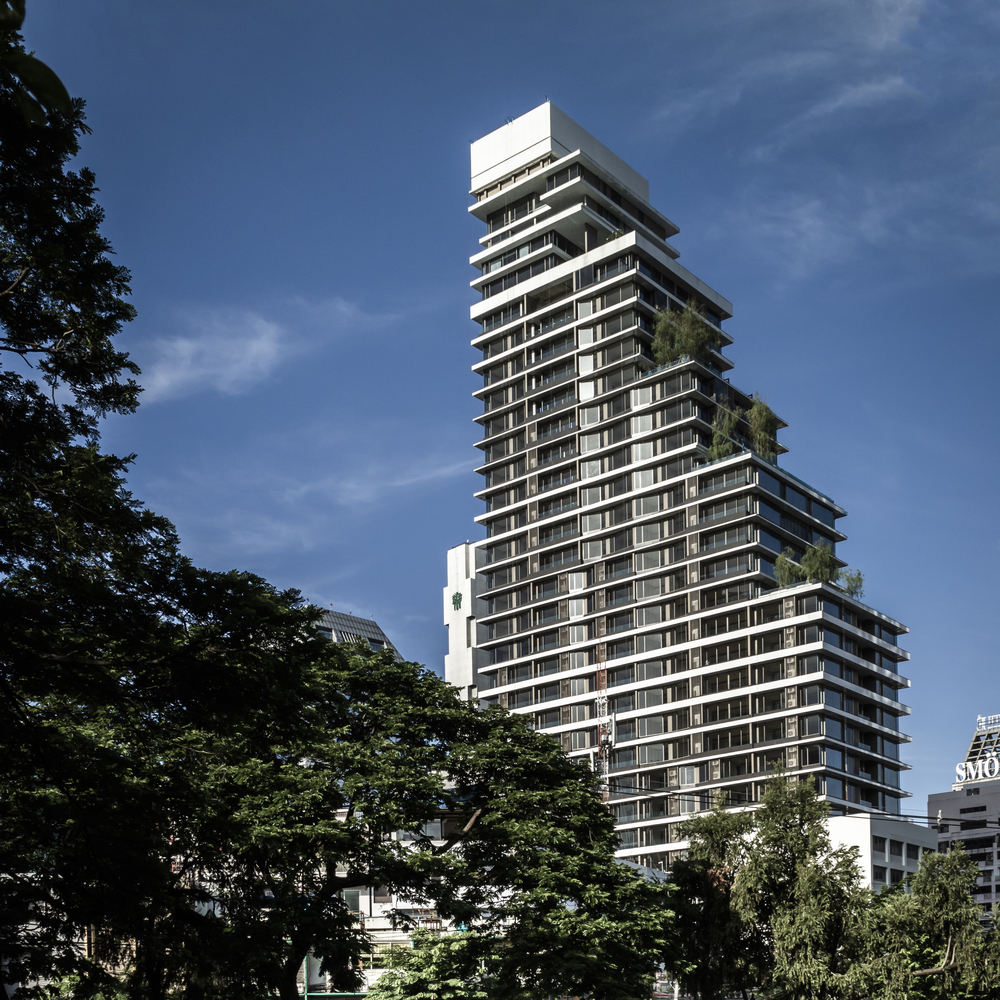

Saladaeng One 公寓-48
Saladaeng One 公寓-49
Saladaeng One 公寓-50

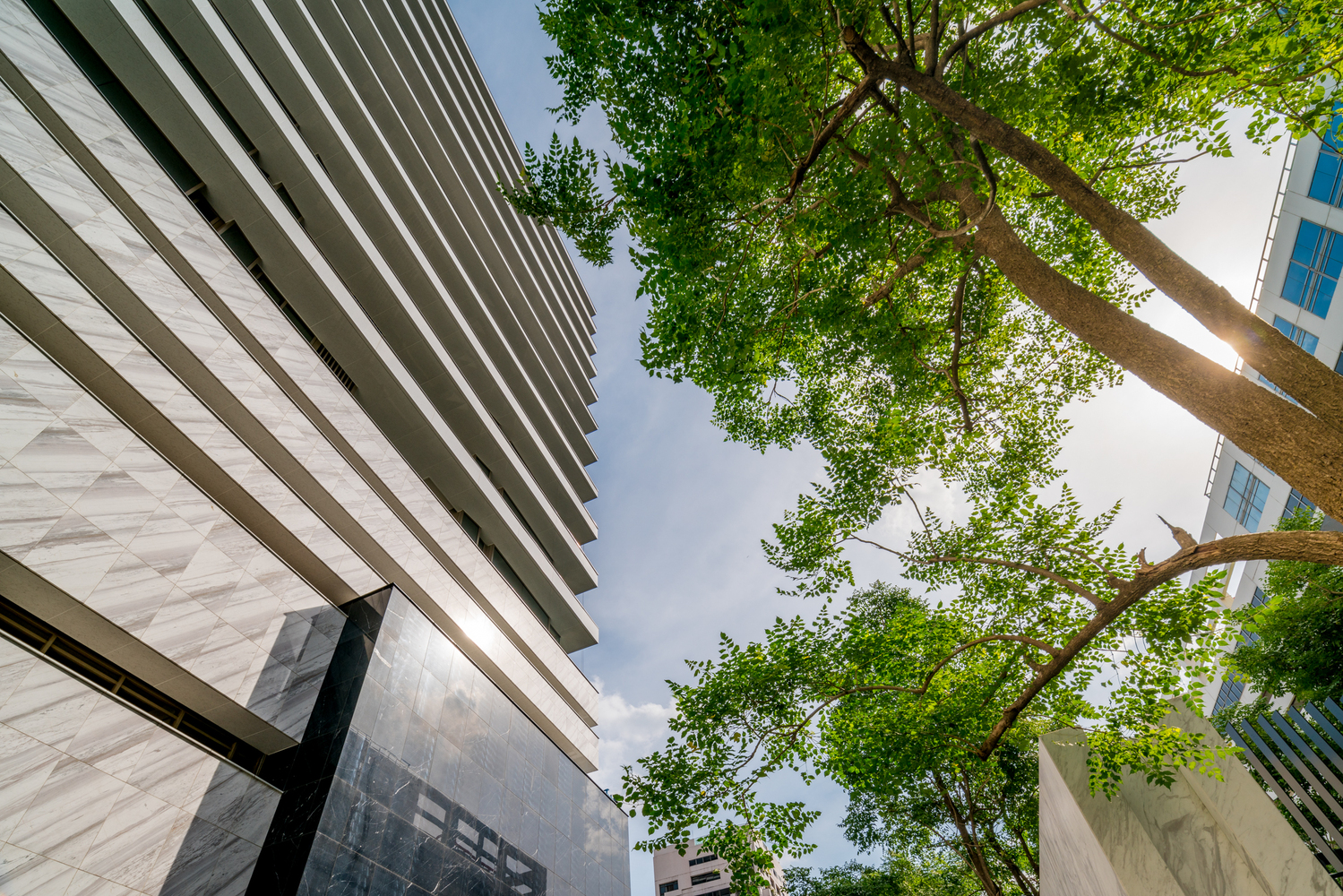

Saladaeng One 公寓-51
Saladaeng One 公寓-52
Saladaeng One 公寓-53

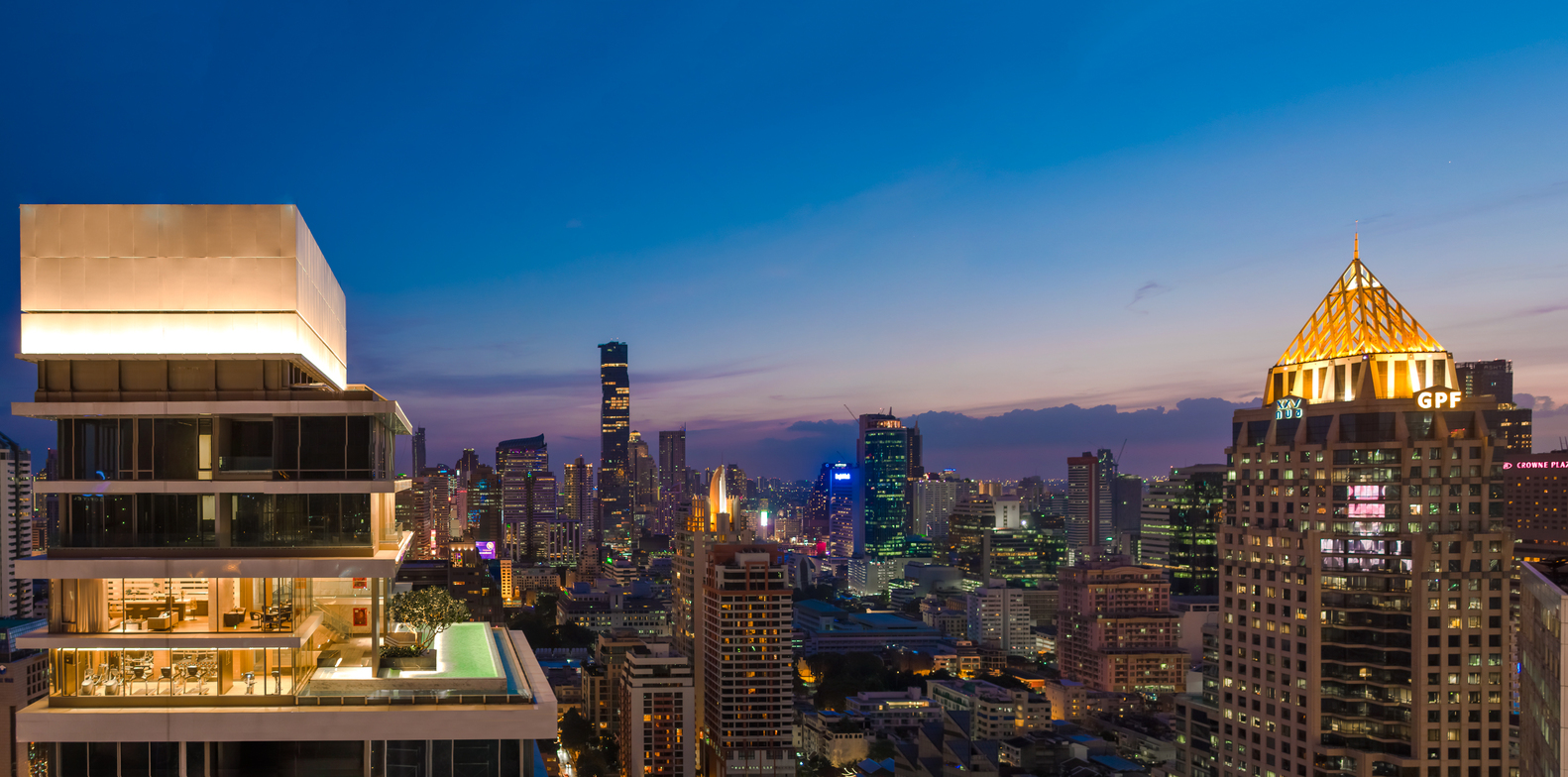

Saladaeng One 公寓-54
Saladaeng One 公寓-55
Saladaeng One 公寓-56
Saladaeng One 公寓-57
Saladaeng One 公寓-58
Saladaeng One 公寓-59
Saladaeng One 公寓-60
Saladaeng One 公寓-61

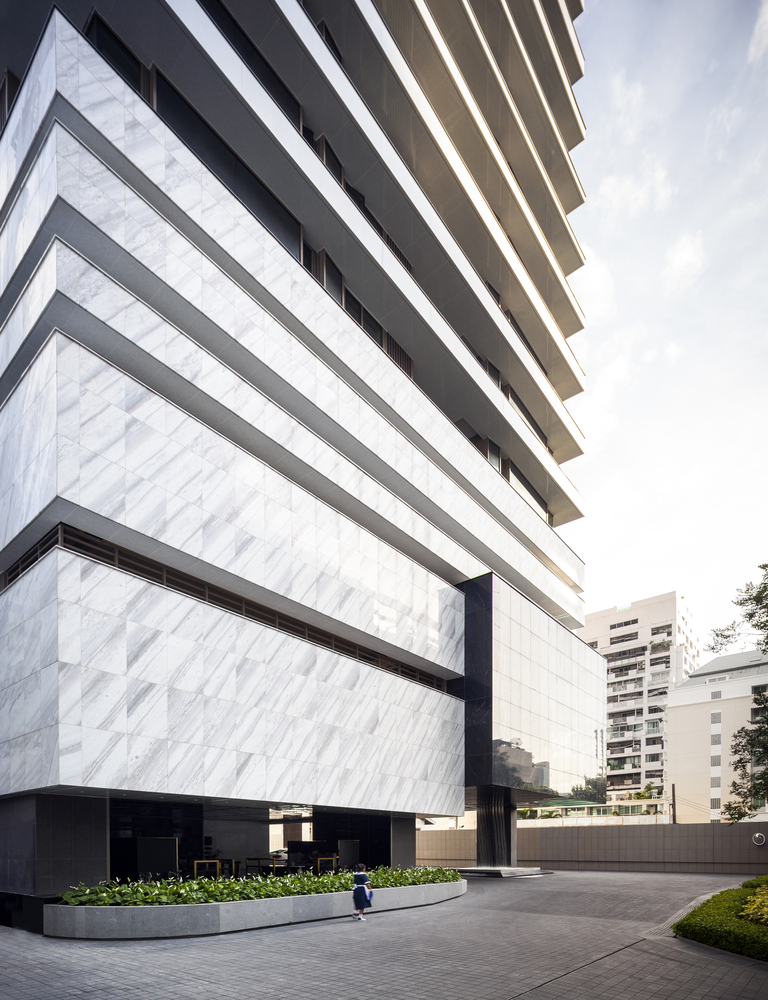

Saladaeng One 公寓-62
Saladaeng One 公寓-63
Saladaeng One 公寓-64
Saladaeng One 公寓-65
Saladaeng One 公寓-66
Saladaeng One 公寓-67
Saladaeng One 公寓-68

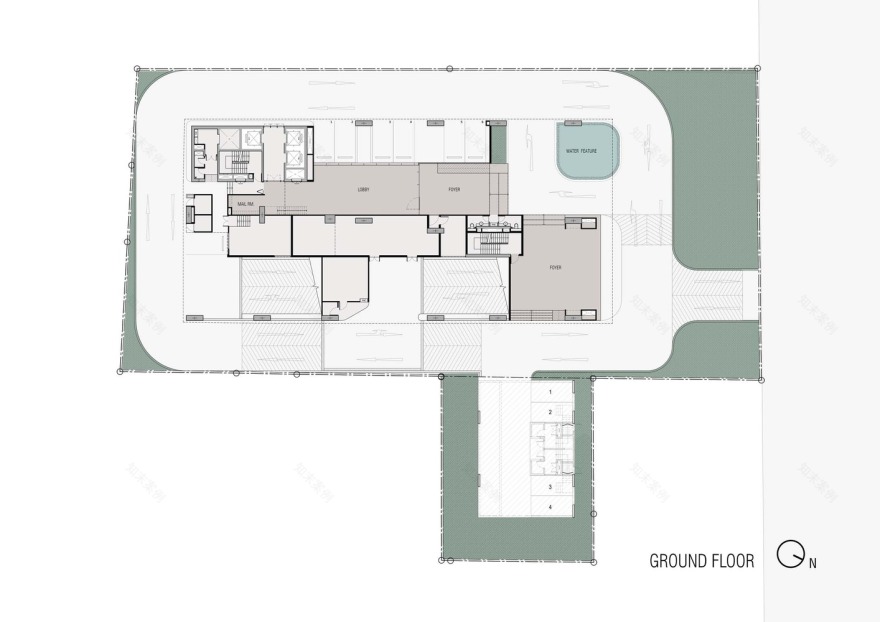

Saladaeng One 公寓-69
Saladaeng One 公寓-70

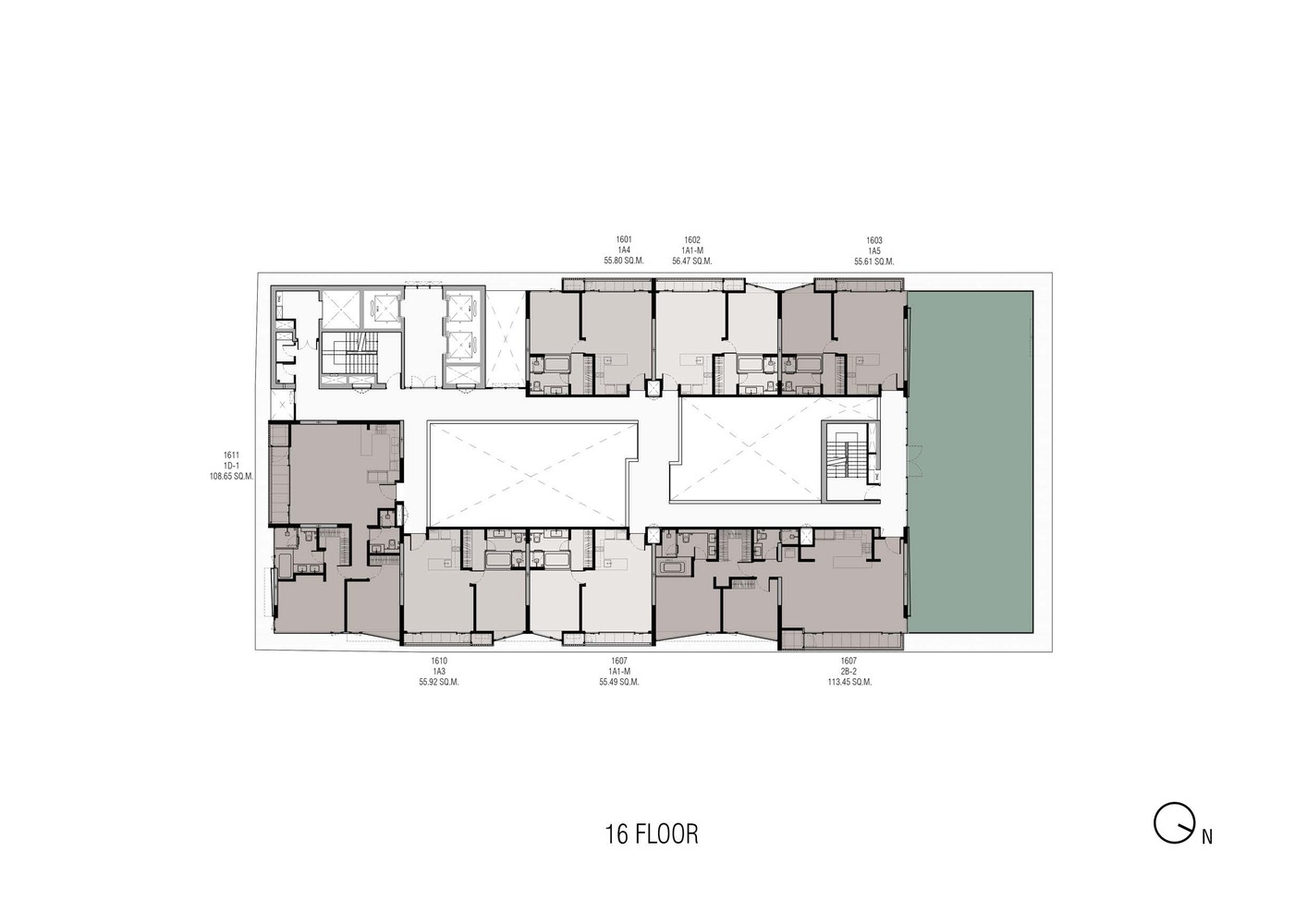

Saladaeng One 公寓-71

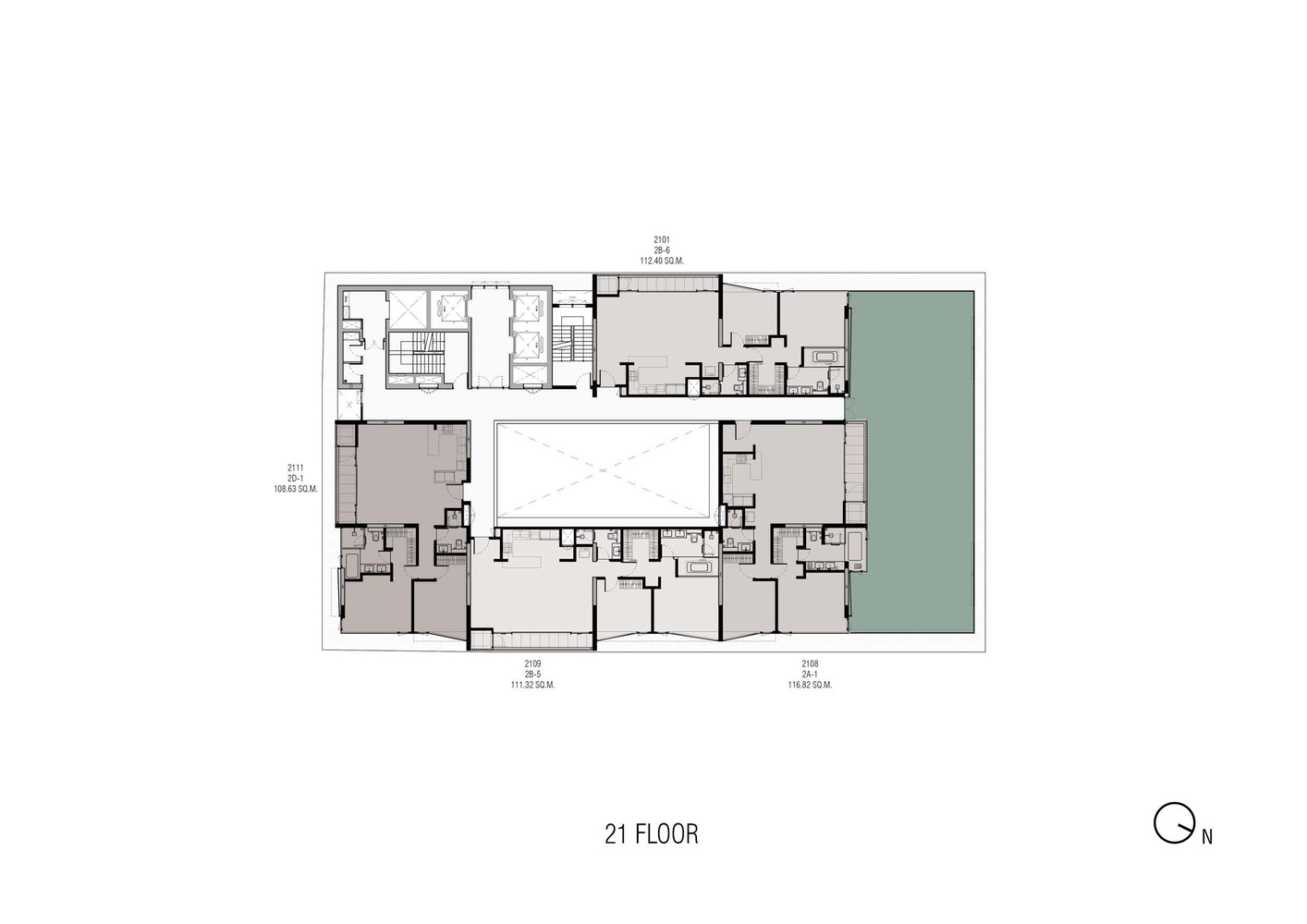

Saladaeng One 公寓-72
Saladaeng One 公寓-73
Saladaeng One 公寓-74

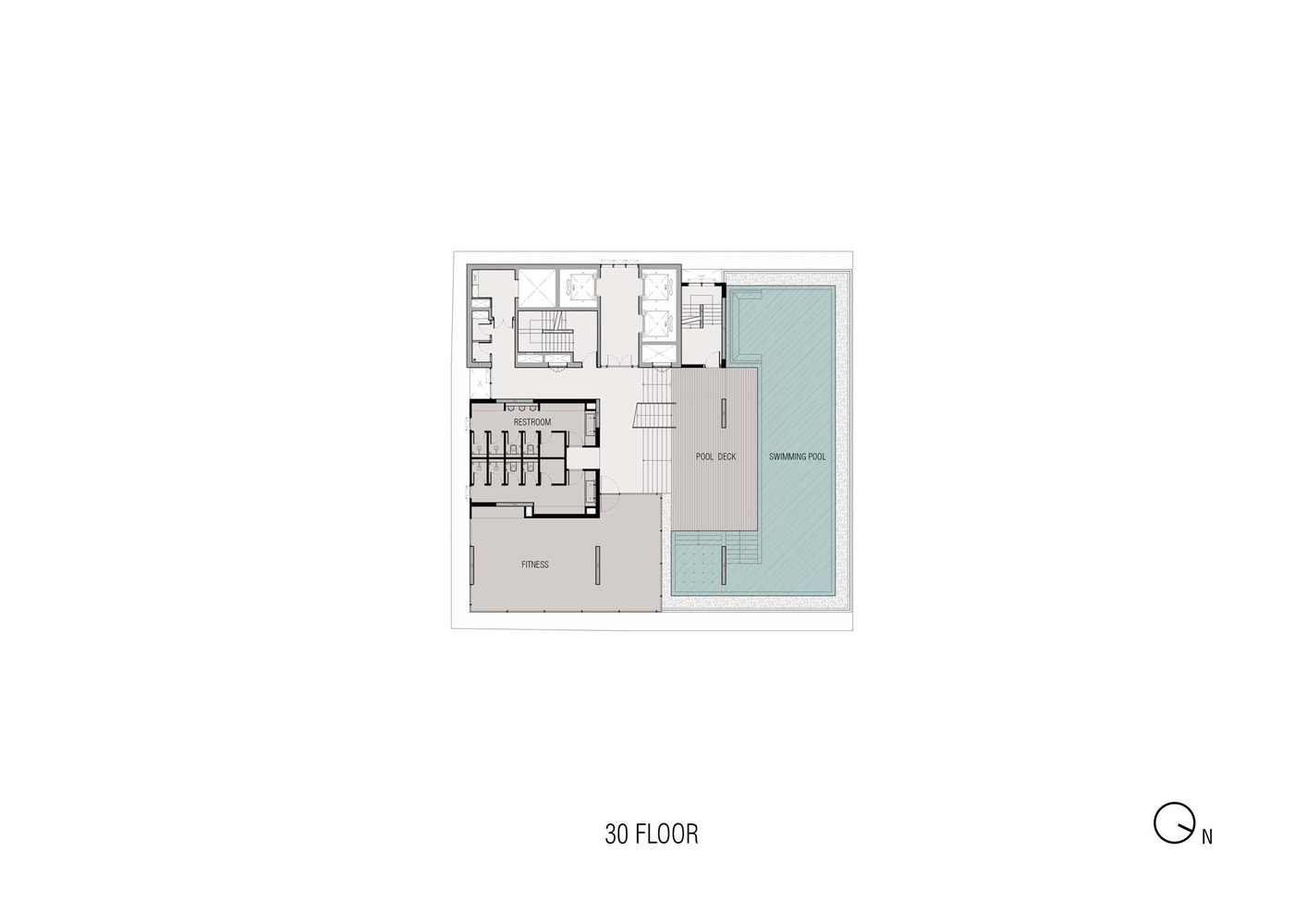

Saladaeng One 公寓-75
Saladaeng One 公寓-76

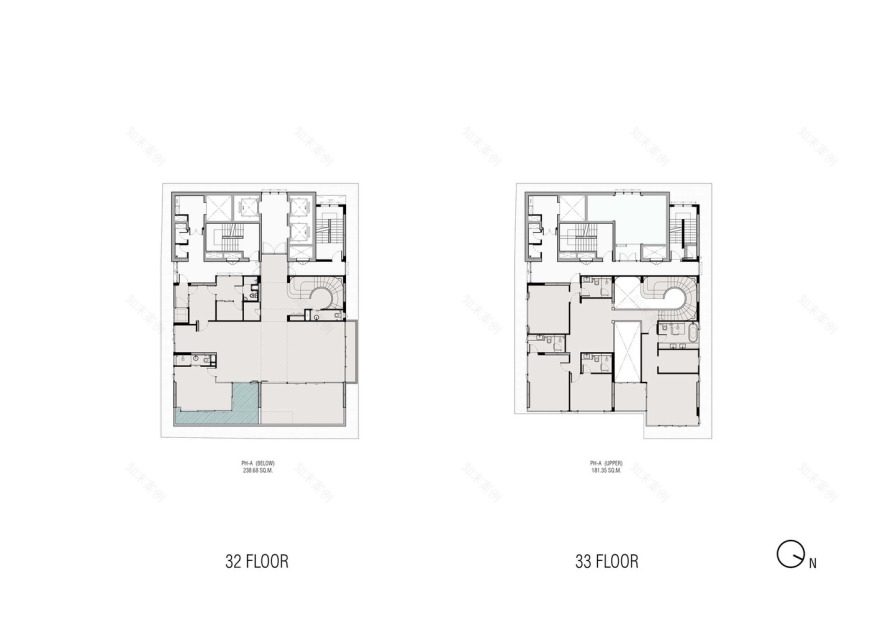

Saladaeng One 公寓-77
Saladaeng One 公寓-78

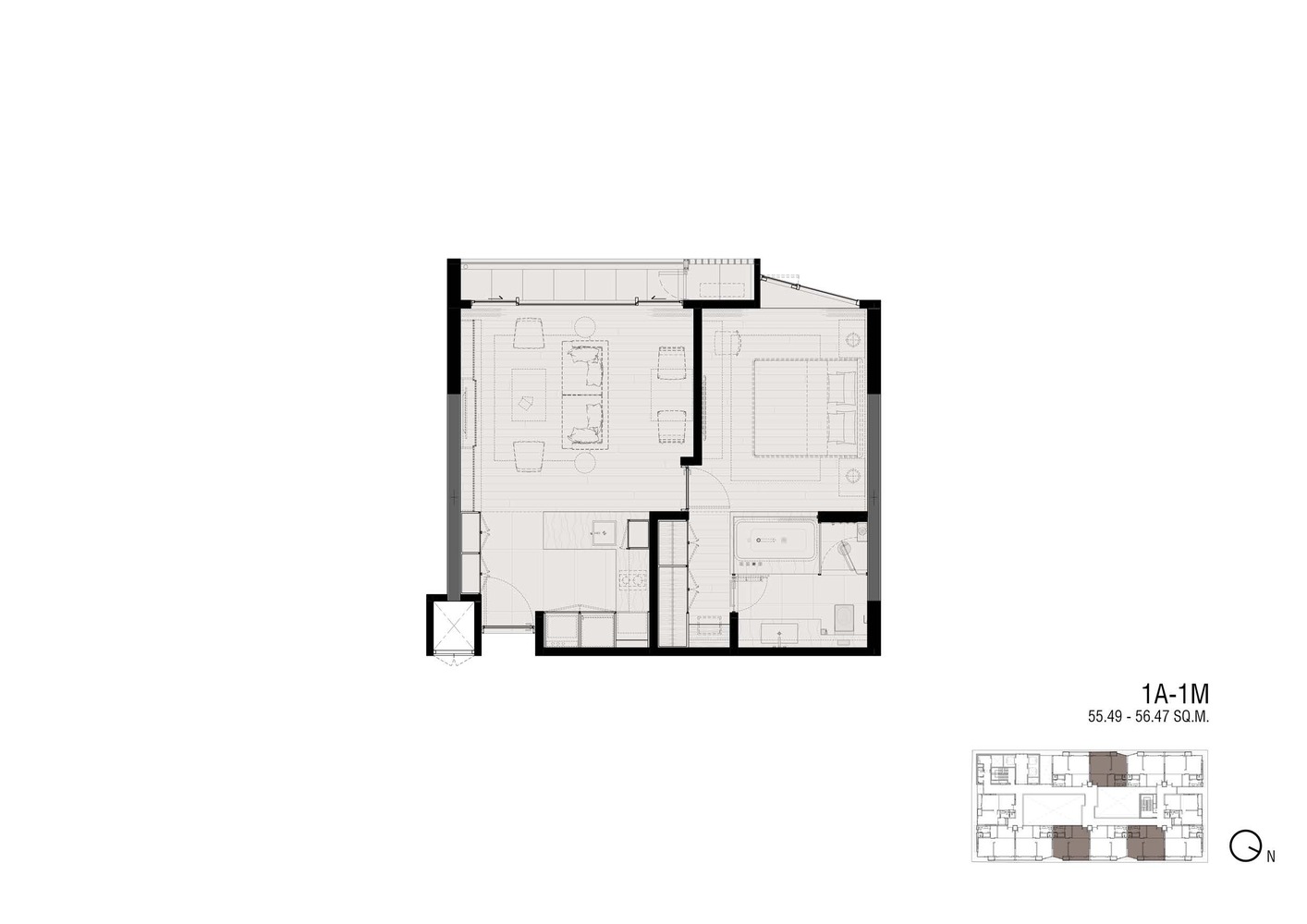

Saladaeng One 公寓-79

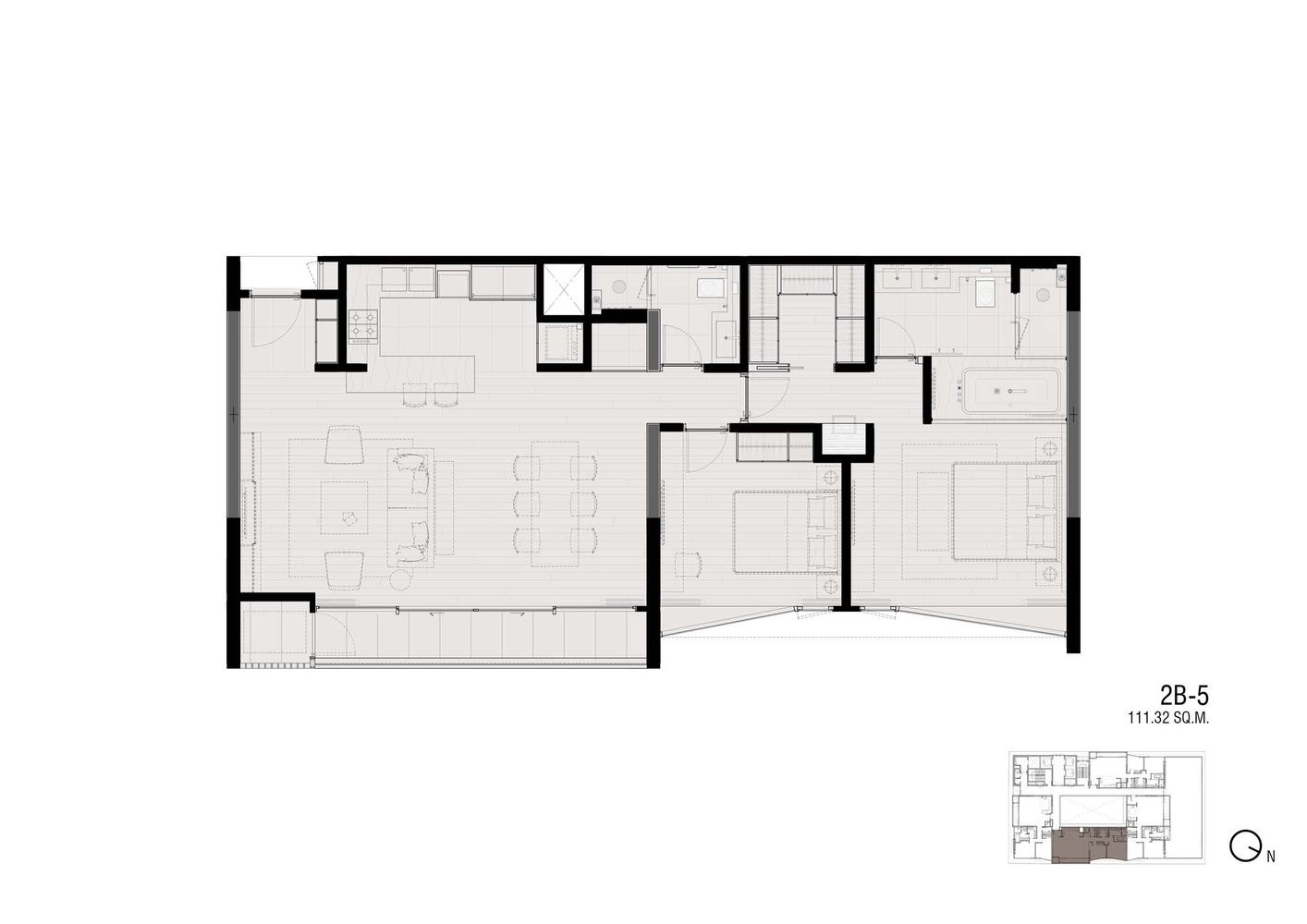

Saladaeng One 公寓-80

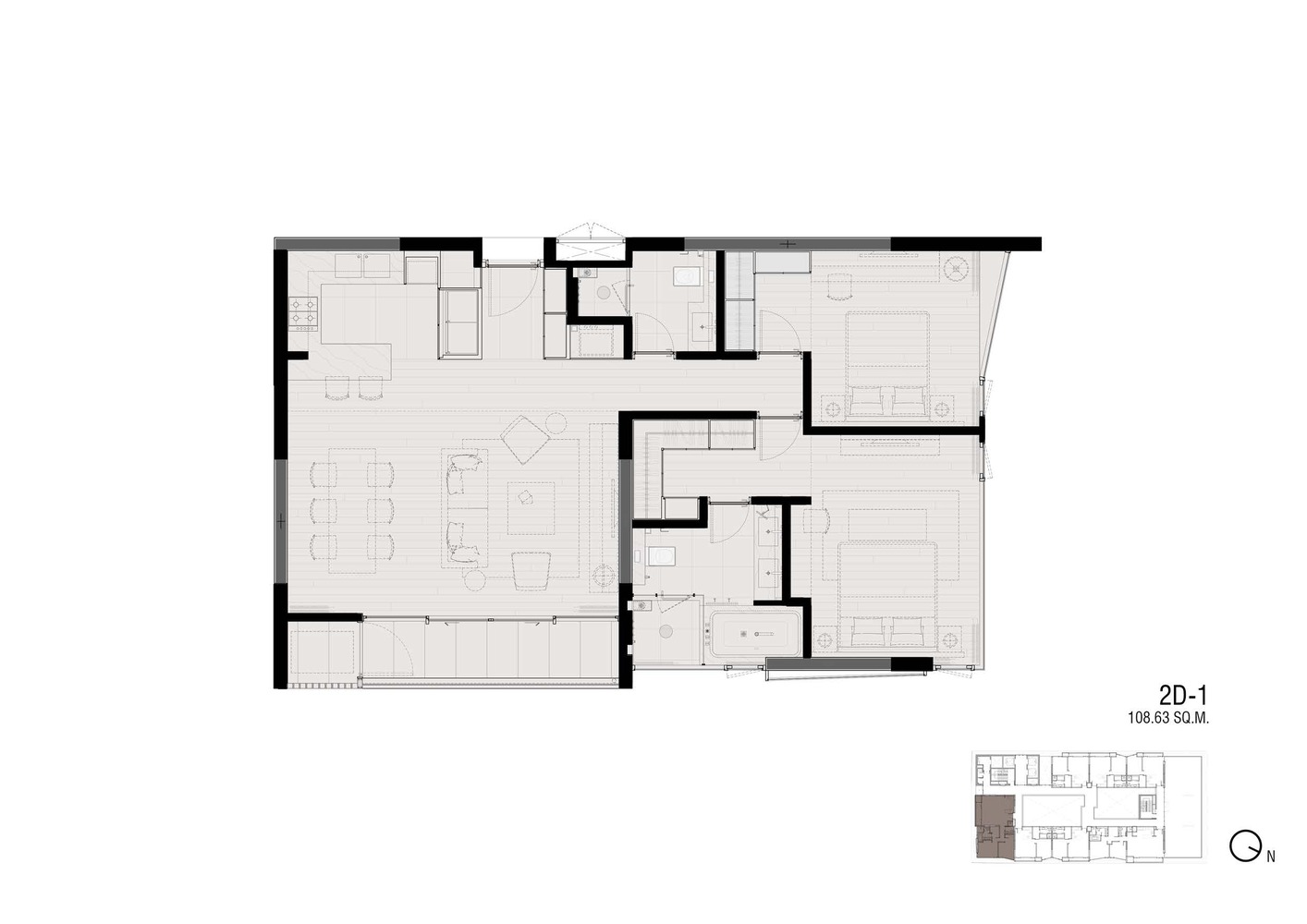

Saladaeng One 公寓-81

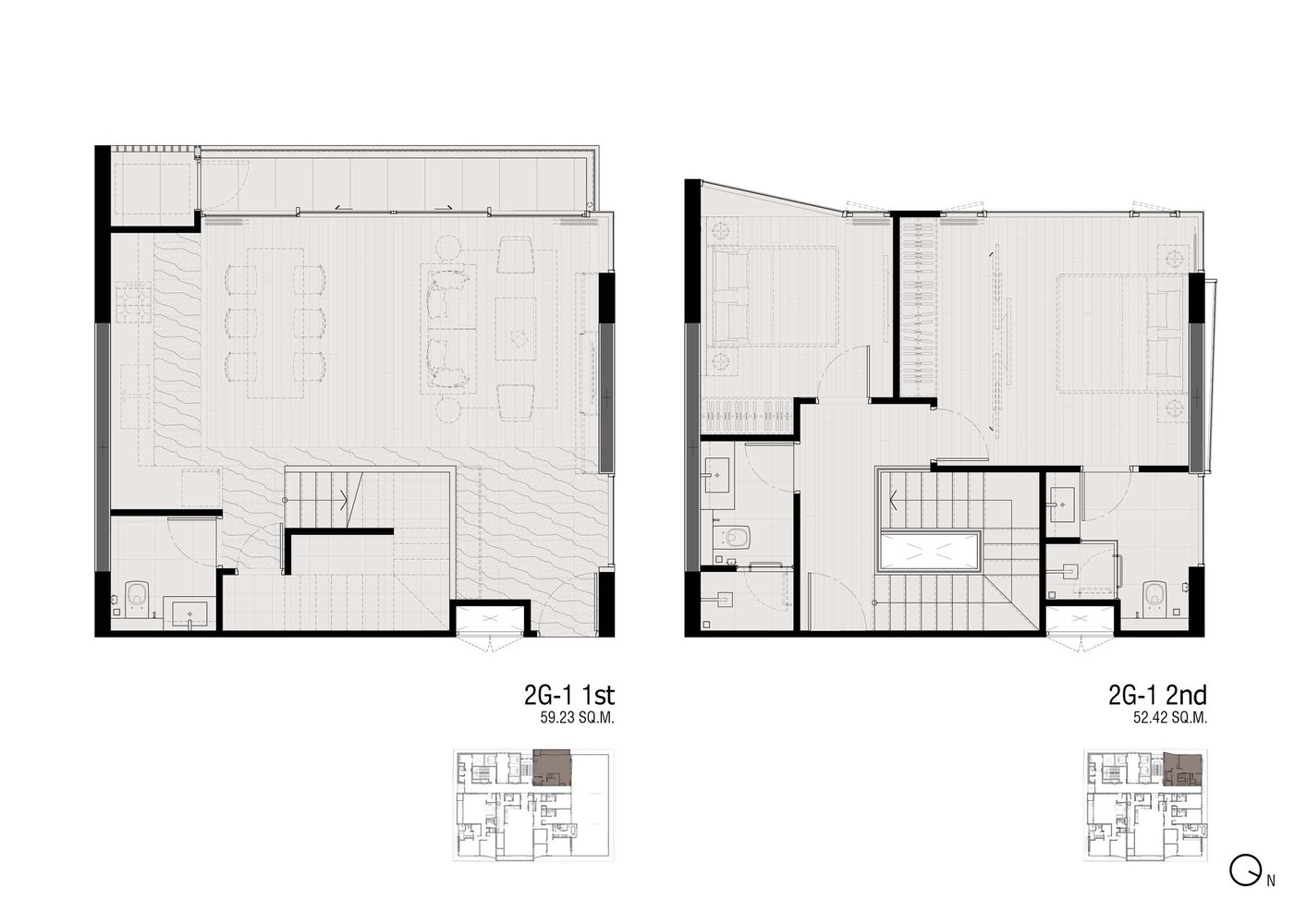

Saladaeng One 公寓-82

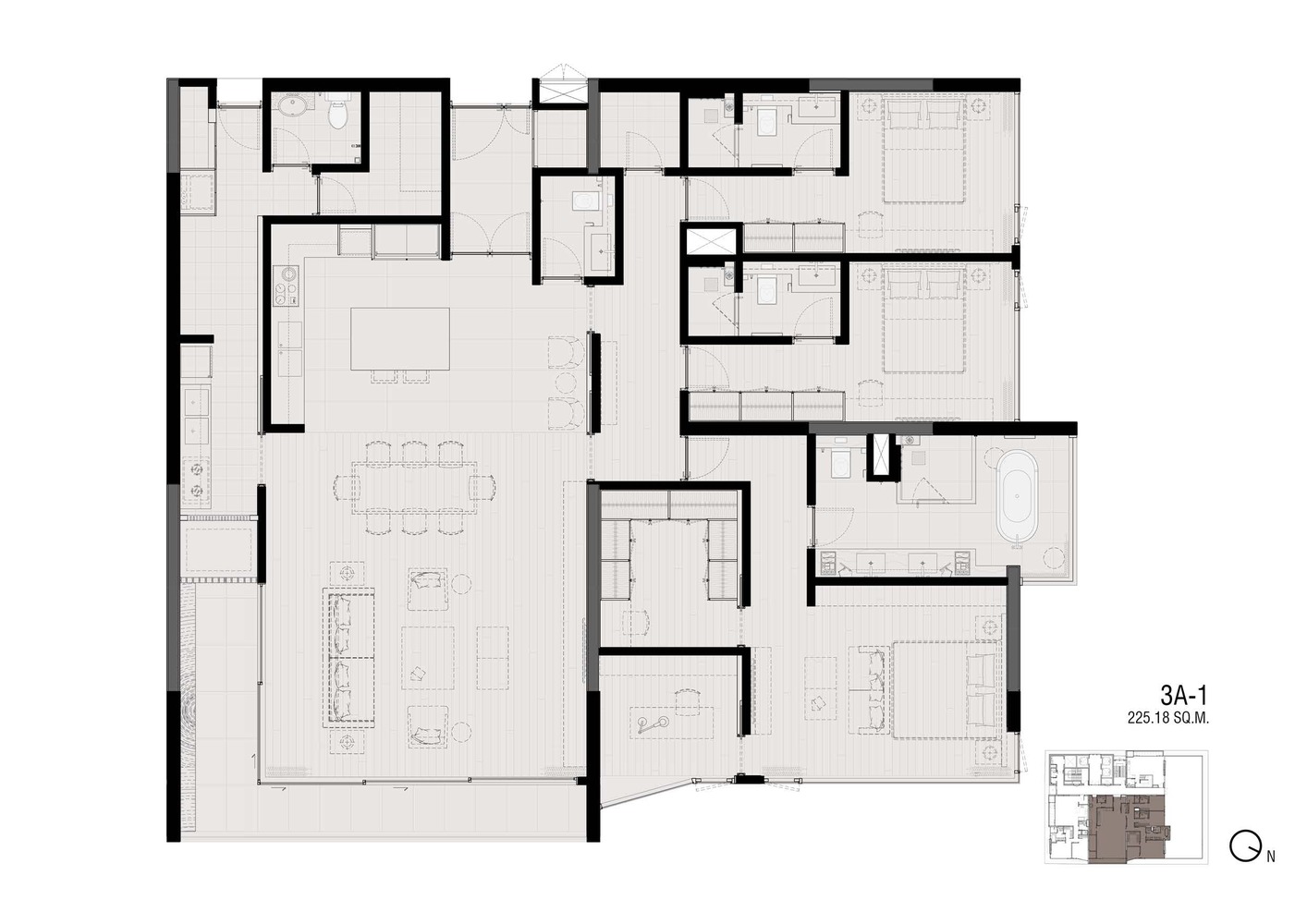

Saladaeng One 公寓-83
Saladaeng One 公寓-84
Saladaeng One 公寓-85
Architects Openbox Architects
Location Sathon, Bangkok 10120, Thailand
Lead AR Mr. RatiwatSuwannatrai, Mrs.WannapornSuwannatrai
Area 30450.0 m2
Project Year 2018
Photographs SC Assets Public Company, Thailand
Category Apartments
