德万哈里的公园边养老院·综合社区生活的活力空间

Courtesy of Mindspace

心灵空间

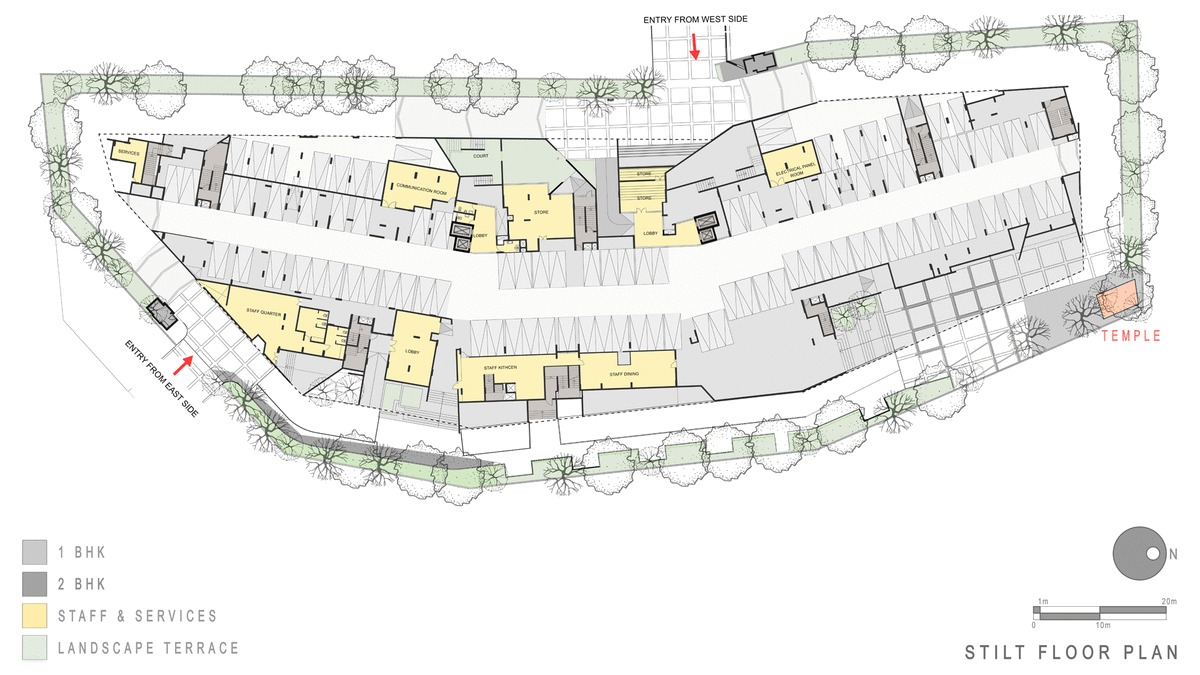

架构师提供的文本描述。公园边的养老院是旅果园的一部分，这是位于德万哈里的一个综合城镇。公园边156个号码的12个BHK单元，所有残疾人友好和轮椅无障碍空间。

Text description provided by the architects. Park side retirement homes are a part of Brigade Orchards an integrated township located at Devanhalli. Parkside houses 156 number of 1+2 bhk units with all handicap friendly and wheelchair accessible spaces.

Text description provided by the architects. Park side retirement homes are a part of Brigade Orchards an integrated township located at Devanhalli. Parkside houses 156 number of 1+2 bhk units with all handicap friendly and wheelchair accessible spaces.

该网站的目的是向位于南的Khenhgwda国际机场和朝北的一座现有礼拜寺庙。作为对这一环境领奖台的回应，建立和连接到太阳穴，并在南侧较高的高度梯级和级联露台，以查看起飞和降落的航班。

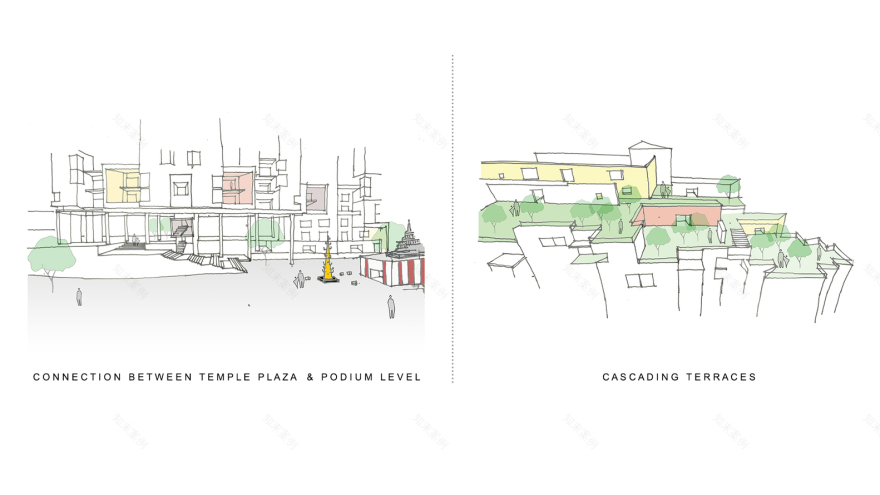

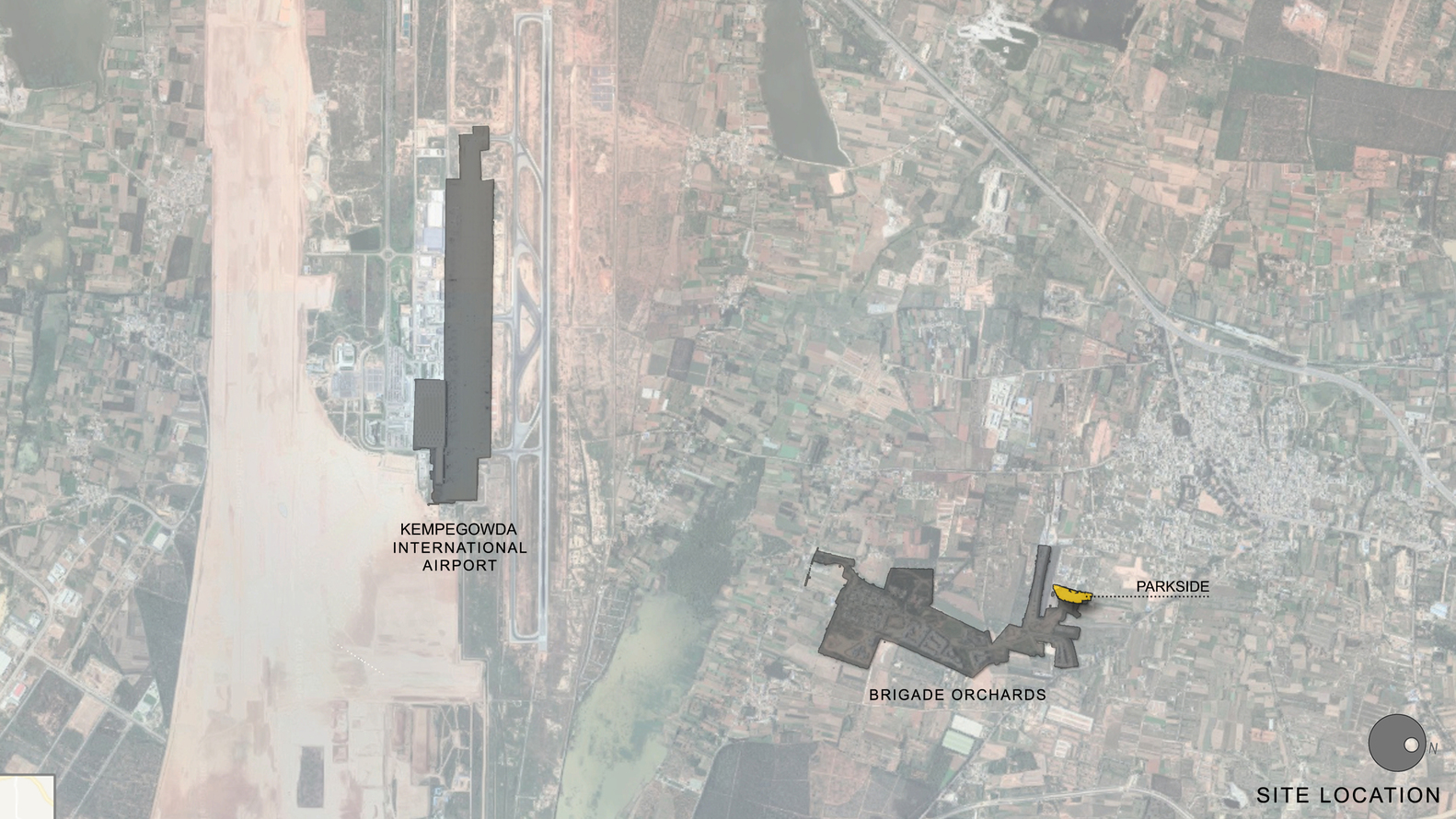

The site has a view towards Kempegowda International Airport on South and an existing temple of worship towards North. As a response to this context podium level is opened up and connected to the temple with wide steps and cascading terraces at higher levels along the South side is created to view the flights take off and land.

The site has a view towards Kempegowda International Airport on South and an existing temple of worship towards North. As a response to this context podium level is opened up and connected to the temple with wide steps and cascading terraces at higher levels along the South side is created to view the flights take off and land.

© PHX india, Mindspace

印度PHX，Mindspace

Cross Section

© PHX india, Mindspace

印度PHX，Mindspace

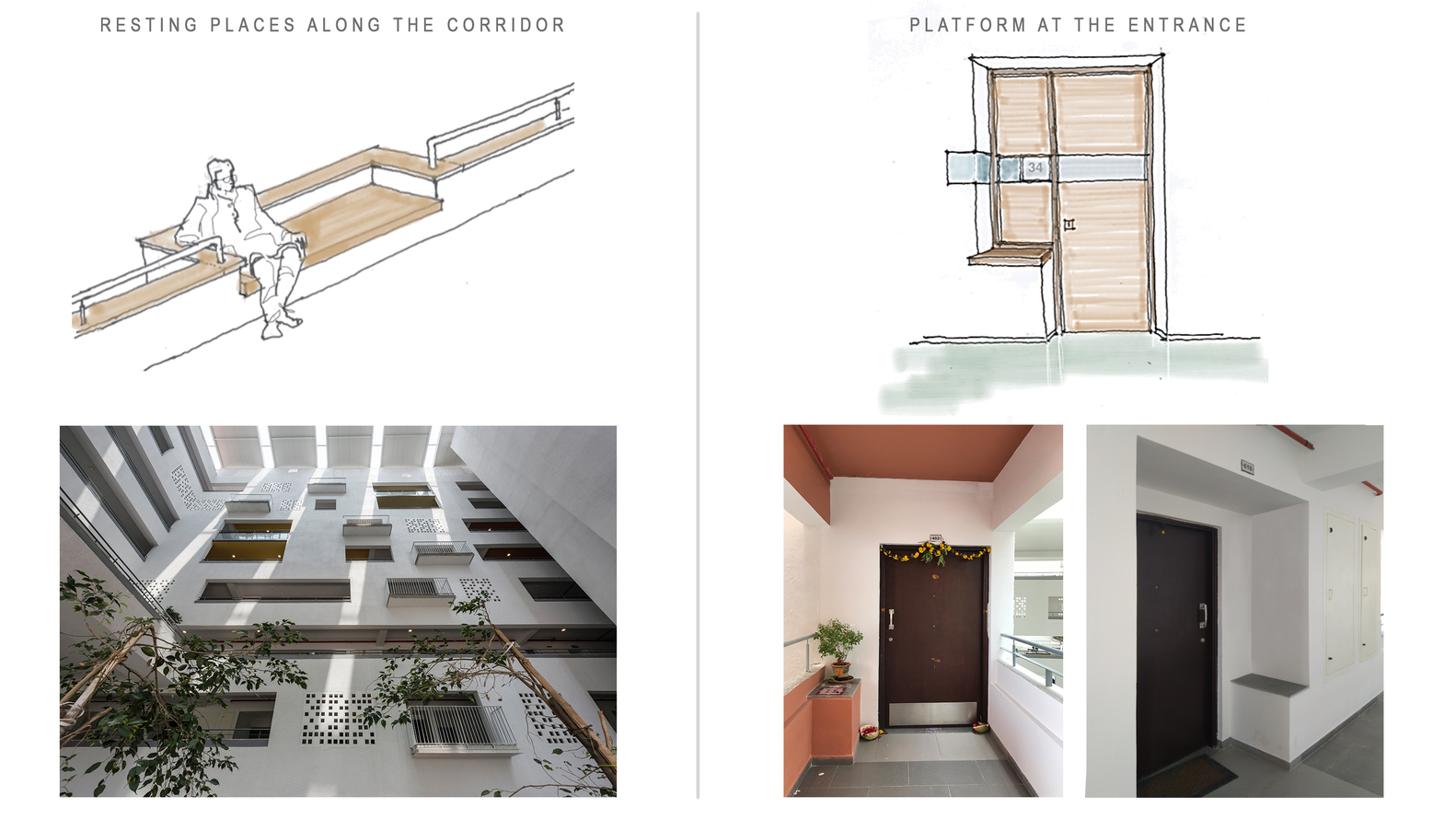

该项目将遵循老年人生活标准指南-一份设计手册，以满足老年人的要求，如宽走廊、轮椅运动门、走廊和浴室中的扶手杆、休息疲惫四肢的地方以及将购物袋放在门口的地方。然而，该项目的独特之处在于重新解释了单一俱乐部住宅的概念。它不是把所有的活动都放在一个地方，而是分布在地板上，以便于进入，并有一个活跃的气氛，并鼓励整个建筑的互动。每一层楼都有一个活动中心，通过一个带有天窗的中央中庭，视觉上连接在不同的层次上。

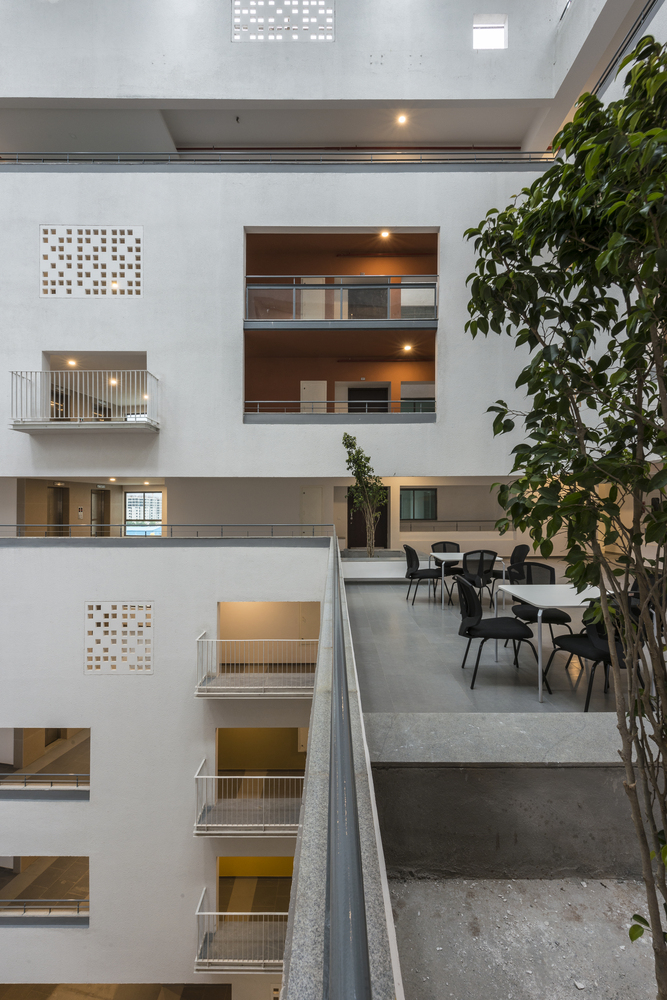

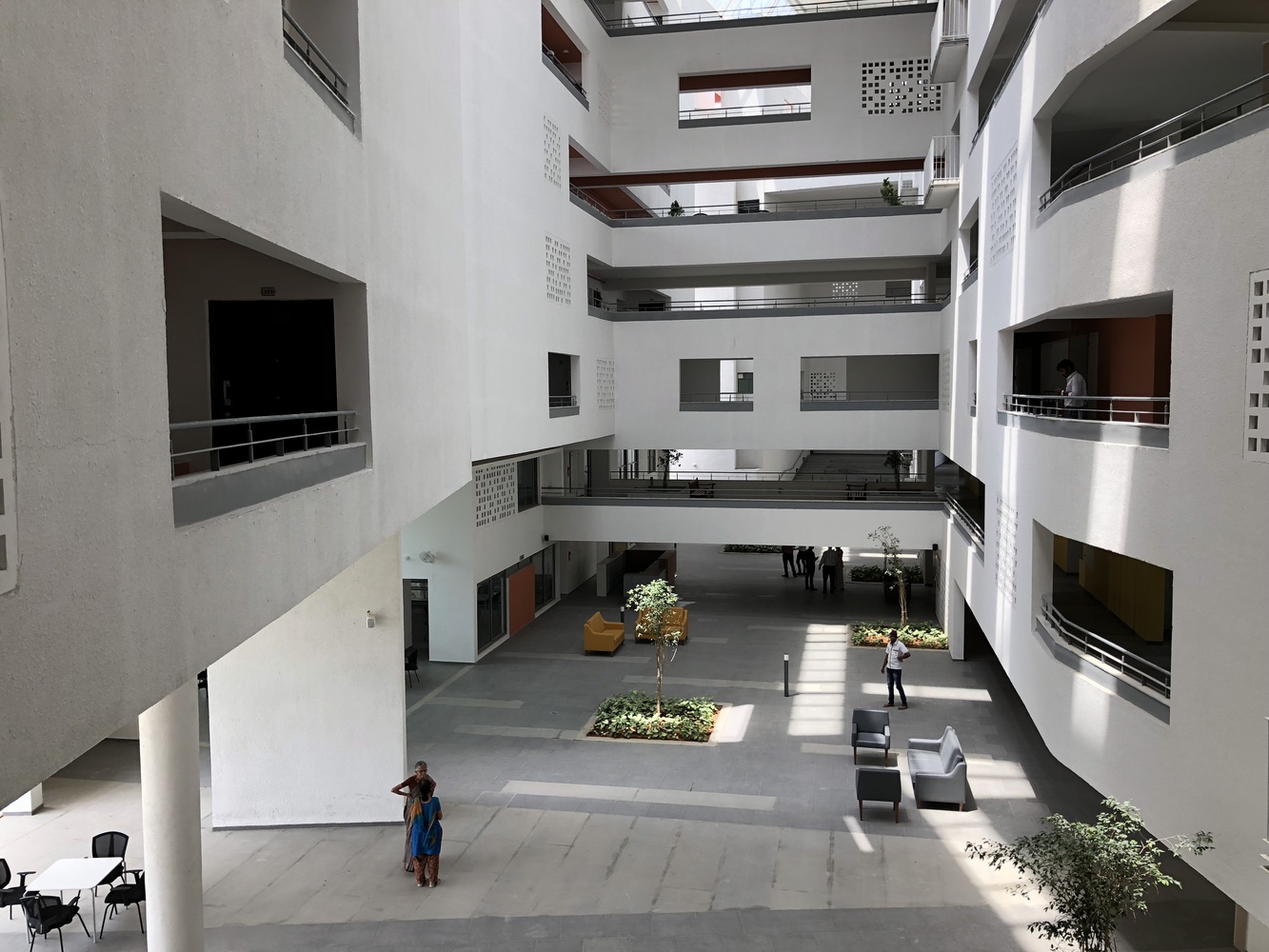

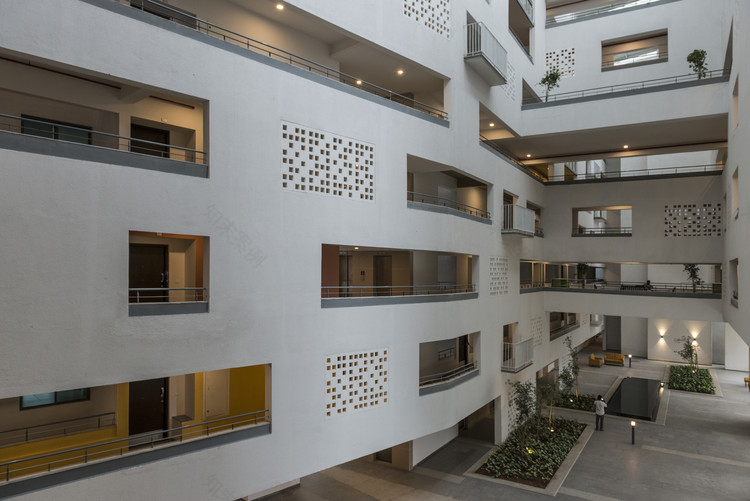

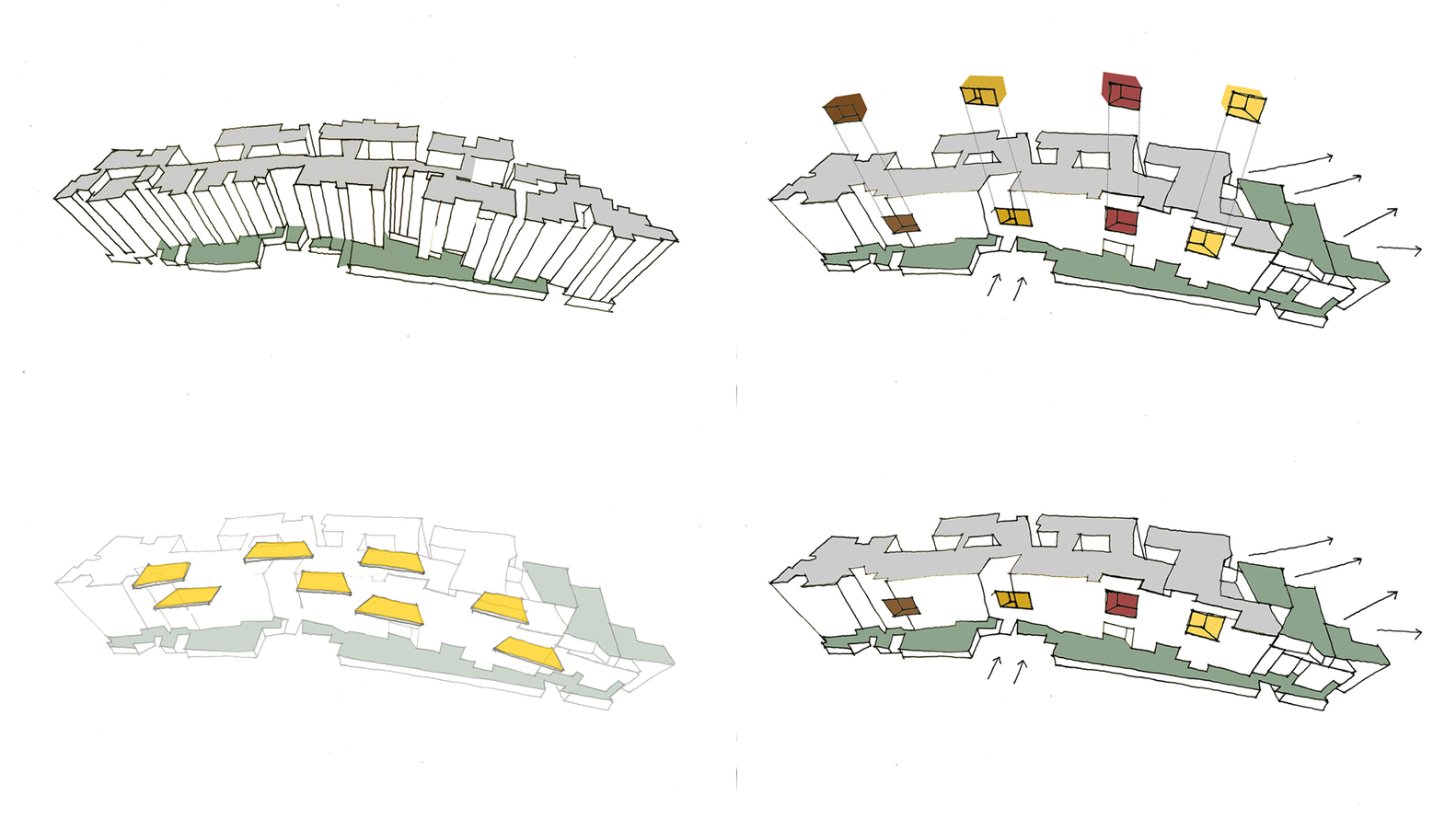

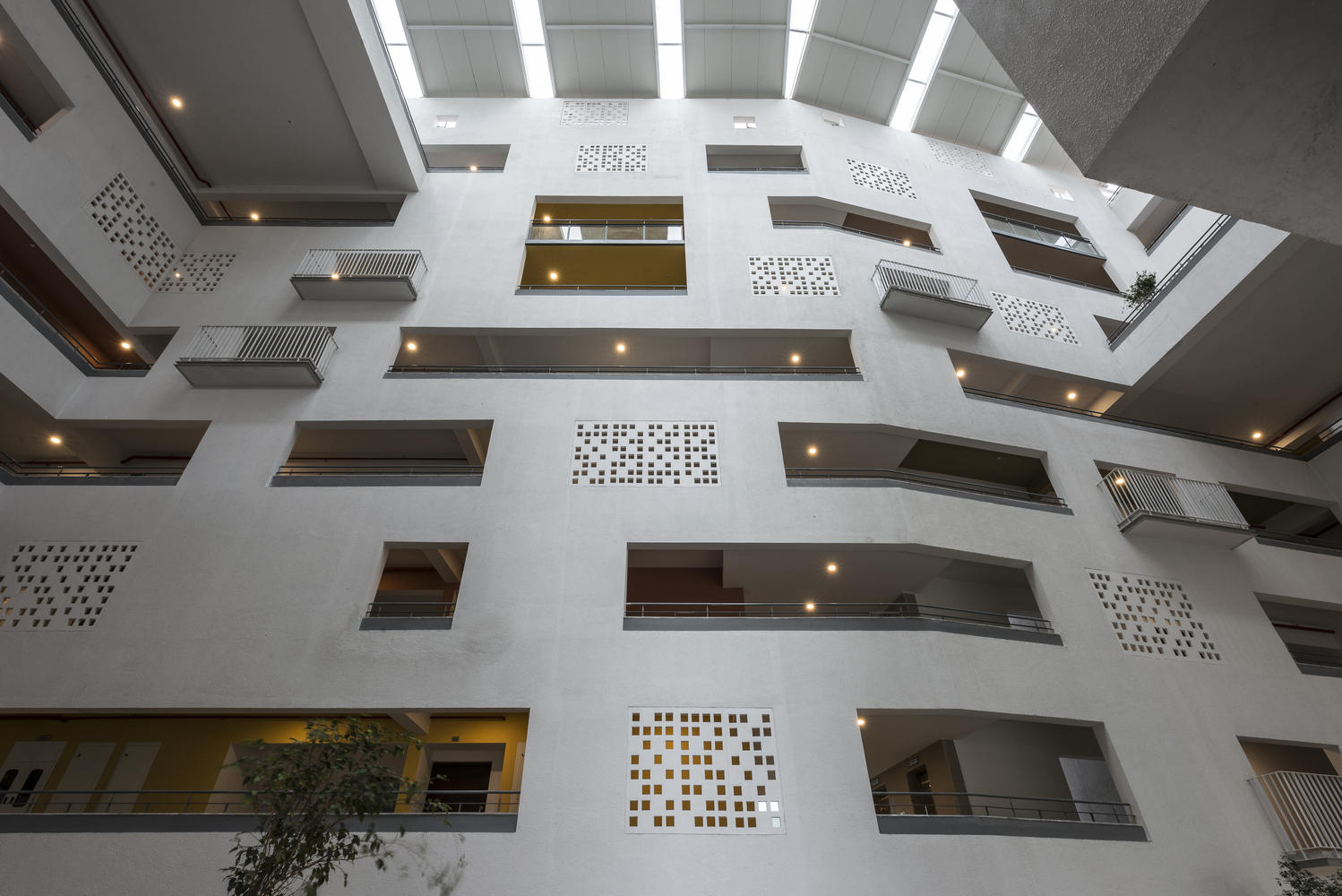

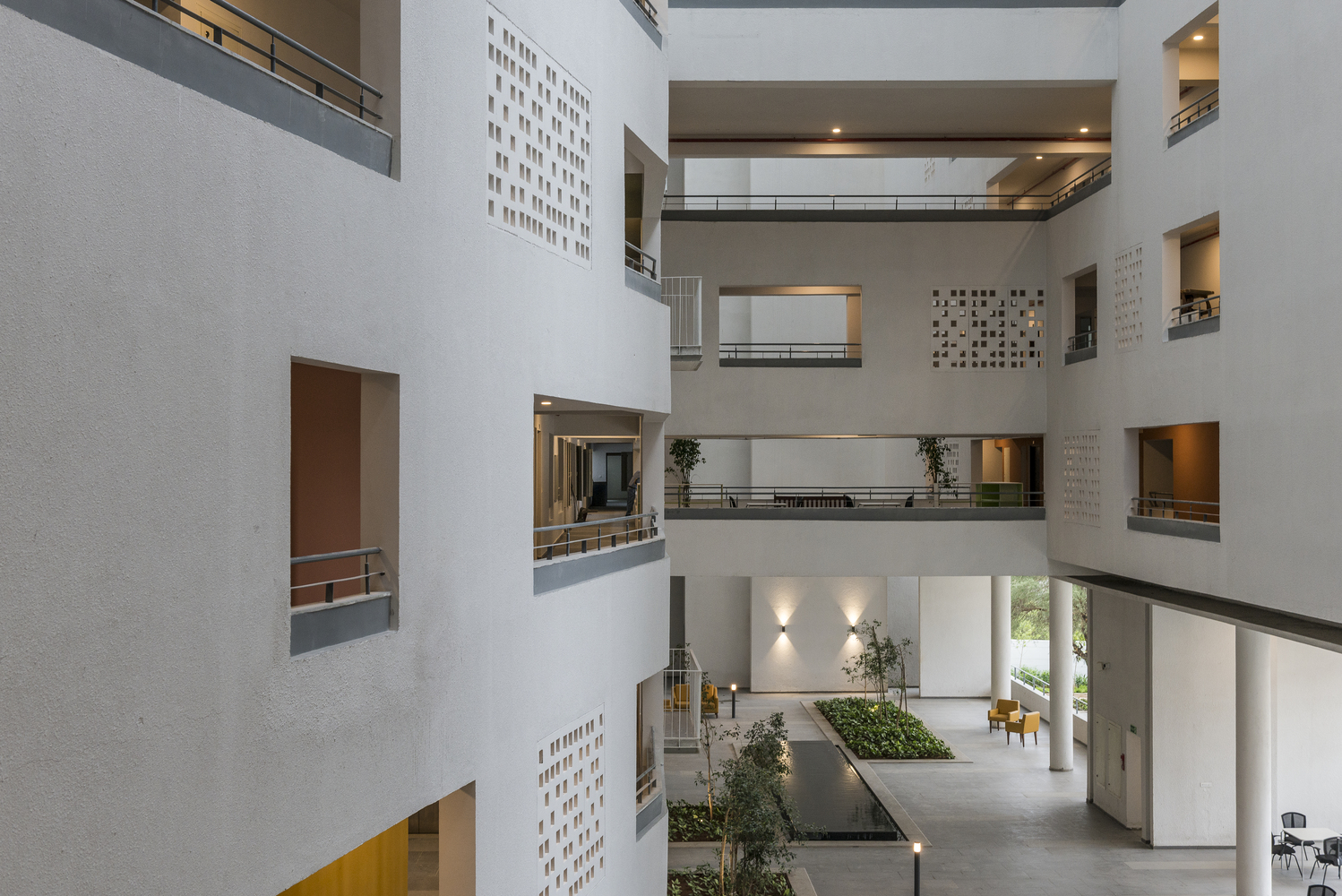

Program was to follow standard guide for senior living – a design manual, to address requirements for senior citizens such as wide corridors, doors for wheel chair movement grab bars in corridors and bathrooms, a place to rest tired limbs and a place to keep shopping bag near the door. However the uniqueness of the project lies in reinterpreting the idea of a single club house. Instead of housing all the activities in one place, it is distributed across the floor for easy access and to have a lively atmosphere and encourage interaction across the building. Each of the floors has one activity centre which is visually connected across different levels through a central atrium with a skylight.

Program was to follow standard guide for senior living – a design manual, to address requirements for senior citizens such as wide corridors, doors for wheel chair movement grab bars in corridors and bathrooms, a place to rest tired limbs and a place to keep shopping bag near the door. However the uniqueness of the project lies in reinterpreting the idea of a single club house. Instead of housing all the activities in one place, it is distributed across the floor for easy access and to have a lively atmosphere and encourage interaction across the building. Each of the floors has one activity centre which is visually connected across different levels through a central atrium with a skylight.

© PHX india, Mindspace

印度PHX，Mindspace

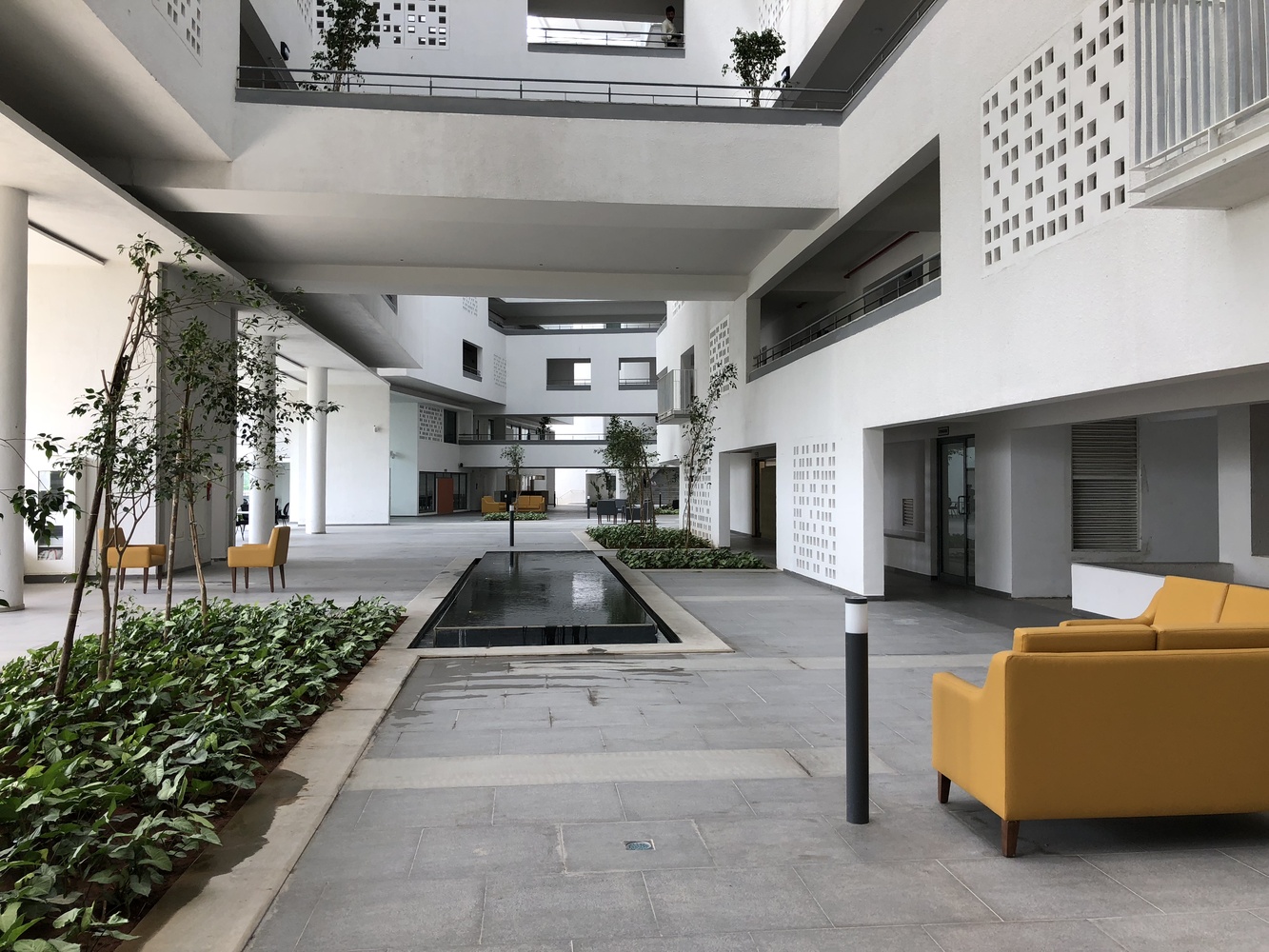

领奖台层的活动包括接待、候机室、普通餐厅和厨房，以及景观区和水体。为欣赏文化活动，在中央中庭的讲台上设有圆形剧场，中庭天窗以不同的自然光线设计，以引入东方光线，避免眩光。变幻莫测的光线质量和墙上的动画阴影进一步活跃了空间。

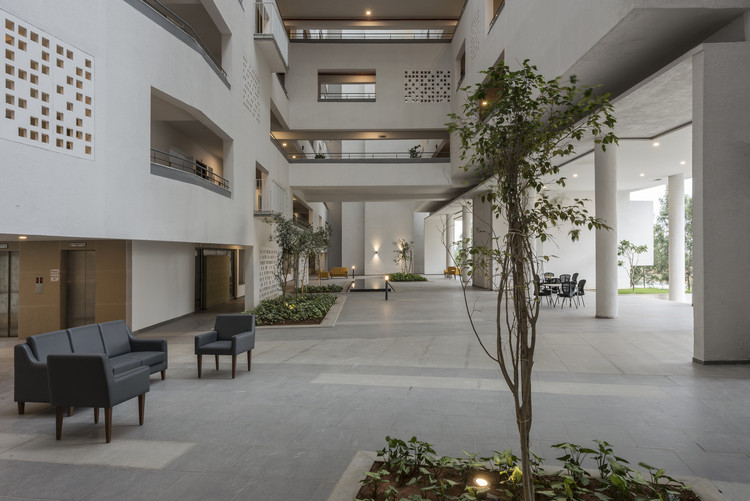

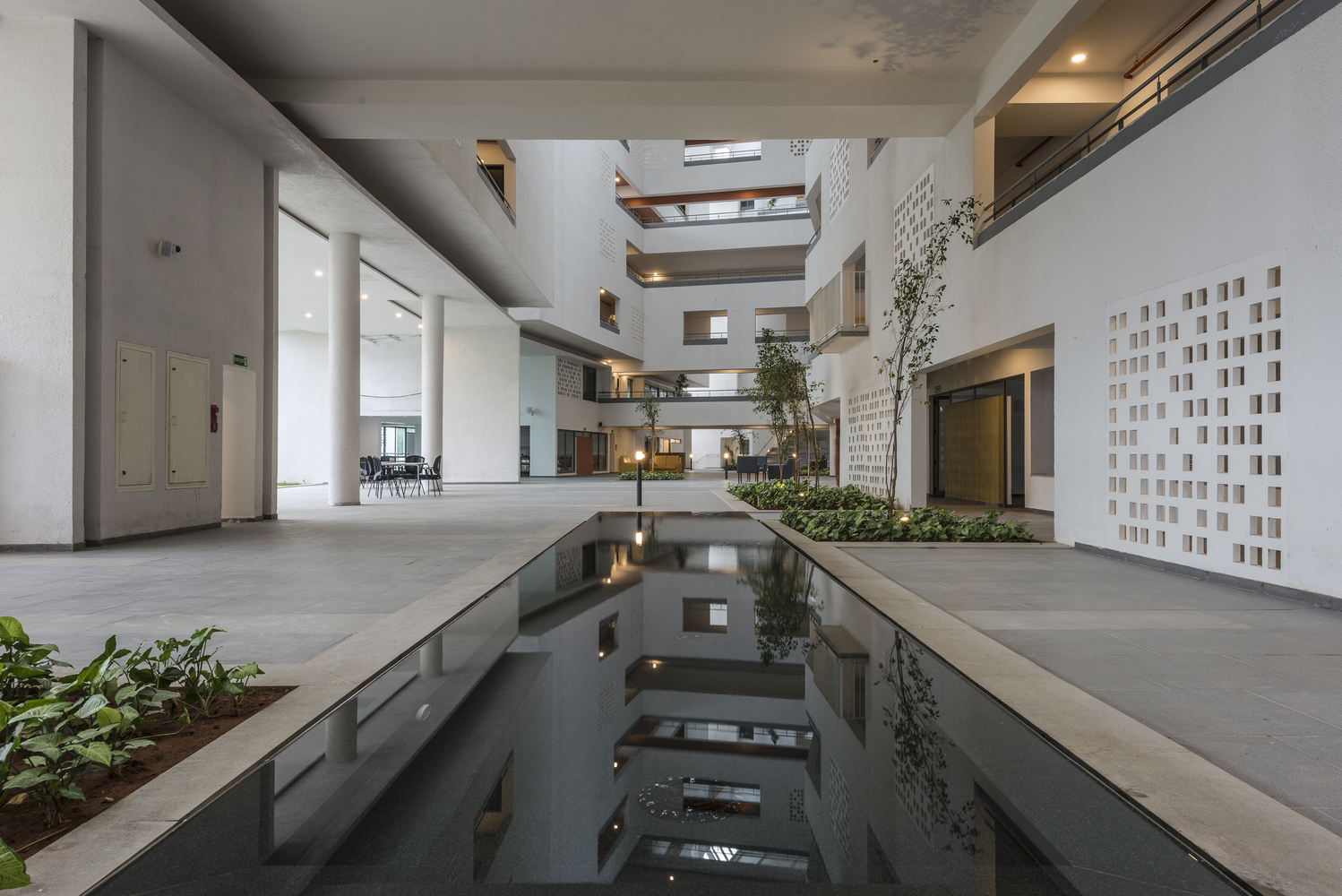

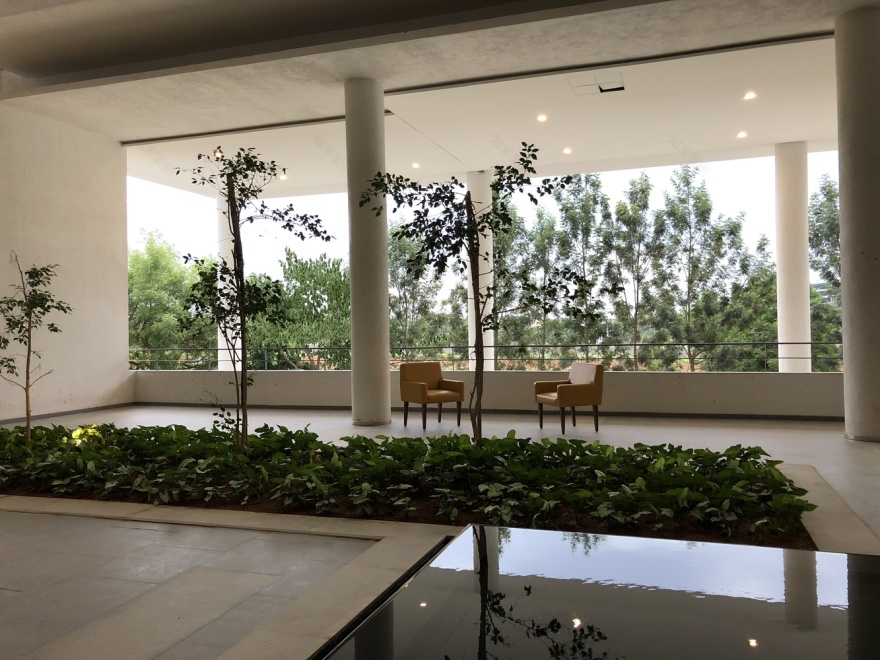

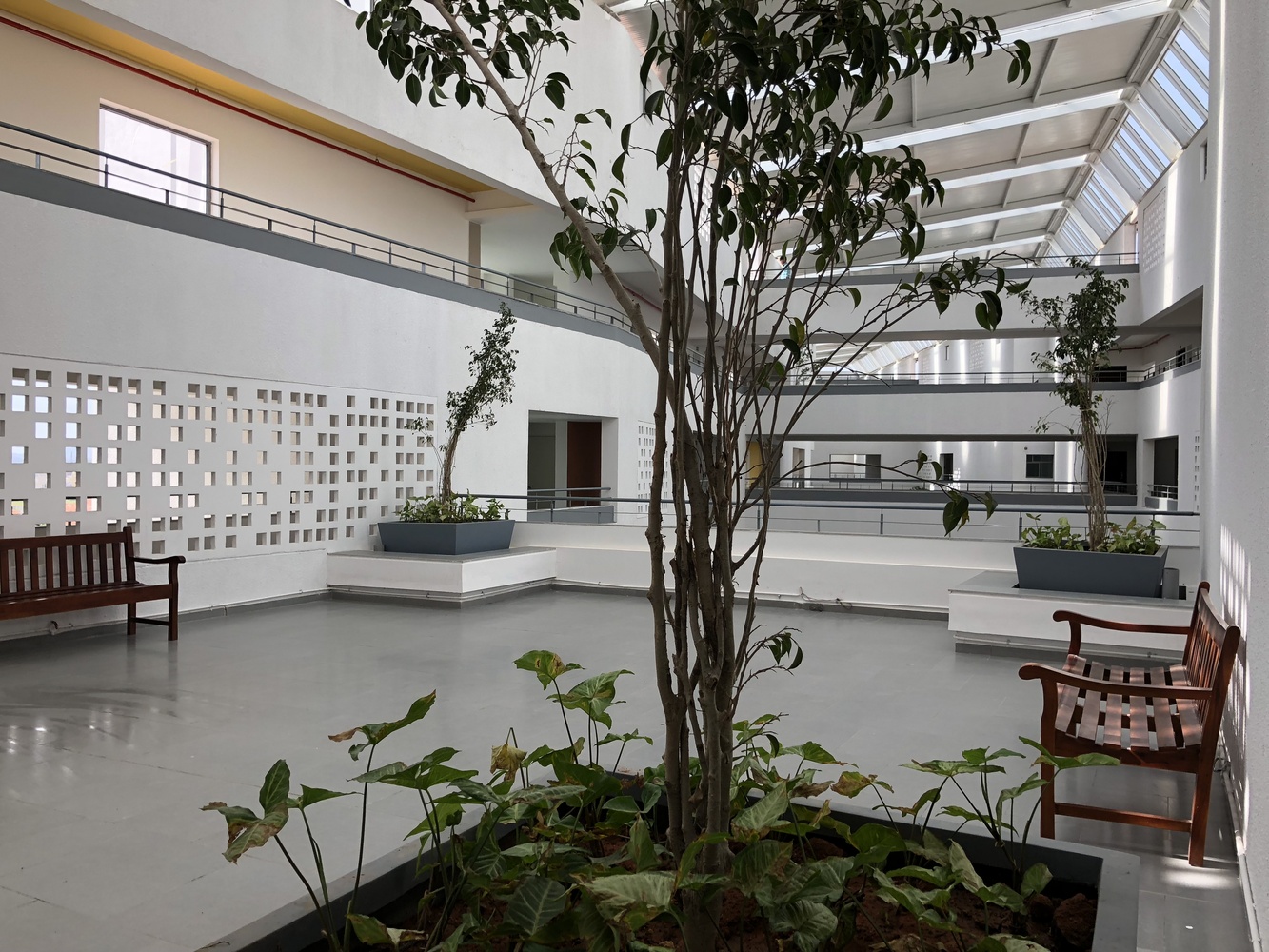

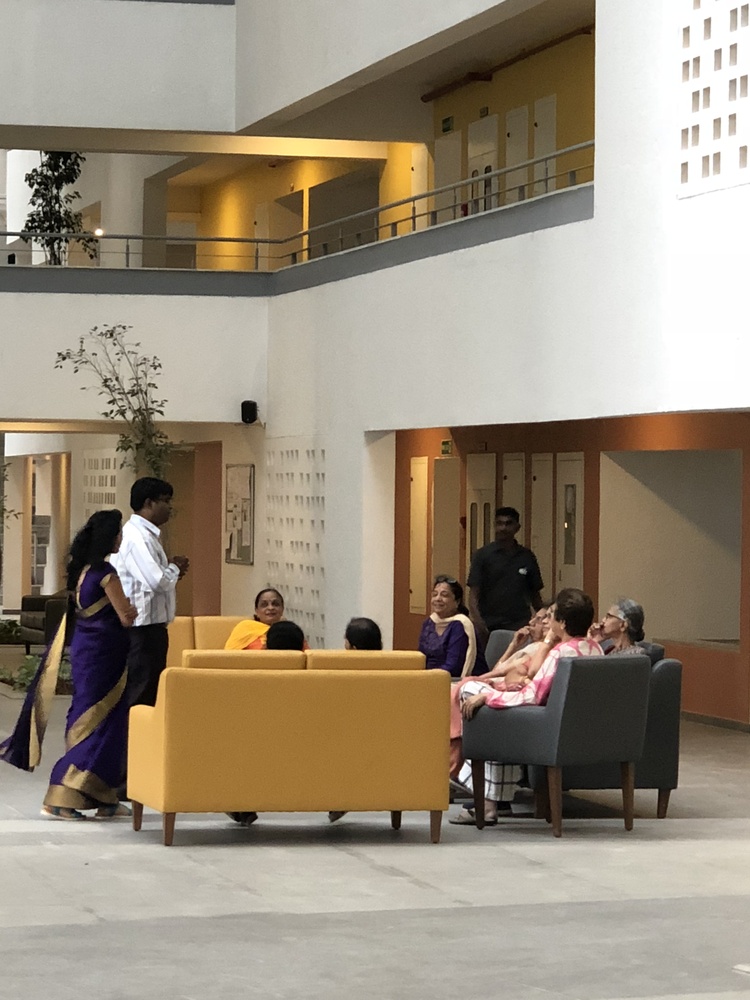

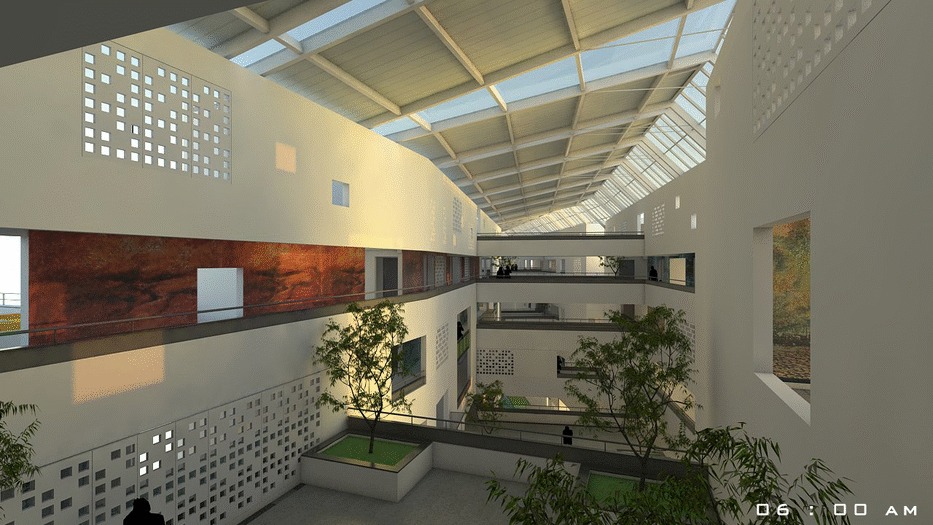

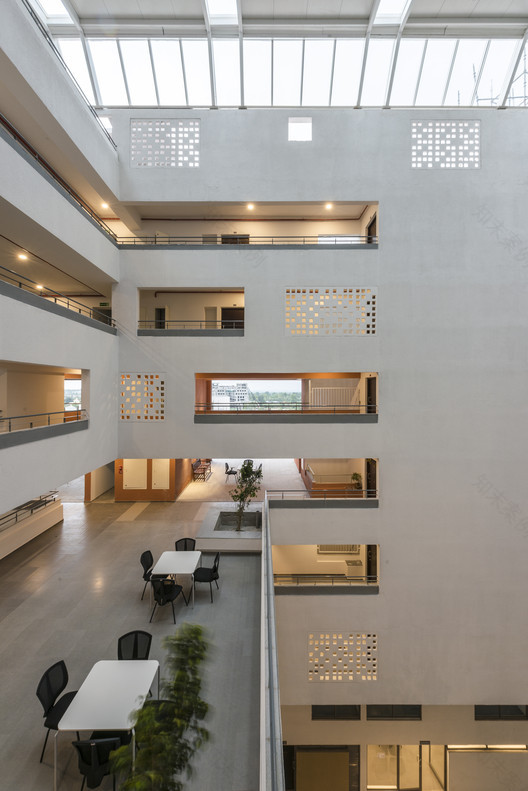

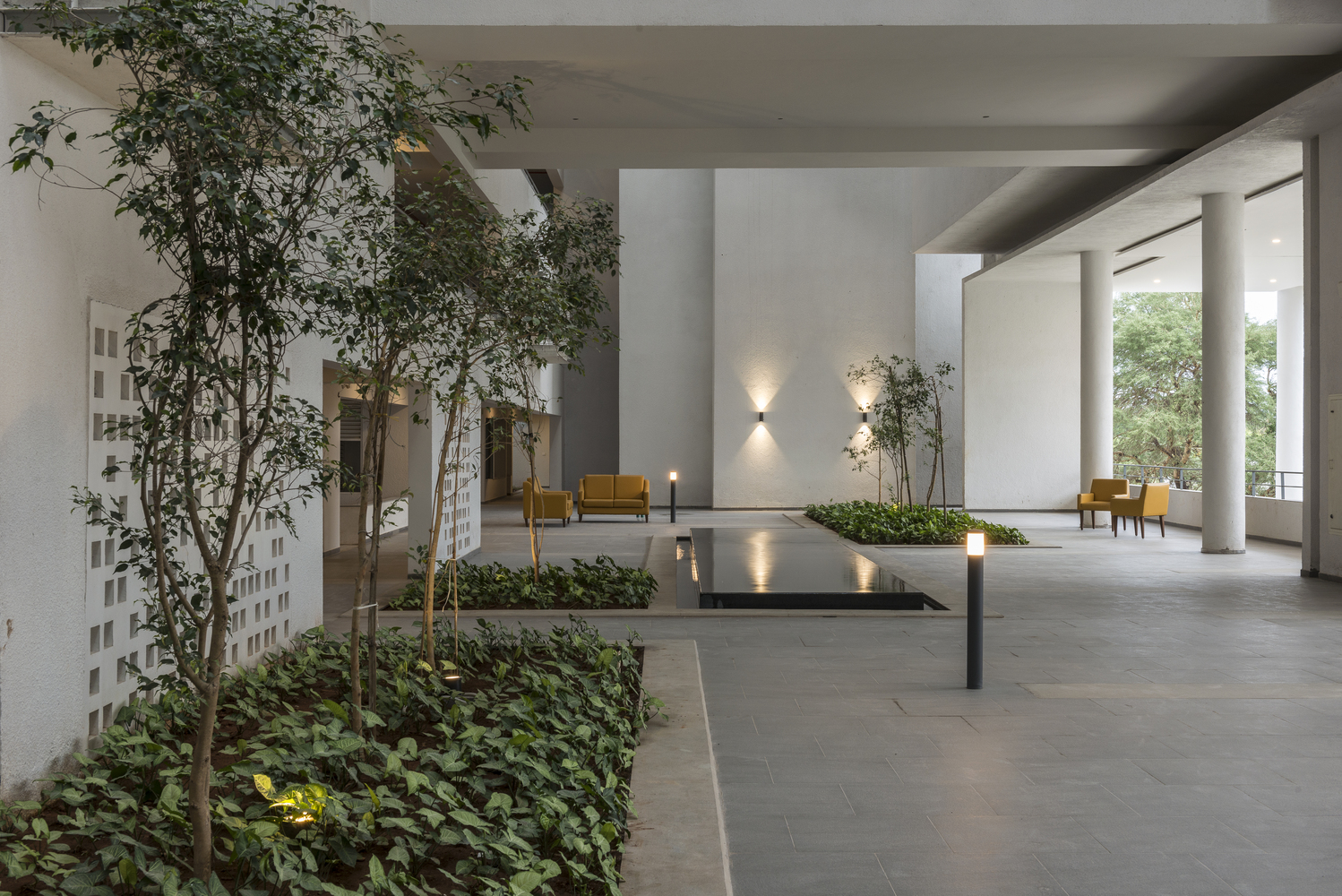

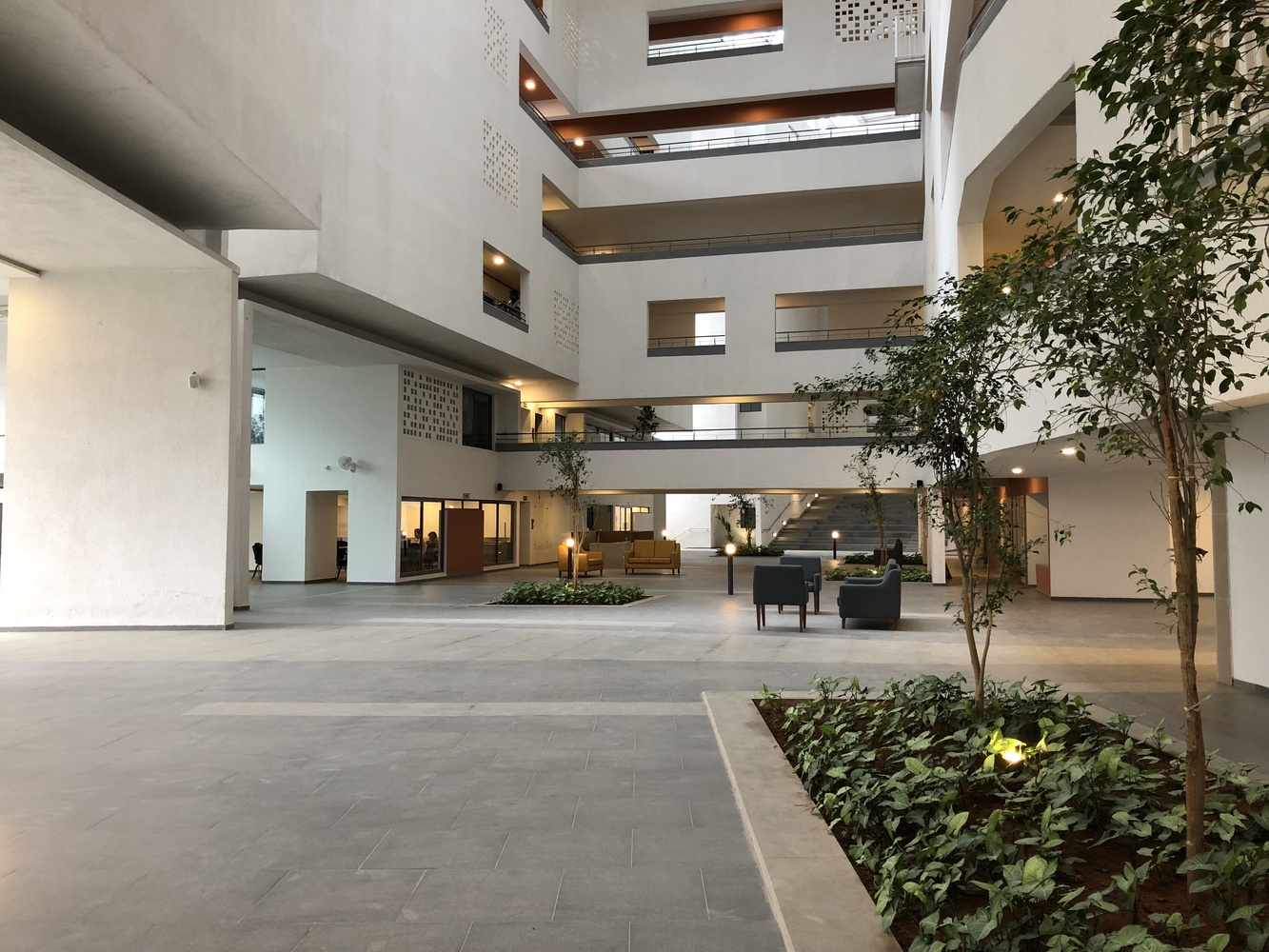

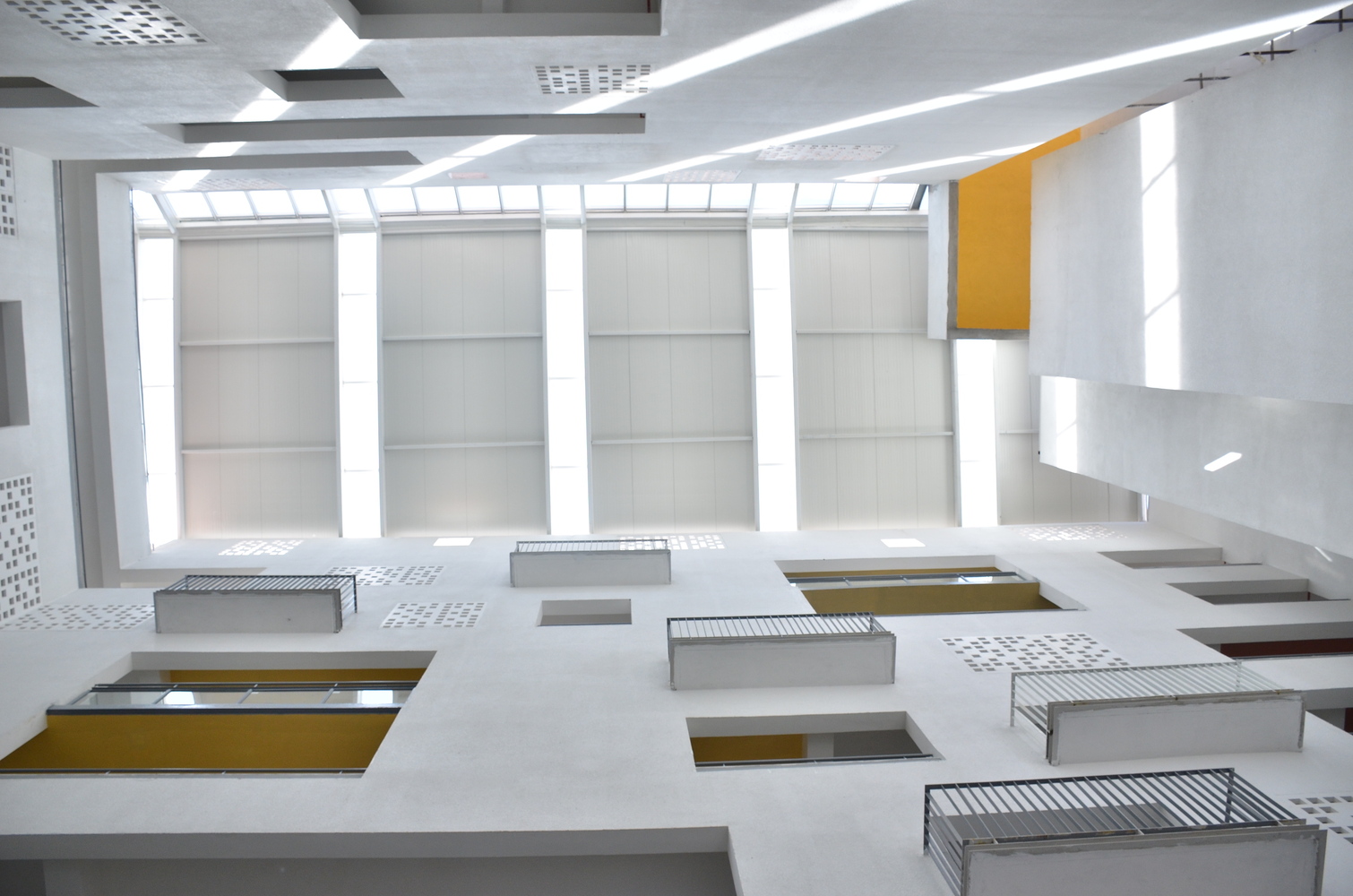

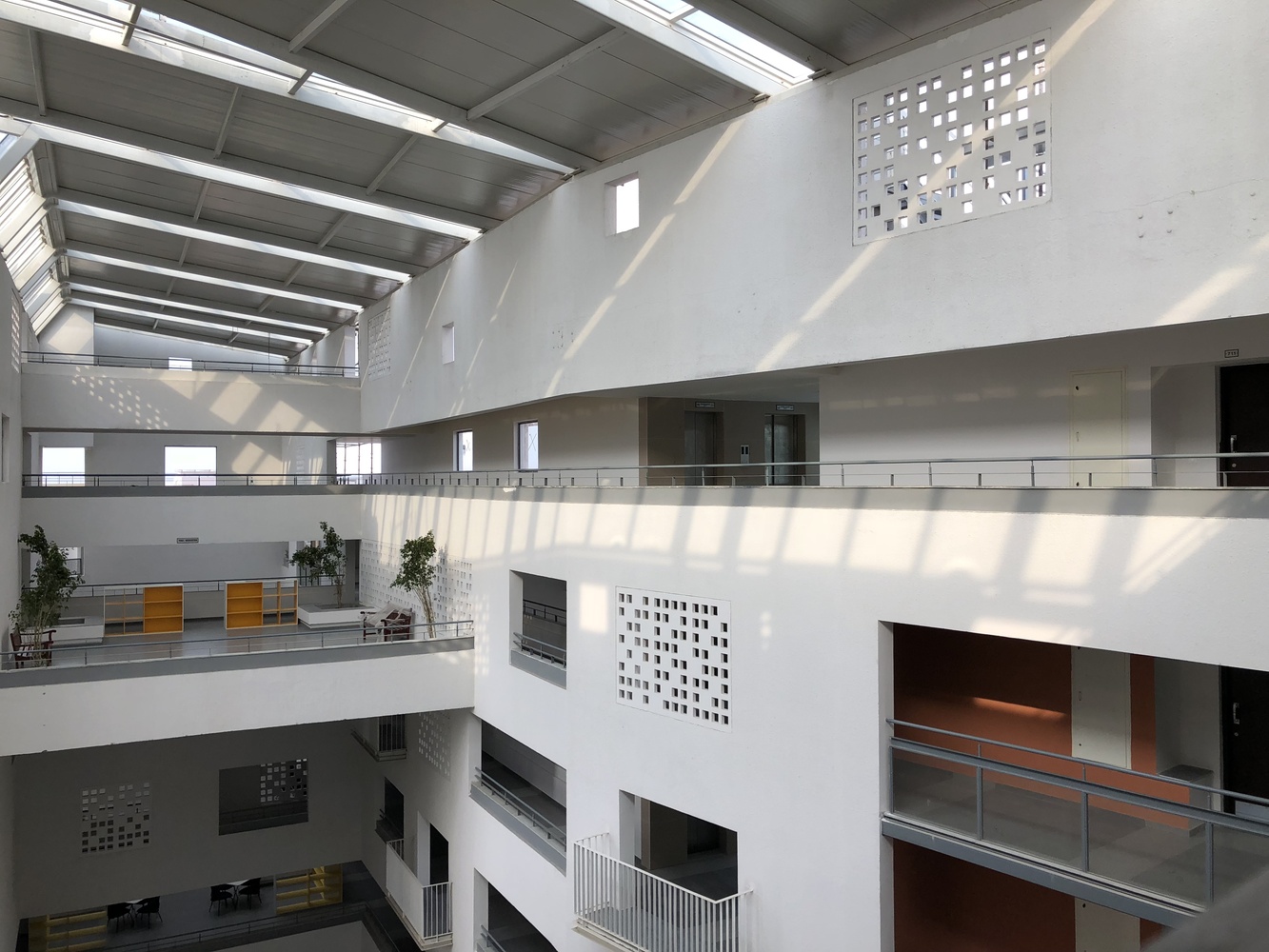

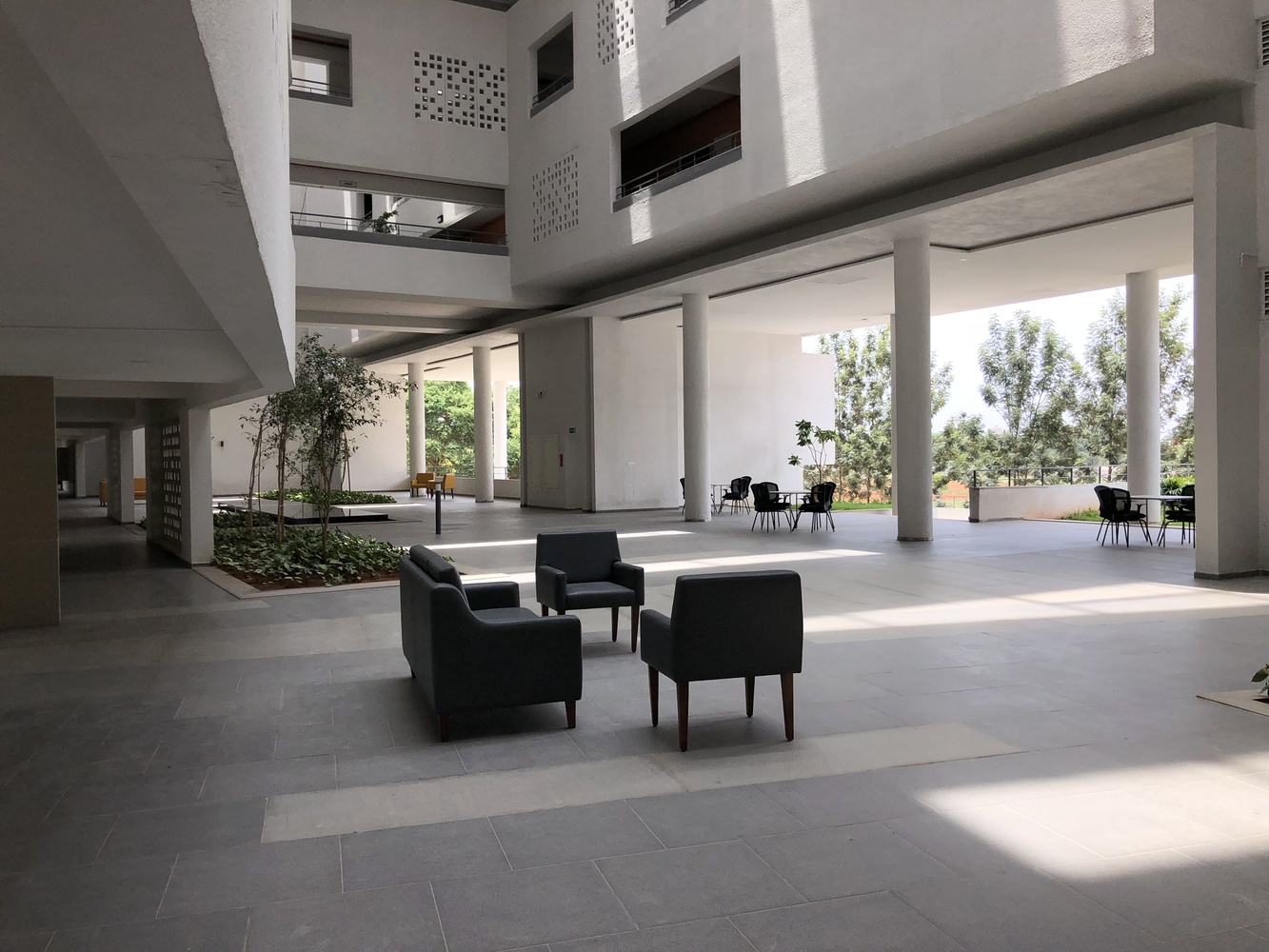

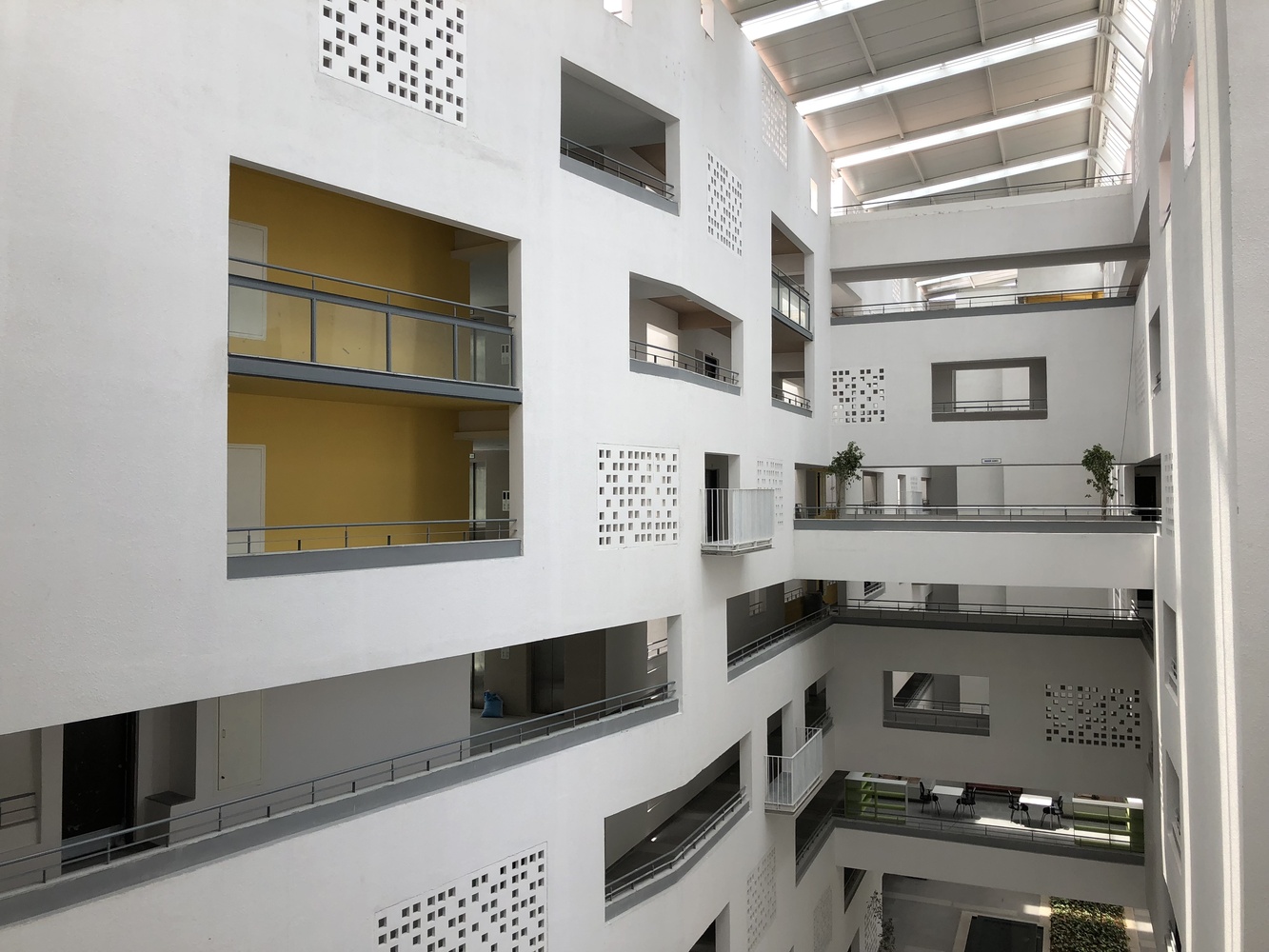

Podium level houses common activities like reception, waiting lounge, common dining and kitchen along with landscaped areas and water bodies. An amphitheatre on the podium opening out to the central atrium is provided to enjoy cultural events, with varying natural light, The atrium skylight is designed in a way to bring in eastern light and avoid glare. The varying light quality and animated shadows on wall surfaces further enlivens the space.

Podium level houses common activities like reception, waiting lounge, common dining and kitchen along with landscaped areas and water bodies. An amphitheatre on the podium opening out to the central atrium is provided to enjoy cultural events, with varying natural light, The atrium skylight is designed in a way to bring in eastern light and avoid glare. The varying light quality and animated shadows on wall surfaces further enlivens the space.

从领奖台上看，一个阶梯广场通向现有的温度，这就像一个社交聚会的空间，举行佛教，瑜伽和冥想活动。立面是与重叠的双高度体积，强调与颜色，以视觉缩放十层正面。Parkside的空间允许最终用户参与紧密结合的社区生活的活力。

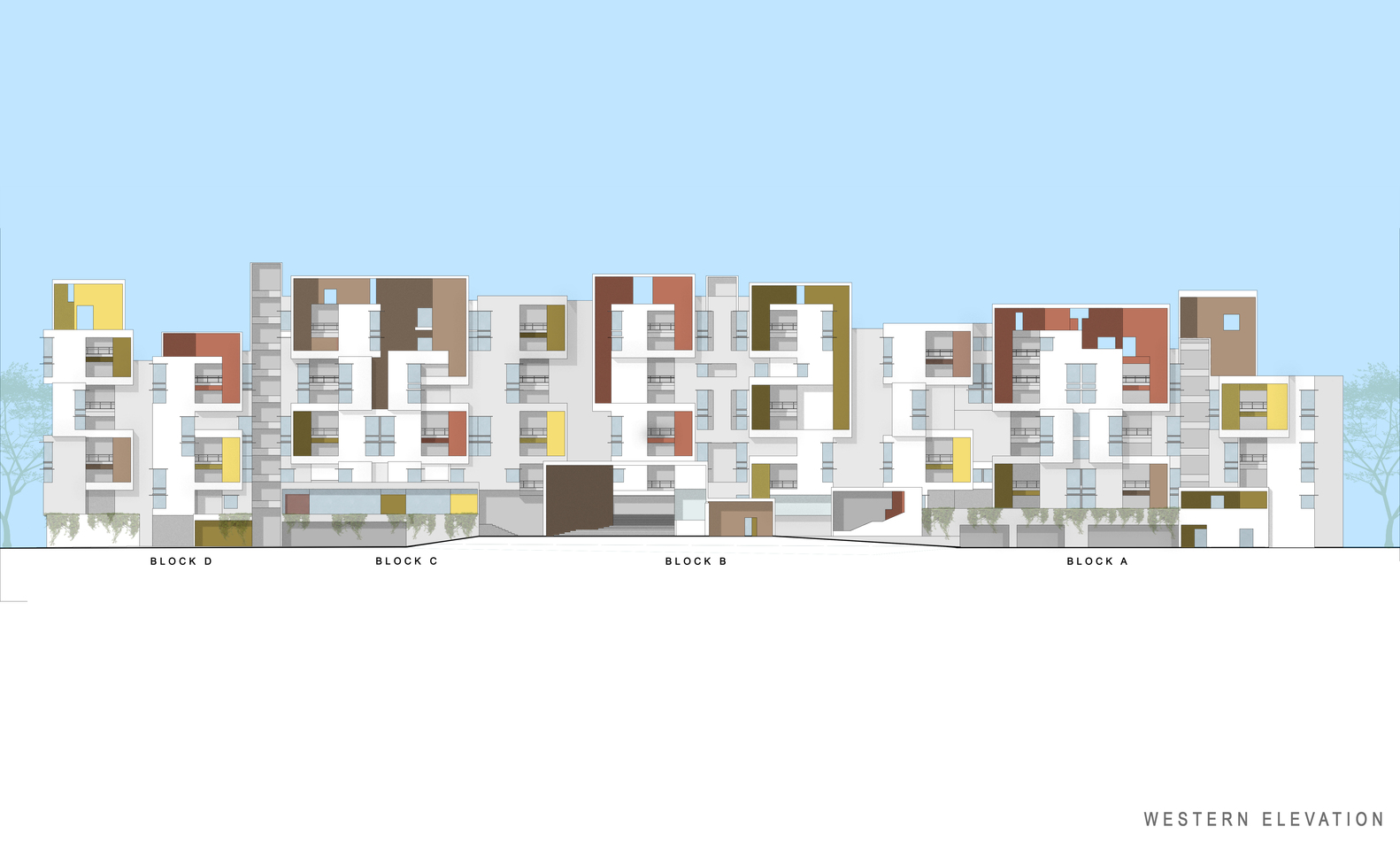

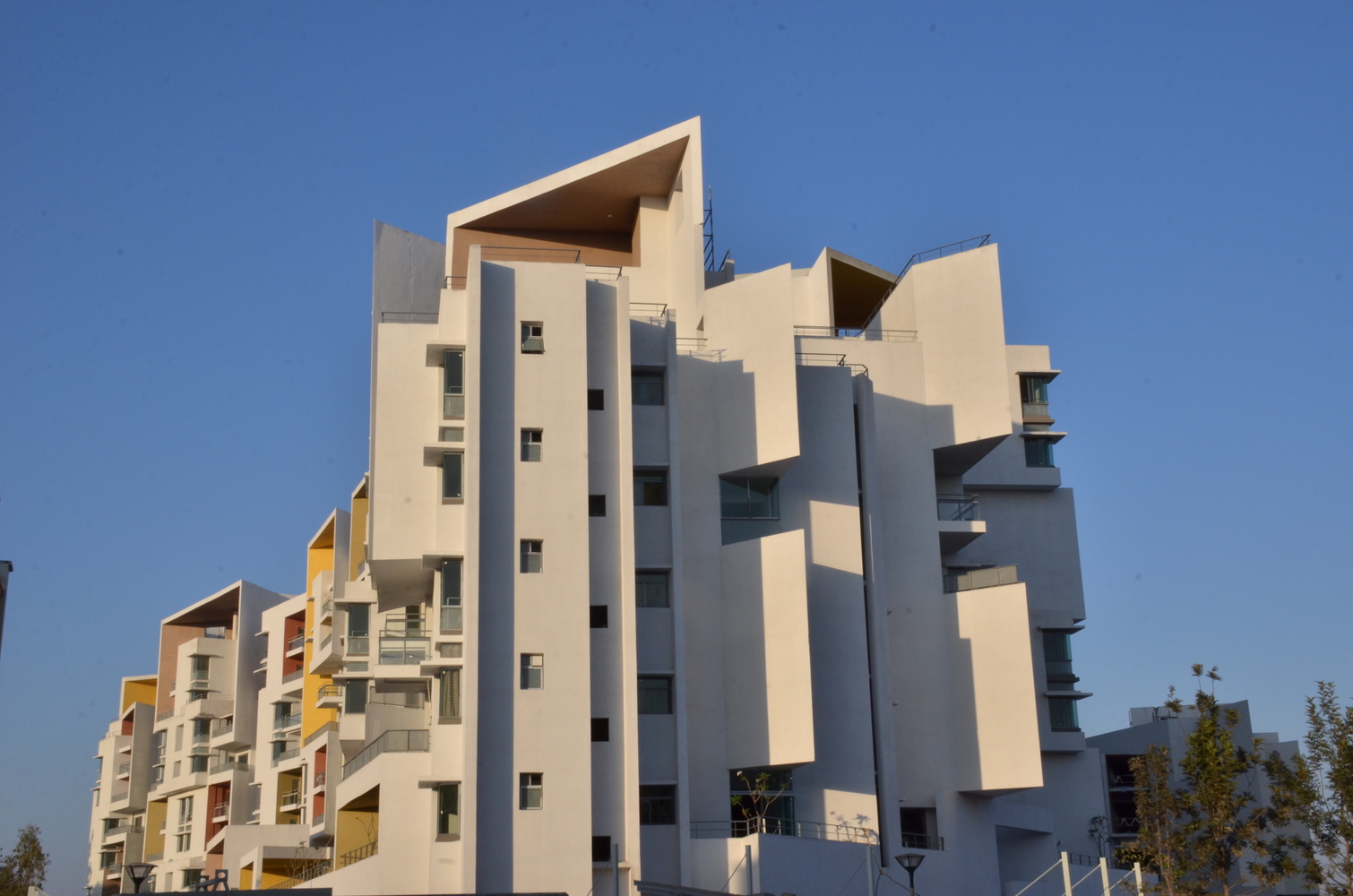

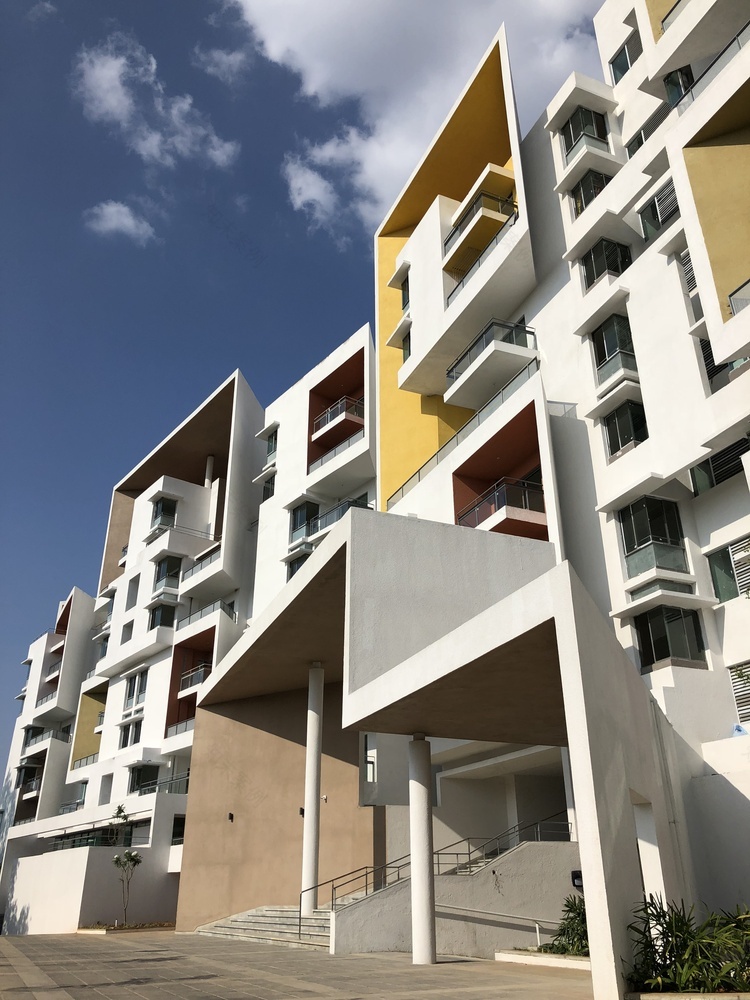

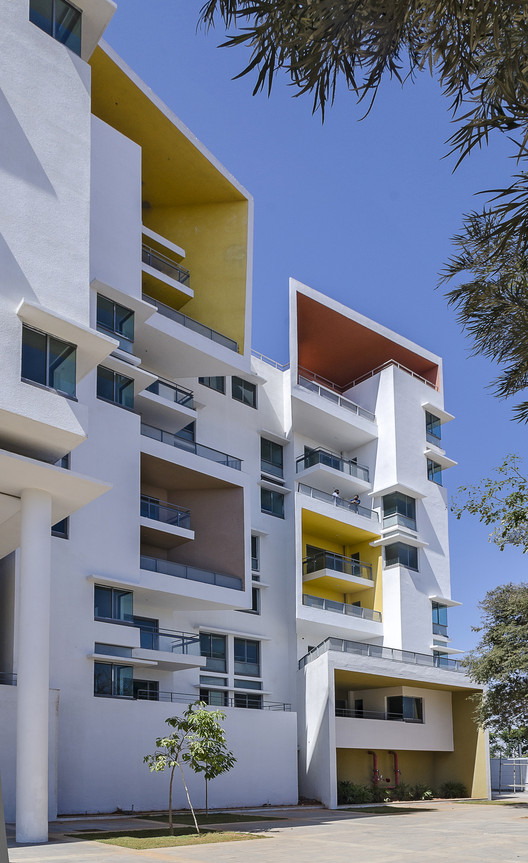

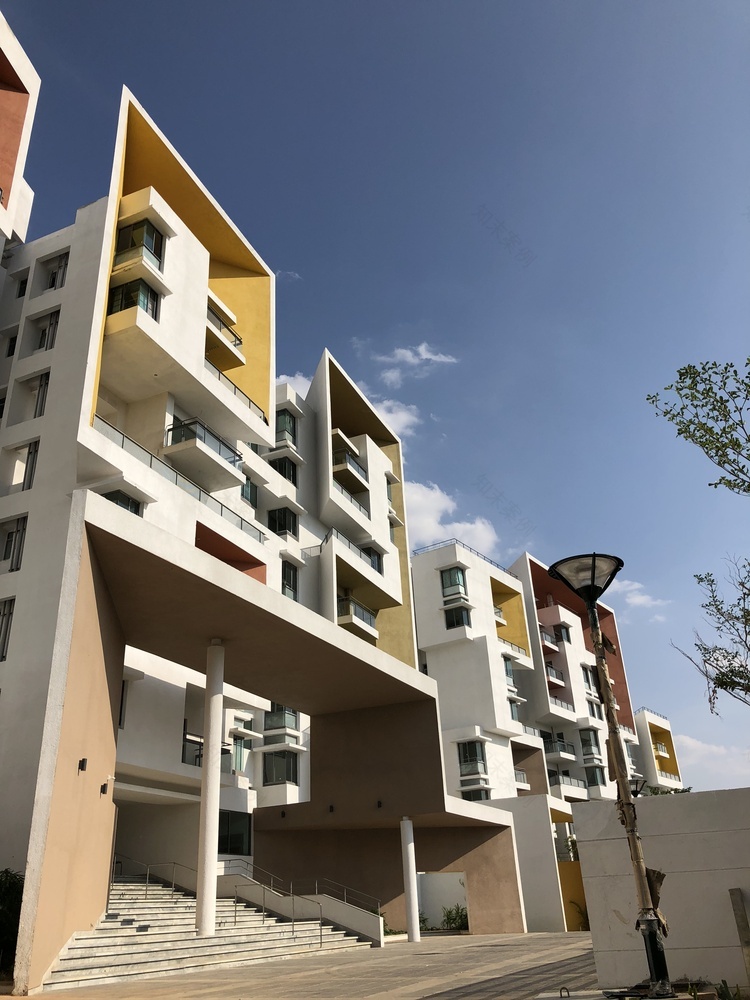

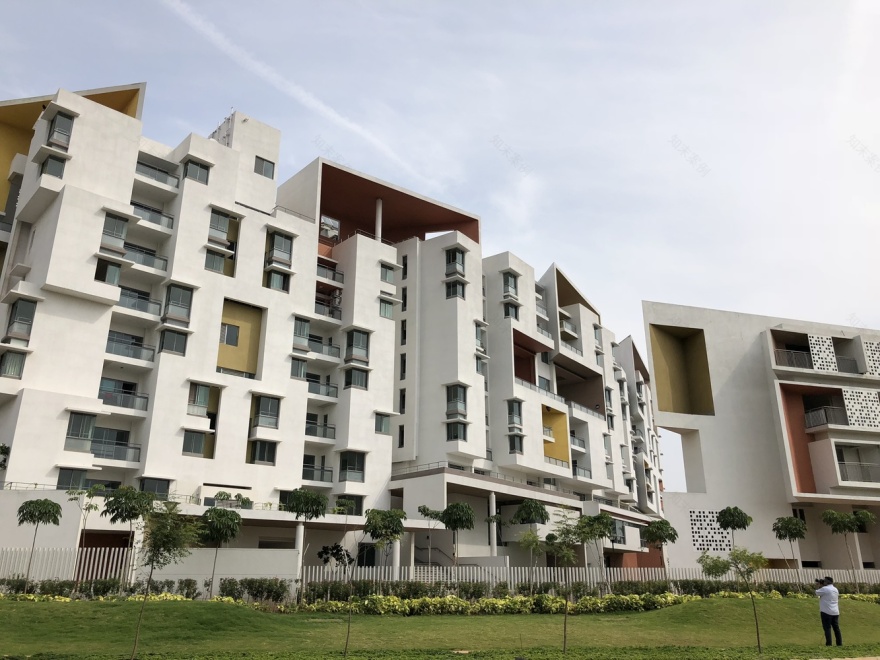

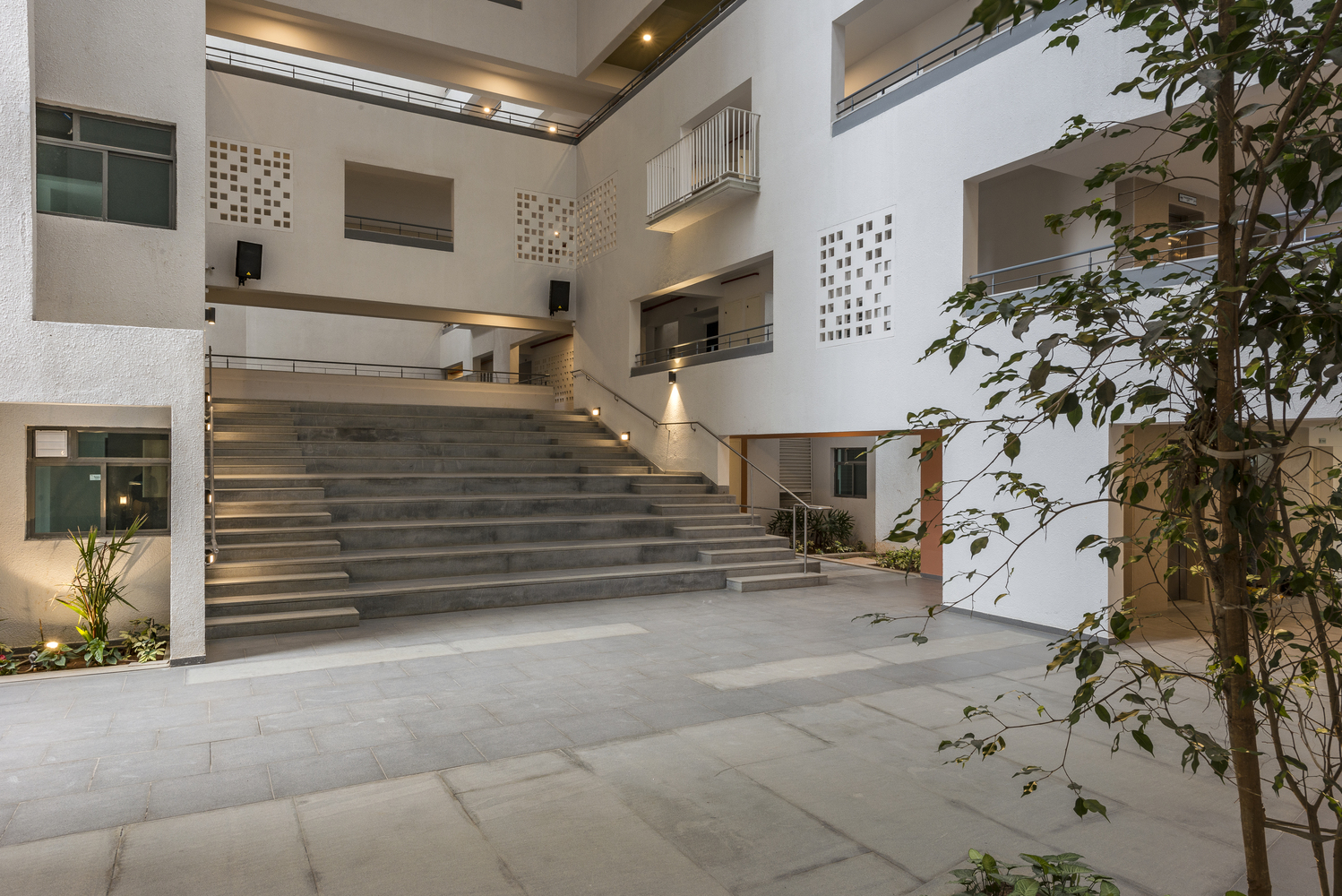

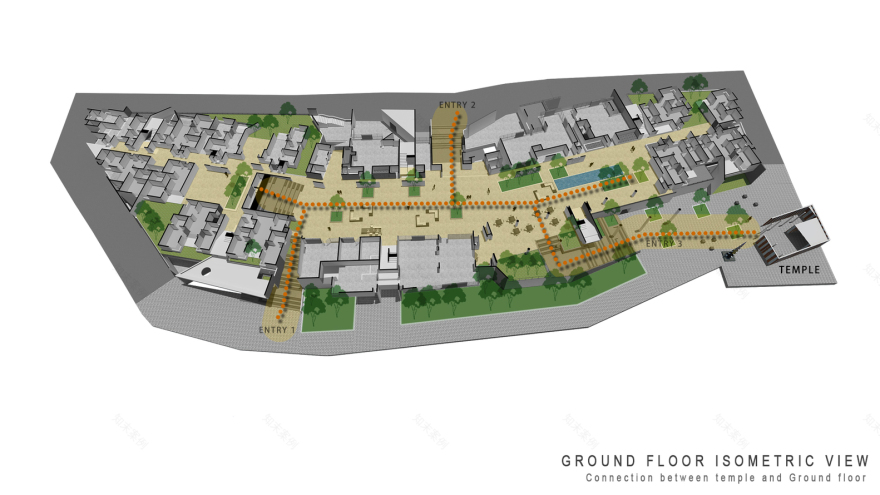

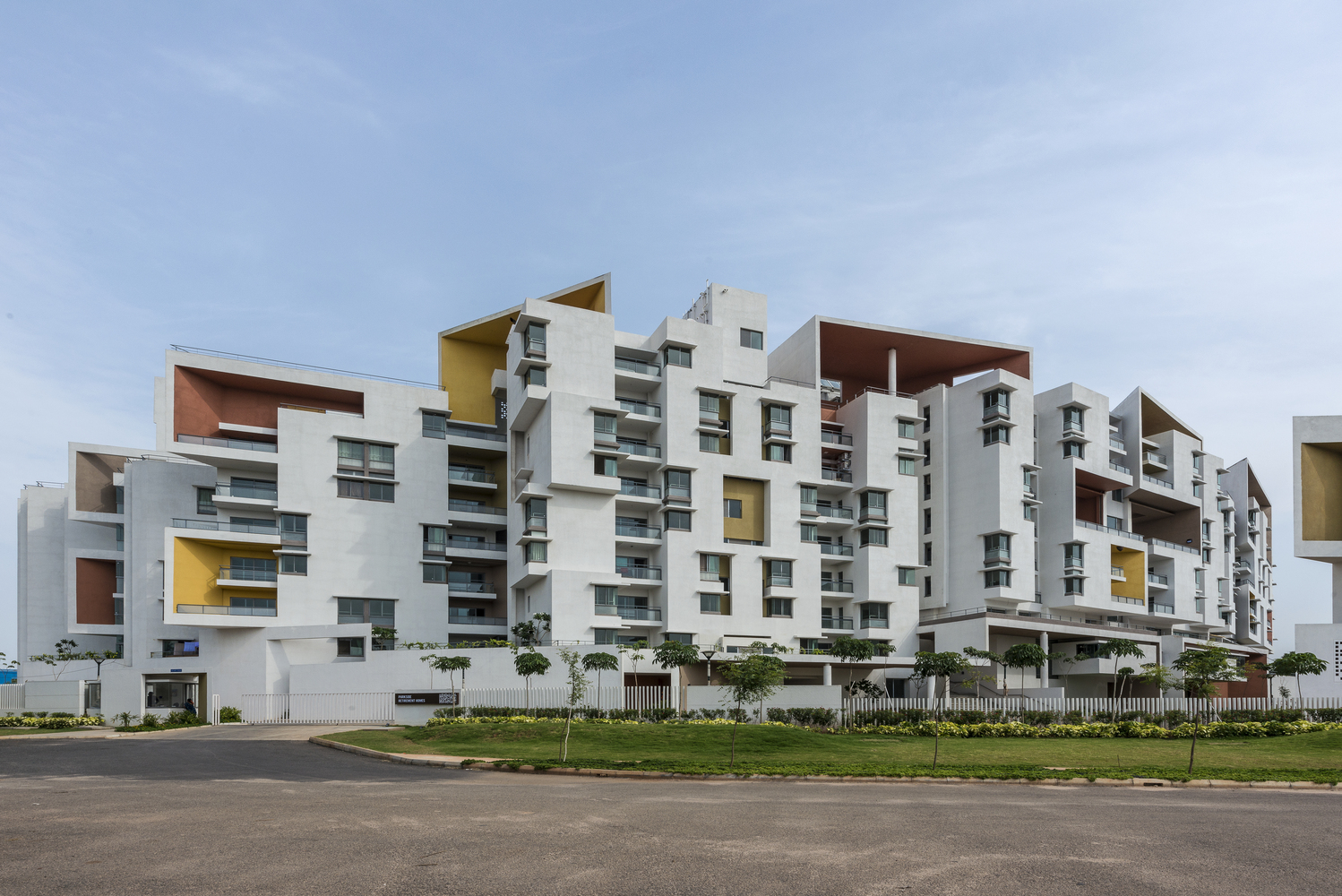

From the podium level, a stepped plaza leads to the existing temple.This behaves like a social gathering space to hold bhajans, yoga and meditation activities. The facade is articulated with overlapping double height volumes accentuated with colors to visually scale down the ten floor facade. The spaces in Parkside allow the end users to engage the vibrancy of a close-knit community life.

From the podium level, a stepped plaza leads to the existing temple.This behaves like a social gathering space to hold bhajans, yoga and meditation activities. The facade is articulated with overlapping double height volumes accentuated with colors to visually scale down the ten floor facade. The spaces in Parkside allow the end users to engage the vibrancy of a close-knit community life.

© PHX india, Mindspace

印度PHX，Mindspace

Architects Mindspace

Location NH 207, Boodigere Road, Brigade Orchards Spinal Road, Devanahalli, Bangalore, Karnataka 562110, India

Lead Architects Sanjay Mohe, Avinash Ankalge, Sravani Vobilisetty, Gowtham Srinath

Landscape Designers Design Milieu

Area 3000000.0 ft2

Project Year 2018

Photographs PHX india, Mindspace

Category Apartments

Manufacturers Loading...
