森林中的树屋公寓

架构师提供的文本描述。树屋是一座7层69单元的多家庭公寓楼，坐落在俄勒冈州健康的Marquam Hill校区的一处陡峭的森林中。

Text description provided by the architects. Treehouse is a 7-story, 69-unit, multi-family apartment building located on a steeply forested site on the Marquam Hill campus of the Oregon Health & Science University (OSHU) in Portland. The project program provides housing for OHSU staff, students, and affiliates who are interested in a live/work/no-commute lifestyle, as well as a new retail destination on the ground floor.

© Lara Swimmer

劳拉游泳运动员

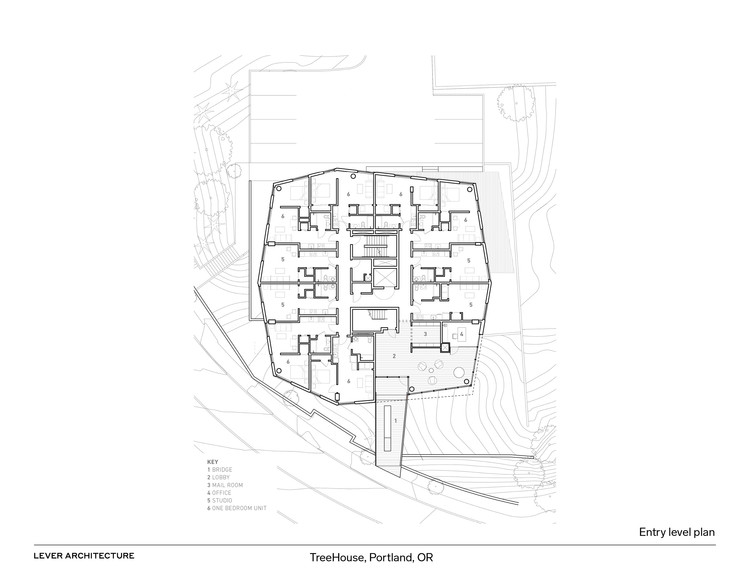

Floor Plan

© Lara Swimmer

劳拉游泳运动员

该设计将校园建筑设置为森林中的“圆形”物体，将校园的城市和地形品质连接起来。这座建筑是按照景观雕刻的，而不是砍进小山。从内部入口大厅，森林景观的经验是框架。从外部，建筑物连接上层桥梁入口到较低层次的零售和雨水花园景观和甲板，以减轻所有雨水径流。

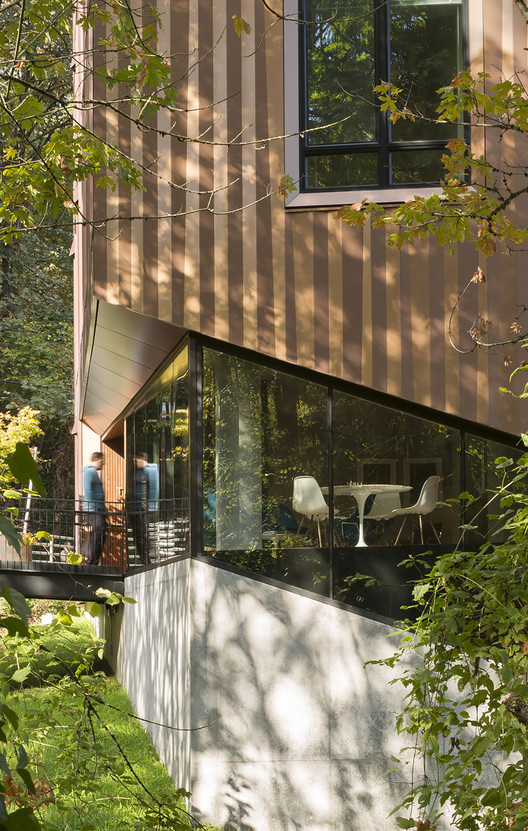

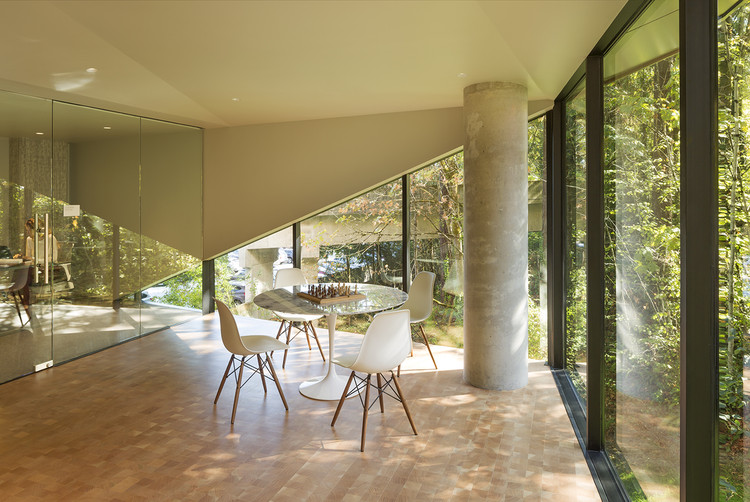

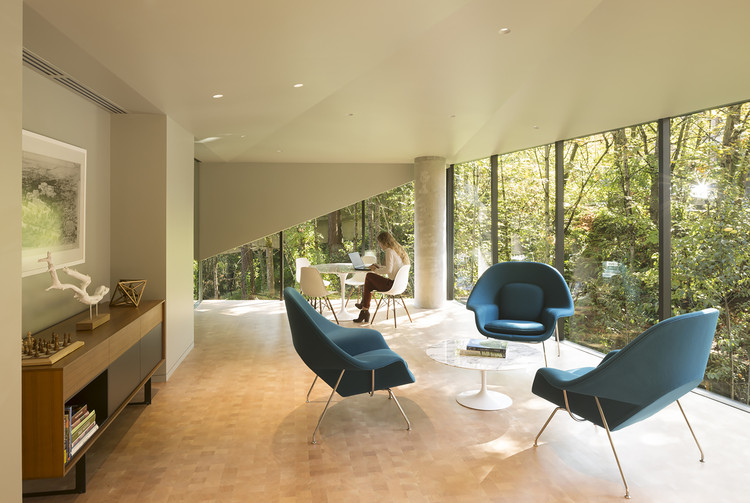

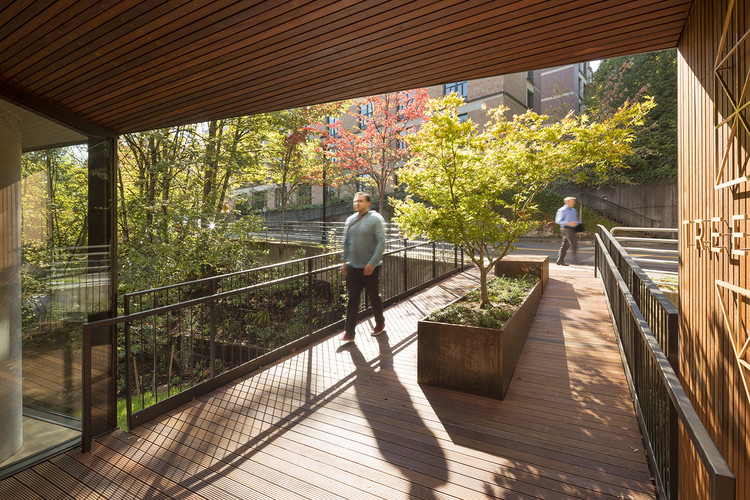

The design bridges the urban and topographical qualities of the campus by placing the building as an “in the round” object in the forest. Instead of cutting into the hill, the building form is carved to follow the landscape. From the interior entry lobby, the experience of the forested landscape is framed. From the exterior, the building connects the upper-level bridge entry to the lower level retail and rain garden landscape and deck that mitigates all stormwater runoff.

© Lara Swimmer

劳拉游泳运动员

这些单元被设计成一系列的联锁卷，集中在一个紧凑的中央核心上。这一不规则的八角形计划是由规定的挫折点驱动的，这些挫折点是为了在建筑物的每一面上玻璃所必需的。窗户被精心布置，以使工作室和一间卧室公寓的阳光和空间最大化。

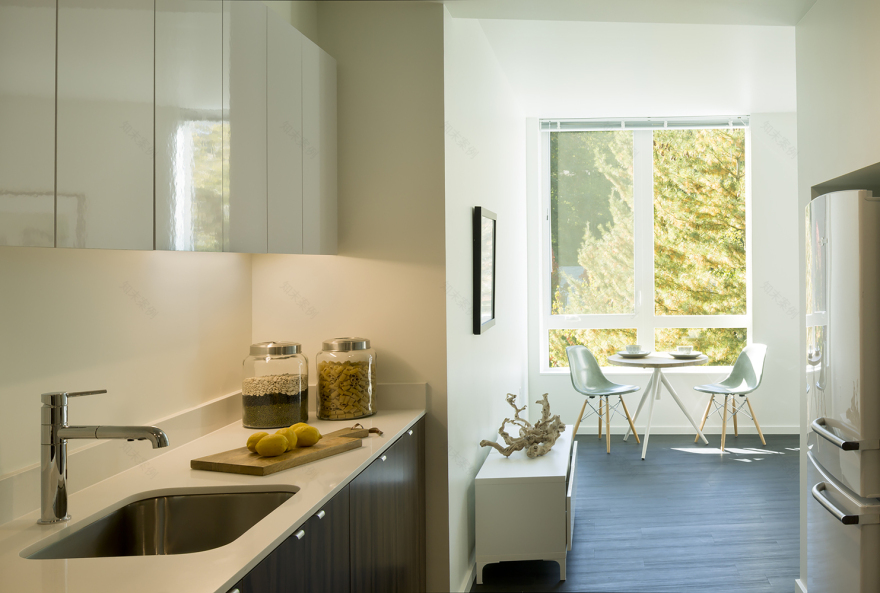

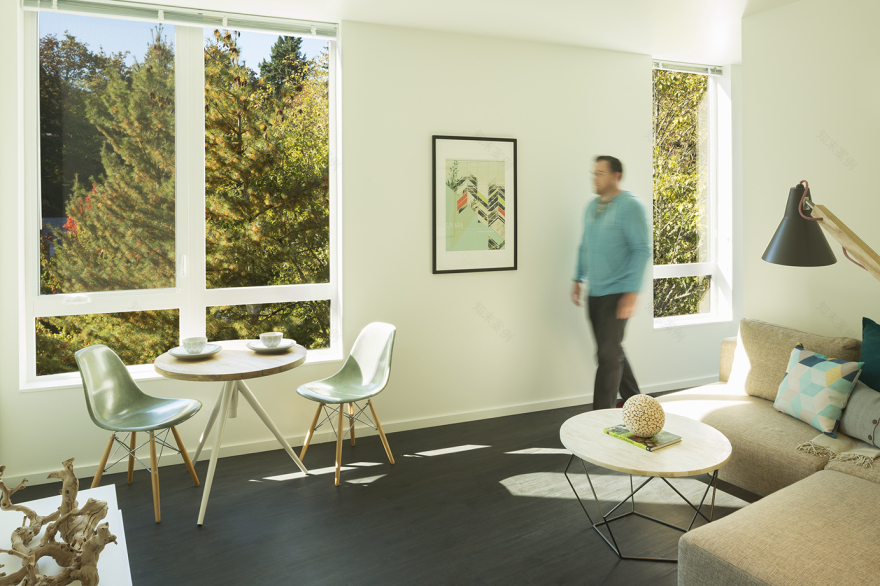

The units are designed as a series of interlocking volumes arranged around a compact central core. The irregular octagonal plan was driven by mandated setback points required to allow for glazing on every face of the building. Windows have been carefully placed to maximize daylight and spaciousness in the studio and one bedroom flats.

© Lara Swimmer

劳拉游泳运动员

建筑物的立面受到森林的纹理和光线的启发。一个连续的建筑表皮是通过在定制窗口周围加入所有的膨胀节来消除楼层的表达。特别注意的是框架，以便能够精确地将窗户放置在角落，以及通过外观通风的细节。皮肤有一个一致的纹理和模式，但有意的变化，使外观的一个动态的质量，随着你在它的移动，并随着时间的一天。

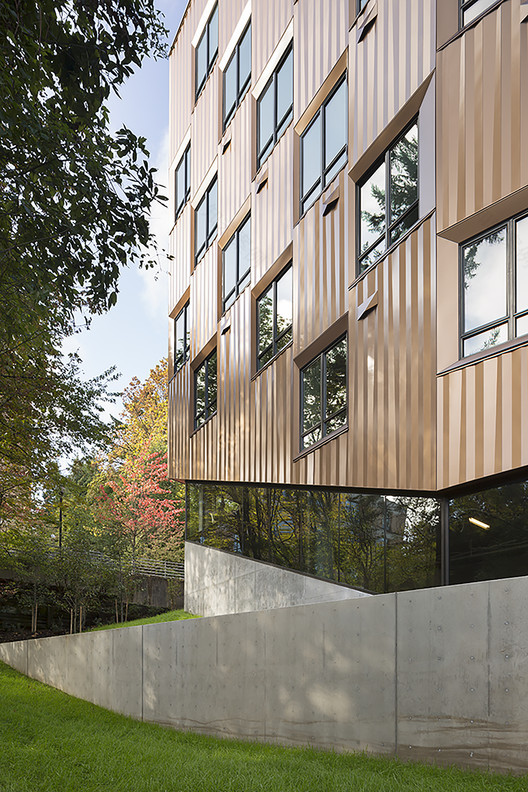

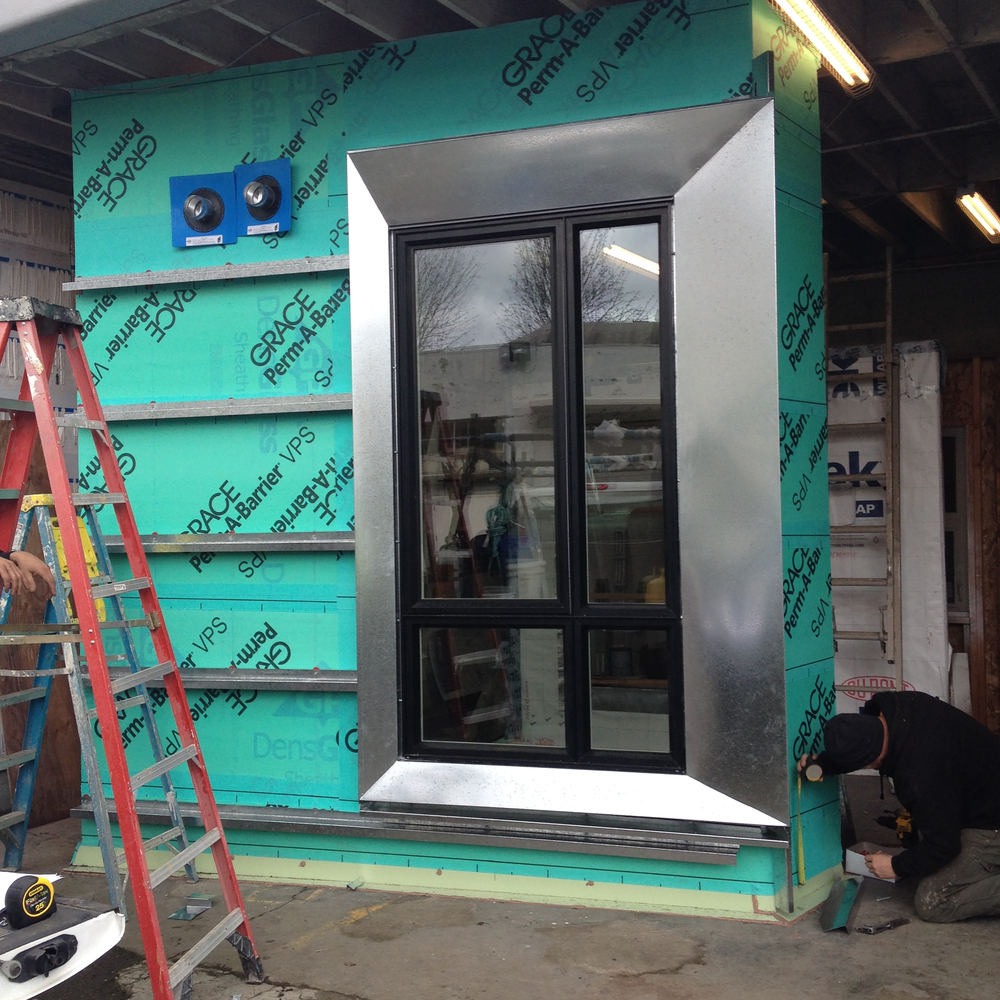

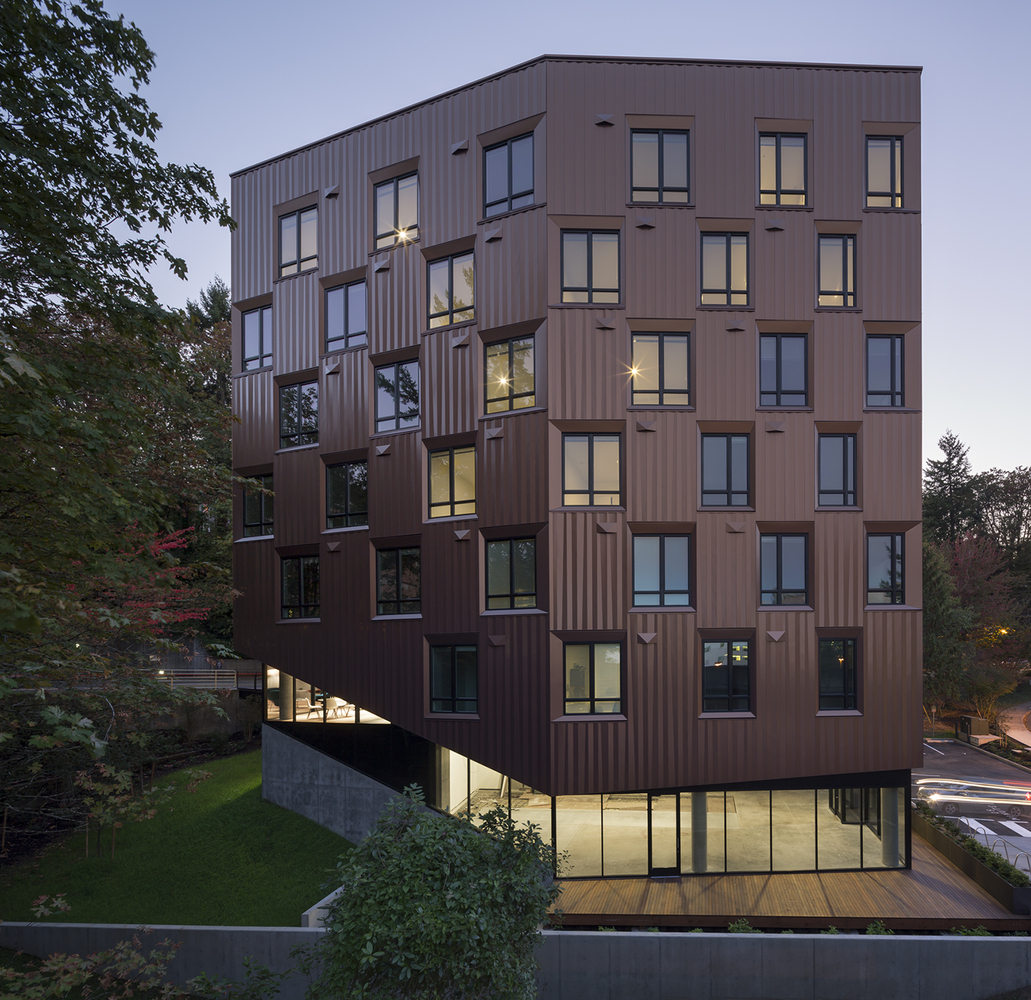

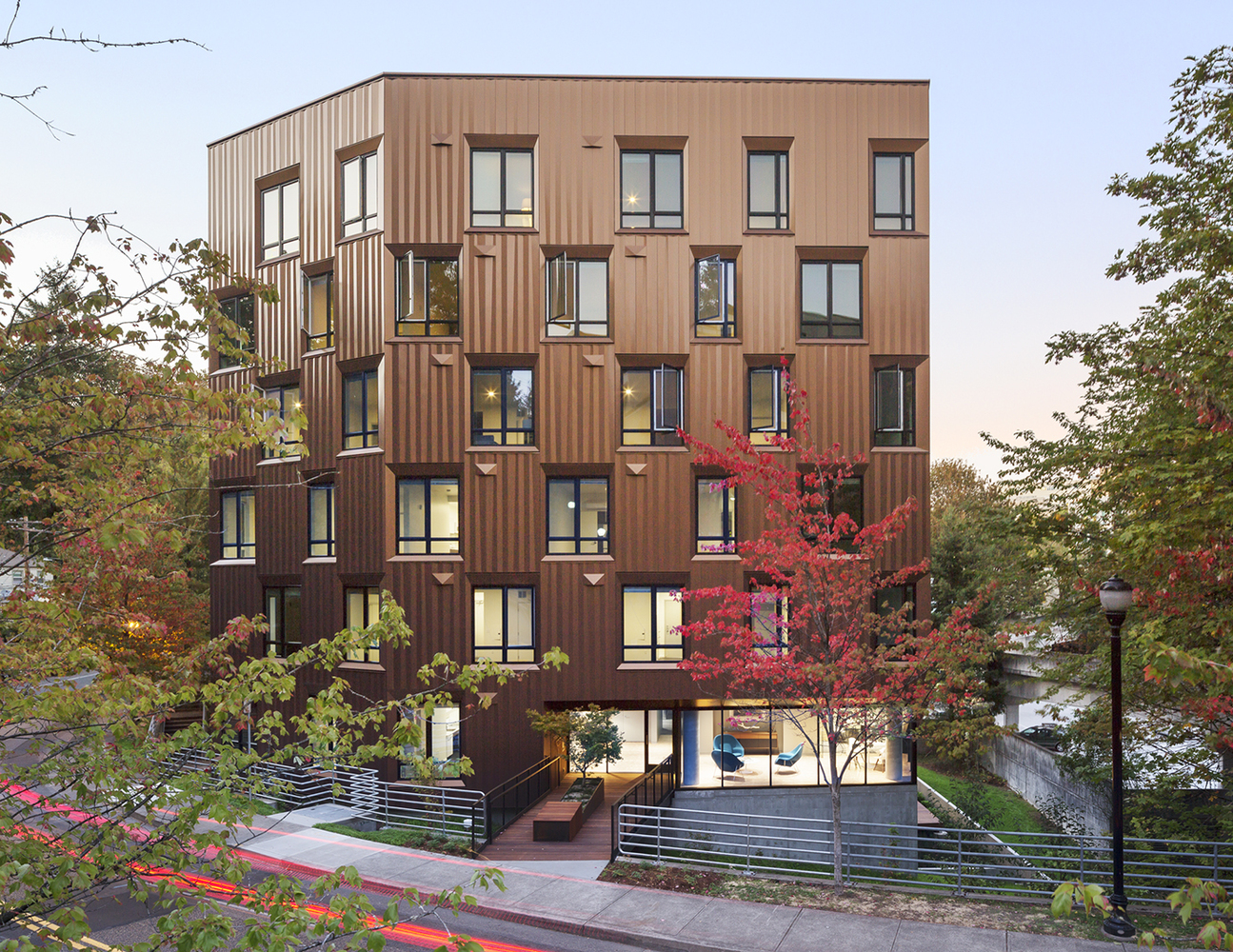

The façade of the building is inspired by the textures and light of the forest. A continuous carved building skin is achieved by eliminating the expression of floor levels by incorporating all expansion joints into the custom window surrounds.  Special attention was paid to the framing to allow for the precise placement of the windows at the corners, as well as the detailing of thru façade venting. The skin has a consistent texture and pattern but intentional variety that gives the façade a dynamic quality that changes as you move along and around it and with the time of day.

© Lara Swimmer

劳拉游泳运动员

Architects LEVER Architecture

Location Portland, OR, United States

Lead Architects Thomas Robinson, Jonathan Heppner, Doug Sheets

Area 45000.0 ft2

Project Year 2015

Photographs Lara Swimmer

Category Apartments

Manufacturers Loading...
