哥伦比亚 Zebrano 公寓楼丨Plan b arquitectos,M+Group

Columbia Zebrano apartment

设计方：Plan b arquitectos ,M+Group

位置：哥伦比亚

分类：居住建筑

内容：实景照片

设计团队：Juan Camilo Garcés, María Clara Osorio, Carlos Blanco, Daniel Tobón, Esteban Hincapié, Santiago Mora

委托方：Ríos Constructores

图片：30张

摄影师：Alejandro Arango, Vásquez Villegas Fotografía

这是由Plan b arquitectos与M+Group联合设计的Zebrano公寓楼。该建筑坐落于一个形状不规则而紧凑的场地里。为了做出更好的调整，功能分散分布在两座公寓楼的每一层，留出中央一道条状的大厅，以改变朝向从而寻求最有利的位置，遵守关于退线与毗邻建筑的视线控制等严格的城市管理规定。建筑的平面形态也是受场地影响。从剖面上看，该建筑适应了场地的高倾角，让主入口设在街道楼层，地下4层为停车场，首层以上的13层为公寓，首层则设置了阳台、公共空间、花园和游泳池。每一层的户数和户型略有不同，部分楼层设有社交空间。户型从160平方米到280平方米不等。

译者：筑龙网艾比

This building settles in plan to an irregular and tight plot which imposes its perimeter shape. For a better adjustment, the program is fragmented in to two big apartments in each level, leaving in the middle a long shaped hall which allows to change the direction, turning to find the most favorable position obeying simultaneously with a strict urban regulation regarding the setbacks and visual control towards other buildings. Its shape is also the shape of the plot.

In section the building adapts to the high inclination of the plot, leaving the main access at street level, 4 inferior levels for parking, 13 above levels of apartments and a final level with a terrace, common areas, gardens and a pool. In the first nine floors there are ten and eight apartments of one level, and in the final four floors, four apartments of two floors and double height in the social area. The area of these apartments varies between 160 and 280m2, they are thought to be for big, conventional and families with children.

Although in plan the both built volumes have variations in their orientation, in reality its main façades and most extensive, face the strong sun of the morning and afternoon in a tropical environment without seasons and constant climatic conditions. To maintain the building in shade throughout the year longitudinal and continuous eaves have been proposed. They gain and lose depth according to the spaces they protect, always widening in the social areas and in the bedrooms and decreasing in service areas. Balconies and terraces are always located in the interior of the façade’s perimeter and the windows are always positioned in between eaves. Strategic openings have been considered to favor cross ventilation in the interior of the apartments.

Before impermeable urbanism, this buildings tries to do the opposite: instead of closing itself completely inside a control fence, its outline is exposed to the street, it can be touched and it locates in the first level the access booth and premises for a café which can be used by both the neighbors and the community in general.

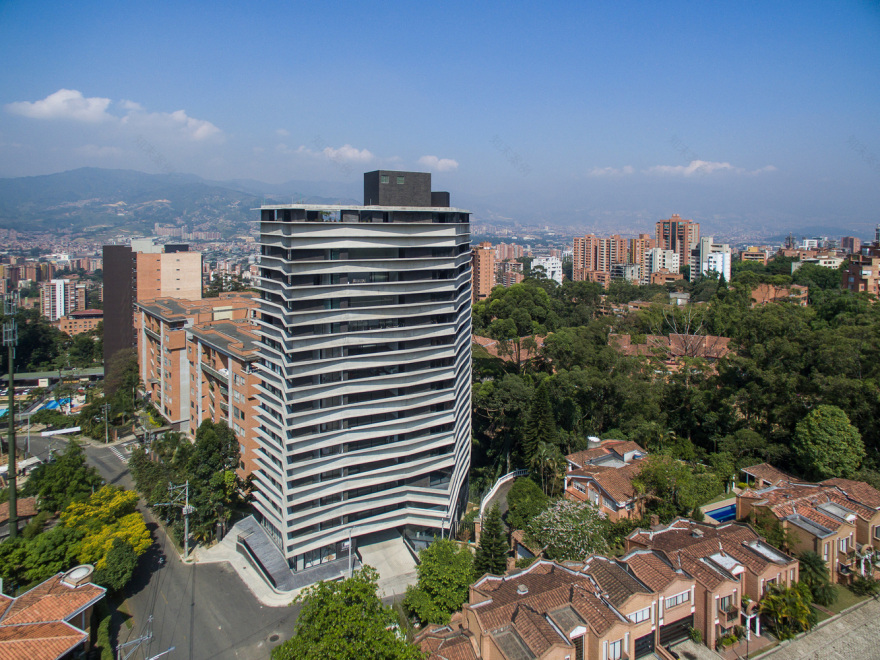

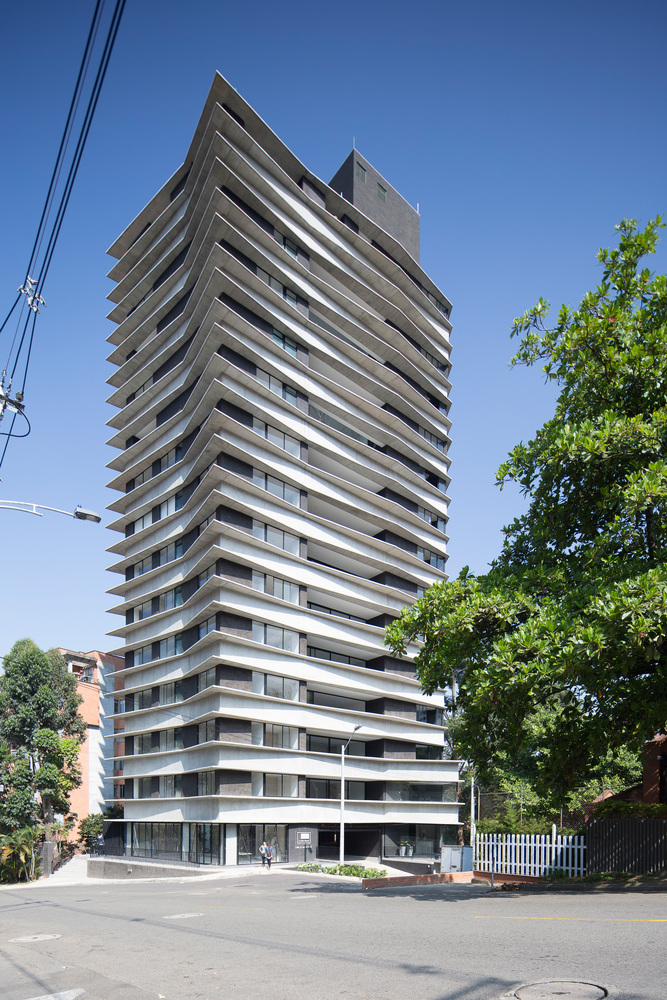

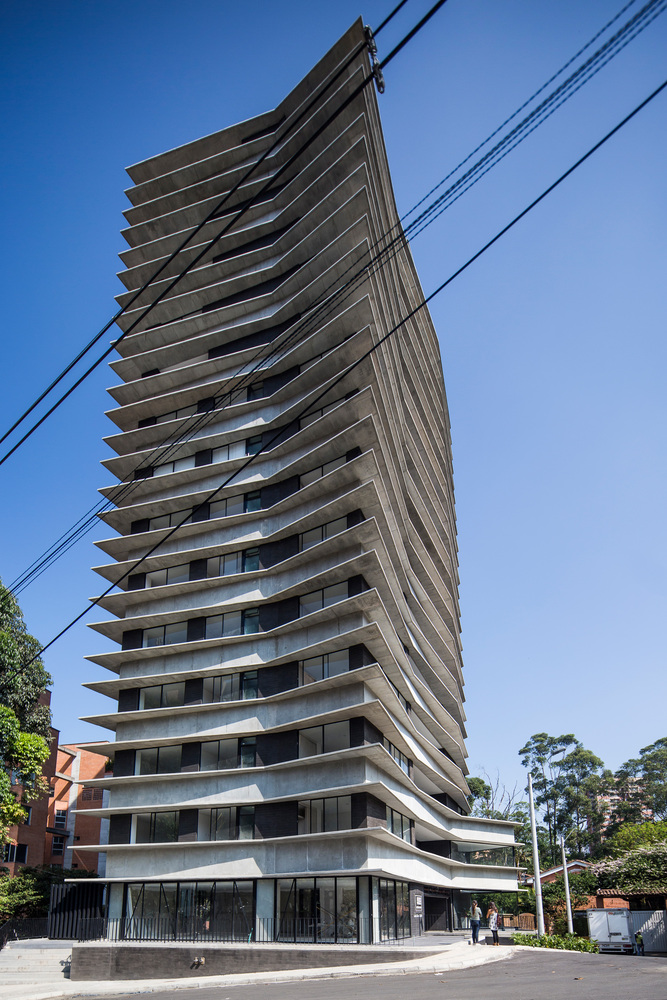

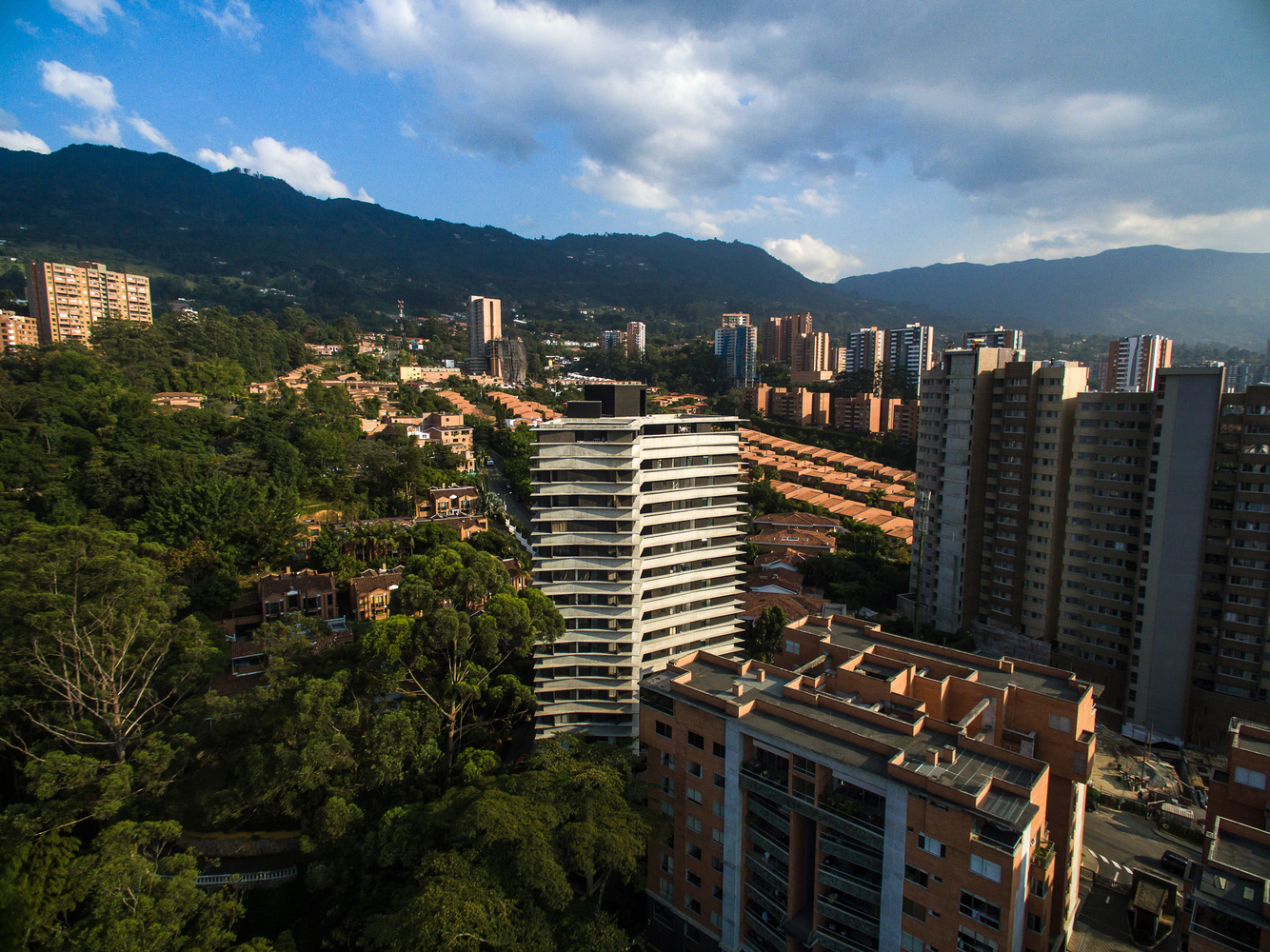

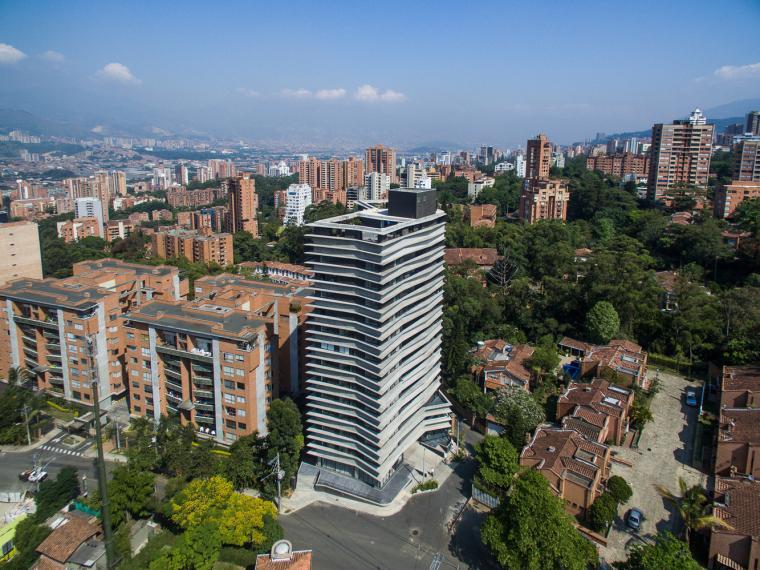

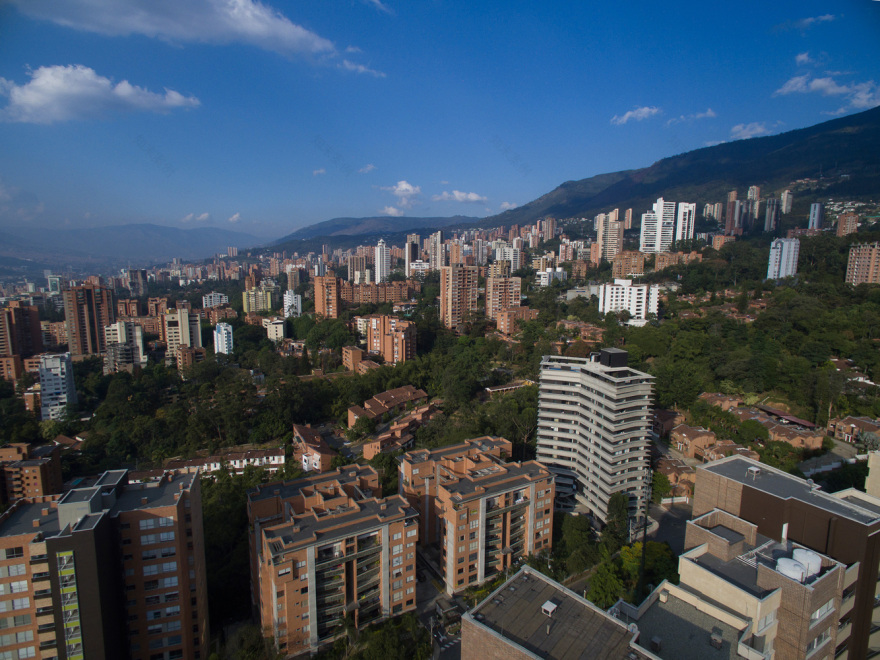

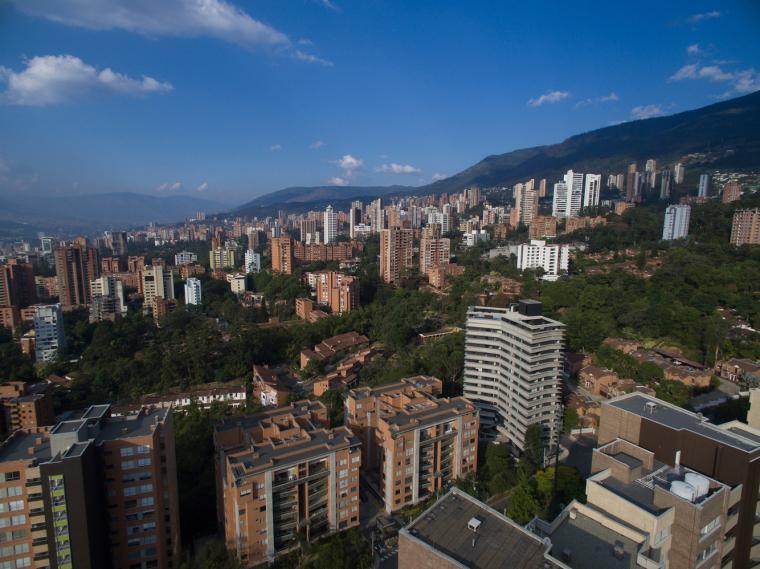

哥伦比亚Zebrano公寓楼外部实景图

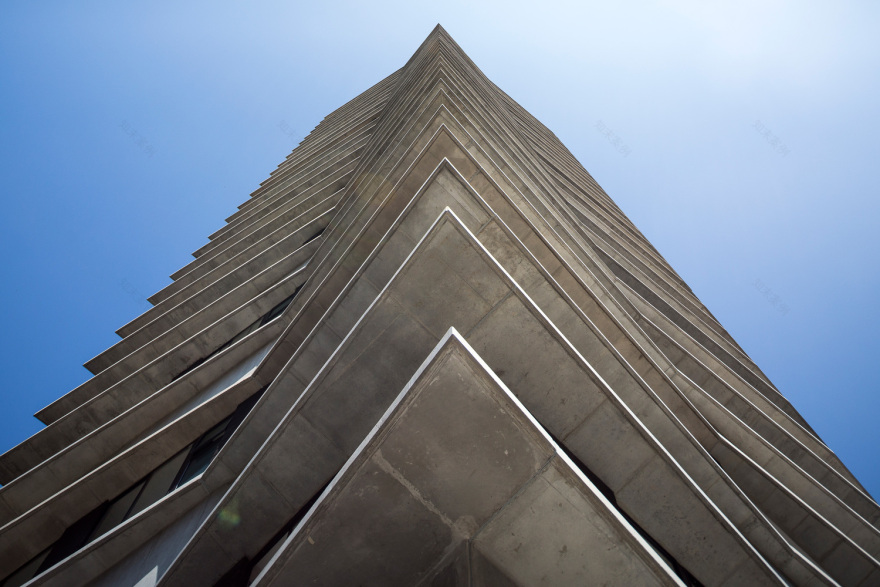

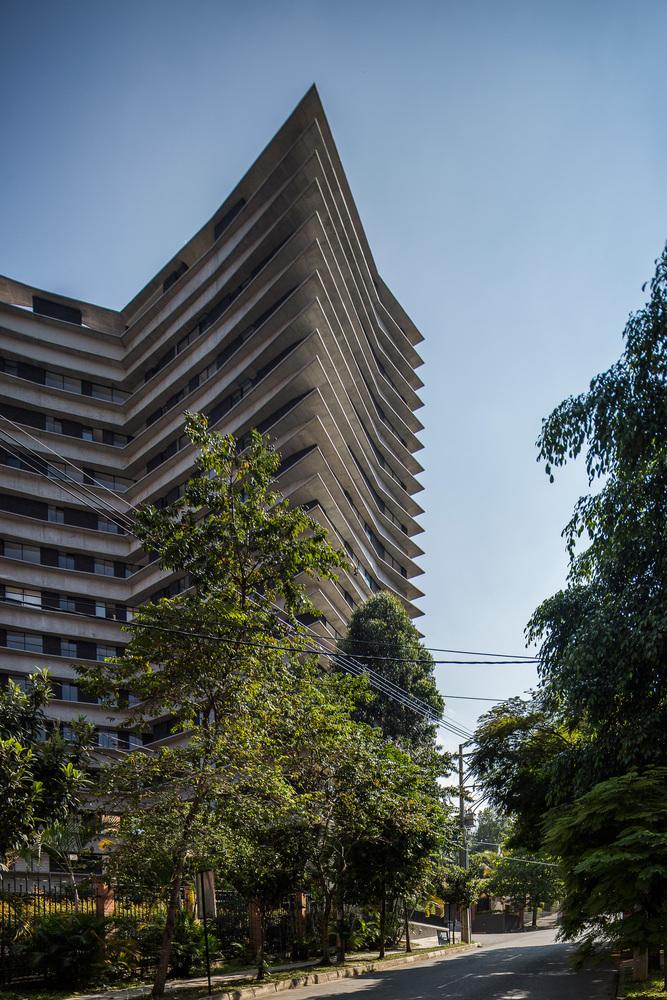

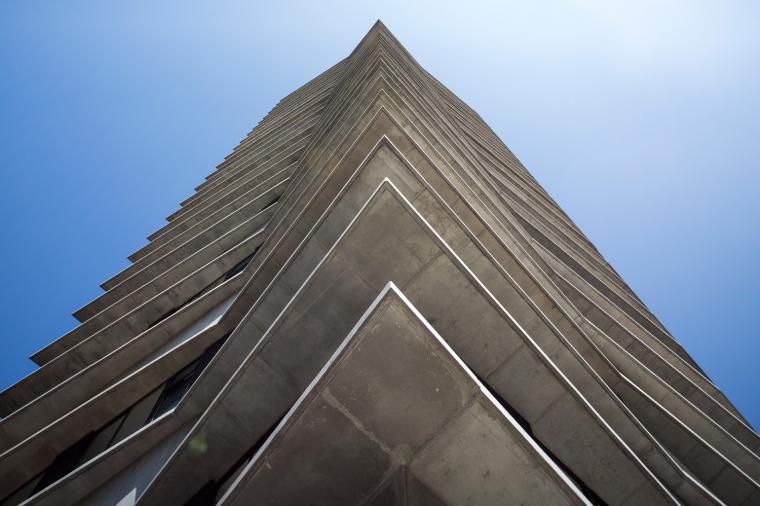

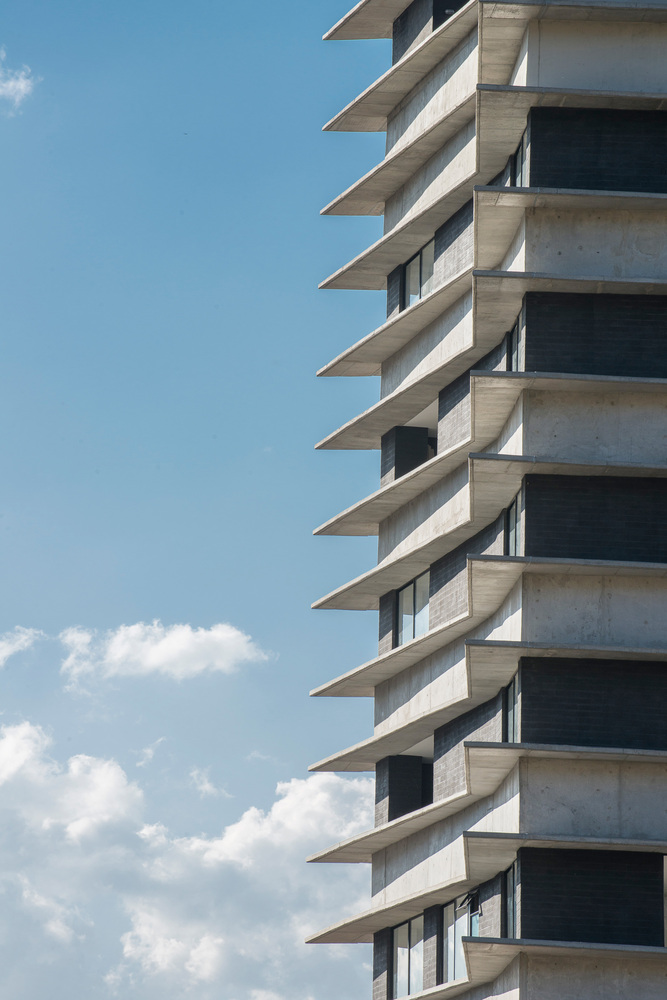

哥伦比亚Zebrano公寓楼外部局部实景图

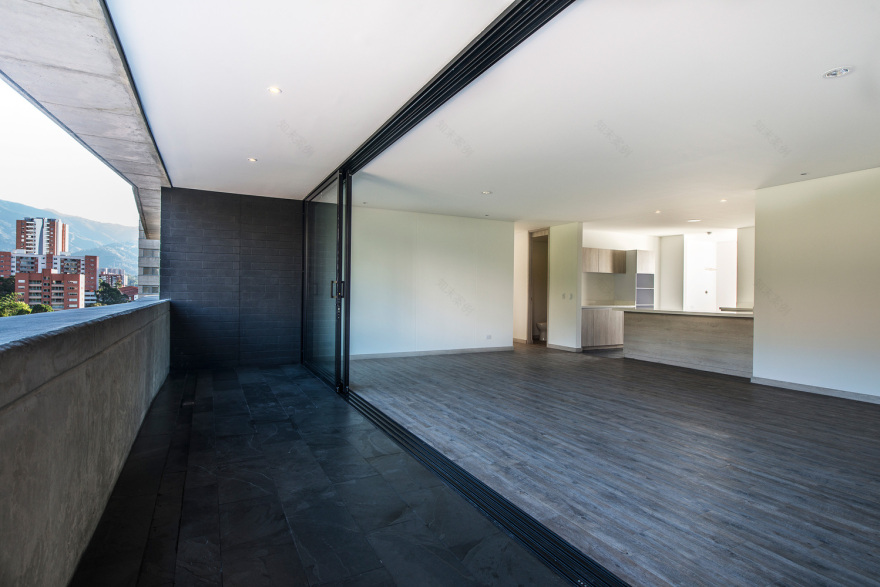

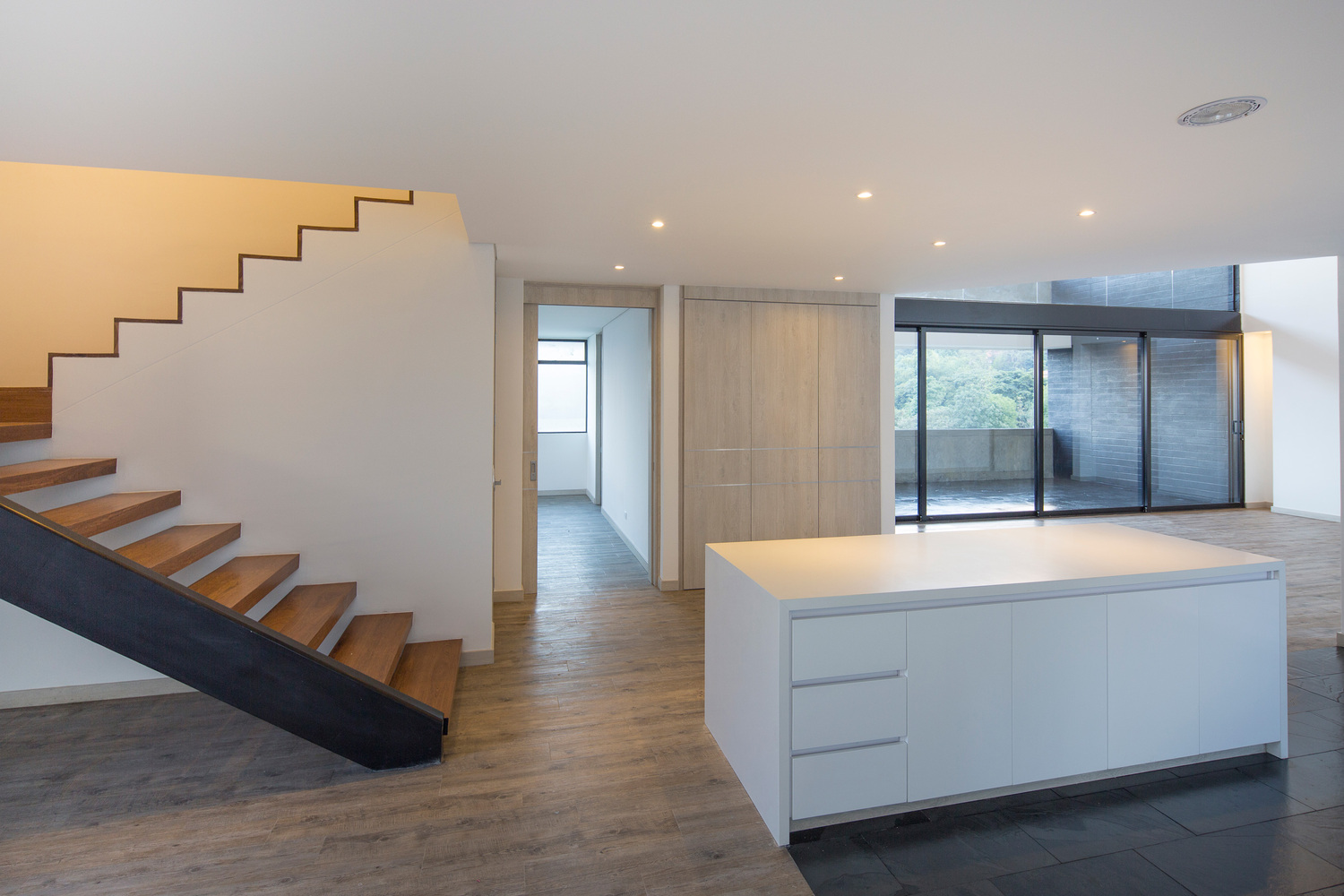

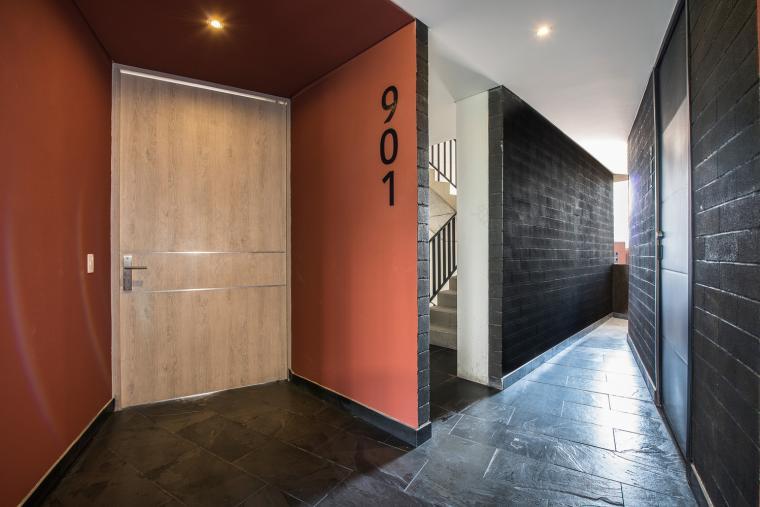

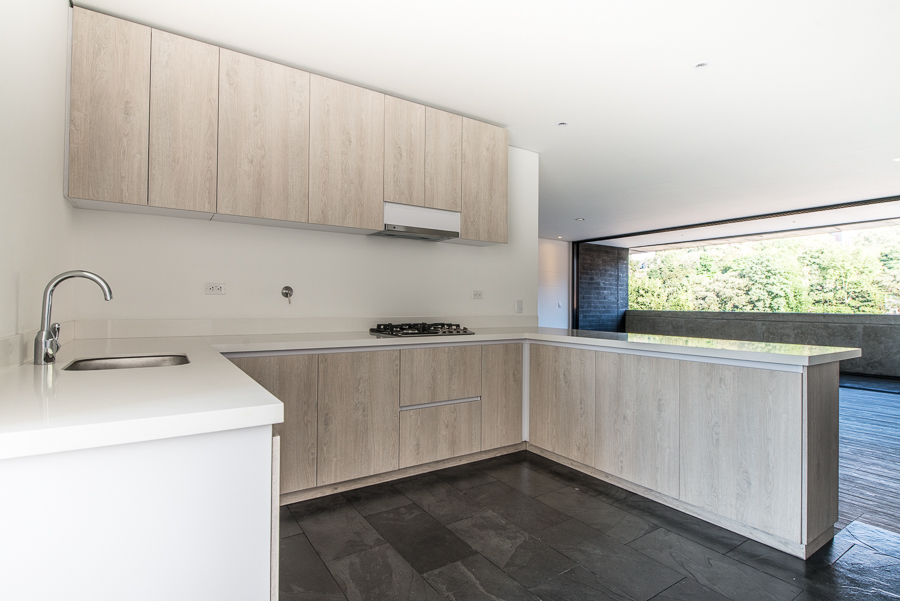

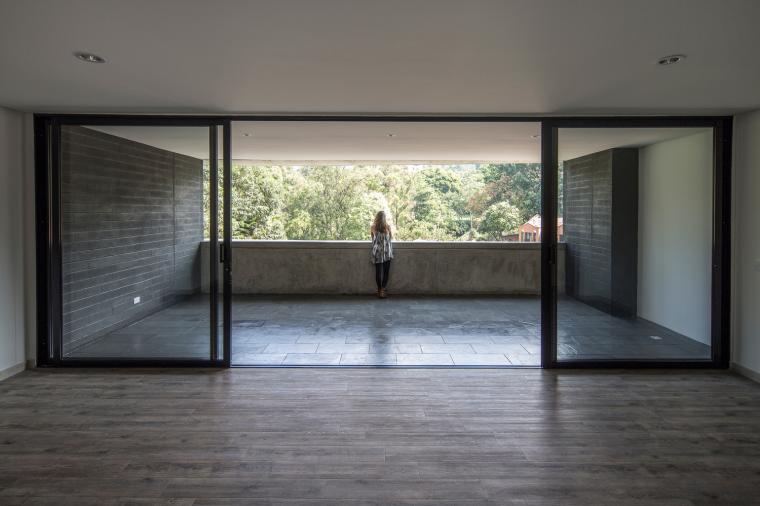

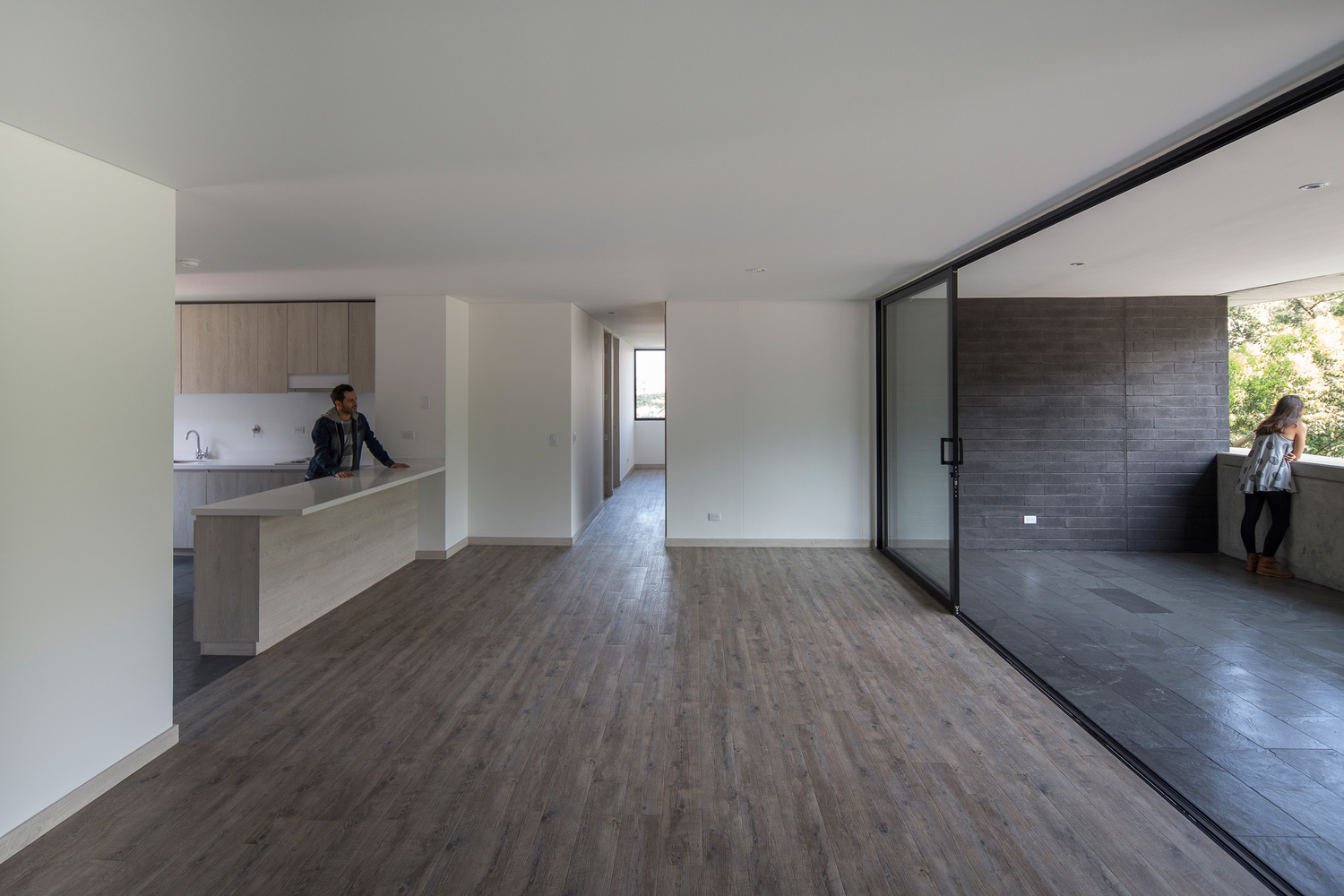

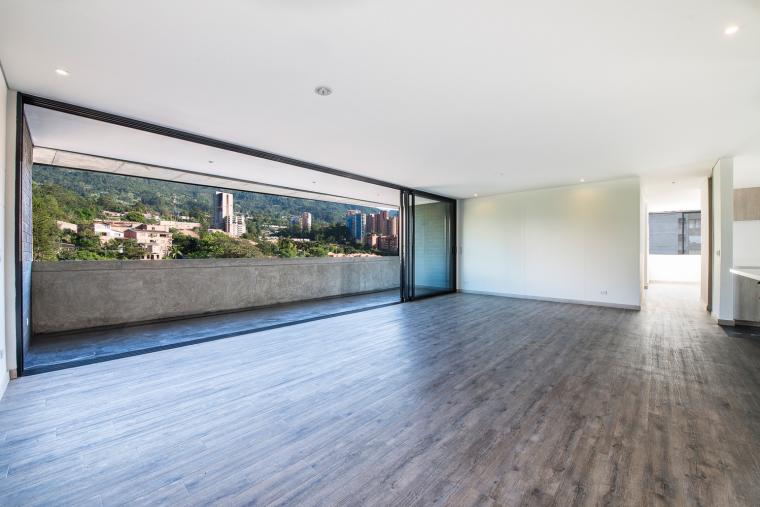

哥伦比亚Zebrano公寓楼内部实景图

哥伦比亚Zebrano公寓楼局部实景图

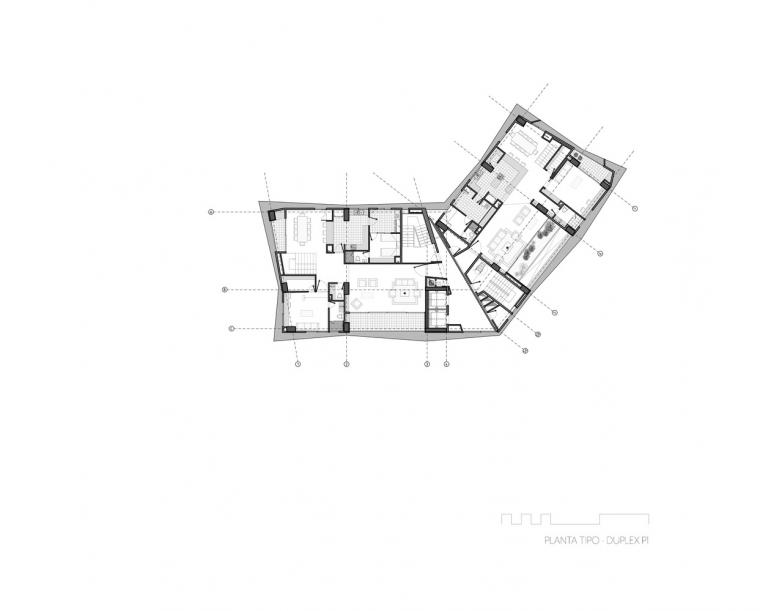

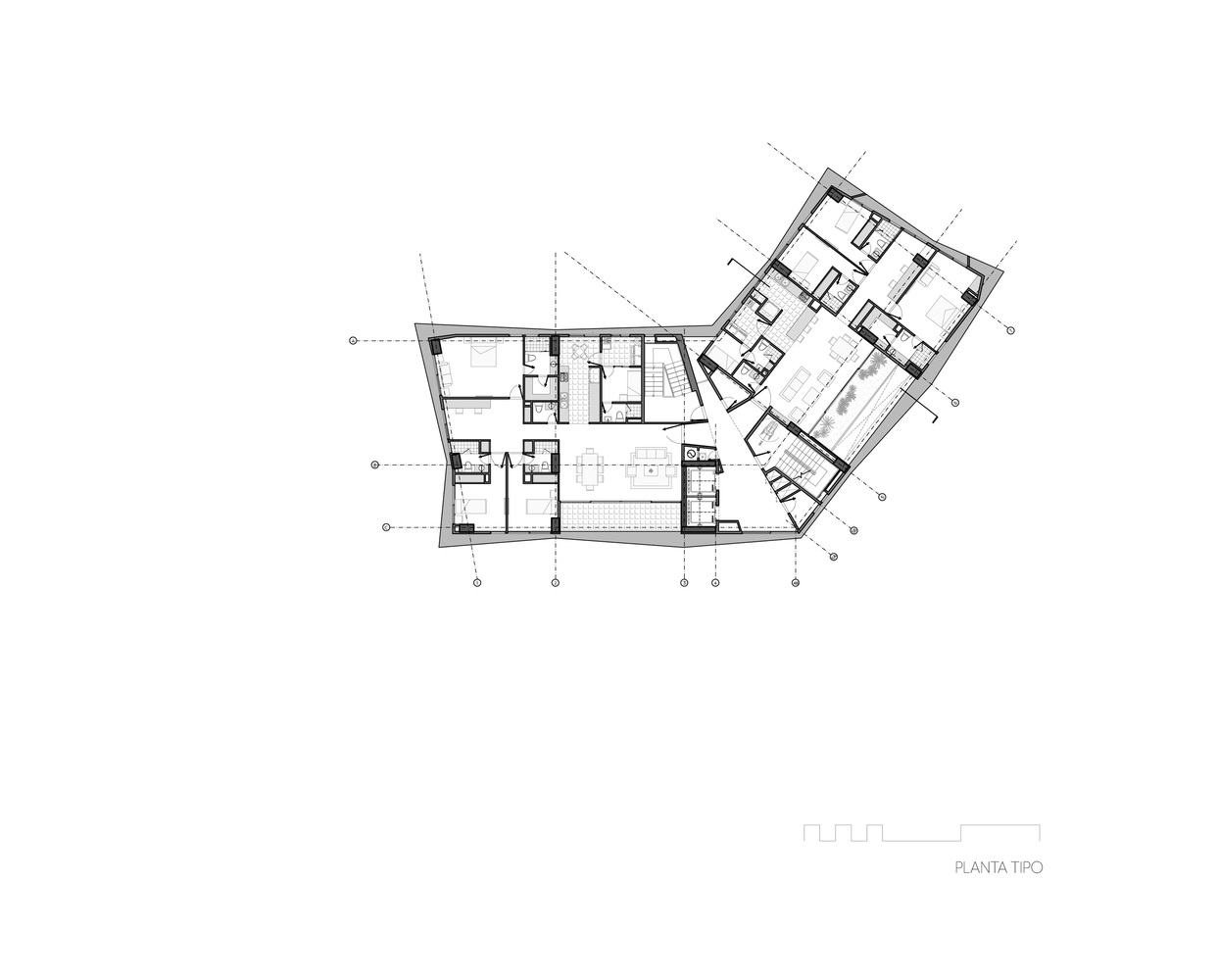

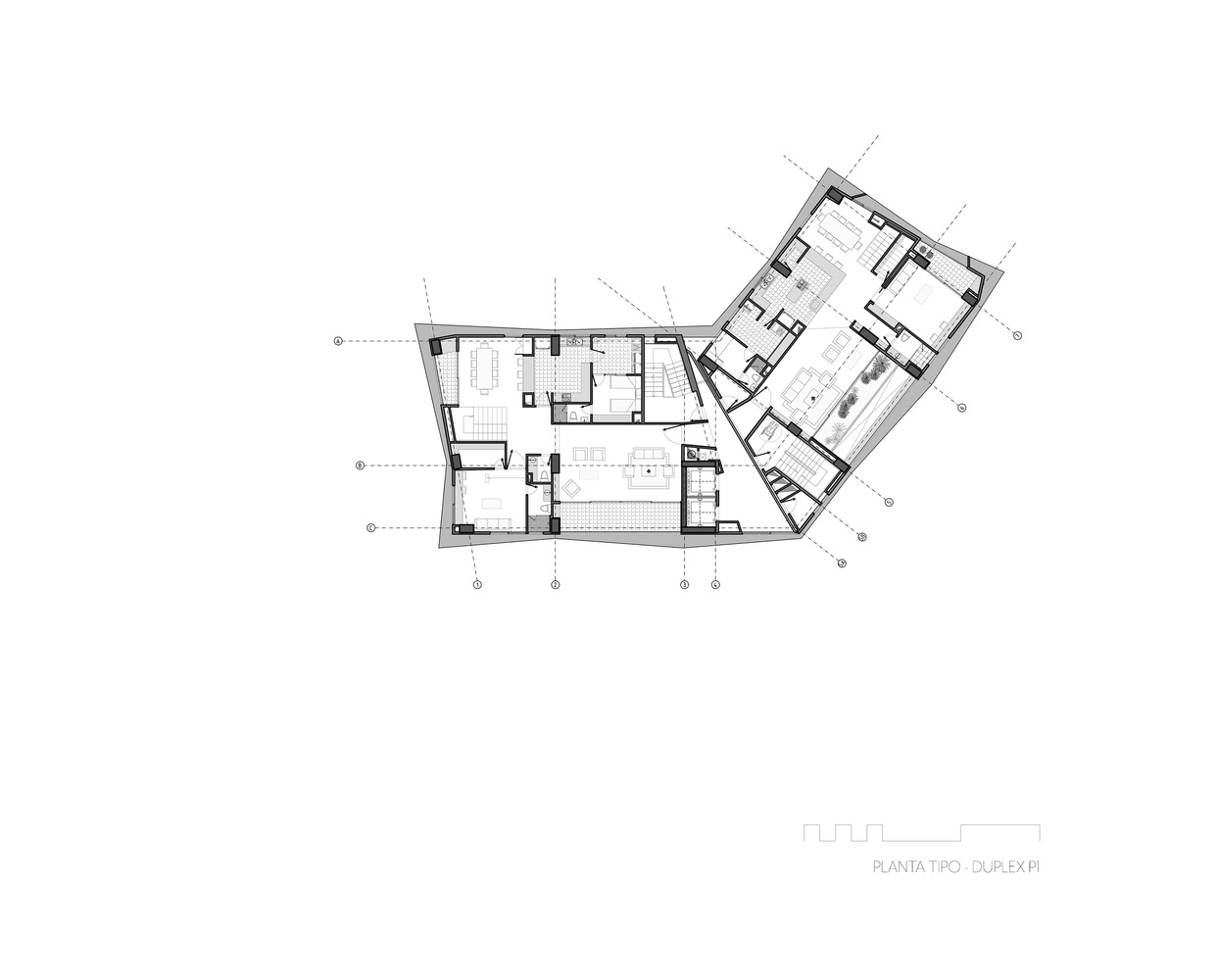

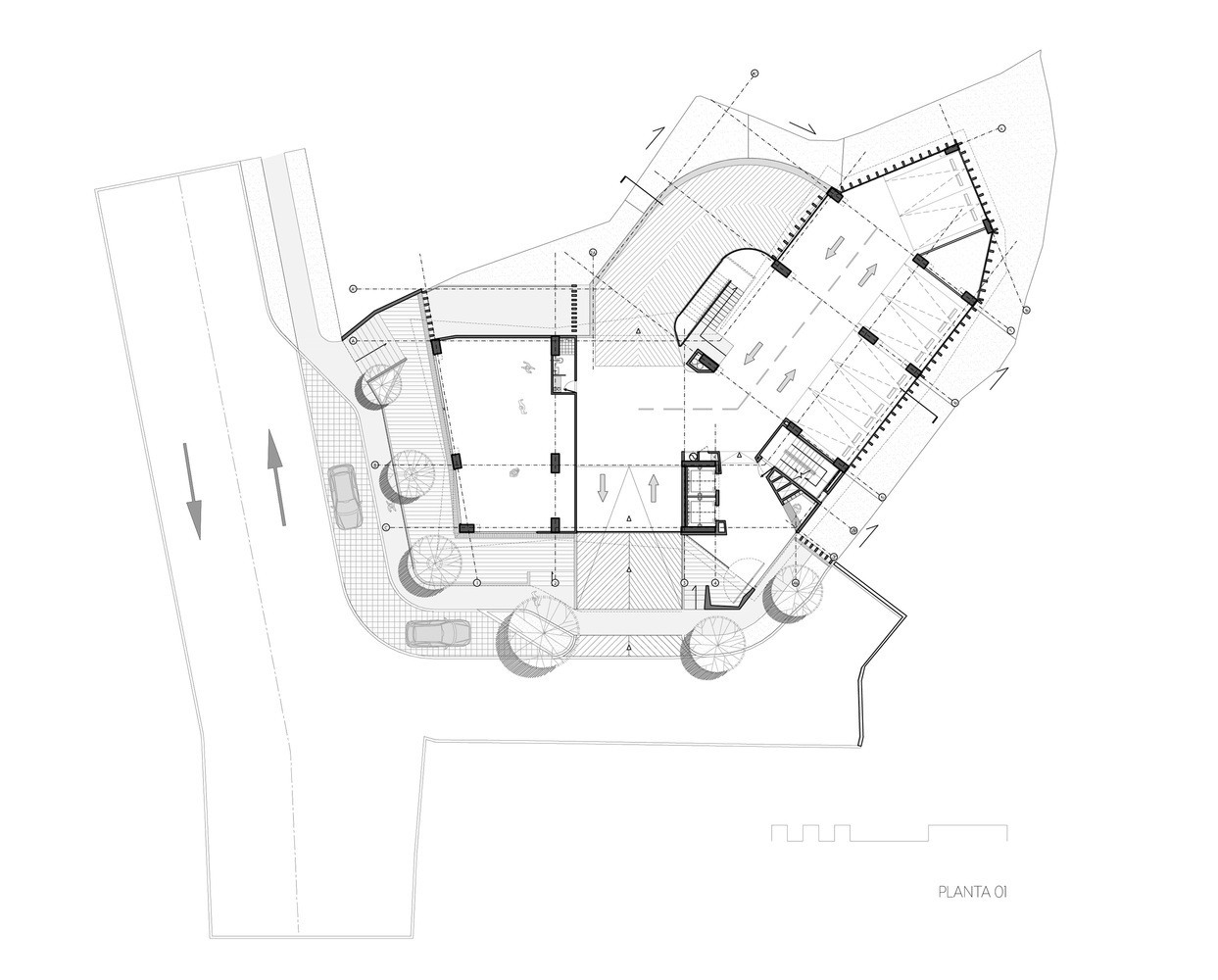

哥伦比亚Zebrano公寓楼平面图

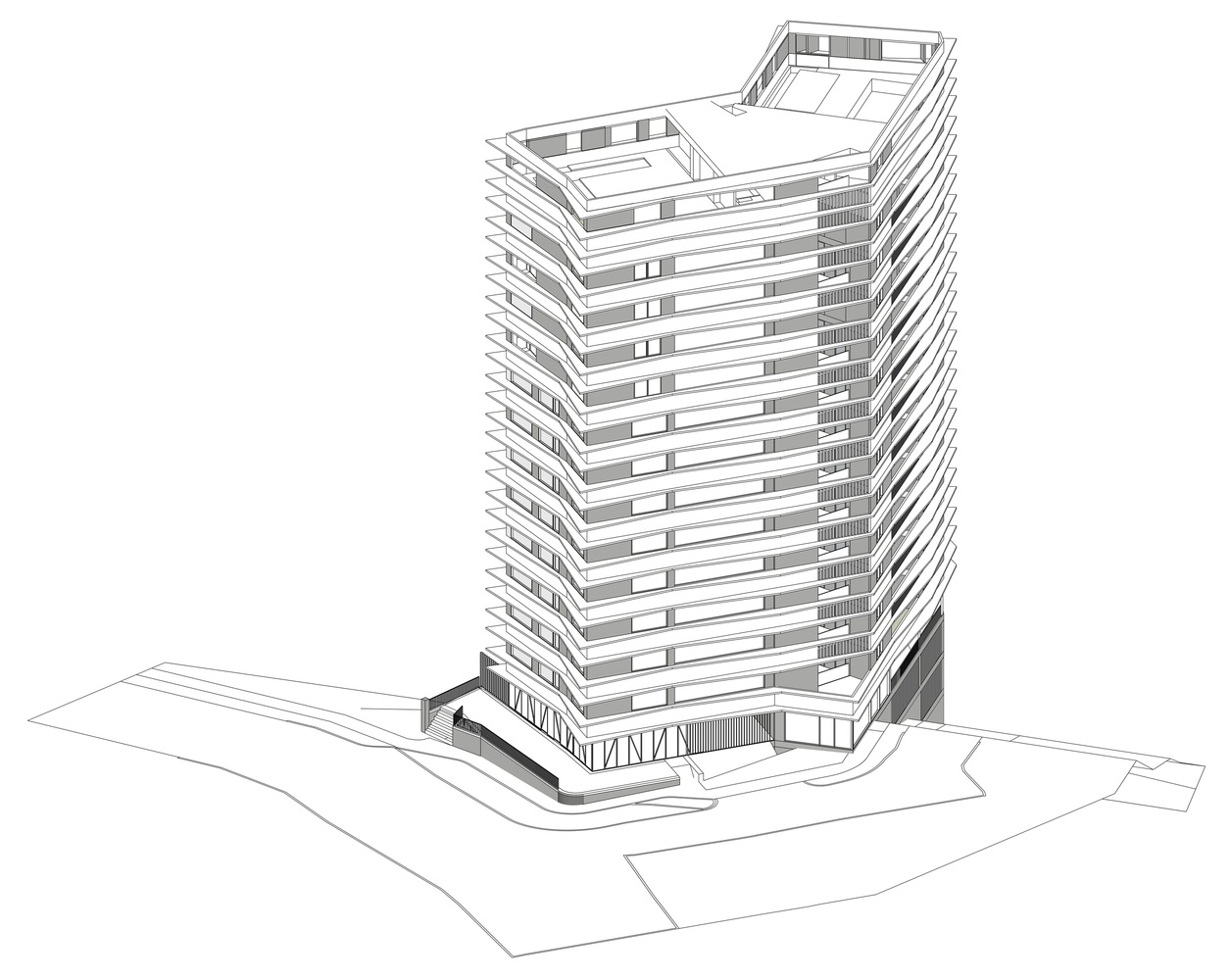

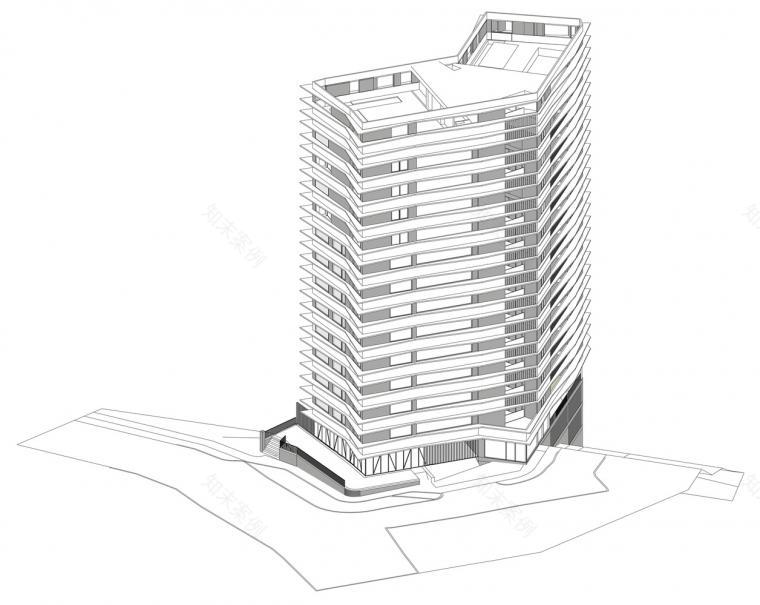

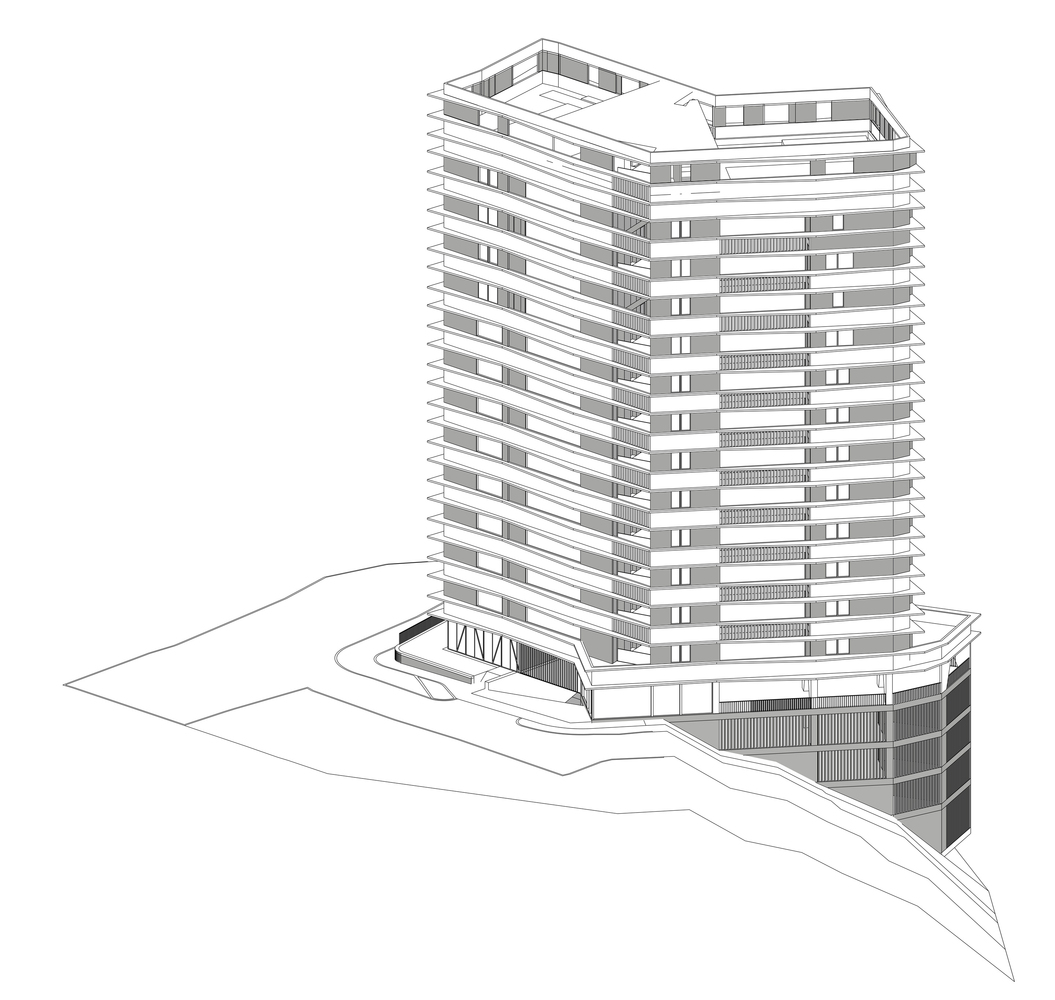

哥伦比亚Zebrano公寓楼示意图

哥伦比亚Zebrano公寓楼平面和剖面图

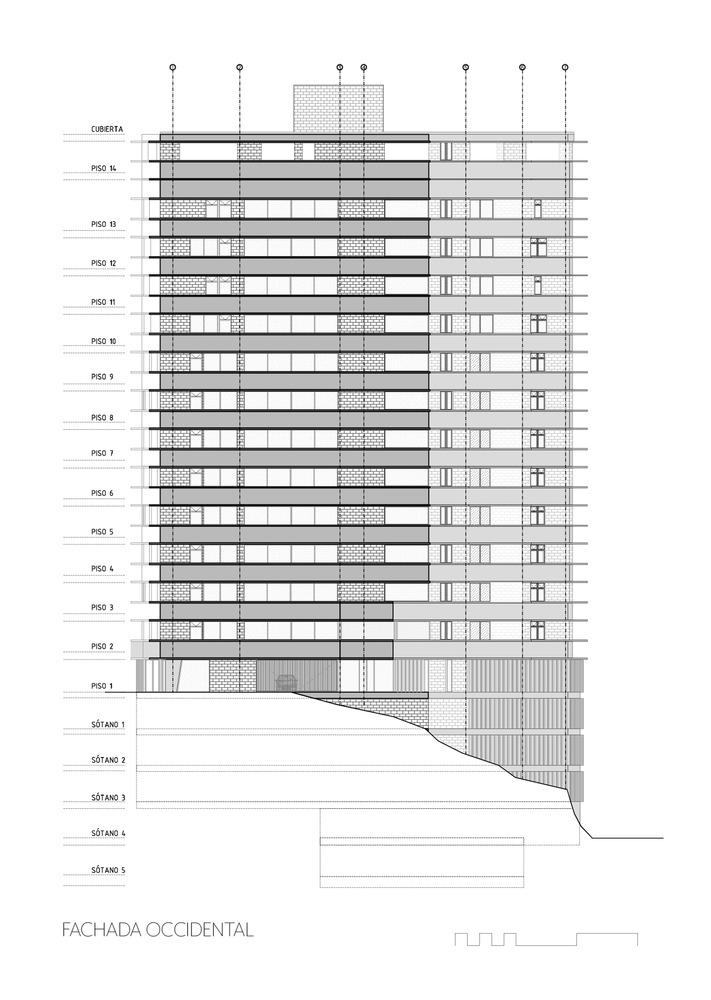

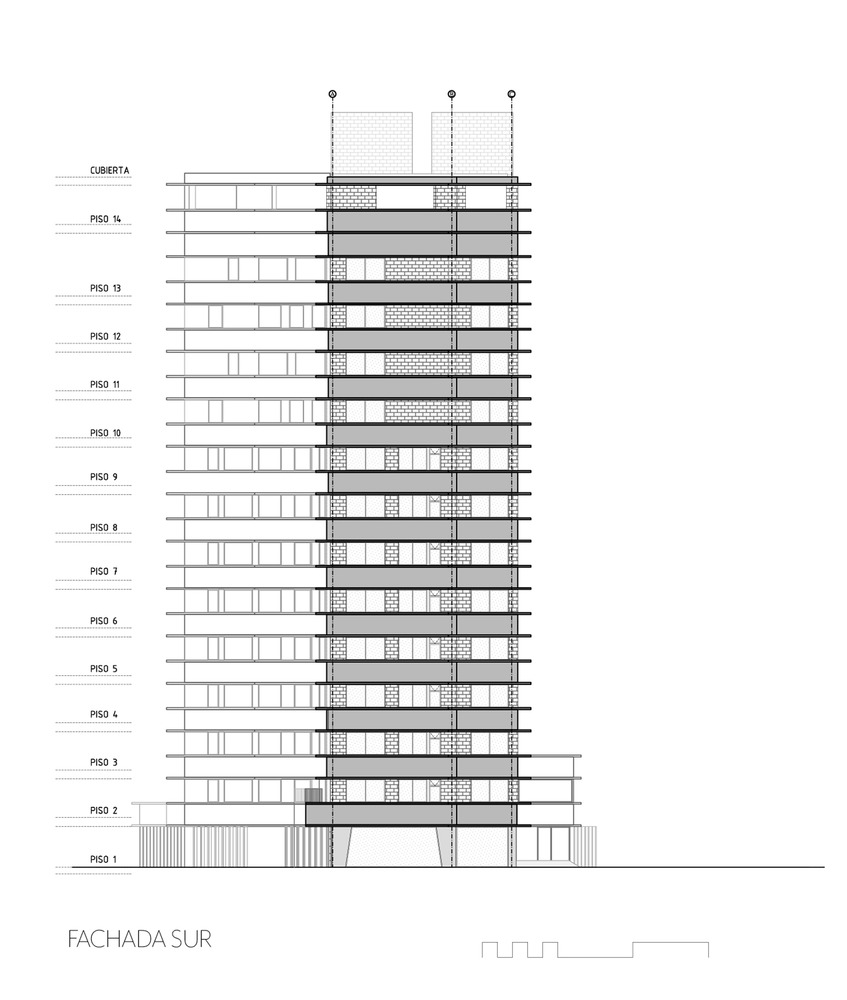

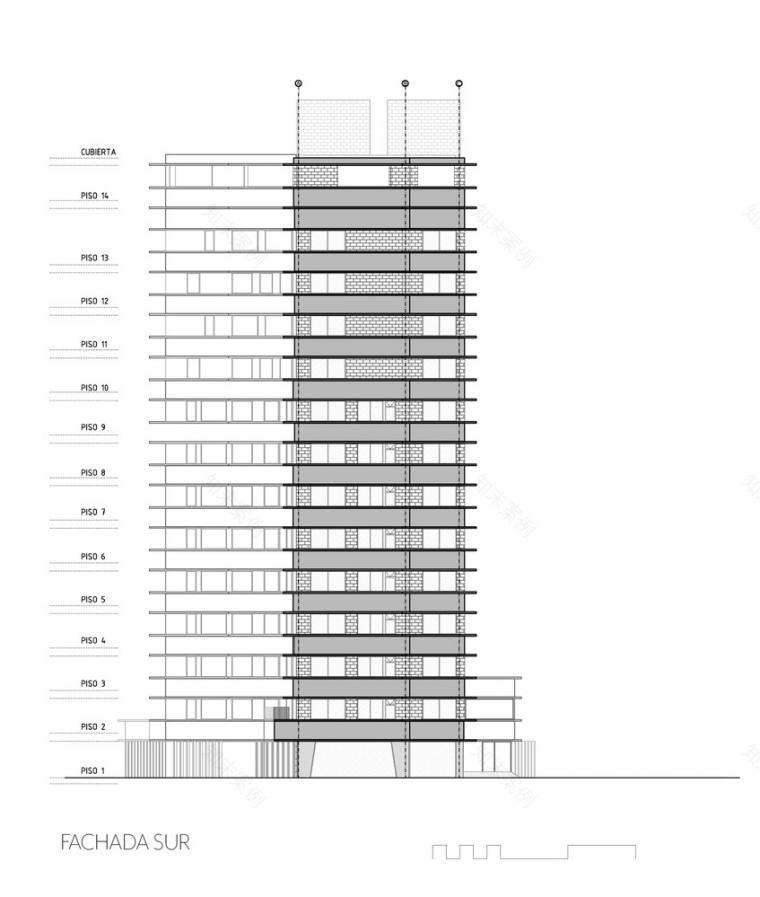

哥伦比亚Zebrano公寓楼立面图

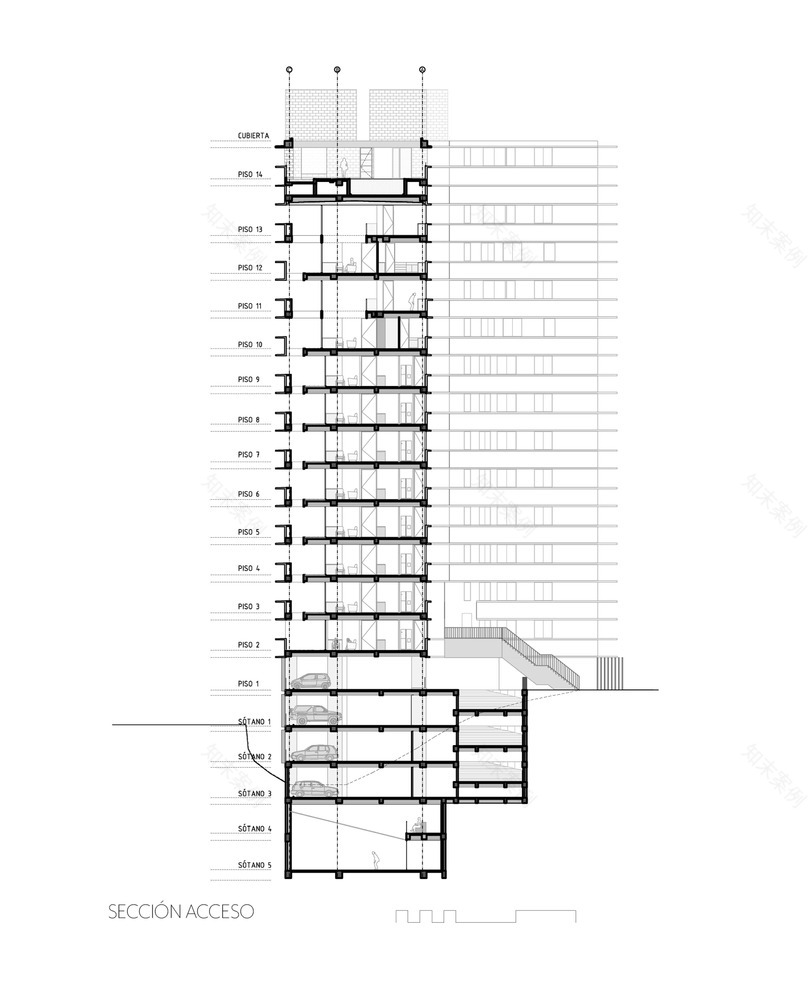

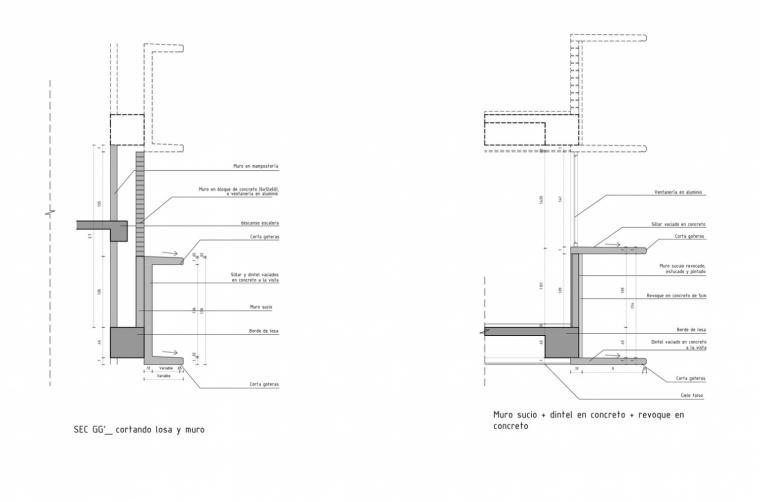

哥伦比亚Zebrano公寓楼剖面图
