韩国 Ga On Jai 住宅丨IROJE KHM Architects

Korea Ga On Jai house

设计方：IROJE KHM Architects

位置：韩国

分类：居住建筑

内容：实景照片

图片：36张

这是由IROJE KHM Architects设计的Ga On Jai住宅。20年前，韩国政府在现在已是首尔首屈一指的高档区域江南区举行了“房屋博览会”，挑选了当时韩国著名的建筑师进行设计与了大量低密度住宅。GA ON JAI住宅的所在地就位于这里，业主把以前的住宅拆掉后，委托建筑师进行全新的设计。业主希望空间利用率能够达到最大化，同时要生态，因为业主觉得之前的房子太狭窄，也有很多没用的灰空间。另外业主希望建筑的空间是内向性的，能保证隐私，同时希望在住宅里观赏到远山的美丽风景。

建筑师认为这座房子要表达出韩国的特色，因为这片住宅区可以算得上韩国理想住宅区的典范。韩国建筑中“MADANG”, “RU”,“CHEOMA”, “DOLDAM”等传统的语言都体现在这个设计之中。“MADANG”，即内院，这座建筑有一个十分生态和有景观品质的内院。“RU”，是韩国底层架空的构架形式，建筑被挑起，吸收附近山峦的动态和起伏的风景，做出一个能够观赏山景的动态轴线，人们在空间序列中能够不断的感受到多样化的风景。“CHEOMA”，这座房子有弯曲起伏的屋顶，这个由传统语言提炼并用现代语言展现的屋顶庇护房屋免受各种天气的侵害。“DOLDAM”，从传统的石墙演化出有椭圆形图案的水泥墙。

译者：筑龙网艾比

About 20 years ago, government held “the house expo” in GangNam and constructed this “expo town” of low-rise residences, and every site of this town were designed by selected architects who had been famous in Korea at that time.The site of “GaOnJai” was one of this monumental town, but the owner of this house who purchased house of this site, has built, newly, after tearing down the old house of this site.To maximize the efficiency of land use, to be ecological spaces were important requirements, because the owner thought exterior spaces of demolished old house were narrow, useless and circumstance of inner spaces were dark and blue.To keep privacy and security, to block noise, smoke and other’s eye, introverted layout of this house was required.Absorbing landscape of surrounding mountain The living room where has dynamic, picturesque view of landscape of near mountain had been required.

The house which has it’s own Identity of Korean culture has been required because I think this town is representative town of desirable planned residences in Korea.PASSING DOWN TRADITIONAL LANGUAGE “MADANG”, “RU”, “CHEOMA”, “DOLDAM”.By introducing “Madang” which is Korean inner court, we have solved the requirement of introvert space, ecological environment, useful outdoor space and have got the nature which has healthy, live environment and landscape.

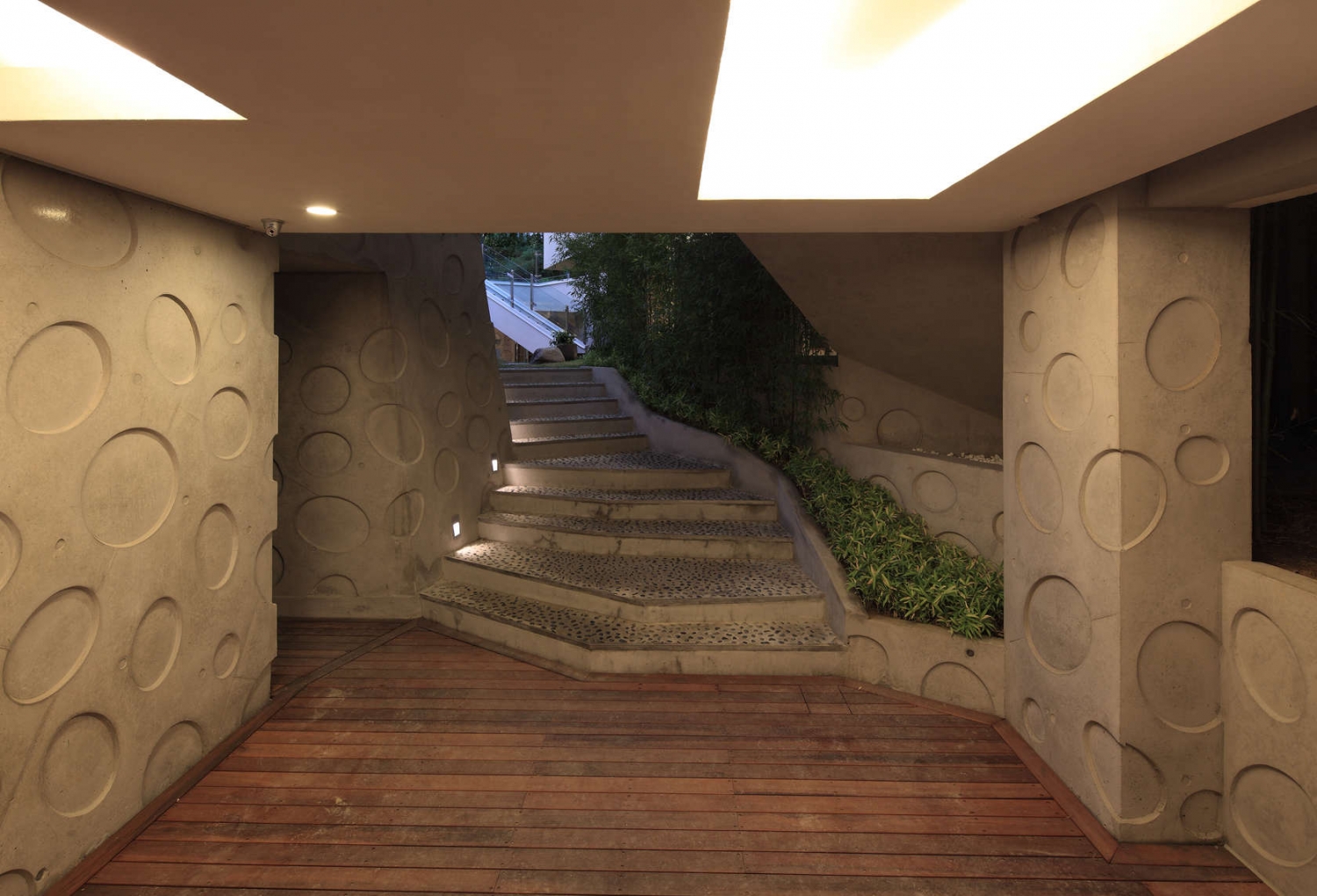

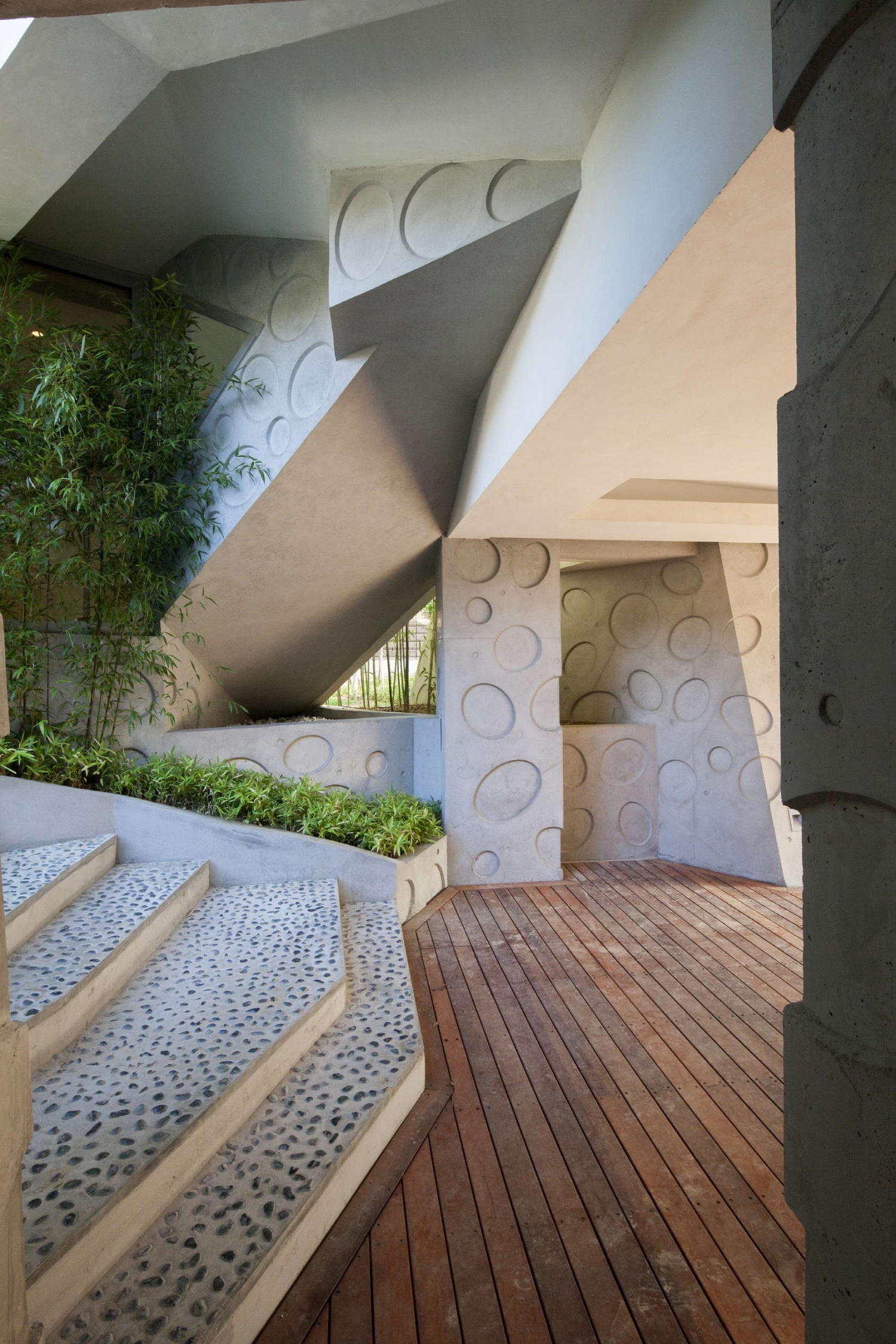

By introducing “Ru” which is Korean-pilotied architecture, we absorbed the dynamic and picturesque landscape of near mountain, according to turn the axis of mass of living room to top of the surrounding mountain.Void space under “Ru” is the beginning of approach part of dramatic sequence of strolling course in spaces of this house, like cave.By introducing curved “Cheoma” which is cantilevered roof of Korea for the floating roof of this house, we got, not only the resistance to rough weather condition, but also, to revive the traditional language of architecture in translated language in modern.By introducing oval patterned concrete wall which was derived from traditional stone wall, we expected it would be reminder of past.

By adapting topography of existing site, lower Madang, higher Madang, various skip-floored inner spaces were designed as different level each other and they produced interesting route of stroll in every place of this house.

This natural adaptation to nature has been basic character of Korean culture of architecture.All the programs of spaces of this house were laid out as the touring course that has dramatic interest of “strolling” through the inside and outside of this house, visually and spatially.Thereby we expect the living in this house will not be tired for long time by giving enjoy of strolling in their own world.

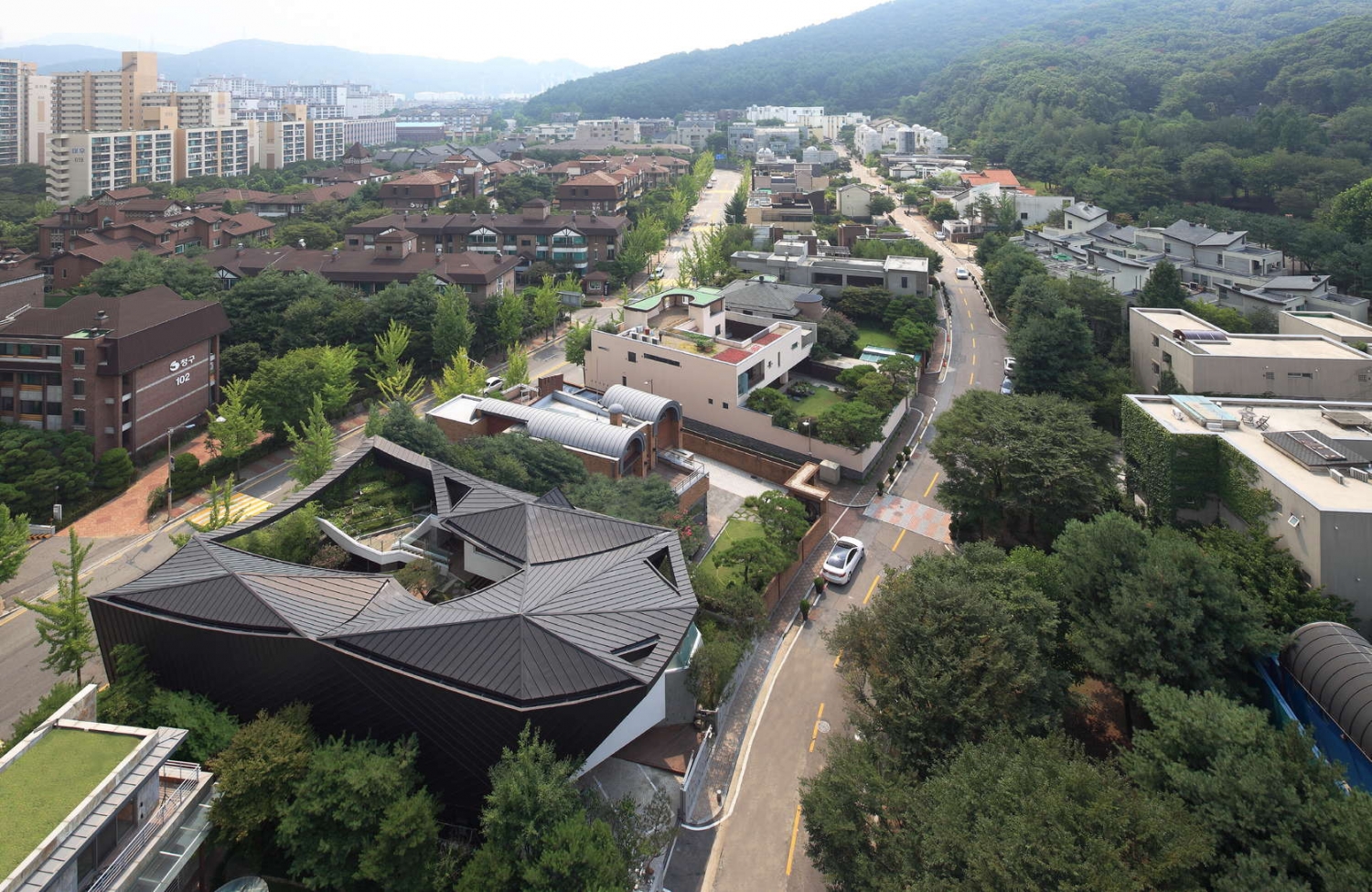

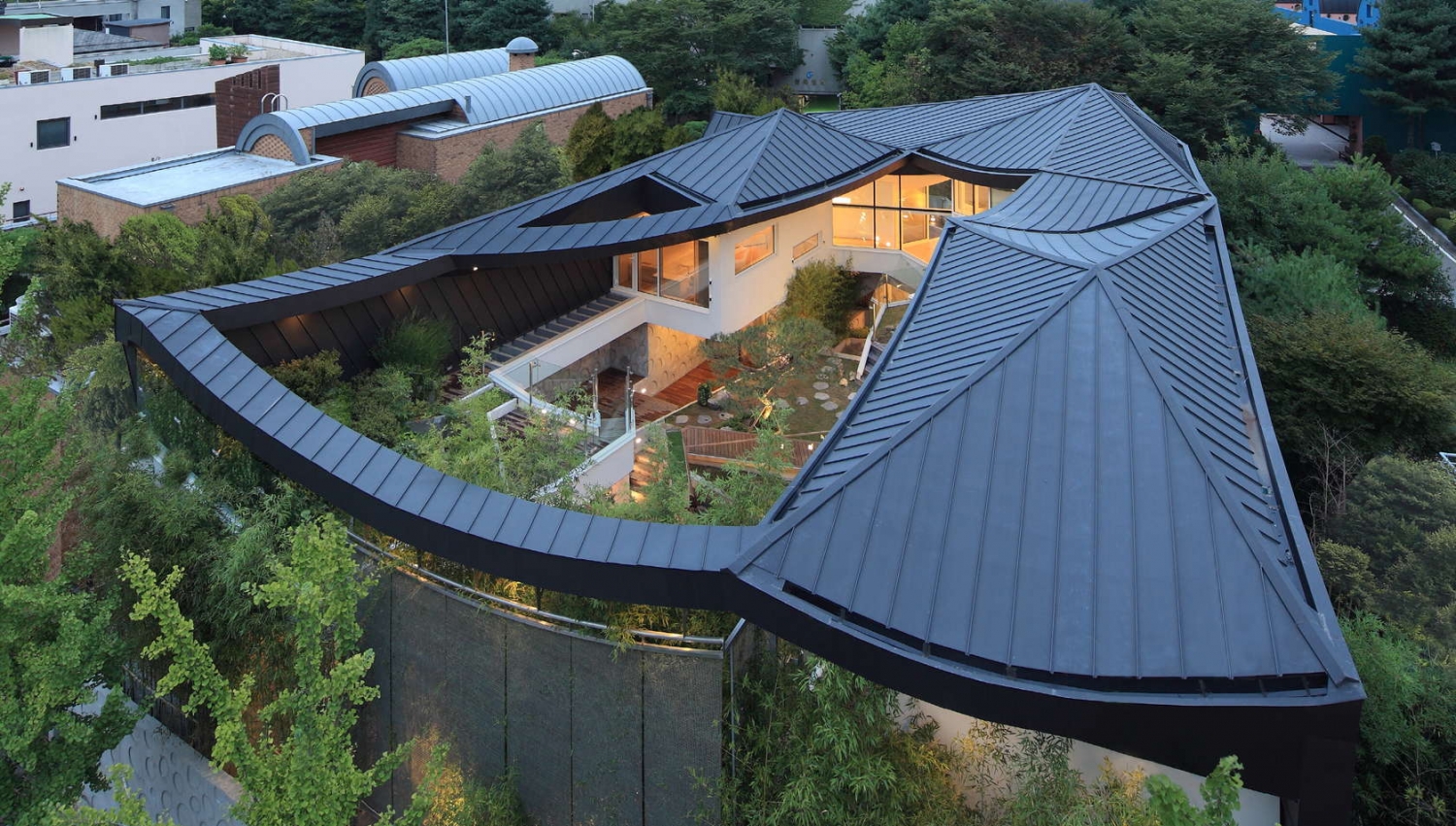

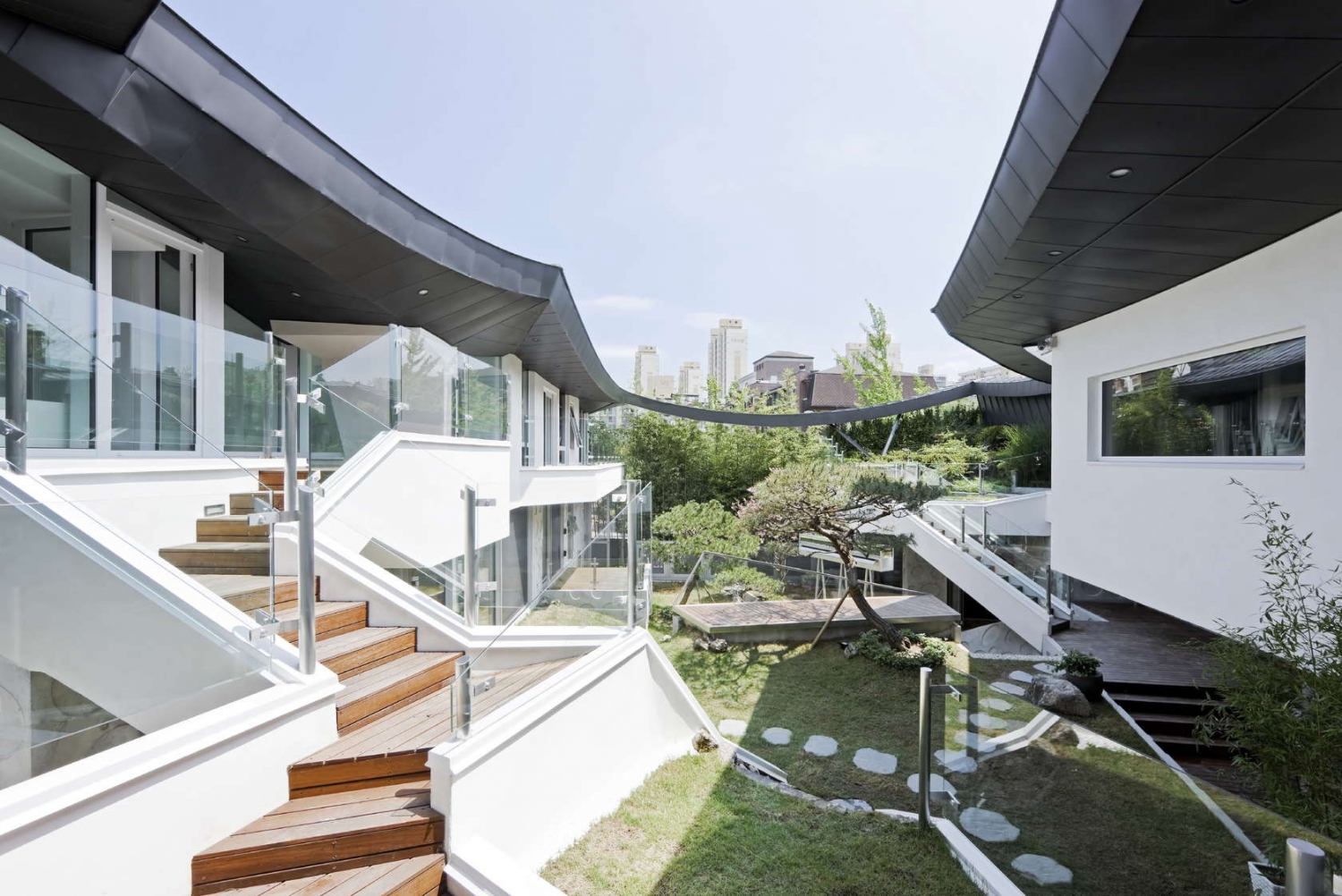

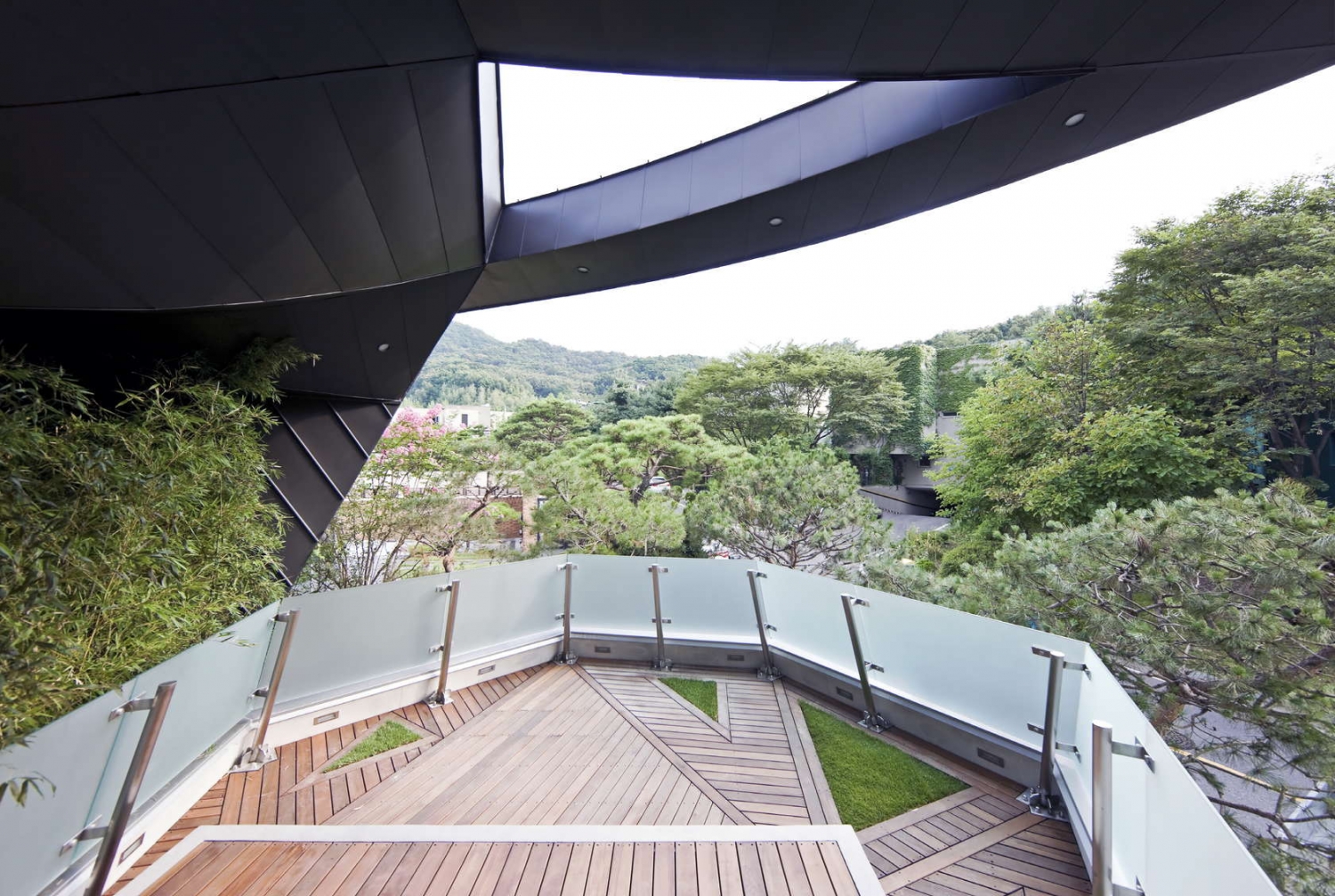

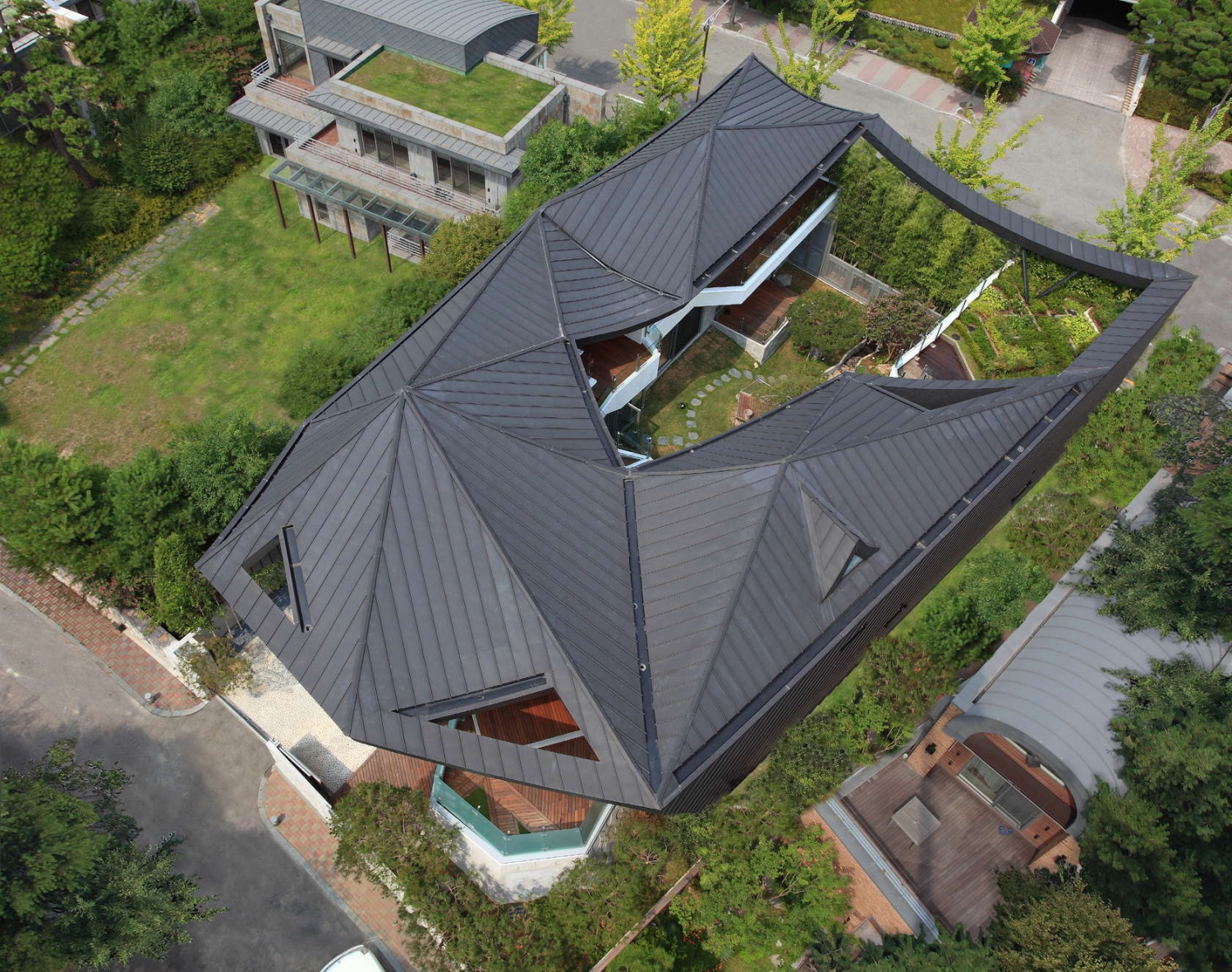

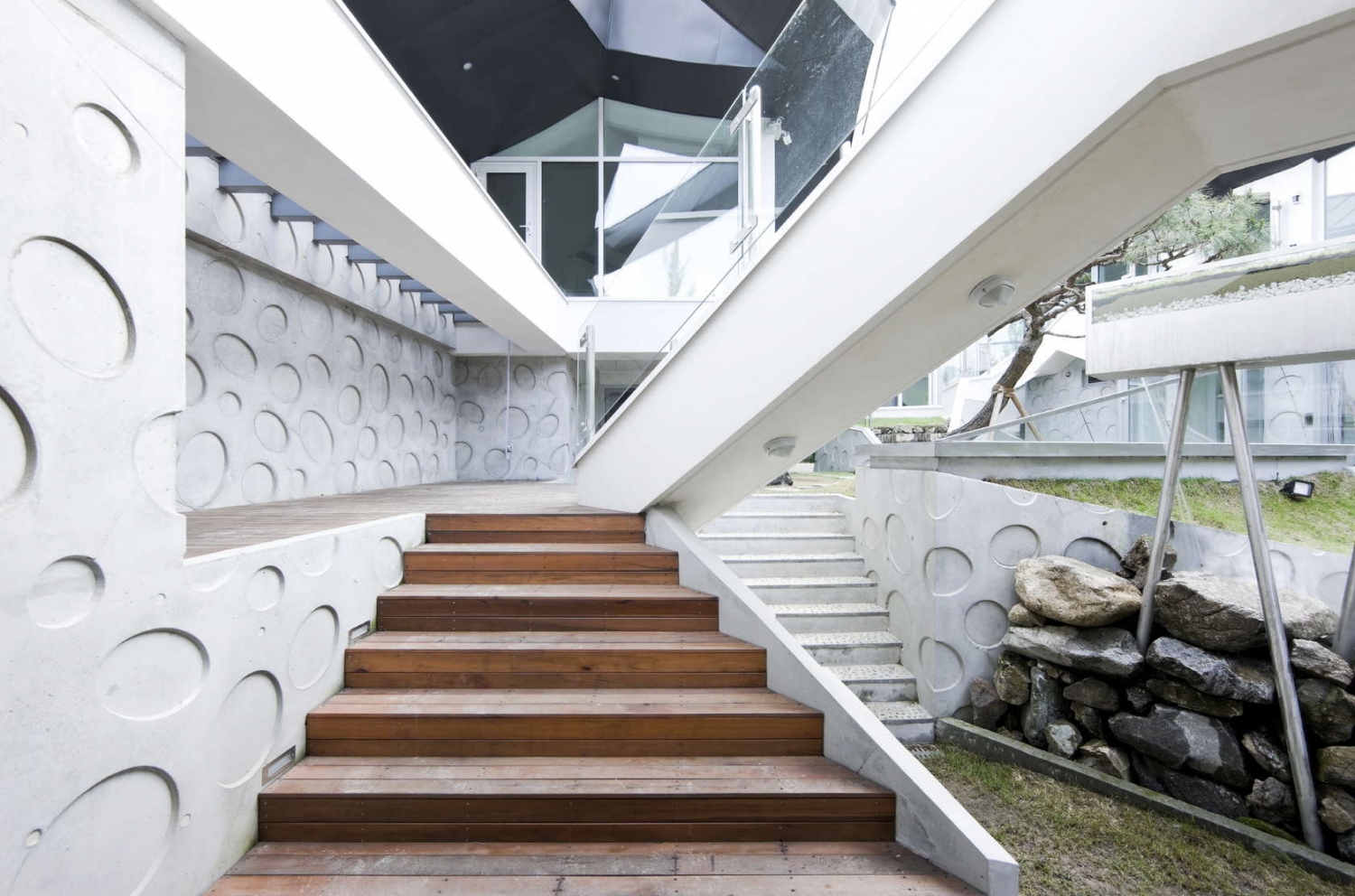

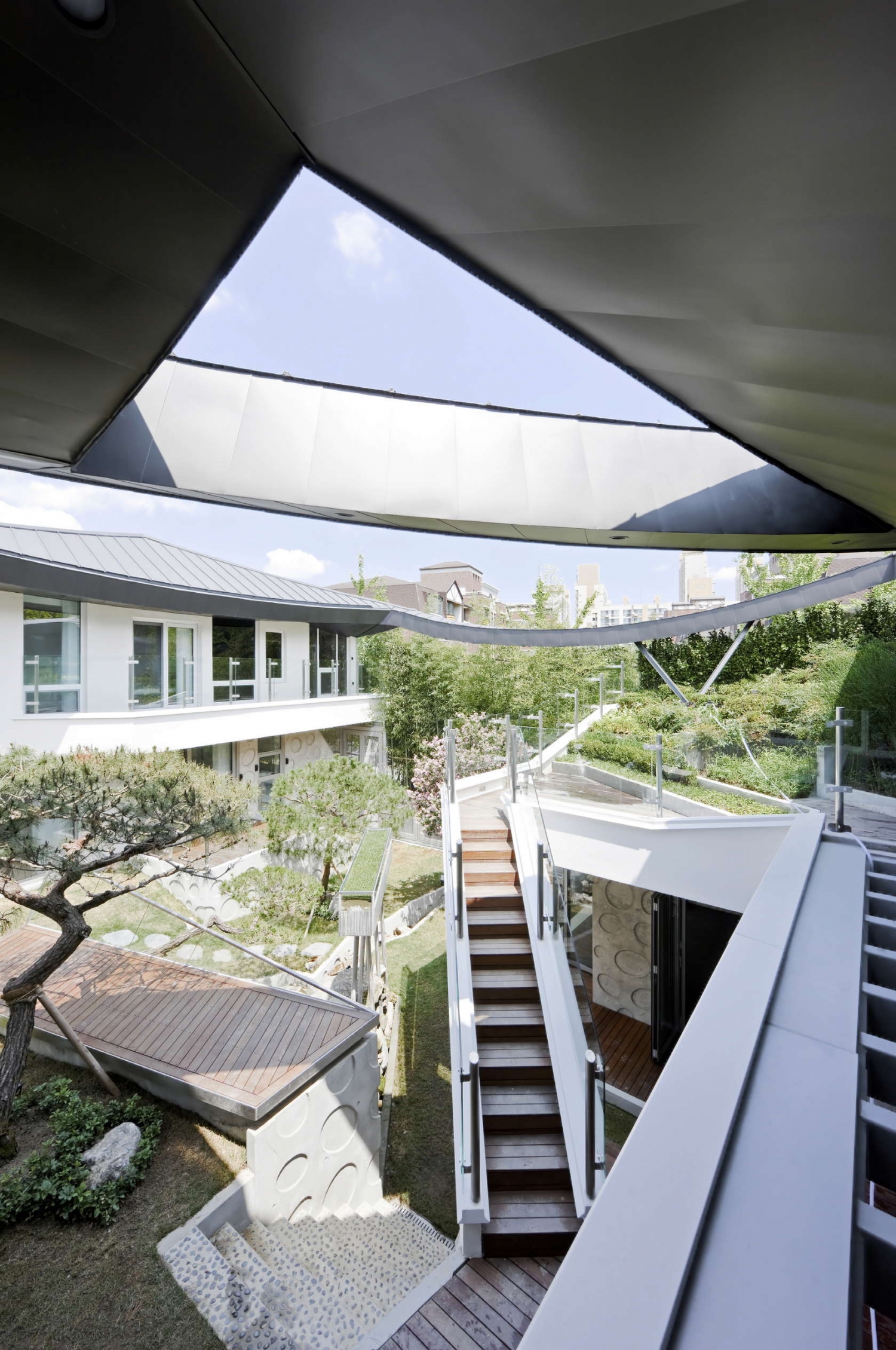

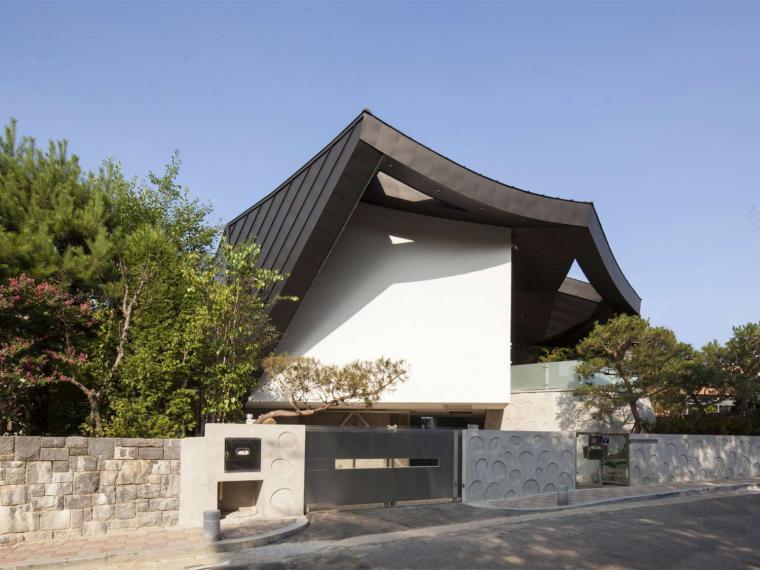

韩国Ga On Jai住宅外部实景图

韩国Ga On Jai住宅外部夜景实景图

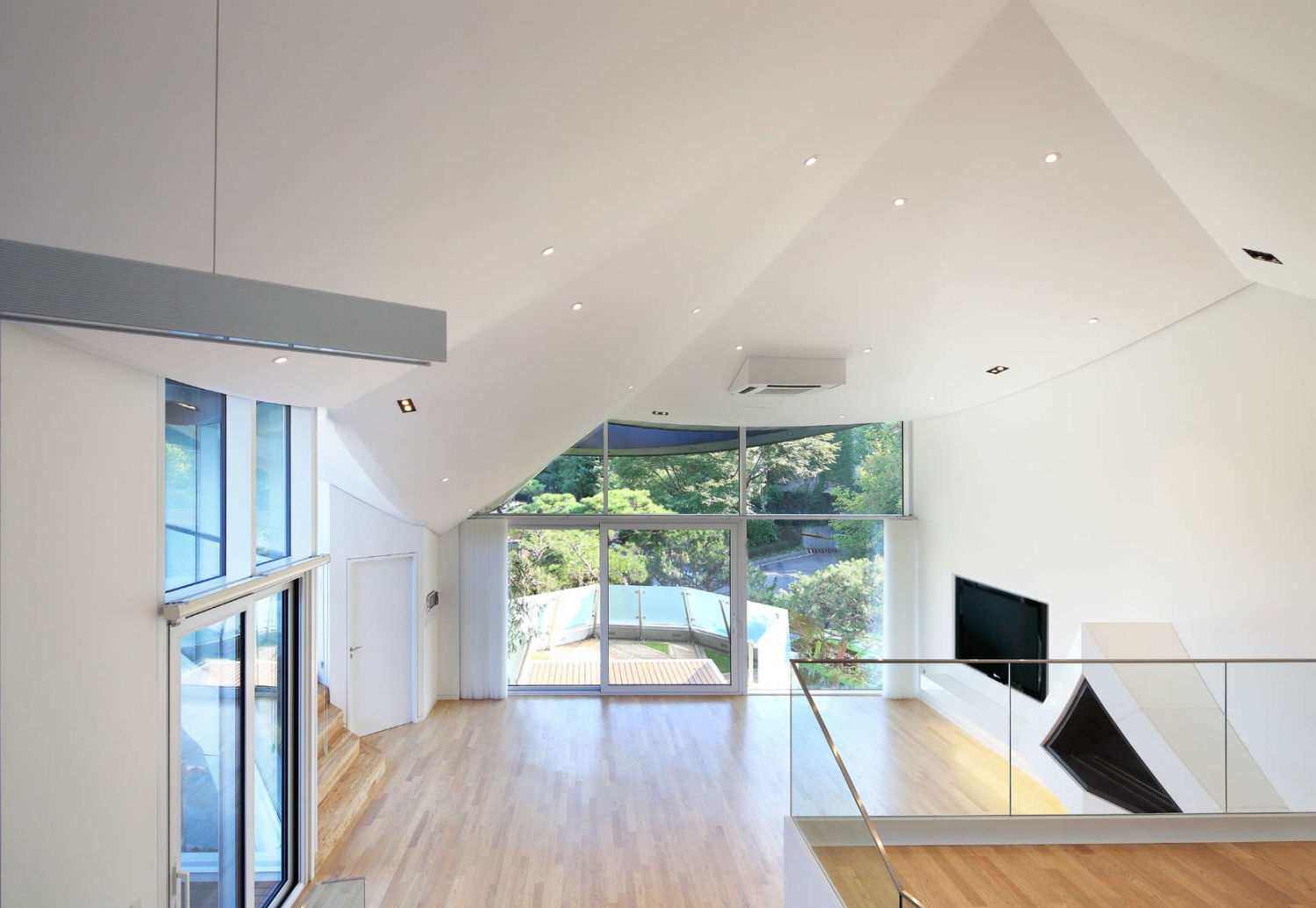

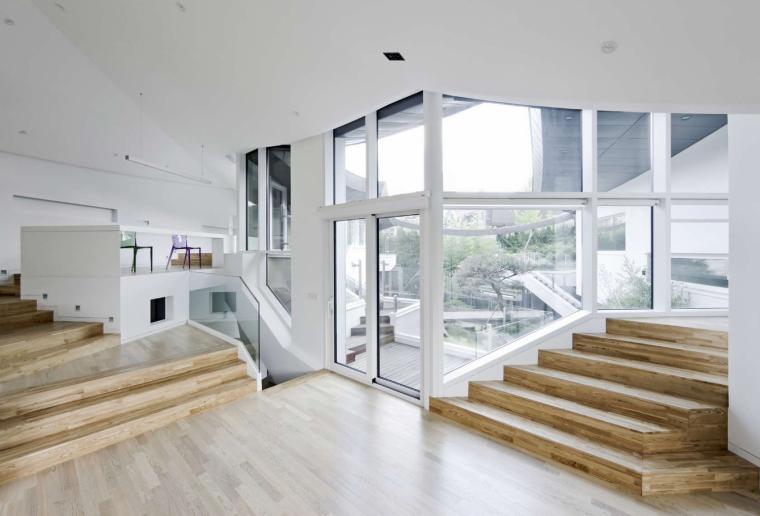

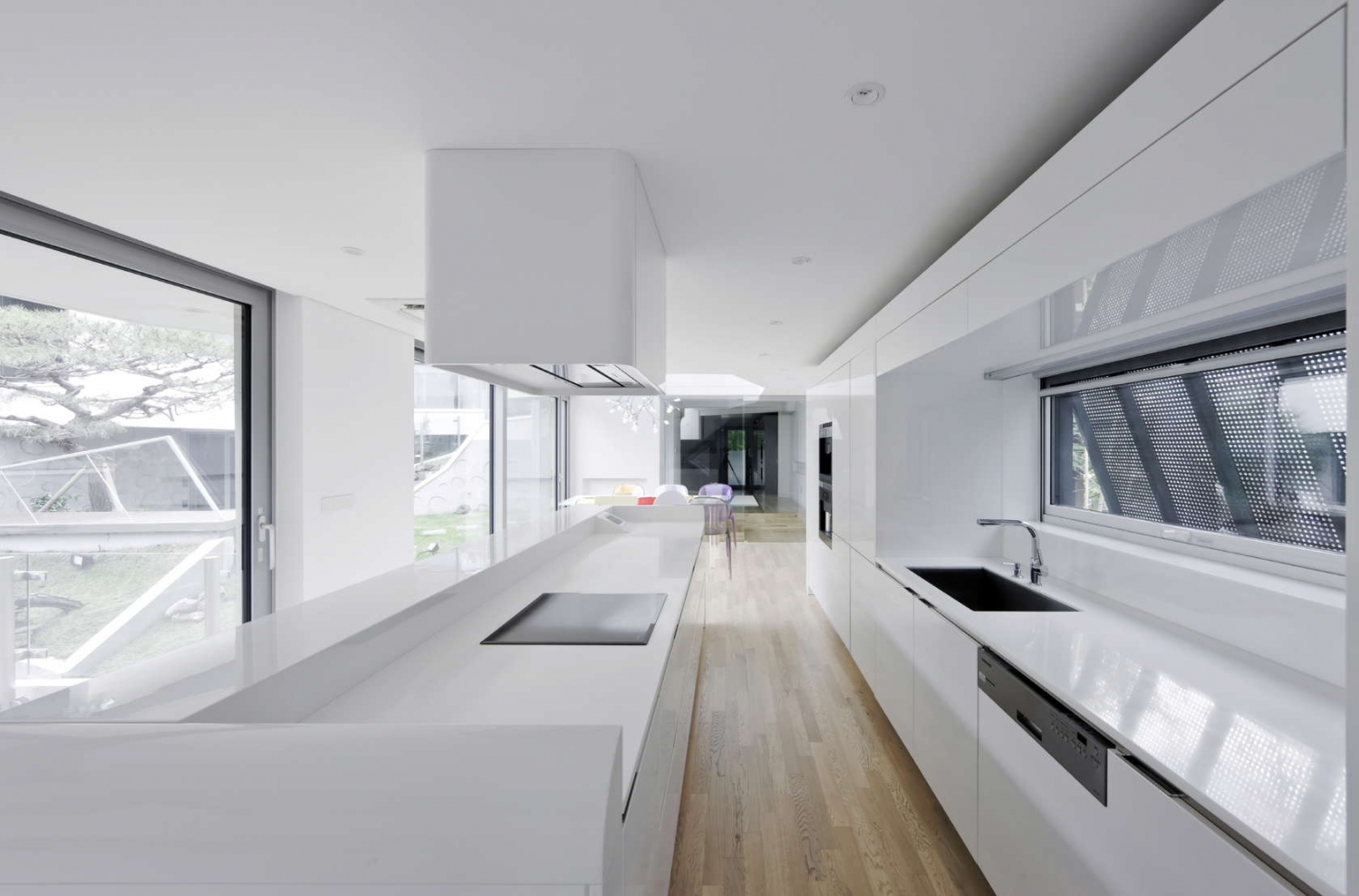

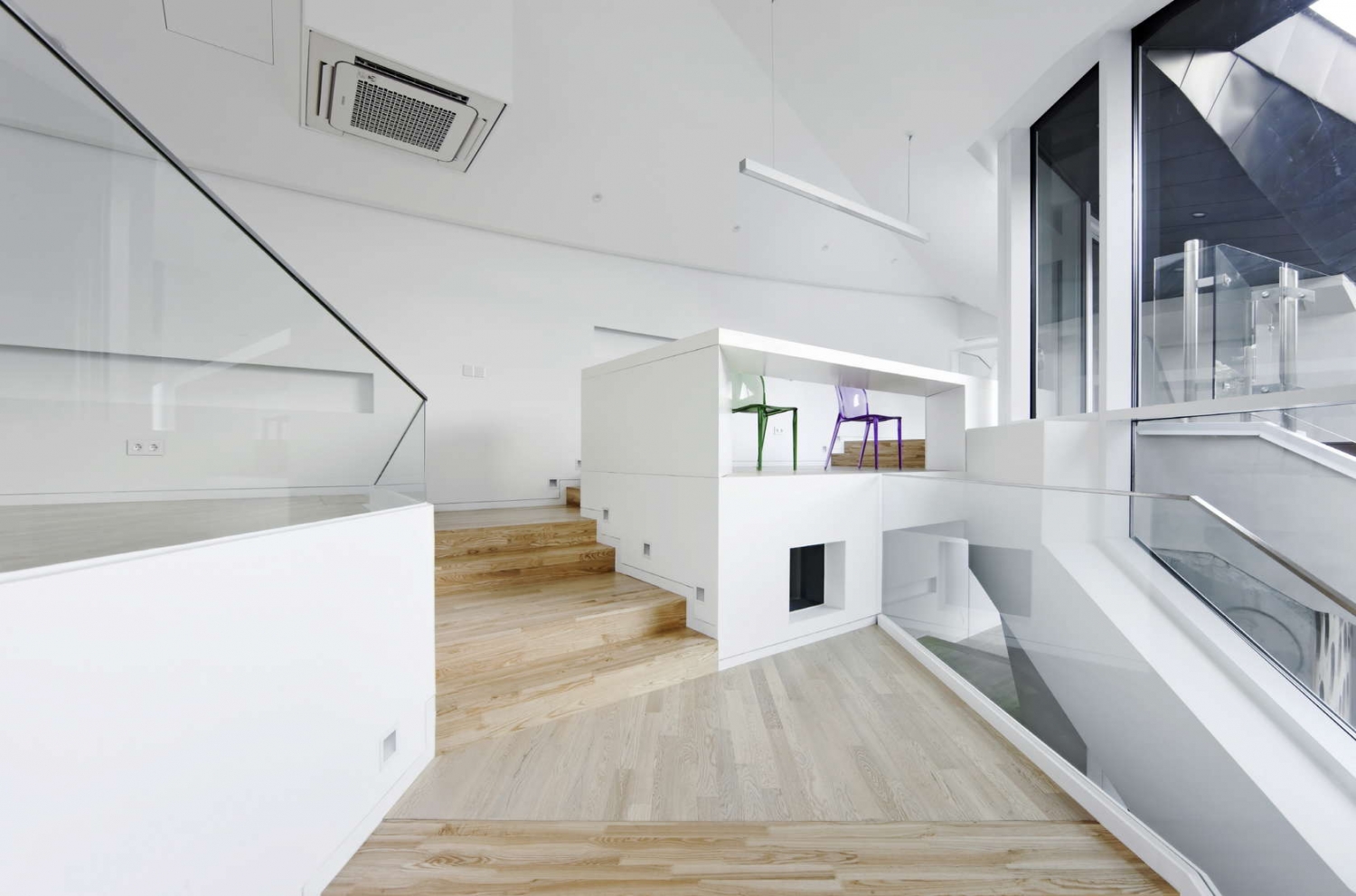

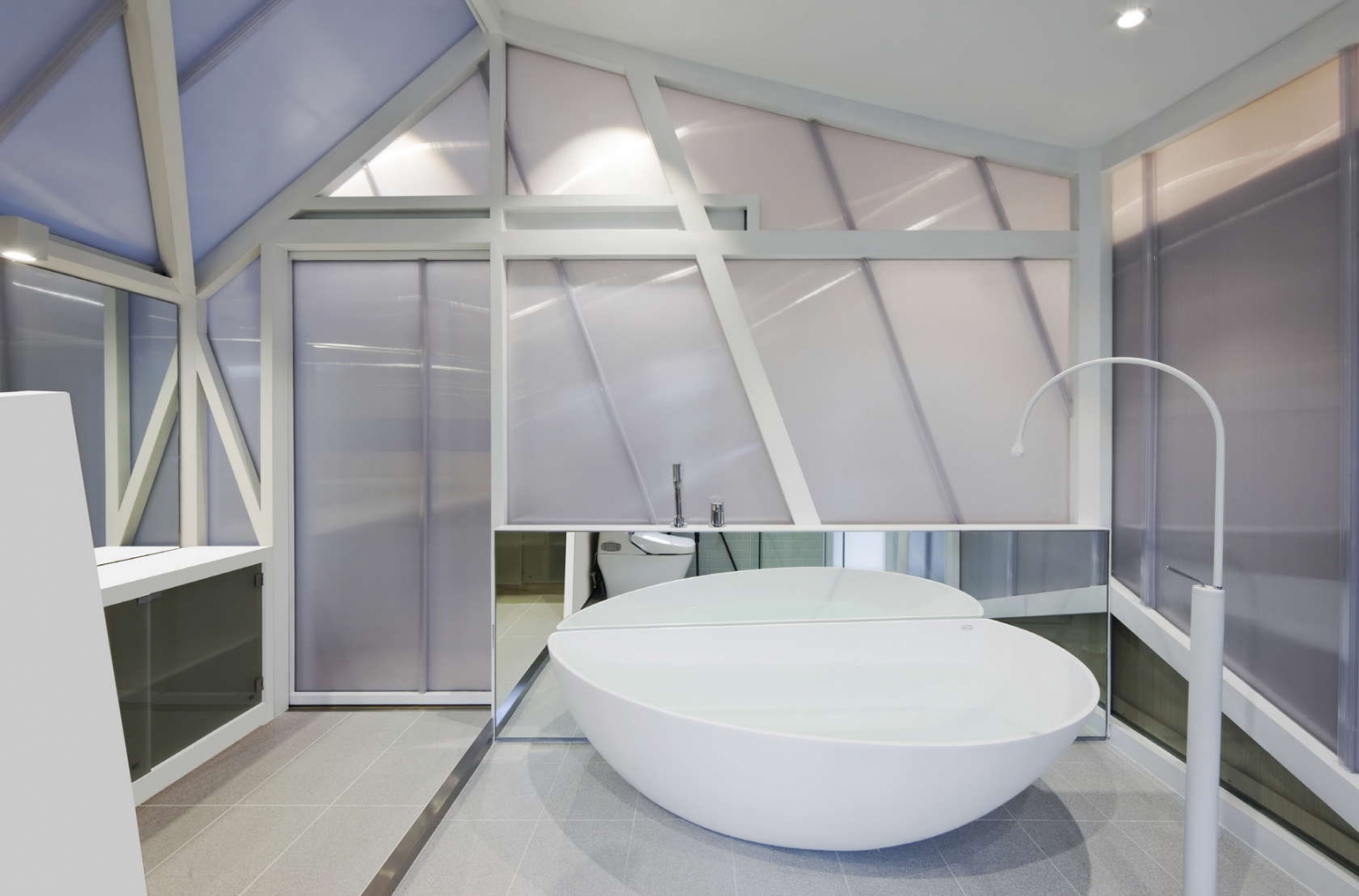

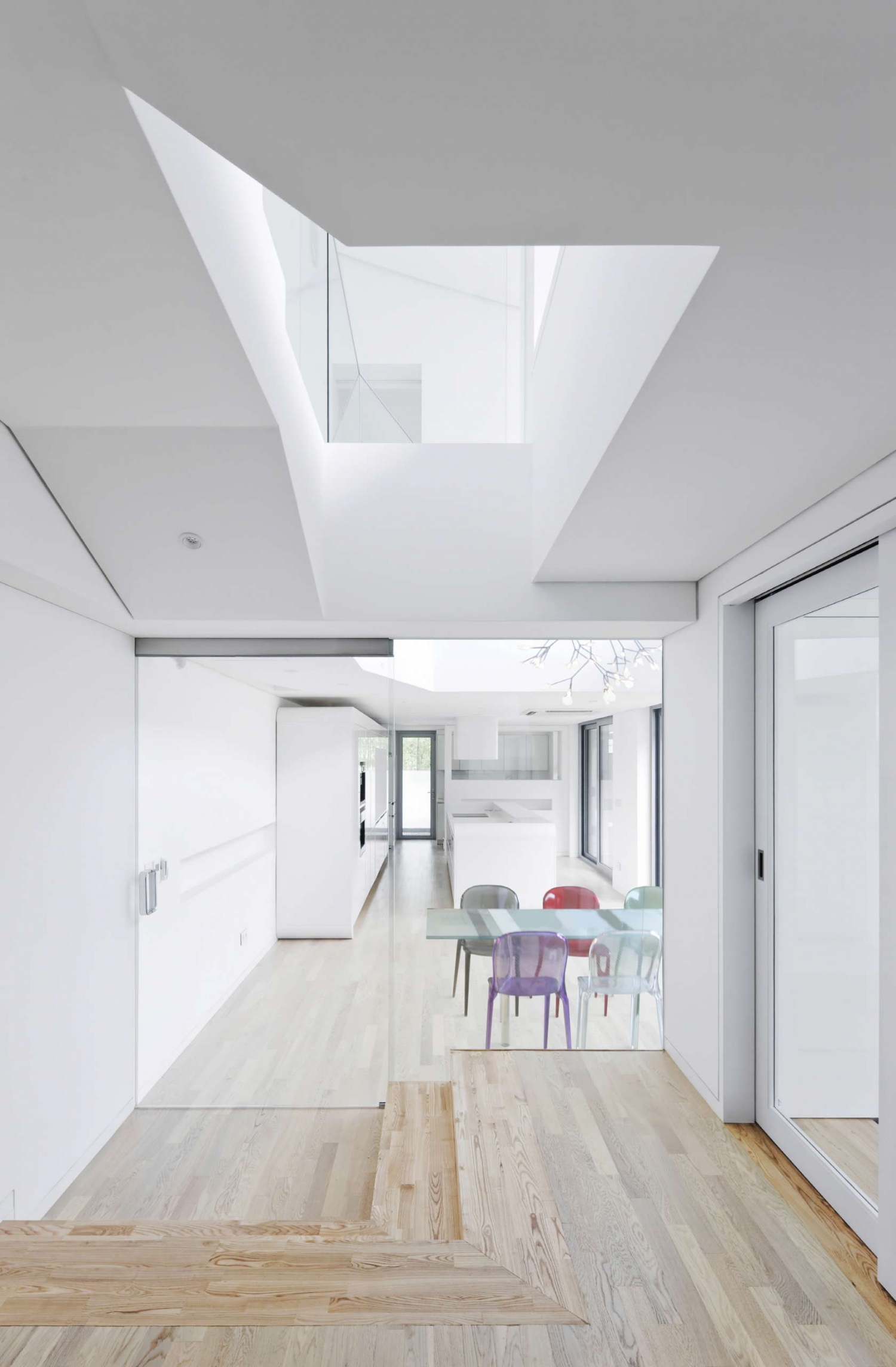

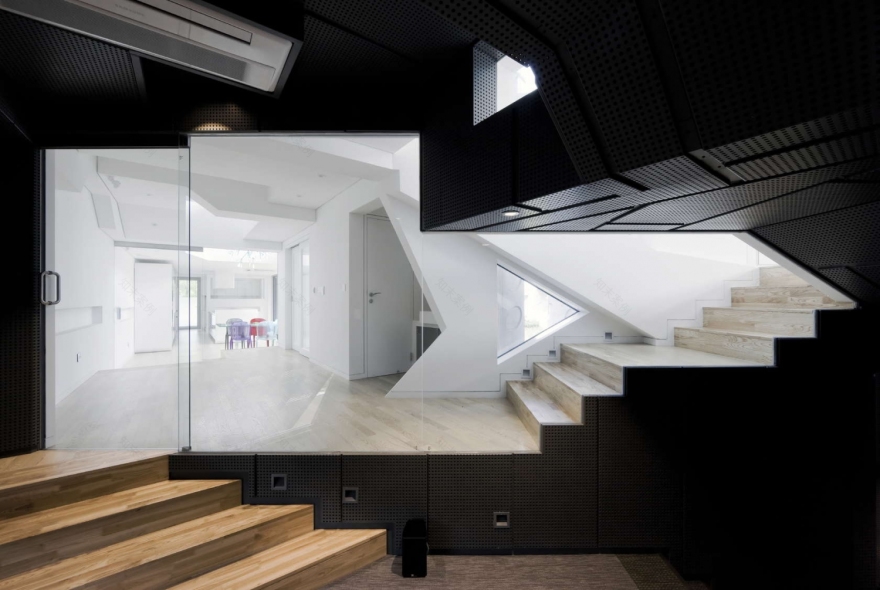

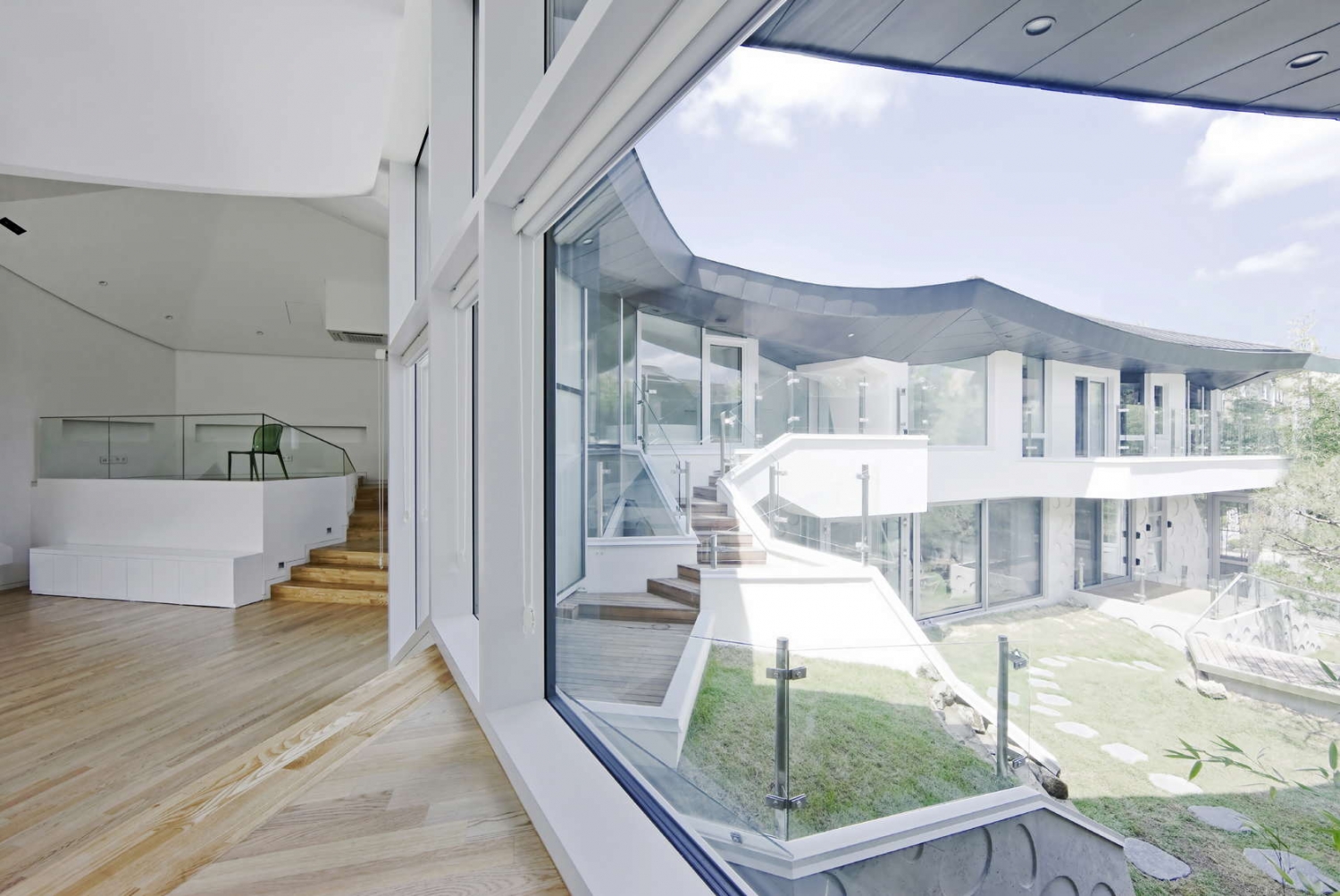

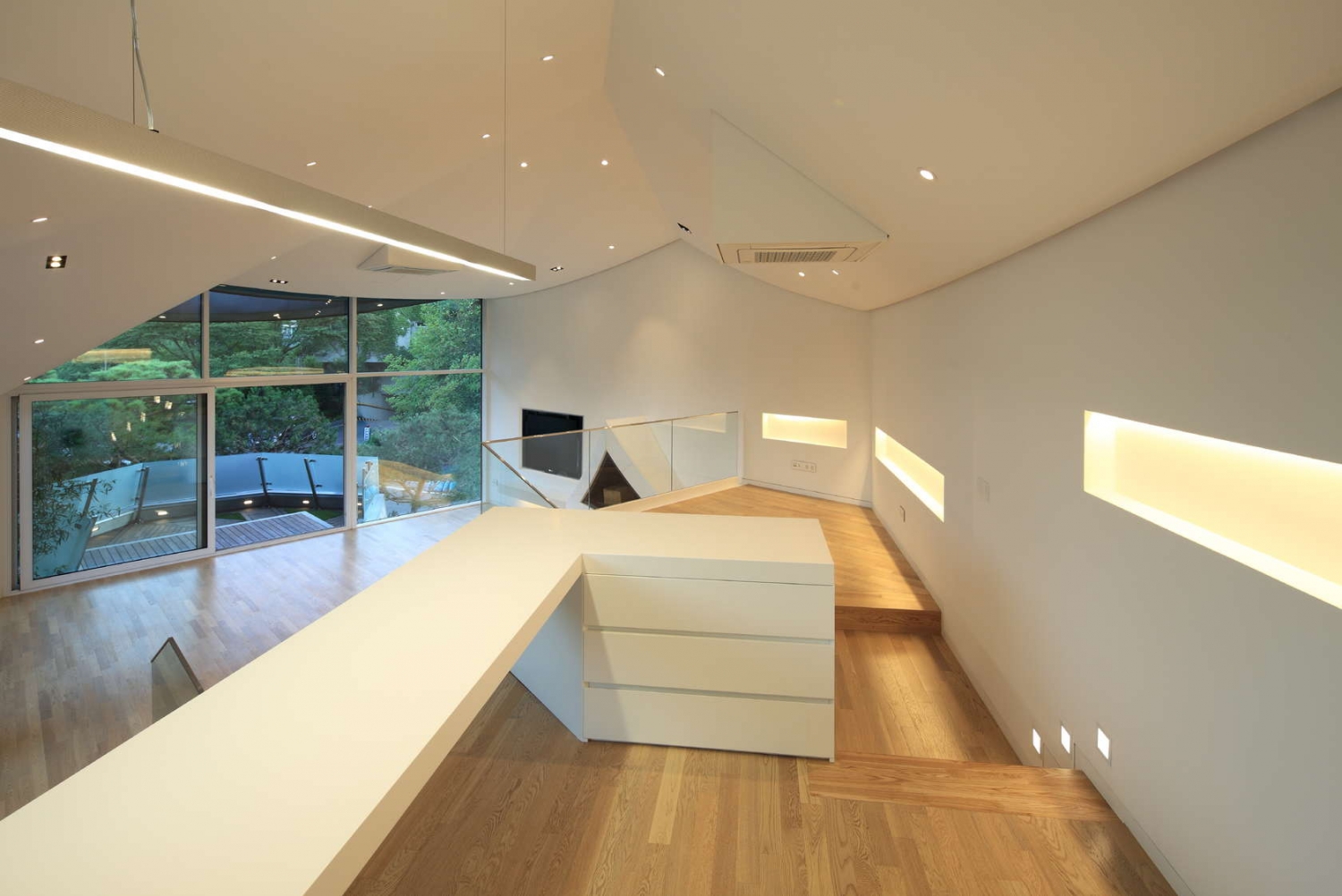

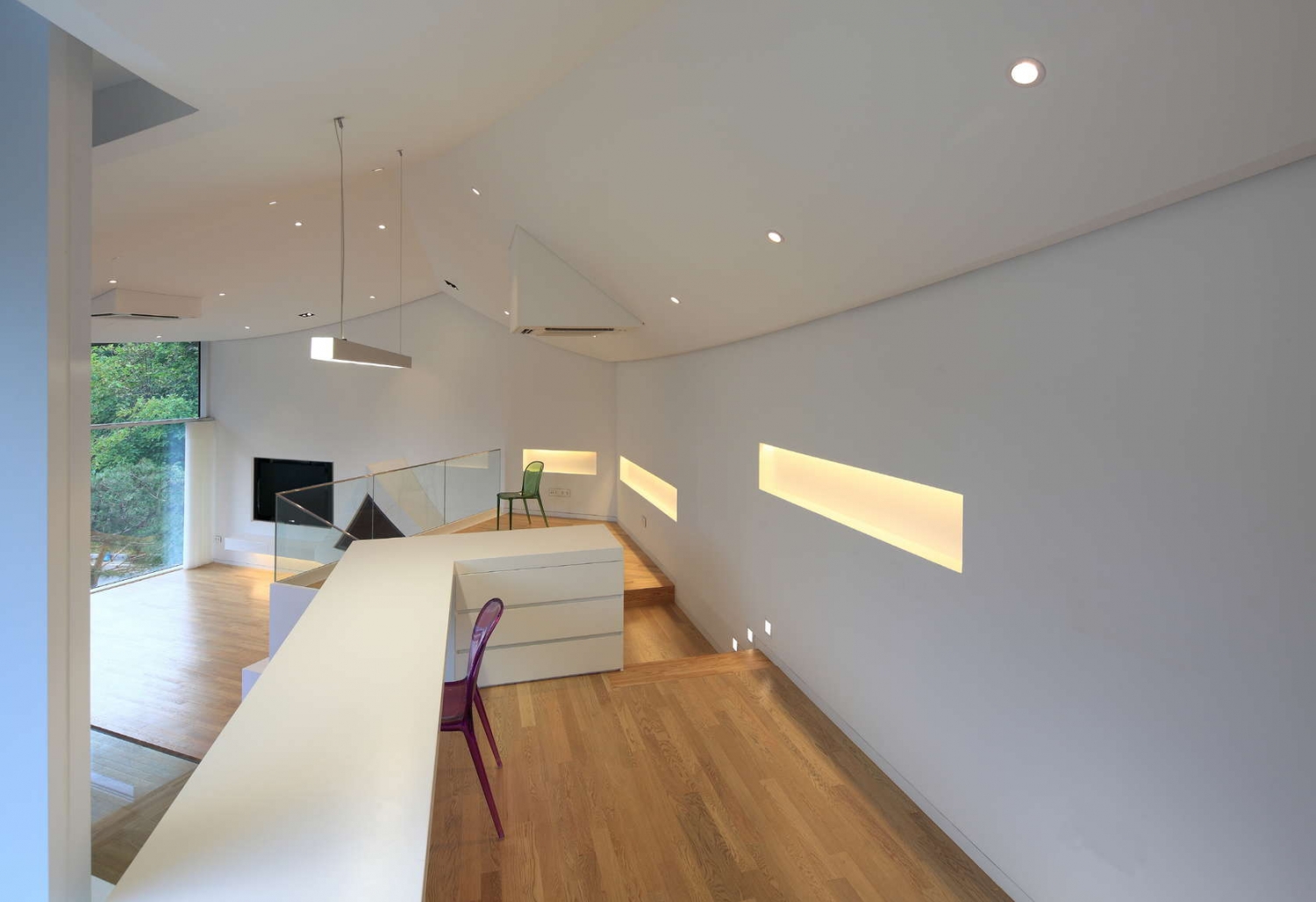

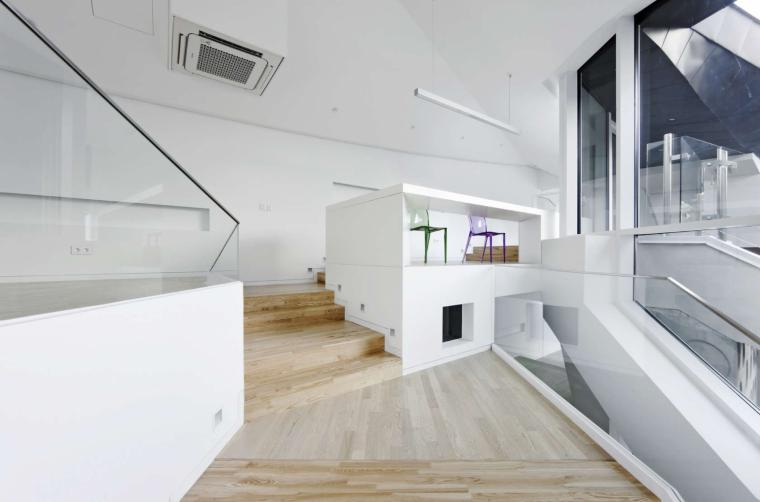

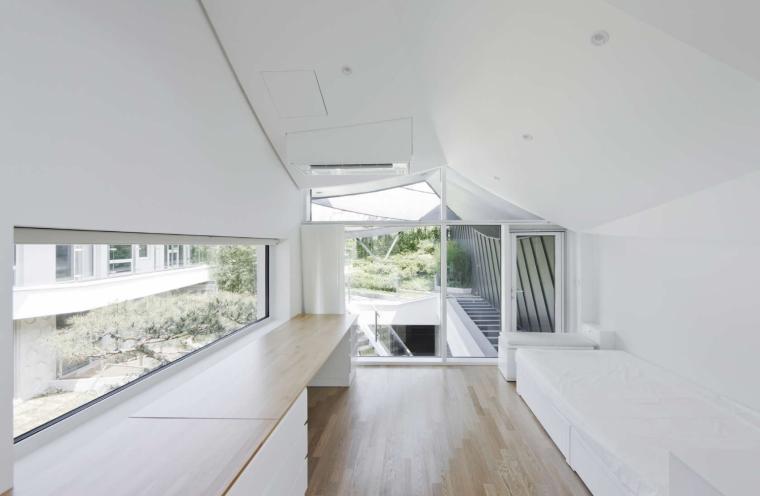

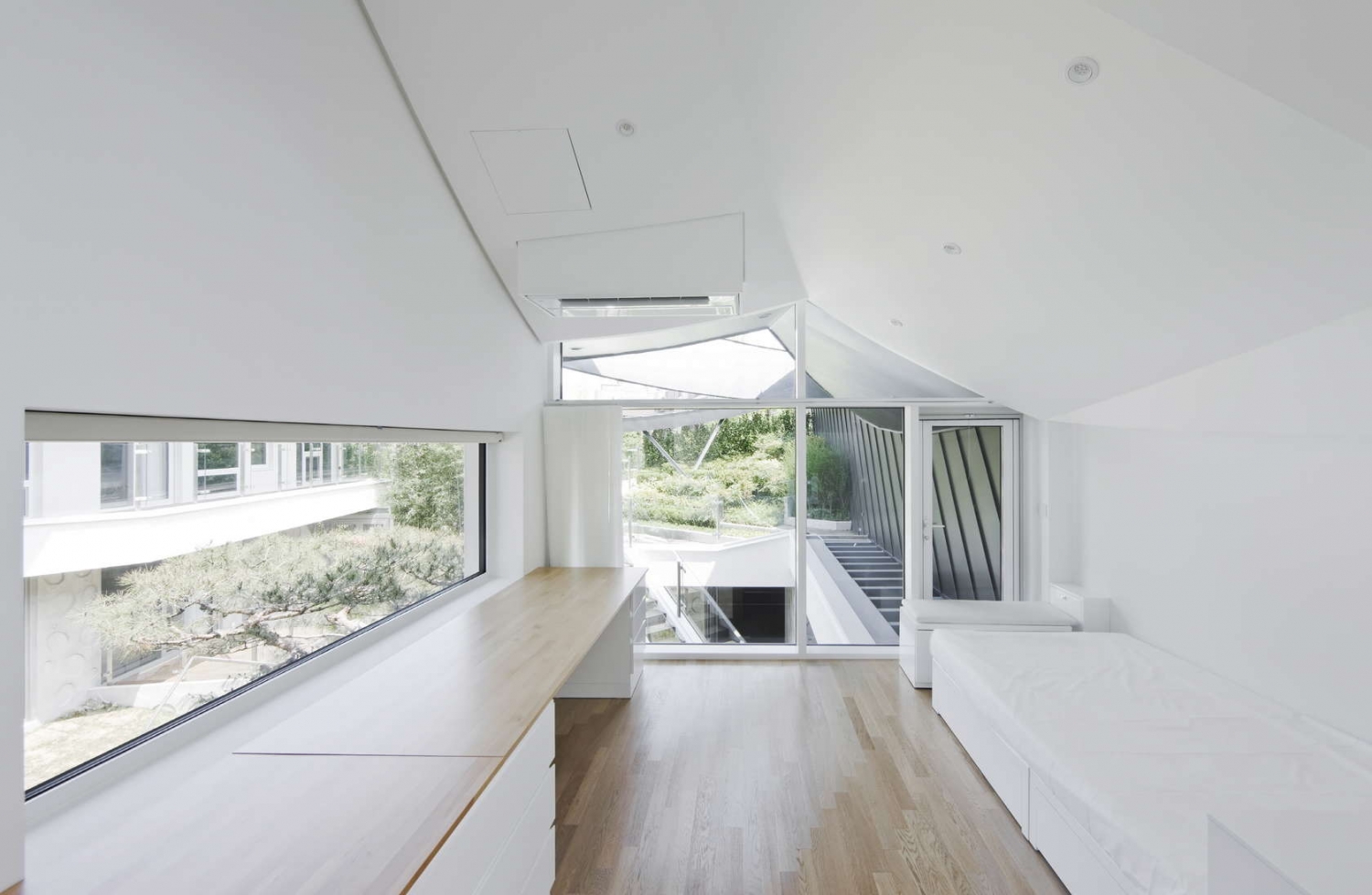

韩国Ga On Jai住宅内部实景图

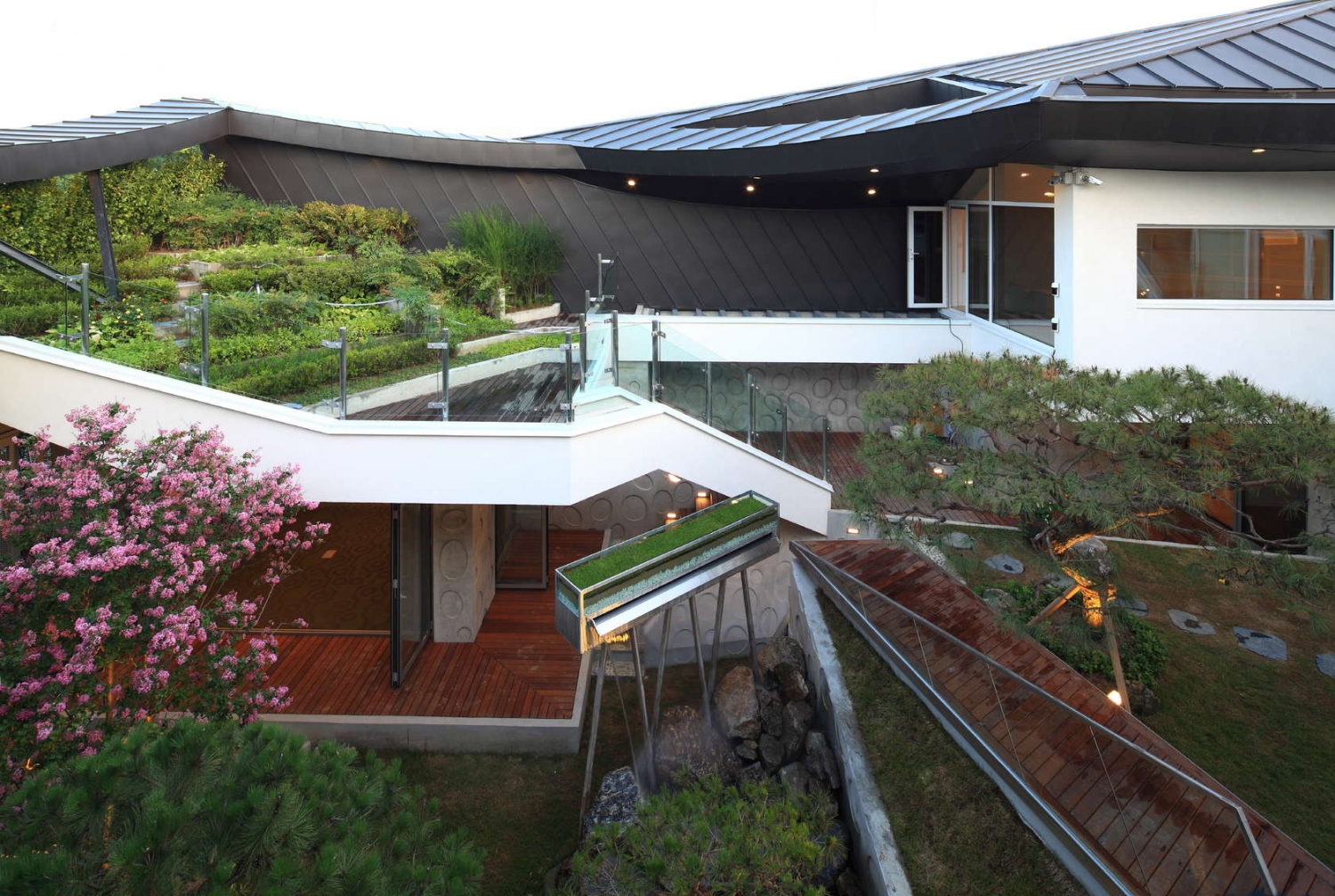

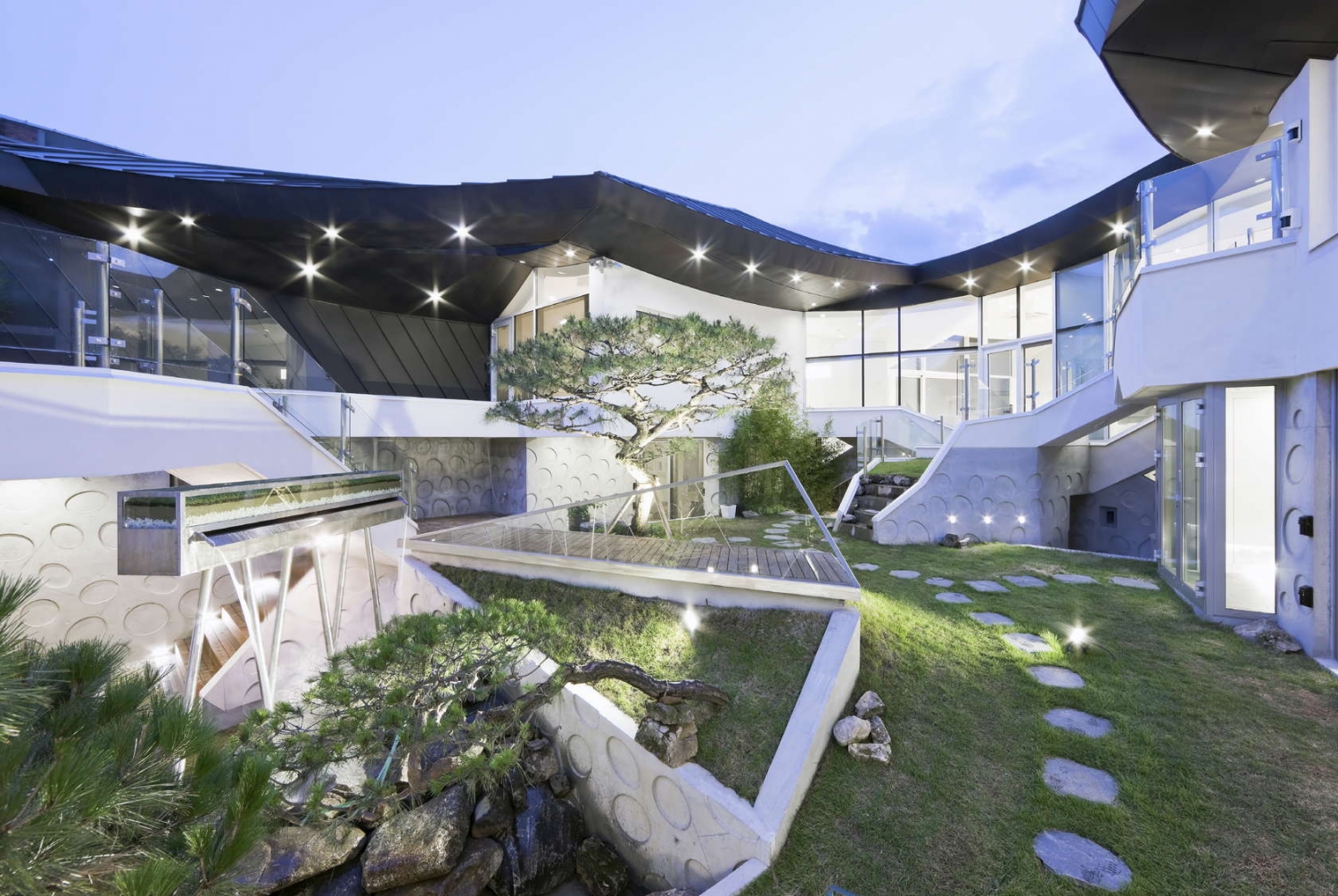

韩国Ga On Jai住宅夜景实景图

韩国Ga On Jai

住宅平面图

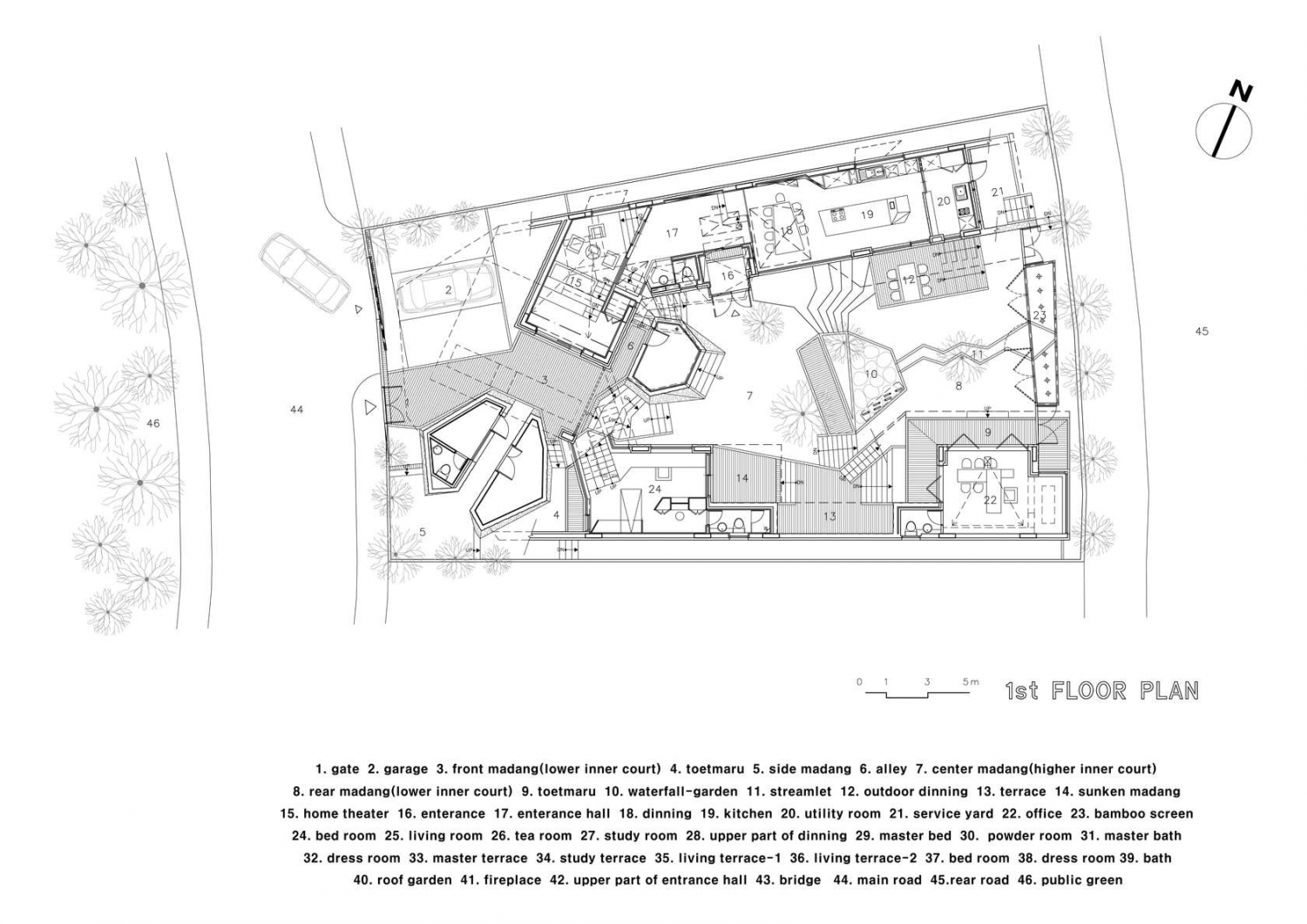

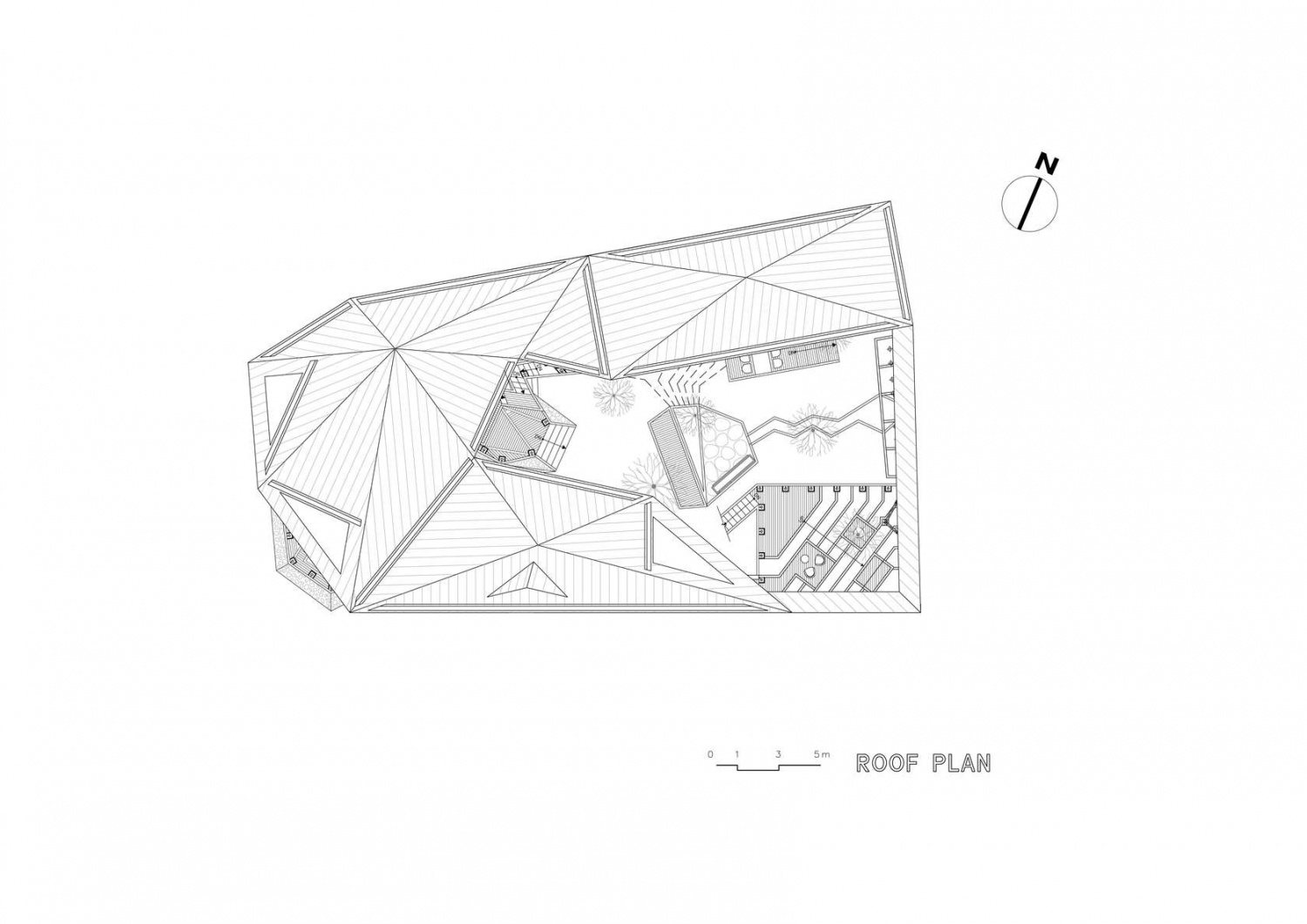

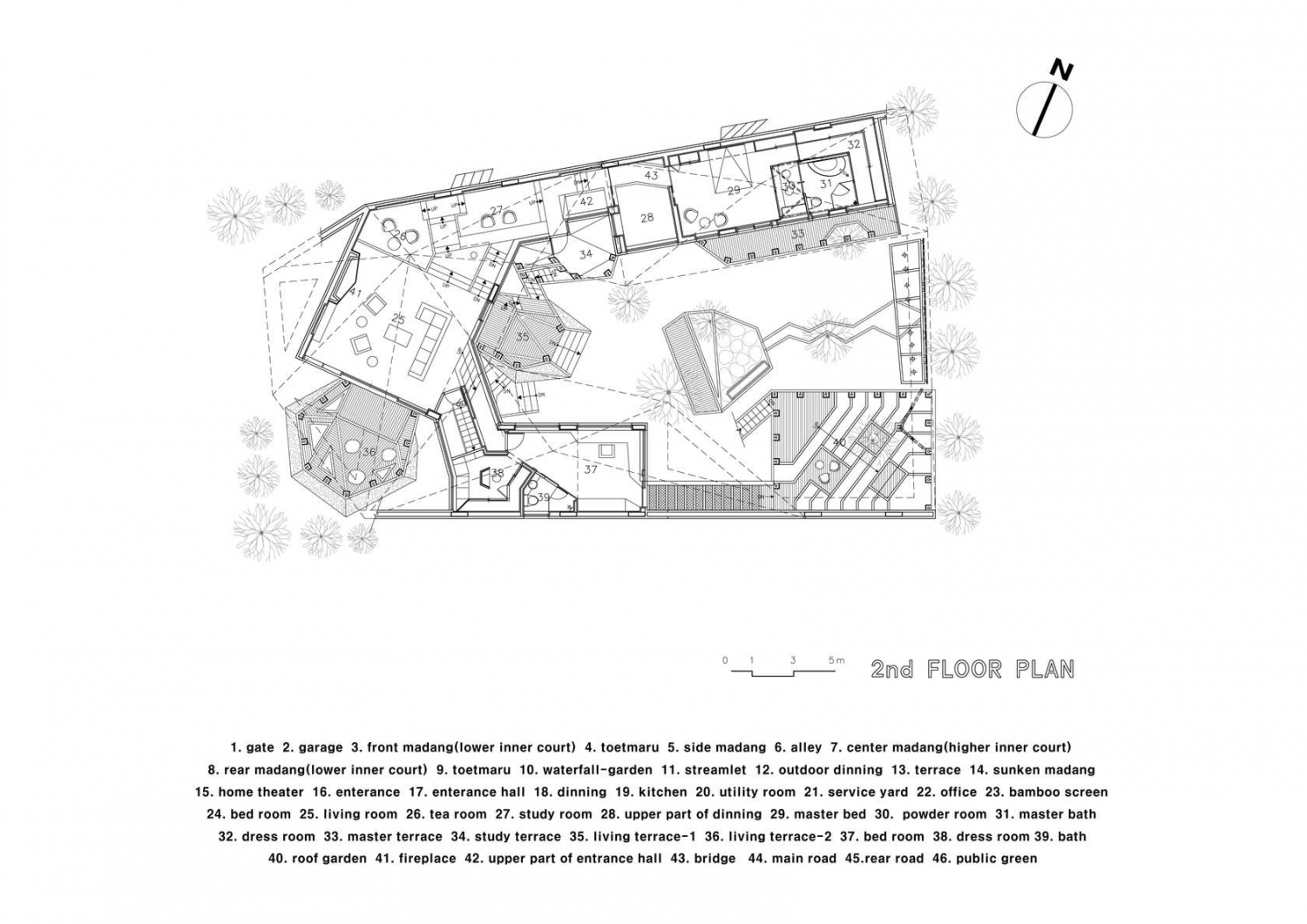

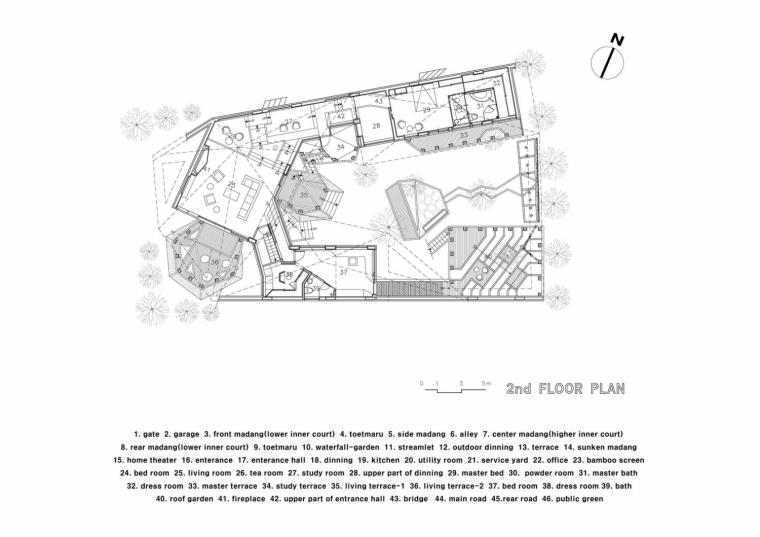

韩国Ga On Jai住宅平面图

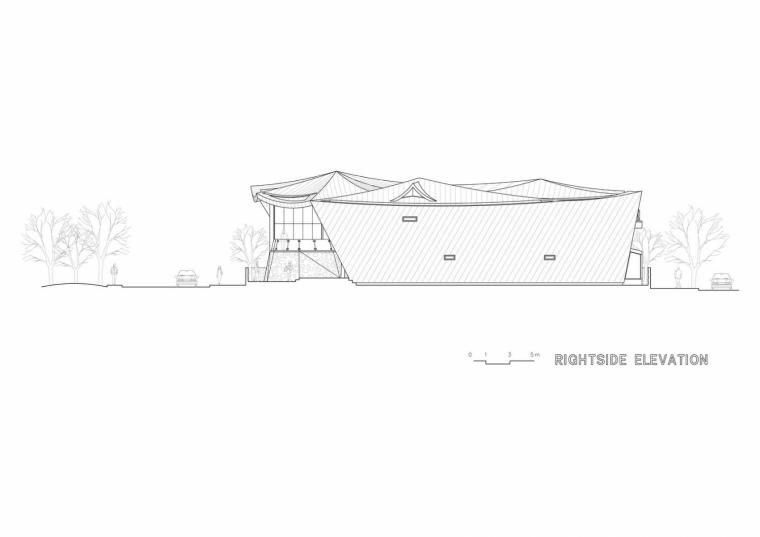

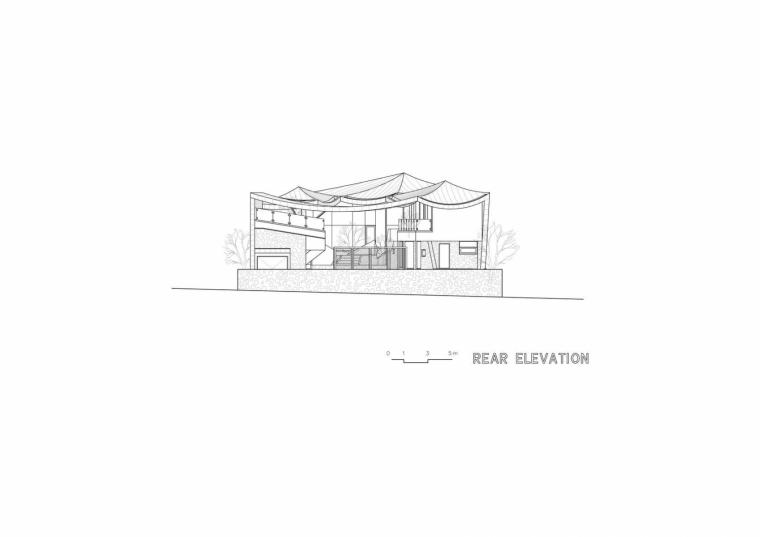

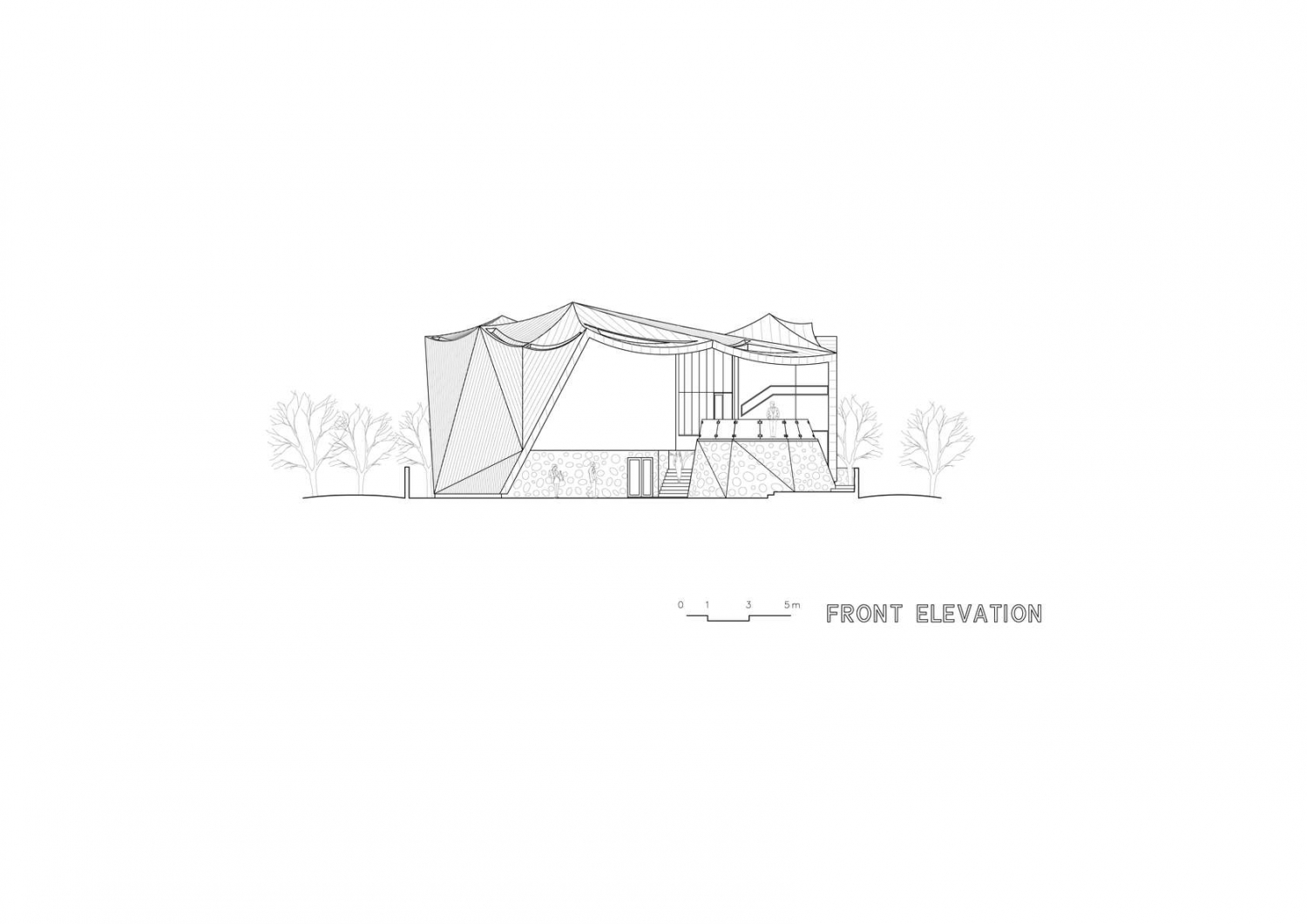

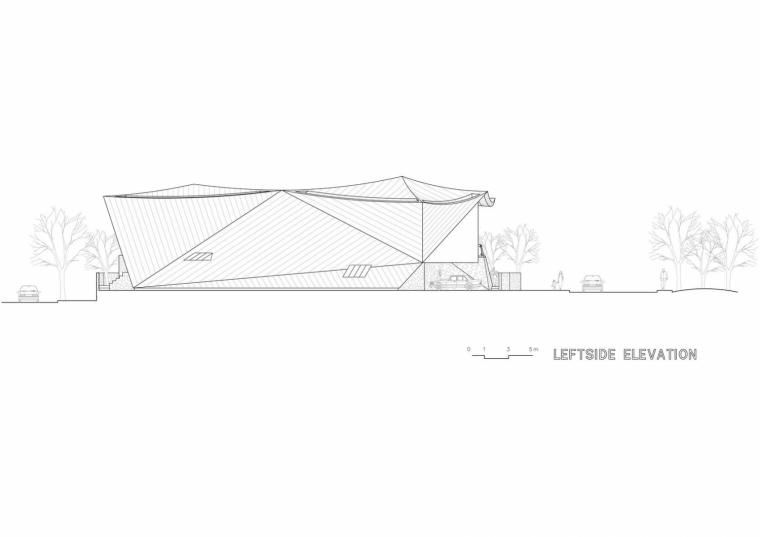

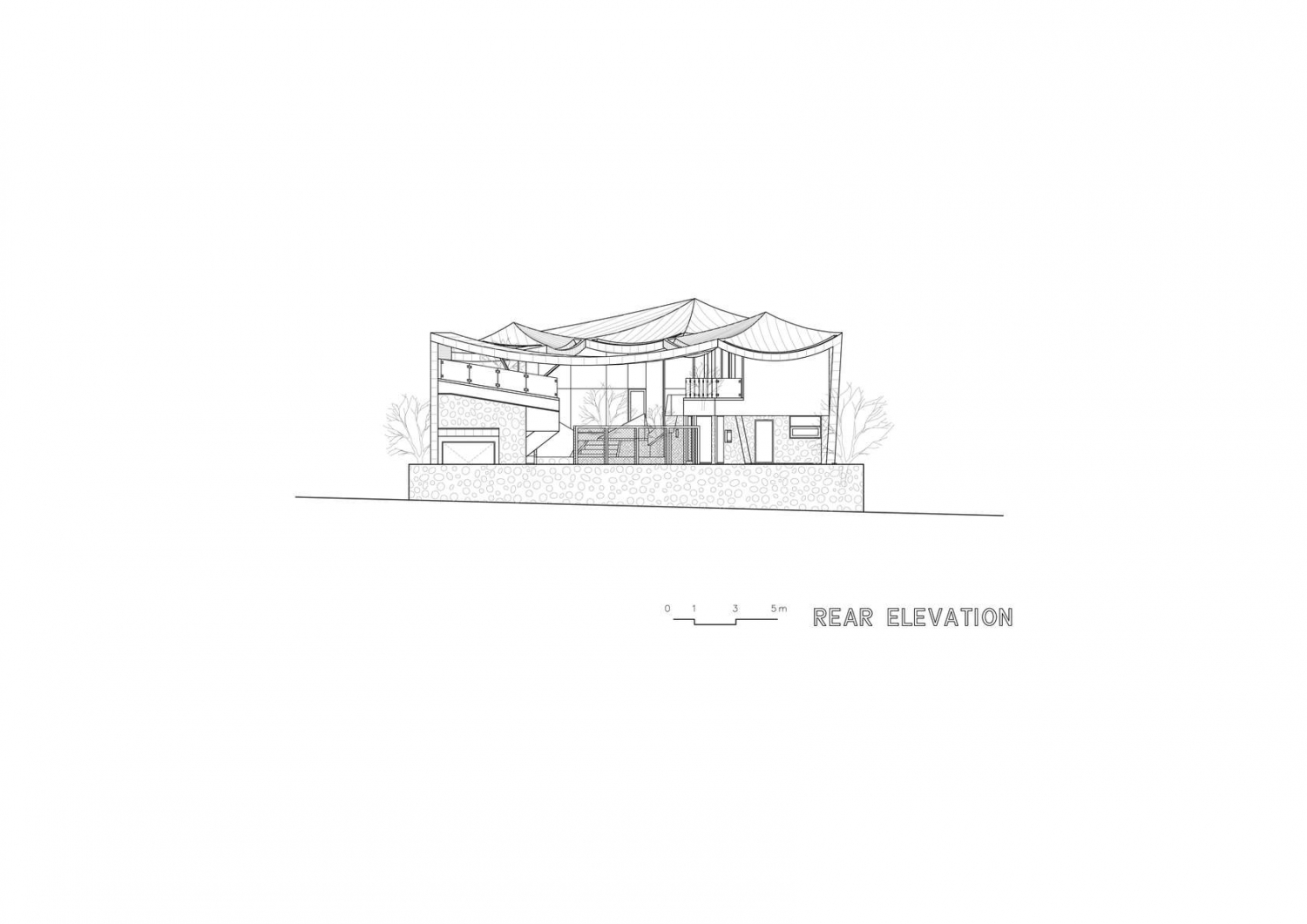

韩国Ga On Jai住宅立面图

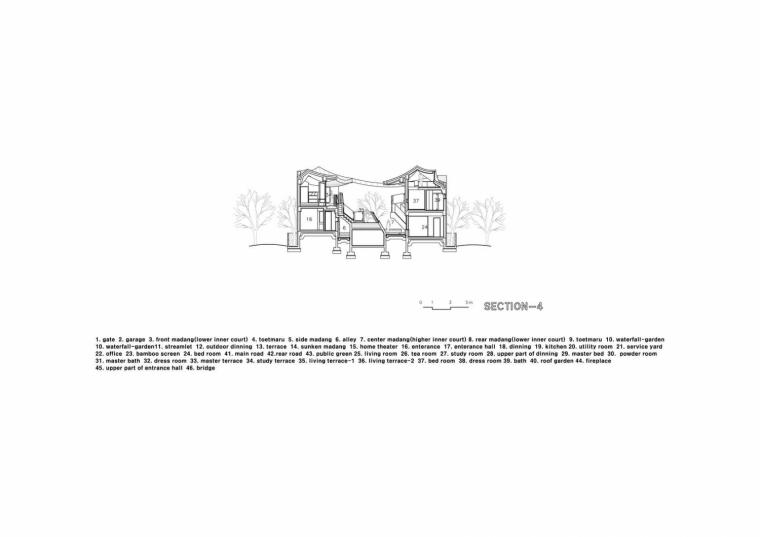

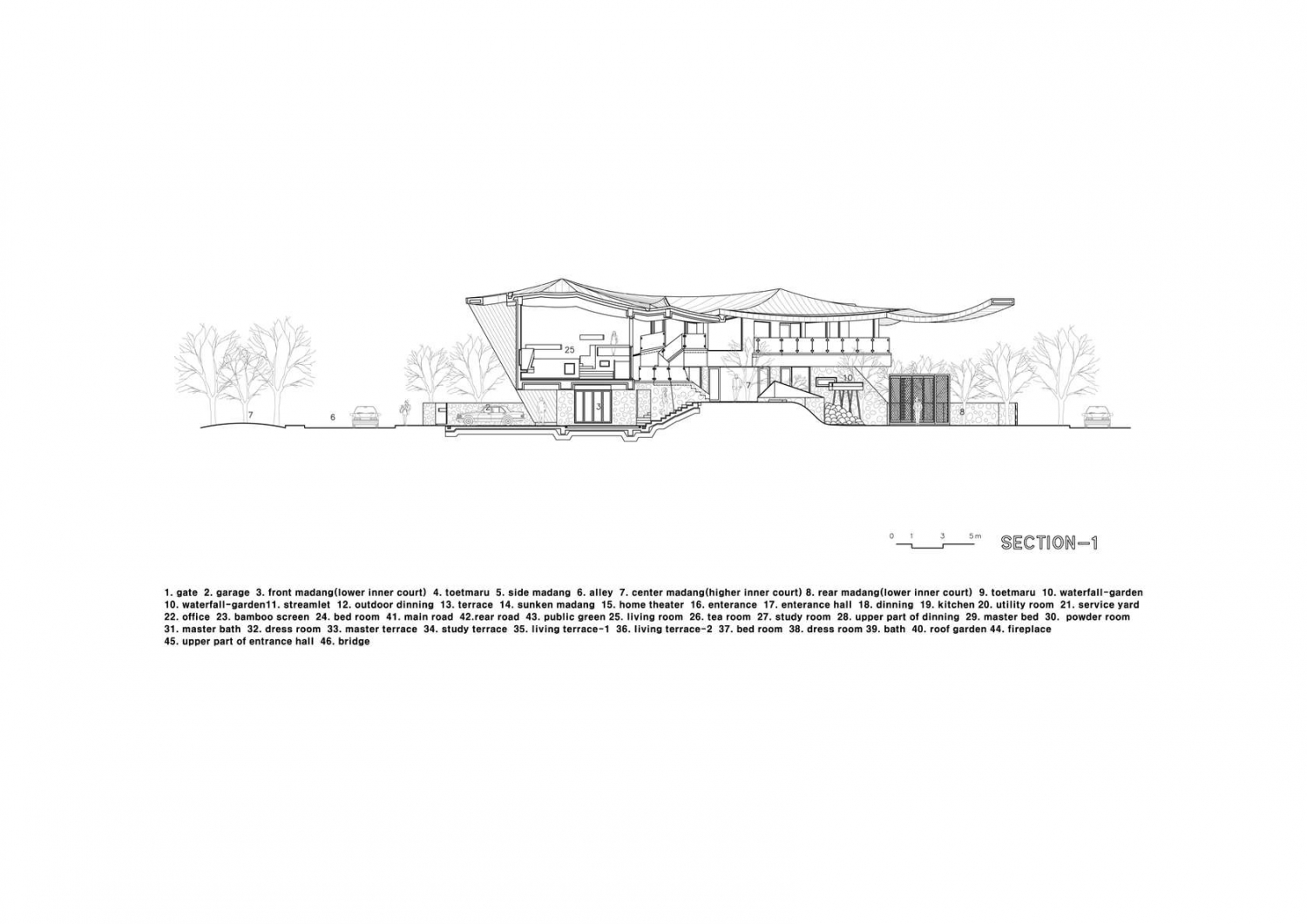

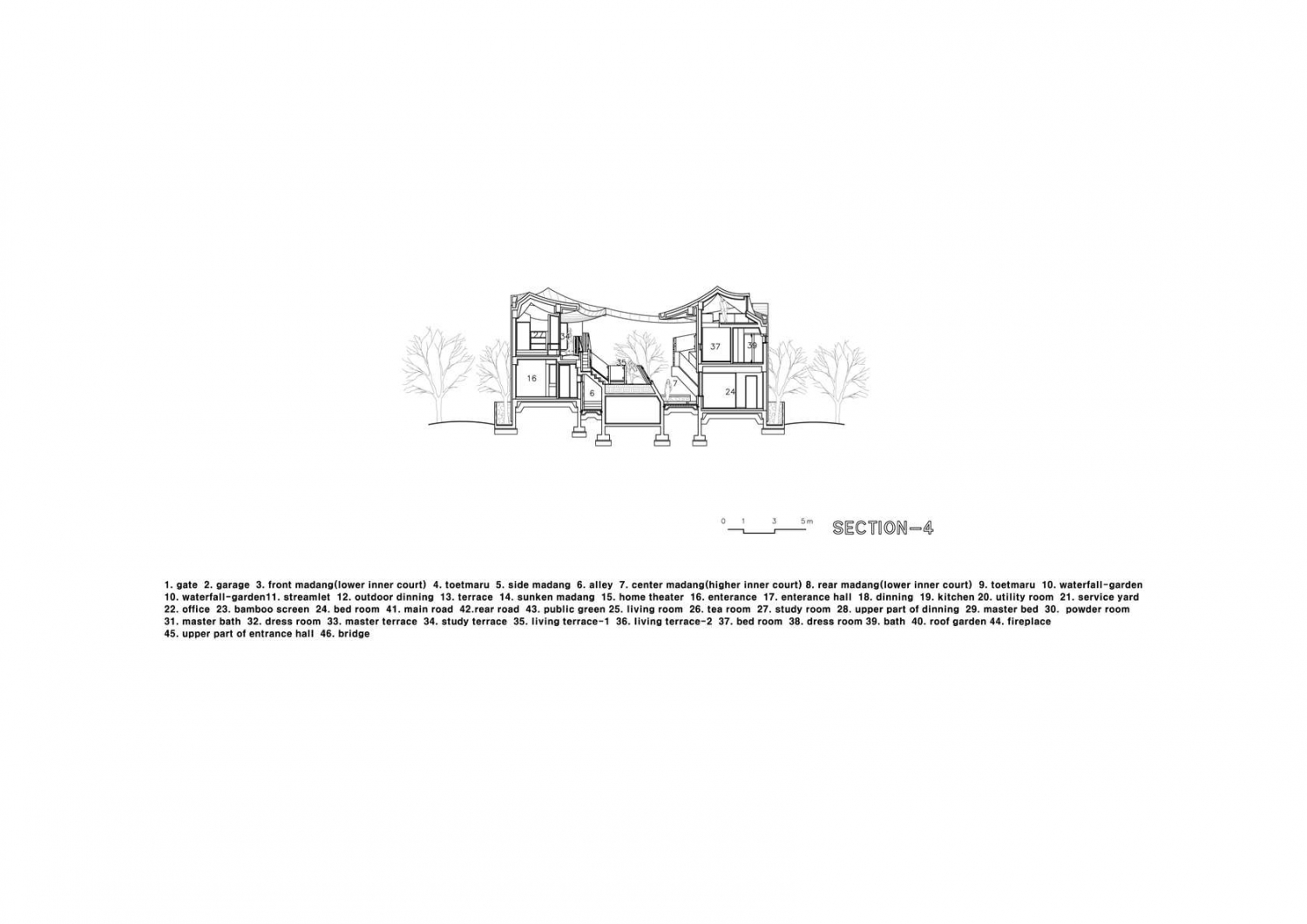

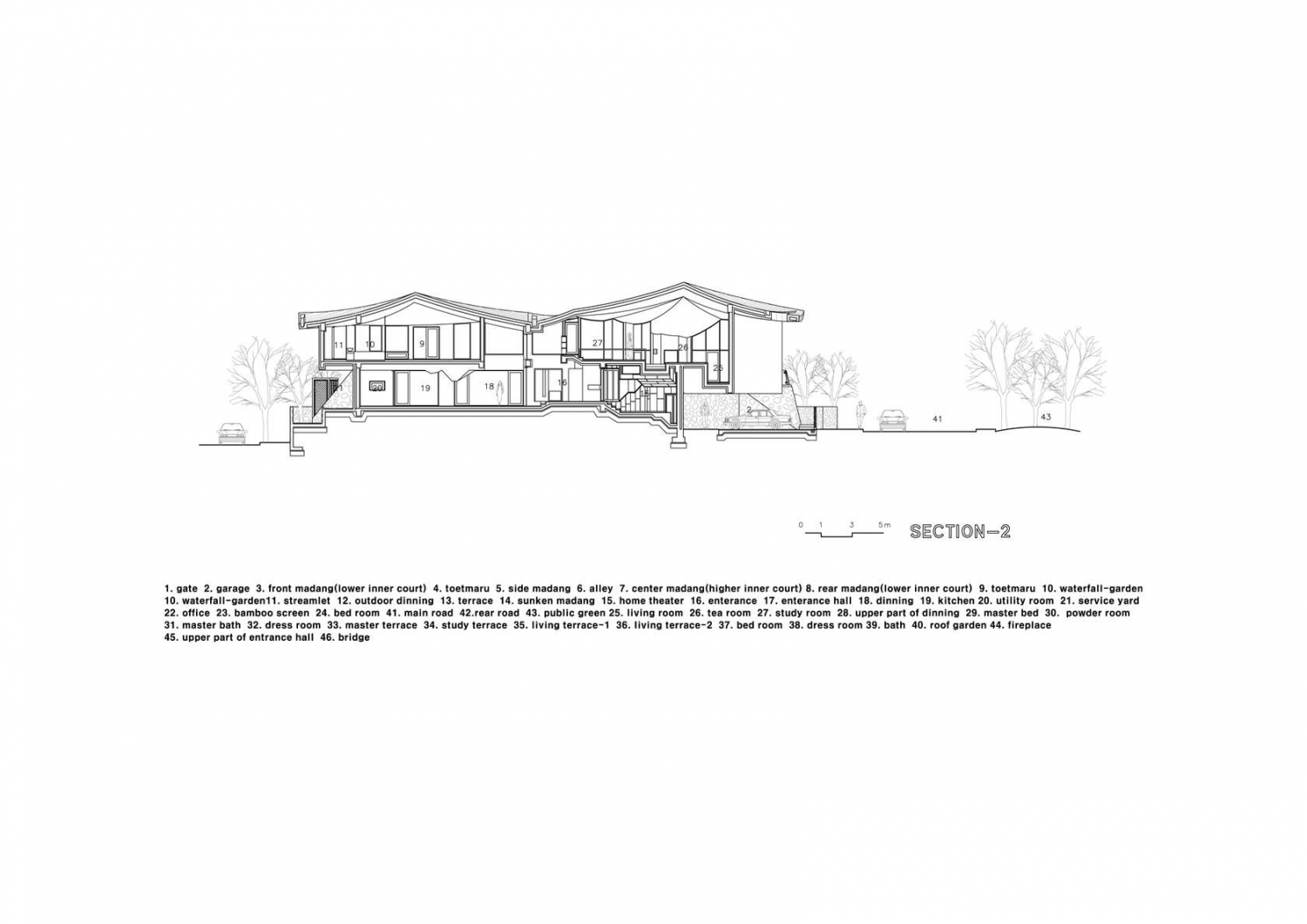

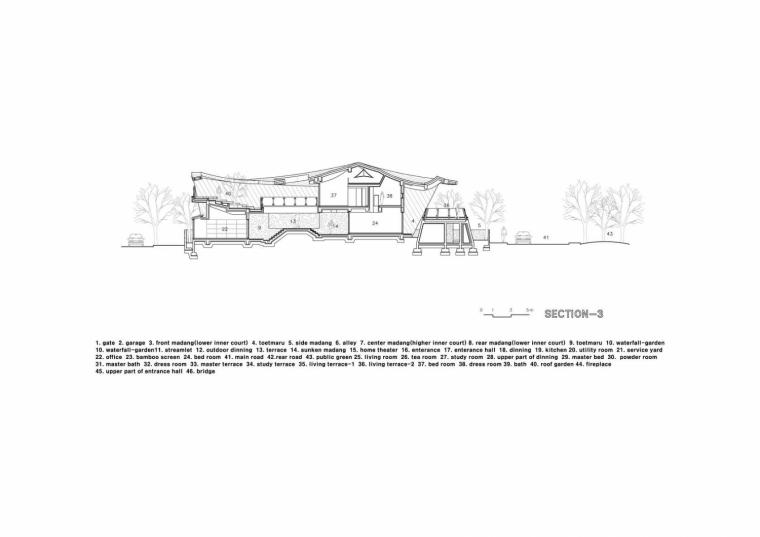

韩国Ga On Jai住宅剖面图
