西班牙加斯帕住宅设计丨Alberto Campo Baeza

Spain Gaspar House

设计方：Alberto Campo Baeza

位置：西班牙

分类：居住建筑

内容：实景照片

图片：12张

摄影师：Hisao Suzuki, Raul del Valle, Courtesy of Alberto Campo Baez

因为我们的客户对绝对独立性的要求，所以我们决定创造一个封闭的管理区，一个“封闭花园”或关闭的果园。住宅的特色是四堵3.5米高的围墙，住宅以一个18x18米的正方形为基础，这个正方形被分成了三个相等的部分。只有位于中央的部分有屋顶。正方形被两堵2米高的墙分成了三部分，这三部分的面积比例分别是A,2A和A，住宅的服务区域则位于边界上。中央空间的屋顶要高一些，屋顶高4.5米。在低墙贯穿高强的点上，有四个2x2米的开口 ，开口被简单的装上了玻璃。石块铺砌的水平面通过这四个开口延伸，为内部空间和外部空间提供了有效的连续性。

住宅的白色外表使住宅显得干净，也提供了建筑风格上的连续性。这栋双对称住宅的对称性被四棵对称放置的柠檬树强调着，这四棵柠檬树也创造了沉思的氛围。住宅中的灯光是水平而连续的，并被东西向的院墙反射着。简单的讲，一个水平的、连续的空间被一个水平的灯光拉紧了。

译者：蝈蝈

At the client's insistence on absolute independence, it was decided to create an enclosed precinct, a "hortus conclusus" or closed grove. The house, defined by four enclosure walls of 3.5 meters, is based on a square measuring 18 x 18 meters which is subdivided into three equal parts. Only the central portion is roofed. The square is then divided transversely by two, 2 meter high, walls into three parts with the proportions A, 2A, A, the service pieces being located on the sides. The roof of the central space is taller, 4.5 meters high. At the points where the low walls intersect with the taller ones, four openings of 2 x 2 meters are made and simply glazed. It is through these four openings that the horizontal plane of stone paving expands, effectively obtaining a continuity of interior and exterior.

The white color of all the parameters contributes to the clarity and continuity of the architecture. The double symmetry of the composition is emphasized by the symmetric placement of four lemon trees, which produce contemplative reflections.The Light in this house is horizontal and continuous, mirrored by the east-west orientation of the courtyard walls. Simply, a horizontal, continuous, space is tensed by a horizontal light.

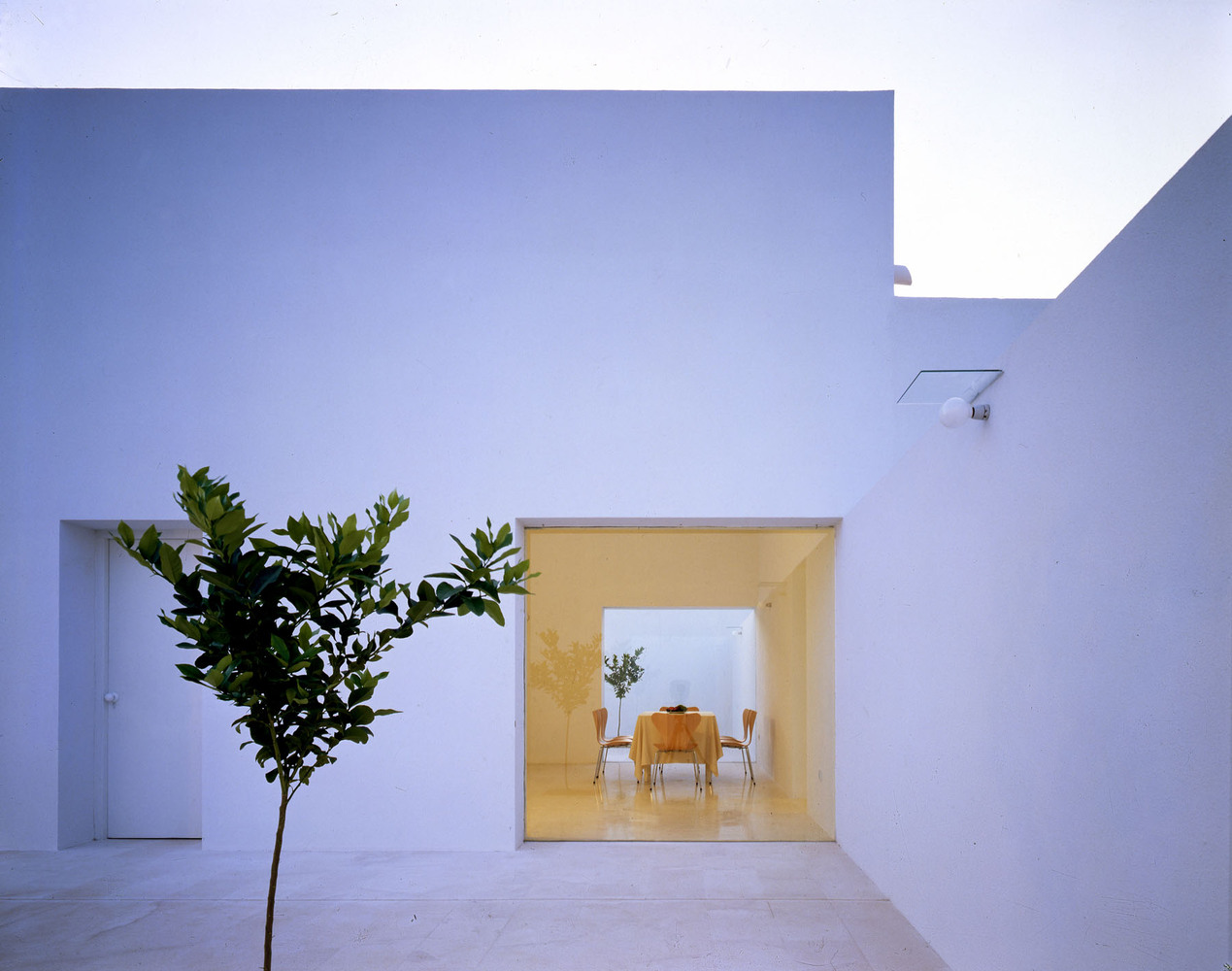

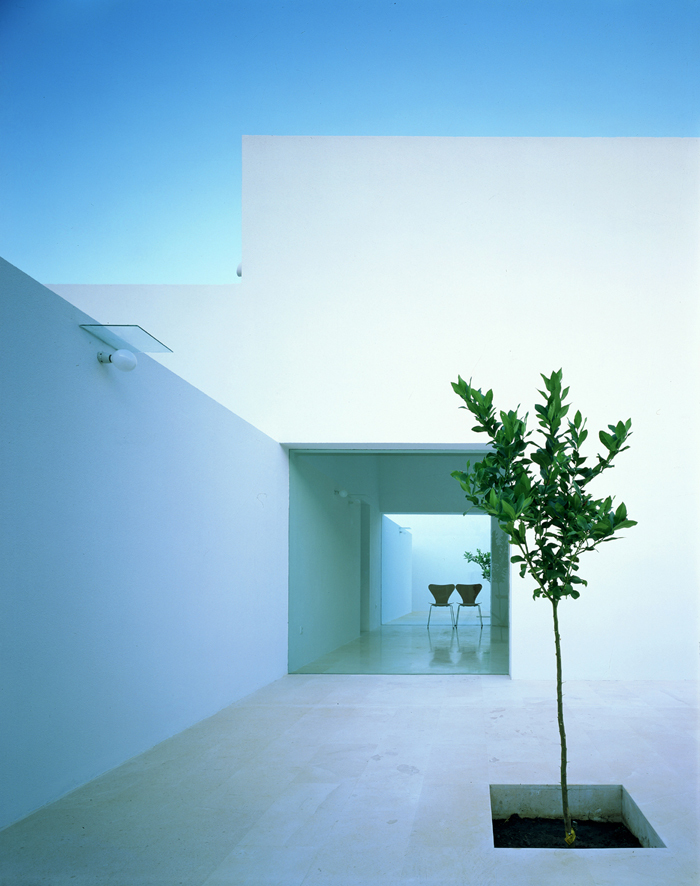

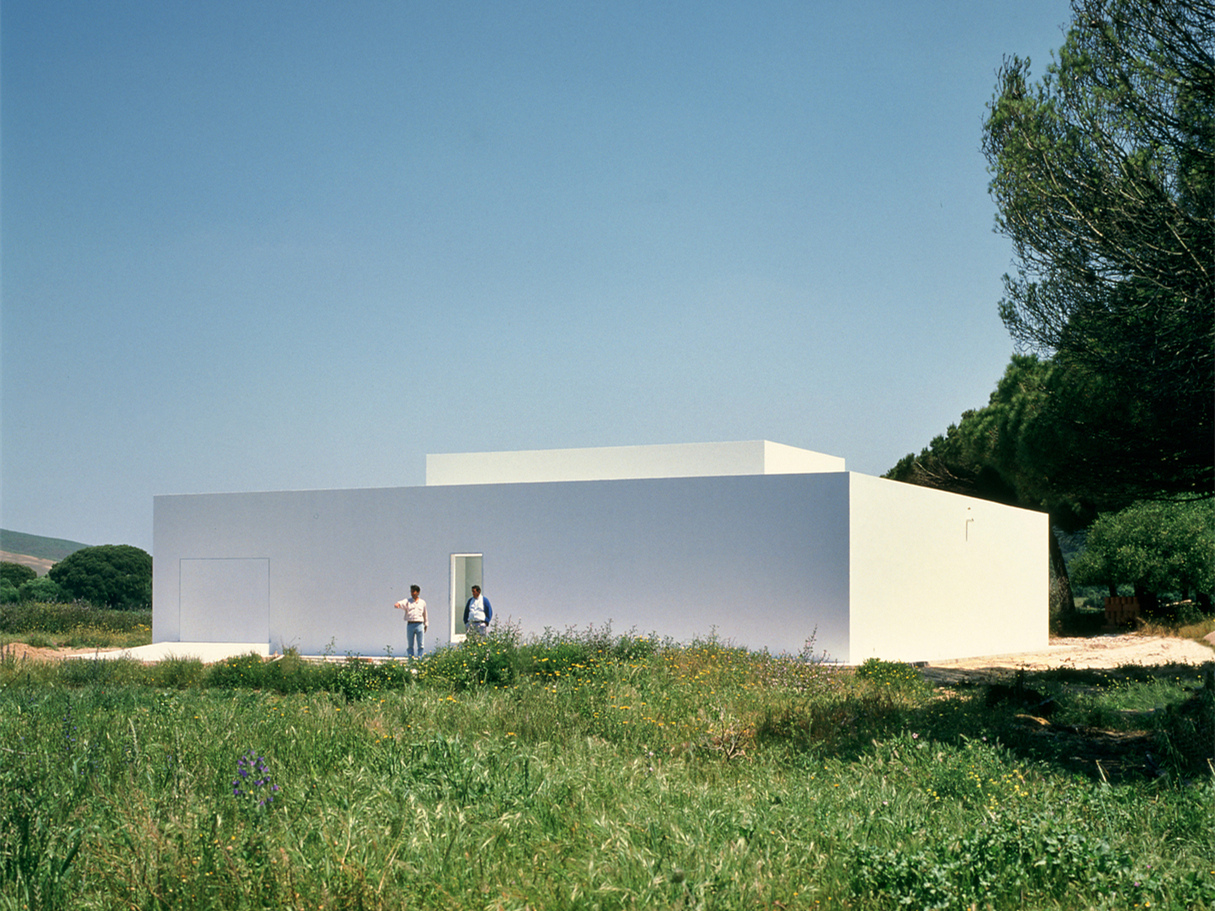

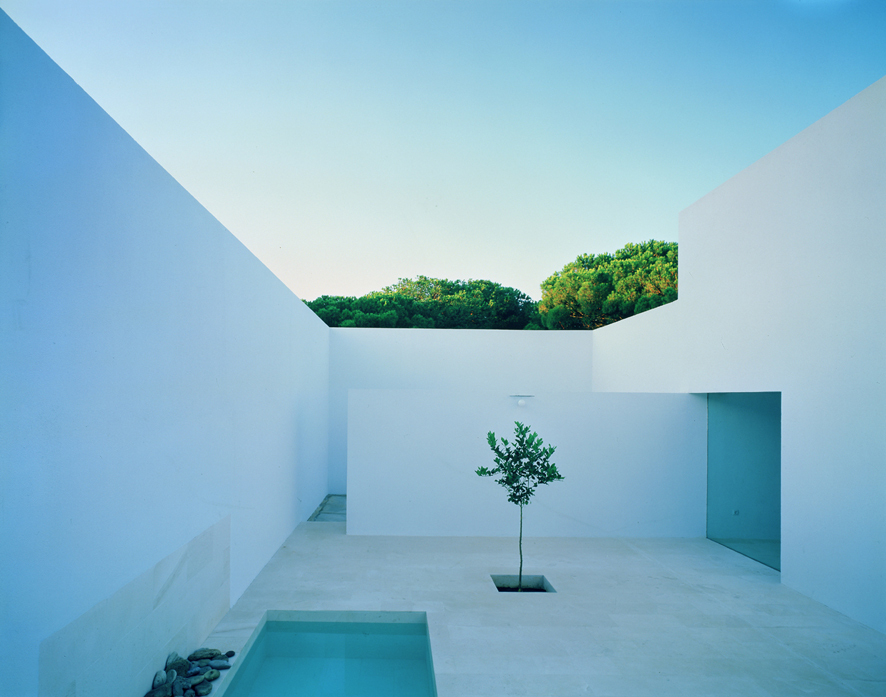

西班牙加斯帕住宅外部实景图

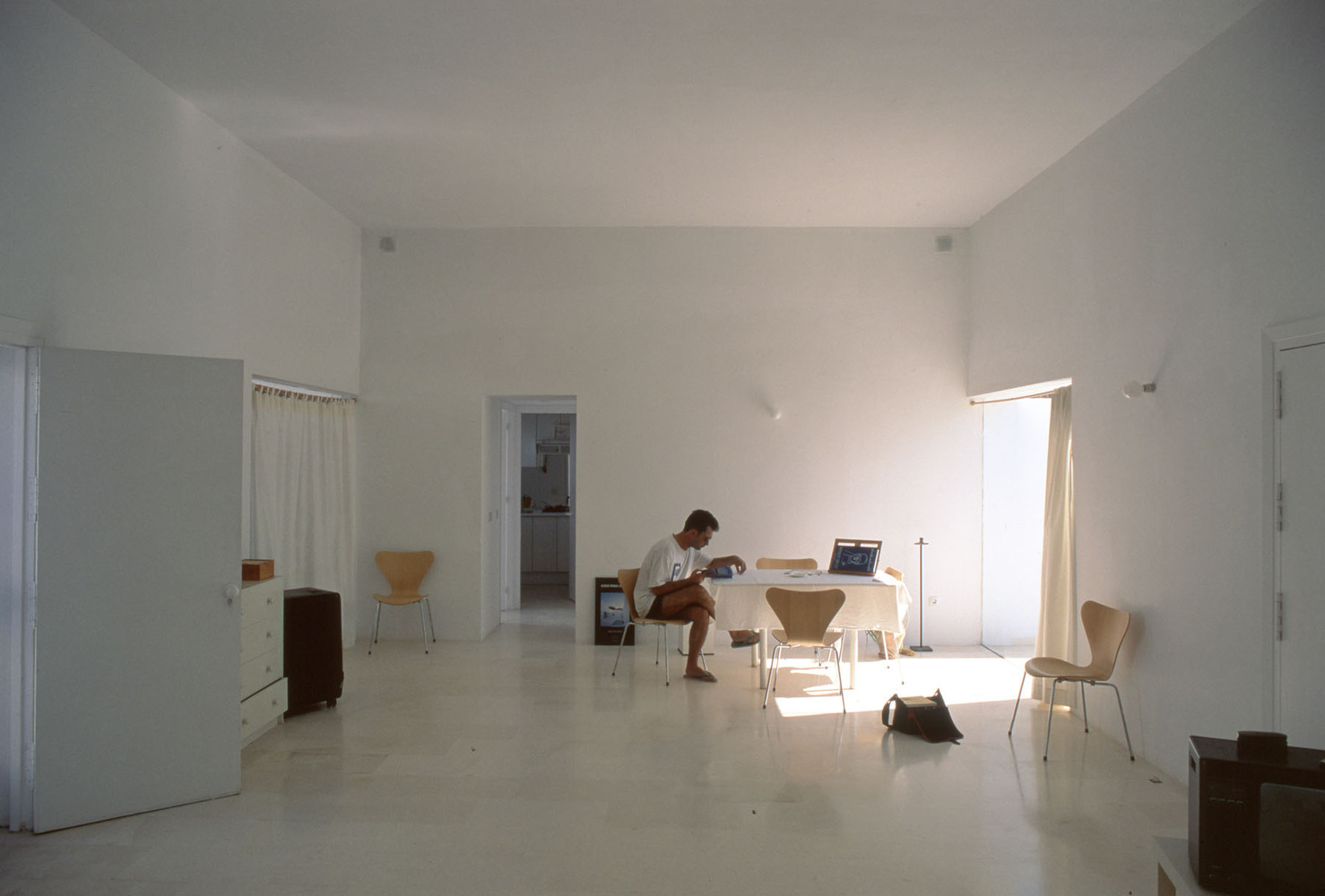

西班牙加斯帕住宅内部实景图

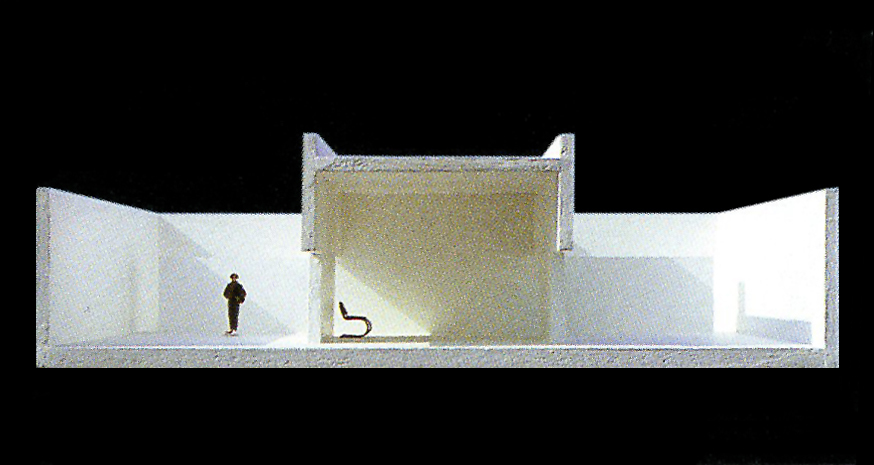

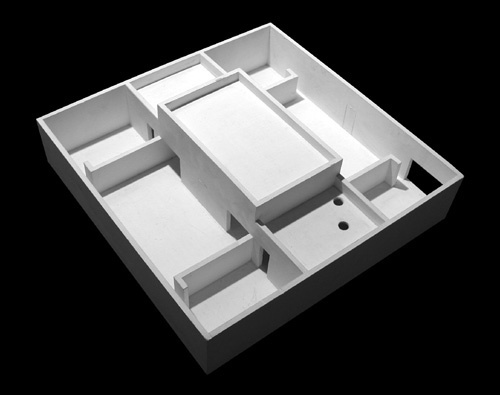

西班牙加斯帕住宅模型图

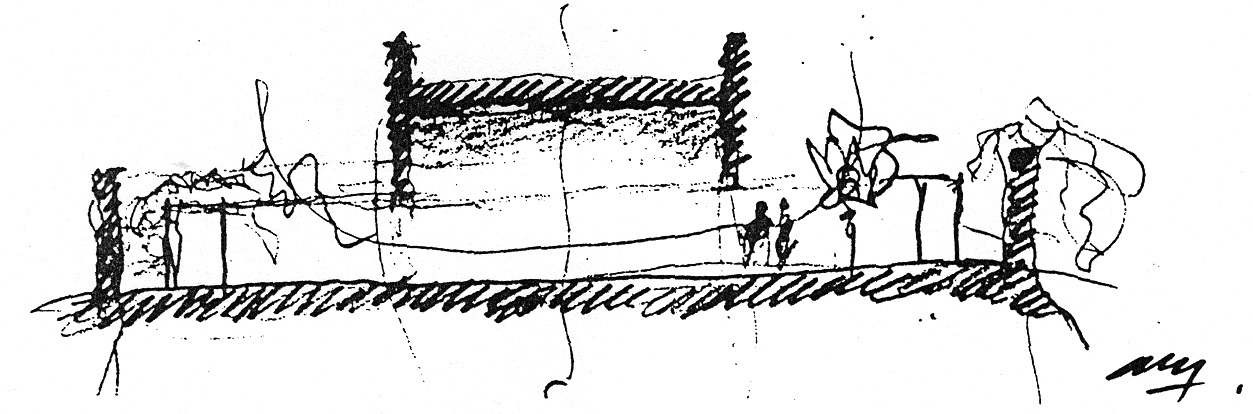

西班牙加斯帕住宅略图

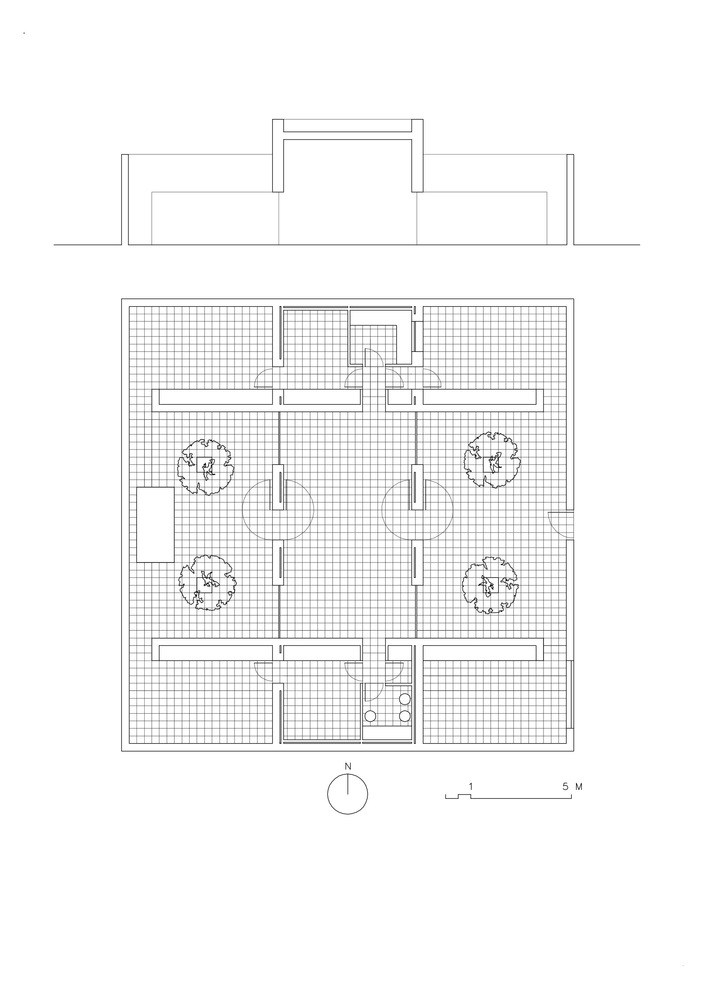

西班牙加斯帕

住宅平面图

西班牙加斯帕住宅平面图
