新加坡OOI住宅

Singapore OOI residential

设计方：Czarl Architects

位置：新加坡

分类：居住建筑

内容：实景照片

机电工程

师：PCA Consulting Engineers

设计团队：Carl Lim, Anditya Dwi Saputra, Sheryl Asi Perculeza

合作人：Mink Architects

承包人：EL-FA Team Pte Ltd

图片：25张

摄影师：Tim Nolan

这是由Czarl Architects设计的OOI住宅。客户期望生活在一个父母、孩子、祖父母可以共同生活、工作、娱乐和享受的住宅里。该项目位于汤普森树林保护区，周边是郁郁葱葱的乔木，入口道路是一条陡峭的路。与新加坡其他平地住宅有所不同，该项目场地长且狭窄，与毗邻的道路相平行。基于这样的场地限制条件，该项目以紧凑布局和规整造型为主，从而让功能和形式紧密结合。在这里，客厅是住宅的心脏，双层高的设计强化了它的空间地位。主要交通流线和其他房间都是围绕着客厅而布局。建筑使用了钢筋混凝土板组合空间，形成统一协调的视觉美学。

译者： 艾比

The patrons of this project are young professional involved in medical R&D with a teenage daughter and an elderly person. The client has expressed their desire to live in a house where parents, children and grand parents can live, work, play and enjoy hobbies together interactively. A sense of fun and adventure, green consciousness and functionality are a few key concerns.

Site ContextLocated within the Thompson Tree conservation area, the site is well surrounded by mature trees and dense vegetation and is accessible from the front by a steep road. Unlike most other landed housing sites in Singapore, the site is perculiar in shape with it being a long narrow plot with its length running parallel to an adjacent steep road. Due to the tight constraints of the site, there is a need to compact programmatic spatial requirements and formal expression such that function and form are cohesive and complimentary to each other. This led to an exploration of a different systematic approach to the site and space planning and formal expression.

Here, the living room is the heart of the house and it is necessarily accentuated by introducing a double volume above it. The main circulation and the rest of the house is organized around this main anchor space.The continuous RC slab is deployed as a strategy to organize spatial and programmatic requirements while integrating with visual aesthetics. Various spaces of the house are strung along this continuous surface in succession so that different programs of the house are able to operate co-dependently.

Taking off from the ground floor in the form of the pool stairs, the slab continues as a landscaped deck , followed by a partially sloping plane on the 2nd floor ( for the bedroom ) before upturning and folds back upon itself to become a viewing a green sloped platform at 3rd storey. The slab yet upturn again eventually to form the roof.

By blurring the distinction between the vertical and horizontal, the inside and the outside, the serpentine flow of the slab becomes a legible architectural stroke of formal expression. By drawing references from the steep slope terrain just outside of the boundary,the tilt of the pool stairs and the landscape on the 2nd floor, for instance, can be seen as an immediate extension of the terrain beyond.

Elsewhere in the house, in a similar tongue-in-cheek act of subversion of the cantilevered portion of the house, the cantilevered box is deliberately tilted to reference yet again the sloped terrain while creating a playful adventurous interior for the teenage occupant. Here, the raised floor becomes an underground hideout, a storage as well as a sunken area for bath.Above, the sloped roof presents a pleasant tumbling green that greets the eye from the master bedroom, replacing the need for another conventional privacy screen for the master occupants on the 3rd Floor.

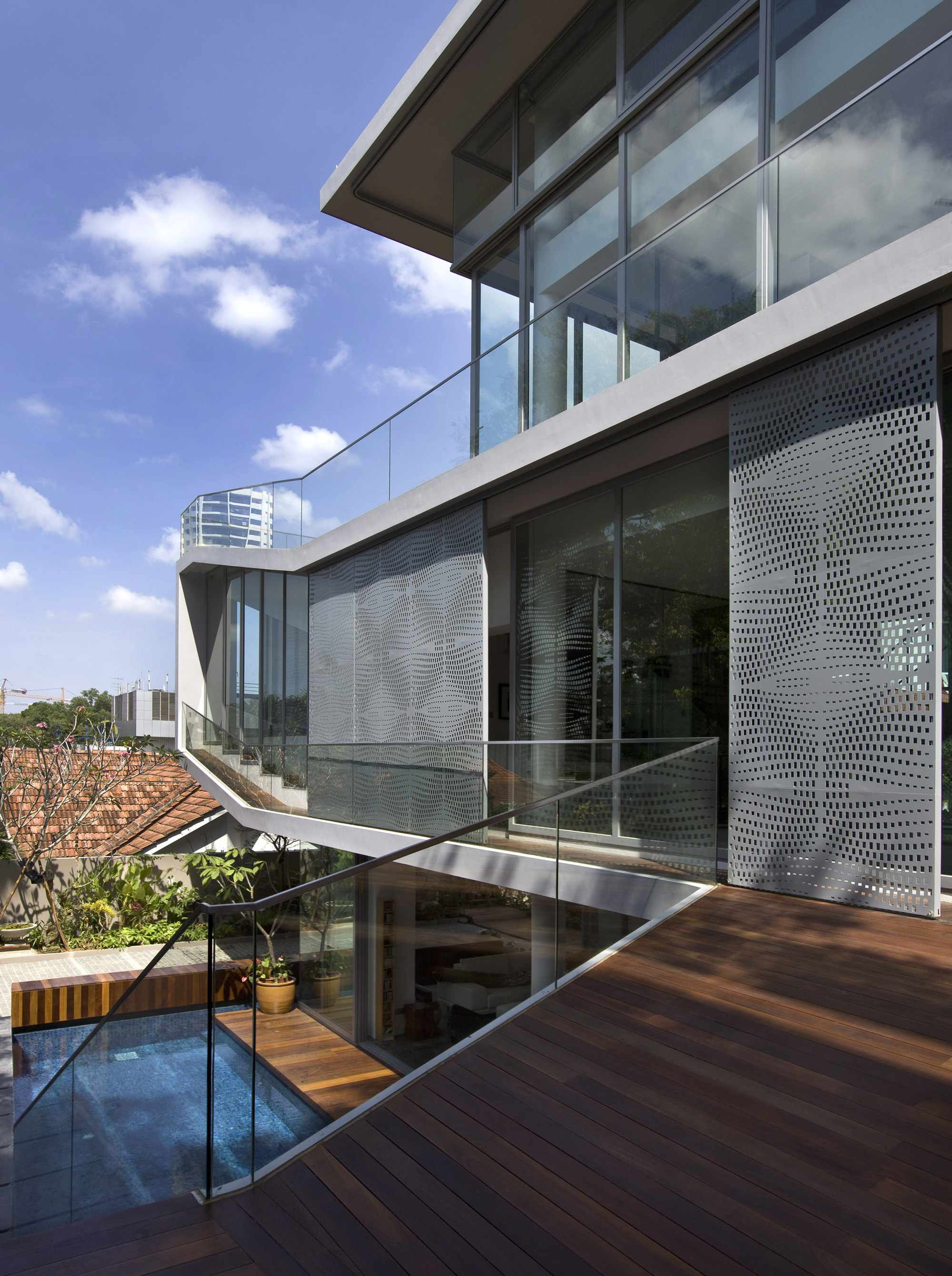

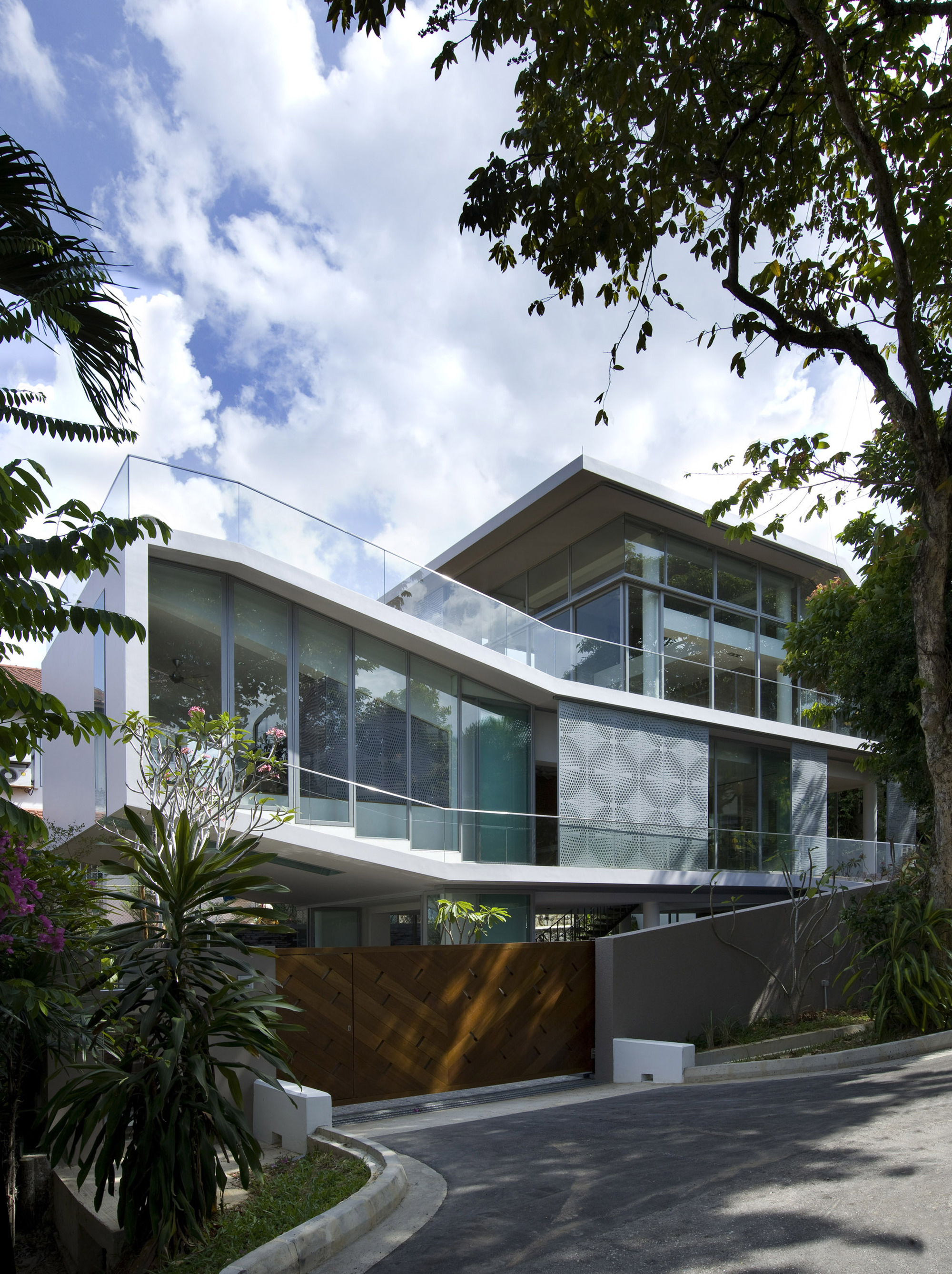

新加坡OOI住宅外部实景图

新加坡OOI住宅外部背面实景图

新加坡OOI住宅半露天实景图

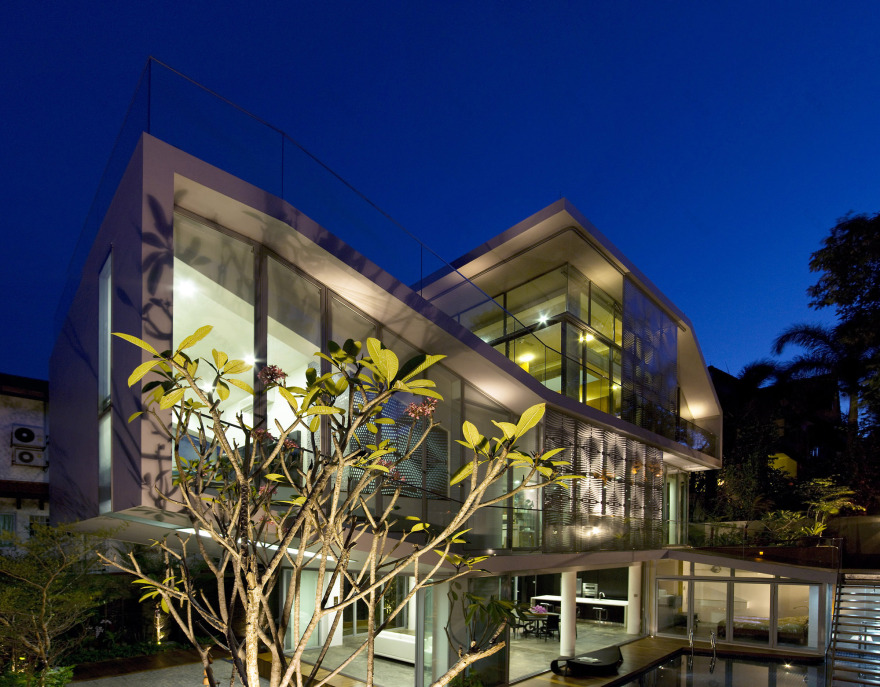

新加坡OOI住宅外部夜景实景图

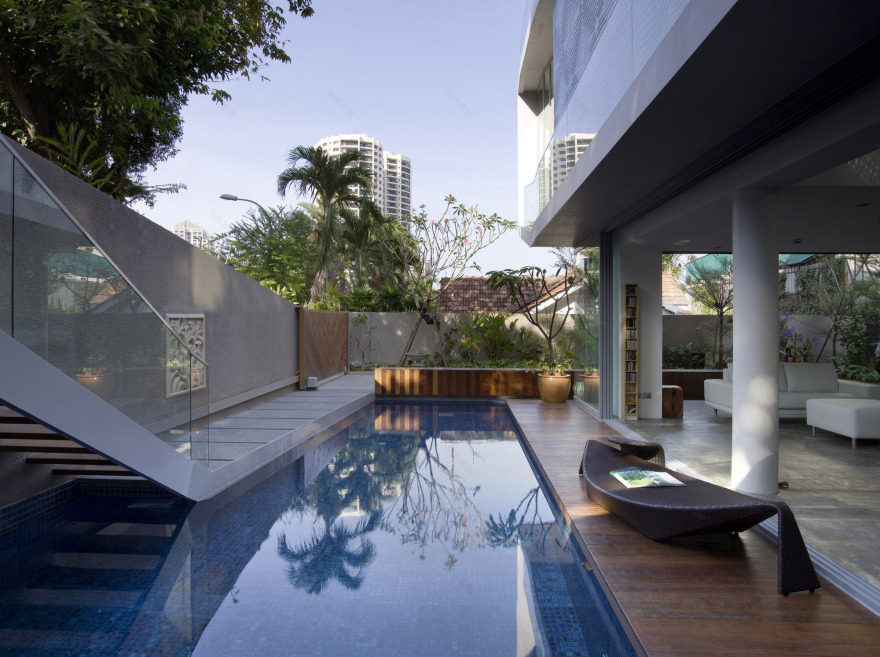

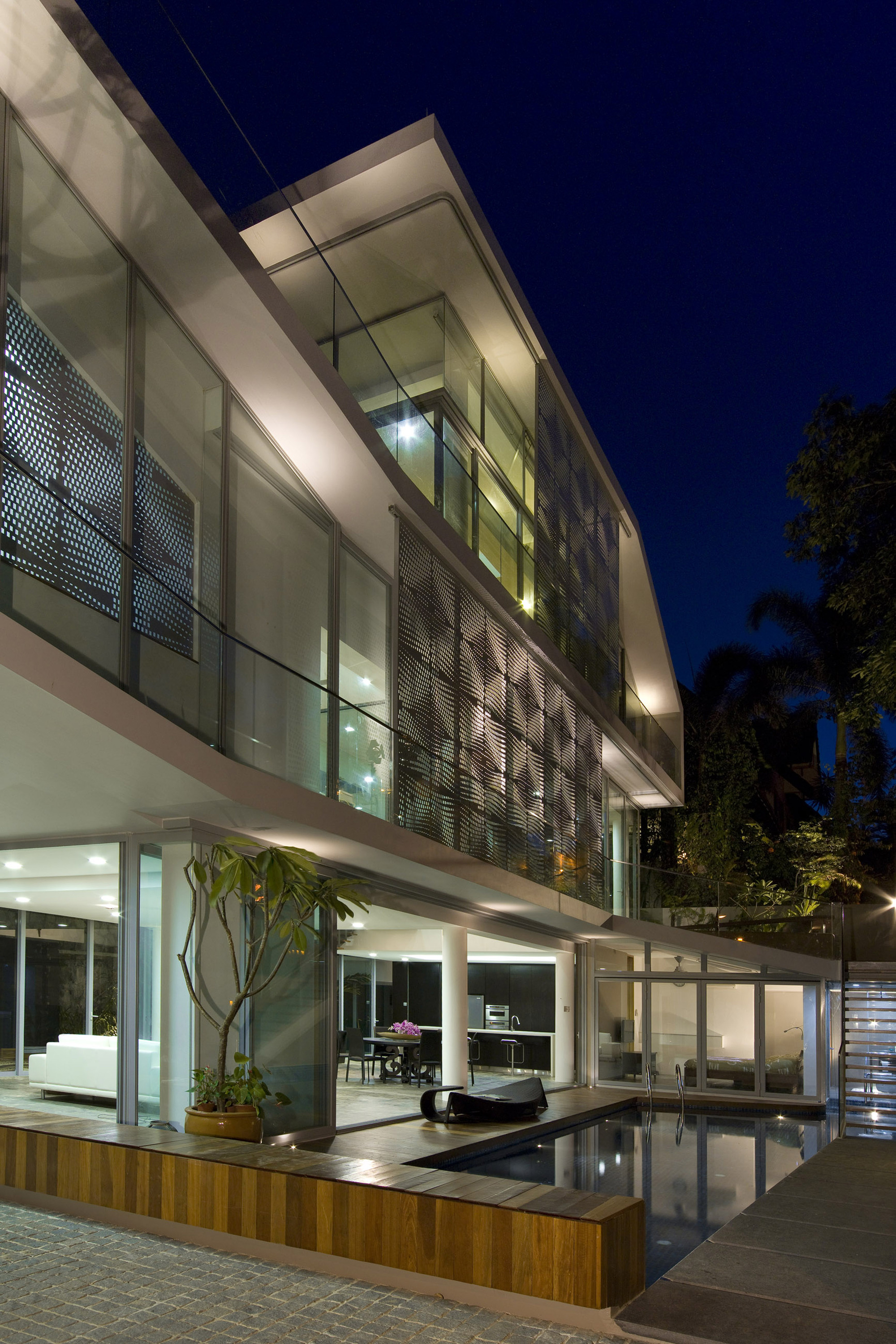

新加坡OOI住宅游泳池实景图

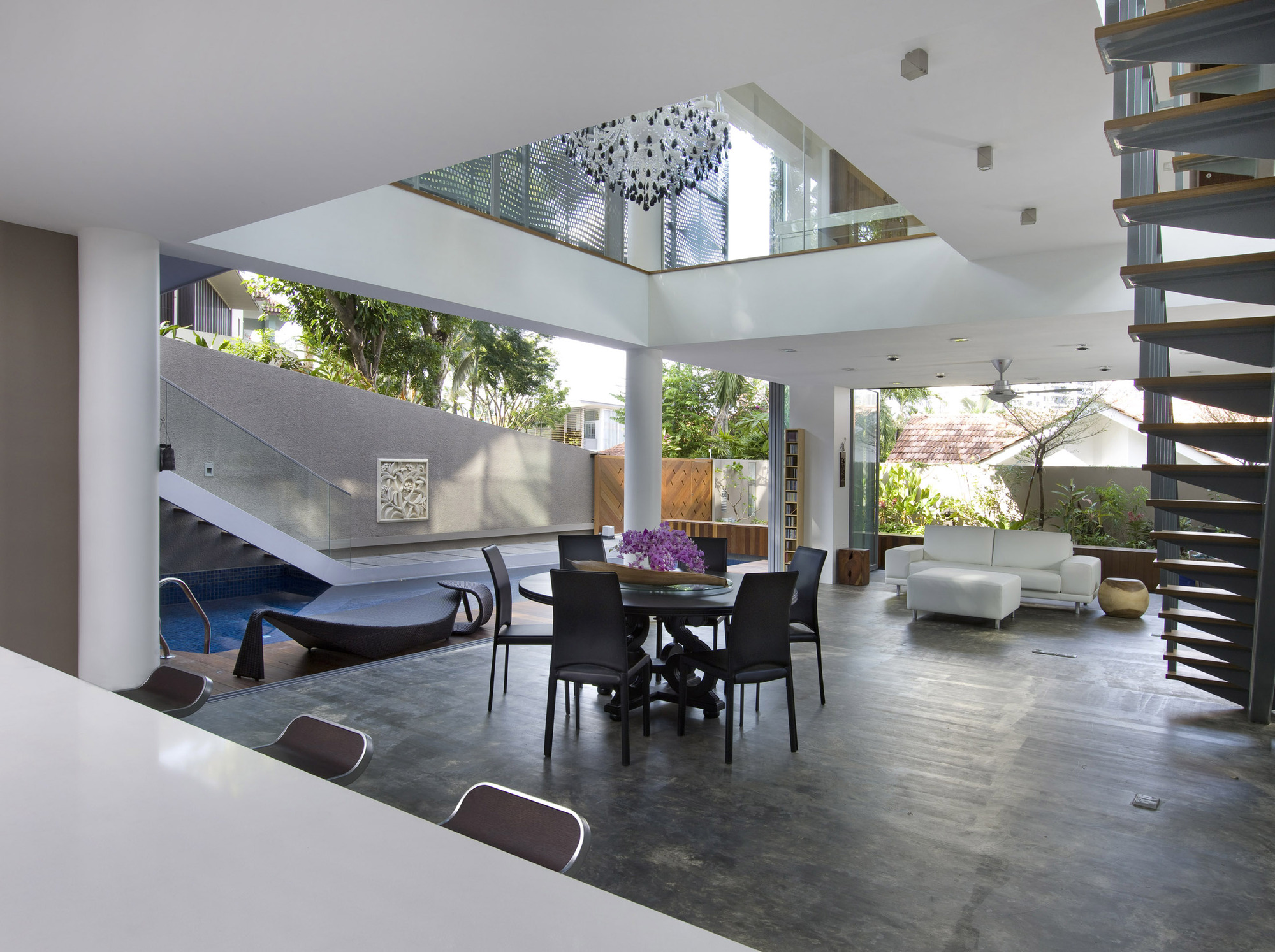

新加坡OOI住宅内部客厅实景图

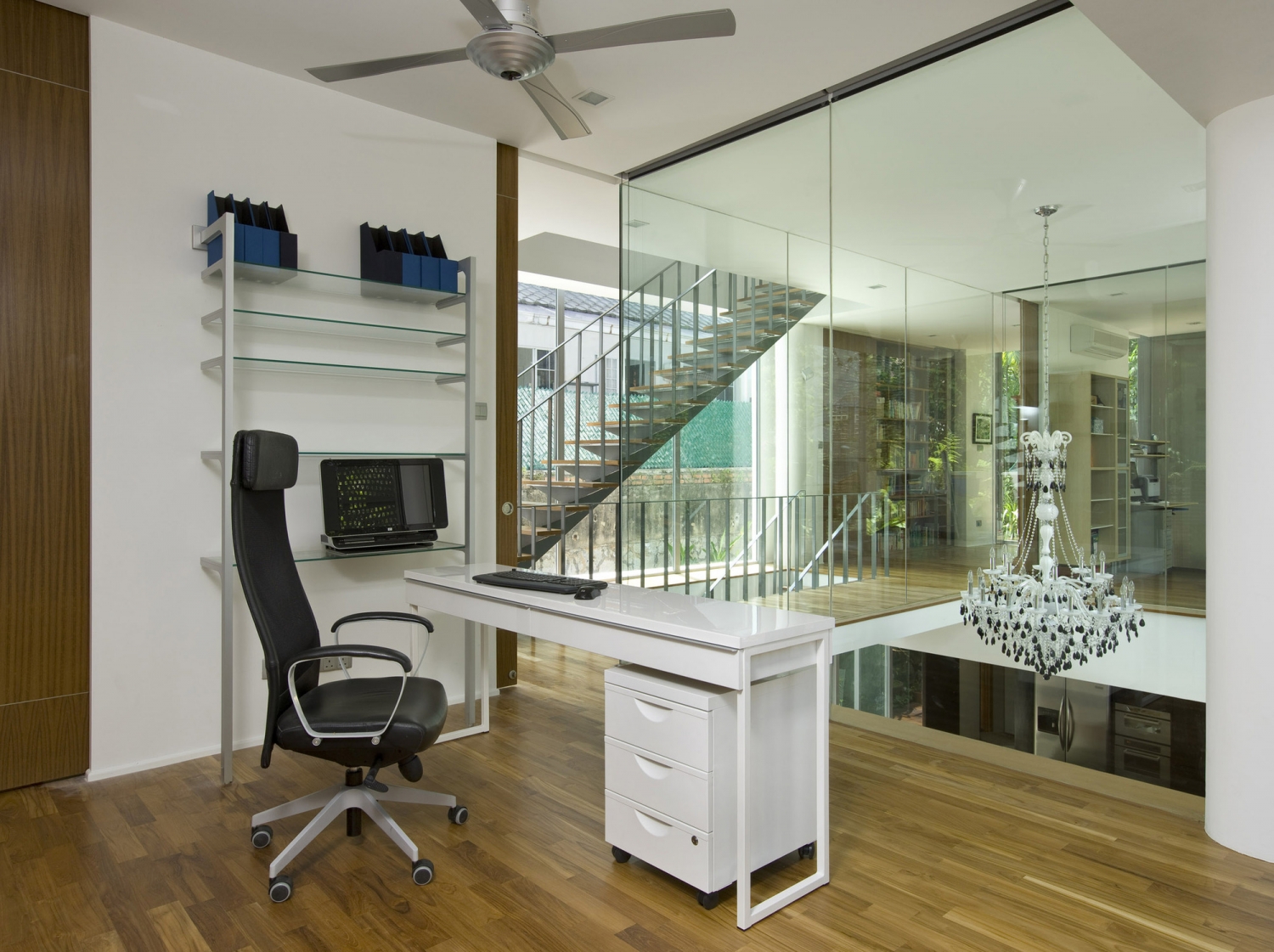

新加坡OOI住宅内部房间实景图

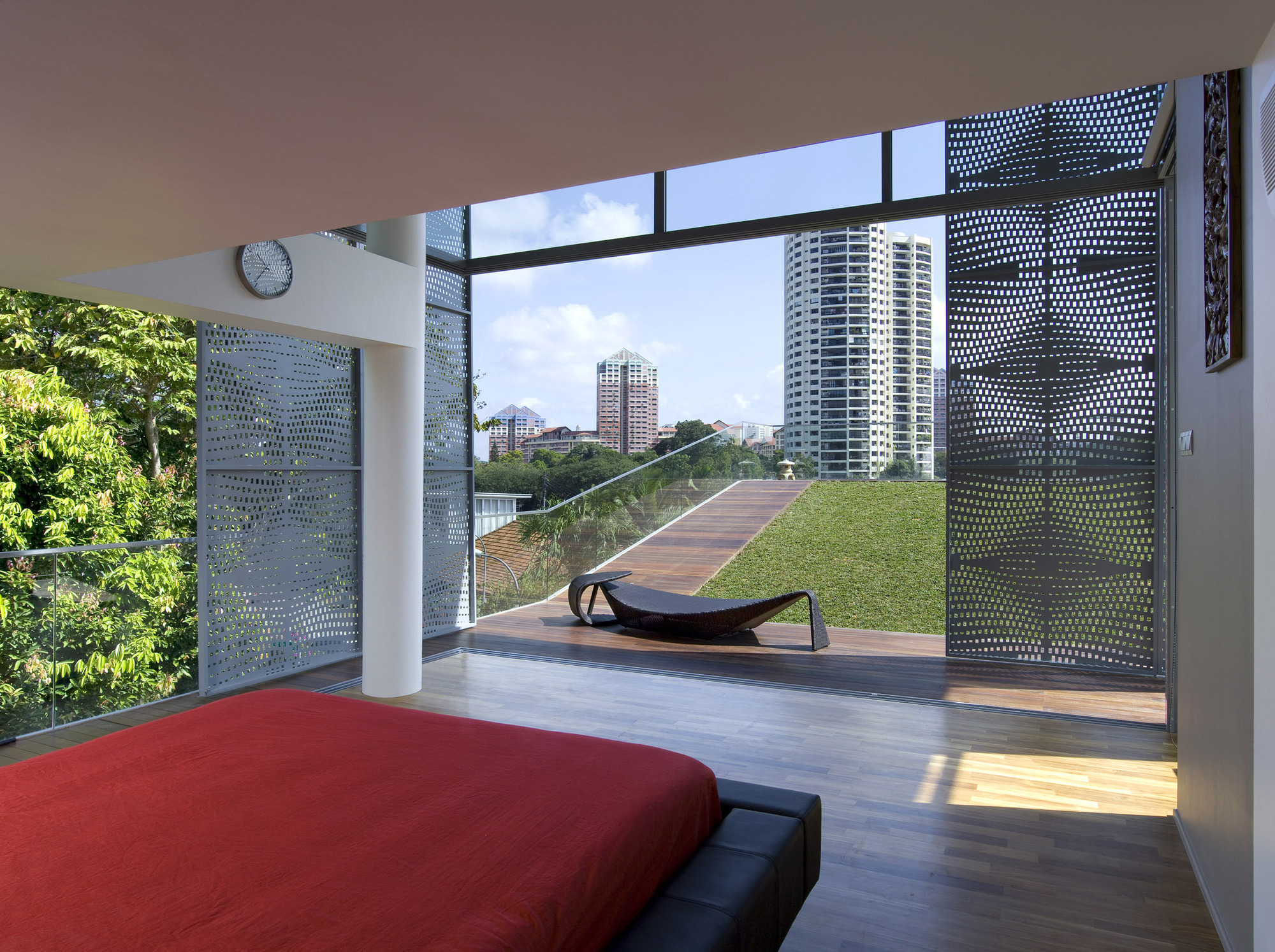

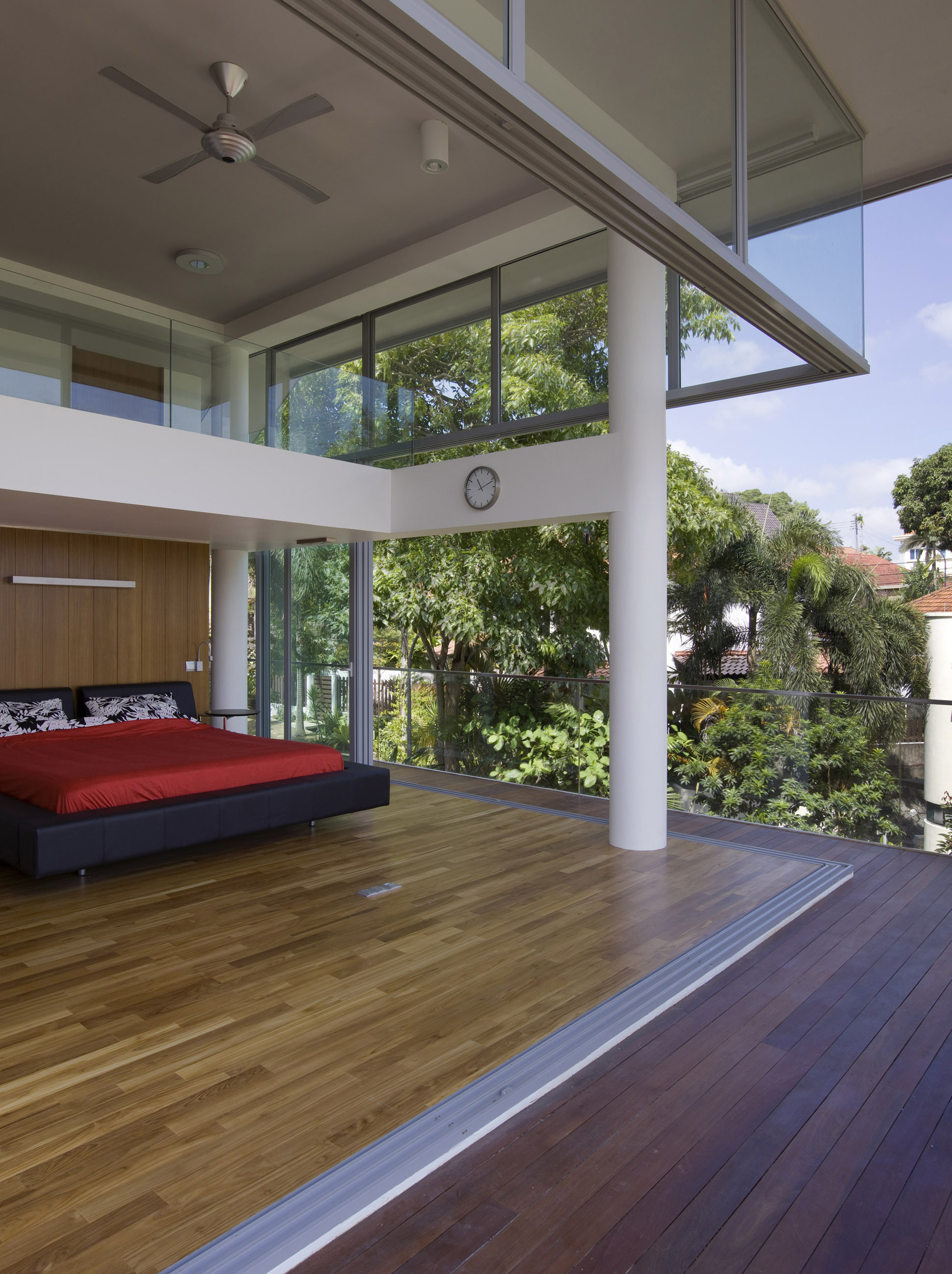

新加坡OOI住宅内部卧室实景图

新加坡OOI住宅内部厨房实景图

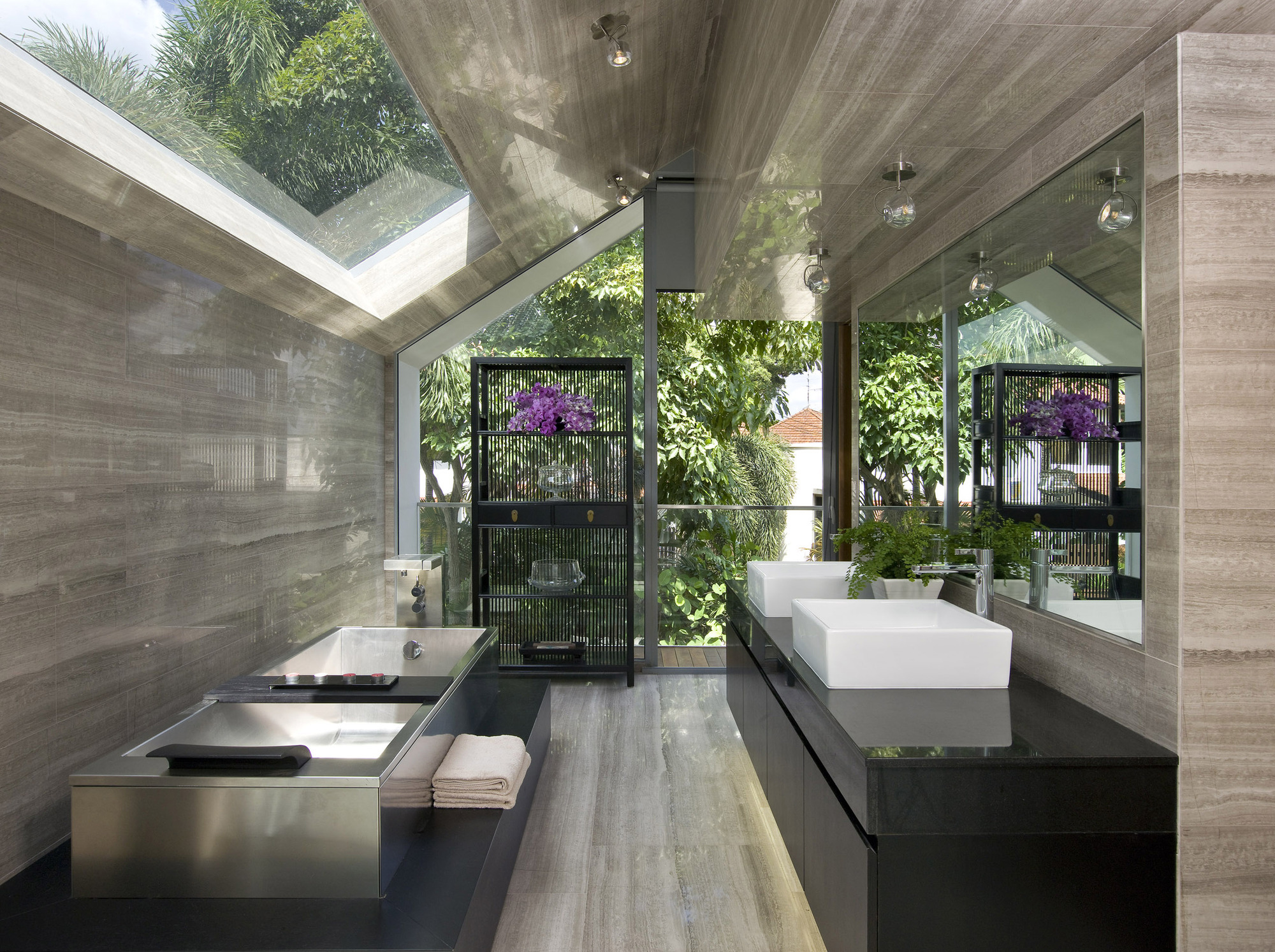

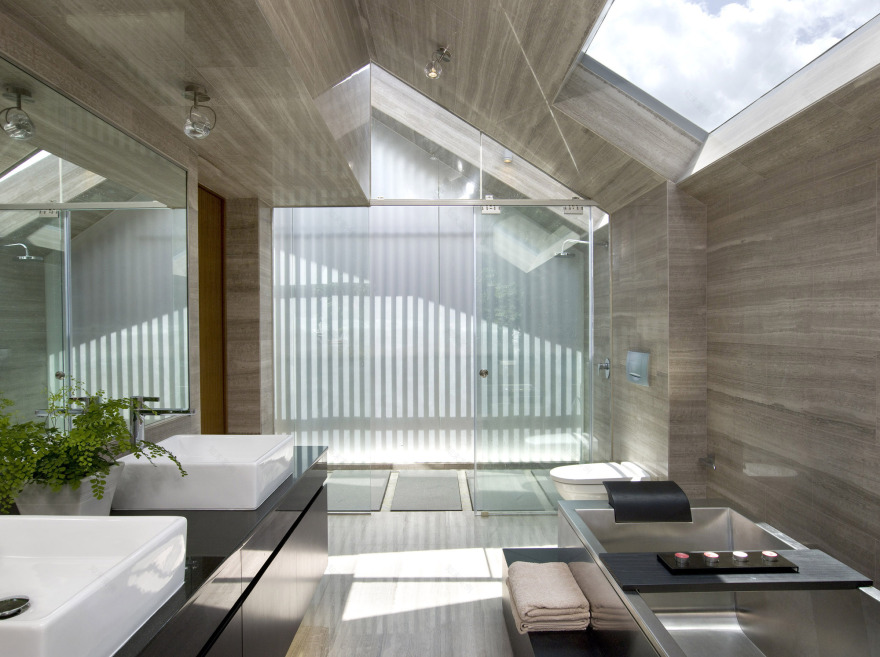

新加坡OOI住宅内部洗漱间实景图

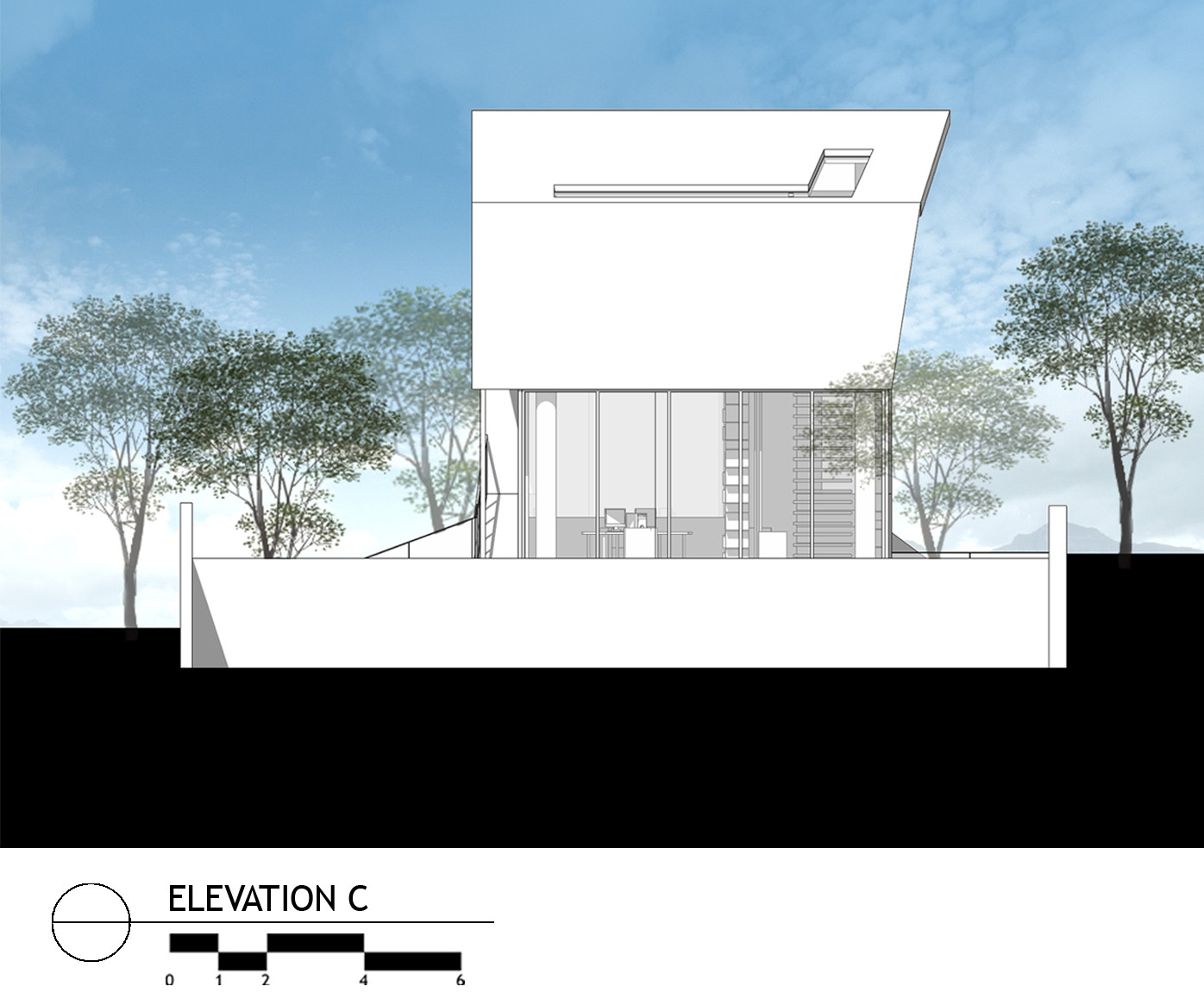

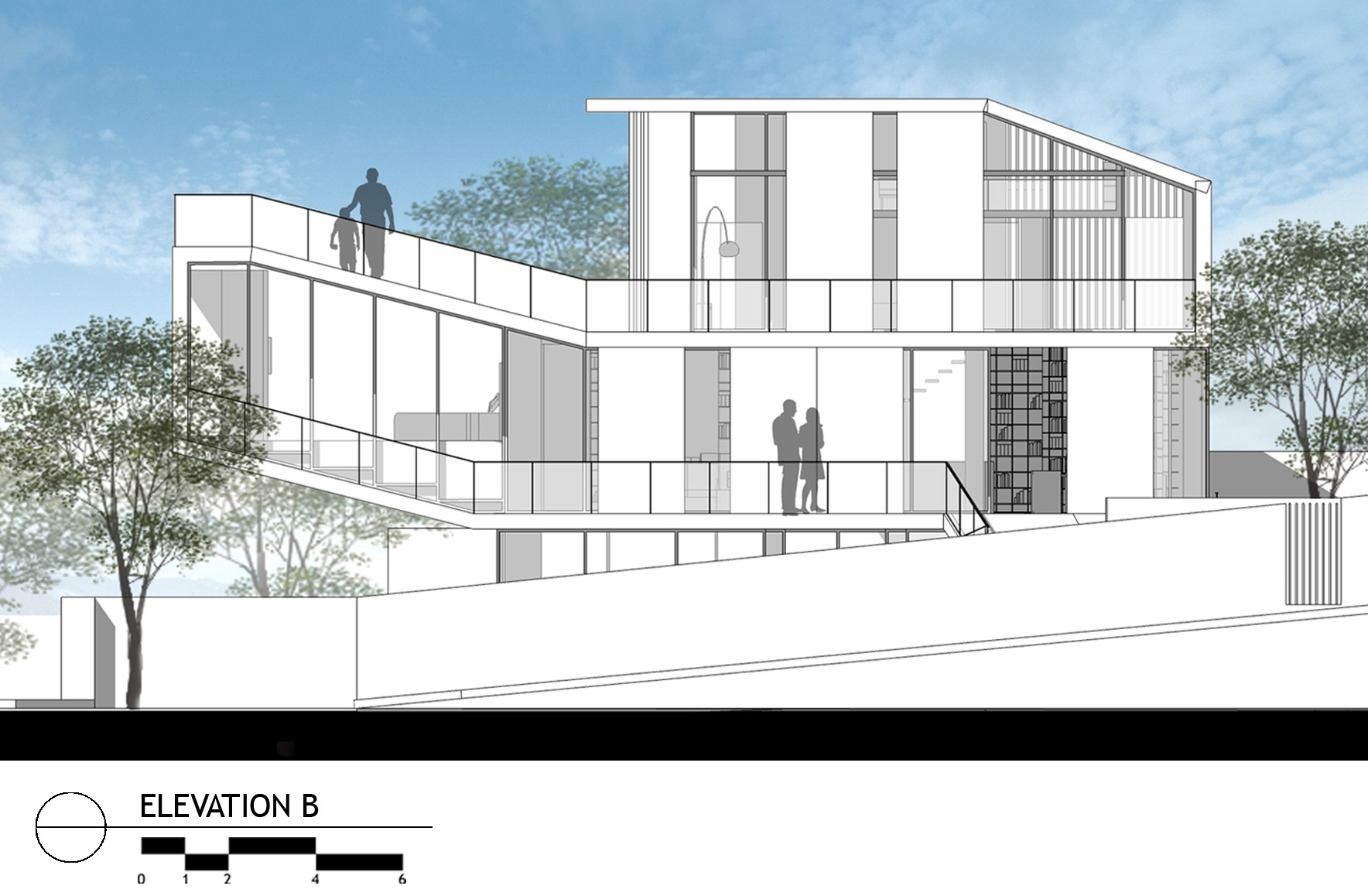

新加坡OOI住宅正面图

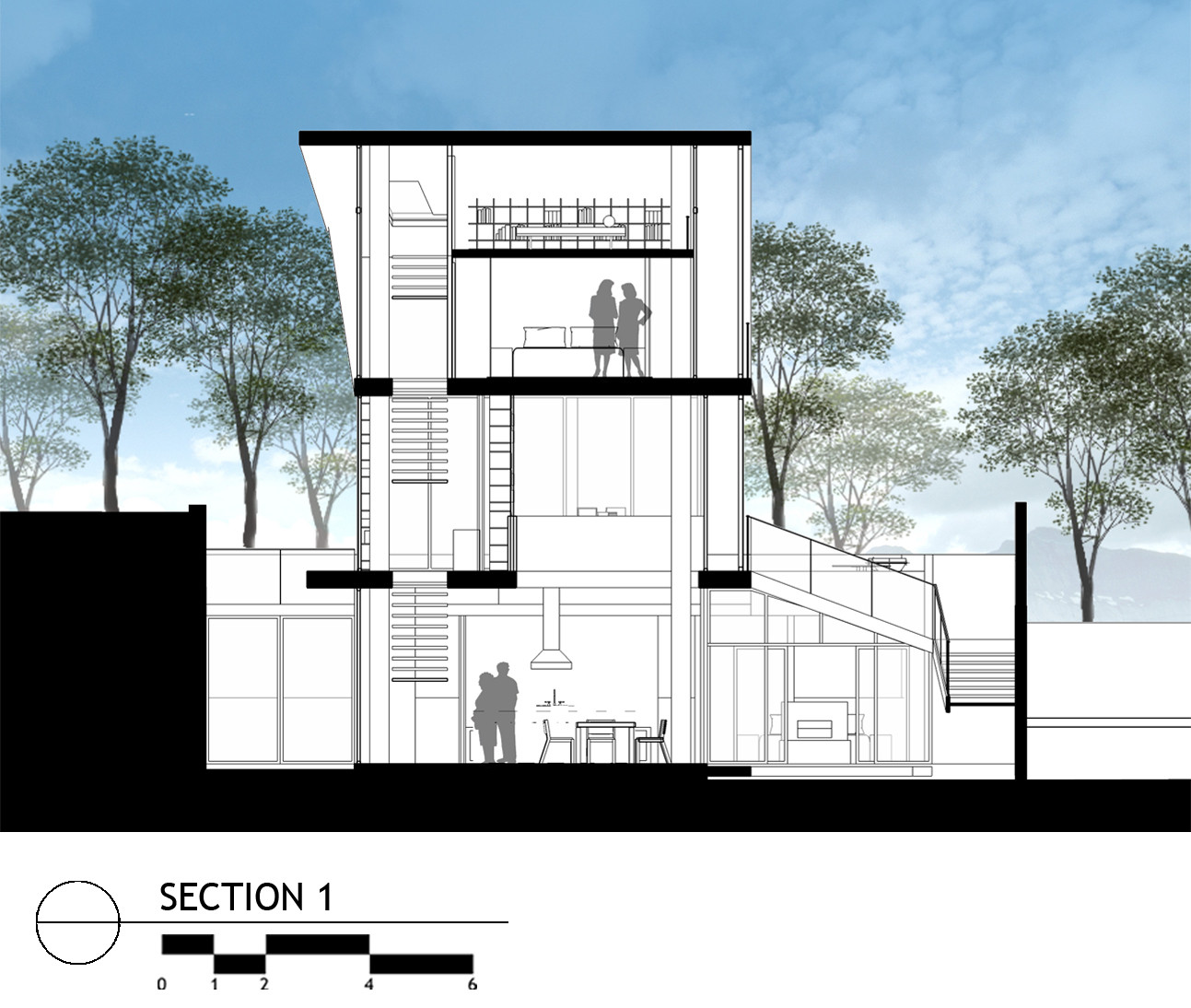

新加坡OOI住宅剖面图

新加坡OOI住宅二层平面图

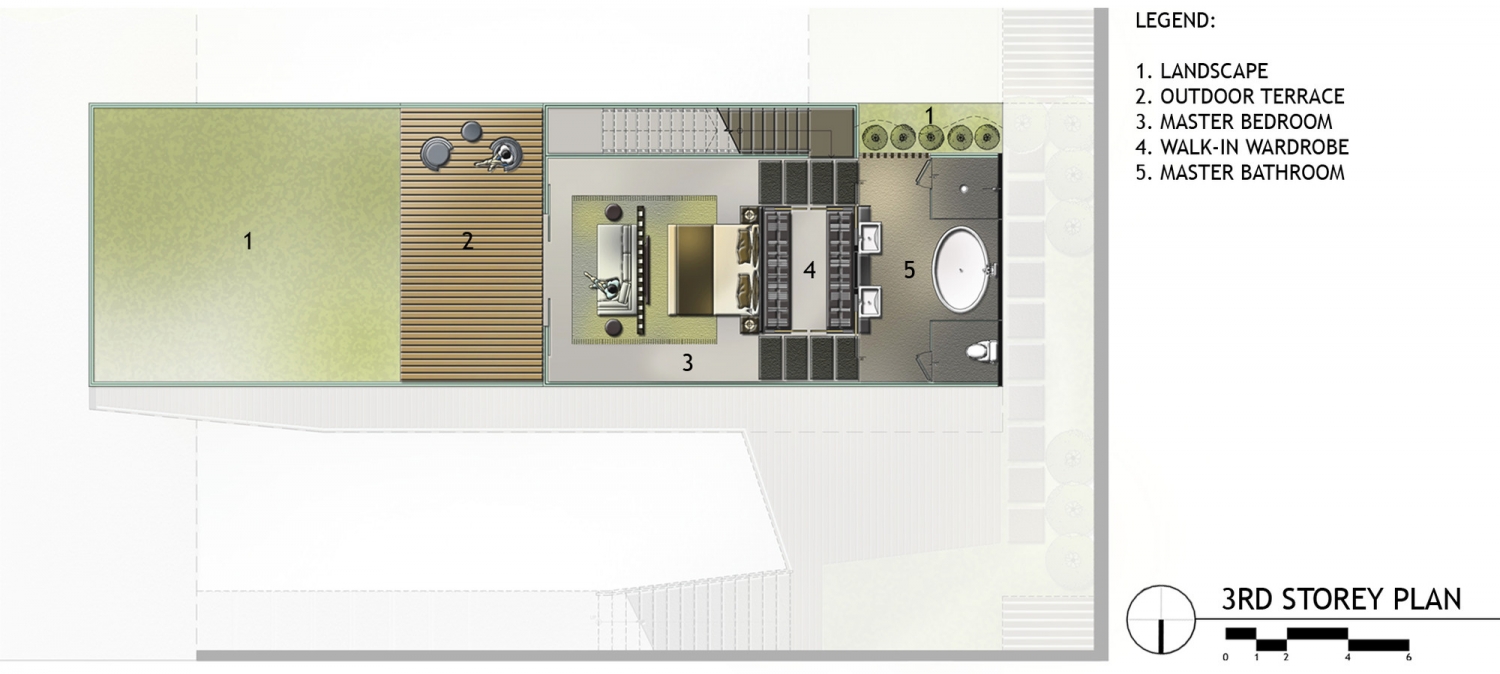

新加坡OOI住宅三层平面图

新加坡OOI

住宅平面图

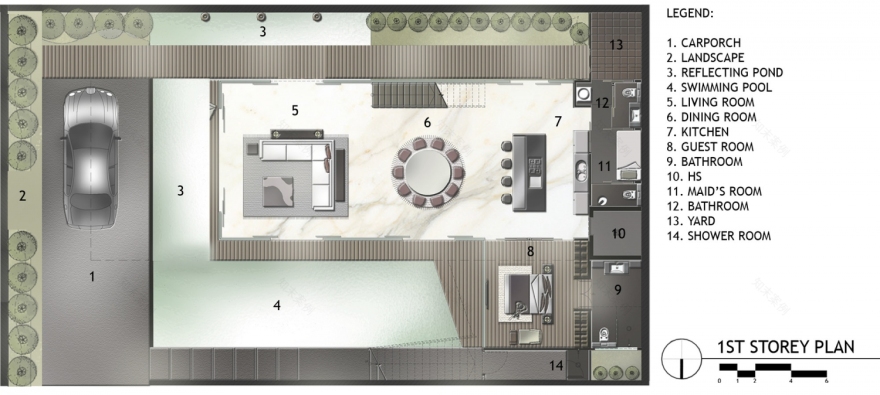

新加坡OOI住宅平面图
