意大利Varigrafica印刷厂丨Massimo Adario

Italy Varigrafica Printing

设计方：Massimo Adario

位置：意大利

分类：办公建筑

内容：实景照片

合作方：Carla Arrabito, Javier Narváez Martínez, Michele Dicembrino

图片：13张

摄影师：Anna Positano

这是由Massimo Adario设计Varigrafica的印刷厂。Varigrafica印刷厂公司于60年代首次开业，位于Nepi (Viterbo)。第一个工厂可追溯到1992年，着重生产期刊和广告材料产品。该工业建筑的扩张，为该送合体的当前配置提供了提升的可能空间，不同大小的体块的组合，分别对应一个功能区。除了两座现状建筑（一座是专门服务于职工和“prestampa”，而另一座服务于最终印刷成品的数码印刷、分期和储存），其他四个体块新增了新办公室、纸张仓库、墨水打印区域和墨水仓库。

为了回应工业打印流程、组织和规划，该工业综合体是以2,40 x 6,00 米的模块为基础而理性建造的，在不同配置中重复利用。一个模块是垂直的预制混凝土板，用于现状建筑和纸张仓库的立面。同样的混凝土模块则水平向地用于产品区域的立面。还有一种模块是由玻璃和金属brise solei制造，用于办公室立面。每个模块都有着相同的尺寸。

译者：筑龙网 艾比

From the architect. The printing company Varigrafica first opened for business in Nepi (Viterbo), in the sixties. The first factory dates back to 1992 and was dedicated to the offset printing for the production of editorial and advertising material.The expansion of this industrial building, gave rise to the current configuration of the complex, an aggregation of volumes of different sizes, each of them corresponding to a functional scope.

In addition to the two existing buildings (one dedicated to services for the staff and “prestampa” and the other one to digital printing, staging and storage of the finished product), four others were added: the new offices, a new warehouse for paper, a new area dedicated to the offset printing and a new warehouse for ink.

In response to the industrial printing process, highly organized and planned, the industrial complex is rationally built on the basis of a 2,40 x 6,00 m. module, repeated and utilized in different configuration: one module is the vertical prefabricated concrete panel used for the facades of the existing building and the paper warehouse, the same concrete module is placed horizontally for the facades of the new production area, and yet another module is made of glass with a metal brise soleil for the office facades. Each module has the same dimensions.

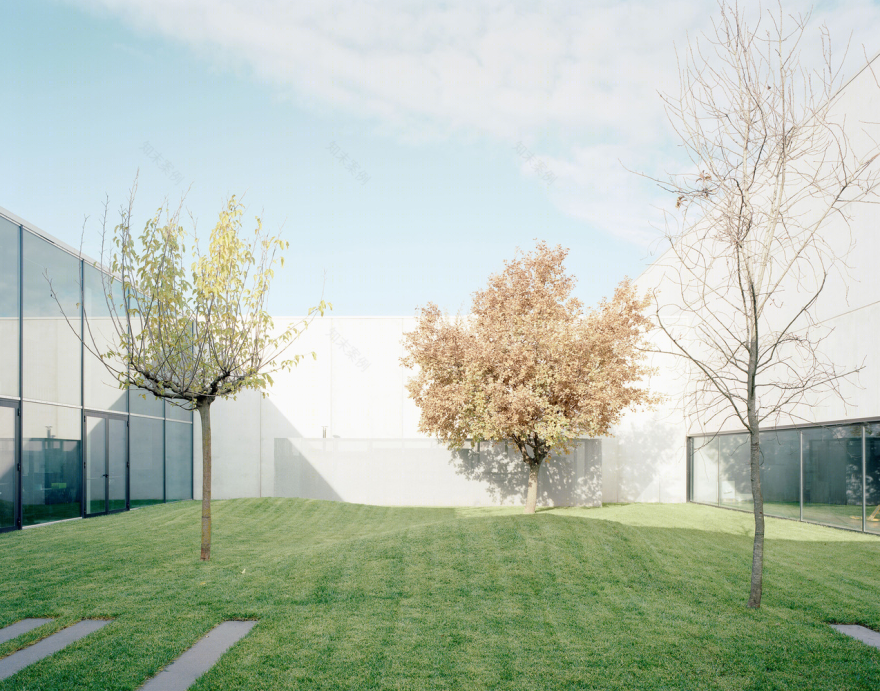

Module and sub-modules are also repeated inside the building, in the offices, in the design of the roof slab and of the floor and also in the concrete bearing walls.In contrast with the building, designed according to orthogonal lines, the design of the garden is free-flowing and linked to the topography of the site; slight slopes of the land have been designed to reproduce the original natural lay of the terrain and various species of autochthonous trees present in the adjacent forests, such as oak, maple, wild cherry etc., have been planted.This green system also enters inside the building and becomes a courtyard overlooked by both the offices and the new production area, so that the five buildings rotate around it.

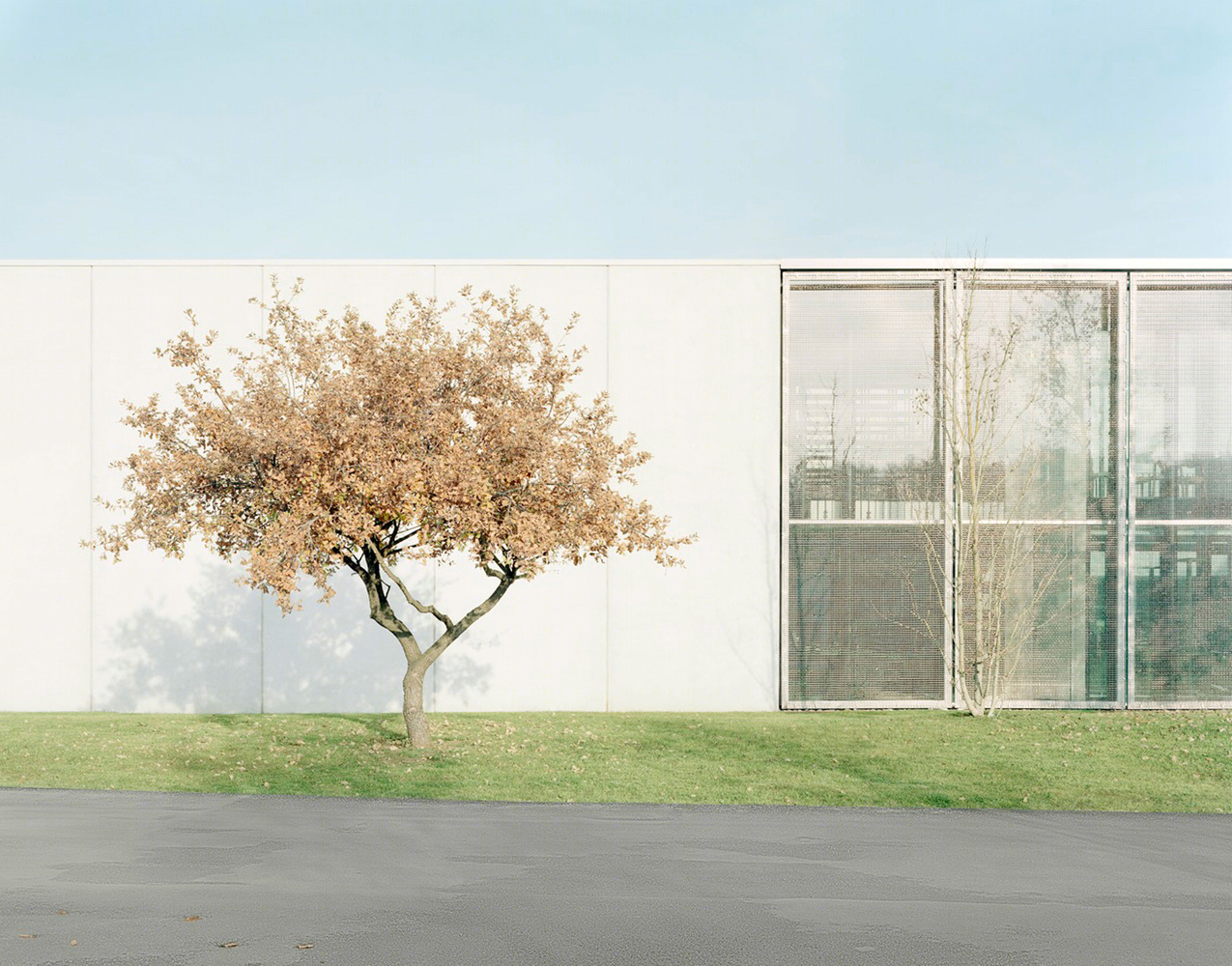

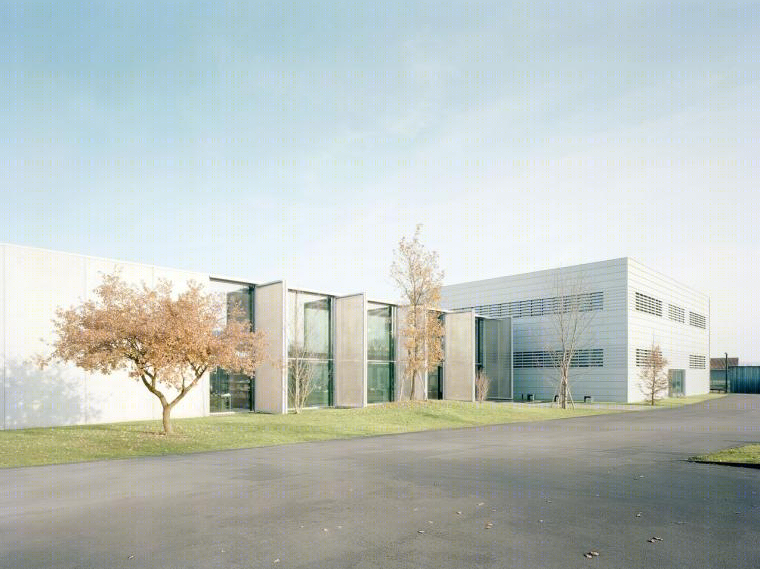

意大利Varigrafica印刷厂外部实景图

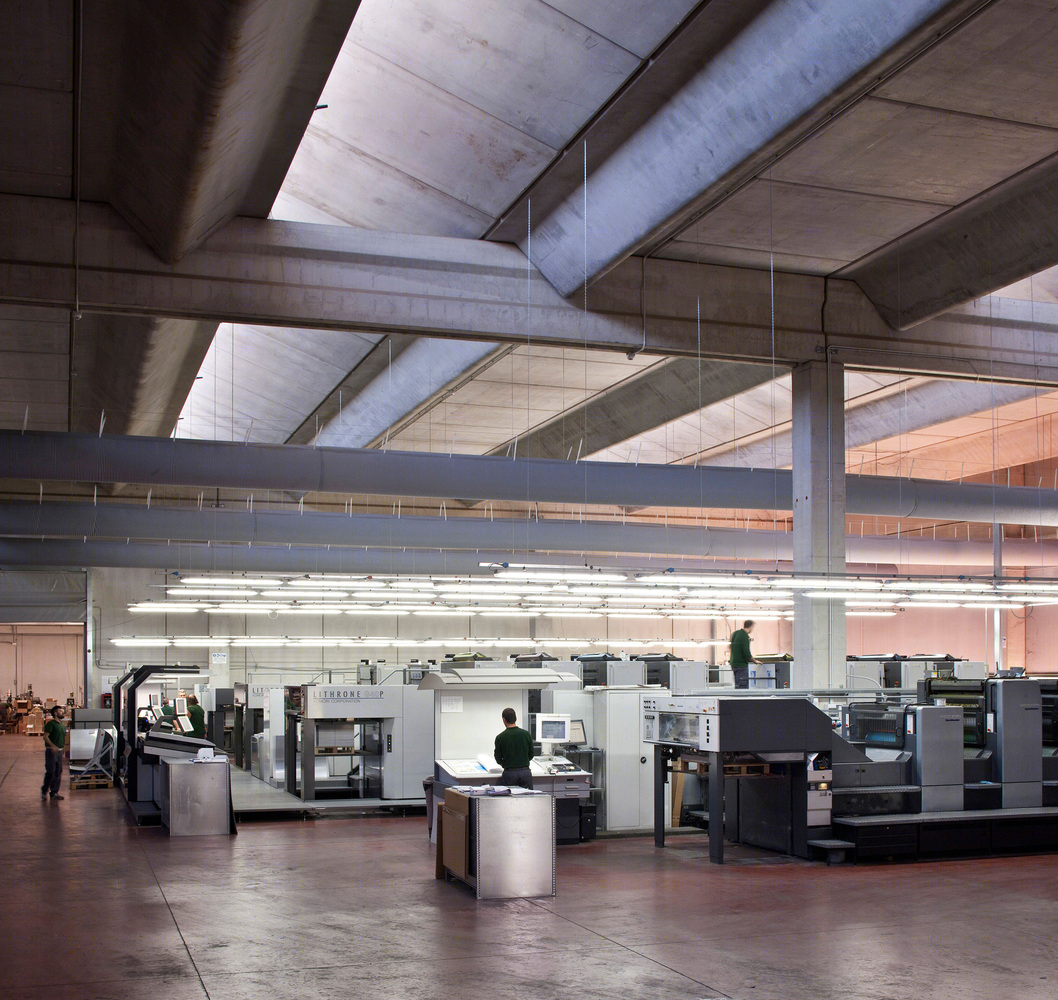

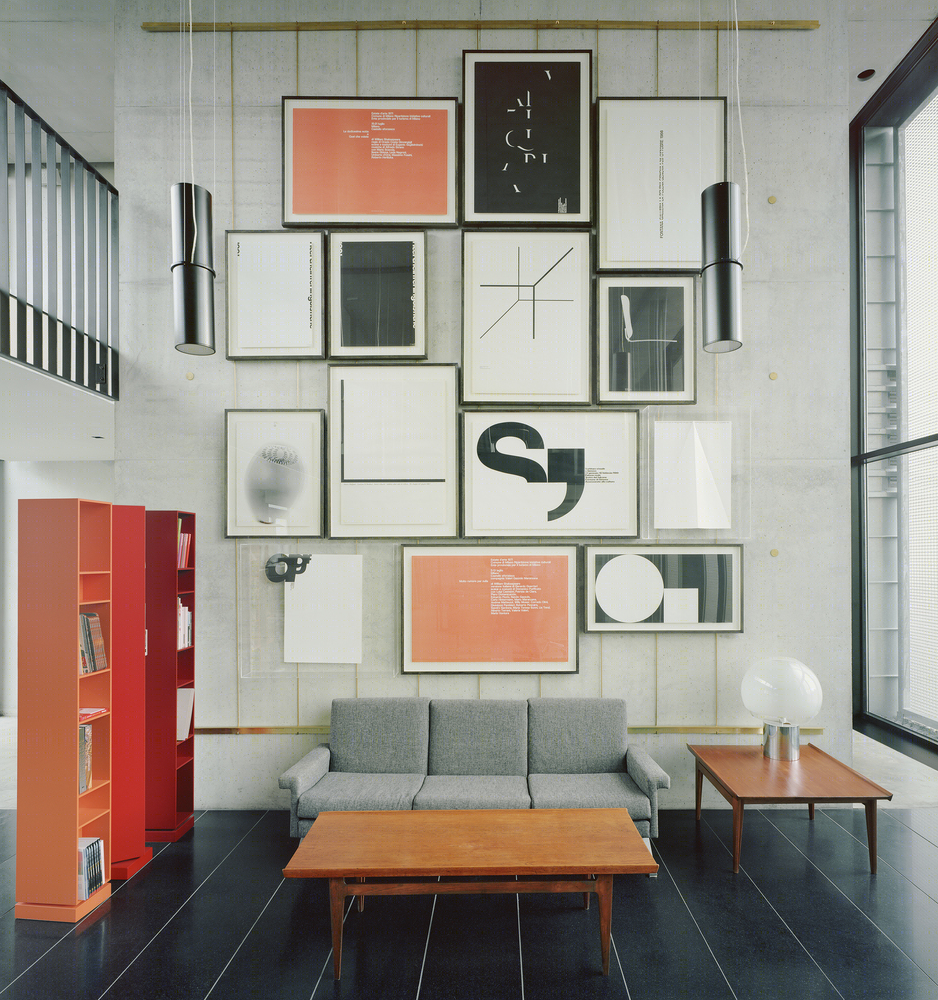

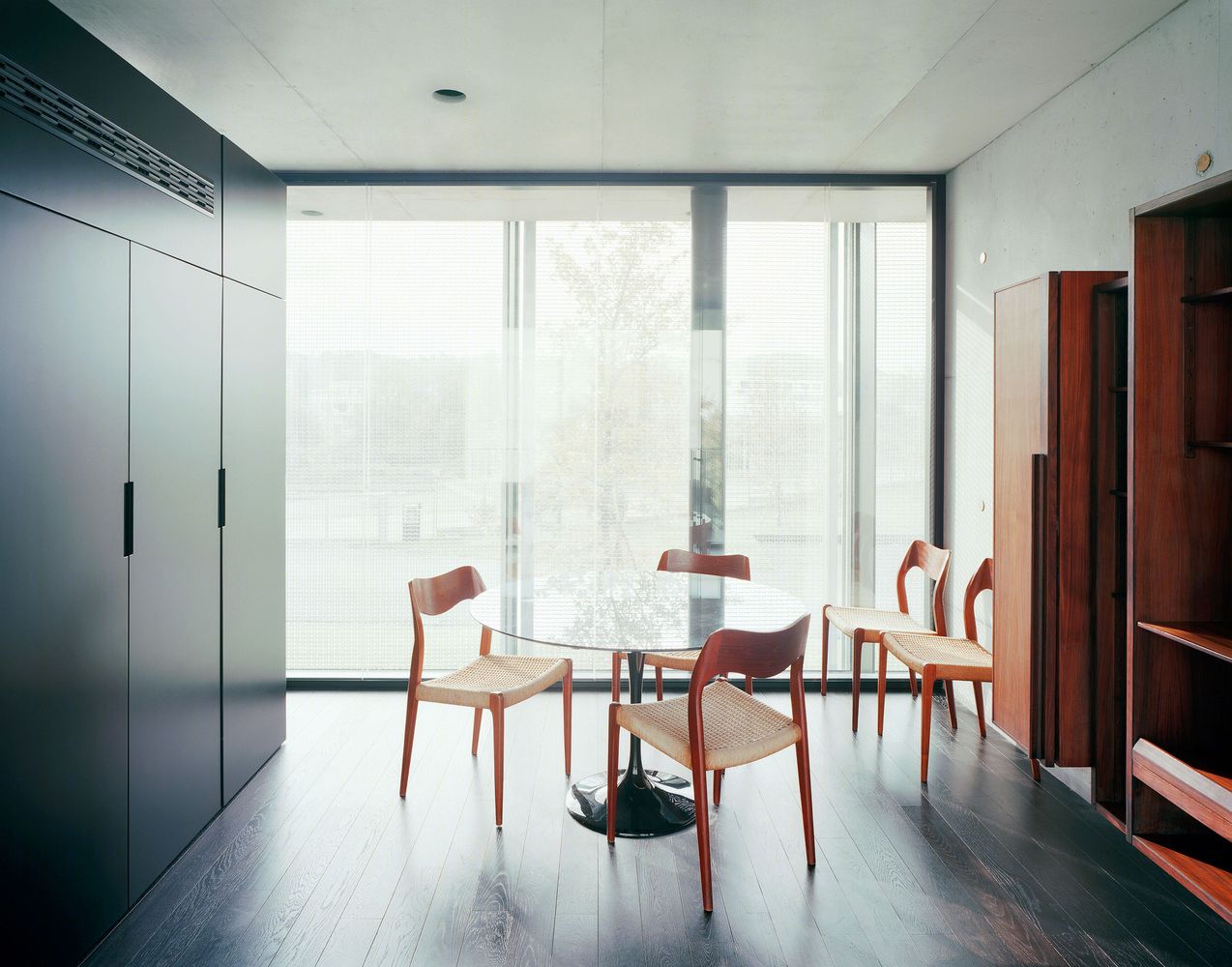

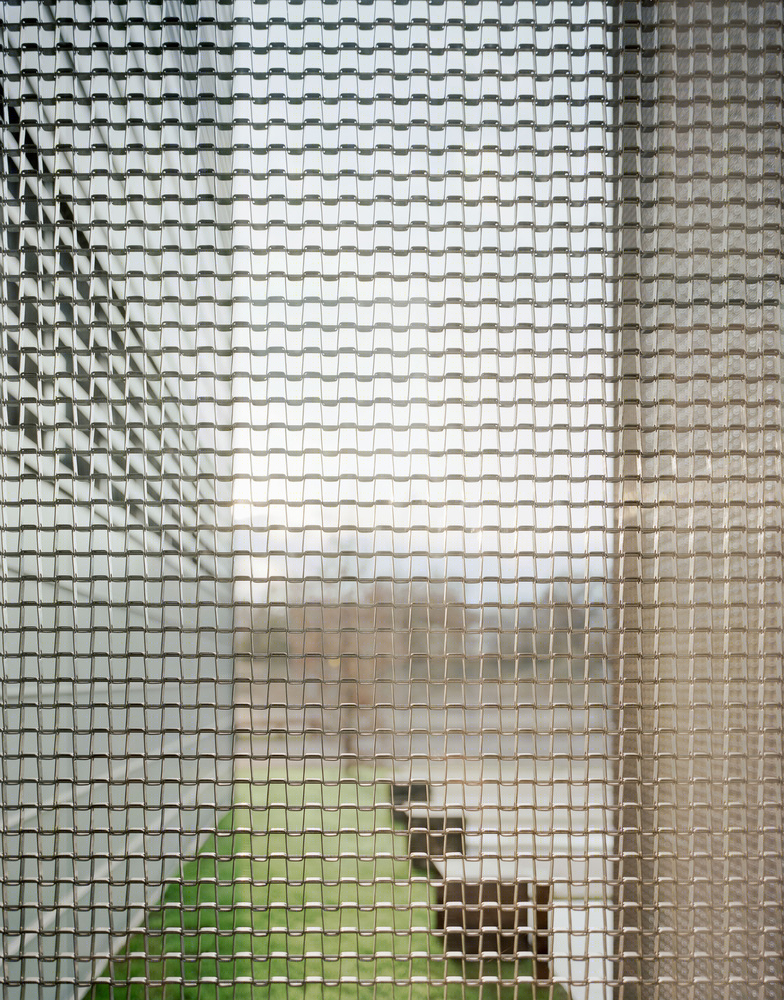

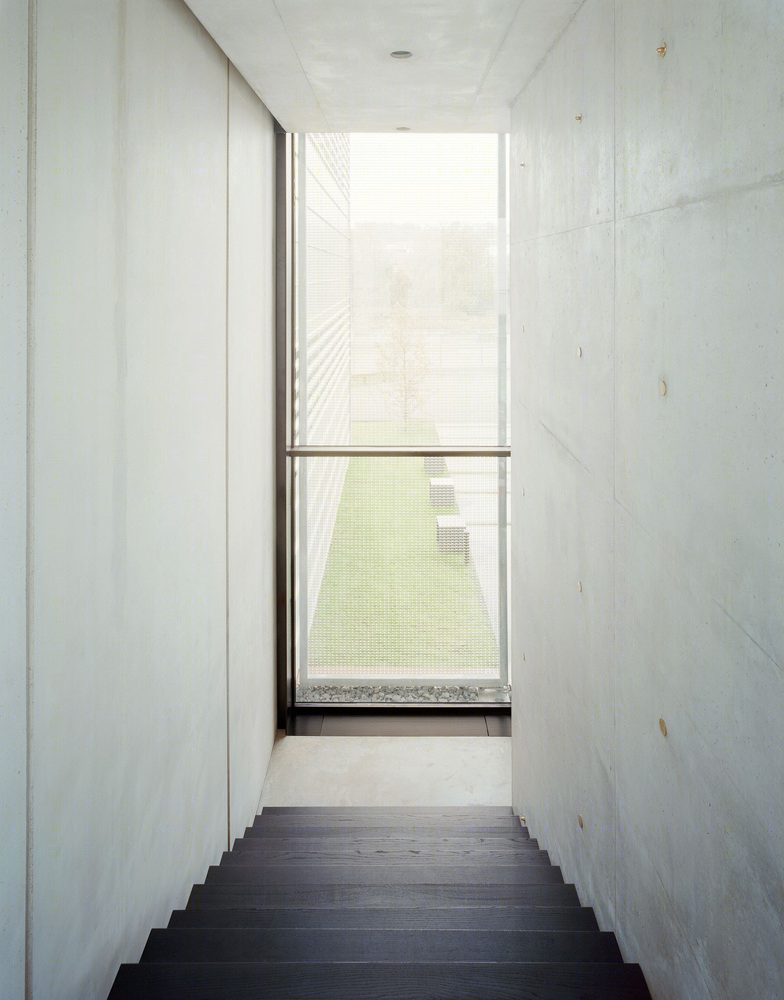

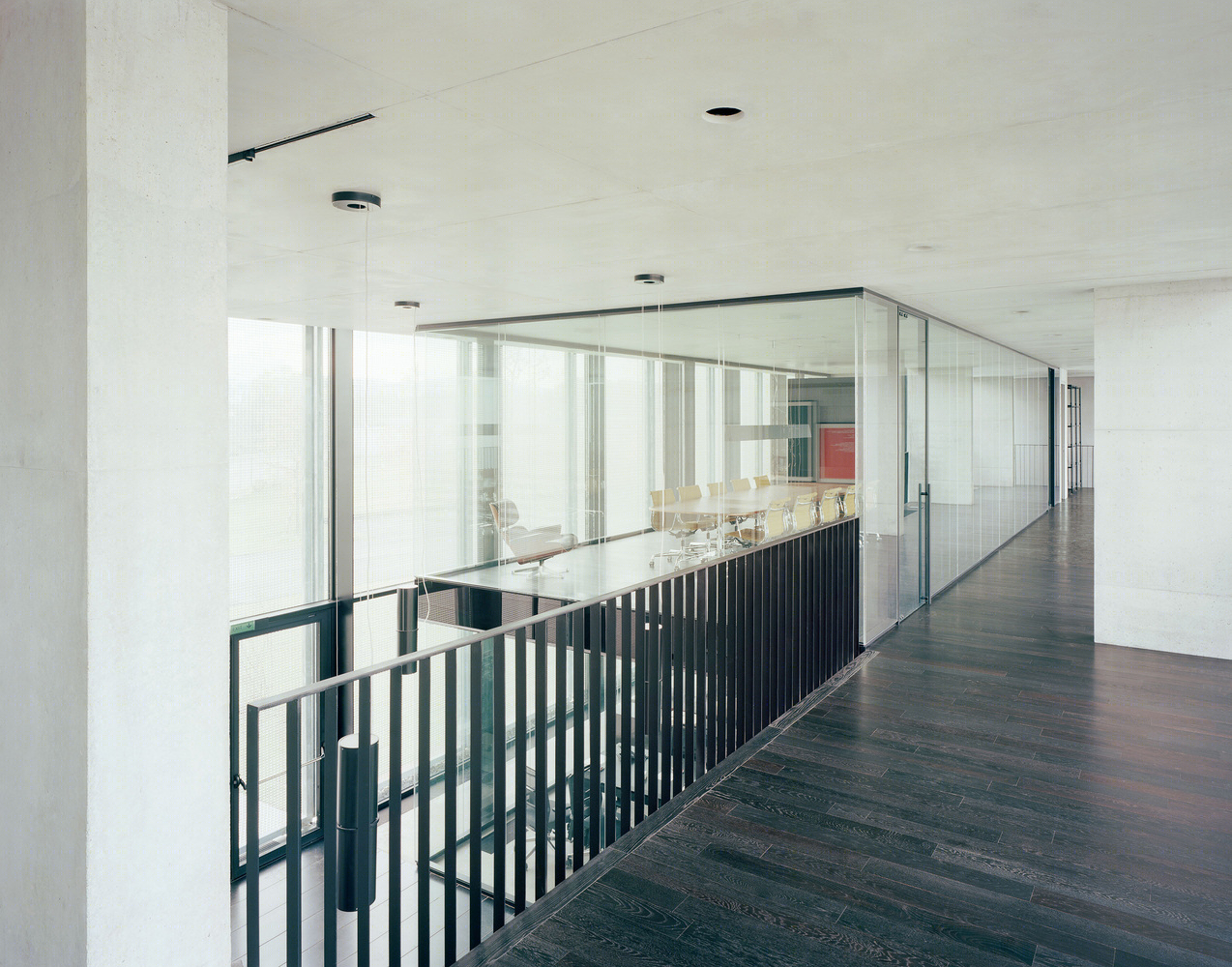

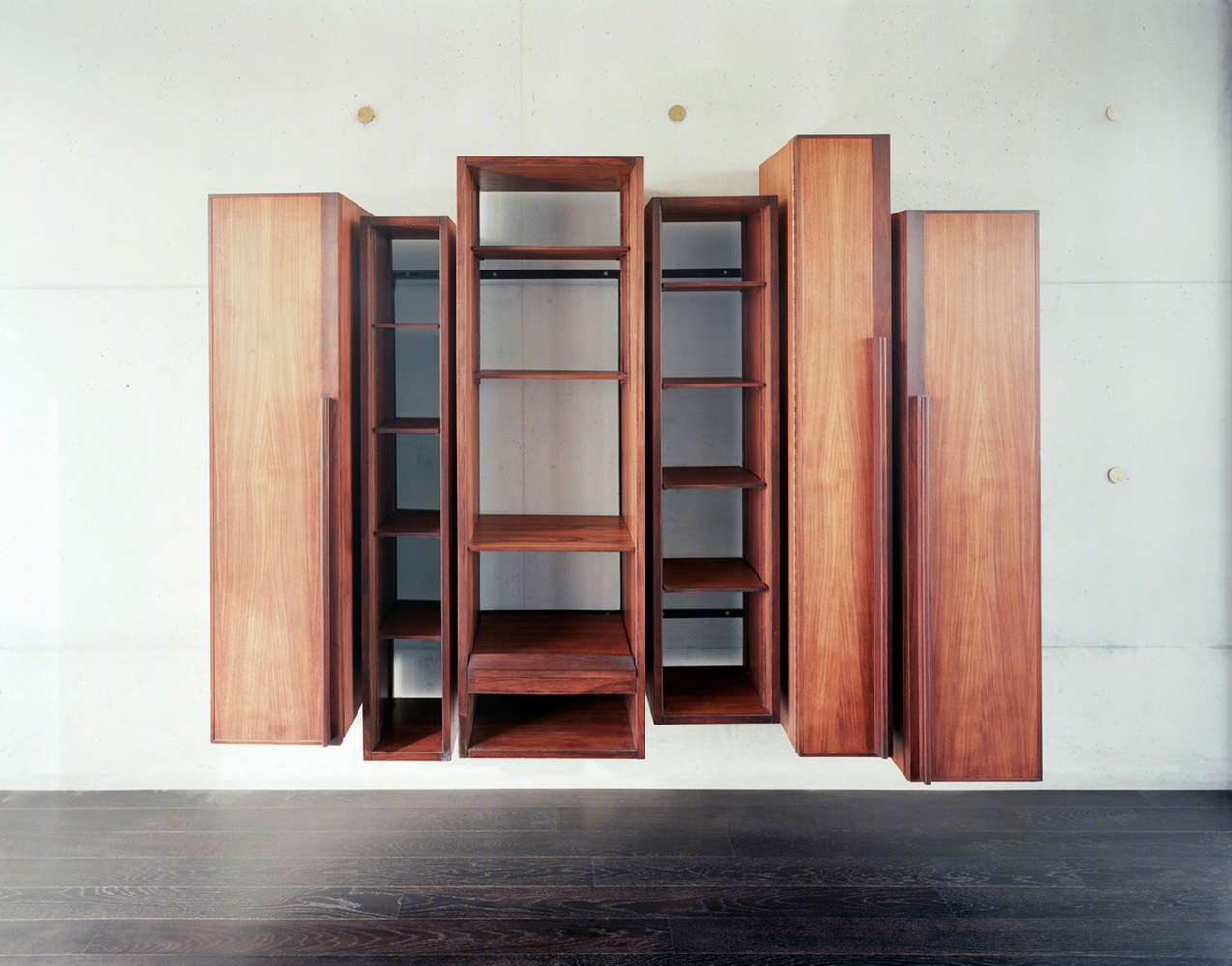

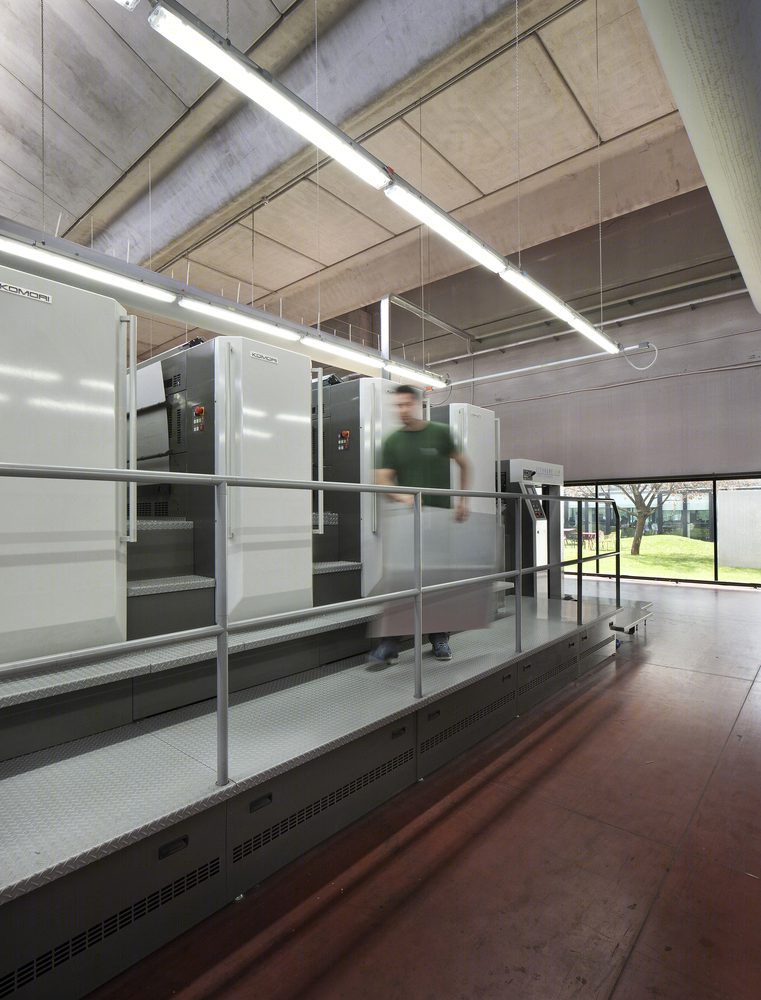

意大利Varigrafica印刷厂内部实景图

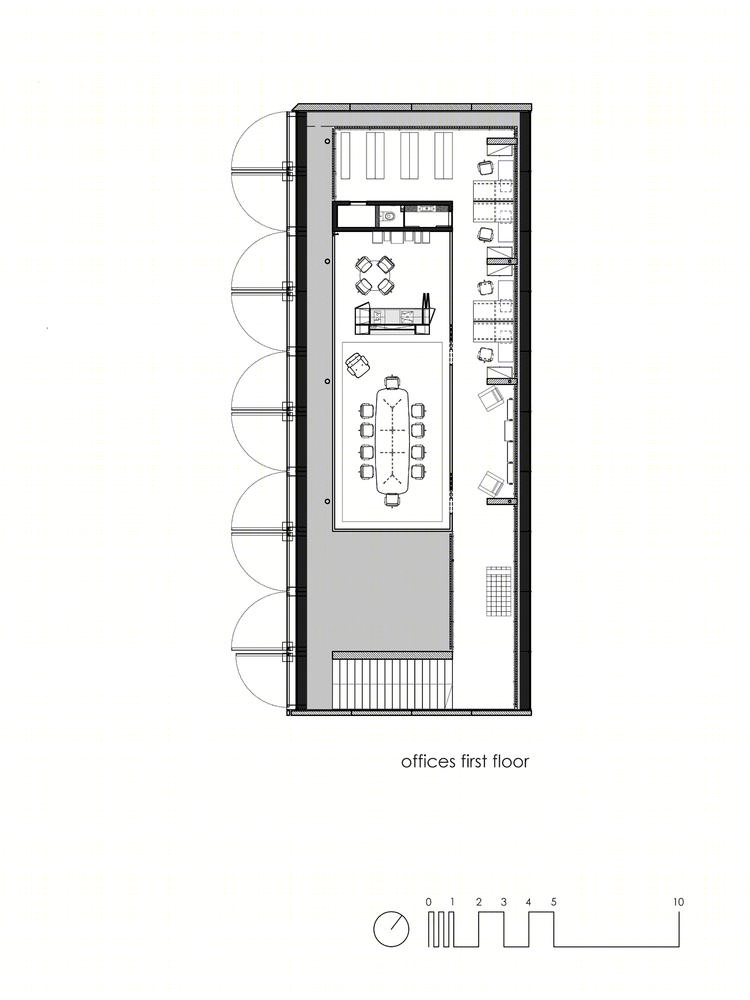

意大利Varigrafica印刷厂平面图

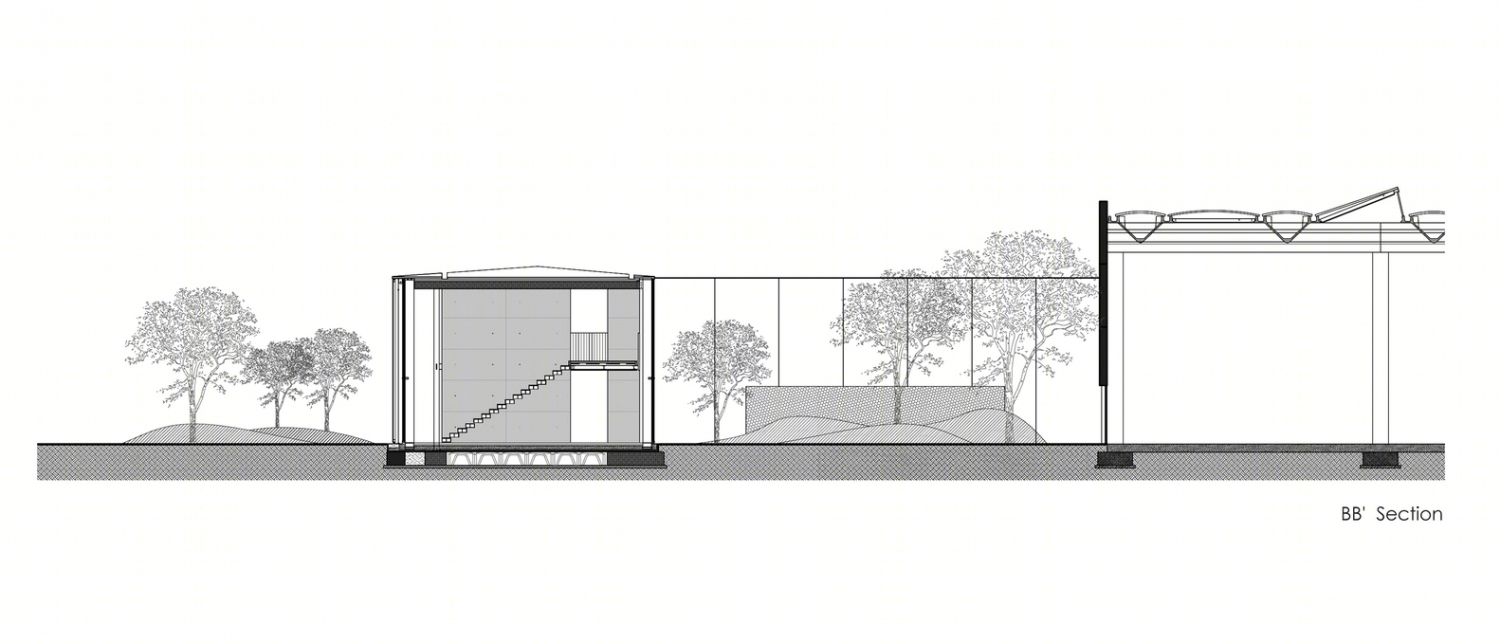

意大利Varigrafica印刷厂剖面图
