Las Naves法院

Ecuador Las Naves Court

设计方：Arquitectura X, Espinoza CarvajalArquitectos, ColectivoArquitectura

位置： 厄瓜多尔

分类：办公建筑

内容：实景照片

设计团队：Milagros Pesantez, MaríaSamaniego, Mario Cueva, Cristina Bueno,Santiago Espinoza, Omar Chamorro, Jul

图片：27张

摄影师：Sebastián Crespo

这是由Arquitectura X、 Espinoza CarvajalArquitectos与ColectivoArquitectura联合设计的Las Naves法院。基于过往的经验，顾问公司Hospiplan委托arquitectura x组建一个团队，在21天内完成20个司法建筑项目，分别位于厄瓜多尔3个地理区域，并在45天内深化所有细节、规范、工程设计和预算。arquitectura x为此建议设计“一种含有20个变量的项目”，而不是20个特定的项目。由于两个场地无法建设，最后共设计了18座法院，目前为止已建成5座。由于紧急委任建造，每个建筑都是由独立的承包商完成，并和设计团队没有任何关联。

译者：筑龙网艾比

During the emergency process for commissioning new Courthouses, as part of the restructuring of the Judicial System defined by the National Government of Ecuador, the consulting company Hospiplan is invited to participate in the design of new buildings that would ¨guarantee all citizens an opportune, efficient and quality access to justice¨. This emergency commissioning implied the radical reduction of time allocated for the development of the projects, and a necessary reorganization of the processes normally followed.

Based on previous experiences, Hospiplan calls arquitectura x to lead a team capable of producing 20 projects in 21 days, located in the 3 geographic regions of the country, with a total of 45 days to develop all details, specifications, engineering designs and budgets. arquitectura x proposes a strategy to design 1 generic project with 20 variables, instead of 20 specific projects.

In the end, 18 Courthouses were designed since 2 plots were deemed inviable, and to date 5 have been built. Because of the nature of the emergency commissioning, each building was constructed by individual contractors without any involvement of the design team during the building process. This building is one of the specific results and should be considered as part of a system, developed in the following way.Systematization of the Design and Construction Process.

The design of these Courthouses is seen as an opportunity to emphasise the need to optimize all constructions processes for public buildings in Ecuador, by implementing a planning model based, on one hand on modular building components, standardization of production processes, light prefabrication and dry assembly methods, and on the other, on the systematisation of the design methodology, in order to produce a generic model flexible enough to be modified and adapted depending on the specific contexts and needs of each case.

The 20 programs are thus systematized according to the strict functional correlations given by the operational needs, generating programmatic modules following logic of use, be it public, semi-public, or private use, and determined dimensionally by the structural-spatial building module selected to optimize construction. The functional dynamics of these programmatic modules are also based on the double circulation system determined by the operating requirements of the courthouses, and on the vertical distribution logic of the spaces, prioritizing public use on the ground floor while concentrating private use on the upper floors.This way a series of matrices for the subsystems of the project are generated, allowing for simultaneous evaluation and decision making for the 20 cases at once, based on worst case scenarios, that is, always making decisions for one project and applying them to the other nineteen.

The buildings´ general layout respond to their context, always generating public spaces shaded by trees in the form of plazas, small squares, broadening of sidewalks, and/or gardens and green parklets. For this purpose, the buildings incorporate open portals that act as transitional space between the public interior and public exterior. These portals are also the architectural elements that allow the buildings to become an urban ¨place making¨ model in the case of areas intended as new centralities for their towns.

The structural system is in essence a steel grid, with a square, 6.30 metre module, that acts as the dimensional base for the building. A rational, repetitive and invariable structural system is intentionally sought with the double premise of achieving the most efficient use of materials, and a time effective execution during the construction process. In contrast to other more common structural principles based on diaphragms or slabs, the linear grid allows for the most flexible solutions for distribution, spatial organization, transformation, or expansion of the building.

The 6.30 metre module between axes corresponds to the dimensions of the two basic elements that form the grid: 6.00 metre long IPN beams and 0.30 x 0.30 metre square columns; this modular dimension of the grid minimizes material waste and optimizes sectioning of standard steel members.The circulation scheme responds to the particular needs defined by the operational system of the courthouses, with all-access public areas located to the front and on the lower and ground floors, characterized by the portals and double or triple height halls. These public areas are distributed occupying most of the ground floor and the frontal spaces of the first and/or second floors, oriented to the public space outside.

Vertical circulation in the public spaces is solved with an open staircase and elevator placed in the centre of the building; private vertical circulation is contained in one or more cores that access all levels of the building, but are always separated from the open public circulations. The Courtrooms are the primary spaces in the buildings, the places where hearings are held to impart justice, spaces located in a predominant area of the first or second floors above the interior public space, clearly identifiable as volumes clad in natural wood.

The spatial scheme responds to an open plan principle, spaces are defined with a light prefabricated constructive system of modular fibrocement boards, used for interior walls, floors, ceilings and facades. This system allows for total flexibility of the buildings so they can adjust to new programmatic conditions, modifications, expansions, renovations, and the possibility of dismounting and recycling of parts and materials. Modular, prefab dry assembly systems also allow the efficient construction of these buildings in relatively isolated places.

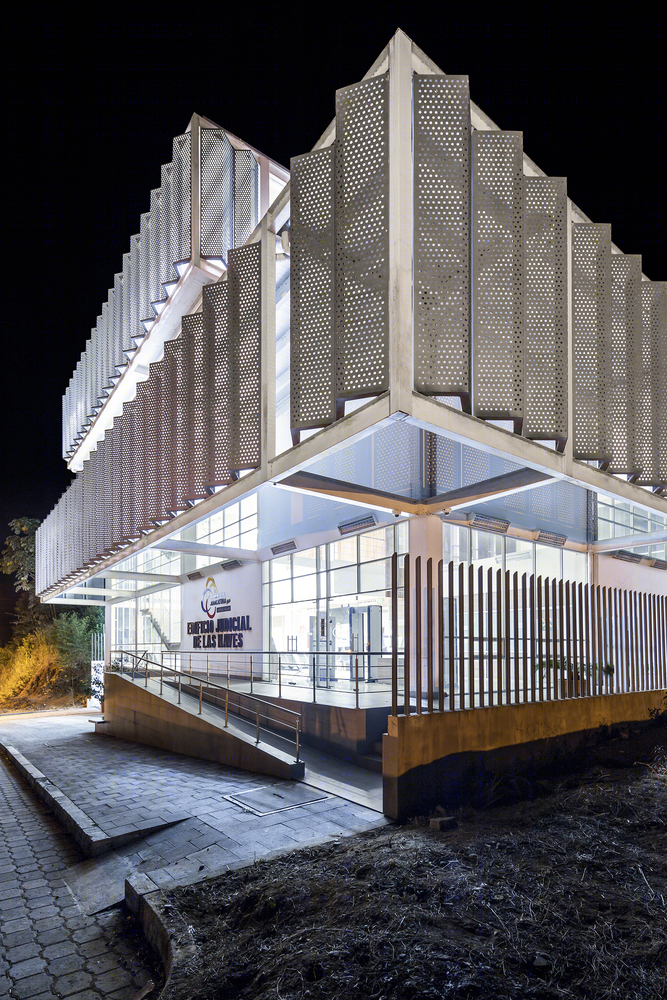

The buildings relate to their context primarily through the portals, acting as a primary protection and adaptation system, while the less public facades are by nature less open. When necessary, both the portals and the other facades incorporate secondary systems that protect the buildings from the incidence of direct solar radiation and rain, whilst admitting as much natural light as possible. It is here that specific materials for each region or case are employed, such as perforated galvanized steel screens.

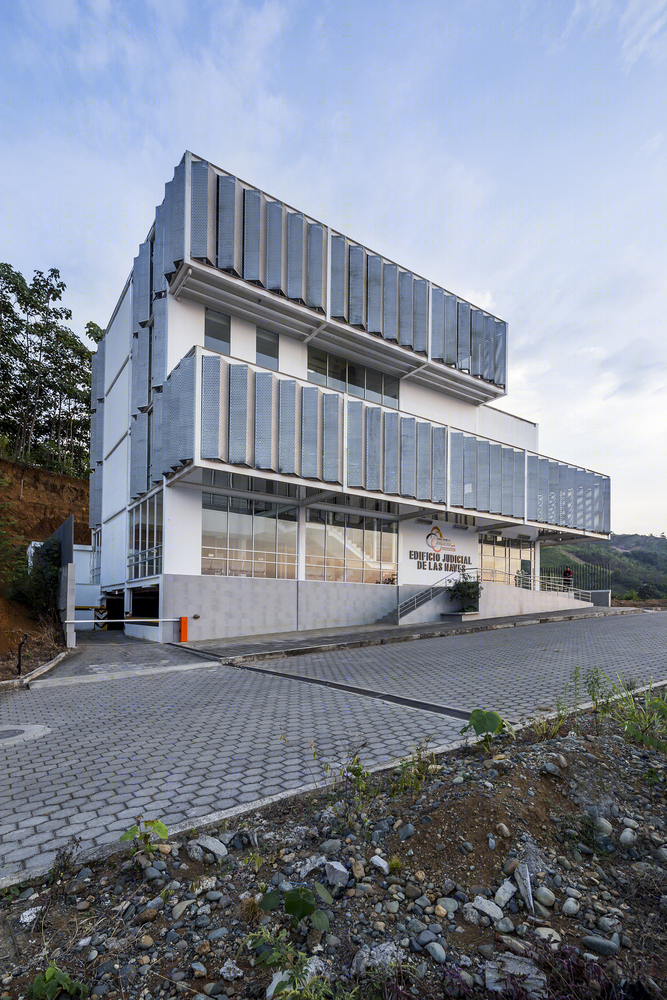

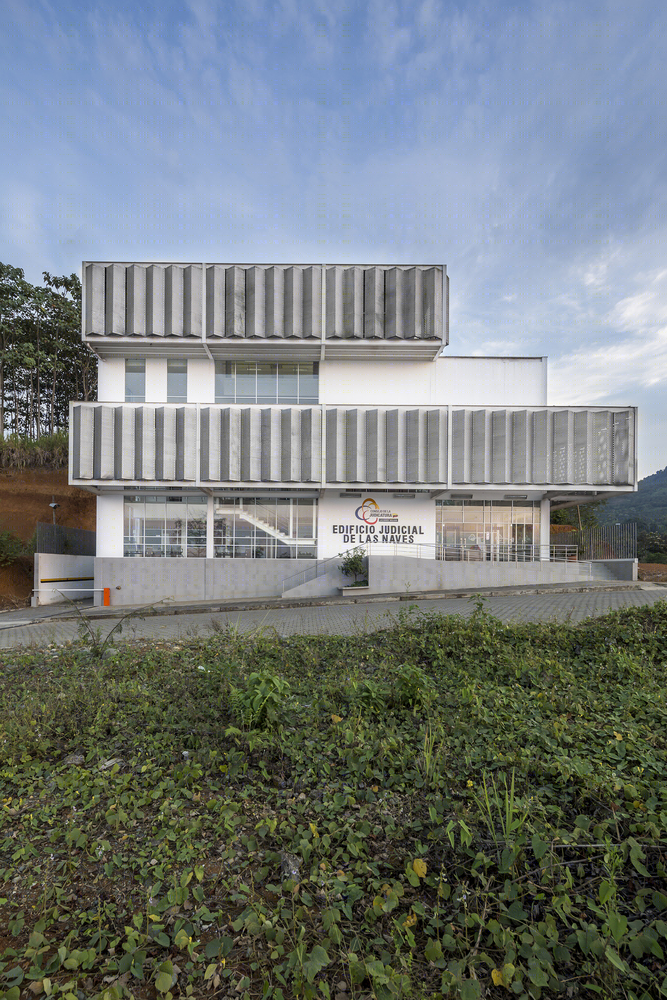

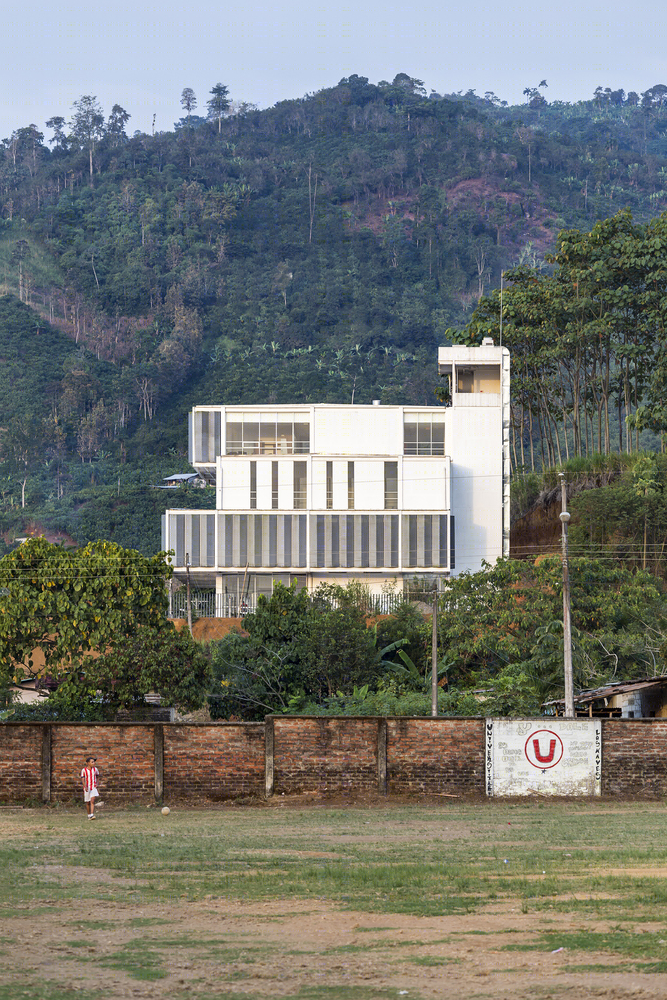

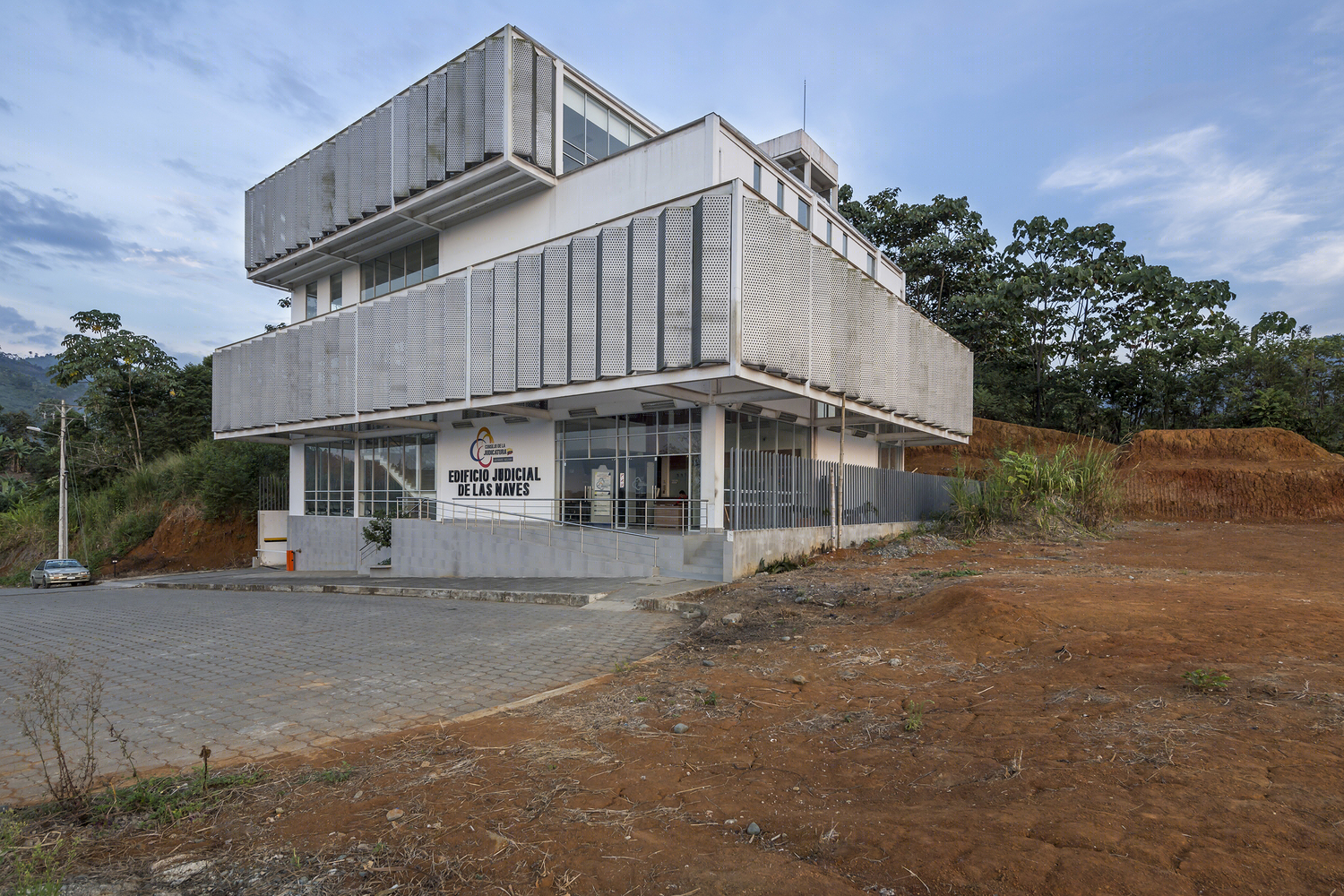

厄瓜多尔Las Naves法院外部实景图

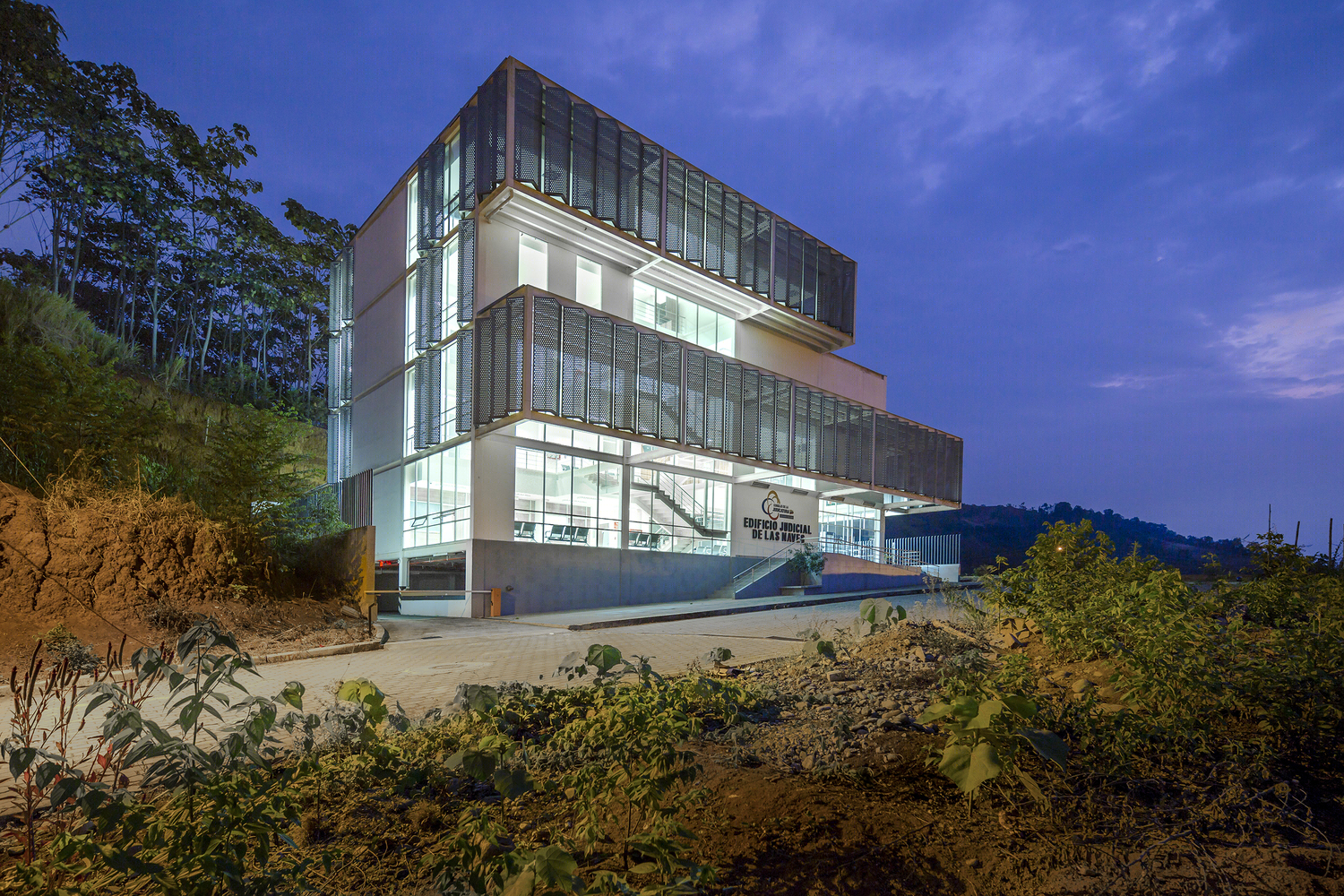

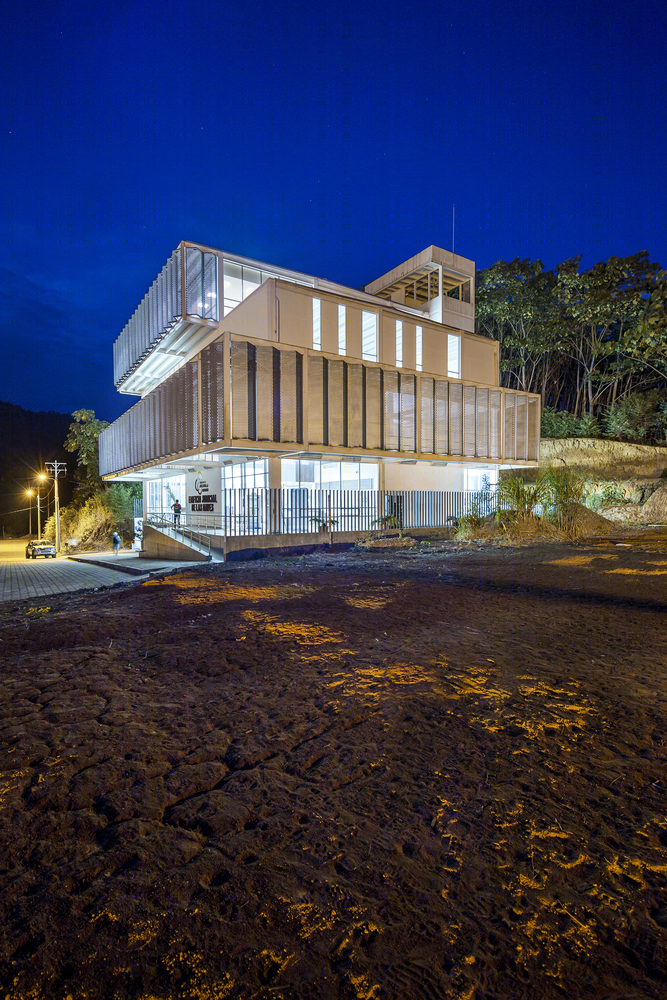

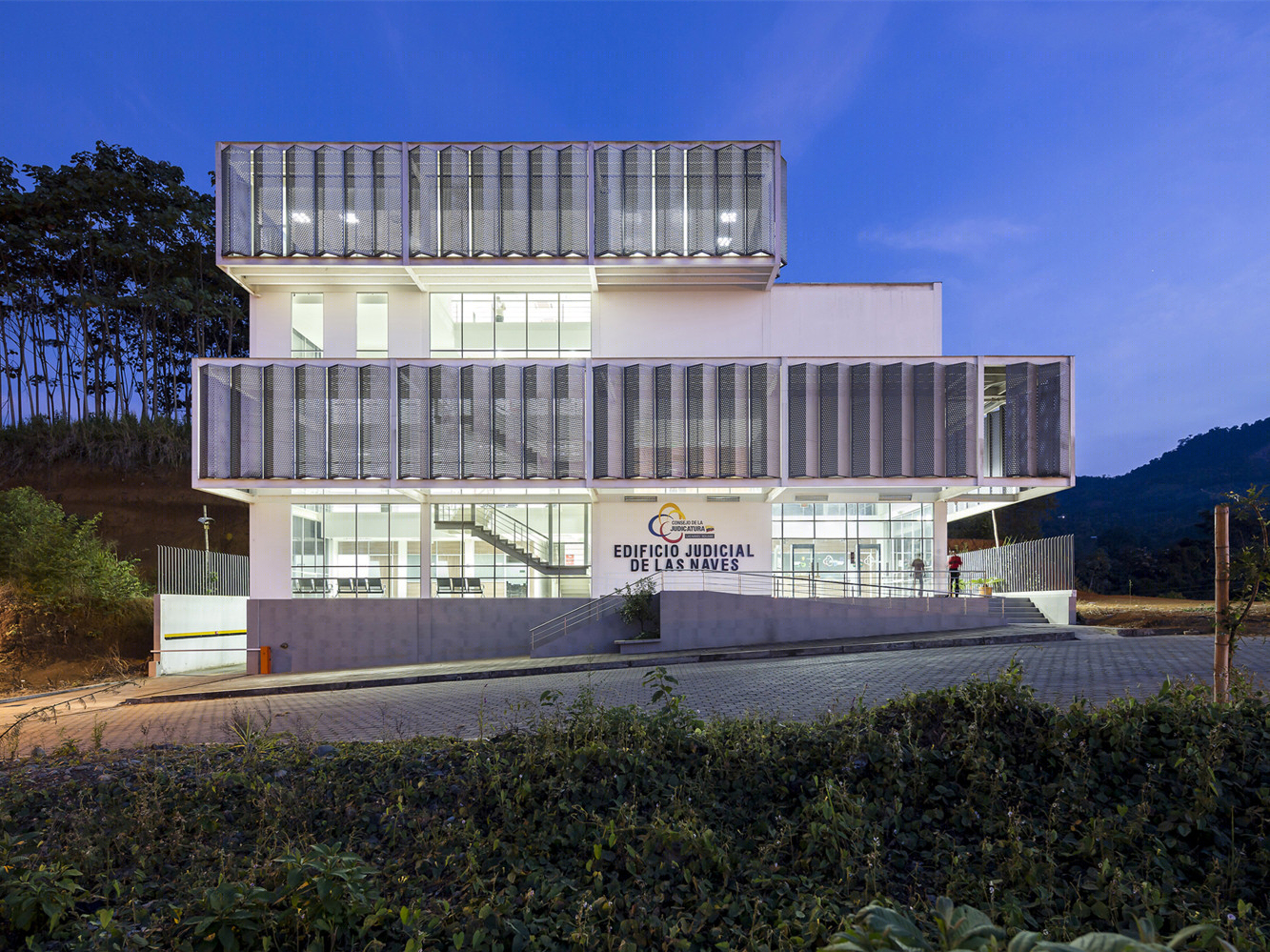

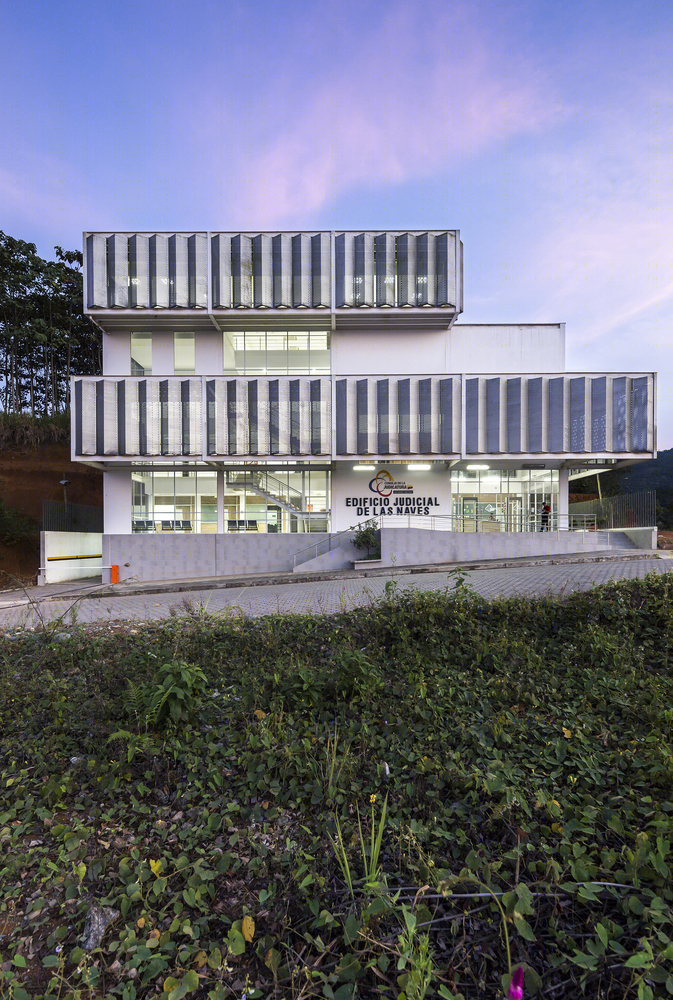

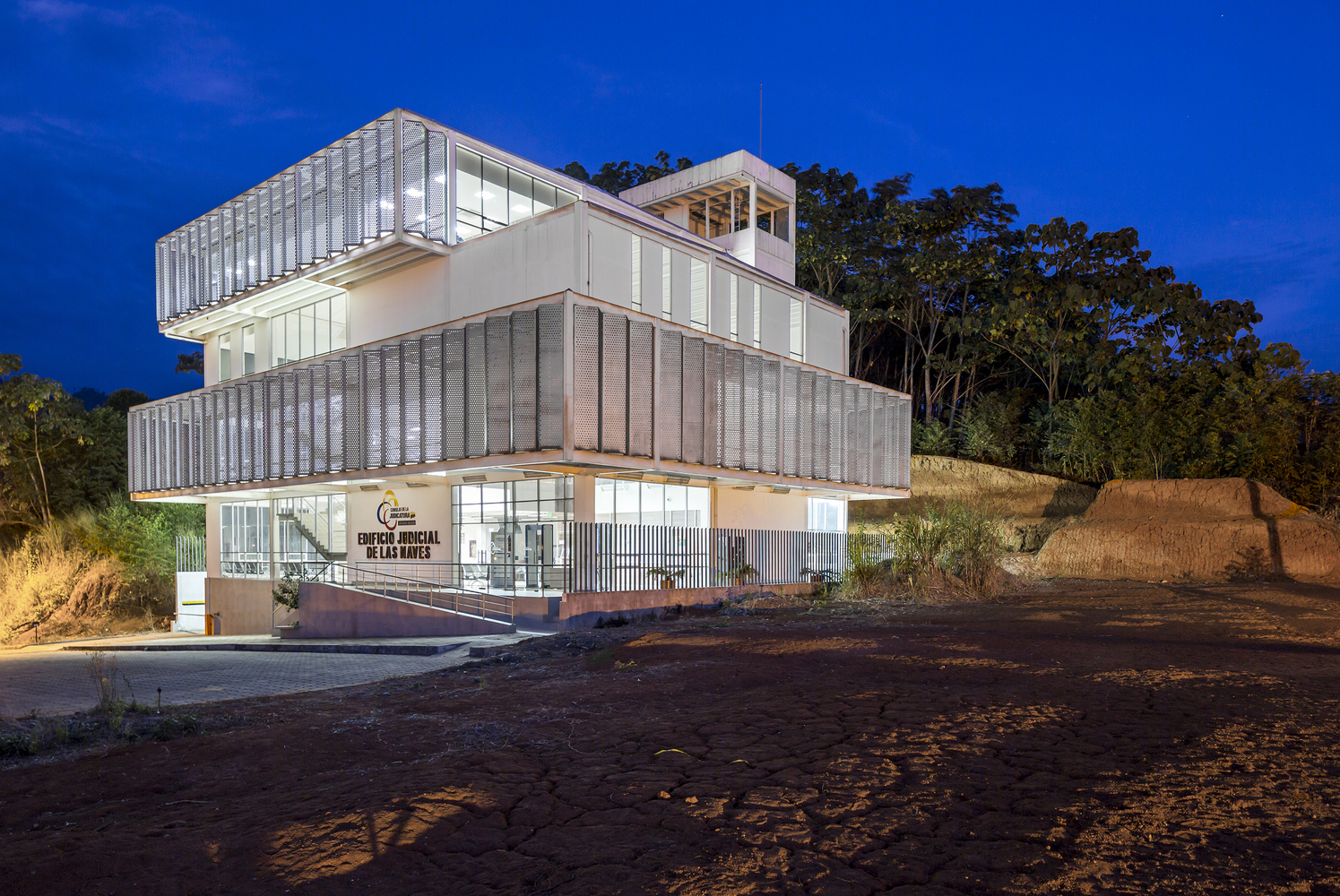

厄瓜多尔Las Naves法院外部夜景实景图

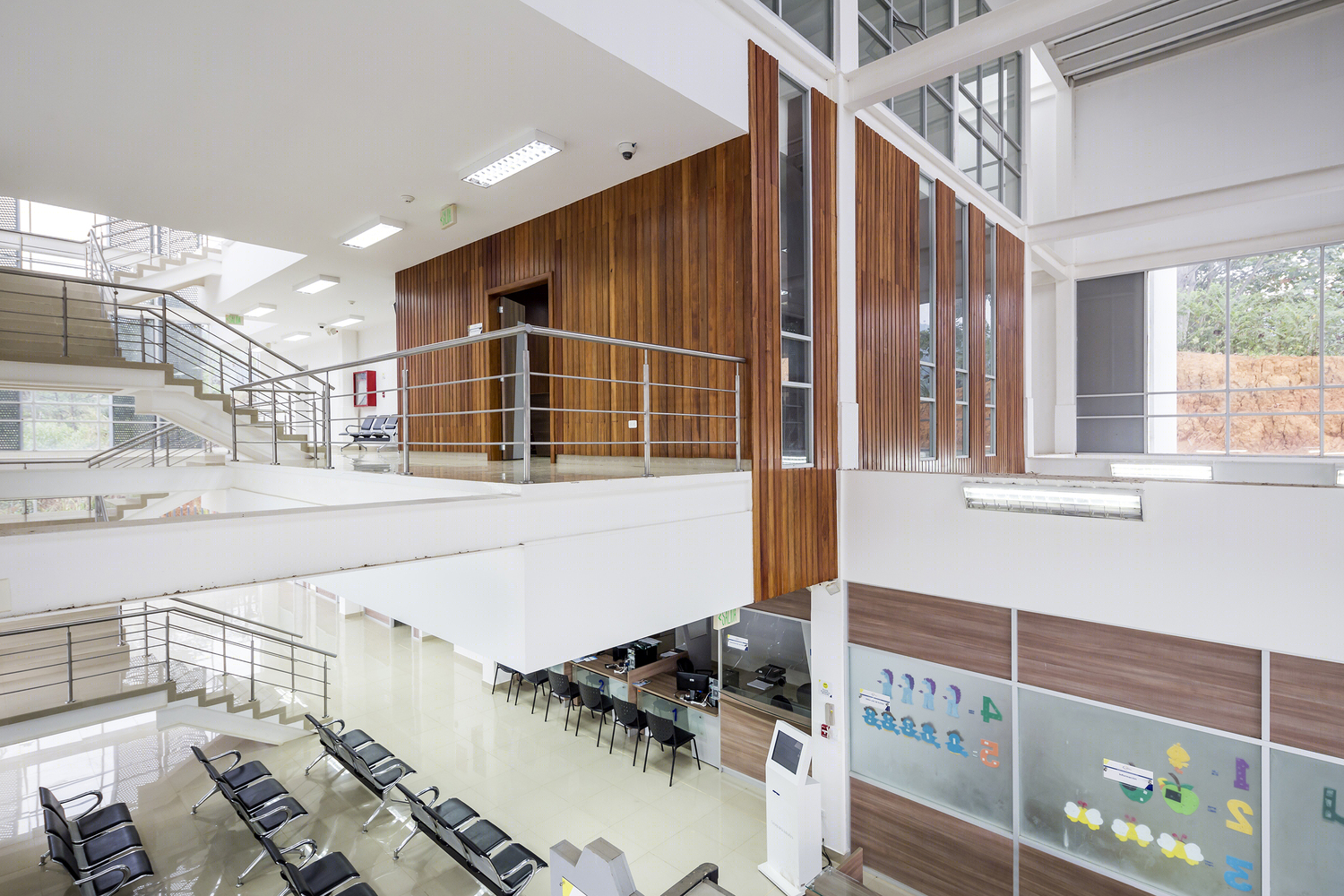

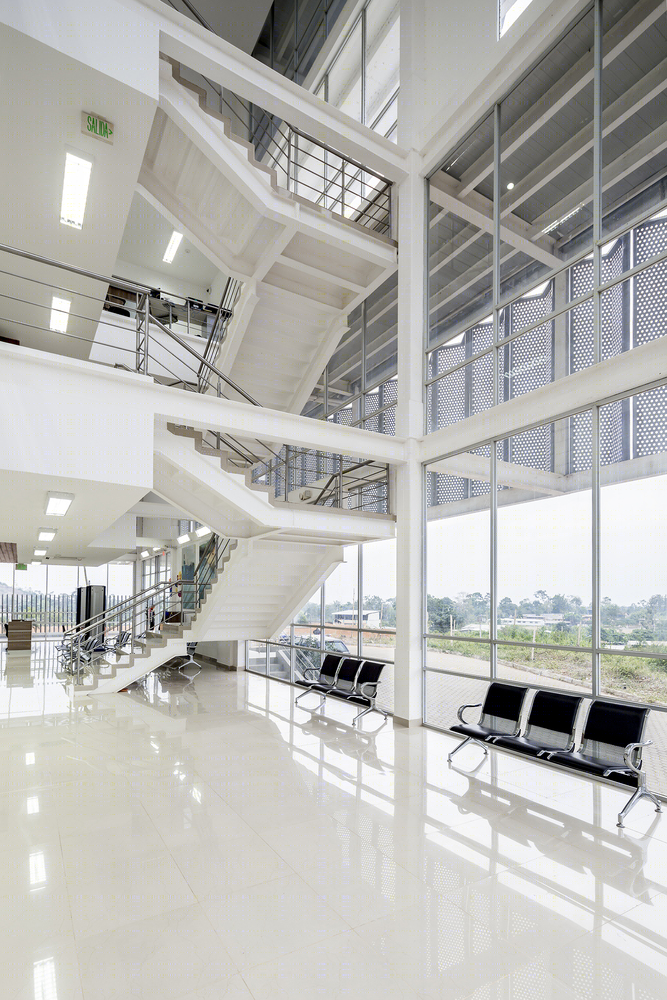

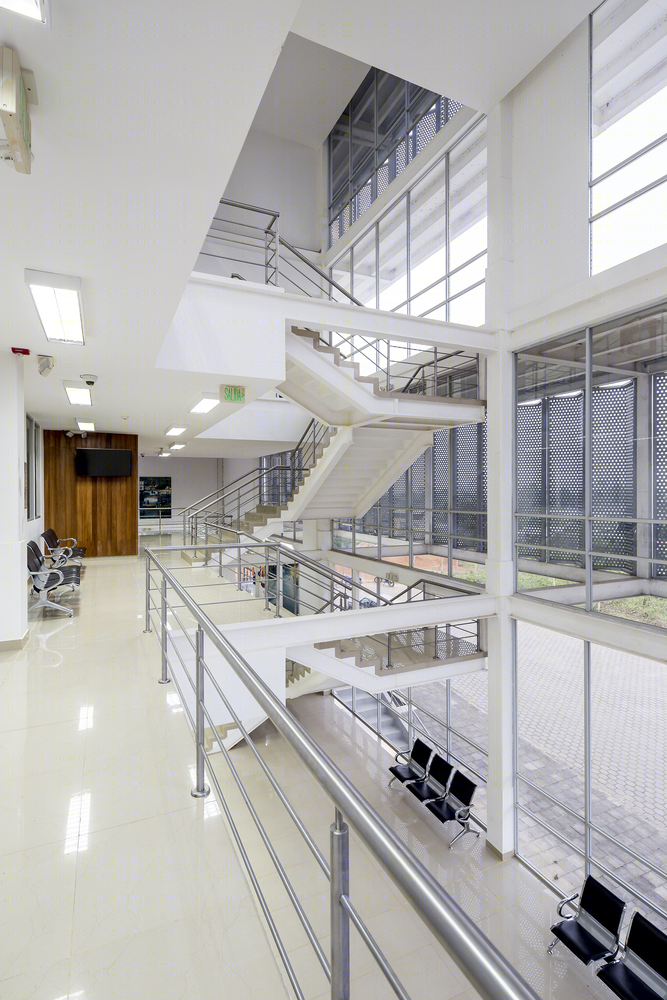

厄瓜多尔Las Naves法院内部实景图

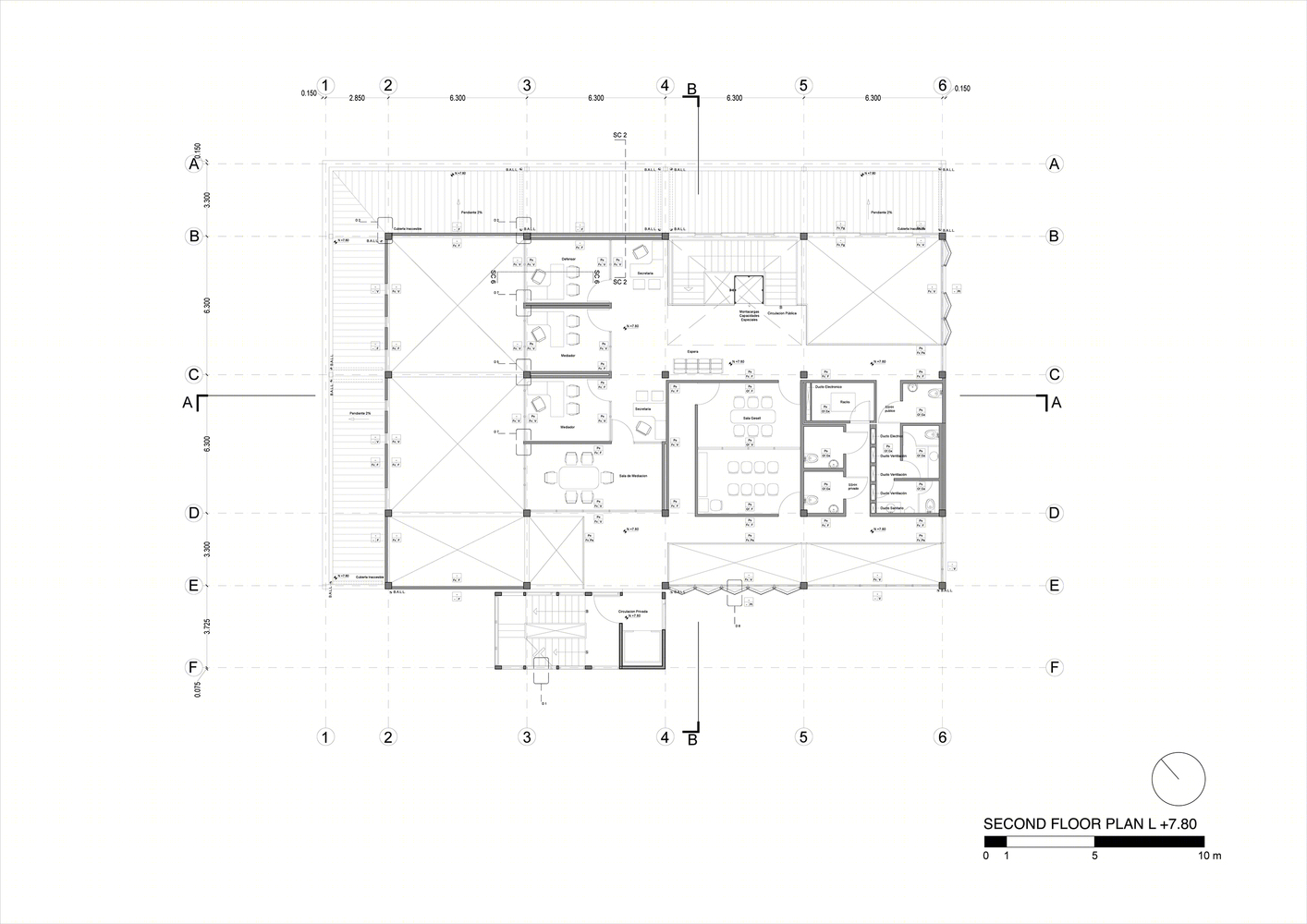

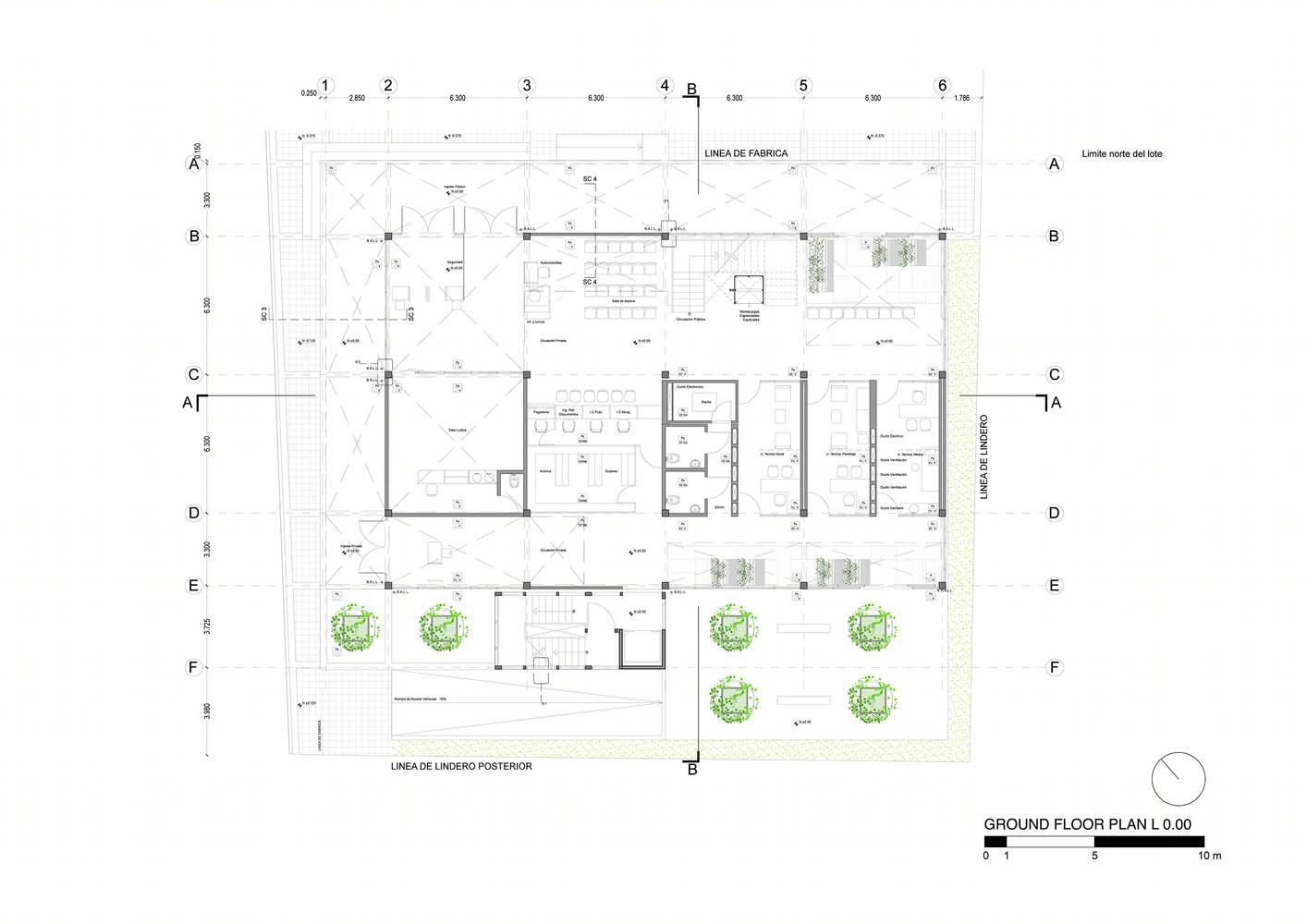

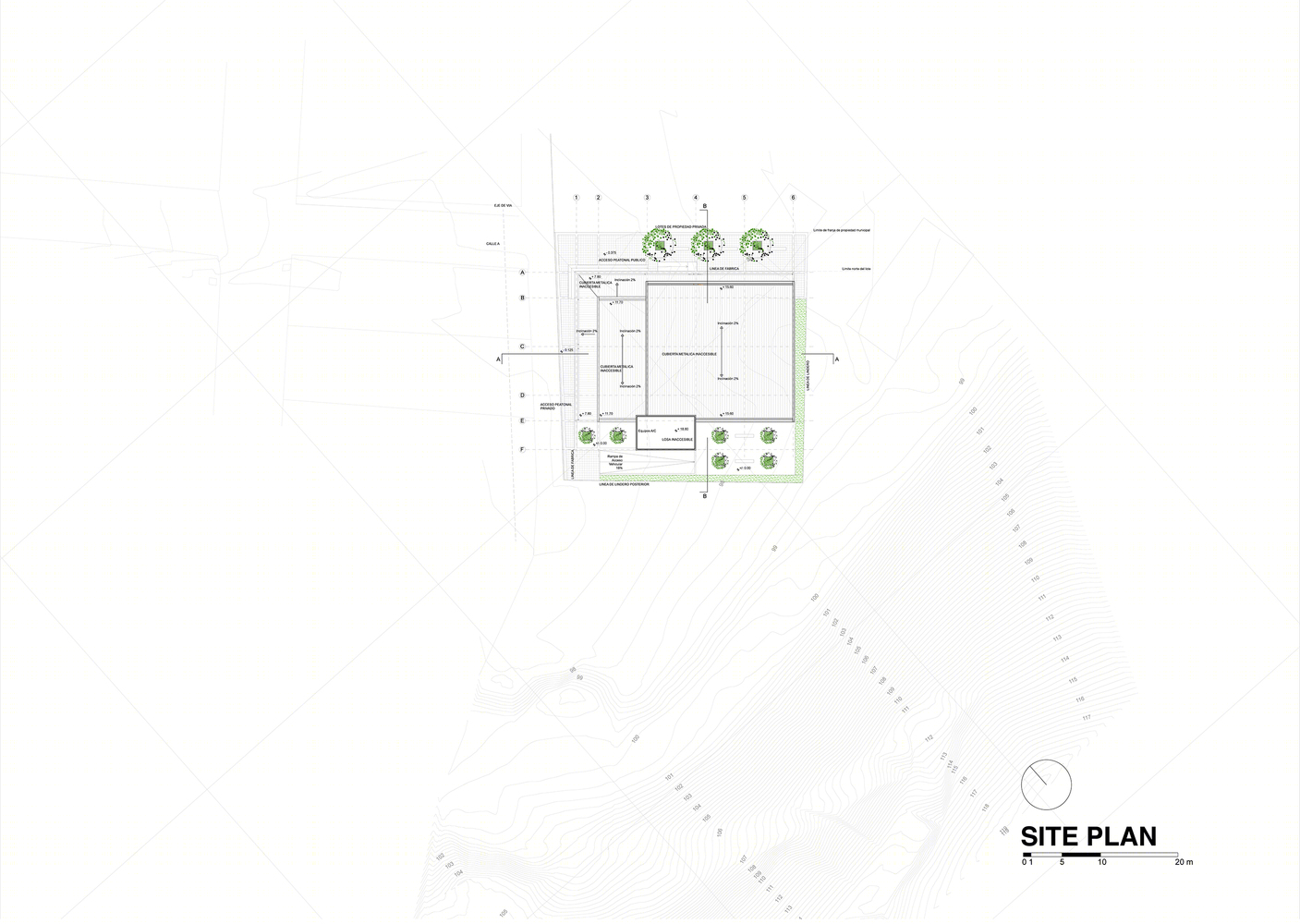

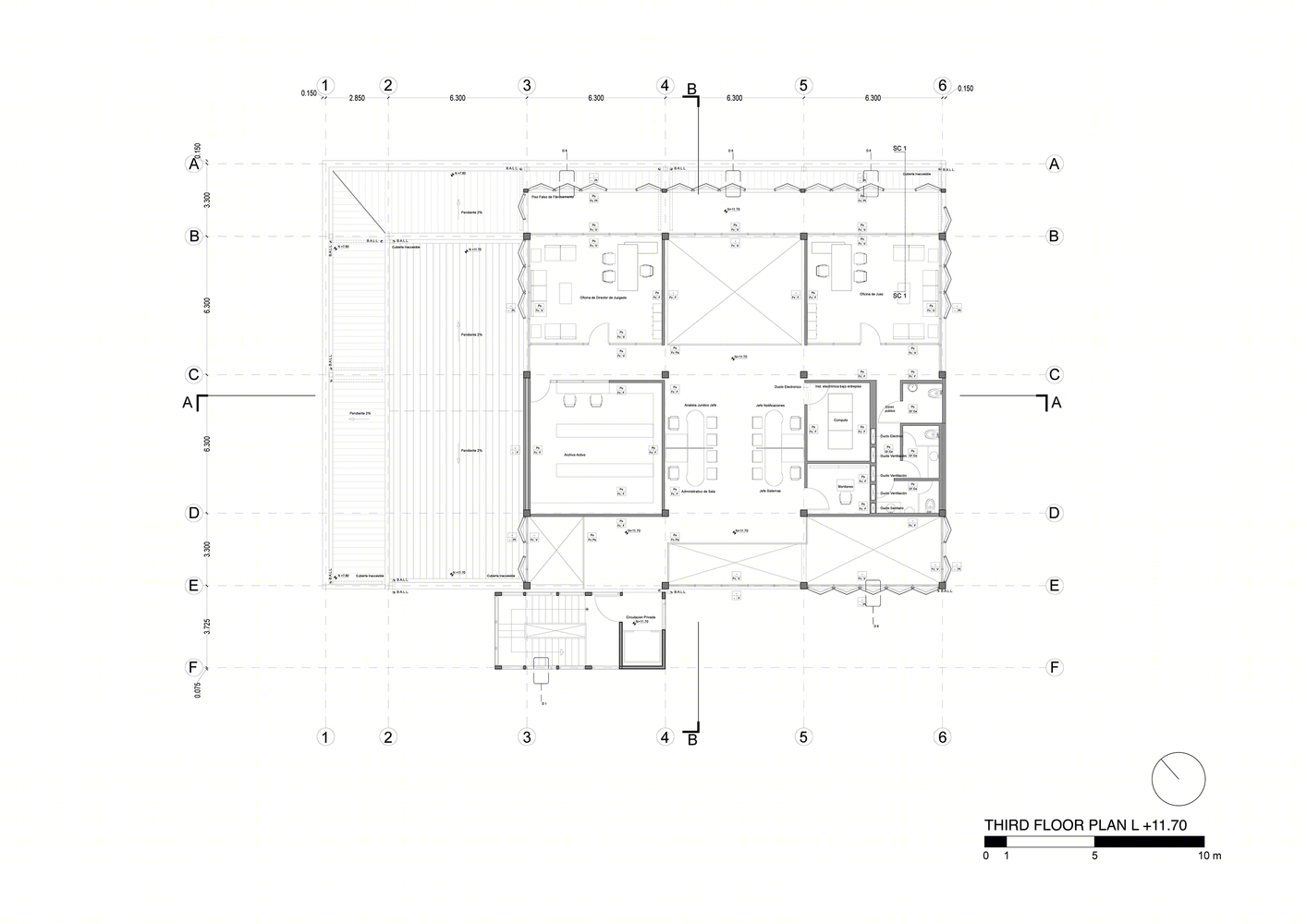

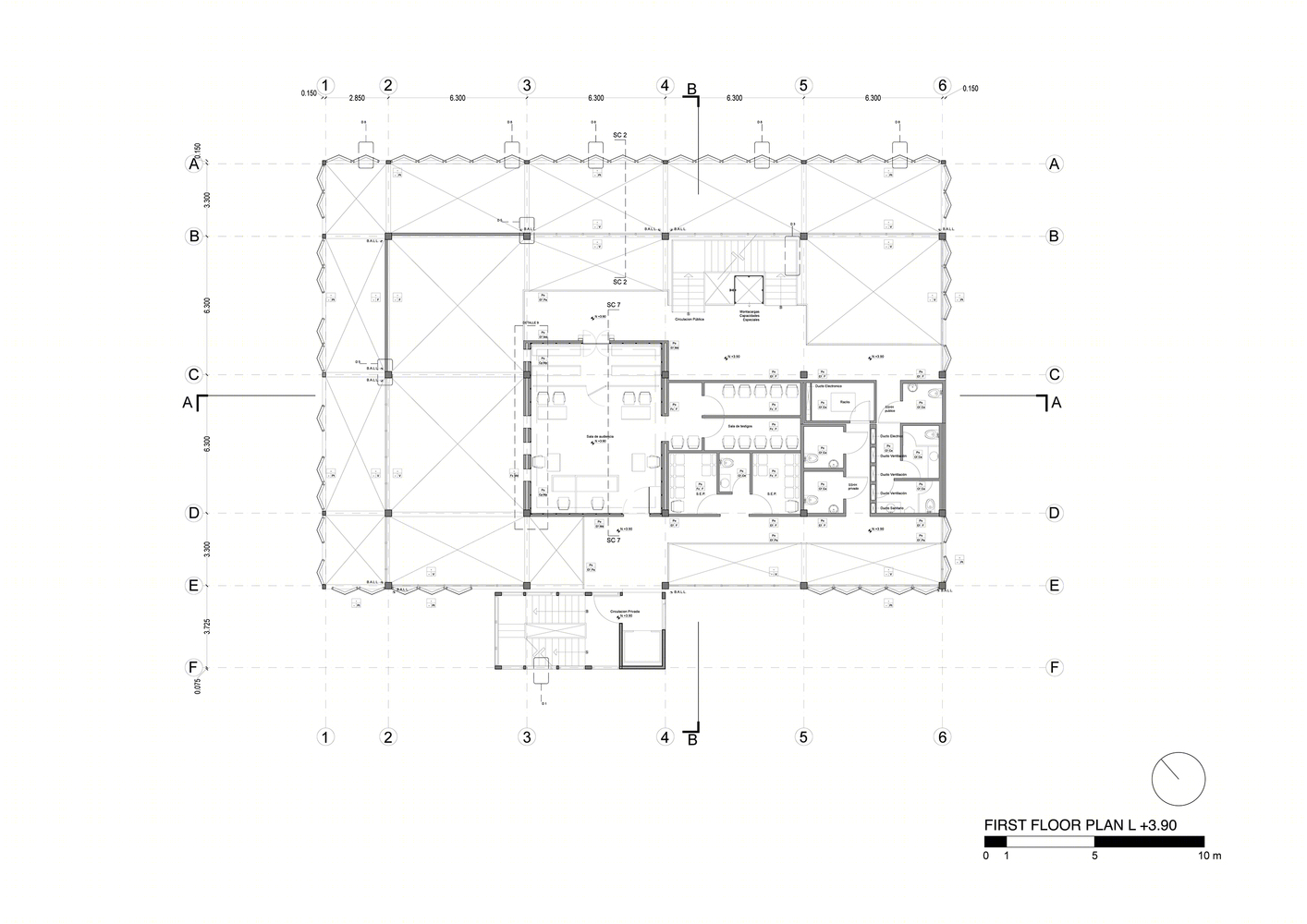

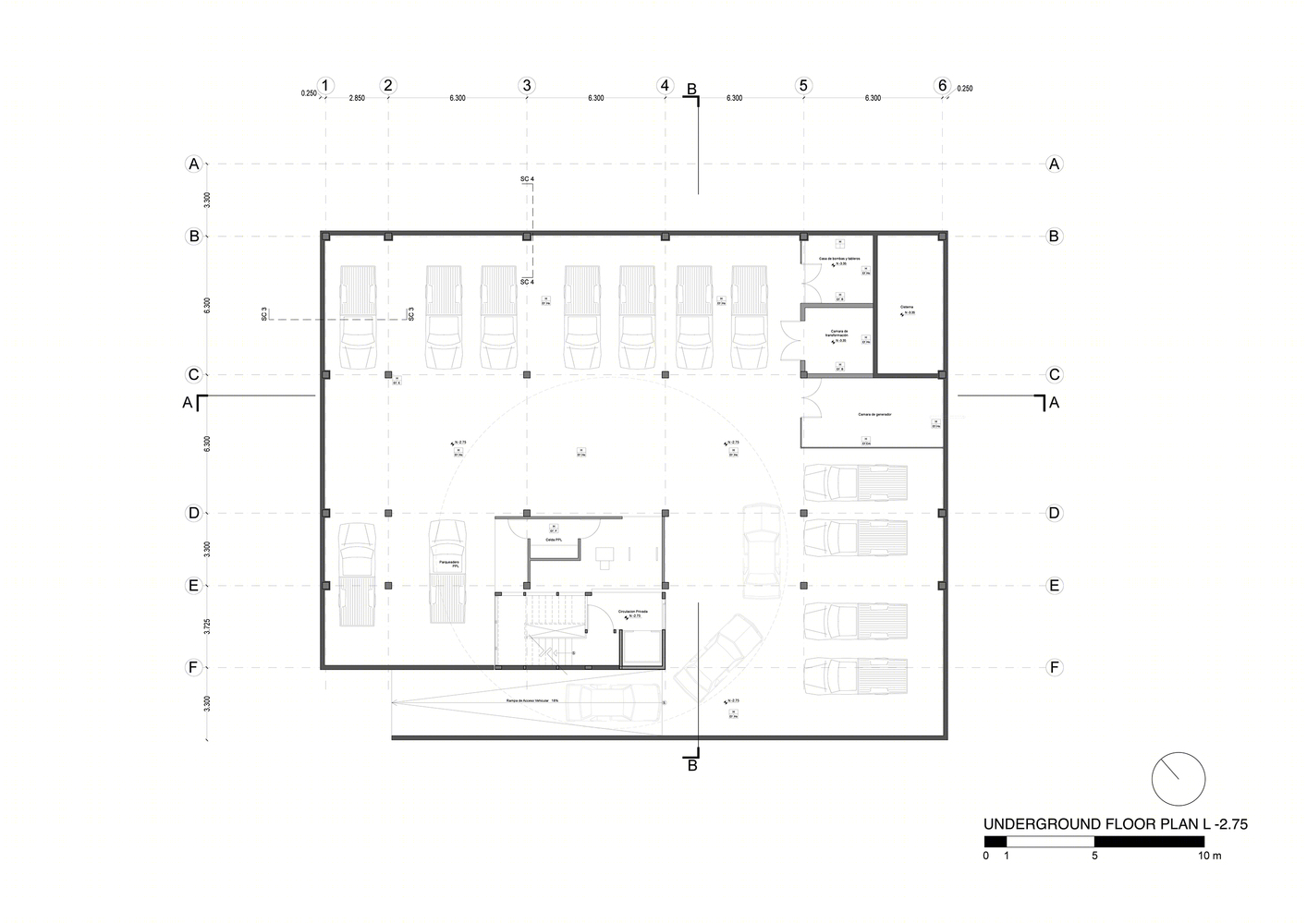

厄瓜多尔Las Naves法院平面图

厄瓜多尔Las Naves法院示意图

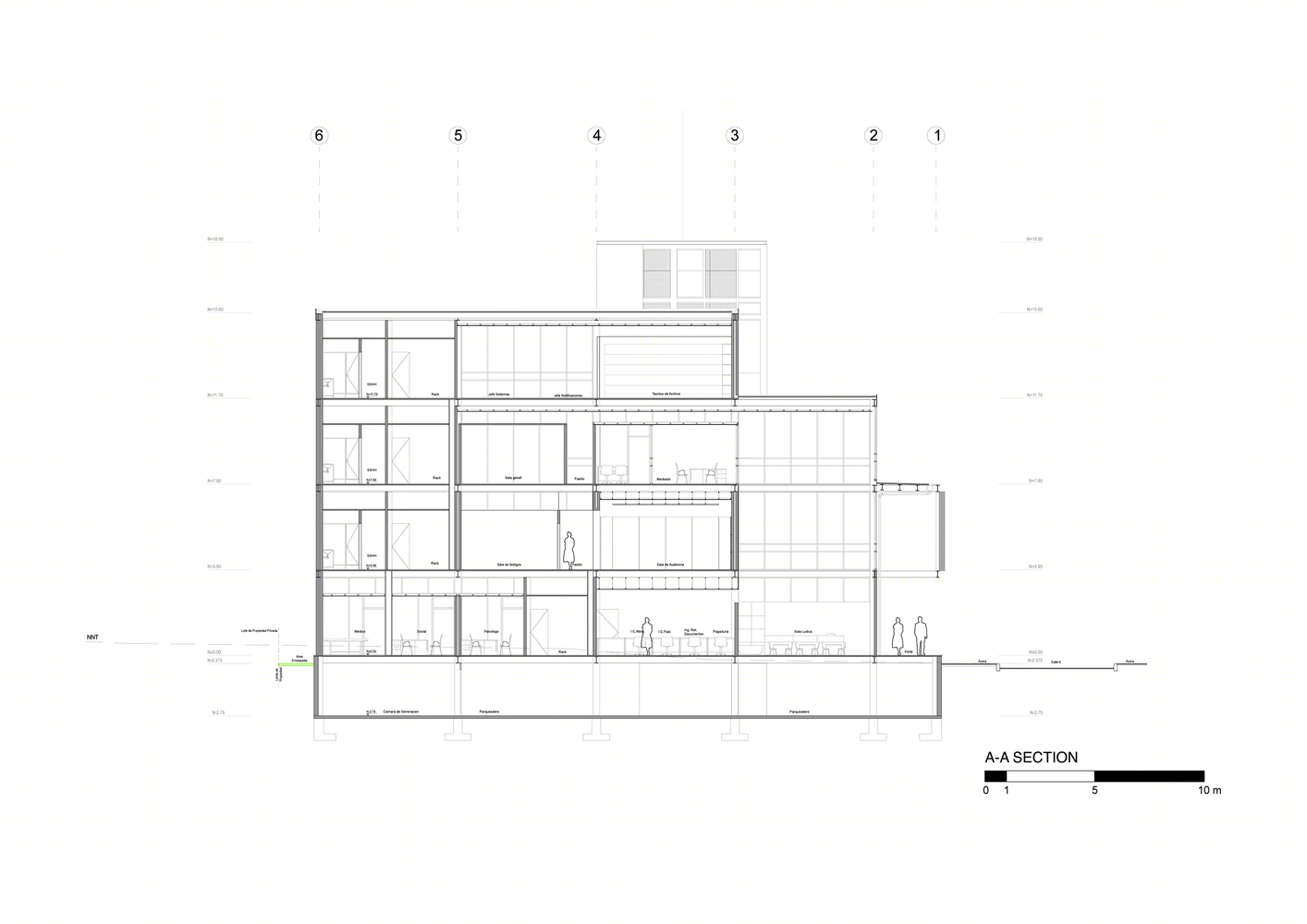

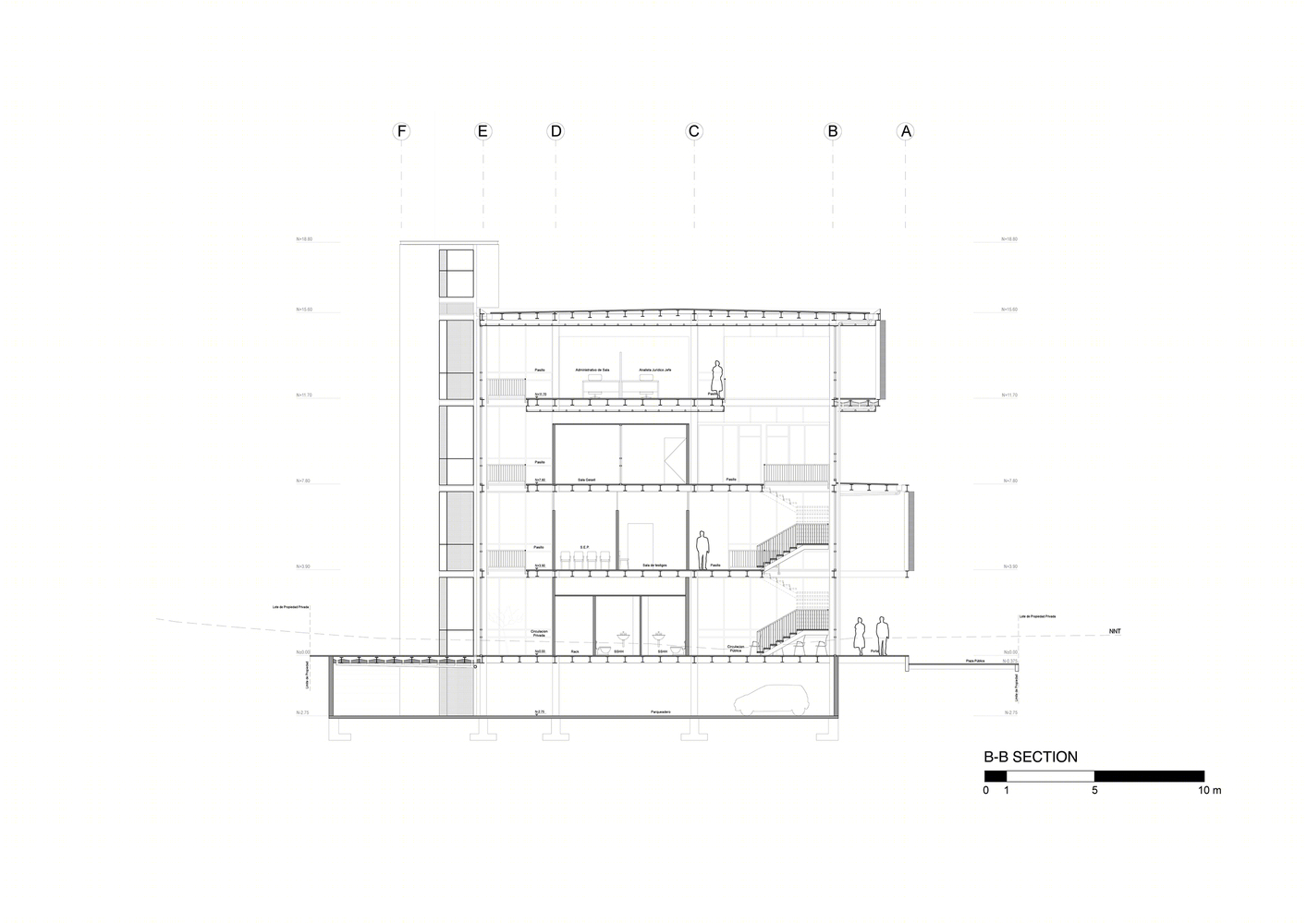

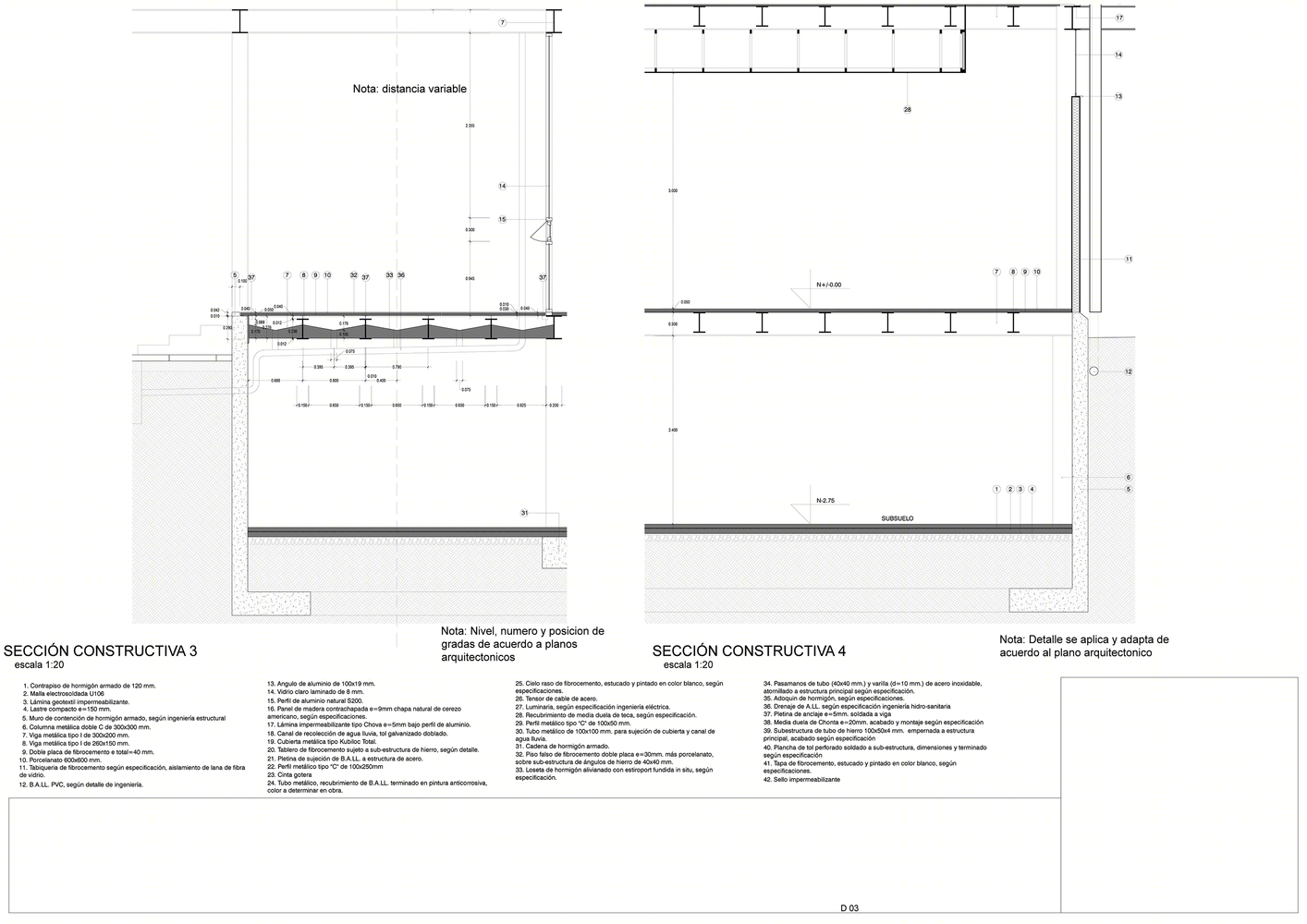

厄瓜多尔Las Naves法院剖面图

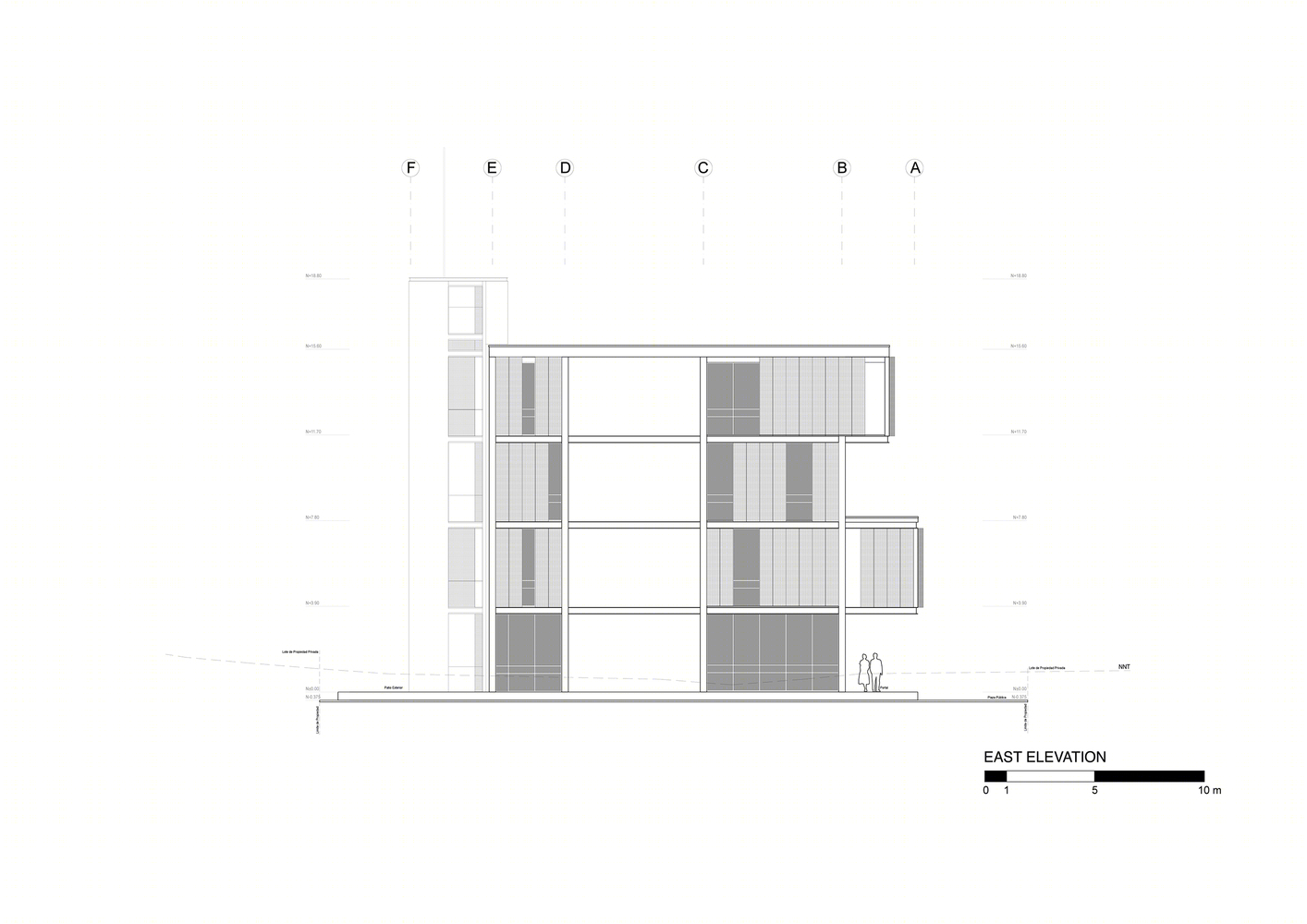

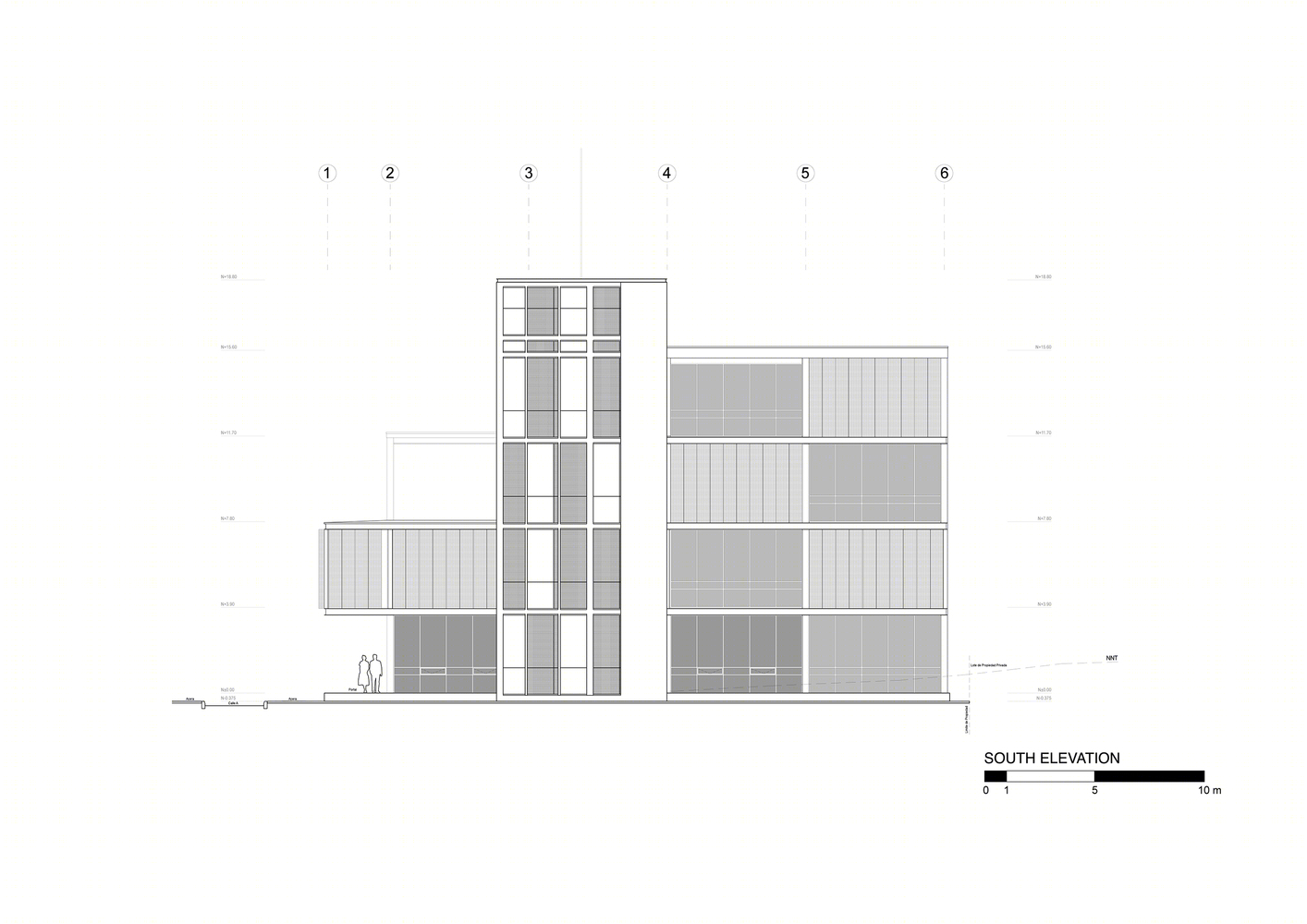

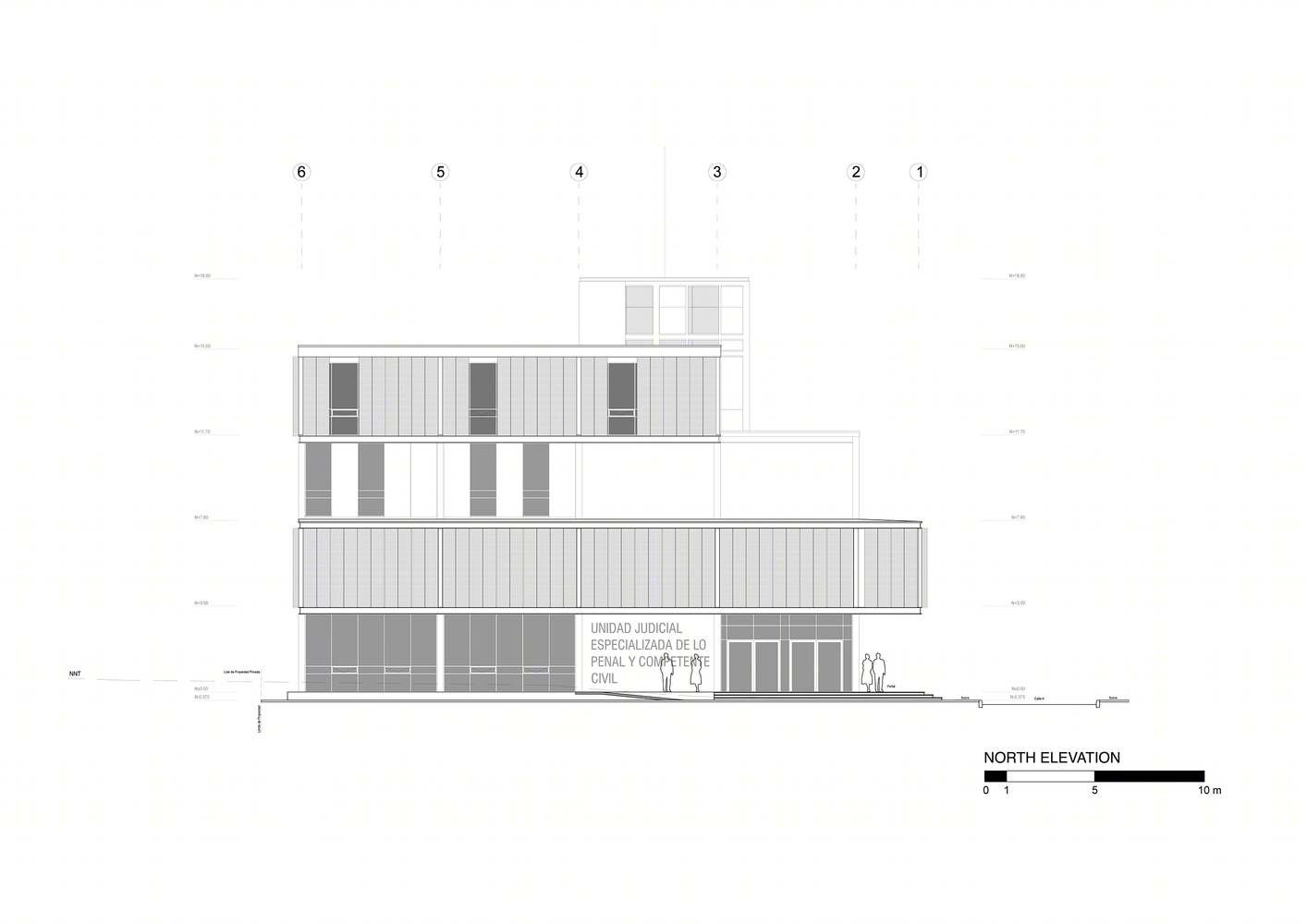

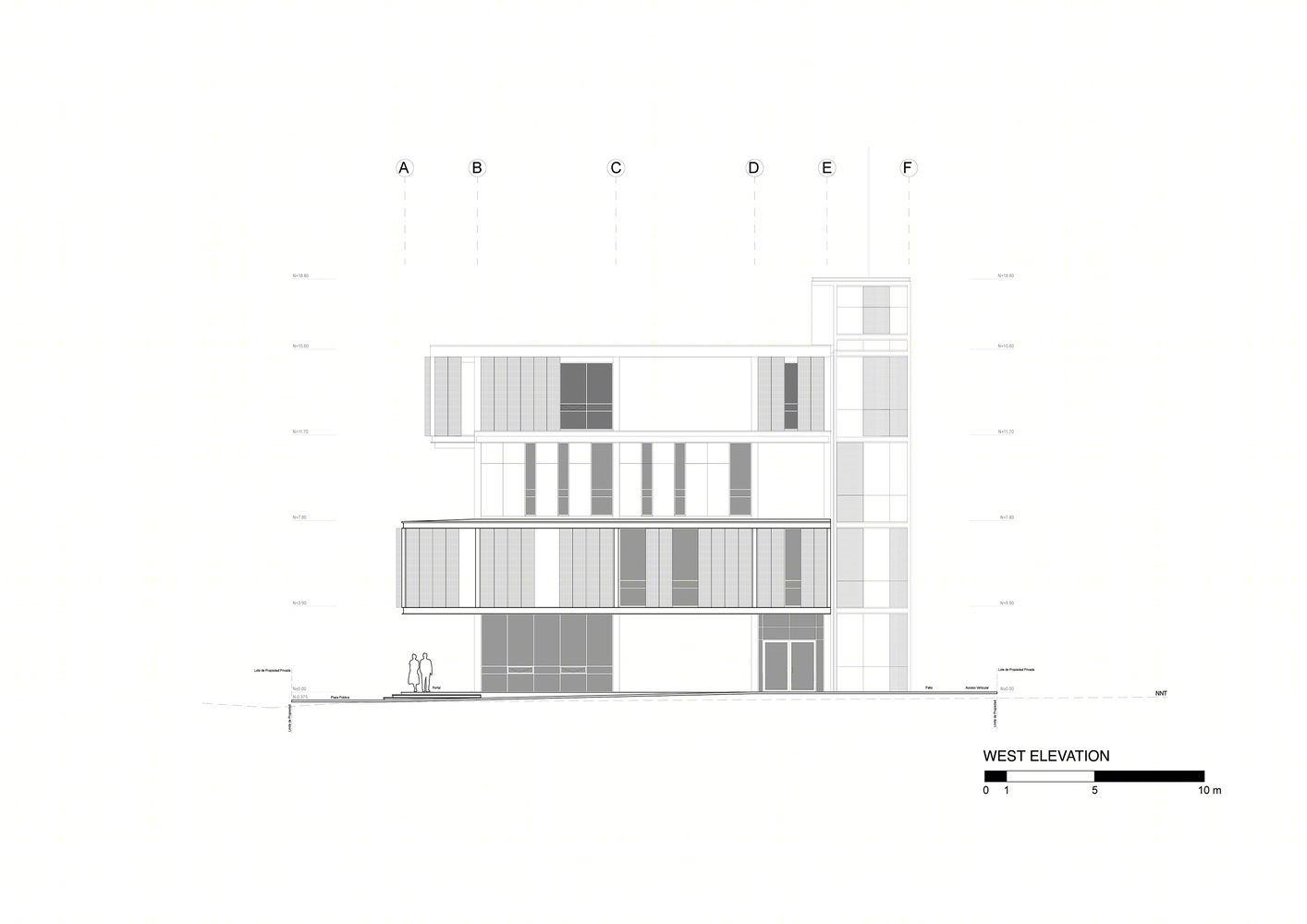

厄瓜多尔Las Naves法院立面图
