荷兰ING集团办公总部

head ING group office

设计师：Michael R. van Gessel

设计方：MVSA Architects

位置：荷兰 阿姆斯特丹

设计时间:2002年

分类：办公建筑

内容：实景照片

设计风格：现代风格

项目规模：20000平方米

图片：31张

摄影师：MVSA Architects

这是由MVSA Architects设计的ING集团办公总部，位于阿姆斯特丹A10环路南面的一块长且窄的场地内。场地一侧是商务区南轴，另一侧是Nieuwe Meer（新湖）绿化区。该建筑面向着绿化区，保持自身低调，布置了礼堂的悬挑体则在城市发展区一侧抬升。该建筑由一系列9米到12米不等的V型柱支撑，使得高速公路上的驾驶者能欣赏建筑背后的绿化区，同时保证职工可以看到高速公路。与普通的办公楼不同，荷兰ING国际集团办公总部设有大量的接待空间和会议空间。建筑内部氛围丰富多样，虚实相映，中庭、凉廊、庭院、花园分布在不同的楼层，还设有全景餐厅、礼堂和内向型工作环境。

译者： 艾比

From the architect. The ING Group’s head office stands on a long, narrow site beside the southern section of Amsterdam’s A10 ring road. Bounded on one side by the South Axis business district and on the other by the green zone around the Nieuwe Meer (New Lake), the building maintains a low profile on the side facing the greenery, with a cantilevered section occupied by the auditorium, and rises up on the city side.

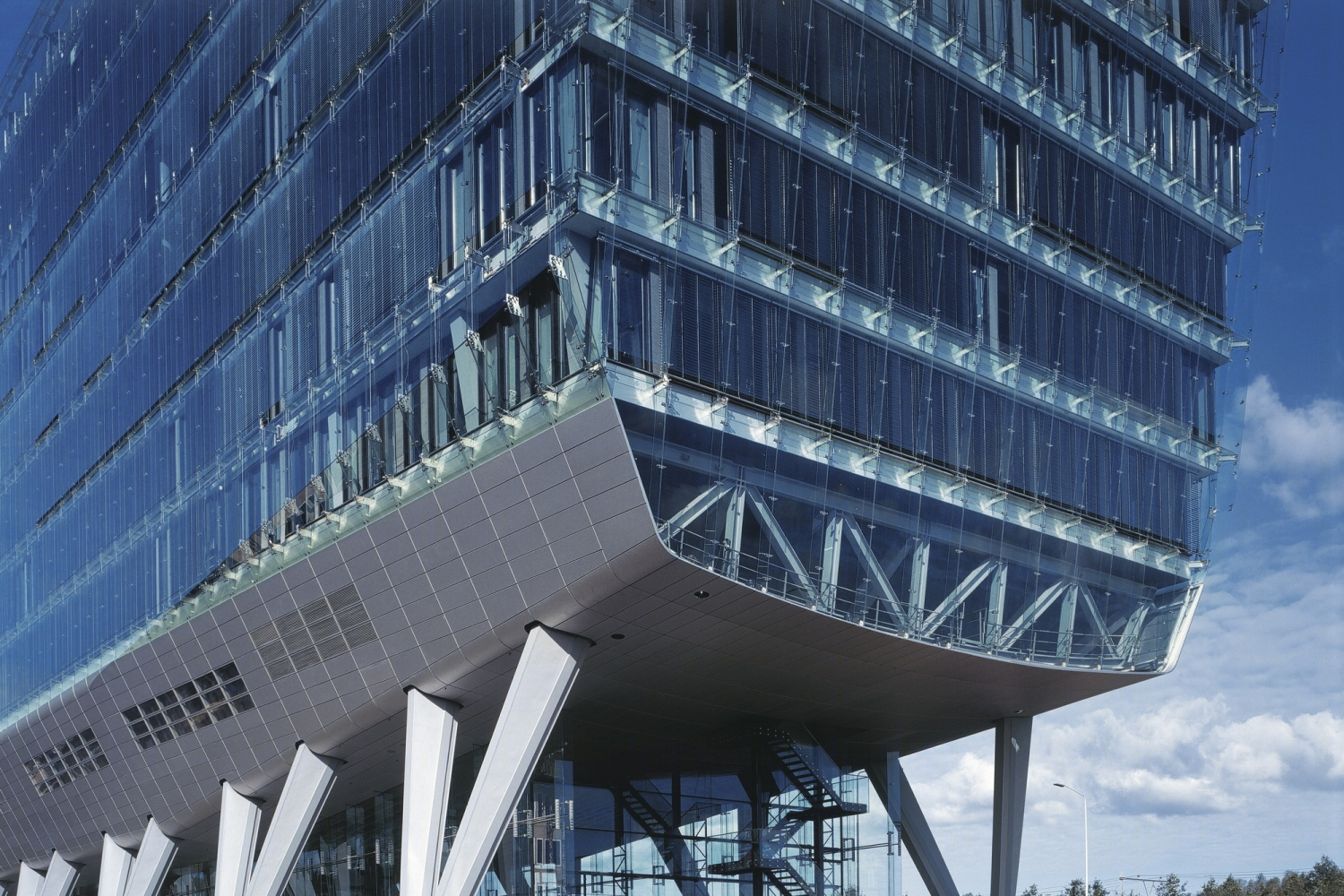

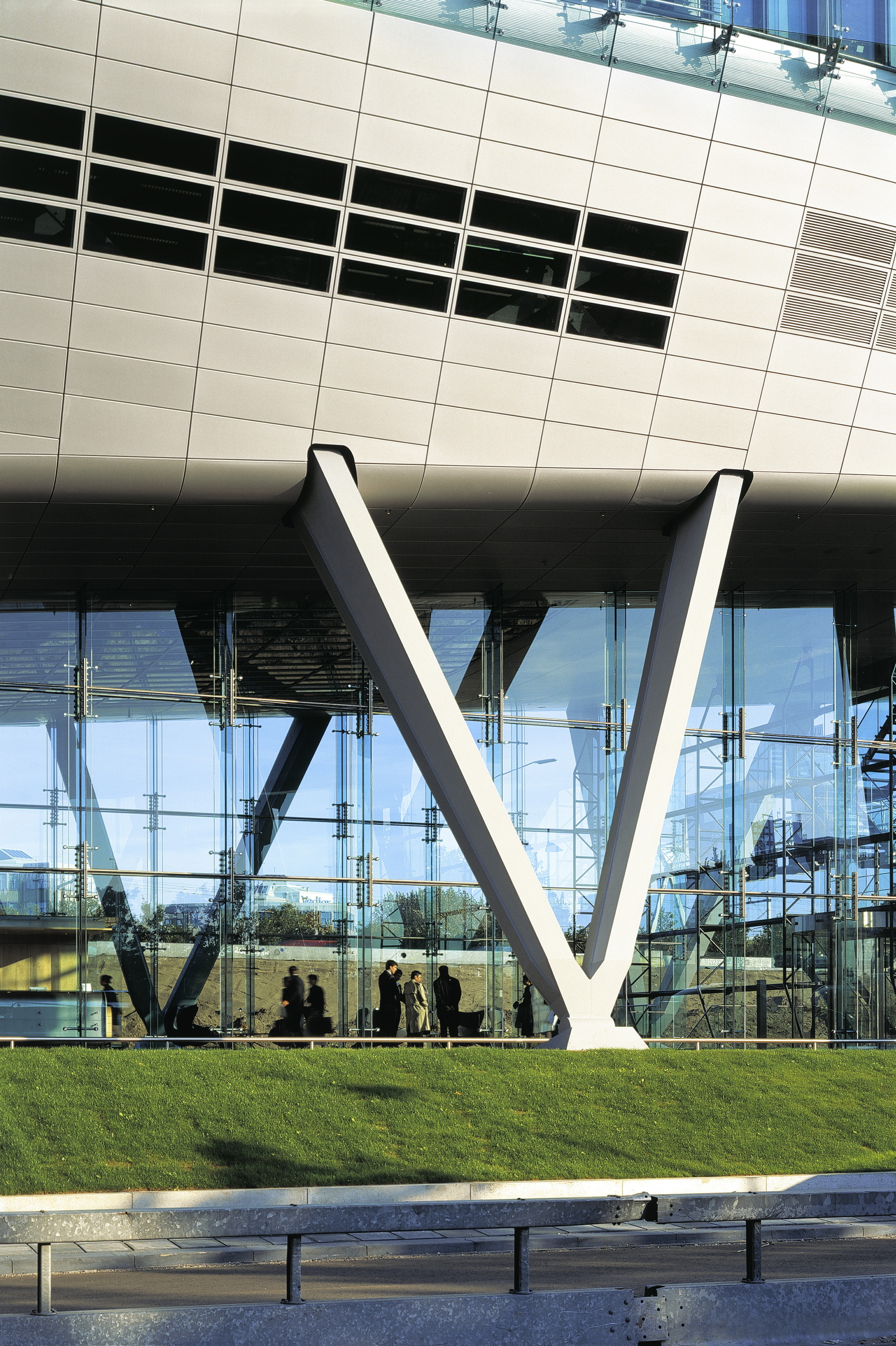

The office building stands on V-shaped columns ranging from nine to twelve metres in height, allowing motorway users to see the green zone behind the building while also ensuring that no employee is condemned to a view of the motorway embankment.Raising the building in this way also allowed room at ground level for a spacious entrance zone. The glazed entrance lobby is surrounded by green lawns. Running underneath the building is an approach road for taxis, coaches and board members’ chauffeurs. A car park and bicycle garage are located below grade. The auditorium and its foyer can be used by the entire ING group and has its own entrance with lifts.

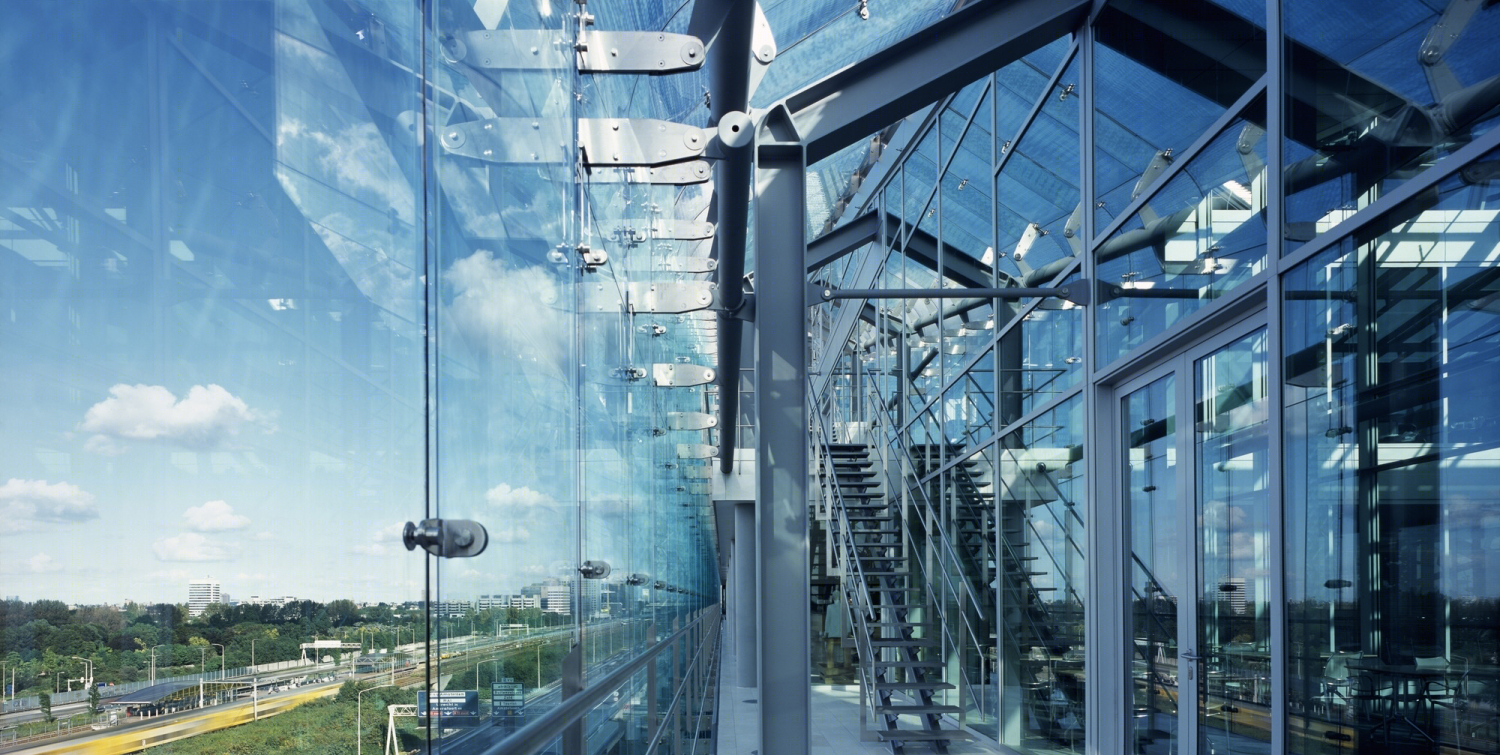

The building responds to its surroundings with an ‘intelligent’ facade design. The long south elevation has to contend with a high solar heat load and the north elevation with noise and air pollution from the A10 motorway. A double-skin facade ensures a pleasant indoor climate for all, with the possibility of natural ventilation. On the south side, solar shading hangs in the facade cavity; a natural chimney effect extracts solar heat. The glazed skin on the motorway side is closed and the cavity is supplied with fresh air drawn from the south side.

The spaces in the building are naturally air-conditioned with the help of a metal climatic ceiling. The hot and cold water needed for this is provided by an underground thermal energy storage system; at either end of the site wells were dug to groundwater levels at 150 and 200 metres below grade. Thanks to these and other measures, the building has a very favourable energy consumption.

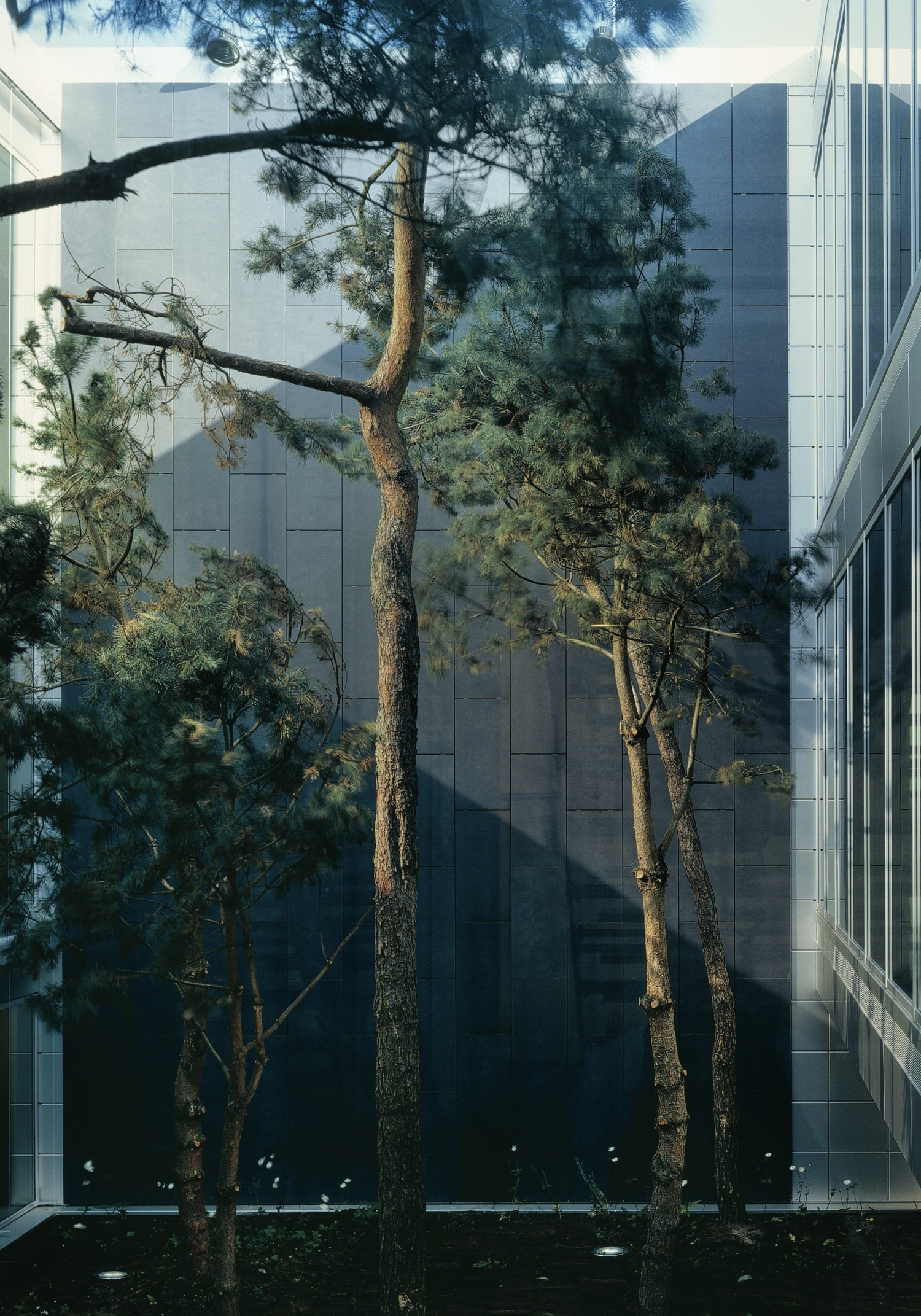

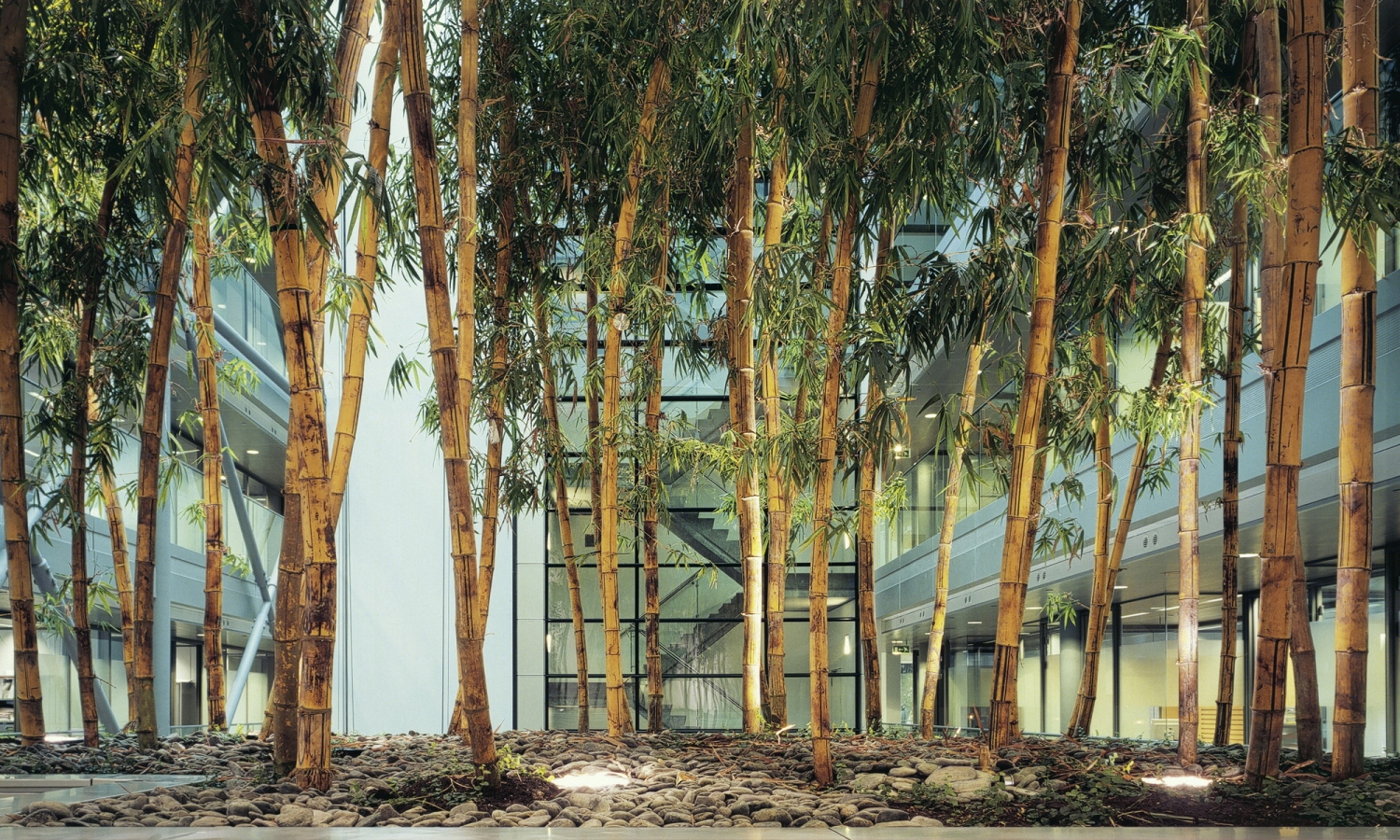

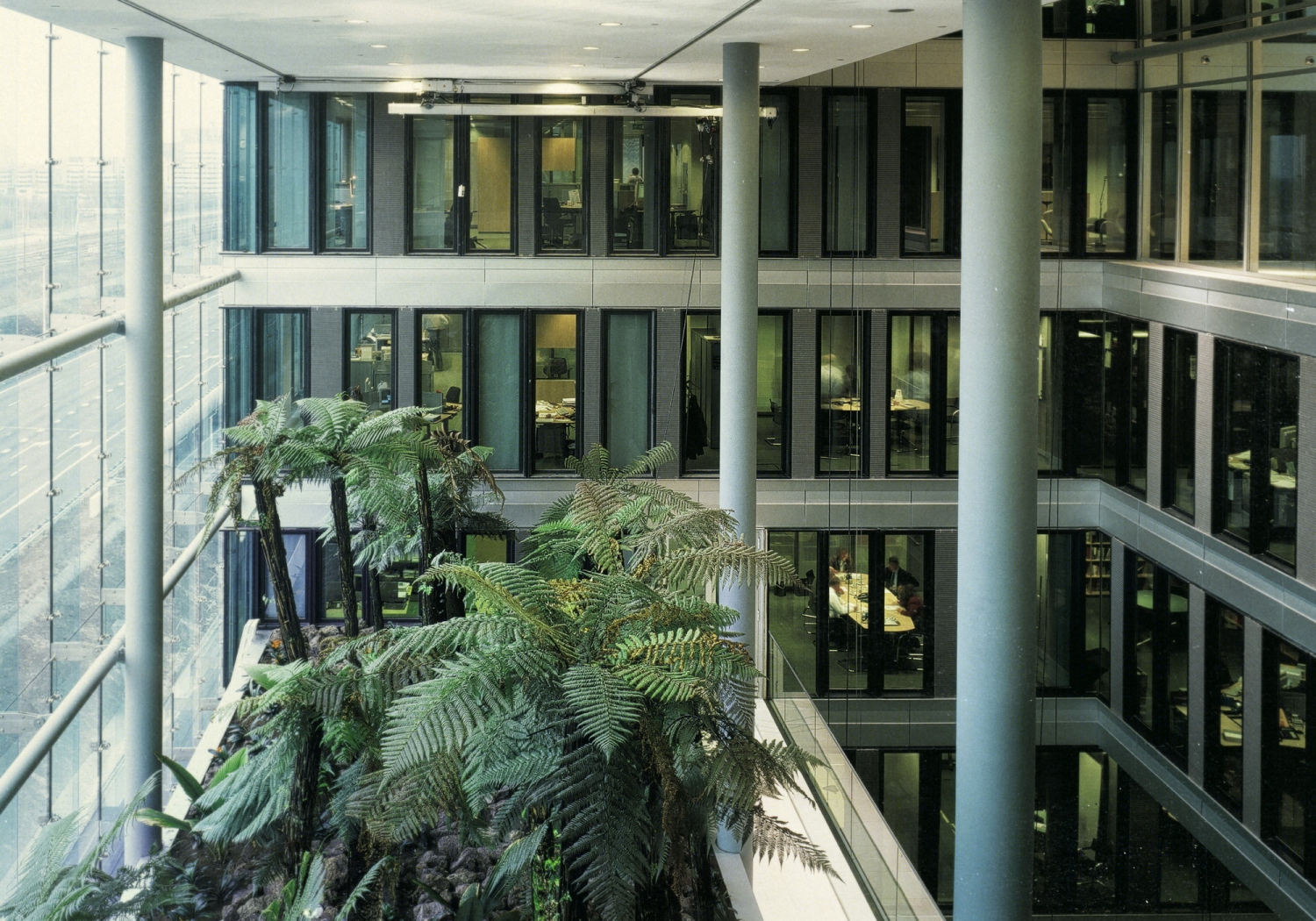

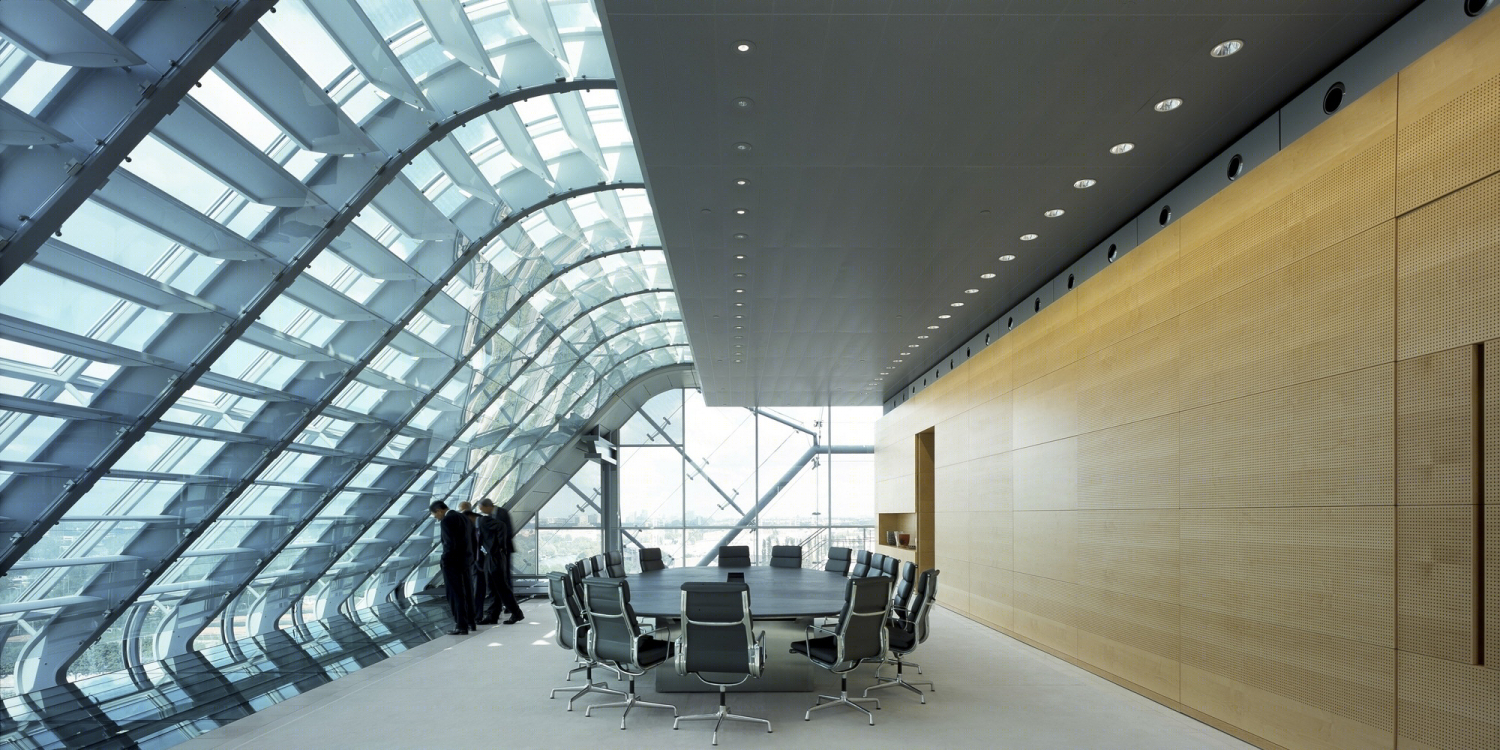

The atmosphere inside the building is richly varied, with an alternation of open and screened spaces. Atriums, loggias, courtyard gardens and patios distributed over the various levels of the building create the sense of a single, continuous space with numerous vistas back and forth. There are areas with a panoramic view, like the restaurant, the large conference room and the auditorium, as well as more introverted working environments.Unlike ordinary office buildings, ING House has a large number of reception and conference spaces. It is home the ING Group’s board and a large staff, but it is also above all the flagship of the entire organization.

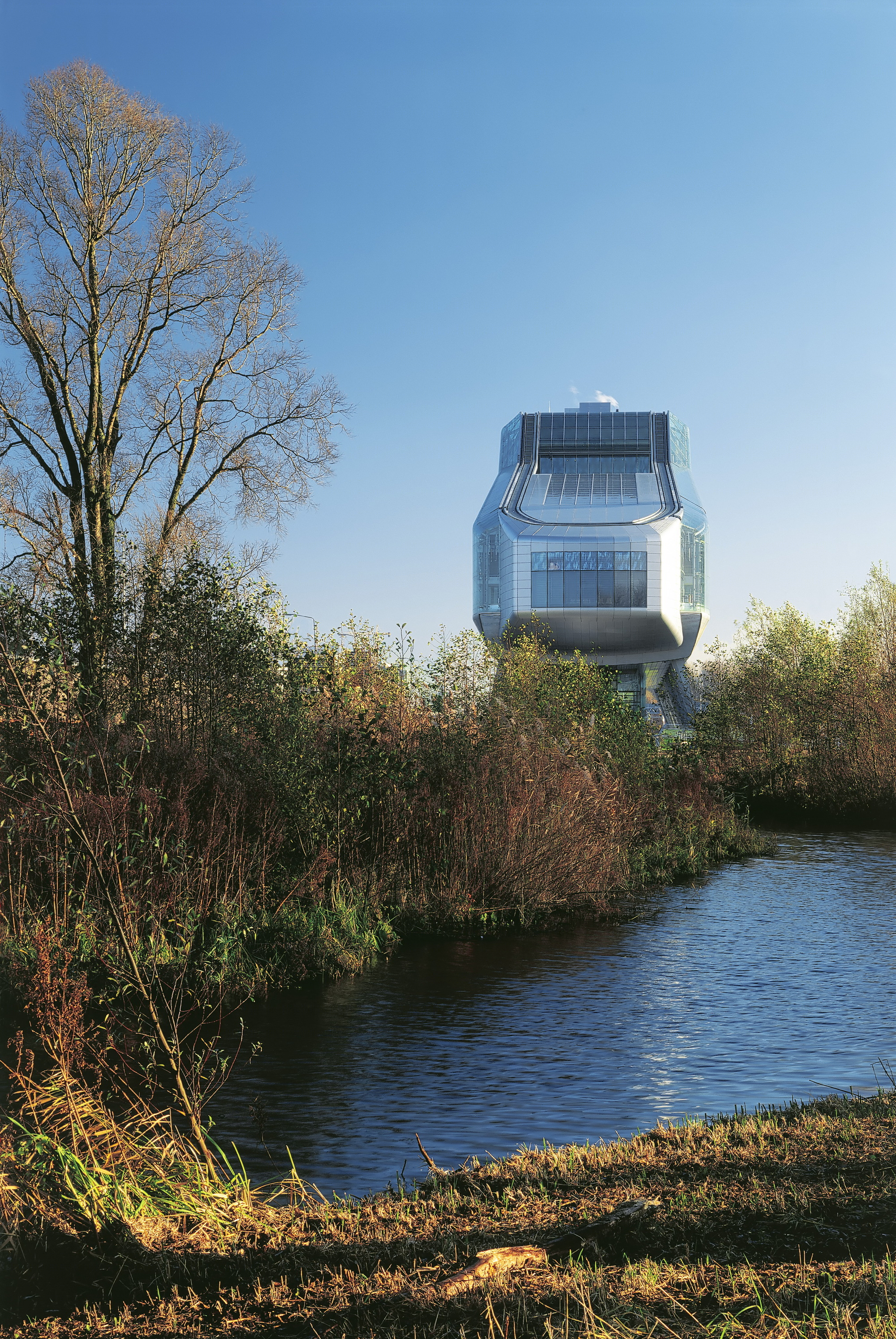

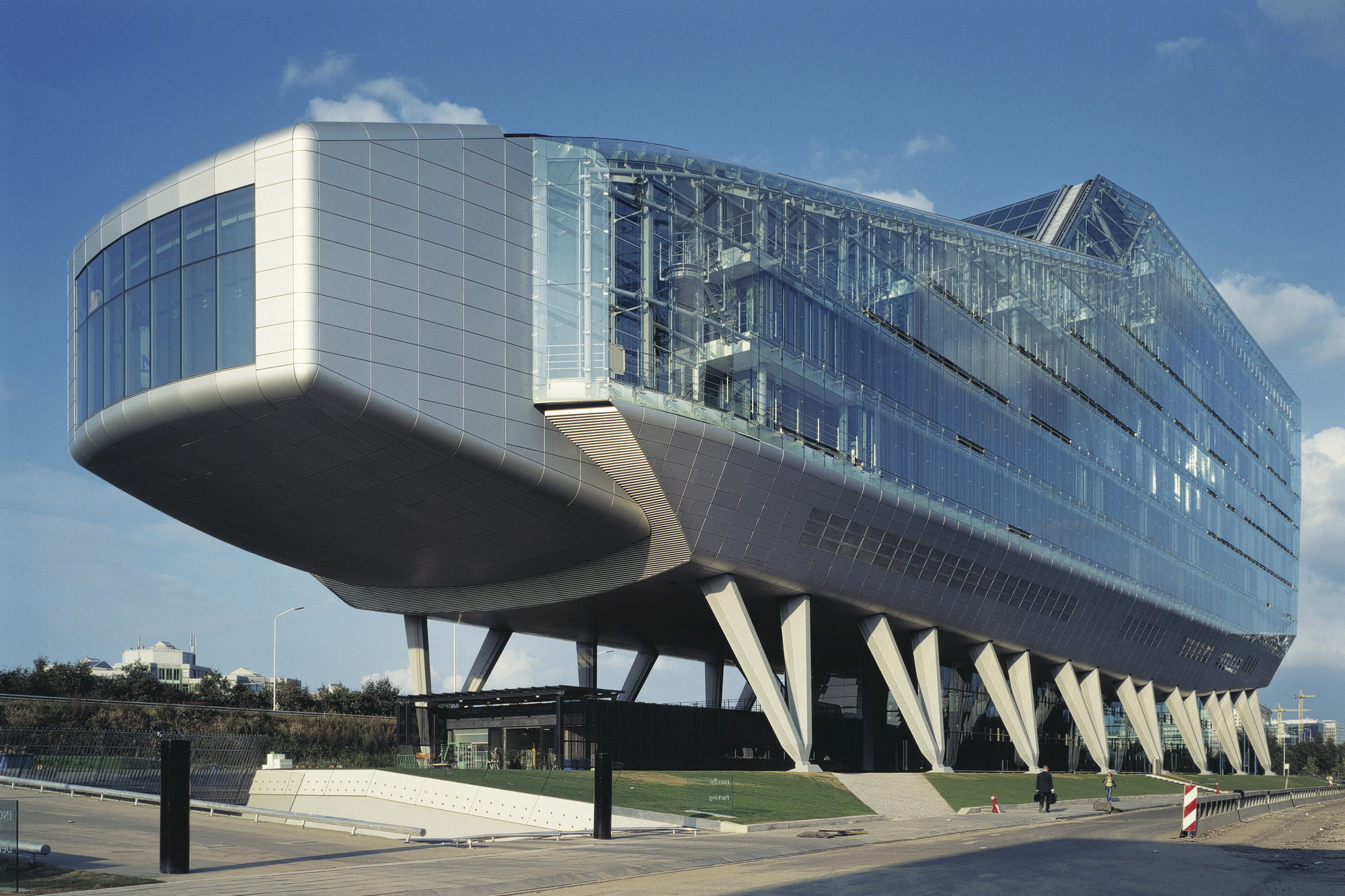

荷兰ING集团办公总部外部实景图

荷兰ING集团办公总部外部局部实景图

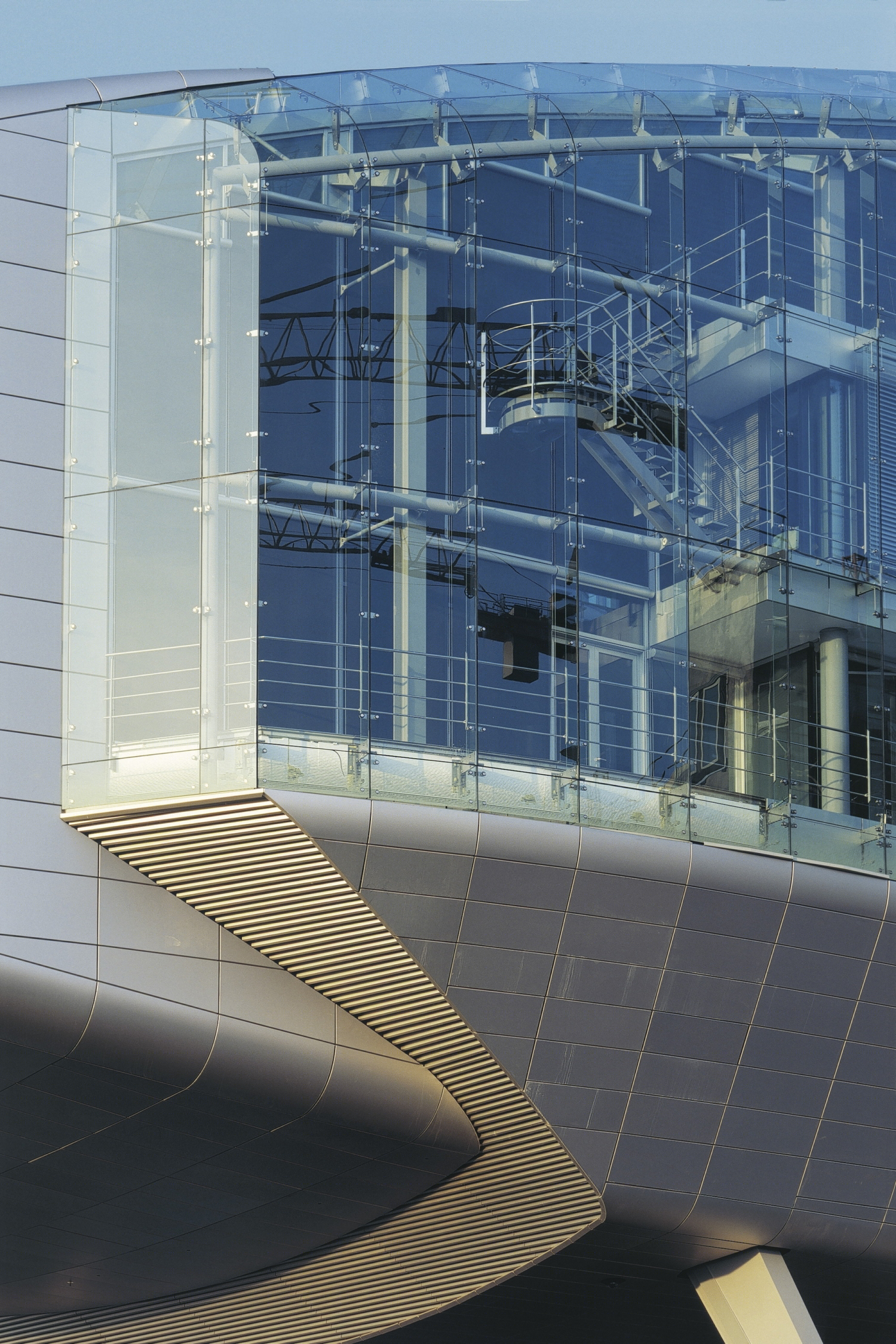

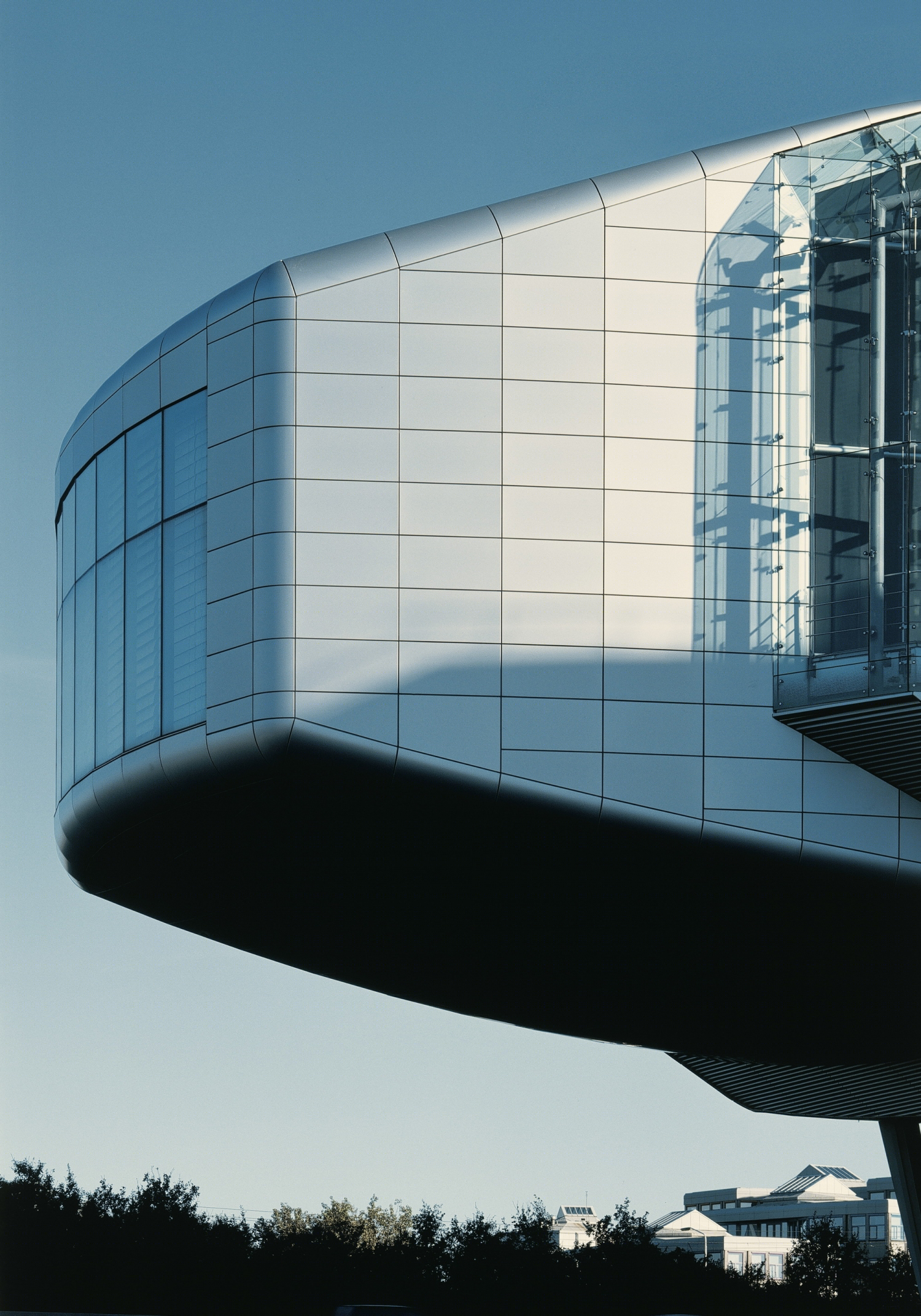

荷兰ING集团办公总部外部细节实景图

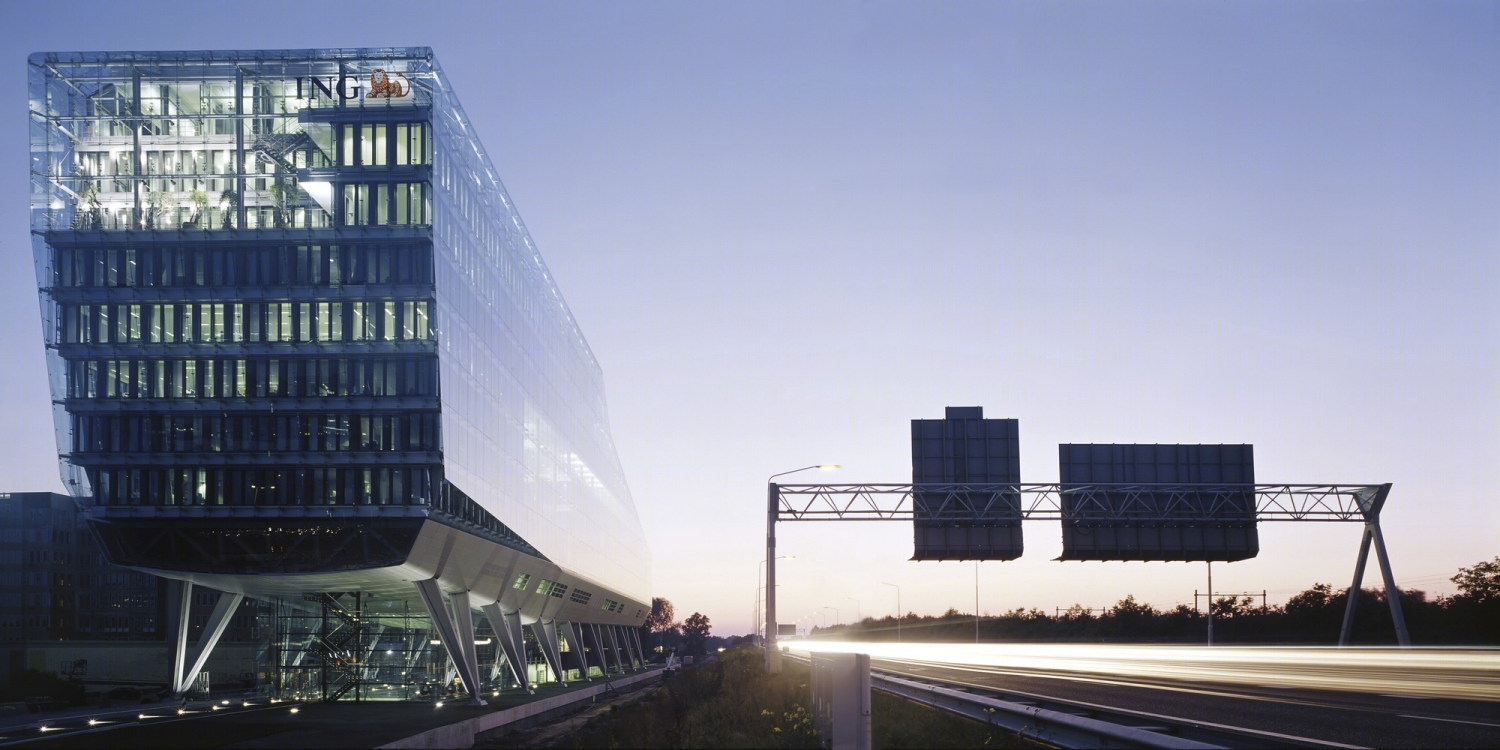

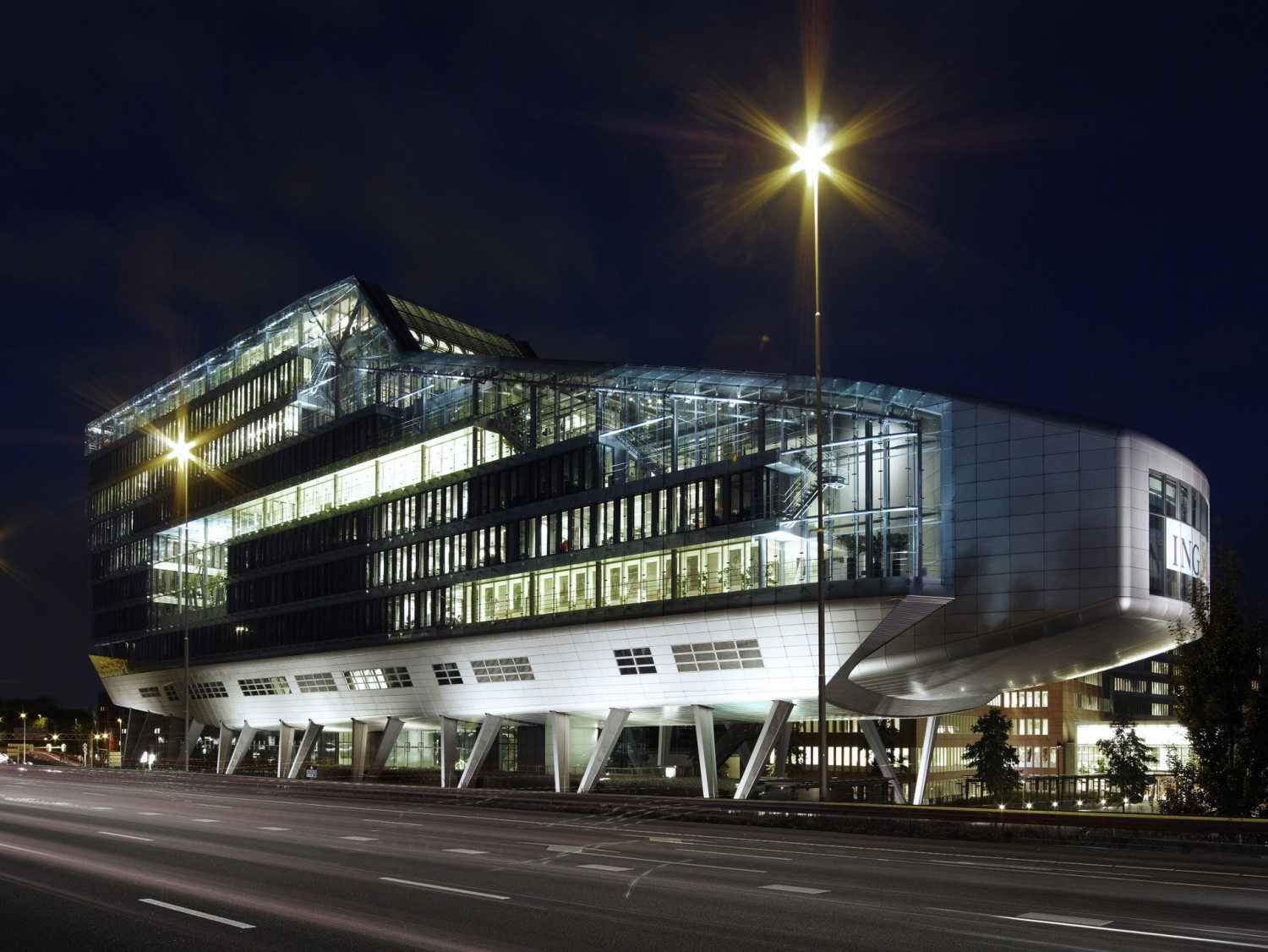

荷兰ING集团办公总部外部夜景实景图

荷兰ING集团办公总部内部局部实景图

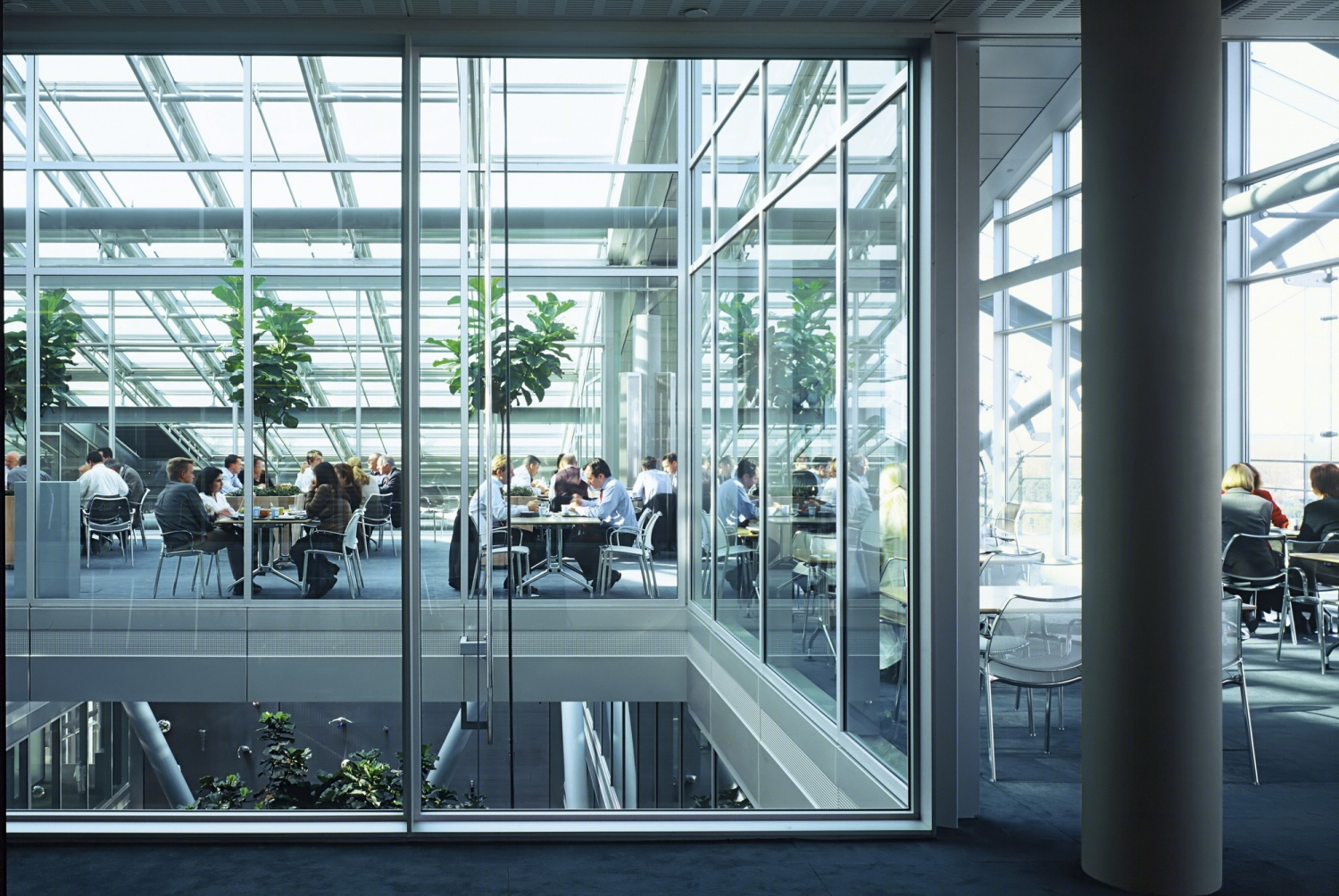

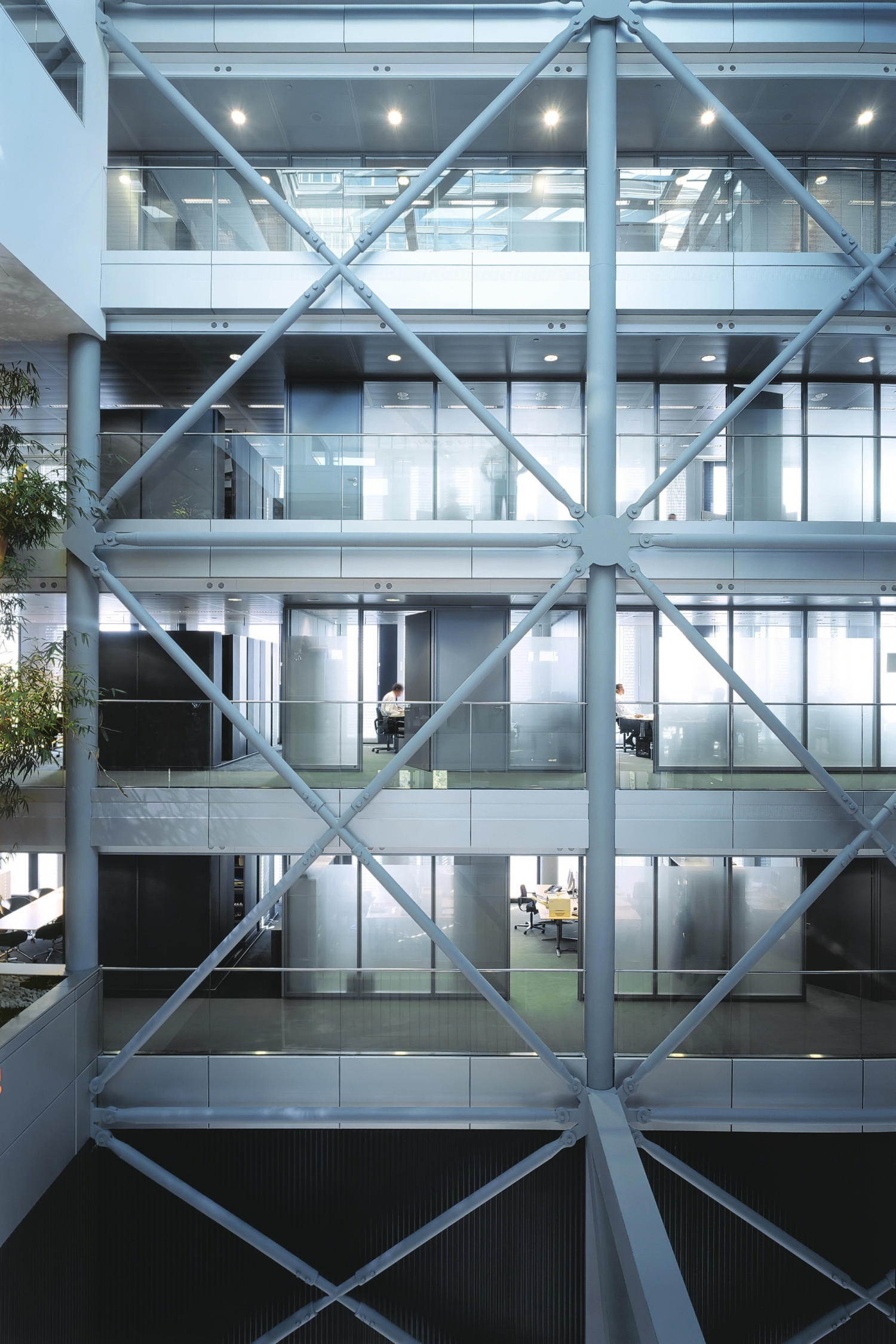

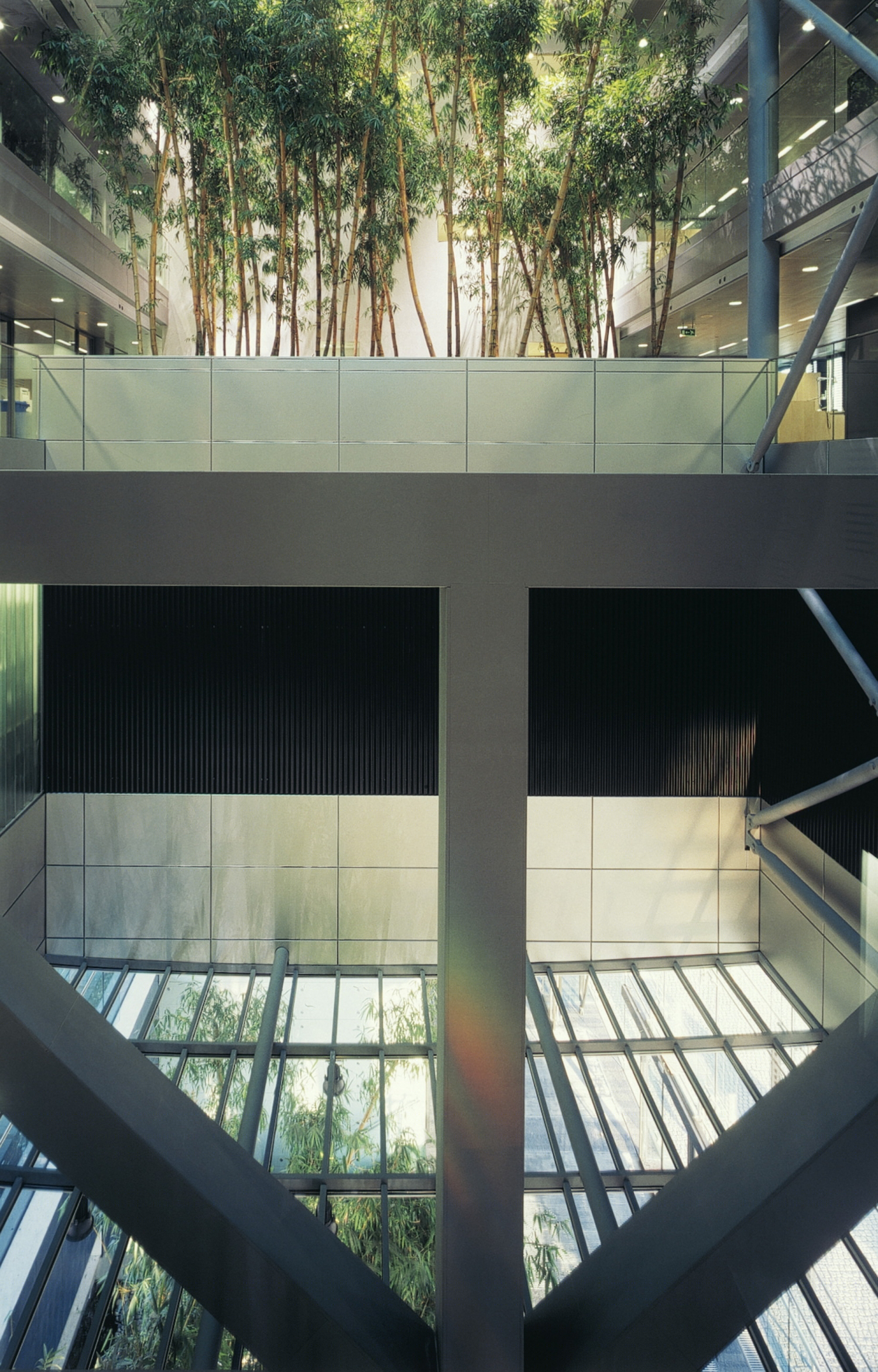

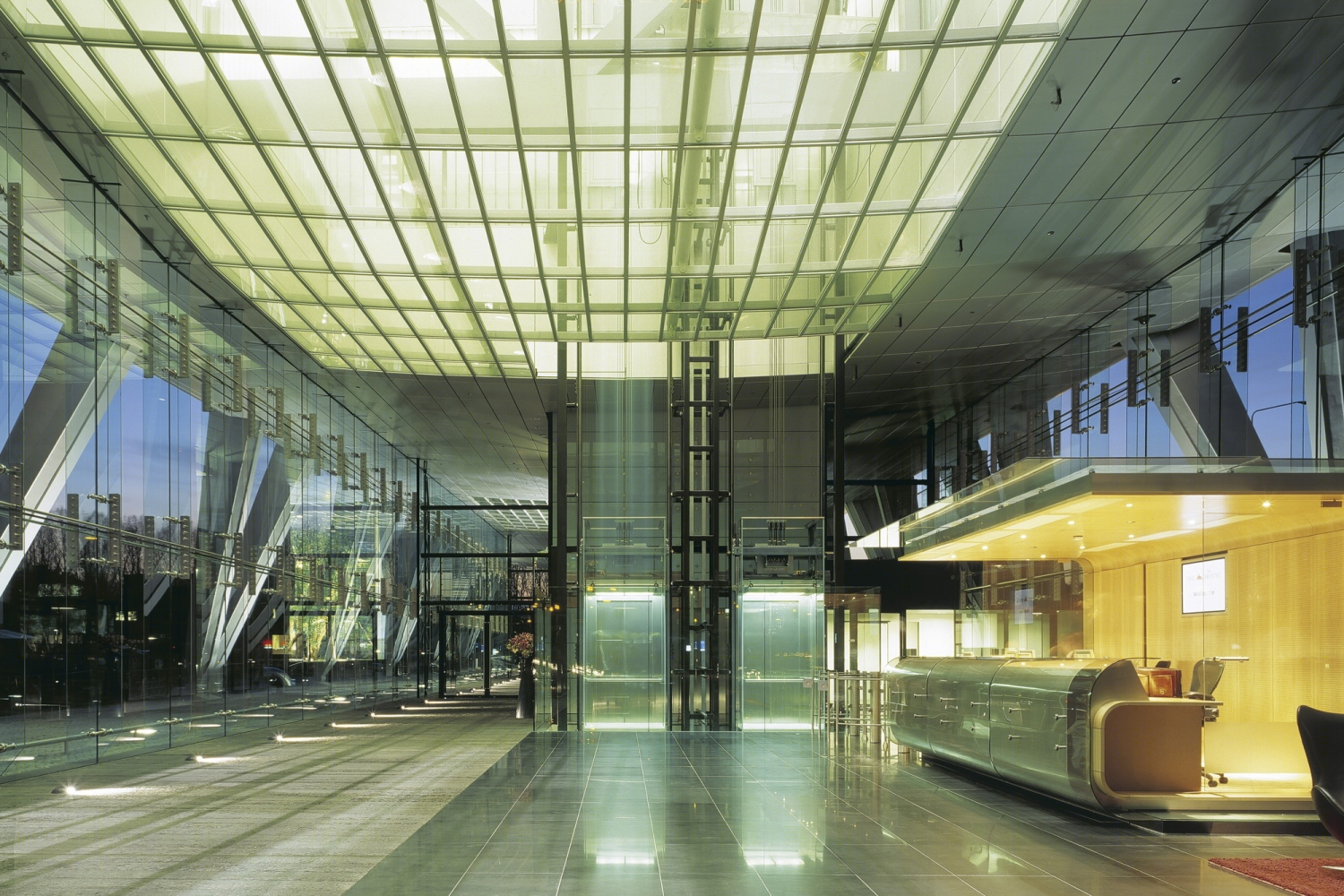

荷兰ING集团办公总部内部实景图

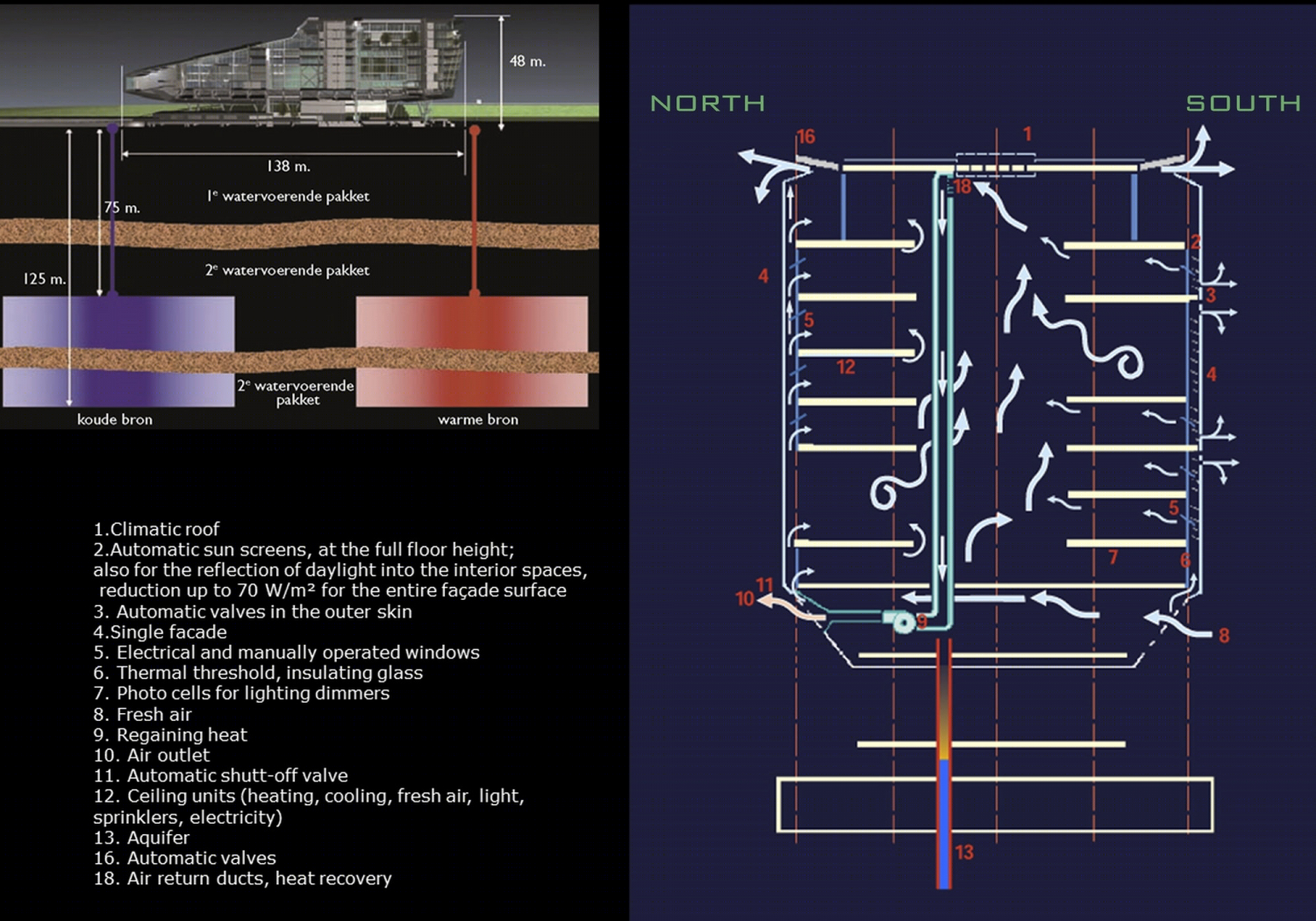

荷兰ING集团办公总部分析图

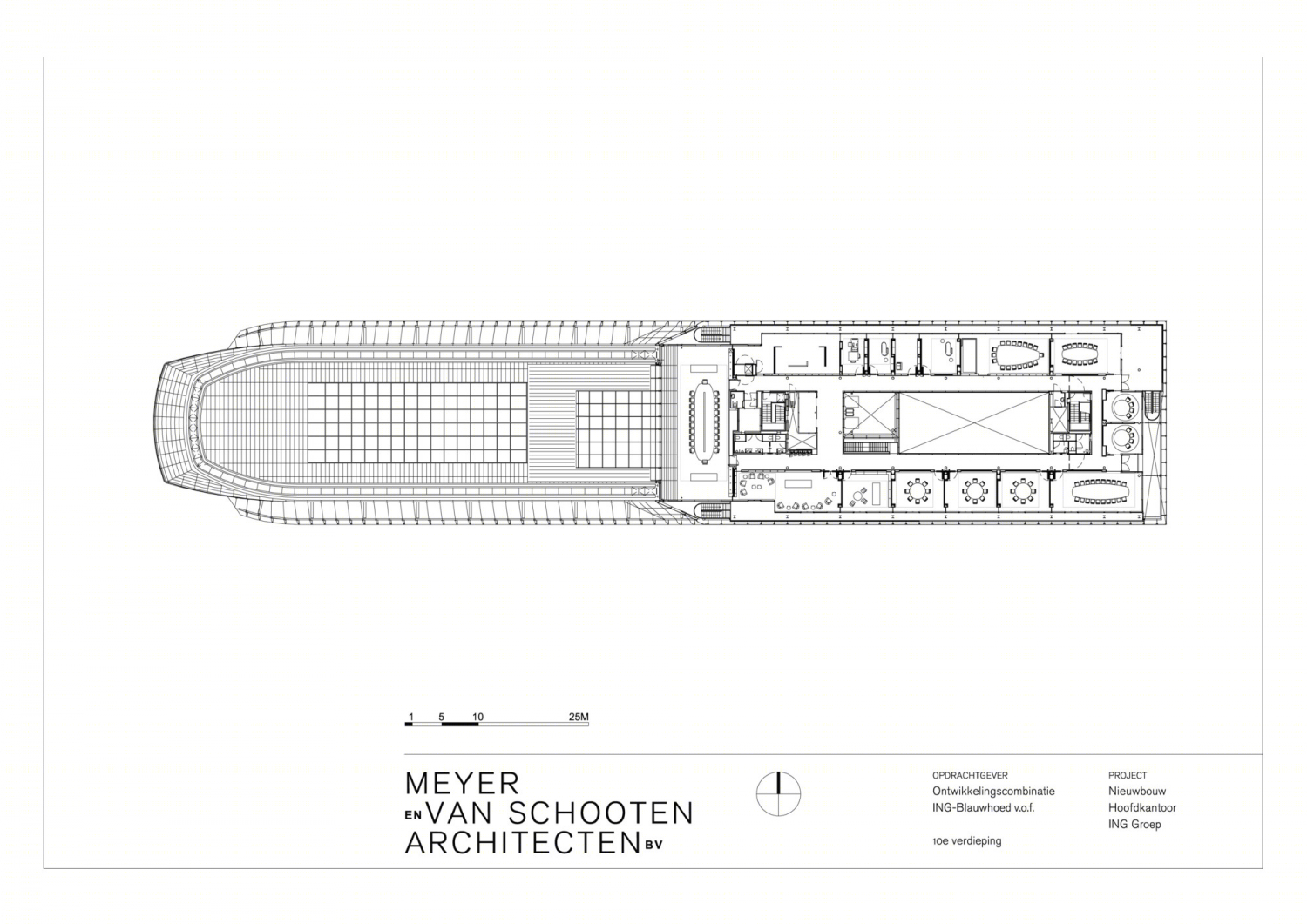

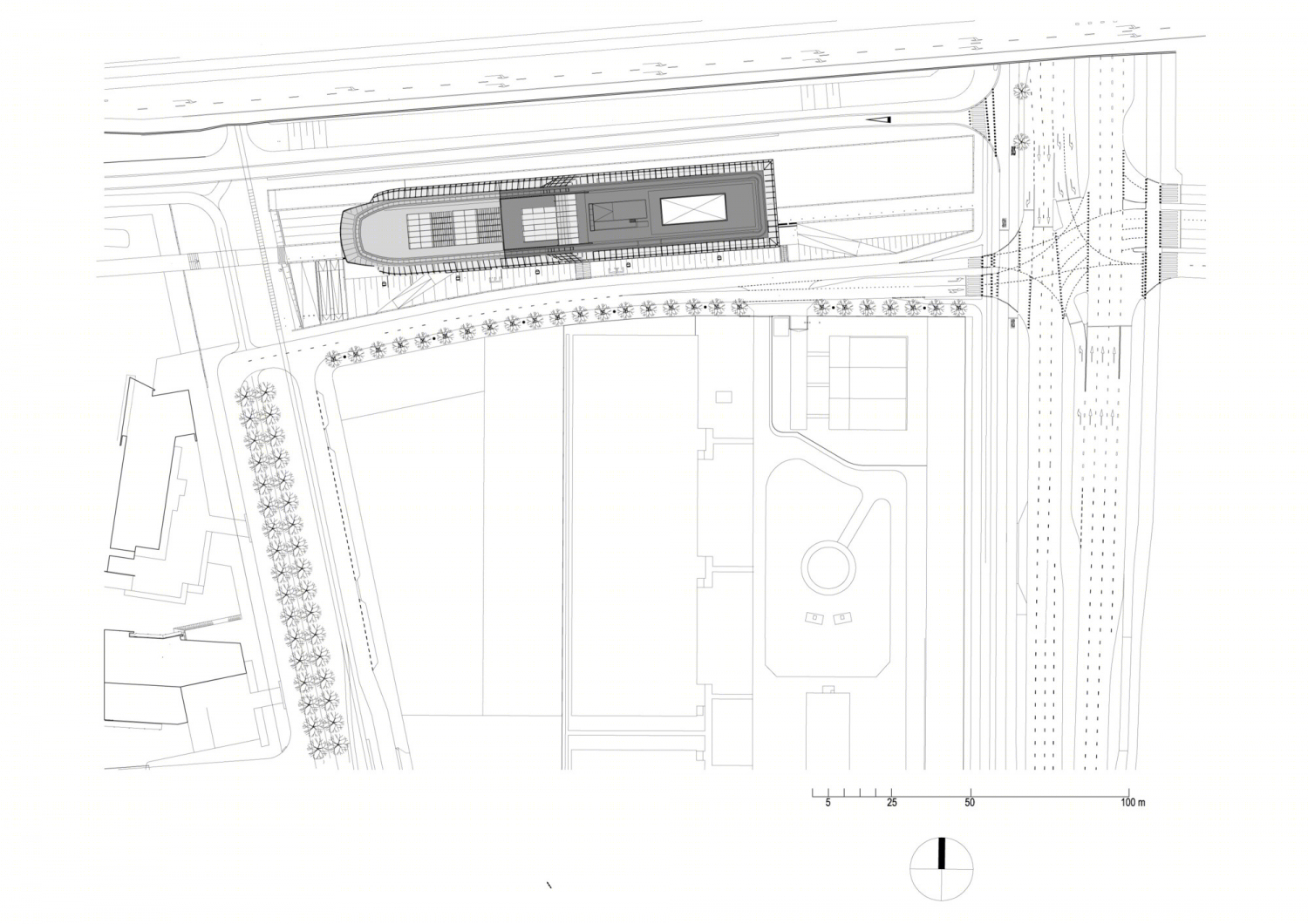

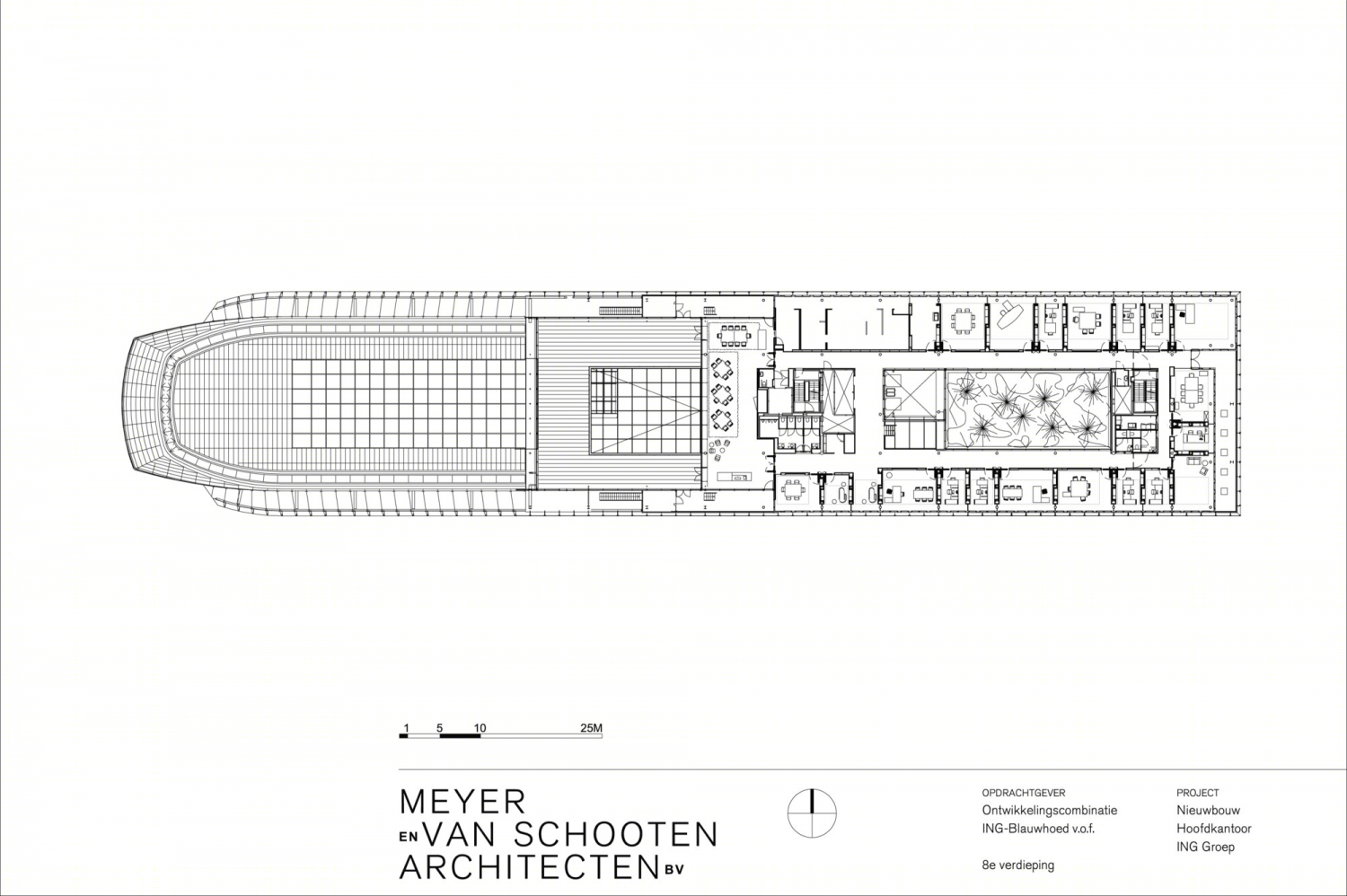

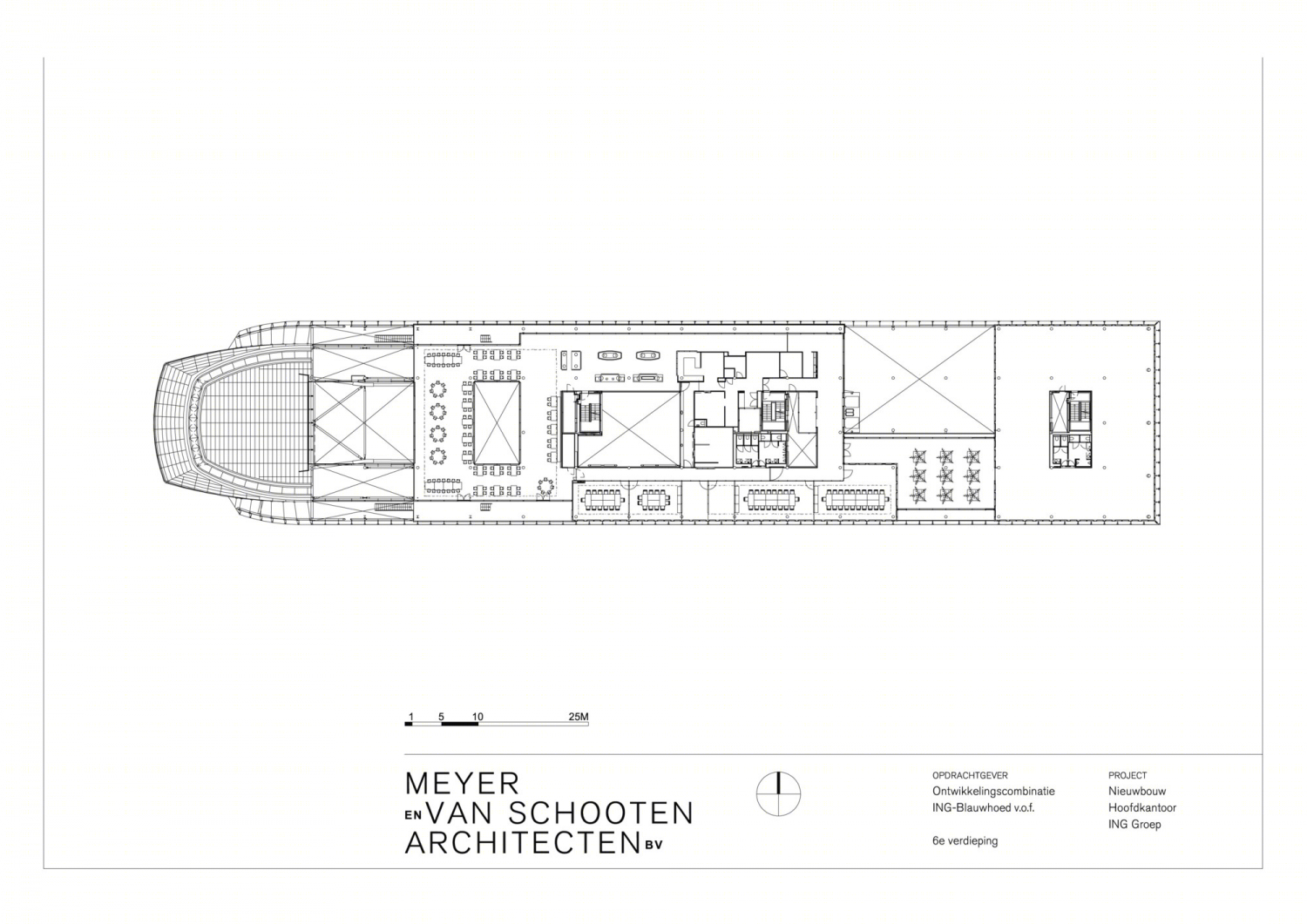

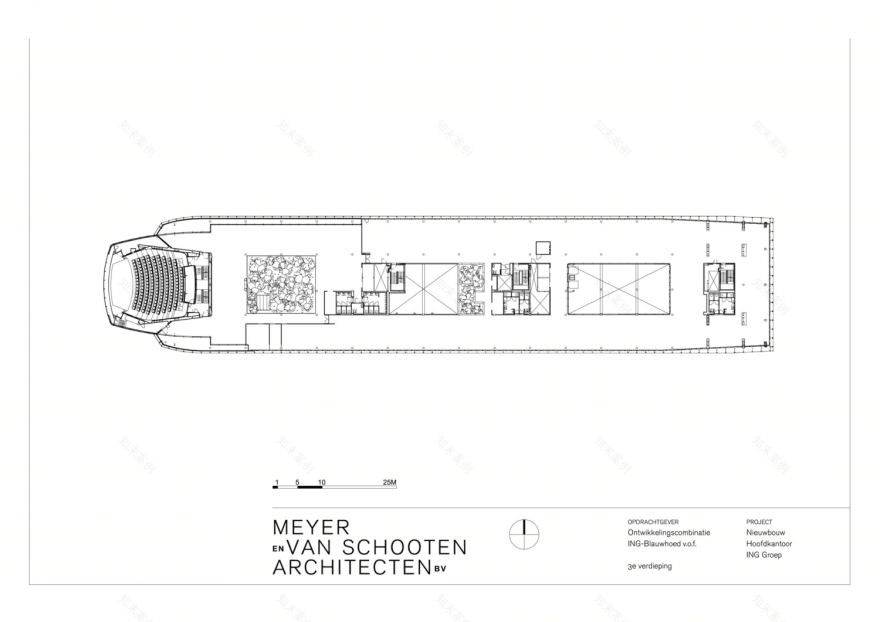

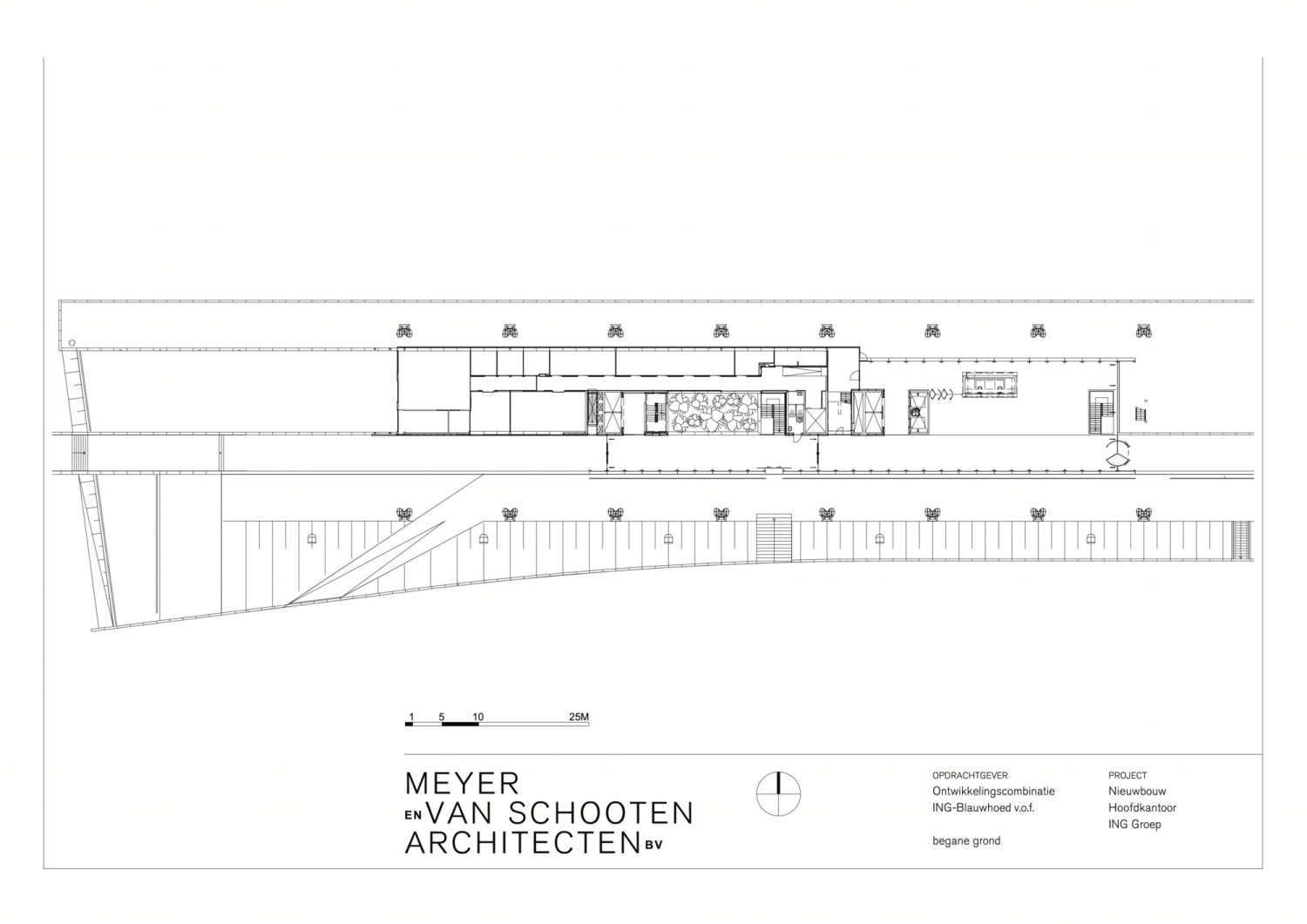

荷兰ING集团办公总部平面图

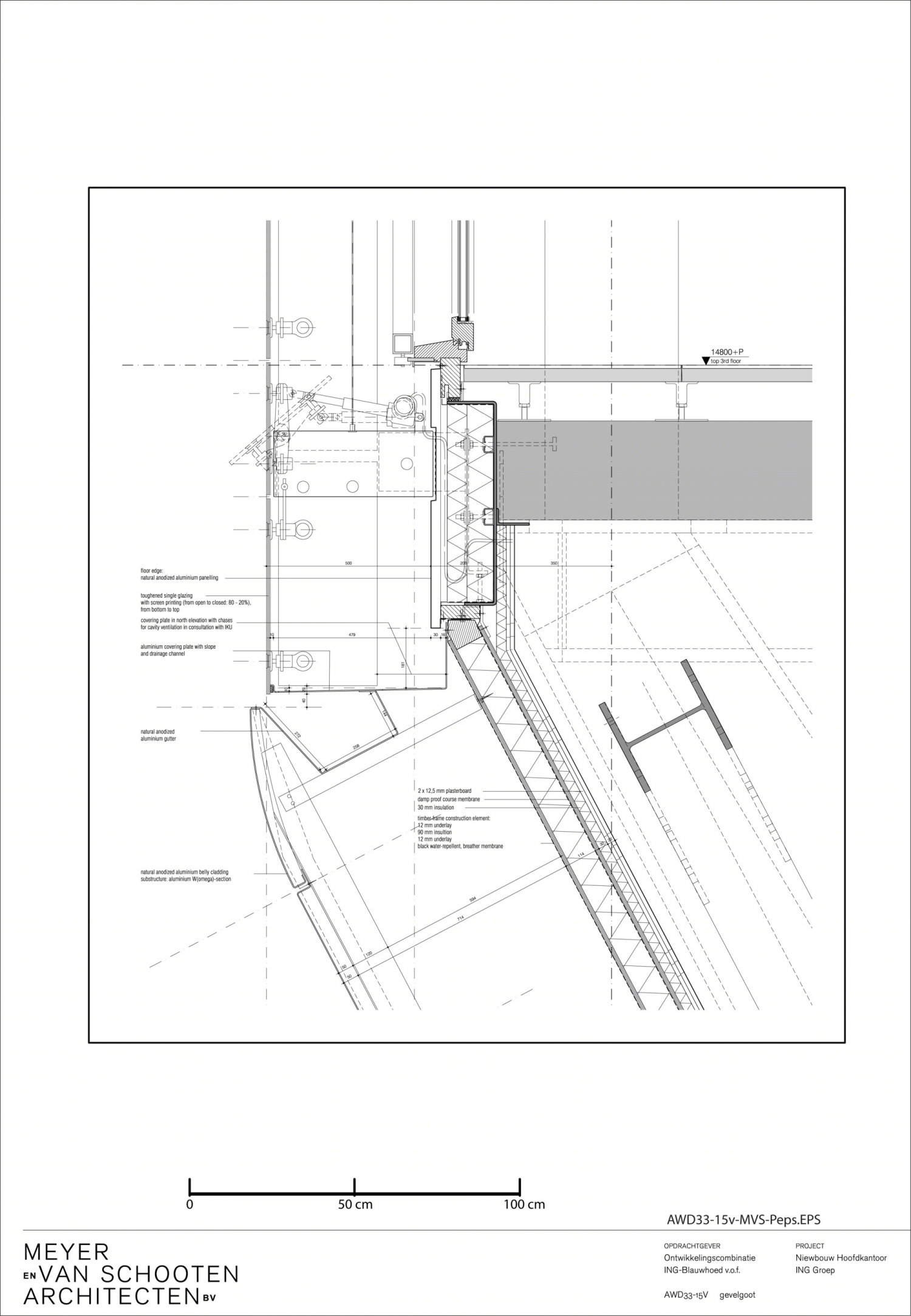

荷兰ING集团办公总部细节详图

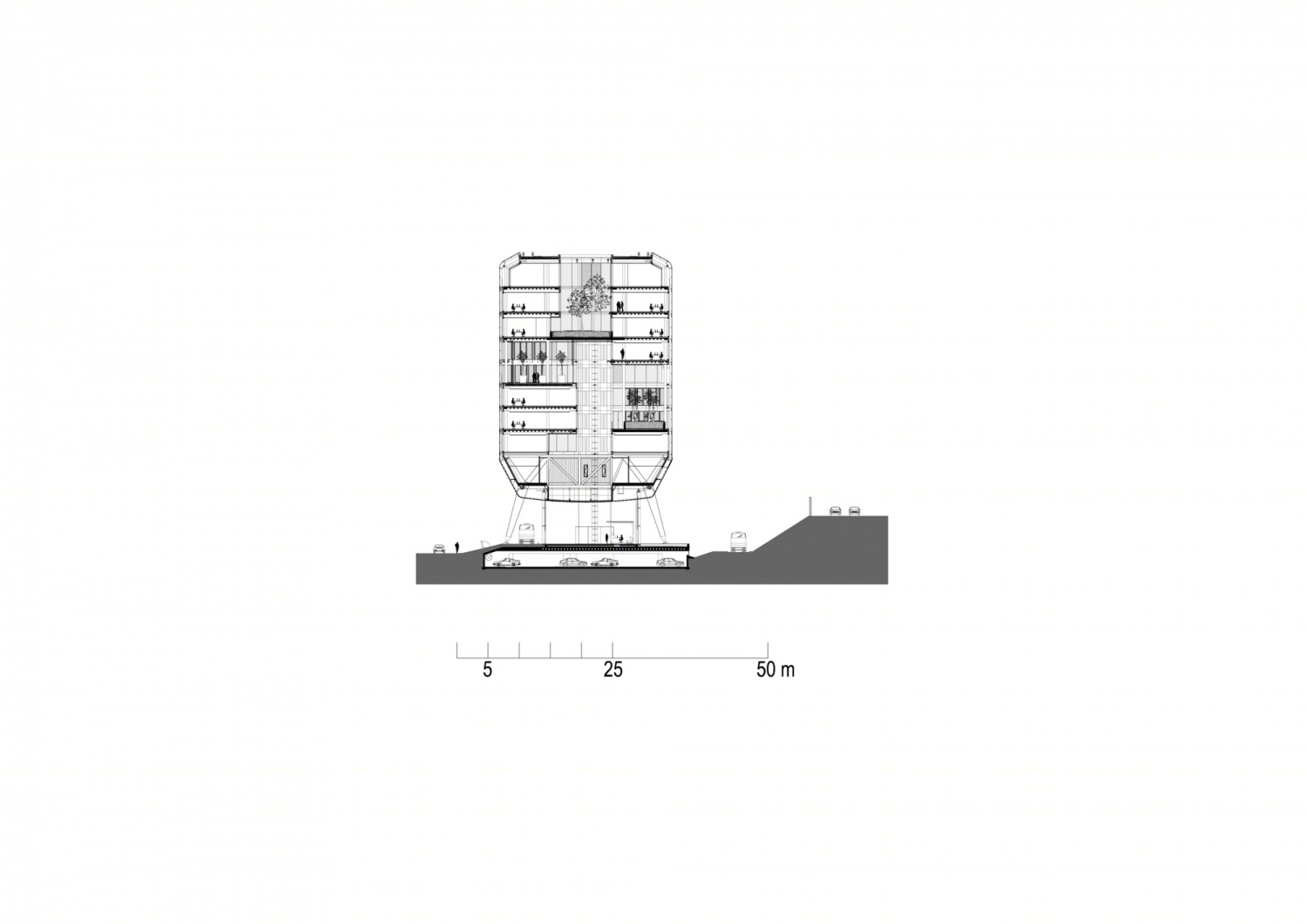

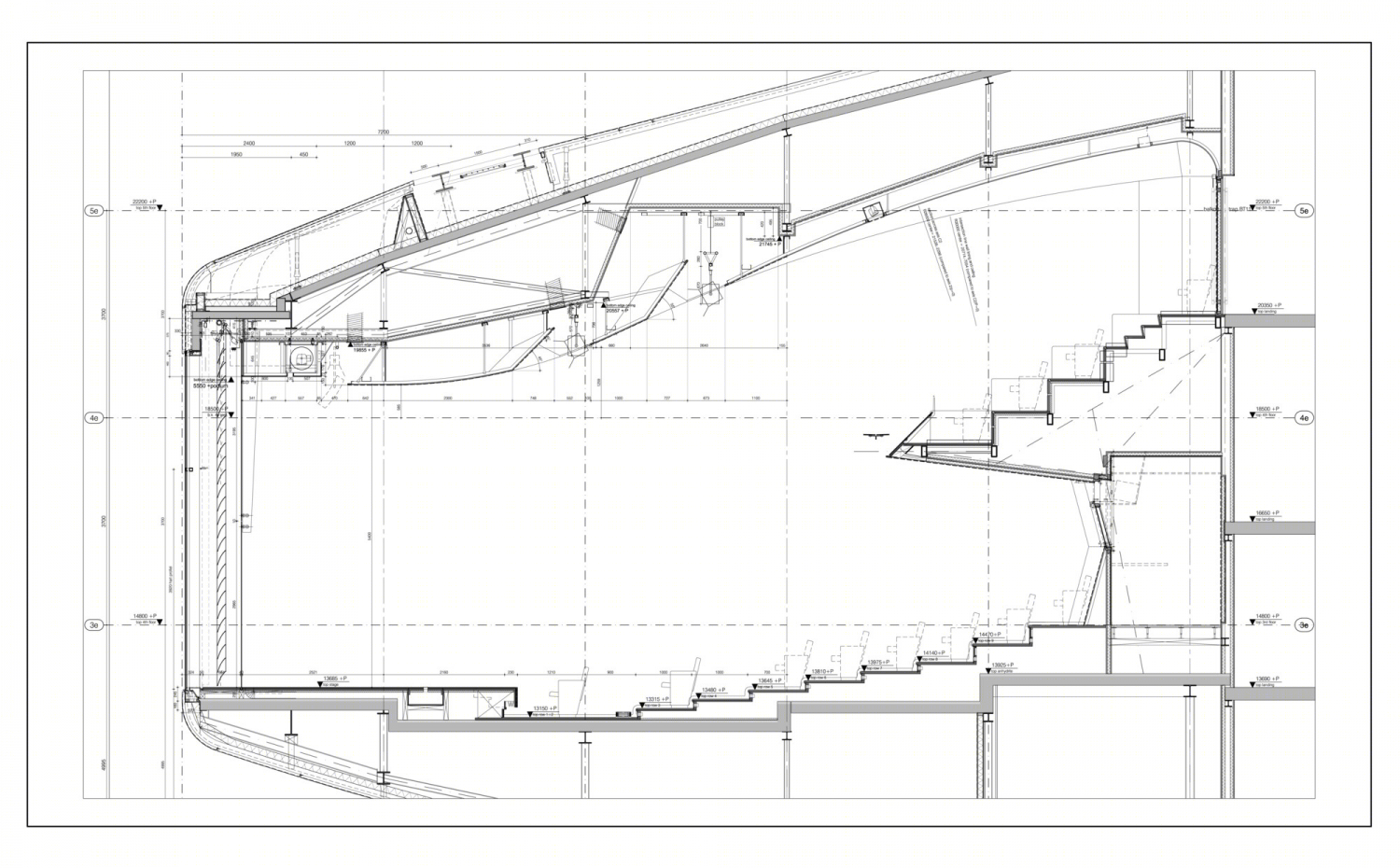

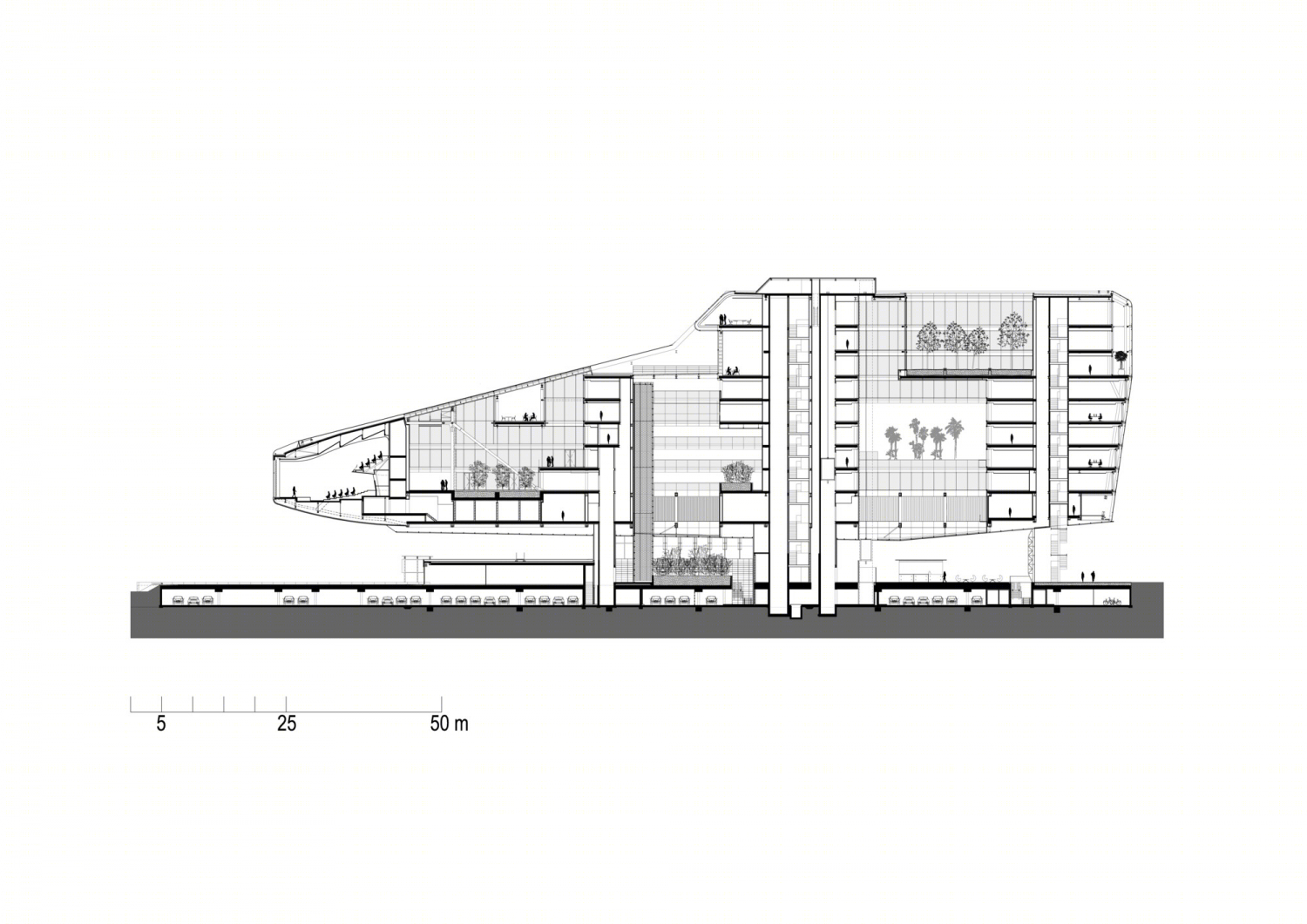

荷兰ING集团办公总部剖面图

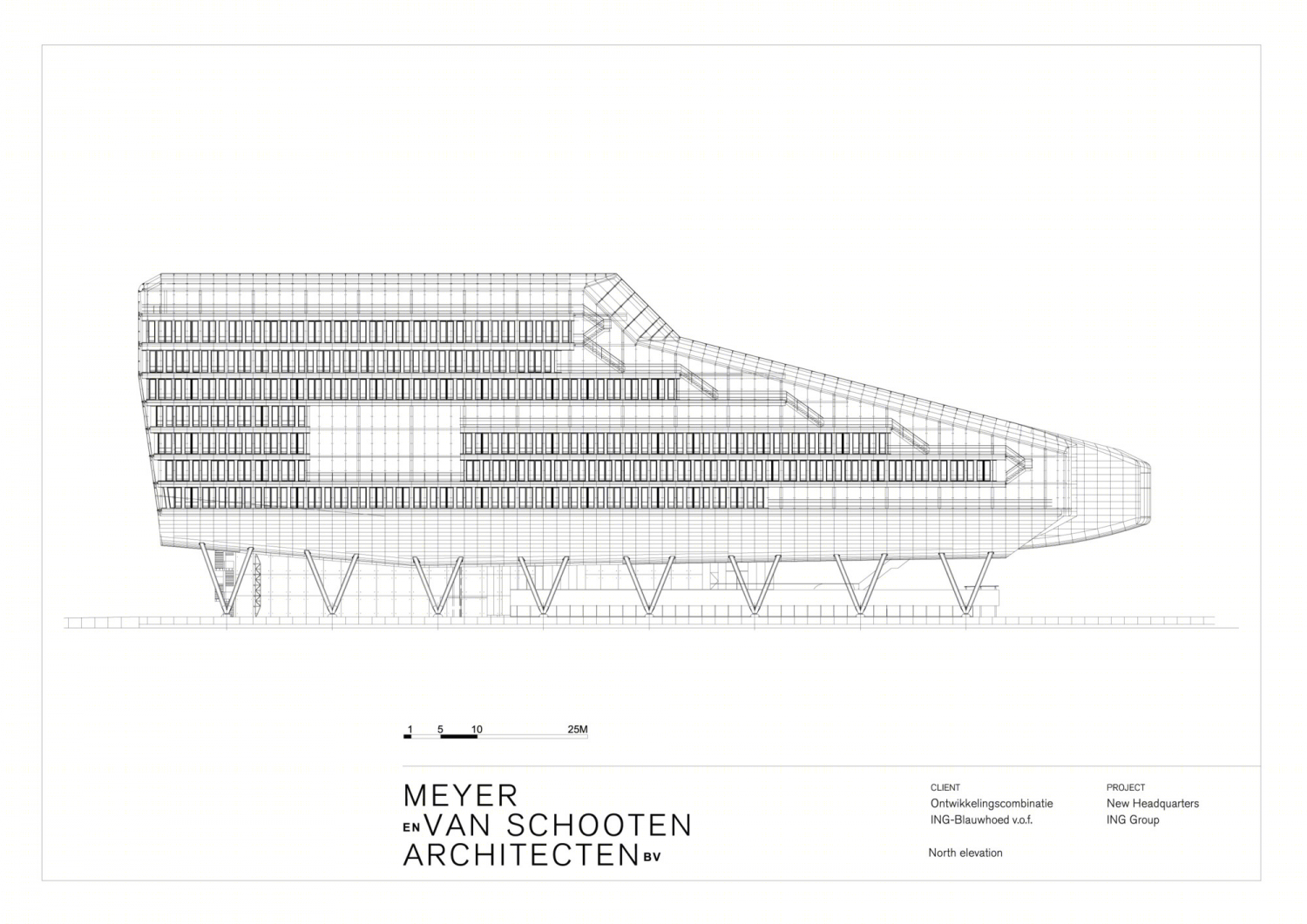

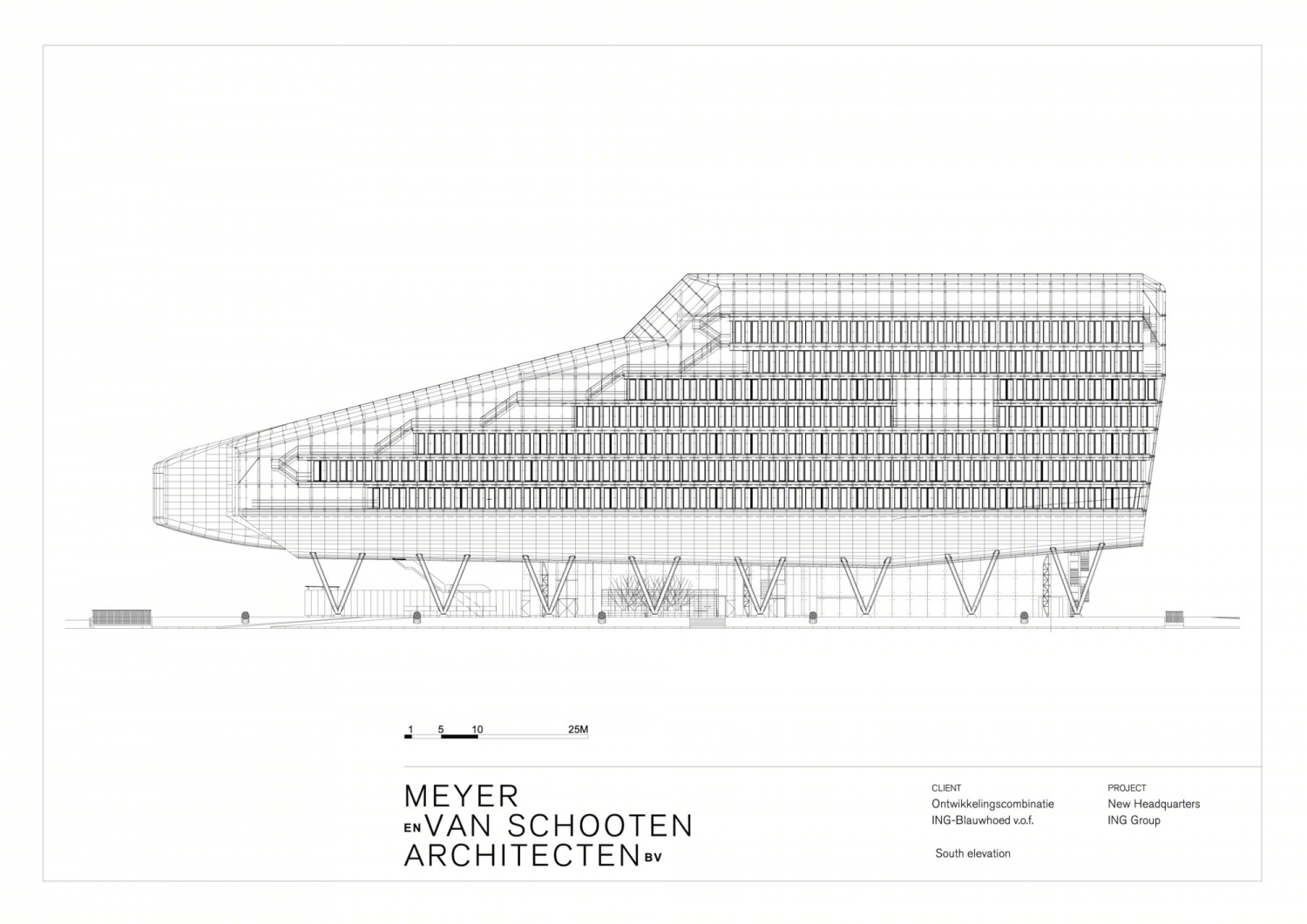

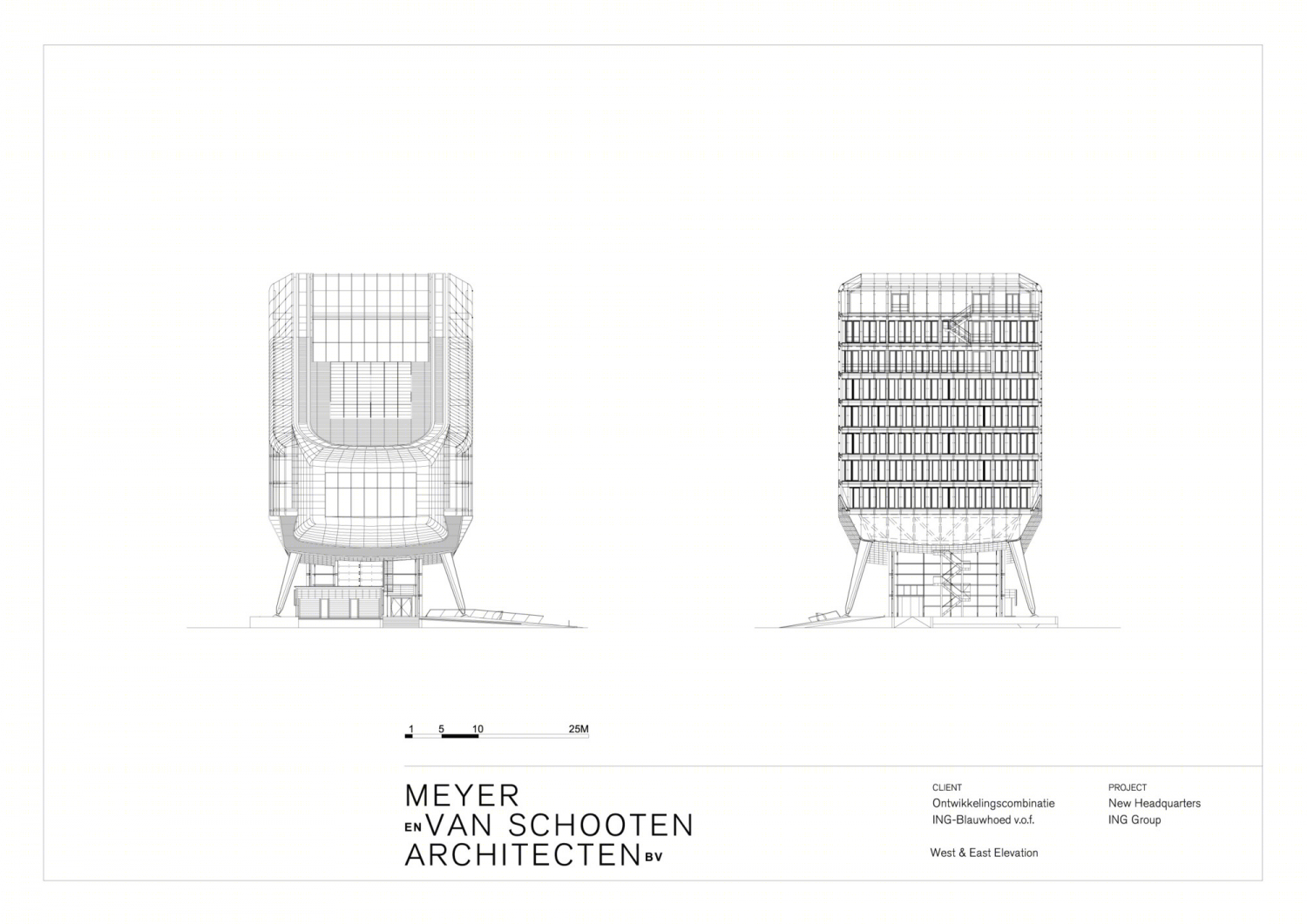

荷兰ING集团办公总部立面图
