以色列生物技术研究所丨Chyutin Architects

Israel Biotechnology Research Institute

设计方：Chyutin Architects

位置：以色列

分类：办公建筑

内容：实景照片

设计团队：BrachaChyutin, Michael Chyutin, Ethel Rosenhek, Jacques Dahan

图片：20张

摄影师：Amit Geron, Dan Chyutin

这是由Chyutin Architects设计的国家生物技术研究所，位于以色列本-古里安大学。这座研究实验楼是该大学实验楼综合体的一部分，并通过一条有覆盖物的步道彼此相连接。该建筑共四层，其中三层为实验室和研究学者办公室，坐落于通透的首层之上，首层则布置了门厅、教师休息室、礼堂能、食堂及会议室等公共功能区。这些公共功能区的运作有助增加研究人员之间的互动哦南宁歌，从而促进知识交流，加强跨学科的学术关系。首层的围护体系使用了通透的玻璃幕墙和暴露的混凝土墙。玻璃幕墙创建了周边城市环境与内部校园区域之间的视线关系，模糊了两者之间的界限。暴露混凝土墙呼应并延伸了周边校园建筑的风格和材料。

译者：筑龙网艾比

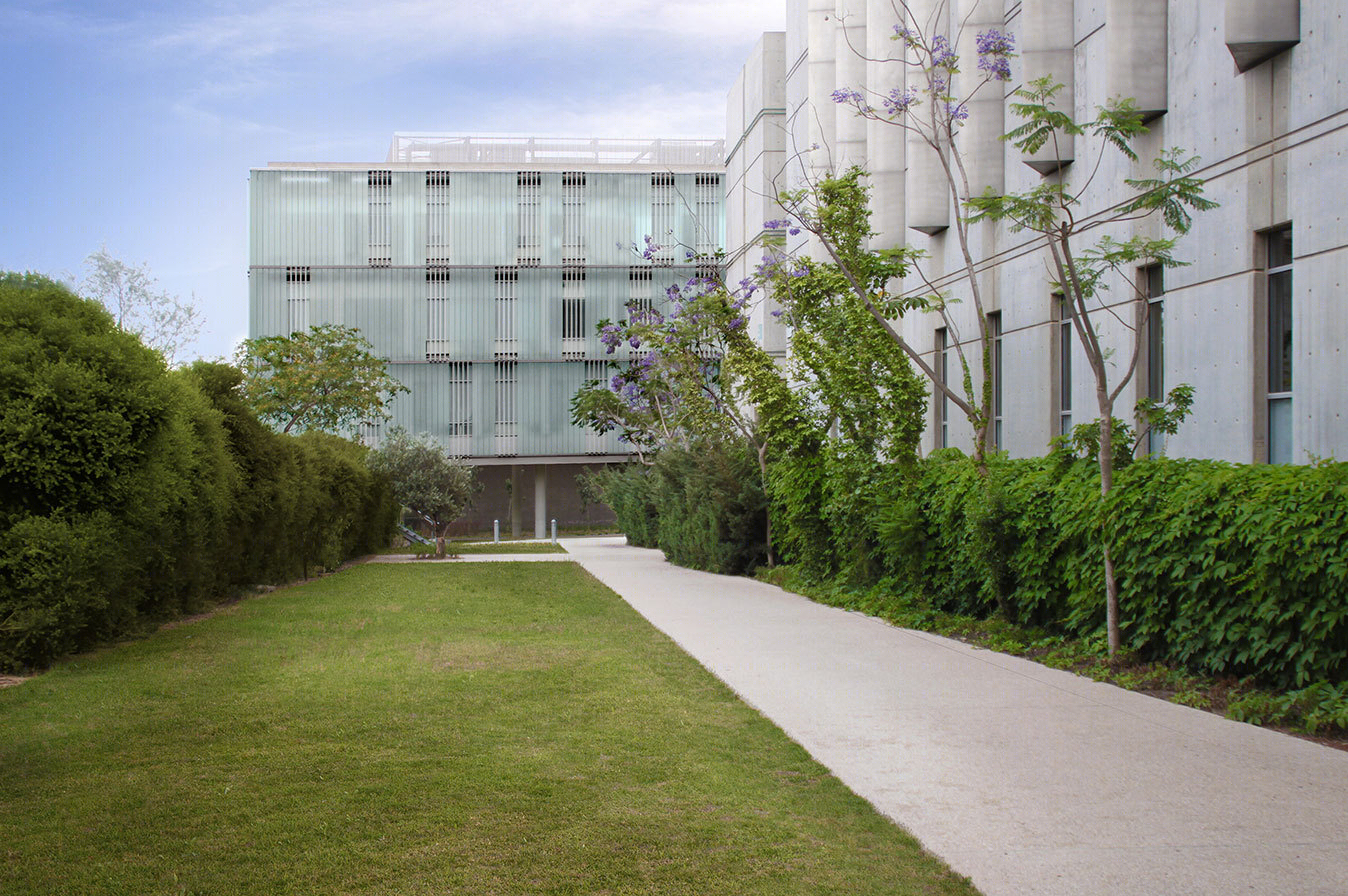

From the architect. The National Institute for Biotechnology in the Negev, Ben-Gurion University. Israel.The building for the research laboratories of the National Institute for Biotechnology in the Negev (NIBN), is situated at the southwestern corner of the Ben-Gurion University campus. The edifice is a part of the university’s laboratory buildings complex and is connected to it by a covered walkway.

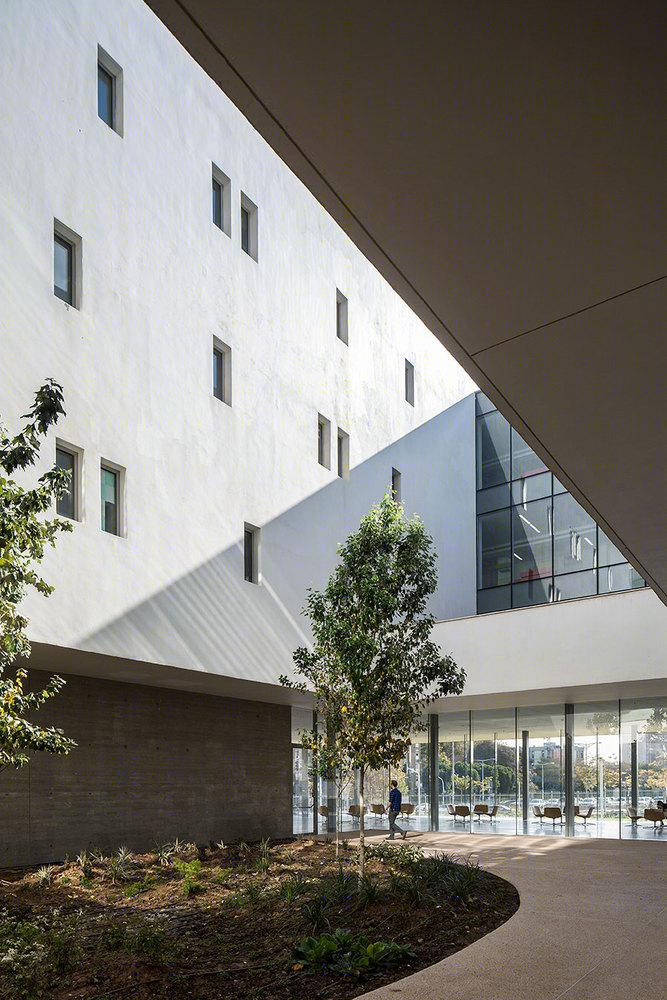

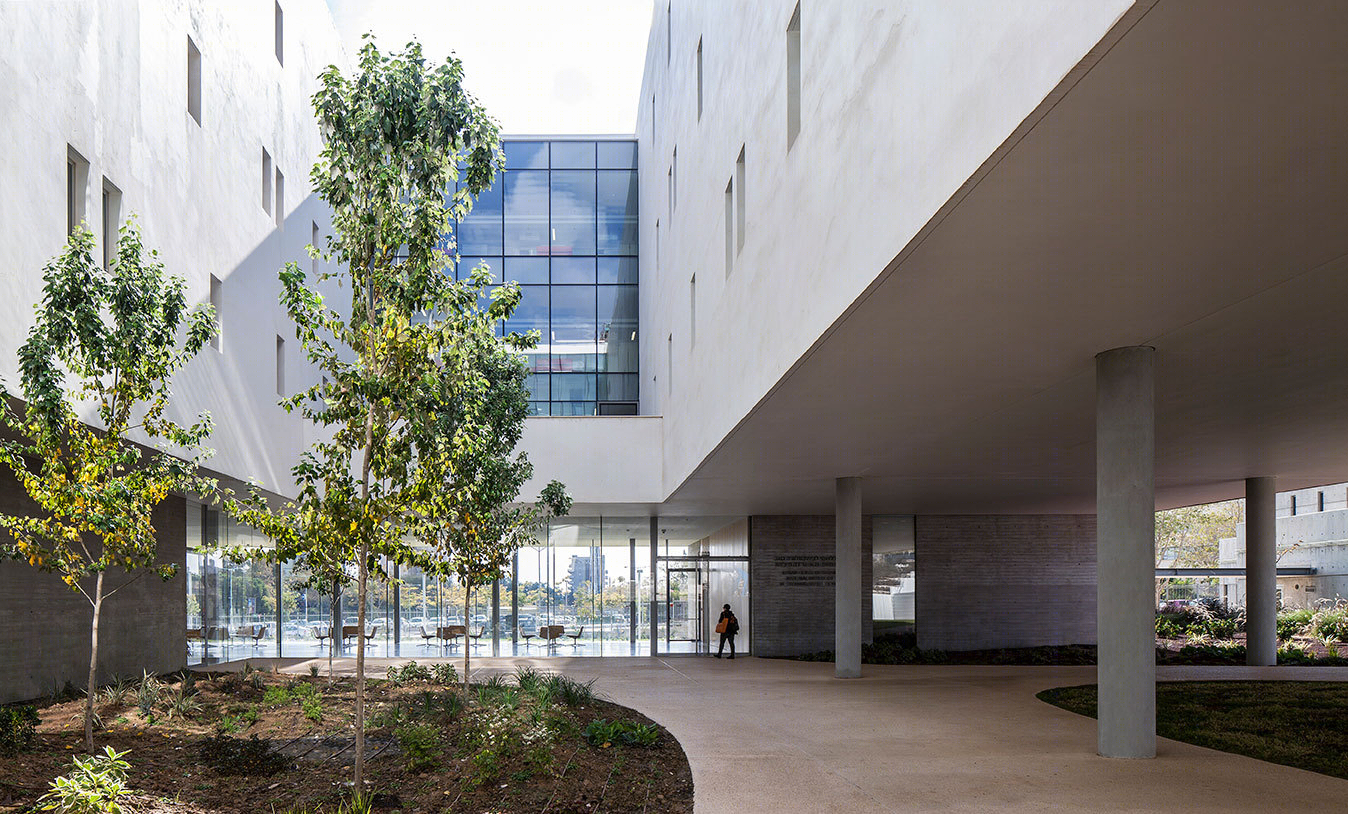

The NIBN building is comprised of four levels: three for laboratories and researchers' offices, standing above a transparent ground floor for general public functions such as foyer, faculty lounge, auditorium, cafeteria, and seminar room. These latter operations allow for increased interaction between researchers, thereby enhancing the exchange of knowledge and strengthening academic ties across disciplines. The ground floor's envelope combines transparent glass façades and exposed concrete walls. The glass façades establish viewing relations between the surrounding urban environment and inner campus areas, dissolving the barrier between them. The exposed concrete walls form a stylistic and material continuation with the neighboring campus buildings. Adjacent to the foyer is a sizeable garden, partly covered by the upper laboratories floors, which creates an inviting and comfortable space for outdoor activities and bestows a sense of tranquility over the building as a whole.

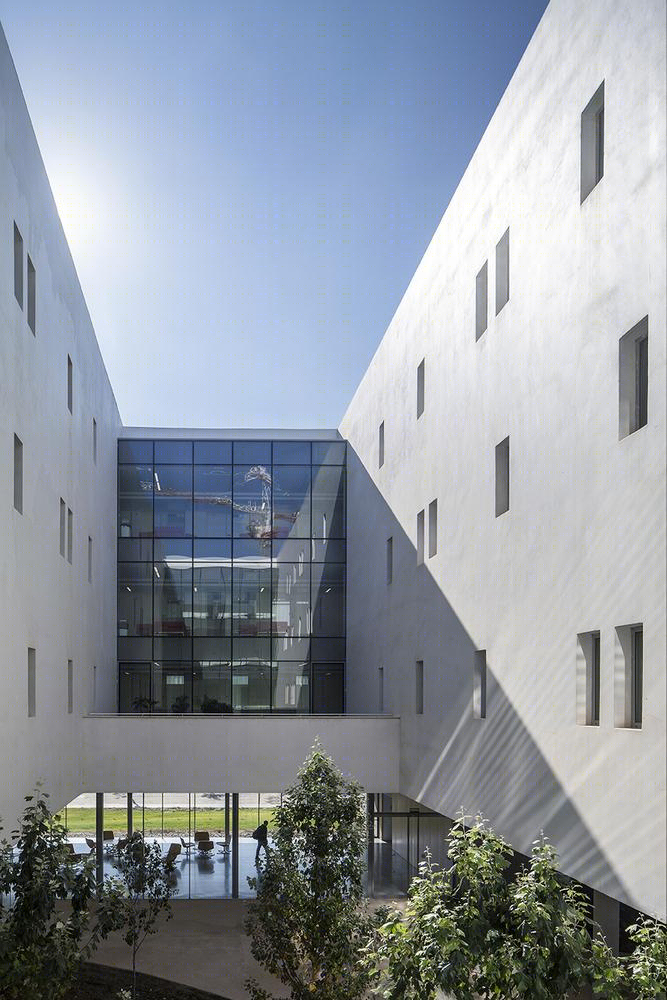

The upper floors are organized around a square space that forms an elevated open-air atrium. Their design is modular and flexible so as to accommodate programmatic changes in terms of laboratory type and size. The laboratories and offices are located at the building’s periphery, while the social spaces with their glass facades and the auxiliary rooms with their plastered walls face the atrium and have views upon the garden. A double skin system serves as this section’s envelope, enabling the inner spaces to receive their appropriate exposure to sunlight. This façade consists of an internal glazed curtain wall and an external layer of green u glass, which is perforated by vertical openings of acid u glass louvers that expose the building's population to the landscape.

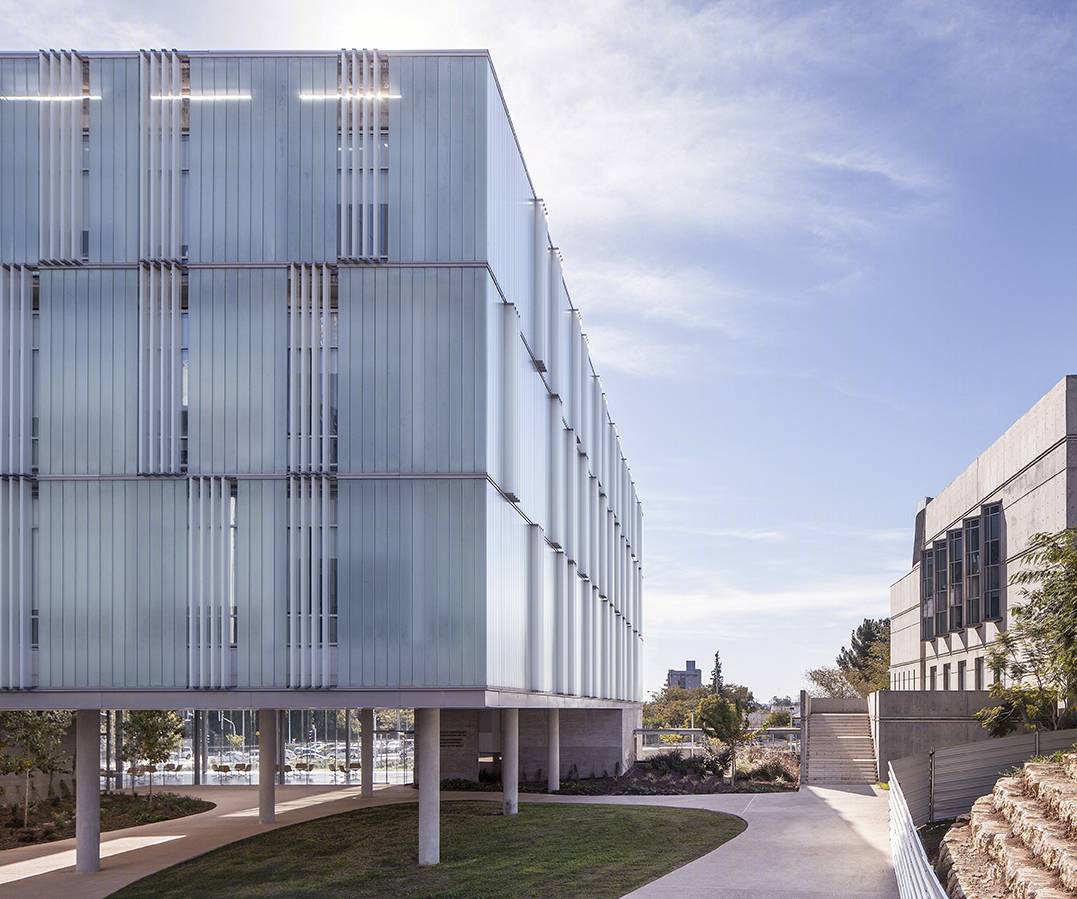

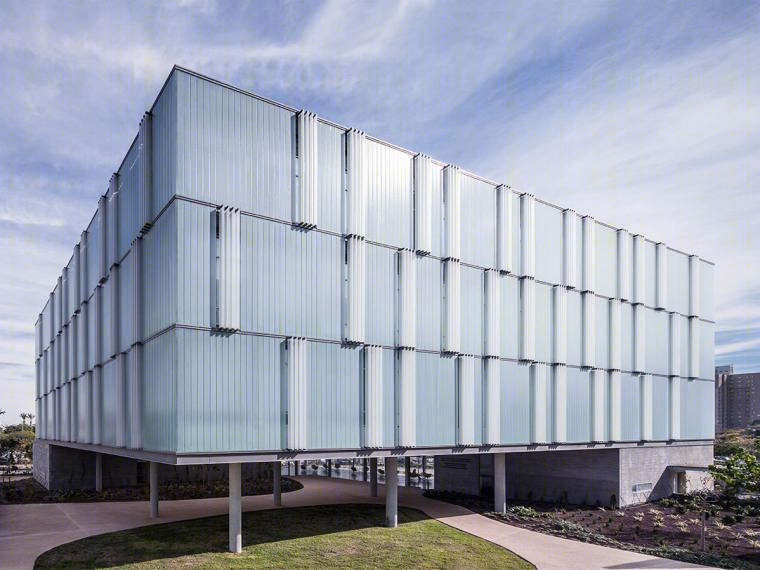

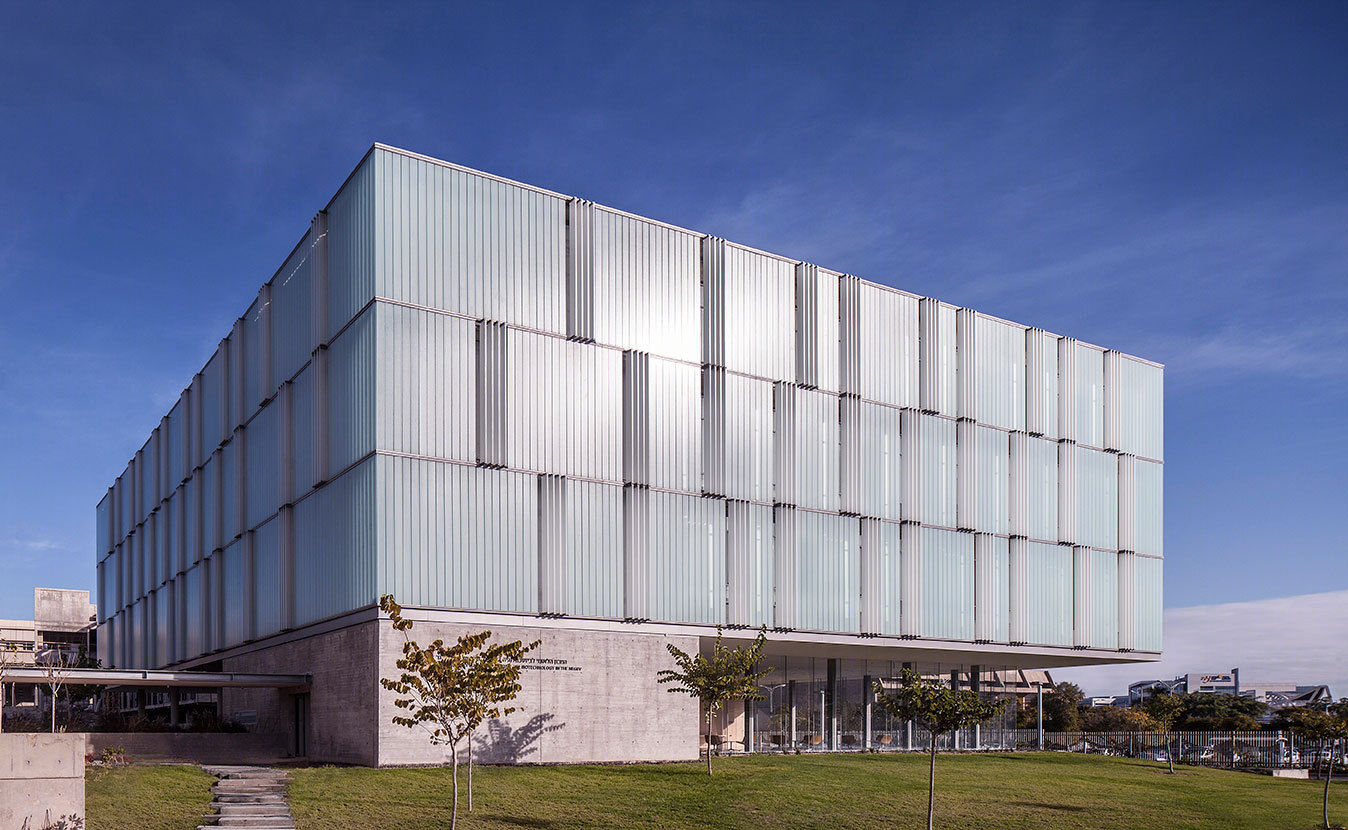

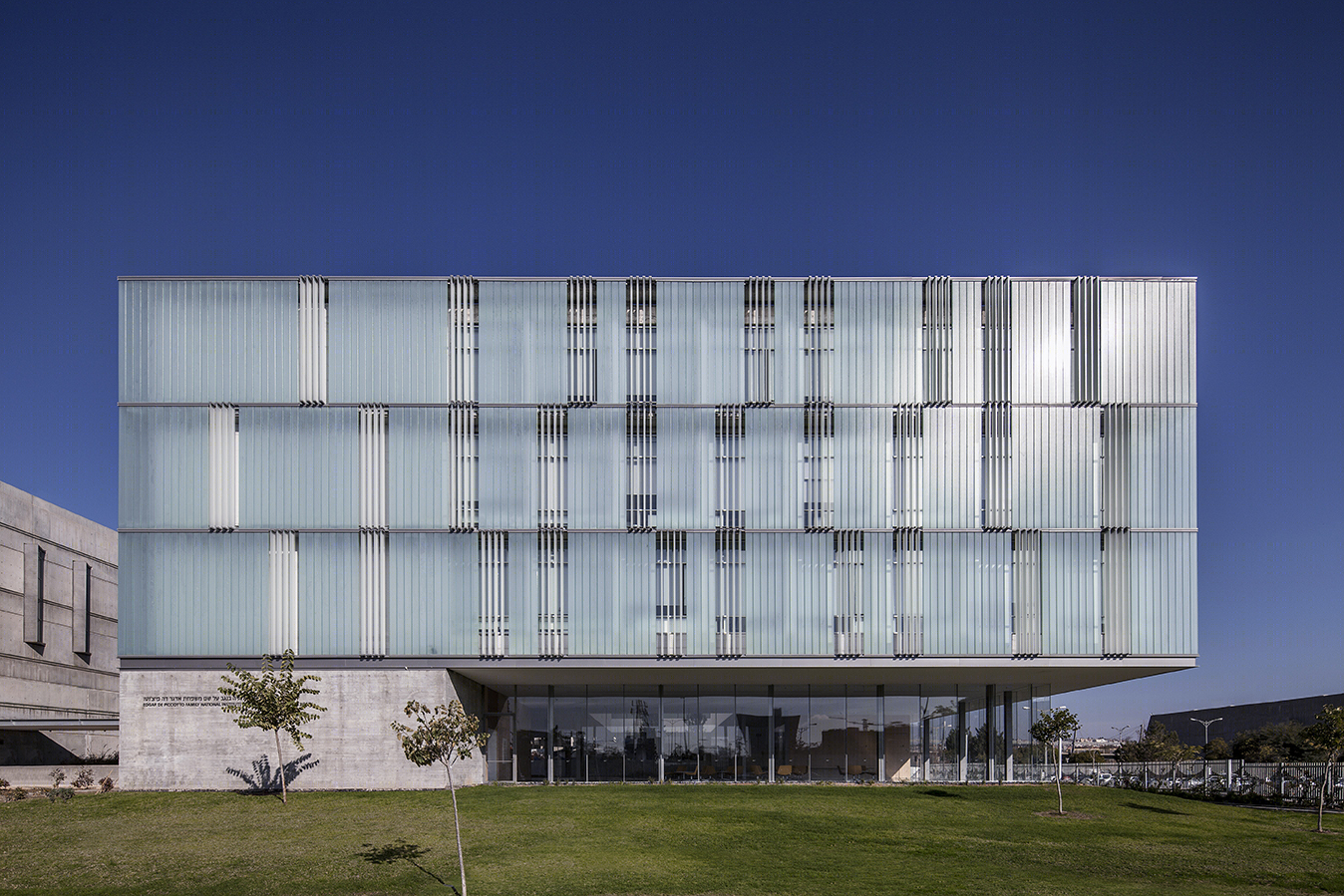

以色列生物技术研究所外部实景图

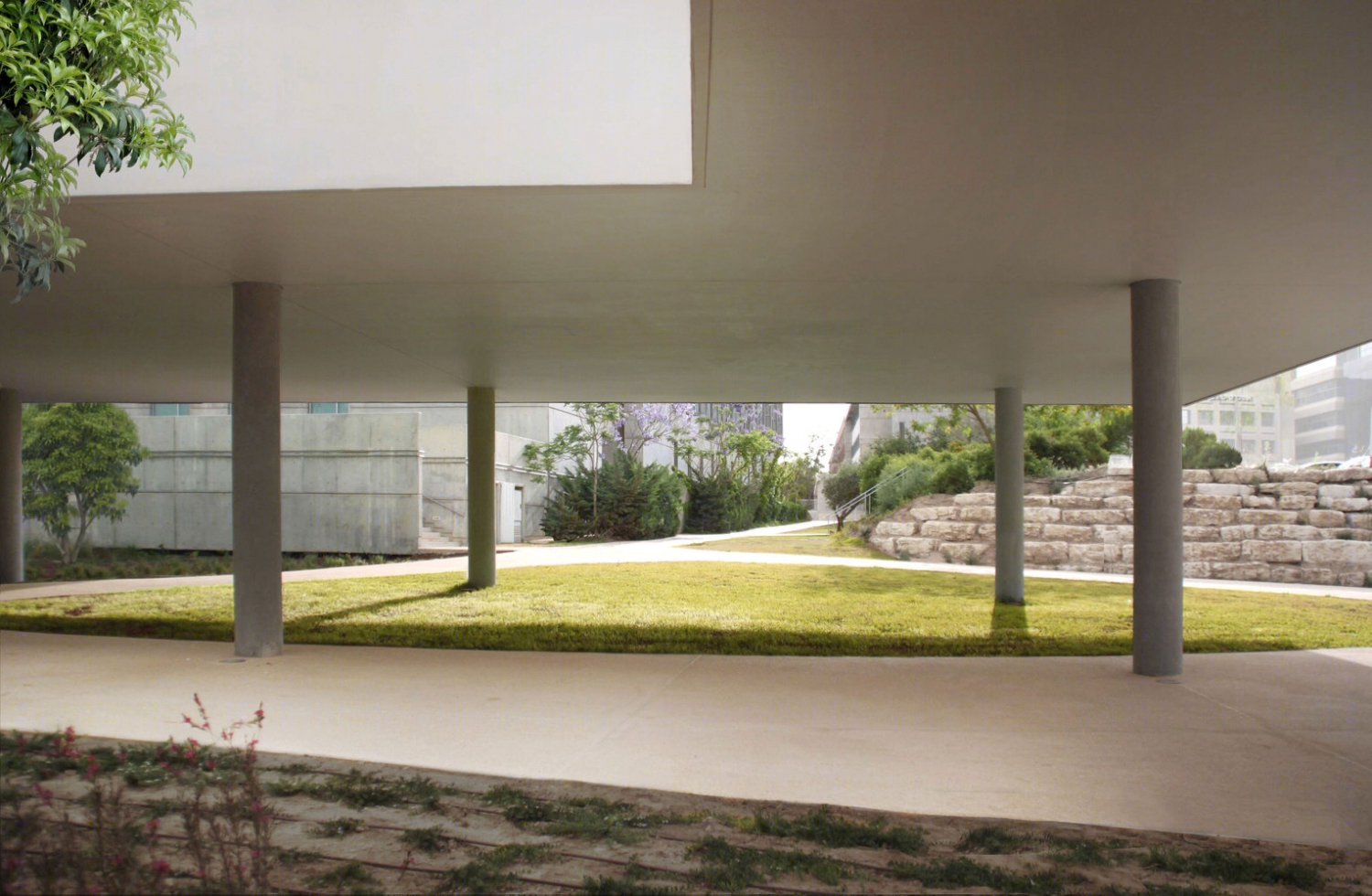

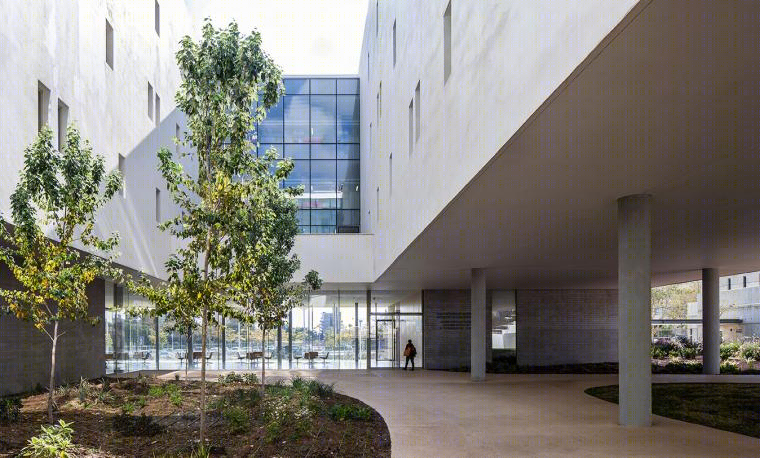

以色列生物技术研究所之局部实景图

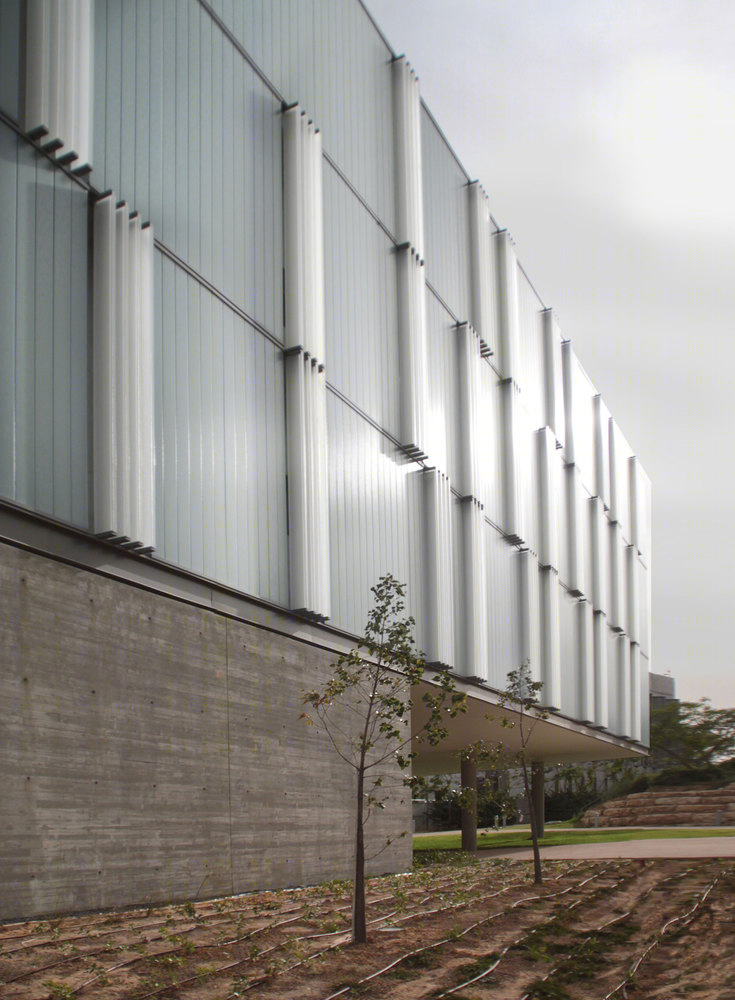

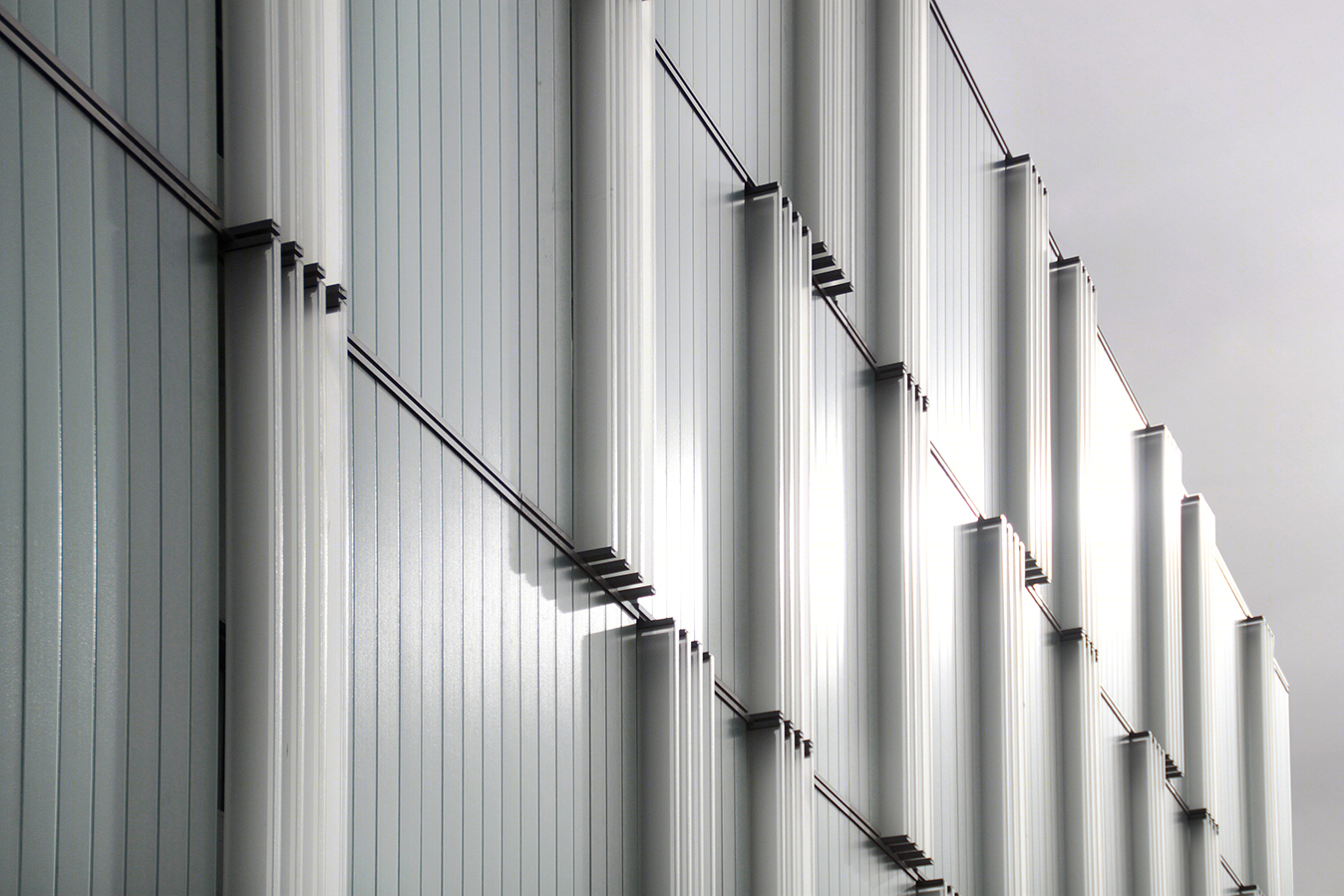

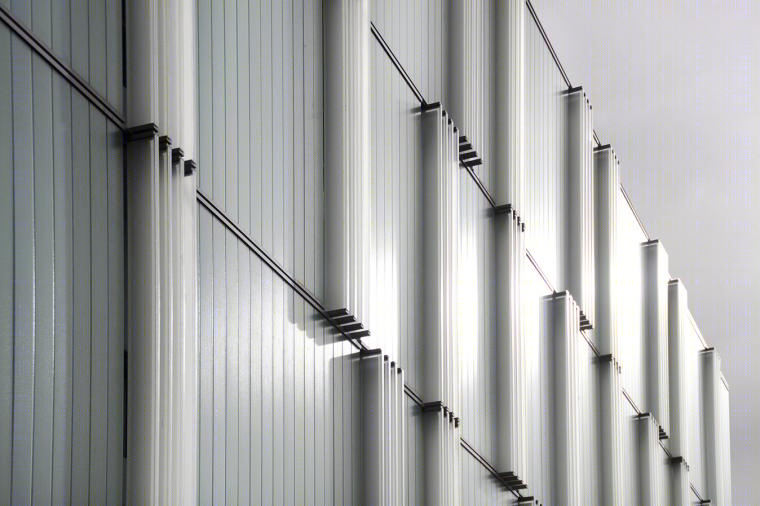

以色列生物技术研究所外部局部实景图

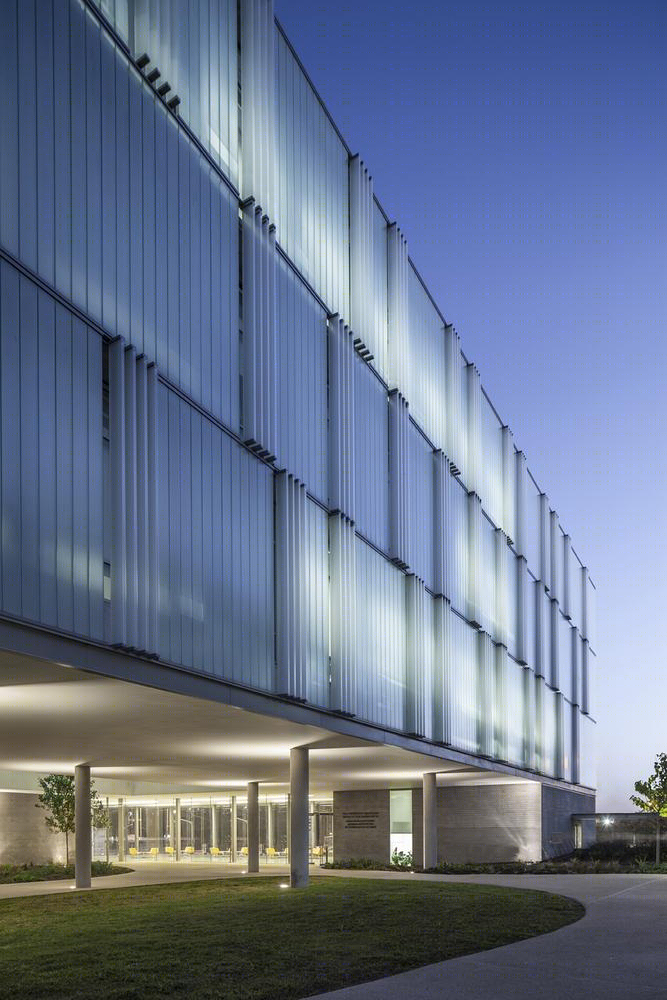

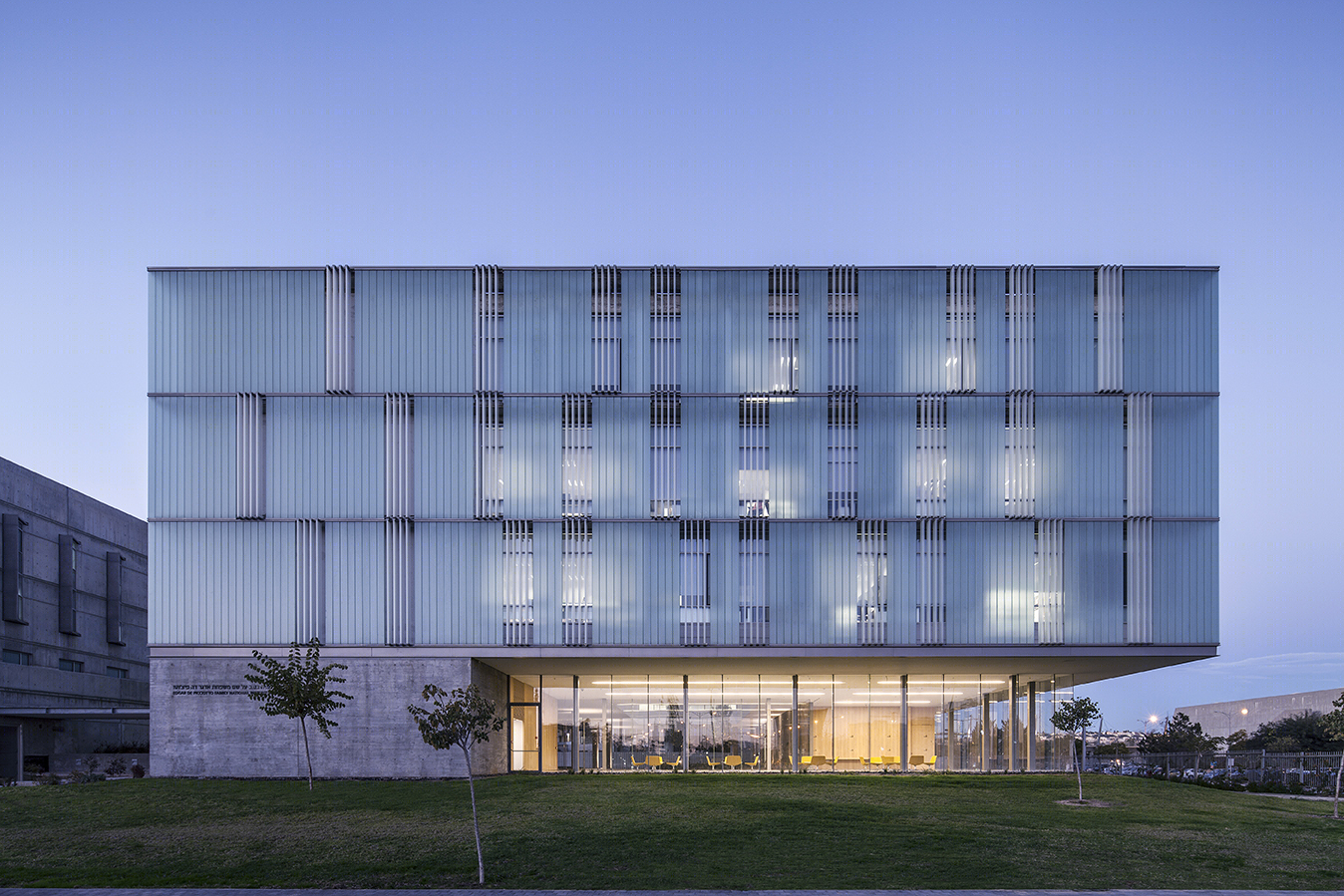

以色列生物技术研究所外部夜景实景图

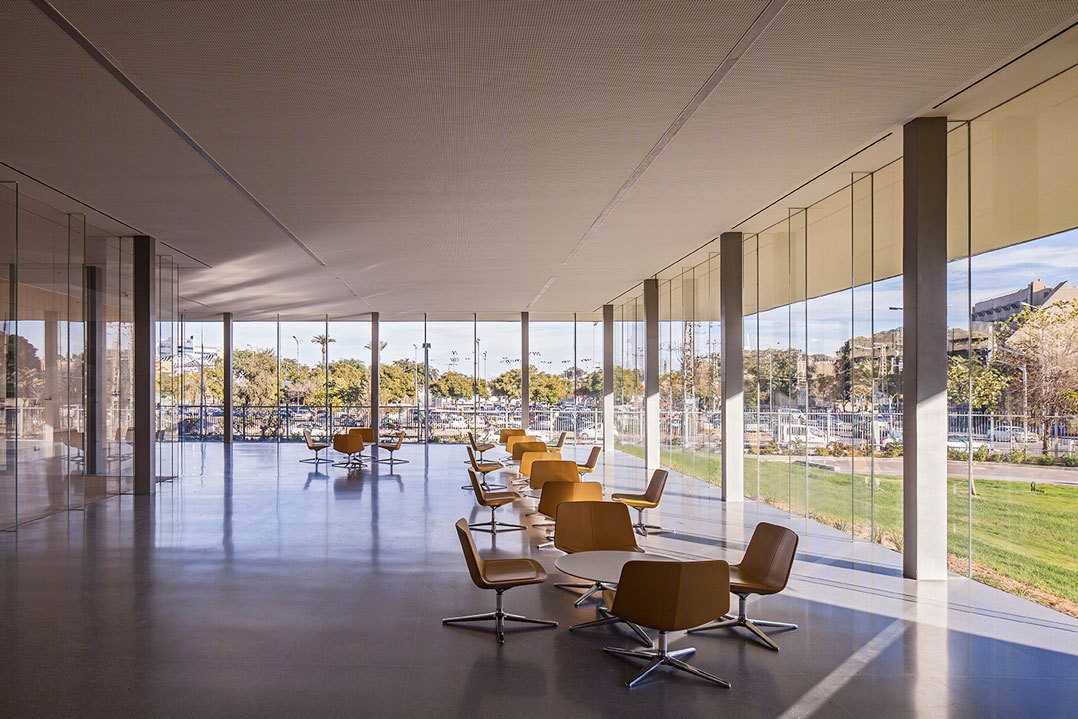

以色列生物技术研究所内部实景图

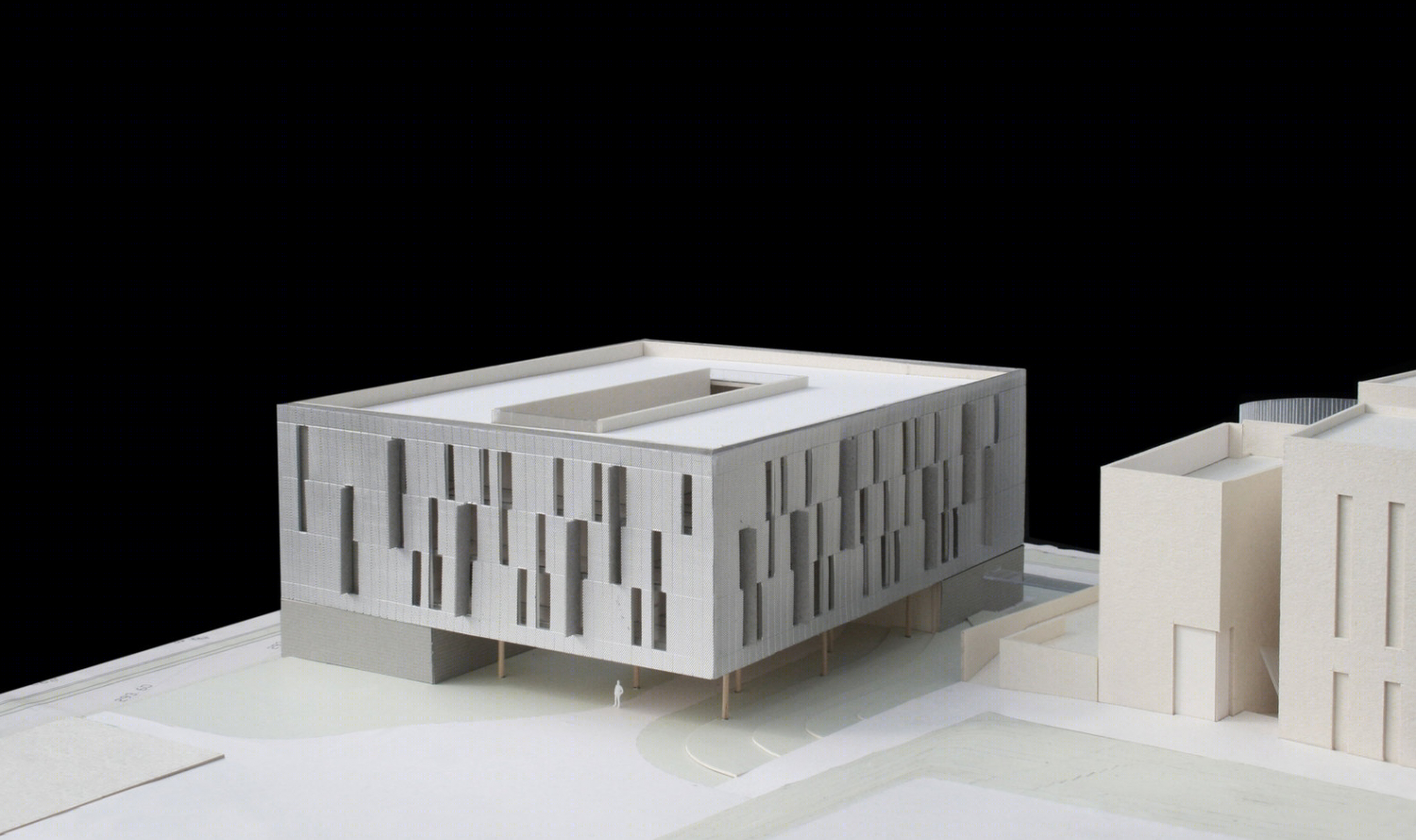

以色列生物技术研究所模型图

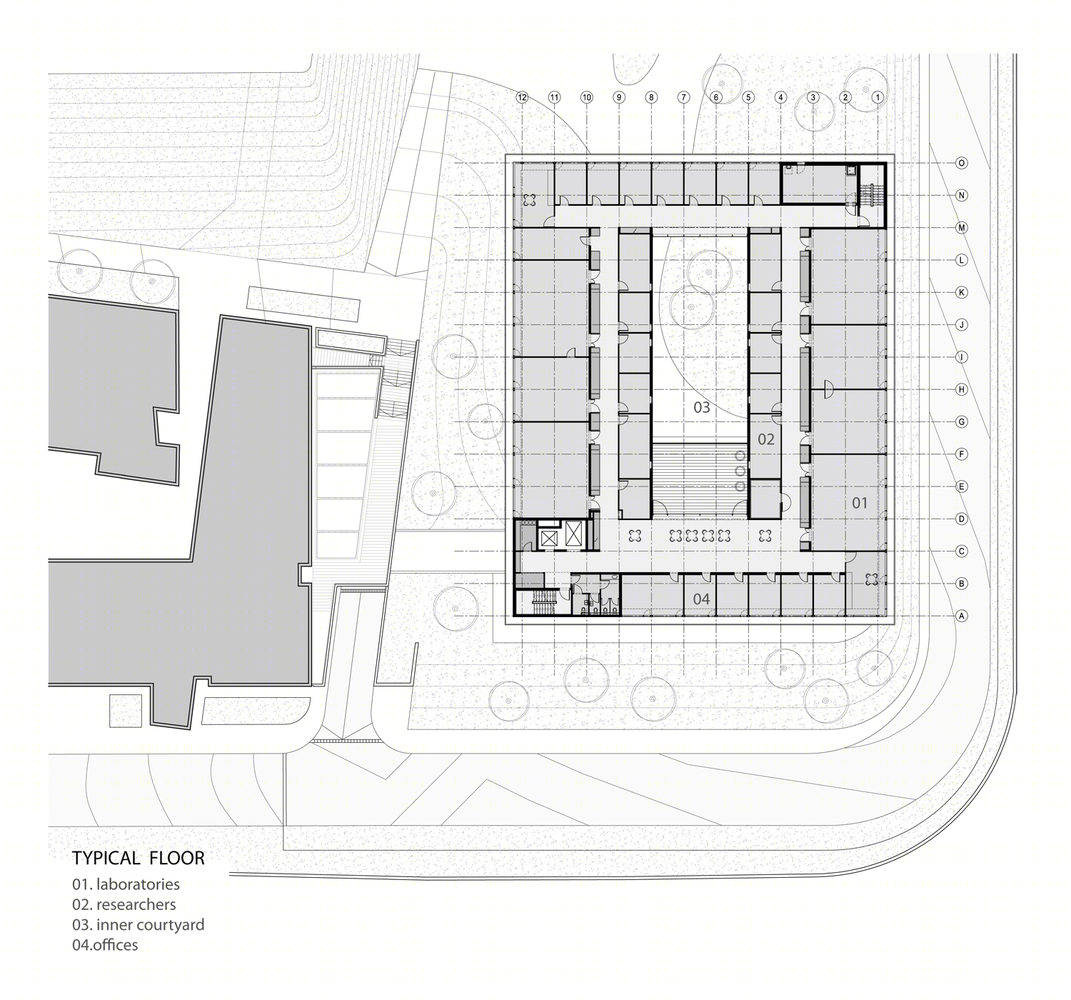

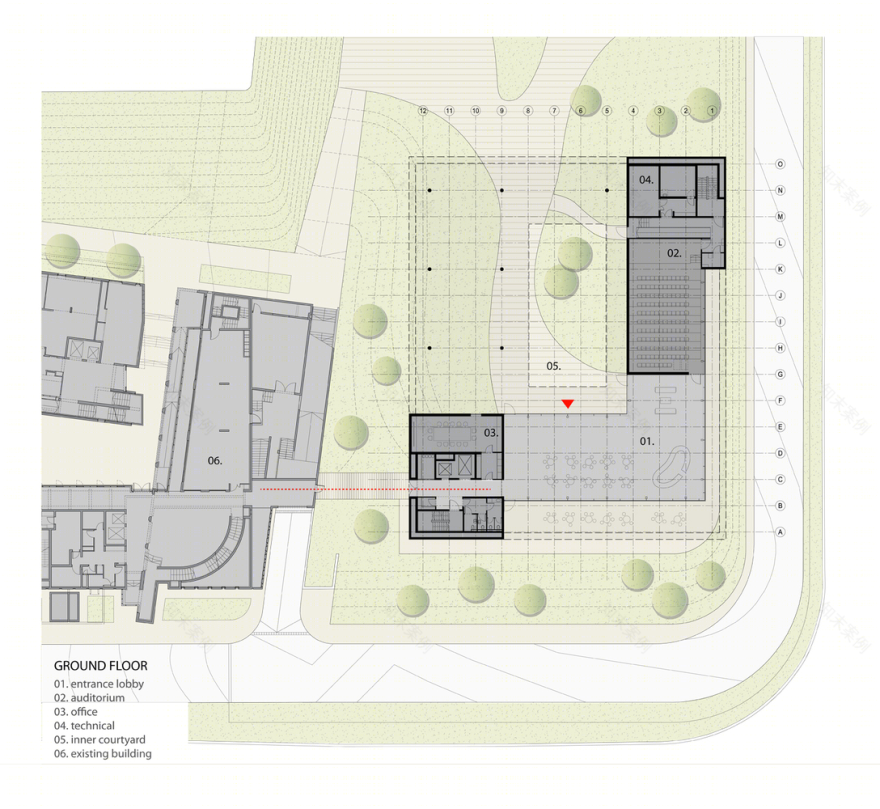

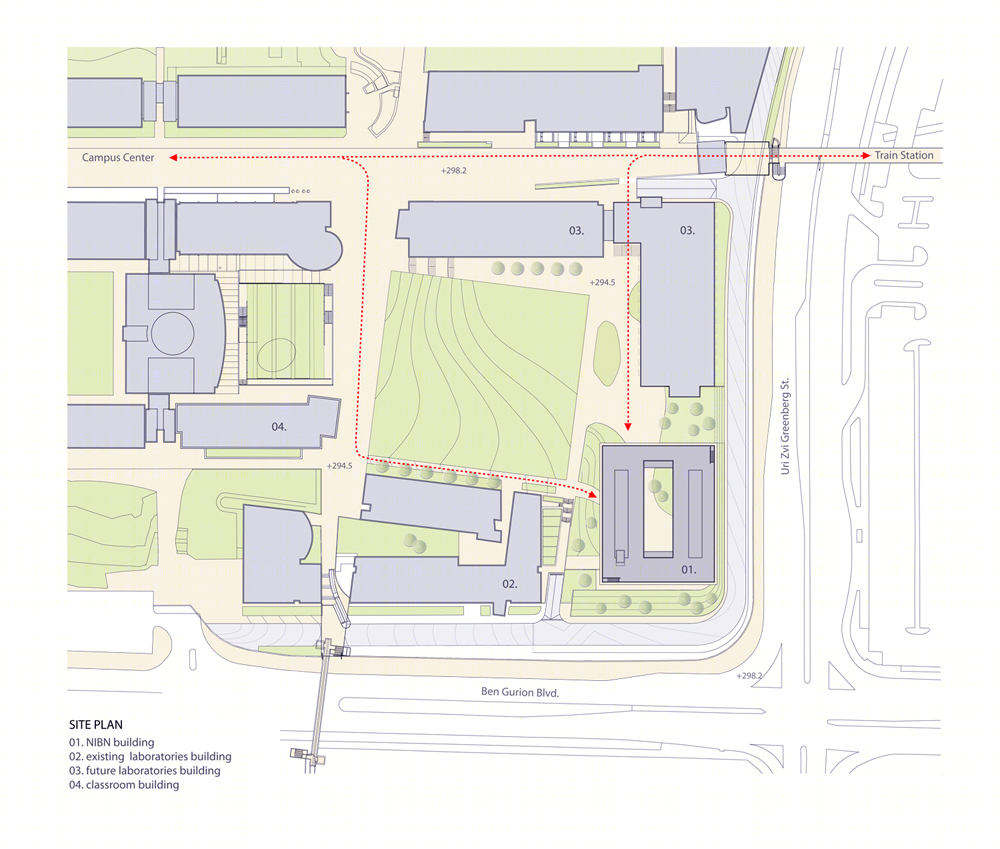

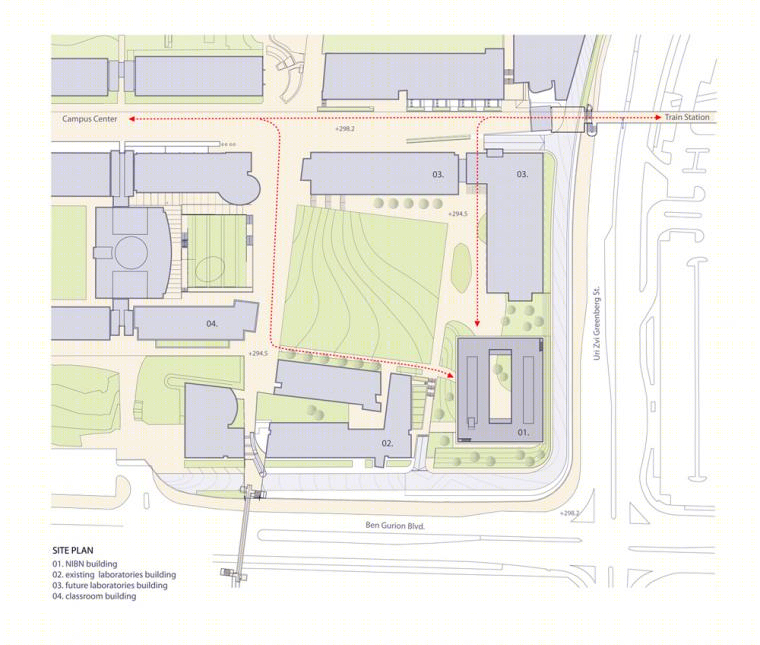

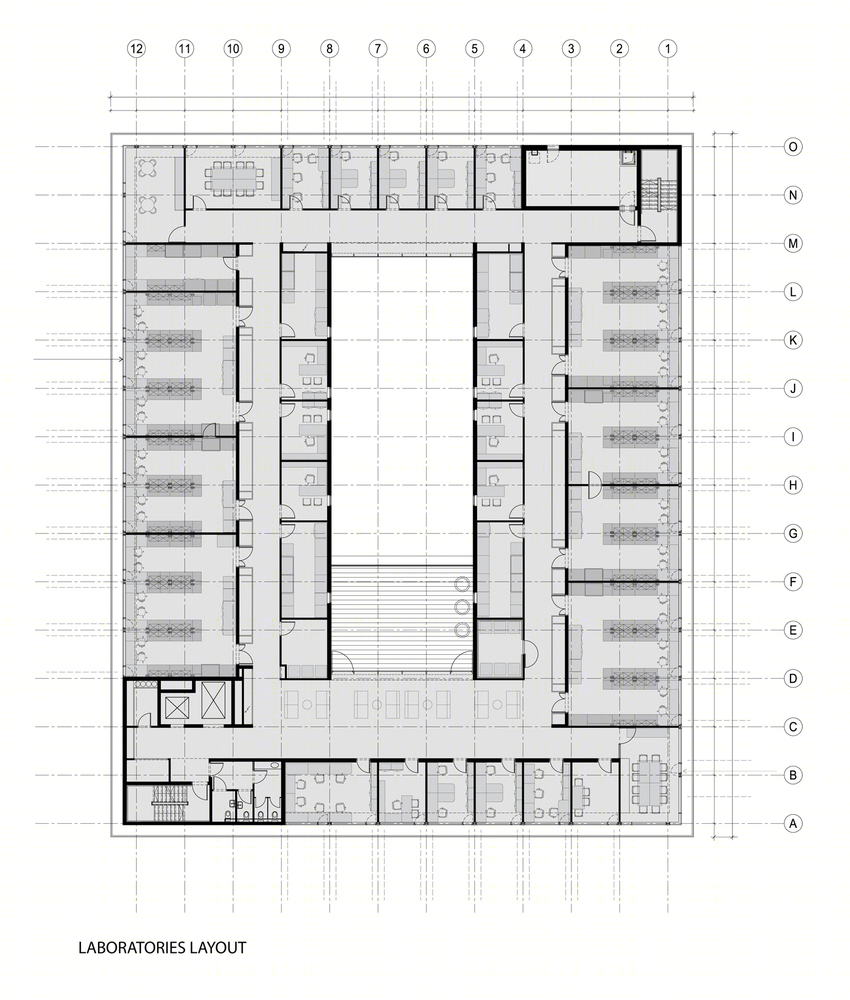

以色列生物技术研究所平面图

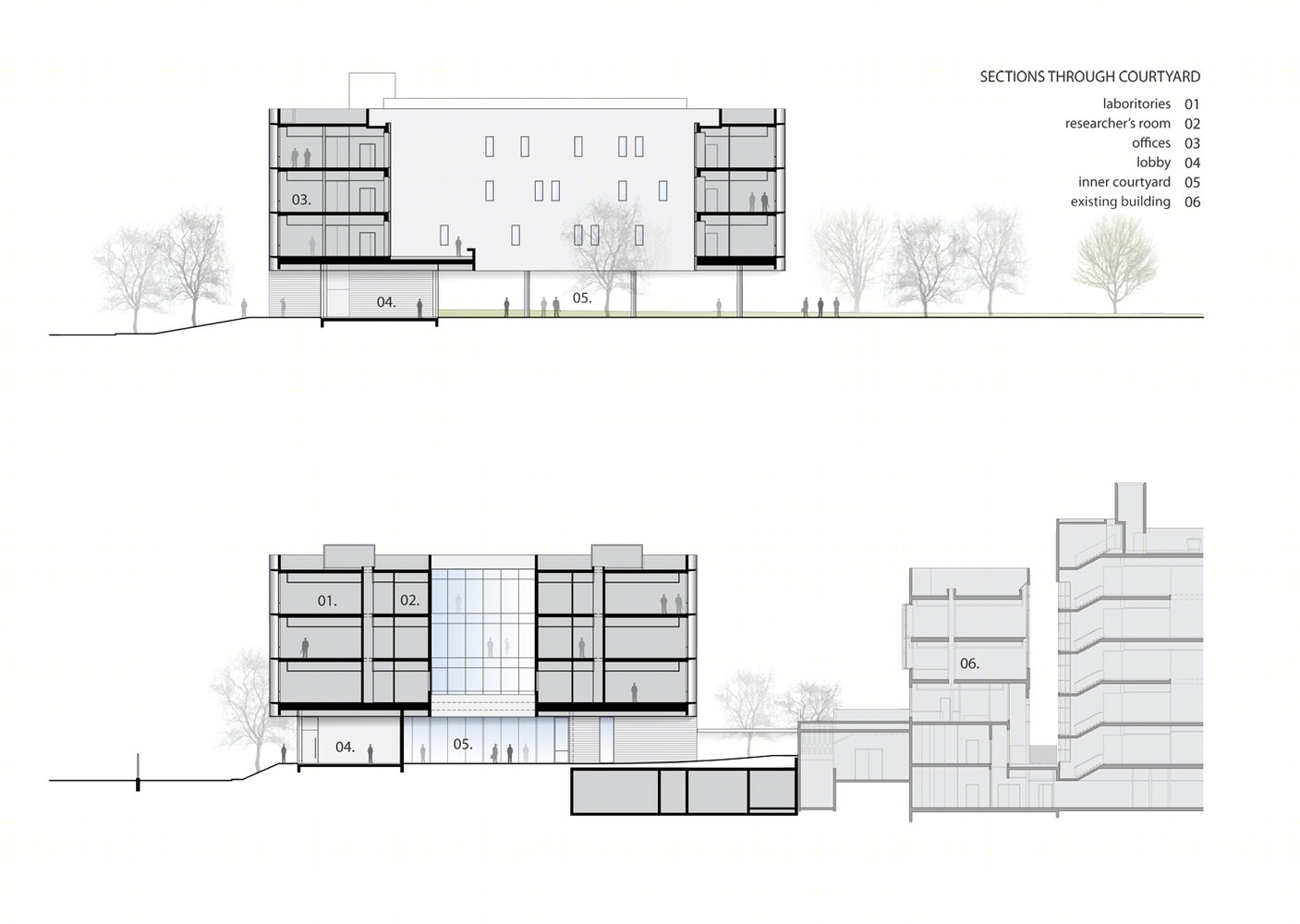

以色列生物技术研究所剖面图
