墨西哥 LoMa Chapalita 办公楼丨Elías Rizo Architects

Mexico LoMa Chapalita Office building

设计方：Elías Rizo Architects

位置：墨西哥

分类：办公建筑

内容：实景照片

结构工程师：LOES Ingenieros

机电工程

师：CG Engineering

合作人：Jenny Mora,
Paola Hernández, Alma Osnaya,
Jenny Camarena, Gabriela Chávez, Roberto Contreras, Rigo G

项目规模：7279平方米

图片：16张

摄影师：Marcos García

这是由Elías Rizo Architects设计的LoMa Chapalita办公楼。该建筑位于瓜达拉哈拉的一条标志性大道边上，距离市中心并不远。该项目旨在创建一座气势宏伟的建筑，同时与周边环境相协调。该项目包括6层商业办公区。办公区每层可分为4个私人工作空间，共可提供24个办公室，体现了该建筑办公空间的灵活多变性。

该设计采用了干净的直线条，构筑了不断变化的外立面。建筑底层采用了落地玻璃窗，因此建筑看起来就像是漂浮在一个透明的底座之上。建筑采用了双层幕墙，以控制太阳光线和自然通风。被动式系统充分利用了墨西哥的温带气候。而双层幕墙的内墙是落地滑动玻璃面板，外墙是多孔铝制垂直百叶窗。半透明面板可以自由调节办公空间的太阳入射光线。而外墙百叶窗赋予了该建筑不断变化的动态的外观，同时满足温度调节和通风的需求。

译者： 艾比

On an emblematic avenue in Guadalajara, a short distance from a city landmark in the heart of a cosmopolitan area, this building rises in an attempt to become a reference in Guadalajara’s cityscape. The project aims to create an imposing building that is kind both to its surroundings and the environment. The project consists of 6 commercially available office levels plus commercial spaces. The office levels have the possibility of splitting into 4 private stalls giving the building a dynamic and variable trait with up to 24 distinct office spaces.

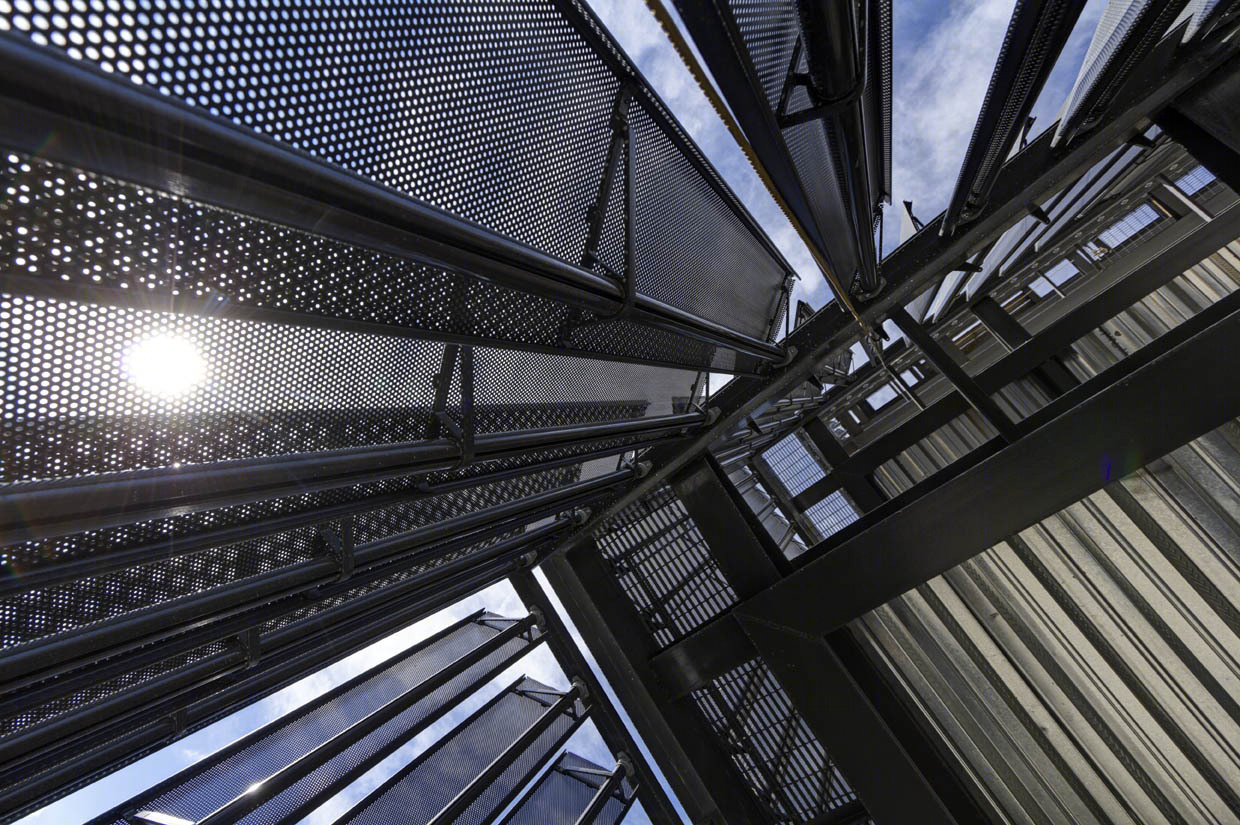

The design features a building with clean straight lines that offers a continuously changing façade. The office building will appear as a translucent block that appears to float over a glazed base since the ground floor is covered in floor-to-ceiling glass. The office levels are wrapped in a double skin that works for sunlight control and natural ventilation. The passive systems aim to take advantage of Mexico’s temperate weather. The inner layer in this double skin is made of floor-to-ceiling sliding glass panels. The outer layer is made up of vertical mesh louvers made of perforated aluminum. The translucent panels can be freely adjusted to aid in controlling sunlight incidence on the office space. The movement of the exterior louvers will grant the building dynamic component and a constantly changing façade that answers to the specific needs of temperature and ventilation control.

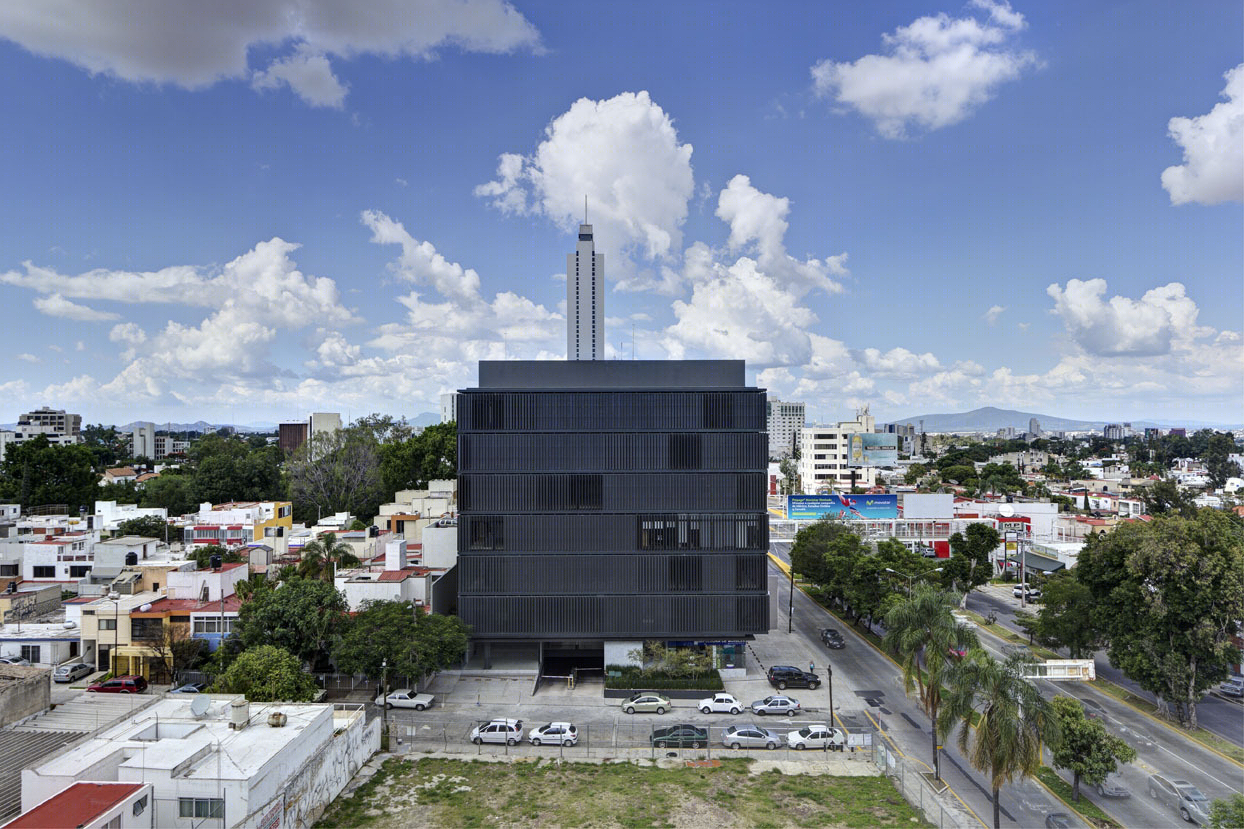

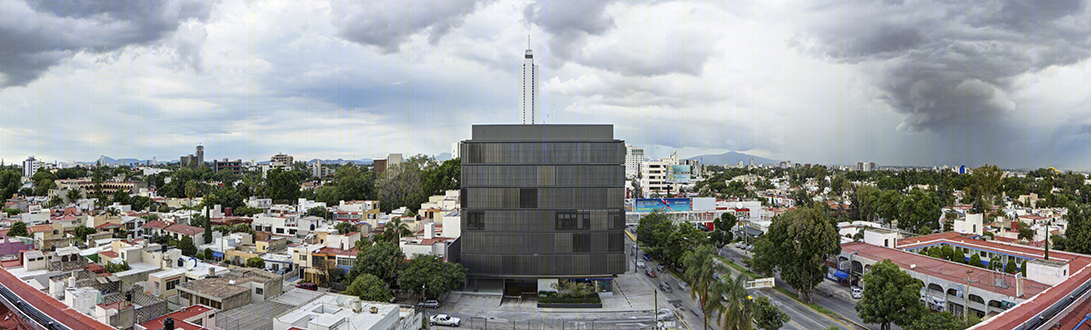

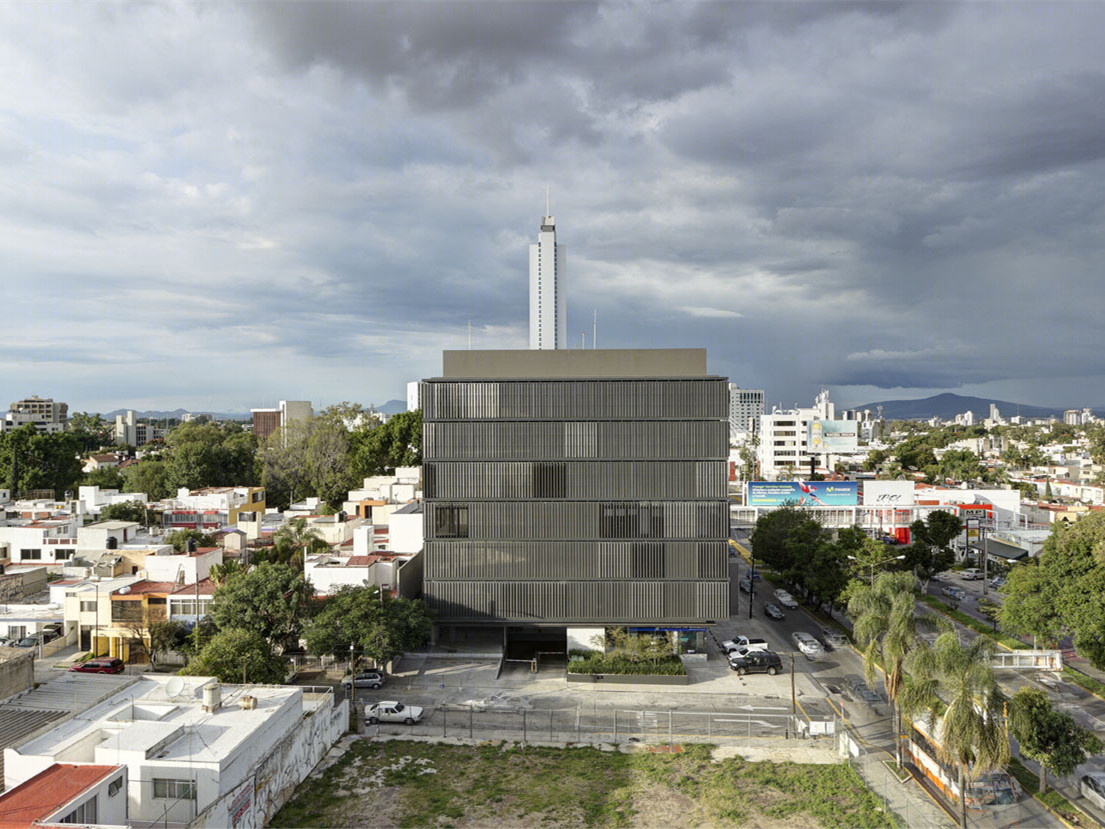

墨西哥LoMa Chapalita办公楼外观图

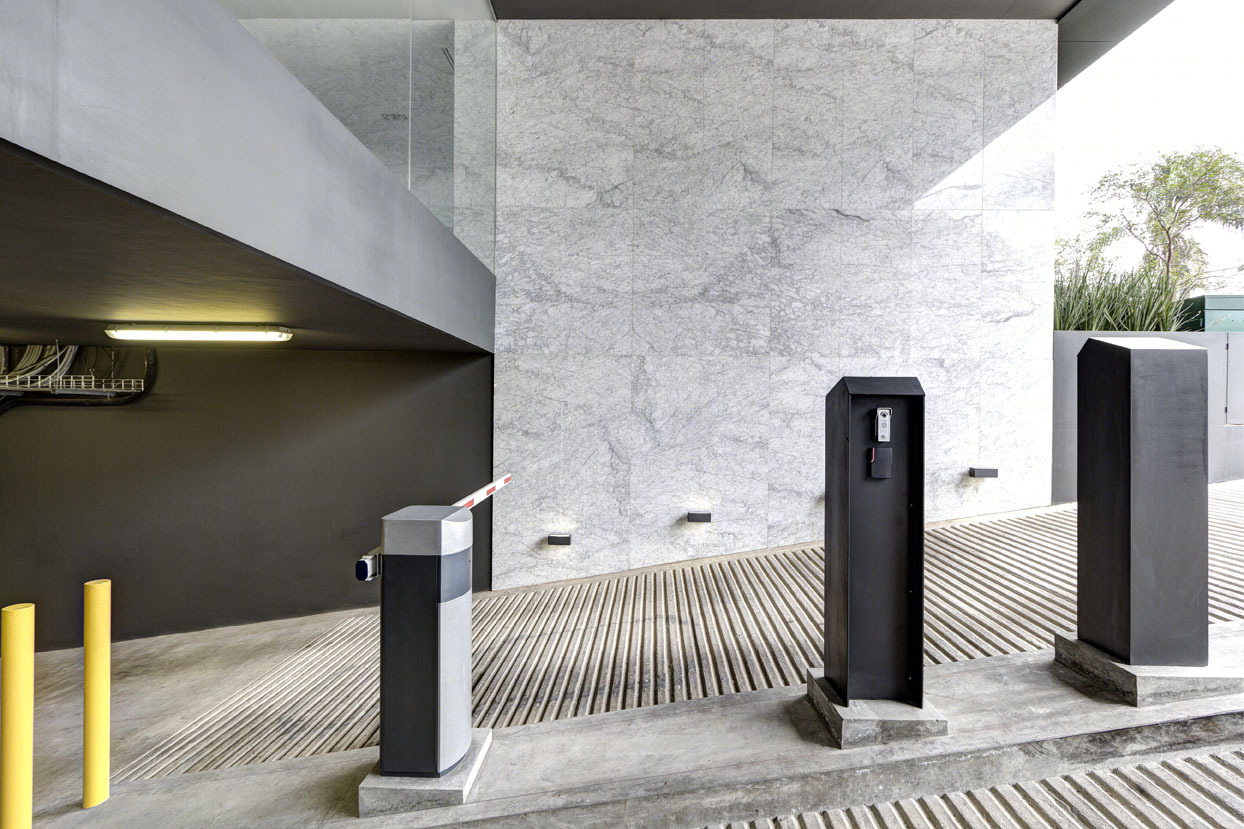

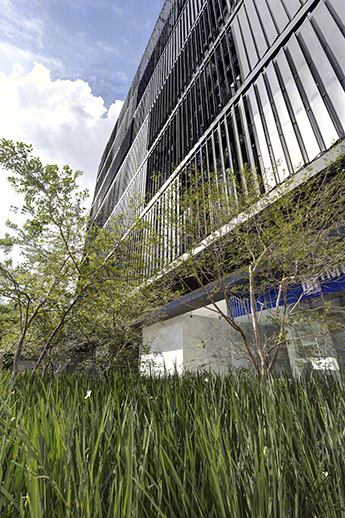

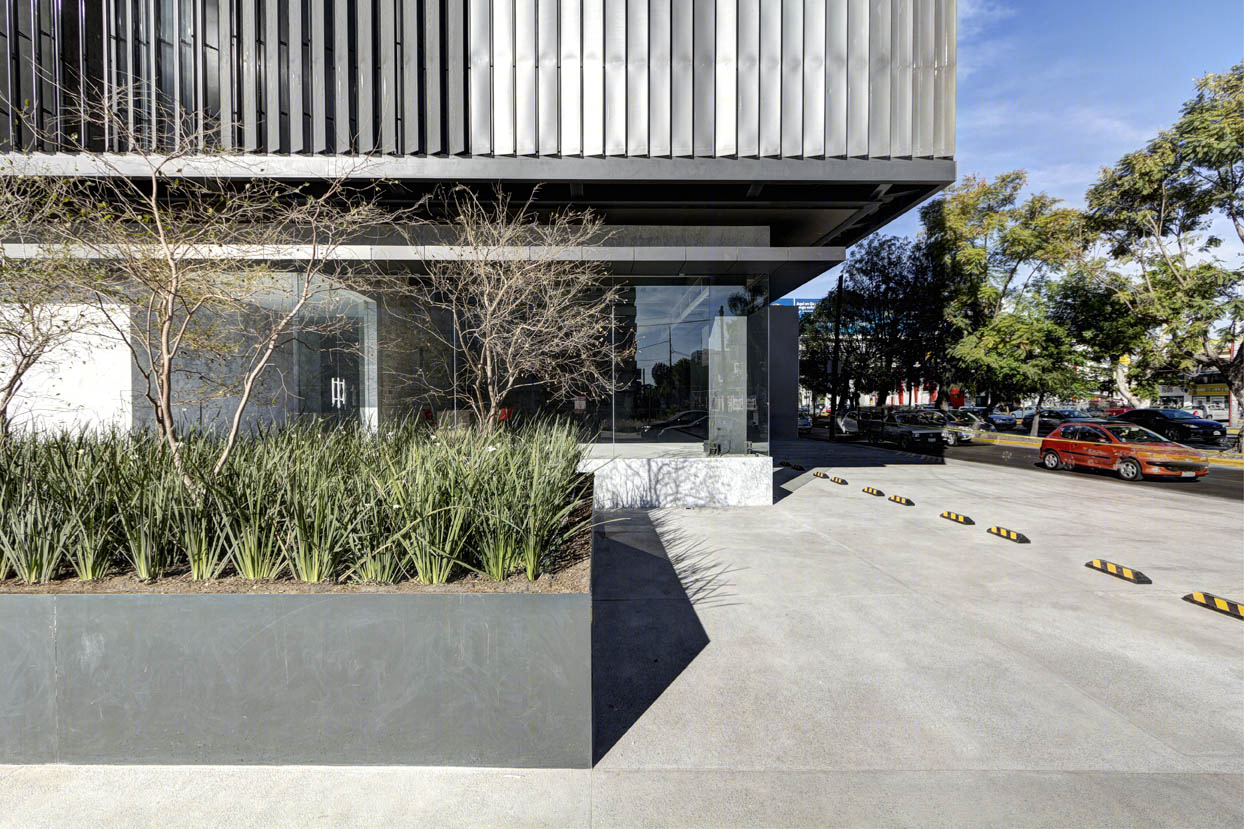

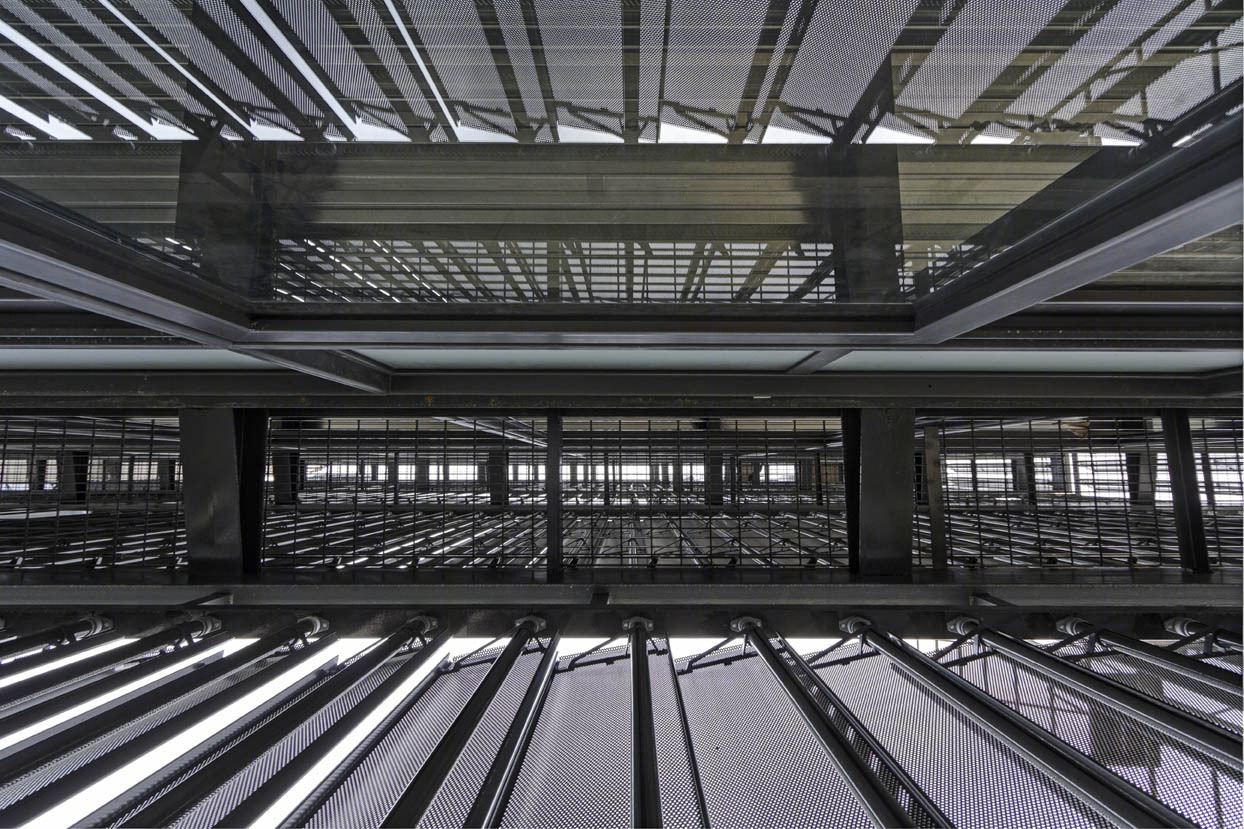

墨西哥LoMa Chapalita办公楼外部局部图

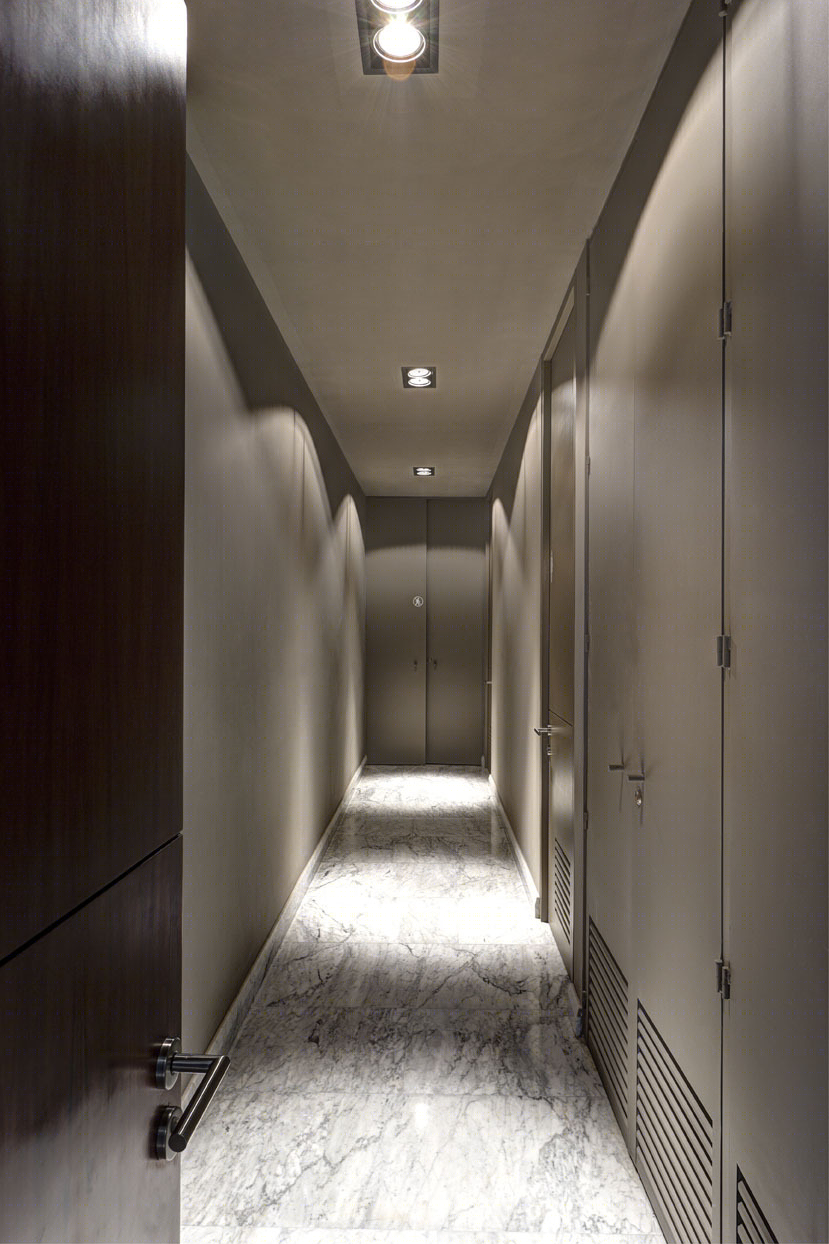

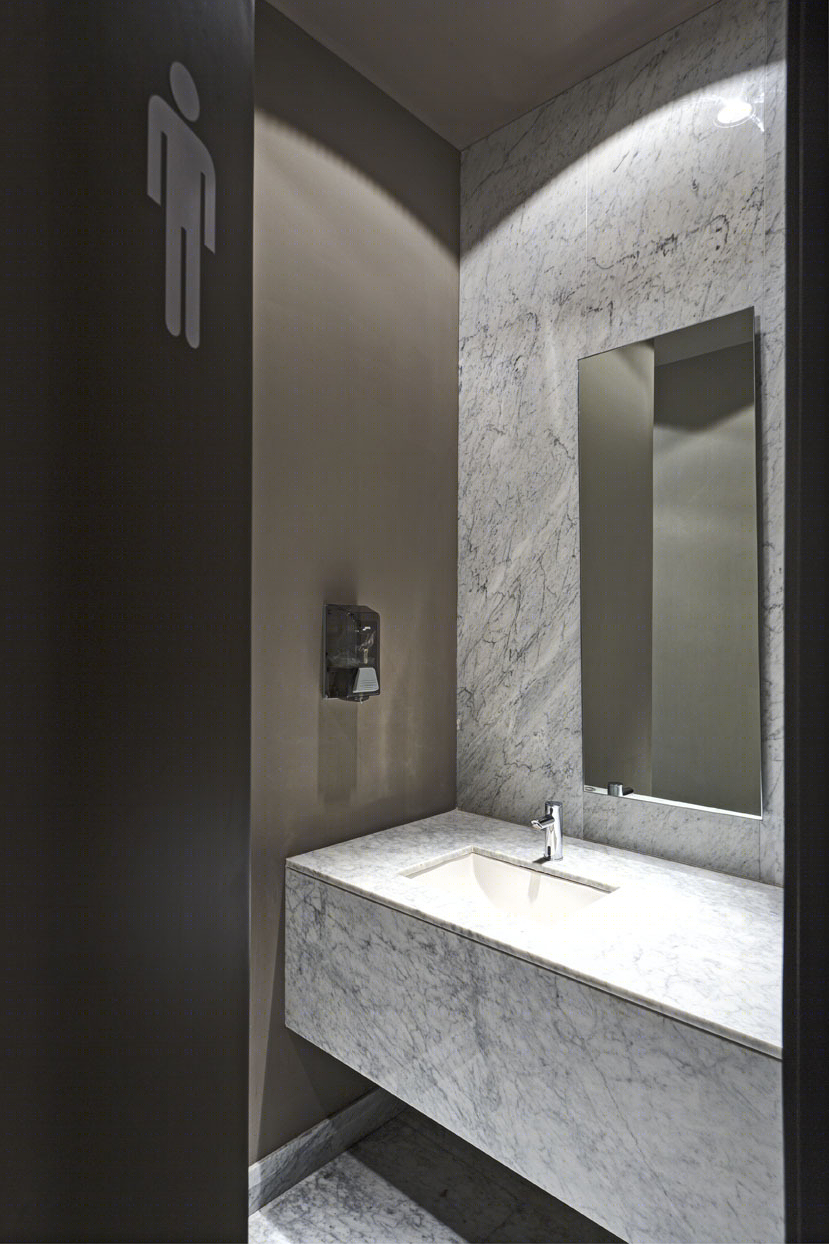

墨西哥LoMa Chapalita办公楼内部局部图

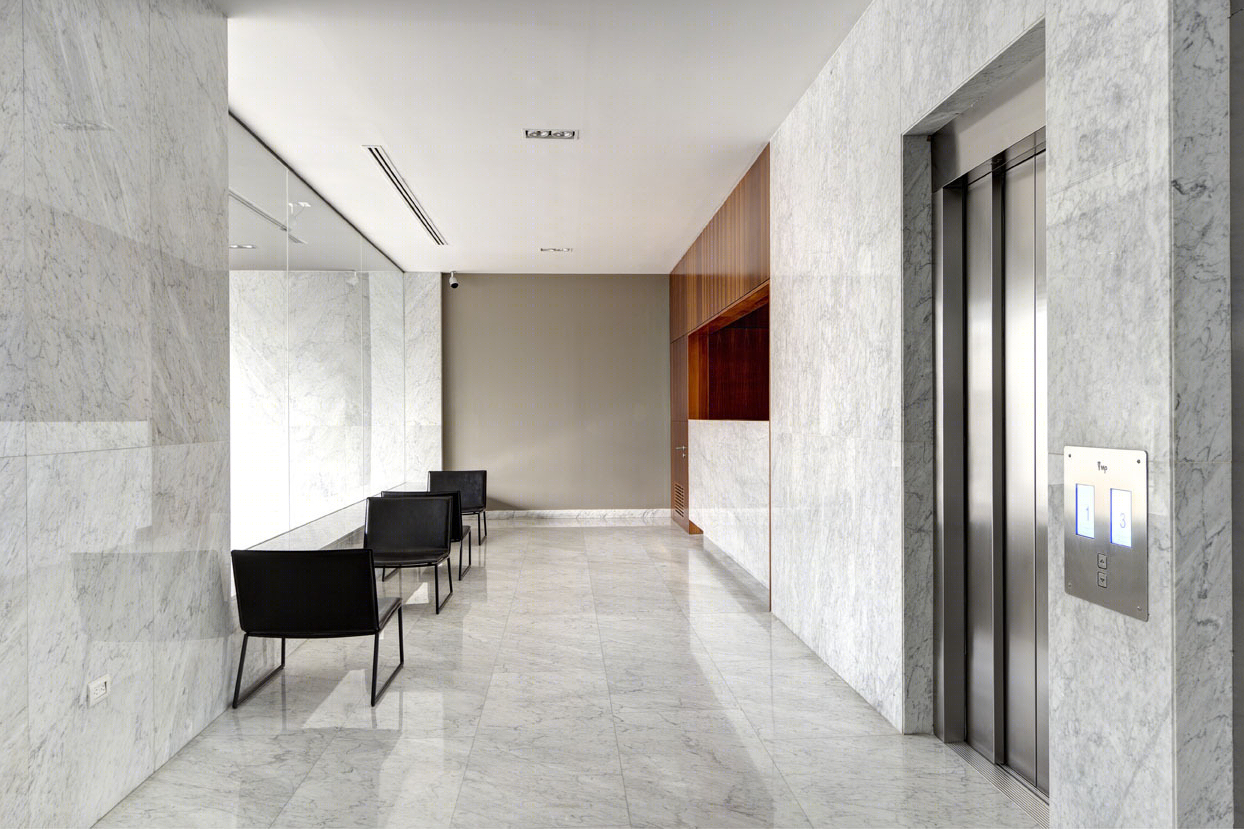

墨西哥LoMa Chapalita办公楼内部电梯间图

墨西哥LoMa Chapalita办公楼

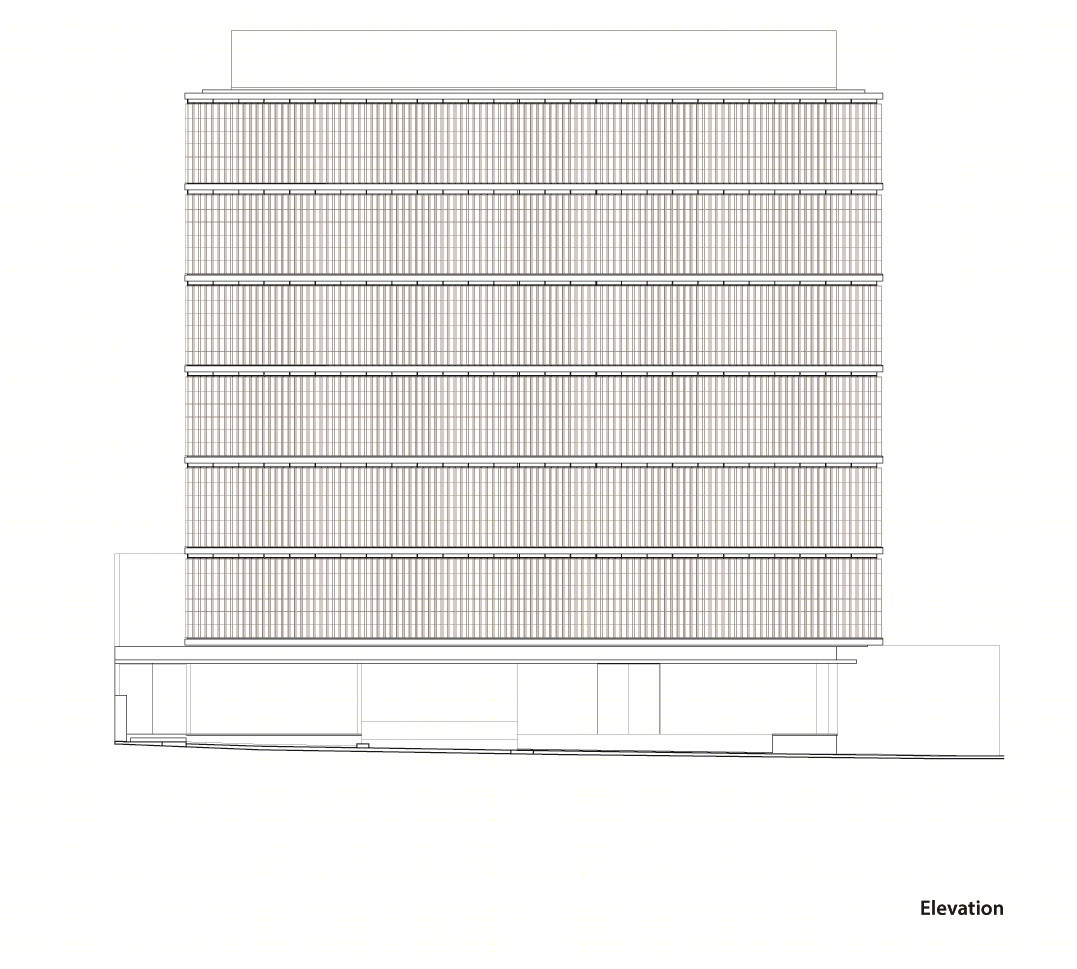

墨西哥LoMa Chapalita办公楼正面图

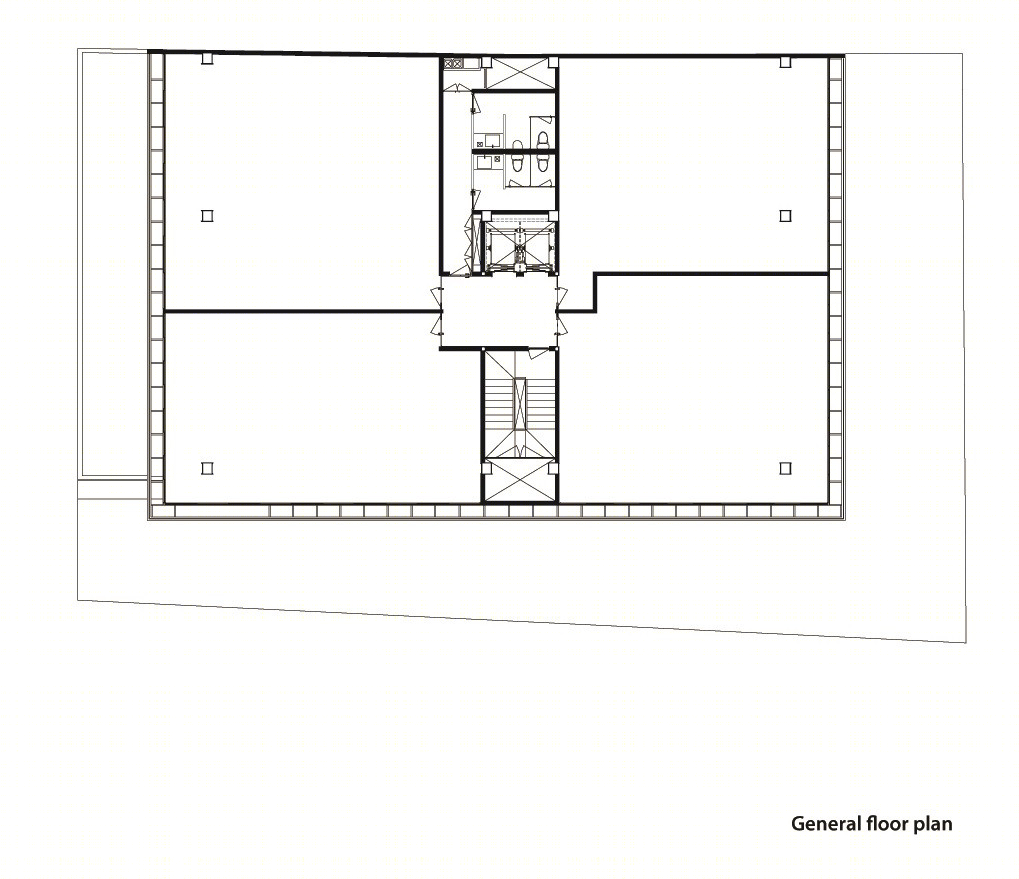

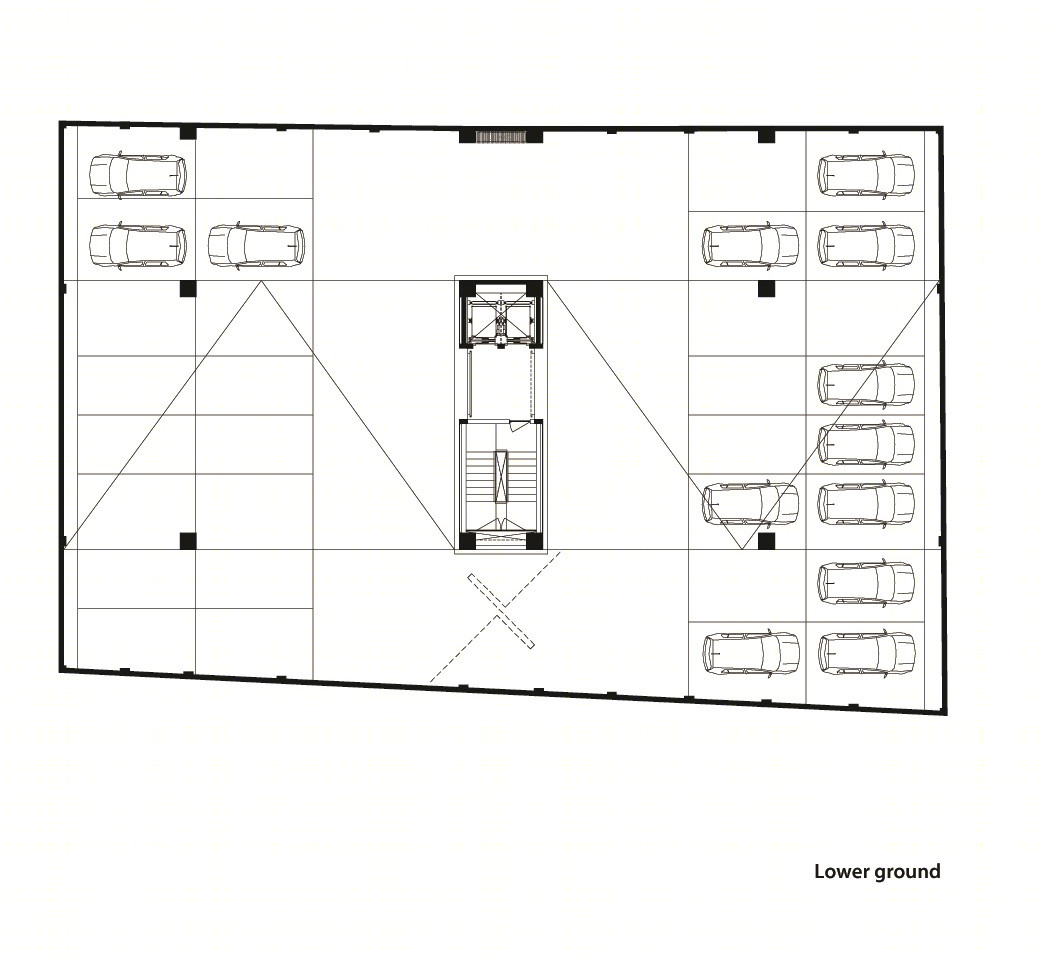

墨西哥LoMa Chapalita办公楼平面图

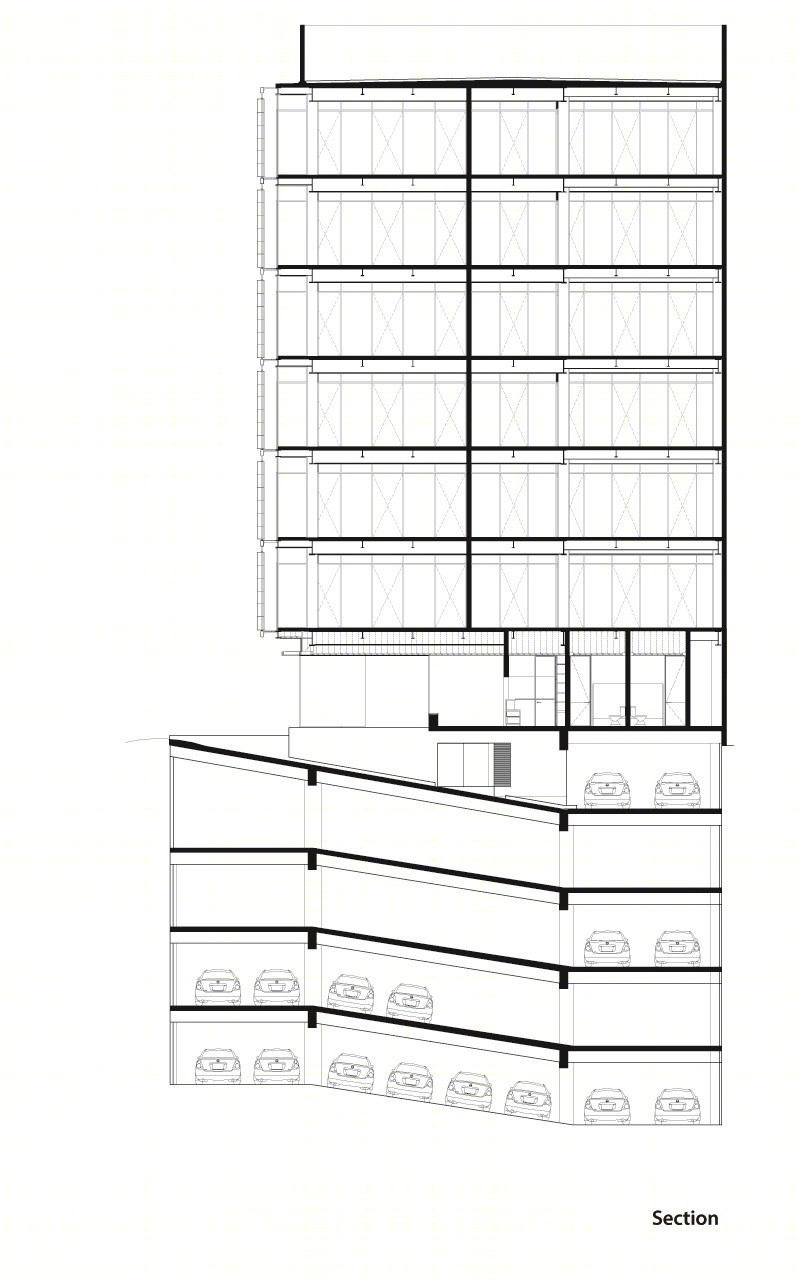

墨西哥LoMa Chapalita办公楼截面图

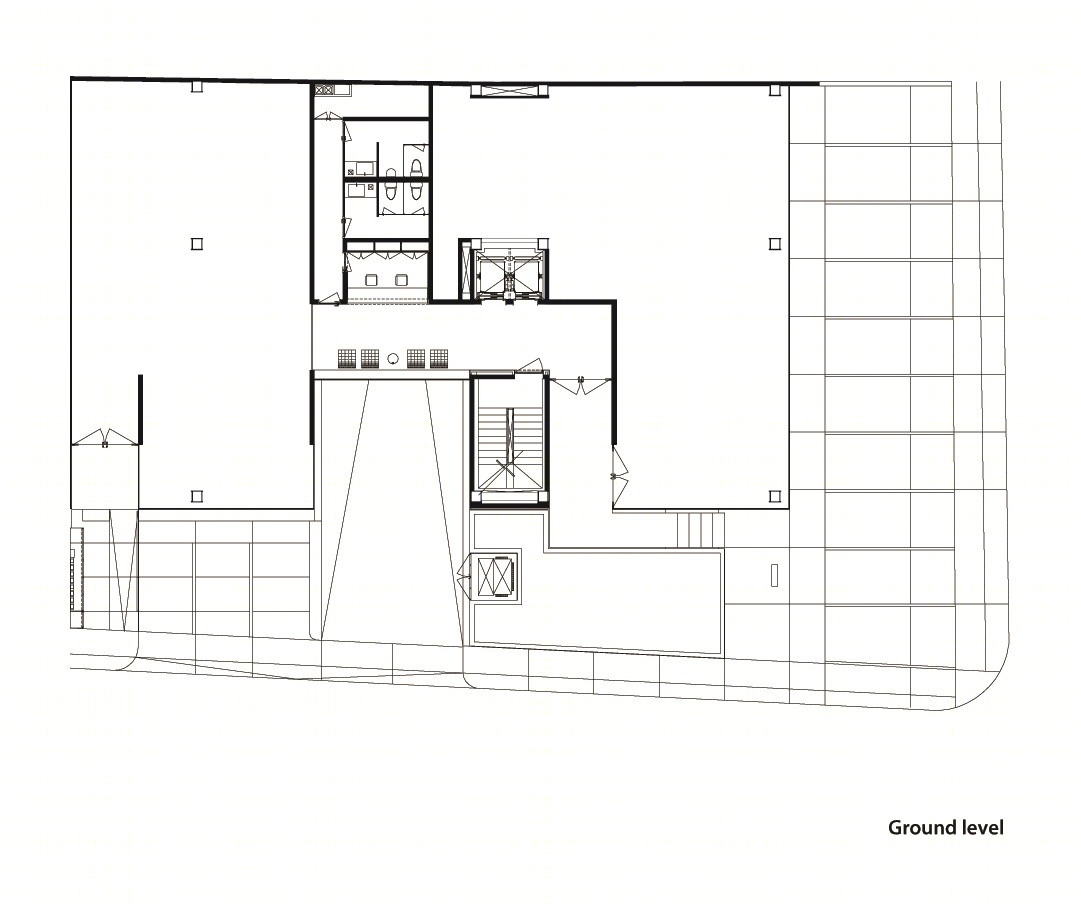

墨西哥LoMa Chapalita办公楼底层平面图
