韩国岘洞Limelight音乐咨询公司丨Dia Architecture

South Korea Xian hole Limelight Music a consulting firm

设计方：Dia Architecture

位置：韩国 首尔

分类：办公建筑

内容：实景照片

建筑设计负责人：Chung Hyuna

结构工程师：THE STRUCTURE

机电工程

师：BOW TECHNICAL CONSTRUCTION，SUNGJI E&C

设计团队：Lim Seoyeon

建筑公司：COAZ CONSTRUCTION

图片：14张

摄影师：Kyungsub Shin

这是由Dia Architecture设计的岘洞Limelight音乐咨询公司，位于一个人口稠密的居住区。场地周边的建筑高度和居民投诉很少得到尊重。建筑根据楼梯坡度形成折叠的造型，利用直跑楼梯减少建筑体量，每一层均设置天窗。该建筑主要为一个录音工作室，一直被当地居民投诉外墙不应对外开放，因此该设计以封闭式空间为主，并很自然地选择了砖墙这种材料。红砖与周边多样功能的住宅相互协调，通过砖墙表皮的切割，营造年久褪色的外观。

译者： 艾比

From the architect. The densely populated residential area on the inner side of Dosan-daero is a site in which civil complaints clash and height limits are rarely respected. The mass was folded according to the slopes of the stairs, to avoid a steeply set mass. By decreasing the mass as it ascends along the straight stairs, skylights were placed at each level. The building’s purpose is as a recording studio, which has instigated serious complaints by local residents restricted opening up the outer wall, with its closed figure naturally leading to a selection of bricks.Though red bricks were chosen in accordance with the surrounding multiplex housing, by using surface cutting of used bricks, an old faded look was achieved.

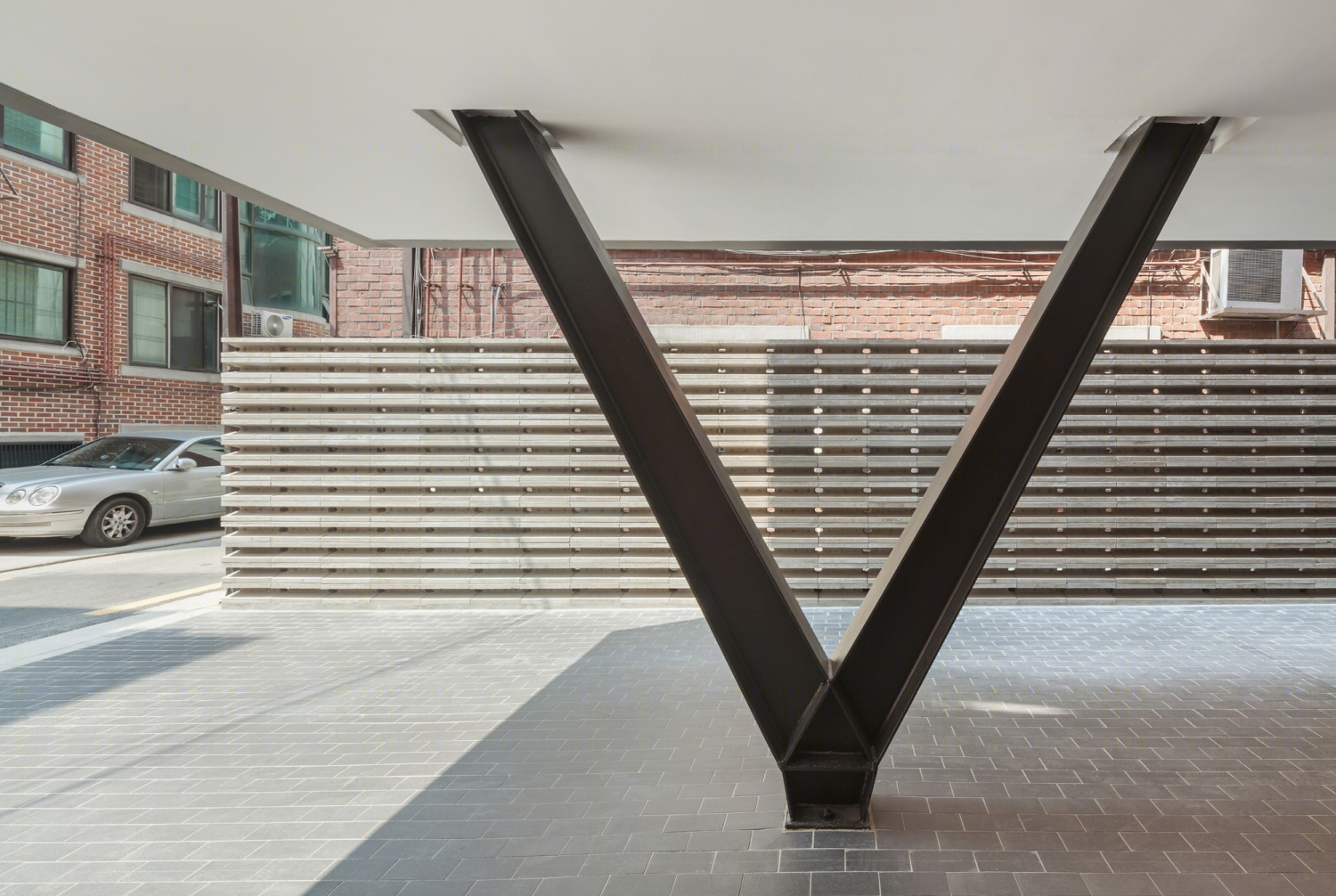

The recording studio on the second and third floors was sedigned to have no columns by using the windowless outer wall as a structure, and the volume containing the office on the fourth and fifth floors was built with a light transparent box to relieve the weight of the trans structure. The upper volume is supported by V-shape steel column in the ground floor car park, transferring the weight to the underground reinforced concrete column.

By inserting a commercial building in the block of multiplex housings, a nuanve of change was initiated by partially combining the light gestures of steel structure on the familiar brick building.

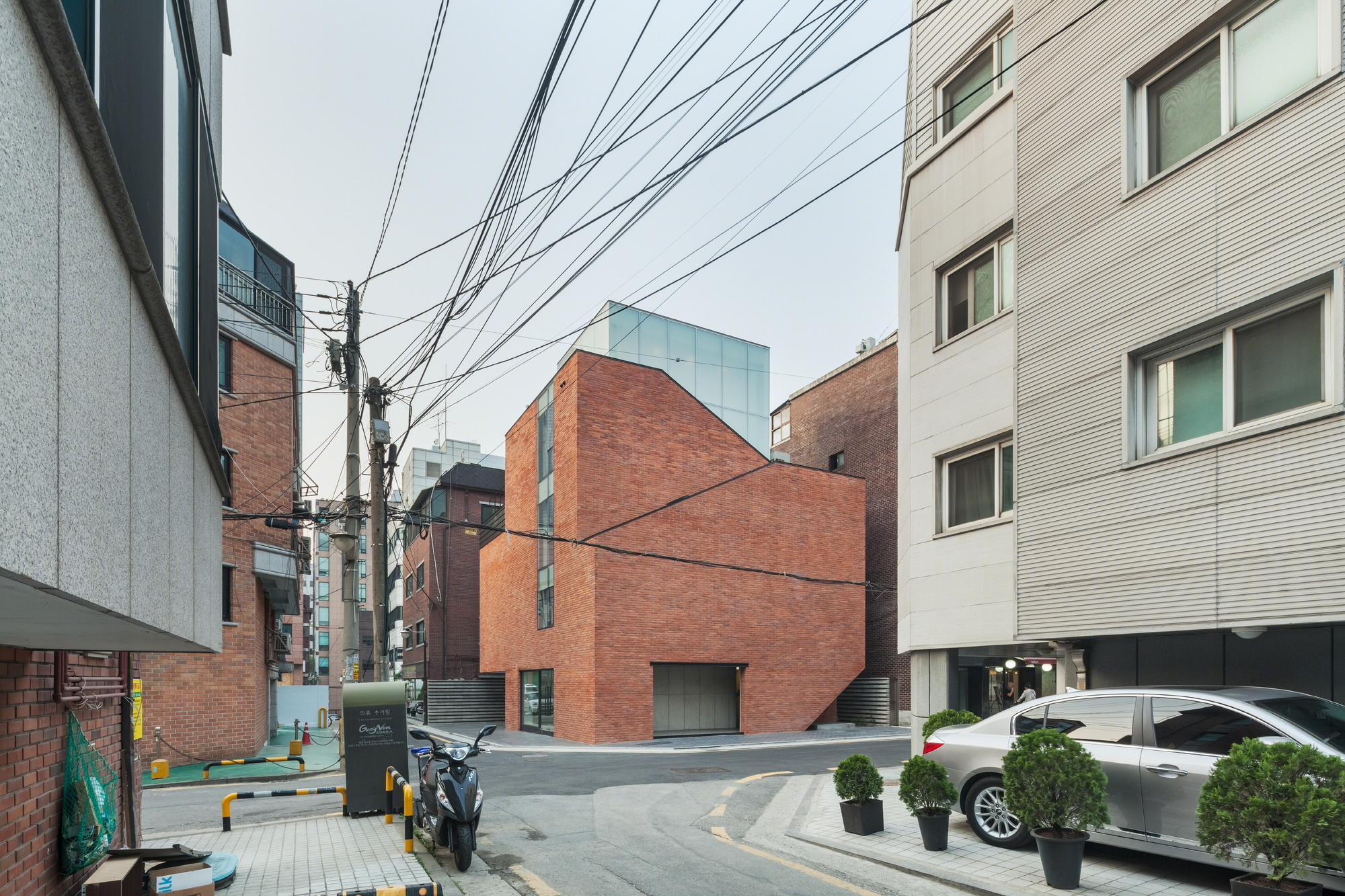

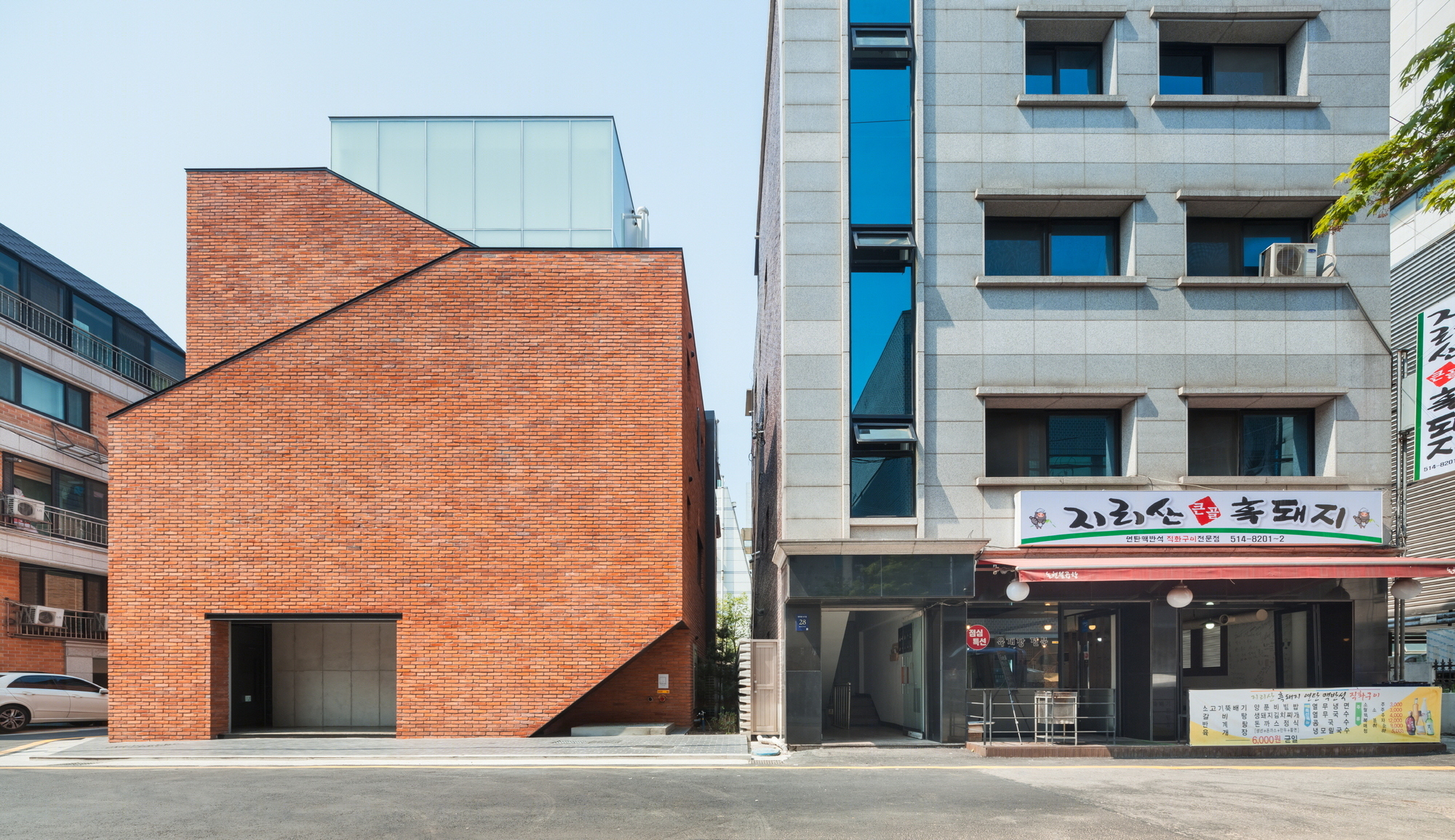

韩国岘洞Limelight音乐咨询公司外部实景图

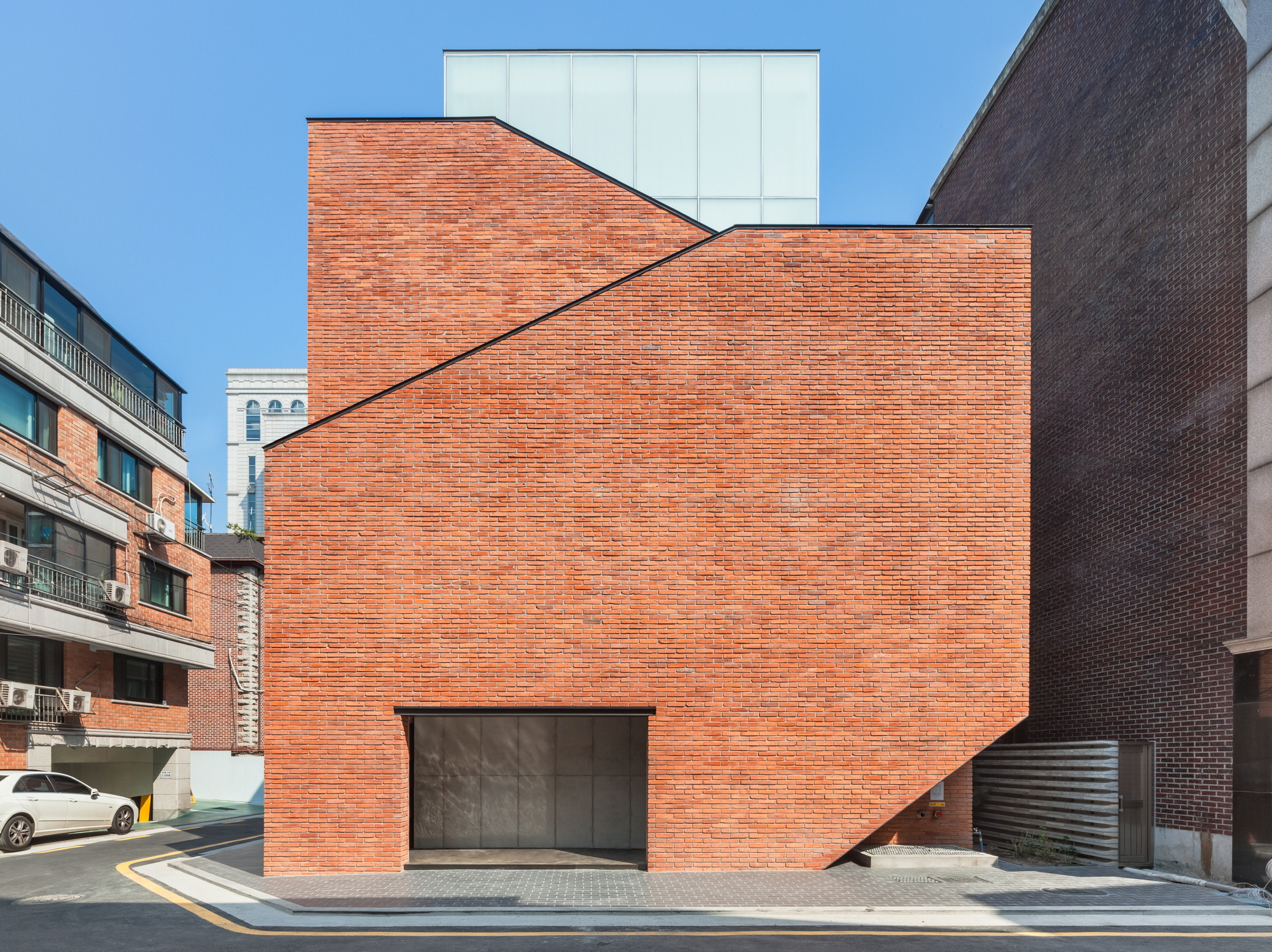

韩国岘洞Limelight音乐咨询公司外部局部实景图

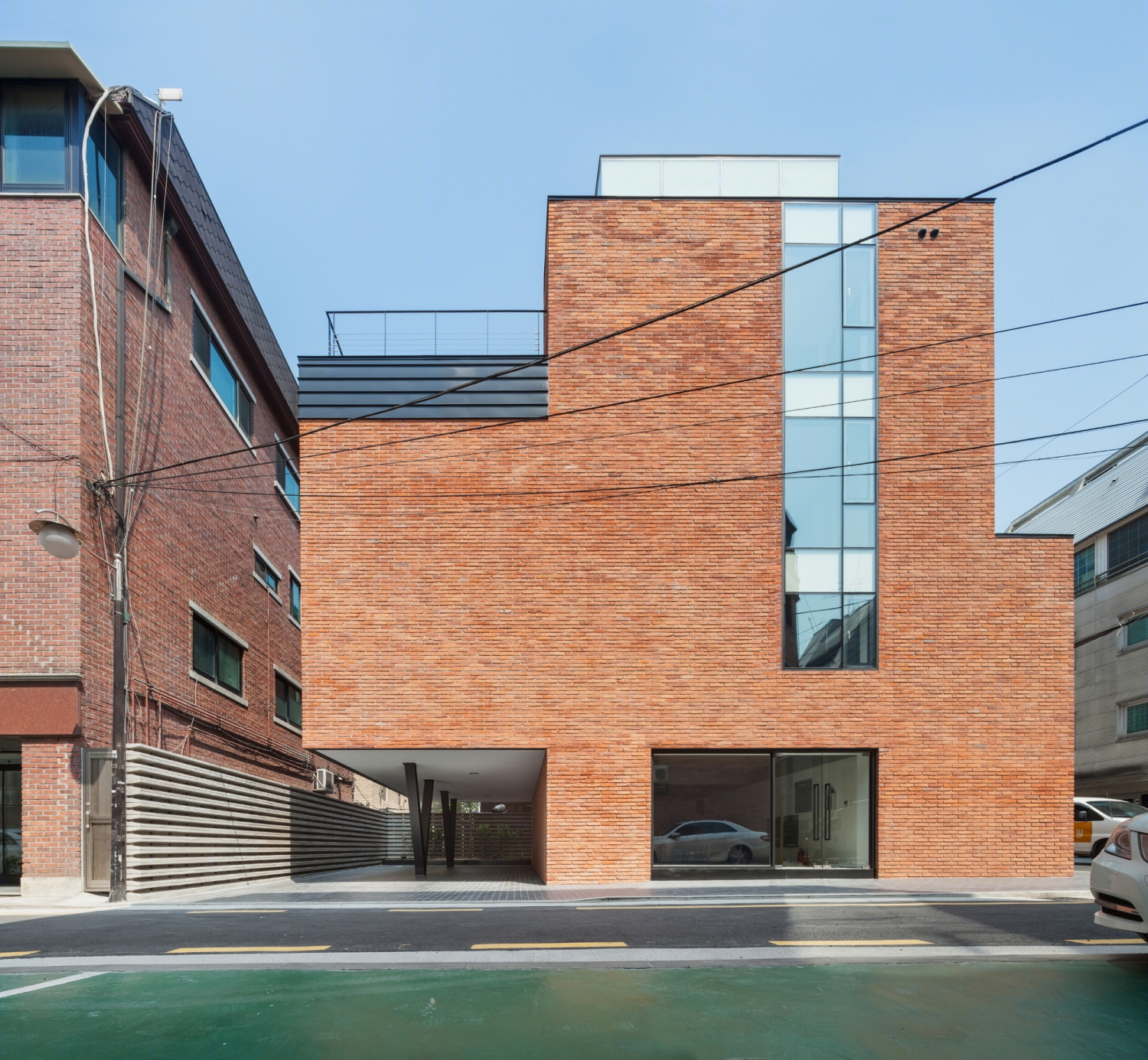

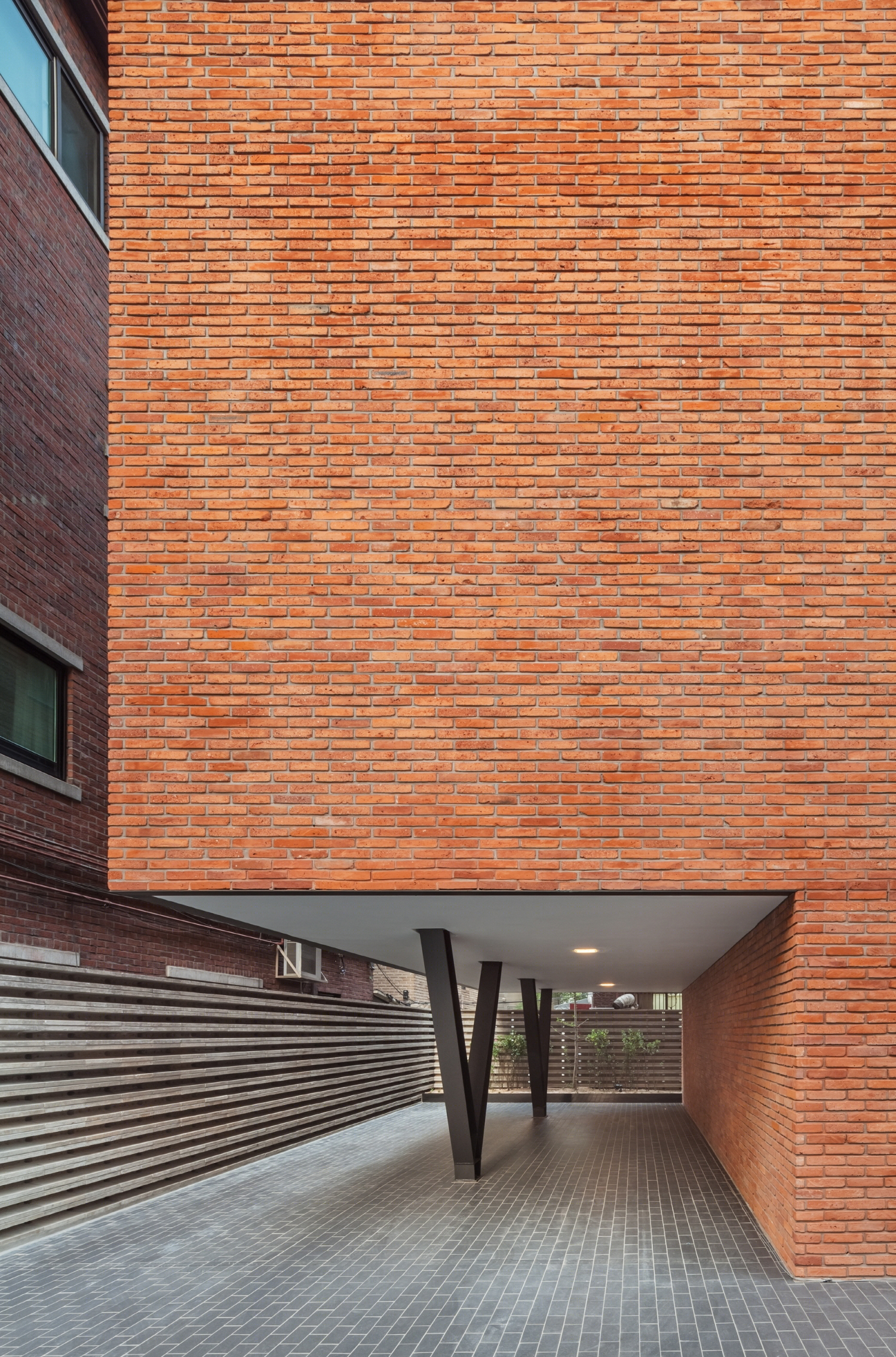

韩国岘洞Limelight音乐咨询公司外部底座实景图

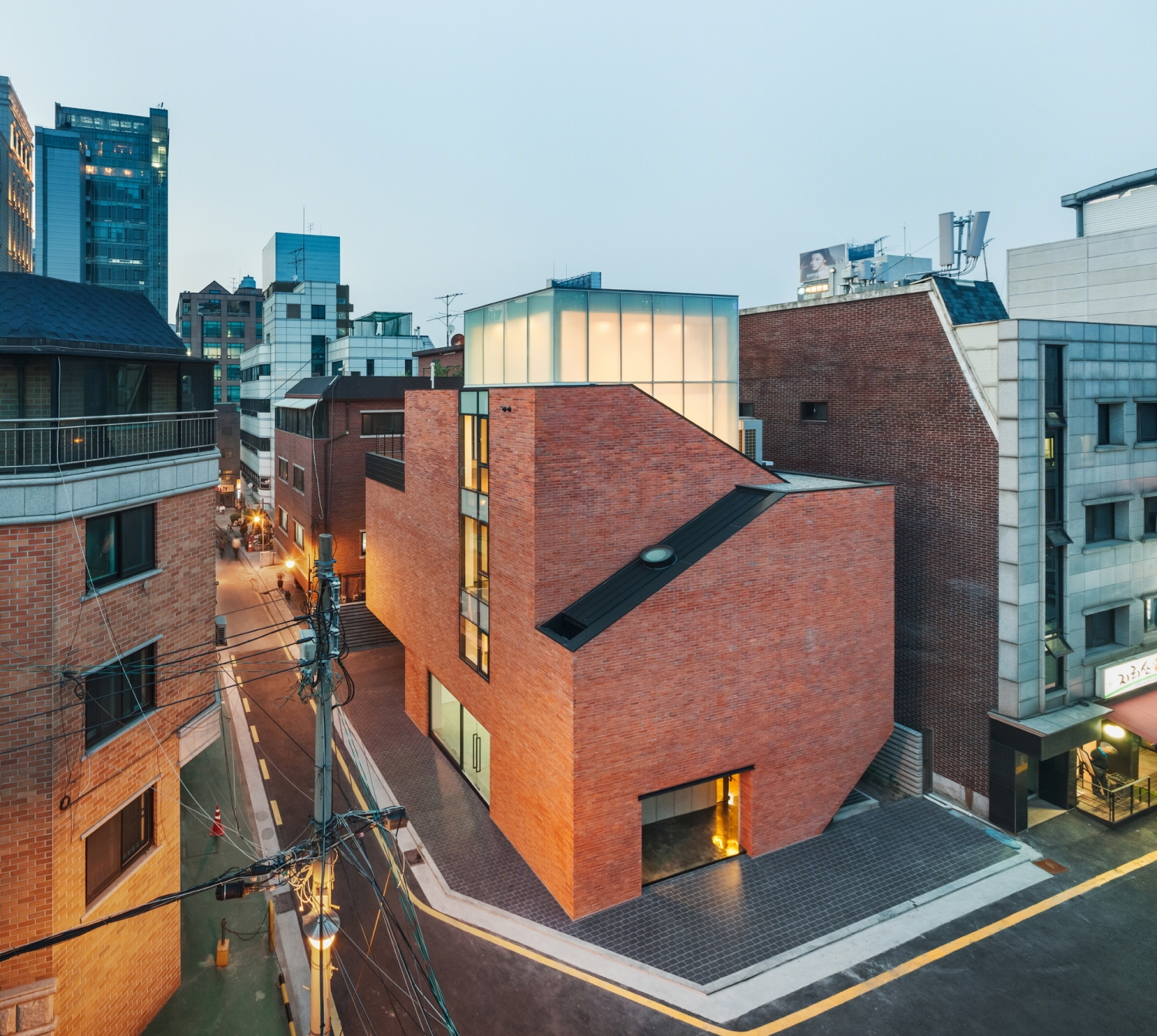

韩国岘洞Limelight音乐咨询公司外部夜景实景图

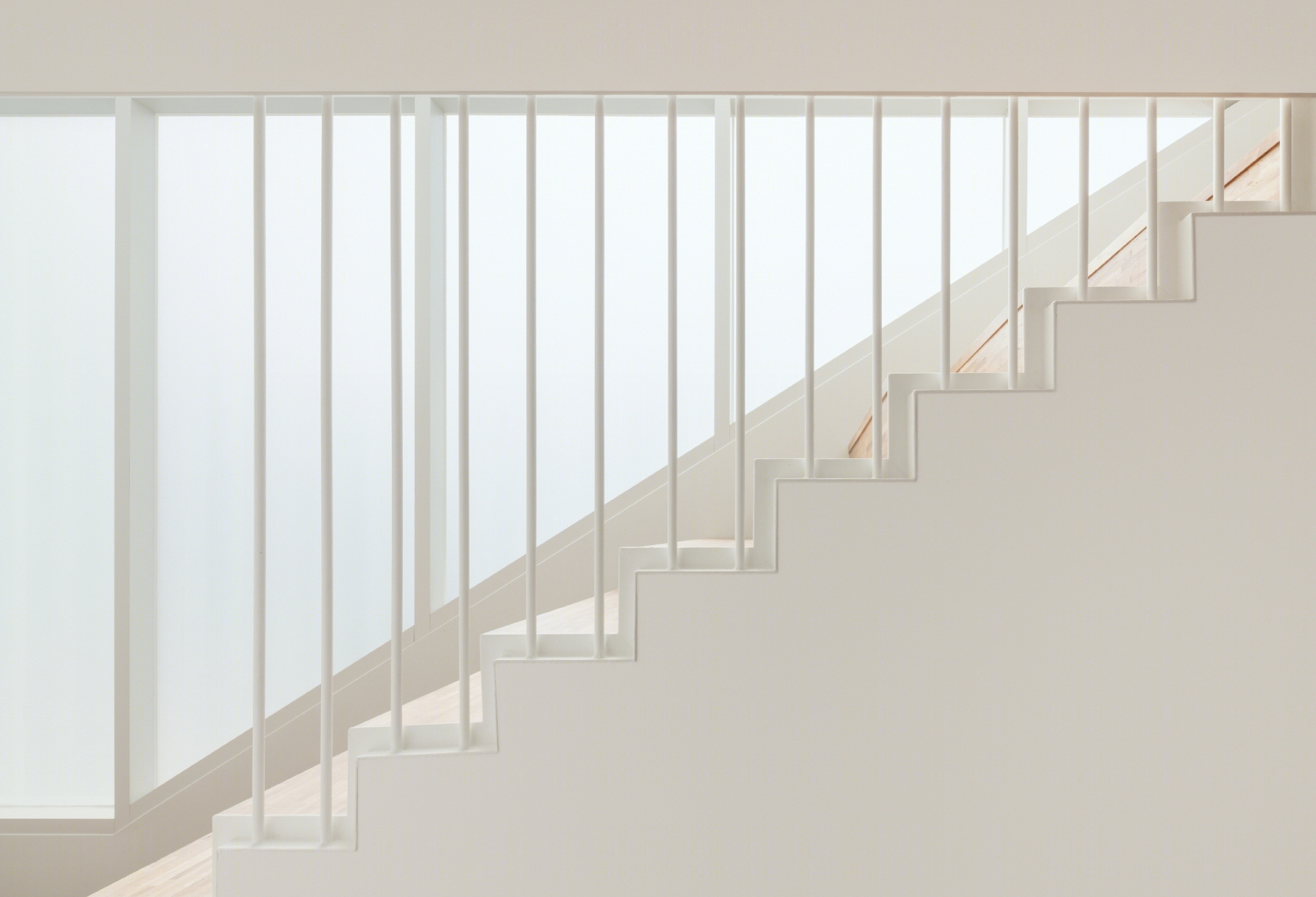

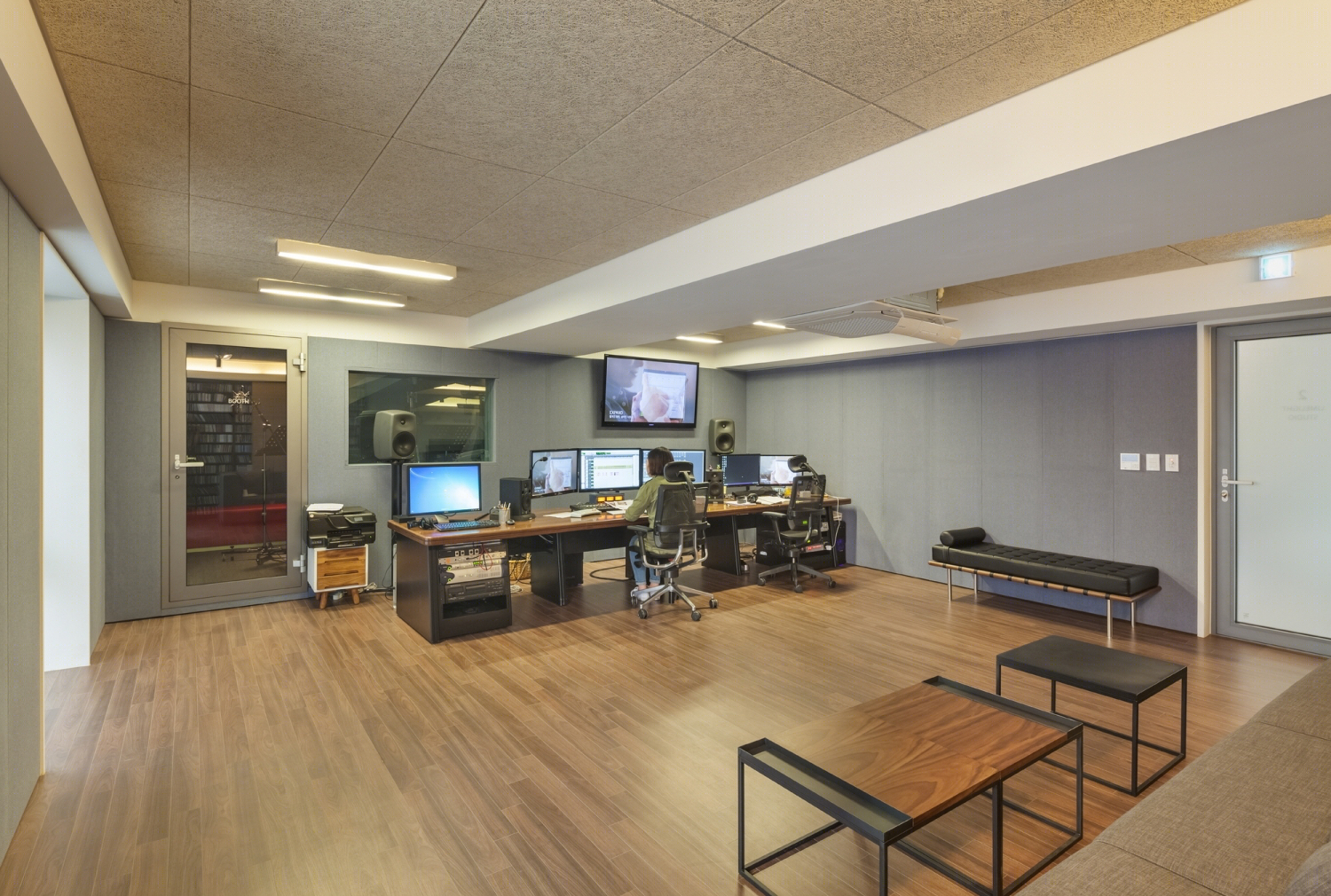

韩国岘洞Limelight音乐咨询公司内部实景图

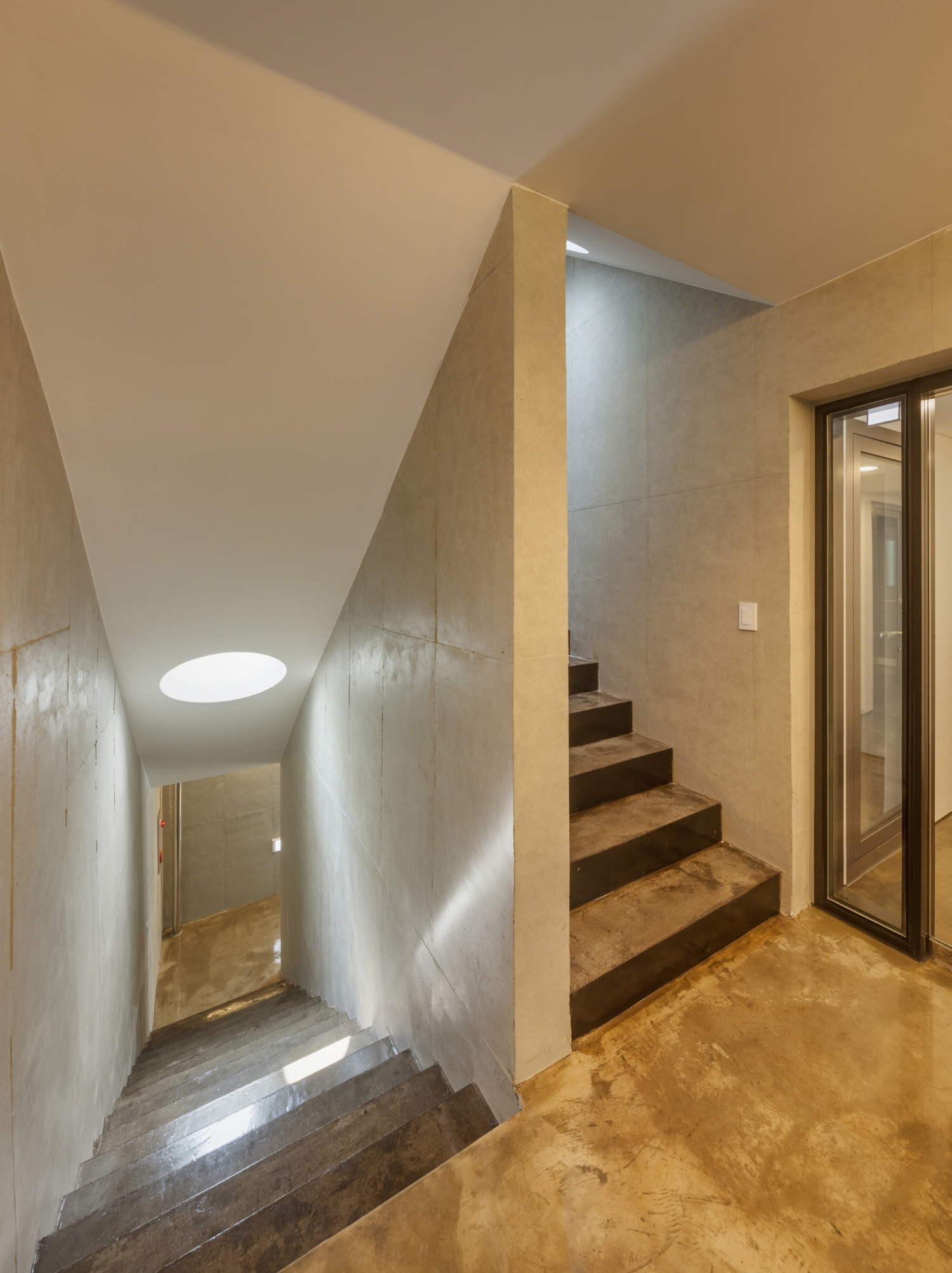

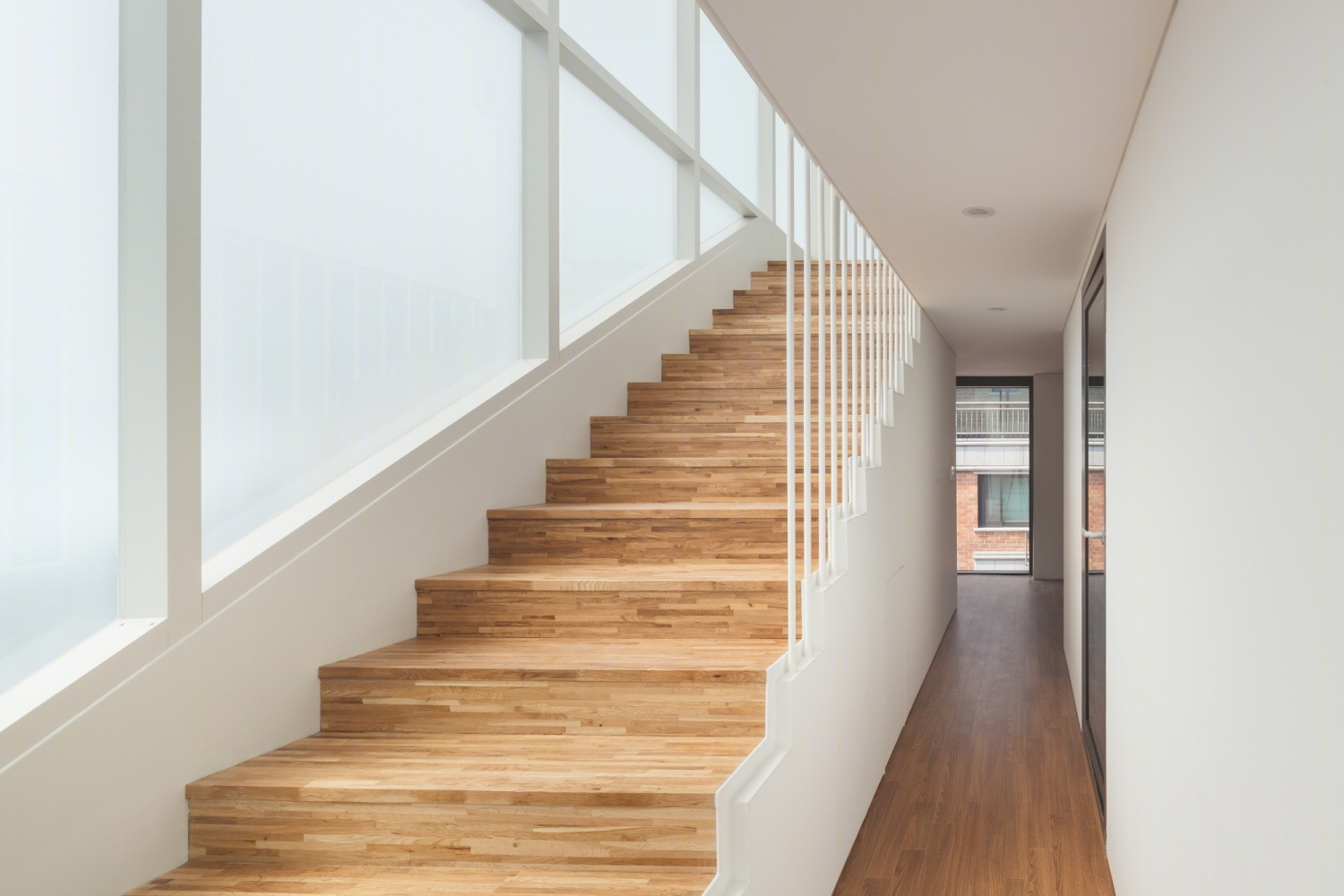

韩国岘洞Limelight音乐咨询公司内部过道实景图

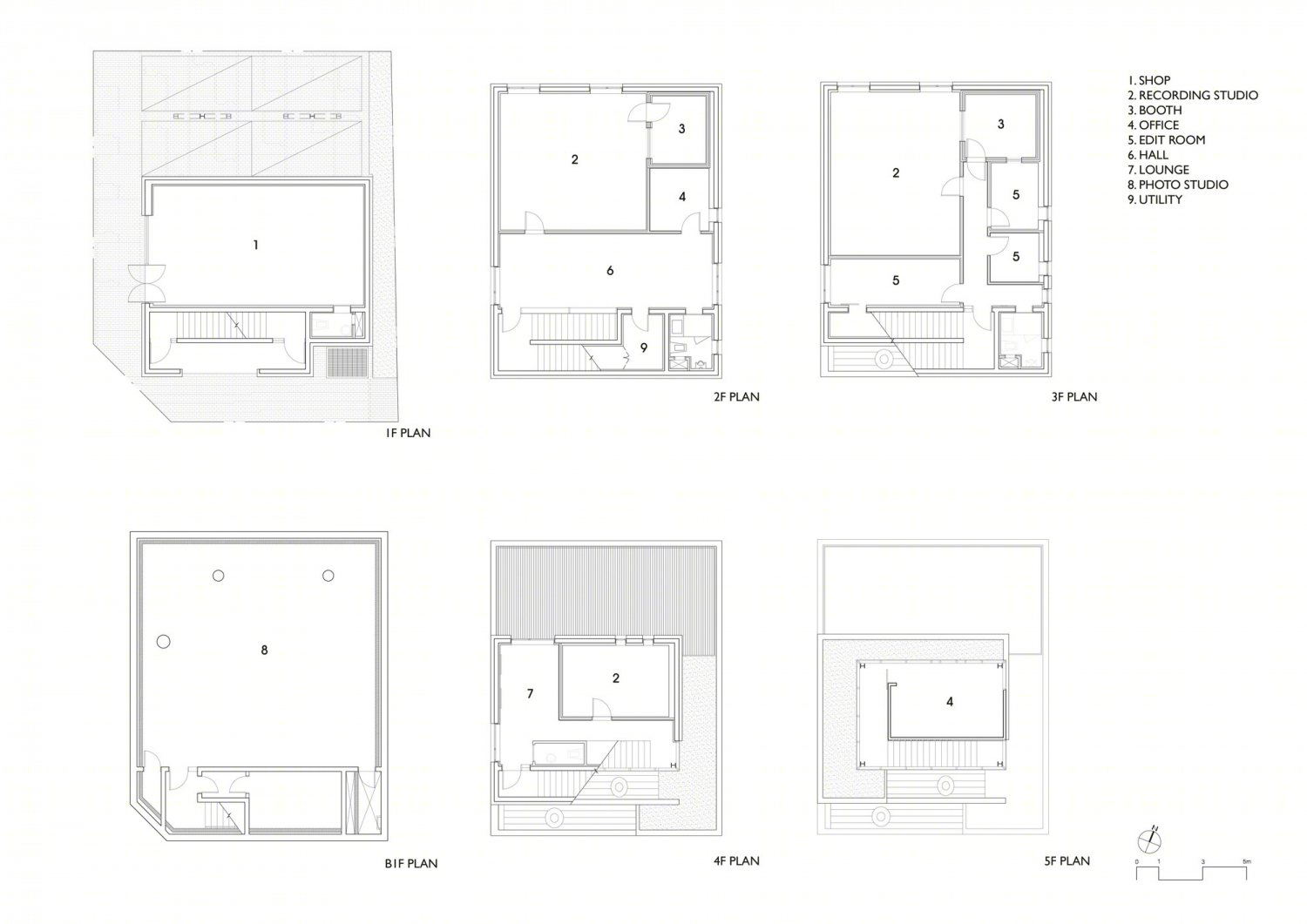

韩国岘洞Limelight音乐咨询公司平面图

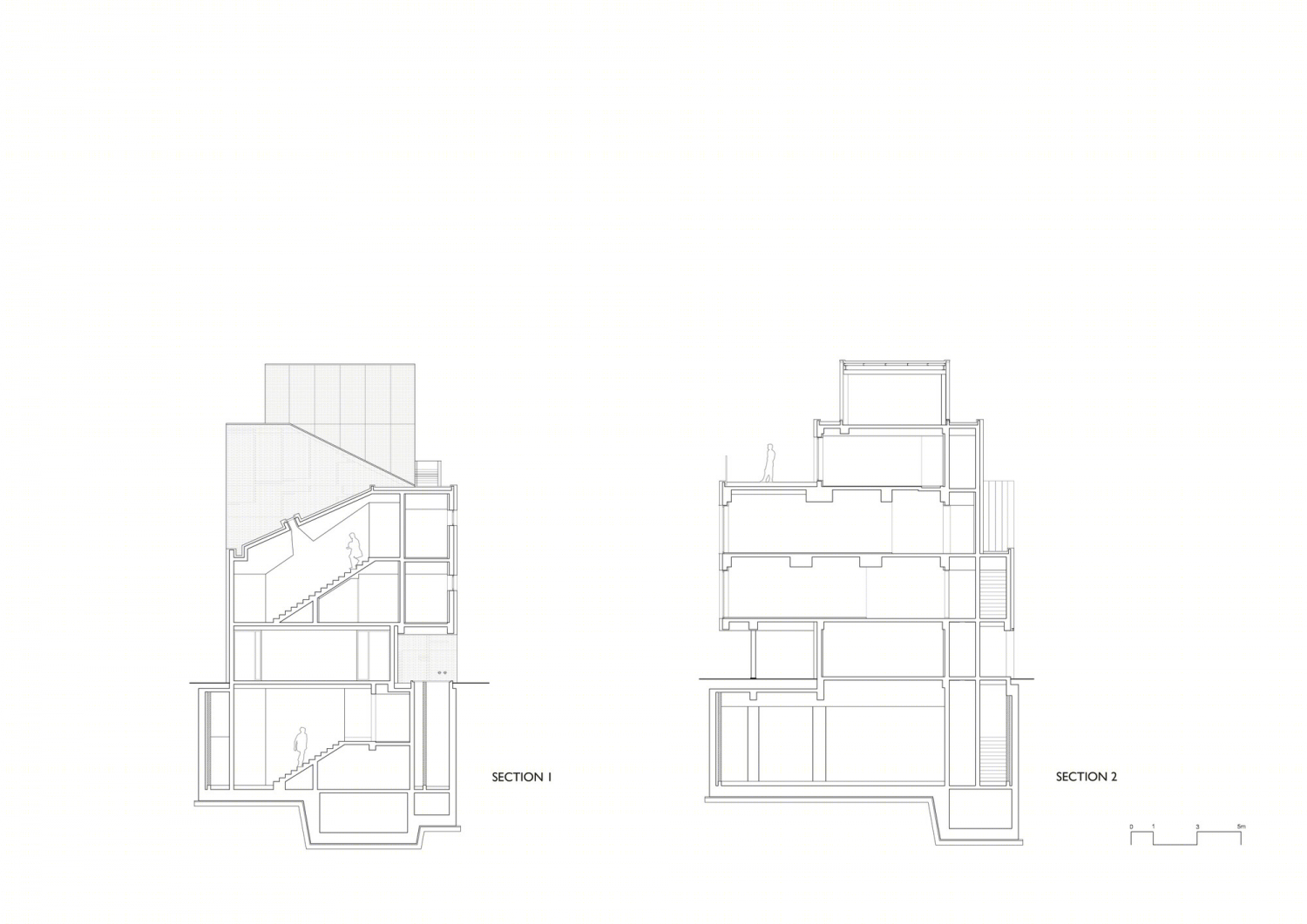

韩国岘洞Limelight音乐咨询公司剖面图

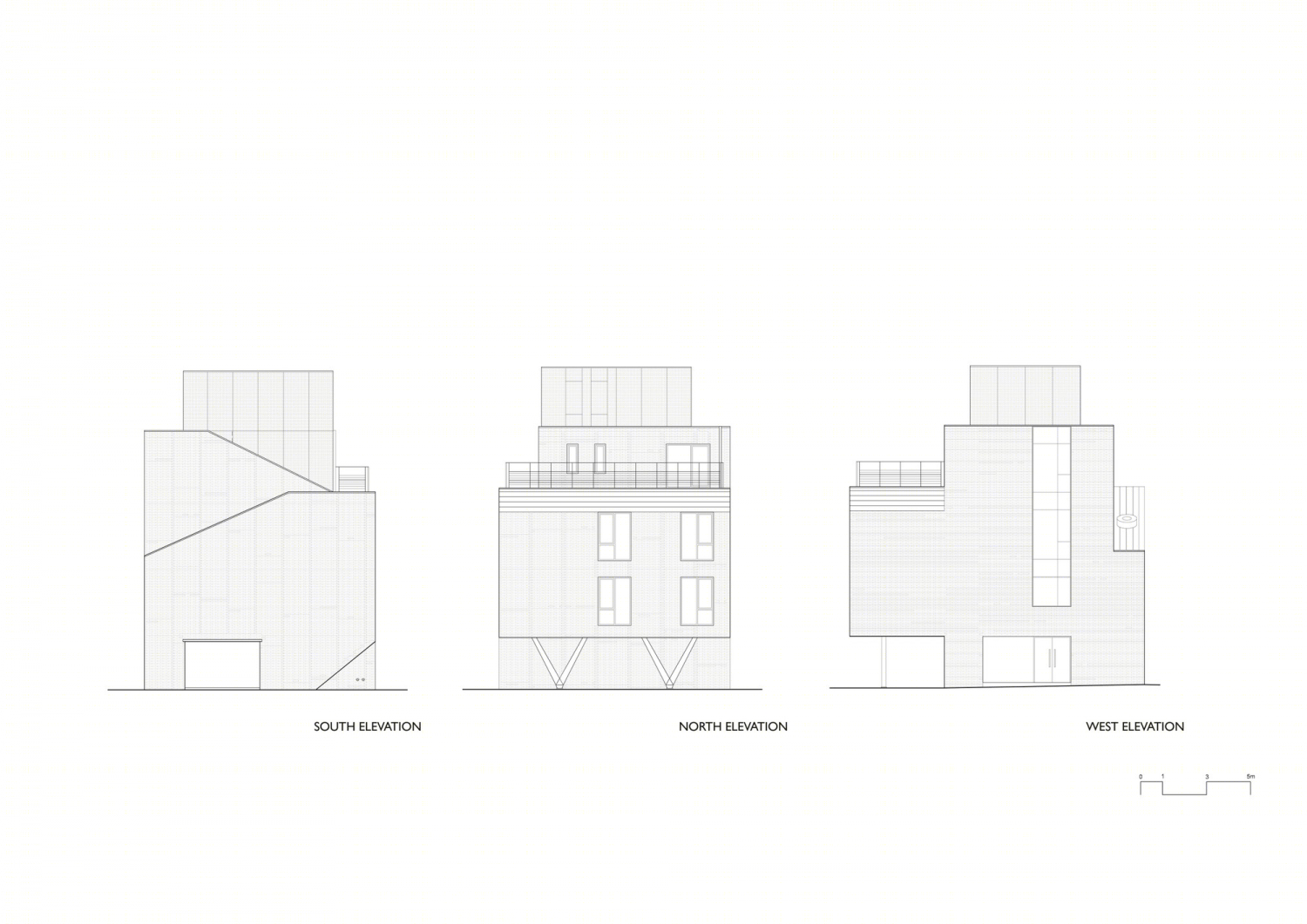

韩国岘洞Limelight音乐咨询公司正面图
