巴西圣保罗市湖滨餐厅丨mass arquitetura与 Norea De Vitto

Brazil Sao Paulo lakeside restaurant

设计方：mass arquitetura与 Norea De Vitto

位置：巴西

分类：商业建筑

内容：实景照片

结构工程师：Exata Engenharia

景观设计师：Gilberto Elkis paisagismo

设计团队：Arqº Gustavo Massimino / mass arquitetura e Arqª Nórea De Vitto / Galvez & De Vitto Interiores

建筑公司：Departamento de Patrimônio – Esporte Clube Pinheiros, EngºRonaldo Amaral, Engº Reinaldo Vicente dos

图片：21张

摄影师：Ana Mello

这是由mass arquitetura与 Norea De Vitto联合设计的湖滨餐厅，位于圣保罗市。这间日本餐厅位于一个步行式商场和湖滨俱乐部之间的一块小而狭长的场地，这里原本打算建设休憩小亭。该项目旨在建造一座精细而雅致的建筑物，成为景观的一部分，让郁郁葱葱的植物称为环境中的主角。因此建筑师根据功能和项目需求，减少建筑对环境的影响，提高建筑的高度，营造“飞”在湖面之上的感觉，加强该建筑的轻盈感。该项目中运用了日本文化中的一些戒律，如简洁与纯粹，对立与统一等。该项目创建了一个干净的视觉空间，通过打破寒冷而无生命感的空间与周边环境融为一体。

译者： 艾比

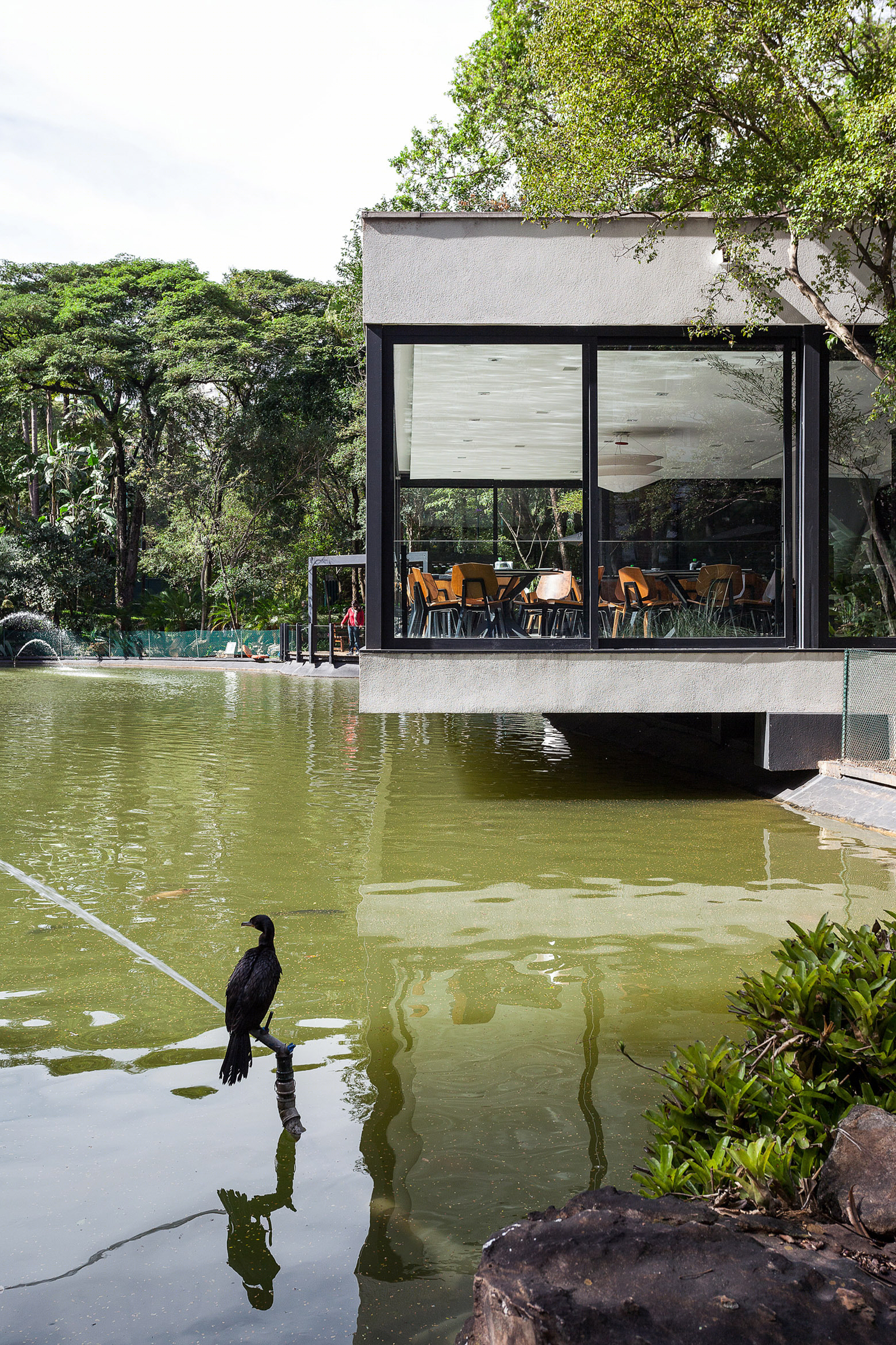

From the architect. Located at Esporte Clube Pinheiros in the city of São Paulo, the project for a Japanese restaurant is located in a small strip of land between a walking mall and the lake club , originally there was a kiosk for contemplation of the lake.The goal of the project was to implement the construction of subtle and delicate way, as a part of the landscape because the vegetation is lush in the surroundings and should remain the protagonist.So we could adapt the program and project needs, reduce the impact of it in the environment and enhance its location, the project was thought to be in “flying” over the lake, a fact that reinforced the desired lightness in the project.

Originally thought to be a wooden building both internally and externally seeking warmth and sophistication, the project has changed as to adjustments in the work implementation costs.From this conceptual review the project wants to make use of some precepts of Japanese culture, such as simplicity and purity, beyond the rhetoric of opposites, In and Iang. The project has created a clean visually space and integrated with its surroundings looking to breaking the stigma of cold and lifeless space, very commonly related to certain buildings with these characteristics.The storey building is composed of two volumes that are merging and contains specific functions. In the largest volume are the lounge, which faces the lake and has 180 degree views through frames with glass, and the toilets closed in an empty small to which embraces an existing palm. Externally this volume finished in white color.

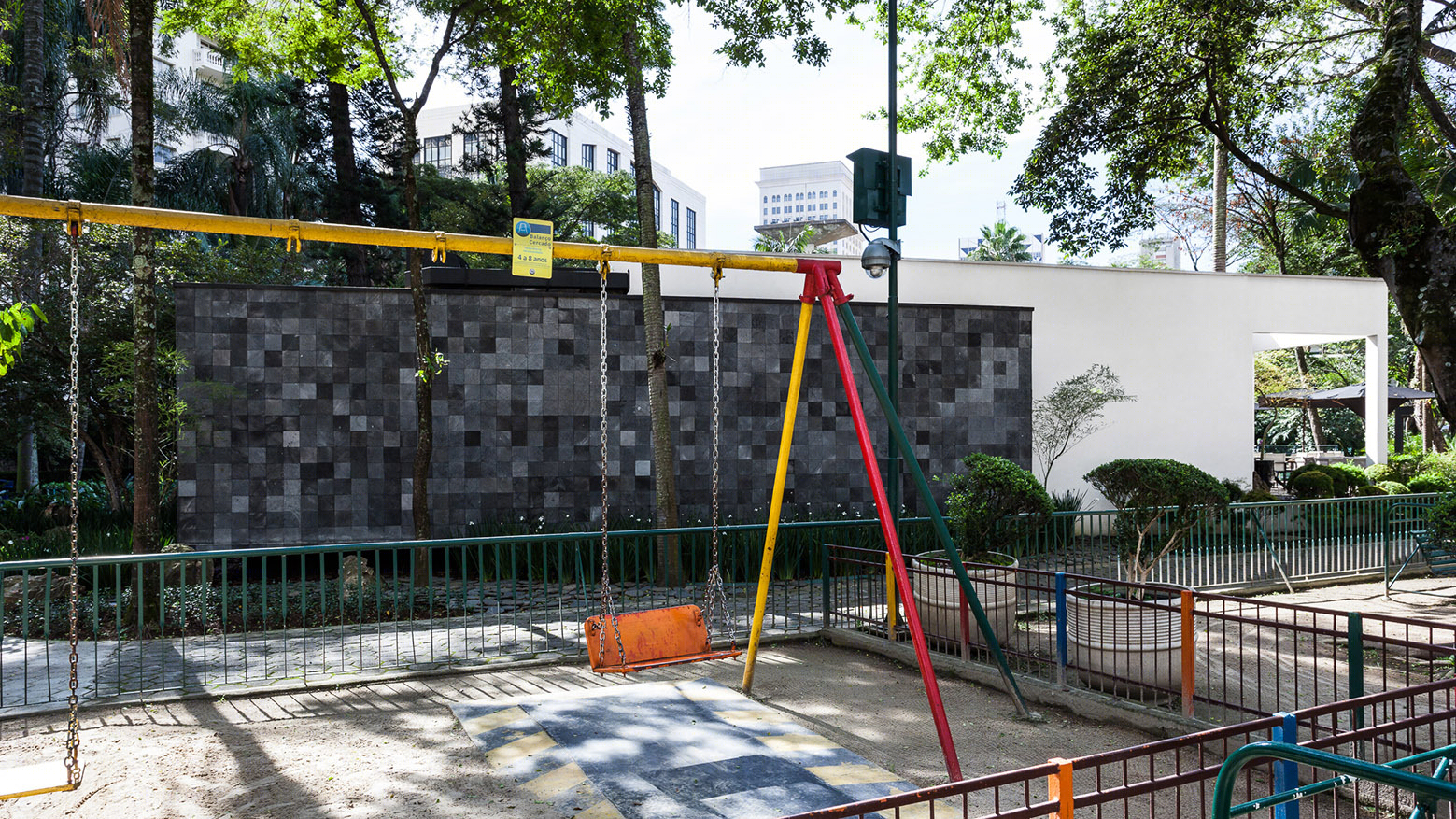

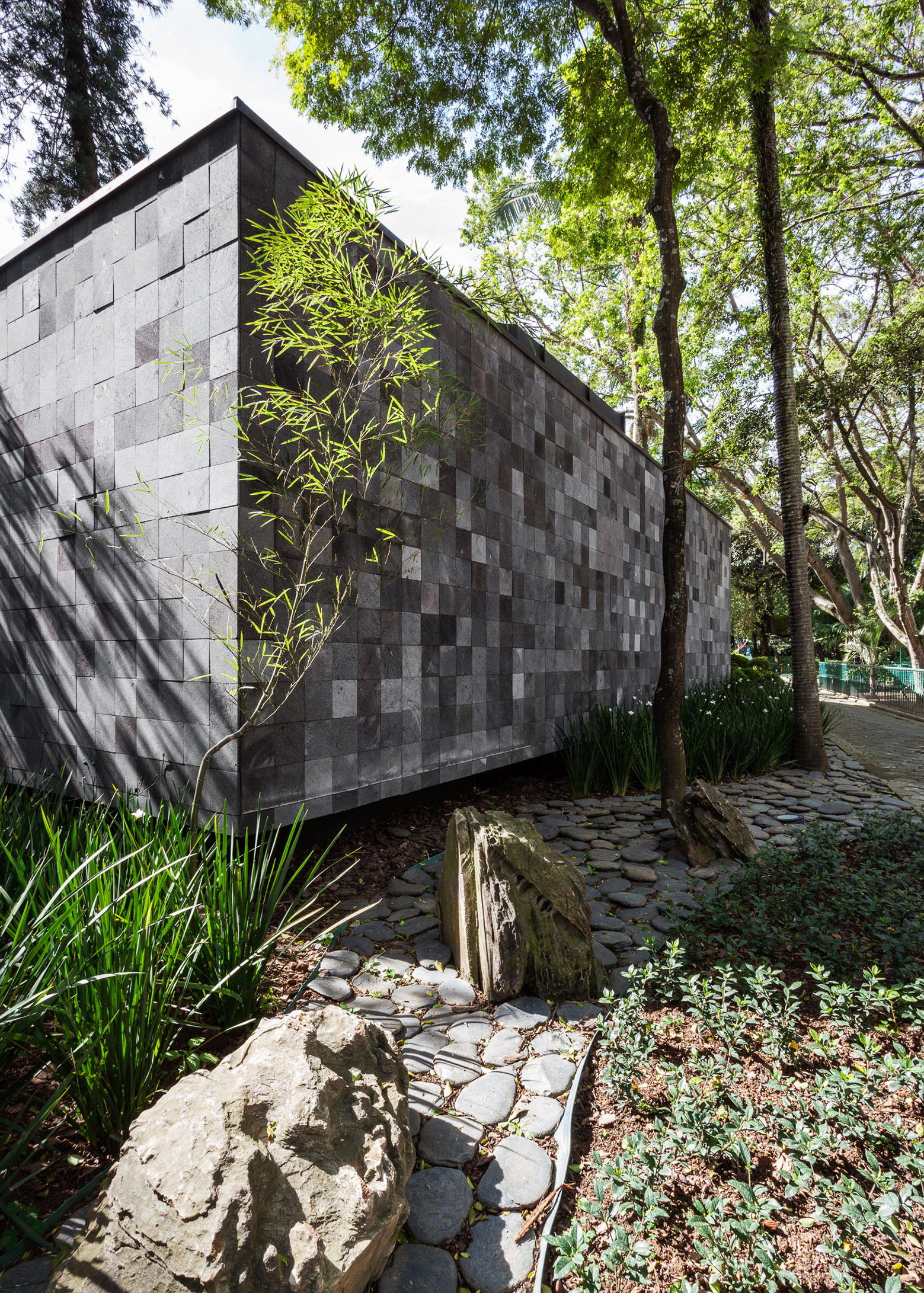

The smaller volume contains the kitchen, storage and changing rooms and toilets employees, and which is closed to the outside area because it positioned along the promenade being covered in volcanic stones in black color.Internally the finishing materials seem to emphasize the relationship between interior and exterior with the maintenance of the use of black and white colors. The floor on concrete slabs beige in color is another element that seeks the unit as this installed either in the lounge as in toilets and the bar area. The point against the black and white is given by the wooden freijófurniture.The building wasto be performed with a metallicstructure with cement board on closures to improve the time of construction and the disposal of excess materials.

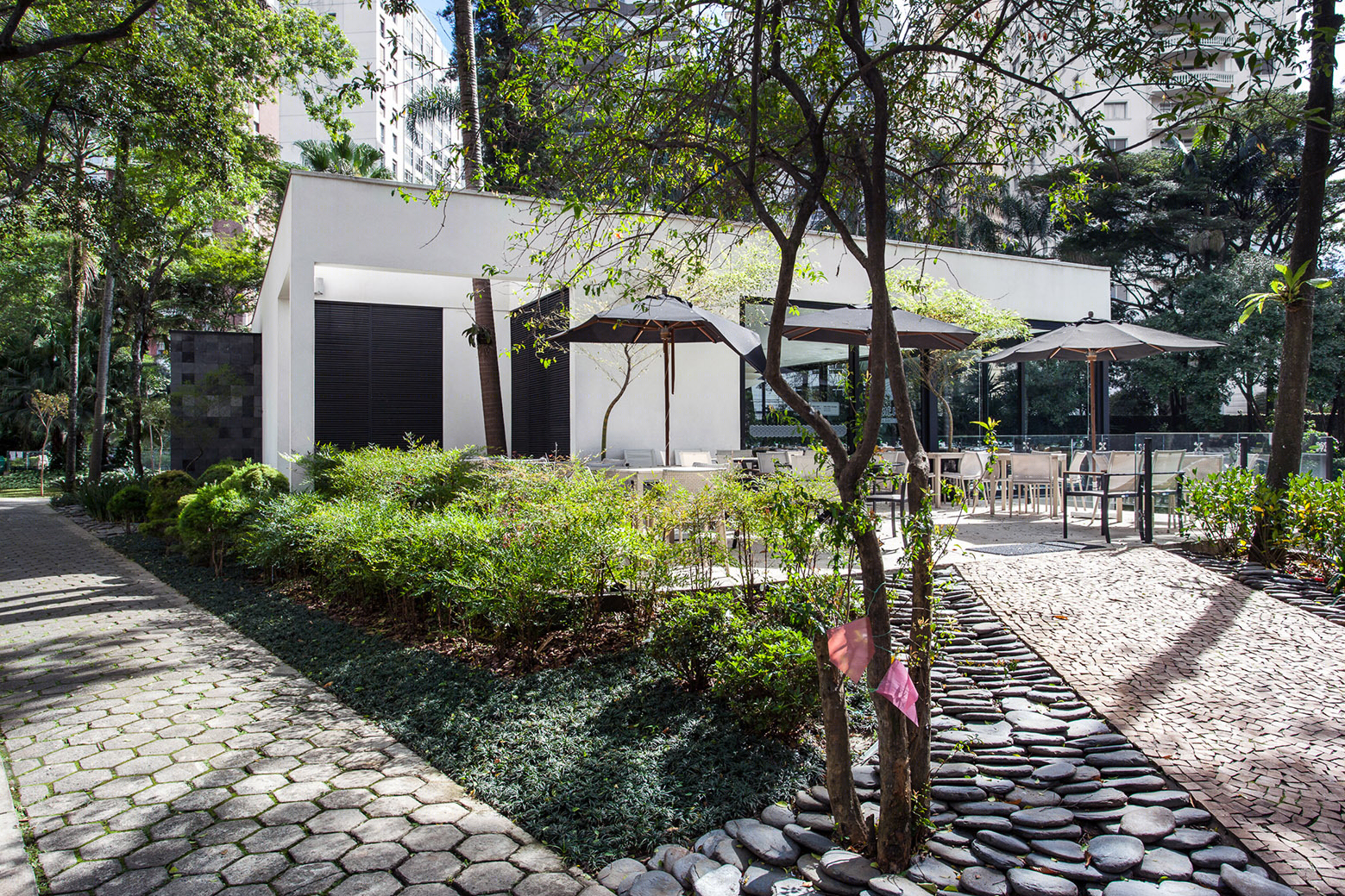

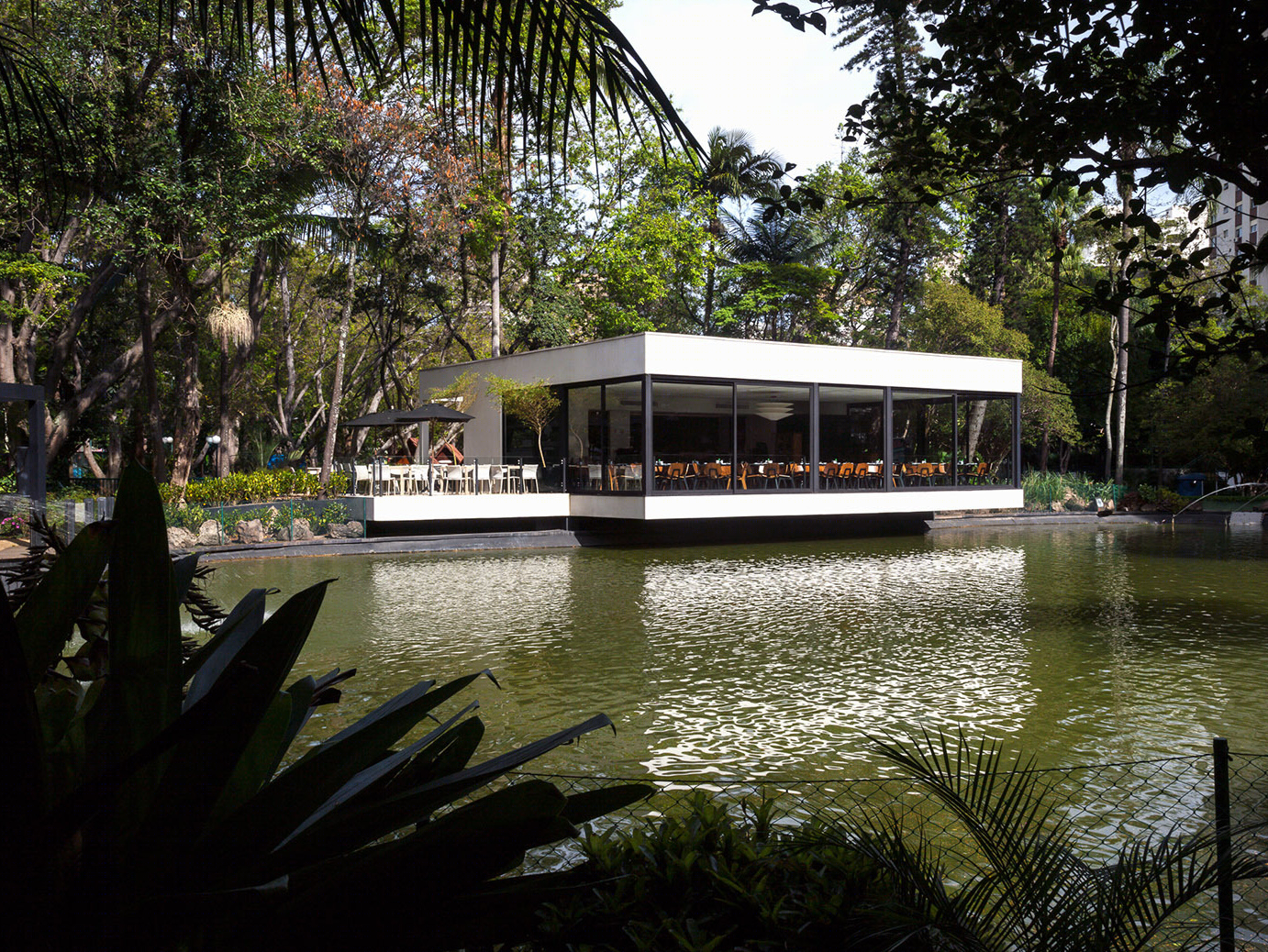

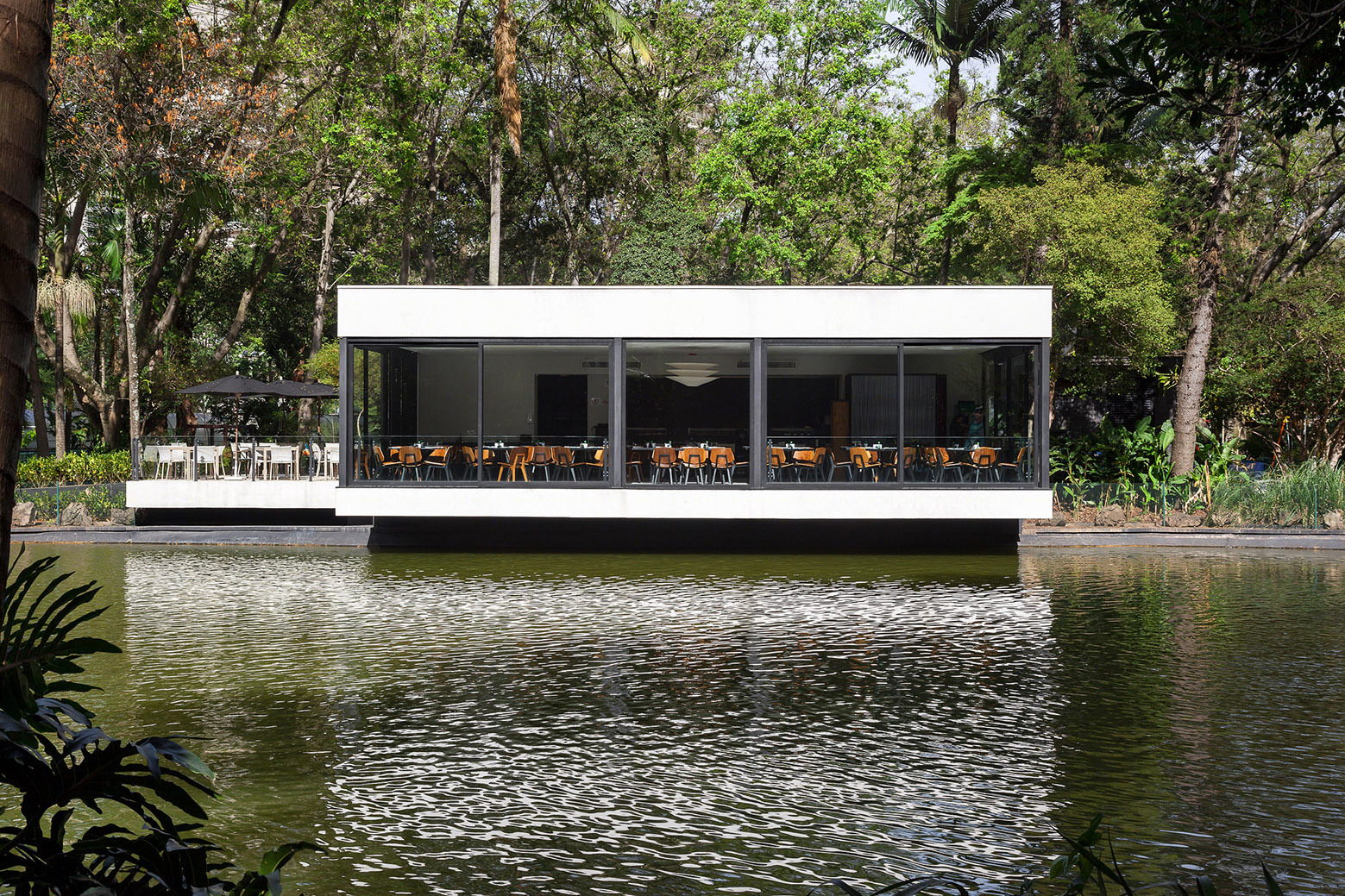

巴西圣保罗市湖滨餐厅外部实景图

巴西圣保罗市湖滨餐厅外部局部实景图

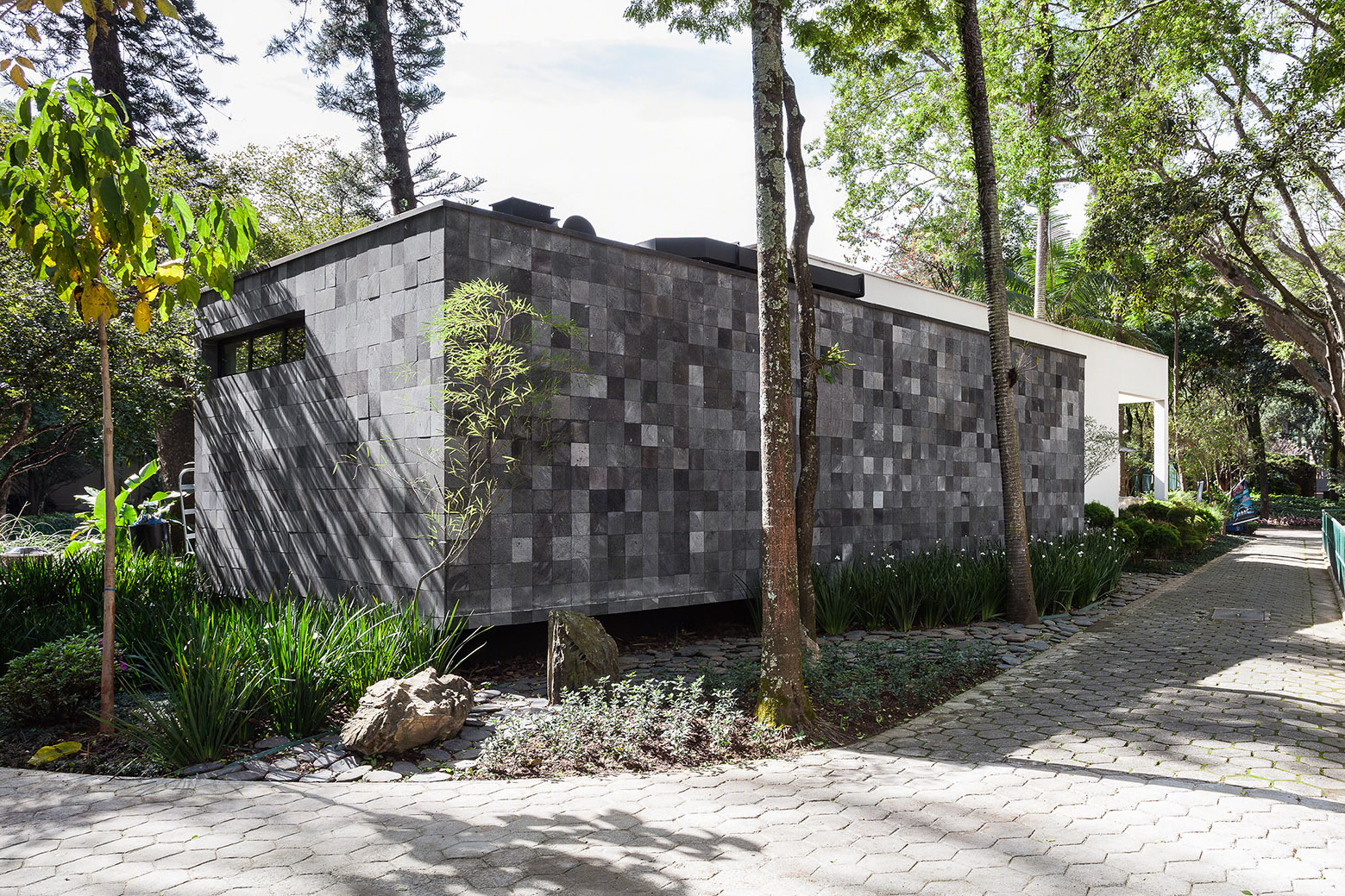

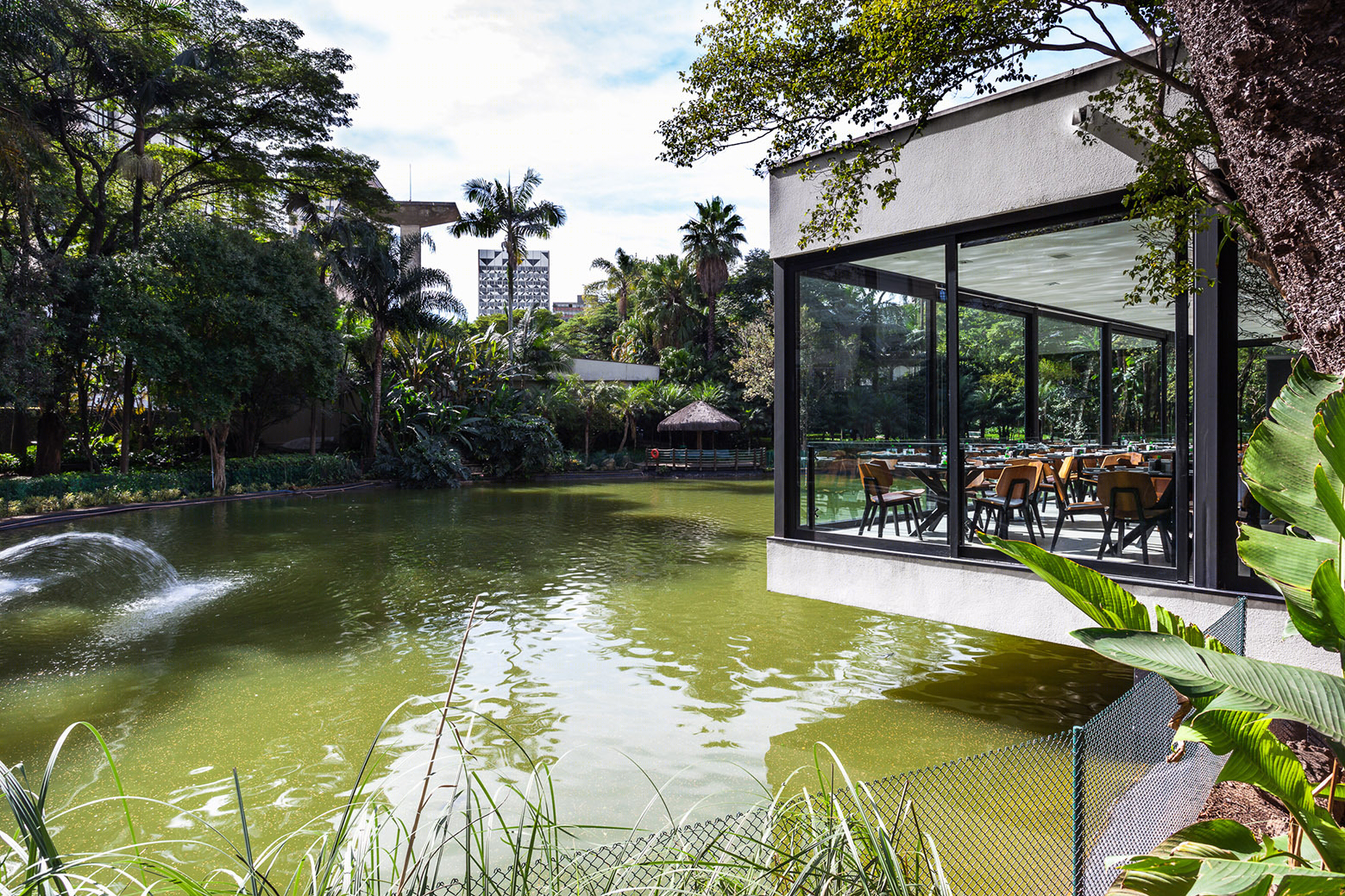

巴西圣保罗市湖滨餐厅外部侧面实景图

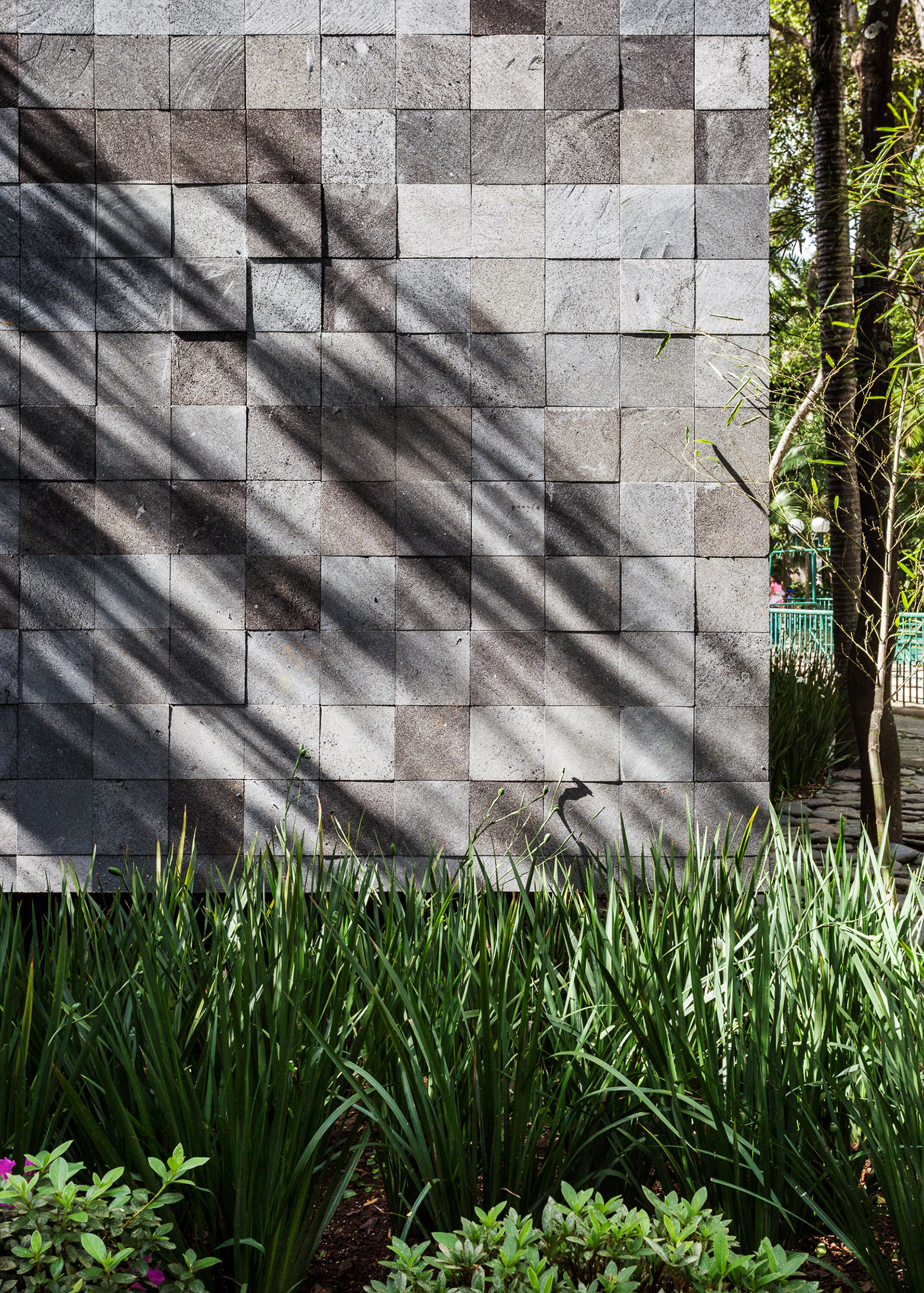

巴西圣保罗市湖滨餐厅外部细节实景图

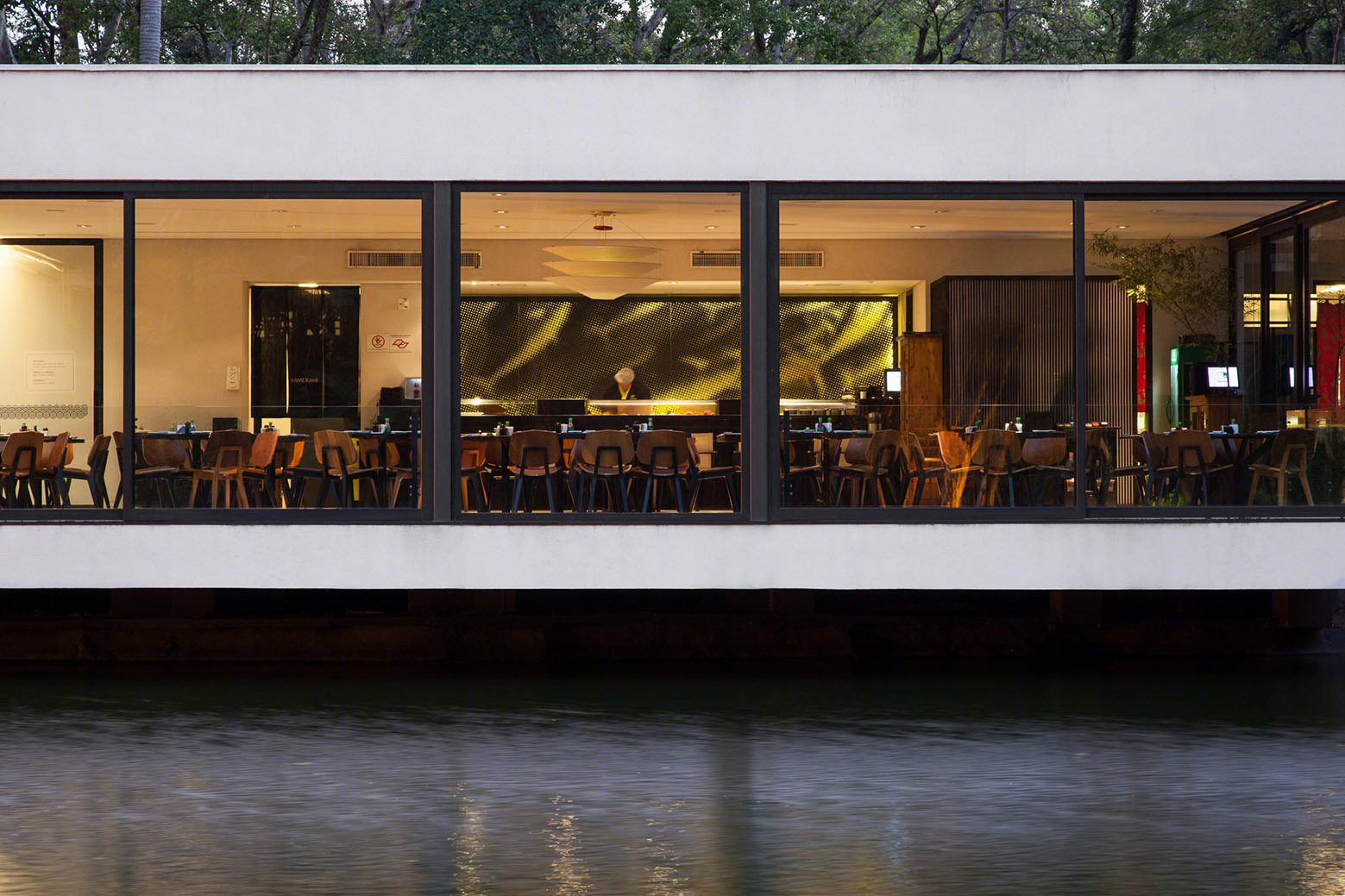

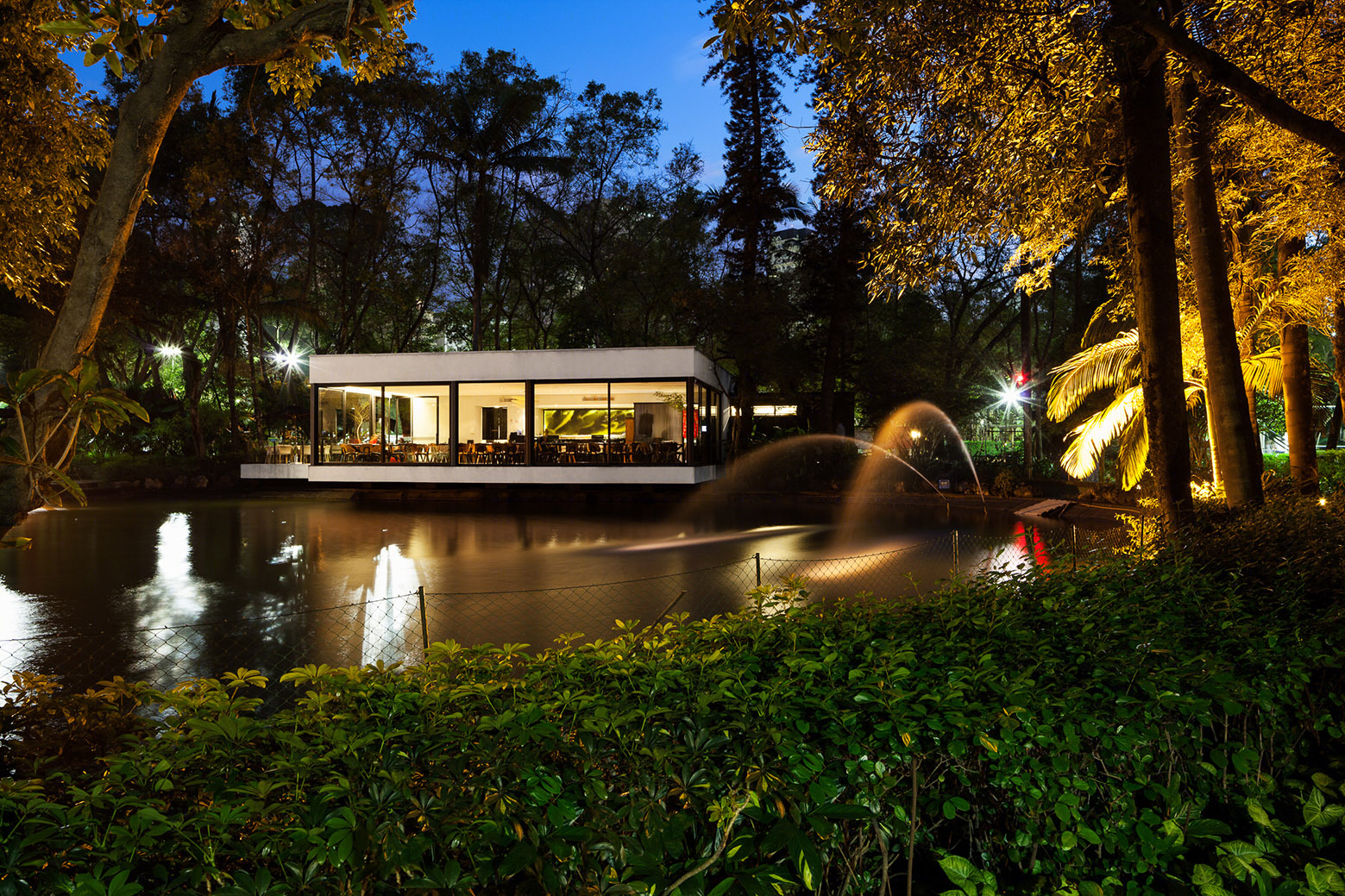

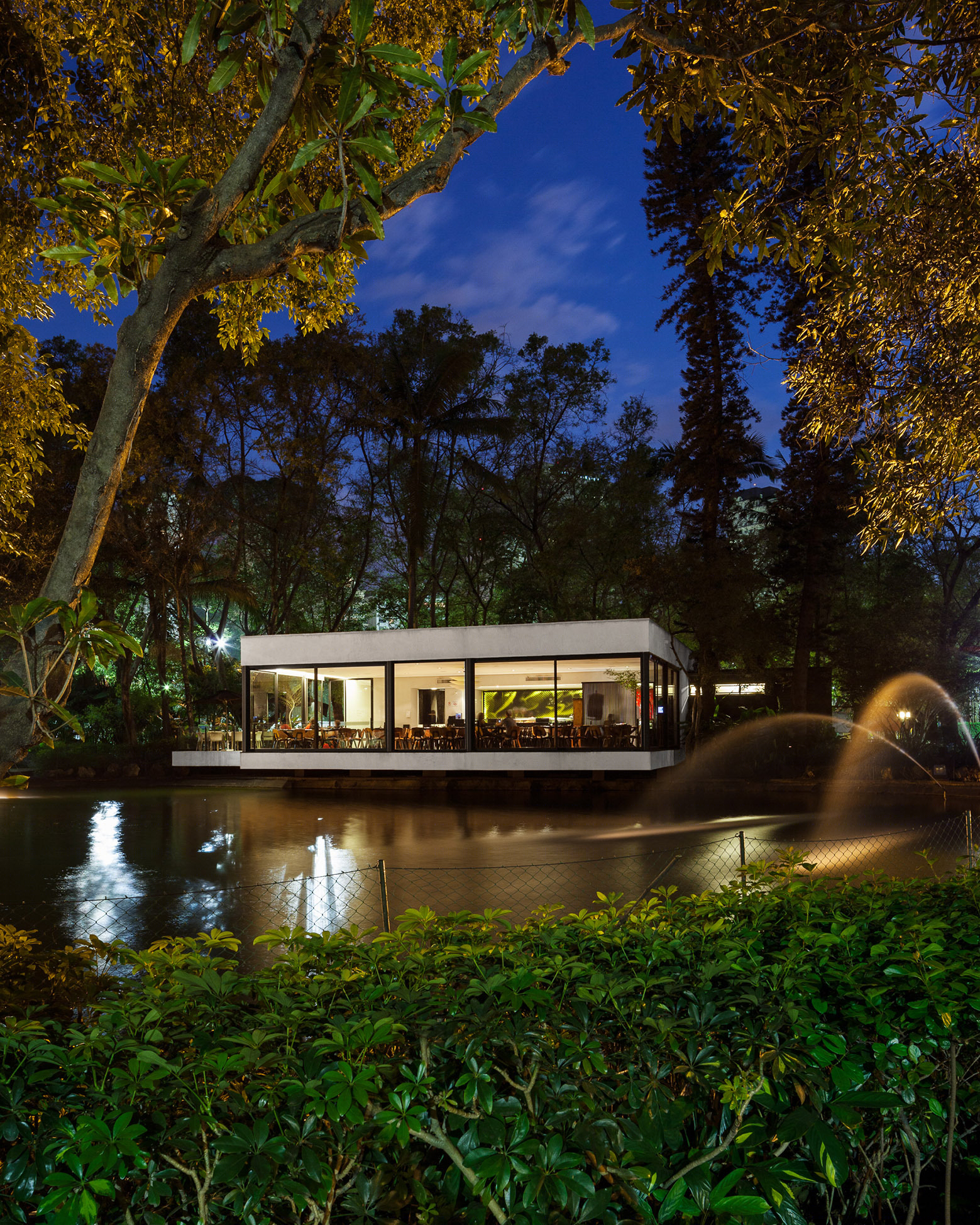

巴西圣保罗市湖滨餐厅外部夜景实景图

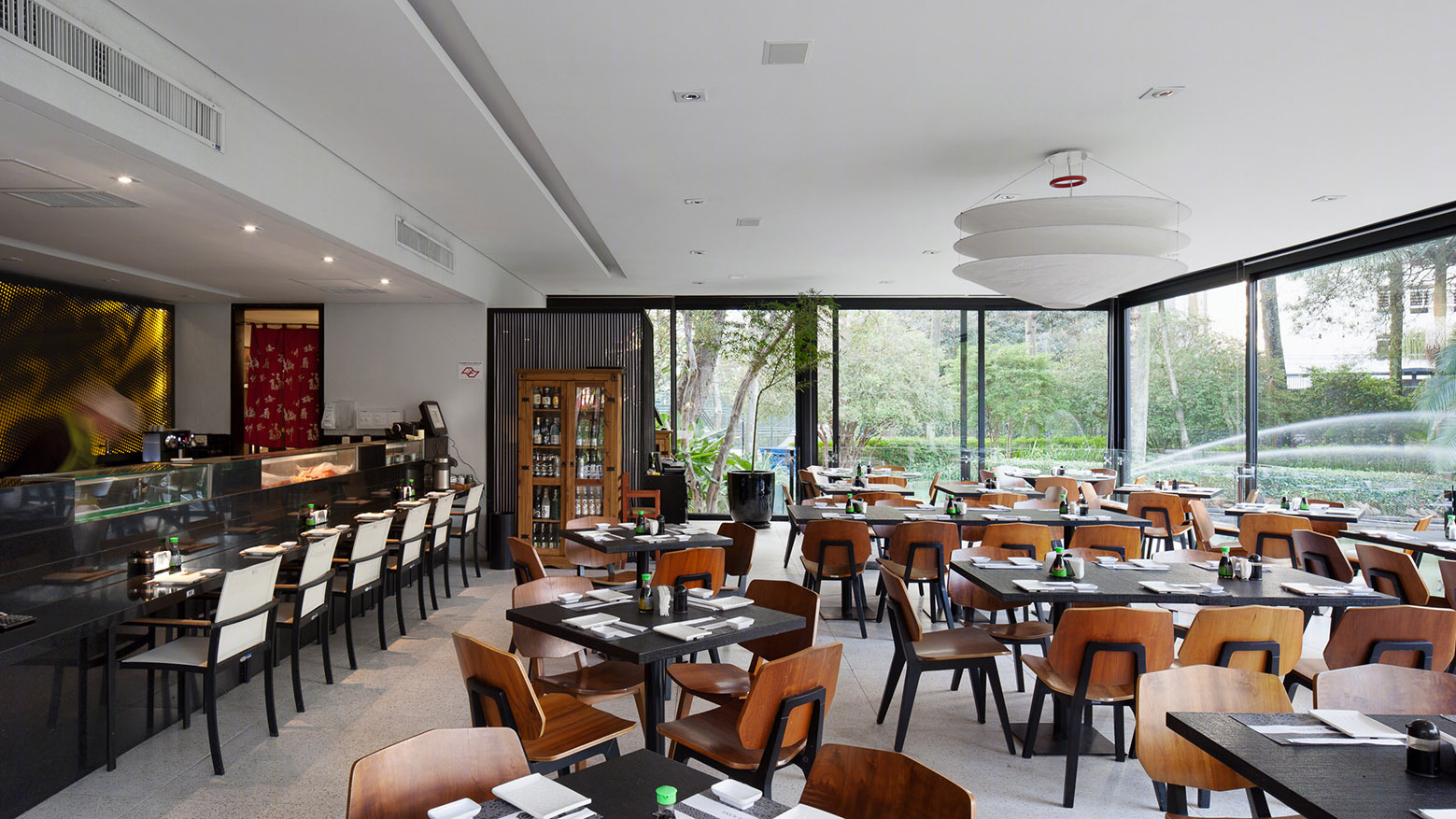

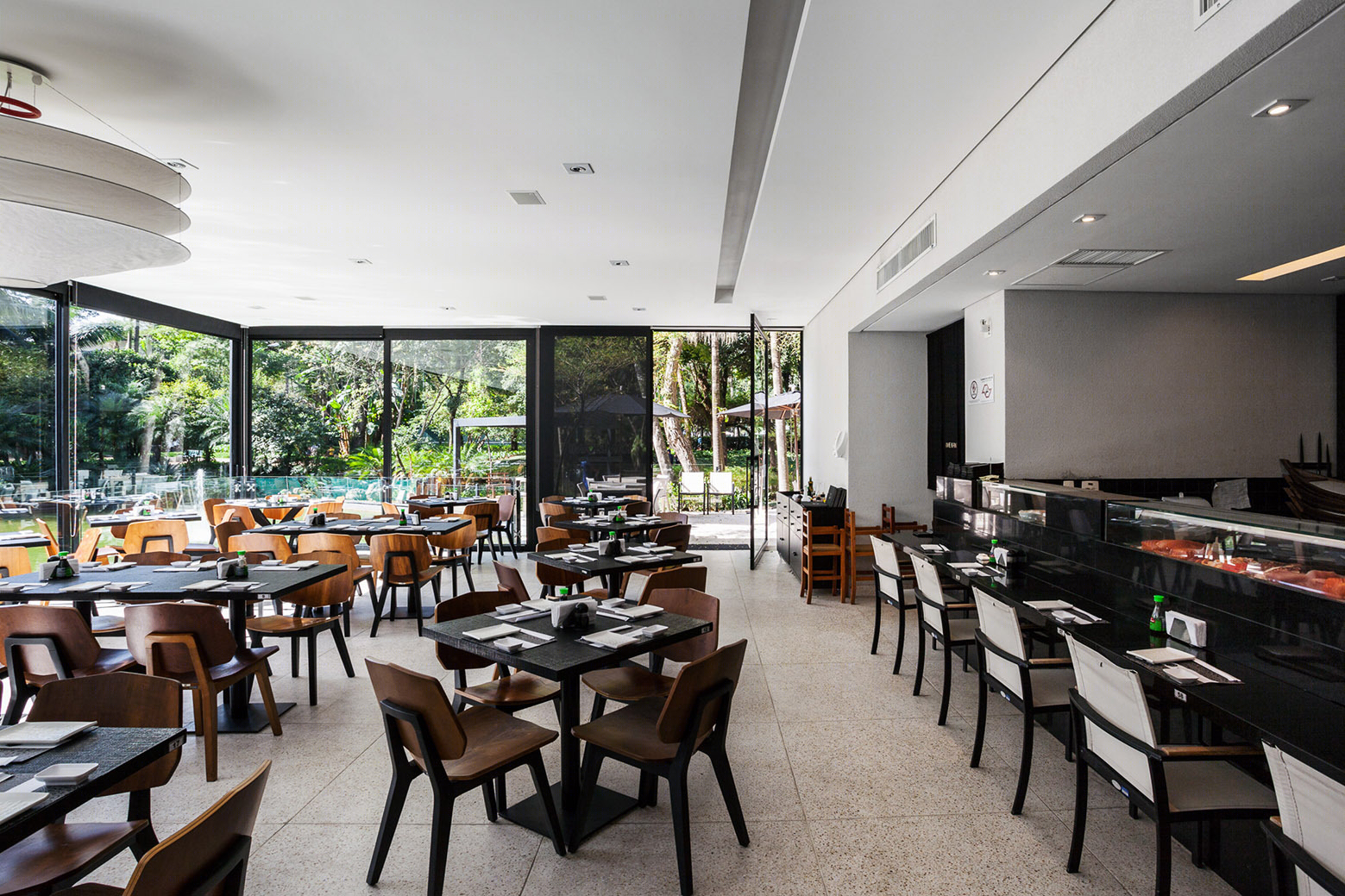

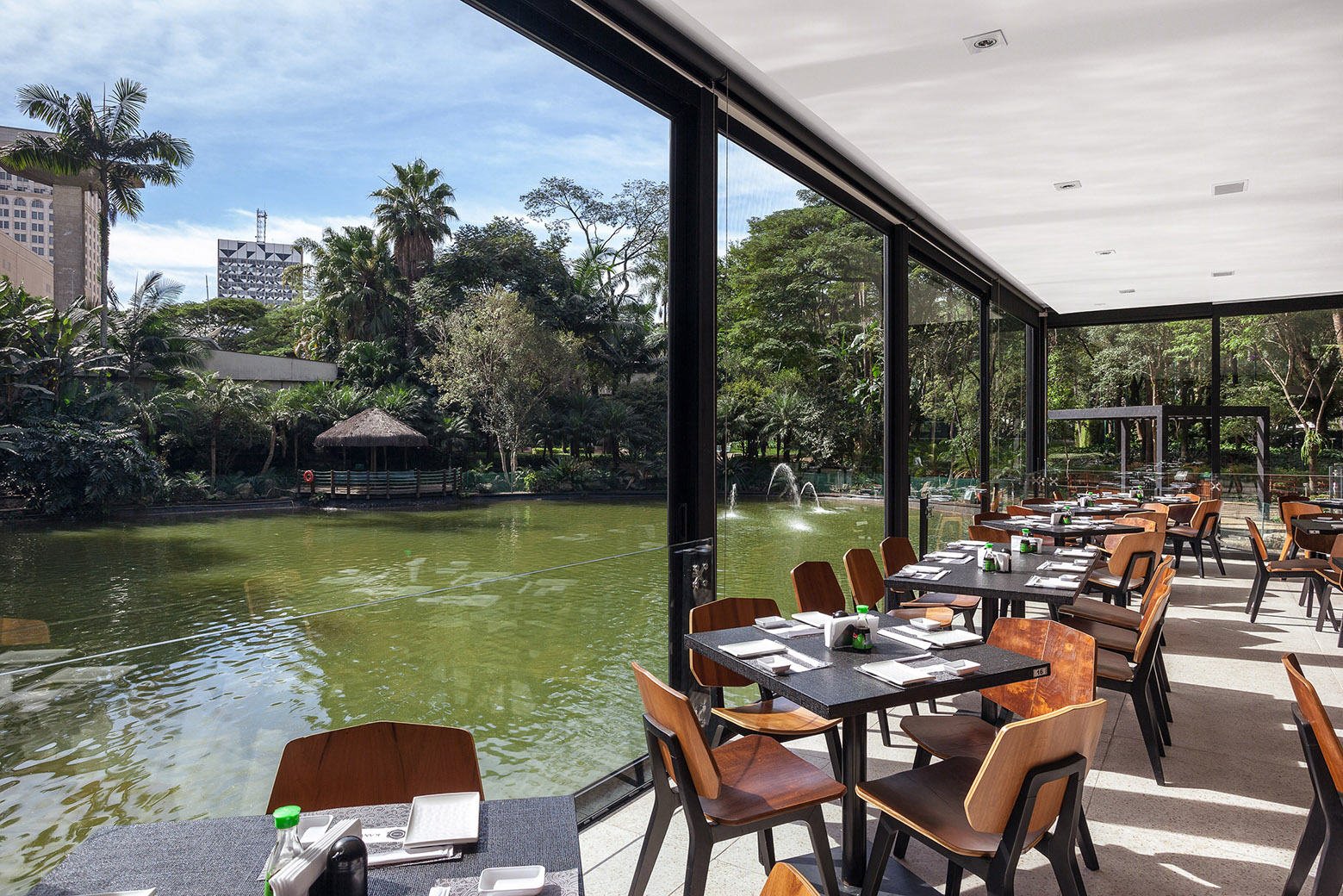

巴西圣保罗市湖滨餐厅内部实景图

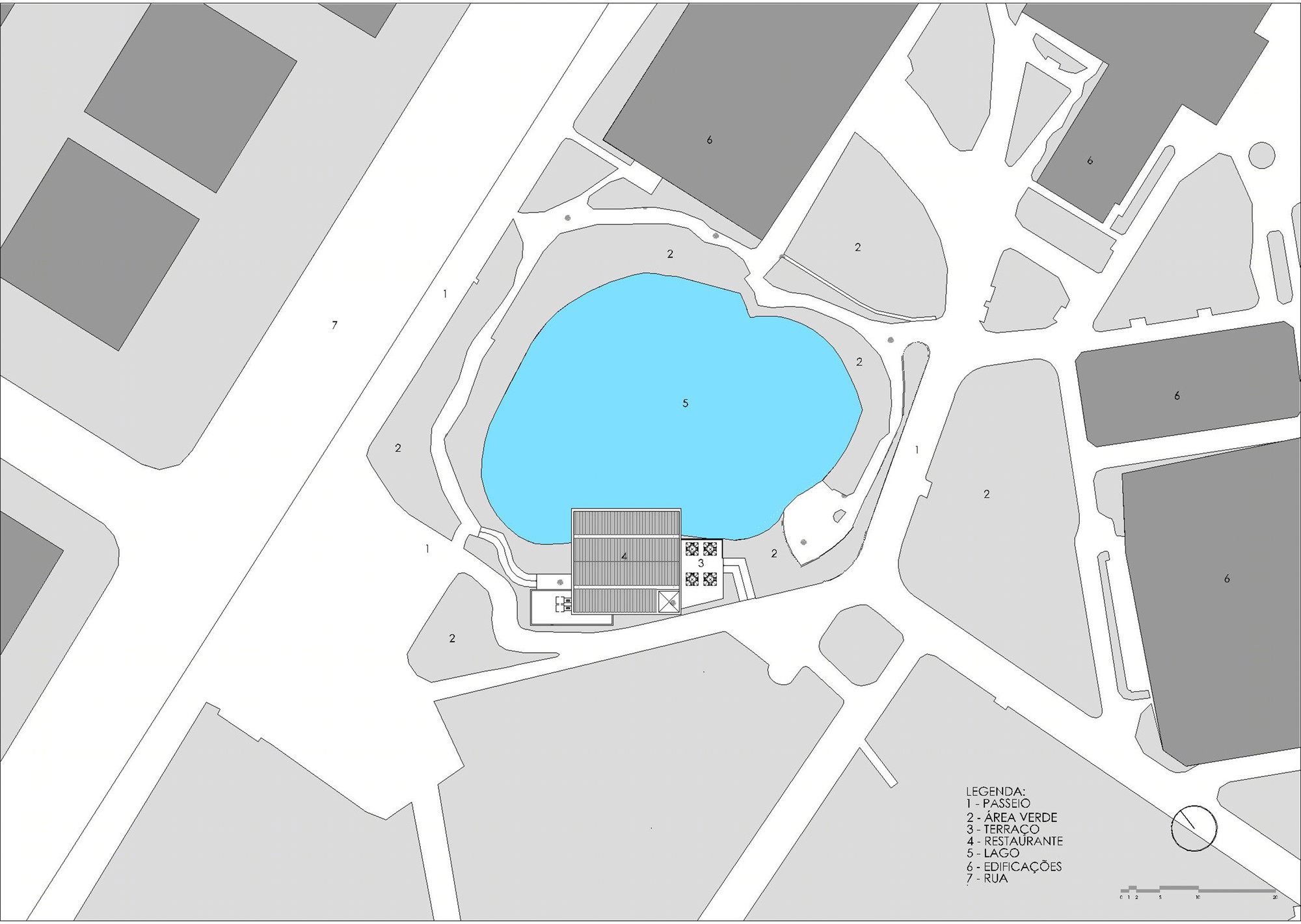

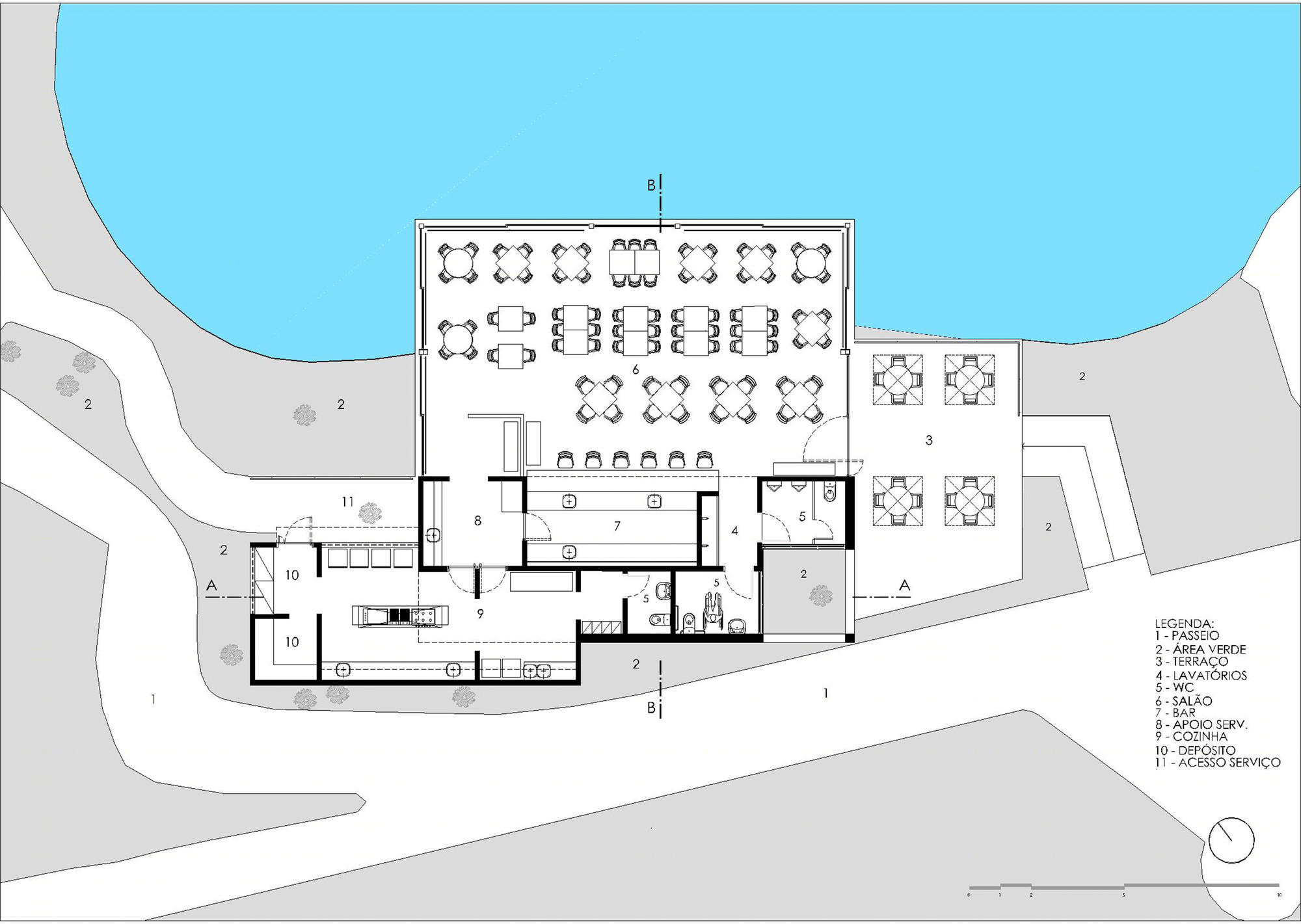

巴西圣保罗市湖滨餐厅平面图

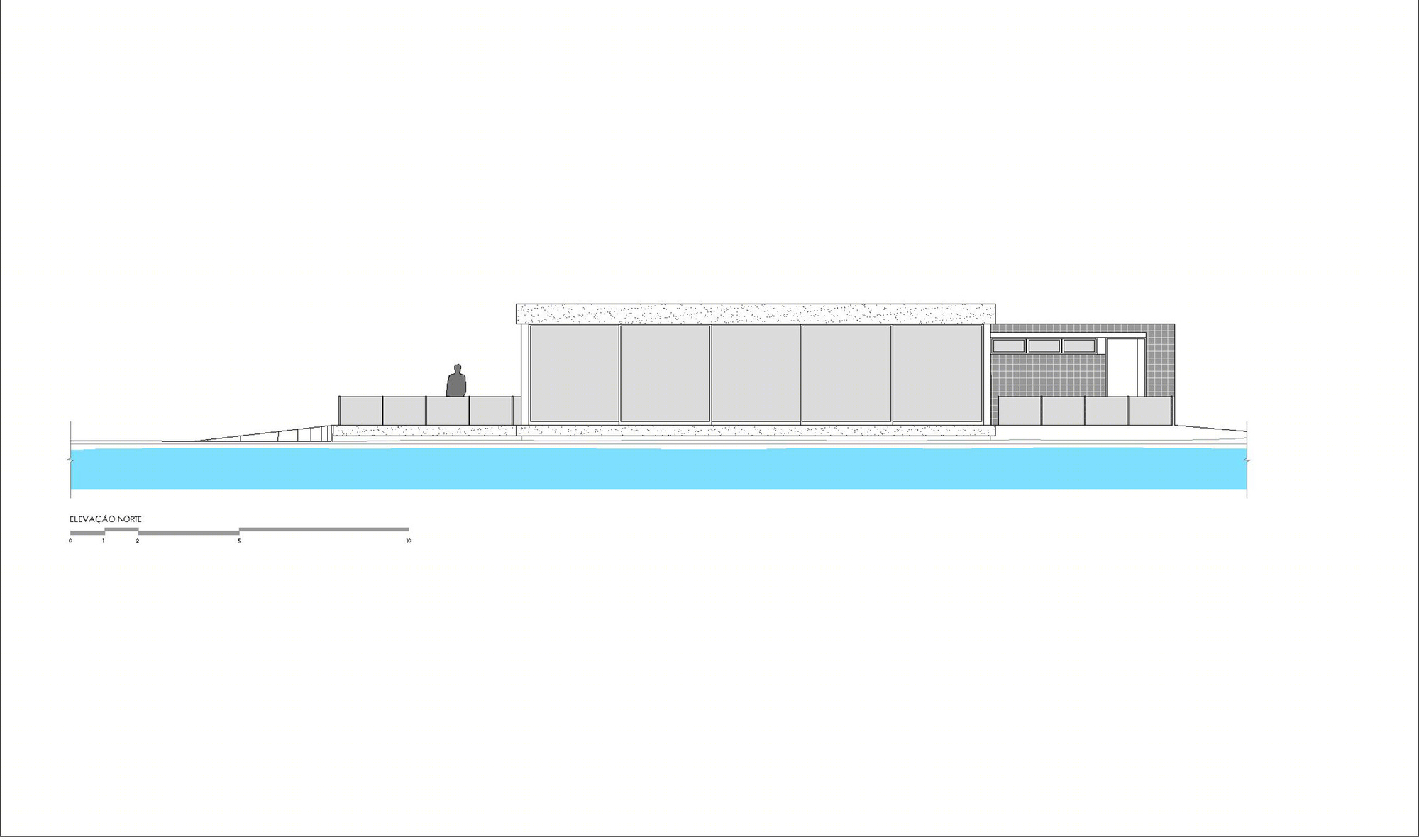

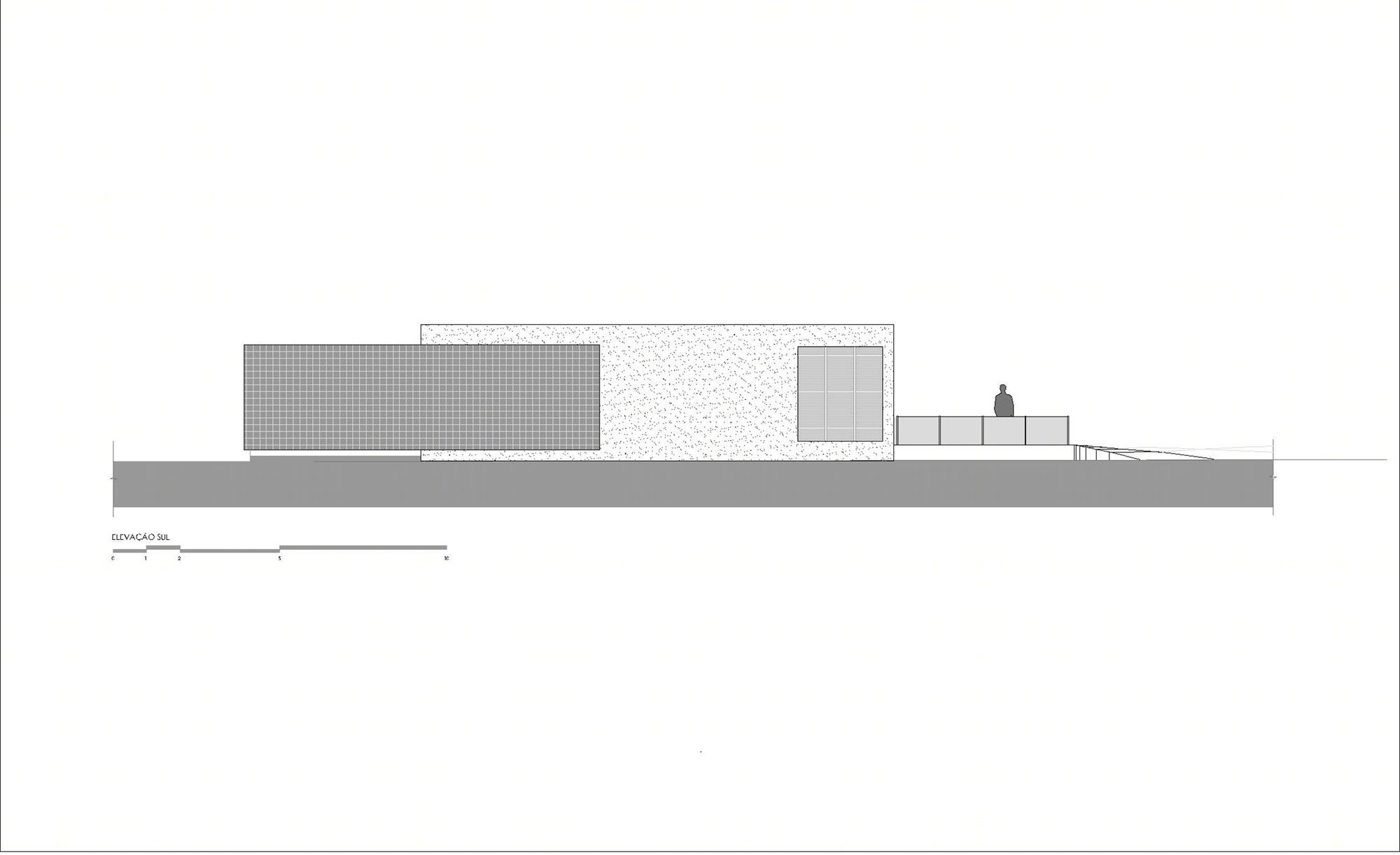

巴西圣保罗市湖滨餐厅立面图

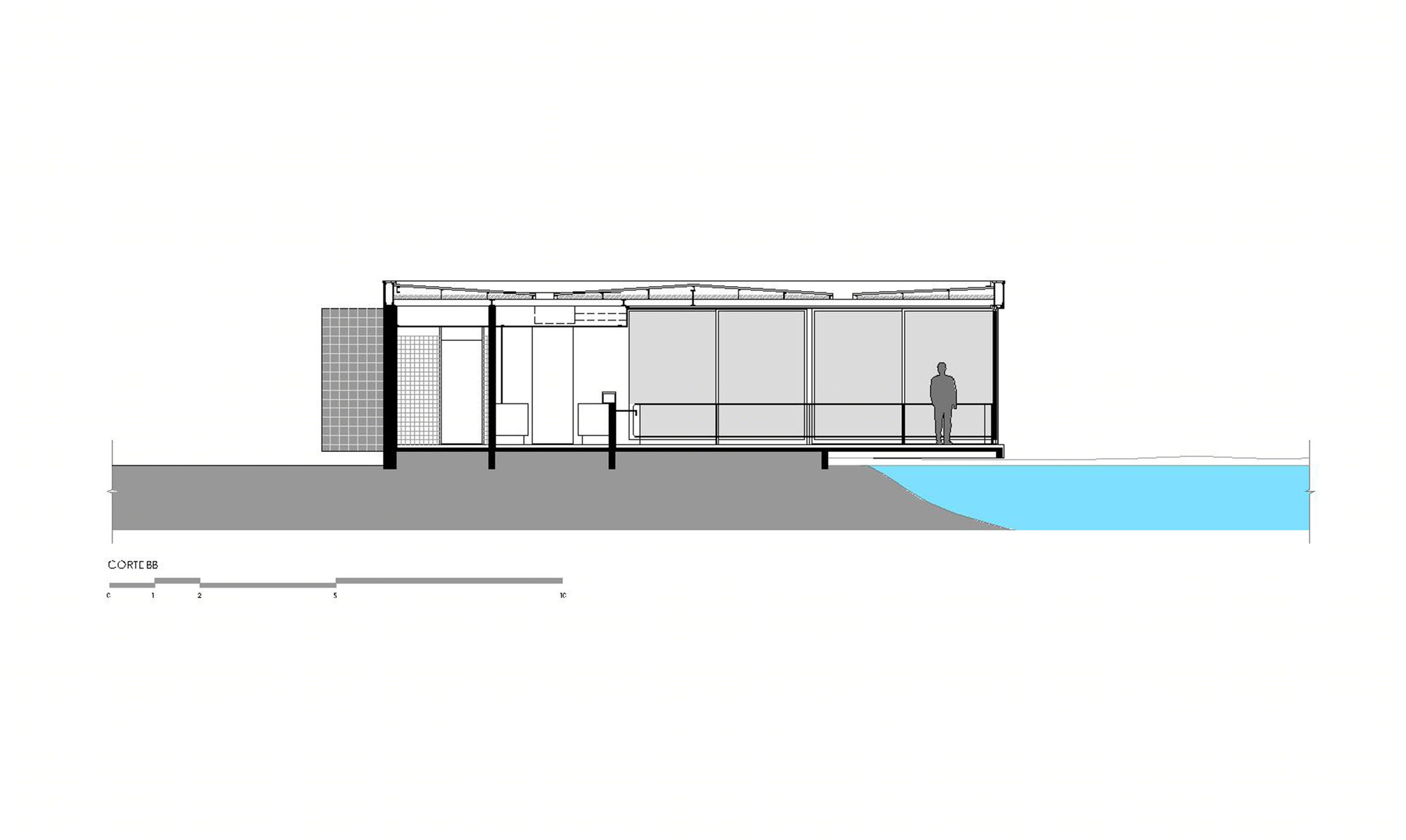

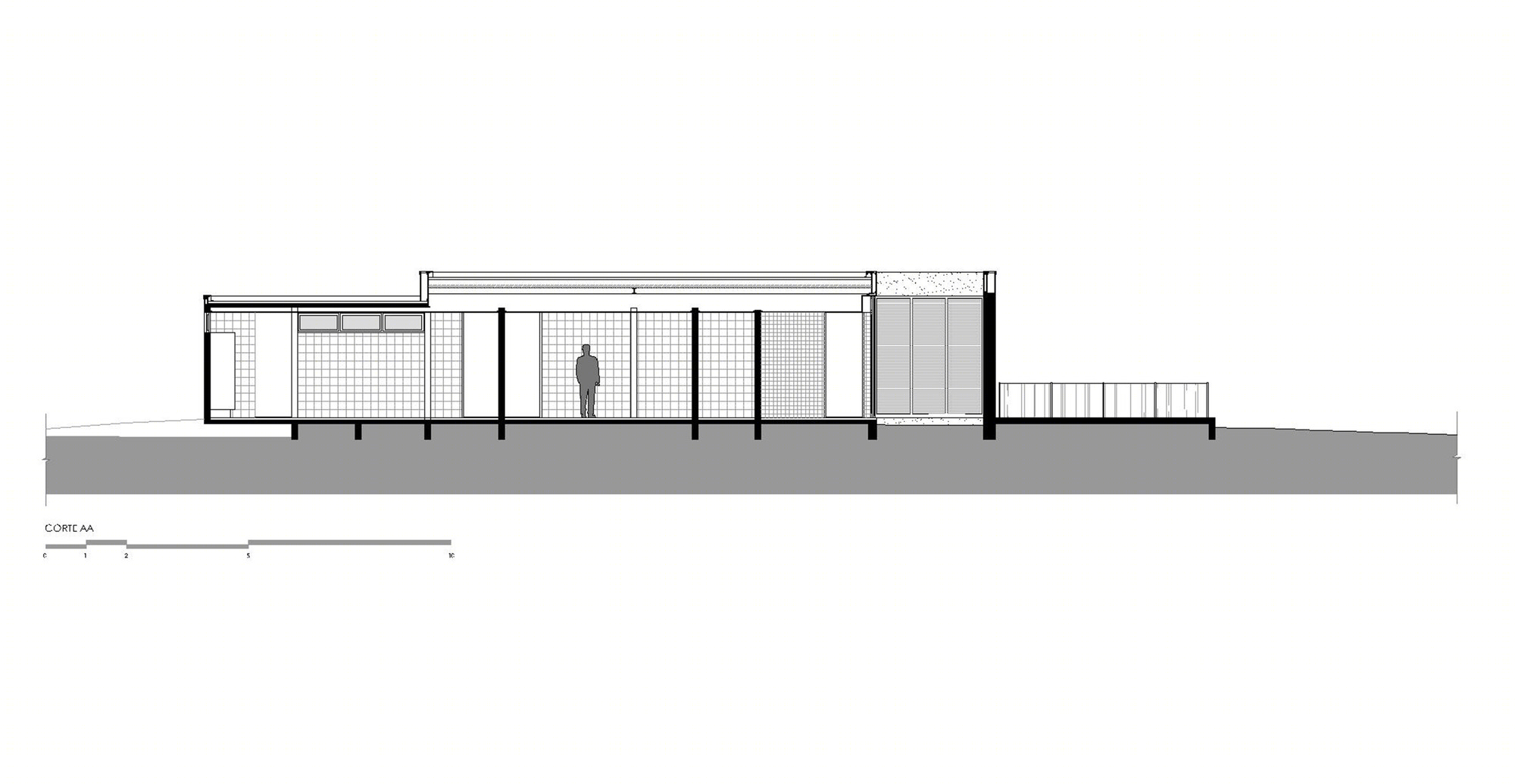

巴西圣保罗市湖滨餐厅剖面图
