加拿大蒙洛里耶多功能剧院丨Les architectes FABG

Canada Meng Luo el multifunction Theatre

设计方：Les architectes FABG

位置：加拿大

分类：文化建筑

内容：实景照片

图片：23张

摄影师：Steve Montpetit

项目坐落在劳伦山脉，位于蒙特利尔的西北部，离蒙特利尔约250千米的距离。蒙洛里耶是一个小镇，尽管对木材的需求正在下降，但这里的林业仍然起到了很中心的作用。项目的场址坐落在力弗河的南部堤岸上，位于一座教堂和一所公立学校中间。建筑设计比赛的指导方针由一个当地的非营利性社团发起，强调多功能大厅要能够容纳传统的艺术表演活动，并为歌舞表演、宴会、社团活动和贸易展览提供其他的配置。大厅的容量基于700到270座之间，可以随时改变以适应戏剧表演、电影的播放、学校表演和各种各样的音乐会。项目的总建筑面积是3500平方米，不包括设备和税收的预算是920万美元。

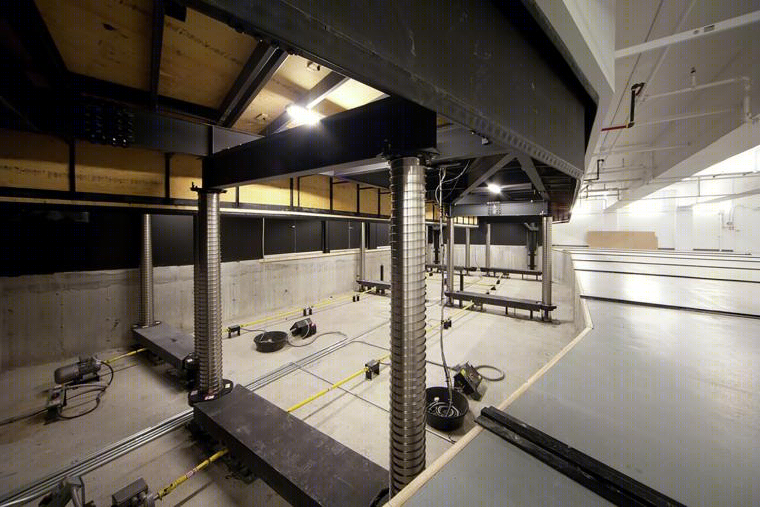

大厅被划分成了三个部分和一系列供简单、有效重置的机械。离舞台最近的部分包括了一个平台。中部的部分有可伸缩的座椅，在需要的时候缩回座椅以提供额外的地面空间。最后，大厅的后部部分是一个夹层，包含了184个座位，它的护栏是是可以被移除的。我们的建筑理念基于一个交叉层接木梁构成的结构网格，这些木梁支撑着屋顶，在主要入口的上部创造了一个天蓬。它清楚的说明了木材对于这个地区的重要性，并支持了当地新技术的发展。

译者：蝈蝈

Located in the Laurentian mountains, 250 kilometers northwest of Montreal, Mont-Laurier is a small town where the forest industry still plays a central role despite a declining demand for lumber. The building site is located on the southern embankment of the Lievre River between the cathedral and the public school.The guidelines of the architectural competition initiated by a local non-profit society stressed the need for a multipurpose hall able to accommodate traditional performing art events and offering a series of other configurations for cabarets, banquets, corporate events, and trade shows.The capacity of the hall is variable from 700 to 270 seats in order to accommodate comedy shows, theatre presentations, school performances and various concerts. The gross floor area for the project is 3500m2 and the budget for tenderas $9.2M excluding equipment and taxes.

The hall is divided in three sections that combine a series of mechanisms for easy and efficient reconfiguration. The portion closest to the stage consists of a platform . The middle portion has telescopic seats that retract to rovide additional floor space when needed. Finally, the rear section of the hall features a mezzanine of 184 seats whose guardrail can be removed.Our architectural proposition was based on a structural grid of crosslaminated wood beams that supports the roof and creates a canopy over he main entrance. It clearly communicates the importance of wood for the region and supports the local development of new technologies .

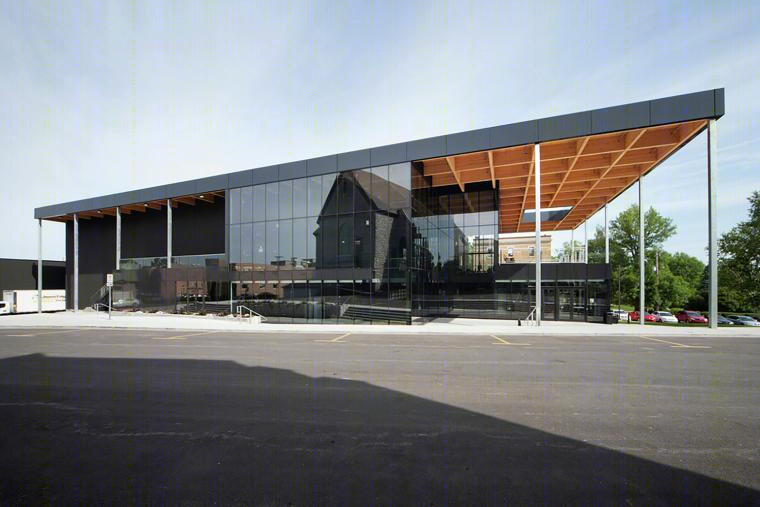

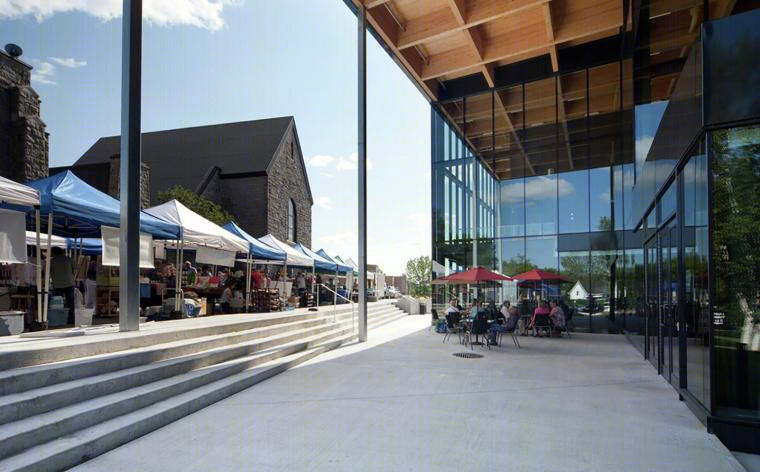

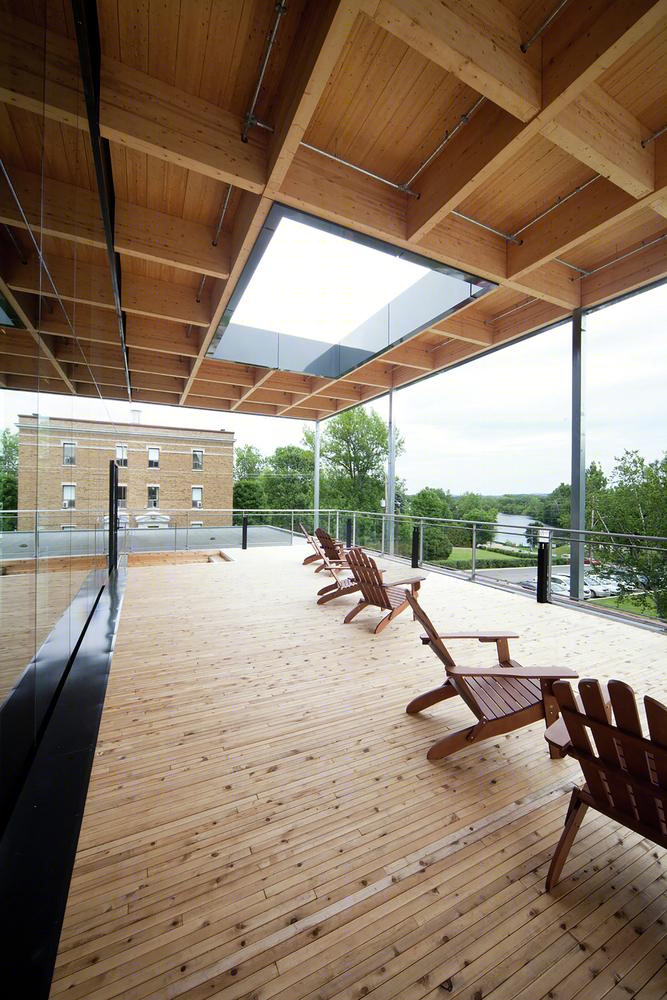

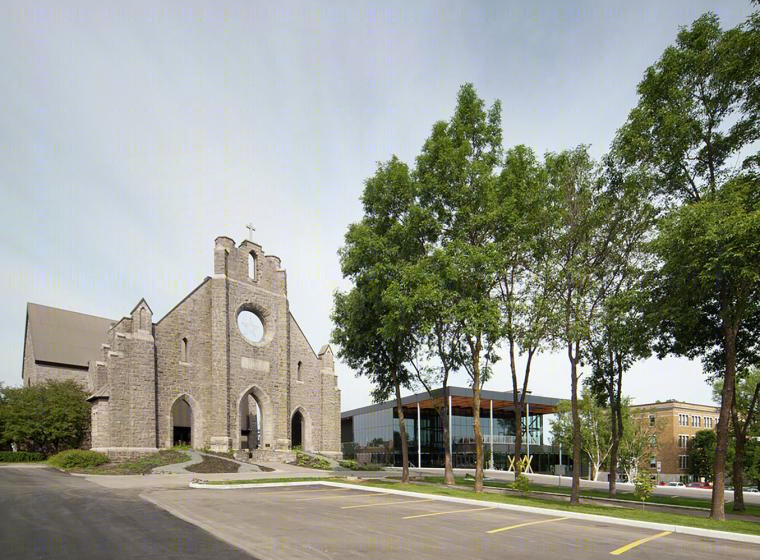

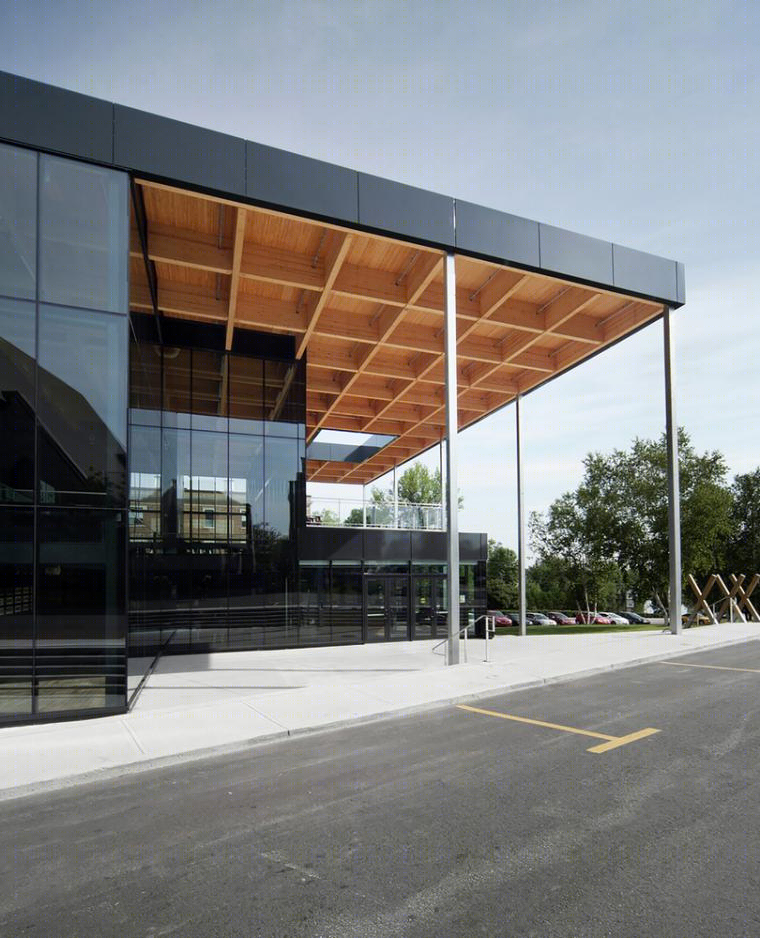

加拿大蒙洛里耶多功能剧院外部实景图

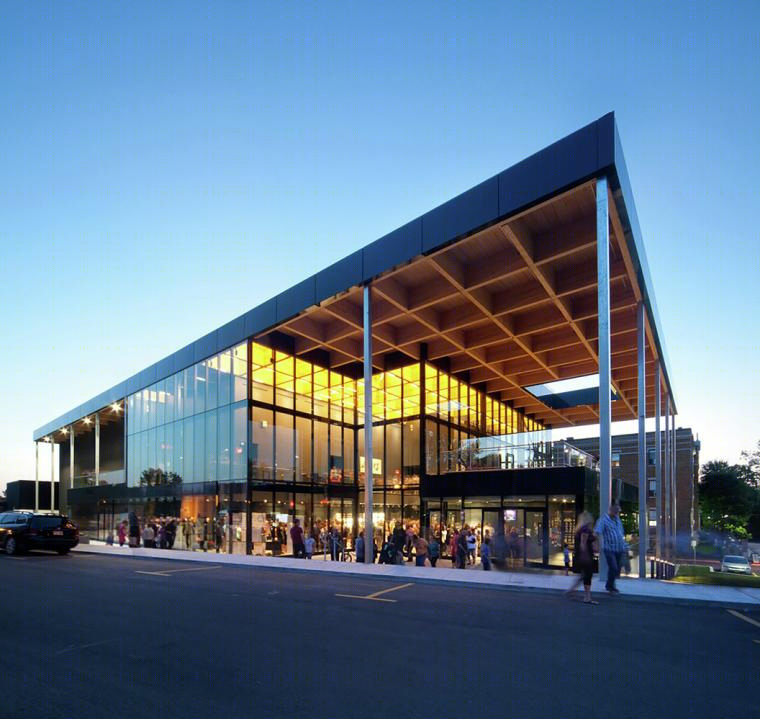

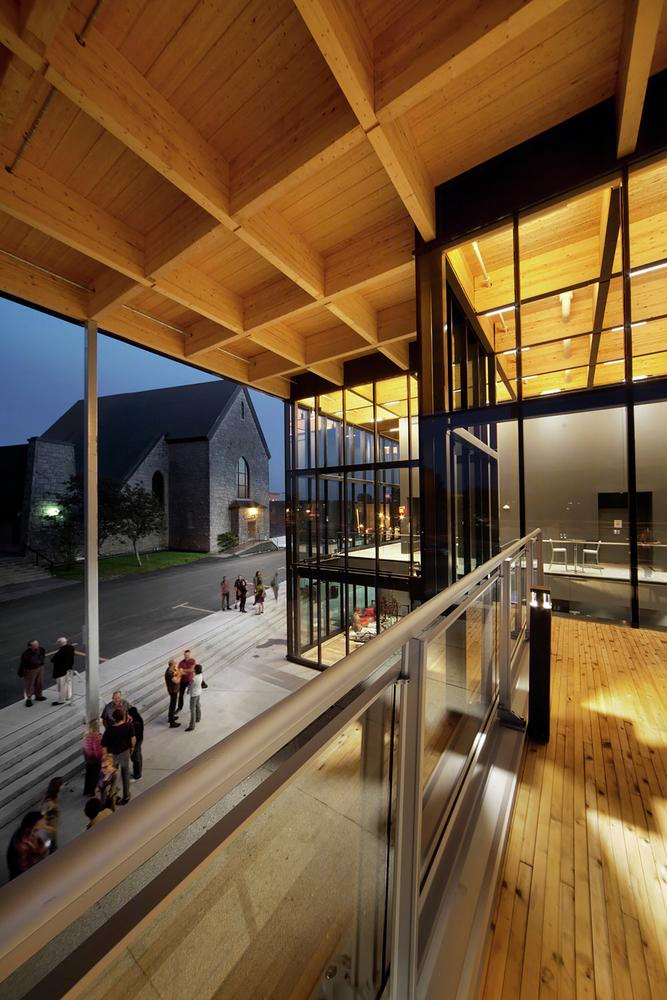

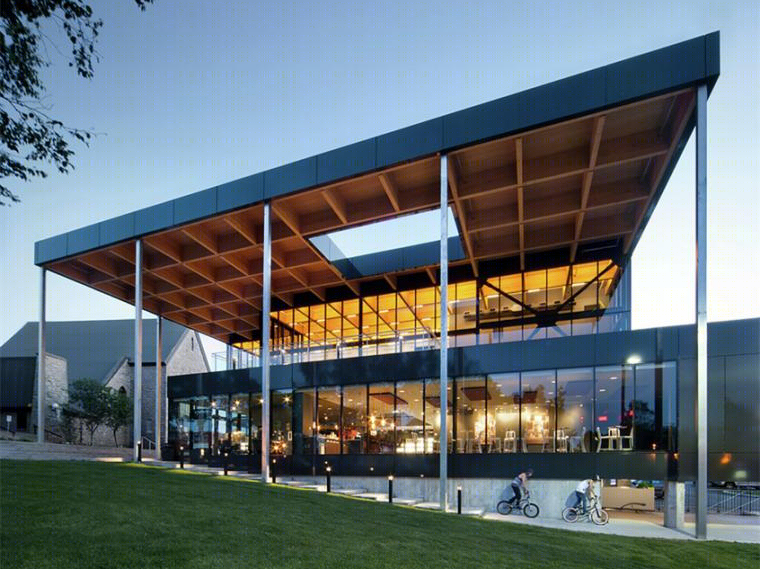

加拿大蒙洛里耶多功能剧院外部夜景实景图

加拿大蒙洛里耶多功能剧院夜景实景图

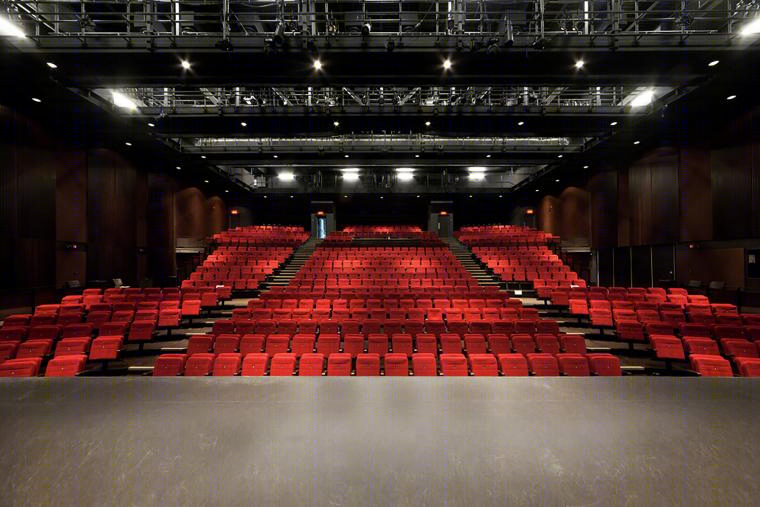

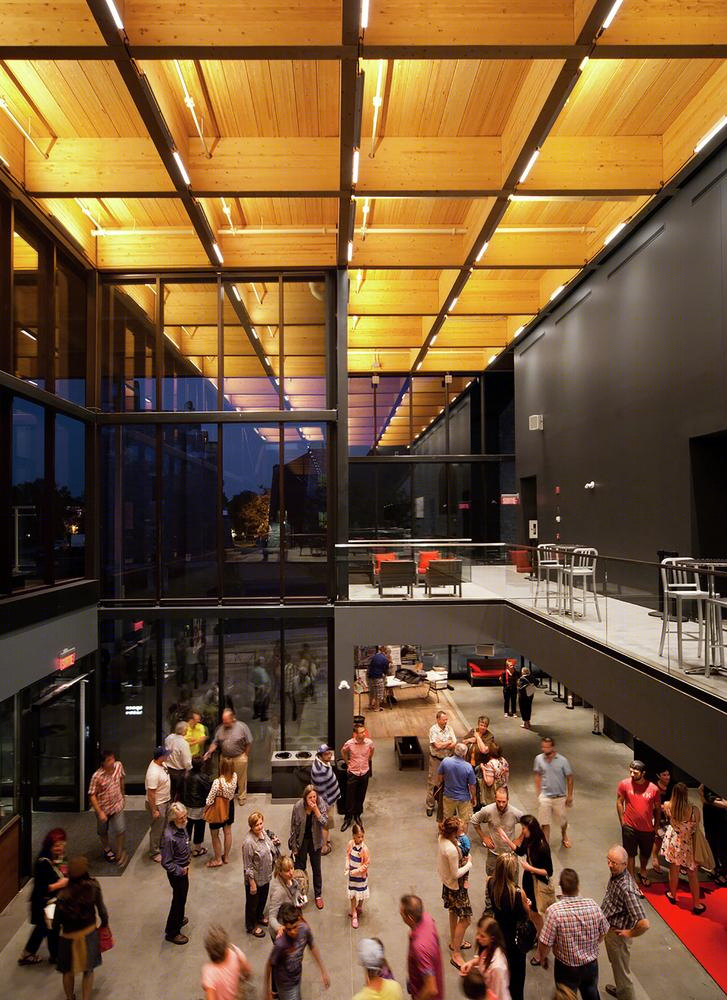

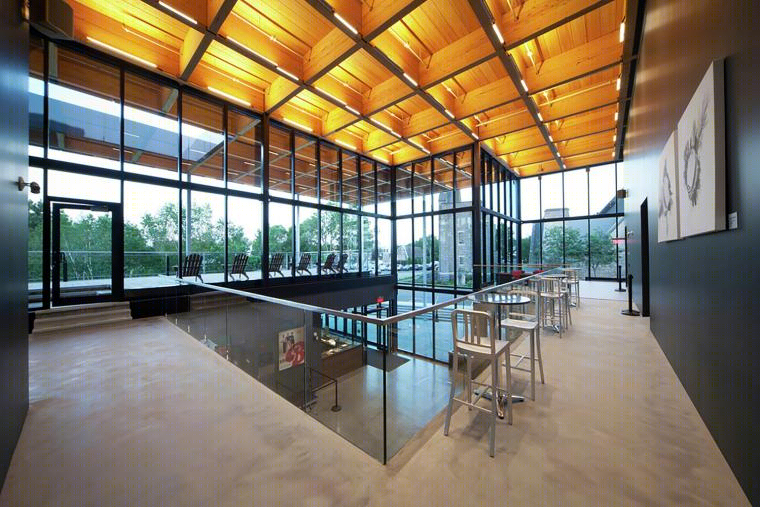

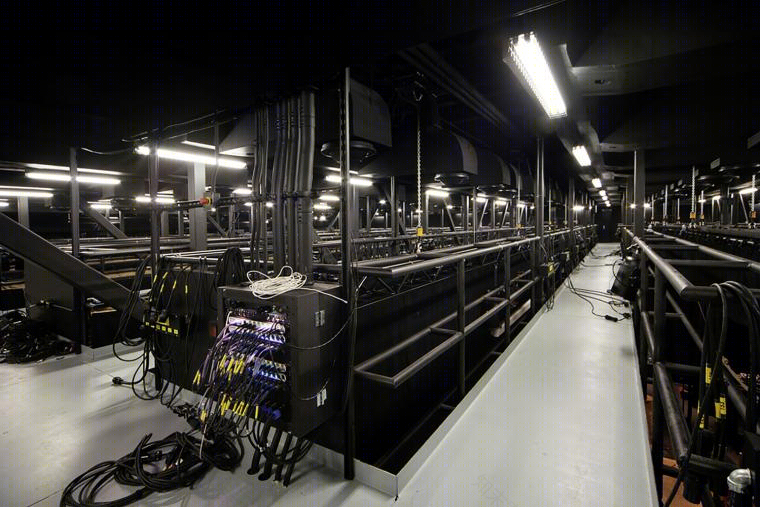

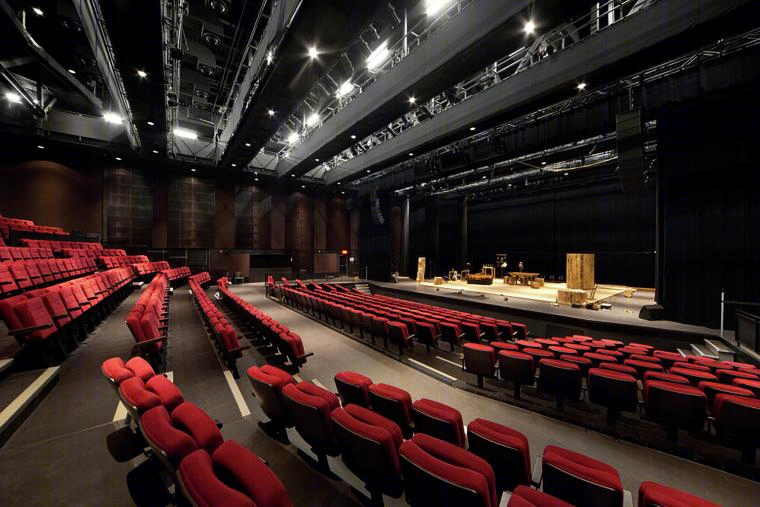

加拿大蒙洛里耶多功能剧院内部实景图

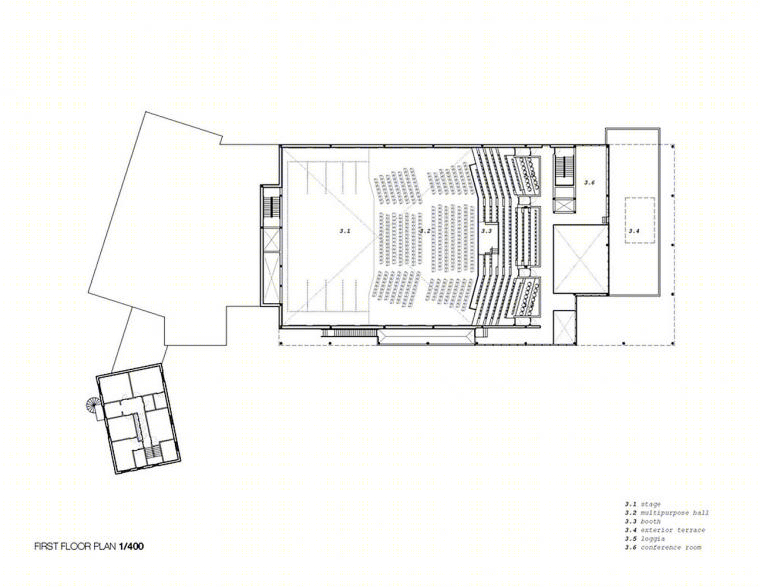

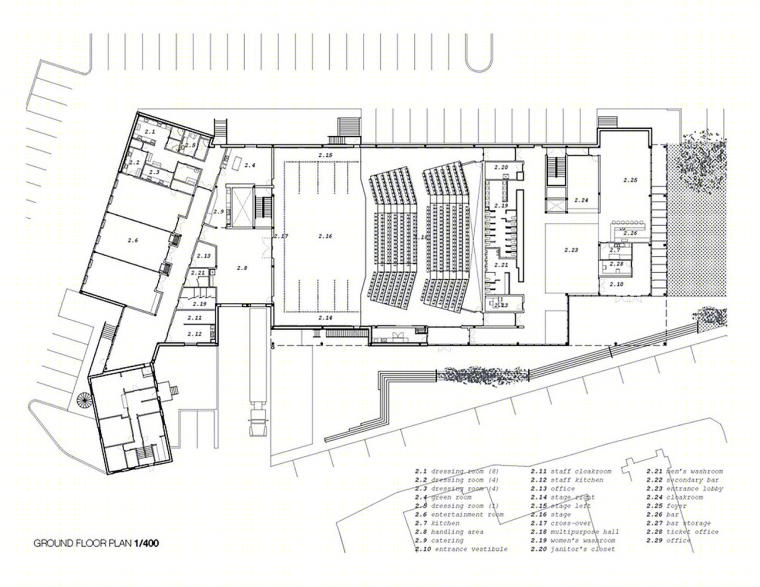

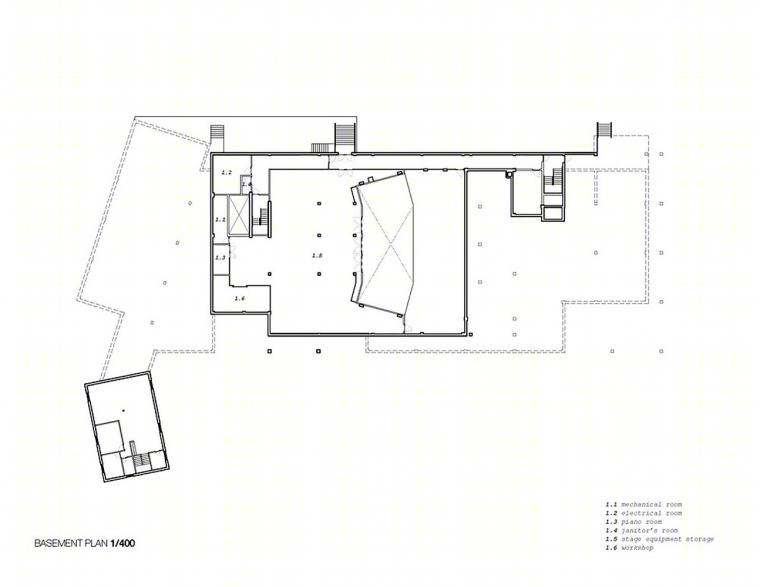

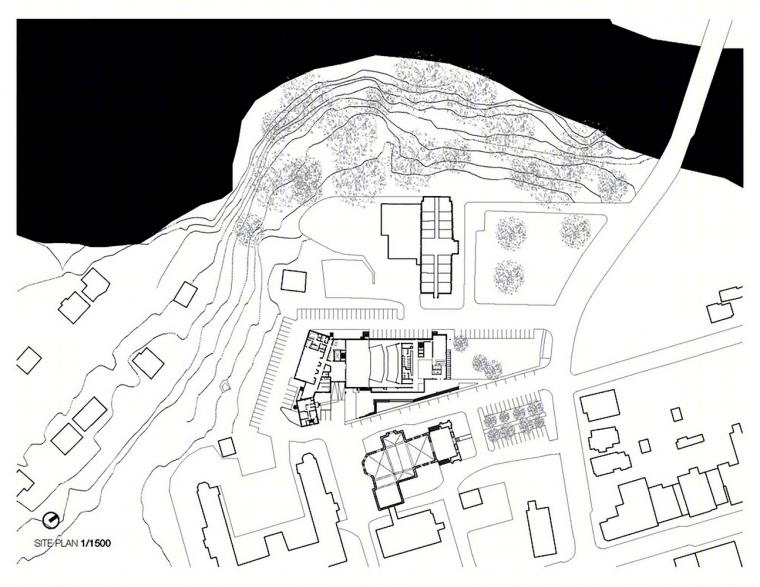

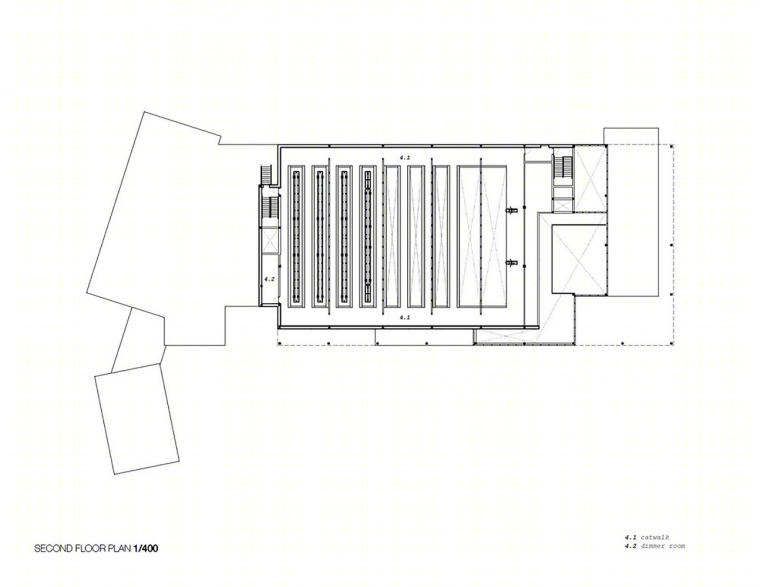

加拿大蒙洛里耶多功能剧院平面图

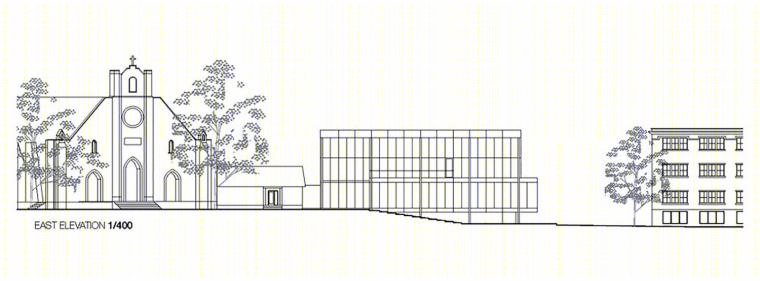

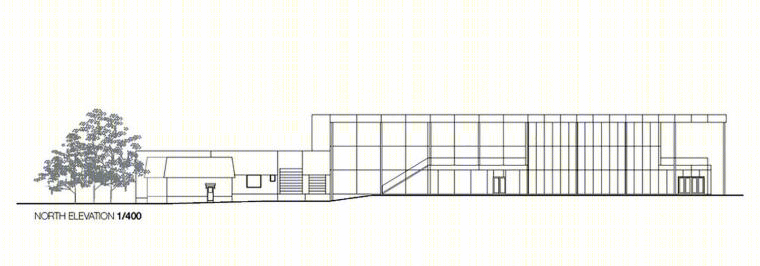

加拿大蒙洛里耶多功能剧院立面图

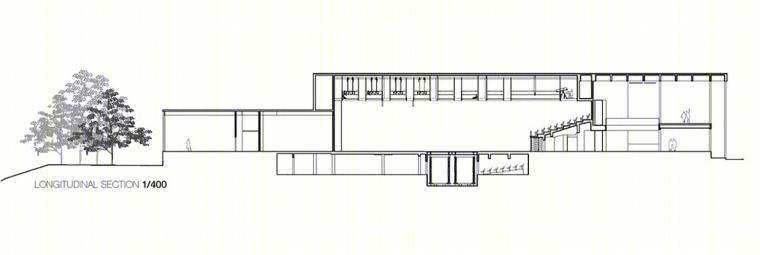

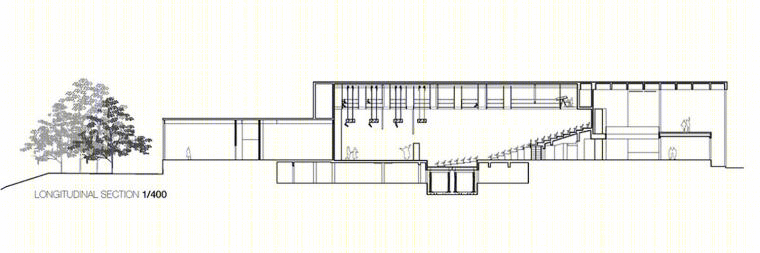

加拿大蒙洛里耶多功能剧院剖面图
