丹麦 Fanø住宅 | 多元素融合的室内设计

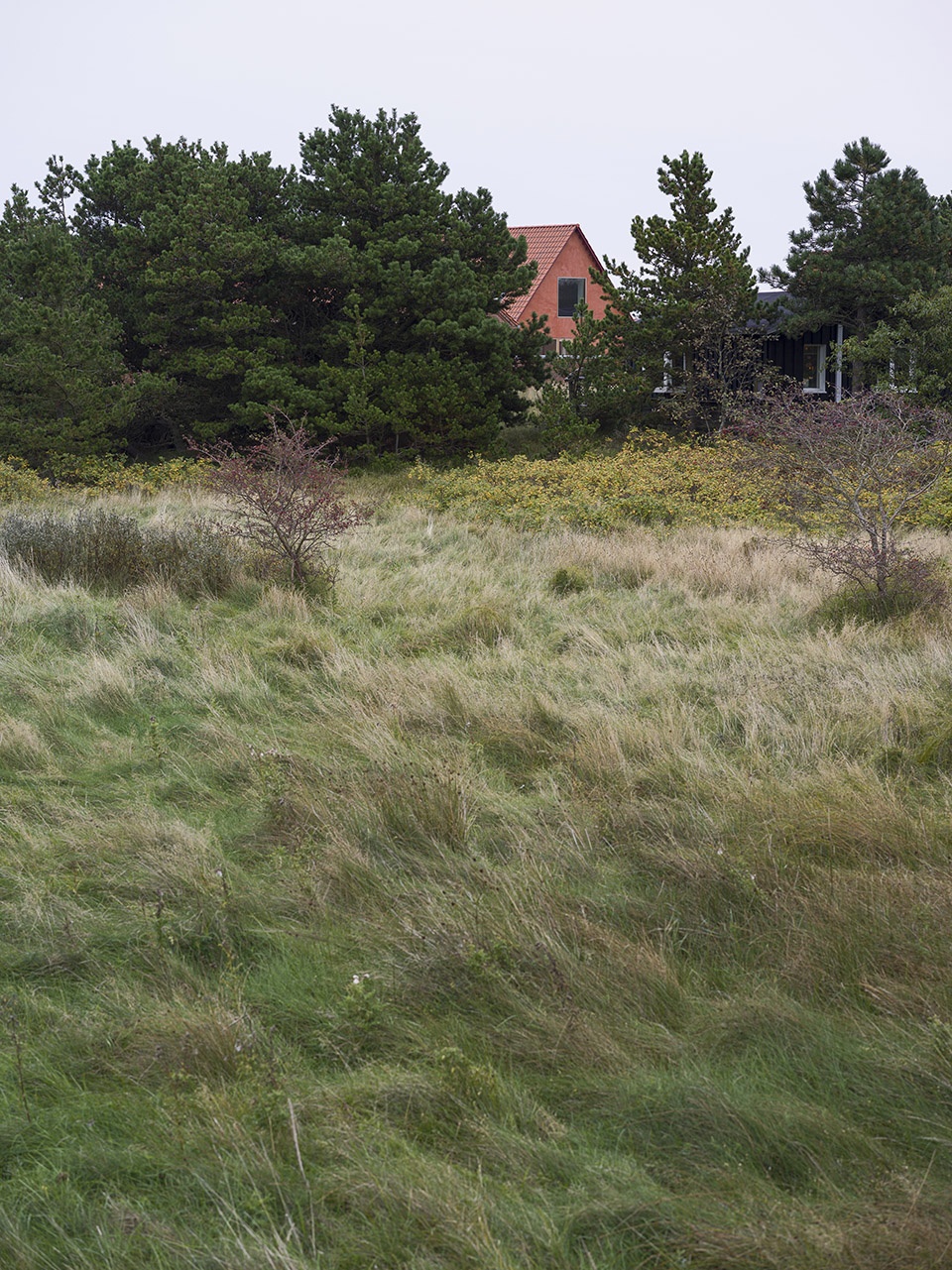

Its outer appearance is characterized by a steep pitched roof clad in profiled clay tiles and warm terracotta tone render. Each layer of its composition is revealed and painted to emphasise the composite nature of the construction. Large format oak glazing profiles are placed close to the façade. A deep overhang creates a sheltered space allowing circulation beneath the eaves. Thresholds to the exterior vary in scale depending on aspect. Parts of the house are protected from the strong prevailing winds by a sand and soil dune planted with small pines, marram grass, heather and crowberry.

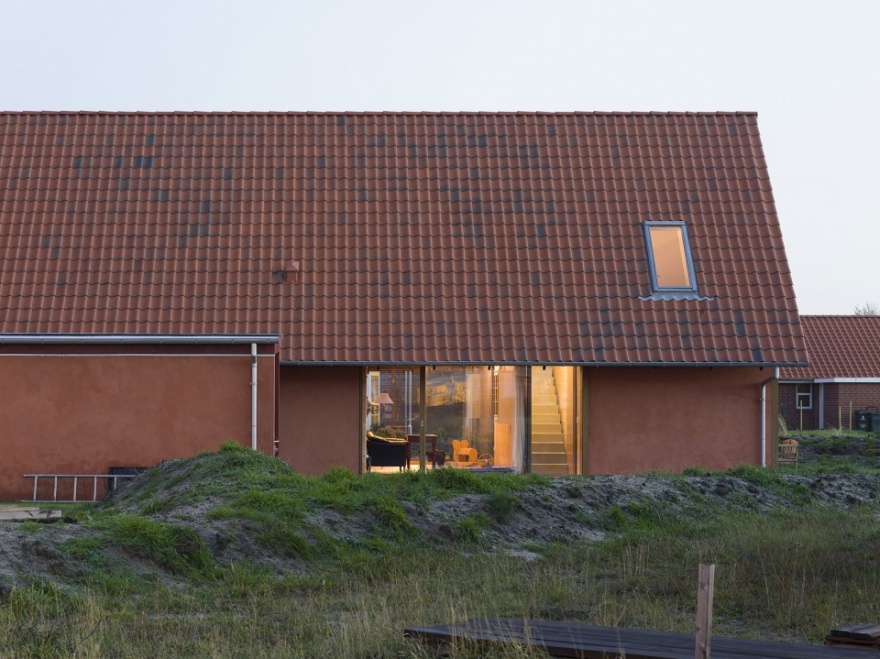

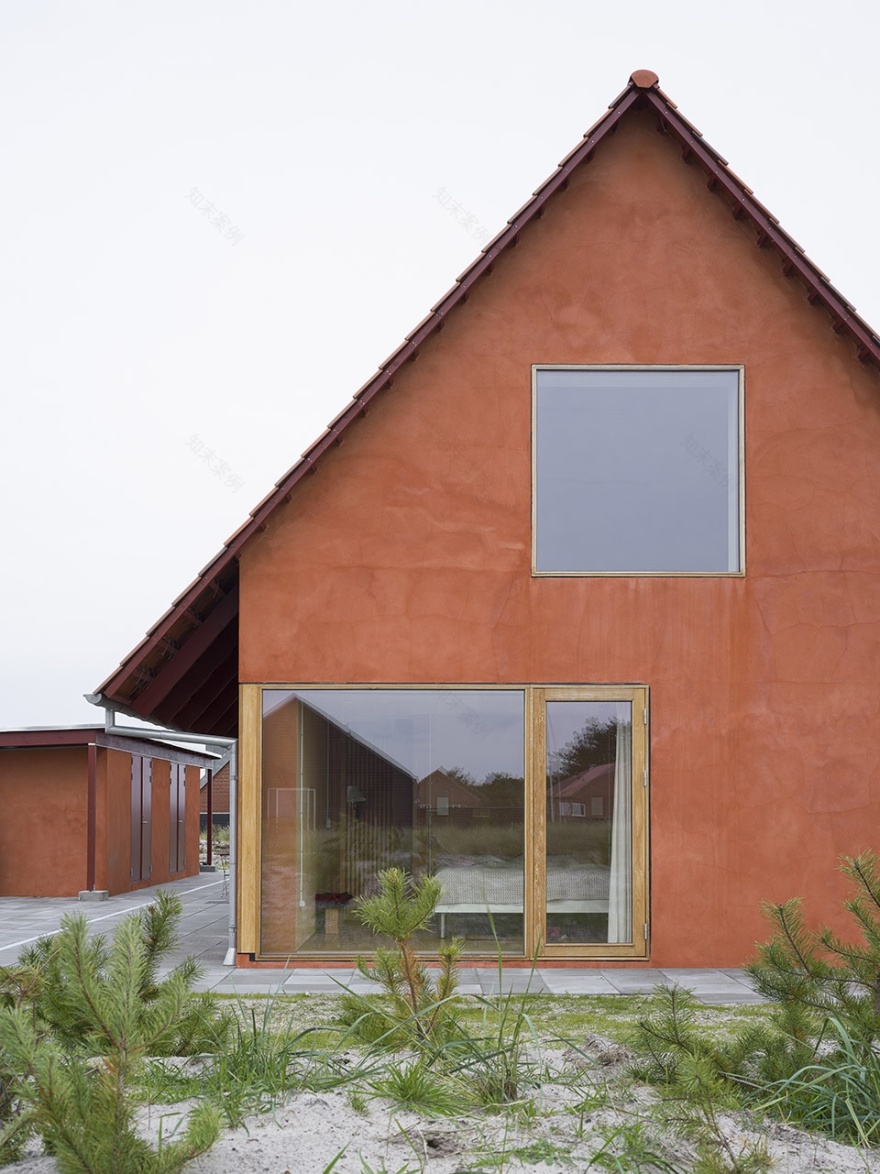

住宅外观，采用双坡屋顶，exterior view of the house with double pitched roofs

©Hampus Berndtson

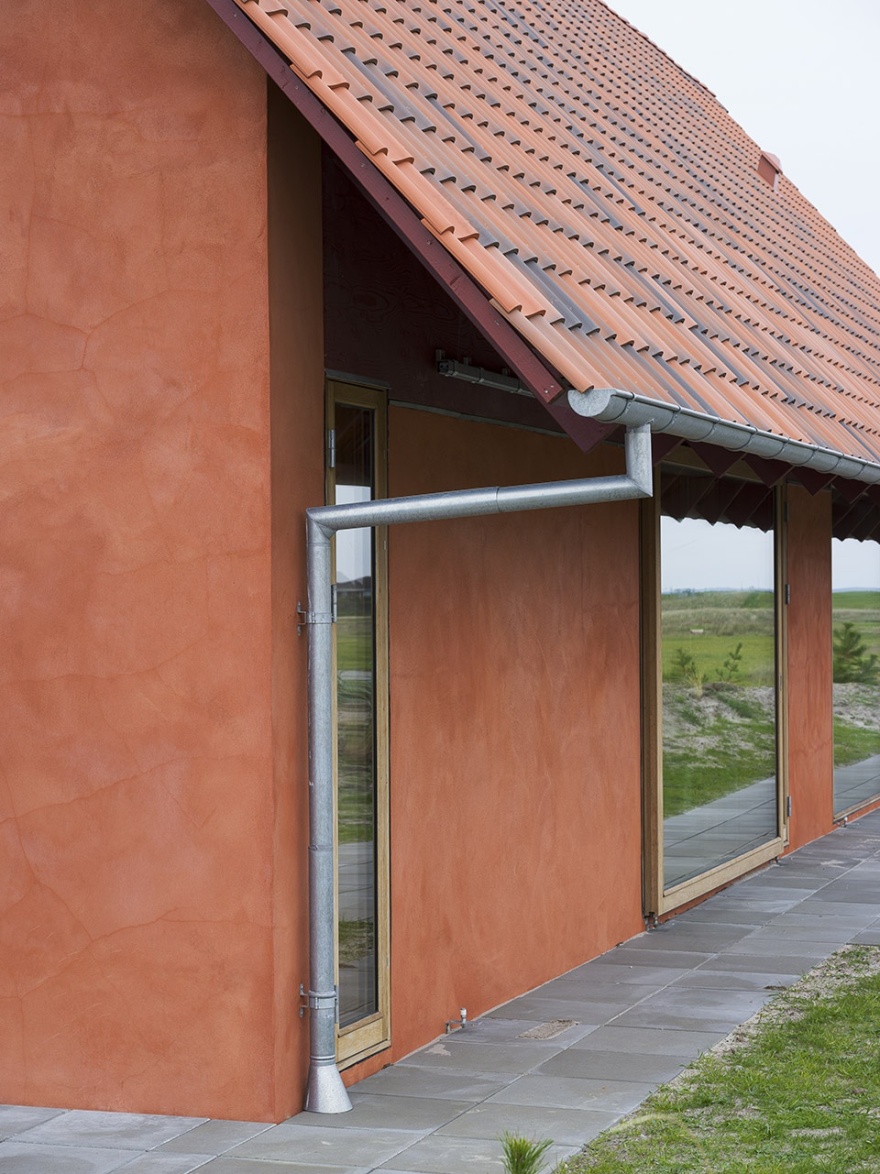

▼深挑檐创造了一个庇护空间，让住户能在檐下通行

adeep overhang creates a sheltered space allowing circulation beneath the eaves

©Hampus Berndtson

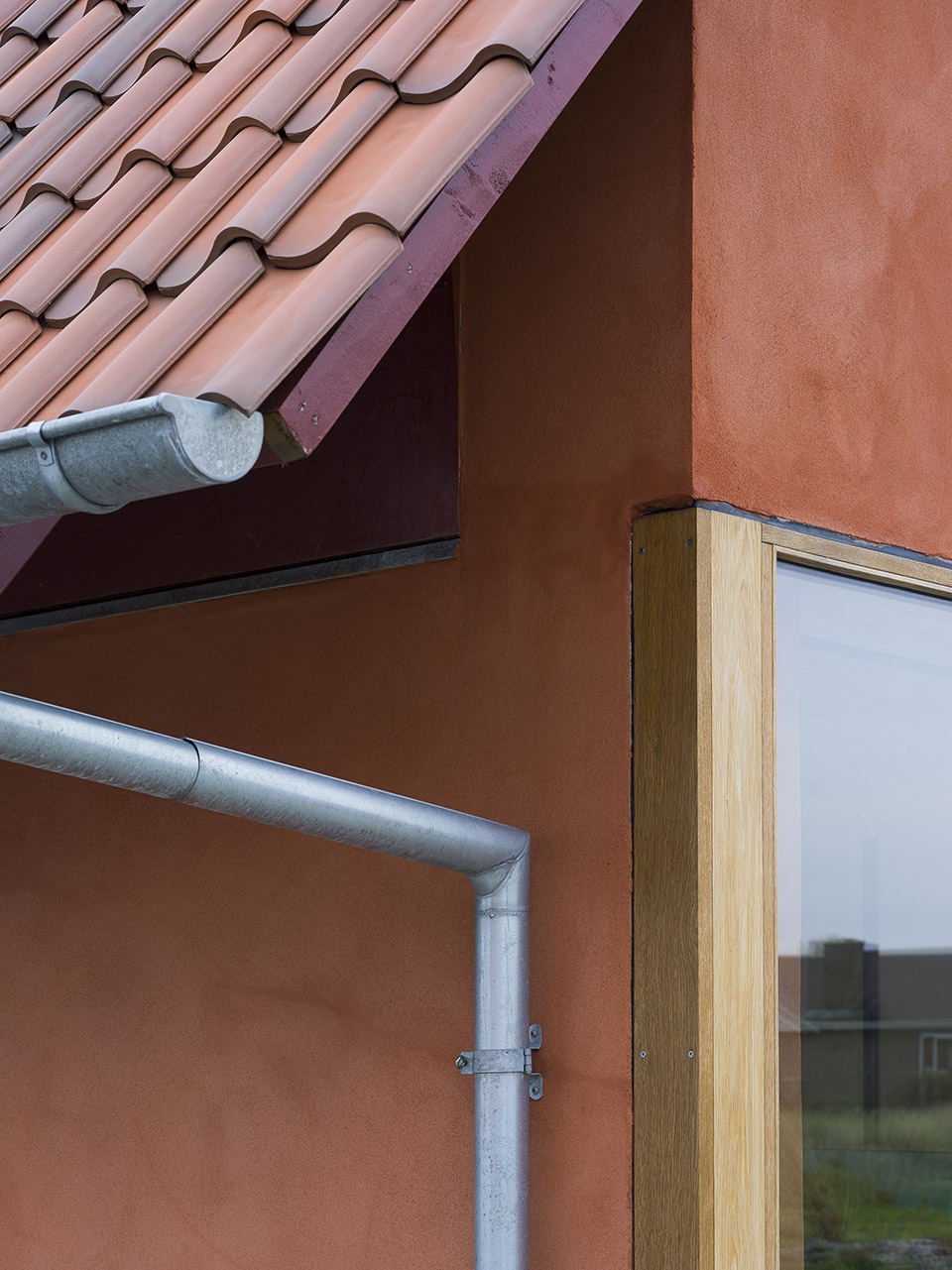

▼屋顶细节，覆盖着粘土砖，details ofpitched roof clad in profiled clay tiles

©Hampus Berndtson

住宅空间被隔墙分为了三部分体量。这些隔墙不仅增加了建筑的稳定性，更围合出室内的楼梯空间。通过这两个楼梯，住户可以去往位于上层空间中的办公区和额外的卧室。固定的空间（如浴室、卧室和杂物间等）分散在三部分体量中。另外，住宅中容纳了两个起居室，其中一间可在夏季来临时作为温室，以“室外空间”的身份来调节室内热环境。此外，当有客人造访的时候，这个可作为温室的起居室也可以将整个住宅划分为两个私密的区域。建筑的平面布局十分灵活，可以根据季节和日常生活的模式来提供不同类型的居住和使用空间。

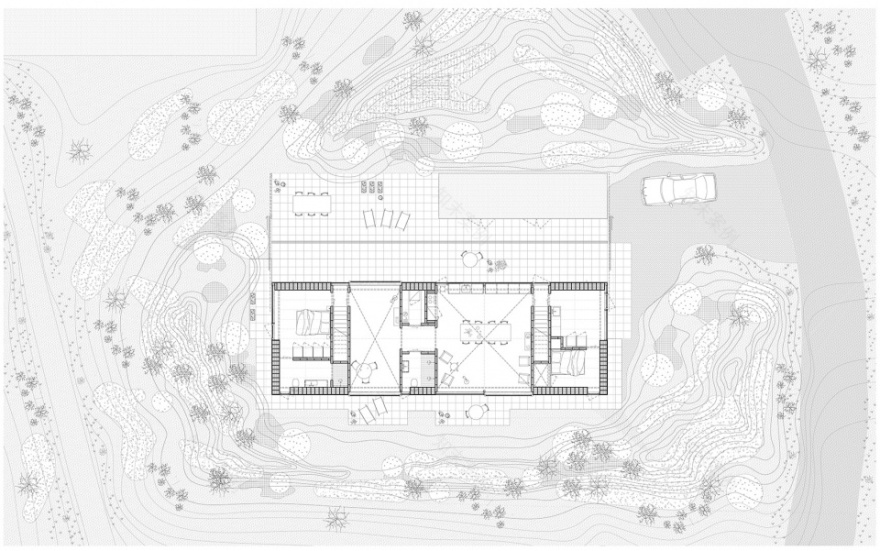

▼总平面图，site plan

©lenschow & pihlmann

The spatial layout is arranged around three volumes separated by partitions which stabilize the construction and enclose stairs allowing movement to the upper mezzanine level which houses an office and additional sleeping space. Fixed elements, such as the bathrooms, bedrooms and utility rooms are located within each of the volumes. One of the house’s two living rooms can be used as a conservatory during the summer, an uninsulated ‘external’ space within the plan. The conservatory divides the house into two private parts when guests visit. The plan is flexible allowing different types of accommodation and use according to the season and everyday patterns of life.

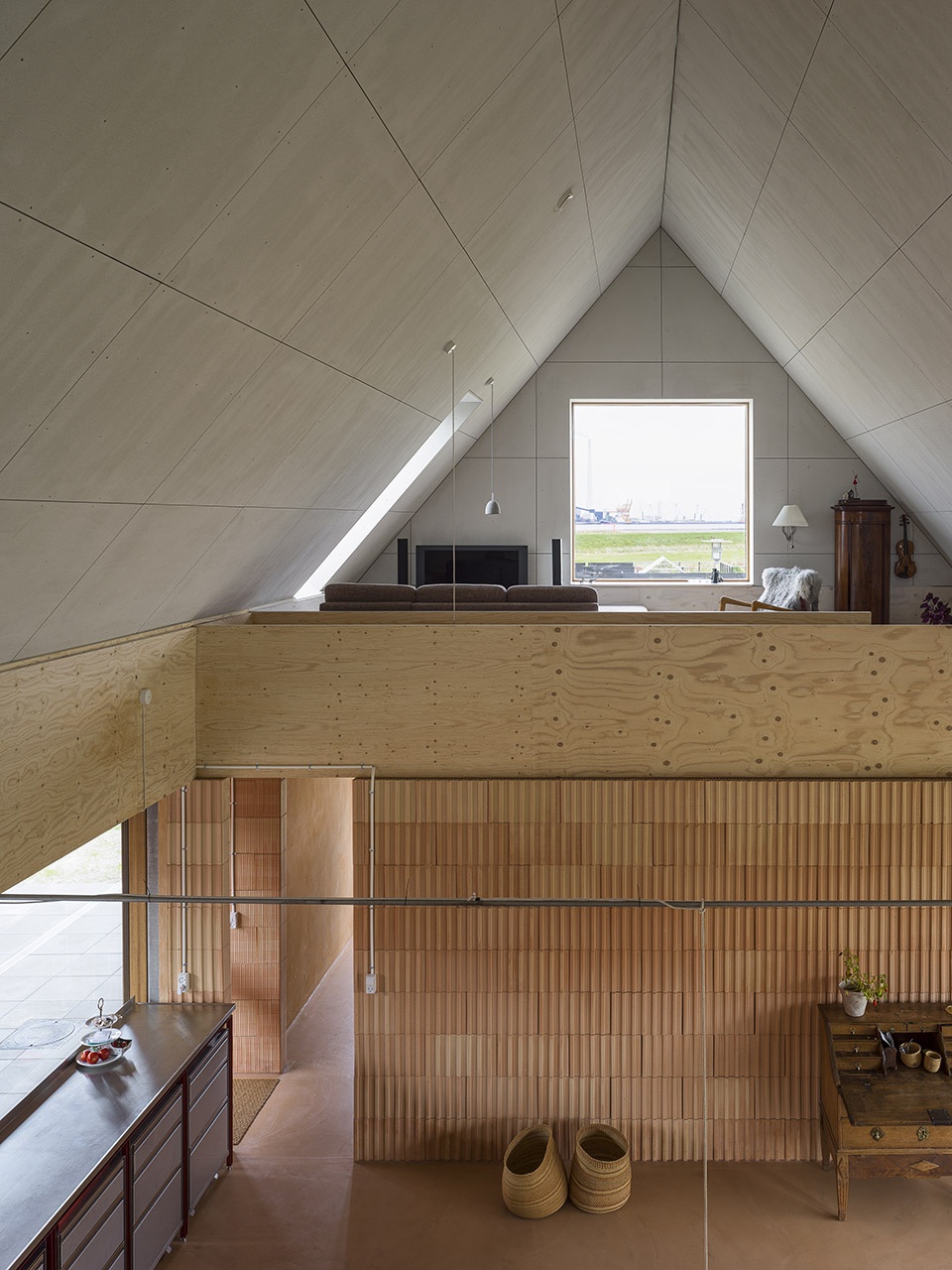

▼家庭起居室和上层的生活空间，the living room and the living area on theupper mezzanine level

©Hampus Berndtson

家庭起居室，the living room

©Hampus Berndtson

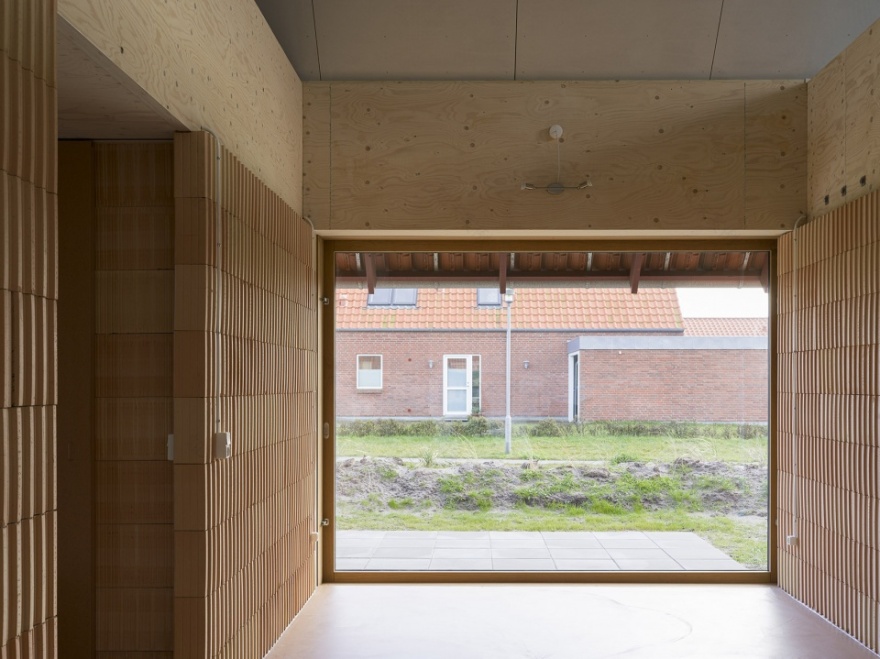

▼夏季可作为温室的起居室，设有大面积的落地窗，the living room that can be used as a conservatory during the summer, with a large floor-to-ceiling window

©Hampus Berndtson

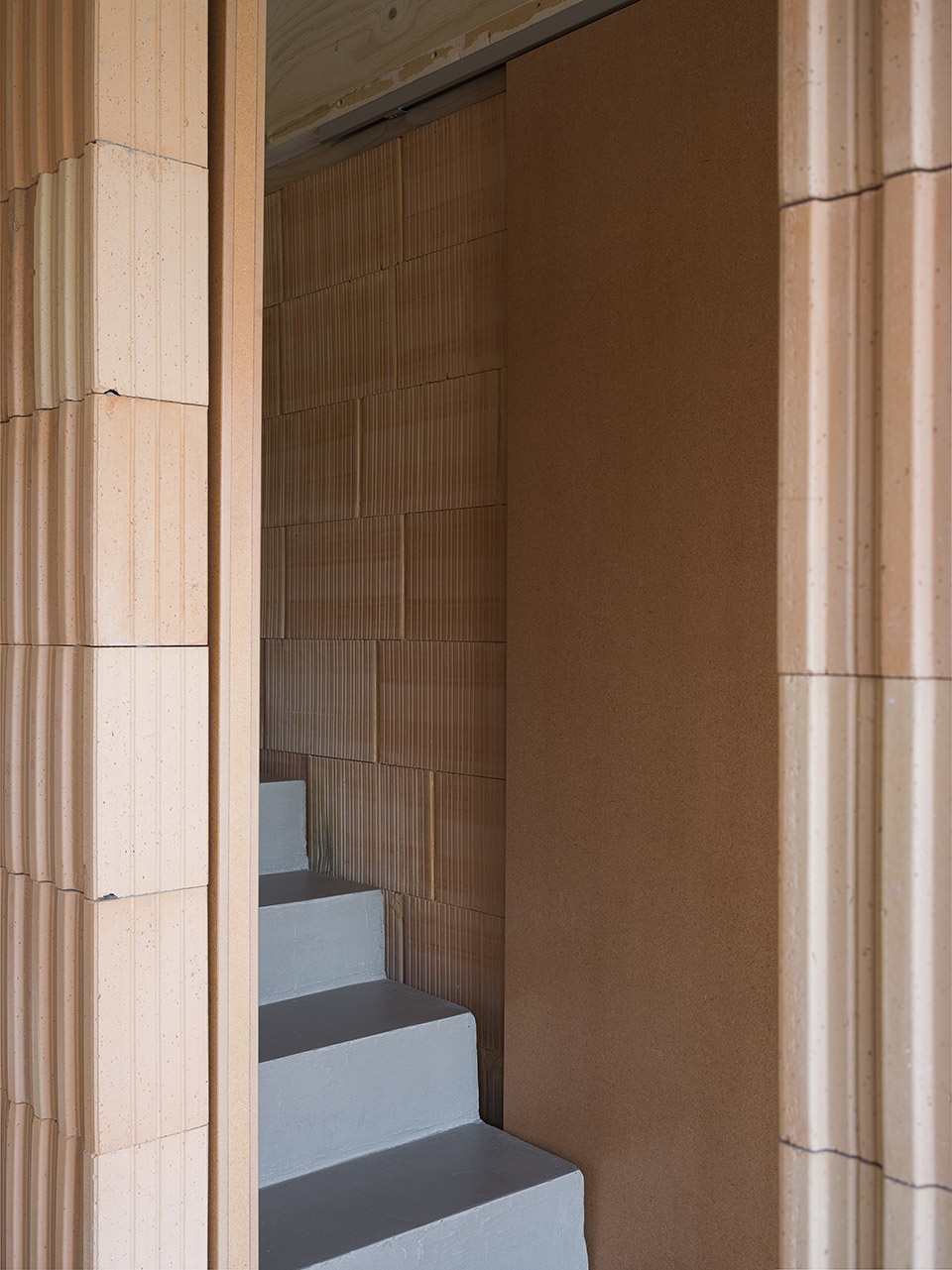

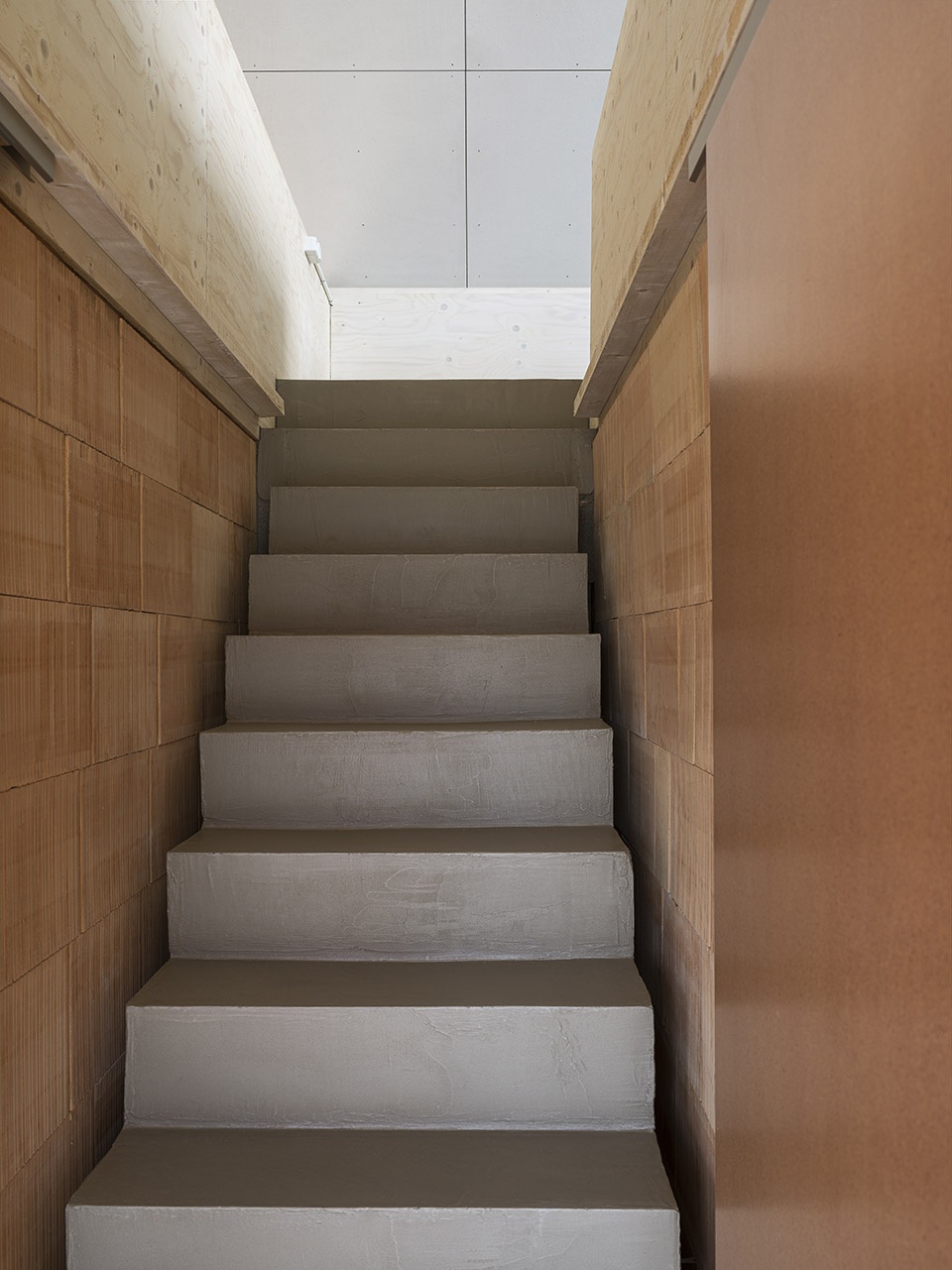

▼住宅室内楼梯，interior stairs of the house

©Hampus Berndtson

室内空间通过对称的斜屋顶来统一。深挑檐和由单板层积材打造而成的十字交叉横梁限定出每间房间的围合墙体。结构元素、横饰带（墙与天花板之间装饰用板带）和栏杆将屋顶支撑在砖石主体结构的上方。在梁的下方，由保温隔热的粘土砖所组成的墙体分隔了空间。这些粘土砖轮廓清晰，采用浅色的赤土色，彼此之间的缝隙较窄，从而赋予了室内墙体一种精致的整体质感。电源、导管和各种控件都暴露在人们的视野之中。照明设施或是被悬吊在天花板之下，或是被附在墙体表面上。由彩色中密度纤维板构成的大型滑动门则确保了浴室和卧室的私密性。

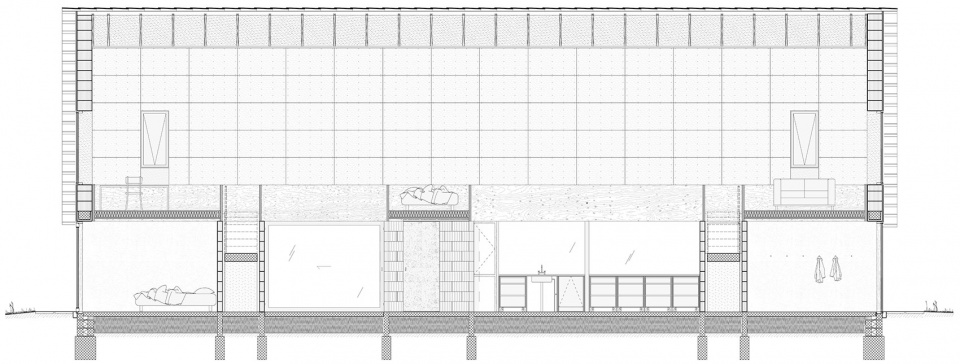

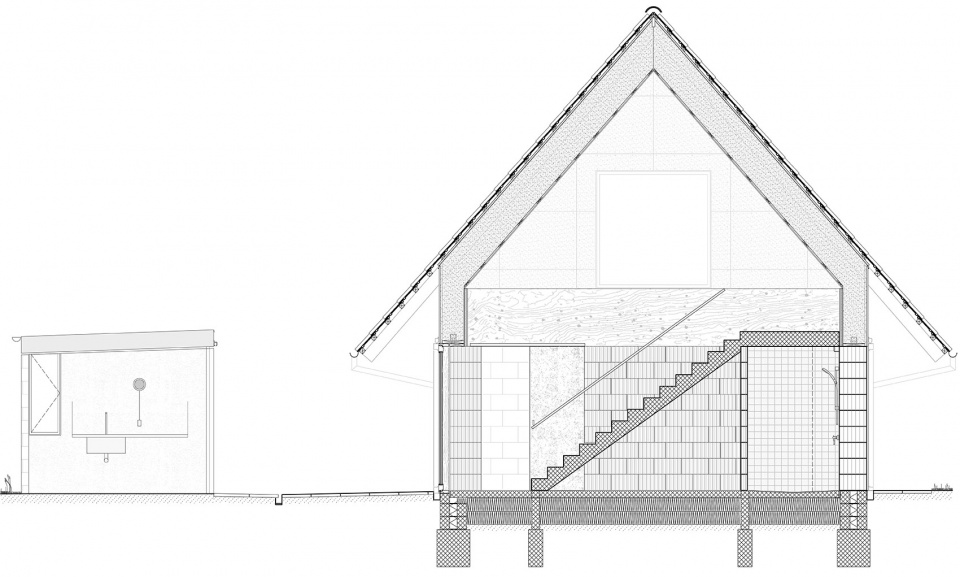

▼剖面图，深挑檐和十字交叉横梁限定出每间房间的围合墙体，section,thedeep edge andcross bracing beam define the perimeter of each room

©lenschow & pihlmann

The interior is unified by the single symmetrical pitch of the roof. A deep edge and cross bracing beam in laminate veneer lumber defines the perimeter of each room. Structural element, frieze and balustrade it lifts the roof above from the masonry. Below the line of the beam insulating clay blocks separate the space. The blocks are profiled and pale terracotta in colour, joints are narrow giving the walls a delicate, monolithic quality. Power, conduits and controls are made visible. Lighting is suspended or wall mounted. Large sliding doors in coloured mdf close the bathroom and bedroom from view.

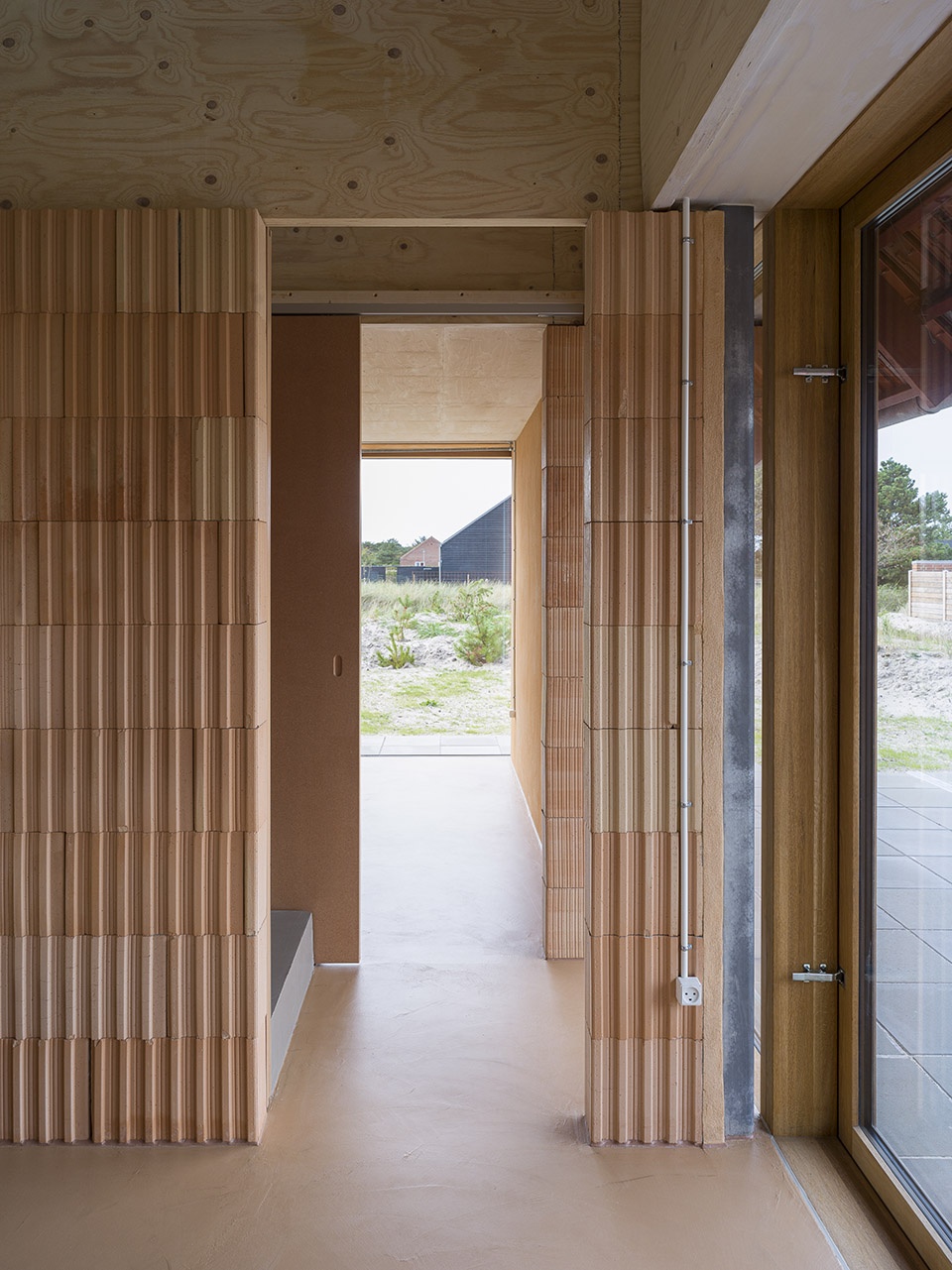

▼室内空间局部，partial interior view

©Hampus Berndtson

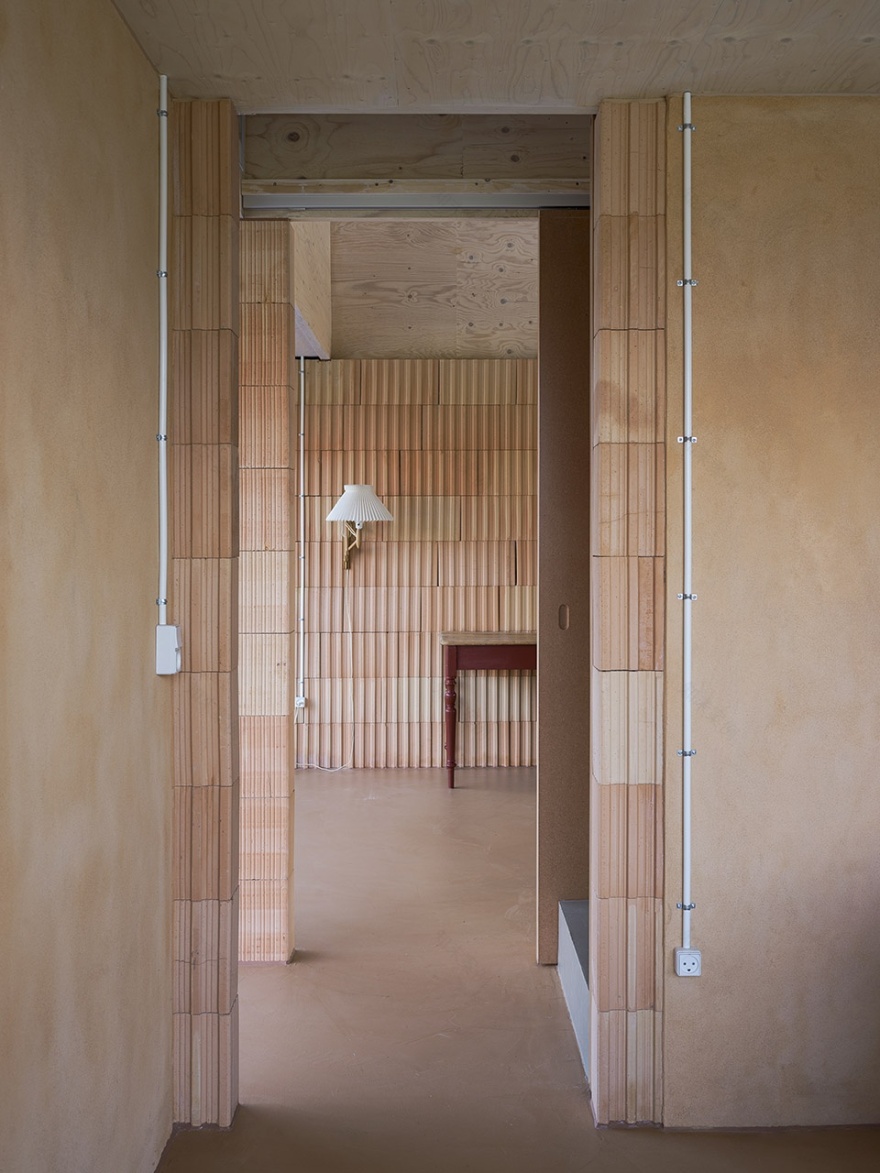

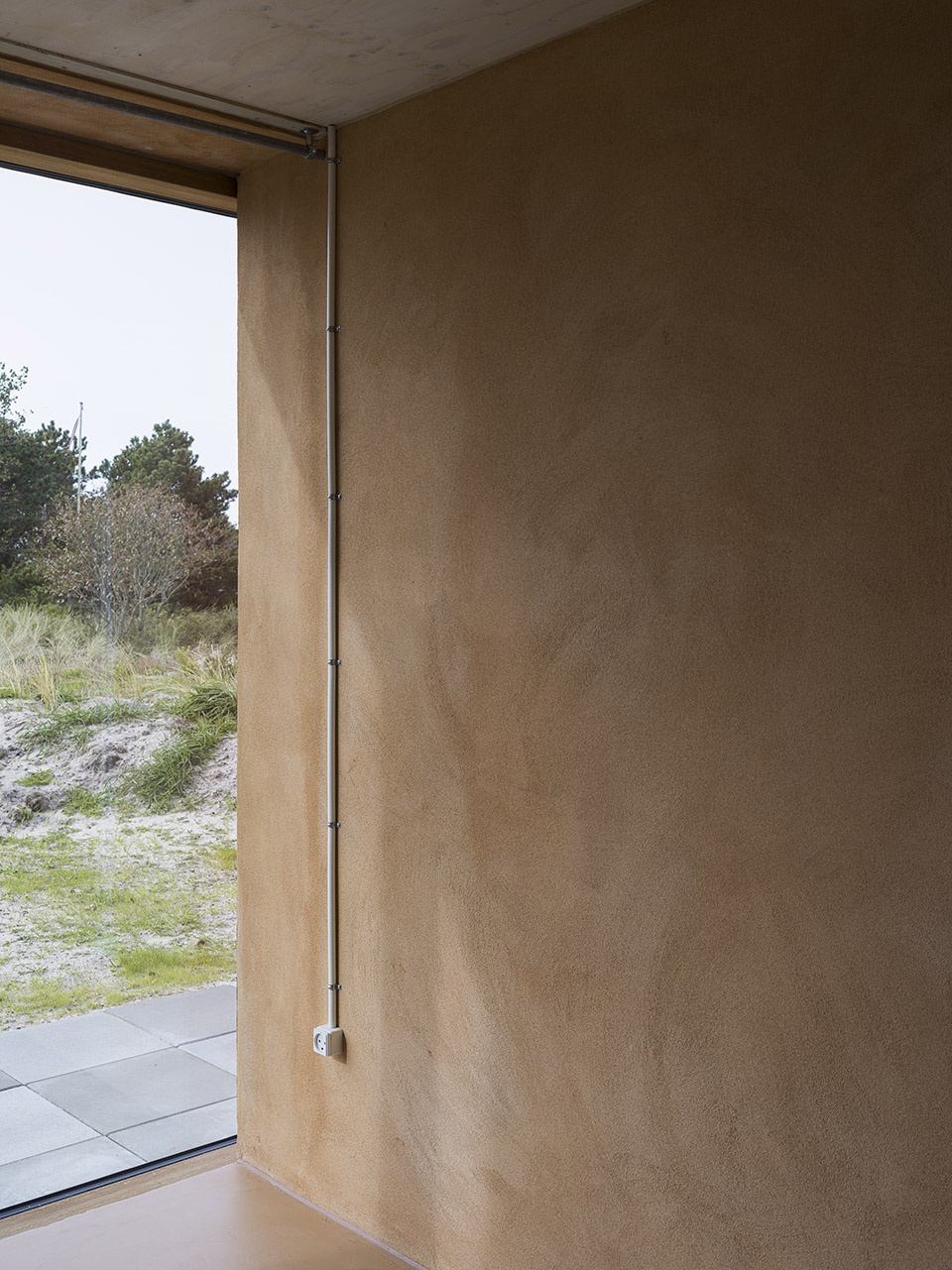

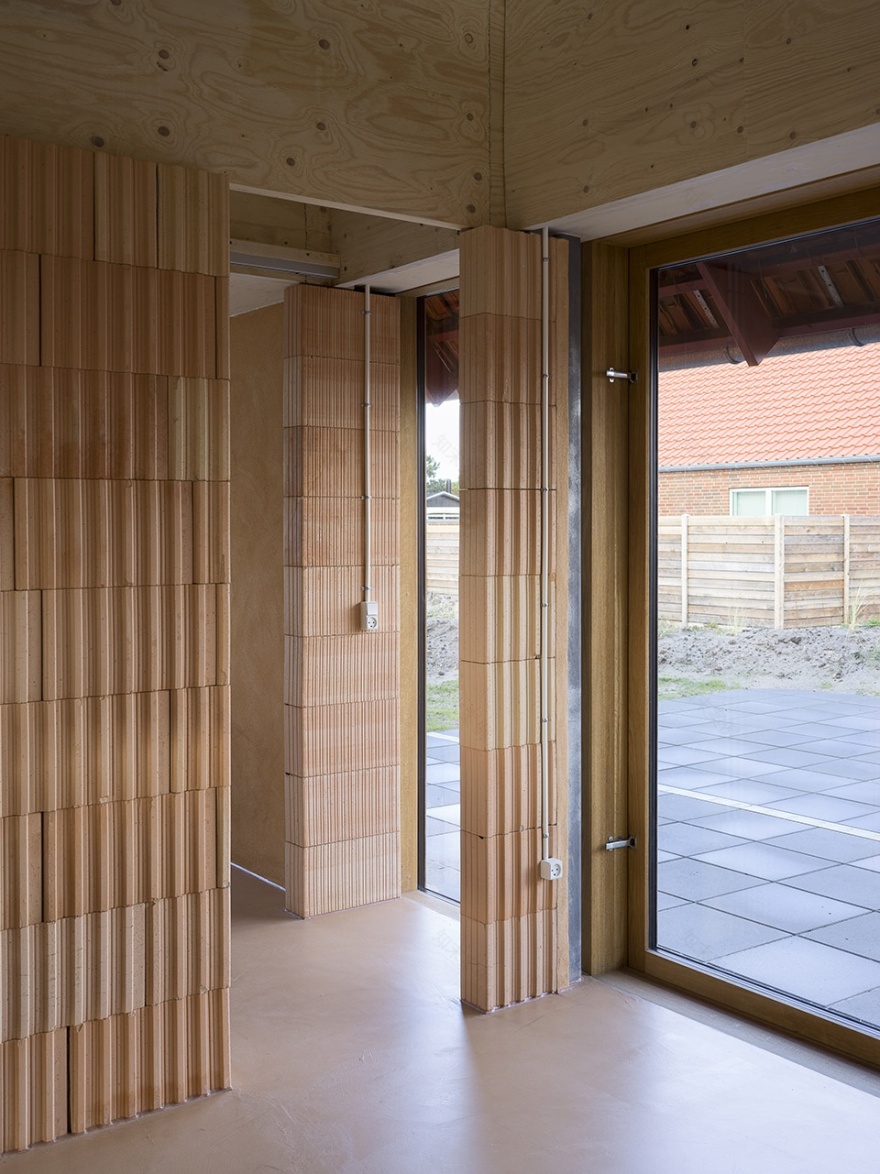

▼室内空间局部，电源、导管和各种控件都暴露在人们的视野之中，partial interior view, power, conduits and controls are made visible

©Hampus Berndtson

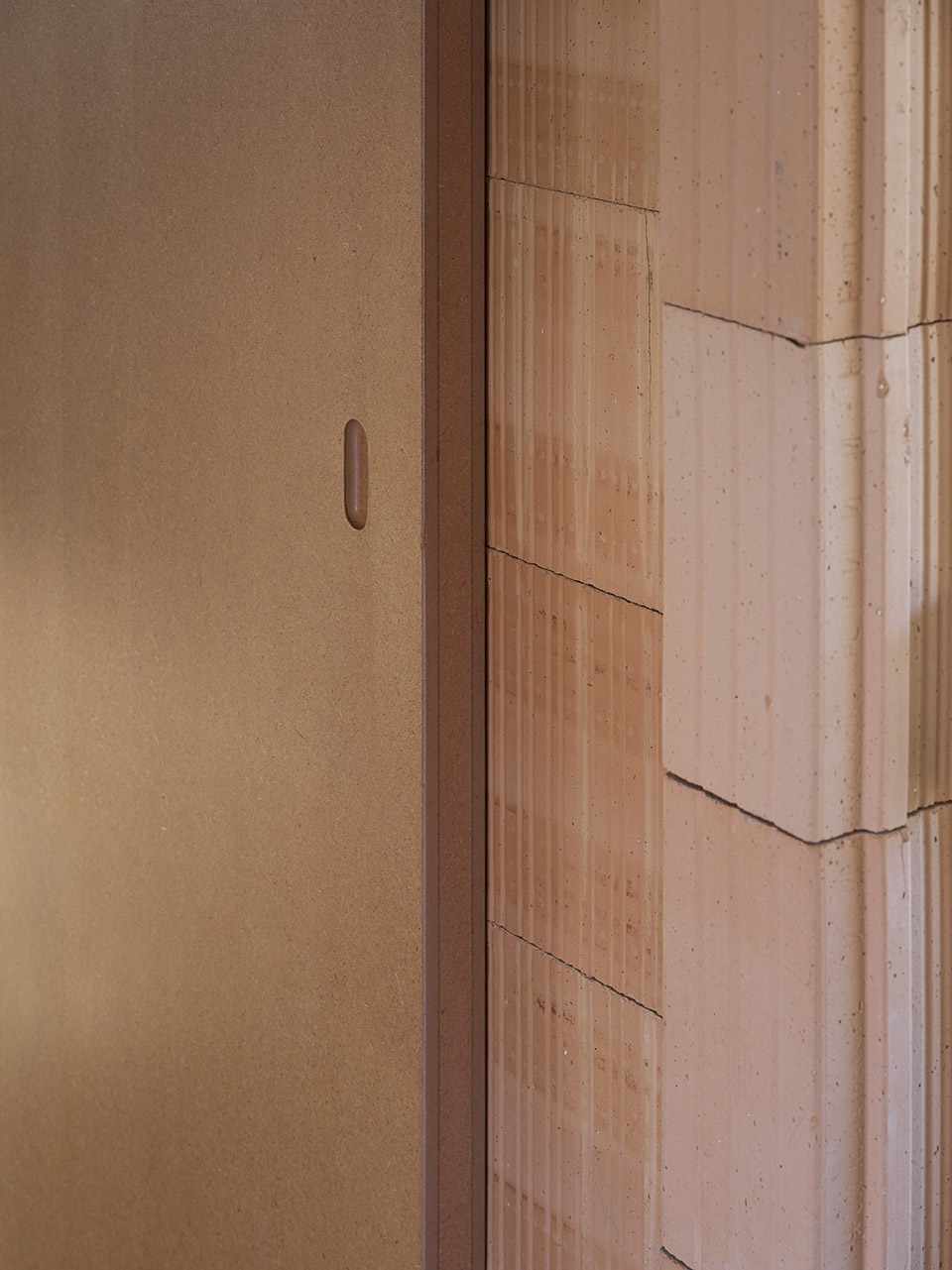

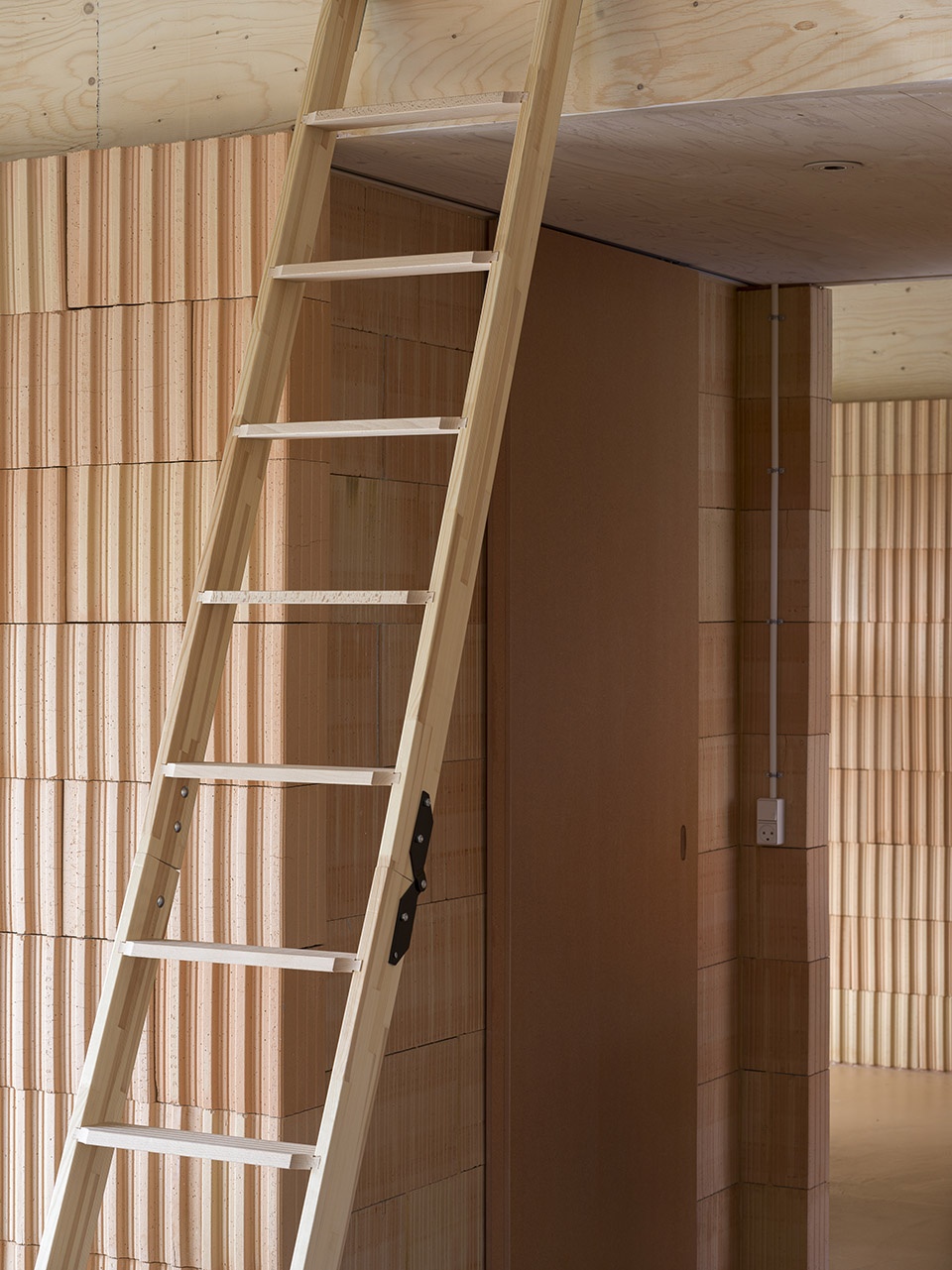

▼梯子可通向上层空间（左），室内墙体细节（右），the ladder leading to the upper floor (left), interior wall details (right)

©Hampus Berndtson

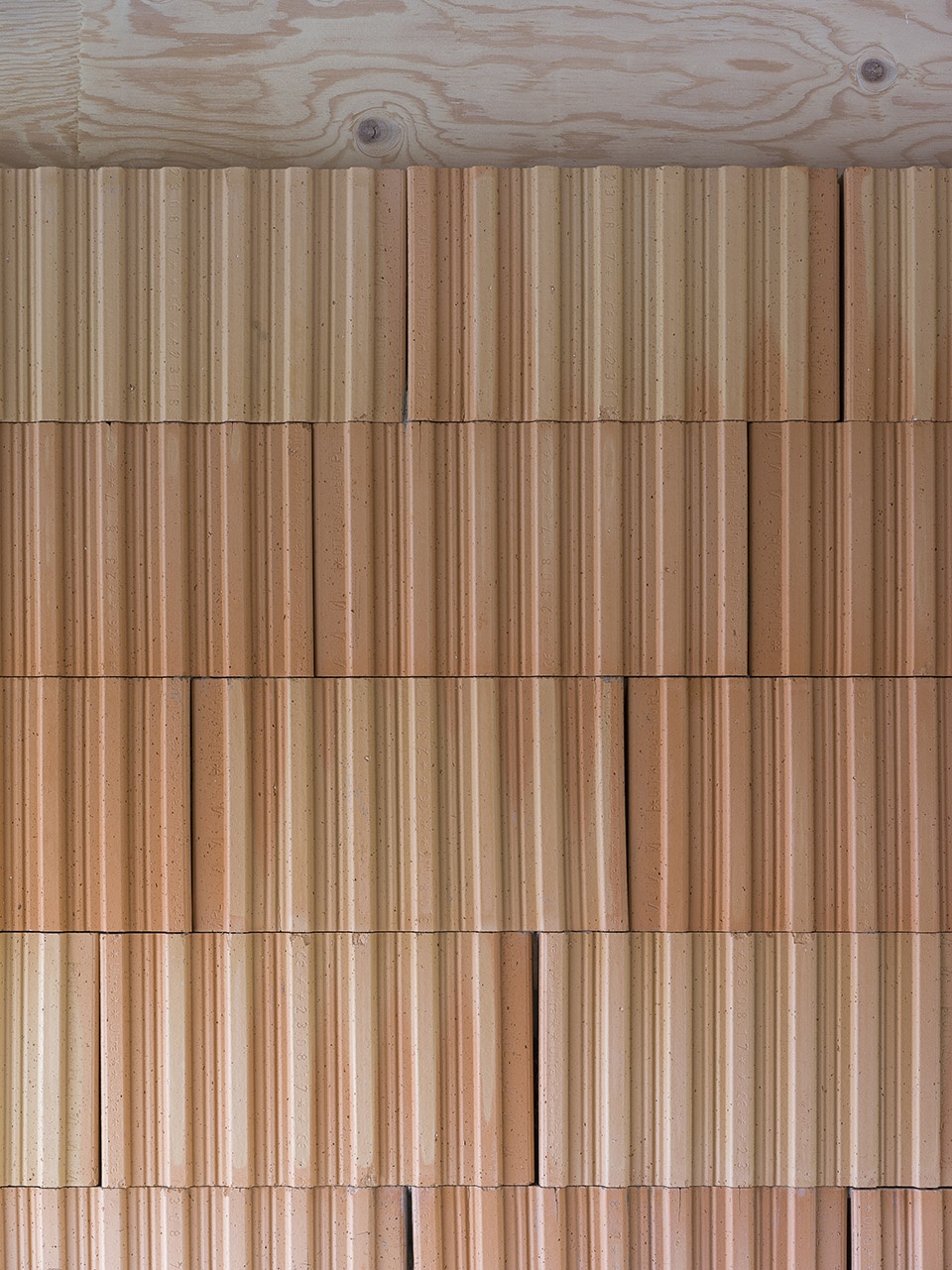

▼由粘土砖构成的室内隔墙细节，粘土砖轮廓清晰，采用浅色的赤土色，彼此之间的缝隙较窄，details of the partitions made of clay blocks, the blocks are profiled and pale terracotta in colourwith narrow joints

©Hampus Berndtson

每个建筑元素都清晰可见。单板层积材、粗糙的抹灰、隔热的粘土砖、彩色的中密度纤维板、纤维石膏板、粉末涂层钢、云杉胶合板和沙色的水泥砂浆等都为室内增加了色彩和质感。厨房紧邻着住宅外墙布置，包含了两个部分：一个是容纳着炉灶和水槽的铁锈红色固定框架，另一个则是带有钢板台面的操作台。由钢板打造而成的移动式橱柜位于台面的下方，以便于空间的重新布局。

Each architectural element is legible and expressive. Laminate veneer lumber, coarse render, insulating clay blocks, coloured mdf, fibre gypsum board, powder coated steel, soaped spruce plywood and a sand coloured cement screed give the interior a colourful, material quality. Fitted furniture is light and robust. Placed adjacent to the façade, the kitchen consists of two components, a fixed framed element containing the stove and sink painted in iron oxide red with a steel plate work surface. Moveable cabinets in plate steel rest beneath allowing the arrangement to be reconfigured.

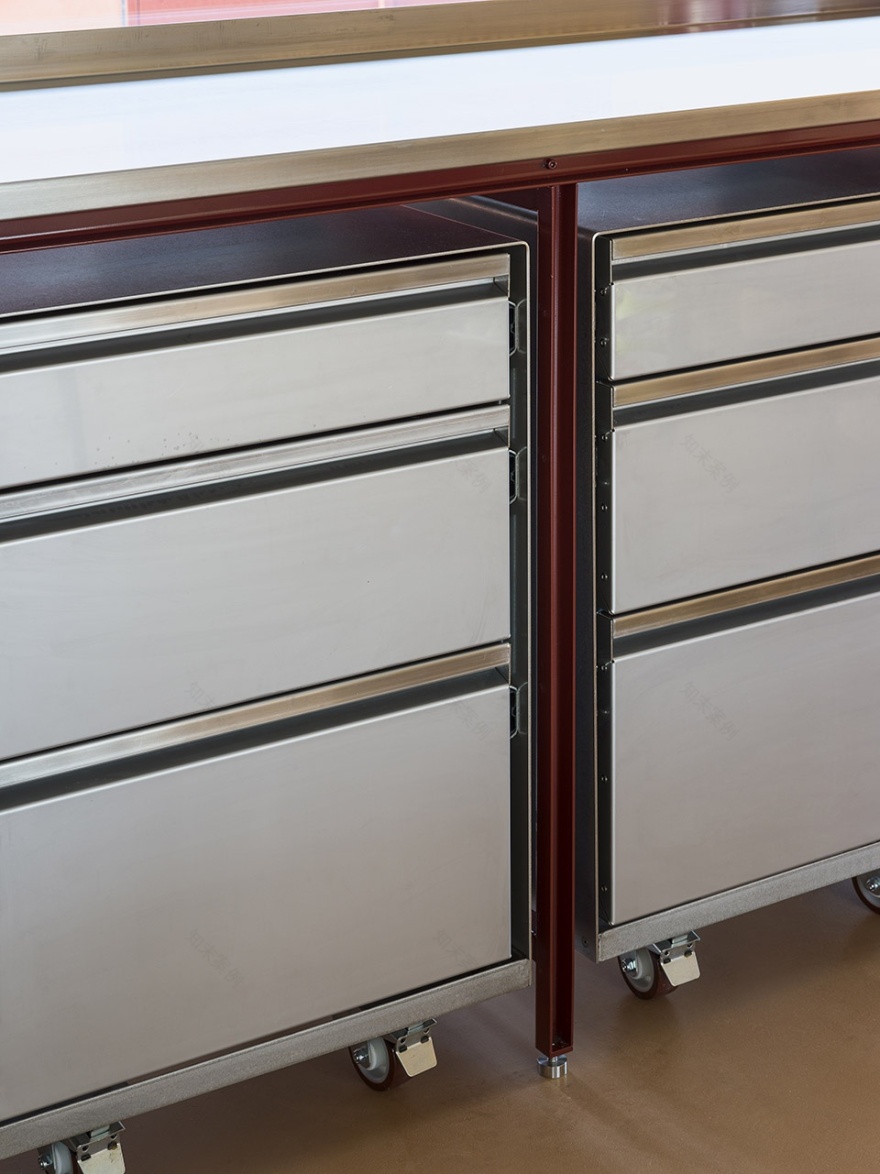

厨房细节，设有铁锈红色固定框架，details of the kitchen with aa fixed framed elementpainted in iron oxide red ©Hampus Berndtson

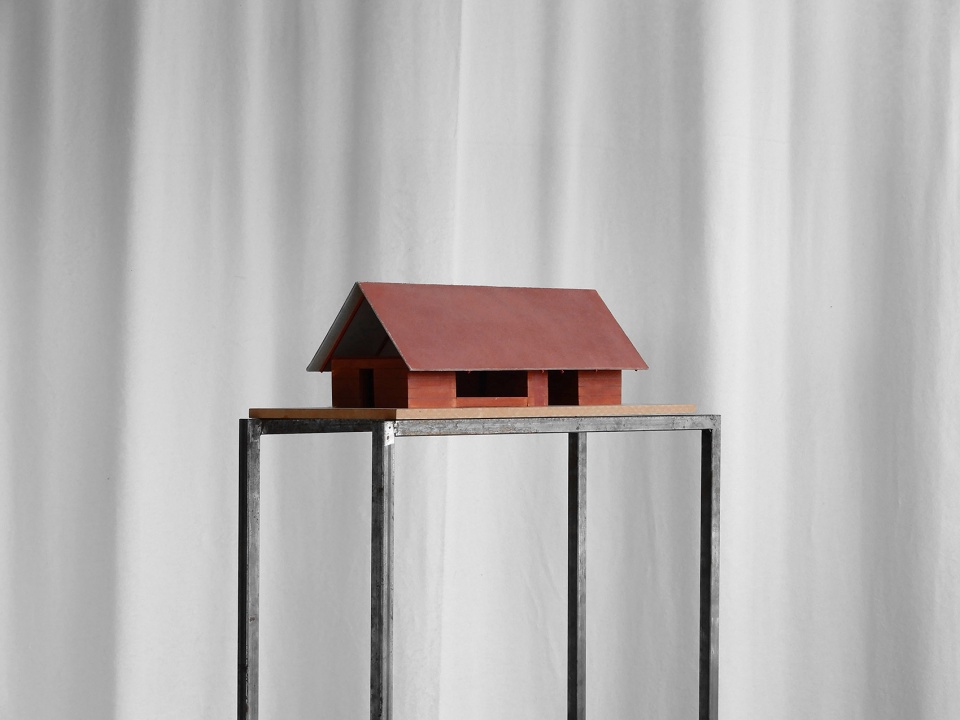

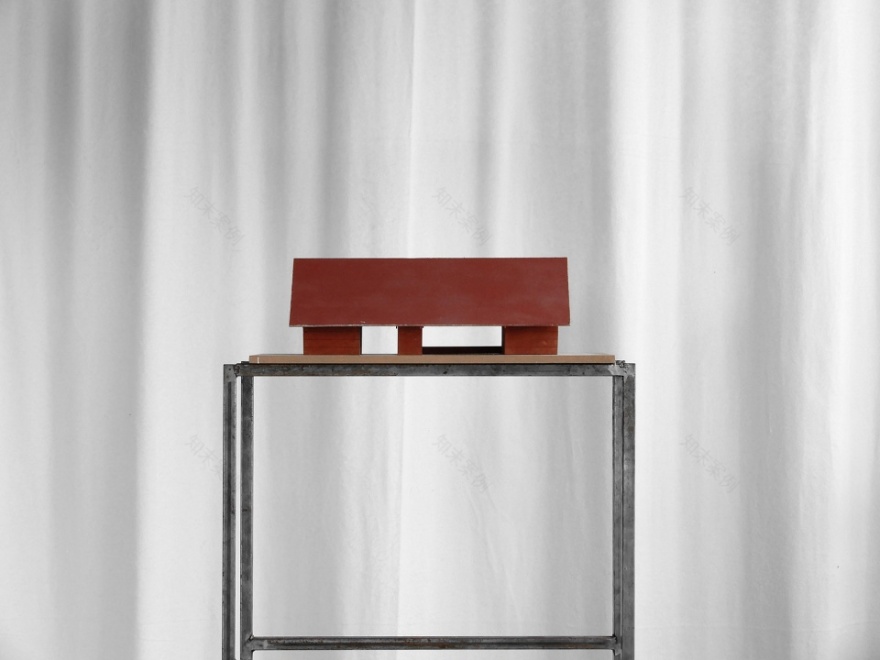

▼实体模型，the physical model

©lenschow & pihlmann

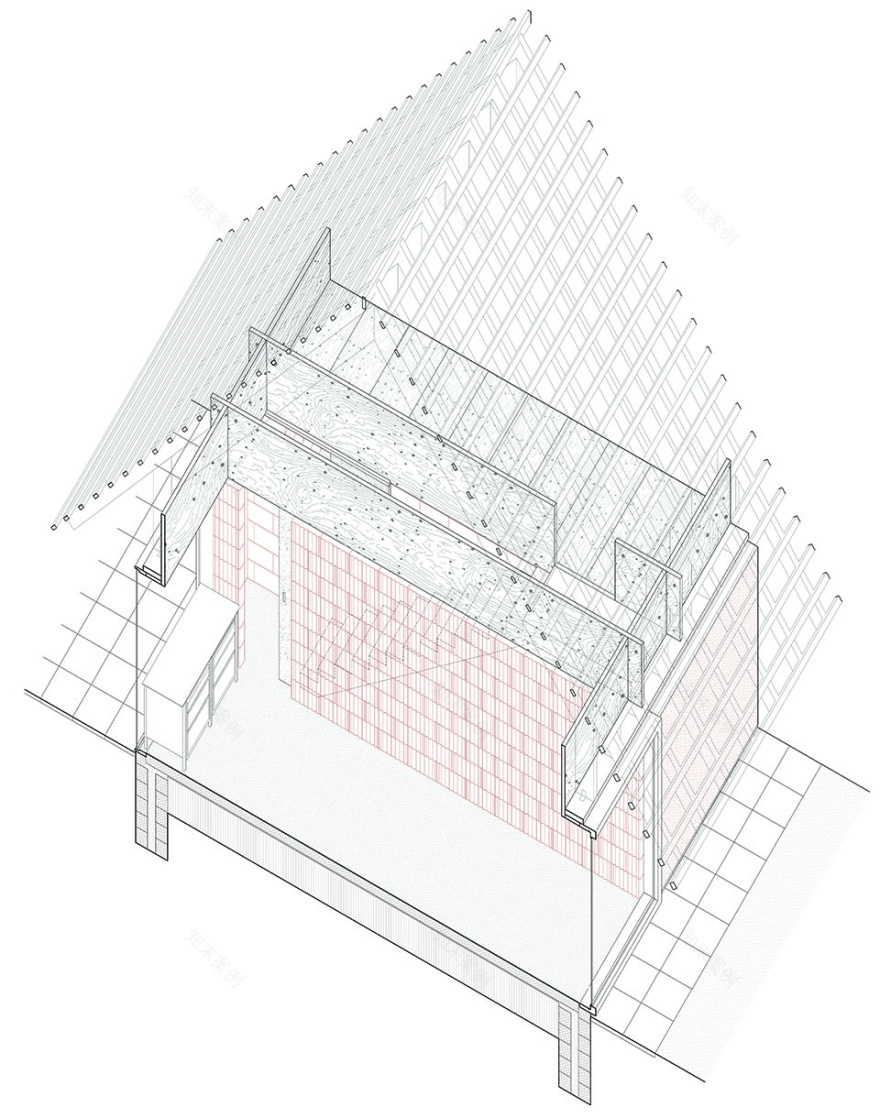

▼住宅轴测图，axon of the house

©lenschow & pihlmann

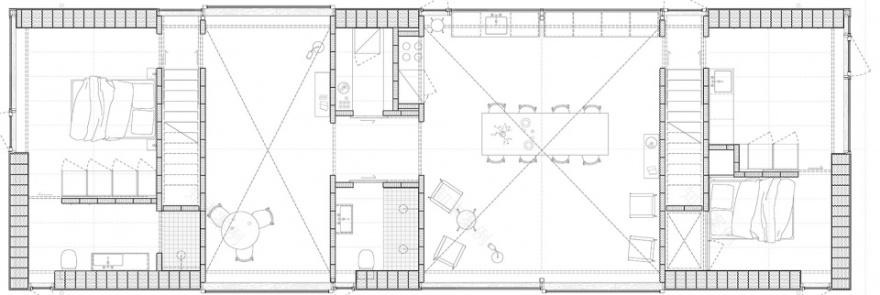

▼首层平面图，ground floor plan

©lenschow & pihlmann

二层平面图，first floor plan

©lenschow & pihlmann

▼剖面图，section

©lenschow & pihlmann

Year: 2020Size: 198 sqm

Location: Fanø, Denmark

Client: Private

Type: Single family house

Architect: lenschow & pihlmann

Photography: Hampus Berndtson
