粤港澳大湾区高性能医疗器械创新中心丨中国广州丨海茵建筑

海茵建筑担当设计的粤港澳大湾区高性能医疗器械创新中心（IHM 创新中心）位于广州蓬勃发展的国际生物岛。IHM 创新中心生物岛研发中心内设置有科研实验室、交流互动空间、办公协同空间，致力于高性能医疗器械创新研发。

HENN’s Innovation Center for Medical Devices (IHM·GBA) is located in the heart of Guangzhou’s thriving international Bio Island. The building is used to develop high-performance medical devices, which requires a design that combines laboratories and spaces for research with areas for informal communication and open office spaces.

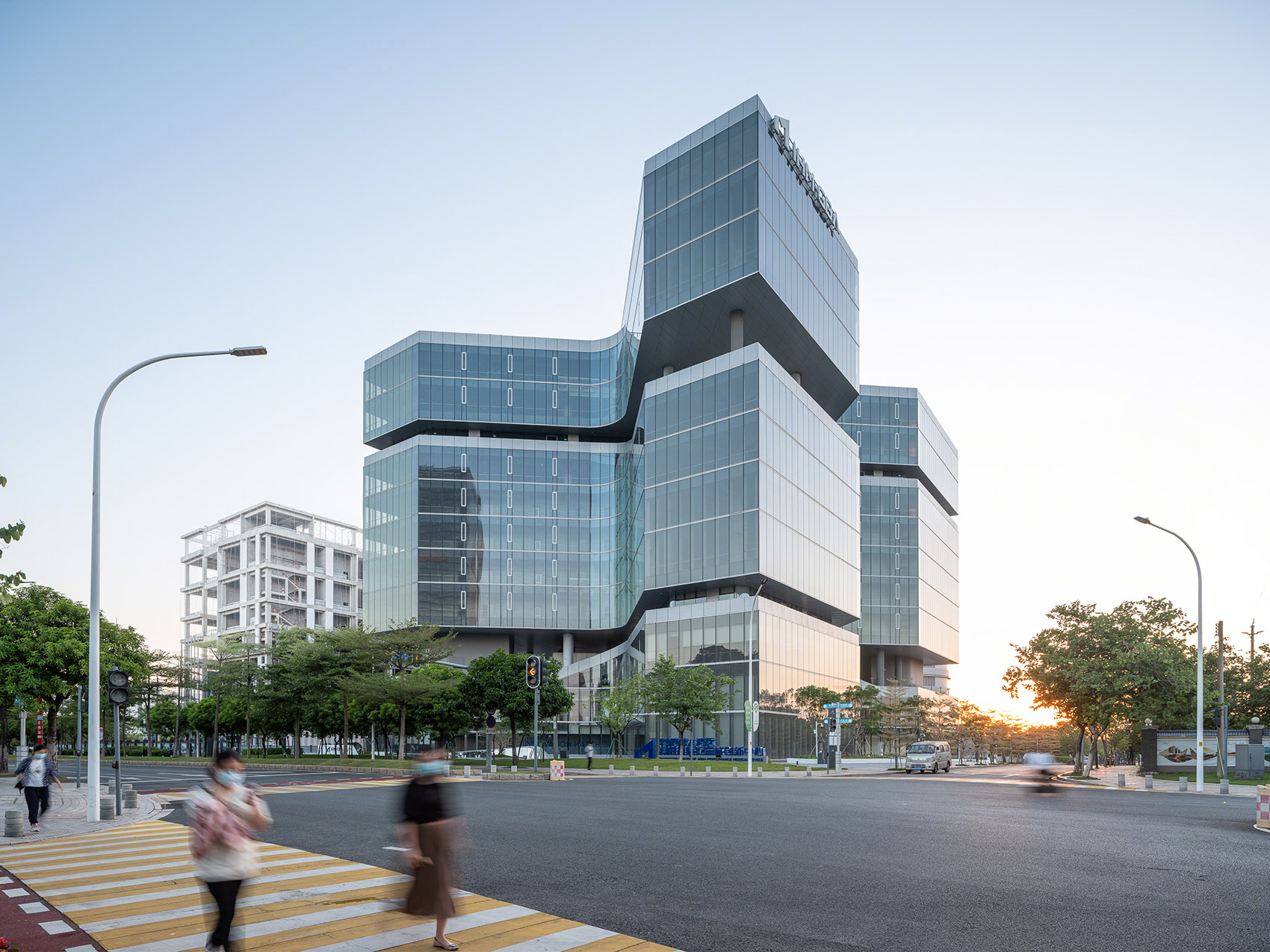

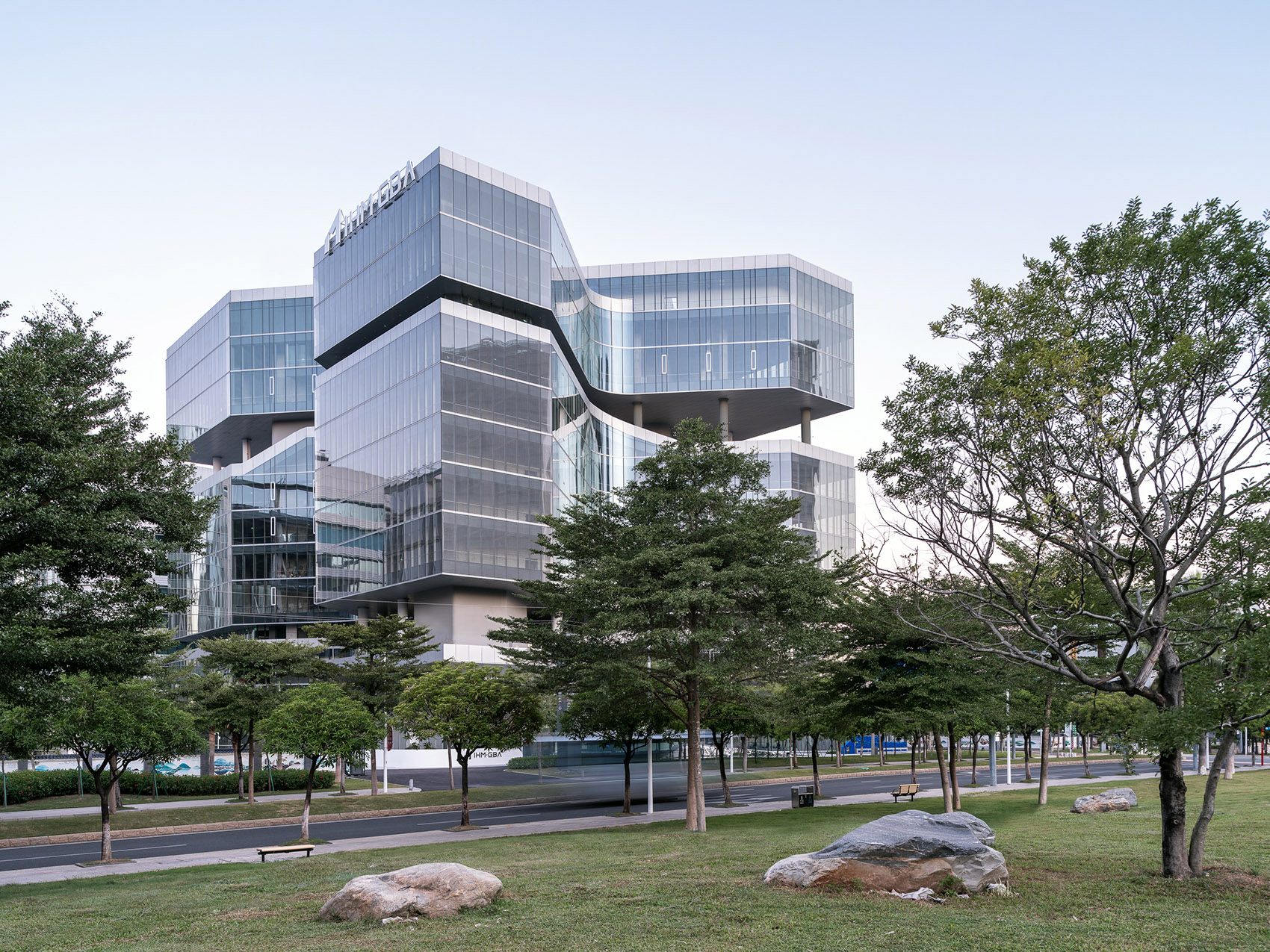

▼建筑外观，Exterior view

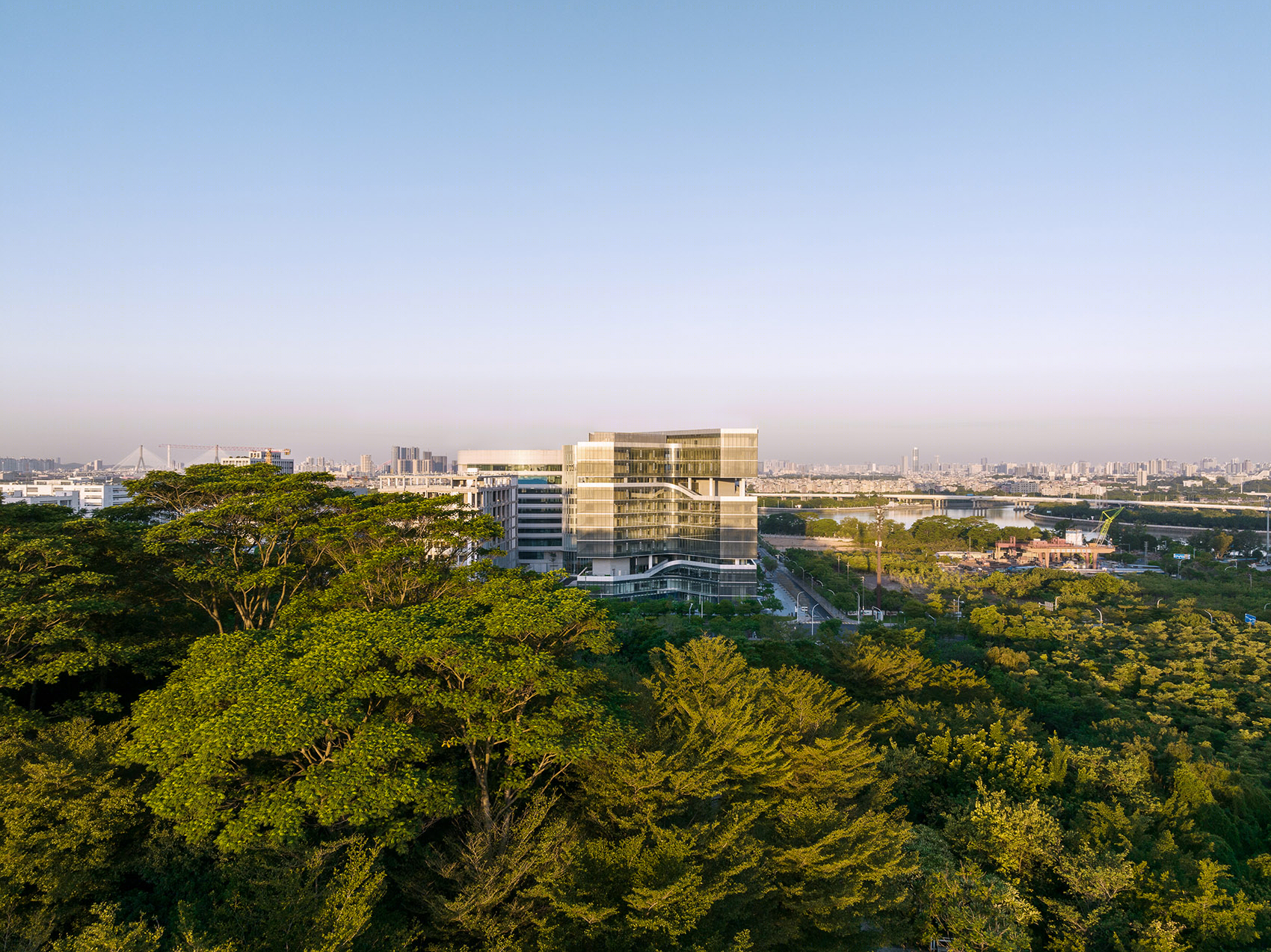

▼城市文脉中的抽象形体，Abstract massing in the urban context

海茵建筑的设计将多种功能编织在一个 X 形平面中，从而最大化利用了地块：“X”的两个翼板分别用于布局实验室或办公空间，而交叉点则用作公共空间。柱网在实验室翼板更密集，而在办公空间的翼板则更开阔。

HENN’s design weaves these programs together in an X-shaped floor plan which makes optimal use of the square plot: each bar of the “X” is devoted to either laboratory or workspaces, while the intersections function as communal spaces. The column grid is denser in lab areas, and more open in the wings dedicated to office spaces.

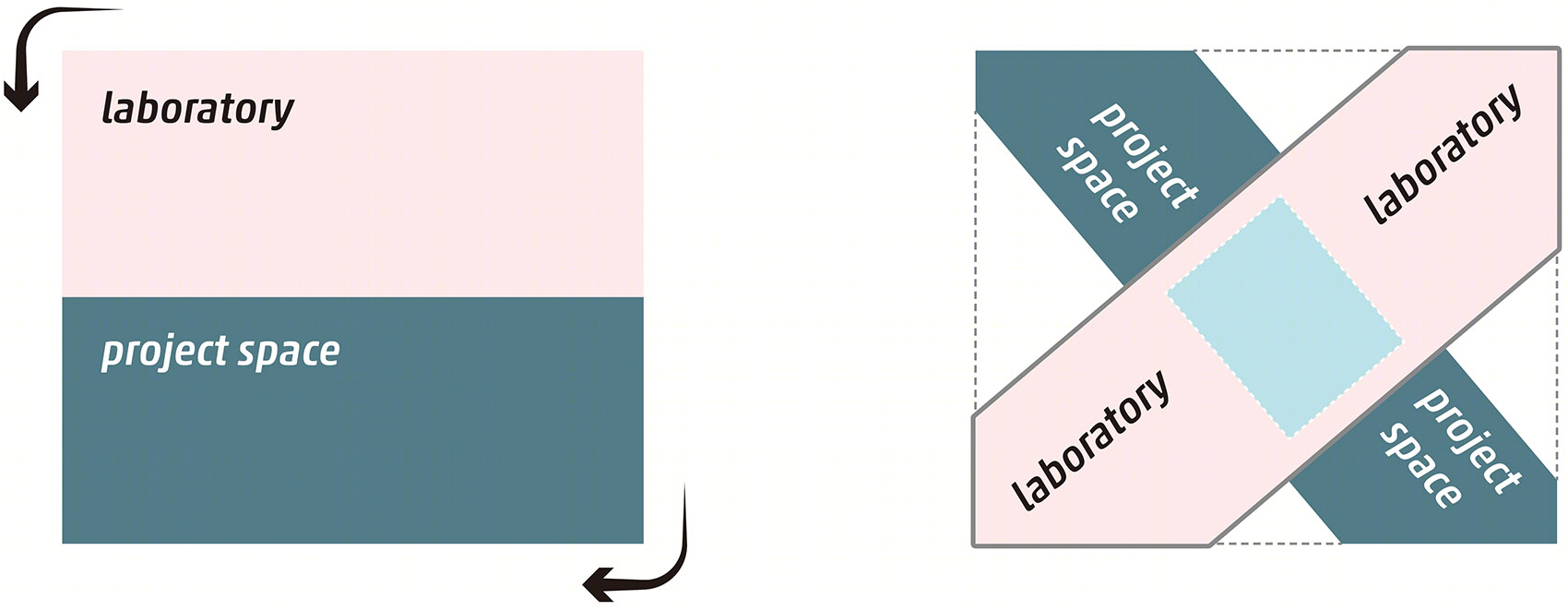

▼设计策略，Design strategy

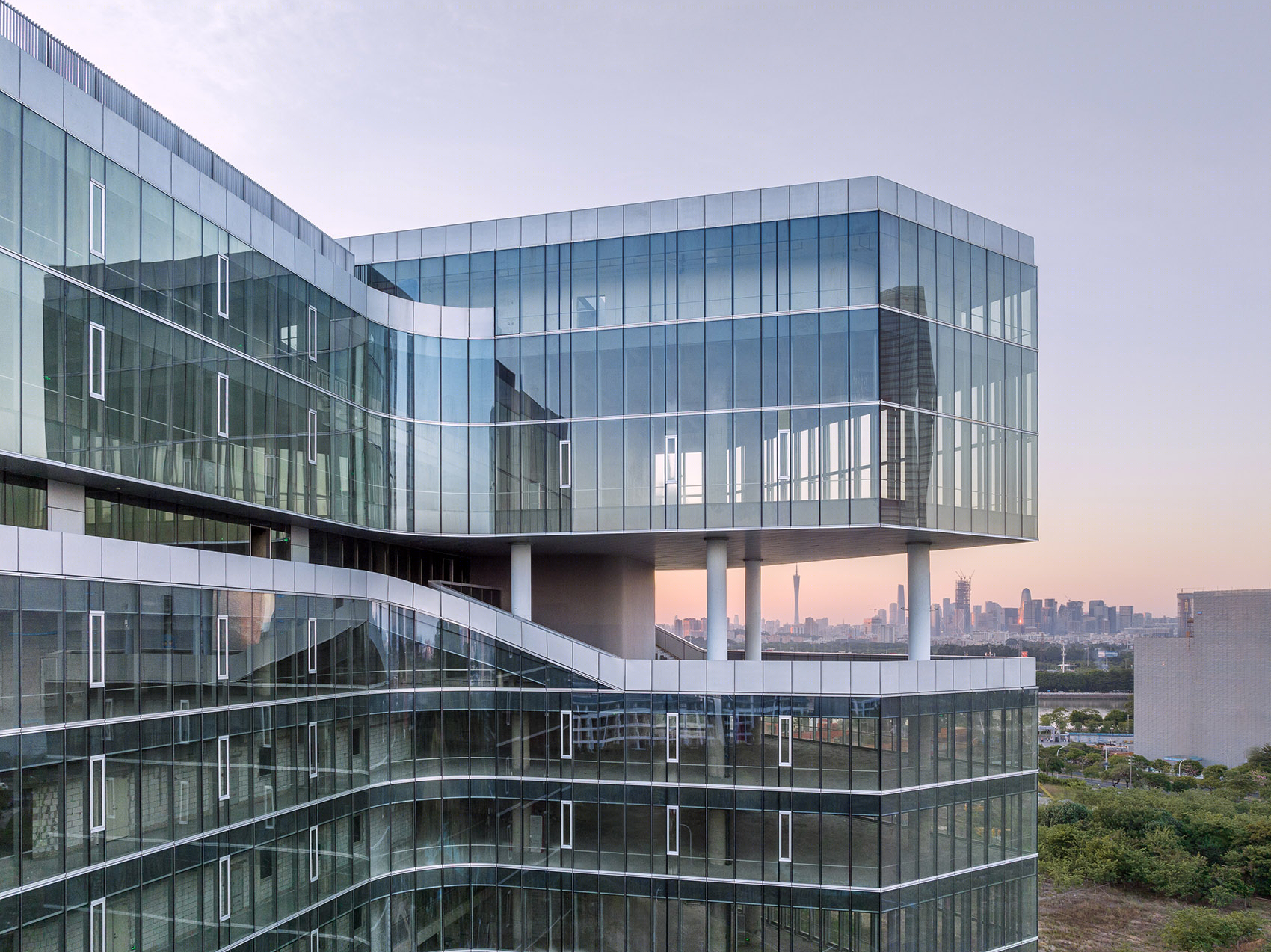

▼两种幕墙类型，Two types of facade

平面布局将自然光引入建筑的核心地带，每个翼板空间都拥有多角度的优质景观。X 形内侧凹角设计为曲面，与平直方正的外轮廓形成对比，并沿着立面创建了动态的线条组合，带来更好的视觉体验。

The shape of the floor plan allows for light to reach into the heart of the building, with lush vistas in multiple directions from every wing. The corners on the inside of the X are curved, in contrast to the sharp outer edges, adding to the quality of the views and creating a dynamic composition of lines along the facade.

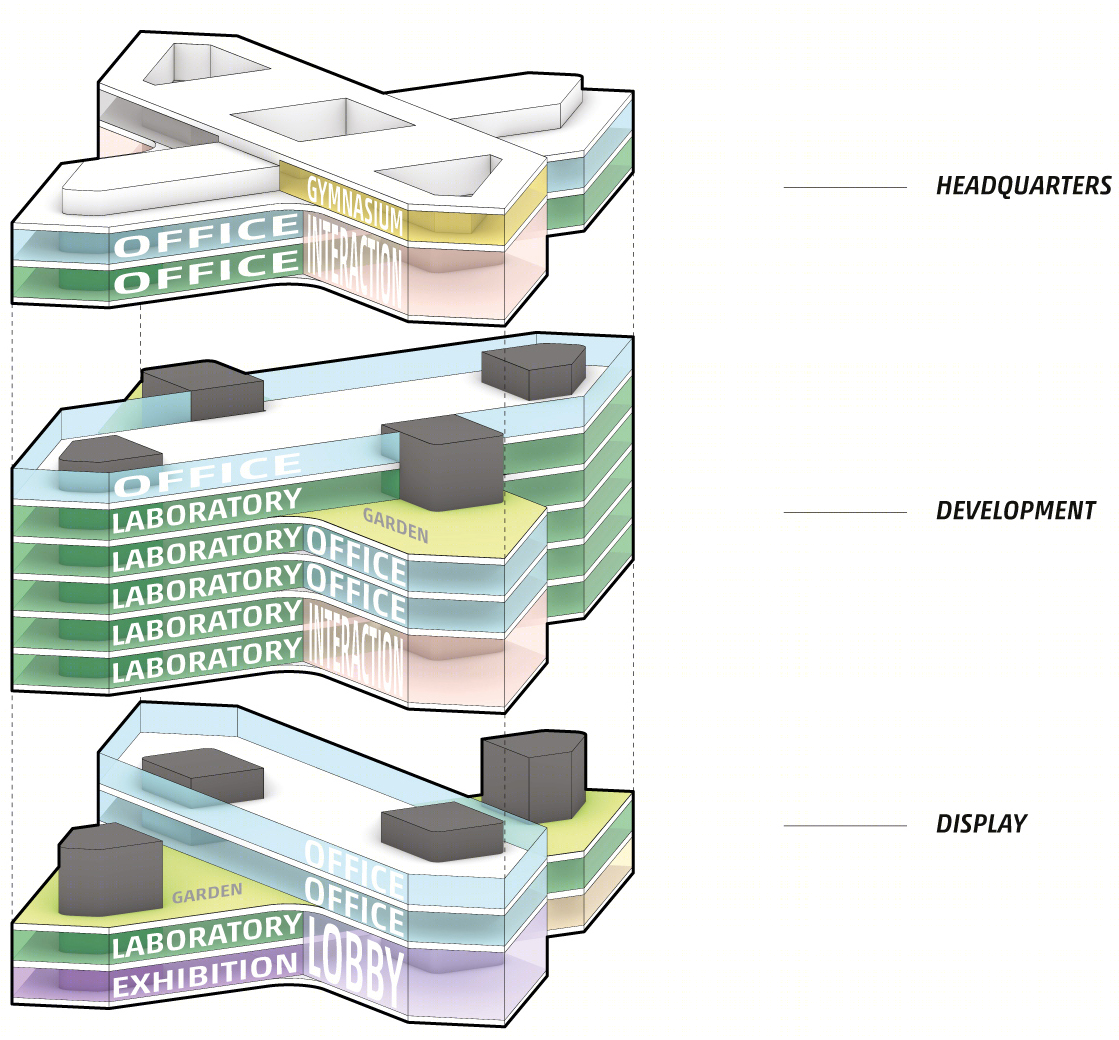

▼功能分布，Program distribution

IHM 创新中心由三个漂浮的体块组成，中间由多层露台隔开，这些露台用作空中花园。双层通高的露台空间创造了体块间转换的趣味变化。

The Innovation Center is composed of three floating volumes separated by multi-storey, open-air terraces that function as sky gardens. These double-height spaces create a playful rhythm of shifting volumes.

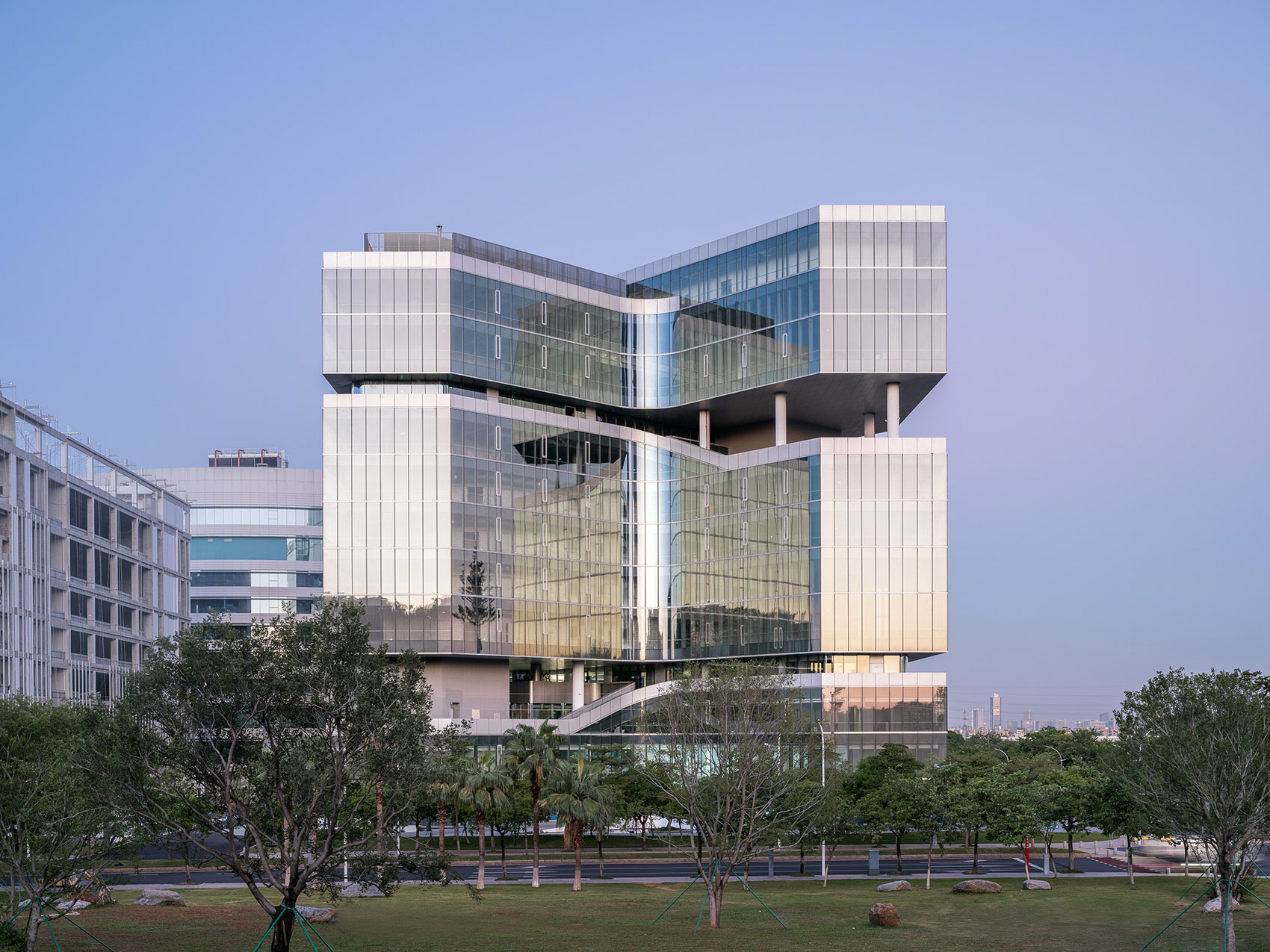

▼三个漂浮的体块，Three floating volumes

▼错落的花园，Shifting gardens

底部体块容纳了公共功能，包括大厅、展厅、演示实验室和咖啡厅；中间体块包含实验室、会议室、多功能厅等；顶部是办公区域。

The lower volume hosts public functions, including a lobby, exhibition hall, a show lab and café; the middle volume above houses laboratories, meeting rooms, multipurpose rooms, and the top floor contains offices.

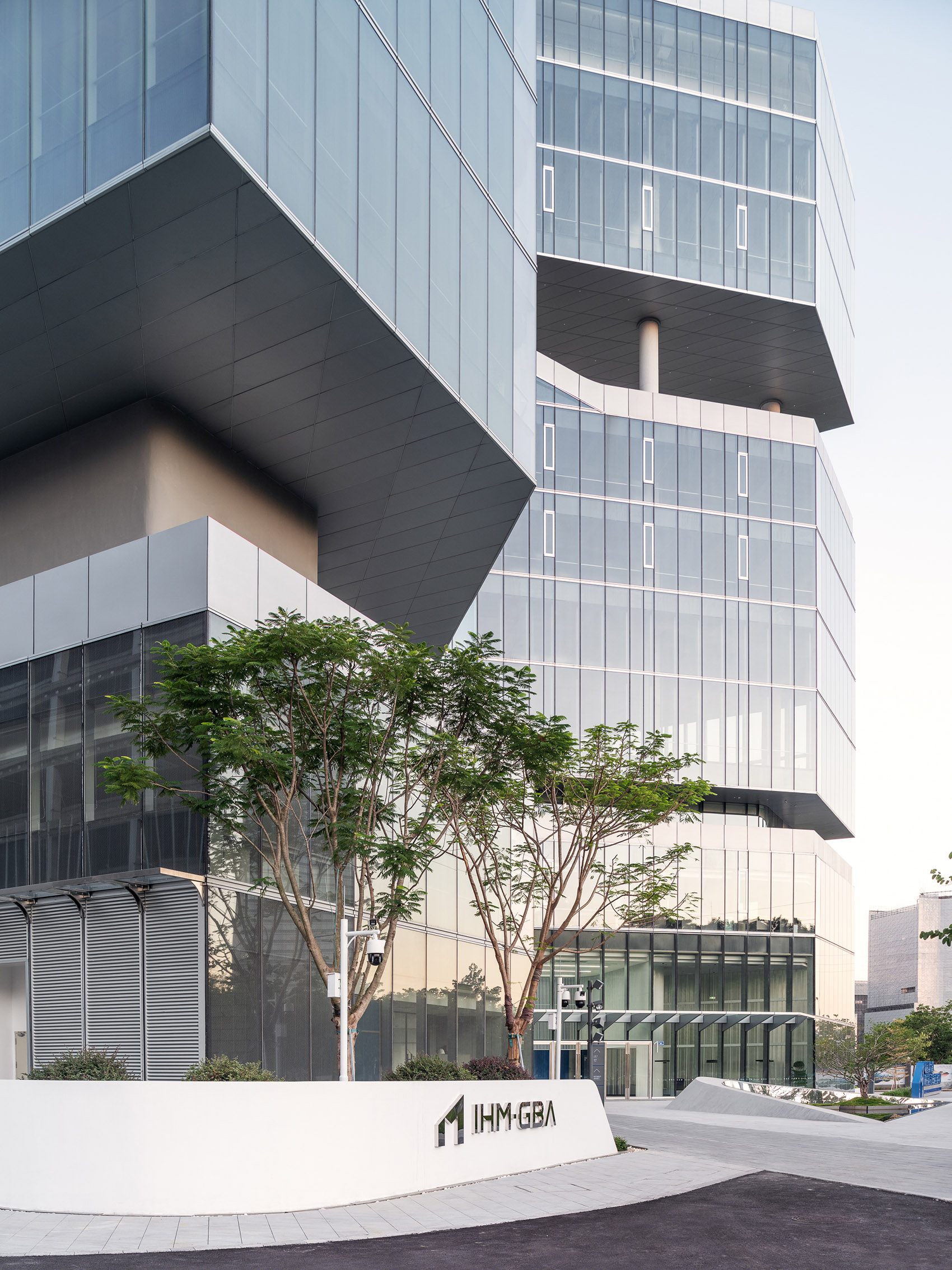

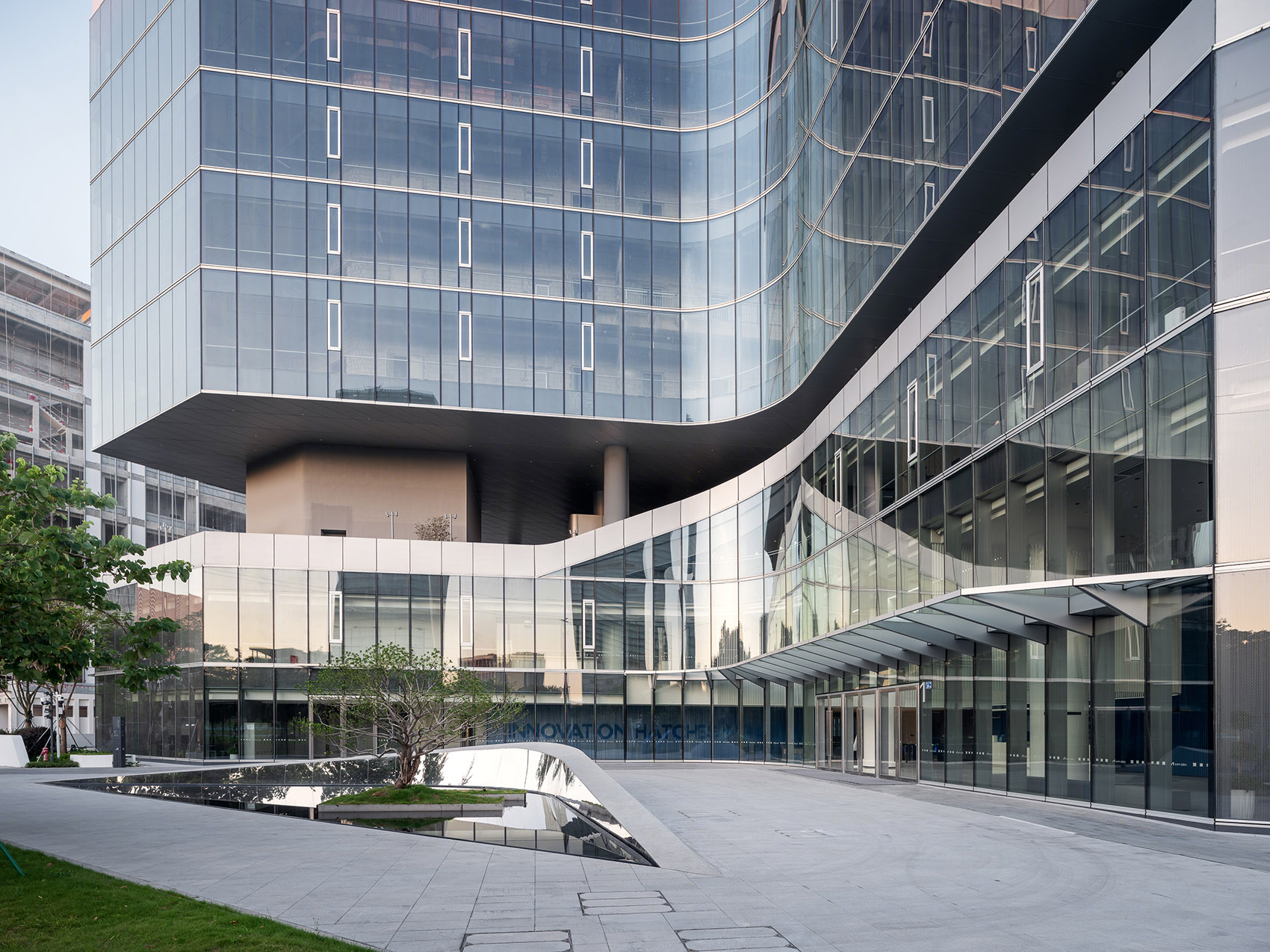

▼主入口，Entrance

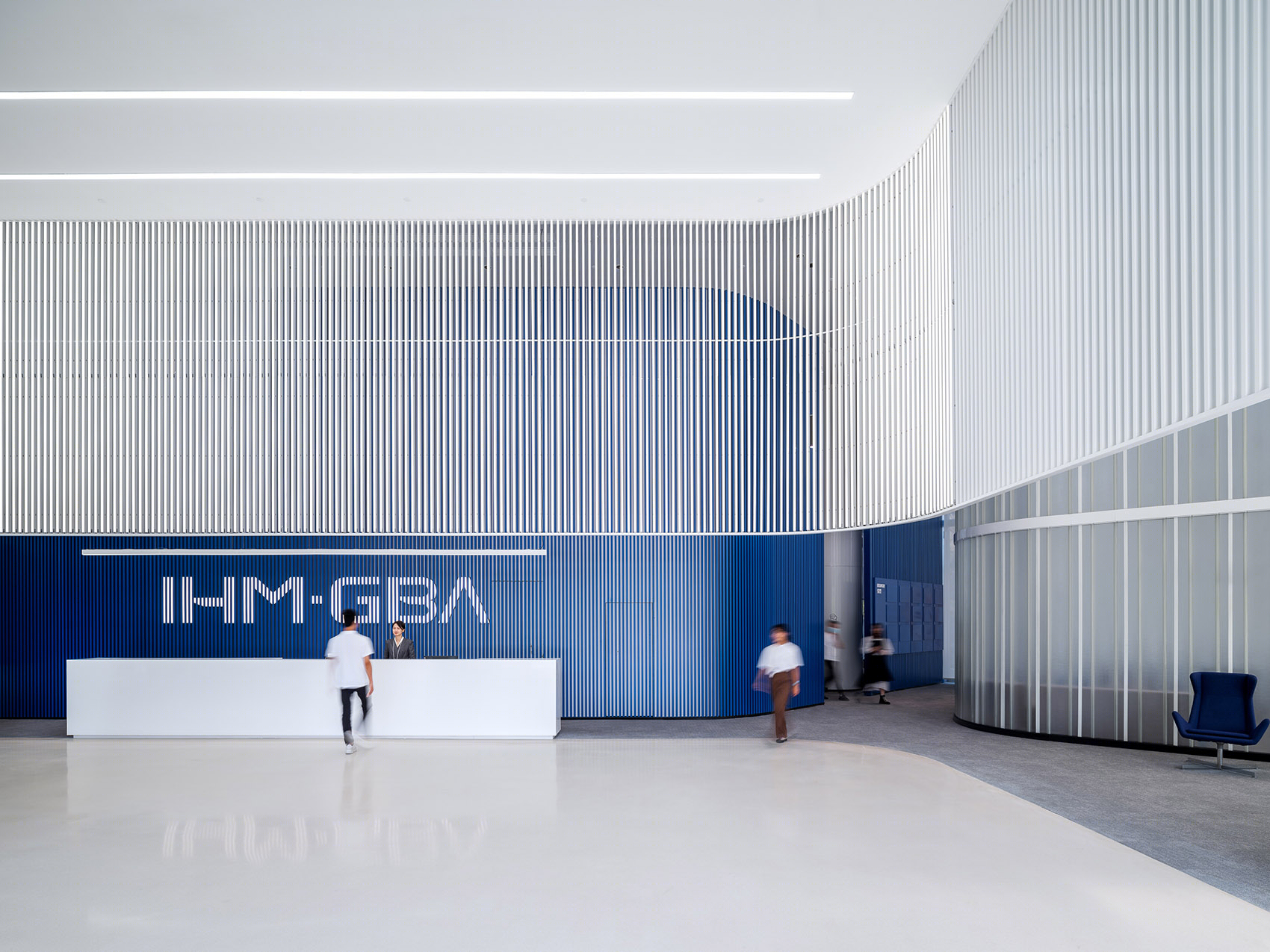

▼前厅，Lobby

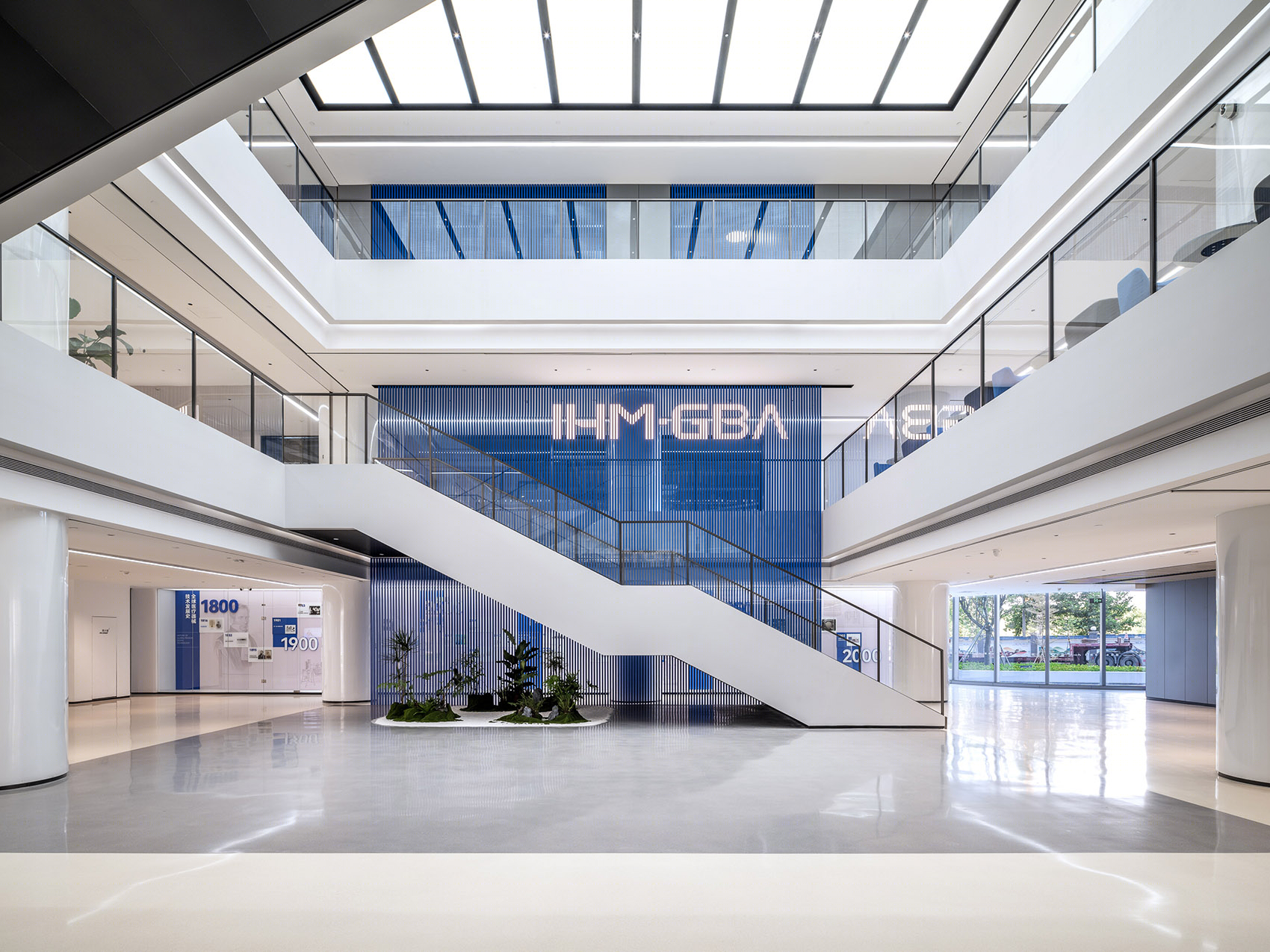

▼中庭，Atrium

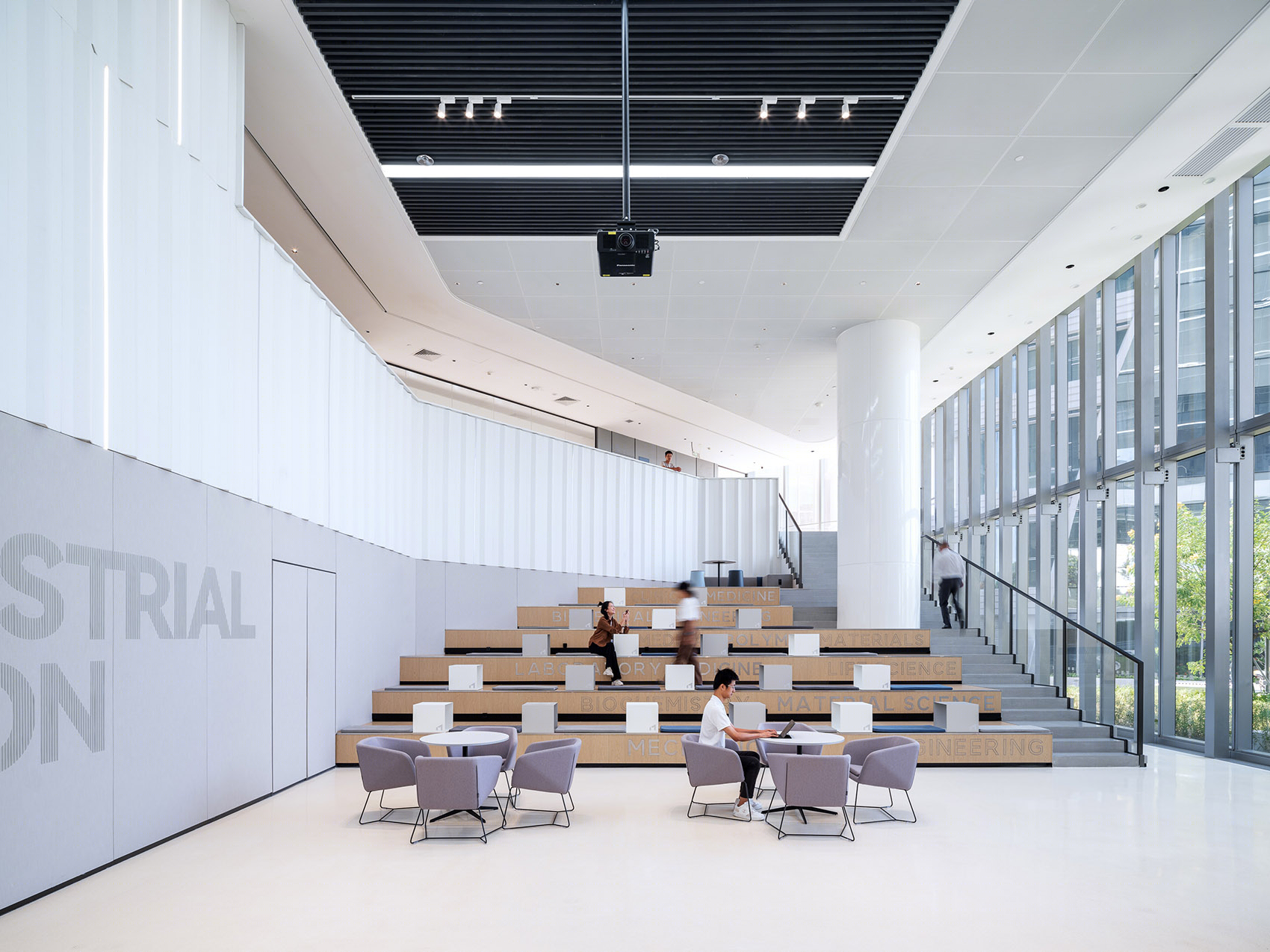

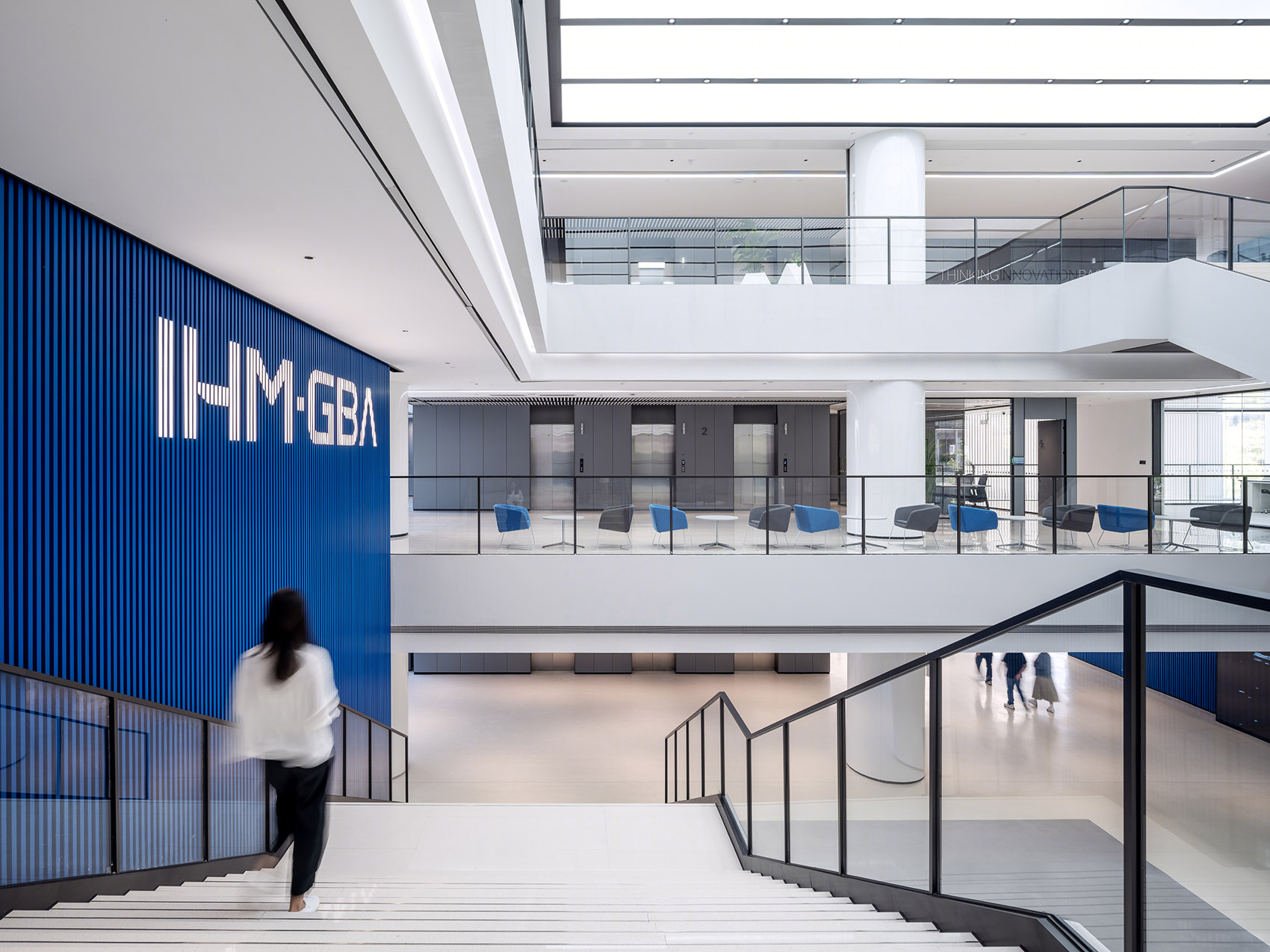

▼一层往二层楼梯，Staircase from ground floor to second floor

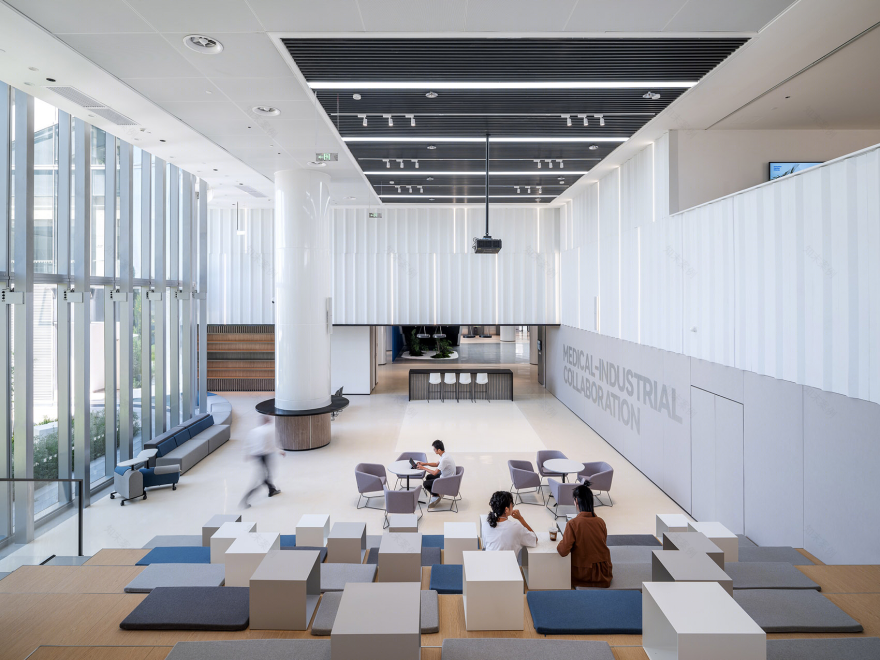

▼平行世界，Speaker’s corner

IHM 创新中心代表了高密度垂直建筑的新类型，它将研发与协作工作环境紧密结合。海茵建筑的设计作为创新的脚手架，为推动高端医疗器械领域创新研发提供了一个有力的建筑支撑。

The Innovation Center represents a new typology in high-density vertical architecture, combining experimentation and research spaces with collaborative work environments. HENN’s design functions as a scaffolding for innovation that boosts progress in the development of high-performance medical devices.

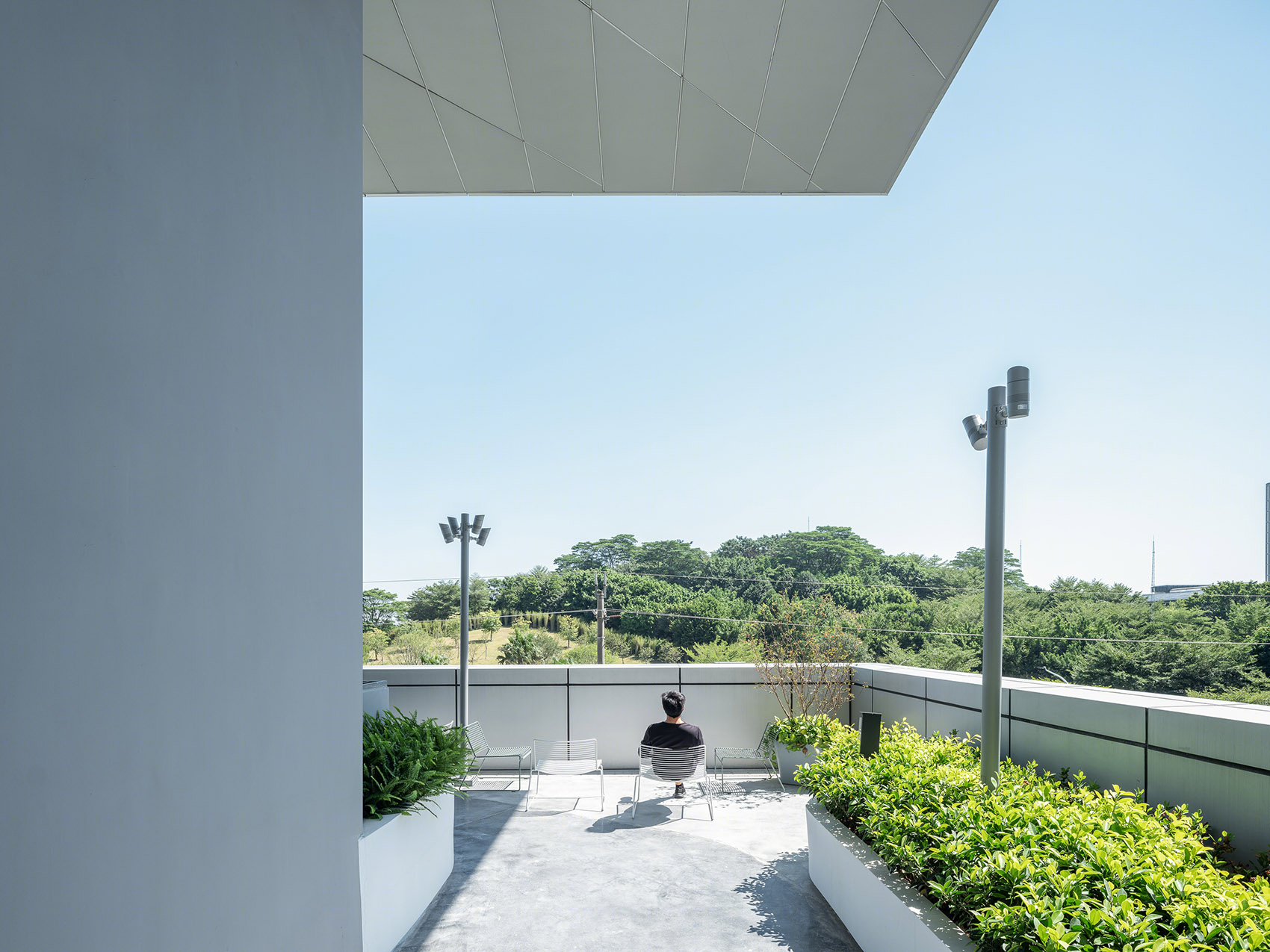

▼空中花园，Sky garden

▼空中花园，Sky garden

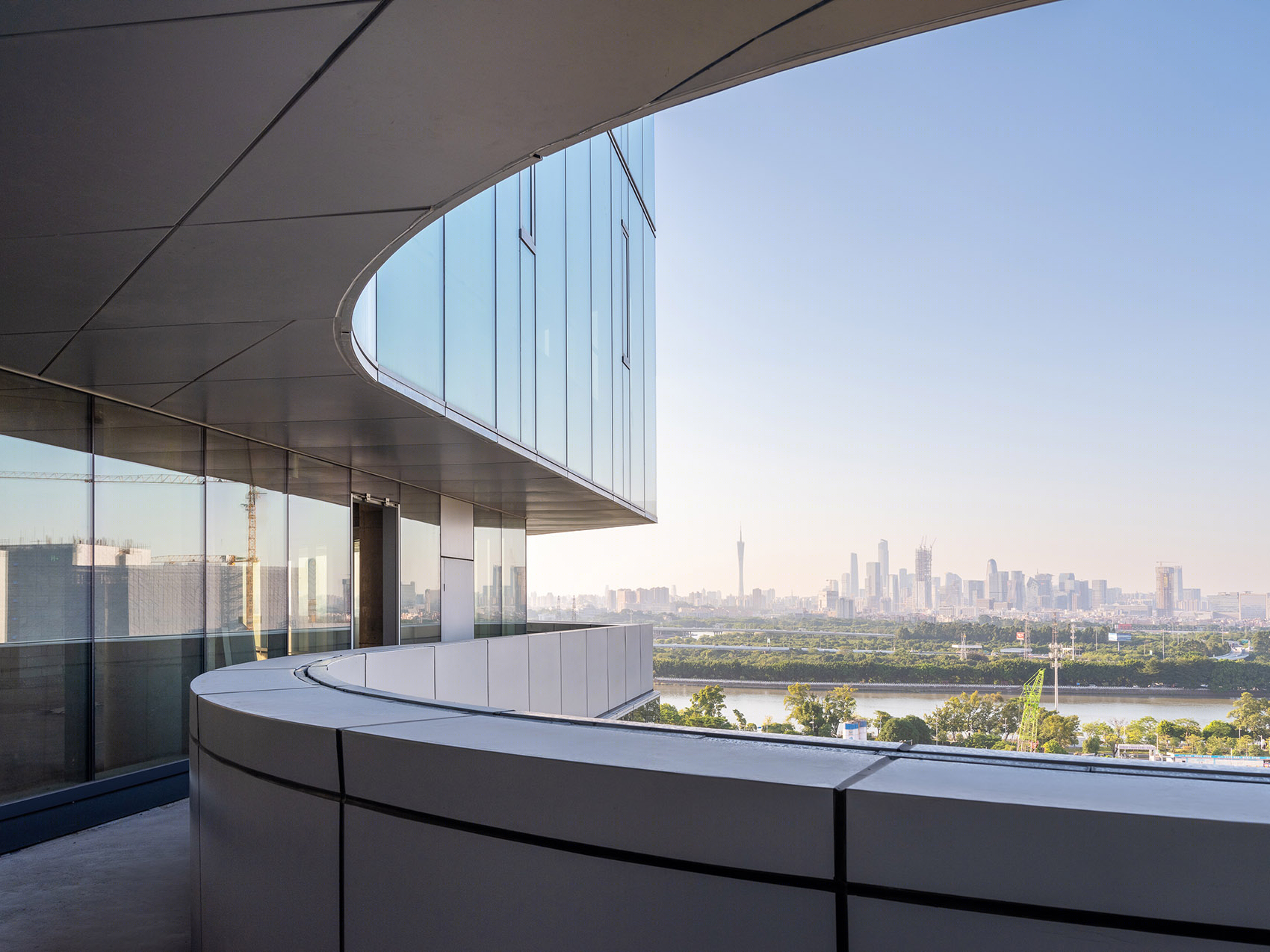

▼形体切割处的景观，Scenery from bikini level

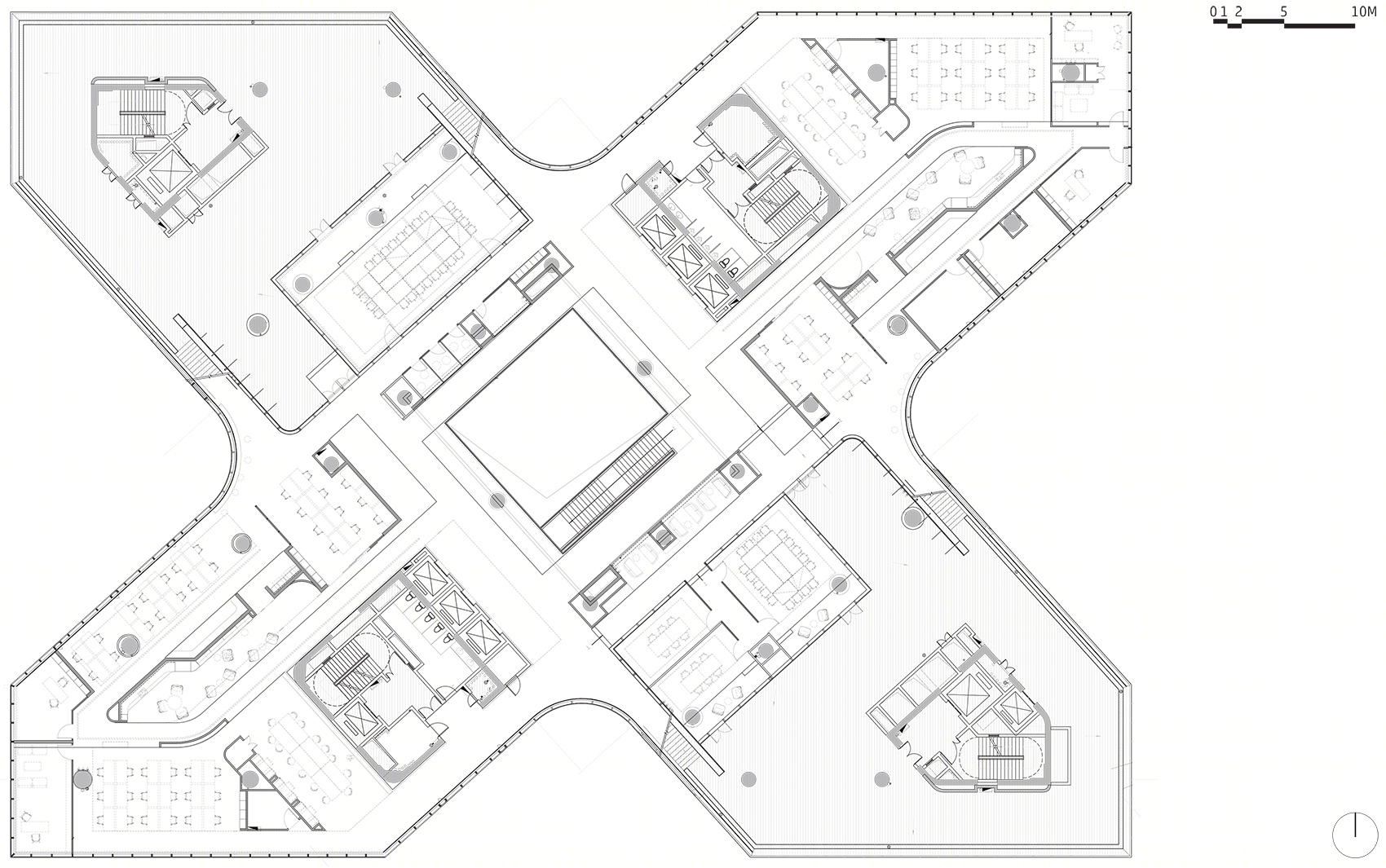

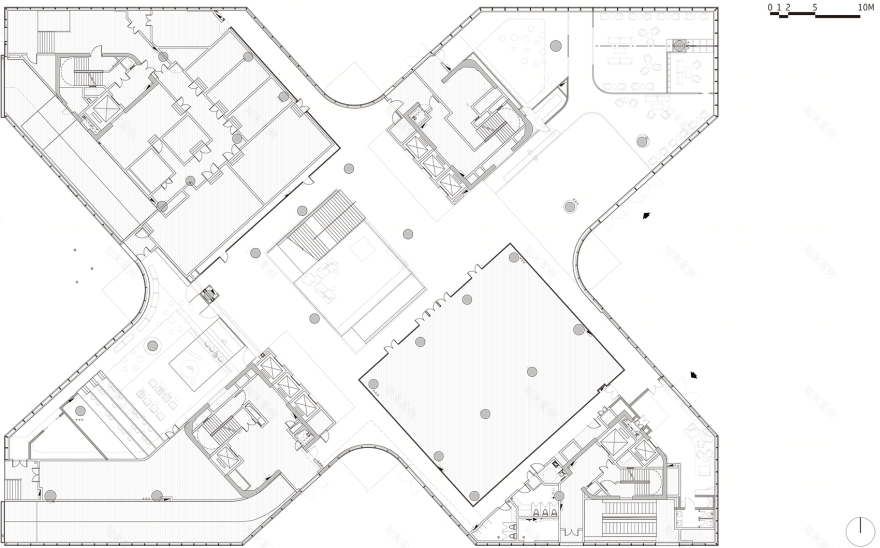

▼室内设计一层平面图，Interior design floor plan level 1

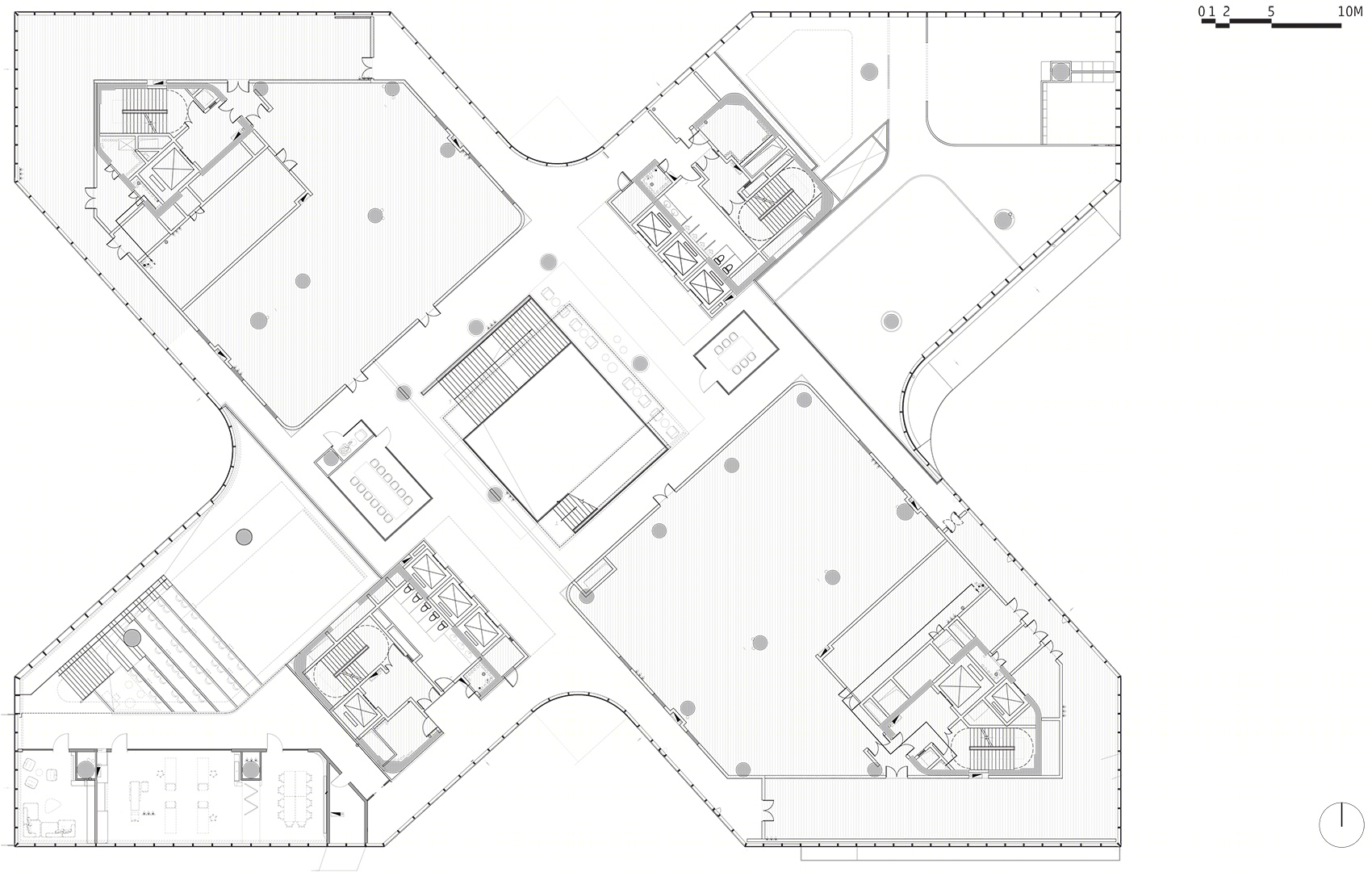

▼室内设计二层平面图，Interior design floor plan level 2

▼室内设计三层平面图，Interior design floor plan level 3

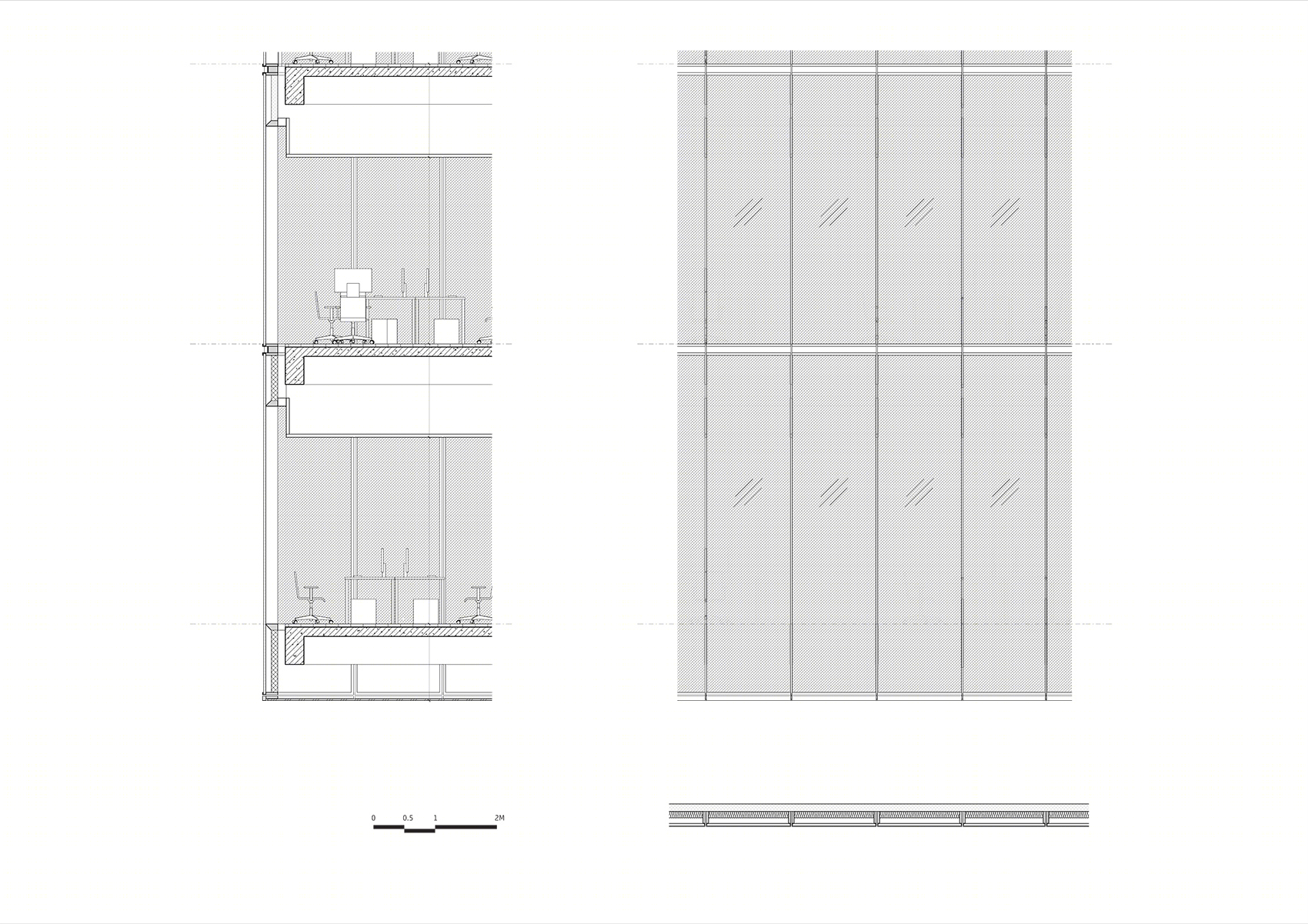

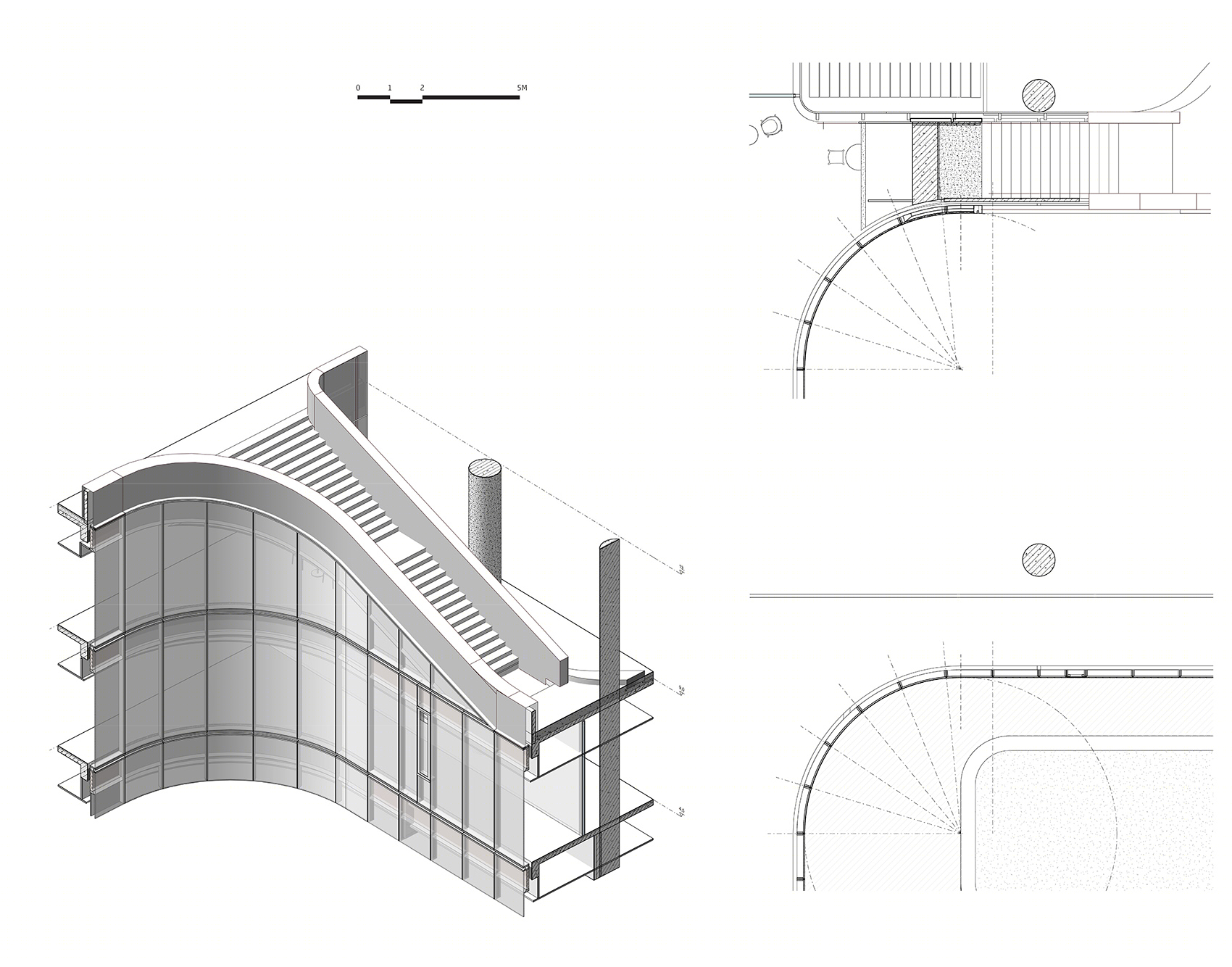

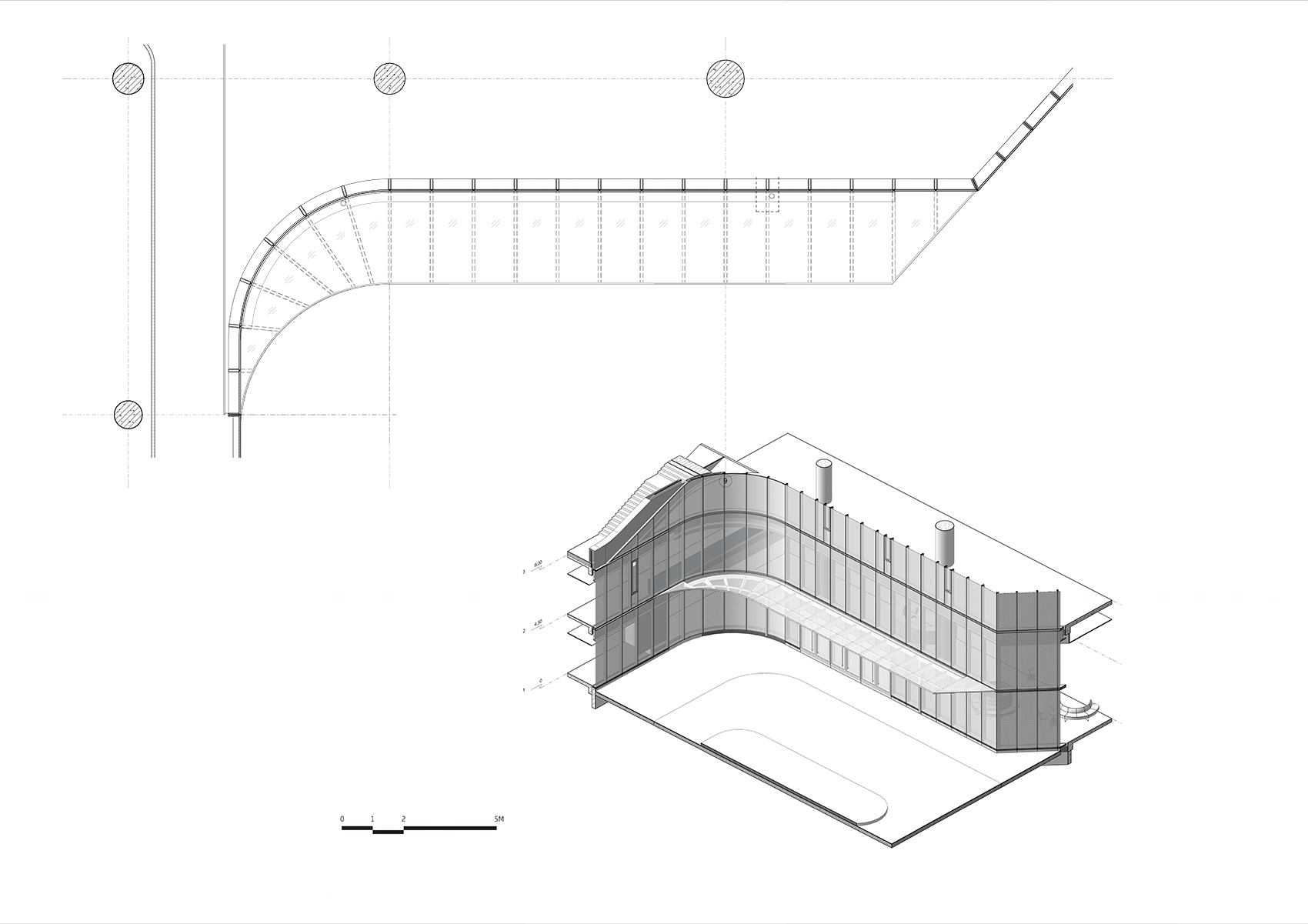

▼标准墙型图，Standard wall type drawings

项目名称：粤港澳大湾区高性能医疗器械创新中心

项目地点：中国，广州

年份：2022

状态：建成

面积：59,000 平米

设计范围：

建筑设计：概念设计，方案设计，初步设计和施工咨询

景观设计：概念设计

室内设计：概念设计，方案设计

功能：办公，实验室，演示实验室，咖啡厅，空中花园

可持续建筑认证：中国工业类绿色建筑一星

业主：广州创景医疗科技有限公司

团队：

负责合伙人: Georg Pichler

项目负责人: 乔华

设计负责人: Leander Adrian

合作设计院：广州市设计院

顾问公司：

景观设计：苏州合展设计营造股份有限公司

幕墙顾问：华纳工程咨询(北京)有限公司

照明顾问：RDI 瑞国际照明设计

摄影师：田方方
