2018年自于初识，2021年结于回望，横亘三年的人文与建造对话，构建出一段随想。

The dialogue between humanities and construction spans three years and builds up a period of random thoughts.

▼项目视频，Video

千尺阳山一碑材，斧工神摄江宁存。

山北神坛跌瀑落，气闲平望崖壁魂。

回首金陵千年史，绵延百转檐雨神。

紫气东来六朝势，丽笙园博满是春。

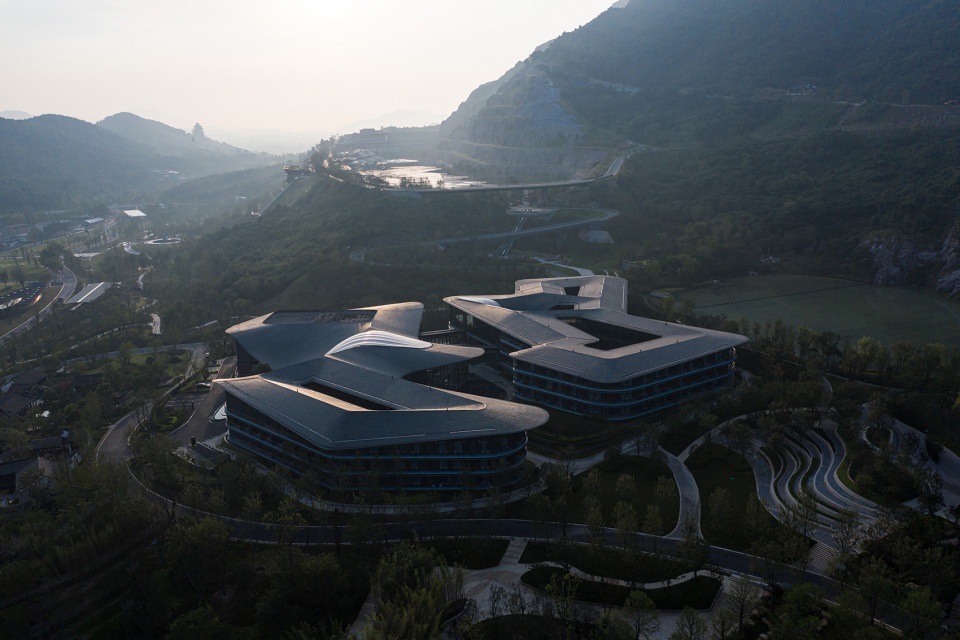

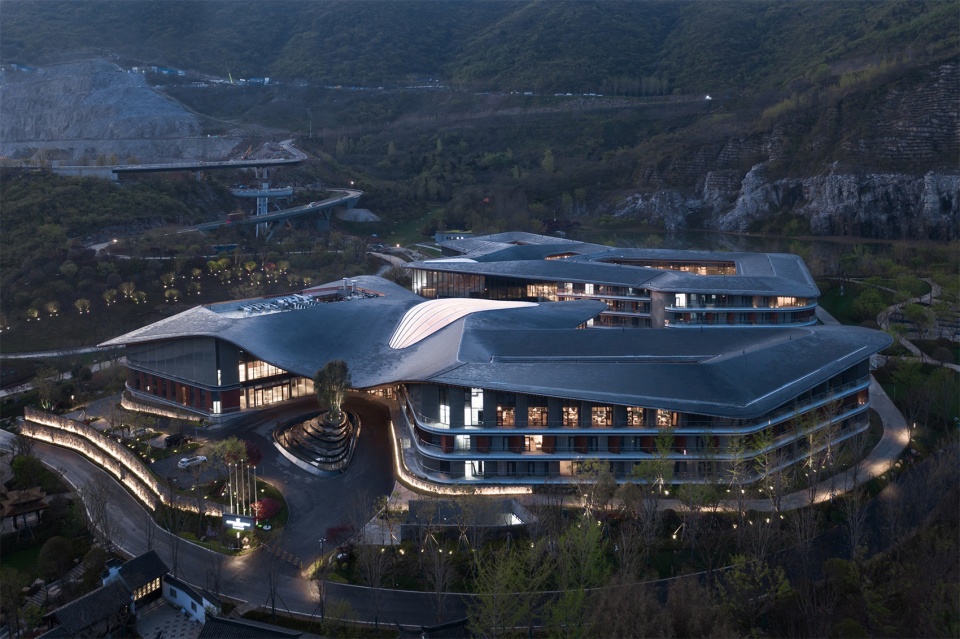

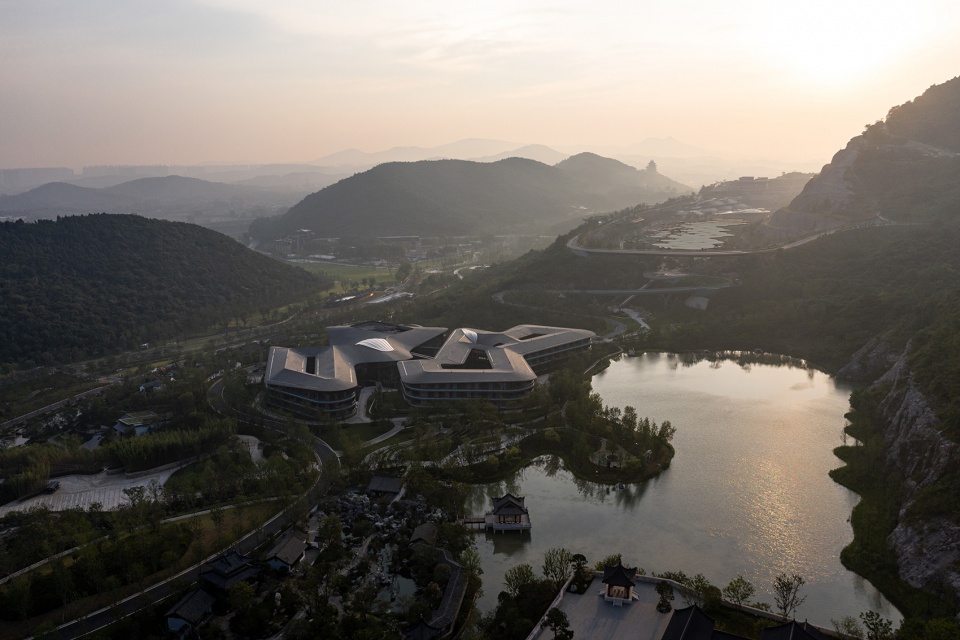

▼项目鸟瞰，Aerial view

体量消解于地势

Building Volume integrated into the terrain

南京园博园位于汤山原有废弃采矿区，初到场地，满眼残潭断壁……这种无用之地恰恰成为园博园的最好命题。生态修复不仅仅是成为口号，更为建筑师在后人文时代重新诠释自然与人文的对话提供了独特的机遇，以深远诗意创造城市展园、理解场地空间态势，为方案的展开赋予最初的意蕴。

Jiangsu Horticultural Expo Park is located in the original abandoned mining area of Tang Mountain. When you arrive at the site for the first time, it is full of relics. This useless place has become the best proposal for Expo Park. Ecological restoration is not only a slogan, but also a unique opportunity for architects to reinterpret the dialogue between nature and humanity in the post-humanistic era, to create urban exhibition gardens with poetic meaning, to understand the spatial dynamics of the site, and to give the initial meaning to the unfolding of the program.

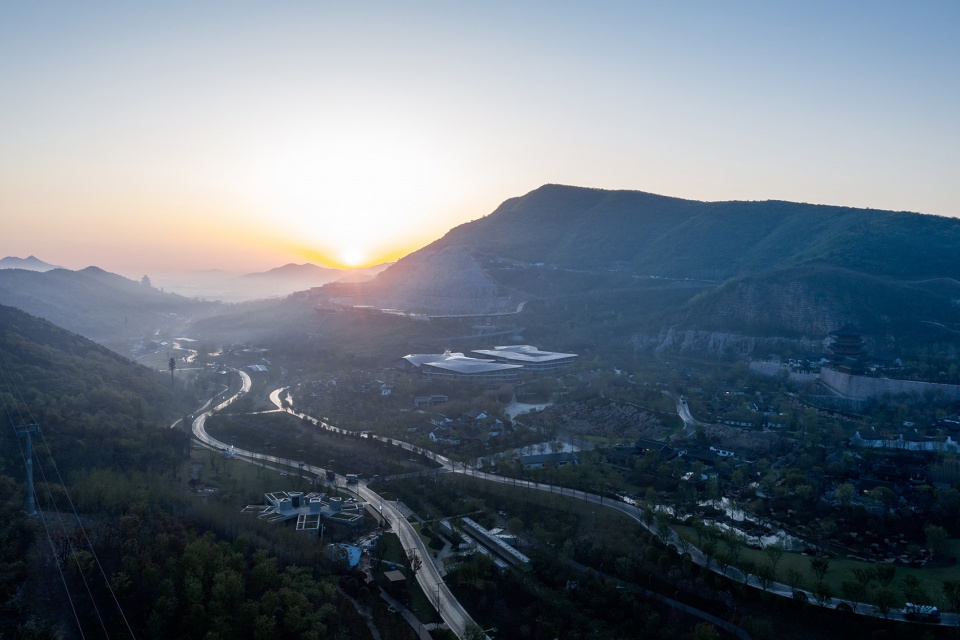

▼日出，Sunrise

对于场地态势的找形与揣摩，项目引入了GIS的可视化技术，分析解读了崖壁、潭景与场地走势之间的关系。

The project introduced GIS visualization technology to analyze and interpret the relationship between the cliff wall, the pool scene and the site trend.

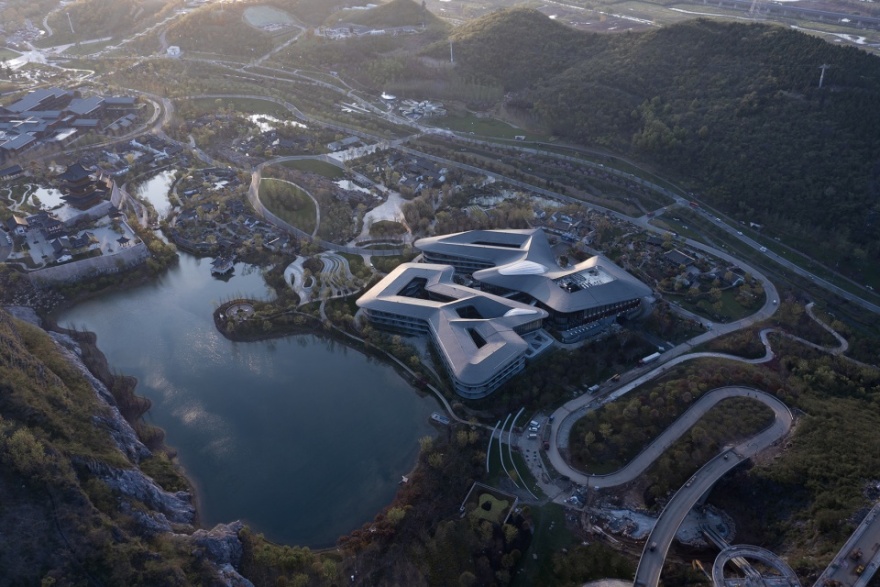

▼项目俯视，Aerial view

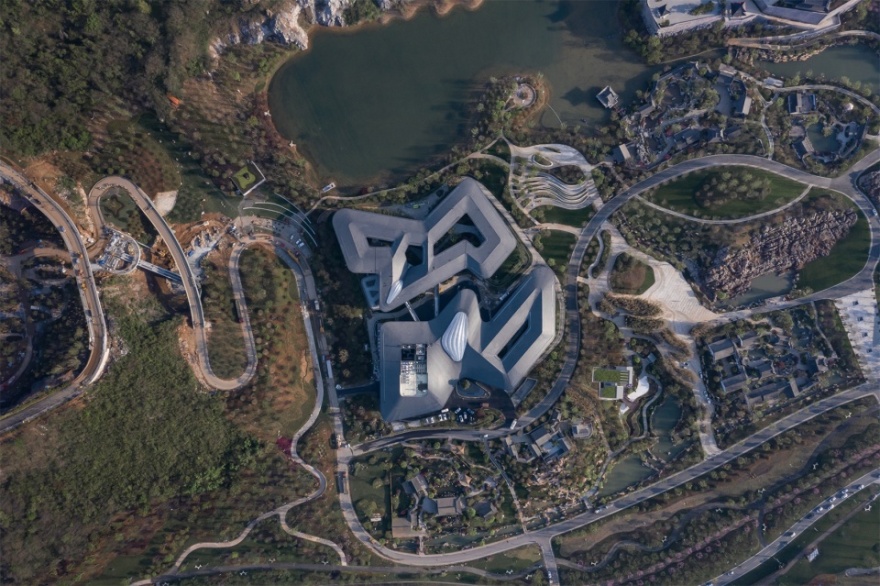

▼项目上空俯视，Top View

通过分析场地“坡度、高度、坡向”三个核心要素的切向量与法向量，形成复合向量场，再进一步通过粒子集群智能算法求得粒子的运动轨迹。集群粒子在各参数约束于影响下产生于基地肌理强相关的几何路径，生成符合酒店消隐于环境的生长形态又融入于山水园林的形态走势的几何关系，在山水园林中实现了技术对数字化建筑找形的赋能。

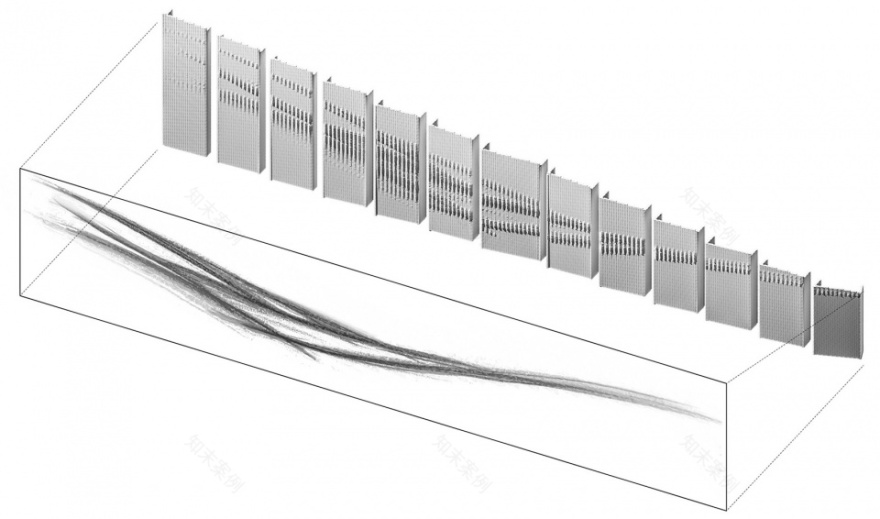

▼设计动画，Diagram gif

By analyzing the tangential and normal vectors of the three core elements of the site: slope, height and direction, a composite vector field is formed, and the trajectory of the particles is further obtained by the particle clustering intelligence algorithm. The clustered particles generate geometric paths that are strongly correlated with the texture of the base under the influence of each parameter constraint, generating geometric relationships that are consistent with the growth form of the hotel fading in the environment and integrating into the form of the landscape garden, which enables the technology to find the shape of the digital building in the landscape garden.

▼依山傍水，Building on the mountain with a pool nearby

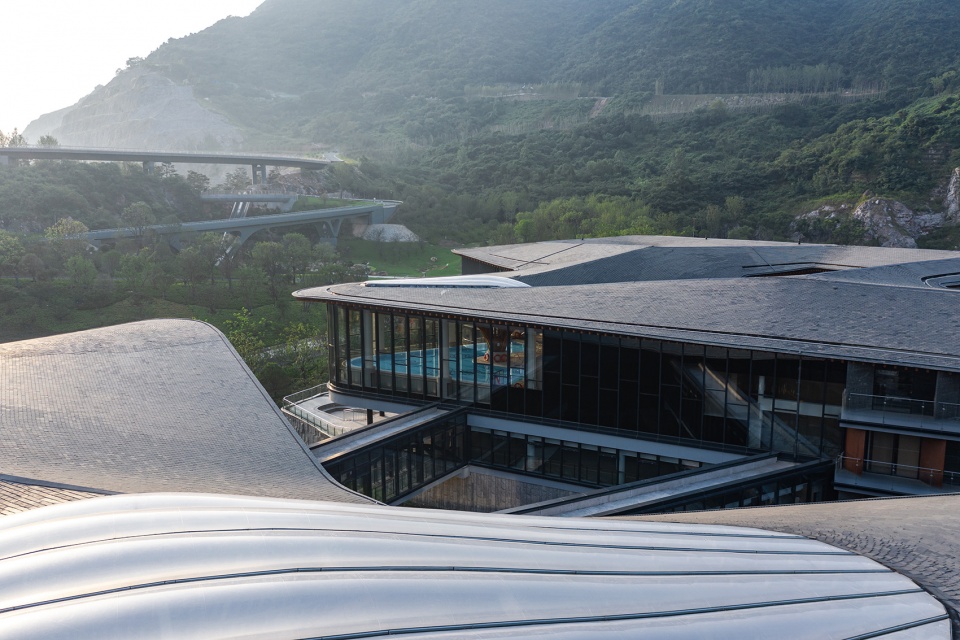

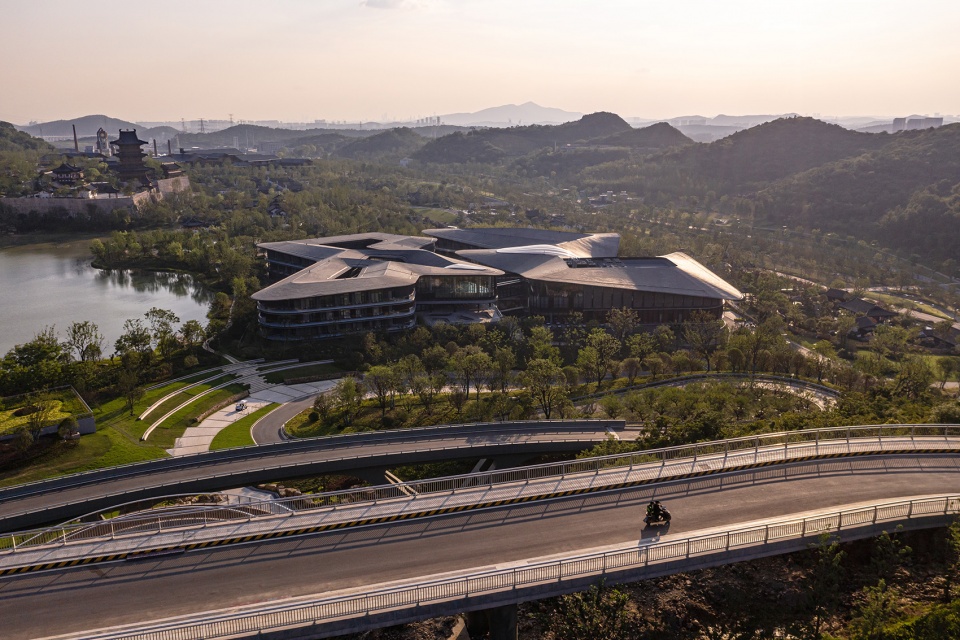

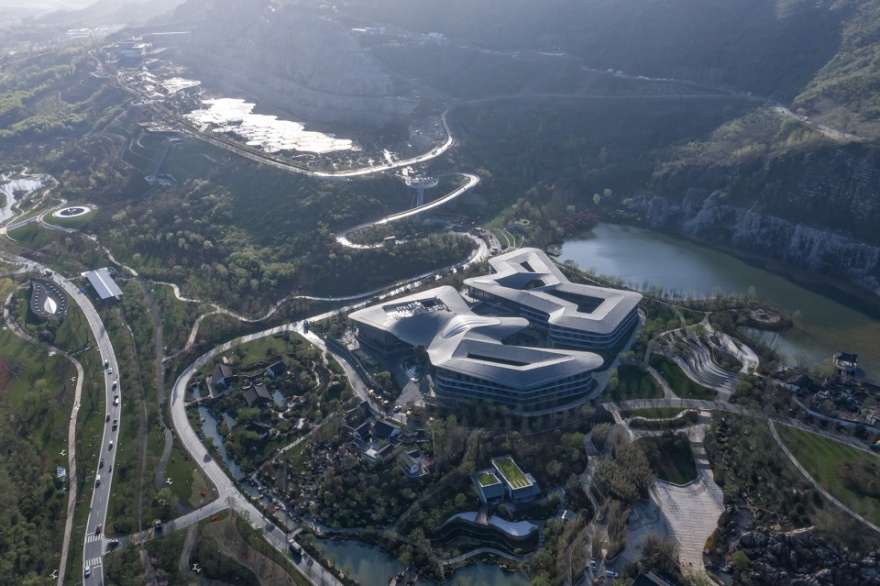

▼山间鸟瞰，Aerial view

▼建筑与道路，Building and transportation

屋顶通过特征粒子点的轨道线重构及放样得到初步的直纹曲面，并通过传统建筑坡屋顶中的“举折之制”，将曲面几何用由下至上坡度逐渐变陡凹曲屋面拟合，使其既具有结构上的合理性，也形成了于中国传统坡屋顶建构方式的传承与呼应。

The preliminary straight surface of the roof is obtained by reconstructing the orbital lines of the characteristic particle points and by drawing. The geometry of the surface is fitted by the “system of lifting and folding” in the traditional sloped roofs, which is steepened from the bottom to the top with a concave curved roof, making it structurally reasonable and echoing the traditional Chinese sloped roof construction method.

▼依山傍水，Building on the mountain with a pool nearby

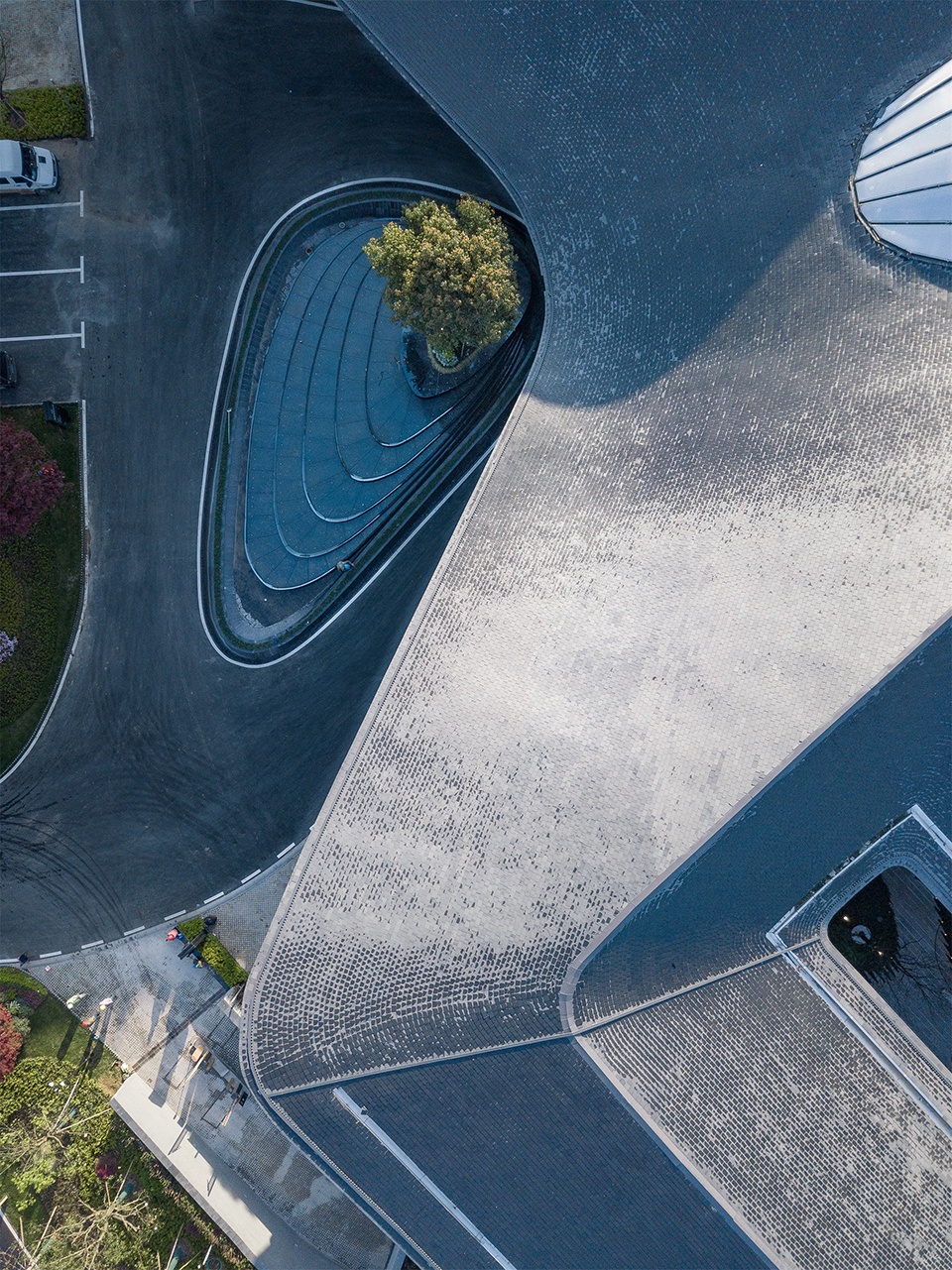

▼屋顶远眺，View of roof

地势折叠于园景

Topography folds into the garden view

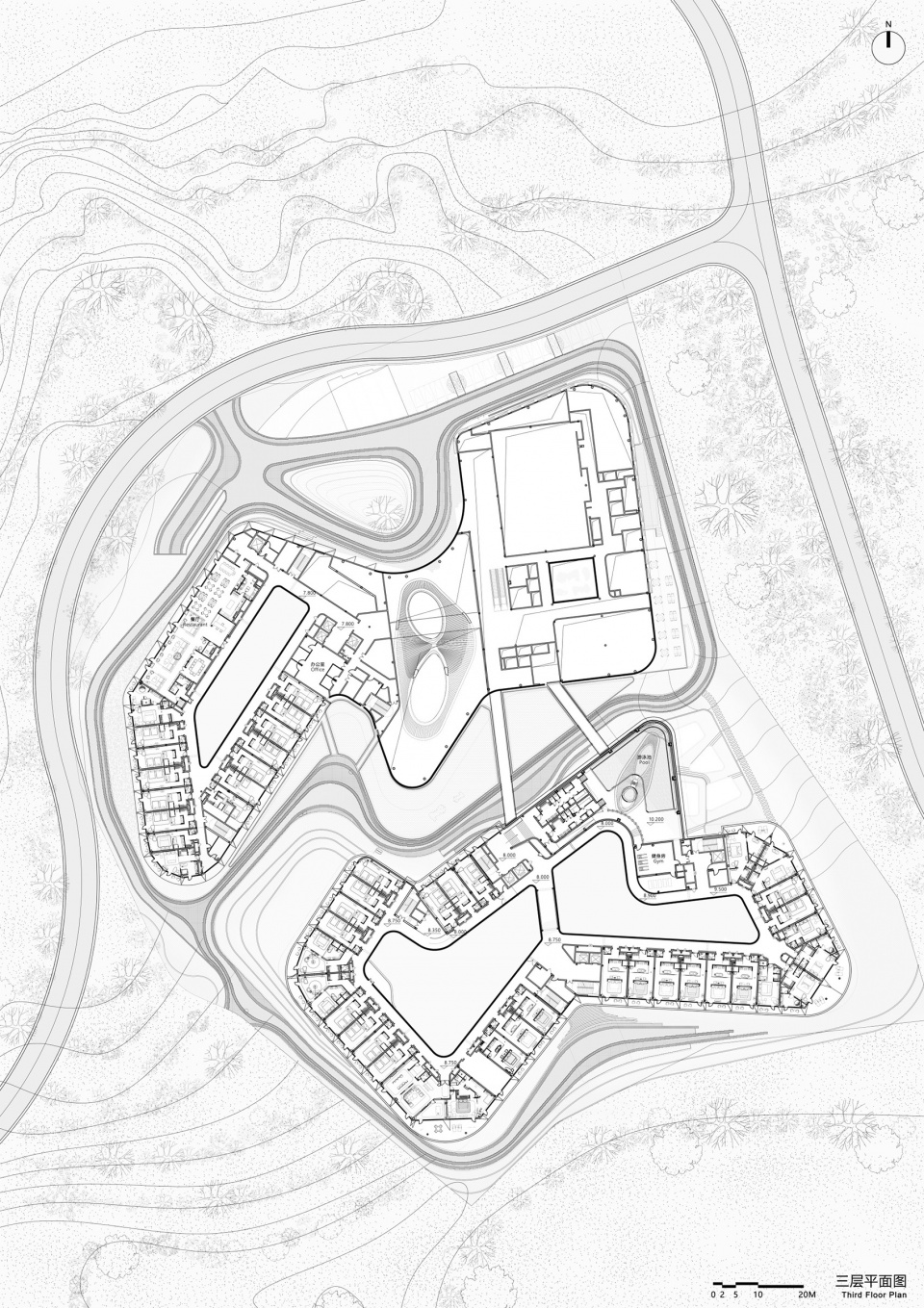

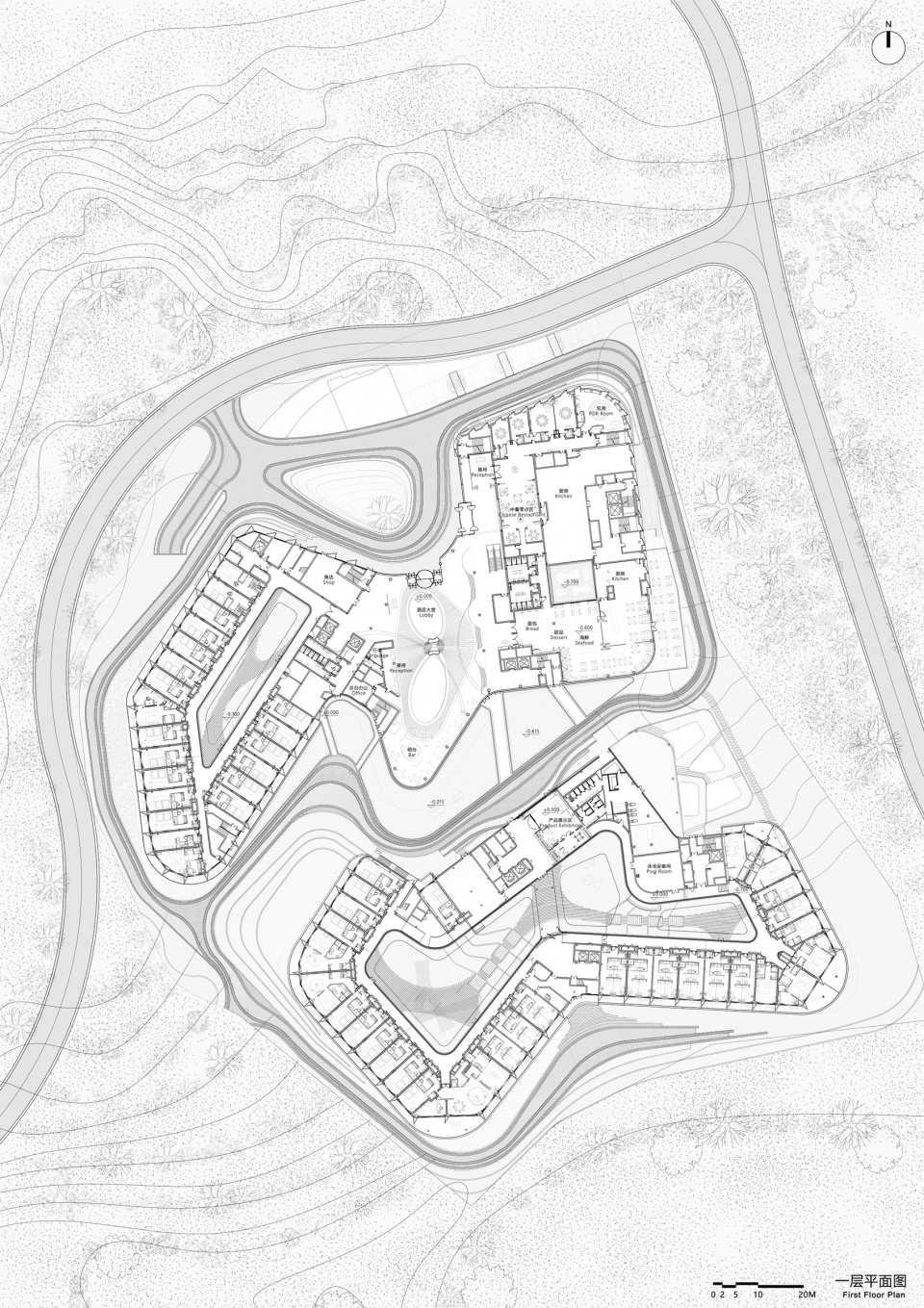

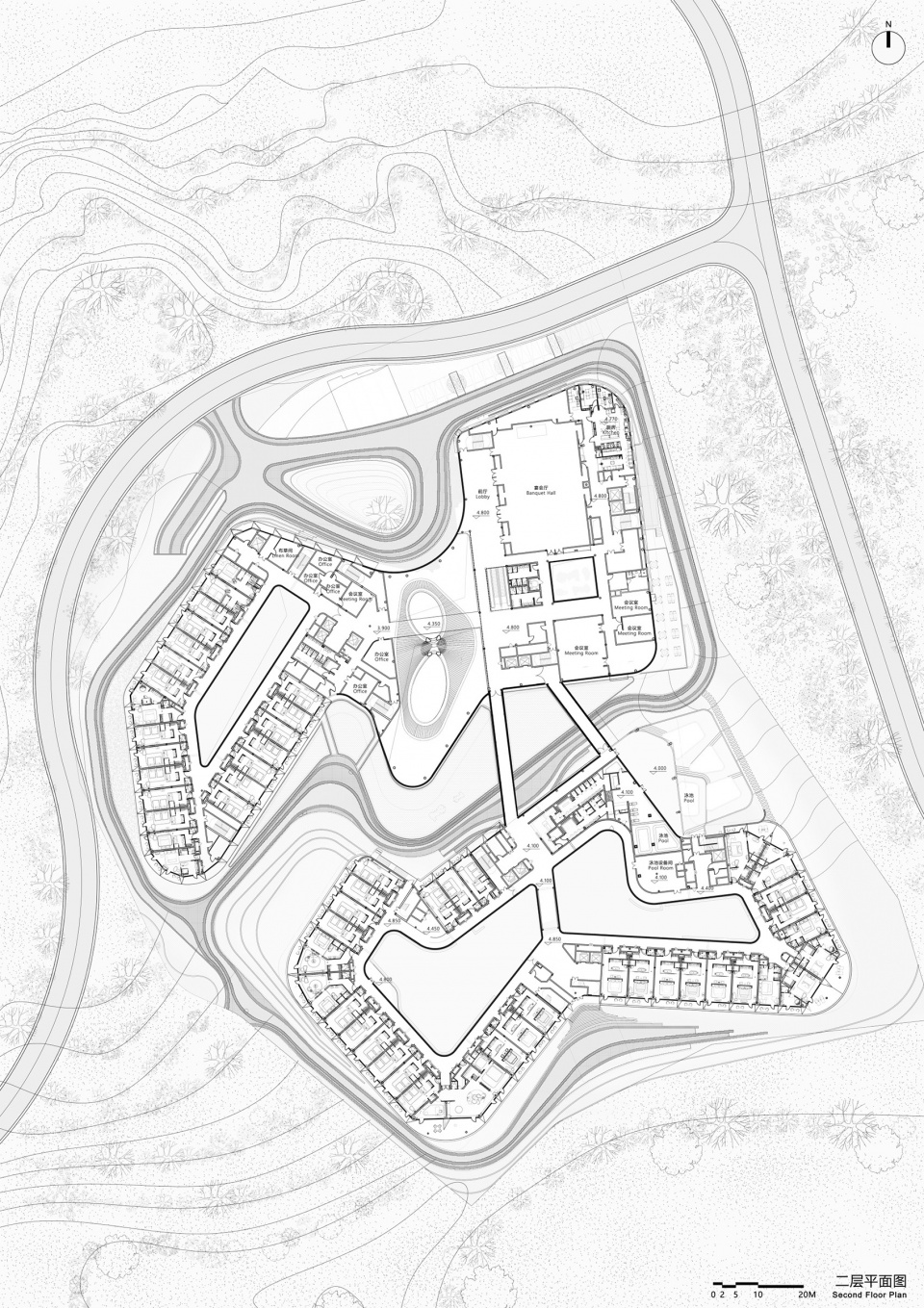

丽笙酒店整体体量依托于大地的几何语言，15米的场地高差塑造出层叠盘绕的大地风貌，方案生成顺势而为，依托地形将场地分为南北两大功能区。

The overall volume of Radisson Hotel is based on the geometric language of the earth, and the 15-meter height difference of the site creates a cascading and coiled geomorphic landscape, which is generated by the topography, dividing the site into two program areas, north and south.

▼项目远眺，Viewing the project at distance

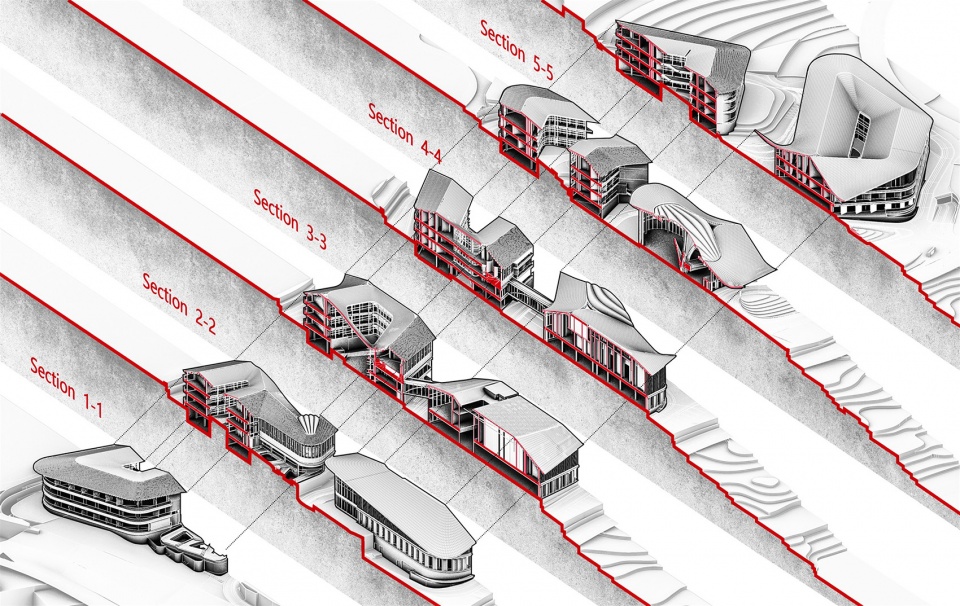

设定五种高差变化，以环形游园路径为线索，将客房单元、接待大唐、公共康养、餐饮娱乐、景观游园五大元素非线性有机串联。建筑整体如此便自成体系，与崖壁肌理自然对话，与周边原野遥相呼应，多向性的空间为人带来栖居于自然的二元平衡。

The design sets five kinds of height difference changes, with a circular tour path as a clue, connecting five elements of the guest room units, reception Datang, public recreation, dining and entertainment, landscape tour garden. The building is a self-contained system, which is in natural dialogue with the texture of the cliff and echoes the surrounding wilderness. The multi-directional space brings a dichotomous balance between people and nature.

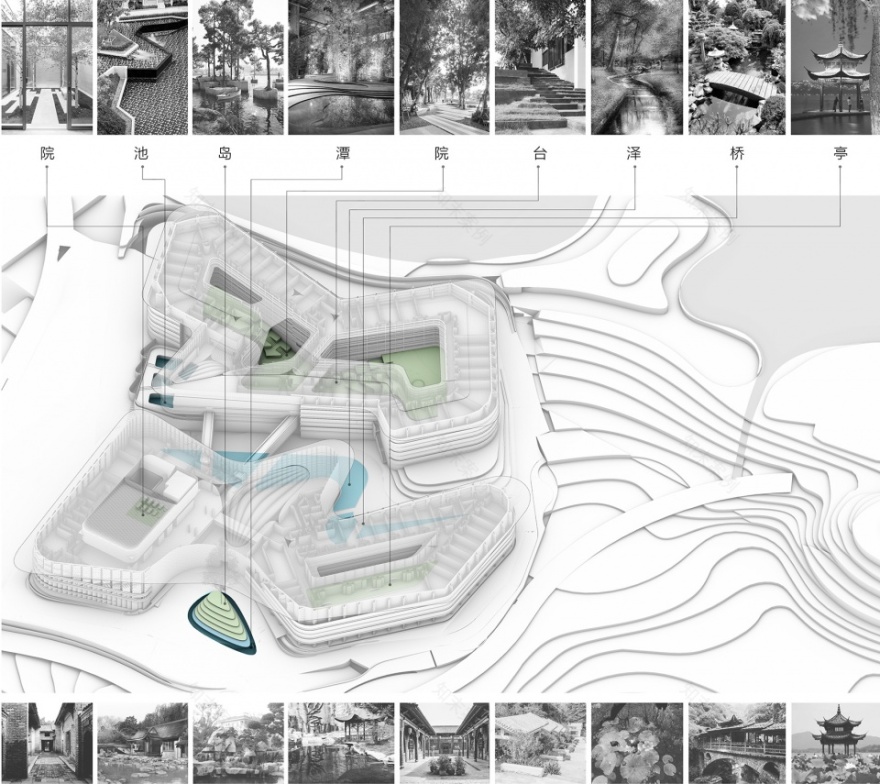

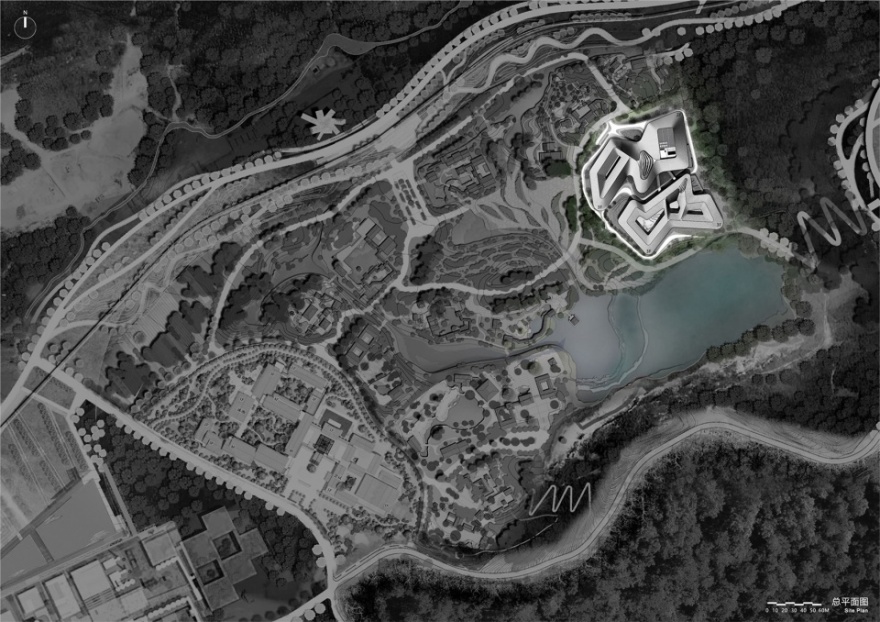

▼场地分析，Analysis of the site

同时，在场地与崖壁、池潭、跌落水系、山景、湖景复杂关系之外，还有园博园城市展园诸多小微园林胜景所构成的新园林景观。迎面而上的线性折叠界面，让柔美的城市展园的边界被重新定义，赋予丽笙酒店“大成若缺、大缺若成”的藏而硬朗的取景布局策略。其中依坡地匍匐而起的态势与折叠边界后形成的错落层次，共同与园林里的树木相互映衬，而达到建筑与环境关心的对话与和谐。

Meanwhile, in addition to the complex relationship between the site and the cliffs, pools and ponds, the water system, mountain and lake scenery, there is a novel landscape composed of many small and micro garden in the Urban Exhibition Park of the Expo Park. The linear folding interface redefines the boundaries of the urban garden, giving the Radisson Hotel a hidden and rigid landscape layout strategy of “great completion is lacking, great lack is becoming”. The slope of the hotel and the folded boundary form a staggered layer, which together with the trees in the garden reflect each other, and achieve a dialogue and harmony between architecture and environment.

▼屋顶错落，Roofs

▼拾级而上，Stairs

檐廊张挑于悬索

Corridor overhung on the suspension

丽笙酒店的入口设置在城市展园南通园之南的3M高差的高台上，远观实为背景。当居高临下站在酒店东边的盘山公路上时，即使公路迂回层叠，入口孤树的茂叶也未有一刻被遮蔽，反而超越建筑体量凸显于视线中，营造出入口非对称的秩序感与“一树成林”的意境画卷。

The entrance of the Radisson Hotel is set on a high platform with a 3M height difference in south of Nantong Garden in the urban exhibition park, which is actually a background. When standing on the road to the east of the hotel, even though the road is winding, the lush foliage of the entrance tree is not hidden for a moment, but is instead highlighted beyond the building volume, creating a sense of asymmetrical order and the moody painting of “a tree becomes a forest” at the entrance.

▼夜空俯视，Aerial view at night

▼丛林掩映，Building in the forest

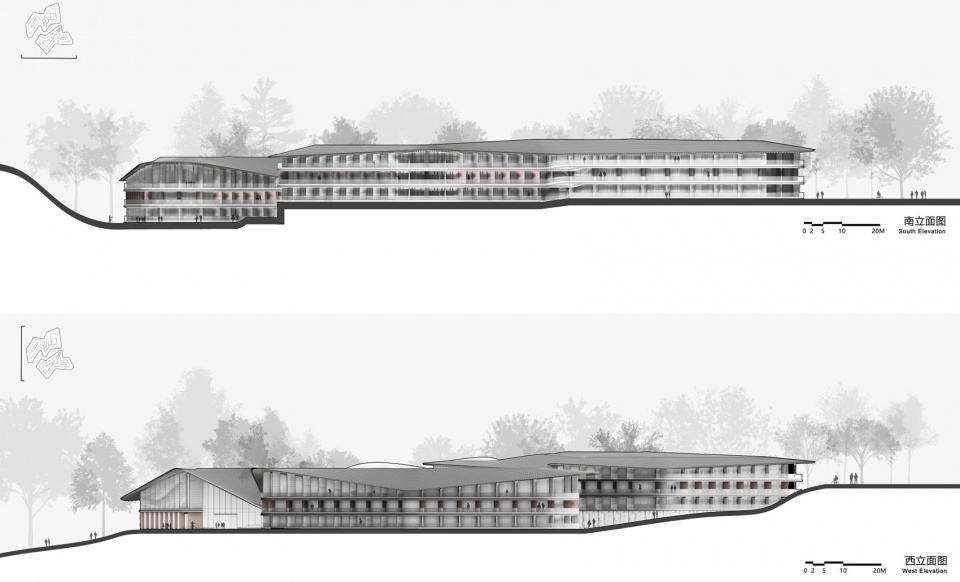

丽笙酒店的主入口北立面取调灰色，灰瓦下探的屋面以及灰色机器人砖构的长卷，与园博园茂密郁葱的风格底色彼此形成对映，刚柔并济，相互遥望，探究存在。入口雨棚作为秩序感的强化被强调，期待入口具有“旷远”意境的同时，仍应满足游客车辆的避雨之需，需要通畅的檐廊空间与建筑-结构一体化的构思相互博弈，最终统一于Kangaroo动力学模拟概念生形下的出挑檐廊形态。

▼轴测分析图，Axonometric diagram

The north facade of the Radisson Hotel is in gray tones, with a roof of gray tiles and a long scroll of gray robotic bricks, reflecting the lush style of the Expo Park, with a balance between soft and rigid, and looking at each other. The entrance canopy is emphasized as a reinforcement of the sense of order, expecting the entrance to be “remote” while still meeting the needs of visitors’ vehicles to escape from the rain, requiring a smooth corridor space and the idea of architectural-structural integration, finally unified in the Kangaroo dynamic simulation of the conceptual birth form of the protruding corridor.

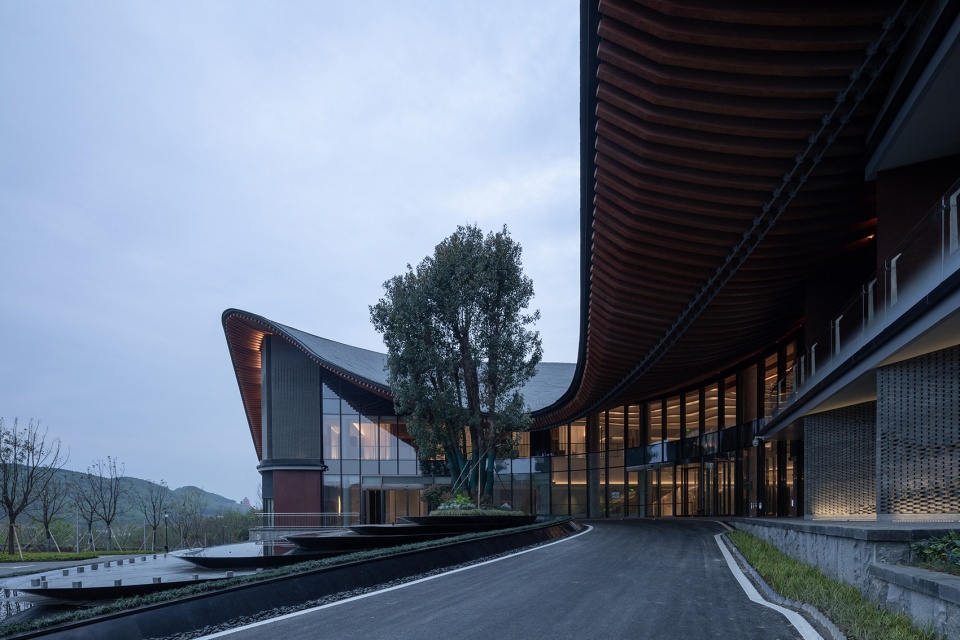

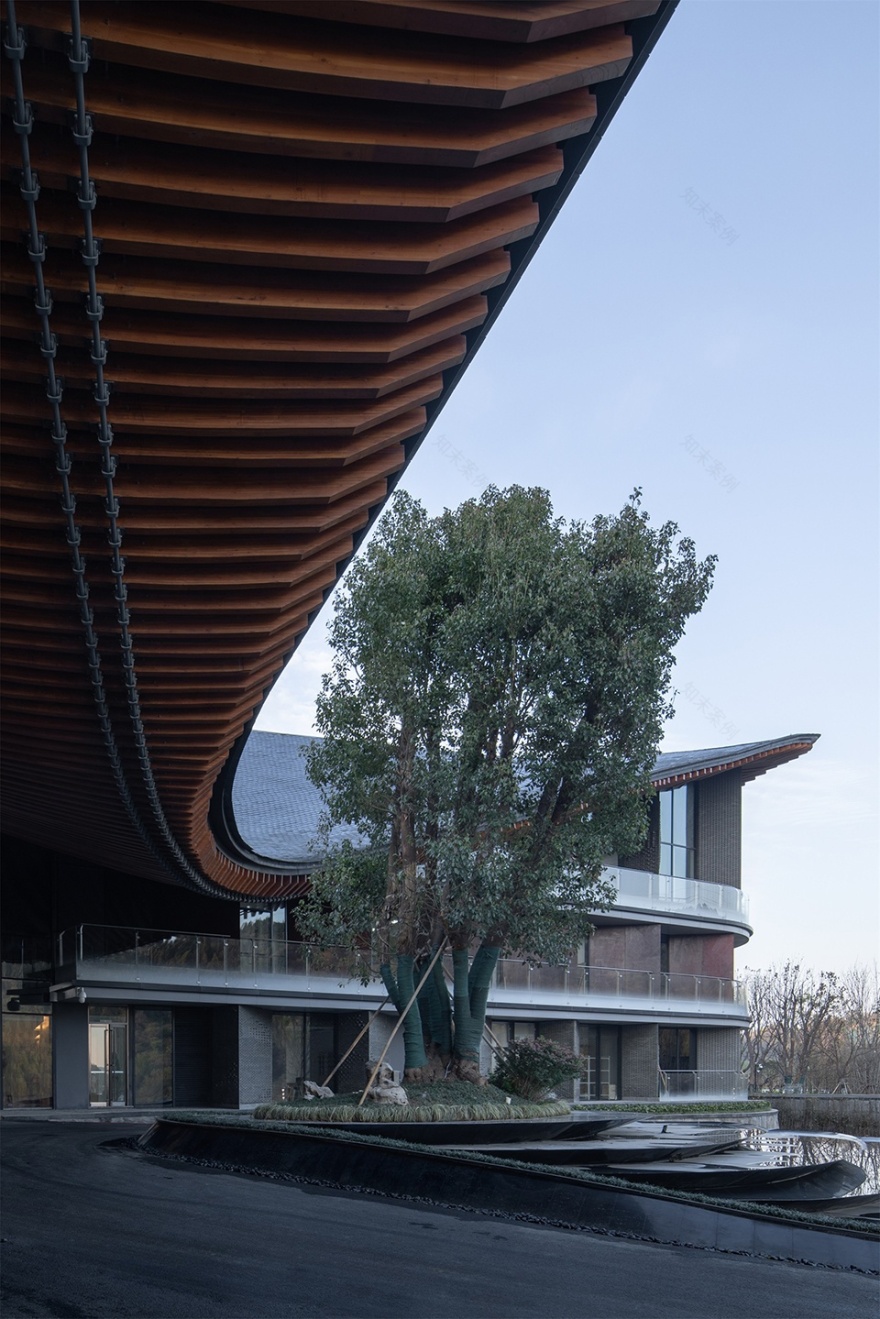

▼主入口，Main Entrance

▼主入口北立面取调灰色，The north facade of the Radisson Hotel is in gray tones

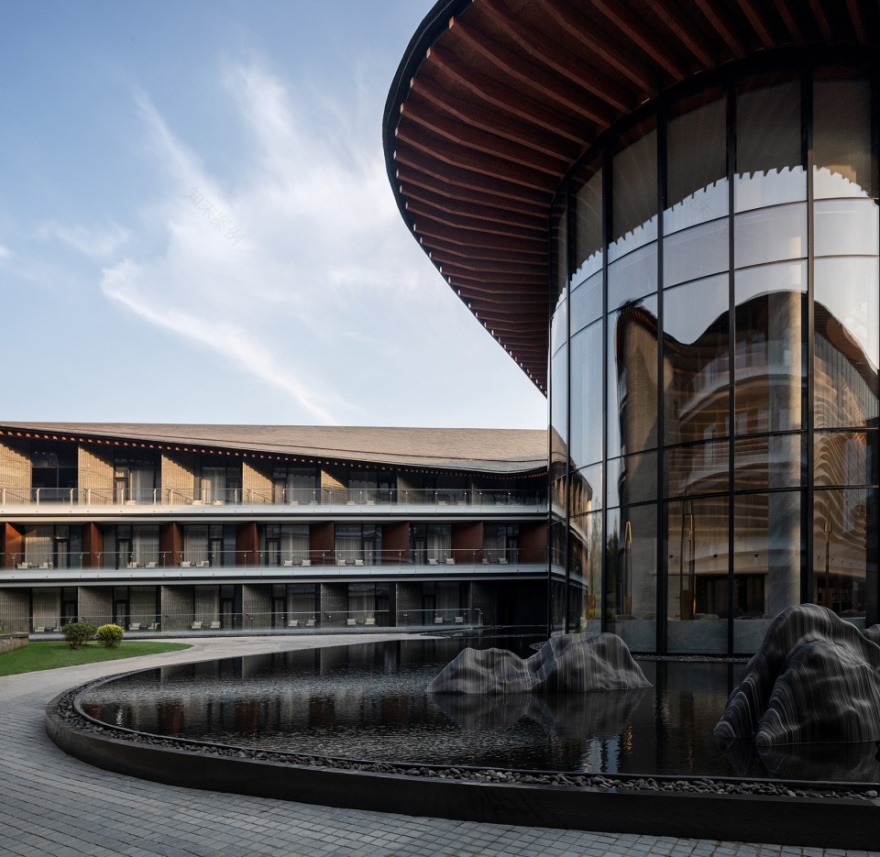

但形态上的最优解却由于屋面的木结构属性在建构层面举步维艰。最终通过结构师配合，在屋面上压堆载平衡找形后利用两根钢索完成了跨度28m、平均进深8m的无柱张挑檐廊结构，钢索下垂的姿态不仅优化受力，亦使檐廊产生了更为优美的意蕴。入口有意预留的无天沟挑檐，由于凹陷的形态在雨天形成水瀑跌落，与入口的孤树和水池产生了自然而优雅的场景互动。

However, the optimal solution in terms of morphology was difficult to achieve due to the structural properties of the wood structure of the roof. Finally, through the cooperation of the structural engineers, a column-less gable structure with a span of 28m and an average depth of 8m was completed by using two steel cables after balancing the shape of the roof on top of the pressure stack. The intentionally reserved gutterless eaves at the entrance form a waterfall falling in rainy days due to the recessed form, creating a natural and elegant scene interacting with the lone tree and pond at the entrance.

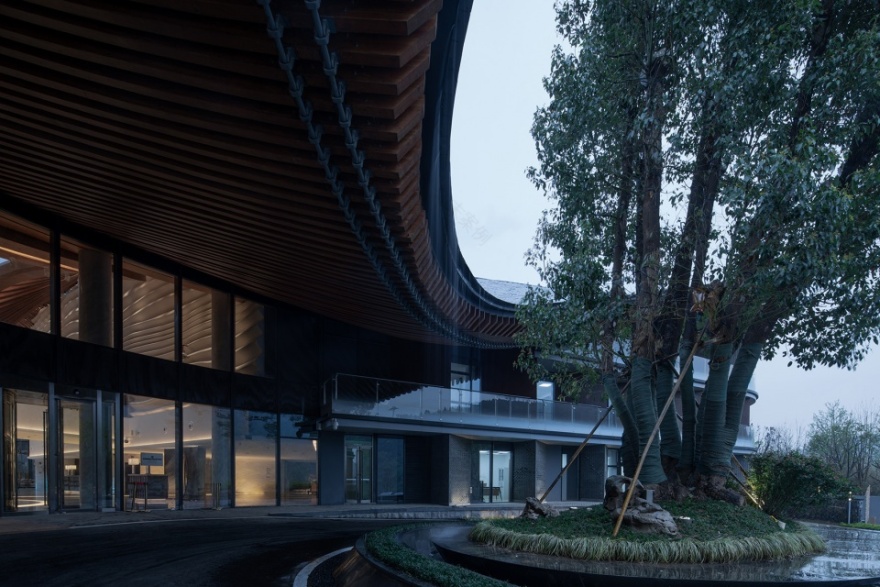

▼主入口雨棚，Main entrance canopy

▼主入口俯视，Main entrance top view

山水再现于砖构

Landscape reproduced in brick masonry

除去结构性能化建筑生形的设计研究，丽笙酒店项目依然致力于针对性能化建构的建筑机器人建造模式探索与实践，并通过科技重塑极具在地性的文化记忆。客房间的砖砌隔墙通过图像干扰技术来控制砖块的旋转角度，其产生的凹凸光影和砖缝参差可以以抽象的数字几何重塑图像信息，抽象化转译后的墙体展现出对“紫金山水”的数字化表达，重现自然与游览的双重画卷。

In addition to the design research of structural performance building biomorphism, Radisson Hotel is still committed to the exploration and practice of building robotic construction mode for performative construction, and to recreate the local cultural memory through technology. The brick partition wall in the guest room is controlled by image interference technology to control the rotation angle of the bricks, which produces concave and convex light and shadow and brick jaggedness to reshape the image information with abstract digital geometry, and the abstracted translated wall shows the digital expression of “Landscape of Zijin “, reproducing the double picture of nature and tourism.

▼建筑透视，perspective view

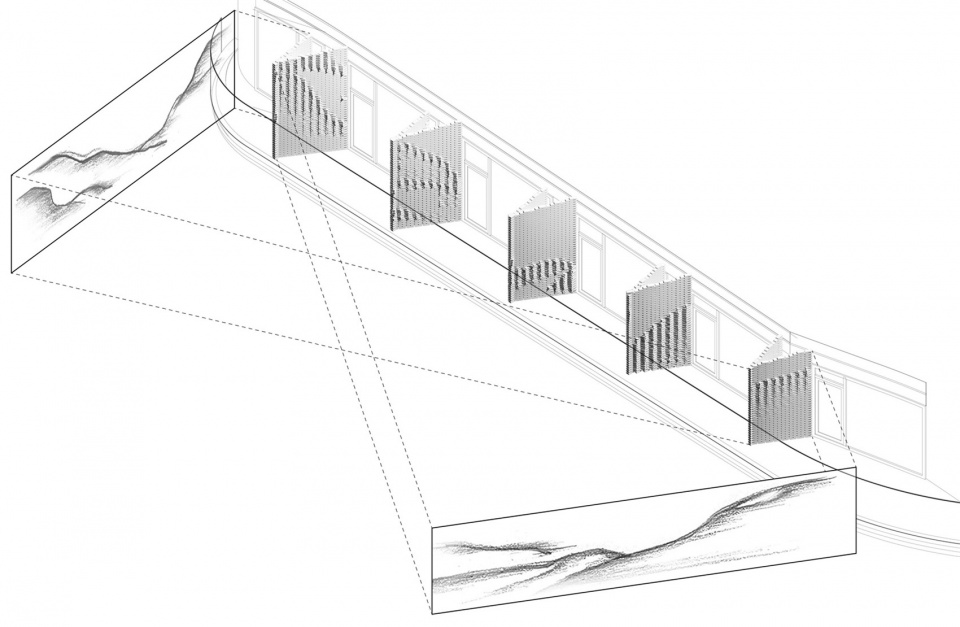

图像转译的视线借助了人工智能（AI）模型训练，将超过500幅在地性山水意向的图片输入，采用深度学习中的生成对抗网络（Generative Adversarial Network, GAN）对金陵山水画卷的结构、笔法进行风格迁移，并通过迭代生成与场地崖壁风貌契合的数字山水画卷。随后借助灰度离散几何的提取，将灰度参数转为建构时砖的旋转角度，进一步对山水画卷中的关键意向与要素进行建筑的可建造抽象化转译，得到最终立面的图像与数字建构效果。

▼立面生成，formation of the facade

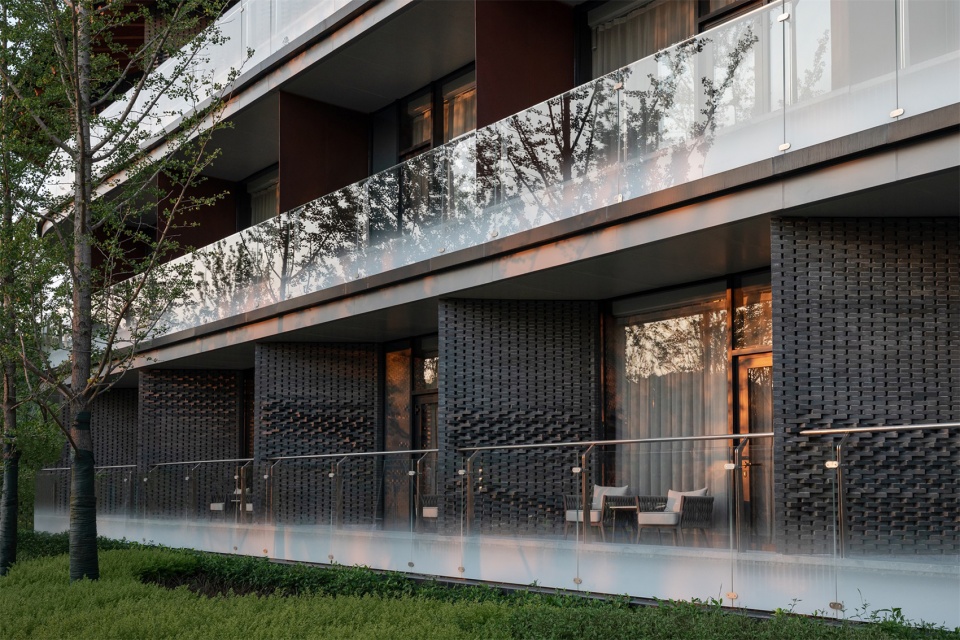

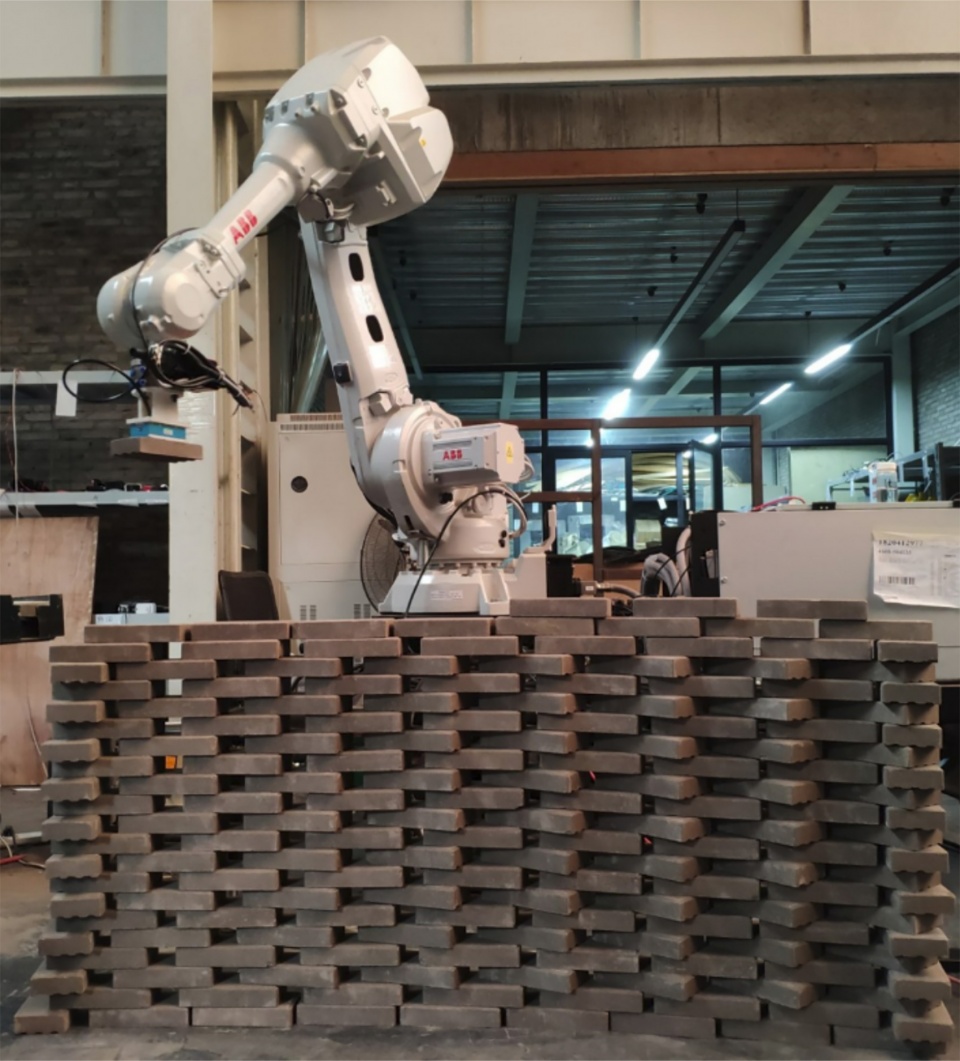

▼机器人砖构，Robotic Masonry

The image translation line of sight was trained with the help of artificial intelligence (AI) models. More than 500 images of local landscape were input, and the structure and brushwork of the Jinling landscape were stylistically migrated using Generative Adversarial Network (GAN) in deep learning, and digital landscape that fit the landscape of the cliff face of the site were generated through iterations. The landscape are generated by iterative generation. Then, with the help of grayscale discrete geometry extraction, the grayscale parameters are converted into the rotation angle of the bricks at the time of construction. The key intentions and elements in the landscape are further translated into architectural constructible abstraction to obtain the final image of the façade and the digital construction effect.

▼建筑立面，facade

独柱盛开于大堂

A single column blooms in the lobby

进入丽笙酒店的大堂，项目意在延续“旷远”的穿越感，希望引导人的视线在大堂尽端透过落地窗将园博园的焦点地标“景阳楼”纳入眼底。同时在总图上，调适与延展曲折与层叠的界面，张借取景，使之也能够将蜿蜒迂回的道路水系与深谷藏幽的山湖叠翠尽收视野。

Entering the lobby of Radisson Hotel, the project intends to continue the sense of “long-distance” traversal, wishing to guide people at the end of the lobby through the floor-to-ceiling windows to take in the focal point of the Expo Park, the “Jingyang Tower”. Meanwhile, the general plan adapts and extends the winding interface, and draws on the landscape so that it can also take in the meandering road, water system, the deep valley, hidden mountain and lake.

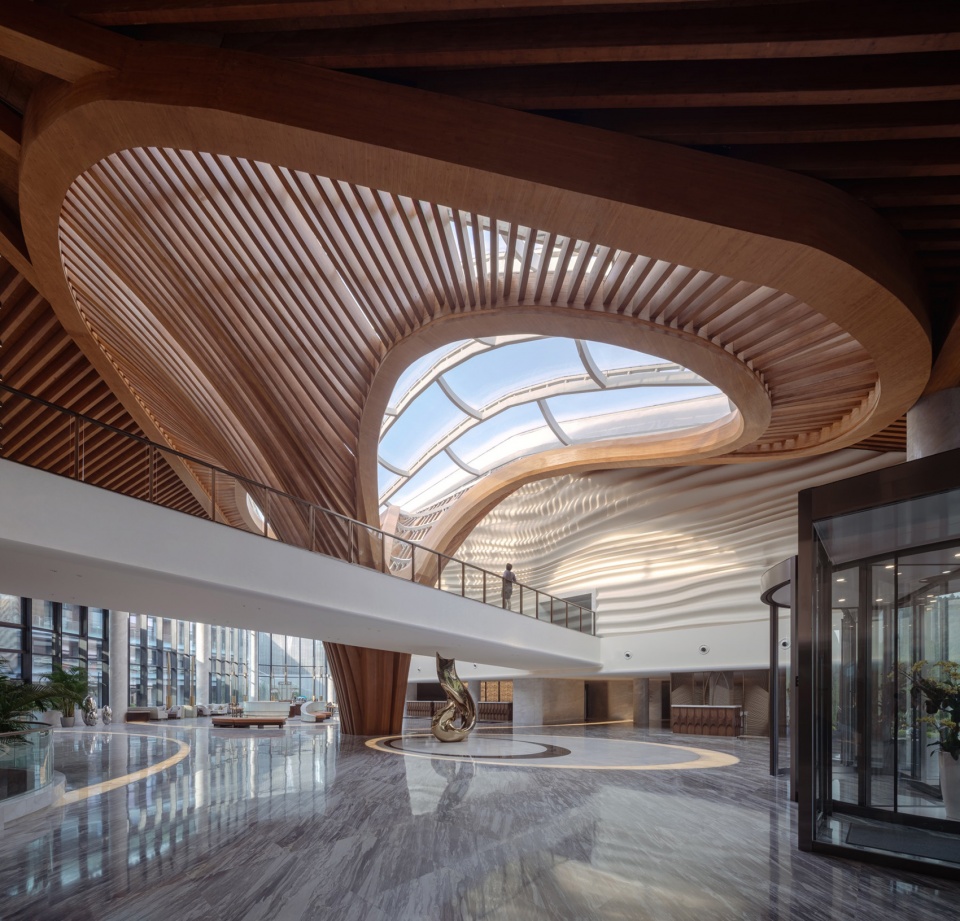

▼酒店大堂，Hotel lobby

大堂空间呼应入口空间“一树成林”的意境与理念，通过结构力学与形态的耦合计算，实现了近2000㎡的“独柱开花”的双曲屋面空间意向。通过拓扑学的连续概念将大堂的柱梁结构一体化，用一分四的拓扑构型展开“开花柱”的概念，将整体屋面的受力通过弧形梁与柱的一体化设计将“形与力”实现一体化的找形目标。

The lobby space echoes the concept of “one tree becomes a forest” at the entrance, and through the coupling calculation of structural mechanics and morphology, the double curved roof space intention of “one column blooms” of nearly 2000 square meters is realized. The topological continuity concept integrates the column and beam structure of the lobby, and the concept of “blossoming column” is developed by the topological configuration of one point four. The overall roof force is integrated through the integrated design of the curved beam and column to achieve the goal of integrating “shape and force” to find the shape.

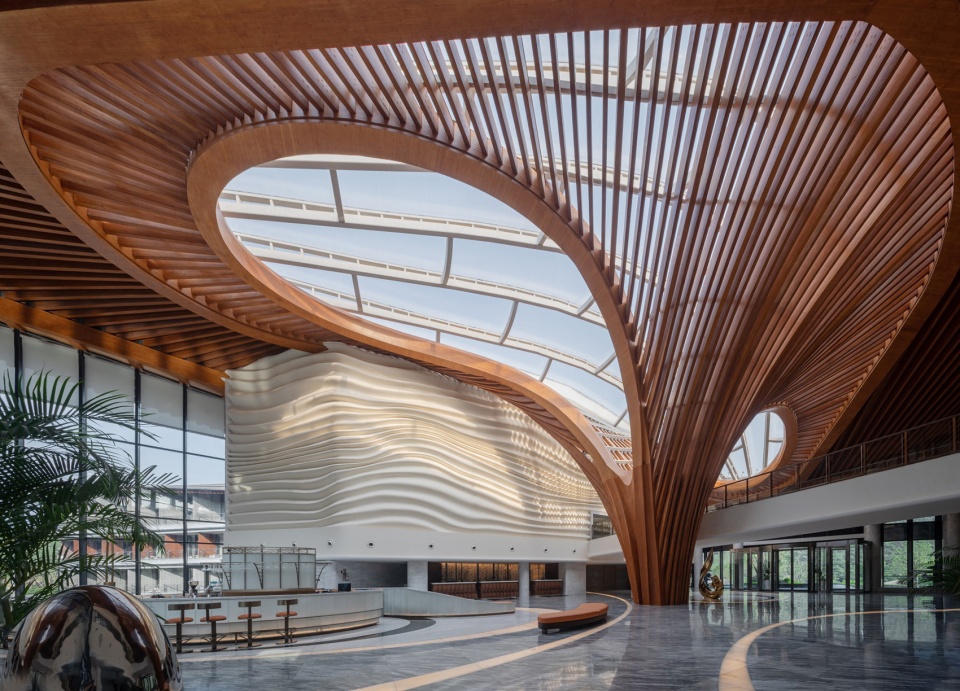

▼独柱开花”的双曲屋面空间，”one column blooms” of nearly 2000 square meters

设计通过kangaroo动力学模拟进行 “开花柱”的找形，主体受力结构由钢结构组成，主结构之间的次级曲梁柱体系由木结构介入。最终整体结构经过节点优化，实现了形与力、光与空间的融合统一，“开花柱”不仅仅作为一个结构体，其与顶部的ETFE膜材结合，亦成为室内核心空间的重要光源，自然从屋顶延伸至地面，阳光从木梁的间隙中洒入，将最初“旷远”的通透之感从入口挑檐一直延伸至室内大堂中庭。

The design was simulated by kangaroo dynamics to find the shape of “blossoming column”, the main force structure is composed of steel structure, and the secondary curved beam and column system between the main structure is intervened by wood structure. The final overall structure was optimized by nodes to achieve the integration of form and force, light and space. The “blossoming column” is not only a structural body, but also an important source of light for the core space of the interior, naturally extending from the roof to the ground, with sunlight spilling in through the gaps in the wooden beams. Sunlight pours in through the gaps between the wooden beams, extending the sense of “openness” from the entrance eaves to the interior atrium.

▼酒店室内泳池，Indoor swimming pool of the hotel

在丽笙酒店项目中，打通了机器与人在情感、思维、记忆甚至创作意图上的实现了实质上互动，这对于在这个后人文时代如何打通虚拟设计与物质智能的关联具有里程碑意义。这次意义深远的实践，用时代技术书写传统记忆，用后人文时代的新精神冲破桎梏与约定俗成，或许就是项目带来的最难忘的经历。

In the project, the interaction between machine and human in terms of emotion, thinking, memory and even creative intent was achieved, which is a milestone in how to connect virtual design and material intelligence in this post-humanistic era. This far-reaching practice, writing traditional memories with the technology of the times, and breaking the shackles and conventions with the new spirit of the post-humanistic era, is perhaps the most unforgettable experience brought by the project.

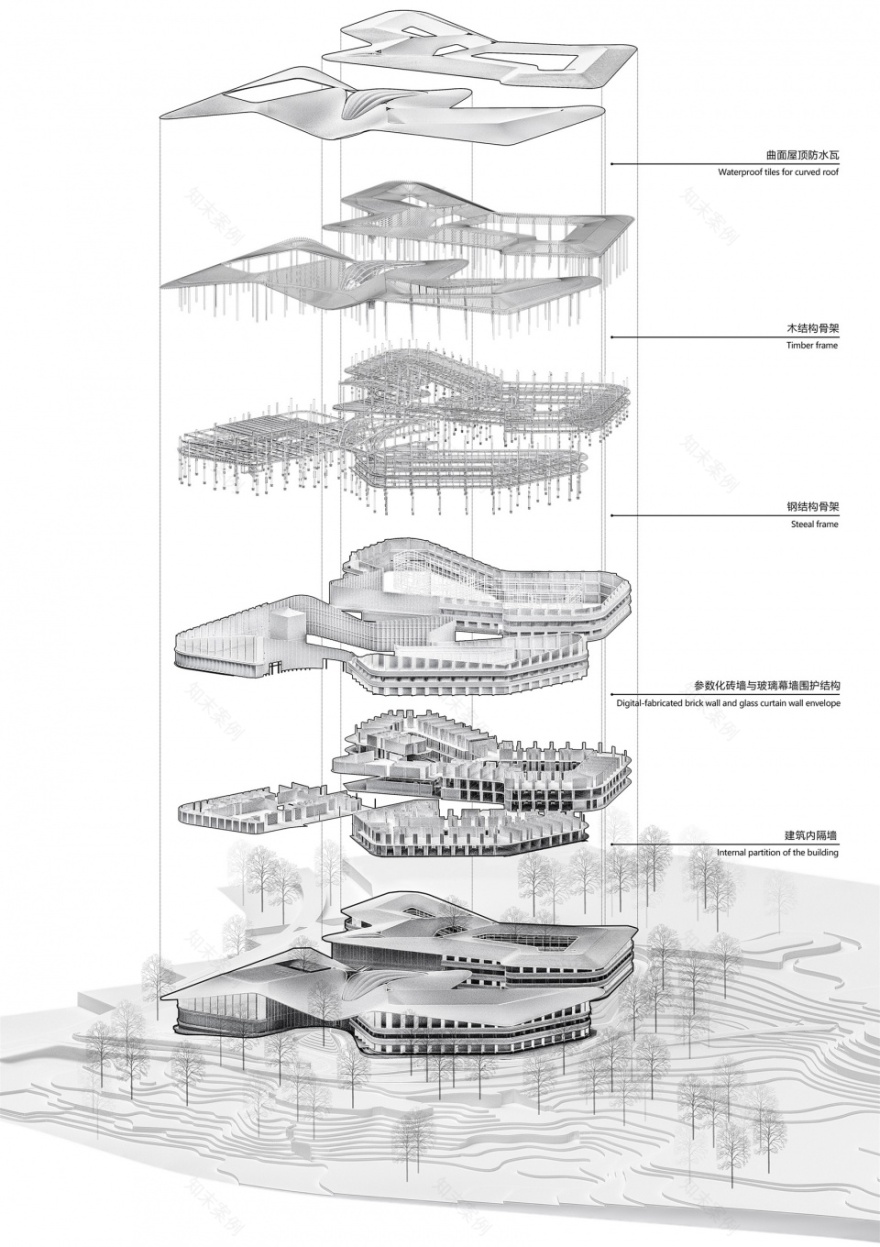

▼爆炸分析图，exploded diagram
