西湖边的微型汉服体验馆,体现古风潮流的设计理念

2020/07/01 09:56:59
查看完整案例
微信扫一扫
收藏
下载
项目位于西湖四公园,坐落于西湖与湖滨路步行街之间的绿化平台上,是西湖风景区提升改造工程的一部分。我们的设计任务是在这个室内净面积只有16.5㎡的小房子里为知名汉服电商品牌设计一家汉服体验馆。本项目作为该品牌的首家线下体验店也需兼顾品牌展厅的作用。
The project is located in West Lake area, between the bustling downtown and peaceful lake side. It is part of the West Lake upgrading project. Our mission is to renovate a Song Dynasty style building with a gross interior area of 16.5㎡ into a traditional Chinese clothes experience and Photoshop studio. Additionally, as the first offline experience store of the internet based clothes brand, it is also the brand experience and exhibition center.

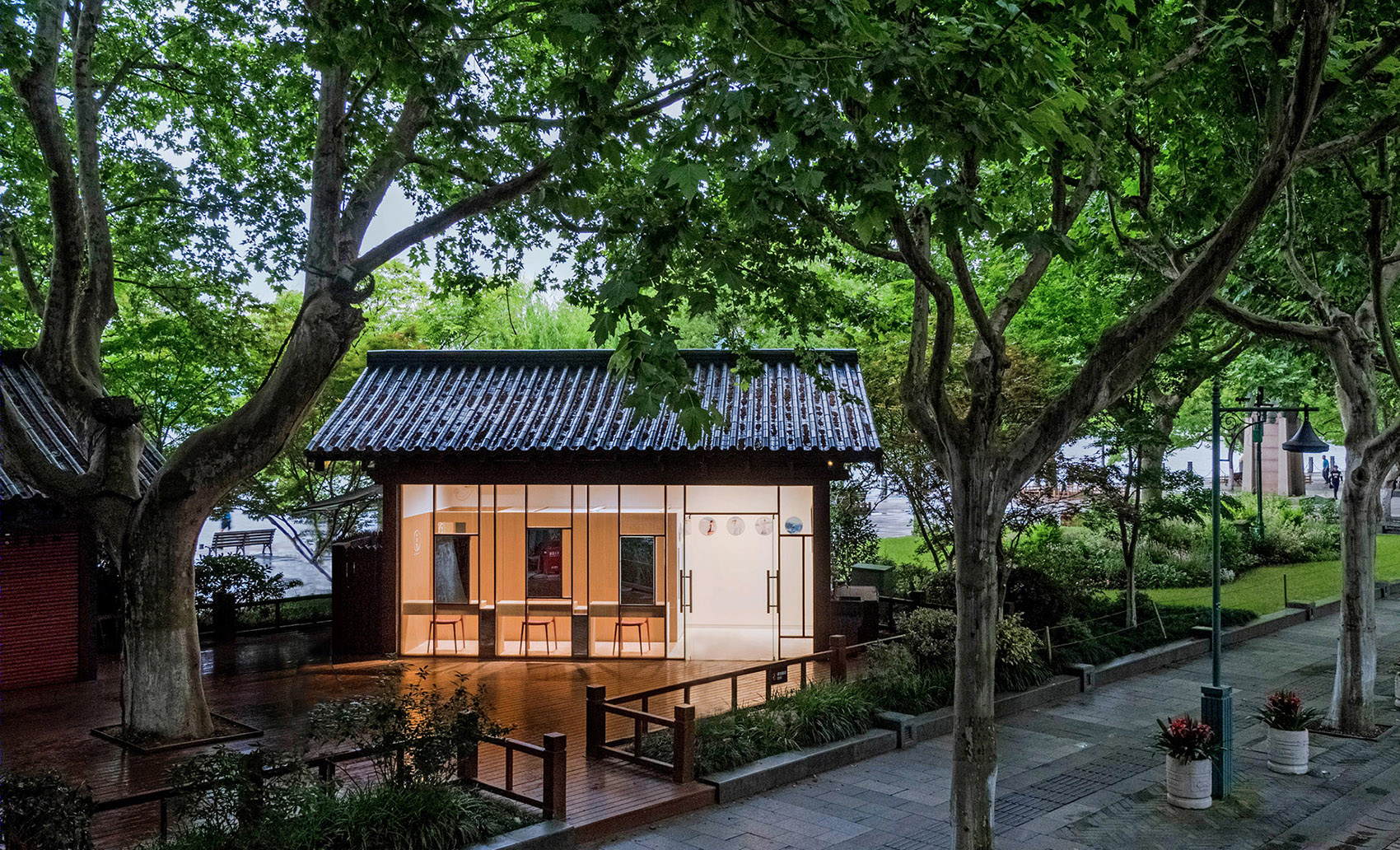

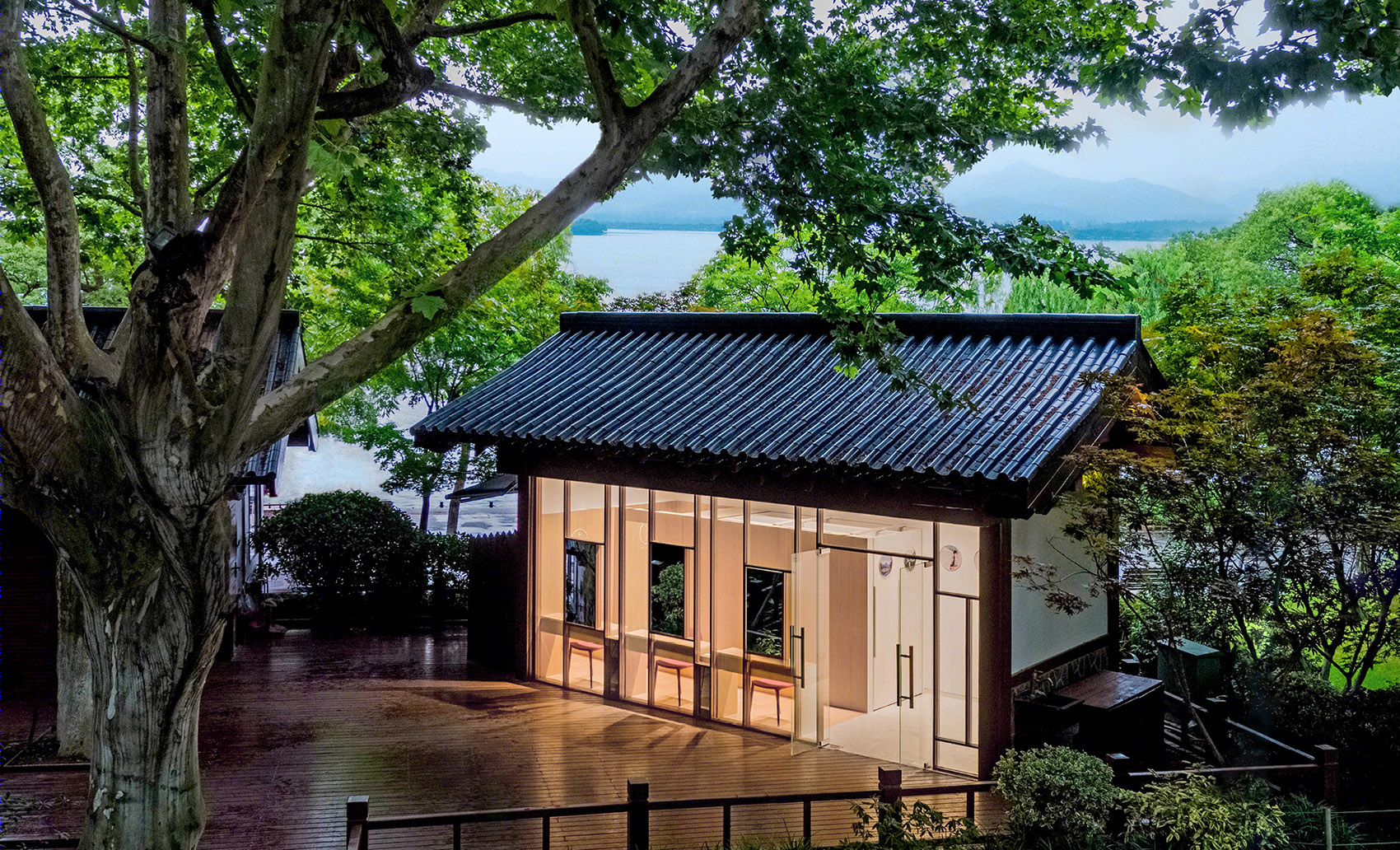

▼项目外观,位于西湖四公园中,external view of the project located in West Lake area ©王宁
西湖边的微型汉服体验馆,体现古风潮流的设计理念-3
西湖边的微型汉服体验馆,体现古风潮流的设计理念-4
这是我们与业主沟通后确定的设计内容:三个梳妆台、三间更衣室、尽量多的展示性衣柜和收纳空间、10个顾客储物柜、一个品牌展厅、一个移动式前台。除此之外,如何为这座仿宋代建筑设计一个能够融入西湖文化气质的室内空间,并且作为品牌方的首家线下体验店能够体现其品牌文化和价值观,成为了本案要解决的更深层次的问题。
This is what the space should conclude: three makeup area, three dressing room, as many wardrobes and showcases as possible, 10 lockers, a removable reception desk and finally, an exhibition area. Besides, how to design a space to reflect brand culture and value within the context of west lake and a Song Dynasty style building is the essential question to be solved.
▼项目构成及功能分析,generation and function diagram ©Atmosarchitects
西湖边的微型汉服体验馆,体现古风潮流的设计理念-8
In the year 2002, West Lake park areas opened for free, which means our world heritage, carrying her poetic and picturesque meaning from the ancient times was involving in the city’s mundane life, such as morning exercise, singing and dancing practice, Taijiquan and so on. Hanfu culture is not only the revival of the traditional culture of Han nationality, but also an important part of contemporary pop culture and street culture. Wearing Hanfu while traveling abroad, wearing Hanfu and drinking coke, the youth are telling us Hanfu culture is not to pose as ancient people, but be themselves. In the beginning, our design context is a Chinese style proposition. However, after many in-depth discussions with client, we agreed on designing something interweaving with both ancient and contemporary. Fortunately, the idea was approved by the west lake management committee.

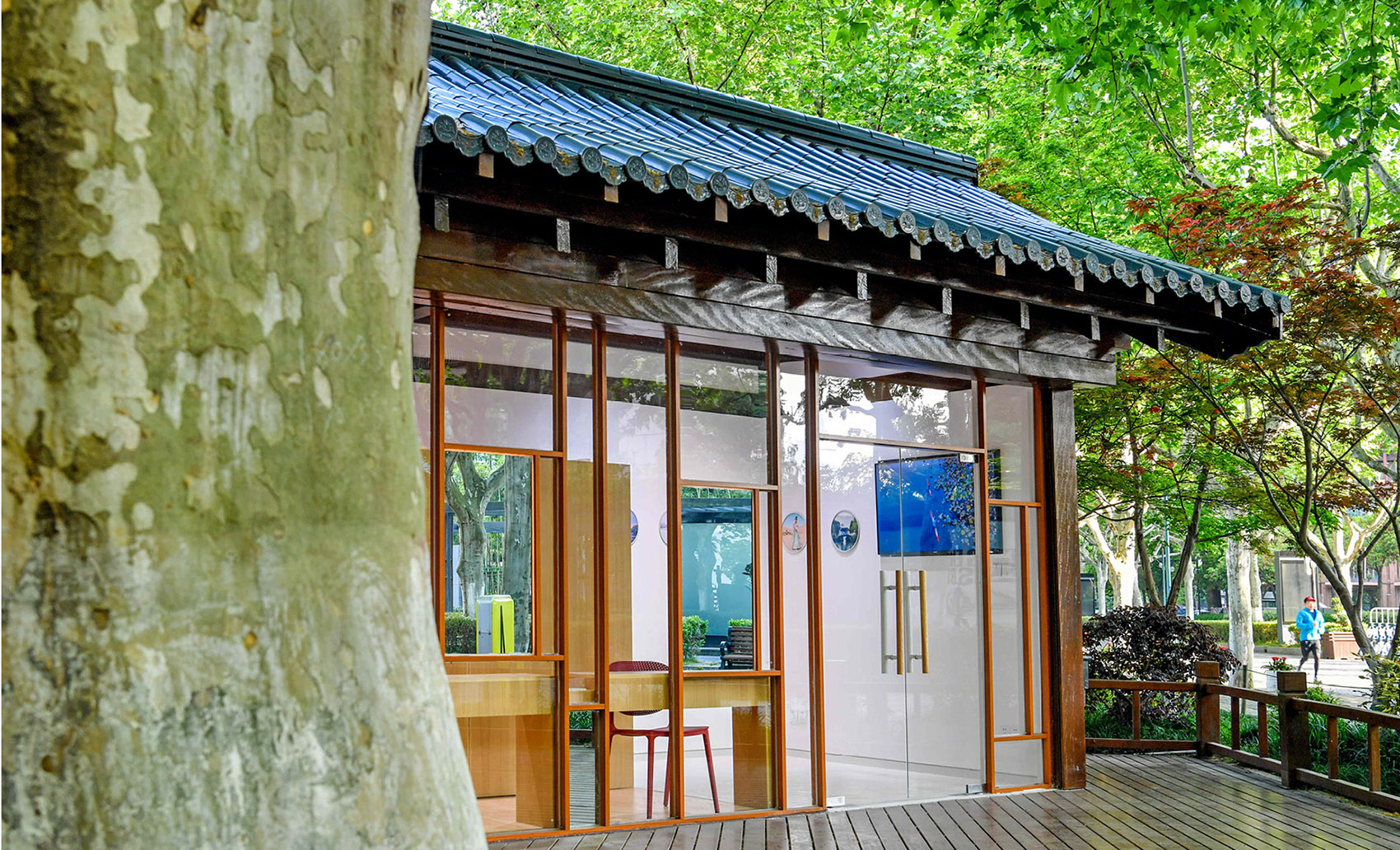

▼体验店现代与古风并存,a experience store both ancient and contemporary ©王宁
西湖边的微型汉服体验馆,体现古风潮流的设计理念-11
方向定了接下来便回到了16.5㎡的小空间的设计策略上。空间有限,最好的解决方式就是时间。将使用者的使用行为按照时间来组织,从进店沟通到挑选服装,换装、化妆造型,使用行为有先后,空间便有了更多的可能性。闲时,当店内没有预约体验时,一个完整的品牌展厅便被创造出来,也成为了这个狭小空间摆脱拥挤的最好留白。各个设计细节的尺度把控我们也力求精准,用化妆品的尺度设计梳妆台,用五金件的尺度设计抽屉和储物柜,用梳妆镜的尺度设计立面系统,以及一系列的隐藏式门、抽拉式衣柜,将小空间能达到的最宽敞的体验做到极致。
The best solution to deal with a space of only 16.5㎡ is to take time into consideration. The user’s behavior is organized according to time, from entering the store to choosing clothes, changing clothes and making up. Their behaving sequences bring the space more possibilities. In leisure time, a complete brand exhibition hall will be created, offering this small space a breath. We also strive to control the scale of each design detail precisely. We design the dresser with the scale of cosmetics, the drawers and lockers with the scale of hardware, the facade system with the scale of mirror, and a series of hidden doors and pull-out closets to make the most spacious experience of this small space.
▼室内空间一览,一侧为梳妆台,另一侧为储物柜,overall view of the interior space, on the one side is make up area, on the other side is storage ©王宁
西湖边的微型汉服体验馆,体现古风潮流的设计理念-15
▼抽拉式衣柜,节省空间,pull-out closet making good us of the space ©王宁
西湖边的微型汉服体验馆,体现古风潮流的设计理念-17

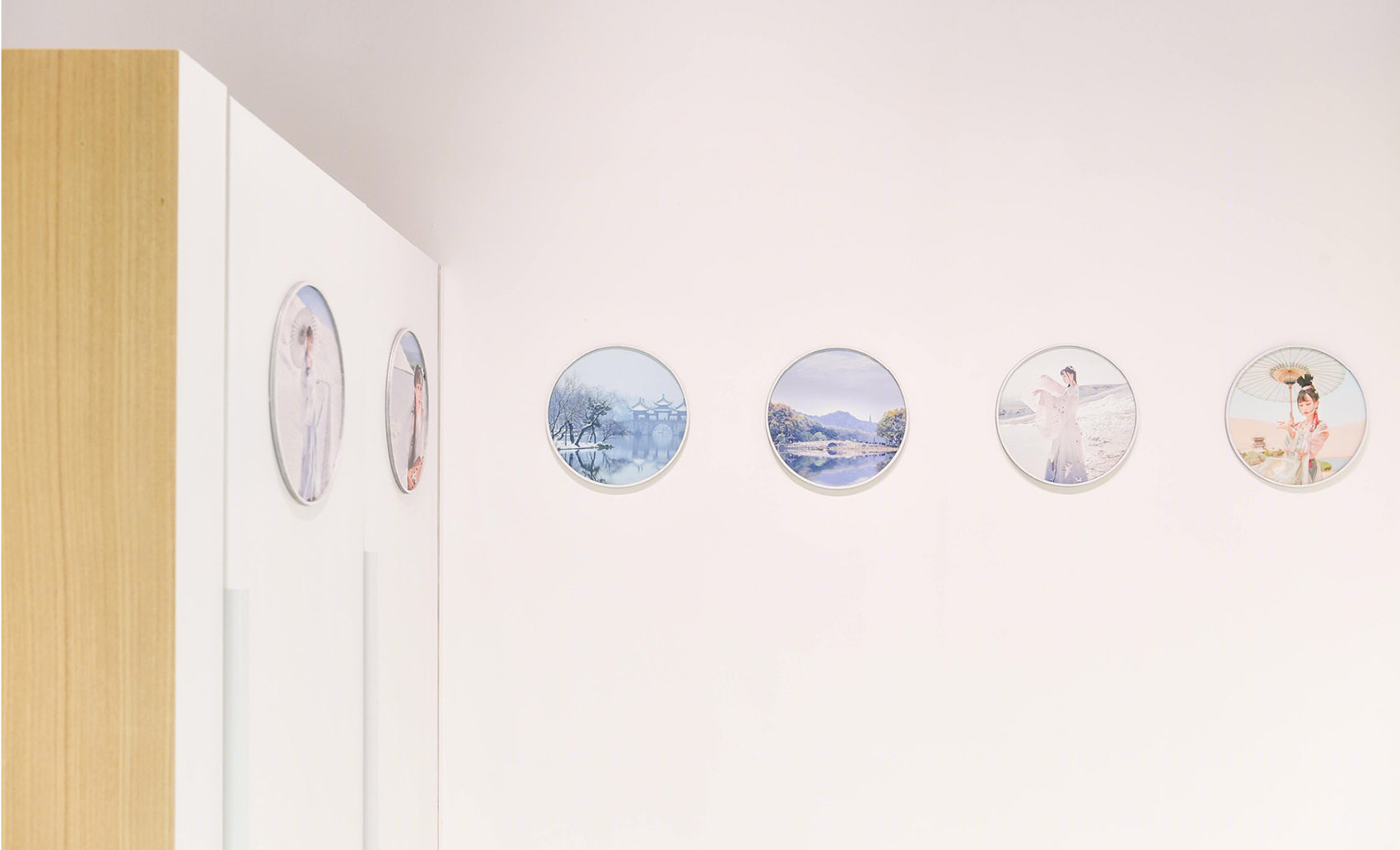

▼展示空间,exhibition space ©王宁
西湖边的微型汉服体验馆,体现古风潮流的设计理念-19
▼衣柜拉出后形成更衣空间,fit room is created after the closet is pulled out ©王宁
西湖边的微型汉服体验馆,体现古风潮流的设计理念-21

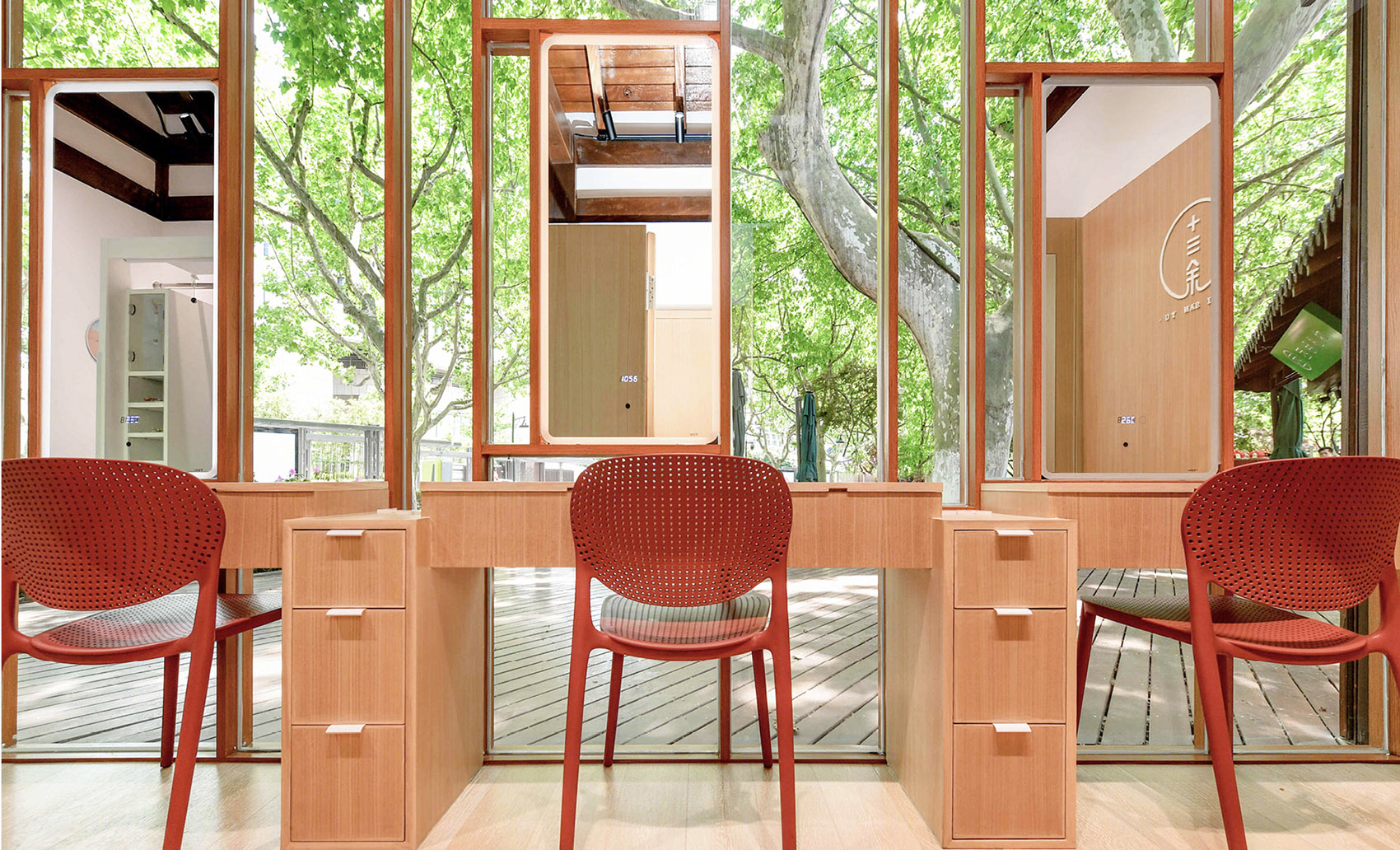

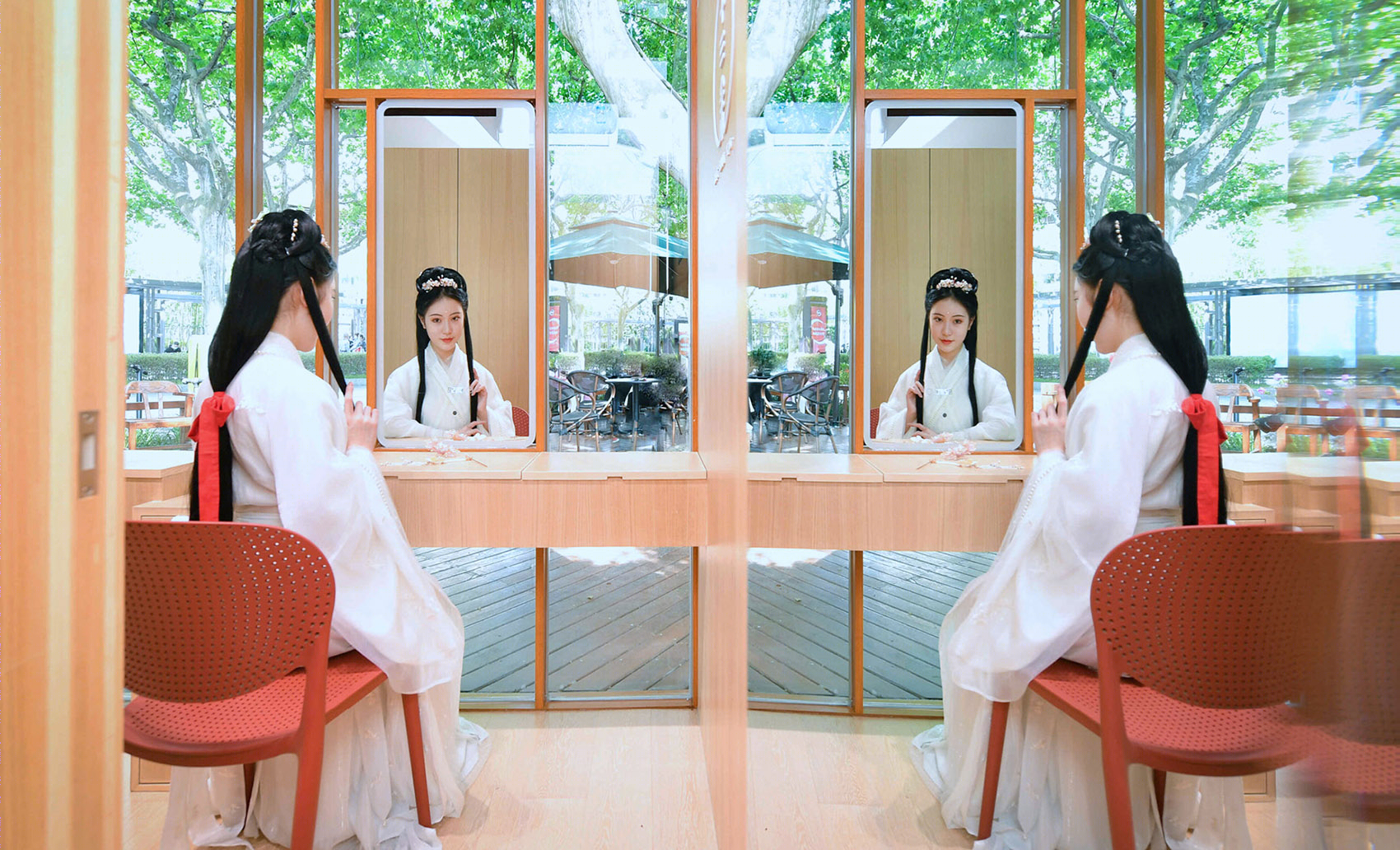

▼化妆台,make-up area ©王宁
西湖边的微型汉服体验馆,体现古风潮流的设计理念-23
西湖边的微型汉服体验馆,体现古风潮流的设计理念-24

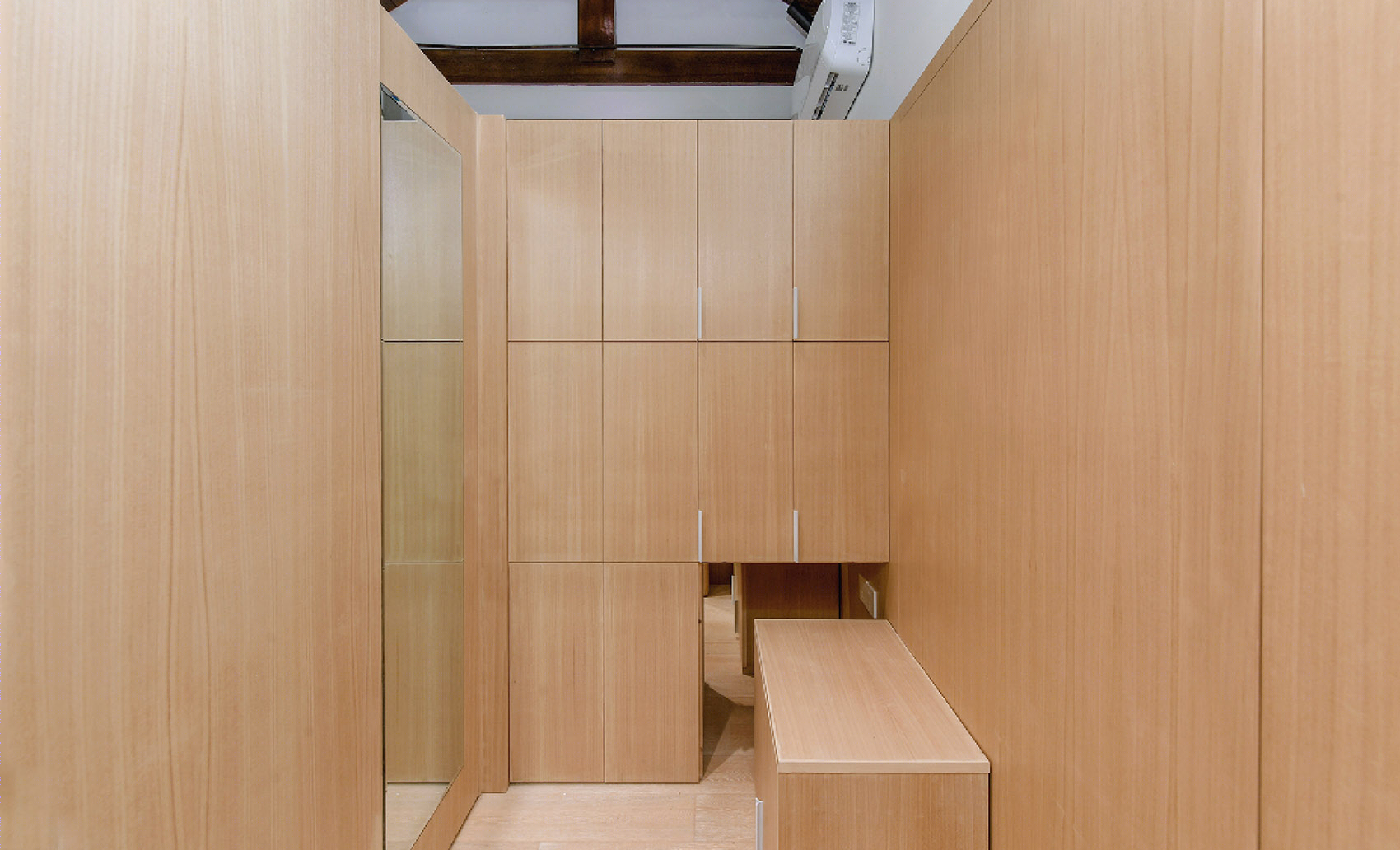

▼更衣室,fit room ©王宁
西湖边的微型汉服体验馆,体现古风潮流的设计理念-26

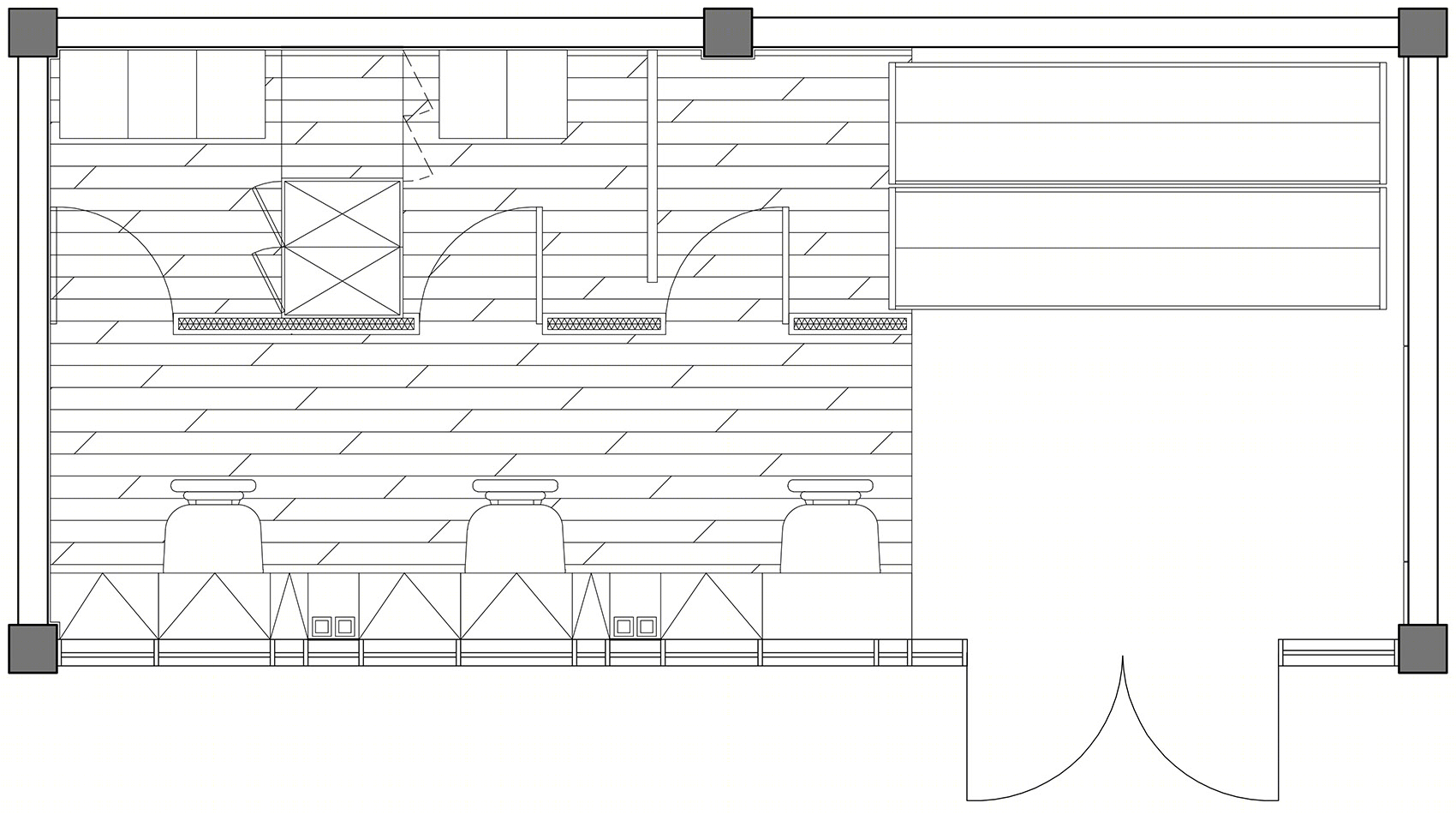

▼平面图,plan ©Atmosarchitects
西湖边的微型汉服体验馆,体现古风潮流的设计理念-28

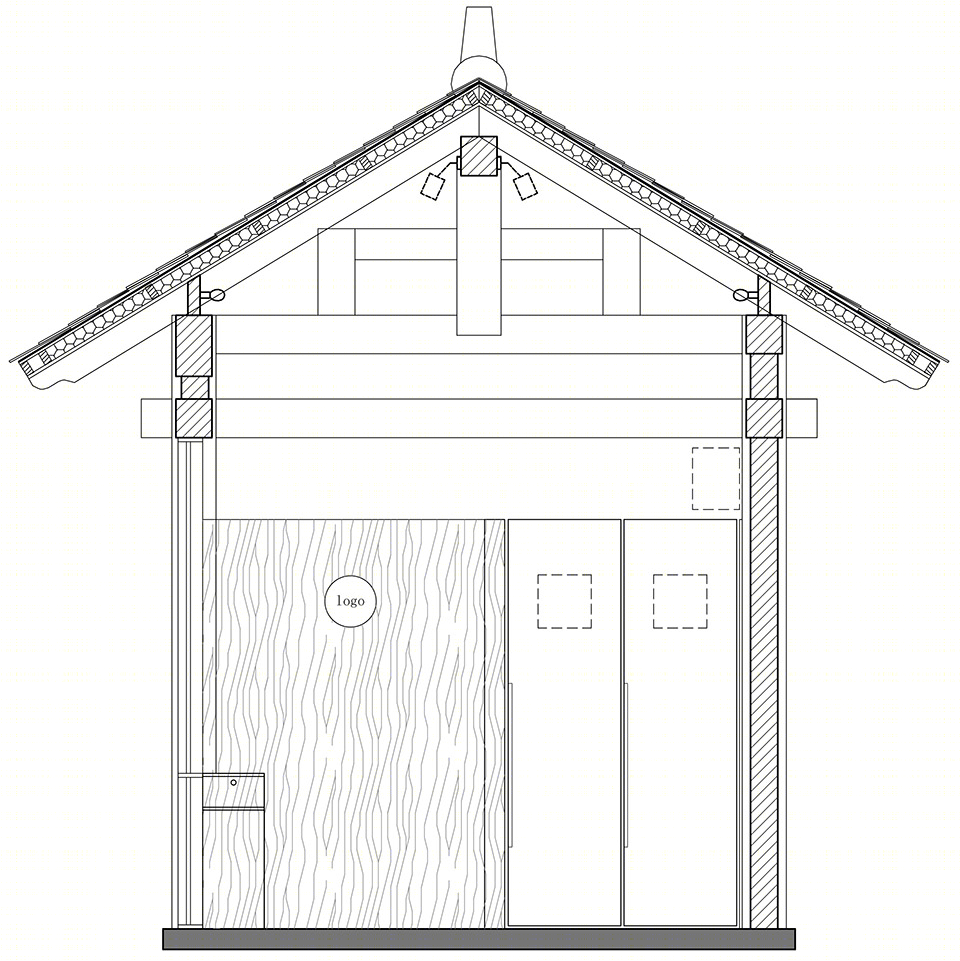

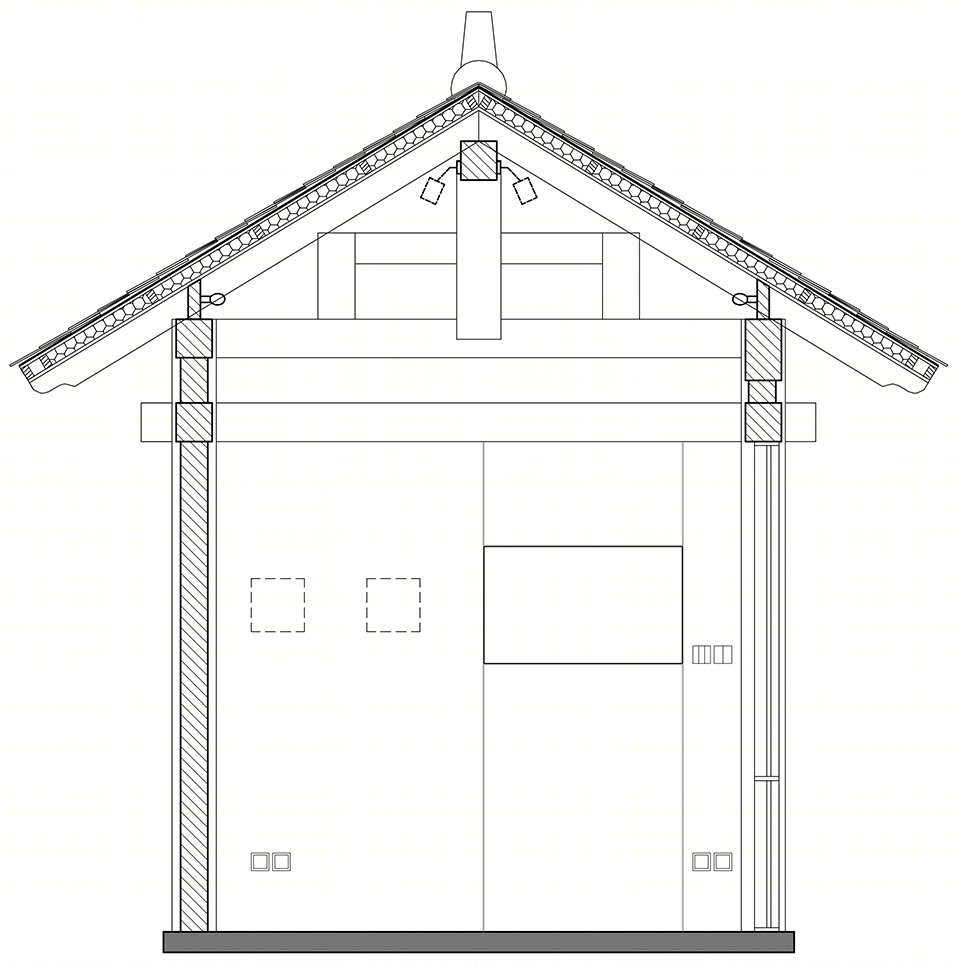

▼剖面图,sections ©Atmosarchitects
西湖边的微型汉服体验馆,体现古风潮流的设计理念-30
西湖边的微型汉服体验馆,体现古风潮流的设计理念-31
