越南春水疗养住宅

© Hùng Râu Kts

C.H‘ng R u KTS

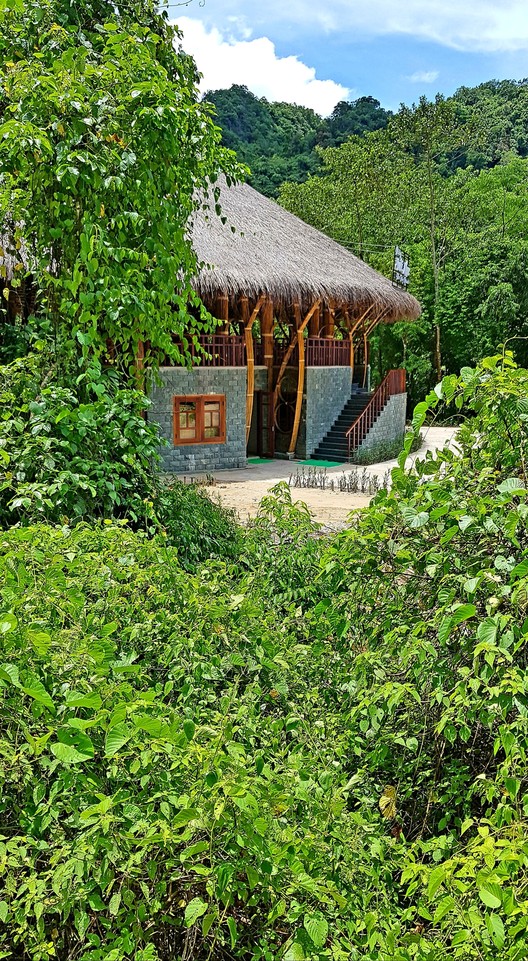

架构师提供的文本描述。该项目综合了住宿、疗养、餐厅和餐饮服务，以满足游客参观泉水的需要。大楼一楼是供游客居住的住宅区，以及厨房、储藏室、卫生和洗浴区以及用碎石装饰的墙砖等辅助服务。

Text description provided by the architects. The project is a combination of accommodation, convalescence, restaurant and food service to be built to serve the needs of tourists visiting the spring water stream. The first floor of the building is a residential area for visitors and ancillary services such as kitchen, storage, sanitary and bathing areas, And wall tiles decorated with chopped stone.

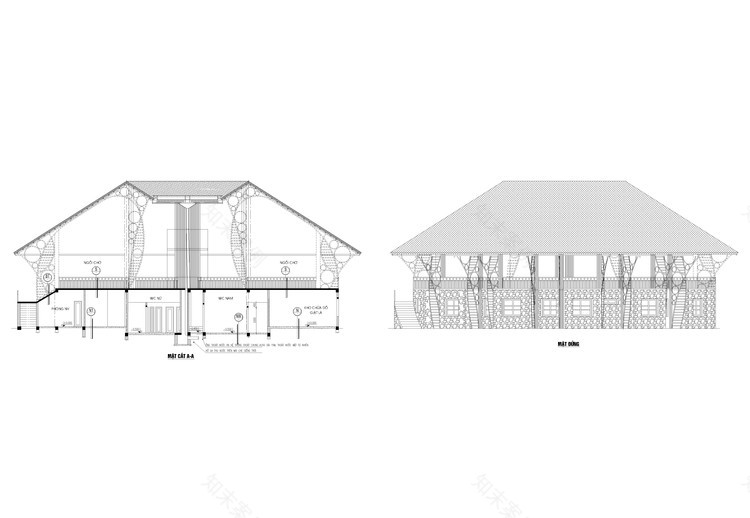

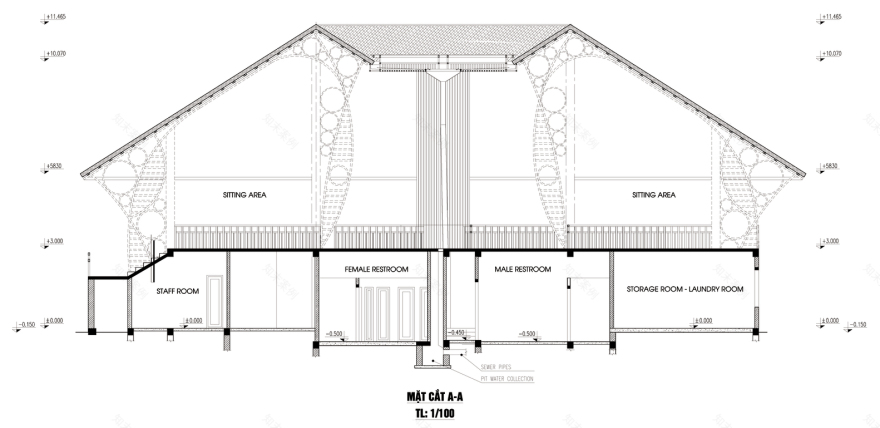

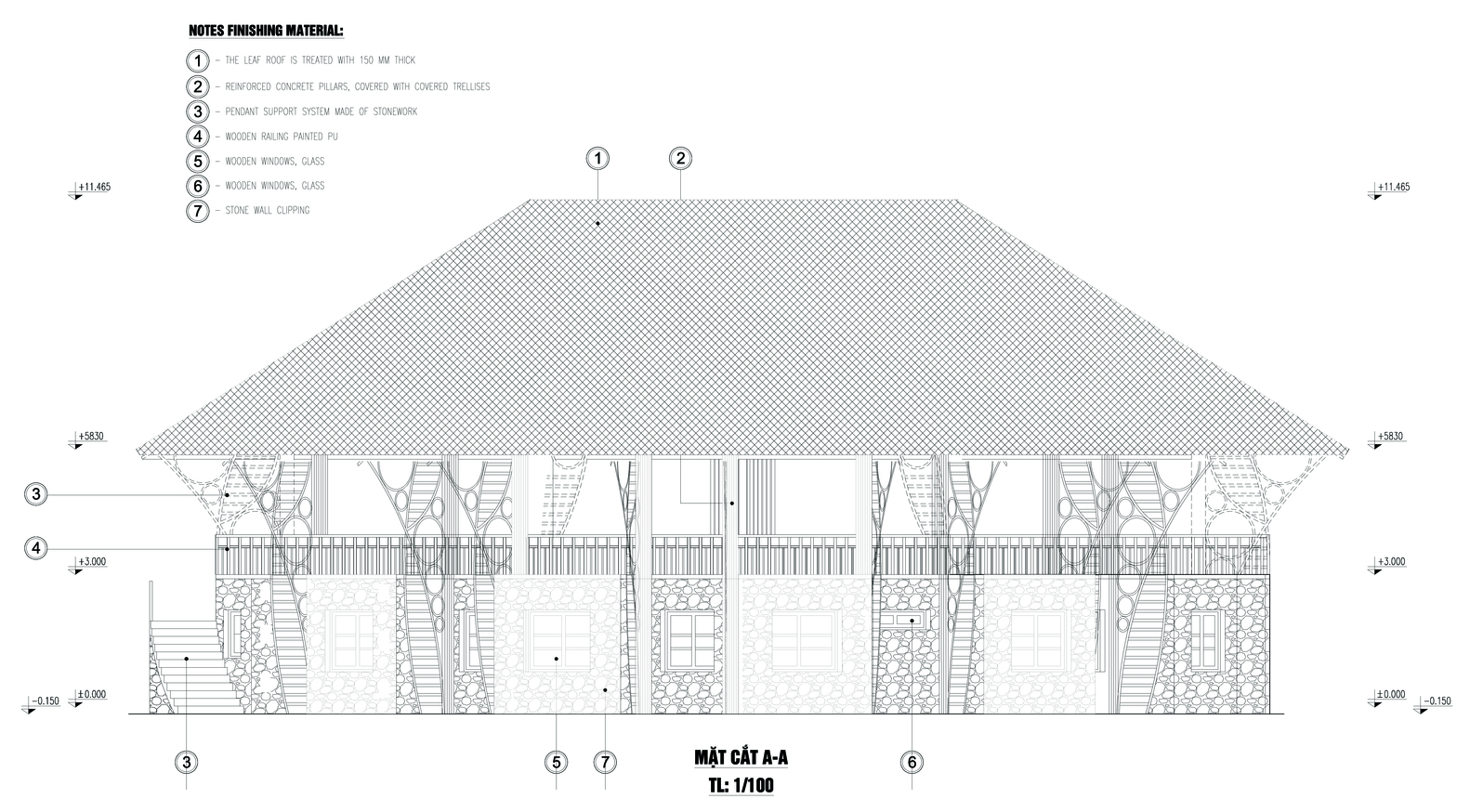

Section and Elevation

剖面与高程

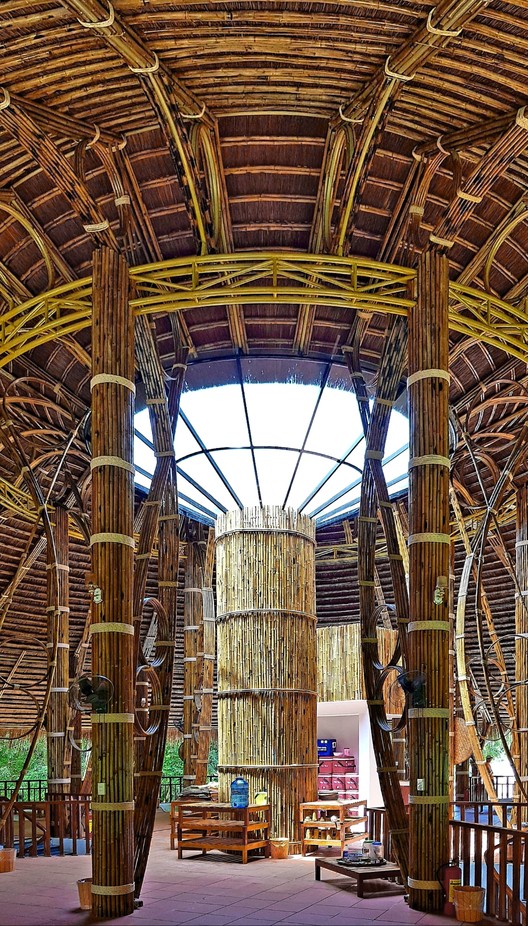

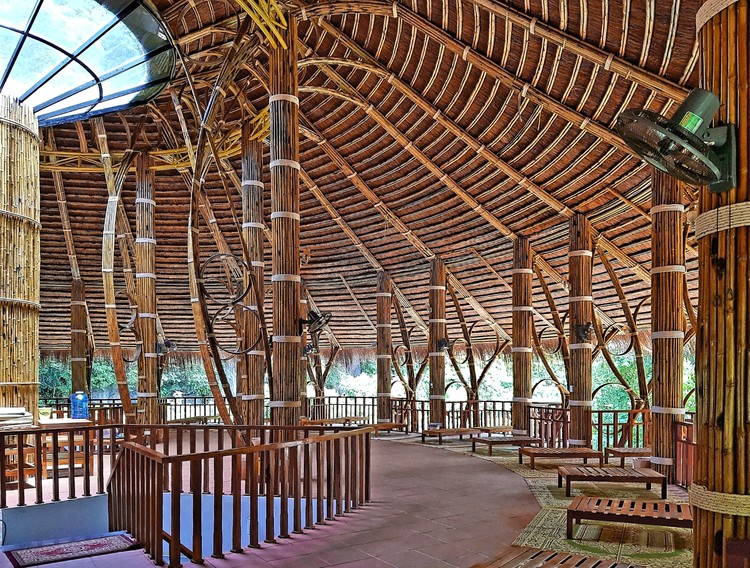

二楼是接待游人的区域，将茶点区、餐厅、钢筋混凝土柱与明渠竹木材料、叶叶、钢筋钢框架系统相结合。

The 2nd floor is a reception area for visitors to combine the refreshment area, restaurant, used reinforced concrete pillars combined with nulgar bamboo Tree material, Leaf leaf, reinforced steel frame system.

© Hùng Râu Kts

C.H‘ng R u KTS

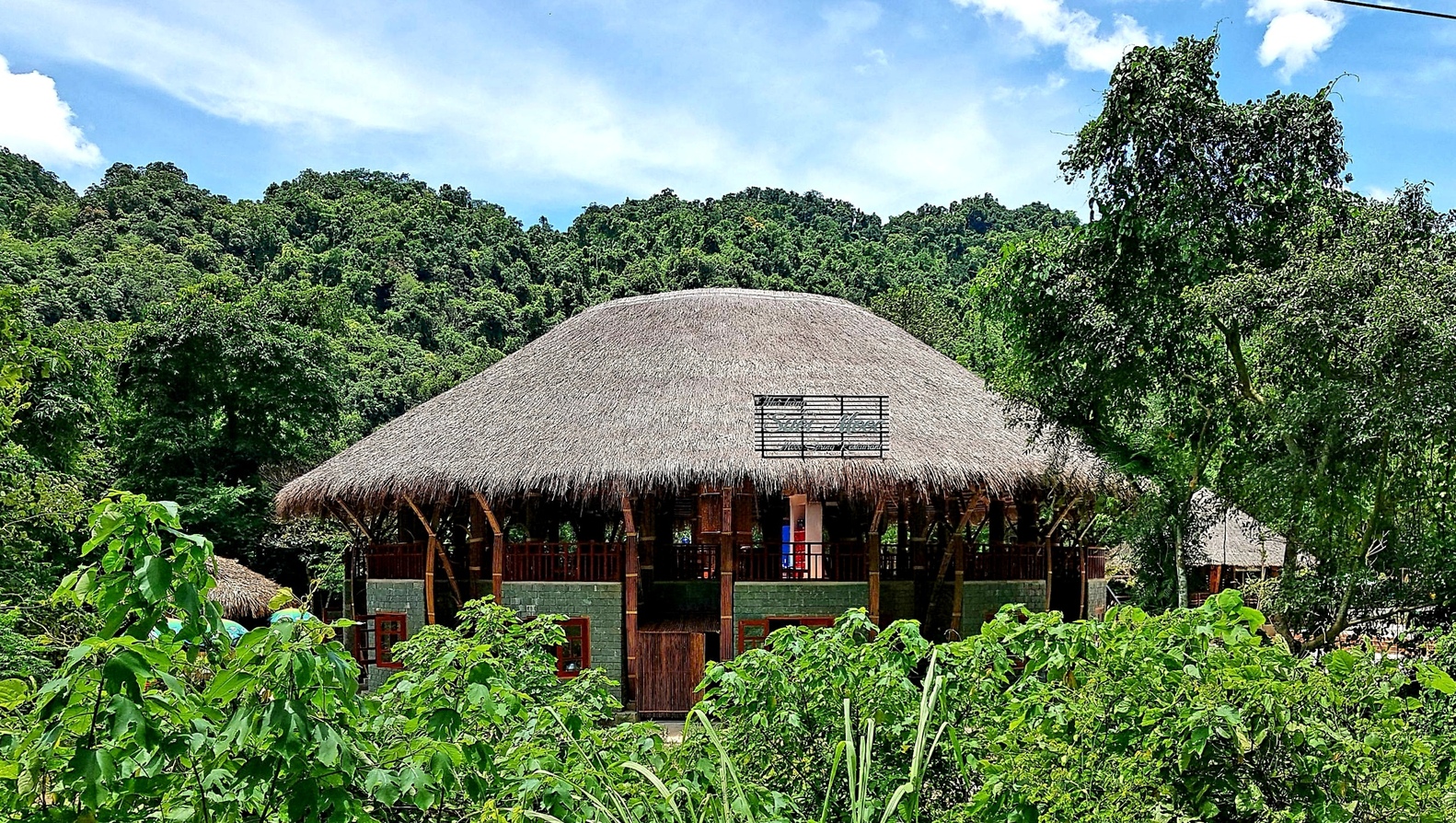

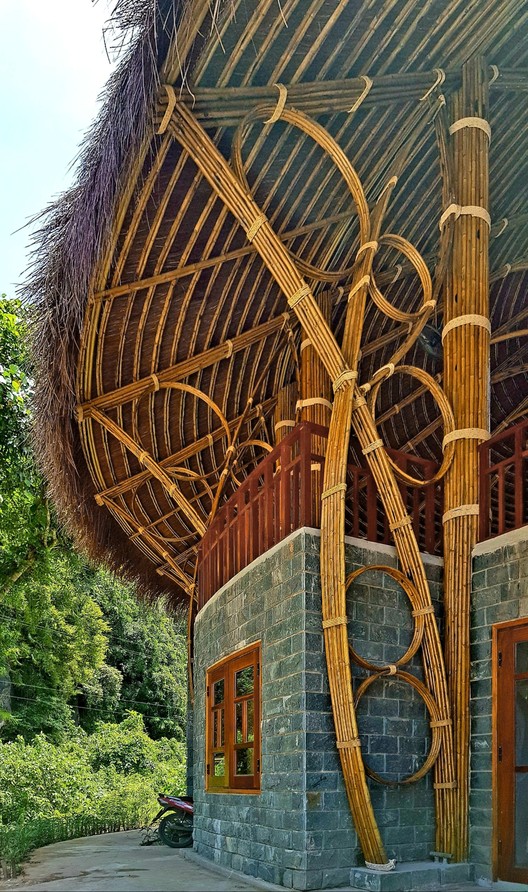

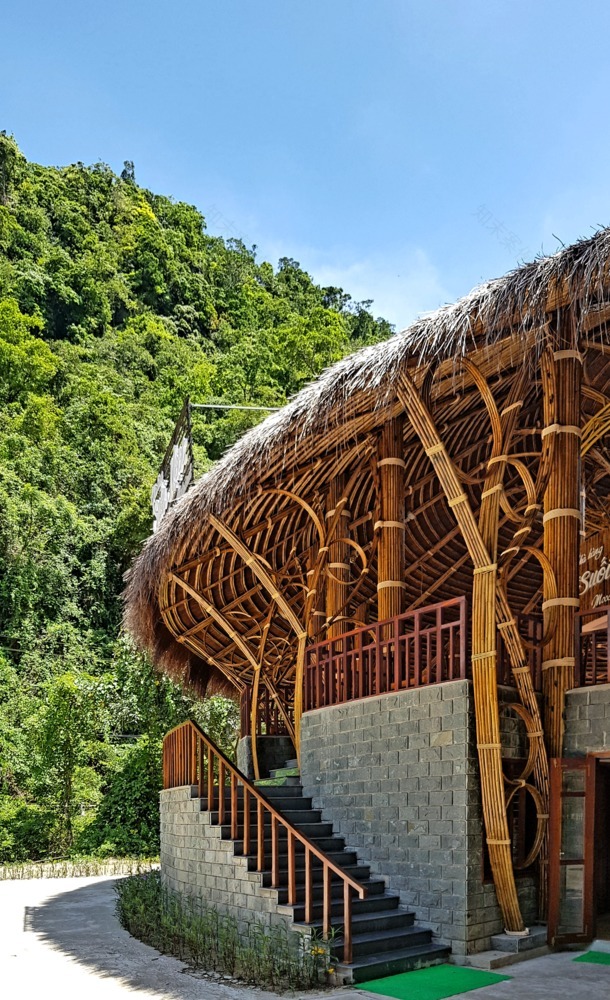

在总体建筑方面，该项目使用原材料和原材料与现代材料相匹配，以确保建筑是可持续的，因为建筑面积每年都是洪水和风暴频繁的地方。

On the overall architecture, the project uses raw materials and raw materials to match the modern materials to ensure the construction is sustainable because the construction area is the place where frequent floods and storms annually.

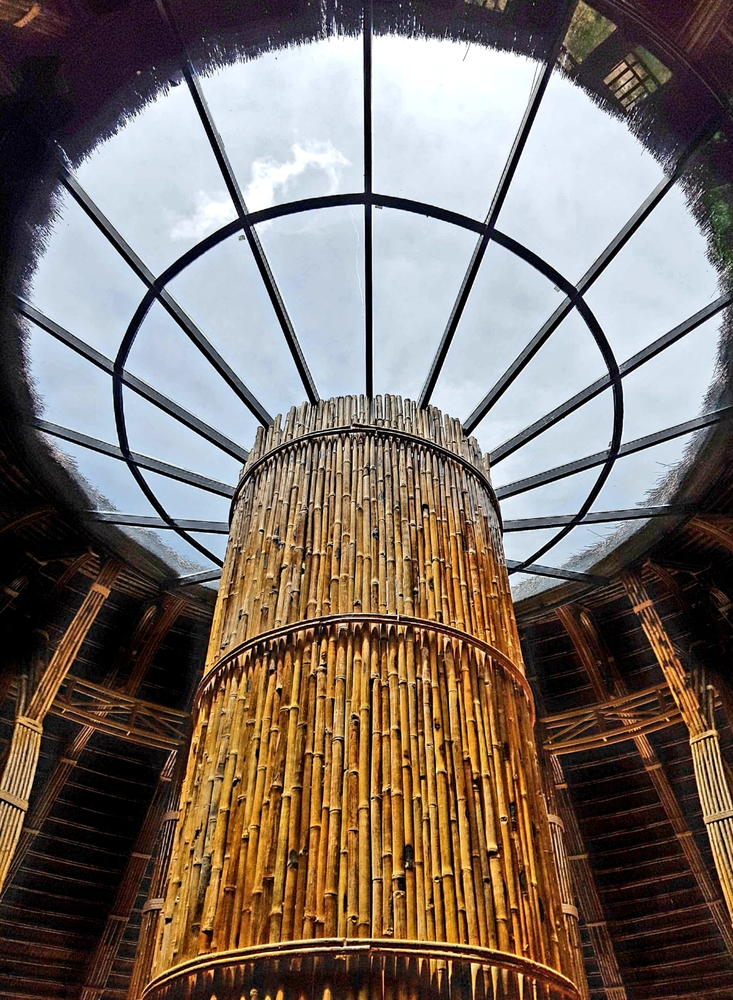

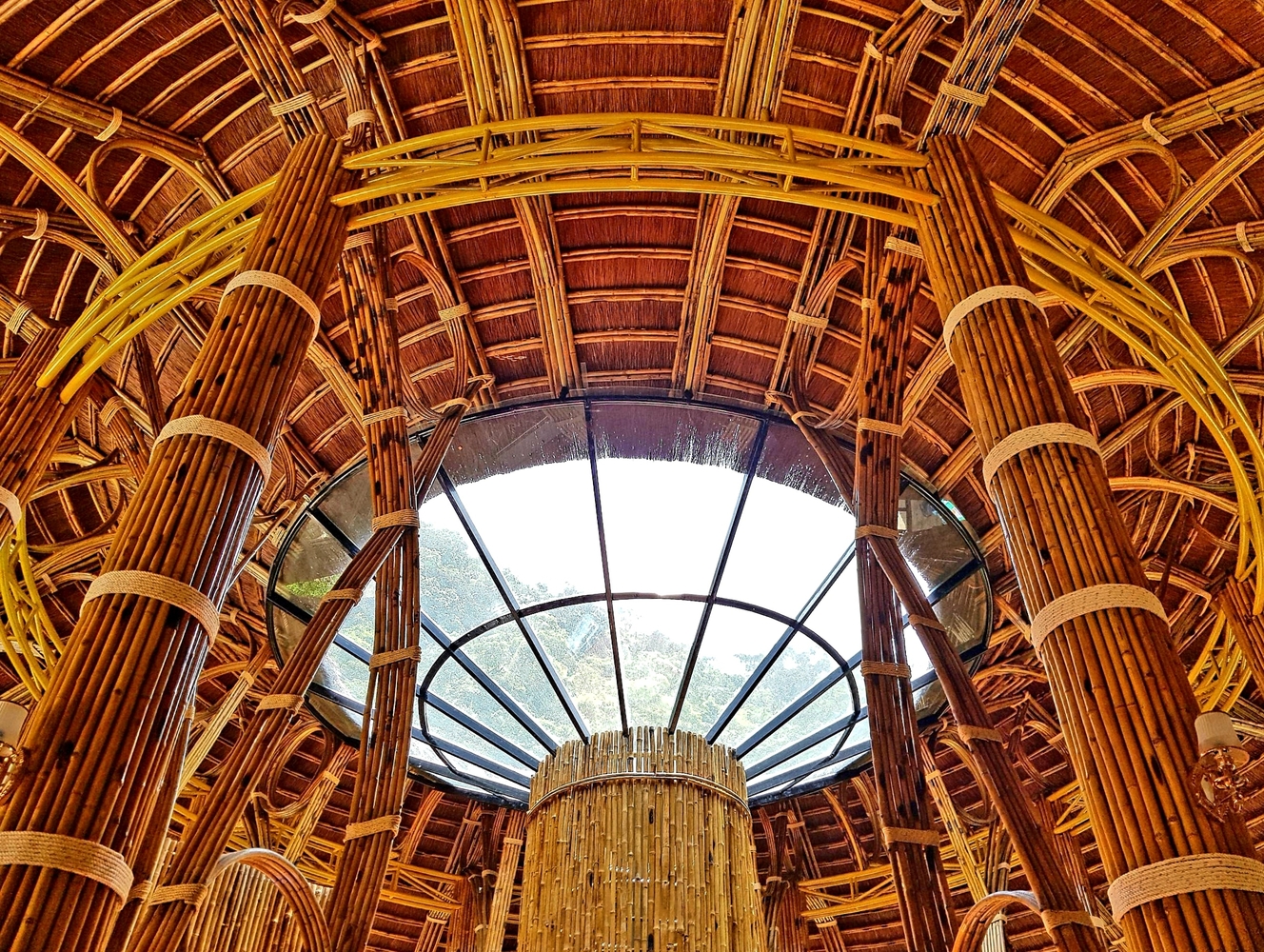

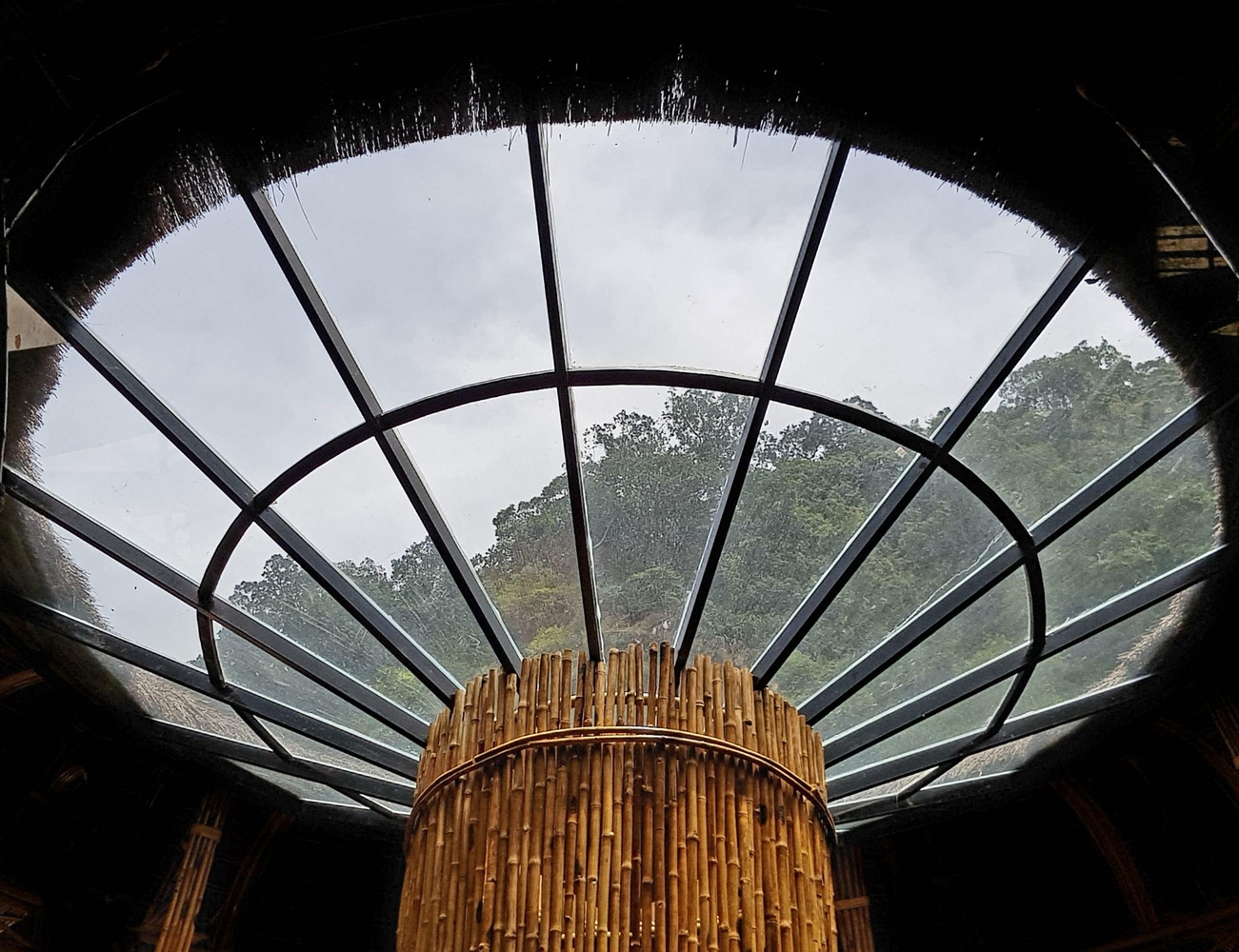

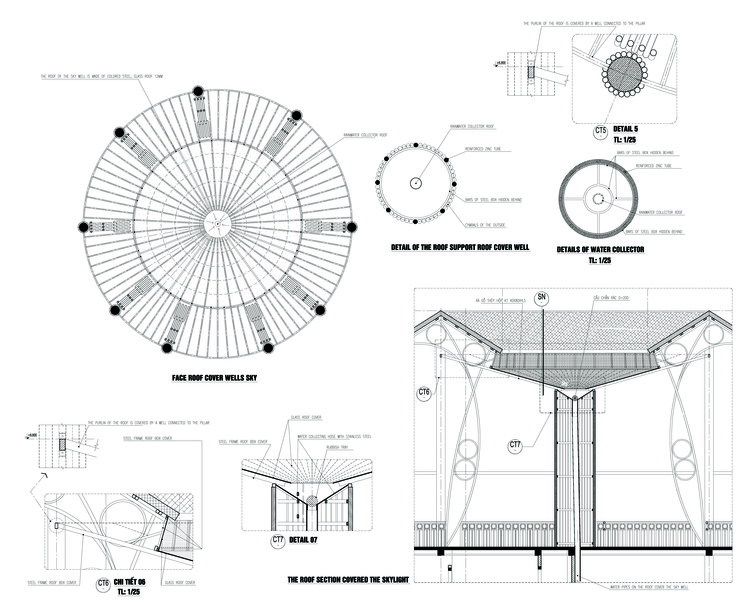

建筑物的天窗用来照亮中间部分。

The building's skylight is used to light the middle part.

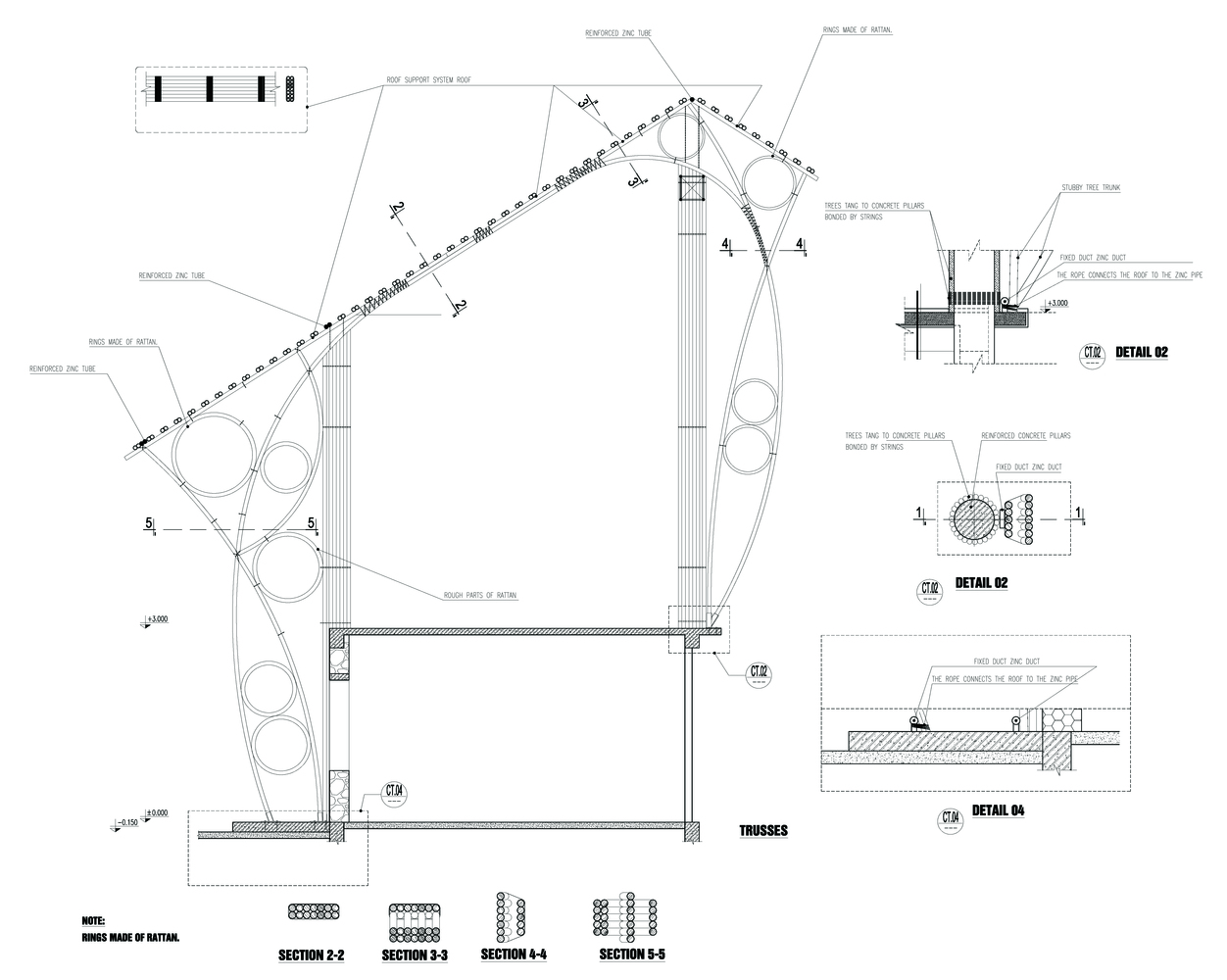

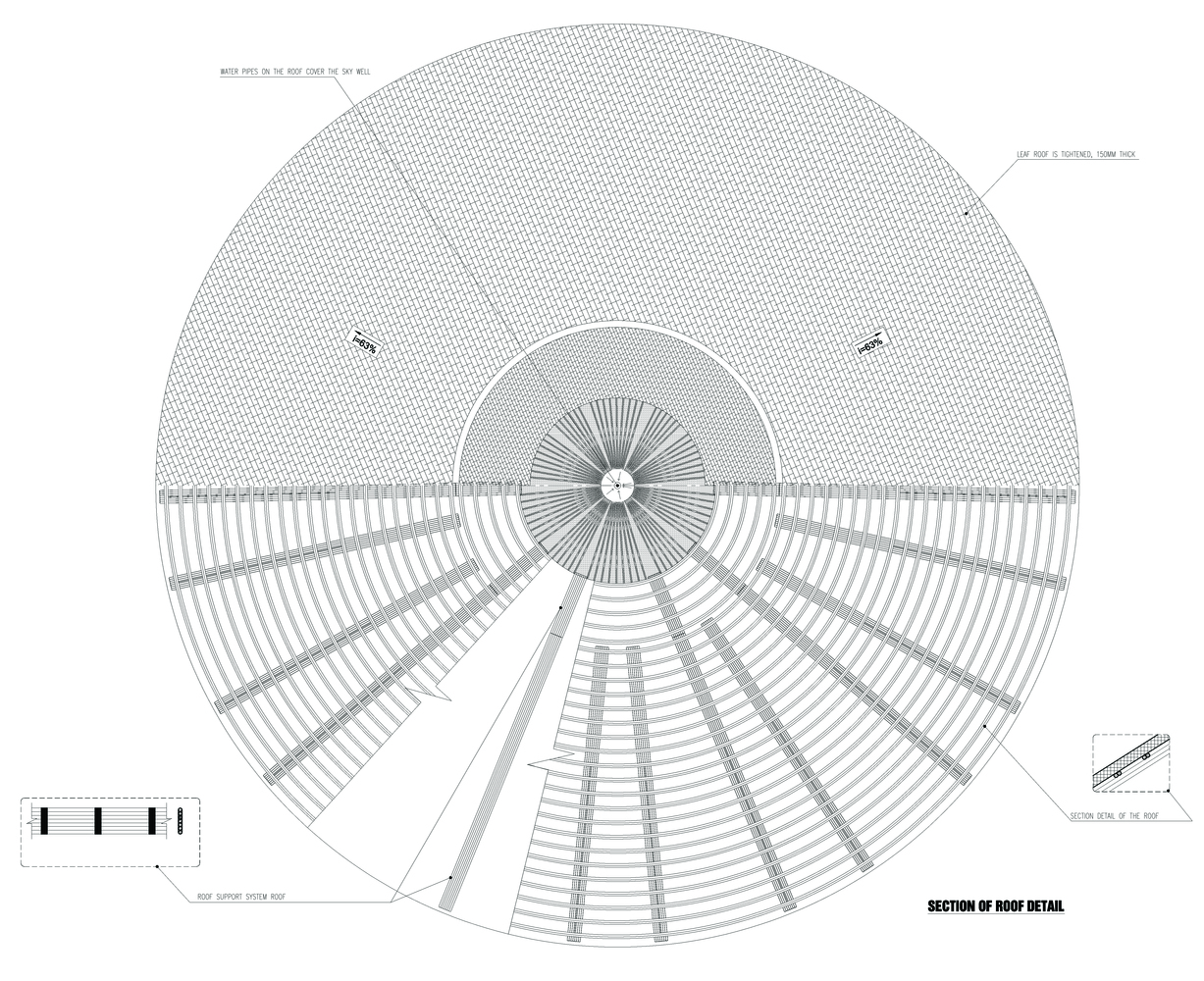

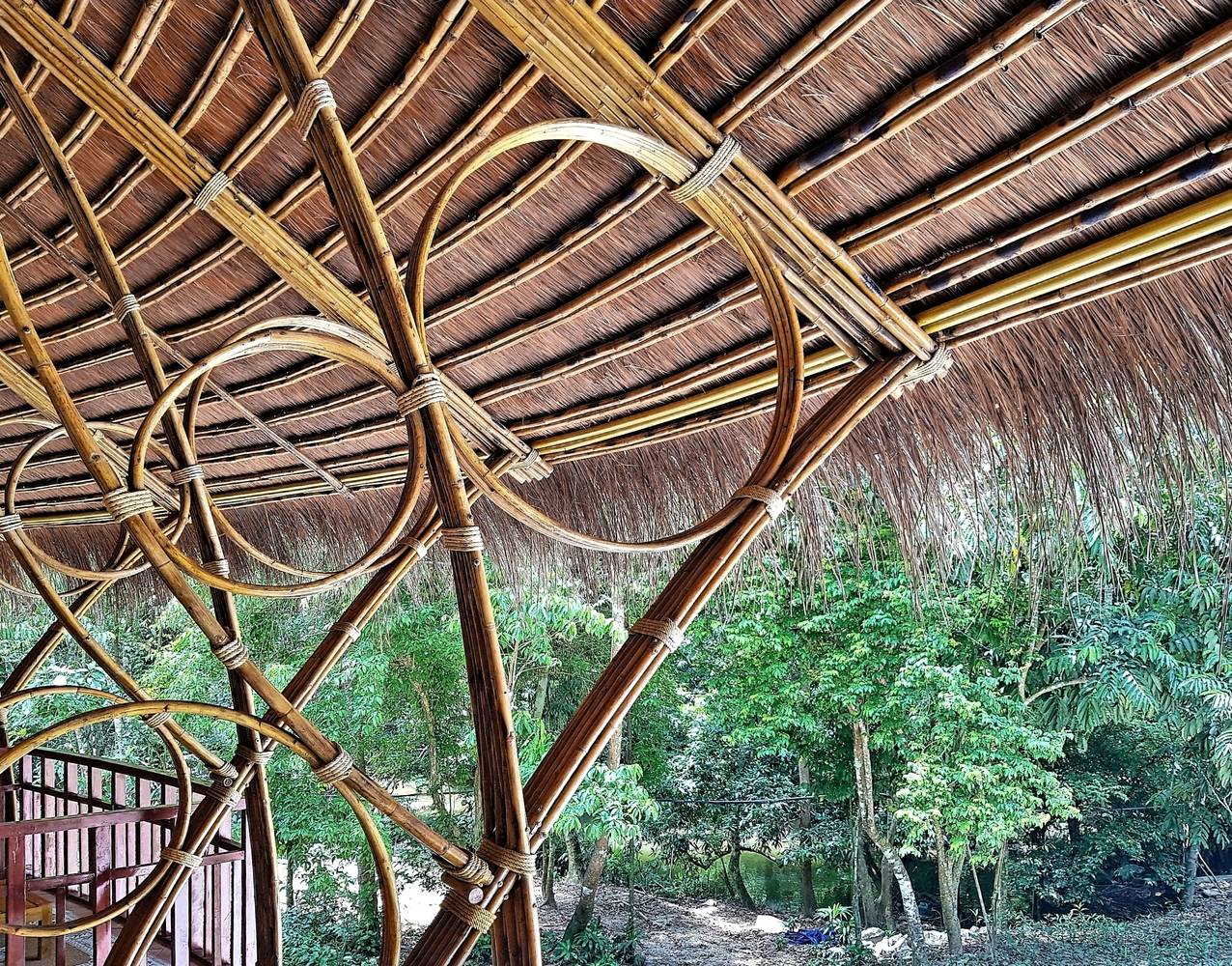

屋架系统相当复杂。希望这个项目能为祖国贡献出有趣的旅游景点，充满趣味性。

The roof truss system is quite sophisticated. Hope this project will contribute to the homeland an interesting tourist attractions full of interesting.

© Hùng Râu Kts

C.H‘ng R u KTS

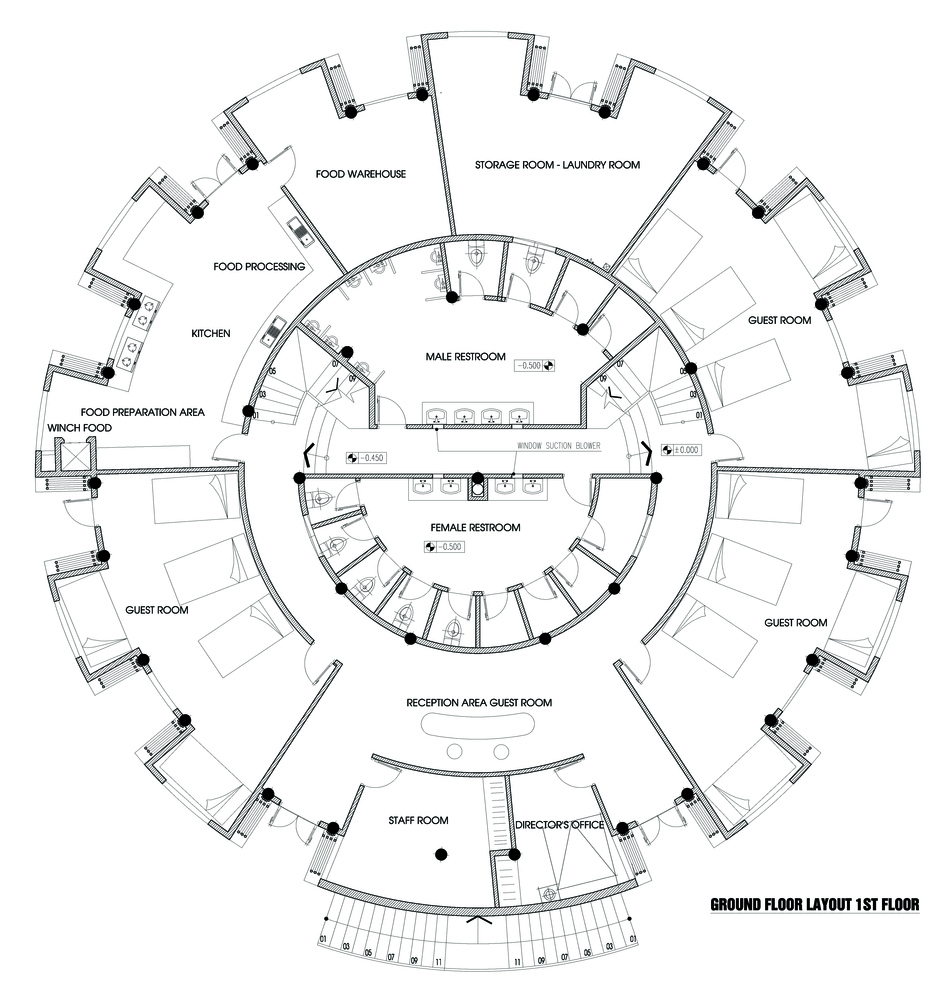

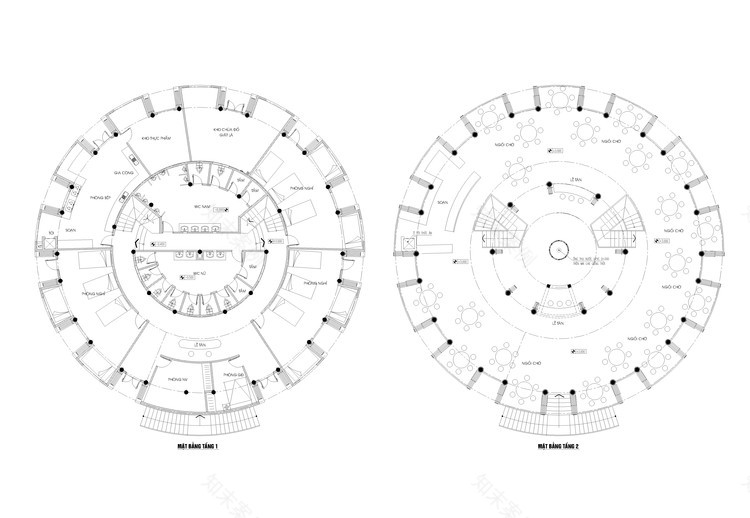

Floors Plans

楼层图

© Hùng Râu Kts

C.H‘ng R u KTS

Architects RÂU ARCH

Location Hồ Chí Minh Tây, Thượng Trạch, Bố Trạch, Quảng Bình, Vietnam

Category Lodging

Lead Architect Hùng Râu KTS

Area 380.0 m2

Project Year 2016

Photographs Hùng Râu Kts
