绿意环绕的公证处办公楼

© Jeroen Verrecht

(Jeroen Verrecht)

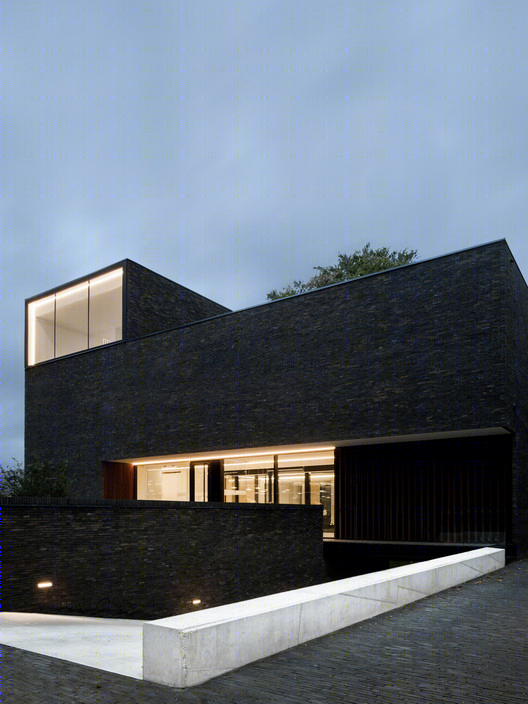

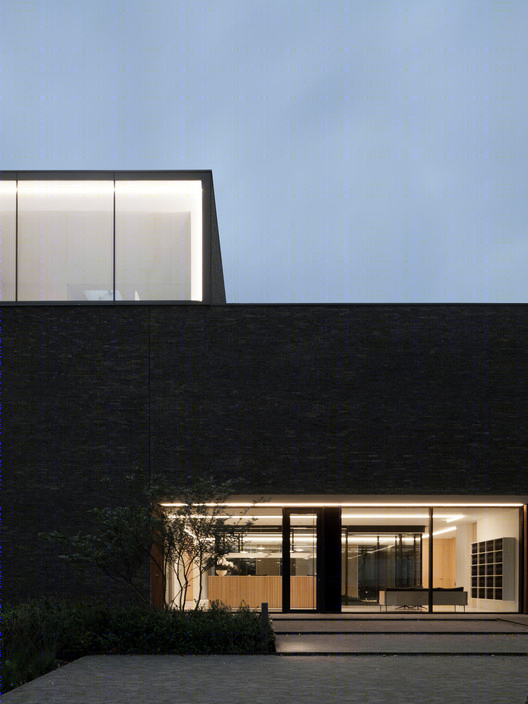

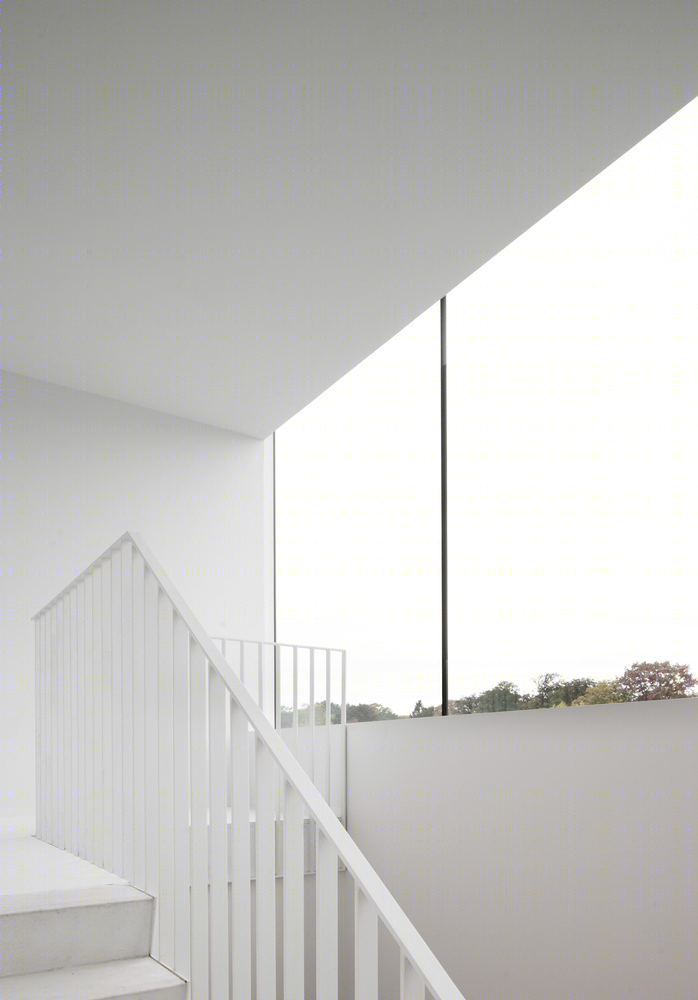

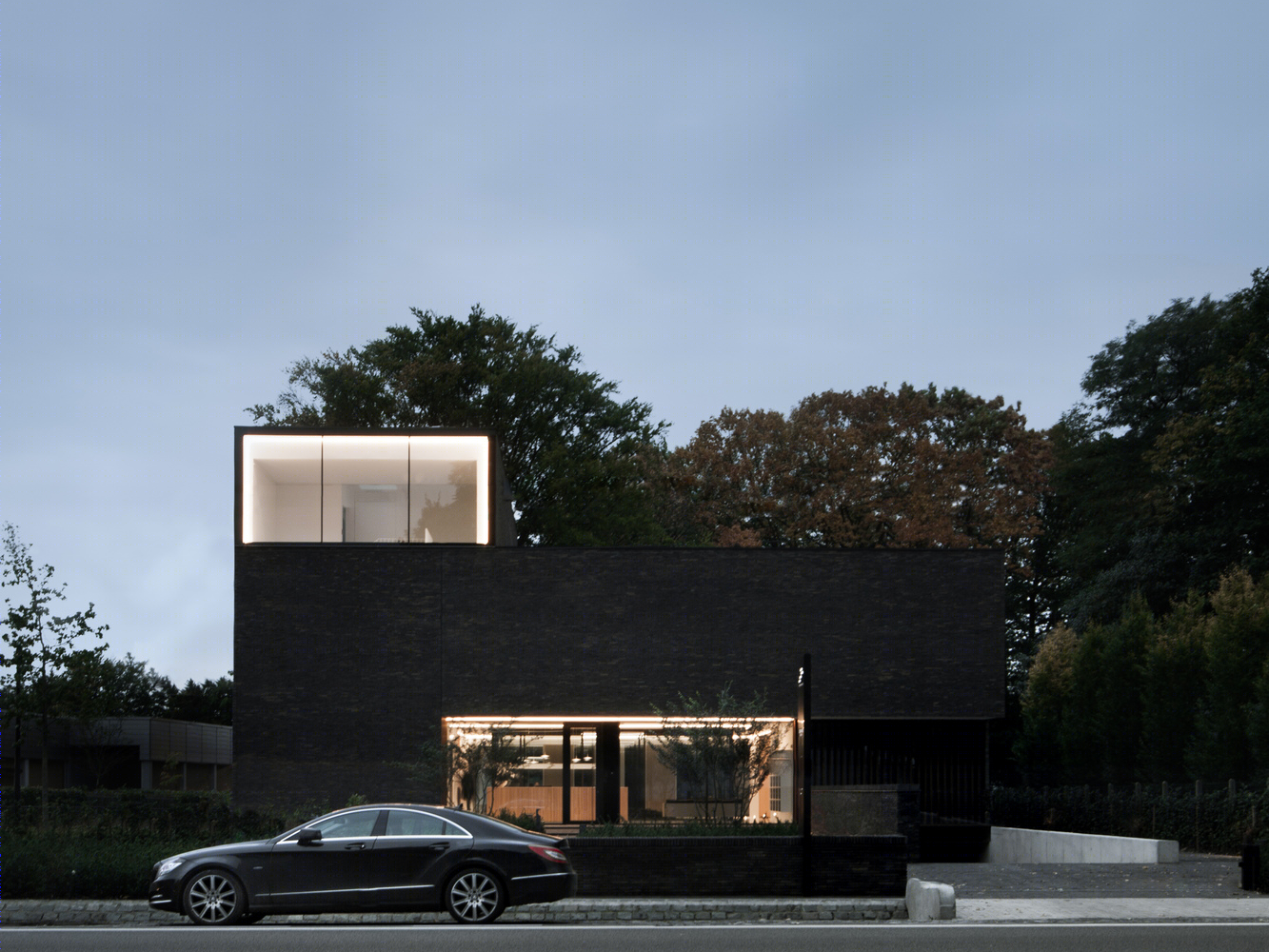

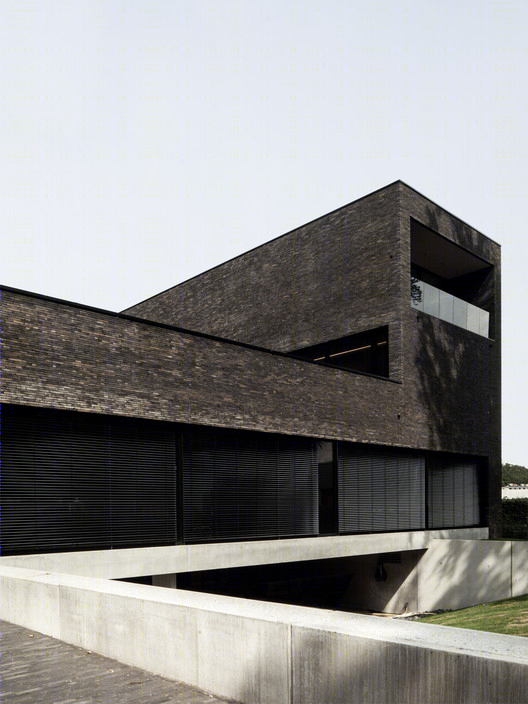

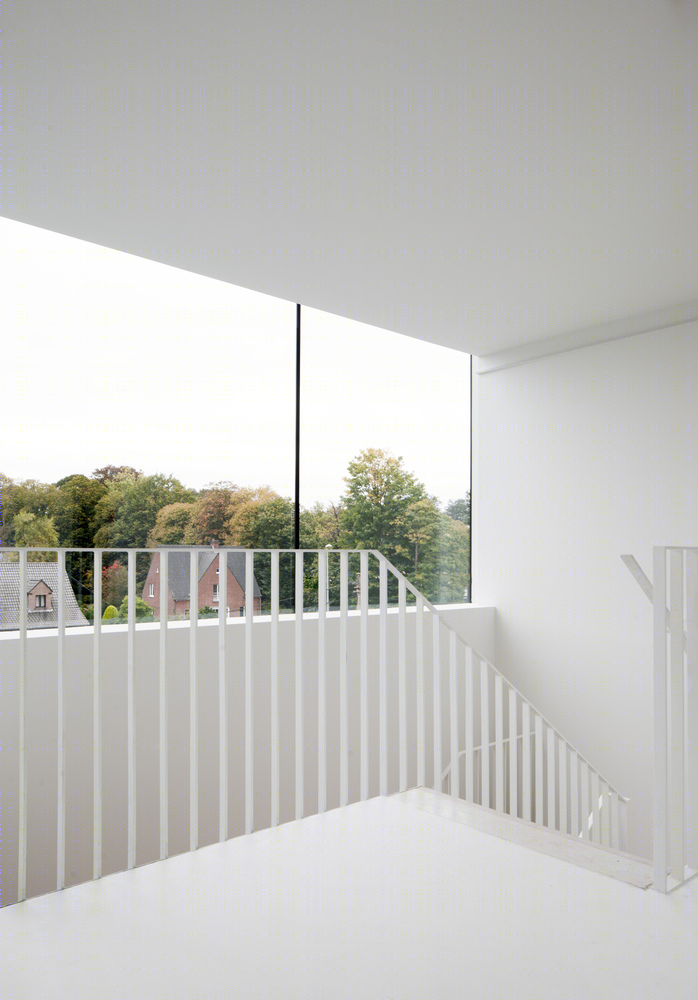

架构师提供的文本描述。这座新的办公楼沿着绿圣丹尼斯-韦斯特雷姆的科特里耶克斯泰恩韦格大道，包括一个公证处，上面有一间工作室。这座建筑是一块实心砖块，其特点是立体式的切口和精心布置的窗户。楼梯间顶部的玻璃“灯笼”在繁忙的道路上形成了一个极简的灯塔。前面的立面在一楼打开，穿过门厅走向街道，并通过前厅欢迎游客。这提供了极大的可见度和透明度。在后立面，房契大厅和办公室都可以欣赏到美丽的景观，花园里有古老的树木。

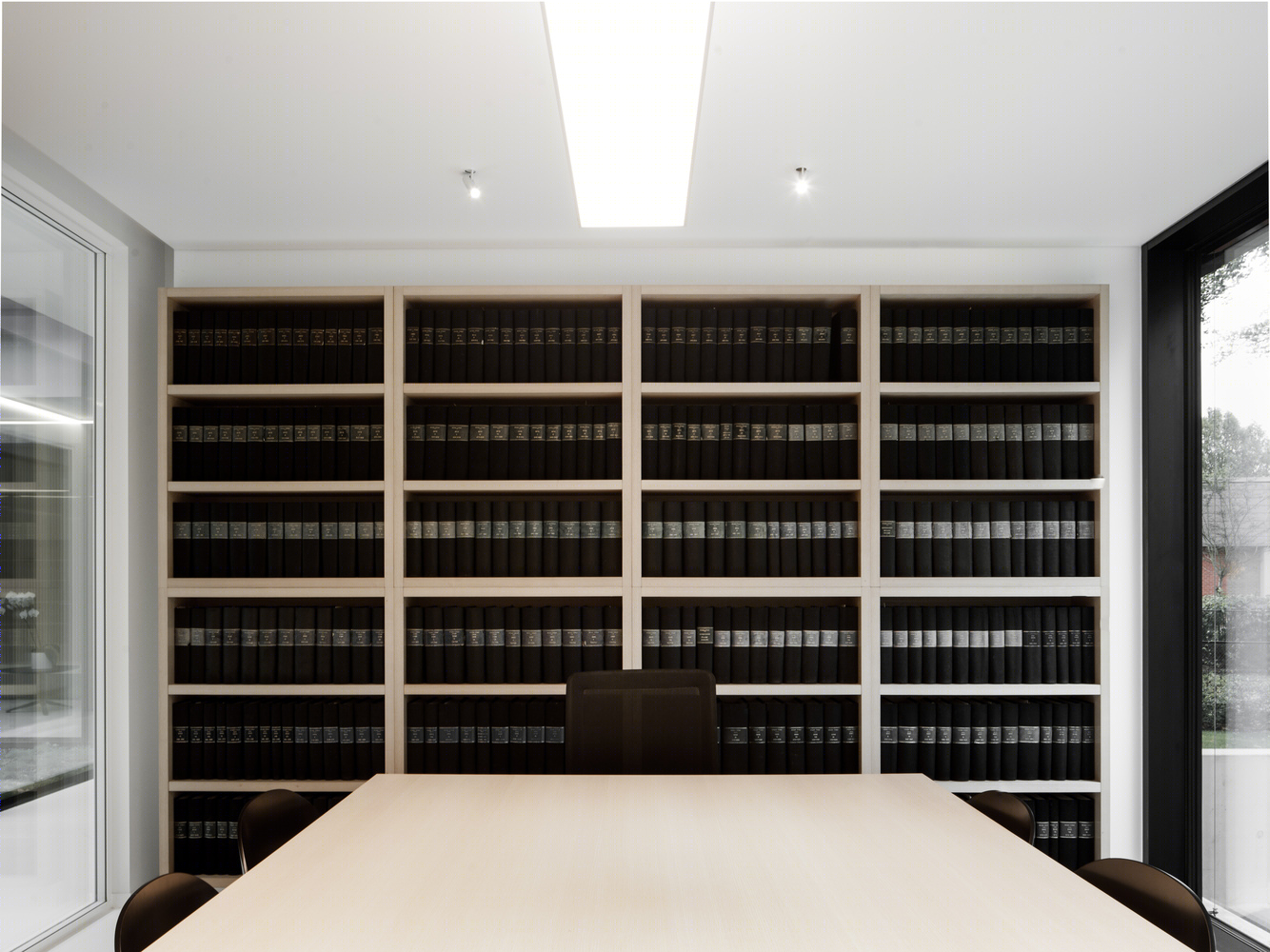

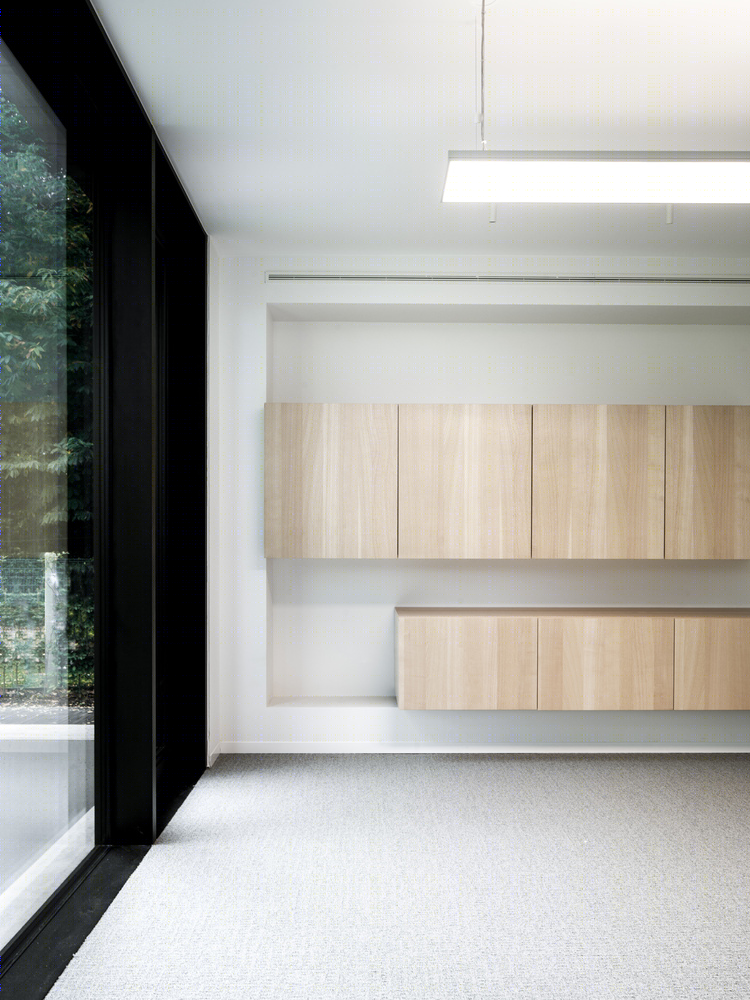

Text description provided by the architects. This new office building along the Kortrijksesteenweg in the green Sint-Denijs-Westrem includes a notary’s office with a studio above it. The building is a solid brick volume characterized by volumetric incisions and strategically placed windows. The glass ‘lantern’ at the top of the stairwell forms a minimalist light beacon along the busy road. The front façade opens up on the ground floor through the foyer towards the street, and welcomes visitors via a forecourt. This provides a great visibility and transparency. At the rear facade both the deed halls and the offices enjoy a beautiful view on the landscaped garden with old trees.

© Jeroen Verrecht

(Jeroen Verrecht)

© Jeroen Verrecht

(Jeroen Verrecht)

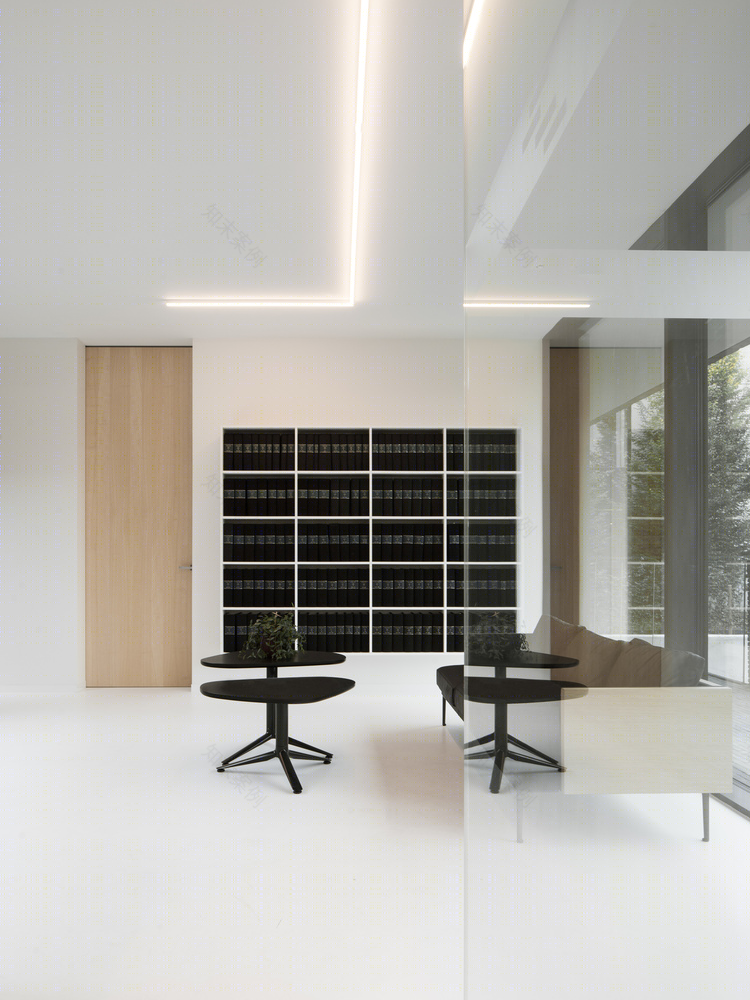

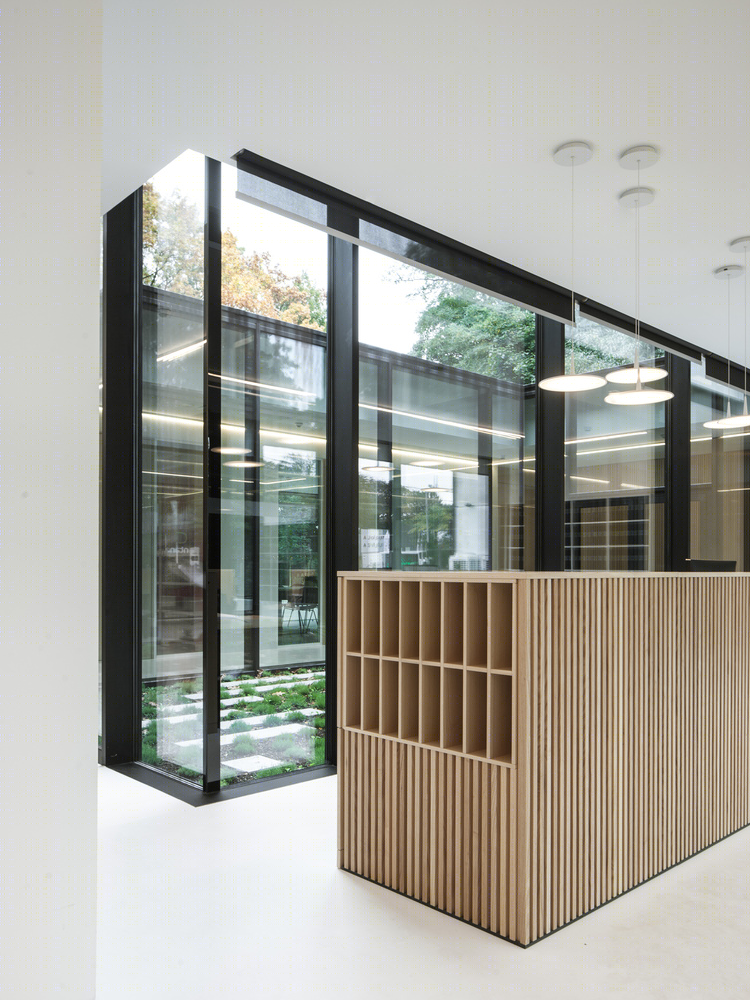

客户要求在房契大厅附近有两个候诊室，这导致了一个开放的计划。露台作为一个结构元素，在不影响计划的透明度的情况下，创造隐私。内部的概念是散发简约和宁静。这是通过使用白色作为主颜色来实现的。白色环氧地板结合了灰木的口音，地板高度门和优雅的家具创造了一种复杂的氛围。

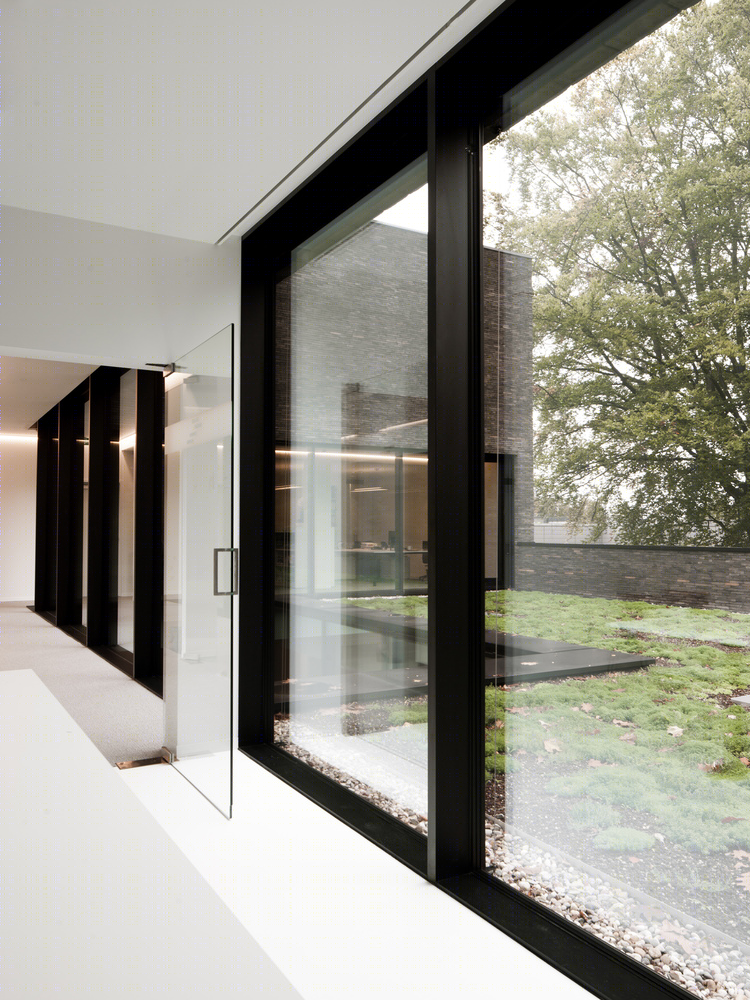

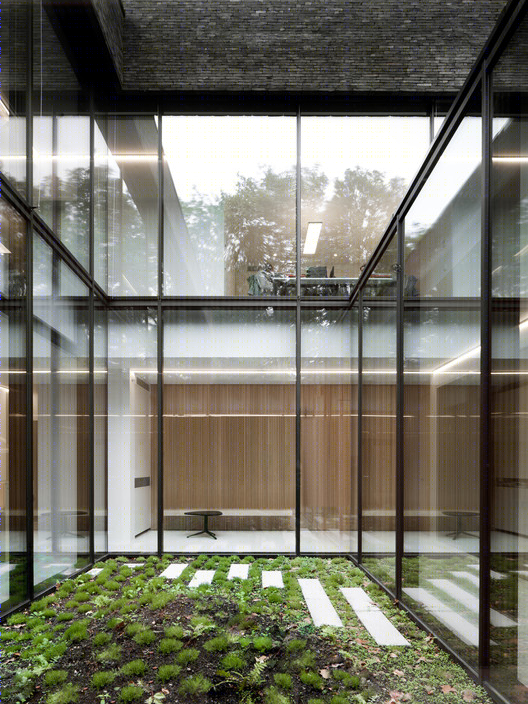

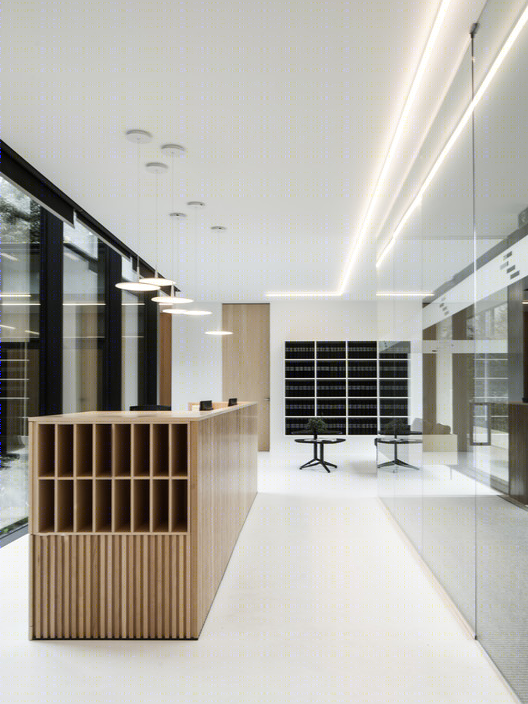

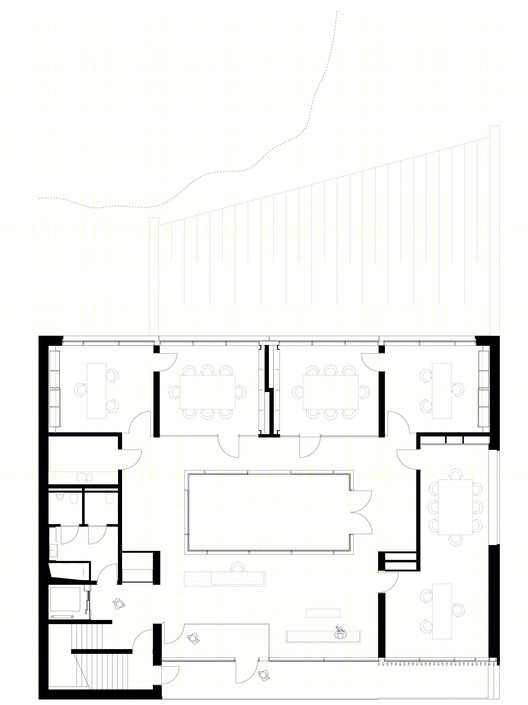

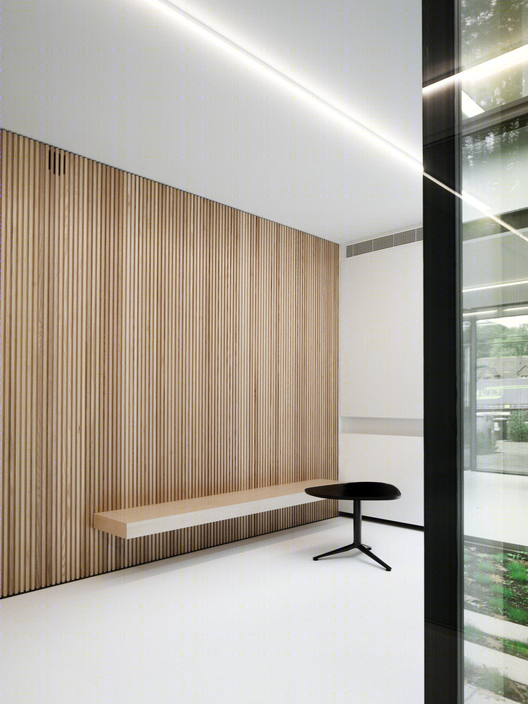

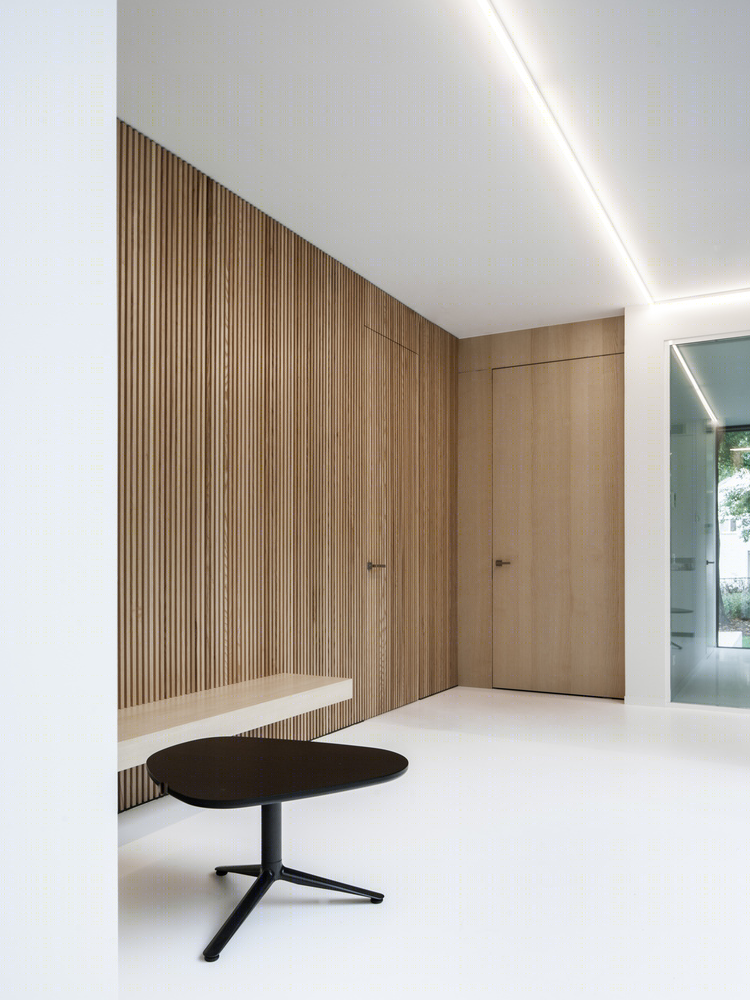

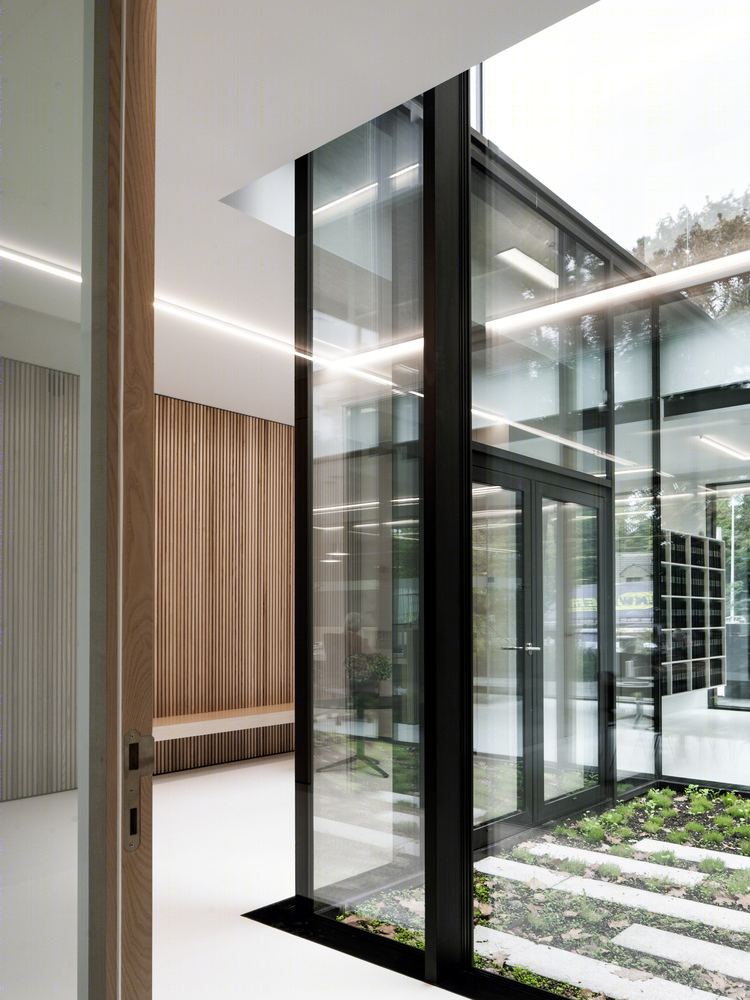

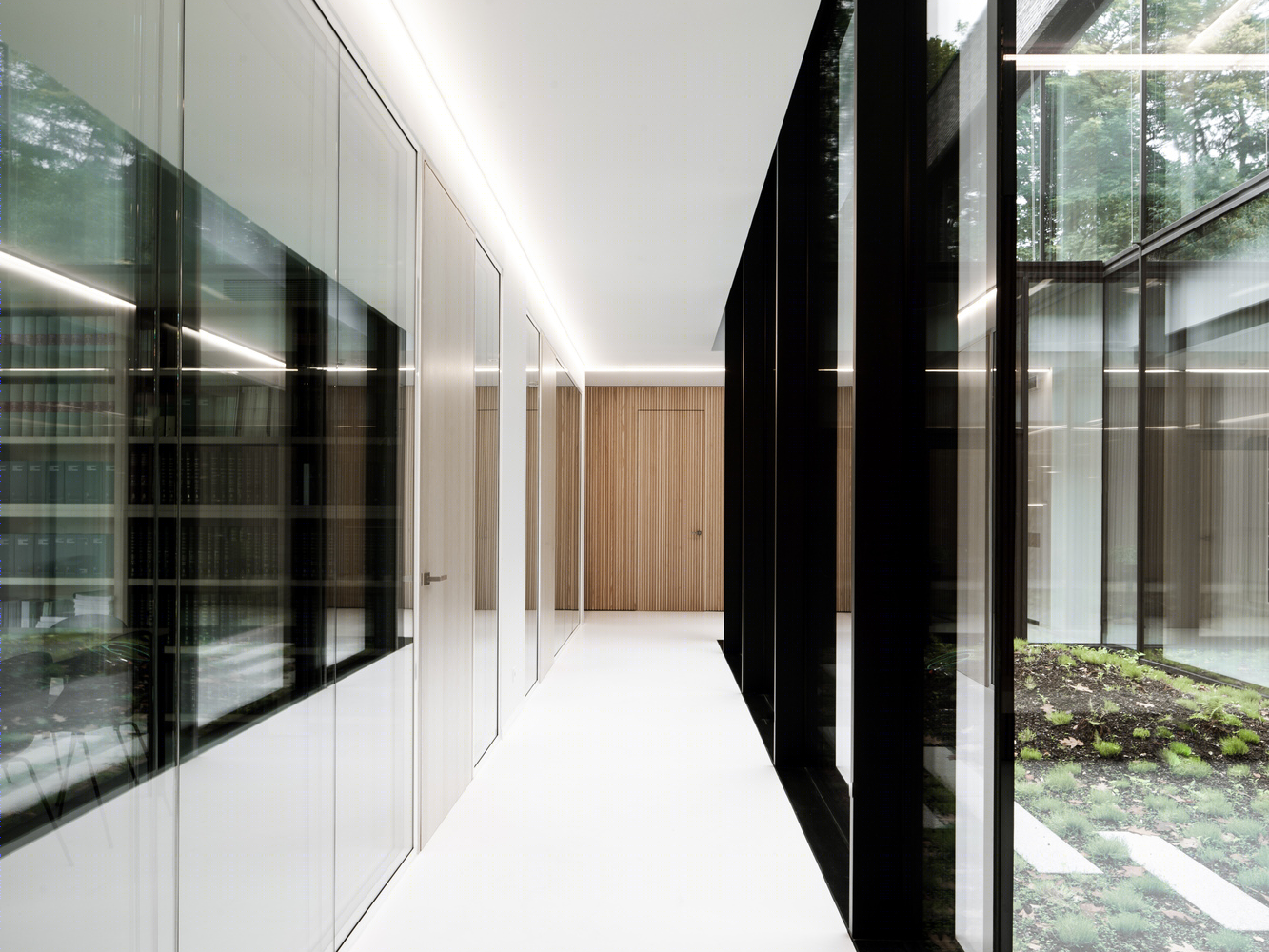

The client’s request to have two waiting rooms adjacent to the deed halls resulted in an open plan. The patio works as a structural element to create privacy without taking away from the transparency of the plan. The concept of the interior was to exude simplicity and tranquillity. This was realised by using white as main colour. The white epoxy floor combined with accents in ash wood, floor height doors and elegant furniture create a sophisticated atmosphere.

© Jeroen Verrecht

(Jeroen Verrecht)

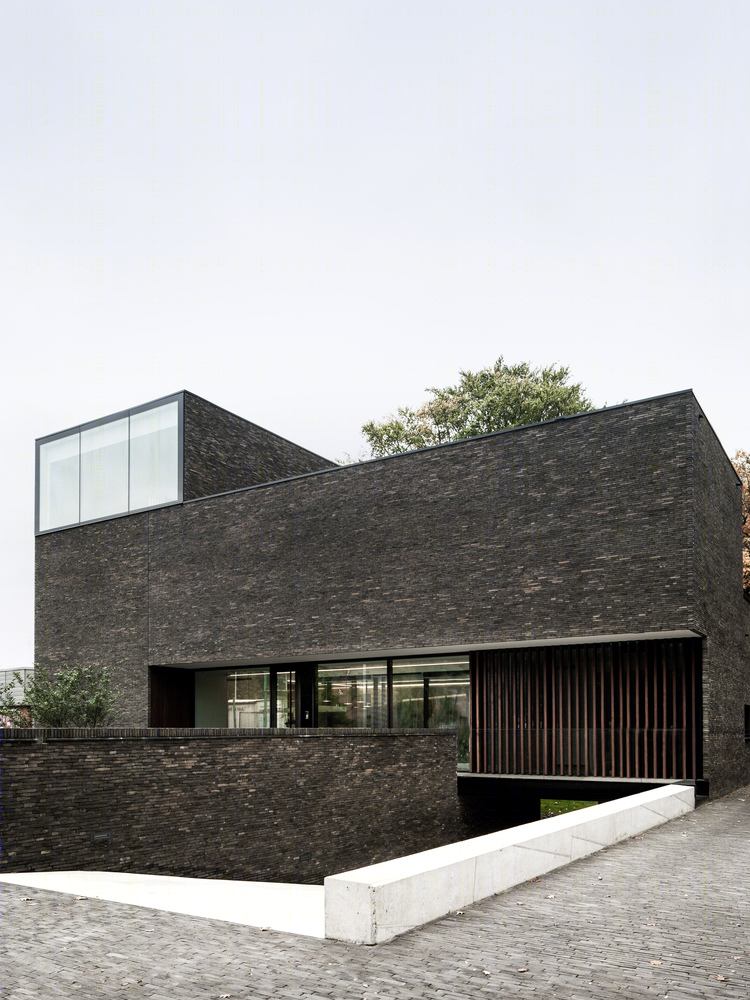

建筑物下面的停车位下沉，向花园敞开，就像后面的立面一样。这使得停车场沐浴在光线中，并使与园林景观的关系变得明显。一楼的白色门厅显然是在露天停车场中引入的，它通过这个入口欢迎游客。

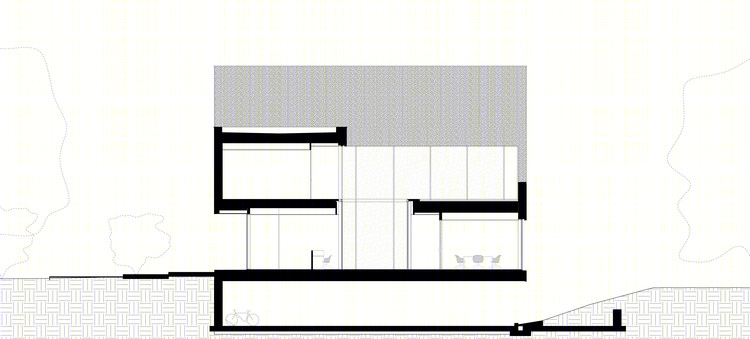

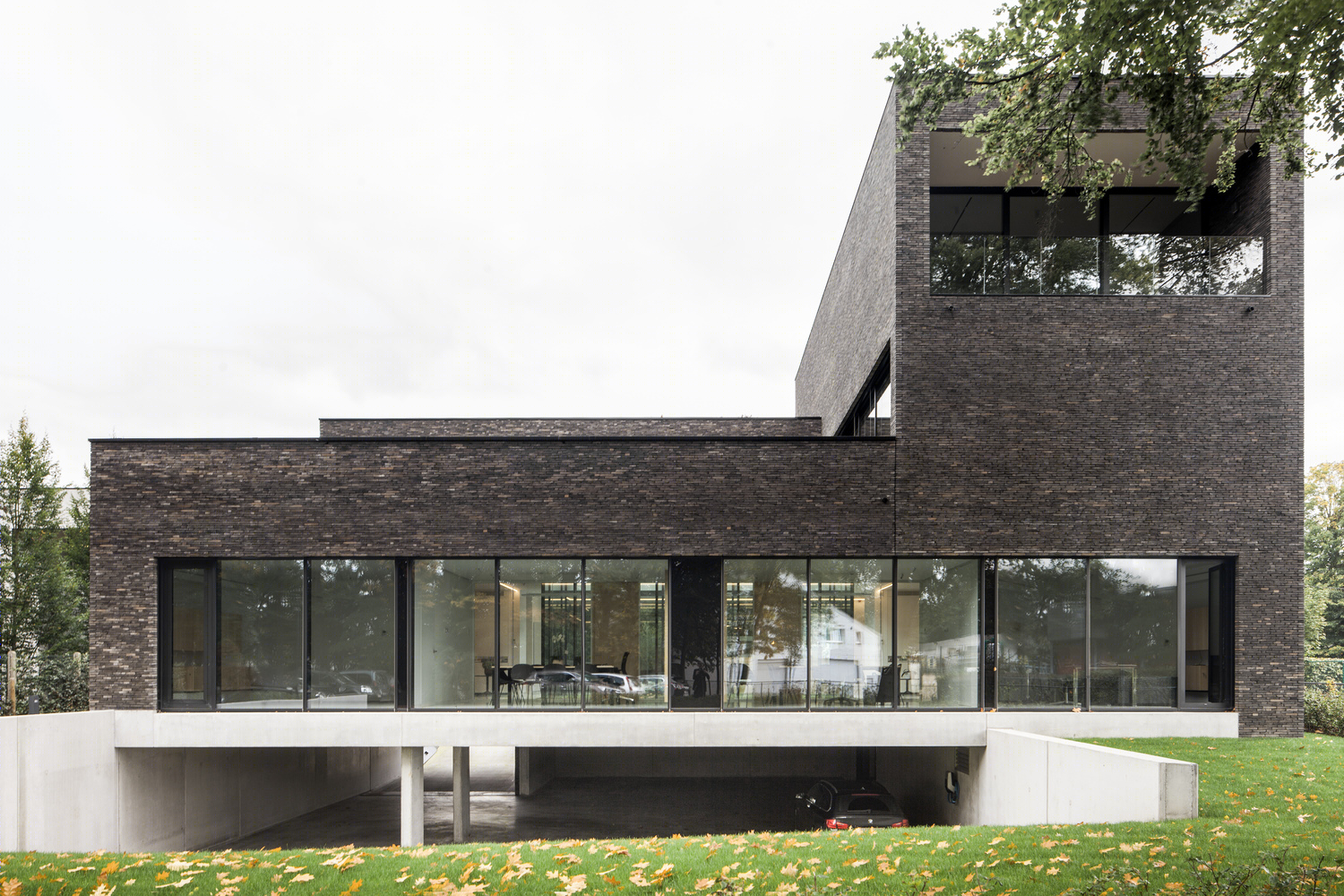

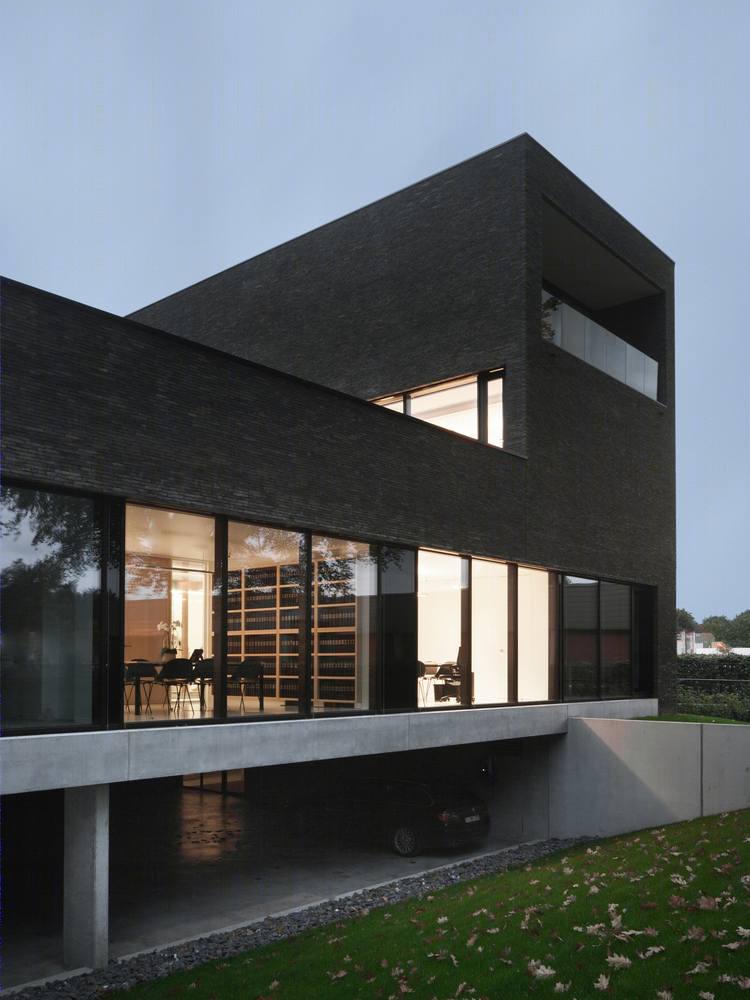

The sunken in parking beneath the building opens up towards the garden on the same line as the back façade. This makes the parking bathe in light and makes the relation with the landscaped garden become apparent. The white foyer on the ground floor is clearly introduced in the open parking and it welcomes the visitors via this entrance.

保留了珍贵的老树，使花园的景观感得以保存，并通过设置树篱，为工作人员提供停车设施，种植许多杜鹃花，以及修建一条履带，进一步加强了园林景观的保护。前厅建立了一个建筑长廊的门厅在不同的层次，提供低矮的多茎树。园林和办公楼之间的直接对抗提供了一种省去的外部-内部边界的愉快的感觉。

The landscape feel of the garden was preserved by keeping the valuable old trees and was further enforced by placing hedges that integrate the parking for the personnel, by planting many rhododendrons and by implementing a trackway. The forecourt creates an architectural promenade towards the foyer in different levels, provided with low multi-stemmed trees. The direct confrontation between the landscape garden and the office building provides an enjoyable sensation of an omitted outside- inside border.

© Jeroen Verrecht

(Jeroen Verrecht)

特别注意在水和材料使用、能源消耗和基于可再生能源的可持续技术方面的可持续性。所有绝缘材料是可持续的，通过独家使用树脂玻璃羊毛和纤维素。雨水由绿色屋顶缓冲50%，50%用于厕所和花园维护。该建筑具有很好的隔热性能，并配有三层太阳能控制的铝玻璃细木工。一个电子控制的户外太阳保护与倾斜铝板停止不必要的太阳能热。建筑是由一个性能良好的空气-水热泵和空气单元和空间调节(每个空间卷绕)来加热或冷却的。通风是完全机械的热交换器(系统D)，只有温暖的LED用于照明。

Special attention was paid to sustainability in terms of water and material use, energy consumption, and sustainable techniques based on renewable energy. All insulation materials are sustainable through the exclusive use of resol- glass wool and cellulose. The rainwater is 50% buffered by green roofs and 50% recovered for toilets and garden maintenance. The building is very well insulated and equipped with triple solar control glazing joinery in aluminium. An electronically controlled outdoor sun protection with tilting aluminium slats stop the unnecessary solar heat. The building is heated or cooled by a performant air-water heat pump with air units and space regulation (reeling per space). The ventilation is fully mechanical with heat exchanger (system D) and only warm LED is used for the lighting.

© Jeroen Verrecht

(Jeroen Verrecht)

Architects Abscis Architecten

Location Ghent, Belgium

Area 1094.0 m2

Project Year 2017

Photographs Jeroen Verrecht

Category Offices
