曼谷日式便当酒吧"Dondon"案例

(C)全景工作室

架构师提供的文本描述。在过去的十年里，阿利区曾经是曼谷的潮人区，那里有质量很好的咖啡店，在过去有各种各样的咖啡馆和餐馆。当城市扩张的时候，许多公司和共管公寓从市中心发展出来，搬到了这个地区周围。这些公司带来了大量影响该地区需求的劳动人口。从另一家咖啡馆变成了争夺军官和新高地社区的餐馆战场。

Text description provided by the architects. In the last decade, the Ari district used to be the hipster area in Bangkok which contains with good quality of coffee shops including with varieties cafés and restaurants in the old days. When the city has expanded, many firms and condominiums outgrew from the city center to relocate around the district. The companies came with numbers of working people that affected to demand around the area. From alternative cafés area transformed to the battlefield of restaurants which are competing for officers and the new high ground neighborhood.

(C)全景工作室

从客户开始的一个项目中，有三个单元的排屋连接不清楚，其中两个单元是名为“地球上的制造”的木制车间，另一个是名为“哟”的酸奶咖啡馆。最主要的问题是，他们还在排屋后面安顿了一个漂亮的庭院，后面还有一家别具一格的咖啡店，名叫“SA-Ti”，然而，街道的入口必须通过酸奶咖啡馆才能进入。这个问题直接影响了咖啡店，因为一位顾客不知道院子在哪里，尽管他们在谷歌地图上找到了。我们被召唤来解决冲突，并提出了新的计划，新的程序是本托酒吧，而新的排在现有的排屋之间的房子已经被拿走了。

A project start with the client had 3 units of row houses which didn’t connect clearly, the 2units is wooden workshop named “Made here on earth” and the other one is a yoghurt café named “Yo”. The main problem was they also had settled nice courtyard behind the row houses that come along with styling coffee shop, is named “SA-Ti” However, the entrance from the street had to access through the yoghurt café. The issue affected to the coffee shop directly because a customer didn’t realize where was the courtyard even though they found on google map. We were called to solve the conflict and came with the new program which was delivered, The new program was Bento bar and the new row house between existing the row houses was taken already.

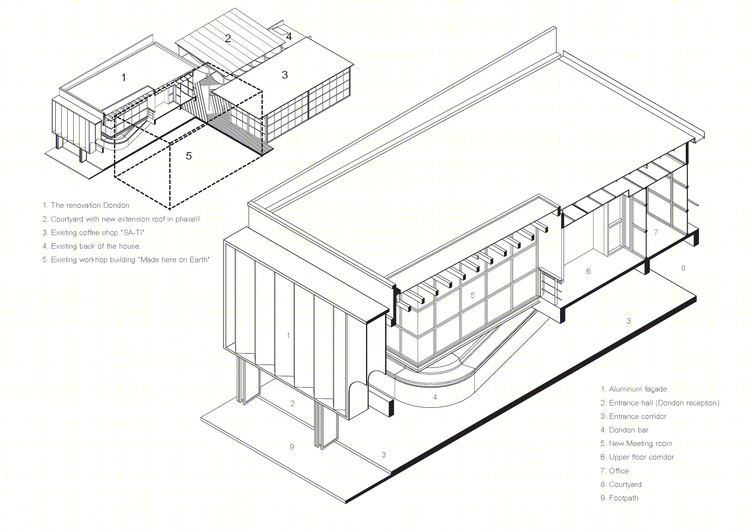

Isometric presentation

等距表示

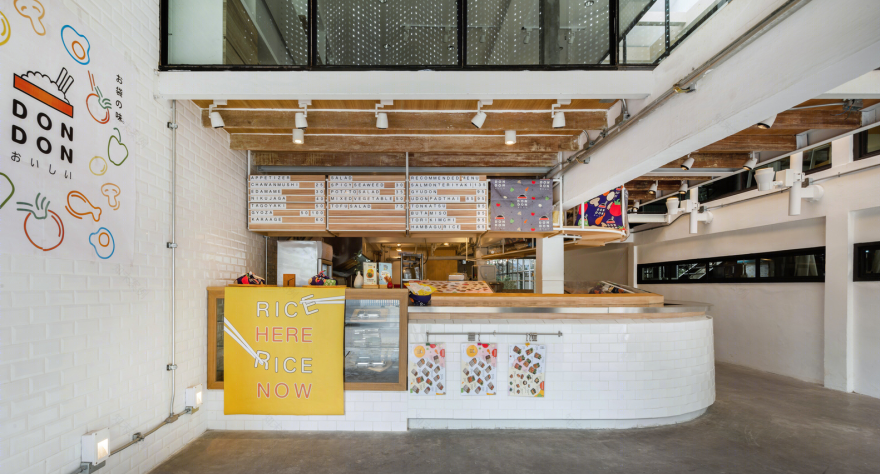

东登酒吧是一家日式便当酒吧，旨在为工作人员提供优质的饭菜，尤其是为工地对面的公共关系部门工作的官员。然而，食品盒必须有一个合理的价格为每个人和客户可以努力每一个工作日。

The Dondon is a Japanese bento bar which aims to provide a good quality meal for working people, Especially officers who are working for the public relations department opposite the site. However, the food box must have a reasonable price for everyone and customers could be effort every working day.

(C)全景工作室

首先，我们打算管理的主要流通从街道到可爱的庭院后面的建筑，作为我们的主要关切。我们计划翻新溜达咖啡厅和旁边的一家。这两排房子被拆除了墙壁，连接了一楼。在一楼，我们也拆除了所有的墙壁和地板，以重新安装新的标准。上面的空间也被拆除，屋顶已经更换，并安装聚碳酸酯屋面板在某一地区，让阳光进入该地区。

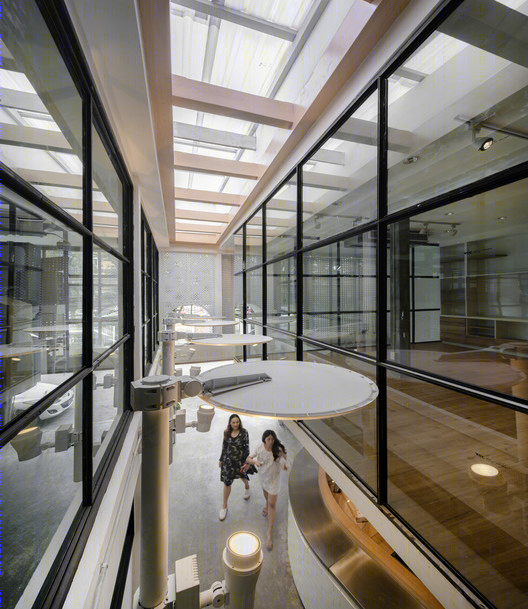

First of all, we intended to manage the main circulation from the street to lovely courtyard behind the building as our main concern. We planned to renovate the Yo café and the beside one. The duo row houses were demolished walls to connected the ground floor. On the first floor, we also demolished all the walls and floor to reinstall new criteria instead. Above the space was also demolished, the roof had been changed and installed polycarbonate roofing panel on some area to lets the sunlight come into the area.

(C)全景工作室

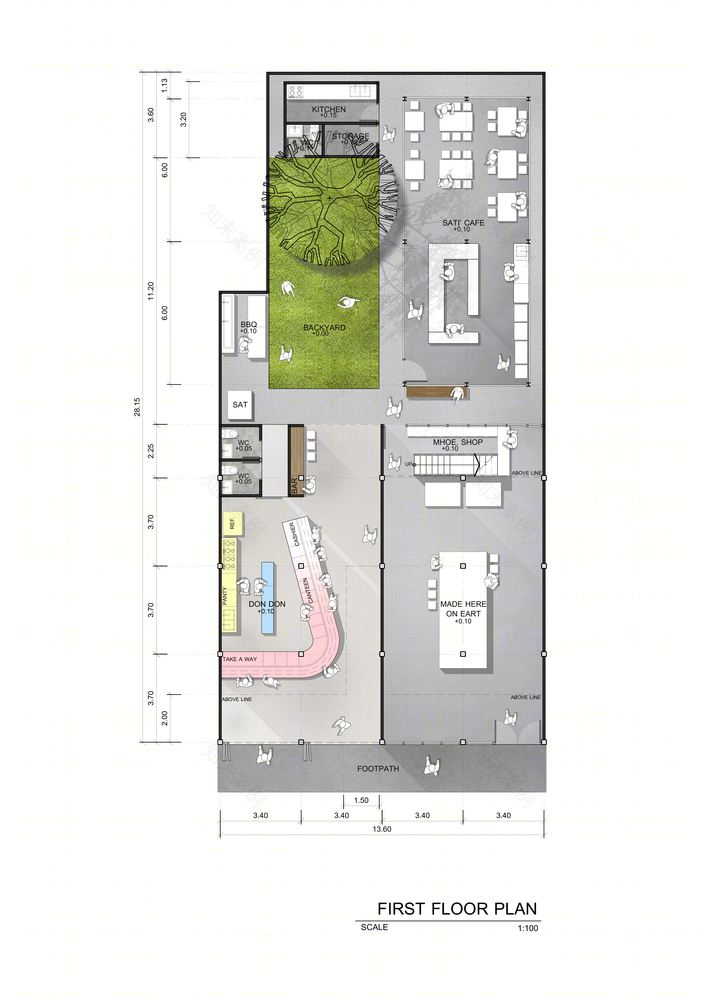

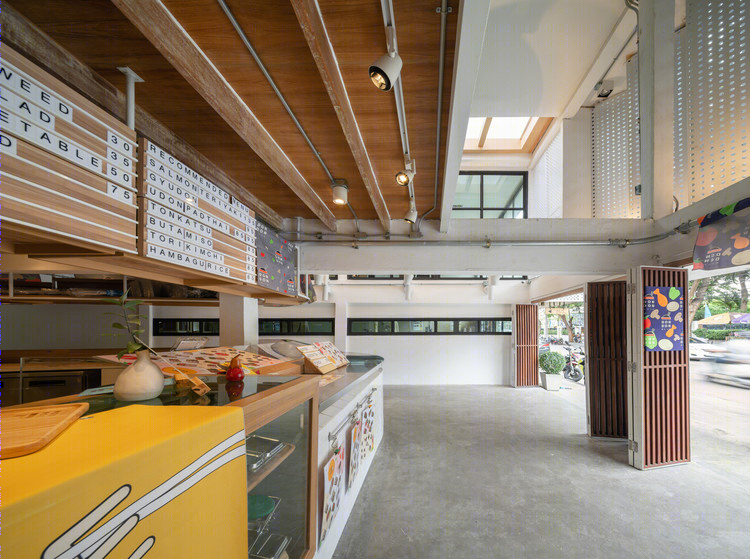

根据Dondon的定位，将其定义为入口走廊旁的开放式厨房酒吧，即我们设计了从街道到庭院的主入口走廊，并将其放置在墙边。在那之后，我们决定拒绝与往常一样的空气条件邻居总是这样做，因为酒吧的概念是外卖饭盒。立面设计的目的是从外面投射出大雨，但它仍然允许自然通风，以减少来自开放式厨房的热量，并冷却入口走廊。该外观是与第一层的空隙，这是删除和重新安装在一个较小的大小。丢失的一块地板变成了正门，双空间接近人们进入舒适的庭院里面。街灯是最后的装饰品，只剩下那些穿过门厅的人，就像走在人行道上一样。

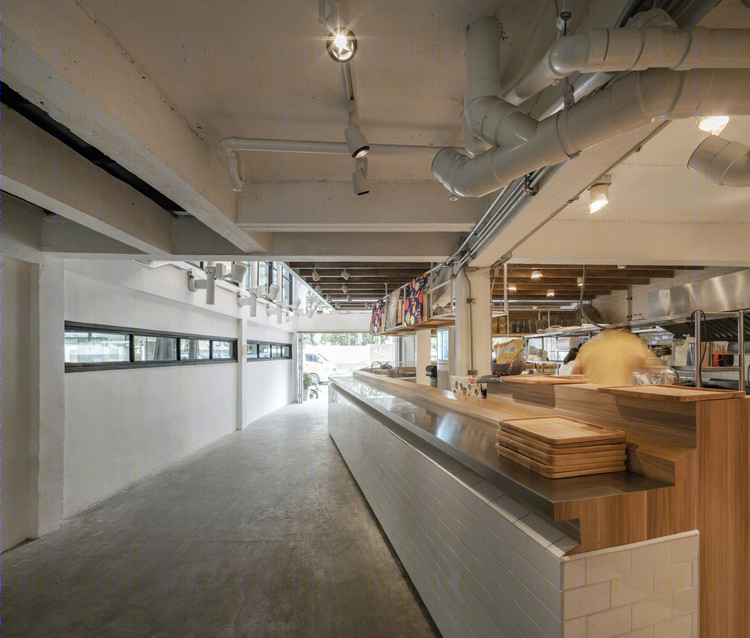

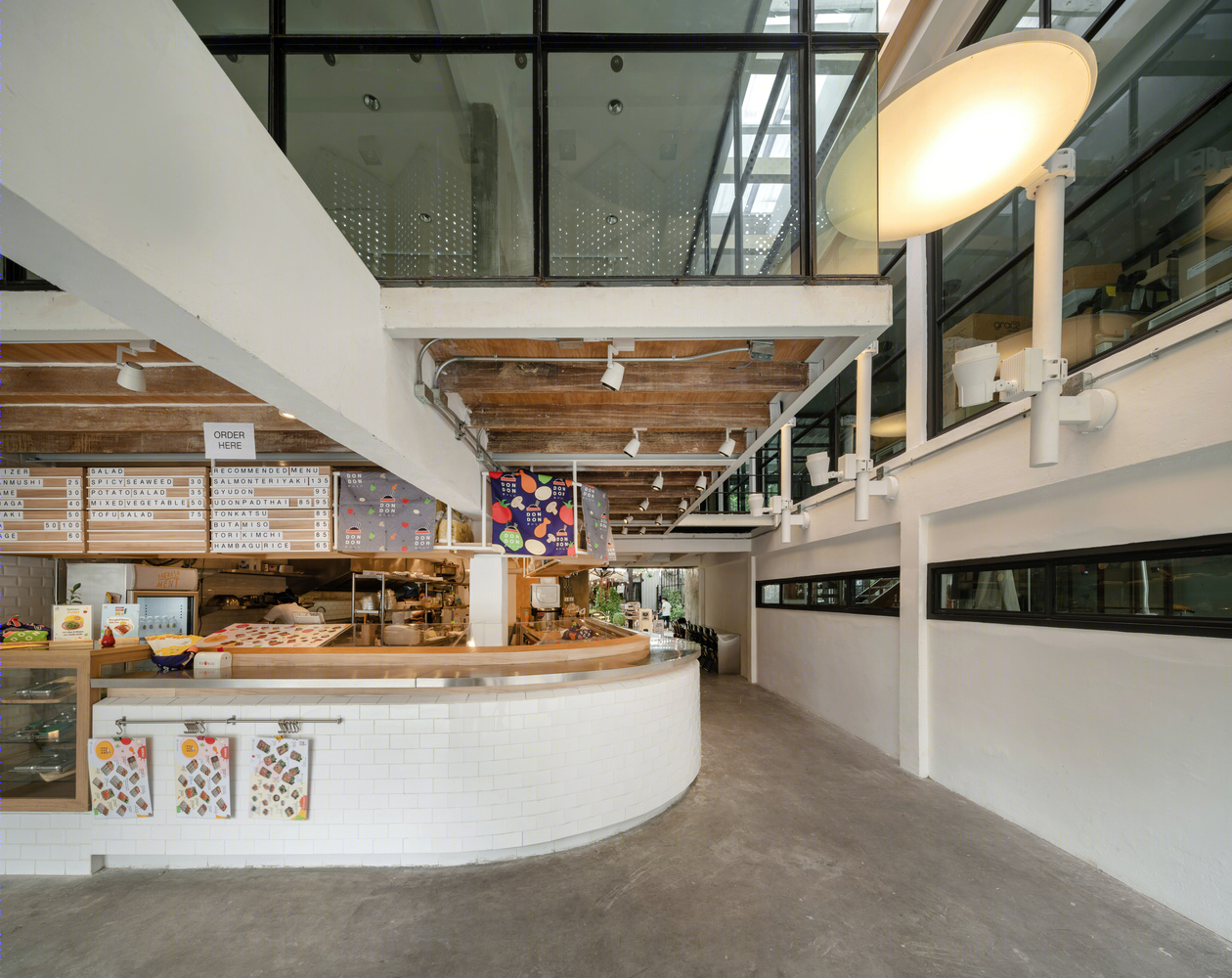

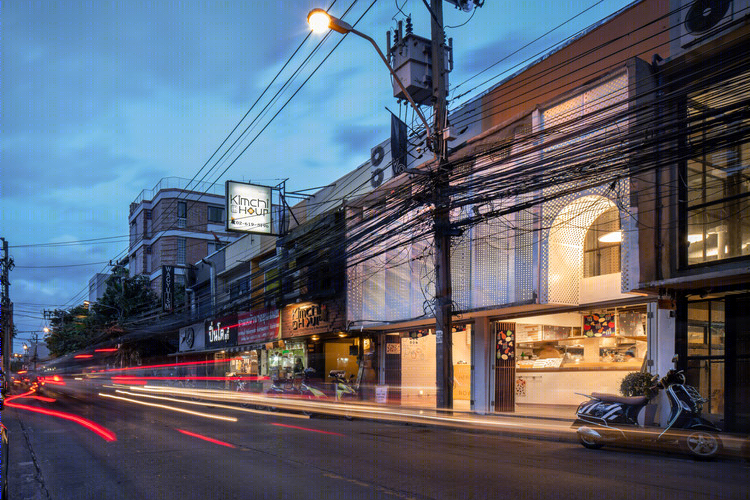

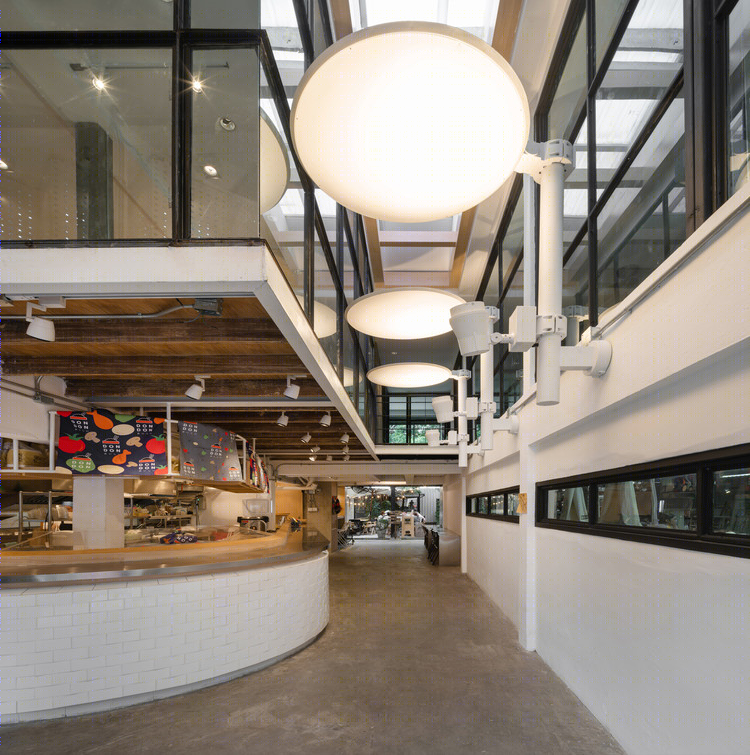

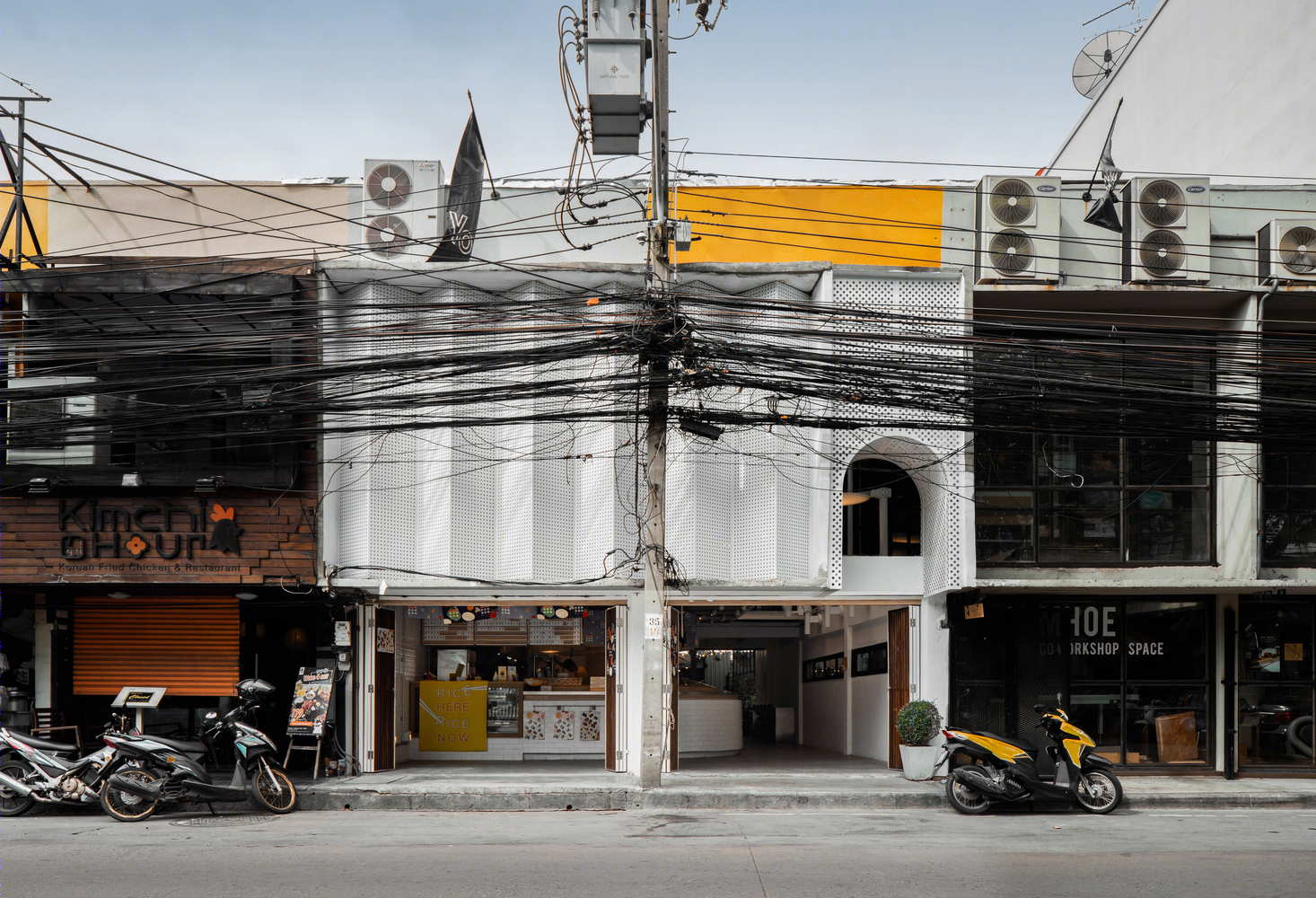

According to the positioning of the Dondon, It was defined as open kitchen bar beside the entrance corridor which mean we designed the main entrance corridor from the street to the courtyard and located the bar beside the wall. After that, we decided to reject the air-conditional as usual the neighbor always do because the bar concept is takeaway meal box. The façade design was designed to project heavy rain from outside but It still allows natural ventilation to reduce heat from the open kitchen and chill the entrance corridor. The façade is working with the first-floor void which was removed and reinstall in a smaller size. The missing piece floor turned to be the main entrance double space approach people to get into comfortable courtyard inside. The street light was the last ornaments which remain people who walk through the entrance hall as the footpath.

(C)全景工作室

最后，白色射孔铝质外墙、聚碳酸酯天窗和新布置的上层楼一起工作，入口走廊的质量已经成为，人们可以走进舒适的庭院，在辛苦的工作日后坐下来喝好咖啡。在这宝贵的午餐时间，他们可以散步买美味的饭盒作为午餐，有更多的时间进行愉快的交谈。

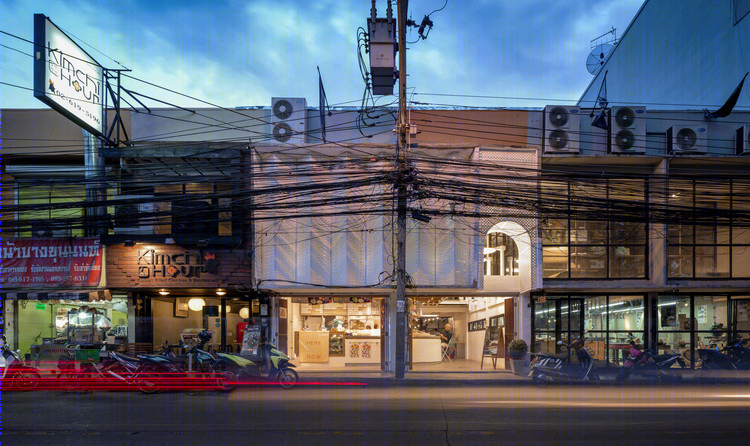

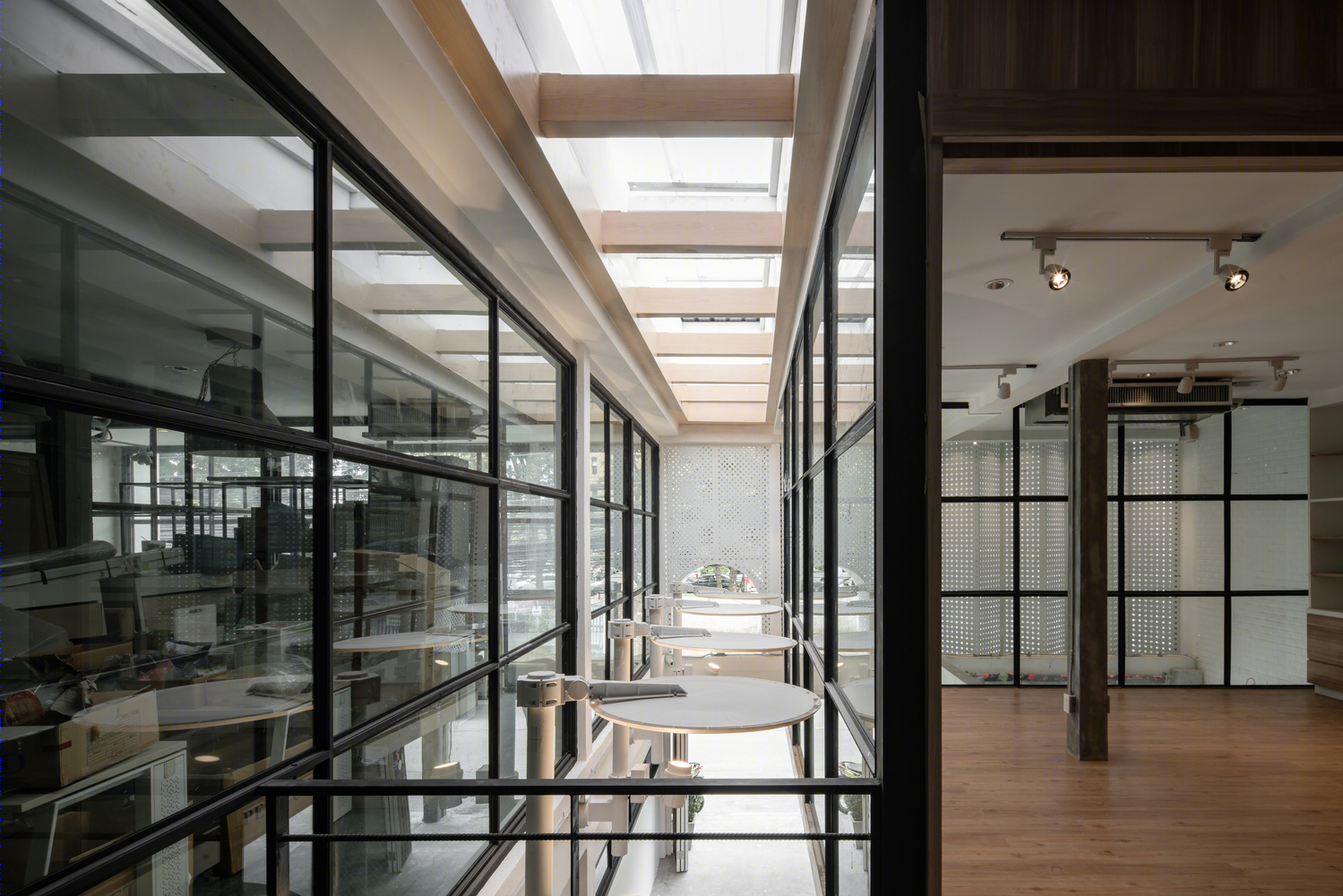

Finally, the white perforated aluminum façade, polycarbonate skylight, and the new layout upper floor have worked together, the good quality of entrance corridor has become, people could walk into the comfy courtyard to sit and drink good coffee after hard working weekday, properly. In the precious lunchtime, they could have a little walk to buy delicious meal box for lunch and have more time for enjoyable conversation.
