位置:法国
设计公司:Avenier Cornejo Architectes, GausaRaveauActarquitectura
摄影师:Sergio Grazia, Courtesy of Avenier Cornejo Architectes
这是由Avenier Cornejo Architectes与GausaRaveauActarquitectura联合设计的FAM + PMI住宅,位于法国巴黎。该场地坐落在ZAC Clichy Batignolles,被视为一个重要的城市平台及新的景观连接,该项目设计需呼应相邻建筑,融入一贯的优雅及连续的城市界面中。该住宅由两栋不同高度的建筑组成,其中,最高的建筑高度为50米,两座建筑共设有145个住宅单元;两座建筑均采用模块互相叠加及偏移的空间组合方式,静态的空间盒子在互相叠加及偏移后形成动态的独特组合及节奏,丰富建筑上下关系及创造新颖的城市印象。
The site is integrated into the multi-urban network of Paris, the Grande Couronne and major green spaces and infrastructure networks. The ZAC Clichy-Batignolles is perceived as a new landscape of connection, a wide-open urban door along the major territorial arches towards the historic city.
The site becomes an important urban platform, an exchange node inserted into the system of great Parisian relational spaces. It holds a role of transition between different scales, them being territorial, urban, environmental, social, cultural, and infrastructure standpoints. The ZAC thus acts as a device of resonance and multi-district transfer.The ZAC Clichy-Batignolles and the Martin Luther King Park are based in a large relational space, an interface of connection lines and urban relationships: powerlines, flowlines, lines of connection and interaction.Echoing the adjacent buildings, the project inserts itself in a coherent and consistent elegance.
One of the fundamental characteristics of the project is the creation of an almost complete opening in the block, perpendicular to the Martin Luther King Park. This opening acts as a true extension of the park, prolonging it to the heart of the block and bringing it to the street and beyond, until the E9 lot.Thus, nothing obstructs the view from the park to the lot and vice versa. The school group and other residences also benefit from the relatively clear views over the park.Furthermore, greater transparency has been sought at the ground level of the project, completing the idea of a maximal link from the park to the street.
This opening constitutes as well, and more importantly, the integration of an environmental strategy. This provision implicates creating thicker buildings, as opposed to the hypothesis of a U disposition. The buildings thus created will be more dense and compact, significantly reducing energy loss. Moreover, due to this configuration no accommodation will be mono-oriented street side. They will therefore benefit from openings overlooking the park and sunny climate.
The two buildings comprising the residences are broken down into volumes of different heights, the tallest building’s height being 50 meters. These new created blocks are superimposed and offset from each other.The objective is to create dynamic movement over static volumetries, more rhythm than fixed objects. These movements and rhythms associated with the already rich architecture of the immediate context allow to create new "sounds of the city". Furthermore, these offsets allow for more outdoor space and for the optimization of the city-planning rules, particularly the perspectives. The architectural strategy of this project is the result of a thorough reflection to avoid an IGH (high-rise building) classification of the building.

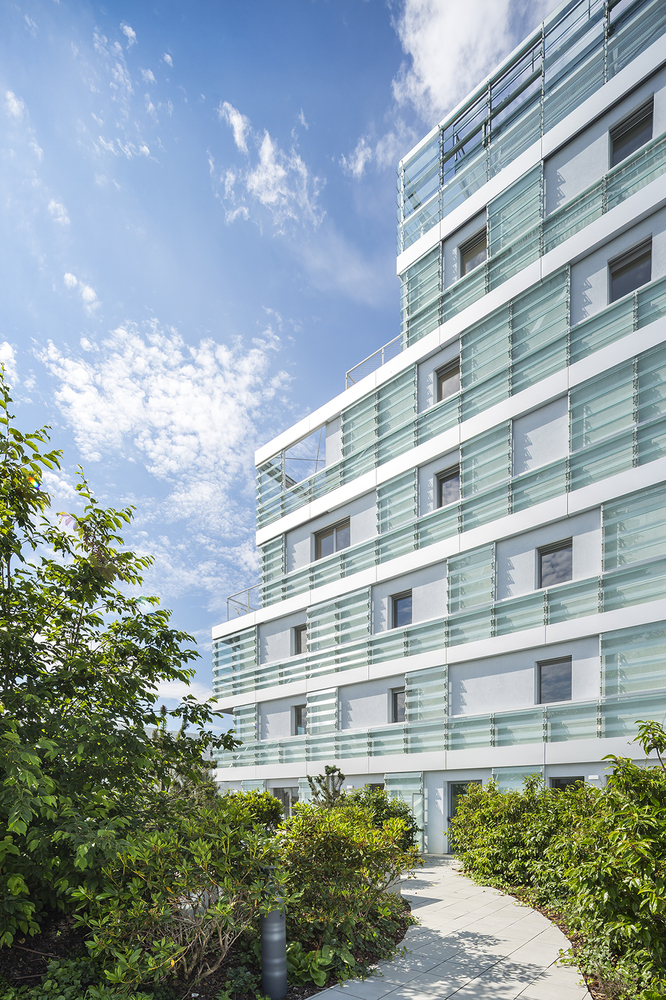

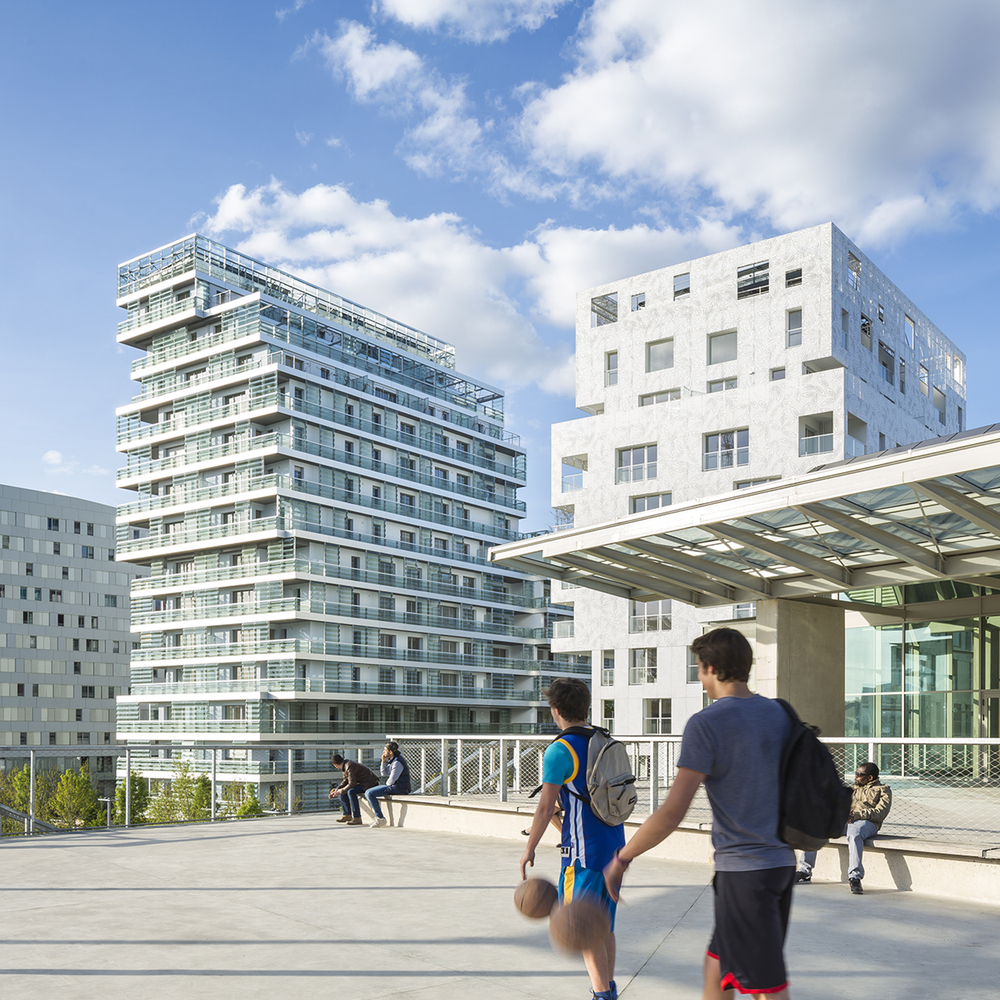

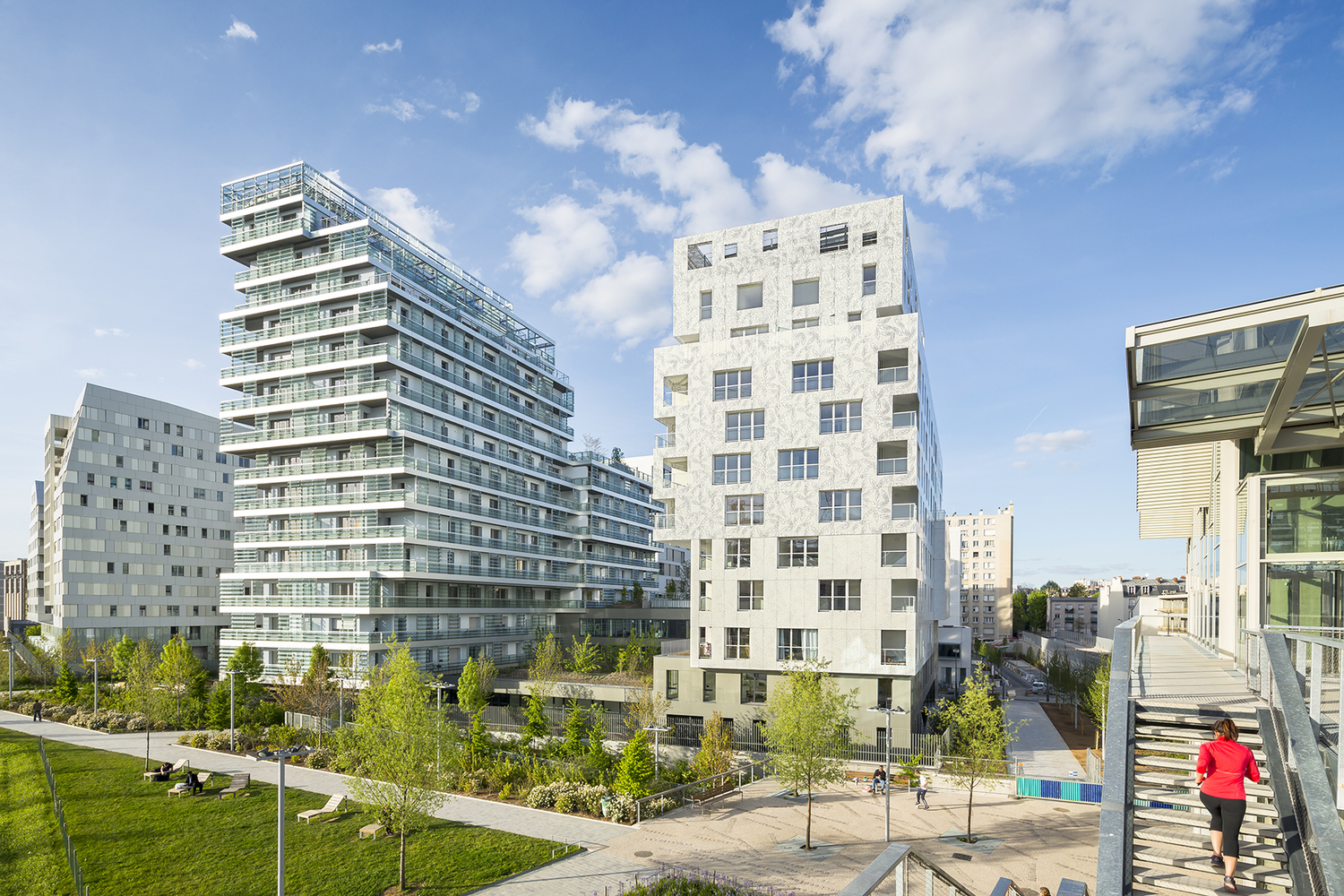

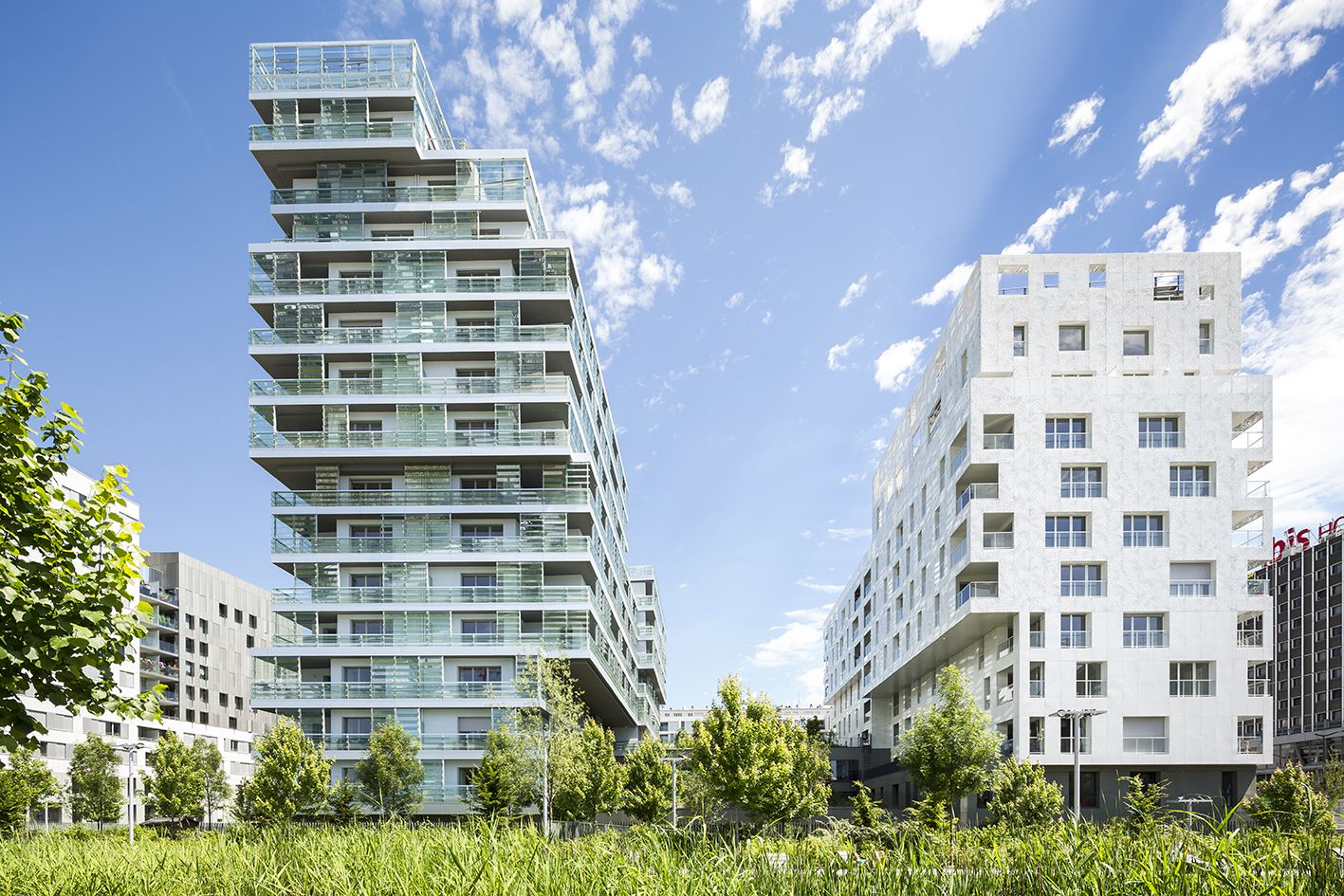

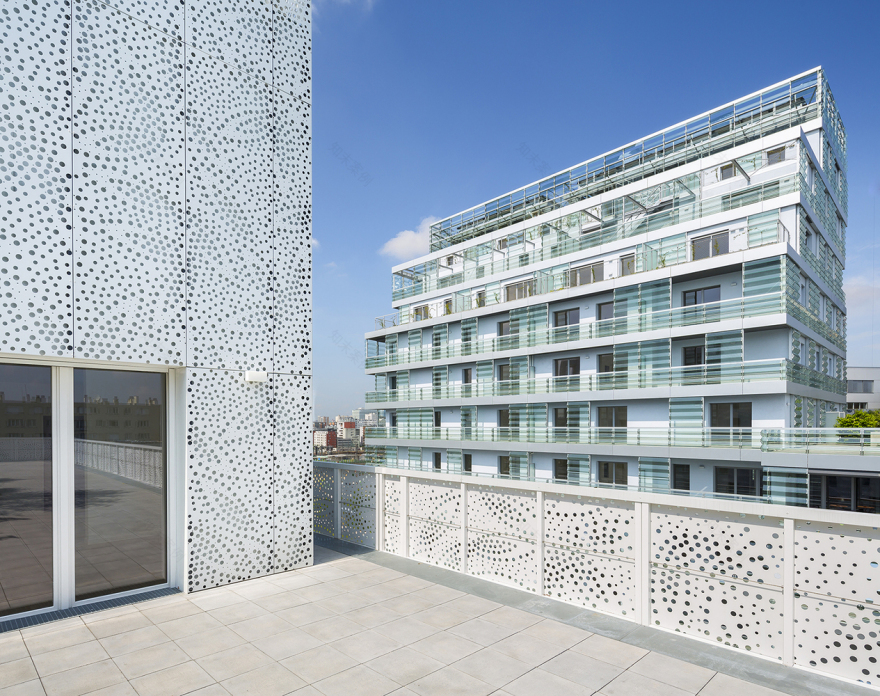

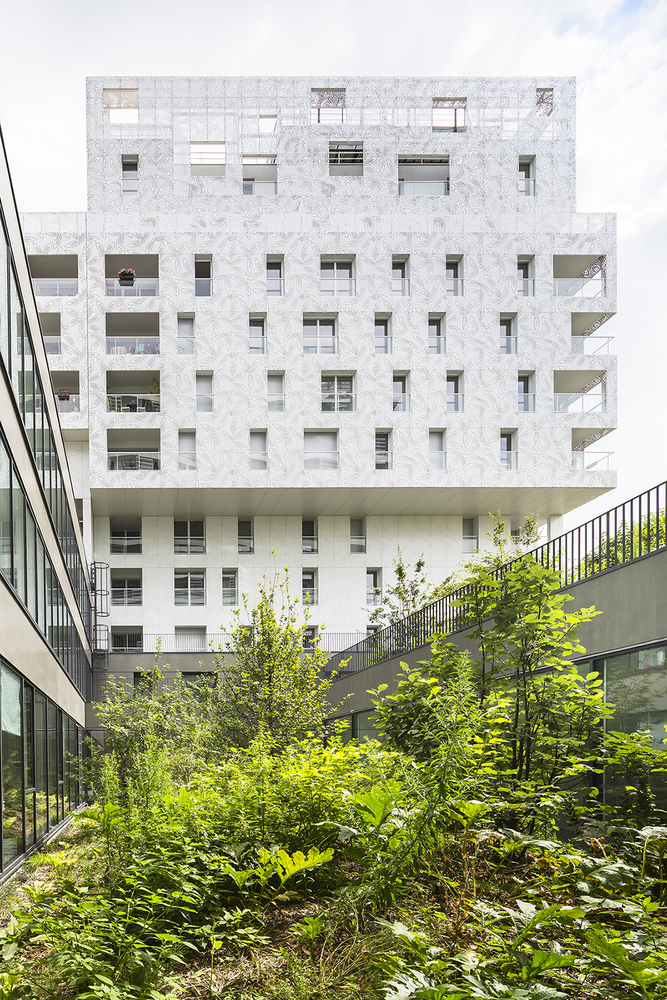

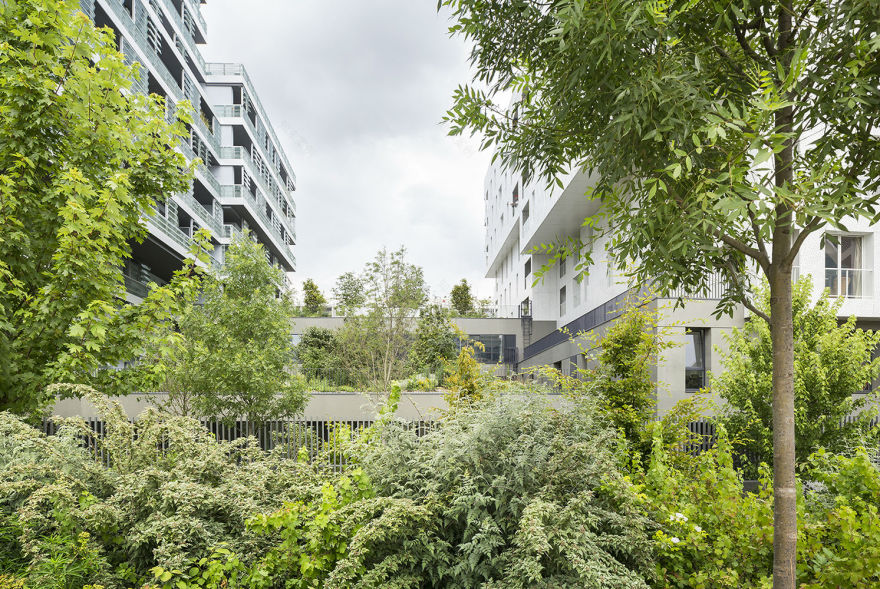

法国FAM + PMI住宅外部实景图

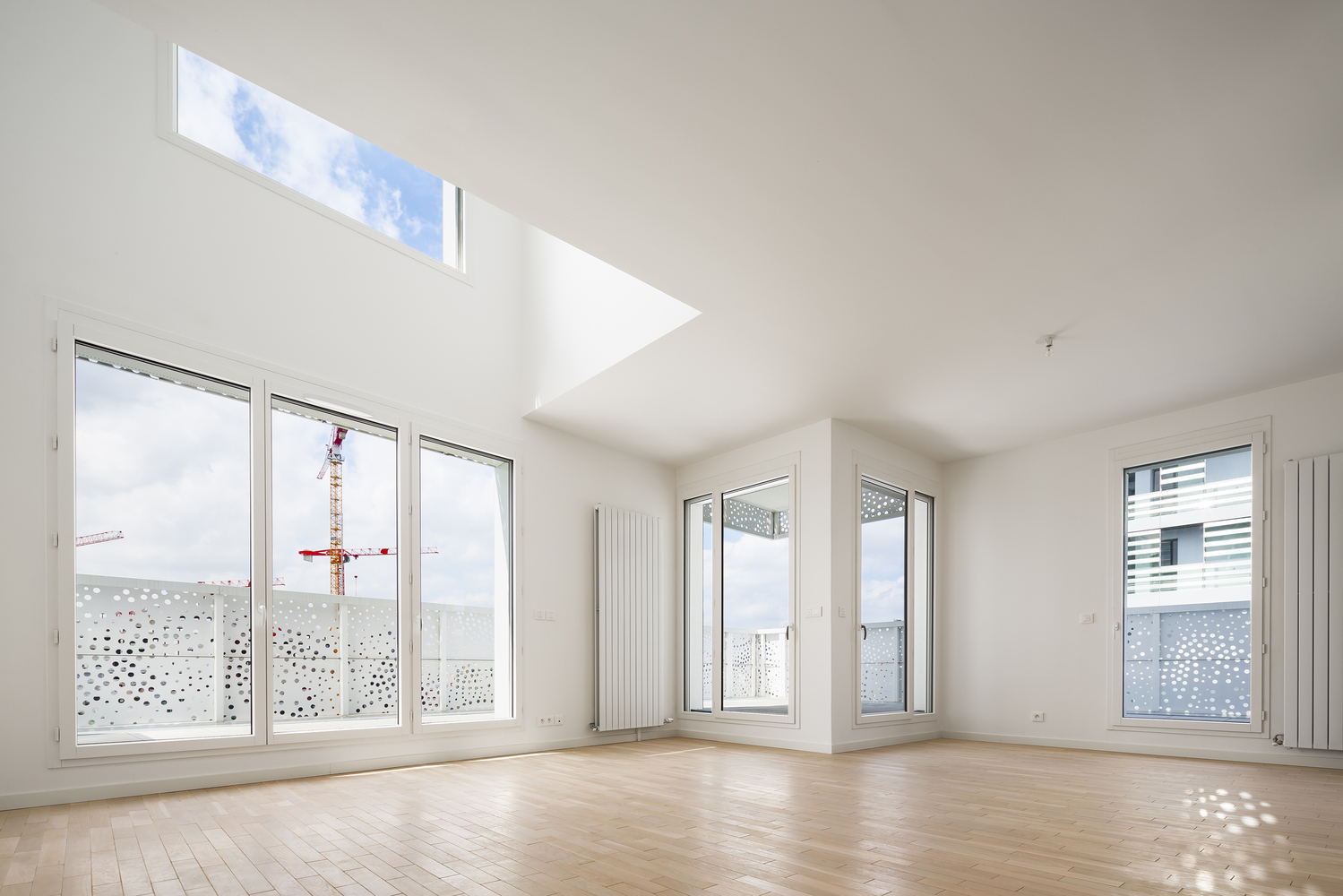

法国FAM + PMI住宅内部实景图

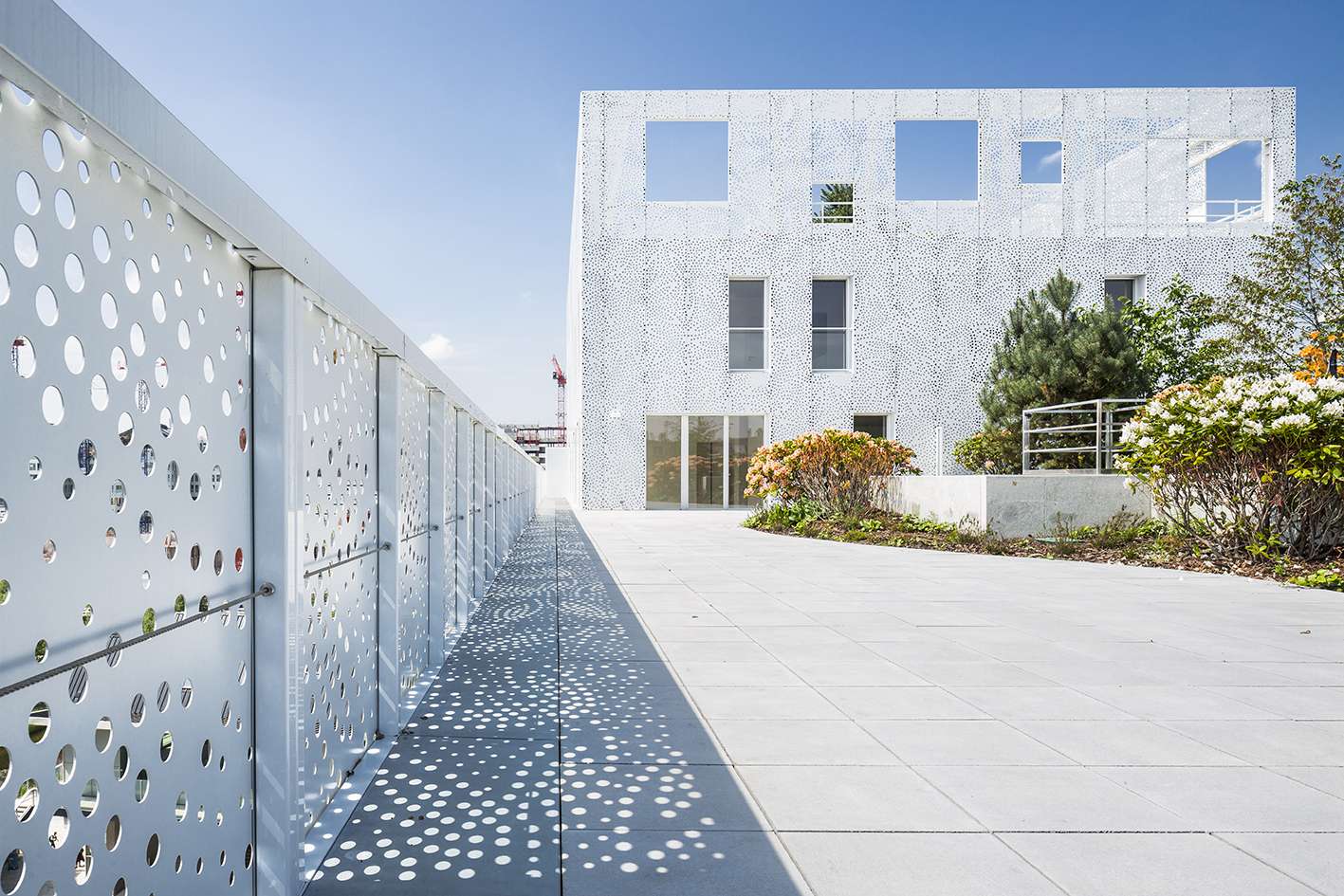

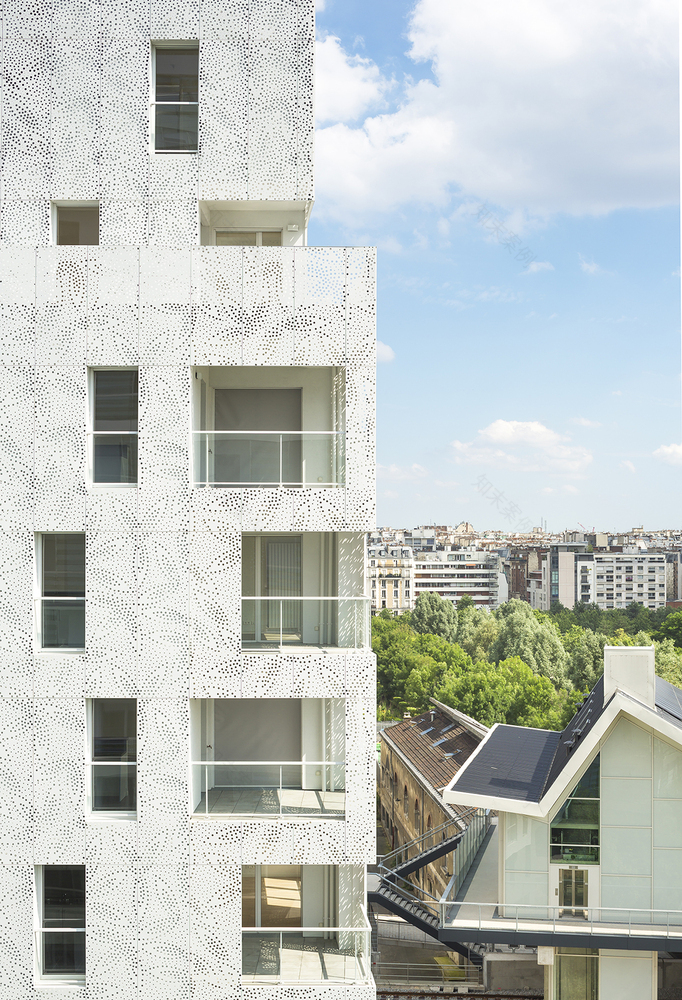

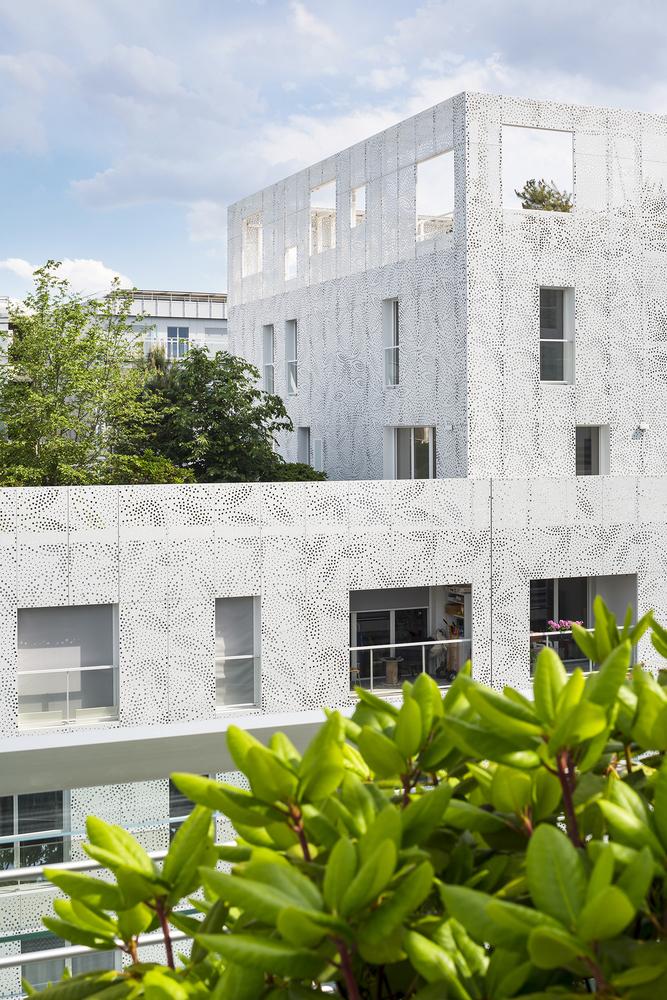

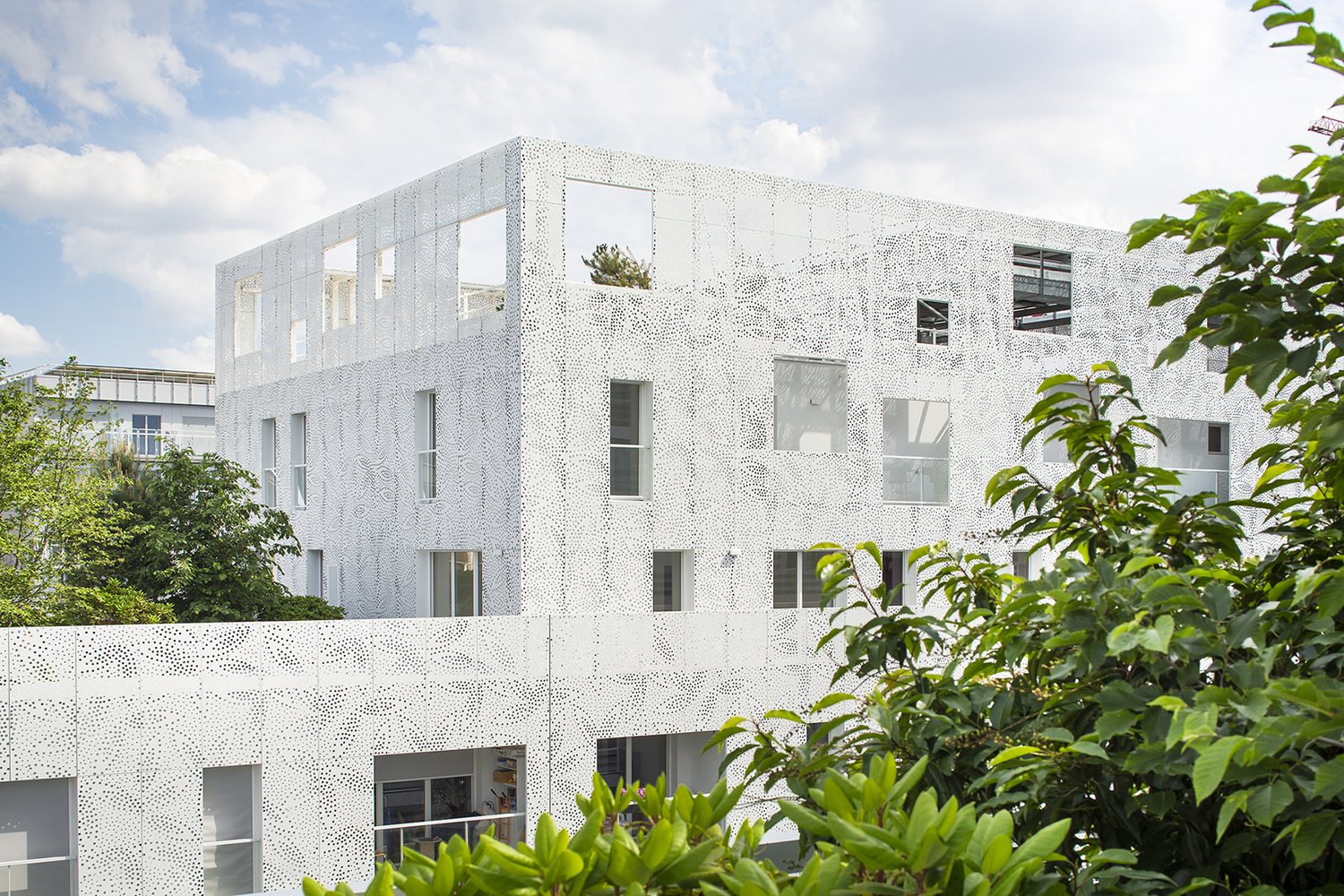

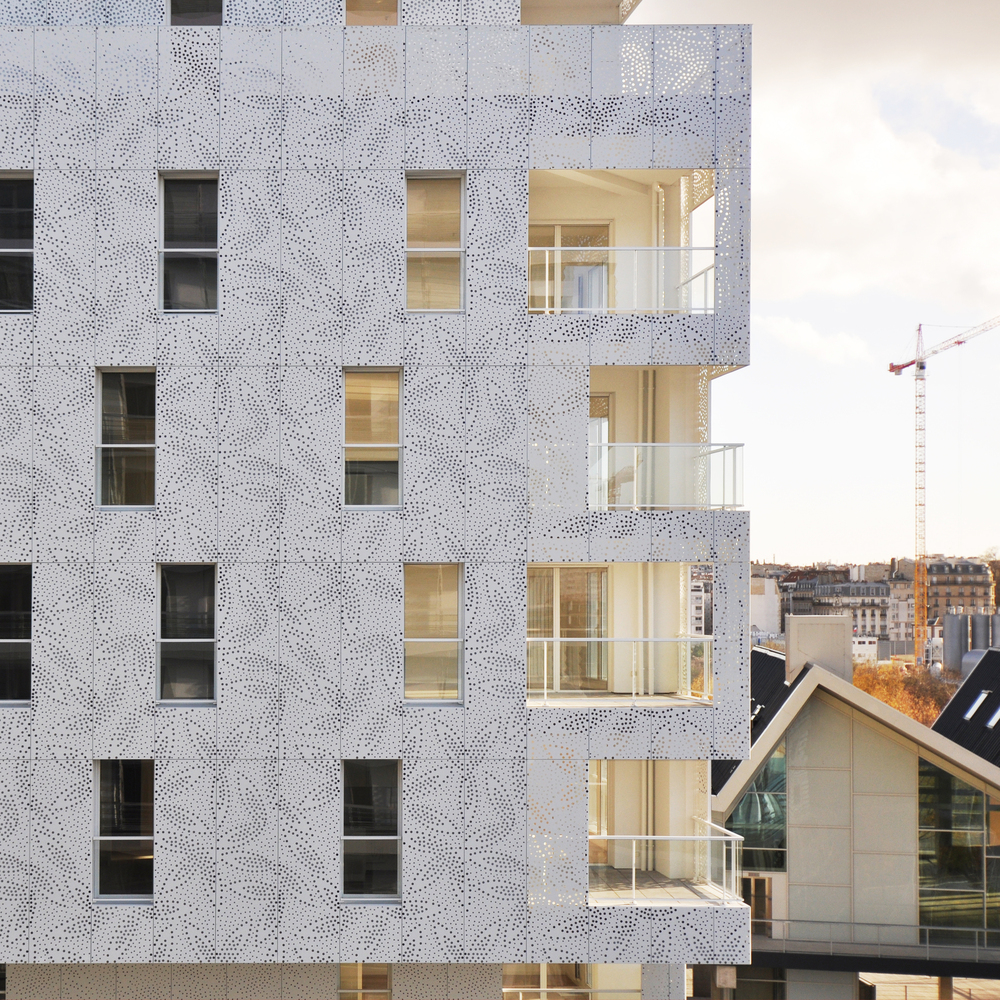

法国FAM + PMI住宅局部实景图

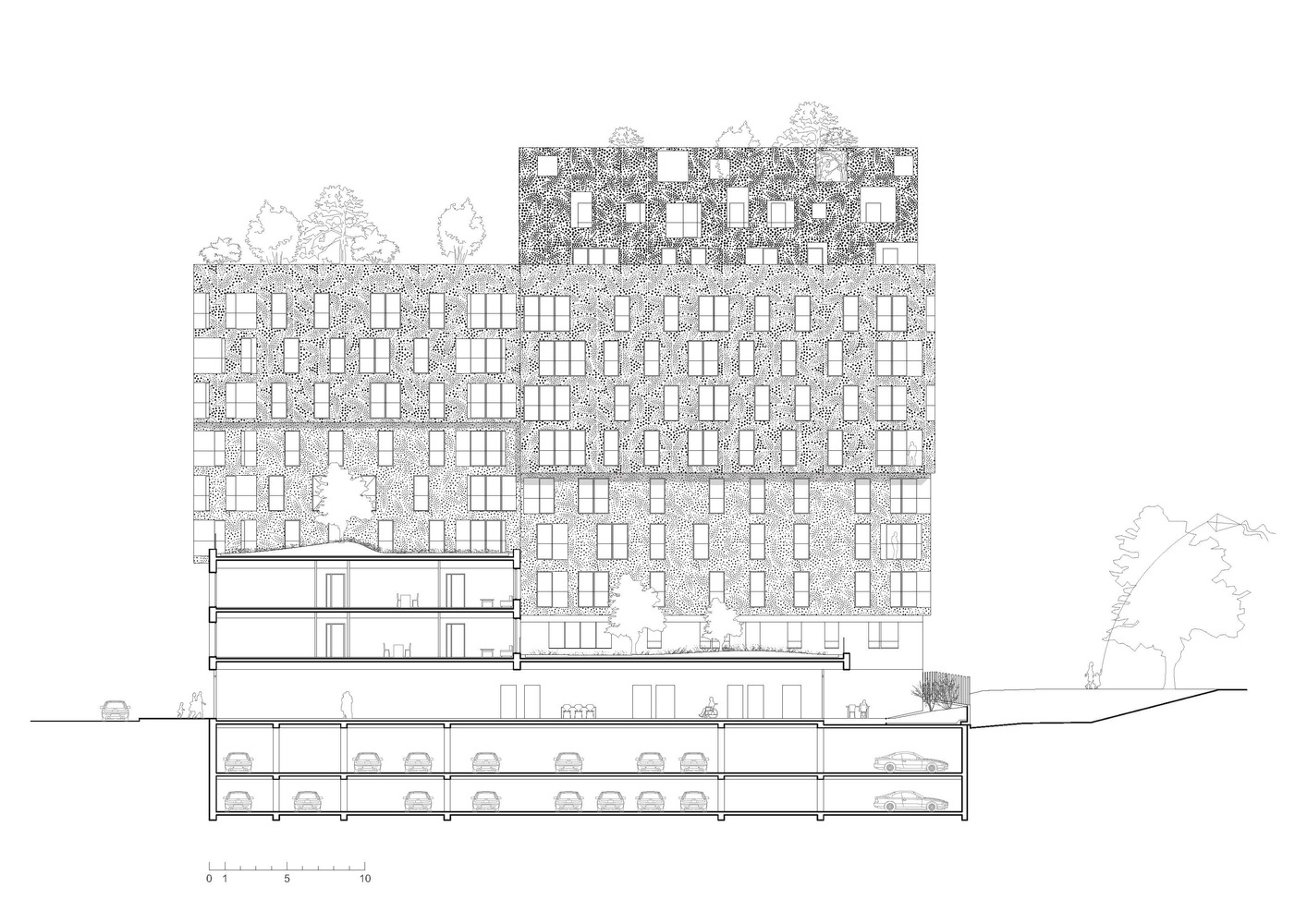

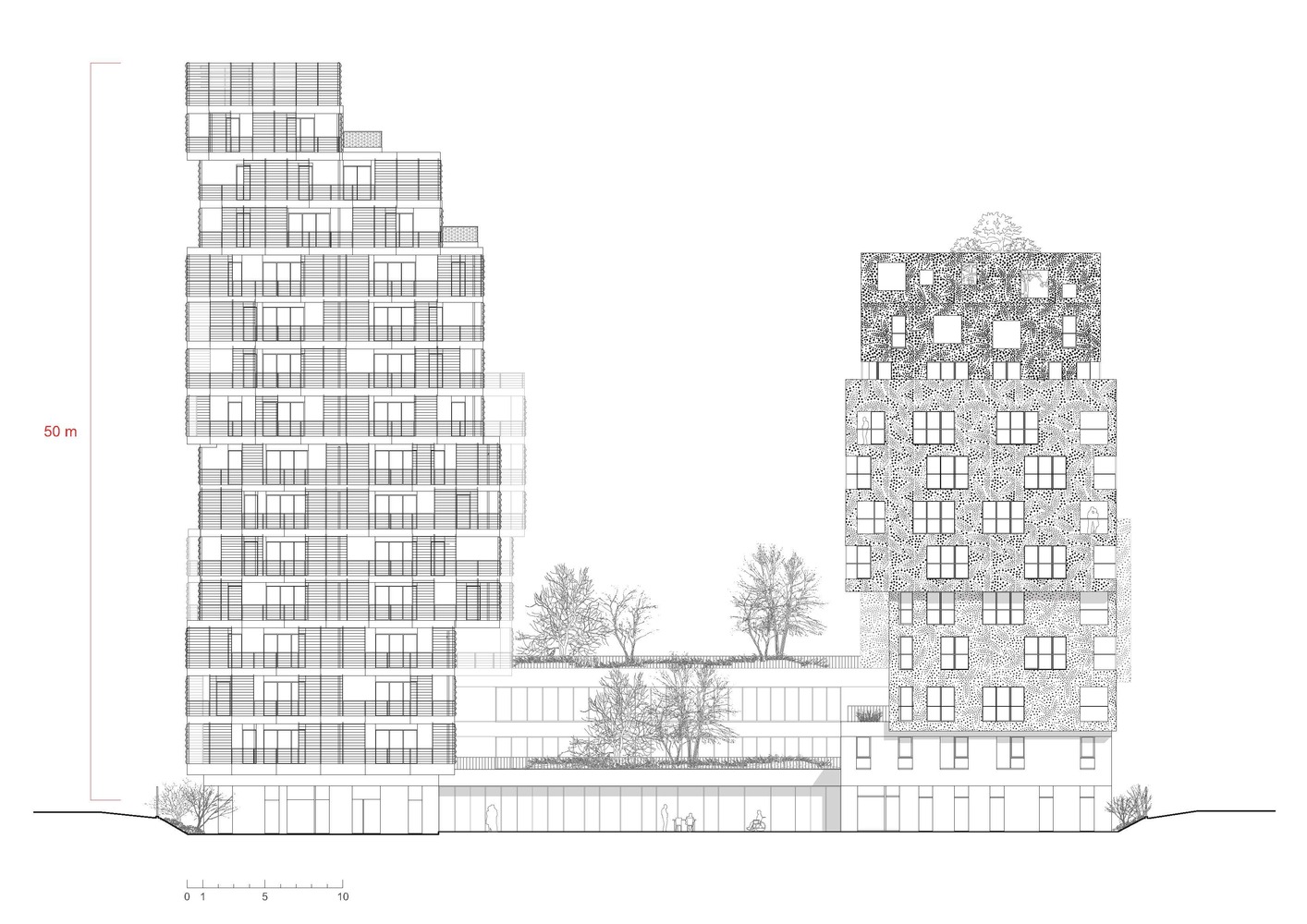

法国FAM + PMI住宅立面图
法国FAM + PMI
住宅平面图

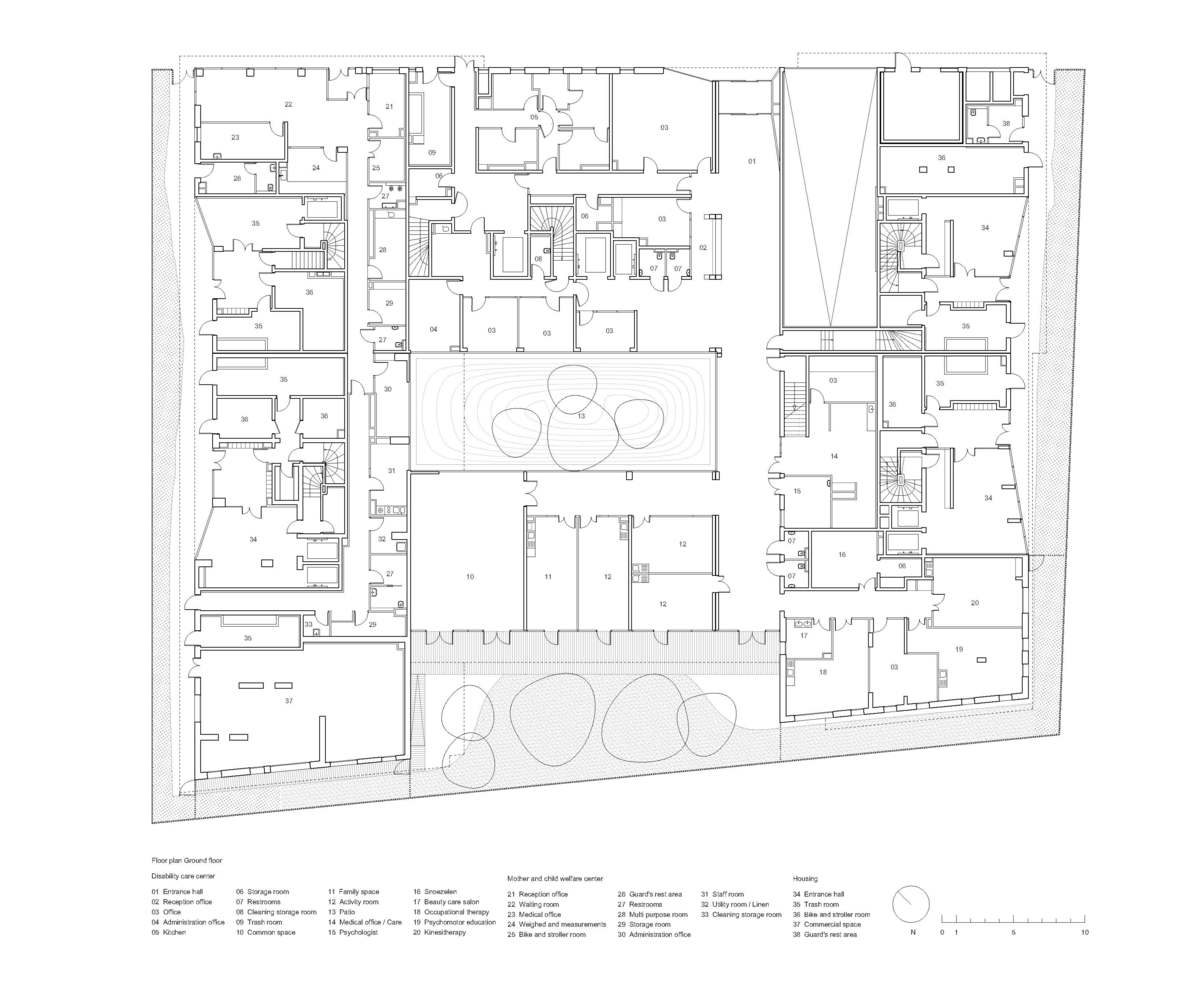

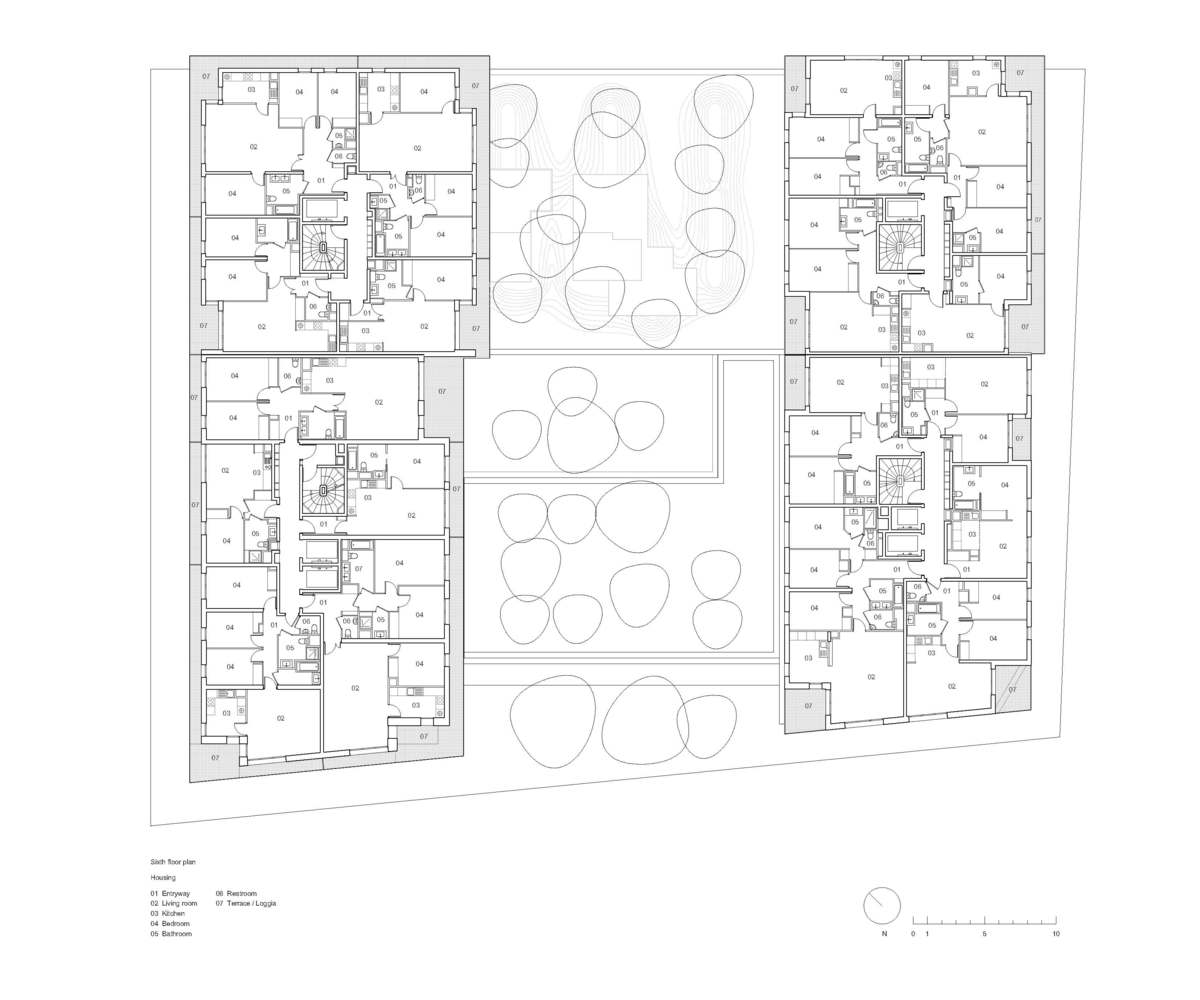

法国FAM + PMI住宅平面图
